Within Saudi Arabia, virtually all the population has access to electricity. However, given the large area of Saudi Arabia (2.15 million m2
), a considerable number of communities, villages, and rural areas are powered by diesel generators through an isolated grid given that connecting these remote locations to the main grid with transmission lines is prohibitively costly [1
]. According to 2016 data, over 50 remote locations kingdom-wide were diesel-powered. In addition, nearly 19,000 homes were relying on on-site diesel generation for their energy needs as per the 2017 Saudi household energy survey. Some of these homes would obtain their diesel from gas stations, which means that they use (subsidized) diesel that is allocated for the transportation sector. Renewable technologies hold potential in providing energy for these remote locations cost effectively, and this includes solar photovoltaics (PV).
The rate at which global solar photovoltaic (PV) systems were deployed, in particular, has proven to be remarkable. In 2016, a record 75 GW of PV were installed worldwide, and another record installation of around 100 GW followed in the subsequent year. By the end of 2017, the total cumulative installed PV capacity worldwide reached approximately 400 GW [3
], representing a little less than a fifth of total global renewable installations (including hydro). In addition to low operational and maintenance costs required to run a solar system, the major drop in module prices (which are now as low as 0.30 $
/W), and hence capital cost, has been a major contributor to global solar PV deployment.
The battery storage market is also witnessing similar record-setting growth. According to Bloomberg New Energy Finance, total global battery storage capacity was less than 5 GW by the end of 2017 [4
]. There is some discrepancy between reports as to how much battery storage capacity actually exists, and this uncertainty stems from the lack of a standard methodology that links battery capacity in energy terms (watt × hours) to battery capacity in power terms (watts). Notwithstanding this challenge, the International Renewable Energy Agency (IRENA) estimates the current global battery capacity in power terms to be 11 GWh worldwide [5
]. Costs of battery storage have also declined: from about 1000 $
/kW h in 2010 to roughly 200–300 $
/kW h [6
] recently. Battery prices vary within a relatively wide range and reflect different applications including electric vehicles, residential systems, and utility. Despite the falling costs of batteries, they cannot be considered cost-effective across all applications and countries as of yet.
The World Bank estimates that well over 1 billion people have no grid electricity access [8
]. When possible, diesel generators are the de facto source of energy for such areas lacking a grid [1
]. As the costs of solar PV and storage systems come down, a fully renewable and reliable off-grid system can be attained. The latter option is an attractive solution as it avoids building transmission lines, reduces carbon emissions, suppresses noise, and eliminates vulnerability to the fluctuation of diesel prices. Researchers have assessed the economic viability of off-grid systems many years ago [9
With respect to solar panels, it is well-known that their power output depends mainly on their efficiency, angle of installation, and temperature. Incorporating the annual degradation rate of solar panels gives even a more accurate estimate of their output. However, the above-mentioned factors have little effect on the lifetime of solar panels [11
]. The lifetime of the panels is not immediately dependent on how much power was generated, and it is customary to get 25-year warranties from solar manufacturers.
Conversely, when speaking about battery lifetimes, the situation is starkly different. The temperature in which the battery operates and the discharging patterns are factors that affect the battery lifetime significantly, i.e., they can bring down the lifetime by more than half.

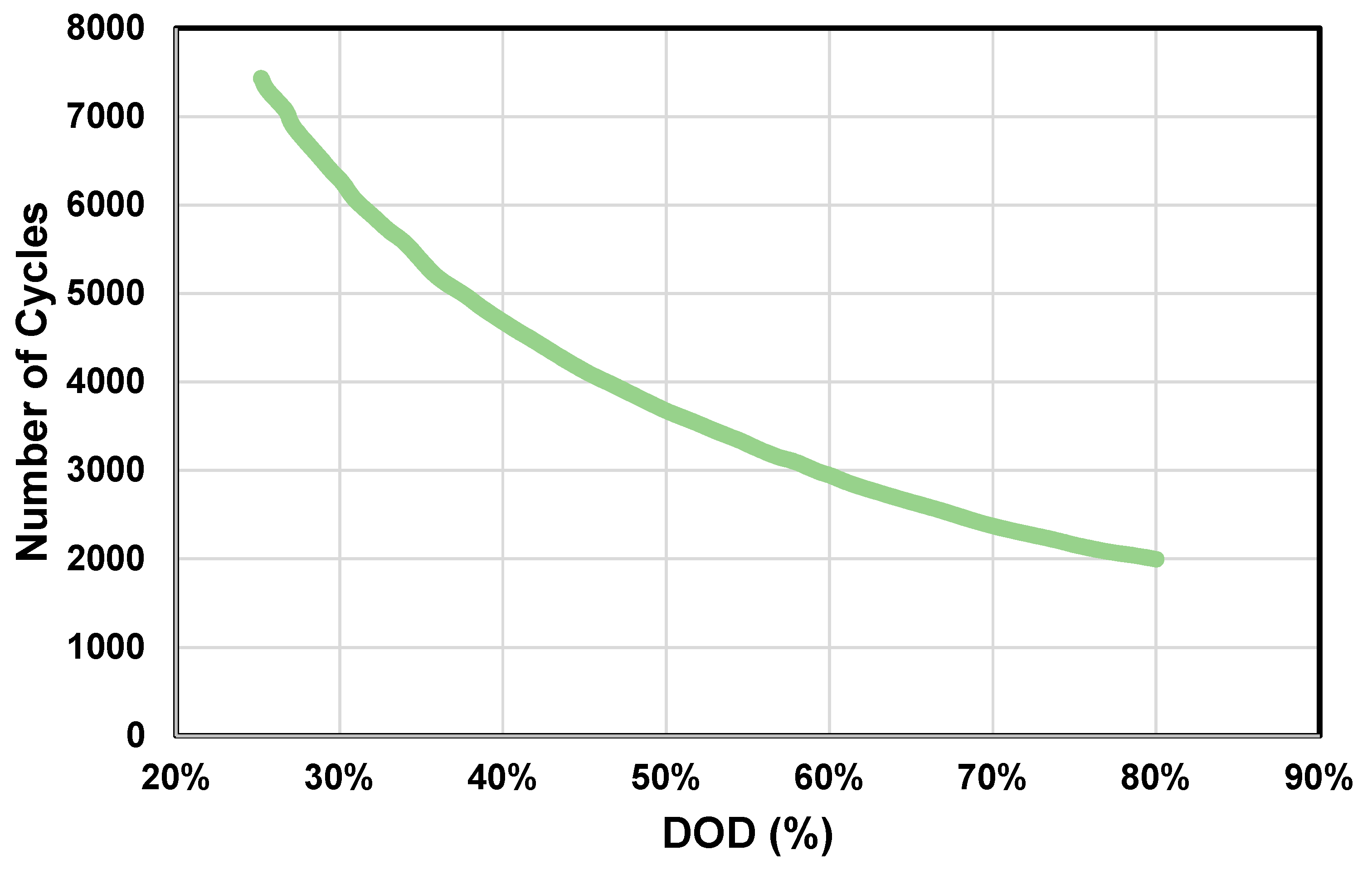

One of the most important factors that affect the lifetime of battery is the State-of-Charge. If a battery, after it is fully charged, delivers 80 percent of the energy available, then only 20 percent of energy capacity is left. In other words, it is said that the battery has reached a 20 percent state-of-charge, or SOC. Equivalently, the battery is said to have reached an 80 percent depth-of-discharge (DOD). Manufacturers generally recommend that the SOC of batteries does not fall below 50 percent to prolong the battery lifetime.
Disallowing the battery to drain below a 50 percent SOC, for example, requires a relatively large battery bank. On the other hand, if the battery is discharged deeper, i.e., lower values of SOC, the battery terminals wear faster—and this shortens the battery’s life. The shortened battery life has financial implications as it requires more frequent battery replacements. As can be seen, there is an economic trade-off between the minimum allowed SOC (MSOC) and the size of the battery bank. Most manufacturers do not recommend reaching very low levels of SOC (i.e., lower than 10 percent) as this can cause permanent damage to the battery terminals and/or negatively impact the state-of-health of the battery more rapidly. The state-of-health refers to the ability of the battery to store and deliver energy compared with a new battery [13
]. In other words, we note the compromise that must be exercised between the battery bank size (and hence cost), and ensuring the state-of-health of the batteries continues to be high for a longer period of time. A MSOC of 50 percent is the most commonly recommended value to use [14
]. Several battery manufacturers have introduced deep-cycle batteries, sold at a premium, which allow for low MSOC levels to be reached without permanently damaging the battery terminals.
Many researchers have carried out techno-economic studies on solar photovoltaic-battery systems (PVB). However, the effect of different MSOC levels on the economics of the battery system was not quantified. Studies have traditionally performed the analysis while keeping the MSOC fixed at 50 or 40 percent [16
]. Depending on the load profile and the size of the PV modules, such a MSOC may result in an unjustified oversizing of the battery bank.

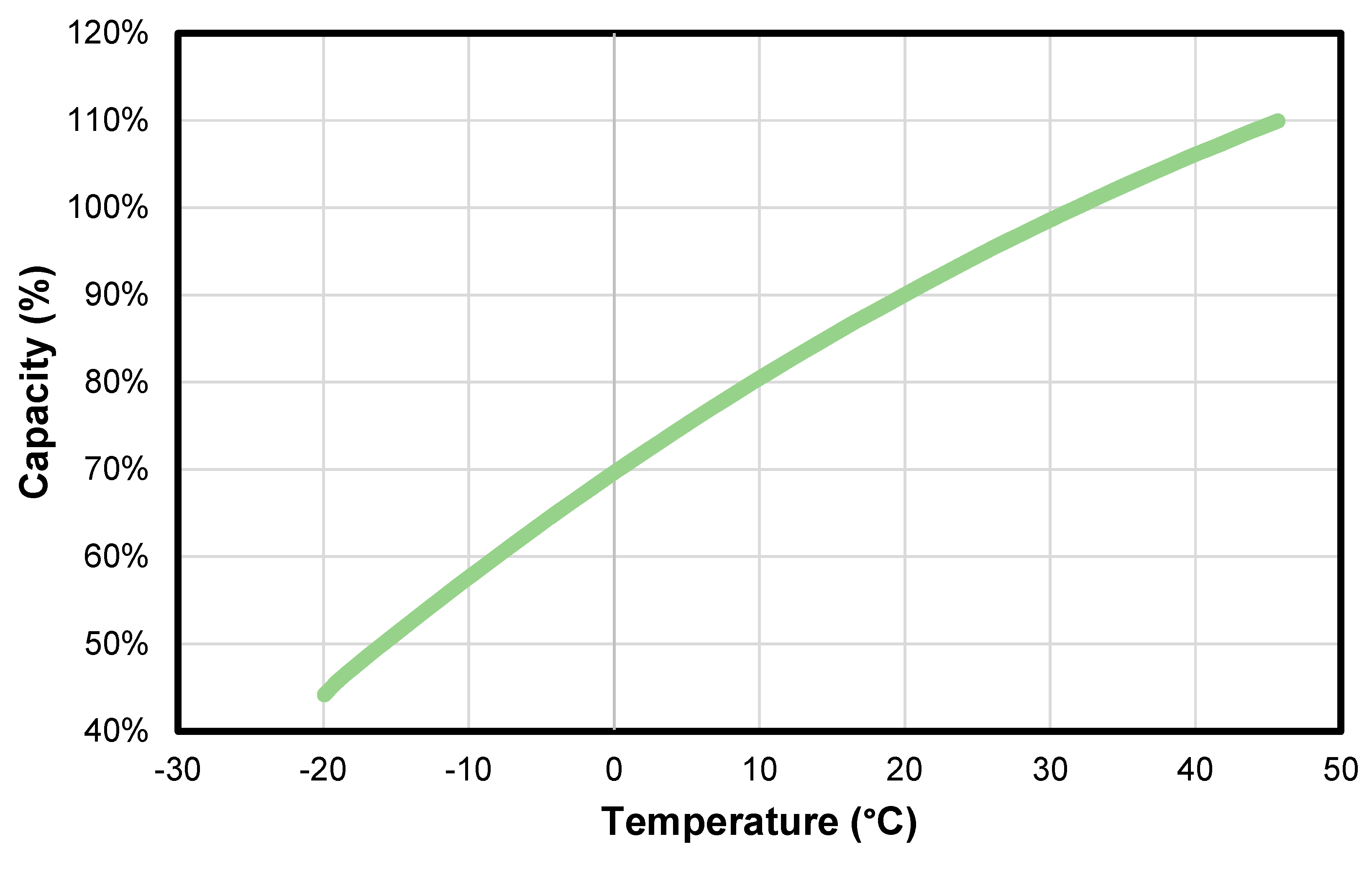

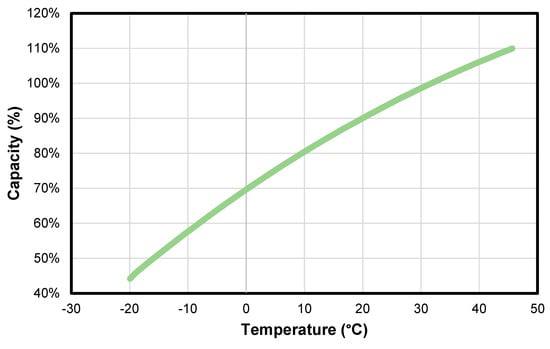

The temperature at which the batteries function in is also a factor that significantly affects the performance of batteries and hence the economics of any PVB. At high temperatures (around 40 degrees centigrade), battery capacity can increase by a factor of 20 percent. Along with this capacity increase, a degradation to the maximum capacity occurs with each cycle [17
]. Moreover, higher temperatures shorten the lifetime of the battery. Clearly, incorporating temperature effects can result in better design of PVB. The added value of incorporating temperature effects comes at the cost of more sophisticated modeling and, as will be shown in the next section, most authors ignore the temperature-related phenomena in their calculations.
As mentioned earlier, over 50 remote locations in Saudi Arabia were diesel-powered according to 2016 data. Given the logistical difficulty and significant costs associated with maintaining a stable supply of diesel for these locations, in addition to environmental impacts associated with burning diesel, several researchers have considered the feasibility of powering these communities with renewables [1
]. While these studies may have incorporated the effects of temperature on the output of the PV panels, the temperature effects on the battery were not included. Further, a single MSOC was used in the analyses (50 percent mostly).
In this paper, and for the first time, we quantify the financial implications of sizing PVB at various SOC levels below the typical 50 percent level, while simultaneously incorporating temperature effects on the energy content of the battery and on its calendar life. Further, the effects of different load profiles have been quantified and integrated into the analysis. To the best of our knowledge, no previous study has performed this analysis while taking into account all these factors collectively. Another important factor that distinguishes this study is the granularity level reached: we use hourly load profiles and hourly temperature profiles as these factors have a considerable impact on the economics. We find that it is more cost-effective (from a net present value perspective) to allow the battery to discharge to lower-than-typical MSOC values and replace a lower number of batteries more often, compared to a case where we discharge the battery to higher MSOC values and replace a larger number of batteries less often. Explicitly, using a high MSOC can increase the net present cost by up to 68 percent. Further, while the study was calibrated to Saudi weather, the results and insights extracted are also applicable to other countries with similar weather conditions.
2. Review and Motivation
In an ideal setting, sizing of storage systems is a direct calculation. Assuming a daily load of 10 kW h for example, then a 10 kW h battery is required. If three days of autonomy are desired, then the number of batteries required becomes three. Further, if the minimum acceptable SOC were to be chosen as 50 percent, then the total number of batteries in the battery bank would be six. When solar generation, loads, temperature effects, and inverter-sizing factors are included into the analysis, the above back-of-the-envelope calculation becomes insufficient in capturing the details of operation [23
], let alone perform an optimization for the system.
The literature has covered various aspects of incorporating storage into a power system including policy [24
], reliability [25
], economics [26
], and life cycle cost–benefit analyses [27
]. Furthermore, the studies tackled standalone [16
] and on-grid systems [28
]. Most of the studies, as expected, were focused on residential applications given the challenges associated with utility-scale storage. Nonetheless, utility-scale storage has also been considered in some studies [29
]. We also note that microgrids can include diesel generation [31
]. However, given the negative environmental consequences that diesel causes, there is growing interest in displacing diesel with renewable technologies [33
With the exception of batteries, the capacity of all generation technologies is defined in watts (W) and the costs are defined in dollar-per-watt ($
/W). In other words, when deciding on the capacity to be installed, the capacity is given in power terms. Battery capacity, on the other hand, is defined in energy terms, i.e., watt × hours (Wh) or in ampere × hours (Ah). As a result, battery costs are defined in $
/Wh terms. As such, defining the cost of a hybrid system containing a battery component is not an area of consensus. The U.S. based National Renewable Energy Laboratory (NREL) in collaboration with Rocky Mountain Institute (RMI) resorted actually to comparing systems based on the total required cost only given the difficulty in arriving at a reliable metric [35
For a single technology, calculating an average cost of generation for the entire system, commonly referred to as the levelized cost of energy (LCOE), is relatively straightforward. However, when dealing with a mix of technologies, arriving at the LCOE becomes more difficult especially if a renewable source is part of the mix. The ‘value’ of a kW h generated from PV during off-peak hours is not to be equated to that being generated during peak hours; associating an appropriate monetary value to such a role for PV is not immediately apparent. Similarly, storage systems add an additional dimension of complexity when integrated into a power system as they are dispatchable, contribute to system reliability, but require to be charged. Certainly, the literature does not agree on how the overall generation cost of a system possessing storage should be calculated. Many papers have tackled this topic and presented relatively complex methodologies to derive a generation cost for a PVB [36
The battery lifetime and performance are heavily dependent on a number of factors including for example temperature and how deep the batteries are discharged (MSOC, as mentioned in the previous section). Although chemical studies have been performed to assess the effect of corrosion on battery performance [38
], such studies are not typically included when analyzing PVB for simplification purposes. Thus, in this paper, we will perform a techno-economic analysis for a standalone PVB while taking into account temperature and SOC effects on battery lifetime. Note that the temperature effects that would be considered are twofold: the effects of temperature on the watt-hour battery capacity, and the effects of the temperature on the lifetime through the degradation that occurs with cyclical charging and discharging.
In Table 1
, we provide a review of papers that have performed sizing and optimization analyses for a PVB. Based on this review, we see that no reference has taken into account the temperature effects and a varying MSOC level in their design while simultaneously considering different load profiles. This finding served as the main motivation for this work.

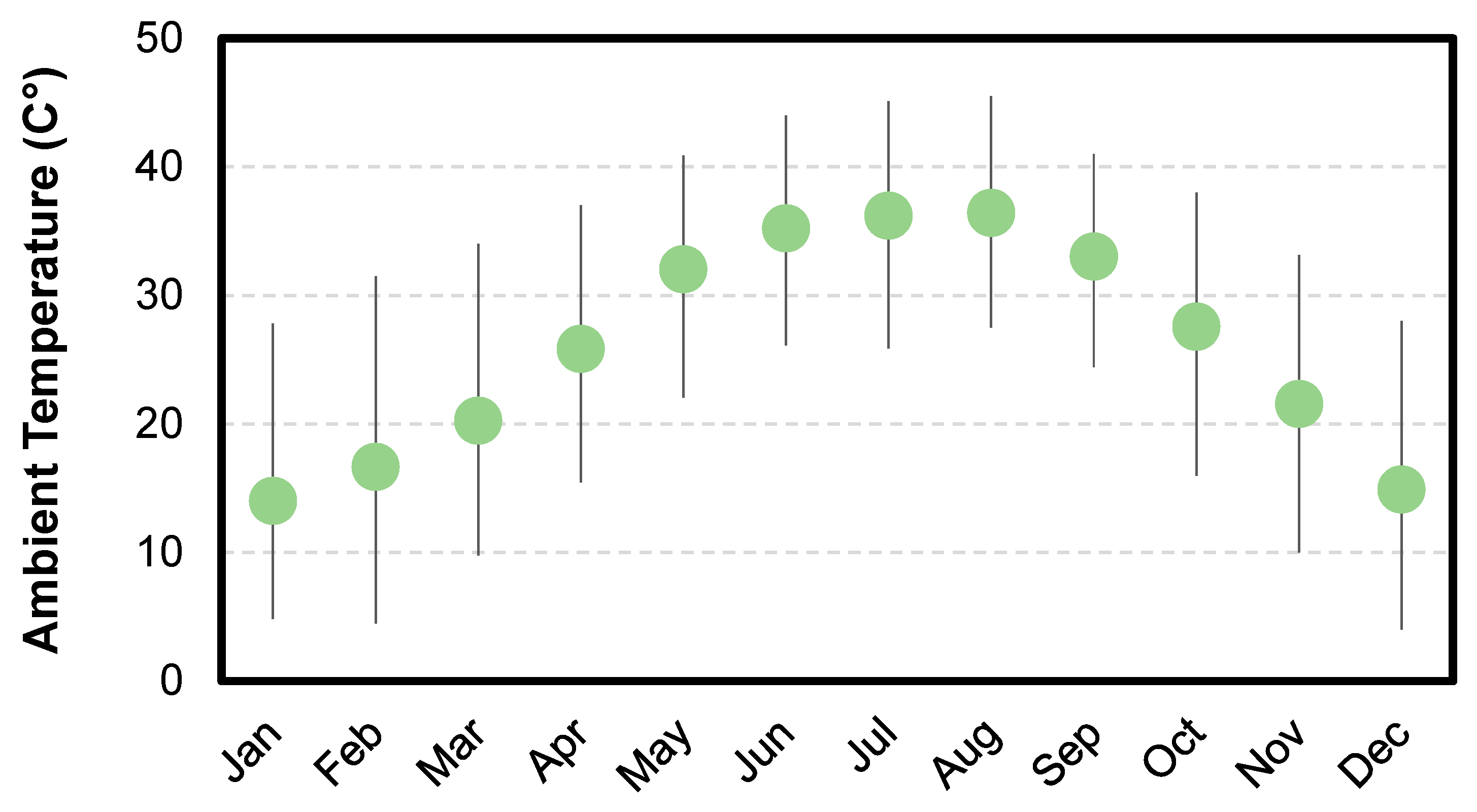

Higher temperatures cause a reduction in the power output of PV modules, which should be considered when sizing the PV array and the battery bank as well. PV modules also suffer from a small, but nontrivial, degradation to their output with age. Given these numerous parameters and interlinks, this paper will attempt to provide a detailed assessment of PVB considering simultaneously the temperature and aging effects that PV modules and storage systems suffer from.
4. Results and Discussion

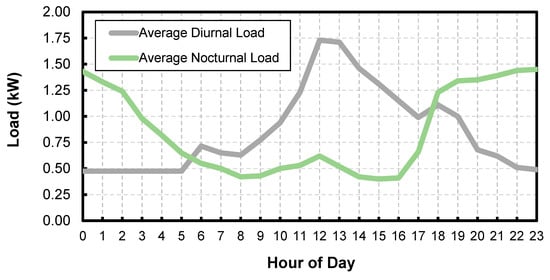

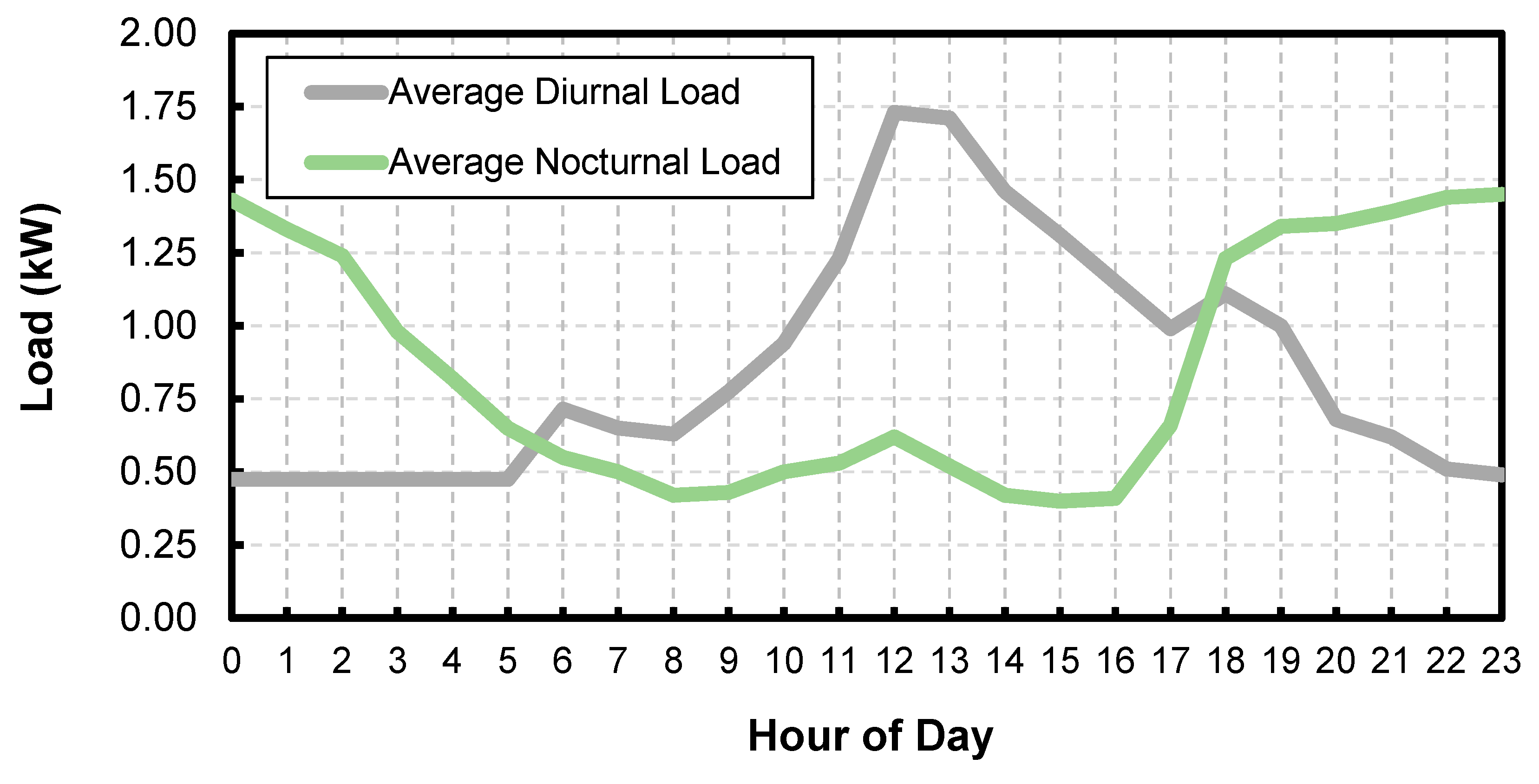

With all the assumptions documented and the methodology explained, we can now provide the results from our analysis. Recall that the paper is attempting to quantify the effects of hot climates on standalone PVB at different MSOC levels and different load profiles. We first present the results for the diurnal load profile.
4.1. Diurnal Load Results
In Table 5
, we summarize in the top half the financial results along with the optimum size for the PV system and the battery bank incorporating the temperature effects for different MSOC constraints. Note that because the battery possesses a nominal voltage of 6 V and the battery bank voltage was chosen to be 24 V, there will be 4 batteries in each string. In other words, the total number of batteries allowed in any configuration will be a multiple of 4 to ensure a bank voltage of 24 V is always met.
As can be seen, the minimum NPC appears at a MSOC of 20 percent. From the results acquired, it is seen that replacing a lower number of batteries more often is more economic than replacing a larger number of batteries less often. In the latter, the overall number of batteries replaced throughout the lifetime of the project is smaller than the former. Note that the number of replacements and the total number of batteries used throughout the lifetime of the project for the 20, 30, and 40 MSOC is the same, but is higher in the 50 percent MSOC scenario. However, in order to meet the more stringent requirement of the higher MSOC, the model chooses to increase the PV system size. We note that the battery costs include also their installation costs.
At the 50 percent MSOC level, a large PV system will no longer be able to meet this SOC level, hence the model resorts to a larger battery bank. The larger number of batteries in this case results clearly in a higher NPC and a larger number of batteries required throughout the project lifetime. Note that the minimum NPC is not achieved at 50 percent MSOC, which is the commonly accepted design value. Rather, it is achieved at 20 percent. Explicitly, the NPC at 50 percent MSOC is higher by 68 percent compared to the NPC at 20 percent MSOC.
With stricter design constraints, i.e., as the MSOC value is raised to 60 and 70 percent, the number of batteries required grows exponentially. We note here that the theoretical solution of 108 batteries as arrived at by the model is technically problematic. Battery manufacturers recommend no more than 4–5 strings to be connected in parallel to ensure charge balancing between the strings. Hence, a battery of 108 batteries (i.e., 18 strings) is not practical, and a different battery possessing different characteristics should be sought.
In order to assess the effect of temperature on our results, we re-ran the analysis without incorporating temperature effects. The results are shown in the bottom half of Table 5
, where there is a significant difference in the NPC between both cases. Excluding the case where the MSOC is set to 70 percent, the more realistic scenarios which incorporate temperature can more than double the NPC. The additional costs that stem from incorporating the temperature effects are due to the additional battery replacements required.
4.2. Nocturnal Load Results
Adopting the same rationale, Table 6
shows the optimum sizing for a case where the load occurs mainly during nighttime. Once again, we note that the optimum scenario does not occur at the widely accepted rule-of-thumb MSOC value of 50 percent MSOC. Although a lower MSOC means that the homeowner will replace the batteries more often, the total number of batteries that will be bought throughout the lifetime is smaller. Note that in all cases, the days of autonomy condition is always met. In other words, the additional cost that is incurred by the homeowner by specifying a higher MSOC is not fully justified.
Because the load is mainly nocturnal in this case, the batteries will have a larger contribution of meeting the load compared with the previous case and hence higher throughput. Thus, and as expected, we see that the number of batteries required is higher (and so is the NPC) in order to satisfy the MSOC condition. Although there is small reduction in the PV system size and hence its initial cost, these savings are shadowed by the larger number of batteries that is required to meet the load. Similar to what was shown above, we also show the results without accounting for temperature effects, and the differences are substantial—even higher than the diurnal load case.
5. Discussion and Policy Implications
5.1. Nocturnal Load Results
From the results above, we see that designing solar-storage systems while fixing the SOC constraint to 50 percent as generally practiced is not necessarily the most cost-effective route. Generally, higher MSOC translates to a larger battery bank and fewer replacements, whereas a low MSOC requires a smaller battery bank but more frequent replacements. In our analysis, the latter was less costly than the former. Further, and from a temperature perspective, high ambient temperatures increase the battery capacity. In other words, additional discharge power is available before reaching the MSOC that was defined at a temperature of around 25 °C. In the case of Riyadh, Saudi Arabia, this effect can affect the economics significantly as there are more than 100 days where daytime temperatures rise above 40 °C.
The additional effort of trying to capture the dynamics of the system while incorporating temperature is not only worthwhile from a financial perspective. Note that the larger the number of batteries required translates to additional space requirements. If the space is not available, then a different battery with a different capacity should be sought, which may require a different bus voltage and hence require a different inverter. Incorporating the effects of temperature early in the design phase prevents underestimating cost and space requirements, and can also impact the choice of components.
Comparing the results between the diurnal and nocturnal loads, we see, as expected, that the costs to satisfy nocturnal load are substantially higher than diurnal loads. When a higher MSOC is desired, clearly a larger PV size array or a larger battery bank can serve this objective. However, a larger PV array will most probably be the cost-effective option when the load is mostly diurnal. If the load is mostly nocturnal, then the specifics of the load and discharge patterns that occur will determine the most economic option.
Based on the analysis, we see that incorporating temperature, load, and MSOC parameters affect the economics and space requirements of PVB systems significantly. As we noted in the previous section, incorporating temperature effects can more than double the number of batteries replaced throughout the lifetime of the ‘project’. It was shown how the NPC varies quite remarkably between the different cases. Although the NPC considers the initial capital, we have to explicitly affirm how considering these parameters has an immense implication on the capital required. From the perspective of a homeowner, who may be considering to power his home via a PVB, a diesel generation or a hybrid of these, the comparisons will not be meaningful if these operational details are not taken into consideration.
The same argument applies for governments trying to electrify rural communities [52
] that have no power—programs knows as rural electrification programs [53
], reduce diesel consumption in communities that rely on diesel [8
], or completely displace diesel in these communities [54
]. Table 5
indicates that using a MSOC 20 percent reduces the net present cost of single home to nearly $
70,000 compared with $
117,000 when a MSOC of 50 percent was used. Note that if the government is to fund a program of electrification for a village of 1000 homes, then the net present value of the savings over the lifetime of the project reaches $
For PV applications for example, ignoring the annual panel degradation may not necessarily affect the overall policy direction. However, and in the case of storage systems, ignoring the temperature effects can result in false economic conclusions which can entirely skew the decision-making process. Accounting for temperature provides a more realistic estimate of the financial commitments needed for endeavors encompassing rural electrification and/or diesel displacement.
5.2. The Diesel Alternative
A natural question that may arise here would be related to the overall cost of satisfying the load with diesel only. Hence, we answer this question by rerunning the model created but stipulating that the demand is met by diesel generator(s) and no batteries. To allow a fair comparison, we assumed that the load will be met at all times, which was the same constraint that applied in our previous analysis. In this effort, we deduced the cost of meeting the load if each home owned an independent generator(s) and if the community were to be powered through a diesel-only microgrid. In the case where each home is powered independently, no grid establishment/maintenance costs would be incurred. However, in the microgrid scenario, more efficient generation would be attained due to economies of scale. Large-storage was not considered since they have not matured yet as explained earlier.
In the independent generation and microgrid scenarios, at least two generators would be needed in order to ensure stable supply: one generator would be available at times when the other is undergoing maintenance or being replaced. As expected, and after consulting with several diesel generator provider websites, it was found that smaller generators tend to possess a higher $/W cost and relatively lower efficiency. In addition, the costs of generators vary widely (~0.20 $/W to 1.5 $/W) depending on the manufacturer and additional functionalities the generator may possess (digital panel, electric startups, low-noise, etc.).
For the load under consideration in the individual homeowner scenario, air-cooled diesel generators were used, and these types of generators typically possess lifetimes of less than 3000 h. On the other hand, for the microgrid scenario, a larger diesel generator that is water-cooled would be used, and these possess lifetimes of about 15,000 h. Once again, specifications vary between different models. Table 7
summarizes the assumptions used for both types of generators in our analysis. The discount rate and project lifetime remain the same as indicated in Table 2
Based on these assumptions, we compare the costs of delivering energy to 1000 homes and summarize the results in Table 8
. Note that we have considered several diesel prices that range from 0.10 $
/L to 1.5 $
/L. These prices reflect actual ranges in many countries worldwide; in fact, prices can reach as high as 1.7 $
/L in many countries including for example UK, France, and the Scandinavian nations. The price of diesel in Saudi Arabia, however, for the utility and industrial sectors is 0.10 $
/L, and is 0.13 $
/L for the transportation sector.
The first observation that could be made about Table 8
is the expected cost difference between the individual generation scenario and the microgrid scenario. Although the individual generation scenario is not entirely practical, it is included herein for comparison and comprehensiveness purposes. As expected, the microgrid scenario is more economic and is also more environmentally friendly. The larger-size generators use the fuel more efficiently and hence emit less carbon.
It is worth noting the difference between the microgrid scenario and the PVB scenarios. Notice how attractive the scenario of PVB without temperature inclusion seems to be at a first glance—it costs nearly half of the case for a microgrid at a diesel price of 0.10 $/L. However, and as shown in this paper, excluding the temperature and MSOC effects from the analysis results in a significant underestimation of the actual costs. A more realistic cost would be in the range of 100 million dollars at a MSOC of 30 percent.
At the current prices of diesel in Saudi Arabia, the microgrid options can be considered cost-effective. However, Saudi Arabia has embarked on an energy price reform journey that will likely result in an increase in primary fuel prices (including diesel) and end-user electricity prices. Note that at 0.50 $
/L for example, the cost of a microgrid becomes 105 million dollars while the cost of a PVB scenario remains the same as it is independent of diesel prices. As indicated in Table 8
, a PVB avoids burning around 2 million liters of diesel, and avoids emitting more than 5000 tons of carbon.
In our analysis here, there were three parameters that were not included: (1) the likely learning curves (i.e., cost reductions) that storage systems would follow [55
], (2) the costs of maintaining the distribution network in the microgrid scenario [56
], and (3) the costs of externalities [57
]. The latter may be represented by a carbon tax for example for every ton of carbon emitted in the microgrid scenario. These factors, if considered, will make the case for a PVB more favorable. Based on the assumptions used in this paper, we deduce that the microgrid scenario and the PVB (incorporating temperature) would possess the same net present cost if the diesel price were set at ~0.34 $
/L. Note that this figure is to always be associated with the assumptions made in Table 7
. Changing the values in Table 7
would obviously affect this value. However, it is a representative value that could serve as a benchmark for further policy discussion.
This paper has quantified through a technoeconomic model the financial implications of considering temperature, various state-of-charge values, and different load profiles on standalone solar PV systems battery storage in a hot environment. It found that representing the battery performance more realistically by incorporating temperature effects increases the net present cost by at least 73 percent in the case where the load is mainly diurnal. The situation is further exacerbated for mostly nocturnal loads; accounting for temperature effects here at least doubles the net present cost. What distinguishes this paper from other papers with respect to the temperature incorporation is that it has considered, simultaneously, the effect of temperature on battery capacity and lifetime, different load profiles, and different minimum allowed state-of-charge values.
When installing solar-storage systems, the literature mostly recommends that the battery capacity should be chosen while ensuring that the battery does not deplete its capacity below 50 percent. This rule-of-thumb is advised not to damage the battery terminals, which worsens the battery’s state-of-health and, thus, shortens the battery’s lifetime [58
]. Based on our study, we find that, in hot climates, specifying a lower minimum state of charge can still satisfy the reliability considerations while achieving a lower net present cost. The latter occurs because the capacity of batteries increases at higher temperatures which means there is more stored energy to meet the load. The additional available energy means that fewer batteries are required in the bank which significantly reduces costs. We also note that the additional costs incurred due to more frequent replacements do not outweigh the savings achieved from the lower number of batteries required in the bank. As deep-cycle batteries are becoming more common, it is expected that lower state of charge values (i.e., below 50 percent) will continue to emerge.
The effect of the load profile on the costs in solar-storage systems was also quantified. Loads that are mostly nocturnal will require a larger battery bank compared to a case where the load is mostly diurnal. Over the lifetime of the project, a load that is mostly nocturnal can require 50 to 100 percent more batteries compared to a scenario where the load is mostly diurnal.
Although these findings are insightful in their own right, they can also provide context when compared to providing energy to a small community. Comparing the cost of delivering energy via a diesel-powered microgrid to a solar-storage system without incorporating temperature effects will misguide decision-makers with respect to the attractiveness of both options. Currently, we find that a diesel microgrid can be deemed as cost-effective compared to solar-storage system in some case (depending on load and state-of-charge). We also find that a diesel microgrid scenario and solar-storage system (incorporating temperature) would possess the same net present cost if the diesel price were raised to 0.34 $/L. Current diesel prices in Saudi Arabia for the industrial and utility sectors is 0.1 $/L.
