Sustainability 2018, 10(5), 1501; doi:10.3390/su10051501

Article
Energy Performance of a Light Wood-Timber Structured House in the Severely Cold Region of China
1
and
2,*
1
Department of Architecture, School of Human Settlements and Civil Engineering, Xi’an Jiaotong University, Xi’an 710049, China
2
Department of Building Environment and Energy Engineering, School of Architecture, Harbin Institute of Technology, Harbin 150006, China
*
Author to whom correspondence should be addressed.
Received: 14 February 2018 / Accepted: 7 May 2018 / Published: 9 May 2018

Abstract

:
The purpose of the study was to determine the energy performance of a timber structured house built in Harbin, a severely cold region of China. The research team conducted a field test on the house that lasted three months (15 January–15 April 2008). The test included the winter heating energy consumption, average indoor temperature and relative humidity, building heat storage capacity, heat transfer coefficient of the wall, total air volume of air-conditioning system, etc. The test results showed that the total heating was calculated to be 73,240.59 MJ in winter. Thermal imaging tests were carried out on the house and found no obvious thermal defects such as thermal bridges. In conclusion, the timber structured house has a good level of building energy conservation and would provide a good exemplary for green building design and construction in similar severely cold regions in the world.
Keywords:
timber structured house; severely cold region; energy consumption; energy conservation; energy efficiency

1. Introduction

Lightweight wood timber structured houses have the advantages of environmental protection, energy saving, flexible design, comfort and convenience. Ancient buildings in China were built using wood-timber for a thousand years, and some of these buildings are still in use now. The timber structure is easy to maintain and remodel. At the same time, light wood house has a good durability, fire resistance and thermal insulation performance, whose advantages are reflected in two aspects: (1) The lightweight wood is a natural insulating material, and the honeycomb structure of the wood makes the insulation performance much better than heavy steel and concrete materials. (2) The lightweight wooden keel within the cavity (within the cavity wall, roof and floor) can be filled with glass fiber and mineral wool insulation materials to further improve the heat insulation performance. Lightweight wood-timber structural materials’ thermal properties are about 400 times better than steel and 16 times more than concrete. In a 150 mm thick wooden wall, the heat insulation performance is equivalent to 610 mm thick brick wall [1].
In China, reinforced concrete has been mostly used to build residential buildings and lightweight timber structures are rarely considered. However, the lightweight timber structures could achieve three advantages: (1) reduce construction wastes caused by demolition of buildings; (2) improve the service life of buildings; and (3) reduce building energy consumption and improve living quality and thermal comfort level for building occupants.
Scholars have conducted in-depth studies on lightweight wooden structure for residential buildings. In terms of thermal storage capacity of wood-timber house, researchers found that it needs to be improved [1], but it has better thermal performance than brick house [2], and it impacts the energy consumption. Yu et al. tested it using Passivhaus Projektierungs Paket (PHPP) and found that one wood-timber house consumes 70 kWh/m2 in winter [3]. If we solve the thermal bridge, wood-timber house can have a better thermal performance [4]. In the whole life cycle, wood-timber is much more environmentally friendly than cement; it can reduce 35% of future emissions of a house [5,6,7]; and it can reduce carbon footprint [8,9]. In terms of house structure, studies show that it can provide a safe and suitable place to live and is suitable to cold climate [10,11]. Some researchers give optimized design of wood-timber house by architectural design [12,13,14,15,16].
Scholars have analyzed the structure, life cycle, carbon footprint, energy structure and other aspects of wood-timber house using simulation and literature review. However, there is currently a lack of a comprehensive analysis on the heating energy consumption, heat transfer coefficient and usage of air-conditioning system in winter in timber frame houses, especially in the severely cold regions of the world. In this work, the energy consumption of a lightweight timber house located in Harbin, China (45°41′ N, 126°37′ E) was studied by means of on-site energy consumption measurement. The purpose of this study was to evaluate the energy consumption in a light-wood house and determine whether it can meet China’s building energy efficiency standards as well as whether it could maintain the indoor thermal comfort of occupants. The central air conditioning was an independent residential use type system. The indoor temperature could be automatically adjusted. The house was unoccupied during the test to test the accuracy of the energy consumption in an unoccupied house.

2. Research Methods

2.1. Description of the Lightweight Wood-Timber House

The lightweight wood-timber house is located in Harbin, China (45°41′ N, 126°37′ E). This area is situated in severely cold region of China. The average annual temperature is 3.6 °C. The coldest month is January and the minimum temperature is −38.1 °C and the number of heating days is 176. According to the indoor reference temperature of 18 °C, the number of heating days is 4928 °C/day. The heat consumption index is 21.9 W/m2.
The house is south facing orientation. It is 6.29 m tall and has two floors. The first floor is 3.64 m and the second floor is 2.65 m. The building energy consumption calculation area is 196.75 m2. The building area is 189.18 m2. The building surface area is 532.58 m2 and building volume is 735.94 m3. The building volume factor is 0.63. The building is shown in Figure 1. The main wall structure is shown in Figure 2. The details of windows and wall areas of the house are shown in Table 1 and the structural details are shown in Table 2.

2.2. Test Program

The study of heating energy consumption is divided into three stages: the first stage of preparation, during 15–25 January 2008, was mainly to test and debug installed instruments, and try to discover and eliminate problems during the test.
The second stage of the test was continuous tracking test from 25 January to 15 April 2008. The following six items were monitored: (1) total heating quantity and average energy consumption; (2) the indoor/outdoor air temperature; (3) the indoor/outdoor relative humidity; (4) the heat transfer coefficient of the building enclosure structure as well as the thermal performance of doors and windows; (5) the surface temperature distribution of thermal bridge; and (6) the parameters of the residential air-conditioning system. The layout is shown in Figure 3 and Figure 4.
The data analyses were conducted in the third phase of the program. By analyzing the test data, the energy-saving performance of wood-timber house was determined.

2.3. The Standards and Instrument

The standards used for the monitoring of the building thermal performance was based on China building energy efficiency standard [17].
The instruments used included: 62 BES-01 temperature acquisition recorders, 20 BES-02 temperature and humidity acquisition recorders, 2 BES-G intelligent multi-channel temperature and heat flow testers, 2 sets of BES-E ultrasonic heating for the field detector, 1 set of QDF-2A thermal ball anemometer and 1 set of FLUKE Ti30 infrared imaging instrument.

3. Results and Discussion

3.1. Unit Heating Energy Consumption

During the test of the heat consumption of buildings with centralized heating, the following parameters were determined within the scope of the building: (1) the total heat supply of the building at the heating entrance; (2) the average indoor temperature of the building; and (3) the average outdoor temperature. The average outdoor temperature during the test duration was calculated according to Equation (1):
t e a = i = 1 m j = i n t e i , j m × n
where tea is the average outdoor temperature during the monitoring period, °C; tei,j is the j hourly measurement value of the i temperature measuring point, °C; m is the number of outdoor temperature measuring point; n is the total number of hourly measurements for a single temperature point; i is the number of outdoor temperature measurement points; and j is the sequence number of the measured value of outdoor temperature in i point.
The building heat supply test can be used by temperature sensors, flow meters and corresponding secondary instruments. When using the flow meter method to test the heat supply, the heating system must be continuously and stably operated. We used the flow meter method to test indoor and outdoor air temperature, supply and return water temperature, flow and other content, with ultrasonic flow test equipment, at a flow measurement accuracy of ±5%. The flow meter method should be tested according to the following methods: (1) installation temperature and flow test instruments, data acquisition instruments and heat metering instruments; and (2) the time interval for recording data should not exceed 30 min.
Building supply heat (MJ) was calculated using Equation (2):
Q g = 4.19 × 10 3 G i ( t g n t h n ) Δ T
where Gi is the water-flow supply at every time interval, kg/h; tgn is the water temperature supply at every time interval, °C; thn is the return water temperature at every time interval, °C; and ΔT is the time interval during the test, h.
The instrument for testing water temperature should adopt excellent (class I or II) thermocouple, the total uncertainty of the test should be less than 5%.
The heating consumption of the building unit should be calculated according to Equation (3) when testing under uninhabited conditions:
q h m = Q h m A 0 × t i t e t i a t e a × 278 H r q I H
where qhm is the unit heating energy consumption, W/m2; Qhm is the total heat quantity measured at the thermal entrance to the building for the duration of the test, MJ; qIH is the unit building area of the building interior heat gain, W/m2, 3.8 W/m2; ti is the average room temperature of all rooms, 16 °C; te is the the average outdoor temperature of the heating period, −10.0 °C; tia is the average temperature of indoors in a continuous time, °C; tea is the average temperature of outdoors in a continuous time, °C; A0 is the total area of the building heating, m2; Hr is the duration, h; and 278 is the unit conversion factor.
The heating consumption can be determined by the theoretical calculation. Then, the heat consumption of the heat transfer coefficient can be calculated from data obtained from field measurements. Finally, the heat consumption of the building units can be obtained by heat measurement and measurement of indoor and outdoor average temperature. Through the above calculation and comparison, the theoretical calculation and actual measurement were shown to have a good comparison. Therefore, the calculation of heat consumption can provide a good indicator of the actual consumption of the house in the future. The statistical bar chart of the weekly amount of heating used in the lightweight wood timber house is shown in Figure 5. The heating consumption is shown in Figure 6. The energy consumption results are shown in Table 3. In Figure 5, the first week consumed the most energy, because the house needed to be warmed. When the temperature is stable, e.g. Week 7, the energy consumption is stable, nearly 2000 MJ per week, and it is much less than Week 1. In Figure 6, the measured value is higher than converted value in Weeks 1–6, and converted value is higher than measured value in Weeks 7–12, because, when the room temperature is stable, the building energy consumption is reduced to normal, thus the measured value is less than the converted value. In Table 3, the energy consumption of buildings is 24.61 W/m2, which is lower than the energy consumption of ordinary buildings (more than 28 W/m2). This shows that wood-timber house can provide a low energy consumption and high comfort environment.

3.2. The Indoor Average Temperature

The indoor average temperature (°C) is the measured temperature during heating under normal operating condition of the building. During the heating period, the indoor activities in one or more representative locations were measured for at least 24 h to find the arithmetic mean of the hourly indoor air temperature value.
The average indoor temperature of a building should be based on the continuous detection of all temperature probes in the room and is calculated using Equation (4):
t i a = j = 1 n t m , j × A m , j j = 1 n A m , j
where t i a is the Indoor average temperature during the monitoring period, °C; t m , j is the hourly arithmetic mean of j thermometer measurement temperature during the monitoring, °C; A m , j is the j thermometer temperature for the heating building area, m2; j is the number of the indoor thermometer; and n is the number of thermometers in the building.
According to China energy effiency standard [17], the average indoor temperature during a monitoring duration should not be below a minimum of 16 °C. The maximum should not be higher than 24 °C. Figure 7 shows the rate of increase in the percentage of energy consumption under different indoor temperature when 18 °C was set as a benchmark indoor temperature.
As can be seen in Figure 7, if the indoor temperature of the building was reduced from the current 20 °C to 18 °C, the heating energy consumption would then be reduced by about 6% and the energy consumption would be reduced by 7.89%. The unit heating energy consumption would be reduced from the original 24.61 W/m² to 22.67 W/m², the amount of coal consumed would also be reduced accordingly. The indoor temperatures of the lightweight wood-timber house are shown in Table 4, and the temperature curve is shown in Figure 8. In Figure 7, it can be seen that, as the indoor temperature decreases, the energy consumption decreases accordingly. It shows that we could control the indoor temperature between 16 to 24 °C to achieve thermal comfort, thereby controlling the building energy consumption and reducing coal consumption. In Figure 8, the indoor temperature is basically fluctuating above 20 °C, and the indoor thermal comfort is good. The temperature fluctuation of the south room is larger than that of the north room. The outdoor temperature gradually increases from January to April, but the indoor temperature is basically unchanged. It shows that the outdoor temperature has little effect on the indoor temperature. In Table 4, the temperature of some rooms is higher than 24 °C, which is not conducive to energy saving and requires further control of its temperature. For example, the toilet is above 24 °C 70.73% of the time, while the living room is above 24 °C 35.92% of the time. The temperature of these rooms needs to be adjusted downward to be within the range of 16–24 °C.

3.3. Relative Humidity in the Unoccupied Test House

There is no relative humidity control device in the wood structure building. Therefore, the relative humidity cannot be controlled during the entire test period. We accurately measured and recorded the indoor and outdoor air relative humidity. The average indoor and outdoor air relative humidity is shown in Table 5, and the relative humidity test curve is shown in Figure 9. It shows that the average indoor and outdoor relative humidity was 17.95% and 55.14%, respectively.
The relative humidity of the indoor air has a certain impact on building energy efficiency. If the relative humidity is too high, the indoor dew point temperature will increase, and some buildings will cause condensation. In addition, if the humidity is too high, it will increase the energy consumption to some extent.
In Table 5 and Figure 9, the indoor humidity is only 17.95%, which is lower than the standard of 30%, and the interior is dry, which is not good for human health and requires humidification. The outdoor humidity is 55.14%, which is relatively humid. The invasion of humid air can increase building energy consumption. Therefore, it is necessary to improve the airtightness of the house and prevent indoor condensation.

3.4. The Tracking Indoor Temperature Decline with Time due to the Stopped Heating

The main purpose of the follow-up test of the drop in indoor temperature after time due to an accident is to examine the heat storage capacity of the building, which is particularly important for construction in severe cold regions. Through our test of 19.5 h of stopping the heating and testing the temperature of each room (sampling once every 10 min, automatic measurement), we found that most of the rooms are close to 0 °C or lower than 0 °C, indicating that, although the building’s heat preservation capacity is very good, the overall heat storage capacity is weak, thus paying special attention to the safety and potential risks of the system, such as the antifreeze of the sanitary facilities, after stopping the heating or power outage due to the accident and the failure of the fan in the future is necessary. It is recommended to increase the equipment fan and other auxiliary heating equipment such as electric heaters. The temperature fluctuation curve is shown in Figure 10.

3.5. Indoor Heating Rate after Heating is Restored

The indoor heating rate test after heating was resumed to examine the heating system capacity. After we stopped the heating of the light wooden houses for 19.5 h, the heating was restored and the room temperature was tracked (sampling once every 10 min, automatic measurement). It is not until after 44 h that the temperature in each room is stable within the set temperature range. This time is longer than the cooling process. Therefore, we recommend that the heating capacity of the system should be fully considered in the design, and the design heat load and heat dissipation should be increased. The amount of equipment should be set to make the room temperature meet the requirements in a short time. The temperature fluctuation curve is shown in Figure 11 and Figure 12.

3.6. Heat Transfer Coefficient of the Enclosed Structure in the Lightweight Timber Structured Housing

The research team used the heat flow meter method to conduct on-site inspection of the heat transfer coefficient of the enveloped structure of the wooden structure. When the test was completed, the construction time of the building exceeded one year, which met the time requirement of the test; the error of the temperature sensor using the test was less than 0.2 °C. The heat flow and temperature meters are automatic detection equipment, and the additional error of these detection instruments is less than 0.1 °C. We used infrared thermal imager to determine the location of the measuring point and determine the location of the measuring point is not close to the thermal bridge, cracks and air leaks; not directly affected by heating or cooling devices and fans; and avoids direct sunlight. The installation of heat flow meters and temperature sensors met the following two requirements: (1) The heat flow meter is directly installed on the inner surface of the inspected envelope structure and in complete contact with the surface. (2) The temperature sensor is installed on both sides of the examined envelope structure. The inner surface temperature sensor should be installed near the heat flow meter, and the outer surface temperature sensor should be installed at the position corresponding to the heat flow meter. The temperature sensor together with the 0.1 m lead should be in close contact with the surface under inspection. The emissivity of the sensor surface should be essentially the same as the surface being measured. The test was conducted in the coldest month, and there was no significant change in outdoor temperature during the test period. During the test, the heat flow rate and the internal and external surface temperatures were automatically recorded every 30 min. The detection duration was 96 h. The heat transfer coefficient measurement point layout is shown in Figure 13.
The data analysis used the arithmetic average method. The conditions for using the arithmetic average method are: (1) The difference between the calculated value of the last R and the calculated value of R before 24 h is not more than 5%. (2) The calculated value of R within the first INT (2 × DT/3) days and the last same number of days within the test period is not more than 5% (DT is the number of consecutive days of detection, and INT is an integer). (3) The data to be analyzed are an integral multiple of the 24 h data. The formula for calculating the thermal resistance of the envelope structure is shown in Equation (5). The calculation results for the heat transfer coefficient of the lightweight wooden structure are shown in Table 6.
It can be seen in Table 6 that the wall heat transfer coefficient is 0.244 W/m2 K, which is higher than the standard value of 0.2 W/m2 K. The window heat transfer coefficient is 2.487 W/m2 K, which is higher than the standard value of 2.0 W/m2 K. It shows that the heat transfer coefficient of the wood-timber house needs to be further reduced to become more energy efficient.
R = j = 1 n ( θ I j θ E j ) j = 1 n q j
where R is the Thermal resistance of the enclosed structures, m2·K/W; θIj is the jth measurement value of surface temperature in the enclosure structure, K; θEj is the jth measurement value of surface temperature of the surrounding structure, K; and qj is the jth measurement value of the heat flux density, W/m2.

3.7. The Surface Temperature Distribution in the Thermal Bridge of Building Envelope

According to the detection scheme of the internal surface temperature distribution of the thermal envelope of the building envelope structure, the infrared thermal imager is used to conduct a general survey of the tested building at night, and then the suspicious sites are repeatedly monitored in detail. The infrared test number maps are shown in Figure 14 and Figure 15, and infrared images are shown in Figure 16, Figure 17, Figure 18, Figure 19, Figure 20 and Figure 21. Through the inspection of wooden houses, it was found that there was no obvious thermal defect. From the infrared thermal image, it can be seen that the corners, wall, roof, and windows of the house have good airtightness and there is no obvious cold air infiltration. It shows that the construction quality and insulation capacity of the house is excellent.

3.8. The Return Air Volume, Return Air Temperature and Humidity of the Air Conditioning System

Light wooden houses use air-conditioning systems to send air for heating purposes. The air supply temperature is set according to the indoor air temperature requirements. This test study presupposes that the indoor air temperature is controlled at about 20 °C, and each room and the air-conditioning system send it on time. The temperature and humidity of the return air are shown in Table 7. Table 8 shows the total air supply, return air volume and fresh air volume of the whole building air-conditioning system. The temperature and humidity fluctuation curves are shown in Figure 22 and Figure 23. The instantaneous average inlet water flow of the air conditioning system for heating was 1.217 m³/h, and the average temperature difference of supply and return water was 3.70 °C. As can be seen in Figure 22, the air-conditioning supply air temperature tends to be stable from 25 February, showing regular fluctuations. Thus, under the combined effect of indoor and outdoor temperatures, the indoor air temperature shows a steady state. As can be seen in Figure 23, the return air temperature of the air conditioner tends to be stable from 25 February, while exhibiting periodic fluctuations, and the stabilization time thereof is consistent with the supply air temperature stabilization time. This shows that, during this period, the thermal performance of the house is stable and the air-conditioning operation is regular. As can be seen in Figure 7, the average supply air temperature is 34.9 °C, the average return air temperature is 21.4 °C, the temperature difference is 13.5 °C, the average air supply humidity is 7.47%, and the return air humidity is 15.03%. It can be seen from the data that the air conditioner temperature is high; it could be reduced to 16–24 °C, thereby reducing air conditioning energy consumption. The humidity of the room is lower than the standard 30%, so the humidity of the building needs to be increased. It can be seen in Table 8 that the ventilation rate of each room is different: the ventilation rates of the reception room and the toilet are the highest, 5.81 times/h and 5.44 times/h, respectively; garage and dooryard have the lowest ventilation rates, 1.1 times/h and 1.14 times/h, respectively; and the ventilation rate of the bedroom is 1.53–2.56 times/h. However, it is higher than the standard ventilation rate of 0.5 times/h, so the house’s ventilation rate can be further reduced, thereby reducing the energy consumption of air conditioning.

4. Conclusions

In the field test of a house, the average indoor temperature was 20.14 °C, the average indoor air relative humidity was 17.95%, the shape coefficient was 0.63, and the standard year heat consumption was 24.61 W/m2. In terms of air conditioning system, the average water flow was 1.217 m³/h, and the average temperature difference was 3.70 °C.
In terms of building airtightness and healthy ventilation, ventilation frequency was decreased from 0.8 /h to 0.5 /h and unit heat consumption was reduced by about 10% by improving the air tightness of doors and windows.
The heat transfer coefficient of wall is 0.244 (W/m² K). The heat transfer coefficient of the upvc-steel window is 2.487 W/m² K. The thermal imagery technique did not find any obvious thermal defect in the construction of the building.
Through the cooling test, it was found that the wood building’s heat storage capacity is insufficient, and it is necessary to increase the backup heating equipment. When an unexpected power outage occurs in the building, it can provide emergency heating for the building to prevent the building from freezing.
In sum, light wood-timber structured house can create a comfortable and livable thermal environment for residents in severe cold areas and reduce the heating energy consumption. The research provides a useful guidance for countries and regions in the world with the same latitude.

Author Contributions

B.Z. conceived and designed the experiments. M.Z. analyzed the data and wrote the paper.

Acknowledgments

The paper is supported by “the Fundamental Research Funds for the Central Universities” (No. xjj2017191) and “Scientific Research Support of New Teacher of Xi’an Jiaotong University” (No. JZ1K004). Thanks to the authors that performed the field test in the paper for all their hard work. In addition, thanks to the owner of the house for providing us the field test site.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Steinberg, E.; Selle, R.; Faust, T. Connectors for timber–lightweight concrete composite structures. J. Struct. Eng. 2003, 129, 1538–1545. [Google Scholar] [CrossRef]
  2. Němeček, M.; Kalousek, M. Influence of thermal storage mass on summer thermal stability in a passive wooden house in the Czech Republic. Energy Build. 2015, 107, 68–75. [Google Scholar] [CrossRef]
  3. Yu, S.G.; Kim, S.H.; Seo, J.K.; Kim, S.M. Analysis of Energy Efficiency of Light-weight Wood Frame House and Wooden Passive House Using PHPP. J. Archit. Inst. Korea Plan. Design 2013, 29, 199–207. [Google Scholar]
  4. Stagg, M.S.; Siskind, D.E.; Stevens, M.G.; Dowding, C.H. Effects of repeated blasting on a wood-frame house. BuMines RI 1984, 8896, 82. [Google Scholar]
  5. Marceau, M.L.; VanGeem, M.G. Comparison of the life cycle assessments of an insulating concrete form house and a wood frame house. J. ASTM Int. 2006, 3, 1–11. [Google Scholar]
  6. Burrows, J. Canadian Wood-Frame House Construction; Central Mortgage and Housing Corporation: Ottawa, ON, Canada, 2006. [Google Scholar]
  7. Sass, L. Wood Frame Grammar: CAD Scripting a Wood Frame House; CAAD Futures: Vienna, Austria, 2005. [Google Scholar]
  8. Bai, J.; Li, N.; Duan, P. Finite-Element Mode for Parametric Analysis of Wood Frame Shear Walls. In Proceedings of the 2015 International Conference on Structural, Mechanical and Material Engineering, Dalian, China, 6–8 November 2015. [Google Scholar]
  9. Dodoo, A.; Gustavsson, L. Life cycle primary energy use and carbon footprint of wood-frame conventional and passive houses with biomass-based energy supply. Appl. Energy 2013, 112, 834–842. [Google Scholar] [CrossRef]
  10. Gustavsson, L. Building with wood—Is that a good thing? For. Mankind 2015, 51, 10–15. [Google Scholar]
  11. Cabeza, L.F.; Rincón, L.; Vilariño, V.; Pérez, G.; Castell, A. Life cycle assessment (LCA) and life cycle energy analysis (LCEA) of buildings and the building sector: A review. Renew. Sustain. Energy Rev. 2014, 29, 394–416. [Google Scholar] [CrossRef]
  12. Karimpour, M.; Belusko, M.; Xing, K.; Bruno, F. Minimising the life cycle energy of buildings: Review and analysis. Build. Environ. 2014, 73, 106–114. [Google Scholar] [CrossRef]
  13. Miao, H.E. Thermal environment analysis and energy-saving measures for Minnan red brick and wood big houses. J. Xiamen Univ. Technol. 2015, 3, 017. [Google Scholar]
  14. Mohamed, A.; Hasan, A.; Sirén, K. Fulfillment of net-zero energy building (NZEB) with four metrics in a single-family house with different heating alternatives. Appl. Energy 2014, 114, 385–399. [Google Scholar] [CrossRef]
  15. Viot, H.; Sempey, A.; Pauly, M.; Mora, L. Comparison of different methods for calculating thermal bridges: Application to wood-frame buildings. Build. Environ. 2015, 93, 339–348. [Google Scholar] [CrossRef]
  16. McAlester, V.S. A Field Guide to American Houses: The Definitive Guide to Identifying and Understanding America’s Domestic Architecture; Knopf: New York, NY, USA, 2015. [Google Scholar]
  17. JGJ 132-2001: The People’s Republic of China Industry Standard Heating Residential Building Energy-Saving Inspection Standards.

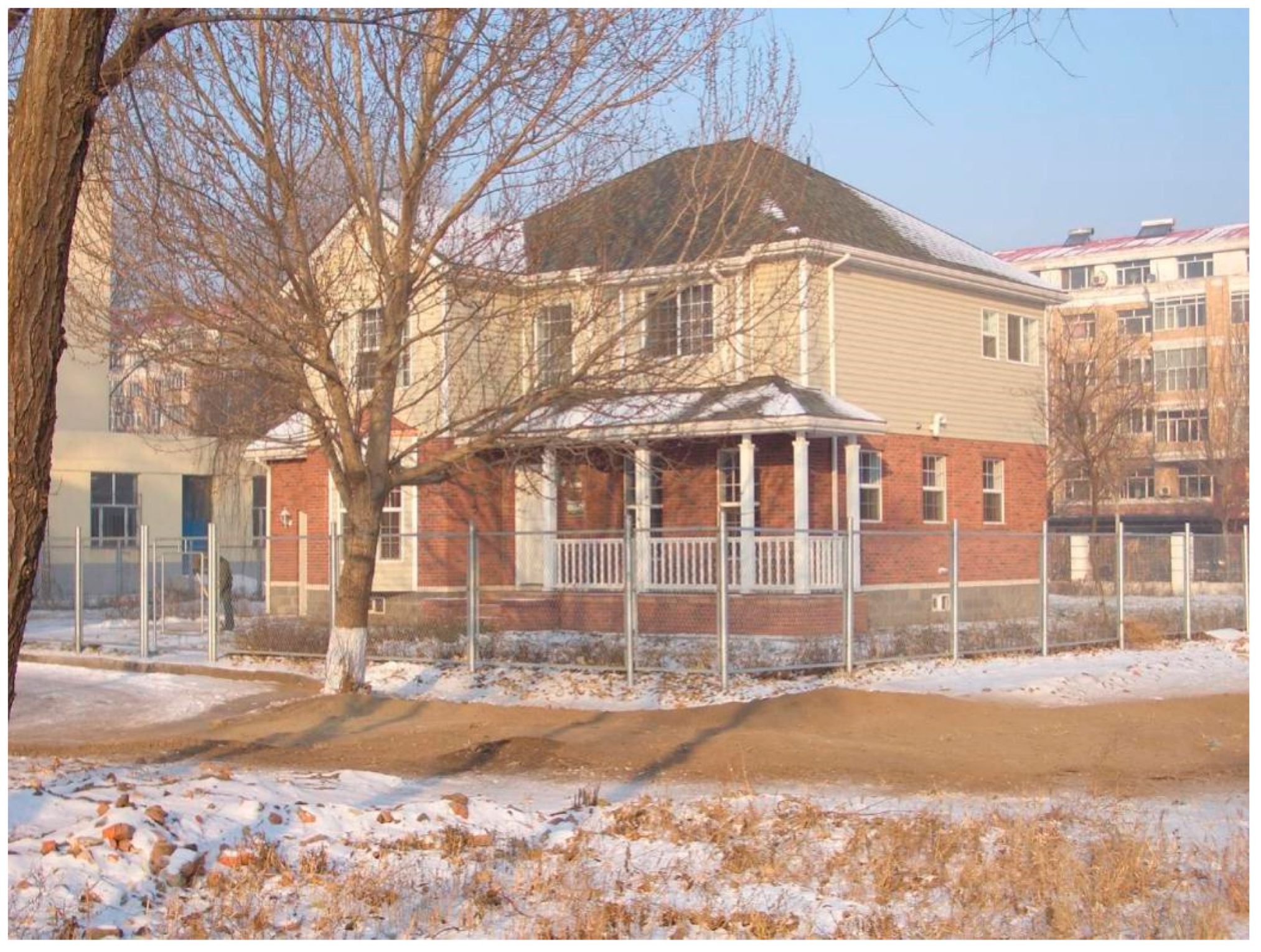

Figure 1. Light-wood structure residence in Harbin.
Figure 1. Light-wood structure residence in Harbin.
Sustainability 10 01501 g001

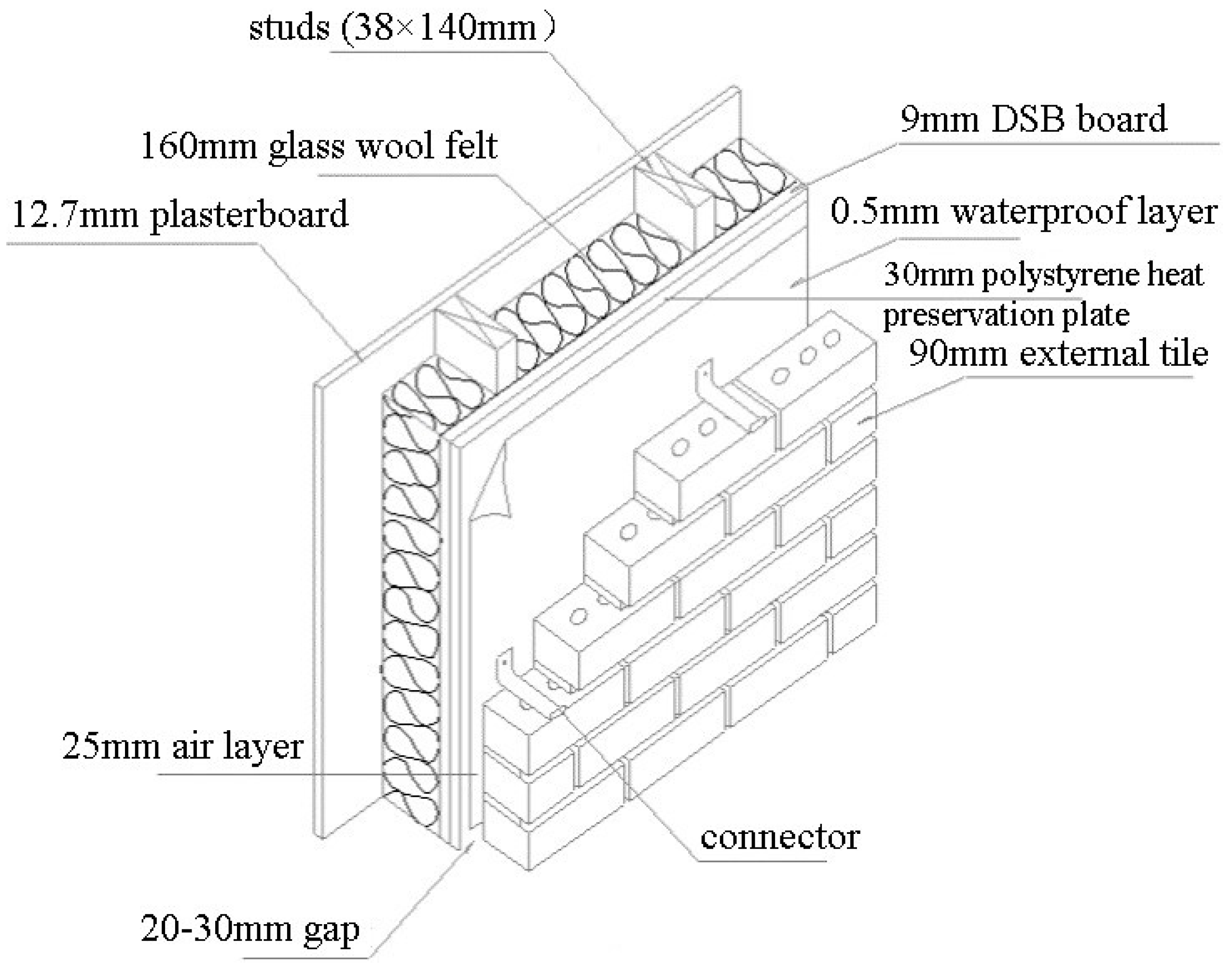

Figure 2. The structure of the main wall.
Figure 2. The structure of the main wall.
Sustainability 10 01501 g002

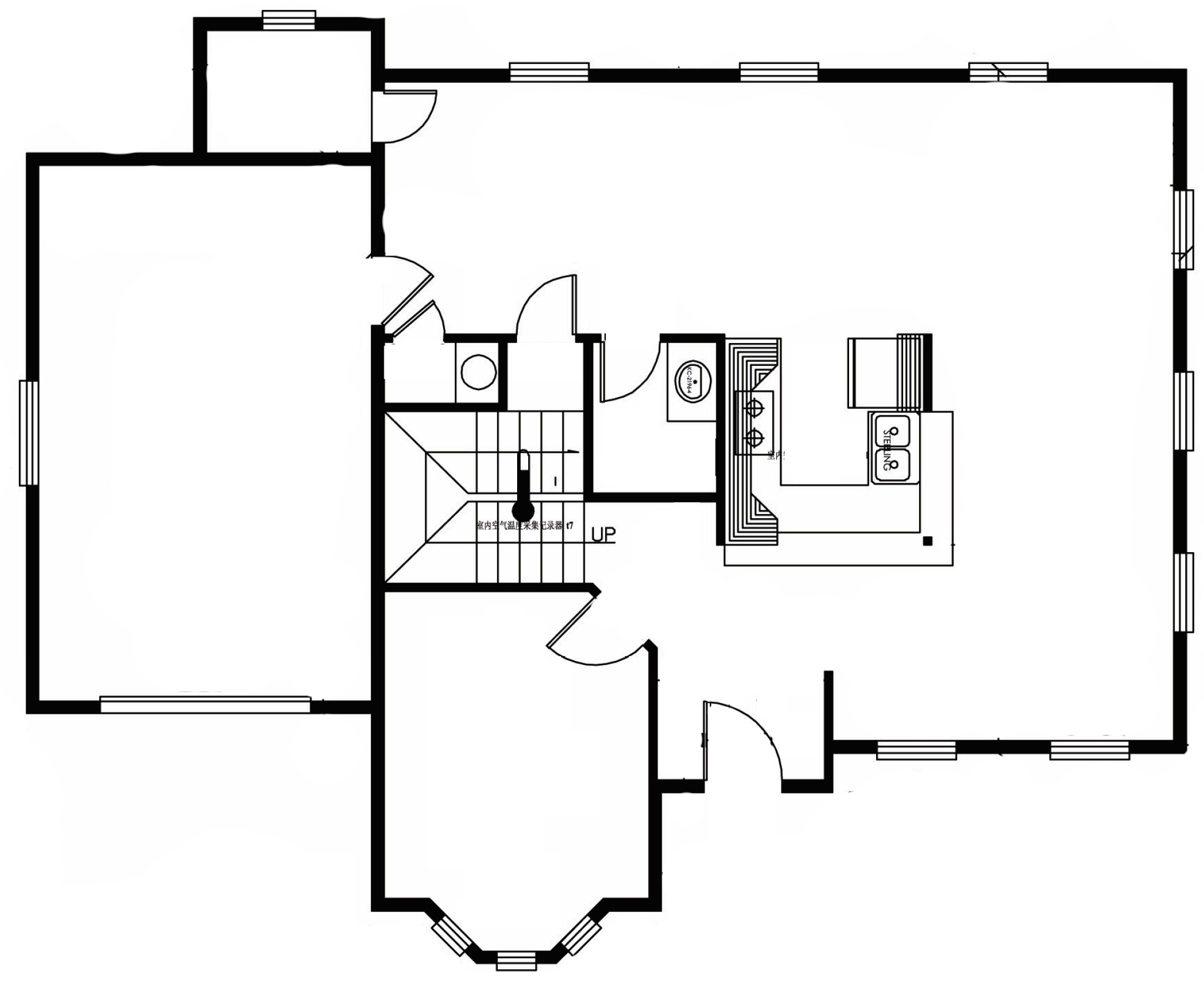

Figure 3. The first floor of light wood-timber house.
Figure 3. The first floor of light wood-timber house.
Sustainability 10 01501 g003

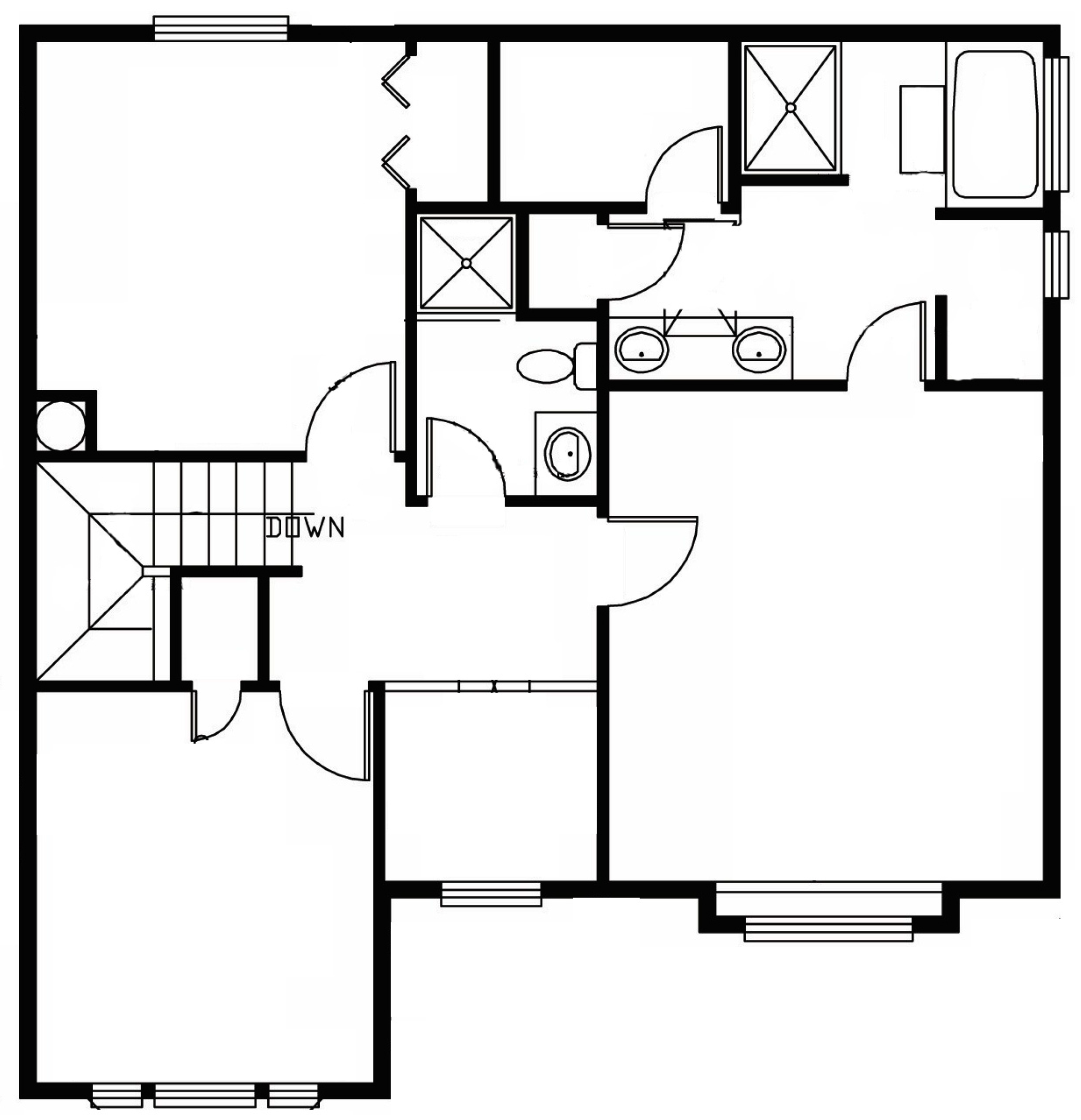

Figure 4. The second floor of light wood-timber house.
Figure 4. The second floor of light wood-timber house.
Sustainability 10 01501 g004

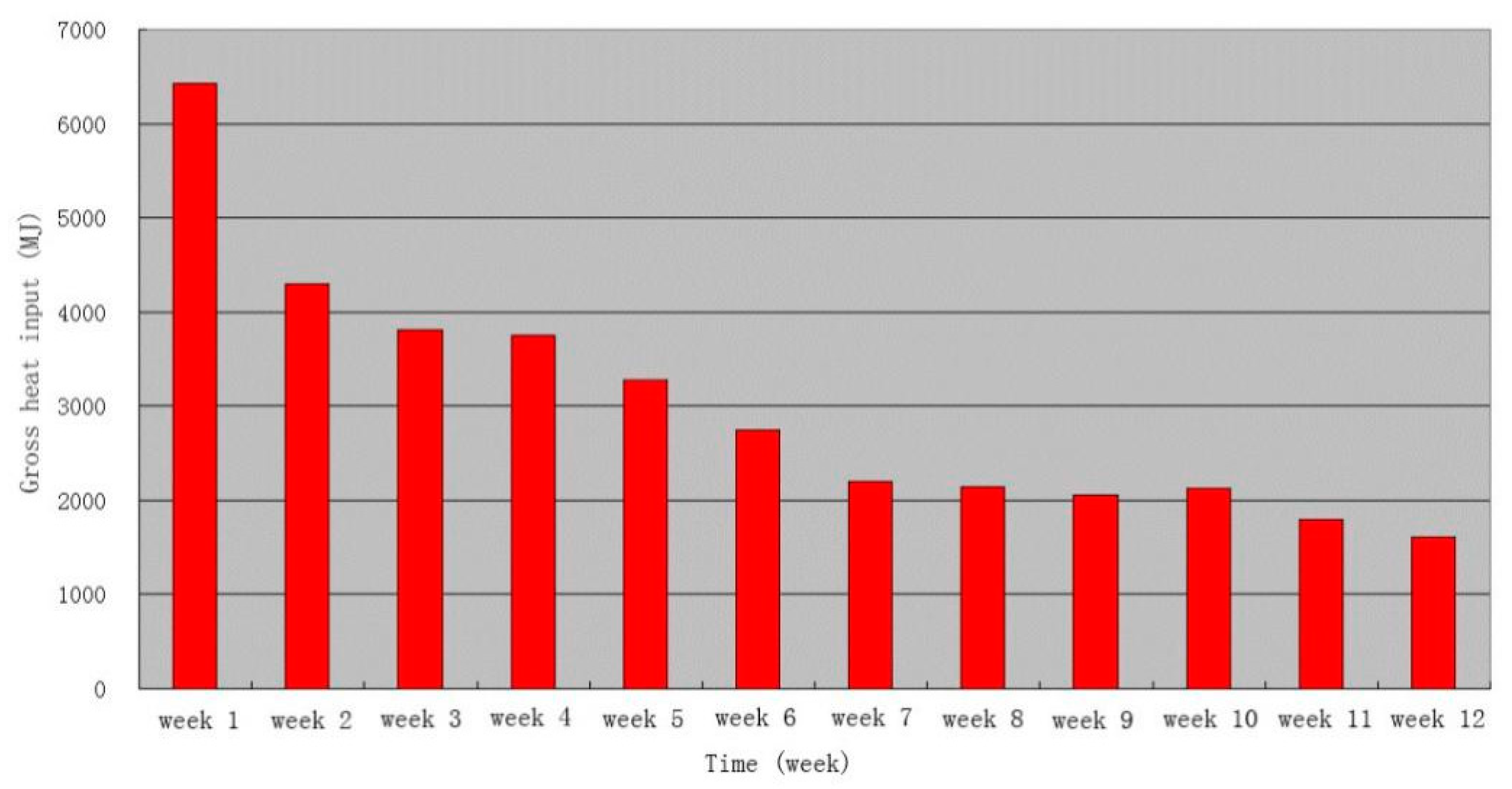

Figure 5. The statistical bar chart of the weekly heating quantity in the lightweight wood timber house.
Figure 5. The statistical bar chart of the weekly heating quantity in the lightweight wood timber house.
Sustainability 10 01501 g005

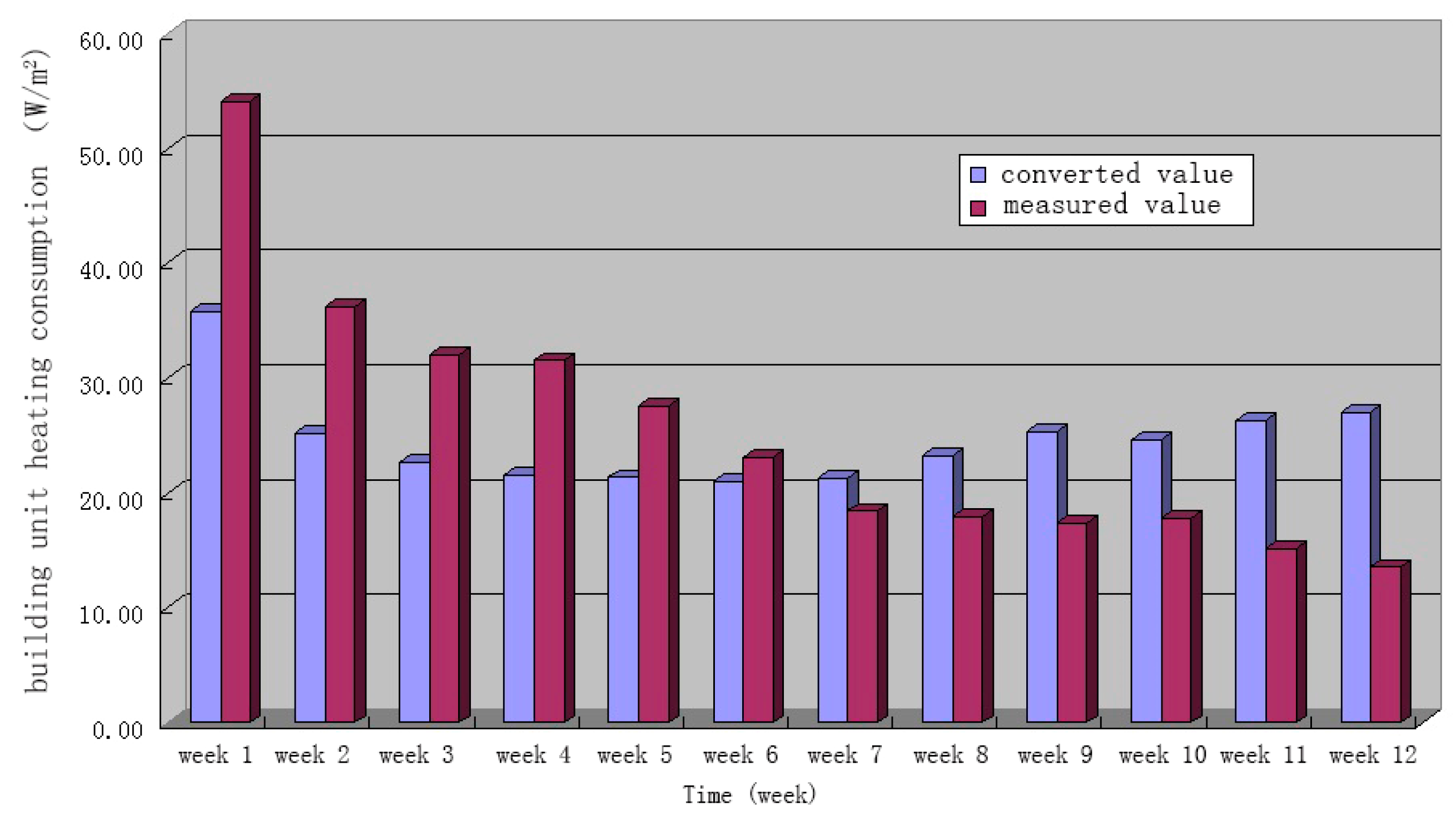

Figure 6. The heat consumption statistics of lightweight wood timber house.
Figure 6. The heat consumption statistics of lightweight wood timber house.
Sustainability 10 01501 g006

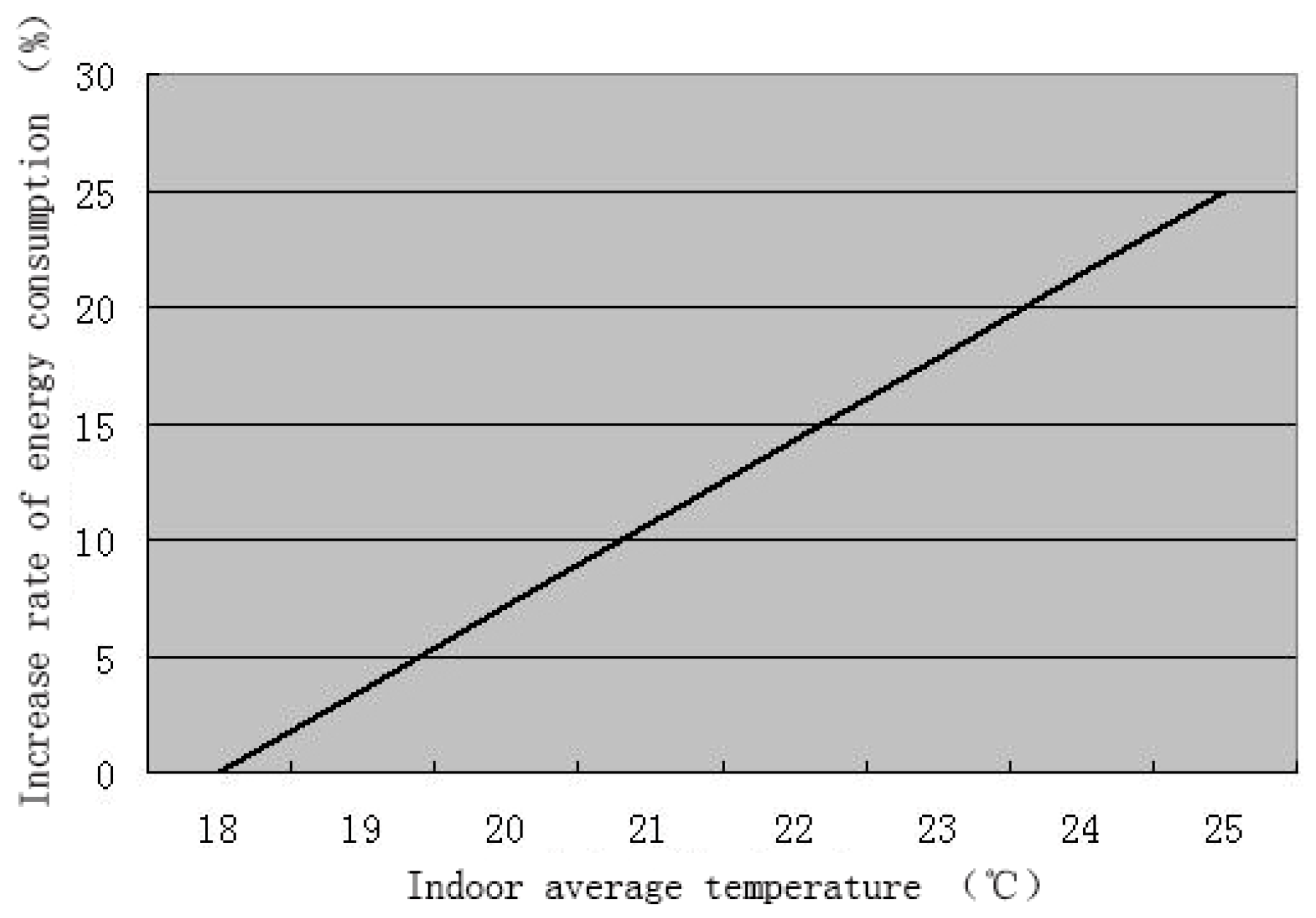

Figure 7. The corresponding increase in energy consumption against different indoor temperatures after a rise above 18 °C.
Figure 7. The corresponding increase in energy consumption against different indoor temperatures after a rise above 18 °C.
Sustainability 10 01501 g007

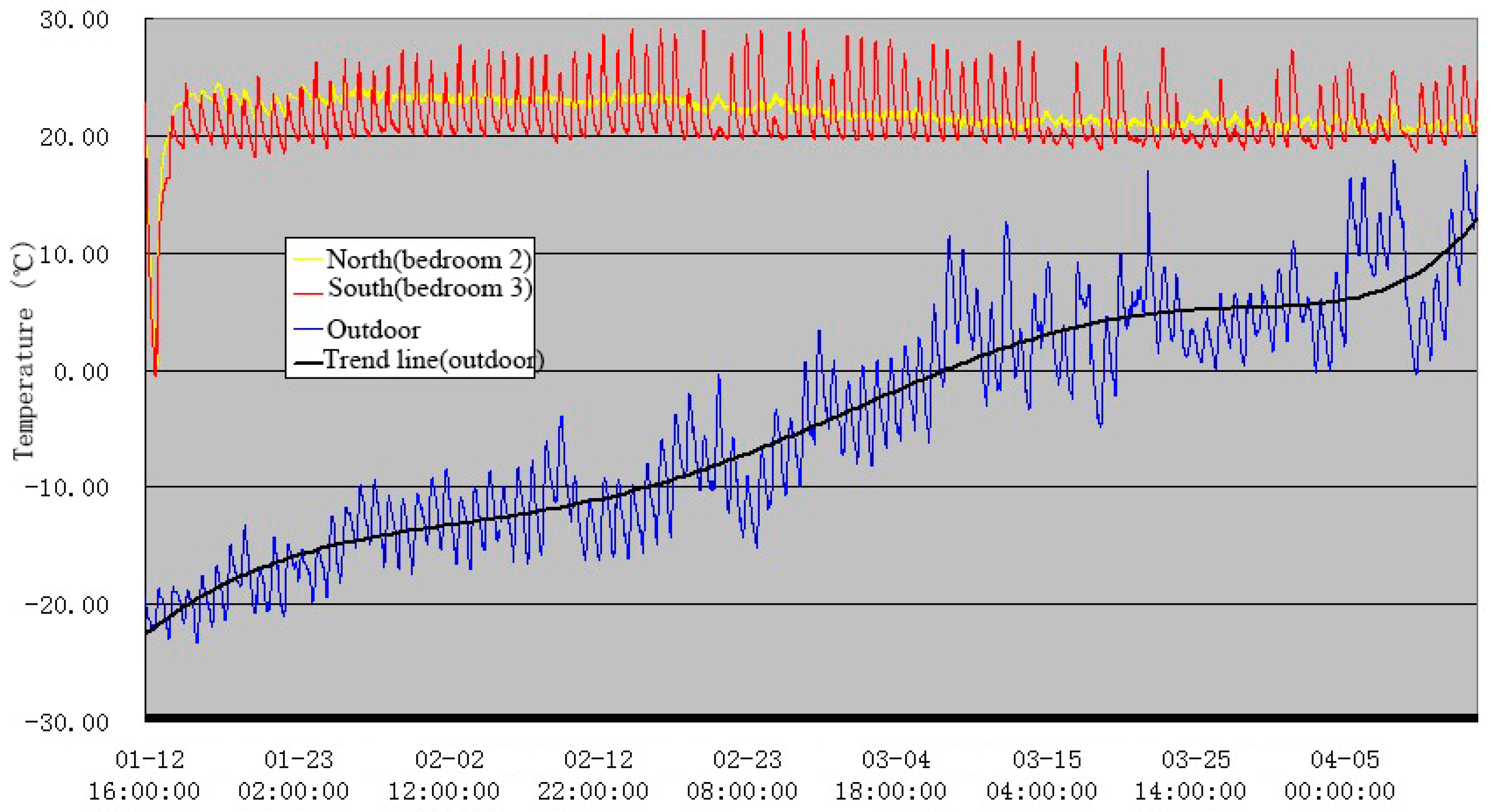

Figure 8. Indoor temperature during the monitoring period, 12 January to 5 April 2008.
Figure 8. Indoor temperature during the monitoring period, 12 January to 5 April 2008.
Sustainability 10 01501 g008

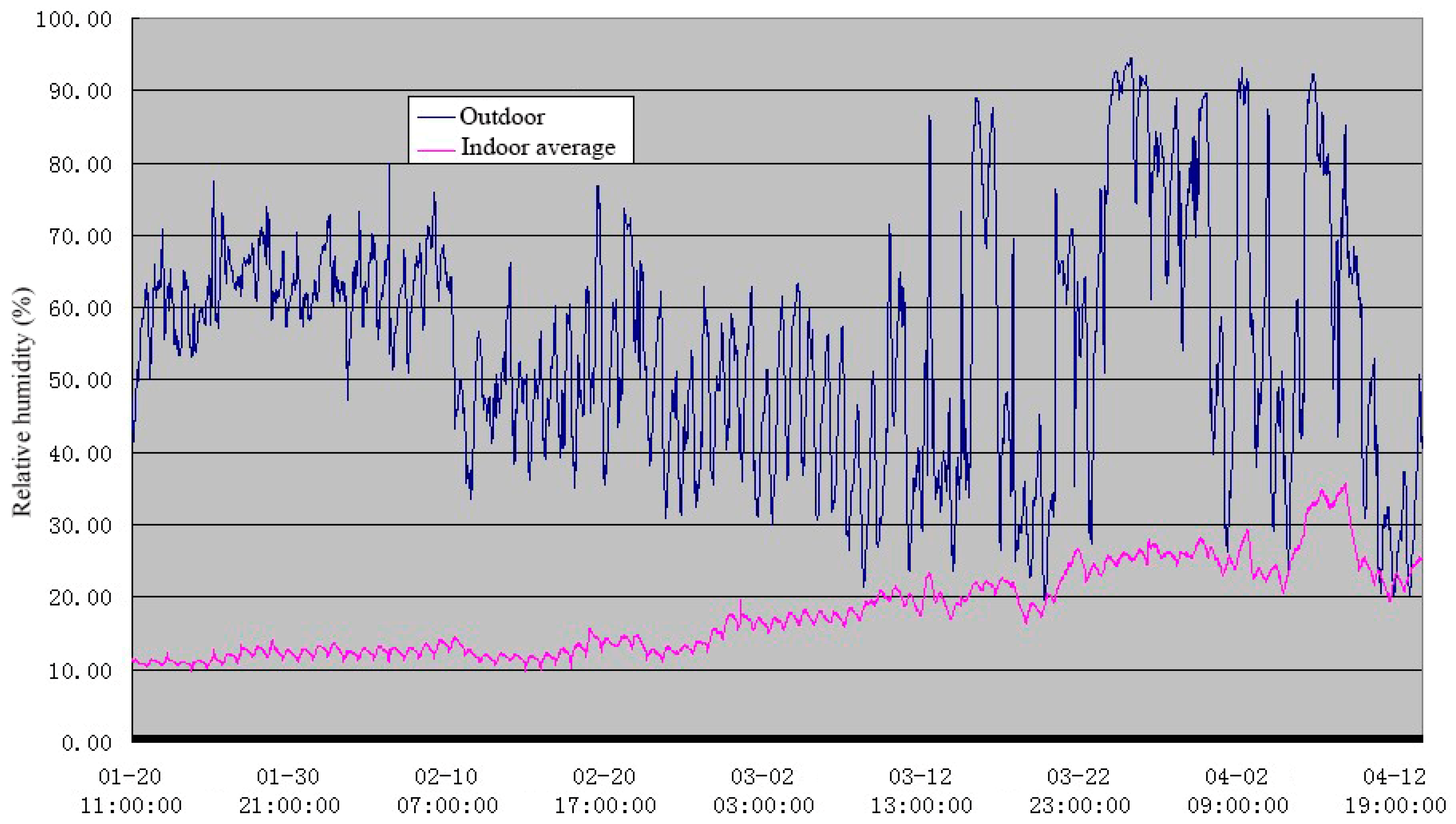

Figure 9. The relative humidity in the unoccupied test house.
Figure 9. The relative humidity in the unoccupied test house.
Sustainability 10 01501 g009

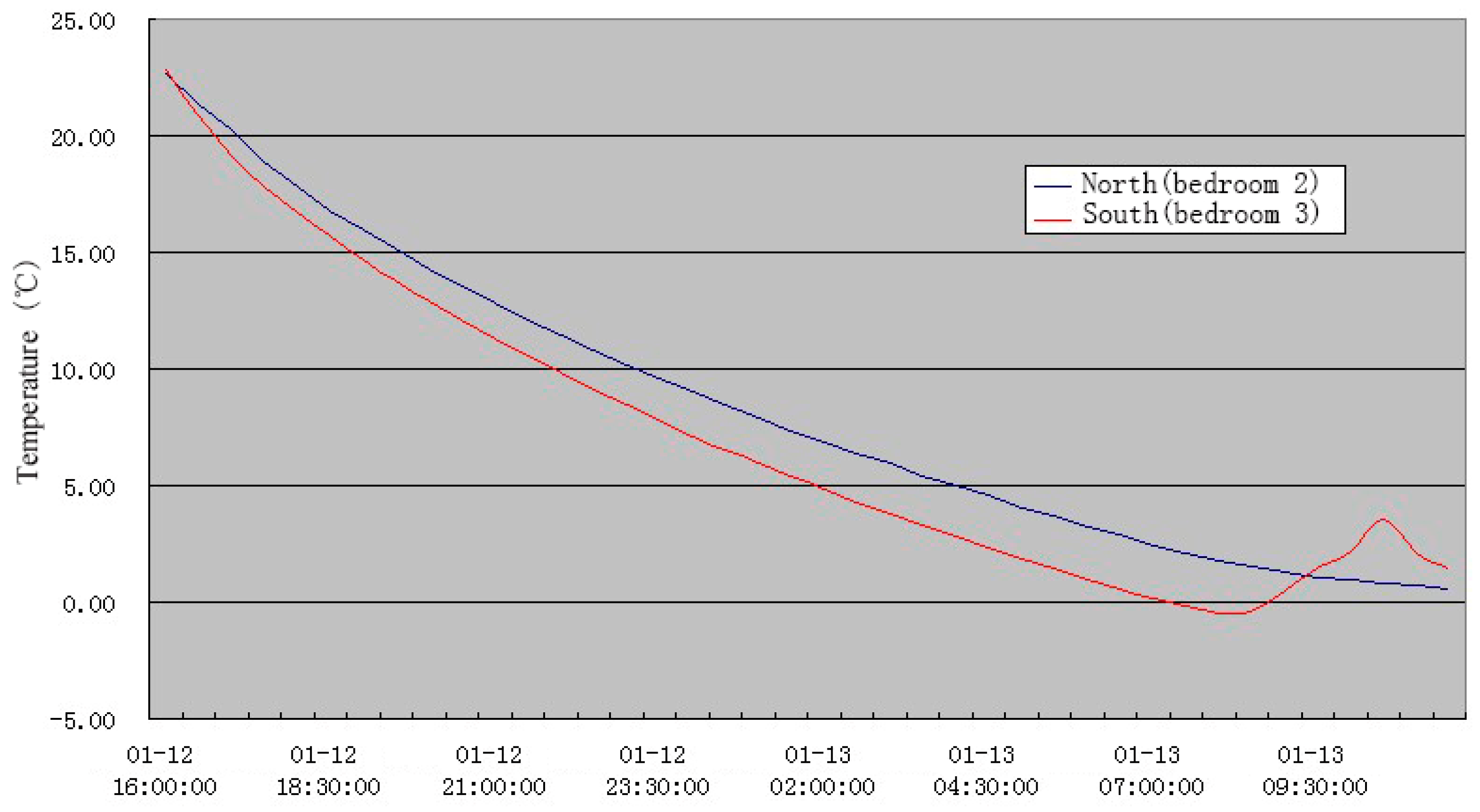

Figure 10. Test curve of indoor temperature drop after the heating stop due to the accident.
Figure 10. Test curve of indoor temperature drop after the heating stop due to the accident.
Sustainability 10 01501 g010

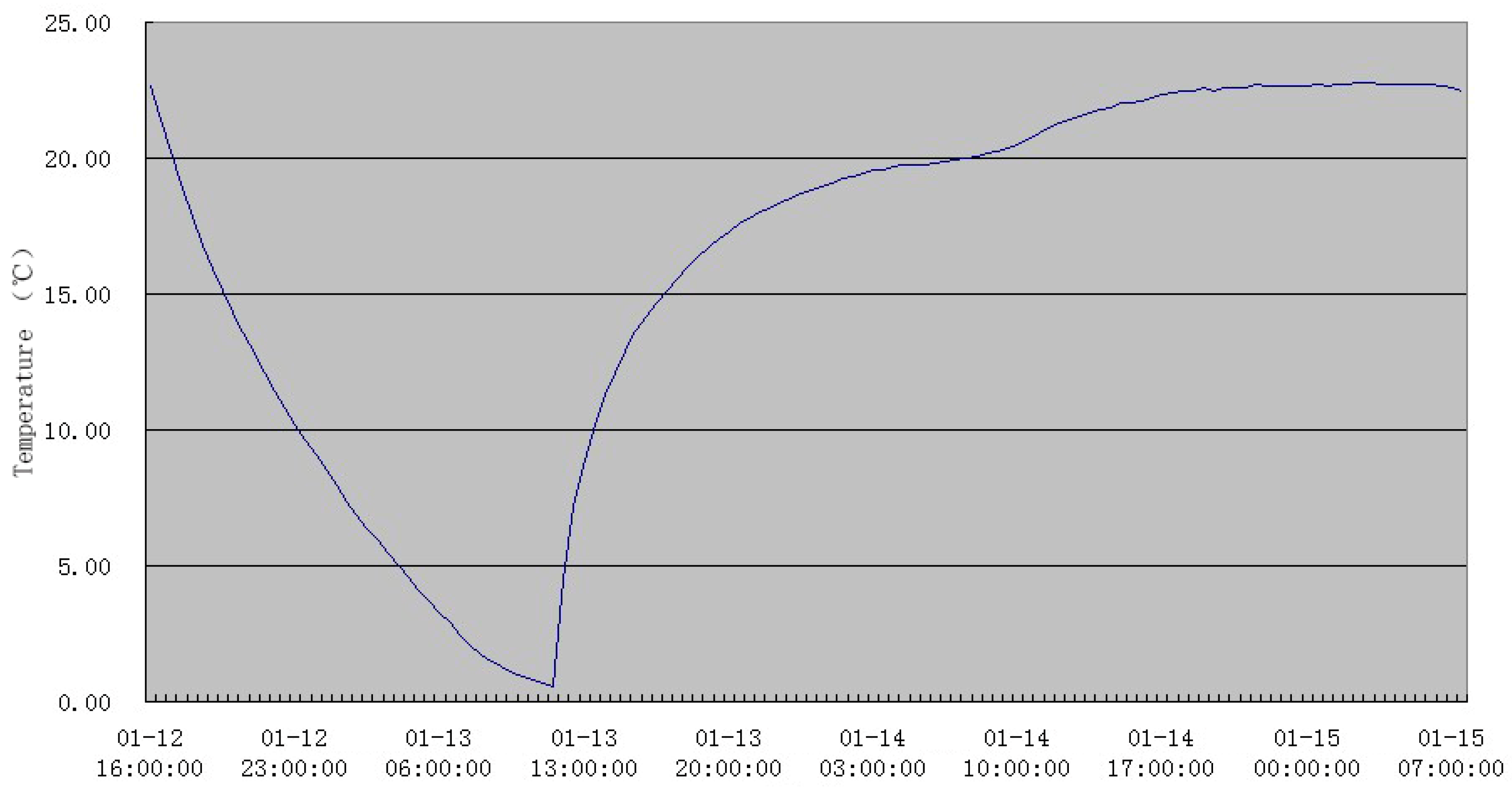

Figure 11. The temperature profile in Bedroom 2 in the north side after heating was restored.
Figure 11. The temperature profile in Bedroom 2 in the north side after heating was restored.
Sustainability 10 01501 g011

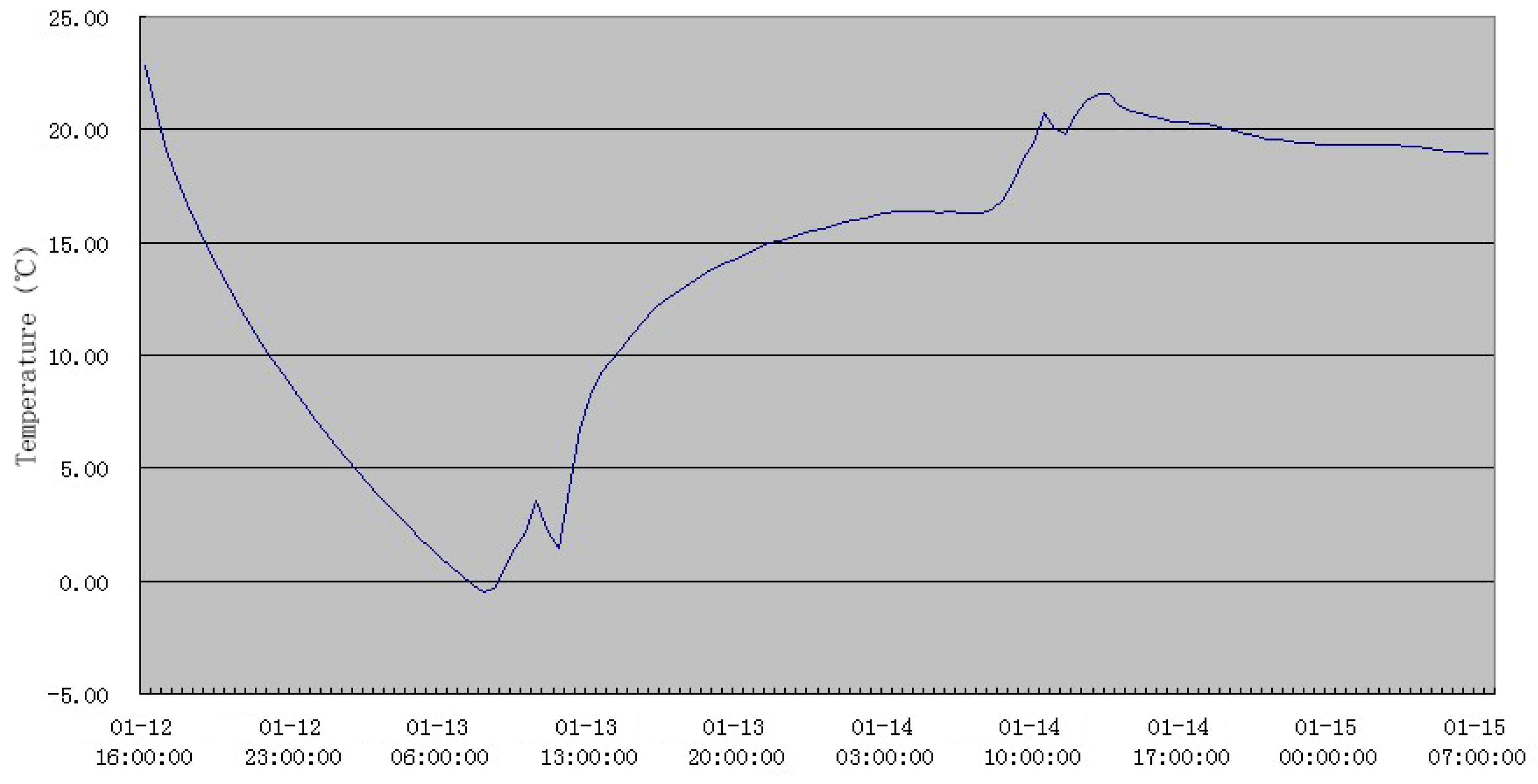

Figure 12. The temperature profile in Bedroom 3 in the south side after heating was restored.
Figure 12. The temperature profile in Bedroom 3 in the south side after heating was restored.
Sustainability 10 01501 g012
Figure 13. Heat transfer coefficient layout of building envelope (unit: m).
Figure 13. Heat transfer coefficient layout of building envelope (unit: m).
Sustainability 10 01501 g013

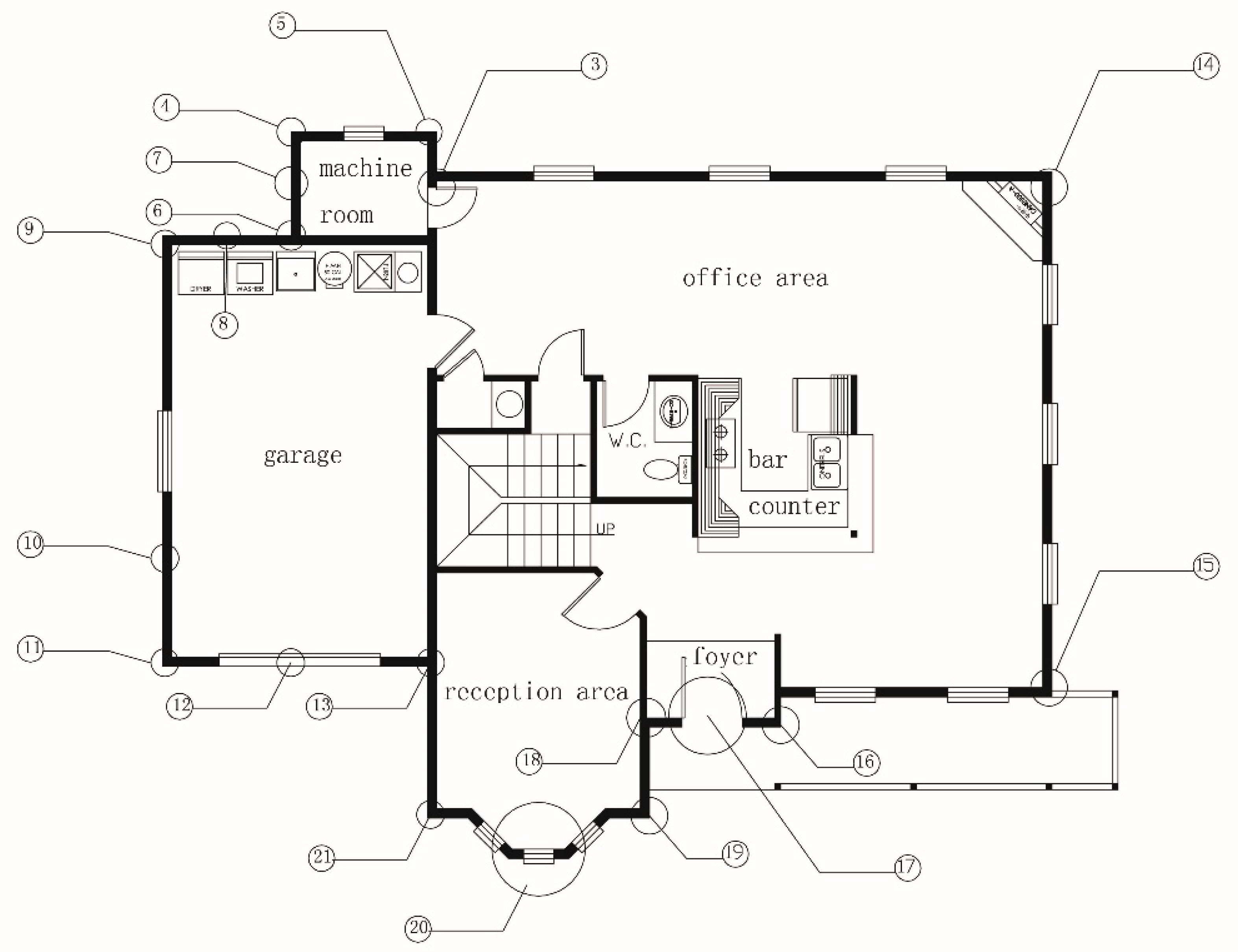

Figure 14. Infrared imaging measurement locations on the ground floor of the unoccupied test house.
Figure 14. Infrared imaging measurement locations on the ground floor of the unoccupied test house.
Sustainability 10 01501 g014

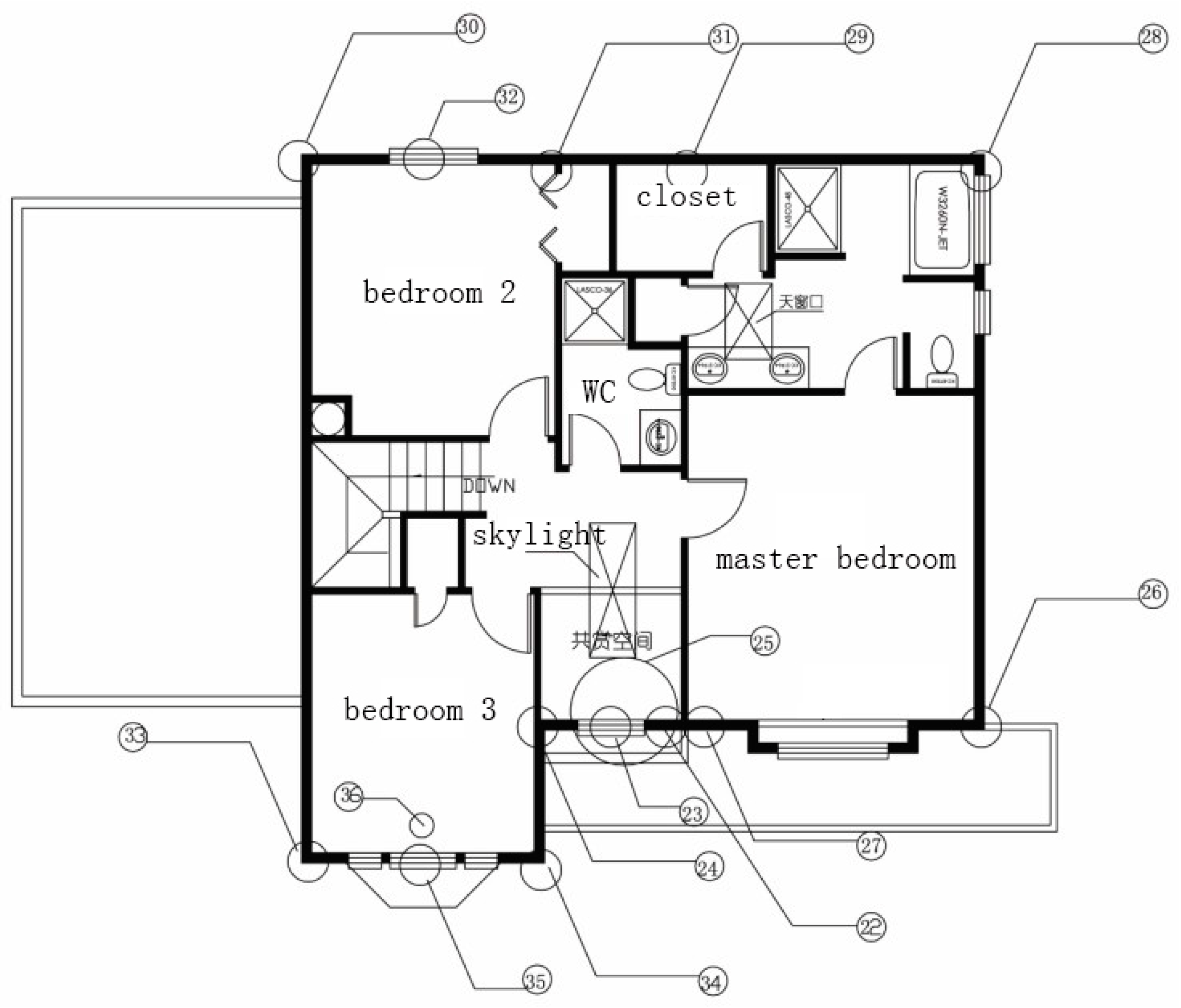

Figure 15. Infrared imaging measurement locations on the upper floor of the unoccupied test house.
Figure 15. Infrared imaging measurement locations on the upper floor of the unoccupied test house.
Sustainability 10 01501 g015

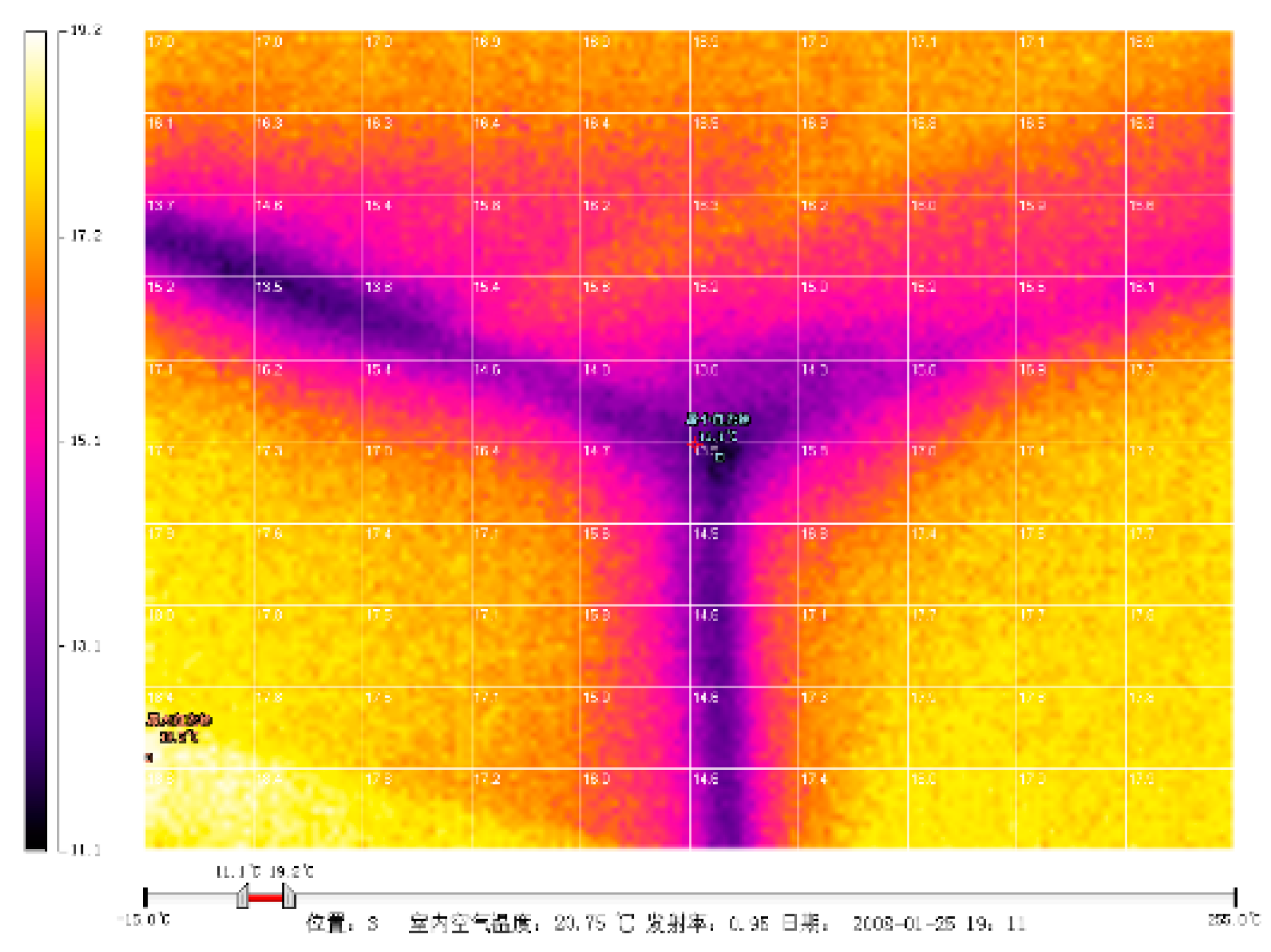

Figure 16. The thermography of the northwestern corner.
Figure 16. The thermography of the northwestern corner.
Sustainability 10 01501 g016

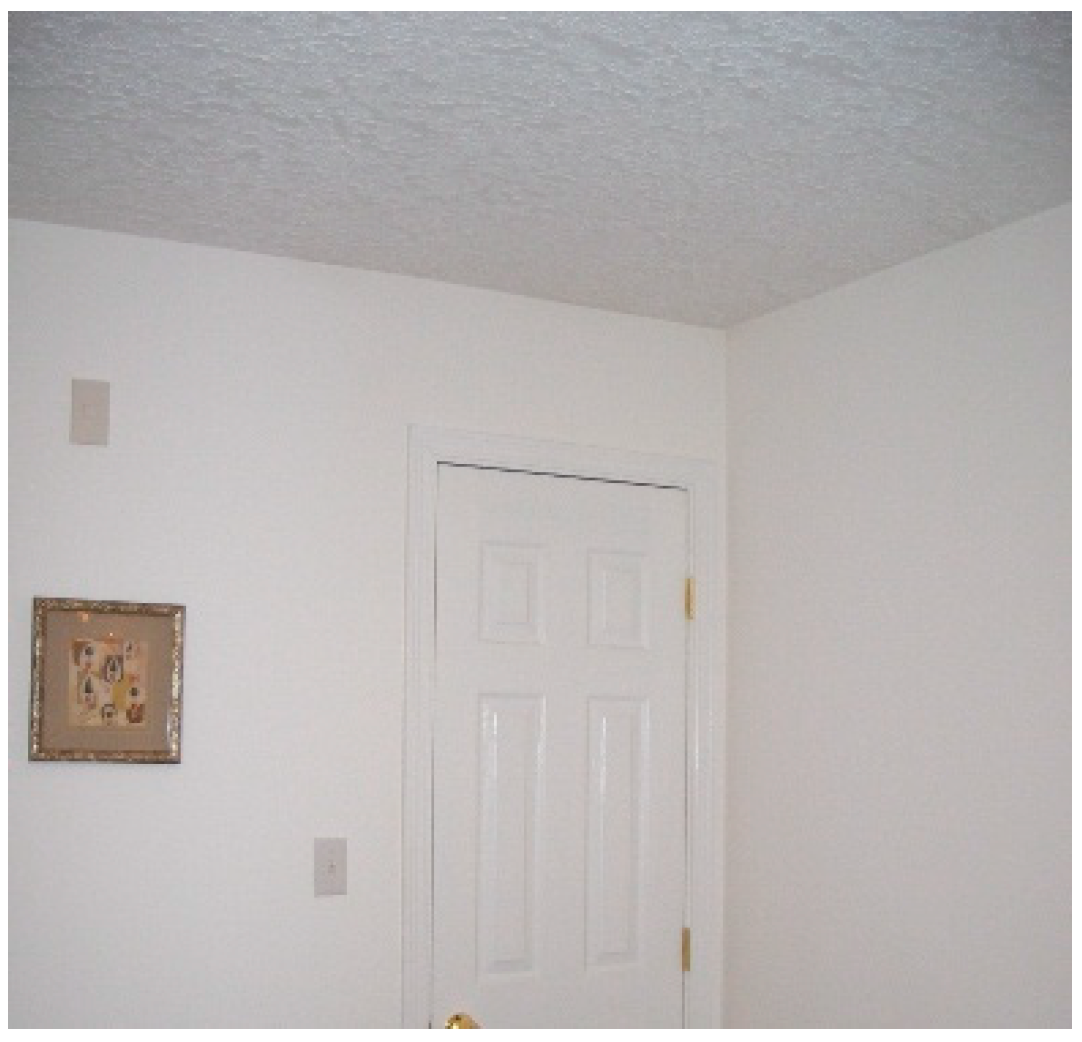

Figure 17. Northwestern corner.
Figure 17. Northwestern corner.
Sustainability 10 01501 g017
Figure 18. The thermography of the southeastern corner.
Figure 18. The thermography of the southeastern corner.
Sustainability 10 01501 g018

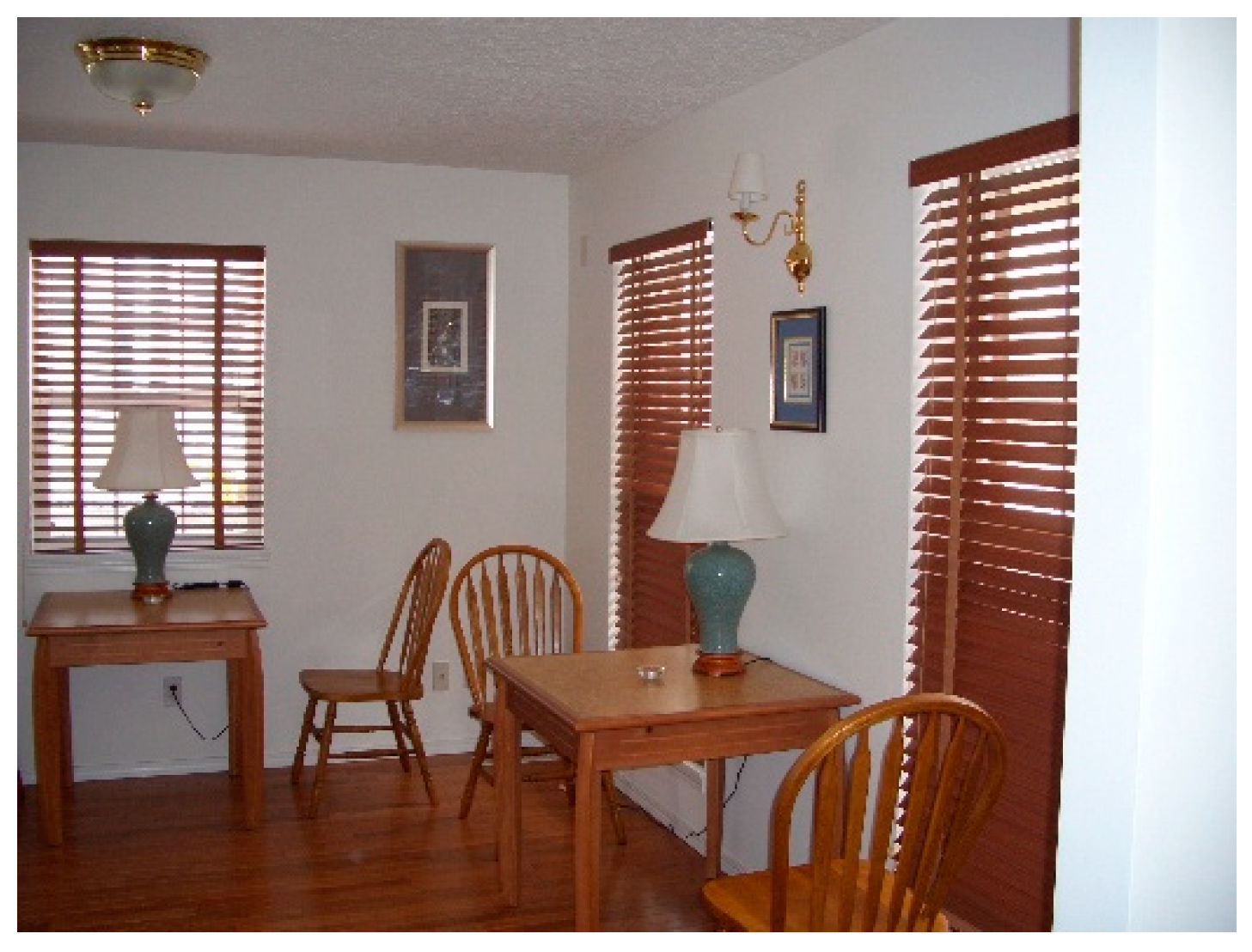

Figure 19. Southeastern corner.
Figure 19. Southeastern corner.
Sustainability 10 01501 g019

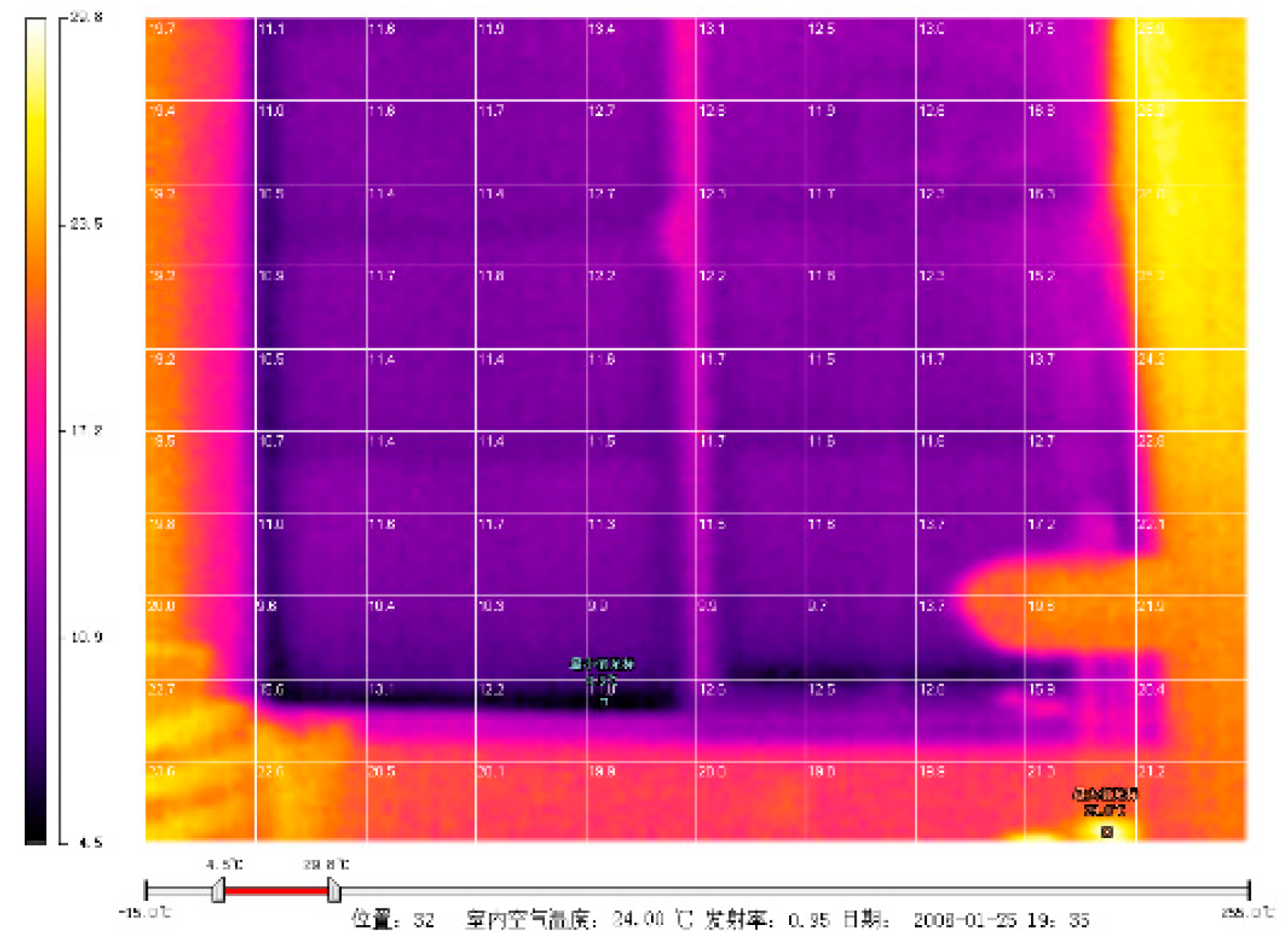

Figure 20. The thermography of the window.
Figure 20. The thermography of the window.
Sustainability 10 01501 g020

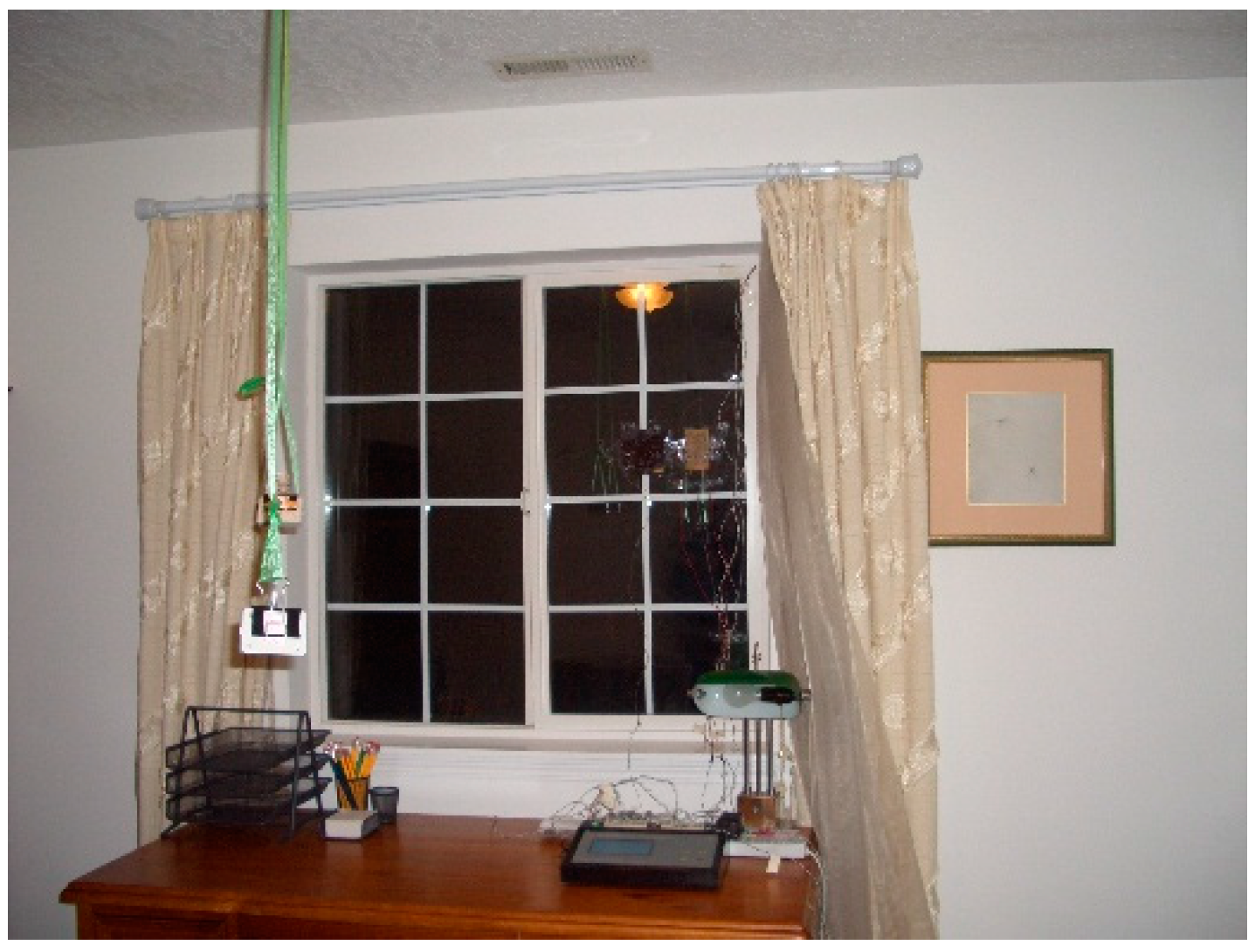

Figure 21. Near the window.
Figure 21. Near the window.
Sustainability 10 01501 g021

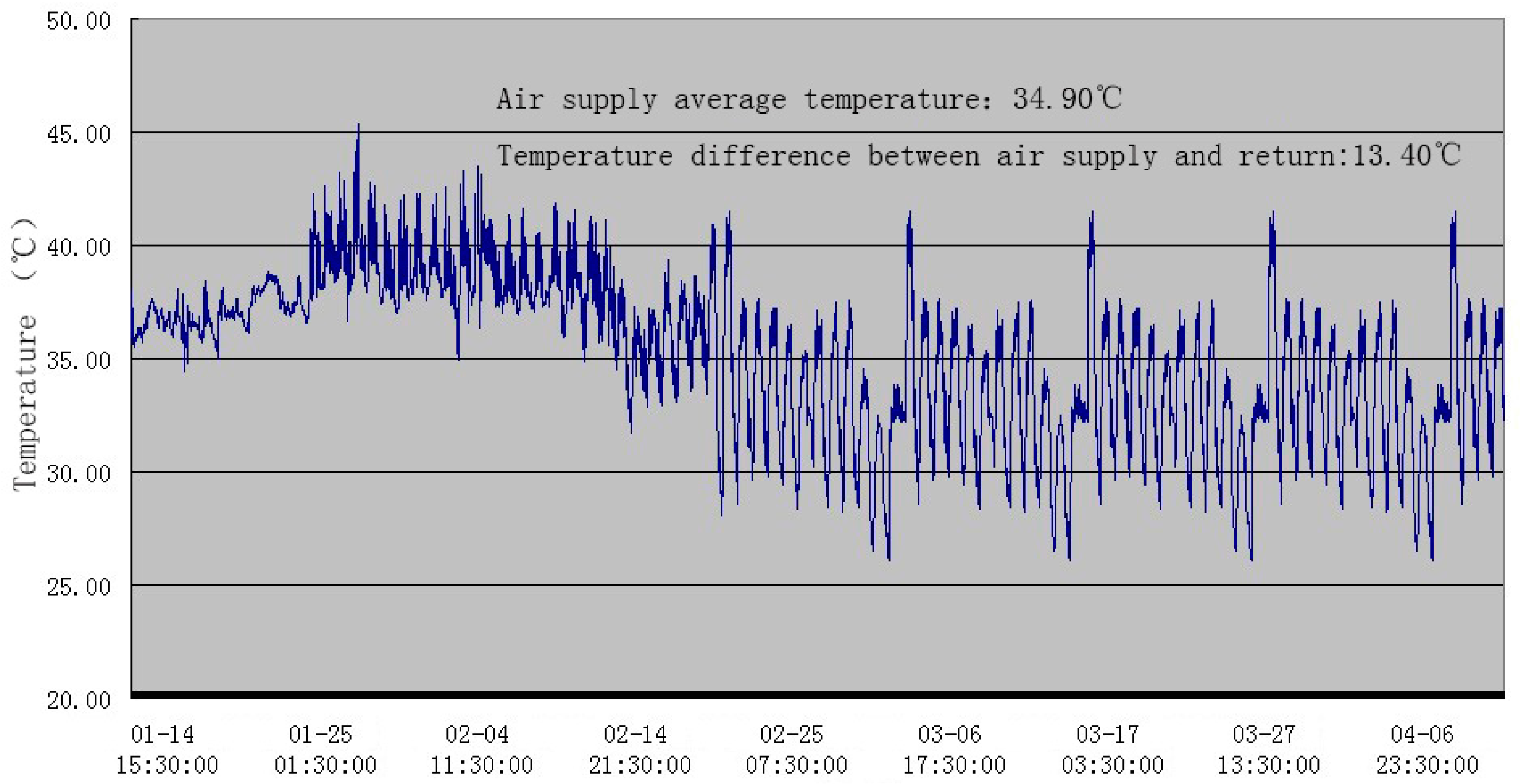

Figure 22. The supply air temperature of the air conditioning system.
Figure 22. The supply air temperature of the air conditioning system.
Sustainability 10 01501 g022

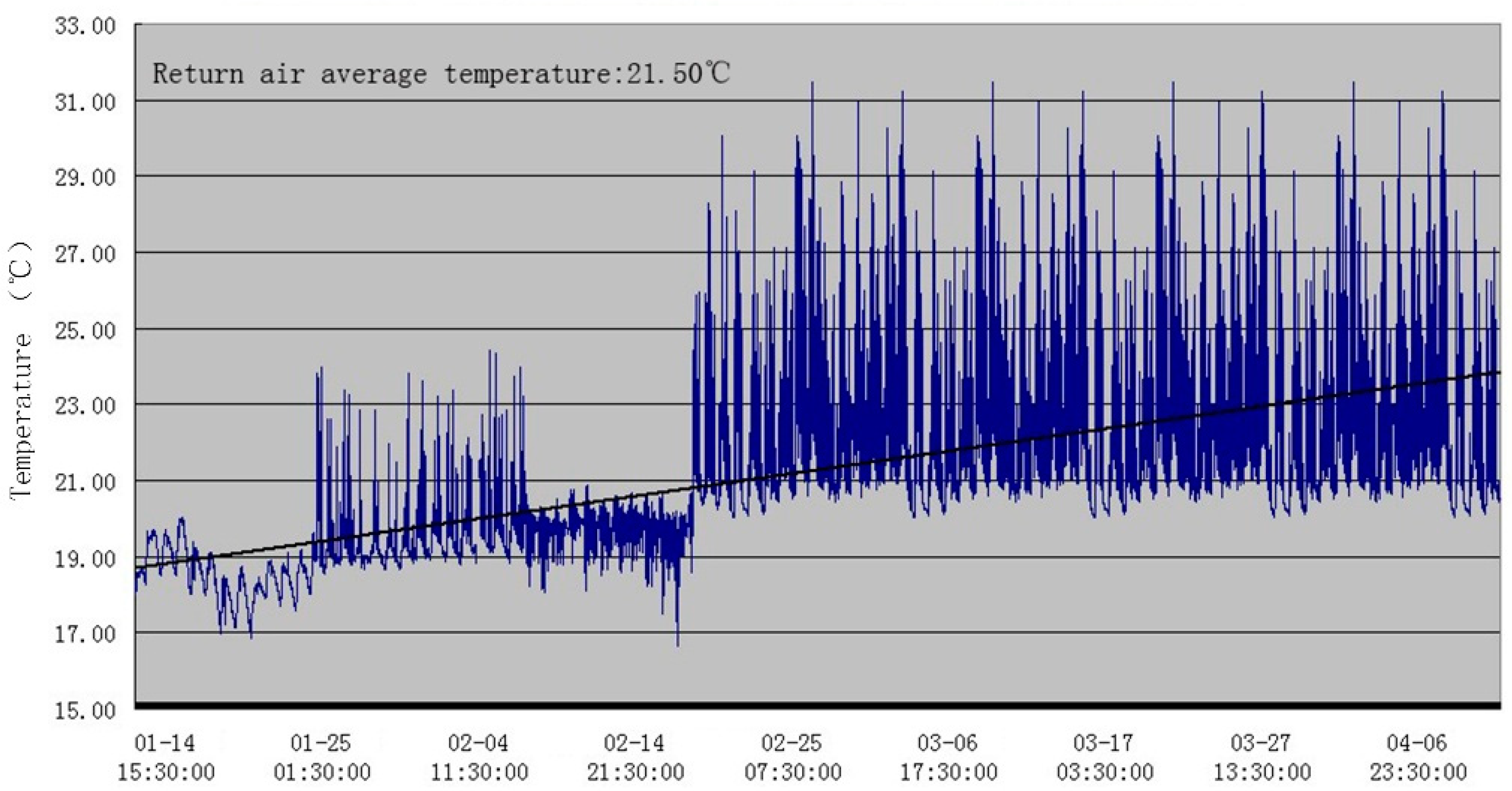

Figure 23. The air return temperature of the air conditioning system.
Figure 23. The air return temperature of the air conditioning system.
Sustainability 10 01501 g023
Table 1. Residential window to wall ratio of wood structure.
Table 1. Residential window to wall ratio of wood structure.
Orientation of Window Actual Window to Wall RatioStandard Prescribed Limit of Window to Wall Ratio
East0.090.30
South0.140.35
West0.020.30
North0.070.25
Table 2. Timber structure of the residential house.
Table 2. Timber structure of the residential house.
Construction ElementComposition
RoofingLight wood truss is filled with ultra-fine glass wool felt (160 mm) + plywood (12 mm) + roof tile material
Exterior wallGypsum board (12.7 mm) and wall pillar (38 mm × 140 mm) are filled with ultra-fine glass wool felt (160 mm) + structural wall panels (OSB board 9 mm) + polystyrene foam (30 mm) + waterproof breathable membrane mm + air layer (25 mm) + red brickwork (90 mm) + cement mortar (20 mm).
Peripheral groundCement mortar (59 mm) + gravel, pebble concrete (150 mm) + rammed clay (1200 mm).
Non-peripheral groundCement mortar (20 mm) + gravel, pebble concrete (100 mm) + rammed clay (1500 mm).
Table 3. The calculated and measured energy consumption of lightweight wood timber house.
Table 3. The calculated and measured energy consumption of lightweight wood timber house.
Theoretical Heat Consumption (W/m²)Heat Consumption of Heating after the Monitoring (W/m2)Measured Heating Consumption during Monitoring (W/m²)Unit Heating Energy Consumption (W/m2)Equivalent Coal Energy Consumption (kg/ m²)Heating Quantity during Heating Season (MJ)
23.9323.6825.3824.6120.8773240.59
Note: The results in the table are calculated based on the gross floor area. If it is calculated according to the area of use, the heating and heating consumption per unit area of the lightweight timber house is 43.98 W/m2.
Table 4. The statistical interior temperatures in the lightweight wood-timber house.
Table 4. The statistical interior temperatures in the lightweight wood-timber house.
LocationTest Temperature (°C)Less than 16 °CHigher than 24 °C
Average (°C)Minimum (°C)Maximum (°C)Occurrence Time (Minutes)Proportion (%)Occurrence Time (Minutes)Proportion (%)
Drawing room23.0619.8126.13440.98160935.92
Office 19.9619.0021.38801.800
The bar20.6018.9422.56693.7500
Toilet19.1816.3119.941072.3900
Radiator chamber 15.248.5023.69258757.7700
Garage13.028.0623.19391397.3400
Main bedroom 22.3019.9426.81471.0552611.74
Room 222.0320.0024.38471.05711.08
Room 321.8618.5029.13631.4178917.61
Toilet 25.9921.0030.44310.69316870.73
Toilet in main bedroom 20.4018.6322.75771.7200
Walk-in closet 18.9617.1322.631032.300
Attic 20.4018.6322.75771.7200
Corridor; Corridor; upper porch 22.2219.8828.44471.0561413.71
Basement12.979.4415.25445399.4600
Outdoors −3.09−21.0617.94
Table 5. The relative humidity of indoor and outdoor air.
Table 5. The relative humidity of indoor and outdoor air.
Outdoor Air Relative Average (%) Indoor Air Relative Average (%)
light wood structures 55.1417.95
Table 6. Calculation results of heat transfer coefficient of the enclosure structure of the unoccupied test house.
Table 6. Calculation results of heat transfer coefficient of the enclosure structure of the unoccupied test house.
Lightweight Timber HouseThe Main WallPlastic Steel Window (Single Frame Double Glass)
Thermal Resistance (m2 K/W)Resistance of heat Transfer (m2 K/W)Heat Transfer Coefficient (W/m2 K)Thermal Resistance (m2 K/W)Thermal Resistance (m2 K/W)Heat Transfer Coefficient (W/m2 K)
Calculated value3.9364.0910.2440.2470.4022.487
Table 7. Air supply and return temperature and air relative humidity of the air conditioning system.
Table 7. Air supply and return temperature and air relative humidity of the air conditioning system.
Average Air Supply Temperature (%)Average Return Air Temperature (°C)Supply and Return Air Temperature Difference (°C)Average Air Supply Humidity (%)Average Return Air Humidity (%)
34.9021.4013.57.4715.03
Table 8. The air volume of the air conditioning system.
Table 8. The air volume of the air conditioning system.
No.Name of RoomsAir Volume (m³/h)Net Height (m)Area (m²)Volume (m³)Ventilation Rate (Times/h)
1Garage87.23.324.0279.271.10
2Office area320.42.4338.894.283.40
3Reception Room188.72.4313.3632.465.81
4Bedroom 258.72.4115.9638.461.53
5Bedroom 367.62.4110.9526.392.56
6Toilet46.32.413.538.515.44
7Principal bedroom97.92.4117.742.662.30
8Bathroom49.82.4110.3424.922.00
9Dooryard42.74.448.4437.471.14
10Attic37.41.957.5714.762.53
Total air supply volume (m³/h)996.7_
Total air return volume (m³/h)845.2_
Fresh air volume (m³/h)151.5The fresh air was permeated naturally by the fresh air inlet set on the basement window.
Fresh air percentage (%)15.2_

© 2018 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Sustainability EISSN 2071-1050 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
