Sustainability 2018, 10(3), 666; https://doi.org/10.3390/su10030666

Article
Evaluating the Environmental Dimension of Material Efficiency Strategies Relating to the Circular Economy
1
Dynamics Research Group, University of Sheffield, Sheffield S1 3JD, UK
2
Tata Steel, Group Health, Safety & Environment, Swinden Technology Centre, Moorgate, Rotherham S60 3AR, UK
3
Savills Property Management, 12 Booth Street, Manchester M2 4AW, UK
4
Department of Materials Science, University of Sheffield, Sheffield S1 3JD, UK
*
Author to whom correspondence should be addressed.
Received: 15 December 2017 / Accepted: 24 February 2018 / Published: 1 March 2018

Abstract

:
Material efficiency is a key element of new thinking to address the challenges of reducing impacts on the environment and of resource scarcity, whilst at the same time meeting service and functionality demands on materials. Directly related to material efficiency is the concept of the Circular Economy, which is based on the principle of optimising the utility embodied in materials and products through the life-cycle. Although materials such as steel, on account of high recycling rates at end-of-life, are amongst the most ‘circular’ of manufactured materials, significant opportunities for greater material efficiency exist, which are yet to be widely implemented. Life Cycle Assessment (LCA) is commonly used to assess the environmental benefits of recovering and recycling materials through the manufacturing supply chain and at end-of-life. Using an example taken from renewable energy generation, this paper explores the correlation between product circularity and the environmental case for strategies designed to improve material efficiency. An LCA-based methodology for accounting for the recovery and reuse of materials from the supply chain and at end-of-life is used as the basis for calculating the carbon footprint benefits of five material efficiency scenarios. The results are compared with a number of proposed material circularity indicators. Two conclusions from this exercise are that (i) LCA methodologies based around end-of-life approaches are well placed for quantifying the environmental benefits of material efficiency and circular economy strategies and (ii) when applying indicators relating to the circularity of materials these should also be supported by LCA-based studies.
Keywords:
Life Cycle Assessment; circular economy; material efficiency; recycling; reuse

1. Introduction

The increasing demand by society for services and infrastructure (e.g., transport, energy, buildings) and the need to address environmental issues such as greenhouse gas emissions and resource consumption delivers a tension that is a fundamental challenge of the current time. Concepts such as Material Efficiency and the Circular Economy (CE) aim to address this challenge largely through the principle of delivering the same or greater functionality currently provided by materials, whilst using fewer resources. Much of the focus is on product-based strategies such as greater product durability and design of products to enable enhanced recovery of materials (including for recycling and reuse) at the end of product life [1,2,3,4,5].
As these strategies are developed, modelled and tested, a simplified indicator of material efficiency or of material circularity may be a useful dimension within product design tools. However, an important question which should not be overlooked when seeking greater material circularity is that of what is worth recovering, or what is recovery worth? In other words, it is important that material efficiency strategies are also evaluated carefully in the environmental dimension, so that informed and optimal decisions about product design, service delivery and new business models can be made. Such environmental evaluations can be well made using Life Cycle Assessment (LCA), or at least by following the underlying principles of life cycle thinking.
Many materials are vital in enabling transport, energy generation and much of the other functionality required by current and future society. It is incumbent upon the materials sector to explore the strategies needed to deliver the functionality required of it in the most material efficient manner. Whilst the materials and manufacturing industries, for reasons of their own business sustainability, pursue initiatives on circular economy and material efficiency [6,7,8], often relating to their products downstream of manufacture, there remain many opportunities to explore and develop further.
The question of how to quantify, attribute the benefits and identify opportunities in Circular Economy strategies such as refurbishment and product system reuse is one of growing interest and methodological debate [9] and a number of tools (see Table 1) already exist or are under development for this purpose. Case studies are often a useful way to illuminate answers to such research questions and to inform future strategies, design decisions and business models. In this paper, several of the existing tools for the assessment of material circularity, together with a life cycle carbon footprinting tool based on LCA principles, have been tested and compared using an example from the renewable energy sector.

1.1. Qualitative and Quantitative Tools for Measuring Material Efficiency

A number of tools exist for the assessment of product level material efficiency/circularity. These tools vary in complexity and methodology, from very simple qualitative tools to complex methods almost resembling full Life Cycle Assessment. The aim of such tools is to inform life cycle design decisions without the need for a full study.
Two summaries of material efficiency tools were recently published [10,11]. Based on these two publications, a collection of eight material efficiency measurement tools was assembled, as given in Table 1.
For the purposes of this study, four of the tools (highlighted in italics) in Table 1 (Material Circularity Index; Eco-Costs; Circular Economy Toolkit and Circular Economy Indicator Prototype) were selected and were applied to a case study to allow comparison with a life-cycle carbon footprinting tool. Details of the tools selected and reasons for their selection are given in the Method section.

1.2. Evaluating Material Efficiency Strategies Using Life Cycle Assessment

Material Efficiency strategies can be applied along the complete life cycle of a product. The manufacture, use and finally end-of-life of products all have some aspect of material efficiency associated with them. This is also the case for the circular economy, where material efficiency strategies have been evaluated through the use of indicators, which are directly linked to material flows across the product life cycle. Examples of such indicators include product life span, reuse rates and recycling rates. The common, underlying feature of circular economy indicators is that they typically focus on improving resource efficiency by diverting material away from landfill or incineration. Whilst there is often a strong connection between resource efficiency and indicators relating to reuse or recycling, it is less clear how such indicators correlate with wider environmental impacts. This is particularly the case where activities such as refurbishment, remanufacture or recycling are energy intensive when compared to the manufacture of the initial product. In addition, for scenarios based around extended product life, there are also potential trade-offs between environmental impacts in manufacture and durability. For example, a more durable engineering component might require greater processing in manufacture, leading to an increased environmental burden associated with production, but less over the whole life cycle when the benefits of extended use are accounted for.
In order to answer questions such as what is the environmental benefit of recycling, reuse or extending product life, and therefore what is worth recycling, reusing or maintaining in a circular economy, there is a strong argument for using environmental assessment methods such as LCA (and approaches based on LCA) to evaluate different scenarios.

2. Method

International standards [12] set out the principles, framework, requirements and guidelines for carrying out LCA studies and the following sections describe how these have been applied in this study.

2.1. Goal of the Study

The primary goal of the study was to compare the results from a selection of tools for the measurement of material efficiency/circularity with a life-cycle carbon footprinting tool, based on LCA principles, with a focus on aspects of material recovery and life extension.

2.2. Scope and Functional Unit

A case study of a 10MW tidal energy installation was used to test the tools, with five scenarios applied. The study was cradle to grave, including recycling and other recovery of materials at end of each life. For each scenario, regular maintenance and the electricity generated during the use phase were assumed to be equivalent and so these elements were not included.
The expected operational lifetime of the individual tidal energy units upon which the case study was based was 25 years. In order to test the full range of scenarios selected, four lifetimes were required, hence the overall operational period was taken to be 100 years. Assuming an efficiency factor of 0.35 [13], the energy generated over this period (the functional unit) was 3.1 TWh.
The life cycle carbon footprinting tool provided an output in terms of CO2 emissions only. Although this was deemed to be sufficient to meet the goal of the study, it is recognised that a full LCA study would provide a broader set of outputs in terms of environmental impact categories such as Global Warming Potential and Ozone Depletion Potential, upon which a more thorough comparison of scenarios could be based.
When developing an LCA (or LCA-based) study to evaluate scenarios relating to the circular economy, it is important to consider the system boundary of the study. A conventional system diagram, which includes manufacture, use and end-of-life disposal (a ‘cut-off’ approach) may not account for the upstream or downstream environmental burdens of recovered materials that cross the system boundary and are utilised by other products or processes. An effective LCA study therefore needs to have an extended system boundary, considering processes and products beyond the first life cycle, in order to evaluate each potential scenario.
LCA has been widely used for characterising the environmental benefits of recycling and organisations such as World Steel Association have recommended methods that can be used to evaluate the benefits of recycling steel products. Such approaches provide a useful starting point for evaluating scenarios relating to the circular economy and this paper explores how they can be further developed and applied not just to scenarios relating to recycling but also to reuse and extended product life.

2.3. Accounting for Recycling

When steel is recycled, it is remelted into steel which can be used in any product application, regardless of its origin, so steel that once was in a building can be recycled and used to make a car, a drinks can, or another building. This means that steel flows in open loop recycling systems, since the steel flows in different product loops. ISO 14044 [12] states that a closed-loop allocation procedure applies to closed-loop product systems. It also applies to open-loop product systems where no changes occur in the inherent properties of the recycled material. In such cases, the need for allocation is avoided since the use of secondary material displaces the use of virgin (primary) materials. Previous work [14] has applied this principle to calculating the benefits of steel recycling, which forms the basis of the recycling methodology adopted by World Steel Association [15]. An equation can be developed to account for either material that is recycled at end-of-life or for recycled content (the use of recyclate during manufacture).
E = Eman − (R2 − R1)Y(Ev − Erecycle)
where:
  • E: The LCI parameter or article relating to entire product life cycle after accounting for recycling
  • Eman: The LCI parameter or article relating to manufacture of a product containing a proportion of recycled content (R1)
  • Ev: The LCI parameter or article relating to 100% primary production
  • Erecycle: The LCI parameter or article relating to 100% secondary production
  • R1: The proportion of recycled content, which is used in manufacturing the product
  • R2: The recovery rate of material at end-of-life, which is recycled
  • Y: The efficiency, or yield, of the secondary production process.

2.4. Accounting for Reuse and Refurbishment

Steel reuse differs from recycling in that rather than the product being returned to a steel manufacturing site, for remelting, the product is used again in the same or other application. If the product is used again for the same application, then reuse can also be considered as an extension of product life. In some instances, it may be necessary to repair or refurbish the product before it is suitable for reuse. Reuse can therefore have multiple facets and approaches for modelling each possible scenario, within an LCA, will depend on the functional unit and the goal and scope of the study.
In this paper, the example of a tidal energy device is used to illustrate an approach for accounting for reuse. The study considers an installation, which is in operation for a period of 100 years and during this time-frame different scenarios are considered for reuse and extending the life of parts. The reused parts remain within the foreground system boundary, which differs from the parts that are destined for recycling. Material sent for recycling could enter a variety of different product systems and is therefore considered as part of the background system (Figure 1). Equally, recycled material used in manufacture could have originated from any number of different end-of-life products.
Where the scenario includes both original parts and any subsequent reuse and refurbishment activities, the following equation can be developed:
E = Eman + nEreuse − (R2 − R1)Y(Ev − Erecycle)
where:
  • Ereuse: The LCI parameter or article relating to refurbishment for reuse
  • n: Number of times the product is reused before disposal or recycling.

3. Evaluating Material Efficiency Strategies: A Case Study

In order to study the effectiveness of different material efficiency strategies, a case study was conducted based on a prototype tidal energy device. A tidal energy device is a renewable energy system designed to extract energy from the ebb and flow of tides in offshore areas with high tidal flow speed [16]. The development of tidal stream power is currently at an earlier stage than more common renewable energy sources such as wind power, and a wide range of designs exist, though many of the most successful devices are of the three-blade horizontal axis type. Such devices are generally seabed-mounted and many designs at first glance resemble a wind turbine, though due to the relative densities of water and air, a tidal turbine has a much smaller rotor diameter than that of a similarly-rated wind turbine. Tidal turbines are often rated at 1–2 MW, and are envisaged to be installed in arrays conceptually similar to wind farms, of the order of 100 s of MW. The development of the first such arrays is currently underway off the coast of the UK, for example, the MeyGen array, which aims to install 398 MW of tidal generation capacity by 2020 [17].
The prototype device used for the comparative study was a 1 MW rated device. For the purposes of this study, it was divided into three distinct sections: firstly, a ‘device’ section comprising the steel turbine body, internal electronic components and yaw rotation system; secondly, a ‘support’ section comprising the support structure, mounting system and foundations, and finally the composite turbine blades (‘blades’). In this case, the support structure was manufactured entirely of steel, and the mounting system was a steel and concrete piled foundation system. The tidal turbine is illustrated in Figure 2.
By mass, the turbine device comprises approximately 52% mild steel, 35% stainless steel, 11% iron and 2% other materials. The support comprises 60% mild steel and 40% cementitious materials, and the blades are entirely made of a glass fibre-reinforced epoxy resin [18].
The prototype device has a design life of 25 years and is rated at 1 MW, so four installations of ten devices are required to meet the functional unit. Transport to and from the installation site was assumed to be shared between the ten installed units.
A ‘business as usual’ case was initially established. In this case, the device and support would be replaced together after 25 years. In the business as usual case, current levels of recycling were assumed [19], with no recycling or energy recovery from composite or cementitious materials. From this initial case, four further cases were developed. Cases were developed in which device and support lifetimes were extended to 50 years by either refurbishment after 25 years, or by life extension (in this case, it was assumed that structures were retired after 25 years for safety reasons, but could have a 50-year lifetime if safety factors were reduced). In the former case, the carbon emissions from the removal, refurbishment and re-installation of the support were included in the carbon footprint study, and where possible in the material efficiency tools. In cases with energy recovery from the composite blade materials, an embodied energy of 100 MW/kg [19] and an energy recovery rate of 0.68 MWh/tonne [20] were assumed. A summary of the cases developed is given below, and the functional unit as satisfied by each case is illustrated visually in Figure 3. The colours assigned to each case are used in all subsequent figures.
  • Case 1: Business as usual recycling at end-of-life after 25 years of operation.
  • Case 2: As Case 1 with additional energy recovery from blades at end-of-life.
  • Case 3: Support is refurbished and reused after first 25-year lifetime. Recycling and energy recovery as Case 2.
  • Case 4: Support lifetime is extended to 50 years. Recycling and energy recovery as Case 2.
  • Case 5: Support lifetime is extended to 50 years. Device is refurbished and reused after first 25-year lifetime. Recycling and energy recovery as Case 2.
A zero recycling case, in which no recycling took place and each device, blades and support was discarded and replaced at the end of each 25-year lifetime, was also studied using some of the tools. It is appreciated that this case is unlikely to be realistic in reality, but it is included where possible to provide context for the five cases. For each of these five cases, results generated by a series of material efficiency tools were compared to the results of a carbon footprint assessment. Four of the material efficiency tools highlighted in Table 1 were selected for this comparison, namely Material Circularity Index (MCI) [21]; Eco-Costs [22]; Circular Economy Toolkit (CET) [23]; and Circular Economy Indicator Prototype (CEIP) [24]. These four methods were selected as they give a broad representation of the range of tools available, both in focus and complexity. The MCI and Eco-Costs tools are numerical calculation methods, with the former focussing on environmental circularity and the latter on economic circularity. The CET and CEIP are simpler, graphically-based tools. The CET is the simplest considered in this study: Its output is simply a recommendation of areas of the development and use of a product which may offer the greatest potential for circularity improvements. The CEIP is a more complex tool, resulting in an assessment of product circularity as a percentage value.

3.1. Case Study Results: Material Efficiency Tools

3.1.1. MCI

The Material Circularity Indicator (MCI) method developed by Granta Design is a spreadsheet-based tool. Six inputs are required: the reused material percentage, recycled material percentage, recycling efficiency at manufacture and end-of-life stages, and the product lifespan and functional unit relative to industry averages.
For each case, reuse and recycling was calculated at a material level, then the product lifespan multiplier was used to represent reuse and extension of life in the relevant cases. This was applied to each material in the product, then aggregated based on mass proportion to give a case total. Input values were set according to industry data [25,26], as follows:
  • Mild Steel: 36% recycled content feedstock, 95% recycled at End-of-life
  • Stainless Steel: 60% recycled content feedstock, 95% recycled at End-of-life
  • Iron: 50% recycled content feedstock, 95% recycled at End-of-life
Concrete was not assumed to contain any recycled feedstock, nor to be recycled at End-of-life, due to the difficulty of extracting it and the fact it cannot be recycled to a product of the same standard.
MCI calculations gave the following results (The MCI tool result is a value between 0, being a not at all circular product, to 1, being an entirely circular product):
  • Case 1: 0.439
  • Case 2: 0.439
  • Case 3: 0.579
  • Case 4: 0.635
  • Case 5: 0.652

3.1.2. Eco-Costs

The Eco-costs method was originally proposed by Vogtländer [27], and subsequently updated in 2012. Eco-costs are defined by their authors as costs required to reduce the environmental pollution and materials depletion of a product to a level in line with the maximum carrying capacity of the earth. Carrying capacity is itself a loosely defined term, but is described by Vogtländer as the maximum number of individuals of a given species that can be supported on a sustainable basis, in this case meaning a sustainable global human population.
The tool used in this study was that developed alongside the IDEMAT 2015 dataset by Vogtländer et al [28]. In order to represent the five cases, an aggregated approach was used based on the combination of virgin (i.e., non-recycled) and secondary (i.e., recycled) material content for each material, over each 25-year period. In cases 3, 4, and 5, the Eco-costs method is unable to account for the differences between refurbishment and life extension, so any additional resource use due to refurbishment processes was not taken account of.
Three versions of the Eco-costs calculation were undertaken, for three end-of-life scenarios. The first (Landfill) assumes that material waste is sent to landfill at the end-of-life, the second (Open Loop, OL) assumes that material is processed in a modern municipal waste treatment system with metal recycling and heat recovery from plastics. The final (Closed Loop, CL) assumes that used products are returned to the manufacturer and reused in new products. In all cases, the Eco-costs value gives the monetary value required to reduce the environmental pollution and material depletion to a level in line with the carrying capacity of the earth. It should be noted that this method was also unable to account for energy recovery from composite materials, so cases 2, 3, 4 and 5 assume the use of virgin composite materials in blade manufacture, as per case 1. Results of the Eco-costs method are given in Table 2.

3.1.3. CET

This tool asks the user questions in seven categories, incorporating design and manufacture, materials, use, and end-of-life treatment and uses these to give recommendations for areas of potential improvement. The majority of the 33 answers were identical for each of the five cases, but three questions were answered differently for different cases. These questions related to the percentage of recycled material used (where a variation between case 1 and all subsequent cases was seen); product lifetimes (where a variation between cases 1 and 2, and 3, 4 and 5 was seen); and end-of-life treatment by the manufacturer (where a variation between cases including refurbishment and those without refurbishment was seen).
The output of the CET is a diagram highlighting areas of low, medium, or high potential for improvement in circularity. The results for each of the five cases are given in Figure 4. As can be seen, the tool highlights potential for additional recycling in case 1, but does not suggest any difference in the improvement potential of the remaining four cases, proposing an improvement in refurbishment and remanufacture in all cases.

3.1.4. CEIP

This tool is spreadsheet-based, and uses the respondent’s answers to 15 questions about product manufacture, use and end-of-life treatment to produce a ‘Circularity Rating’, defined as a percentage value. The tool states that the questionnaire intends to evaluate in what degree the product fosters the Circular Economy principles throughout its different lifecycle stages.
The questions cover five topic areas: Design, Manufacture, Commercialisation, Use, and End-of-life, giving 15 questions in total. Answers to 12 of the 15 questions were identical for all cases, with only the first and last questions being answered differently. These questions respectively ascertain the percentage of the product manufactured from recycled or reused material, and the percentage of the product recycled after use, or reused. In all cases, it was necessary to aggregate multiple scores for products at different stages of the functional unit. The data used to answer these two questions across the five scenarios is as follows:
  • Case 1: 70% recycling and 0% reuse at manufacture, 70% recycled and 0% reused at end-of-life (The tool allows the user to select these values with a resolution of 10%. Since recyclable materials actually represent 70.66% of the complete product, a slight error is introduced due to this).
  • Case 2: 80% recycling and 0% reuse at manufacture, 80% recycled and 0% reused at end-of-life (again, a slight error is introduced since plastic makes up 9.55% of total mass).
In cases 3, 4 and 5, the device and support are considered separately.
  • Case 3: The device is recycled as in cases 1 and 2. To represent the reuse of the support, the first lifetime is modelled as having 80% recycled material at manufacture, and 20% recycled/80% reused at end-of-life. The second lifetime is modelled with 20% recycled/80% reused at manufacture, and 80% recycled material at end-of-life. The third and fourth lifetimes repeat this process.
  • Case 4: Since the tool is unable to account for the difference between reuse and life extension, cases 3 and 4 are identical.
  • Case 5: As in case 3, reuse was represented by linking the reuse at end-of-life of lifetimes 1 and 3 with the reused input to lifetimes 2 and 4. In this case, this method was applied to the device and support.
Aggregated results for the functional unit in each case give the following results, with the resulting graphical results breakdown given in Figure 5.
  • No recycling: 37%
  • Case 1: 53%
  • Case 2: 56%
  • Case 3: 56%
  • Case 4: 56%
  • Case 5: 60%

3.2. Comparison of Material Efficiency Tools

It was noted that a number of the tools tested showed similar results for all cases tested, despite what one would imagine are significant differences between cases. For example, the CEIP tool rated all cases apart from the no recycling case as “Good”, with a percentage variation of only 7% between the best and the worst. It was noted that in the CEIP and CET tools, only a small number of questions (3 of 15 and 3 of 33, respectively) resolved the changes made between cases, with all others being identical. In the CEIP study, this results in all cases apart from the no recycling case being given a “good” rating. This is partly due to the wide range of the rating (from 40% to 60%) and partly due to the scope of the tool, which considers reuse and recycling and the beginning and end of the product life as only part of its metric. Other considerations such as Commercialisation and Design are given significant weight, but are unaffected by our cases.
The Eco-costs tool was also found to have significant limitations: It was unable to account for additional resources used during refurbishment, as well as being unable to account for energy recovery. This perhaps suggests that these tools are not the best indicators of circularity for this type of product, though no guidance on the suitability of the tools for specific product types is given.
Direct comparison of the four selected material efficiency tools is challenging, since all give results in their own preferred format. However, in the case of those giving numerical results (MCI, Eco-costs and CEIP), it is possible to normalise these results across the five cases to allow a direct comparison. Results of these three tools, normalised by the case 1 value of each across the five cases, are illustrated in Figure 6.
As can be observed in Figure 6, the trends of the MCI and Eco-costs tools were found to be similar between cases one and three. Both methods were not able to resolve the difference between cases one and two (i.e., the introduction of energy recovery from composite materials), but the MCI method did show a difference between all other cases, whereas the Eco-costs method did not show any variation between cases three and four (i.e., the change from a support structure refurbished after 25 years to one with a 50-year lifetime). The results of the CEIP method follow a slightly different trend. Although this method was able to account for the introduction of energy recovery in case two, it was unable to distinguish between cases two, three and four, to which it attributed the same score.
In order to further assess the strengths and weaknesses of each method, results were subsequently compared to those of a carbon footprint assessment, as introduced in the next section.

3.3. Case Study Results: Carbon Footprint Assessment

In order to compare the results of the material efficiency tools described in previous sections, a full carbon footprint study was conducted for the Tidal turbine case study. A spreadsheet tool developed specifically for this study was used, and the energy requirement and carbon footprint of each process required to manufacture and install the turbine was calculated. Material production, part manufacture, transport, installation, maintenance and end-of-life decommissioning and recycling were included, with additional calculations of the energy required to refurbish parts in the relevant cases, as well as their associated transport, removal and re-installation requirements. Data was gathered from a range of sources, including tidal turbine manufacturers [29,30], previous studies [31] and work in other fields (for example, transport sector data was used to establish the fuel consumption and energy requirements of transport by road and sea).

4. Results: Comparison of Material Efficiency Tools and Carbon Footprint Assessment

Results generated by the three material efficiency tools with numerical outputs (the CET tool produced only a graphical output, meaning we were unable to include its results in further comparison) were compared to those of the carbon footprint study.
Results from the carbon footprinting tool, in terms of normalised tonnes of CO2 emissions per functional unit, are compared to the results of the material efficiency measurement tools described previously, in Figure 7.
It can be seen from these results that the best performing of the three material efficiency tools appears to be the Open Loop Eco-costs measure, but it is evident that all three material efficiency tools struggled to identify the true CO2 emission benefits of cases two and five. In case two, the reduction in carbon footprint resulting from the use of energy recovery from the incineration of turbine blades at end-of-life was not accounted for by the Eco-costs and MCI measures, which overestimated the CO2 result by 8.5% compared to the carbon footprint tool. The CEIP tool did account for this change, but still underestimated the benefit by 3.4%.
The reuse of the turbine body and blades in case five was not correctly accounted for by any of the material efficiency tools, resulting in a CEIP error of 58%, MCI error of 46%, and Eco-costs errors of between 27% and 45%. This change resulted in a significant reduction in carbon footprint, and highlights the fact that although material efficiency tools are a relatively quick way to estimate the circularity of a product or process, these tools can lead to different conclusions to those of full analysis, and without the use of a full carbon footprint study it may not be possible to understand the implications of all changes, such as in this case between life extension and refurbishment.

5. Concluding Remarks

Material efficiency and the circular economy are key elements of new thinking to address the challenges of reducing impacts on the environment and of resource scarcity, whilst at the same time meeting the service and functionality demands required by society of materials. Many new strategies and business models for greater material efficiency and circularity are being proposed and developed; however, it is not necessarily the case that all of these will lead to a net environmental benefit. Therefore, an environmentally-based assessment of strategies should be carried out in order to understand the (potential for) improvement. Several assessment tools are available and a selection have been tested alongside an LCA-based method, in order to understand the degree to which conclusions arrived at using the different approaches correlate and support good decision-making. In conclusion:
  • The circular economy supports the hierarchy of reducing resource consumption, reusing, remanufacturing and recycling materials.
  • Policies and methods for evaluating the circularity of the products should not be limited to simple indicators (e.g., rates of recycling or recycled content).
  • LCA methodologies based around end-of-life approaches are well placed for quantifying the environmental benefits of material efficiency and circular economy strategies, such as reuse and refurbishment.
  • Initiatives relating to the circular economy should make use of the tools and methods that the LCA community has developed to validate the environmental credentials of new products and business models.
  • Material efficiency tools can provide useful information on the implications of material use choices, but the method of calculation and inbuilt assumptions of a given tool can have a significant effect on the result.
  • When applying indicators relating to the circularity of materials, these should also be supported by LCA studies.

Acknowledgments

The authors are grateful for the support of The University of Sheffield and Tata Steel.

Author Contributions

S.W., P.H. and N.Cole conceived the study. P.H. and N.Cole wrote the majority of Section 1, Section 2, and Section 5, with particular contribution from L.B. on Section 1. S.W. conducted the case study calculations. All authors contributed to Section 3 and Section 4, with particular contribution from N.Coll on the MCI tool.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Allwood, J.M.; Cullen, J.M. Sustainable Materials: With Both Eyes Open, 2nd ed.; UIT: Cambridge, UK, 2012; ISBN 190686005X. [Google Scholar]
  2. Ellen Macarthur Foundation (EMF). Towards the Circular Economy; Ellen Macarthur Foundation: Cowes, UK, 2014. [Google Scholar]
  3. Milford, R.L.; Pauliuk, S.; Allwood, J.M.; Muller, D.B. The Roles of Energy and Material Efficiency in Meeting Steel Industry CO2 Targets. Environ. Sci. Technol. 2013, 47, 3455–3462. [Google Scholar] [CrossRef] [PubMed][Green Version]
  4. Cooper, D.R.; Allwood, J.M. Reusing Steel and Aluminium Components at End of Product Life. Environ. Sci. Technol. 2012, 46, 10334–10340. [Google Scholar] [PubMed]
  5. Lifset, R.; Eckelman, M. Material efficiency in a multi-material world. Philos. Trans. R. Soc. 2013, 371, 20120002. [Google Scholar] [CrossRef] [PubMed]
  6. Worldsteel. Steel in the Circular Economy: A Life Cycle Perspective; Worldsteel Association: Brussels, Belgium, 2015. [Google Scholar]
  7. ECOFYS. Circular Economy and Environmental Priorities for Business; World Business Council for Sustainable Development: Geneva, Switzerland, 2017. [Google Scholar]
  8. European Environment Agency (EEA). Circular by Design: Products in the Circular Economy; European Environment Agency: Copenhagen, Denmark, 2017; pp. 48–49. [Google Scholar]
  9. European Commission. Communication from the Commission to the European Parliament, the Council, the European Economic and Social Committee and the Committee of the Regions (on a Monitoring Framework for the Circular Economy). Available online: http://ec.europa.eu/environment/circular-economy/pdf/monitoring-framework.pdf (accessed on 22 January 2018).
  10. Linder, M.; Sarasini, S.; van Loon, P. A Metric for Quantifying Product-level Circularity. J. Ind. Ecol. 2017, 21, 545–558. [Google Scholar] [CrossRef]
  11. Saidini, M.; Yannou, B.; Leroy, Y.; Cluzel, F. How to Assess Product Performance in the Circular Economy? Proposed Requirements for the Design of a Circularity Measurement Framework. Recycling 2017, 2, 6. [Google Scholar] [CrossRef]
  12. ISO 14040 & 14044:2006. Environmental Management—Life Cycle Assessment: Principles and Framework & Requirements and Guidelines; International Organization for Standardization: Geneva, Switzerland, 2006. [Google Scholar]
  13. Clarke, J.; Connor, G.; Grant, A.; Johnstone, C. The impact of limiting tidal turbine capacity on the output characteristics from three complimentary tidal sites in Scotland over the lunar cycle. In Proceedings of the 9th World Renewable Energy Congress (WREC), Aberdeen, UK, 22–27 May 2005. [Google Scholar]
  14. Brimacombe, L.; Coleman, N.; Honess, C. Recycling, reuse and the sustainability of steel. Millenium Steel 2005, 446, 3–7. [Google Scholar]
  15. World Steel Association. Life Cycle Assessment (LCA) Methodology Report; World Steel Association: Brussels, Belgium, 2011. [Google Scholar]
  16. Hardisty, J. The Analysis of Tidal Stream Power, 1st ed.; Wiley-Blackwell: Chichester, UK, 2009; ISBN 978-0-470-72451-4. [Google Scholar]
  17. MeyGen. The MeyGen Project. Available online: https://www.atlantisresourcesltd.com/projects/meygen/ (accessed on 29 September 2017).
  18. Materials Data Is Based on Information Provided under a Non-Disclosure Agreement between Tidal Generation Ltd. and The University of Sheffield; Tidal Generation Ltd.: Stafford, UK, 2013.
  19. Hammond, G.; Jones, C. Inventory of Carbon and Energy (ICE) v2.0; Sustainable Energy Research Team (SERT), University of Bath: Bath, UK, 2008. [Google Scholar]
  20. Song, S.; Youn, J.; Gutowski, T. Life cycle energy analysis of fiber-reinforced composites. Compos. Part A Appl. Sci. Manuf. 2009, 40, 1257–1265. [Google Scholar] [CrossRef]
  21. EMF/Granta. Circularity Indicators: An Approach to Measuring Circularity; Ellen MacArthur Foundation/Granta Design: Cowes, UK, 2015. [Google Scholar]
  22. Scheepens, A.E.; Vogtlander, J.G.; Brezet, J.C. Two life cycle assessment (LCA) based methods to analyse and design complex (regional) circular economy systems. Case: Making water tourism more sustainable. J. Clean. Prod. 2016, 114, 257–268. [Google Scholar] [CrossRef]
  23. Evans, J.; Bocken, N. Circular Economy Toolkit. 2013. Available online: http://www.circulareconomytoolkit.com (accessed on 14 August 2017).
  24. Cayzer, S.; Griffiths, P. Design of Indicators for Measuring Product Performance in the Circular Economy. In Sustainable Design and Manufacturing; Springer: Cham, Switzerland, 2016; Volume 52. [Google Scholar]
  25. UNEP. Assessing Mineral Resources in Society: Metal Stocks & Recycling Rates; UNEP: Nairobi, Kenya, 2011. [Google Scholar]
  26. Papp, J.F. 2015 Minerals Yearbook: Recycling—Metals; US Geological Survey: Ritton, VA, USA, 2017.
  27. Vogtländer, J.G.; Hendricks, C.F.; Brezet, H.C. The virtual Eco-Costs’99: A single LCA-based indicator for sustainability and the Eco-Costs-Value Ratio. J. Life Cycle Assess. 2001, 6, 157–166. [Google Scholar] [CrossRef]
  28. Vogtlander, J.G. The Model of the Eco-Costs/Value Ratio (EVR). Available online: http://ecocostsvalue.com/EVR/model/theory/subject/8-LCA.html (accessed on 14 August 2017).
  29. Rolls-Royce. TGL DeepGen Brochure; Tidal Generation Limited: Bristol, UK, 2011. [Google Scholar]
  30. Andersen, S.A. Development of ANDRITZ HYDRO Hammerfest’s Tidal Technology. In Proceedings of the 5th Bilbao Marine Energy Week, Bilbao, Spain, 20–23 April 2015. [Google Scholar]
  31. Hammond, G.P.; Jones, C.I. Embodied energy and carbon in construction materials. Proc. Inst. Civ. Eng. Energy 2008, 161, 87–98. [Google Scholar] [CrossRef][Green Version]
Figure 1. Foreground and background system for a product that is reused and then recycled.
Figure 1. Foreground and background system for a product that is reused and then recycled.
Sustainability 10 00666 g001

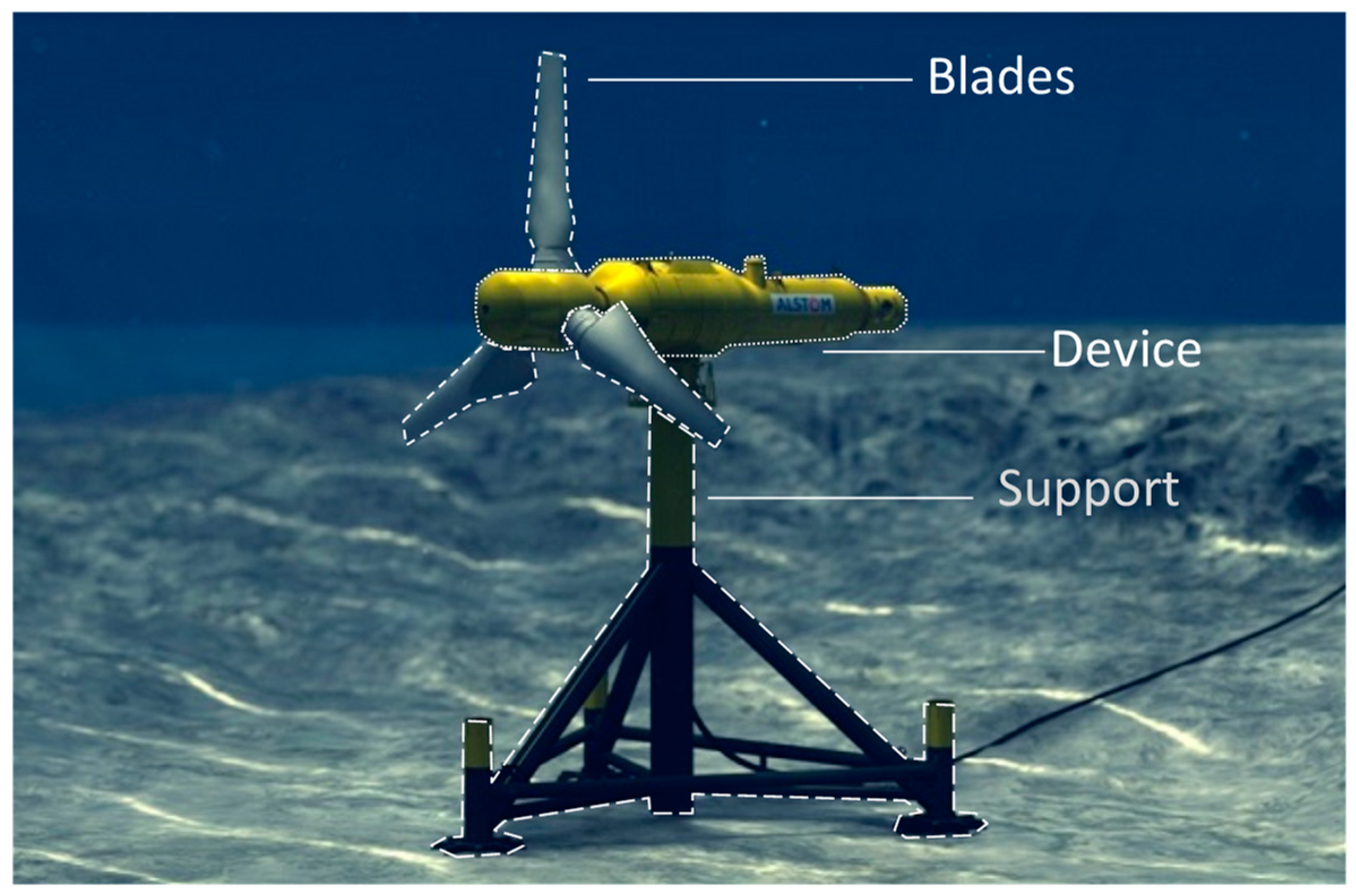

Figure 2. Case study prototype Tidal Turbine parts: Device (Blades and Body) and Support (Support Structure and Mounting). Foundations not shown.
Figure 2. Case study prototype Tidal Turbine parts: Device (Blades and Body) and Support (Support Structure and Mounting). Foundations not shown.
Sustainability 10 00666 g002

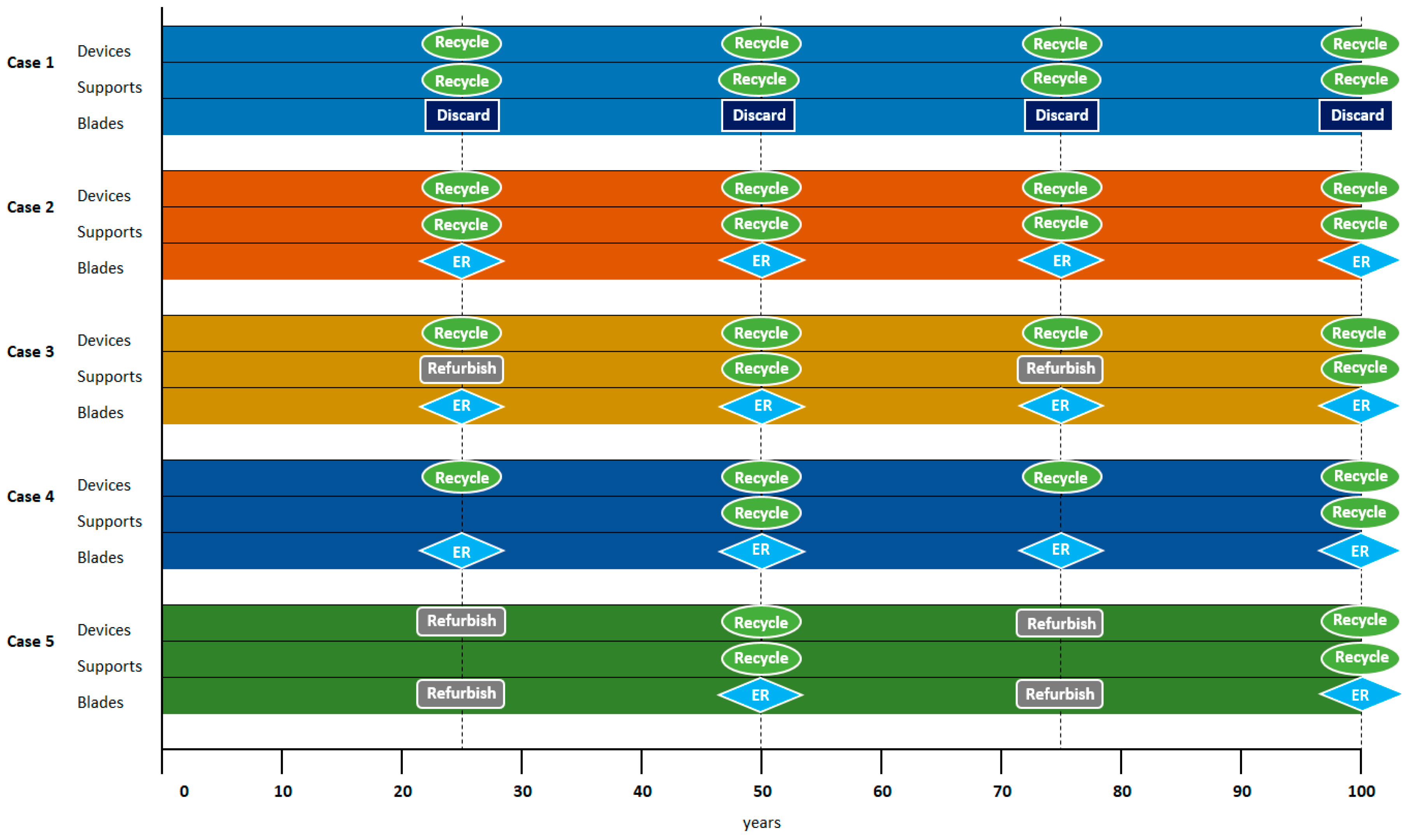

Figure 3. Illustration of the five life cycle cases used in the case study discussed in this article.
Figure 3. Illustration of the five life cycle cases used in the case study discussed in this article.
Sustainability 10 00666 g003

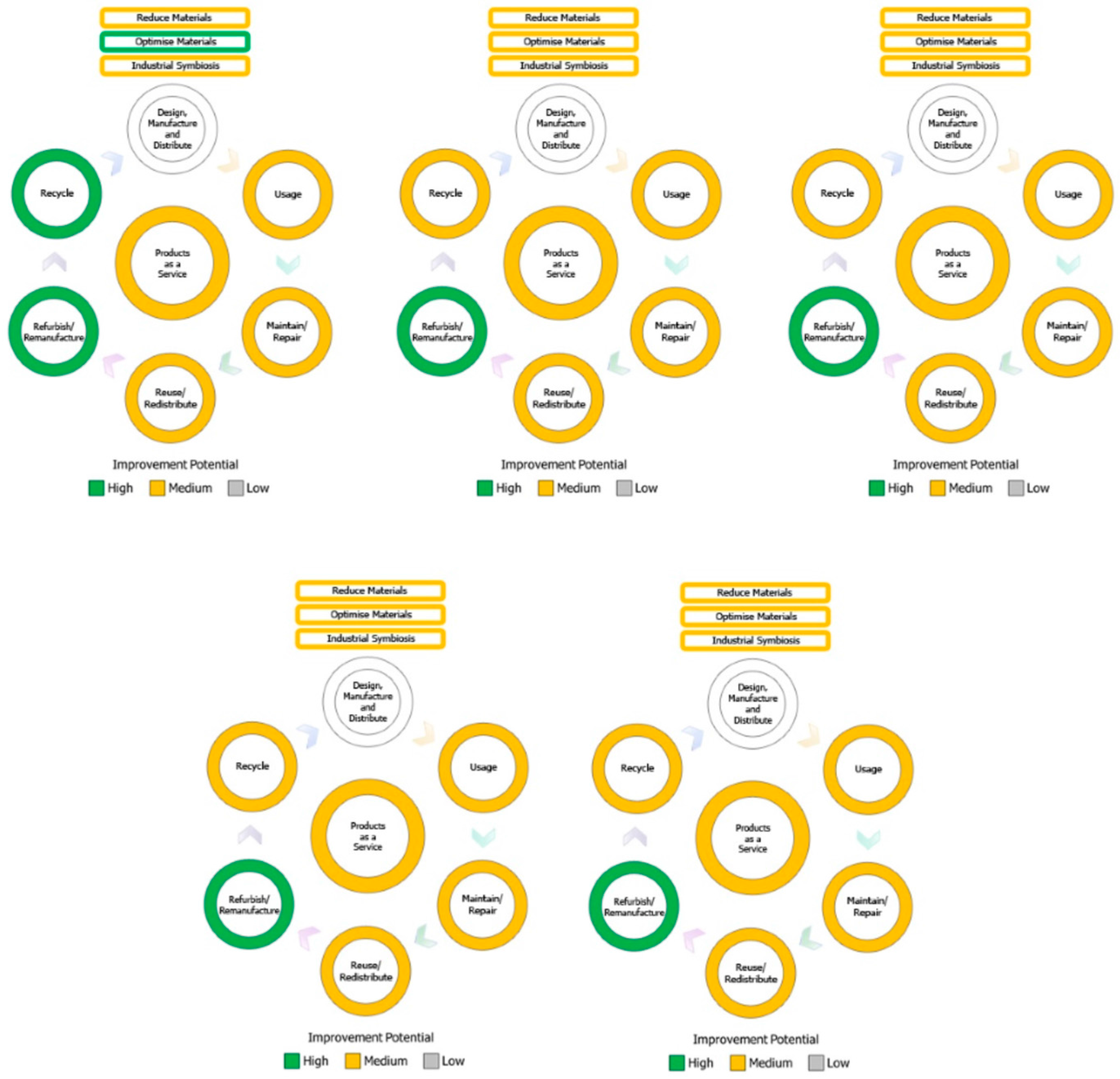

Figure 4. Results of Circular Economy Toolkit (CET) material efficiency toolkit (Top: case 1, case 2, case 3. Bottom: case 4, case 5).
Figure 4. Results of Circular Economy Toolkit (CET) material efficiency toolkit (Top: case 1, case 2, case 3. Bottom: case 4, case 5).
Sustainability 10 00666 g004

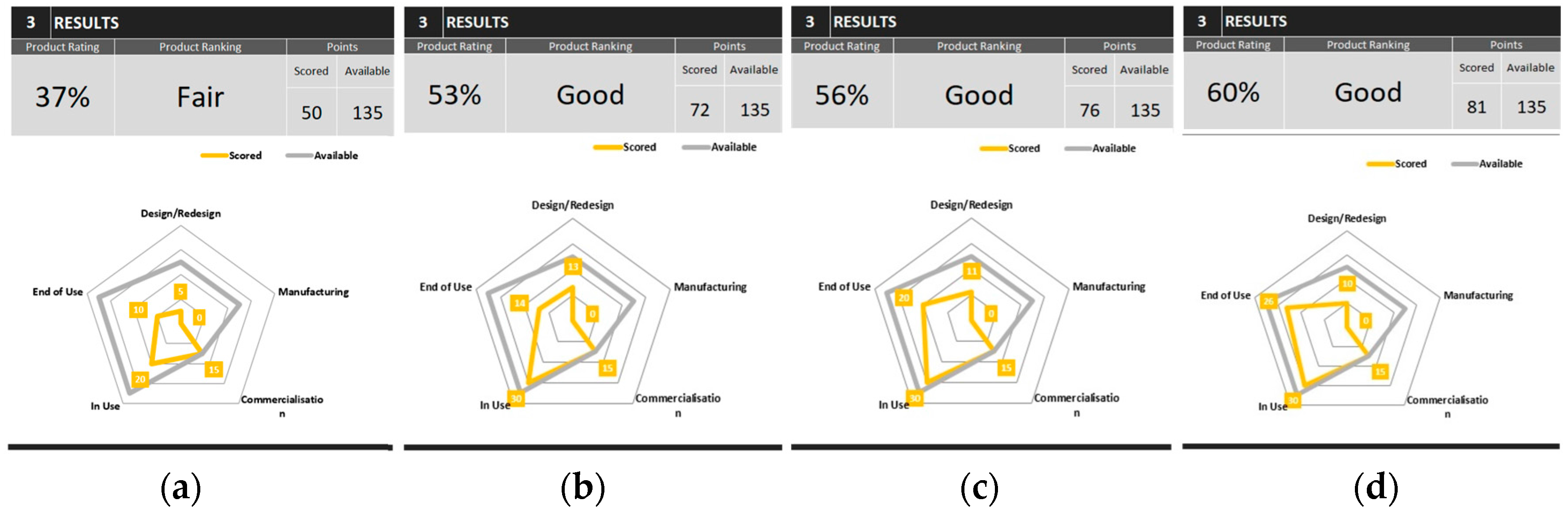

Figure 5. Results of Circular Economy Indicator Prototype (CEIP) material efficiency toolkit: (a) no recycling case; (b) case 1; (c) cases 2, 3 and 4; (d) case 5.
Figure 5. Results of Circular Economy Indicator Prototype (CEIP) material efficiency toolkit: (a) no recycling case; (b) case 1; (c) cases 2, 3 and 4; (d) case 5.
Sustainability 10 00666 g005

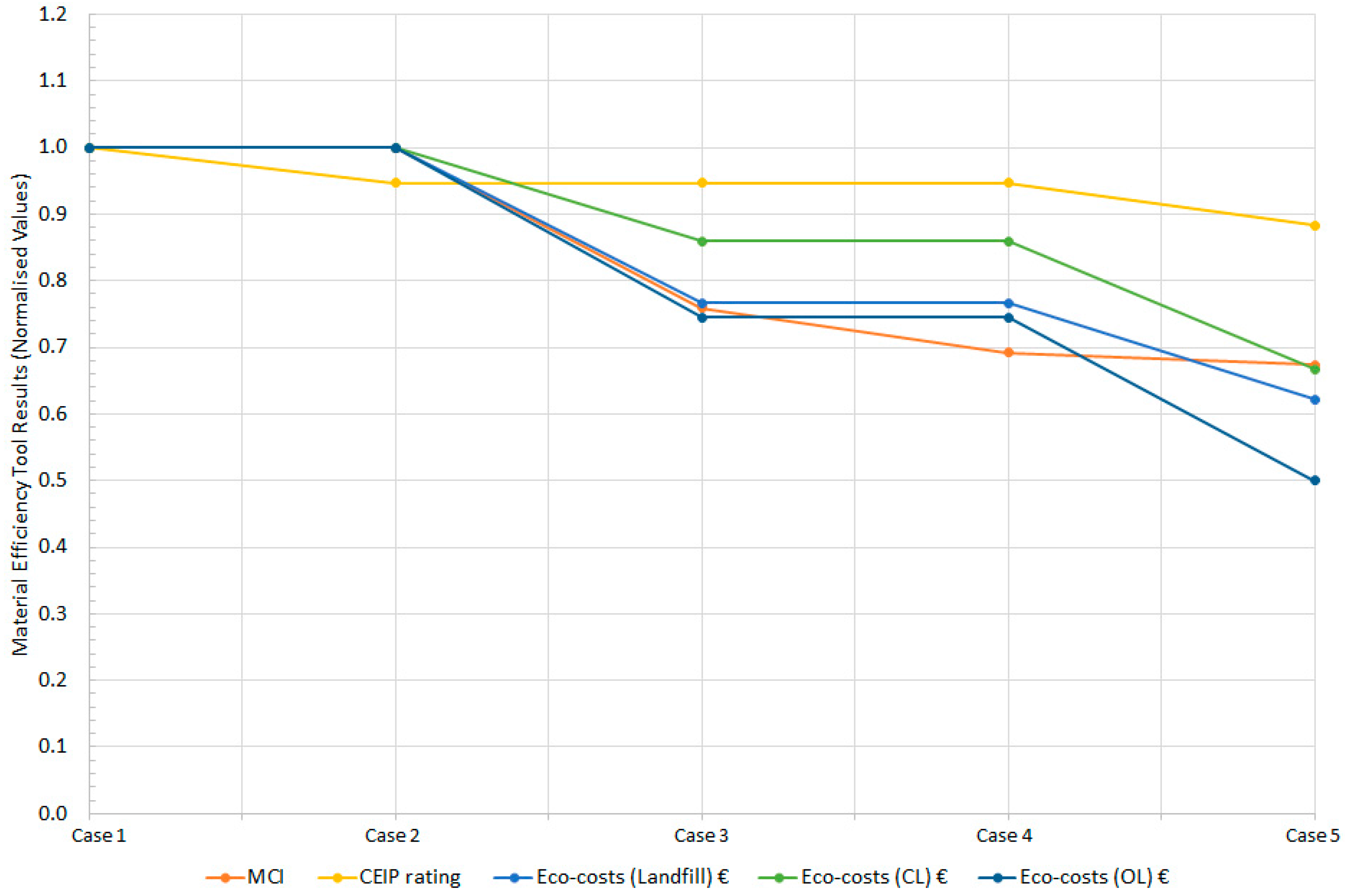

Figure 6. Comparison of normalised results of MCI, CEIP and Eco-costs material efficiency tools.
Figure 6. Comparison of normalised results of MCI, CEIP and Eco-costs material efficiency tools.
Sustainability 10 00666 g006

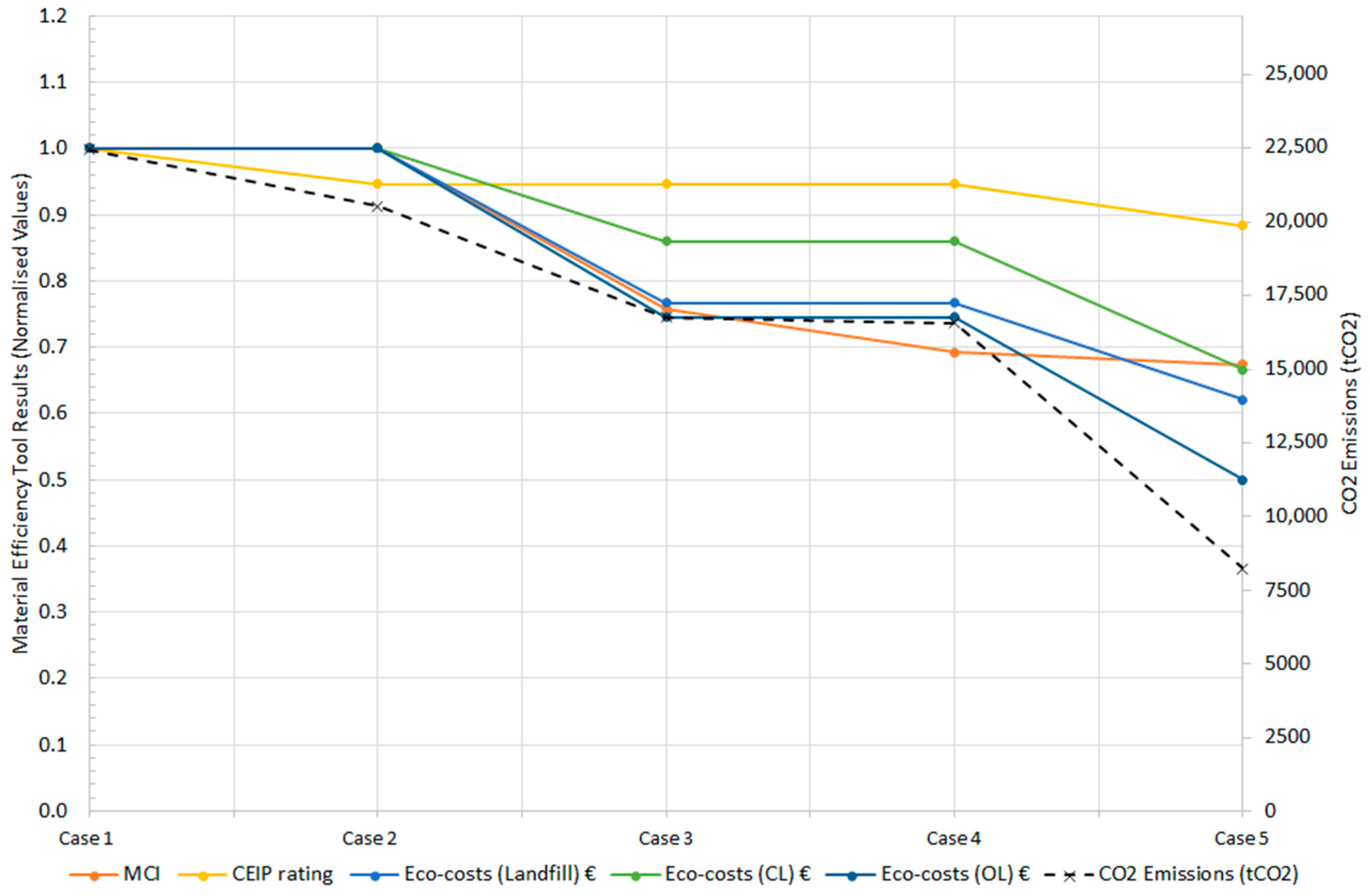

Figure 7. Comparison of material efficiency tools results and carbon footprint study results for Tidal Turbine case study.
Figure 7. Comparison of material efficiency tools results and carbon footprint study results for Tidal Turbine case study.
Sustainability 10 00666 g007
Table 1. Material Efficiency assessment tools, as described by Linder [10] and Saidini [11].
Table 1. Material Efficiency assessment tools, as described by Linder [10] and Saidini [11].
Tool NameAuthor/DateFocusOutput
Material Circularity Index (MCI)Ellen MacArthur Foundation/Granta Design 2015Reuse/RecyclingNumerical
Eco-CostsVogtländer et al. 2001/2012EconomicsNumerical
Circular Economy IndexDi Maio 2015EconomicsNumerical
REPRO2Gehin 2008RemanufacturingGuidance
C2CEcolabel IndexMaterials and UseGuidance
Economic Value RatioLinder 2017EconomicsNumerical
Circular Economy ToolkitEvans 2013Materials and UseGraphical
Circular Economy Indicator PrototypeCayzer 2016Materials and UseGraphical and Numerical
Table 2. Eco-costs material efficiency tool results for scenarios 1-5 and no recycling.
Table 2. Eco-costs material efficiency tool results for scenarios 1-5 and no recycling.
CaseEco-Costs (Landfill) €Eco-Costs (CL) €Eco-Costs (OL) €
No recycling12,263,465.6010,333,819.602,846,119.20
17,094,842.105,165,196.102,846,118.42
2 (no ER)7,094,842.105,165,196.102,846,118.42
3 (no ER)5,438,494.504,438,797.302,119,719.62
4 (no ER)5,438,494.504,438,797.302,119,719.62
54,408,858.303,444,035.301,423,059.34

© 2018 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Back to TopTop
