Inheritance of Mitochondria in Pelargonium Section Ciconium (Sweet) Interspecific Crosses

by
Floris C. Breman
1,*,
Joost Korver
1,
Ronald Snijder
2,
M. Eric Schranz
1 and
Freek T. Bakker
1,*
1
Biosystematics Group, Wageningen University and Research, Radix Building 107, Droevendaalsesteeg 1, 6708 PB Wageningen, The Netherlands
2
Syngenta Seeds BV Cornelis Kuinweg 28, 1619 PE Andijk, The Netherlands
*
Authors to whom correspondence should be addressed.
Int. J. Plant Biol. 2024, 15(3), 586-598; https://doi.org/10.3390/ijpb15030044
Submission received: 23 April 2024 / Revised: 18 June 2024 / Accepted: 20 June 2024 / Published: 30 June 2024
(This article belongs to the Special Issue Plant Genetic Resources: Conservation and Characterization)
Browse Figures
Review Reports Versions Notes

Abstract

:
We have studied the inheritance of mitochondria in Pelargonium section Ciconium using 36 interspecific crosses generated. We designed KASP markers targeting four mitochondrial loci, belonging to the mitomes of four main crossing parents, enabling tracking the transmission of each mitome in the crosses. These markers discriminate between an individual species versus the other section Ciconium species. We found that maternal inheritance of mitochondria is most frequent, with occasional occurrences of paternal inheritance, while biparental inheritance is rare. For a P. multibracteatum crossing series, we found ambiguous results. Our results confirm those of previous studies, namely, that paternal inheritance of mitochondria can occur in P. sect Ciconium but that the instance is rare and much less common than is the case for chloroplasts.

1. Introduction

Species from genus Pelargonium (Geraniaceae) have been used regularly as a model organism for studying cyto-nuclear incompatibility (CNI), e.g., [1,2,3,4,5,6,7]. The species of the genus are renowned for being relatively easy to cross, at least on the intrasectional level, and CNI between interspecific hybrids is a common occurrence [5,6,7]. Cyto-nuclear incompatibility is the (partial) failure or breakdown in communication between nuclear and organellar genomes. It occurs when populations, derived from a single ancestor, and having become separated in space and time, undergo secondary contact. Such populations may have acquired mutations independently from each other, creating possible reproductive barriers. This is referred to as the Bateson–Dobzhansky–Muller (BDM) model of speciation [8,9,10] and is thought to underly and explain the occurrence of CNI. Cyto-nuclear incompatibility can be caused by a nuclear mismatch with mitochondria (mCNI), as well as with chloroplasts (pCNI). Whereas mCNI manifests itself as dwarf growth or (partial) male sterility [11], pCNI, on the other hand, presents itself as the bleaching of the leaves (chlorosis), which is a regularly occurring phenomenon in F1 hybrids of interspecific crosses in Pelargonium [5,6,7]. Both types of CNI seem to occur in Pelargonium crosses, but pCNI has been studied in far greater detail [5,6,7,8,9,10,11,12,13] than the inheritance of mitochondria and mCNI. Mitochondria are thought to be inherited primarily though the maternal line [14]. Strict paternal inheritance of mitochondria occurs only in Cucurbits [15,16], Sequoiqa sempervirens (which also displays paternal inheritance of plastids [17]), and Musa acuminata [18]. Paternal leakage and biparental inheritance are more common than strict paternal inheritance and may represent evolutionary intermediate forms between strictly maternal or paternal inheritance. The frequency of paternal leakage and biparental inheritance depends on the species or the clade and can vary considerably [19,20].
In Pelargonium, tantalizing evidence of possible biparental/paternal inheritance of mitochondria has been reported [13,14,15]. These observations can be explained by the direct inheritance of mitochondria, but recombination of mitomes at some point has also been invoked as an explanation for the apparent heteroplasmy of hybrid offspring [16]. In this paper. heteroplasmy is defined as the occurrence of two or more genotypes in one organism or even an individual cell, and which can, but not necessarily does, result in different CNI phenotypes.
Recombination can occur during cell division if conditions allow (e.g., in Oenothera [21]) (meiosis or mitosis), in which expression of the plastid ycf and accD genes, referred to as cytoplasmic drive loci, appear to play an important role. It could also occur during gamete fusion when the pollen and egg contents merge, as mitochondria (and plastids) were demonstrated to be physically transmitted by pollen, as are plastids [22]. Both methods could be ‘common’ and allow for recombination to occur each time a cell divides or gametes fuse. Recombination could also have occurred historically (on any time scale) and have been an ‘on/off event’, if neutral or even beneficial (under specific circumstances). Overall, this could have resulted in fixation of the variants and effectively result in, as we define it, ‘stable heteroplasmy’. Another explanation for the observed heteroplasmy is intracellular gene transfer between organelles, as was demonstrated to occur in Geranium [23], which is part of the sister of Pelargonium.
If there are selective penalties or benefits to heteroplasmy, any of these scenarios could have played a role in heteroplasmy becoming stable or recurring in Pelargonium at some point during the evolution of a lineage or population. Here, we take advantage of the great number of hybrids generated by our previous studies [7,11] to verify the inheritance of mitochondria in Pelargonium section Ciconium interspecific hybrids.

2. Materials and Methods

2.1. Plant Material, DNA Extraction, and Sequencing

The list of plant material, DNA extraction protocol, and standard Illumina HiSeq sequencing protocol are the same as those reported in [11]. Additional plant material was collected from herbaria and from living collections (Table 1, copied with permission from [24]), and these were subjected to the same treatment with respect to DNA extraction and sequencing as in [11]. For the sake of convenience, throughout the text, four-letter acronyms for each accession will be used (see Table 1). A total of 36 different F1 crosses consisting of 179 accessions were evaluated (‘mito-typed’), 12 of which were wild-type plants (i.e., parental material), thus, resulting in a total of 163 F1 accessions for evaluation.

2.2. Mitome Assembly

From the Illumina sequence read libraries, we assembled mitome fragments. We used getOrganelle v1.6.2e [26] and started assembly with previously Sanger-sequenced mitochondrial fragments available for Pelargonium [27,28]. After a first round of assembly, we evaluated the resulting contigs, which we then took and used, as a more specific reference to start our next fragment assembly on. We accepted an assembly with a base coverage >10 reads/base position as ‘good’. However, for practical purposes, we sometimes accepted an assembly with a base coverage of >5 and <10 reads. We only focused on exons as it was not possible to achieve homologous noncoding sequences for all accessions.

2.3. Organellar Genotyping Using PCR and KASP Markers

We employed a competitive allele-specific PCR (currently named ‘Kompetitive Allele-Specific PCR’, or KASPTM) from Kbioscience or LGC Genomics (http://www.lgcgenomics.com, accessed on 01 April 2020) for mitotyping. KASP was proven to be a reliable and fast technique for genotyping material and is now considered a benchmark for SNP calling [29,30,31,32]. KASP is a PCR-based assay designed to detect SNP variants by using two forward primers (containing the SNP) and one reverse primer. As a result of our crossings, our F1 and F2 progeny had two parents that differed by SNPs at various positions in their mitomes. The mother of each crossing series was considered the ‘target’, whereas the paternal parent could be any other species from section Ciconium and is, therefore, collectively referred to as ‘Ciconium’ in our assays. KASP primers were designed on (partial) assemblies of mitome exons as outlined above. Using introns for marker development is standard, as these are generally more variable, yet close to conserved exon sequences. However, in the case of Pelargonium, mitome introns have been found to be absent from nad1 [28,33,34,35], and, in addition, exon’s silent nucleotide substitution rates were found to be dramatically increased [27,33,35,36] and may, therefore, be good candidates for SNP marker development. The following exons were used as a source: cox2, cox3, cytb, NAD1-exon 1, NAD5, and atp1. We selected SNPs unique to a target, if possible, to be able to distinguish it from the other Ciconium species. We performed this by comparing the sequences, obtained from the mitome contigs, in separate alignments and selecting SNPs by eye as targets for the KASP primers. Our KASP thermo profile was: 5 min denaturation at 94 °C, 10 cycles of 94 °C (20 s), and 61–55 °C annealing and extension (60 s; dropping 0.6 °C in annealing temperature each cycle), followed by 30 cycles of 94 °C and 55 °C extension for final amplification. We added 10 µM of the first F-primer + 10 µM the second F-primer and 20 µM R primer and mixed them with a KASP 2x master mix (LGC Genomics. (2013) and mQ water. Template DNA working concentrations must be in the range of 0.2–10 ng/µL and these need to be added accordingly to the mix for each reaction. For KASP, we used two positive control samples which contained only the maternal and/or paternal genotype, and non-template controls (‘NTC’) to be able to discriminate between fluorescence signal caused by primer interactions and those with the templates.
As stated above, KASP is a PCR-based technique that can determine the relative concentration of each genotype as well. In order to test for differences in concentrations between alleles, we mixed DNA extracts of one parent containing a ‘Ciconium’ allele (set to 0.2 ng/µL) with the extracts of an accession with the target (e.g., ‘HORT’) allele, to obtain a series of known concentration ratios (10:90, 25:75, 50:50, 75:25, and 90:10.) This allowed us to determine if there were different ratios of mitochondria of either parent present in the hybrid accessions, and thus enable quantification after 30 cycles. Because markers were designed for four different mitome exon targets, hybrids based on two targeted parents could be reciprocally evaluated as such. We have done so for offspring that was the result of ‘MULT, ACET, BARK, and HORT’ crosses. The full results are visualized in Figure 1 as allelic discrimination plots. Mitome type-calling was carried out as follows: a plant can have a maternally (M), paternally (P), biparental (B), or conflicting mitome type (B/H/R). The last category can occur if the parental plants happen to be heteroplasmic (H) themselves or if the mitomes are recombining (R), effectively resulting in a heteroplasmic offspring. The KASP primers’ sequence and info can be found in OSM.

3. Results

3.1. Confirmed F1 Hybrids

The resulting hybrids are described in our previous studies [7,11,24], but a short summary is given here for convenience. These studies established a total of 30 different F1 interspecific hybrids comprising hundreds of plants. The majority of these came from two (nearly) comprehensive attempts of crossing series with P. x hortorum (‘Pinto White’ diploid cultivar) X Ciconium spp. and P. multibracteatum X Ciconium spp. Other successful F1 interspecific hybrids series were from P. barklyi X Ciconium spp. and P. acetosum X Ciconium spp. Thus, a wide range of crosses were established covering four clades, and, hence, plastome-types, from the section, as estimated based on a plastome comparison by [37].

3.2. Mitome Assemblies

We were able to assemble mitome fragments with a read depth >10 for most accessions (see OMS1). For some, however, markers were assembled with a base coverage of 5–10, and these are considered moderately reliable, and were incorporated for practical and comparative purposes, but not used for primer design. Our final dataset, only counting the concatenated exons, was 4353 bp long and the assembly lengths (in bp) for each fragment were as follows: COX2: 687; COX3: 1028; cytb: 487; nad1 exon 1: 311; nad5: 502; nad7: 582; and atp1: 756. Length differences were observed in nad1 exon 1 and nad5 (see OSM with alignments). For P. yemenense, the cytb sequence remained incomplete despite repeated attempts at assembly.

3.3. Mitotyping

We have successfully determined the mitome type of 179 plants. All results are summarized in Table 2, and visualized in allelic discriminant plots in Figure 1. Excluding the MULT X Ciconium series (see below) and the wild-type plants (the F0 parental populations), there were 117 F1 plants in total to base our analysis and conclusions on. Of these, 89% displayed the maternal mitotype, 8.5% the paternal type, 0.8% (one plant) displayed a conflicting signal, but this involved a ‘bridge cross’ in which an F1 plant was crossed with a third species (an F1 HORT x ZONA plant was crossed with P. aridum; see Table 2), and 0.8% (one plant) displayed evidence of biparental inheritance (F1 TONG X ACET). This last example was confirmed by another KASP marker (shown in Table 2). Finally, four F1 plants failed to yield any result.
For the P. multibracteatum series, 10 F1 crosses (55 plants) were evaluated. Of these, two crosses displayed apparent biparental genotypes, while eight others displayed an apparent paternal mitotype. We tested the wild-type plants with all markers available and these displayed conflicting results (biparental/heterozygous).
Plants with predominantly maternal mitotypes with a non-target Ciconium mother and a target Ciconium father (e.g., FRUT x BARK) nearly always ended up in discriminant plot quadrant I (Figure 1A–C) as expected. Those with the target as the mother and non-target Ciconium as the father were grouped in quadrant IV. One population (F1 HORT x QUIN) displayed discrete biparental inheritance with plants displaying either the QUIN (paternal) or HORT (maternal) genotype. One accession, F1 of TONG x ACET, has a KASP result close to a ratio of non-target ‘Ciconium’: target ‘acetosum’ of 25:75 (indicated by a star in Figure 1B). In this single case, there is more of the paternal type (~75%), but the maternal type is also present. This plant appears to be exceptional and may be one of those rare individuals which show heteroplasmy at significant levels for mitochondrial types. Three F1 samples show a strictly paternal genotype: these are F1 BARK x QUIN, F1 ACET x ZONA, and F1 BARK x INQU. Two F2 plants of HORT x ACET also displayed a paternal (ACET) genotype.

4. Discussion

Our results support the long-held notion that mitochondria inherit both paternally and maternally in Pelargonium section Ciconium [11,13,22,38]. If we exclude the P. multibracteatum population and its derived hybrids, the instance of heteroplasmy in hybrid offspring seems to be less common than in the case of plastids, for which heteroplasmy was found more frequently previously [7,11]. Our results do point to maternal inheritance as the prevailing mode of inheritance, a phenomenon that has intrigued workers sincelong. This is similar to what is observed in other plant groups [20]. On the spectrum between paternal and maternal inheritance, P. sect. Ciconium displays a biparental model of inheritance. This is a more common mode of inheritance in angiosperms (though still rare) [19], and may represent evolutionary intermediate forms between strictly maternal or strictly paternal inheritance.
Biparental inheritance has been considered the result of some imperfect ‘sorting mechanism’ in which paternal leakage is occurring at a low frequency [13,39], preferentially selecting a certain type. For a review of proposed mechanisms see [14], or for an excellent example involving cytoplasmic drive loci in Oenothera see [21]. We hypothesize that the high incidence of maternal inheritance of mitomes means that, even if these sorting mechanisms are in place in P. sect Ciconium, they appear not to function perfectly and the resulting amount of paternally inherited mitochondria is more than mere ‘parental leakage’. These studies mainly target plastid inheritance and plastome variation, but the same or similar mechanisms may underly mitochondrial inheritance and selection as well [13]. Environmental and genetic factors also seem to influence inheritance, especially when paternal leakage or biparental inheritance is the dominant type of inheritance [40,41]. If one or more of these mechanisms also play a role in P. sect. Ciconium, this should, for instance, show up in follow-up experiments under tighter temperature control than what we employed. Our experiments were conducted during a full growth season (March–November) across multiple years (2017–2021) in northwest Europe in semi-controlled greenhouses. This means that major temperature fluctuations could have influenced the occurrence of paternal inheritance in our experiments.
Paternal inheritance is thought to have evolved to select against pollen mitochondrial genomes that are considered too large due to acquired numbers of structural mutations, resulting in deleterious mutations [19,42]. This hypothesis is supported by the fact that paternal inheritance occurs in species with very large, repeat rich mitomes [19]. There are some indications that Pelargonium mitomes also suffer from an increased size [27,34,43], but an annotated mitome is, as of yet, unavailable for Pelargonium. Our results do not counter the enlarged mitome hypothesis and this is one that should be tested in Pelargonium by sequencing a full mitome.
Another explanation for the stronger maternal effect could be that mCNI is much stronger than chloroplast effects, especially because our controlled growth environment used is optimized for the survival of every chlorotic plant, but not for that of embryos. Even though we did employ embryo rescue [7,11] this does not salvage any mCNI effects that would occur directly upon fertilization. Plastids are undeveloped during and directly after fertilization and seed development, whereas the mitochondria are active during these phases. Therefore, any mCNI effect would be stronger than pCNI at these crucial early developmental stages. This would explain the high number of aborted embryos and empty seeds found on all our F1 plants [7]. Given that the mother plant is ‘responsible’ for supplying energy to the development of the seeds, it is logical that there is a strong maternal bias. However, plastids which are introduced to the embryo via the pollen [22,44]) are sorted out and removed early in development as well [13,31]. Nevertheless, they can be present in all tissue early on [38] before most of them are removed eventually.
Finally, recombination has also been invoked as a partial explanation for the observed patterns of heteroplasmy and cannot be excluded as having played a role as well [43,45]. Basically, recombination is thought to affect the occurrence of varying mitome types in a cell or plant, and to result in a more random distribution of mitome variants. We think that this explanation is less likely as this would have been a rarer occurrence. The relatively high occurrence of both paternal and maternal (and even biparental) modes of inheritance across the section, as well as persistence throughout generations (see [7] for an example from plastids), evidenced by the recovery of our SNP markers in offspring, are more parsimoniously explained by simple inheritance.

4.1. The Case of P. multibracteatum

The P. multibracteatum crossing series showed ambiguous results. The reciprocal comparison of the results for the other markers with those of the MULT marker were contradictory (see Table 2 and OSM1). While the reciprocal comparison between the other markers (ACET, BARK, and HORT) clearly showed that these three confirmed each other, we were left us with the MULT markers’ ambiguous results. To assess performance issues of the MULT KASP marker, we re-analyzed the P. multibracteatum series with a second KASP marker and we included another P. multibracteatum accession. This again resulted in a near-universal ‘Ciconium’ call, and, this time, the positive control also resulted in a ‘Ciconium’ call. We, therefore, conclude that we do not have consistent results for the mito-typing of the P. multibracteatum series. Rather, we believe that the patterns we see is caused by innate heteroplasmy of P. multibracteatum. The full overview of all reactions and raw data of fluorophore measurements can be found in the Supplementary Materials.

4.2. Evolutionary Effects of mCNI

Our results lend support for both the idea that biparental inheritance of organelles could provide an escape from CNI [46], involving ‘vegetative sorting’ of incompatible types, and the hypothesis that organellar changes, resulting in CNI, have a profound influence on speciation [47,48]. Further support for these two hypotheses comes from the fact that the second generation of plants segregate for chlorosis [7,11] with only one plastid type present, showing that selection for organelle management and expression genes acts immediately after the first generation of hybridization [7,47]. Different organelle types induce different CNI in crosses with equal nuclear genomic backgrounds (as can be seen for the chloroplast in Pelargonium x hortorum crosses [11]). The preference for one type, as well as preferentially backcrossing with one of the parents (introgression), after a historical hybridization event could explain the problematic position of taxa in phylogenetic trees due to conflict between plastid and nuclear genomic markers. For instance, the four-petalled P. nanum which is currently not assigned to any section [49] was suspected to be an ancient relict of a now extinct group (section) of species because of its unique floral morphology and its ‘single branch’ status in current phylogenetic trees (e.g., [37]). P. nanum usually group as a sister to clade A2 [30,39,50]. Other cases can be seen in P. sect. Hoarea, where the occurrence of non-monophyletic species has been attributed to ‘chloroplast capture’ [25]. Such taxa would have retained the organelle of one species, while displaying the morphology and nuclear genomic type of another. Further testing of such incongruencies could be carried out by using more markers from the nuclear genomes. For instance, the repeatome appears promising as a source of phylogenetic markers [51,52]) as it provides resolution at a low taxonomic level and provides a genome-wide overview represented by the most abundant parts of the non-coding DNA (repeats).
Naturally occurring hybrids in Pelargonium are rarely found (pers. comm. Powrie Kirstenbosch RSA), but not unheard off [53,54]. This is logical given the reduced fitness characteristic of most hybrid offspring which will result in lower chances of surviving to the reproductive life stage. However, despite this post-zygotic barrier, our study also shows that species can be highly compatible as we obtained many (~30) interspecific crosses, some of which are fully green and fertile. Therefore, we do not exclude that hybridization does play an additional, if minor, role in Pelargonium evolution. Two cases of possible natural hybrids from section Ciconium are known. The first is a herbarium specimen of a wild hybrid between P. peltatum and P. alchemilloides at RBGE (M. Gibby pers. comm.). The second case is P. x salmoneum (from our own collections). We have analyzed both the plastome and mitome of P. x salmoneum and found that it carries the P. inquinans plastome and a mix of P. inquinans and P. acetosum mitochondrial genotypes (OSM1), potentially due to mitome recombination [43] or historical biparental inheritance. The morphology of P. x salmoneum is intermediate between P. inquinans and P. acetosum. Pelargonium x salmoneum is a fully fertile, green plant which segregates for numerous traits such as plant size (an indication of possible mitochondrial CNI effects), flower shape, and leaf shape, indicating it is not a ‘stable’ species (yet), but a hybrid. We propose that P. x salmoneum, irrespective of whether it arose naturally or was the result of human crossing activities, is a genuine interspecific hybrid with equal fitness to either of its proposed parents and that it contains possible traces of mitochondrial recombination. We hypothesize that embryonic organelle sorting is absent or impaired in Pelargonium section Ciconium and conclude that the ‘sorting out’ of mitochondria is stronger than that of plastids. Heteroplasmy is rare for mitochondria, in all P. sect. Ciconium species, but seems to be innate to the P. multibracteatum population used in this study. This may imply that selective barriers are stronger for mitochondria than for chloroplasts.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijpb15030044/s1. OSM1: Mitome fragment assembly results. Plant lists with mitotypes per plant and KASP primers. OSM2: FASTA alignments of mitome fragments.

Author Contributions

Conceived the study: F.C.B., F.T.B. and M.E.S. Wrote the manuscript: F.C.B. and F.T.B. Carried out the analysis: F.C.B. Experimental design–crossing and embryo rescue: F.C.B., R.S. and M.E.S. Experimental design PCR: F.C.B. and J.K. Laboratory work: F.C.B. and J.K. All authors read the draft and gave feedback. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Dutch Foundations for applied scientific research (TTW), grant number: 14531 “Pelargonium genomics for overcoming cytonuclear incompatibility and bridging species barriers” of the Green Genetics program NWO.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

SRAs on which the mitome fragments are based have been published as part of the PhD thesis by F.C.B entitled “Exploring patterns of cytonuclear incompatibility in Pelargonium section Ciconium”.

Acknowledgments

We would like to thank the crews at Syngenta for caring for the plants; Tony Lokkers (Syngenta) for pollinations and Mireia Sancho-Such (Syngenta) for the embryo rescue; and The Royal Botanic Garden Edinburgh for kindly sharing the plant material. We also like to thank two anonymous reviewers whose comments helped improve this manuscript.

Conflicts of Interest

R.C.S. is employed at Syngenta NV; the other authors have no conflicting interests to declare.

References

  1. Bateson, W. Heredity and variation in modern lights. In Darwin and Modern Science; Seward, A.C., Ed.; Cambridge University Press: Cambridge, UK, 1909; pp. 85–101. [Google Scholar]
  2. Dobzhansky, T. Studies on hybrid sterility. II. Localization of sterility factors in Drosophila pseudoobscura hybrids. Genetics 1936, 21, 113–135. [Google Scholar] [CrossRef]
  3. Müller, H.J. Isolating mechanisms, evolution, and temperature. Biol. Symp. 1942, 6, 71–125. [Google Scholar]
  4. Schnable, P.S.; Wise, R.P. The molecular basis of cytoplasmic male sterility and fertility restoration. Trends Plant Sci. 1998, 3, 175–180. [Google Scholar] [CrossRef]
  5. Baur, E. Das Wesen und die Earblichkeitsverhältnisse der ‘varietates albomarginatae hort’ von Pelargonium zonale. Z. Indukt. Abstamm. -Vererbungsl. 1909, 1, 330–351. [Google Scholar] [CrossRef]
  6. Horn, W. Interspecific crossability and inheritance in Pelargonium. Plant Breed. 1994, 113, 3–17. [Google Scholar] [CrossRef]
  7. Breman, F.C.; Snijder, R.C.; Korver, J.W.; Pelzer, S.; Sancho-Such, M.; Schranz, M.E.; Bakker, F.T. Interspecific Hybrids Between Pelargonium × hortorum and species from P. section Ciconium reveal biparental plastid inheritance and multi-locus cyto-nuclear incompatibility. Front. Plant Sci. 2020, 11, 614871. [Google Scholar] [CrossRef] [PubMed]
  8. Tilney-Bassett, R.A.E. The control of plastid inheritance in Pelargonium II. Heredity 1973, 30, 1–13. [Google Scholar] [CrossRef]
  9. Tilney-Bassett, R.A.E. The control of plastid inheritance in Pelargonium III. Heredity 1974, 33, 353–360. [Google Scholar] [CrossRef]
  10. Tilney-Bassett, R.A.E. Genetics of variegated plants. In Genetics and Biogenesis of Mitochondria and Chloroplasts; Birky, C.W., Perlman, P.S., Byers, T.J., Eds.; Ohio State University Press: Columbus, OH, USA, 1975; pp. 268–308. [Google Scholar]
  11. Breman, F.C. Exploring patterns of cytonuclear incompatibility in Pelargonium section Ciconium. Ph.D. Thesis, Wageningen University, Wageningen, The Netherlands, 2021. [Google Scholar] [CrossRef]
  12. Tilney-Bassett, R.A.E.; Almouslem, A.B.; Amoate, H.M. Complementary genes control biparental plastid inheritance in Pelargonium. Theor. Appl. Genet. 1992, 85, 317–324. [Google Scholar] [CrossRef]
  13. Weihe, A.; Apitz, J.; Salinas, A.; Pohlheim, F.; Börner, T. Biparental inheritance of plastidial and mitochondrial DNA and hybrid variegation in Pelargonium. Mol. Genet. Genomics 2009, 282, 587–593. [Google Scholar] [CrossRef]
  14. Greiner, S.; Sobanski, J.; Bock, R. Why are most organelle genomes transmitted maternally? BioEssays 2015, 37, 80–94. [Google Scholar] [CrossRef] [PubMed]
  15. Havey, M. Predominant paternal transmission of the mitochondrial genome in cucumber. J. Hered. 1997, 88, 232–235. [Google Scholar] [CrossRef]
  16. Park, H.-S.; Lee, W.K.; Lee, S.-C.; Lee, H.O.; Joh, H.J.; Park, J.Y.; Kim, S.; Song, K.; Yang, T.-J. Inheritance of chloroplast and mitochondrial genomes in cucumber revealed by four reciprocal F1 hybrid combinations. Sci. Rep. 2021, 11, 2506. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  17. Neale, D.B.; Marshall, K.A.; Sederoff, R.R. Chloroplast and mitochondrial DNA are paternally inherited in Sequoia sempervirens D. Don Endl. Proc. Natl. Acad. Sci. USA 1989, 86, 9347–9349. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  18. Noyer, J.-L.; Horry, J.-P.; Lanaud, C.; Fauré, S.; Carreel, F.; Bakry, F. Maternal inheritance of chloroplast genome and paternal inheritance of mitochondrial genome in bananas (Musa acuminata). Curr. Genet. 1994, 25, 265–269. [Google Scholar] [CrossRef] [PubMed]
  19. Munasinghe, M.; Ågren, J.A. When and why are mitochondria paternally inherited? Curr. Opin. Genet. Dev. 2023, 80, 102053. [Google Scholar] [CrossRef] [PubMed]
  20. Khachaturyan, M.; Santer, M.; Reusch, T.B.; Dagan, T. Heteroplasmy is rare in plant mitochondria compared to plastids despite similar mutation rates. bioRxiv 2023. [Google Scholar] [CrossRef] [PubMed]
  21. Sobanski, J.; Giavalisco, P.; Fischer, A.; Kreiner, J.M.; Walther, D.; Schöttler, M.A.; Pellizzer, T.; Golczyk, H.; Obata, T.; Bock, R.; et al. Chloroplast competition is controlled by lipid biosynthesis in evening primroses. Proc. Natl. Acad. Sci. USA 2019, 116, 5665–5674. [Google Scholar] [CrossRef]
  22. Kuroiwa, T.; Kawazu, T.; Ushida, H.; Ohta, T.; Kuroiwa, H. Direct evidence of plastid DNA and mitochondrial DNA in sperm cells in relation to biparental inheritance of organelle DNA in Pelargonium zonale by fluorescence/electron microscopy. Eur. J. Cell Biol. 1993, 62, 307–313. [Google Scholar]
  23. Park, S.; Grewe, F.; Zhu, A.; Ruhlman, T.A.; Sabir, J.; Mower, J.P.; Jansen, R.K. Dynamic evolution of Geranium mitochondrial genomes through multiple horizontal and intracellular gene transfers. New Phytol. 2015, 208, 570–583. [Google Scholar] [CrossRef]
  24. Breman, F.C.; Korver, J.W.; Snijder, R.C.; Bakker, F.T. Plastid-encoded RNA polymerase variation in Pelargonium sect. Ciconium. Hortic. Adv. 2024, 2, 1. [Google Scholar] [CrossRef]
  25. Bakker, F.T.; Culham, A.; Marais, E.M.; Gibby, M. Nested radiation in Cape Pelargonium. In Plant Species-Level Systematics: New Perspectives on Pattern and Process; Bakker, F.T., Chartrou, L.W., Gravendeel, B., Pielser, P.B., Eds.; A.R.G. Ganter Verlag K.G.: Ruggell, Liechtstein, 2005; pp. 75–100. [Google Scholar]
  26. Jin, J.-J.; Yu, W.-B.; Yang, J.-B.; Song, Y.; Depamphilis, C.W.; Yi, T.-S.; Li, D.-Z. GetOrganelle: A fast and versatile toolkit for accurate de novo assembly of organelle genomes. Genome Biol. 2020, 21, 241. [Google Scholar] [CrossRef] [PubMed]
  27. Bakker, F.T.; Breman, F.C.; Merckx, V. DNA sequence evolution in fast evolving mitochondrial DNA nad1 exons in Geraniaceae and Plantaginaceae. Taxon 2006, 55, 887–896. [Google Scholar] [CrossRef]
  28. Grewe, F.; Zhu, A.; Mower, J.P. Loss of a trans-splicing nad1 intron from Geraniaceae and transfer of the maturase gene matR to the nucleus in Pelargonium. Genome Biol. Evol. 2016, 8, 3193–3201. [Google Scholar] [CrossRef] [PubMed]
  29. Hiremath, P.J.; Kumar, A.; Penmetsa, R.V.; Farmer, A.; Schlueter, J.A.; Chamarthi, S.K.; Whaley, A.M.; Carrasquilla-Garcia, N.; Gaur, P.M.; Upadhyaya, H.D.; et al. Large-scale development of cost- effective SNP marker assays for diversity assessment and genetic mapping in chickpea and comparative mapping in legumes. Plant Biotechnol. J. 2012, 10, 716–732. [Google Scholar] [CrossRef] [PubMed]
  30. Semagn, K.; Babu, R.; Hearne, S. Single nucleotide polymorphism genotyping using Kompetitive Allele Specific PCR (KASP): Over view of the technology and its application in crop improvement. Mol. Breed. 2014, 33, 1–14. [Google Scholar] [CrossRef]
  31. Islam, M.S.; Thyssen, G.N.; Jenkins, J.N.; Fang, D.D. Detection, validation, and application of genotyping-by-sequencing based single nucleotide polymorphisms in upland Cotton. Plant Genome 2014, 8, 1–10. [Google Scholar] [CrossRef] [PubMed]
  32. Steele, K.A.; Quinton-Tulloch, M.J.; Amgai, R.B.; Dhakal, R.; Khatiwada, S.P.; Vyas, D.; Heine, M.; Witcombe, J.R. Accelerating public sector rice breeding with high-density KASP markers derived from whole genome sequencing of indica rice. Mol. Breed. 2018, 38, 38. [Google Scholar] [CrossRef]
  33. Bakker, F.T.; Culham, A.; Pankhurst, C.E.; Gibby, M. Mitochondrial and chloroplast DNA-based phylogeny of Pelargonium (Geraniaceae). Am. J. Bot. 2000, 87, 727–734. [Google Scholar] [CrossRef]
  34. Palmer, J.D.; Adams, K.L.; Cho, Y.; Parkinson, C.L.; Qiu, Y.L.; Song, K. Dynamic evolution of plant mitochondrial genomes: Mobile genes and introns and highly variable mutation rates. Proc. Natl. Acad. Sci. USA 2000, 97, 6960–6966. [Google Scholar] [CrossRef]
  35. Choi, K.; Weng, M.-L.; Ruhlman, T.A.; Jansen, R.K. Extensive variation in nucleotide substitution rate and gene/intron loss in mitochondrial genomes of Pelargonium. Mol. Phylogenet. Evol. 2021, 155, 106986. [Google Scholar] [CrossRef]
  36. Mower, J.P.; Touzet, P.; Gummow, J.S.; Delph, L.F.; Palmer, J.D. Extensive variation in synonymous substitution rates in mitochondrial genes of seed plants. BMC Evol. Biol. 2007, 7, 135. [Google Scholar] [CrossRef] [PubMed]
  37. van de Kerke, S.J.; Shrestha, B.; Ruhlman, T.A.; Weng, M.-L.; Jansen, R.K.; Jones, C.S.; Schlichting, C.D.; Hosseini, S.; Mohammadin, S.; Schranz, M.E.; et al. Plastome based phylogenetics and younger crown node age in Pelargonium. Mol. Phylogenet. Evol. 2019, 137, 33–43. [Google Scholar] [CrossRef]
  38. Guo, F.L.; Hu, S.Y. Cytological evidence of biparental inheritance of plastids and mitochondria in Pelargonium. Protoplasma 1995, 186, 201–207. [Google Scholar] [CrossRef]
  39. Kirk, J.T.O.; Tilney-Bassett, R.A.E. The Plastids; Freeman and, Co.: London, UK, 1967. [Google Scholar]
  40. Chung, K.P.; Gonzalez-Duran, E.; Ruf, S.; Endries, P.; Bock, R. Control of plastid inheritance by environmental and genetic factors. Nat. Plants 2023, 9, 68–80. [Google Scholar] [CrossRef]
  41. Sakamoto, W.; Takami, T. Maternal plastid inheritance: Two abating factors identified. Trends Genet. 2023, 39, 342–343. [Google Scholar] [CrossRef]
  42. Havey, M.J. Organellar genomes of the cucurbits. In Genetics and Genomics of Cucurbitaceae; Grumet, R., Katzir, N., Garcia-Mas, J., Eds.; Springer International Publishing: Berlin/Heidelberg, Germany, 2017; pp. 241–252. [Google Scholar]
  43. Apitz, J.; Weihe, A.; Pohlheim, F.; Börner, T. Biparental inheritance of organelles in Pelargonium: Evidence for intergenomic recombination of mitochondrial DNA. Planta 2013, 237, 509–515. [Google Scholar] [CrossRef] [PubMed]
  44. Kuroiwa, H.; Kuroiwa, T. Giant mitochondria in the mature egg cell of Pelargonium zonale. Protoplasma 1992, 168, 184–188. [Google Scholar] [CrossRef]
  45. Maréchal, A.; Brisson, N. Recombination and the maintenance of plant organelle genome stability. New Phytol. 2010, 186, 299–317. [Google Scholar] [CrossRef]
  46. Barnard-Kubow, K.B.; McCoy, M.A.; Galloway, L.F. Biparental chloroplast inheritance leads to rescue from cytonuclear incompatibility. New Phytol. 2017, 213, 1466–1476. [Google Scholar] [CrossRef]
  47. Barnard-Kubow, K.B.; So, N.; Galloway, L.F. Cytonuclear incompatibility contributes to the early stages of speciation. Evolution 2016, 70, 2752–2766. [Google Scholar] [CrossRef] [PubMed]
  48. Greiner, S.; Bock, R. Tuning a ménage à trois: Co-evolution and co-adaptation of nuclear and organellar genomes in plants. BioEssays 2013, 35, 354–365. [Google Scholar] [CrossRef] [PubMed]
  49. Röschenbleck, J.; Albers, F.; Müller, K.; Weinl, S.; Kudla, J. Phylogenetics, character evolution and a subgeneric revision of the genus Pelargonium (Geraniaceae). Phytotaxa 2014, 159, 31–76. [Google Scholar] [CrossRef]
  50. Bakker, F.T.; Culham, A.; Daugherty, L.C.; Gibby, M. A trnL-F based phylogeny for species of (Geraniaceae) with small chromosomes. Plant Syst. Evol. 1999, 216, 309–324. [Google Scholar] [CrossRef]
  51. Dodsworth, S.; Jang, T.S.; Struebig, M.; Chase, M.W.; Weiss-Schneeweiss, H.; Leitch, A.R. Genome-wide repeat dynamics reflect phylogenetic distance in closely related allotetraploid Nicotiana (Solanaceae). Plant Syst. Evol. 2017, 303, 1013–1020. [Google Scholar] [CrossRef]
  52. Breman, F.C.; Chen, G.; Snijder, R.C.; Schranz, M.E.; Bakker, F.T. Repeatome-Based Phylogenetics in Pelargonium Section Ciconium (Sweet) Harvey. Genome Biol. Evol. 2021, 13, evab269. [Google Scholar] [CrossRef]
  53. Knuth, R. Geraniaceae.—In Engler, A.; (Ed.): Das Pflanzenreich 4, 1–9.—Leipzig (1912), Germany Engelmann. Available online: https://www.biodiversitylibrary.org/bibliography/71251 (accessed on 23 April 2024).
  54. Van der Walt, J.J.A.; Albers, F.; Gibby, M. Delimitation of Pelargonium sect. Glaucophyllum (Geraniaceae). Plant Syst. Evol. 1990, 171, 15–26. [Google Scholar] [CrossRef]
Ijpb 15 00044 g001aIjpb 15 00044 g001b

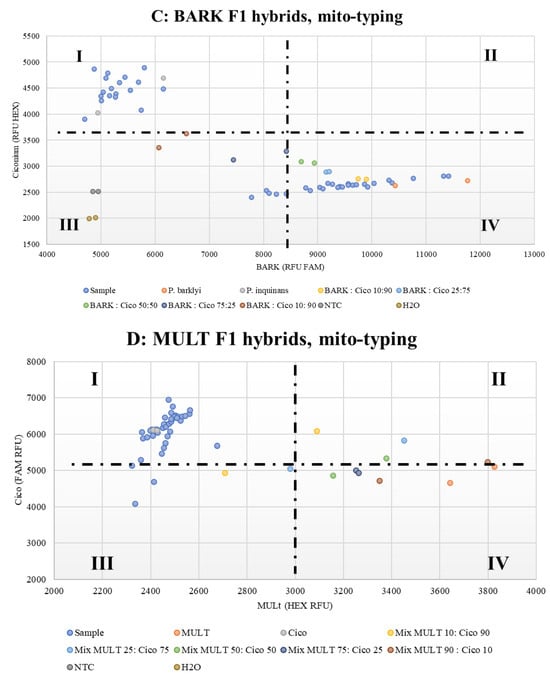

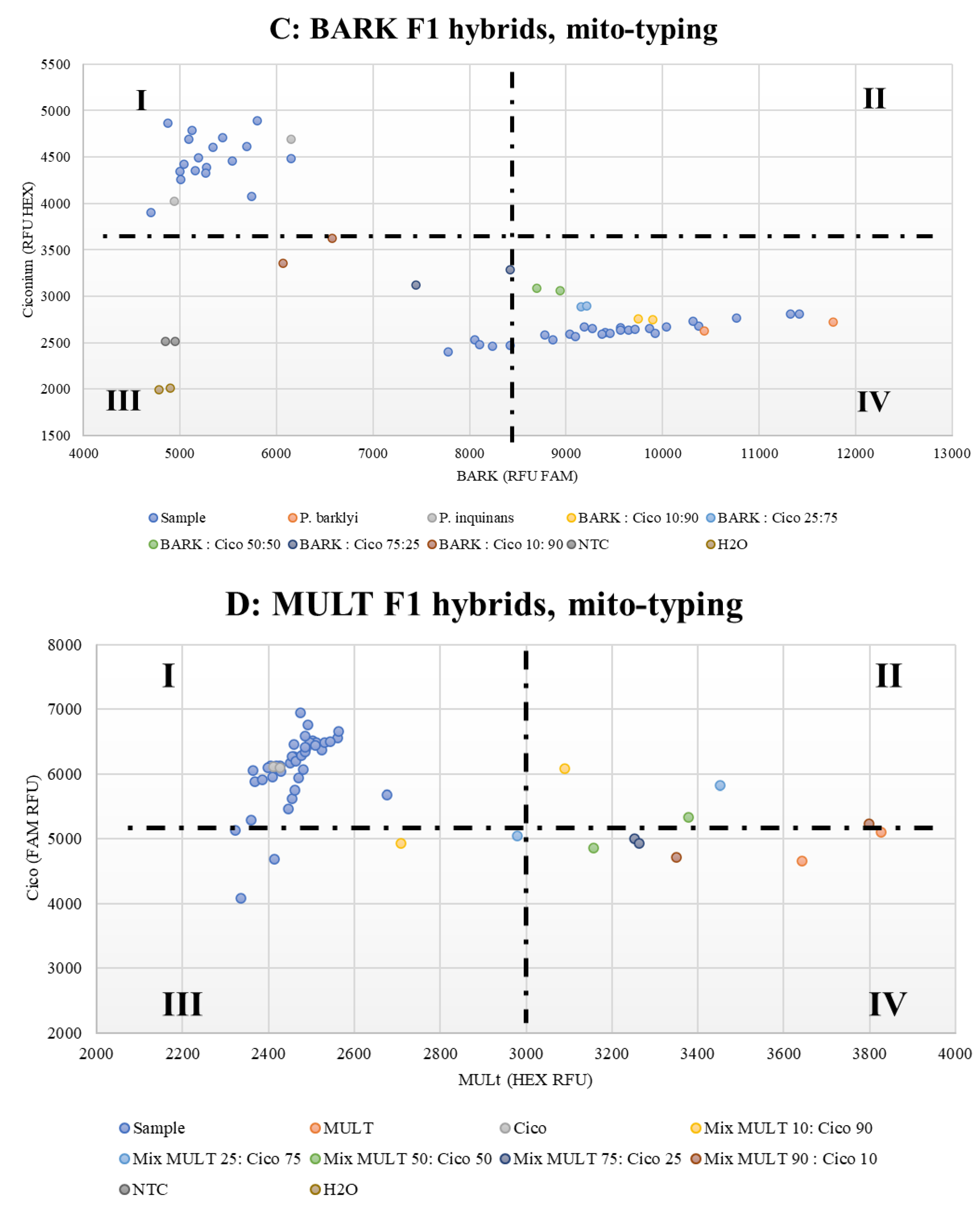

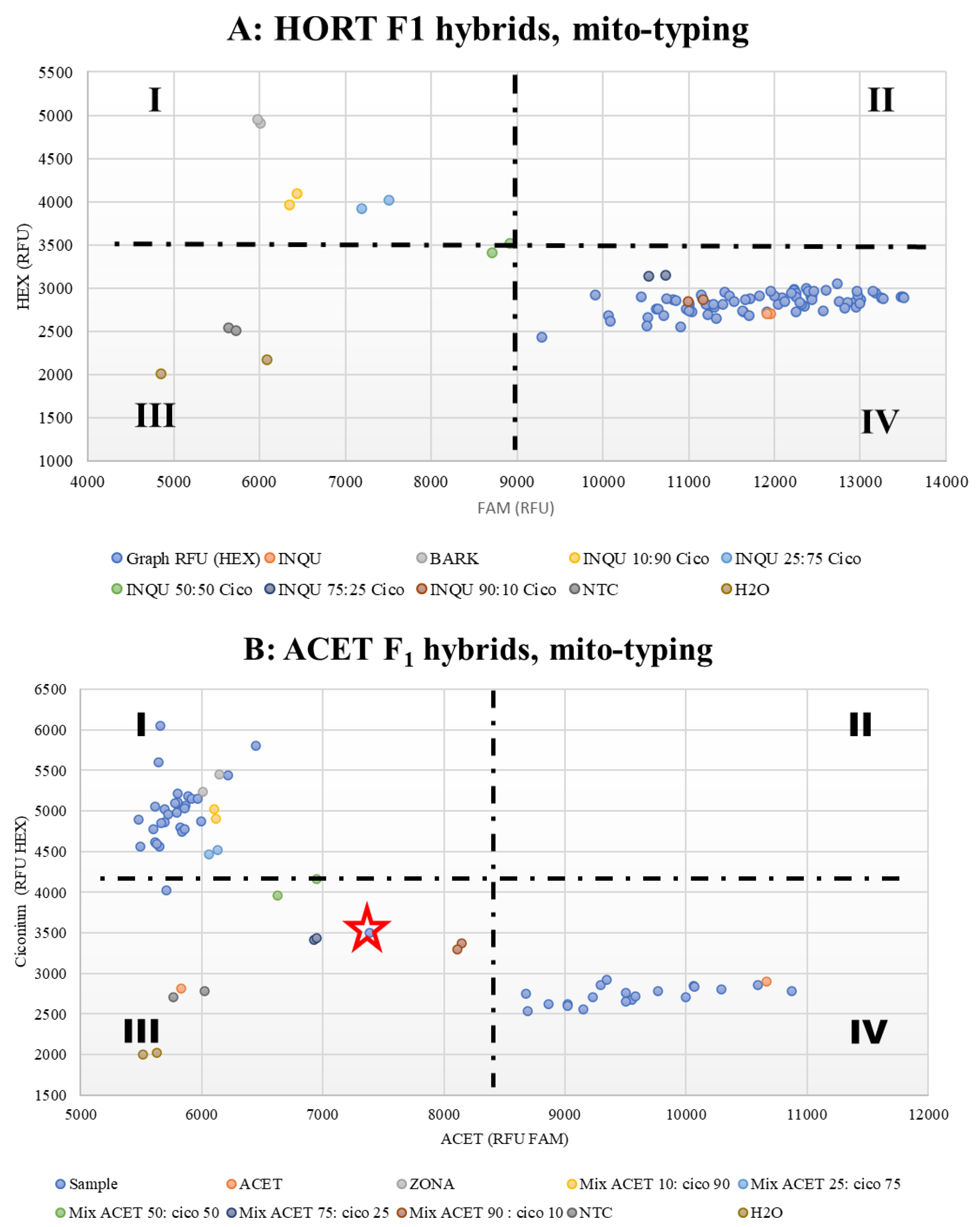

Figure 1. KASP allelic discrimination plots for F1 hybrid accessions from crosses involving P. x hortorum (A) P. acetosum (B), P. barklyi (C), and P. multibracteatum (D) F1 hybrid accessions. Each data point represents the fluorescence signal of an individual DNA sample, with the x-axis indicating the amount of FAM fluorescence and the y-axis the HEX fluorescence for each sample. Negative control samples are expected to be placed around the origin of the plot. Samples of the same mitotype will have generated similar levels of fluorescence and will therefore cluster together on the plot. Each graph is divided into four quadrants (I–IV). Here, the y-axis displays the values assigned to the non-target Ciconium genotypes. Hence, quadrant I holds the non-target Ciconium genotypes. Quadrant IV holds the target genotypes with target fluorescence values displayed on the x-axis. Quadrant III either contains the control samples or samples that displayed neither genotype. The star in 5B indicates biparental, F1 TONG x ACET progeny. ‘sample’ = ‘MULT/HORT/BARK/ACET’, ‘Cico’ represents all other Ciconium species. ‘mix MULT 10: Cico 90’ = a mix of the multibracteatum target and the non-target Ciconium in ratios of 10/90 (or other), ‘NTC’ = non-target control (parent), and ‘H2O’ = the water control.
Figure 1. KASP allelic discrimination plots for F1 hybrid accessions from crosses involving P. x hortorum (A) P. acetosum (B), P. barklyi (C), and P. multibracteatum (D) F1 hybrid accessions. Each data point represents the fluorescence signal of an individual DNA sample, with the x-axis indicating the amount of FAM fluorescence and the y-axis the HEX fluorescence for each sample. Negative control samples are expected to be placed around the origin of the plot. Samples of the same mitotype will have generated similar levels of fluorescence and will therefore cluster together on the plot. Each graph is divided into four quadrants (I–IV). Here, the y-axis displays the values assigned to the non-target Ciconium genotypes. Hence, quadrant I holds the non-target Ciconium genotypes. Quadrant IV holds the target genotypes with target fluorescence values displayed on the x-axis. Quadrant III either contains the control samples or samples that displayed neither genotype. The star in 5B indicates biparental, F1 TONG x ACET progeny. ‘sample’ = ‘MULT/HORT/BARK/ACET’, ‘Cico’ represents all other Ciconium species. ‘mix MULT 10: Cico 90’ = a mix of the multibracteatum target and the non-target Ciconium in ratios of 10/90 (or other), ‘NTC’ = non-target control (parent), and ‘H2O’ = the water control.
Ijpb 15 00044 g001aIjpb 15 00044 g001b
Table 1. Plant materials used in this study, along with herbarium voucher information.
Table 1. Plant materials used in this study, along with herbarium voucher information.
SpeciesHerbarium Voucher Accession Institute 1Acronym Used in Text
P. acetosum1243STEUACET
P. acraeum1975STEUACRA
P. alchemilloides1885STEUALCH2x
P. alchemilloides1882STEUALCH4x
P. articulatum1972055WAGARTI
P. barklyi1972061WAGBARK
P. frutetorum0754STEUFRUT
P. inquinans0682STEUINQU
P. multibracteatum2902STEUMULT
P. peltatum1890STEUPELT
P. quinquelobatum1972049WAGQUIN
P. ranuncolophyllumA3651MSUN *RANU
P. tongaense3074STEUTONG
P. zonale1896STEUZONA
P. elongatum0854STEUELON
P. aridum1847STEUARID
P. insularis19990489RBGEINSU
P. yemenensesp. nov1972037WAGYEME
P. omanensesp. nov2184RBGEOMAN
P. somalenseV-067490VSOMA
1 STEU = Stellenbosch University, RSA; AL = Albers/MSUN = Münster and * [25]. WAG = National Herbarium of the Netherlands. V = Uppsala herbarium.
Table 2. Mitome type determined per F1 cross of P. sect Ciconium species. ‘M’ and ‘P’ denote maternally and paternally inherited mitome marker, respectively. ‘B’ denotes biparental inheritance of the mitochondrial marker(s), ‘B/H/R’ denotes plants which showed biparental inheritance, but one of the parents could also have been heteroplasmic or there could even have been recombination. ‘WT’ refers to parental stocks displaying the wild-type marker. * are F1 plants for which (one of the) parents may have been heteroplasmic. ° plant are treated as wild-type, but the result of a hybridisation process. WT plants are excluded from the final calculation of total and percentages of mitome occurrences. The fertility phenotypes are given as ‘F’ which is fully fertile; ‘P’ partially fertile (pollen observed); ‘MS’ male sterile/no pollen observed; and ‘--’, which could not be evaluated because the plants did not flower.
Table 2. Mitome type determined per F1 cross of P. sect Ciconium species. ‘M’ and ‘P’ denote maternally and paternally inherited mitome marker, respectively. ‘B’ denotes biparental inheritance of the mitochondrial marker(s), ‘B/H/R’ denotes plants which showed biparental inheritance, but one of the parents could also have been heteroplasmic or there could even have been recombination. ‘WT’ refers to parental stocks displaying the wild-type marker. * are F1 plants for which (one of the) parents may have been heteroplasmic. ° plant are treated as wild-type, but the result of a hybridisation process. WT plants are excluded from the final calculation of total and percentages of mitome occurrences. The fertility phenotypes are given as ‘F’ which is fully fertile; ‘P’ partially fertile (pollen observed); ‘MS’ male sterile/no pollen observed; and ‘--’, which could not be evaluated because the plants did not flower.
F1 Types# Plants/Cross# Marker Pairs/CrossFertility Phenotype(M), (P), (B), (H), (R), (WT)
ACET_X_FRUT21PM
ACET_X_INQU12PM
ACET_X_ZONA121--M (11) P (1)
ALCH(4X)_X_BARK11--M
ALCH(4X)_X_YEME21PP
BARK_X_FRUT31MSM
BARK_X_INQU12--P
BARK_X_MULT32MSM
BARK_X_QUIN21--M(2) P(1)
FRUT_X_ACET11PM
FRUT_X_BARK31MSM
HORT(4X)_X_ARTI(4X)81MSM
(HORT_X_ZONA)_X_ARID51MSM
HORT_X_ACET32PM
HORT_X_ACRA11PM
HORT_X_ALCH11MSM
HORT_X_ARID62MSM
HORT_X_BARK21--M
HORT_X_FRUT11FM
HORT_X_MULT11MSM
HORT_X_QUIN151MSM(8) P(7)
HORT_X_TONG81PM
HORT_X_TONG(4X)11PM
HORT_X_ZONA261PM
TONG_X_ACET71–2PB(1)/P
YEME_X_ALCH(4X)11PP
P. inquinans11FWT
P. peltatum11FWT
P. salmoneum12FWT
P. x hortorum_4x11PWT *
P. quinquelobatum13FWT
P. yemenense13FWT
P. barklyi13F
P. aridum13FWT
P. quinquelobatum13FWT
P. alchemilloides13FWT
P. tongaense11FWT
P. articulatum11FWT
P. multibracteatum12FWT/H
mult_x_acet82-3--B/H *
mult_x_alch142PP/H *
mult_x_arid31MSP/H *
mult_x_bark52MSB/H *
mult_x_inqu31--P/H *
mult_x_pelt31MSP/H *
mult_x_quin62PP/H *
mult_x_ranu91–2PP/H *
mult_x_tong21MSP/H *
mult_x_zona22MSP/H *
