Frequency Stabilization Based on a TFOIDAccelerated Fractional Controller for Intelligent Electrical Vehicles Integration in LowInertia Microgrid Systems
Abstract
:1. Introduction
1.1. Microgrid Challenges
1.2. Literature Review
1.3. Problem Statement and Paper Contribution
 A new strategy for optimal fractionalorder LFC enhancing the resilience of multimicrogrid systems is developed. The method employs a centralized TFOIDAccelerated controller to manage power output from traditional power stations and electric vehicles. The controller’s accelerated derivative structure effectively counters highfrequency disturbances, while its tilt component and fractional integration address lowfrequency disturbances.
 The GO technique is used to optimize control parameters for proposed controllers across different interconnected multiMG systems. This optimizer determines the best settings to achieve optimal system response and stability, considering the constraints of various multiMG systems.
 The suggested approach leverages installed RESs and EV batteries by concurrently designing the proposed coordinated LFC and EV controllers.
 The evaluation of the proposed method’s robustness and effectiveness takes into account a range of anticipated scenarios, RESs, and uncertainties.
 A thorough comparison with controllers from the existing literature demonstrates the superior performance of the proposed controller.
References  Controllers  Algorithms  Category  Main Characteristics of Category

[44,45]  I  ESO with BE, JBO  IOCbased  Easily implementable
[21]  I, PI  PSO  singleloop  Low ability to mitigate disturbance
[20,46]  PI  HHO, ARO  structure  Possess simple singleloop structure
[47,48]  PID  ICA, ABC  Reduced robustness at parametric uncertainty
[19]  Nonlinear PI  DO
[49]  FuzzyPIDD2  GBO
[50,51]  FOPID  SCA, MDWA  FOCbased  Increased number of tunable parameters
[26]  TID  MRFO  singleloop  Higher flexibility than IOC methods
[52]  FOPIDF  ICA  structure  Better mitigation of disturbance
[31]  iFOI  GWO  Moderate disturbance rejection performance
[30]  FOPIDA  GWO
[27]  TFOID  AEO, SMA
[53]  PDPI  ESMOA  Multiloop  Higher number of tunable parameters
[54]  PIPDF  DTBO  based control  Mitigating both high and lowfrequency disturbance
[57]  FOIDF  ICA  structures  Highest in design flexibility
[55]  PITDF  SSA  Enhanced performance compared to IOC and FOC singleloop methods
[56]  PDPID  BA
[42]  FOPIIDDF  CSA
[58]  2DOF PID  TLBO
[59]  3DOF TID  SSA
Proposed  Centralized TFOIDAccelerated  Growth Optimizer (GO)  Singleloop modified FOC  Including tilt component and fractional integration address lowfrequency disturbances
Including accelerated derivative structure effectively counters highfrequency disturbances
Centralized single controller for LFC and EV control
Proving better possibility for rejecting disturbances
Proposed  Centralized TFOIDAccelerated  Growth Optimizer (GO)  Singleloop modified FOC  Coordinated LFC and EV control in the design process of the optimum controller
Applies recently developed powerful Growth Optimizer (GO) algorithm
Simultaneous determination of optimized parameter set of controllers in both areas
1.4. Paper Organization
2. Overall Structure and Model of Studied Power System

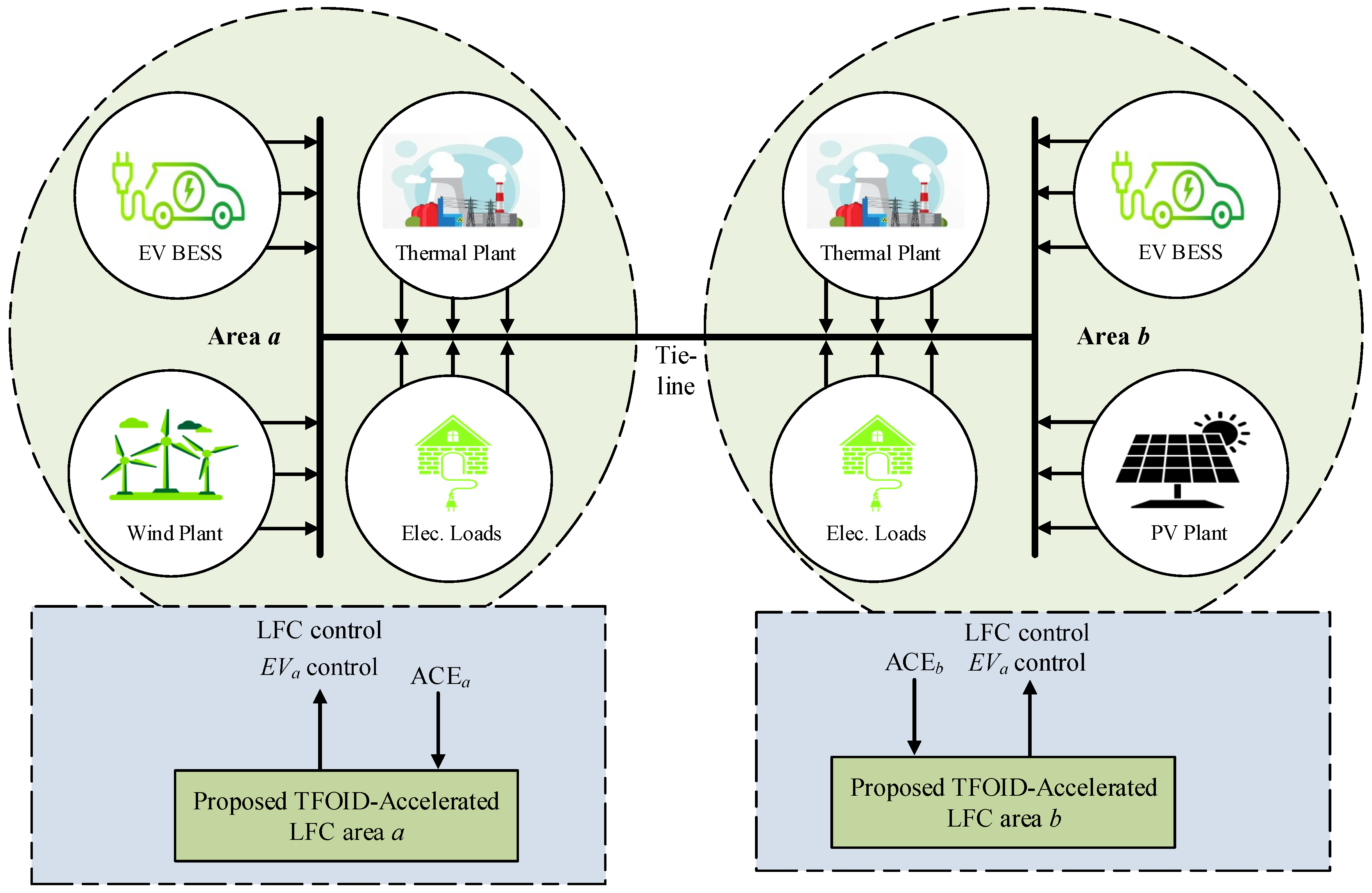

2.1. Overall Structure Description
2.2. EV Model Description
2.3. PV Plant Representation
2.4. Wind Plant Representation
2.5. Representations of Thermal and Hydraulic Generators and Grid

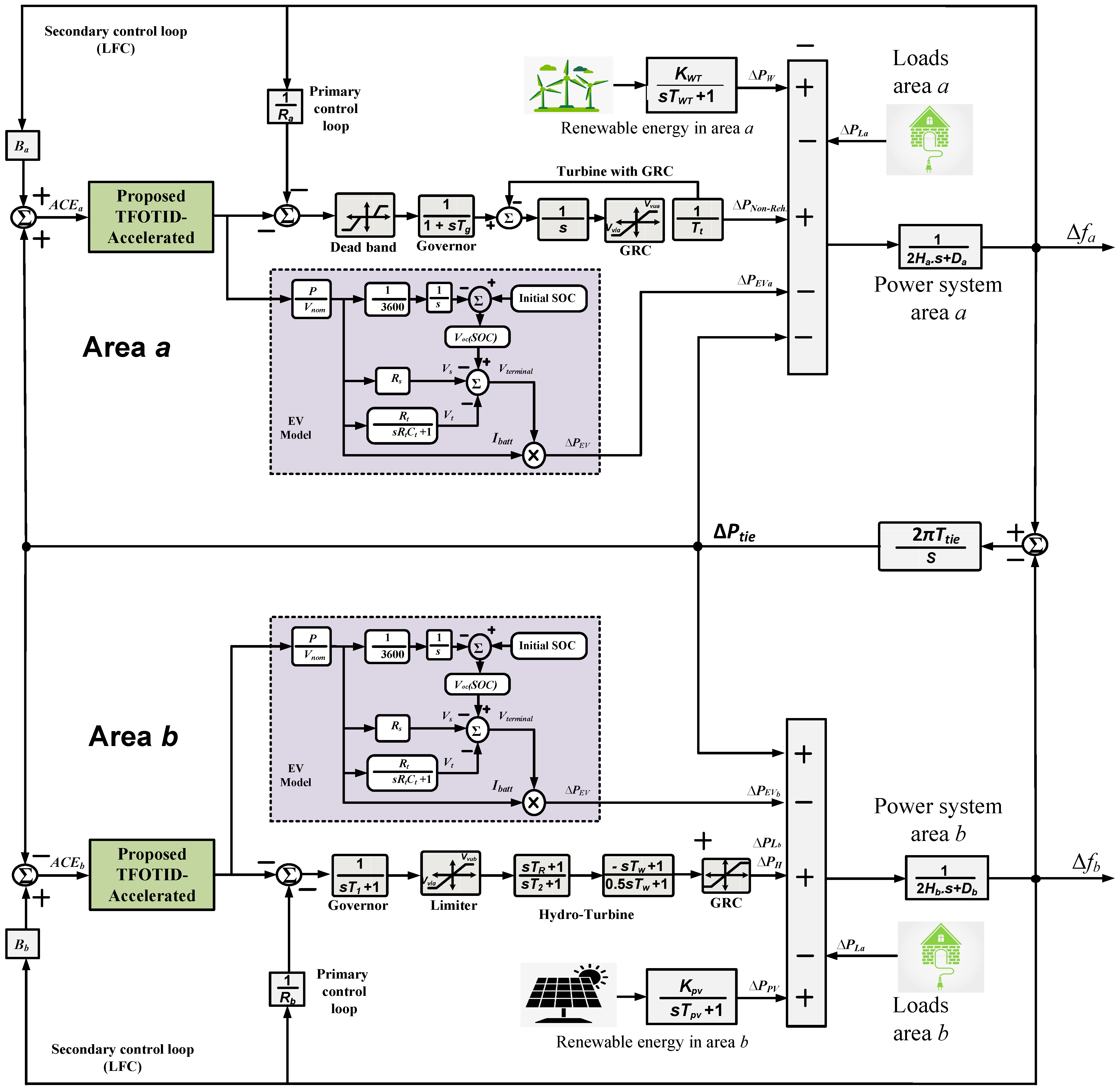

2.6. Complete System Representation
3. Development of Proposed TFOIDAccelerated Controller

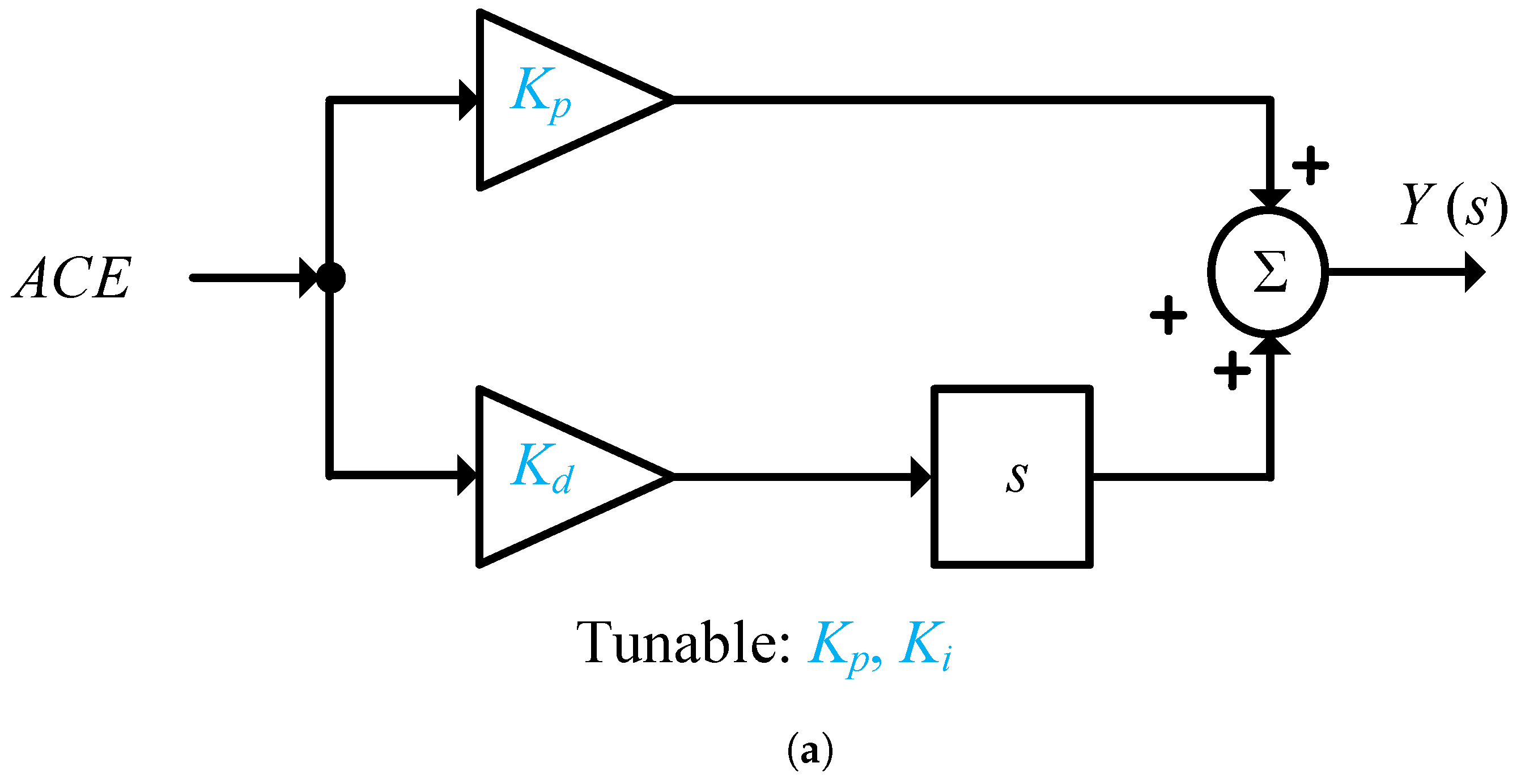

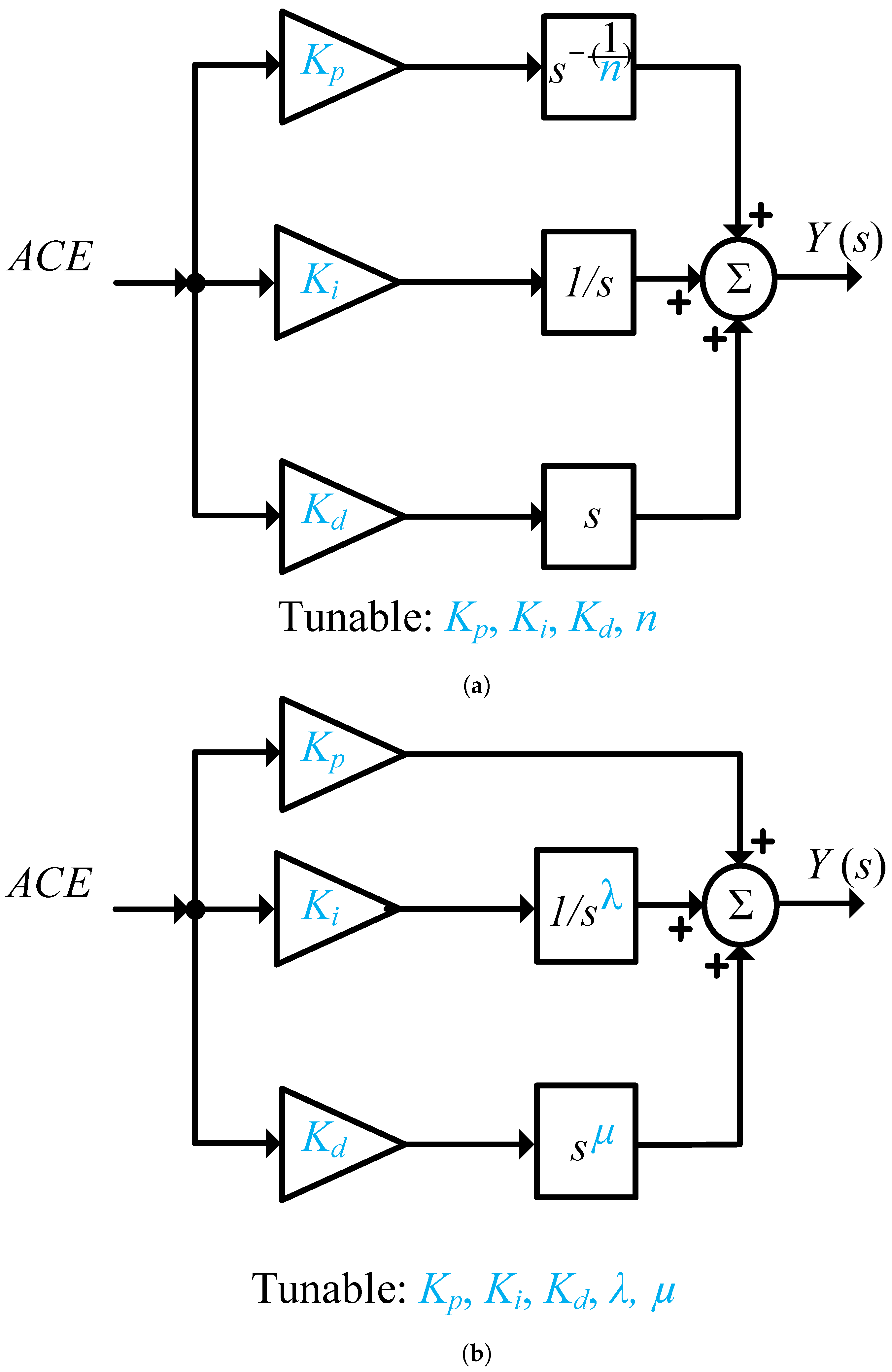

3.1. LFC Based on FOC Method
3.2. FOCBased LFC Representation

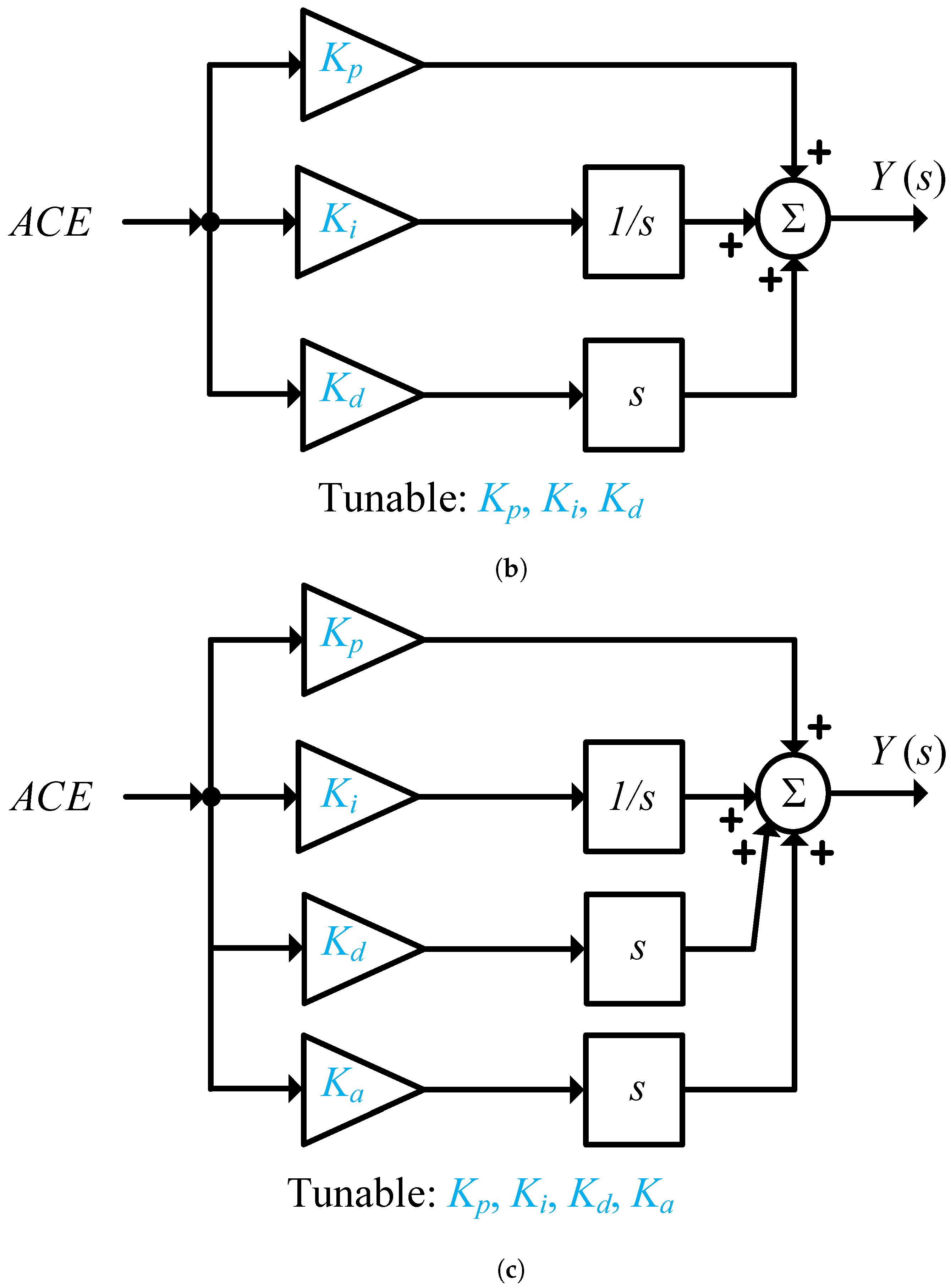

3.3. Proposed FOCBased LFC Using TFOIDAccelerated Controller
4. Proposed Optimal Controller Design
4.1. Growth Optimizer Description and Algorithm
Algorithm 1 Pseudocode for proposed parameters tuning based on GO algorithm

4.1.1. Learning Stage
4.1.2. Reflection Stage

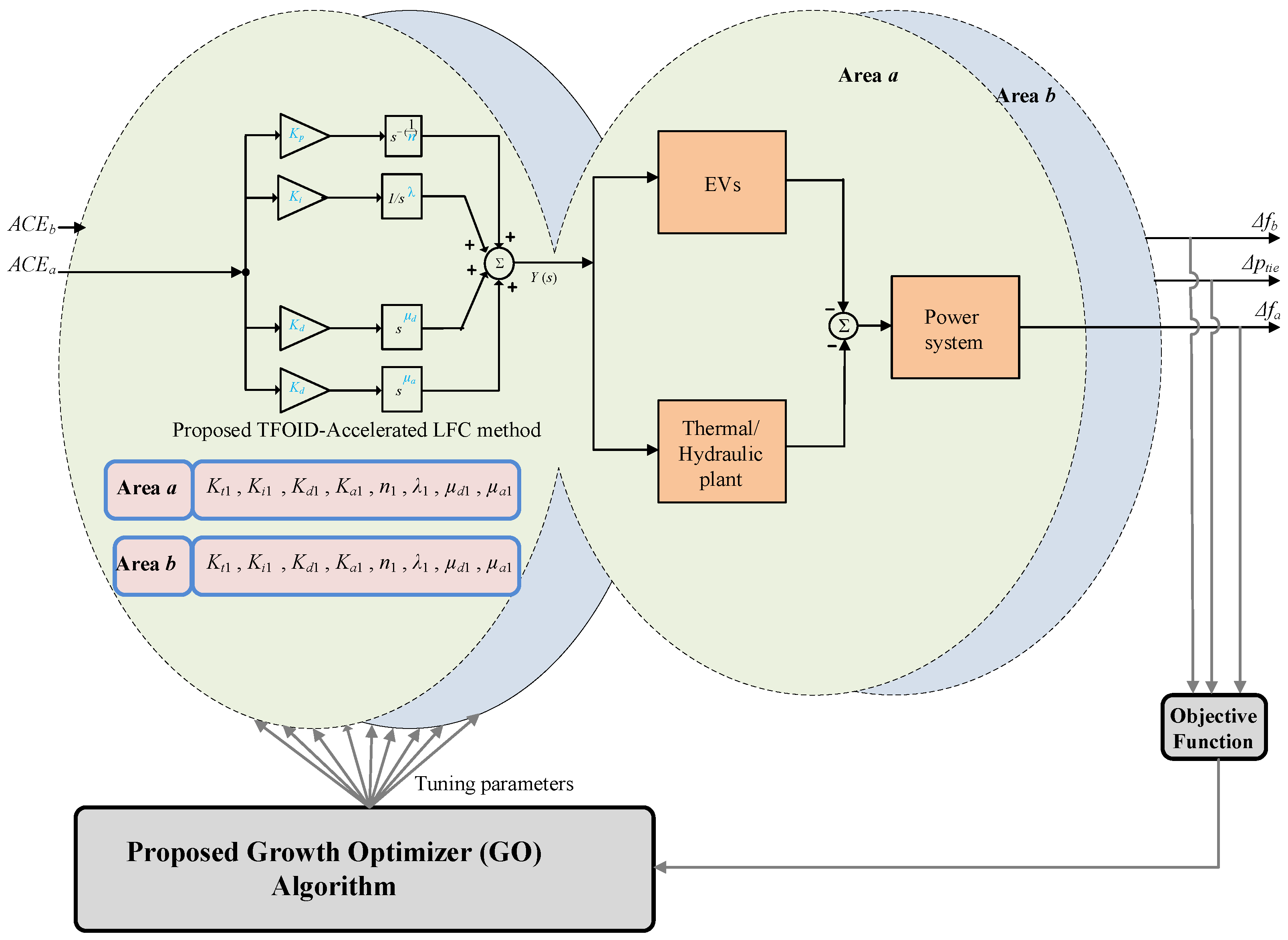

4.2. Proposed GO AlgorithmBased TFOIDAccelerated Design

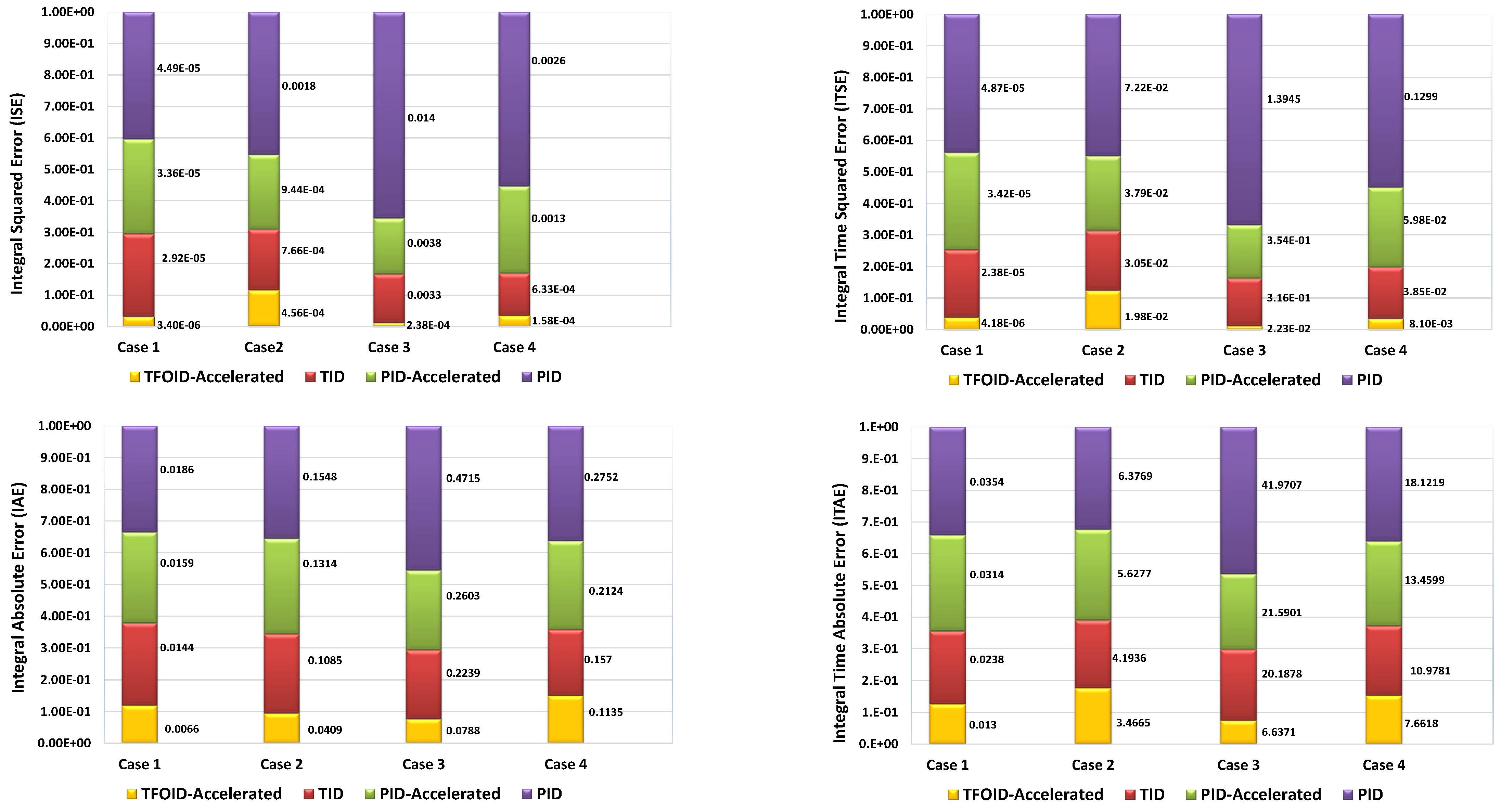

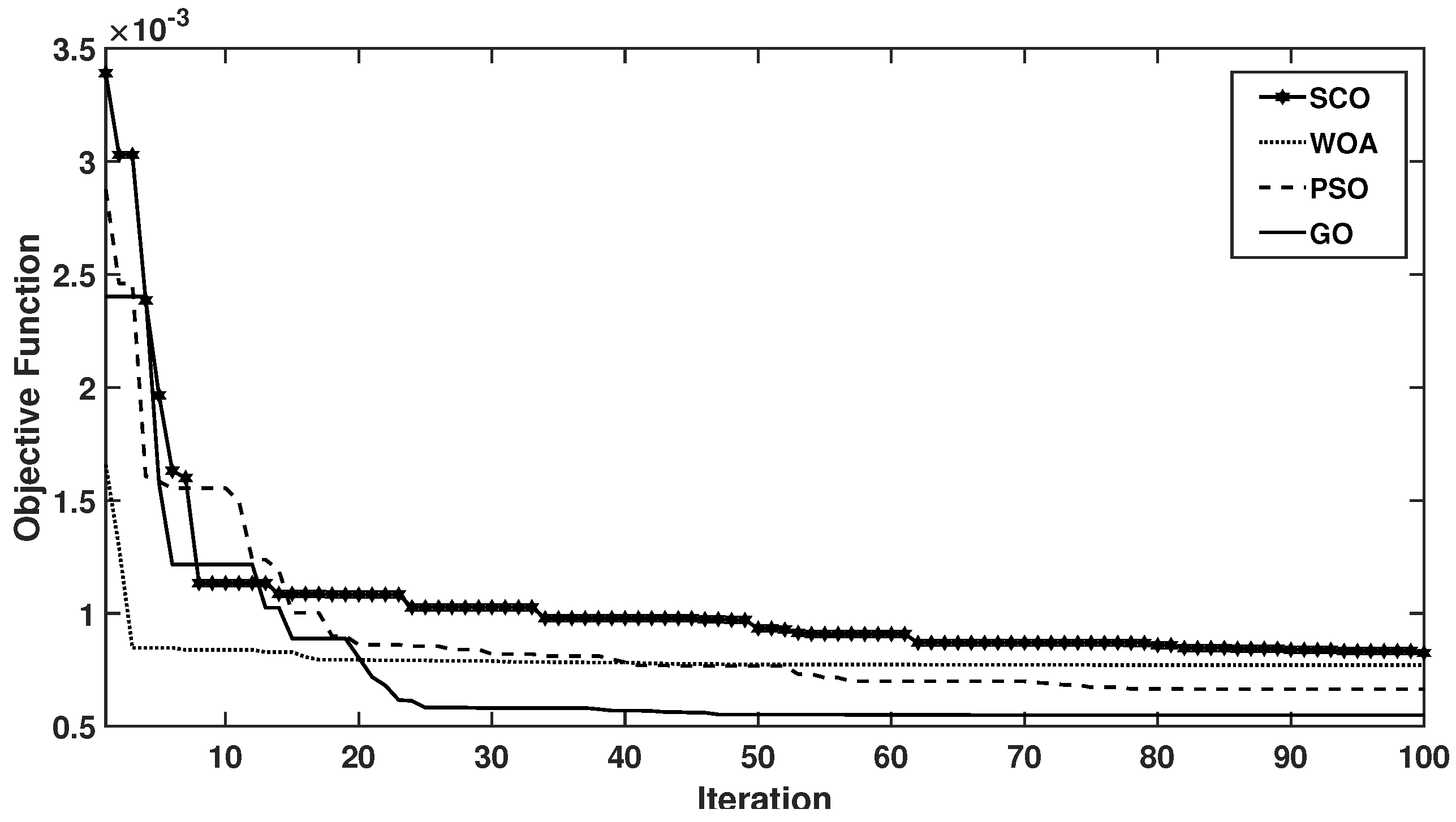

5. Results and Discussion

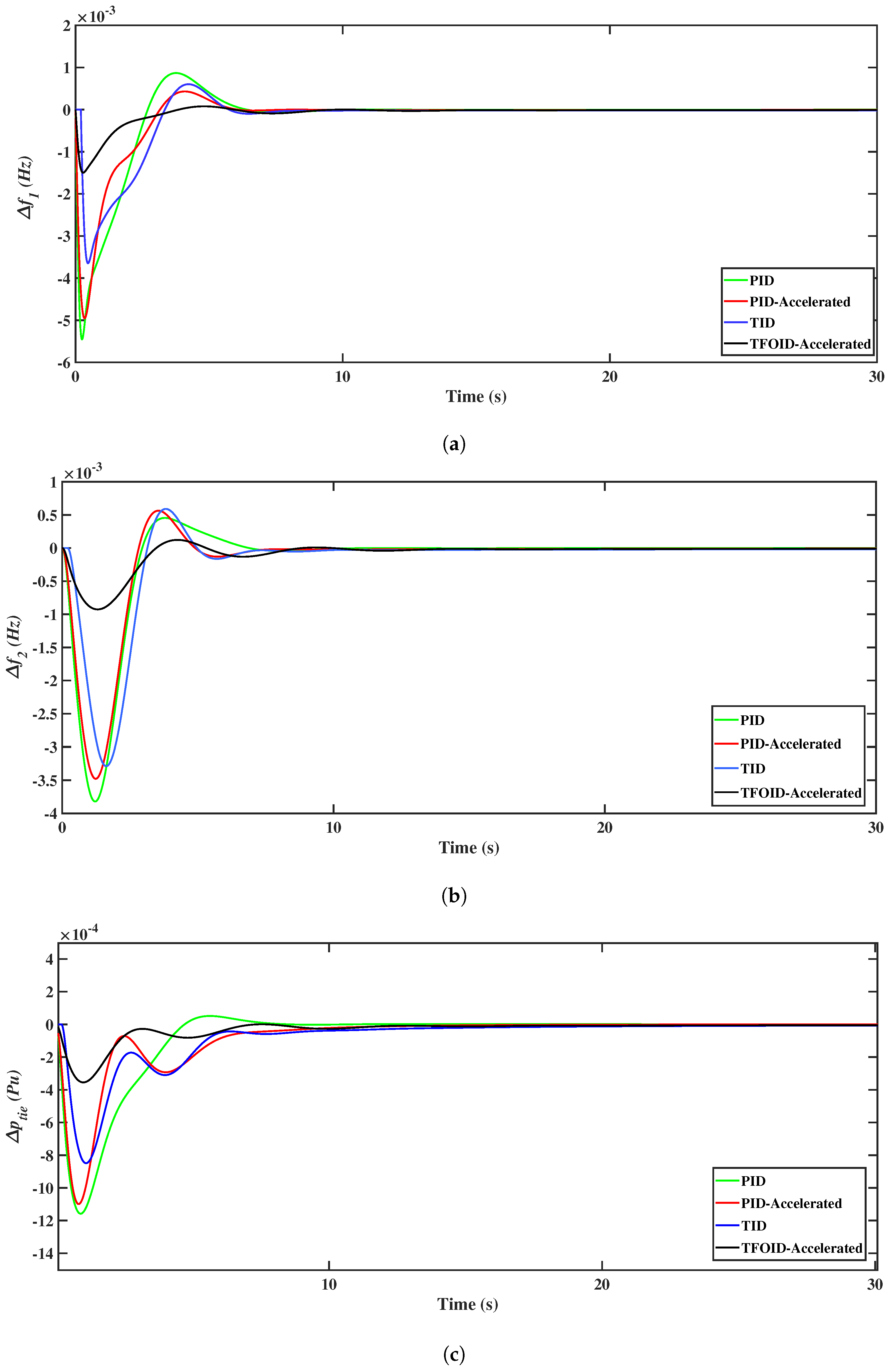

 Scenario 1: The impact of onestep load pattern (1SLP).

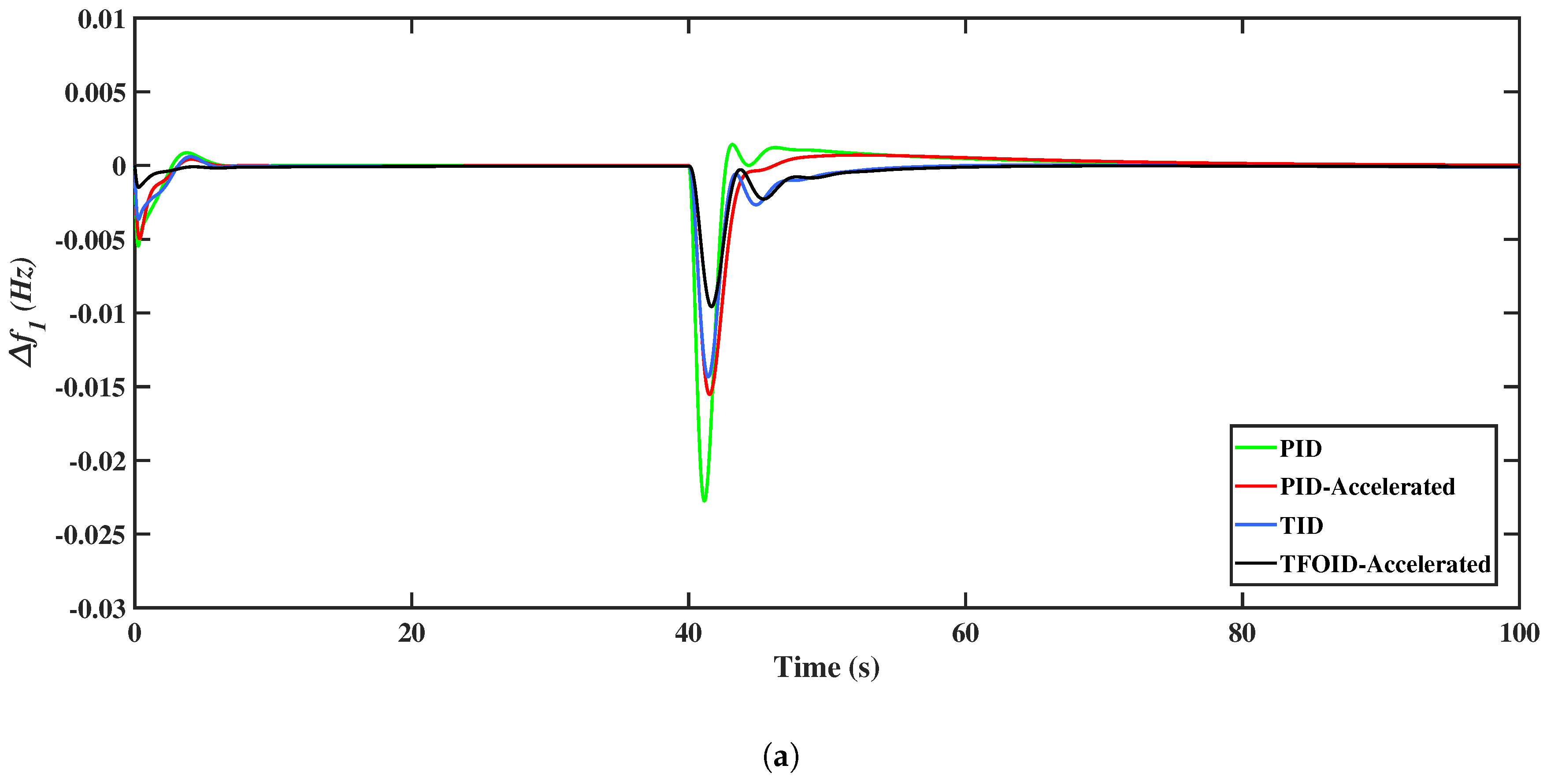

 Scenario 2: The impact of twostep load pattern (2SLP).

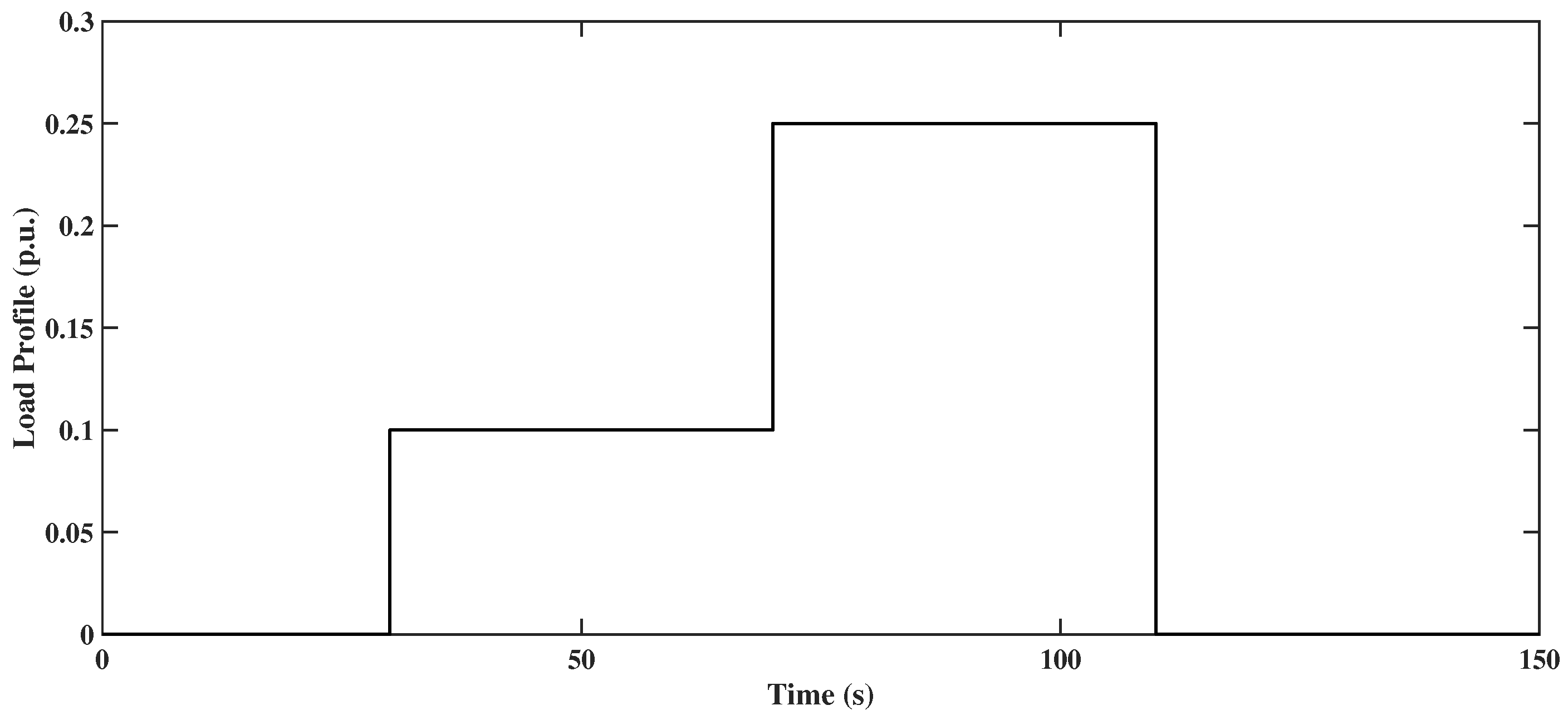

 Scenario 3: The impact of multiload pattern (MLP).

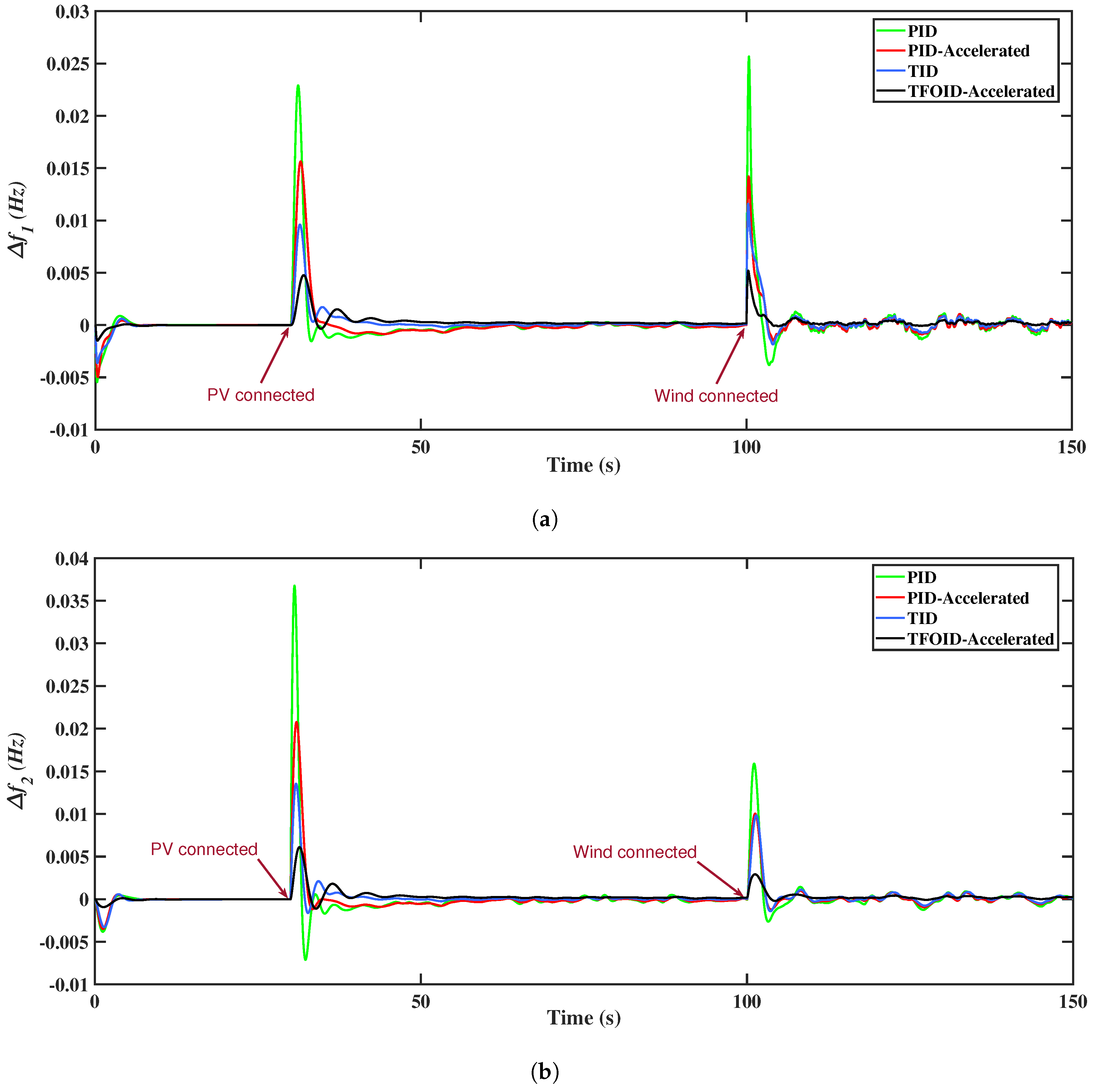

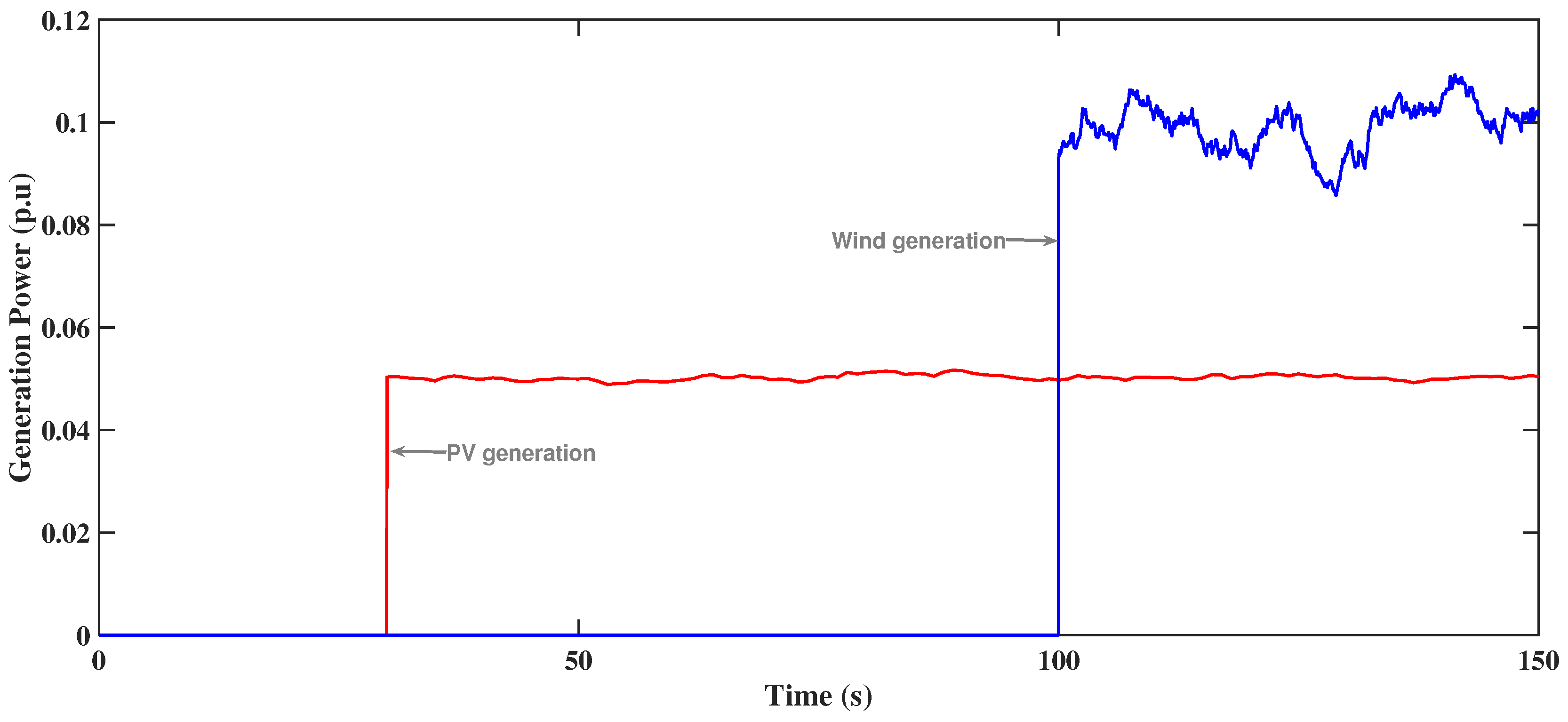

 Scenario 4: The impact of the RESs fluctuations.

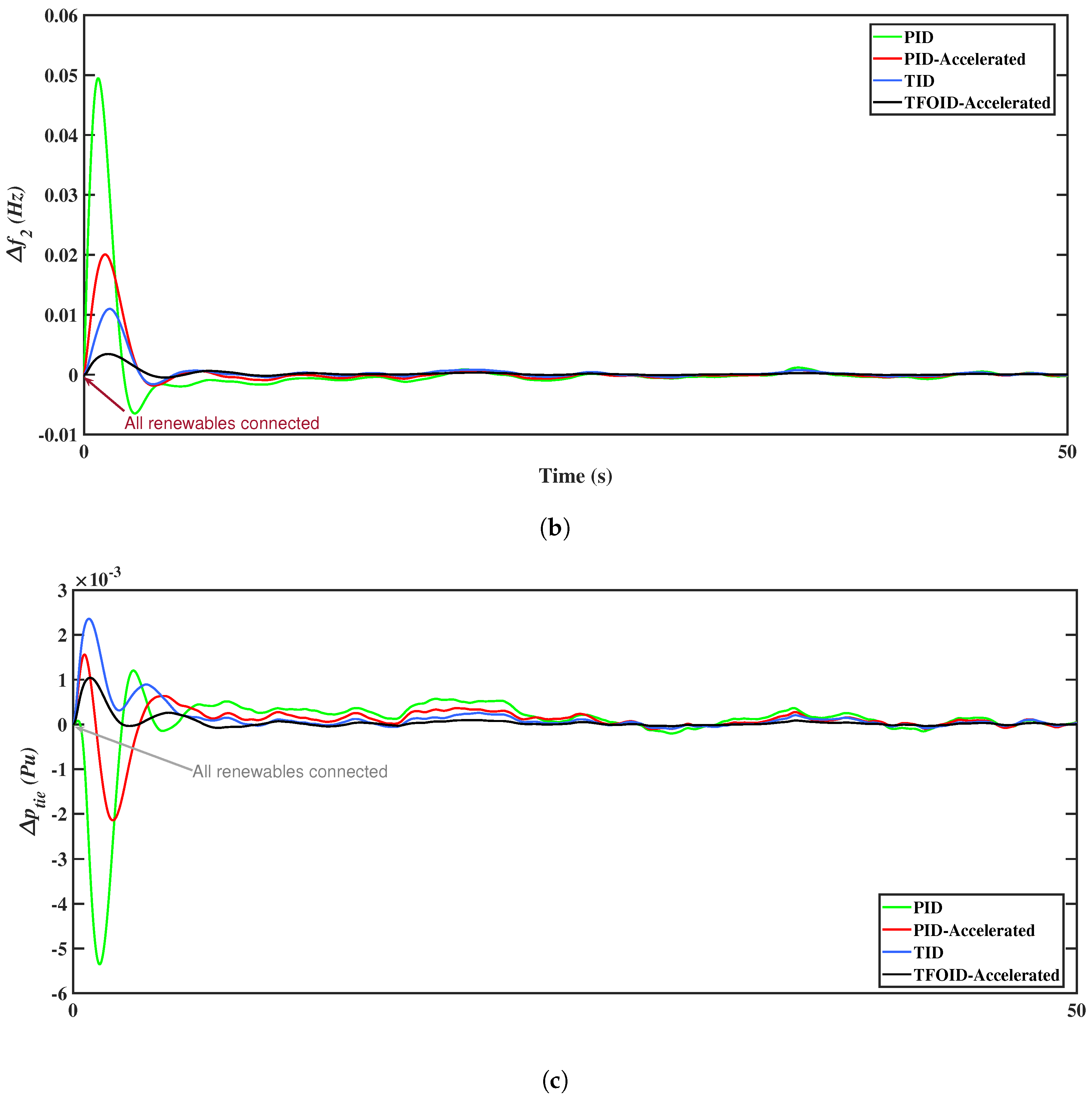

 Scenario 5: The impact of high penetration of RESs fluctuations.
 Scenario 6: The impact of parameters uncertainties.

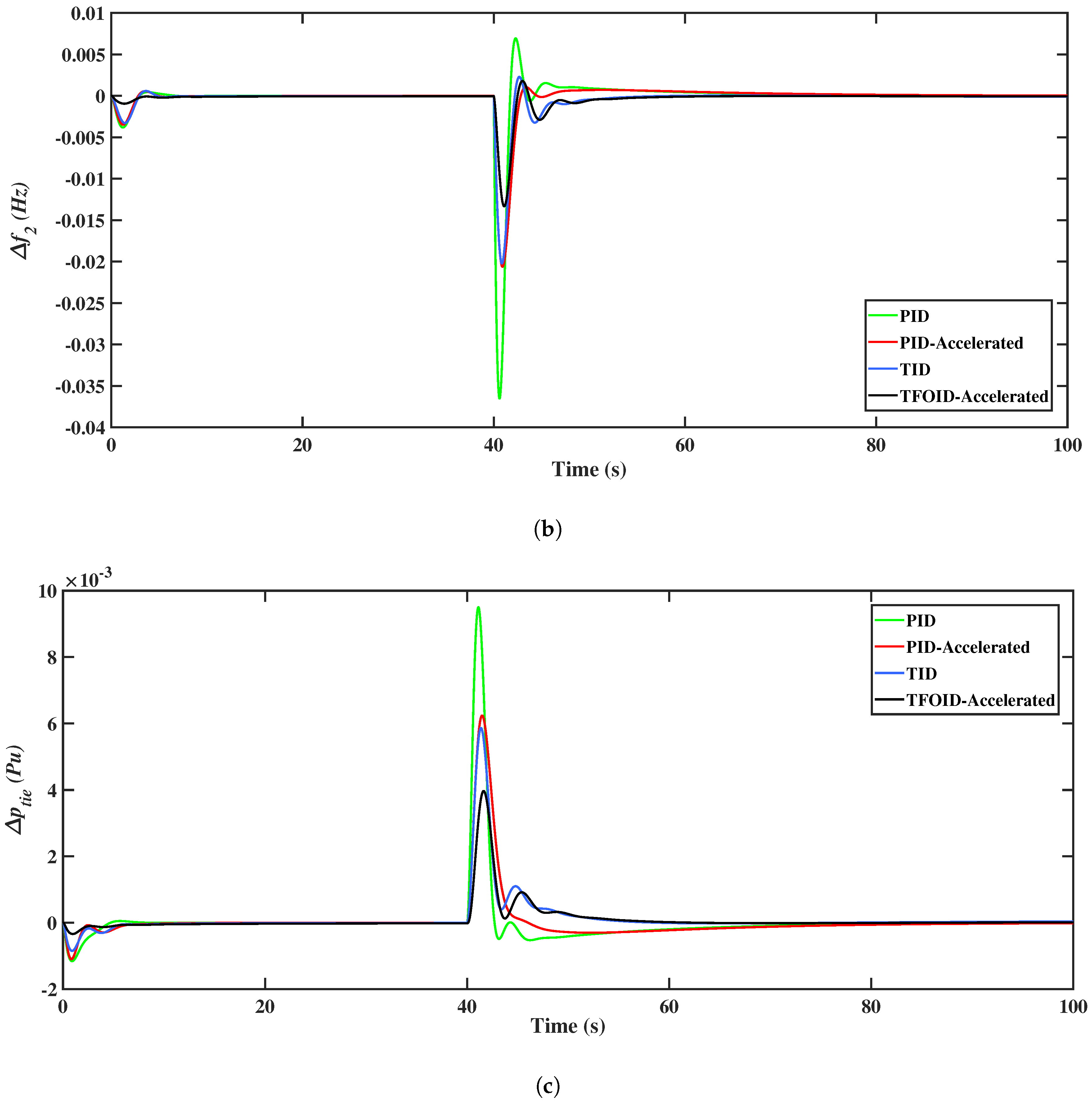

5.1. Scenario 1
5.2. Scenario 2

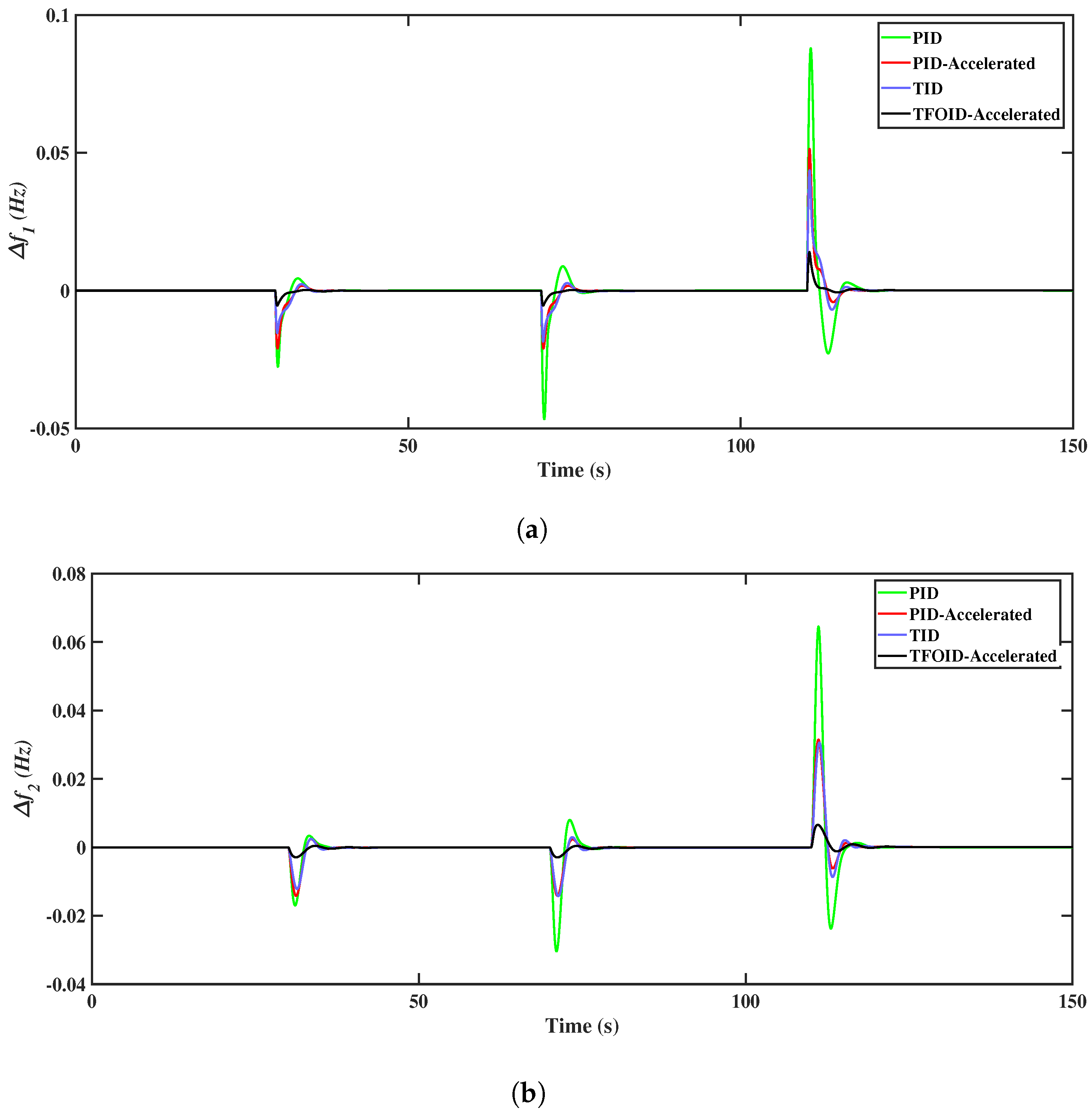

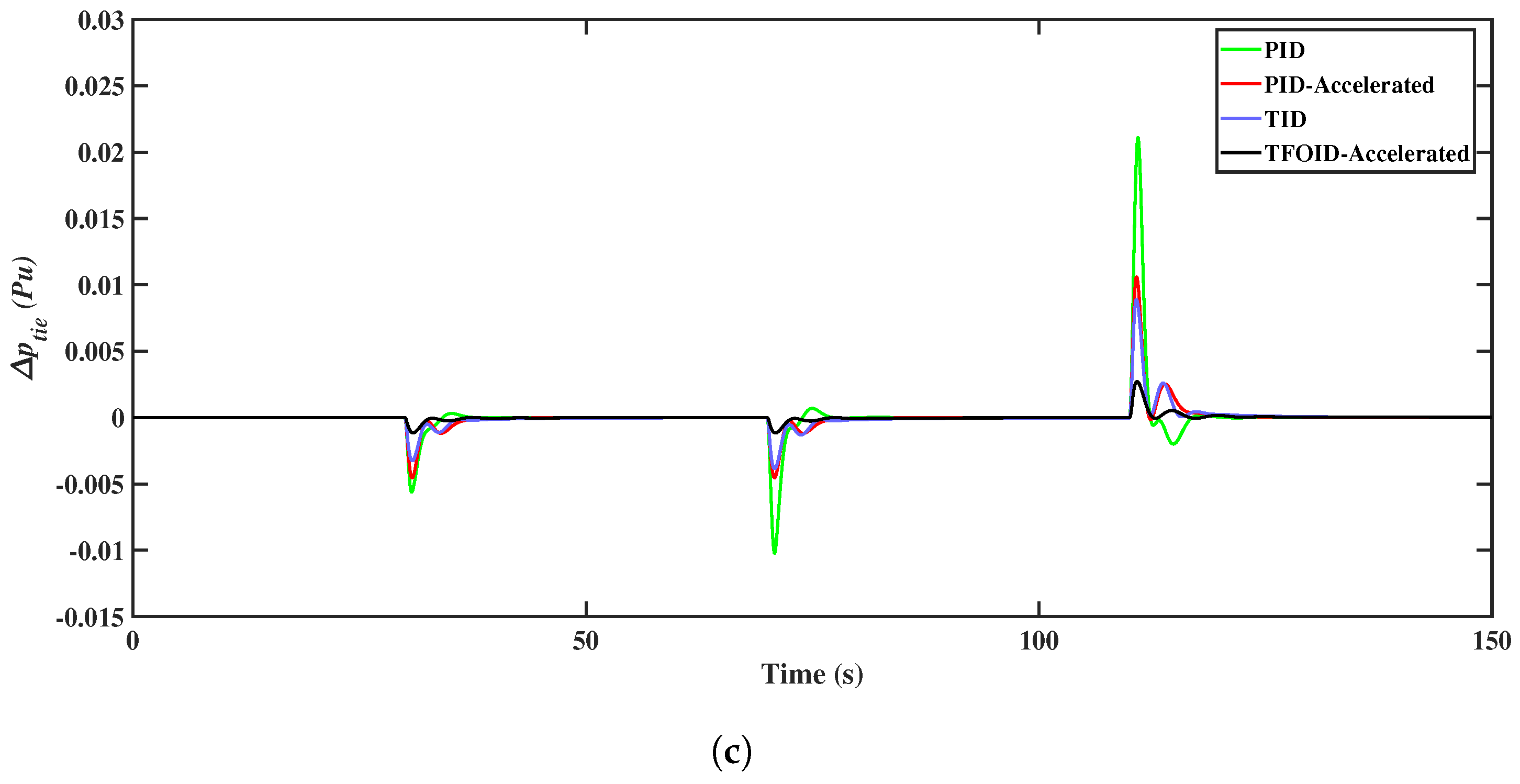

5.3. Scenario 3

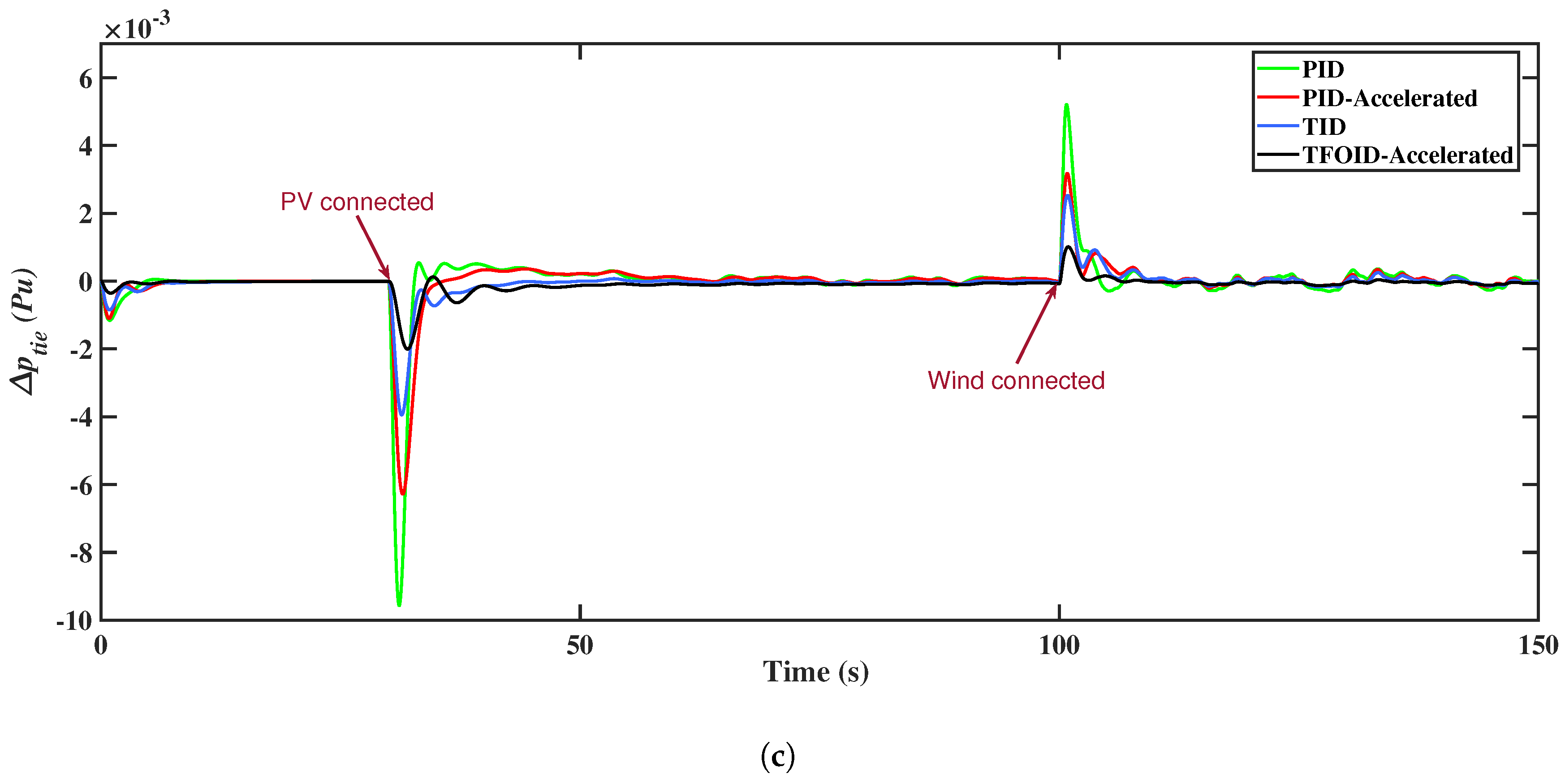

5.4. Scenario 4

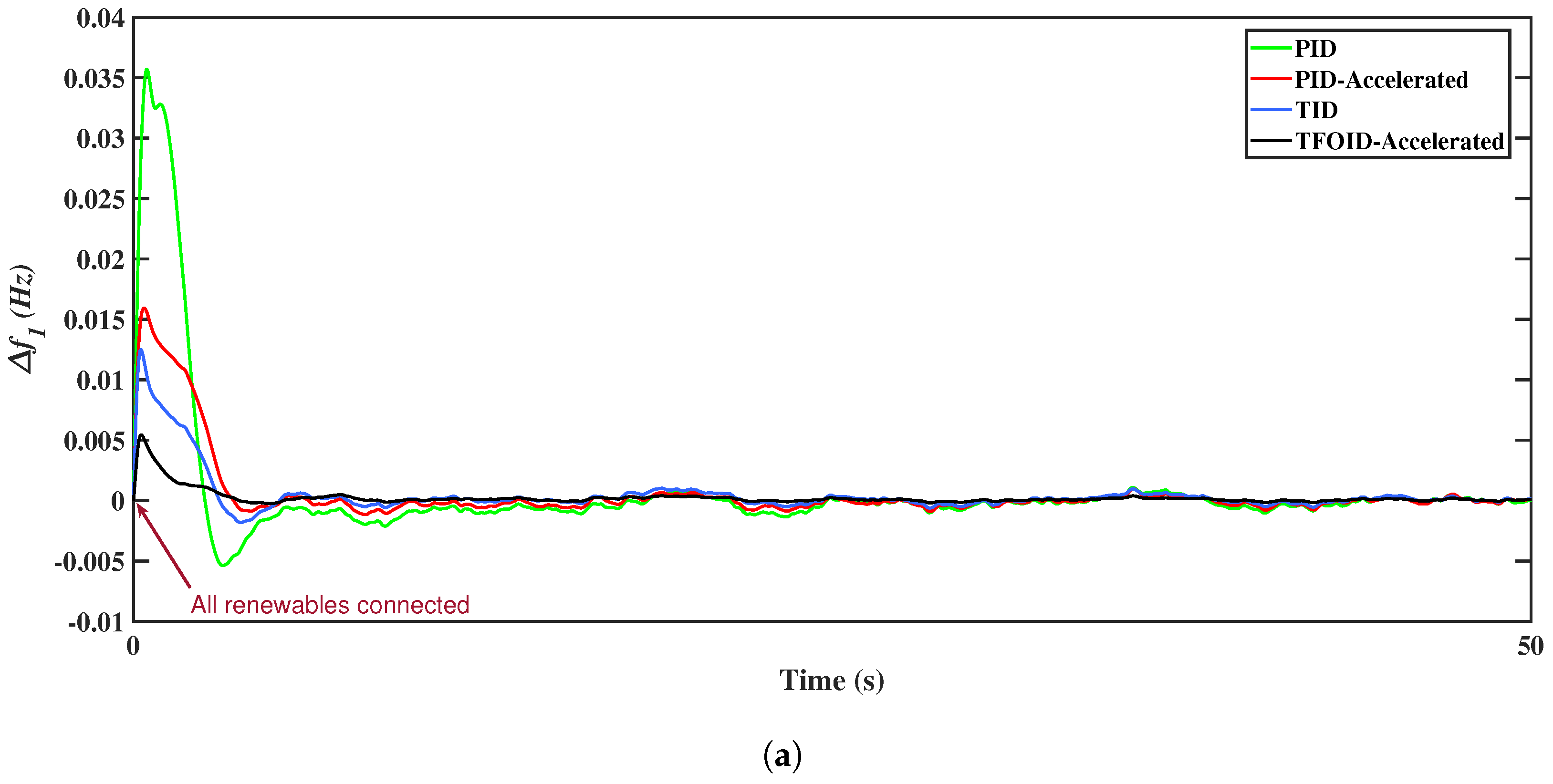

5.5. Scenario 5
5.6. Scenario 6
6. Conclusions
