# Research on the dq-Axis Current Reaction Time of an Interior Permanent Magnet Synchronous Motor for Electric Vehicle

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Mathematical Model of the Current Loop of IPMSM

## 3. Controller Design of Current-Loop Decoupling of IPMSM

#### 3.1. PI Controller Design

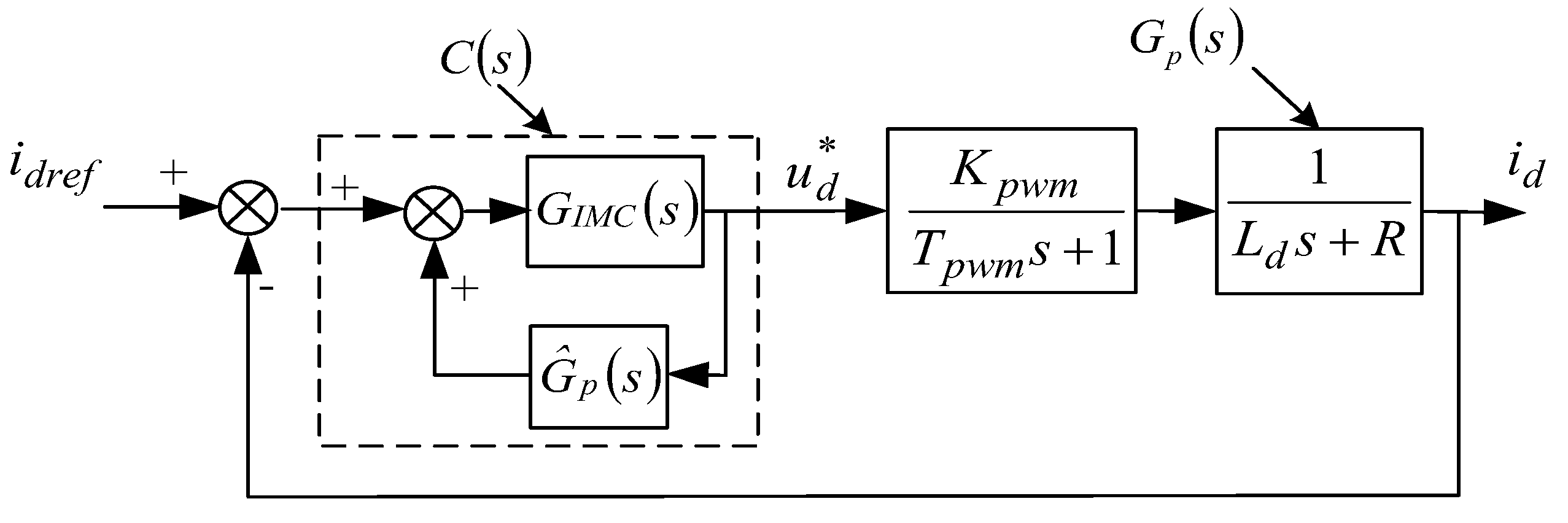

#### 3.2. IMC-PI Controller Design

#### 3.3. The Modulation Parameter Selection of IMC-PI

## 4. Simulation Analysis and Experimental Verification

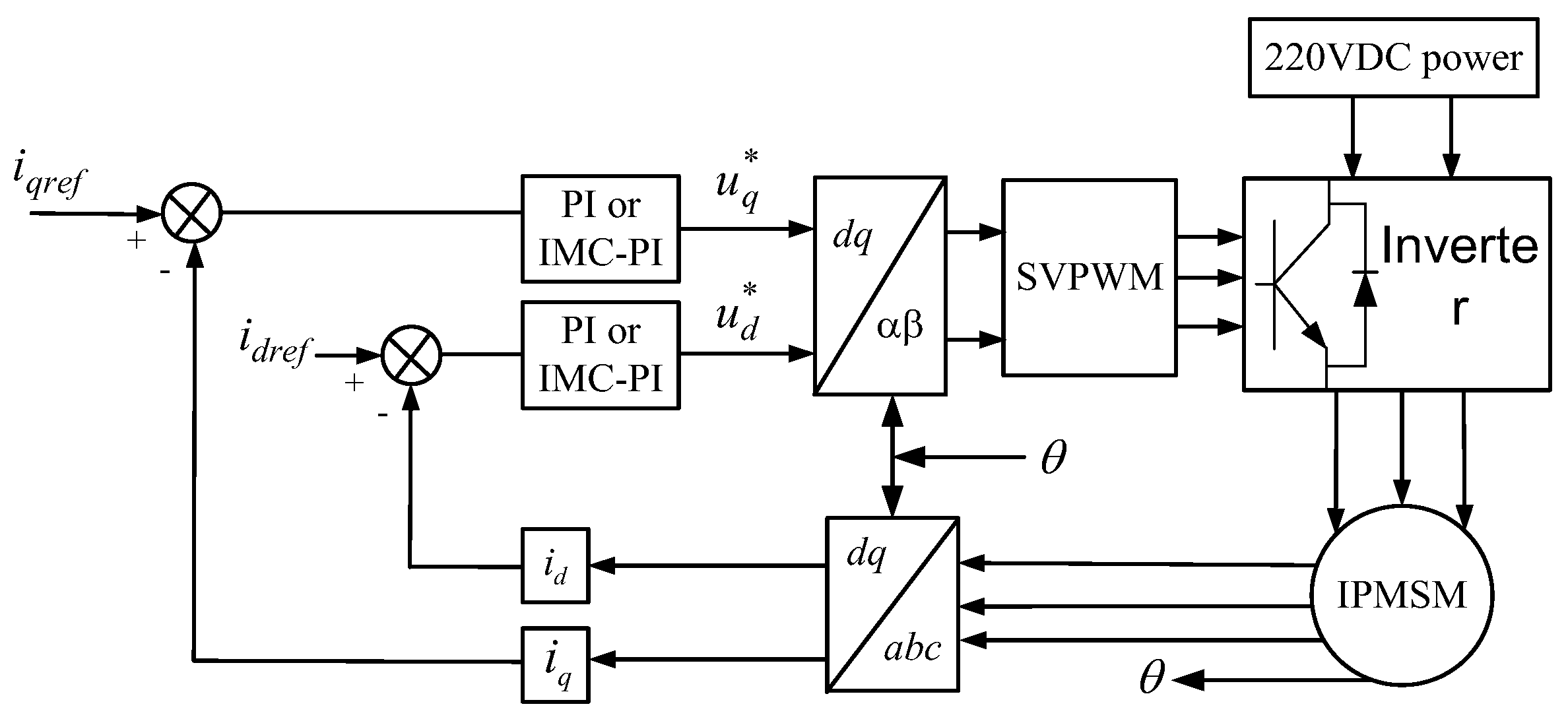

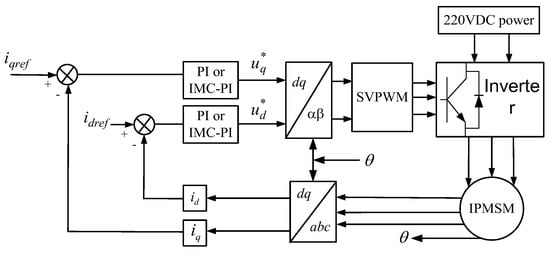

#### 4.1. Simulation Analysis

#### 4.2. Hardware Experimentation

## 5. Discussion

## 6. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## References

- Uddin, M.N.; Rahman, M.M.; Patel, B.; Venkatesh, B. Performance of a loss model based nonlinear controller for IPMSM drive incor-porating parameter uncertainties. IEEE Trans. Power Electron.
**2019**, 34, 5684–5696. [Google Scholar] [CrossRef] - Shah, S.H.; Wang, X.; Abubakar, U.; Wang, L.; Gao, P. Investigation of noise and vibration characteristics of an IPMSM with modular-type winding arrangements having three-phase sub-modules for fault-tolerant applications. IET Electr. Power Appl.
**2022**, 16, 248–266. [Google Scholar] [CrossRef] - Alvaro-Mendoza, E.; Morales JD, L.; Hamida, M.A.; Ghanes, M. Angular position estimation error extraction for speed and angular position estimation of IPMSM using a parameter-free adaptive observer. J. Frankl. Inst.
**2022**, 359, 7140–7164. [Google Scholar] [CrossRef] - Zahraoui, Y.; Zaihidee, F.M.; Kermadi, M.; Mekhilef, S.; Mubin, M.; Tang, J.R.; Zaihidee, E.M. Fractional Order Sliding Mode Controller Based on Supervised Machine Learning Techniques for Speed Control of PMSM. Mathematics
**2023**, 11, 1457. [Google Scholar] [CrossRef] - Dong, Z.; Liu, C.; Liu, S.; Song, Z. Deadbeat Predictive Current Control for Series-Winding PMSM Drive with Half-Bridge Power Module-Based Inverter. Energies
**2021**, 14, 4620. [Google Scholar] [CrossRef] - Shuang, B.; Zhu, Z.Q. A novel method for estimating the high frequency incremental dq-axis and cross-coupling induct-ances in interior permanent magnet synchronous machines. IEEE Trans. Ind. Appl.
**2021**, 57, 4913–4923. [Google Scholar] [CrossRef] - Miguel-Espinar, C.; Heredero-Peris, D.; Gross, G.; Llonch-Masachs, M.; Montesinos-Miracle, D. Maximum torque per voltage flux-weakening strategy with speed limiter for PMSM drives. IEEE Trans. Ind. Electron.
**2020**, 68, 9254–9264. [Google Scholar] [CrossRef] - Guo, J.; Fan, T.; Li, Q.; Wen, X. Coupling and digital control delays affected stability analysis of permanent magnet synchronous motor current-loop control. In Proceedings of the IEEE Vehicle Power and Propulsion Conference, Hanoi, Vietnam, 14–17 October 2019. [Google Scholar]
- Hernandez, O.S.; Cervantes-Rojas, J.S.; Oliver, J.P.O.; Castillo, C.C. Stator Fixed Deadbeat Predictive Torque and Flux Control of a PMSM Drive with Modulated Duty Cycle. Energies
**2021**, 14, 2769. [Google Scholar] [CrossRef] - Xu, L.; Chen, G.; Li, G.; Li, Q. Model Predictive Control Based on Parametric Disturbance Compensation. Math. Probl. Eng.
**2020**, 2020, 9543928. [Google Scholar] [CrossRef] - Son, D.-K.; Kwon, S.-H.; Kim, D.-O.; Song, H.-S.; Lee, G.-H. Control Comparison for the Coordinate Transformation of an Asymmetric Dual Three Phase Synchronous Motor in Healthy and Single-Phase Open Fault States. Energies
**2021**, 14, 1735. [Google Scholar] [CrossRef] - Yosuke, M.; Shinji, D. High Response Torque Control IPMSM Using State Feedback Control Based N-T Coord. System. Electr. Eng. Jpn.
**2019**, 206, 51–62. [Google Scholar] - Zhou, S.; Liu, J.; Zhou, L.; Zhang, Y. DQ current control of voltage source converters with a decoupling method based on preprocessed reference current feed-forward. IEEE Trans. Power Electron.
**2017**, 32, 8904–8921. [Google Scholar] [CrossRef] - Ma, Y.; Yang, X.; Zhou, X.; Yang, L.; Zhou, Y. Dual Closed-Loop Linear Active Disturbance Rejection Control of Grid-Side Converter of Permanent Magnet Direct-Drive Wind Turbine. Energies
**2020**, 13, 1090. [Google Scholar] [CrossRef] [Green Version] - Qiu, T.; Wen, X.; Zhao, F.; Wang, Y. Permanent magnet flux linkage adaptive observer for permanent magnet synchronous motor. In Proceedings of the IEEE Transportation Electrification Asia-Pacific, Beijing, China, 31 August–3 September 2014. [Google Scholar]
- Qiu, T.; We, X.; Zhao, F. Design strategy of permanent magnet flux linkage adaptive observer for permanent magnet synchronous motor. Proc. Chin. Soc. Electr. Eng.
**2015**, 35, 2287–2294. [Google Scholar] - Saleh, M.; Hamid, Y.; Mojtaba, A.K. Adaptive sliding-mode type-2 neuro-fuzzy control of an induction motor. Expert Syst. Appl.
**2015**, 42, 6635–6647. [Google Scholar] - Moradi, H.; Yaghobi, H.; Alinejad-Beromi, Y.; Bustan, D. Power-control and speed-control modes of a DFIG using adaptive sliding mode type-2 neuro-fuzzy for wind energy conversion system. IET Renew. Power Gener.
**2020**, 14, 2946–2954. [Google Scholar] [CrossRef] - Xu, W.; Junejo, A.K.; Liu, Y.; Hussien, M.G.; Zhu, J. An Efficient Antidisturbance Sliding-Mode Speed Control Method for PMSM Drive Systems. IEEE Trans. Power Electron.
**2020**, 36, 6879–6891. [Google Scholar] [CrossRef] - Ahmed, W.A.E.M.; Adel, M.M.; Taha, M.; Saleh, A.A. PSO technique applied to sensorless field-oriented control PMSM drive with discretized RL-fractional integral. Alex. Eng. J.
**2021**, 60, 4029–4040. [Google Scholar] [CrossRef] - Eshwar, K.; Kumar, T.V. Reduction of torque and flux ripples in direct torque control for three-level open-end winding PMSM drive. IET Electr. Power Appl.
**2020**, 14, 2843–2854. [Google Scholar] [CrossRef] - Heidari, R. Model predictive combined vector and direct torque control of SM-PMSM with MTPA and constant stator flux magnitude analysis in the stator flux reference frame. IET Electr. Power Appl.
**2020**, 14, 2283–2292. [Google Scholar] [CrossRef] - Sreejith, R.; Singh, B. Sensorless Predictive Current Control of PMSM EV Drive Using DSOGI-FLL Based Sliding Mode Observer. IEEE Trans. Ind. Electron.
**2020**, 68, 5537–5547. [Google Scholar] [CrossRef] - Bensalem, Y.; Kouzou, A.; Abbassi, R.; Jerbi, H.; Kennel, R.; Abdelrahem, M. Sliding-Mode-Based Current and Speed Sensors Fault Diagnosis for Five-Phase PMSM. Energies
**2021**, 15, 71. [Google Scholar] [CrossRef] - Zhu, S.; Huang, W.; Lin, X.; Jiang, W.; Dong, D.; Wu, X. Simplified model predictive torque control for permanent magnet synchronous motor in static coordinate system. In Proceedings of the IEEE International Symposium on Predictive Control of Electrical Drives and Power Electronics, Quanzhou, China, 31 May–2 June 2019. [Google Scholar]
- Lemmens, J.; Vanassche, P.; Driesen, J. PMSM Drive Current and Voltage Limiting as a Constraint Optimal Control Problem. IEEE J. Emerg. Sel. Top. Power Electron.
**2014**, 3, 326–338. [Google Scholar] [CrossRef] - Yuan, L.; Hu, B.X.; Wei, K.Y.; Chen, S. The Control Principle and MATLAB Simulation of Modern Permanent Magnet Synchronous Motor; Beijing University of Aeronautics and Astronautics Press: Beijing, China, 2016. [Google Scholar]
- Ricardo, H. A Modern Introduction to Differential Equations; Elsevier Press: Amsterdam, The Netherlands, 2015. [Google Scholar]
- Chen, B. Electric Drive Automatic Control System: Motion Control System, 3rd ed.; China Machine Press: Beijing, China, 2007. [Google Scholar]
- Gu, C.; Chen, Z. Electric Drive Automatic System and MATLAB Simulation; Tsinghua University Press: Beijing, China, 2011. [Google Scholar]
- Gene, F.F. Principles and Design of Automatic Control, 8th ed.; Publishing House of Electronics Industry: Beijing, China, 2021. [Google Scholar]
- Hu, S. Automatic Control Principle, 6th ed.; Science Press: Beijing, China, 2015. [Google Scholar]

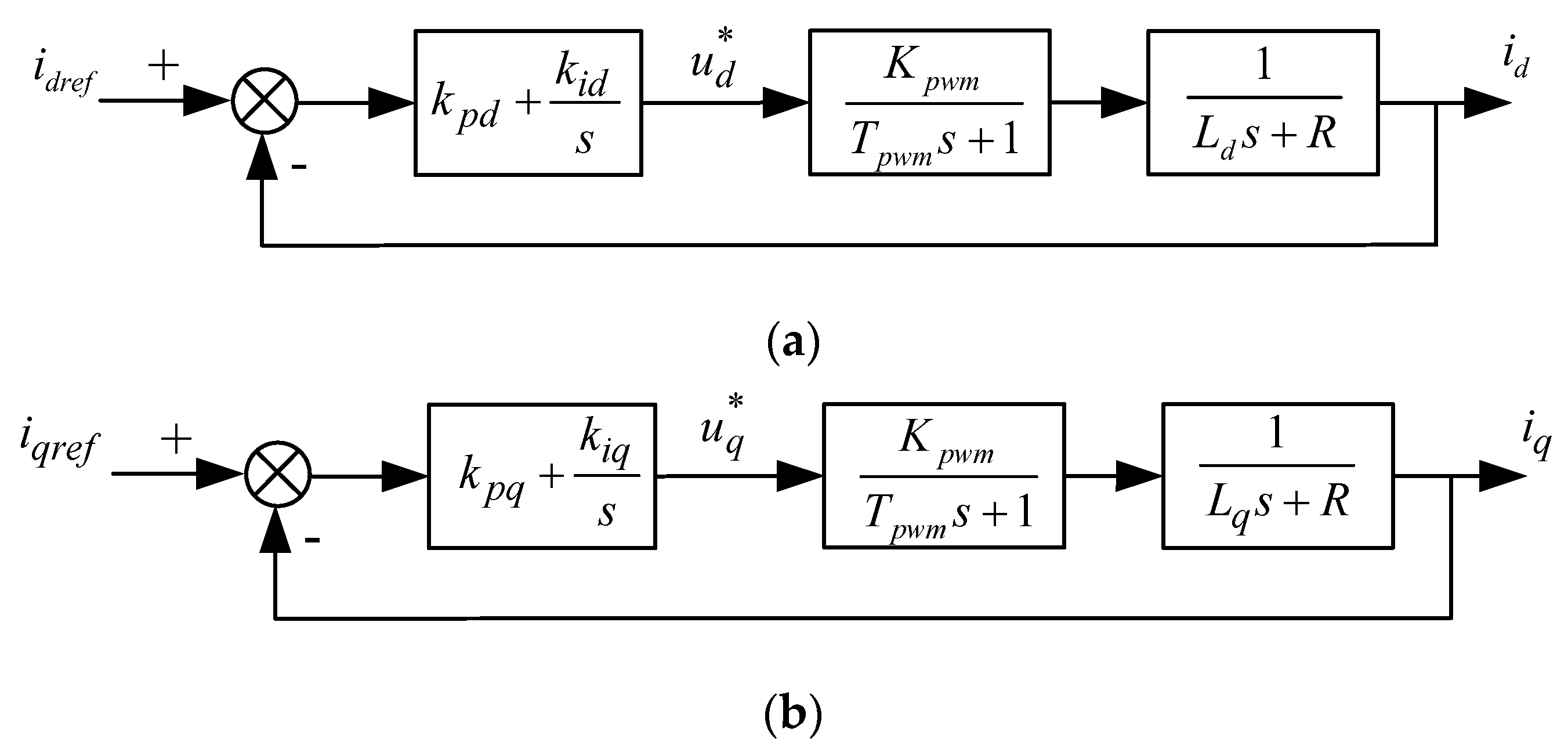

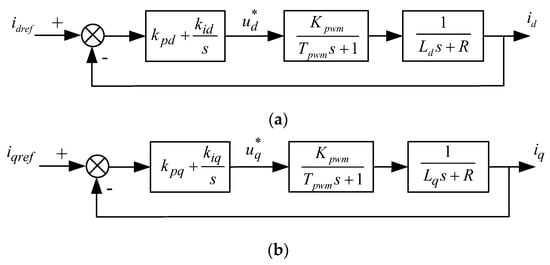

**Figure 1.**The PI current-loop structure of IPMSM: (

**a**) d-axis PI current-loop structure; (

**b**) q-axis PI current-loop structure.

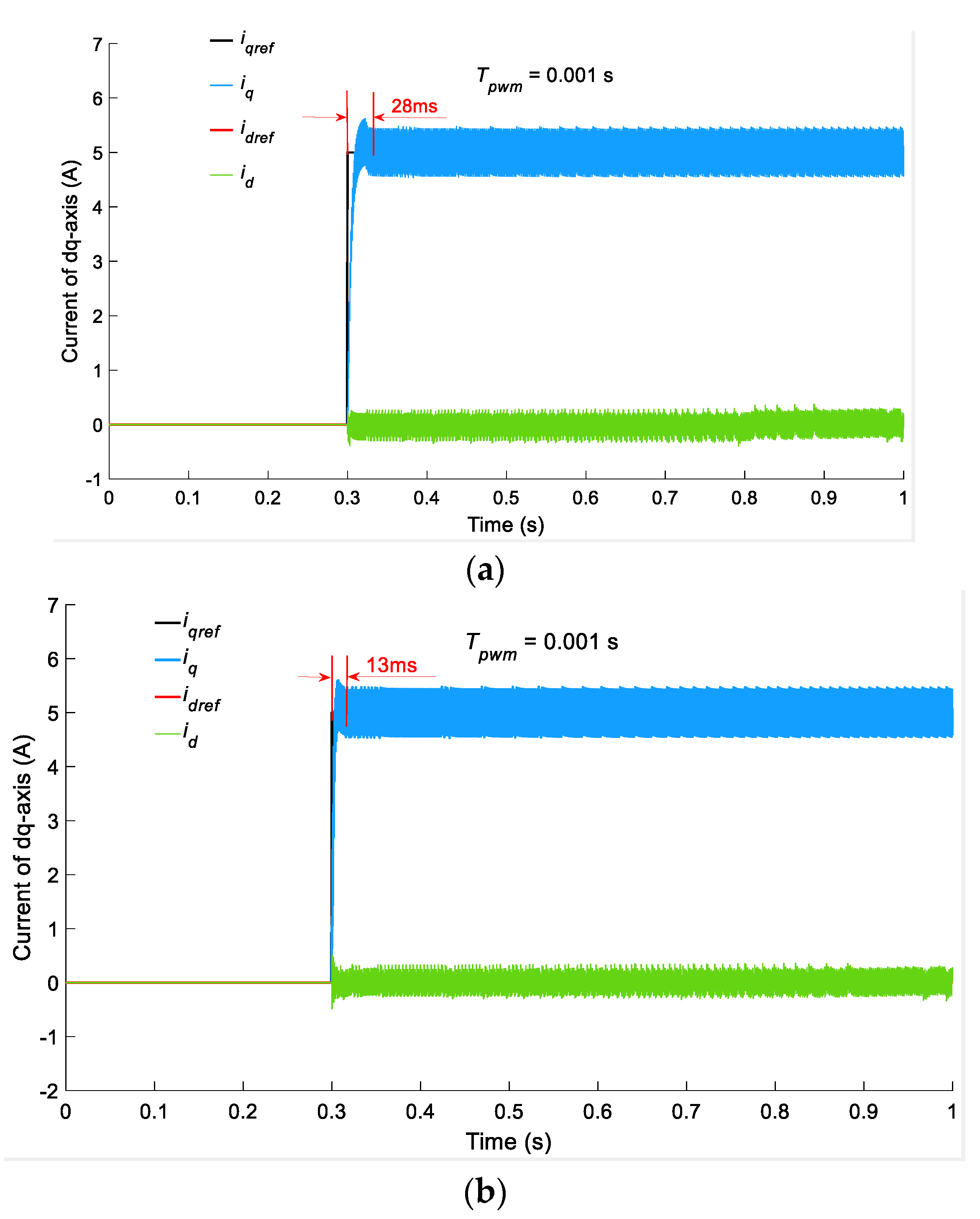

**Figure 6.**The simulation analysis results of the dq-axis current reaction time of IPMSM (${T}_{pwm}=0.001s$): (

**a**) PI method; (

**b**) IMC-PI method.

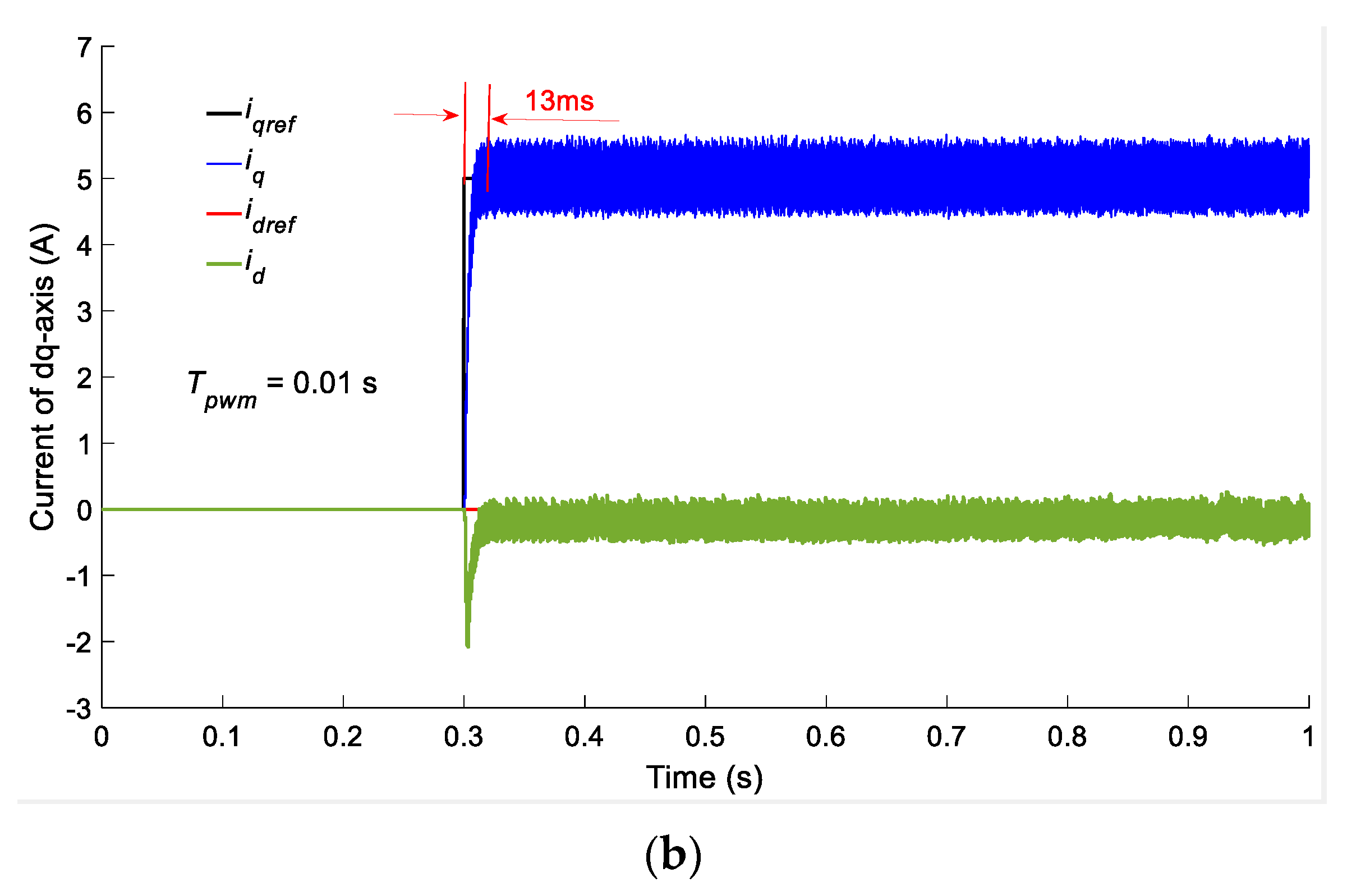

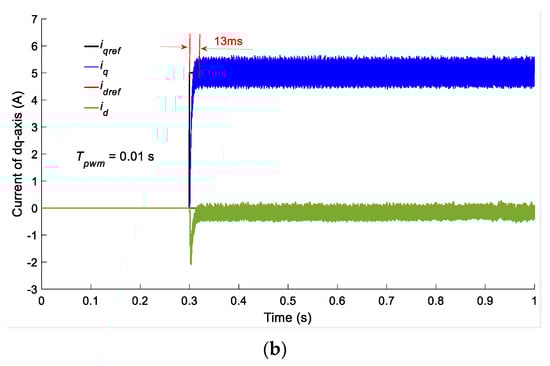

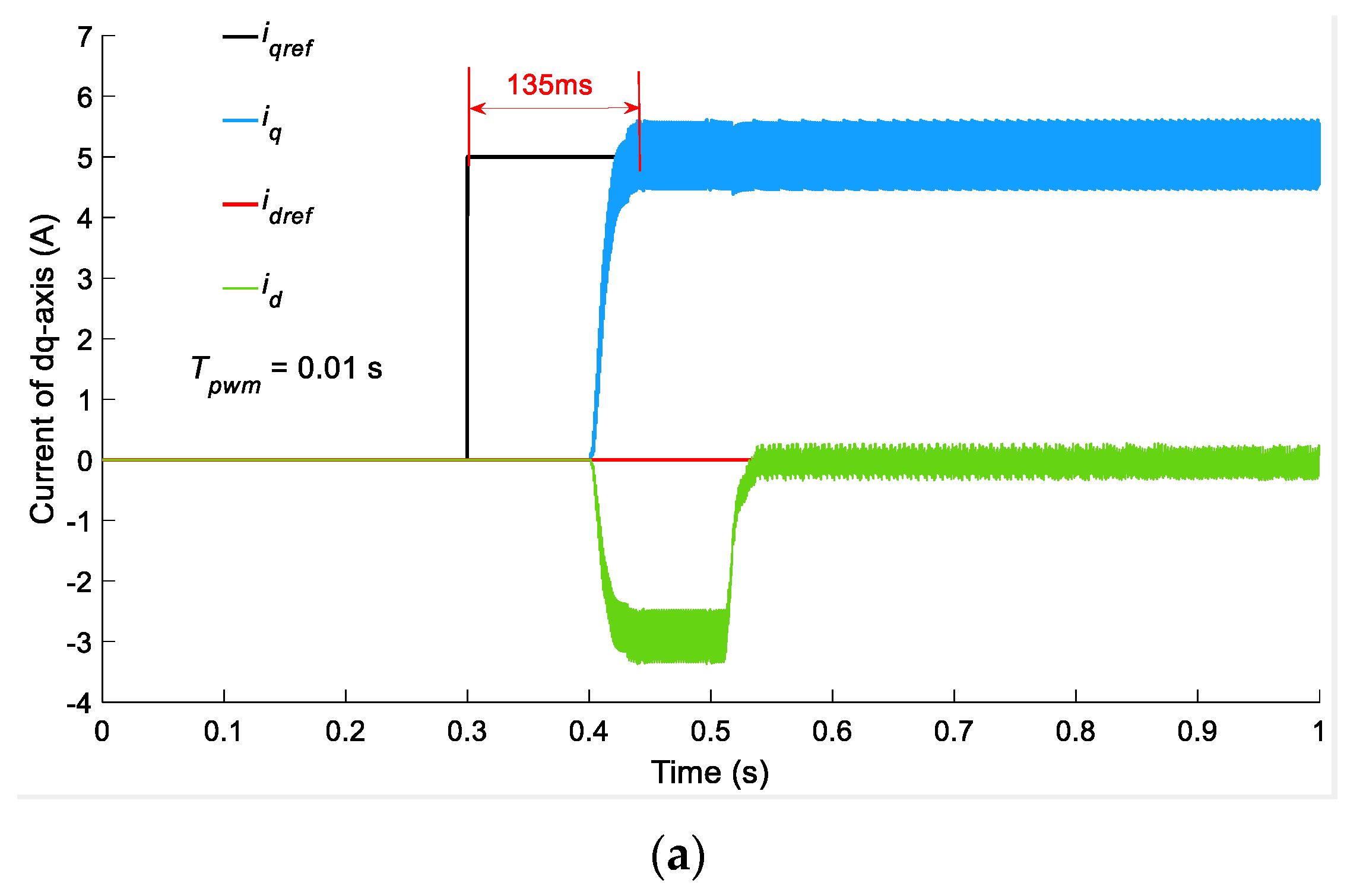

**Figure 7.**The simulation analysis results of the dq-axis current reaction time of IPMSM (${T}_{pwm}=0.01s$): (

**a**) PI method; (

**b**) IMC-PI method.

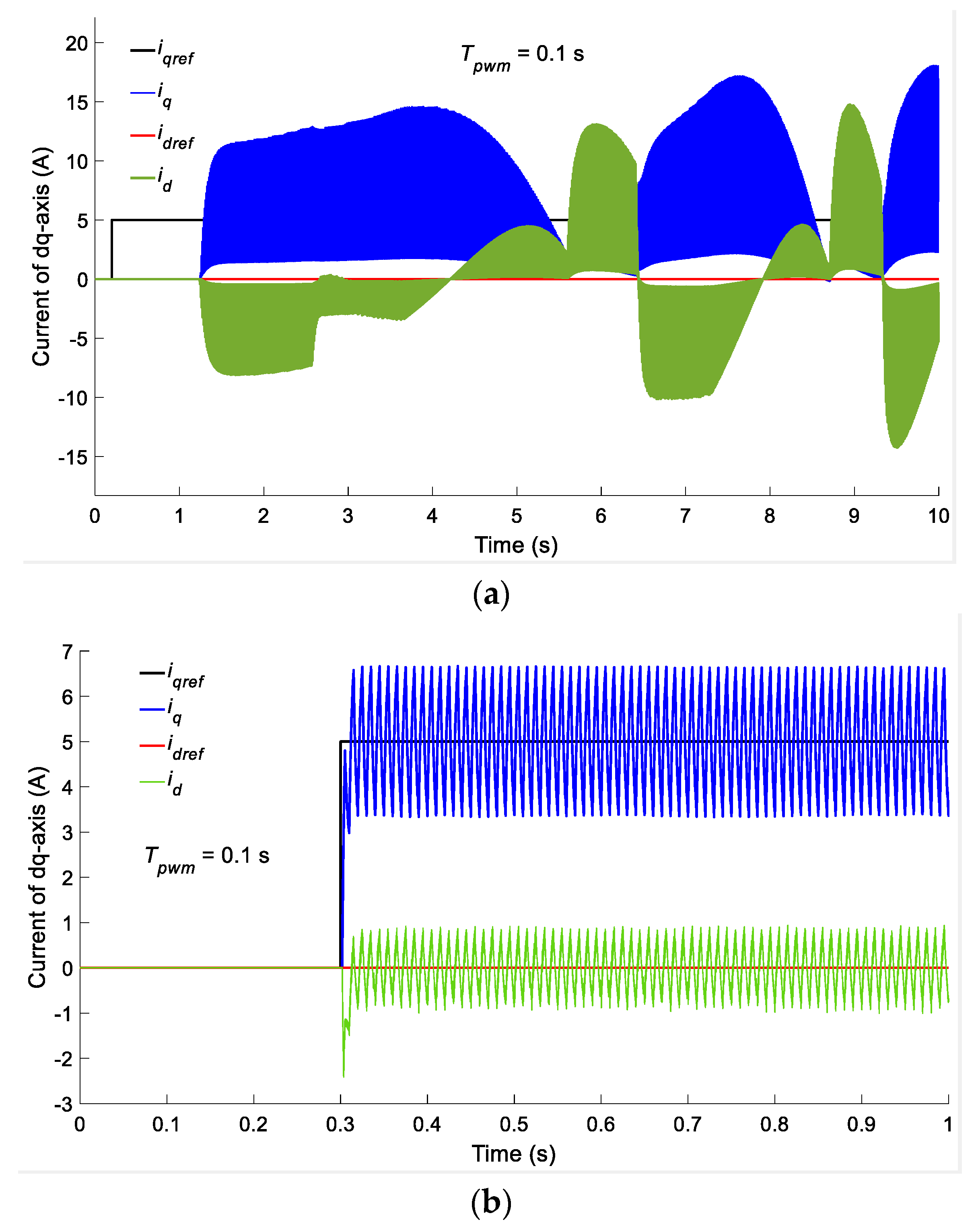

**Figure 8.**The simulation analysis results of the dq-axis current reaction time of IPMSM (${T}_{pwm}=0.1s$): (

**a**) PI method; (

**b**) IMC-PI method.

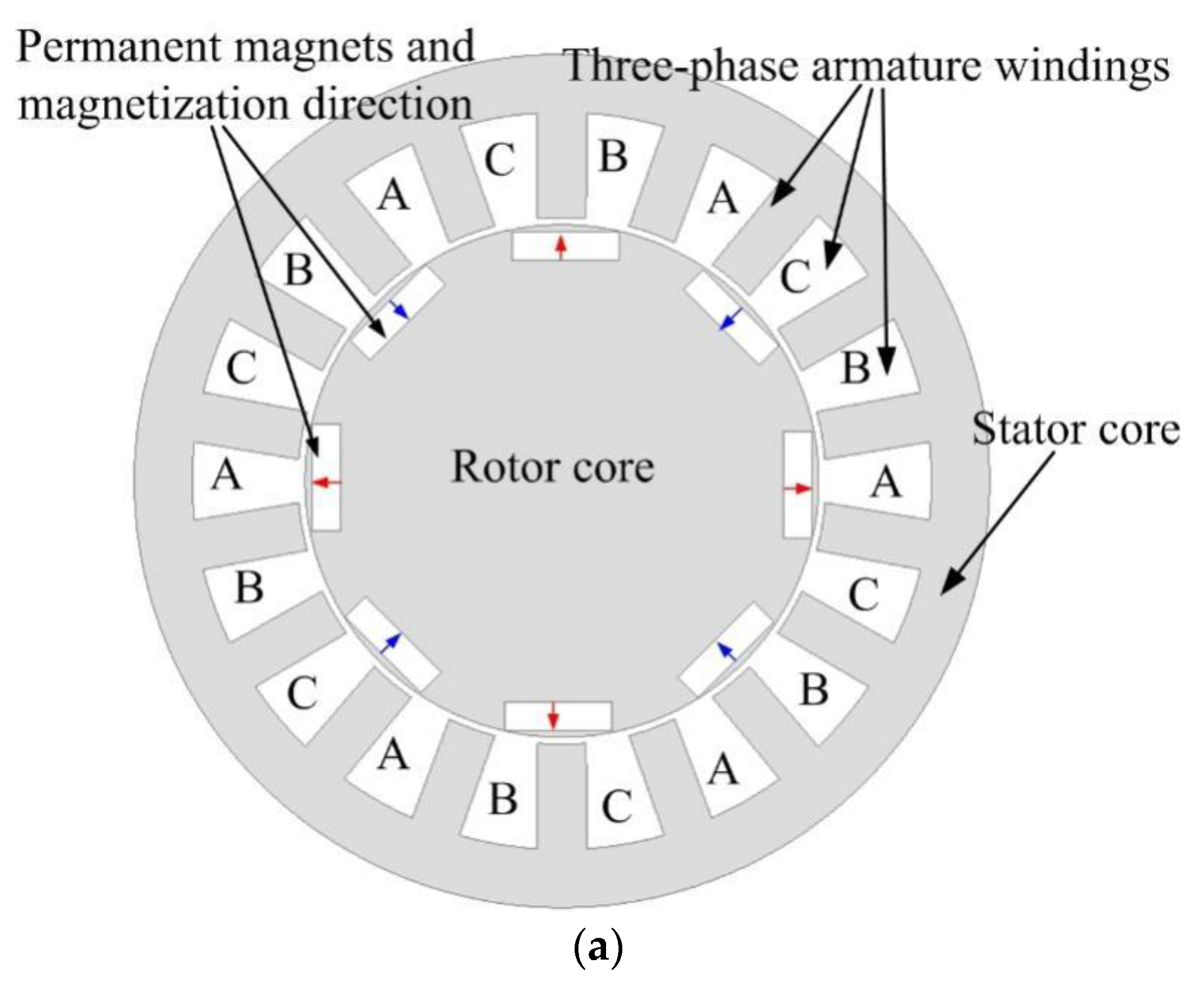

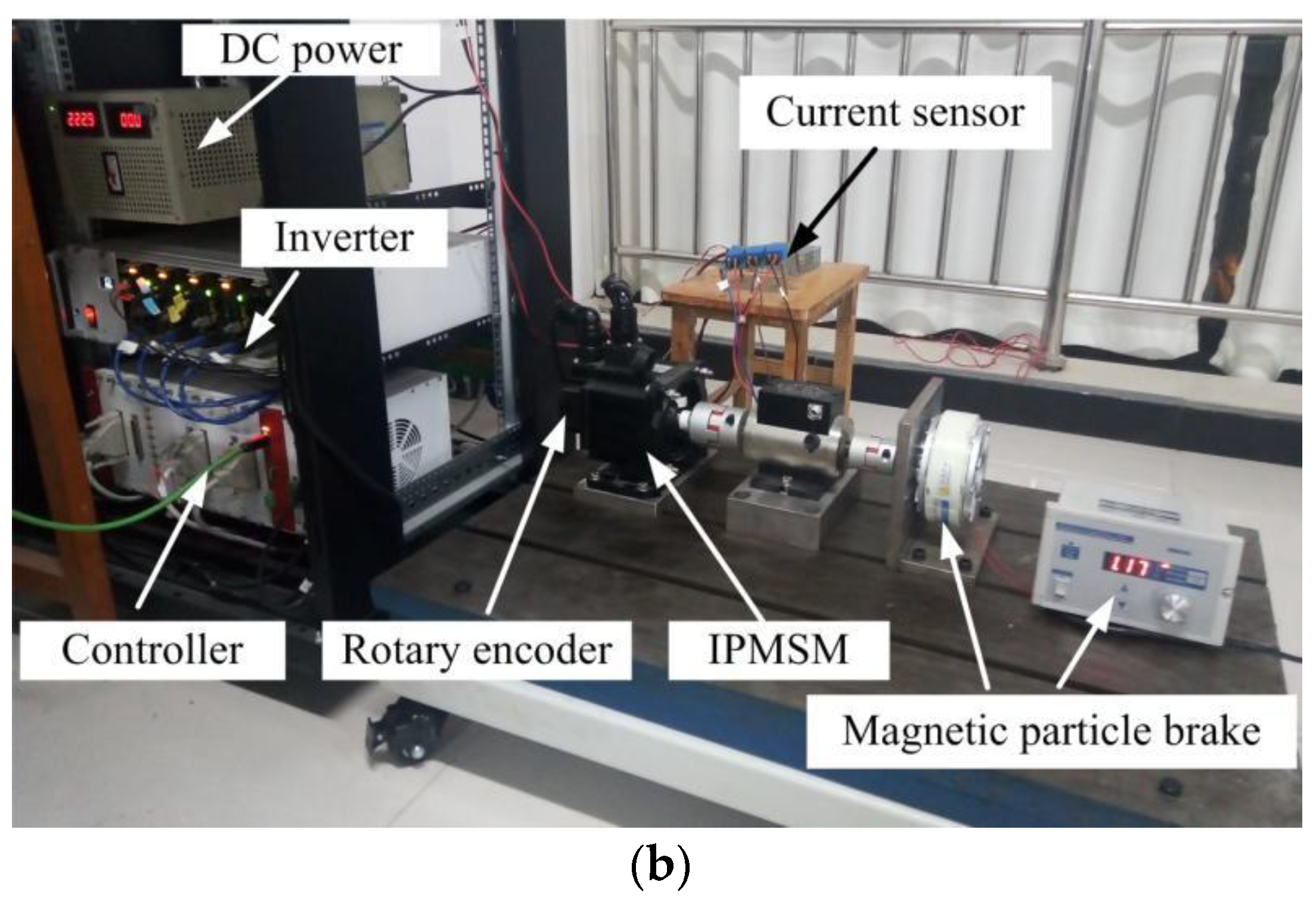

**Figure 9.**Experimental test of the dq-axis current reaction time of IPMSM: (

**a**) IPMSM’s structure; (

**b**) test platform.

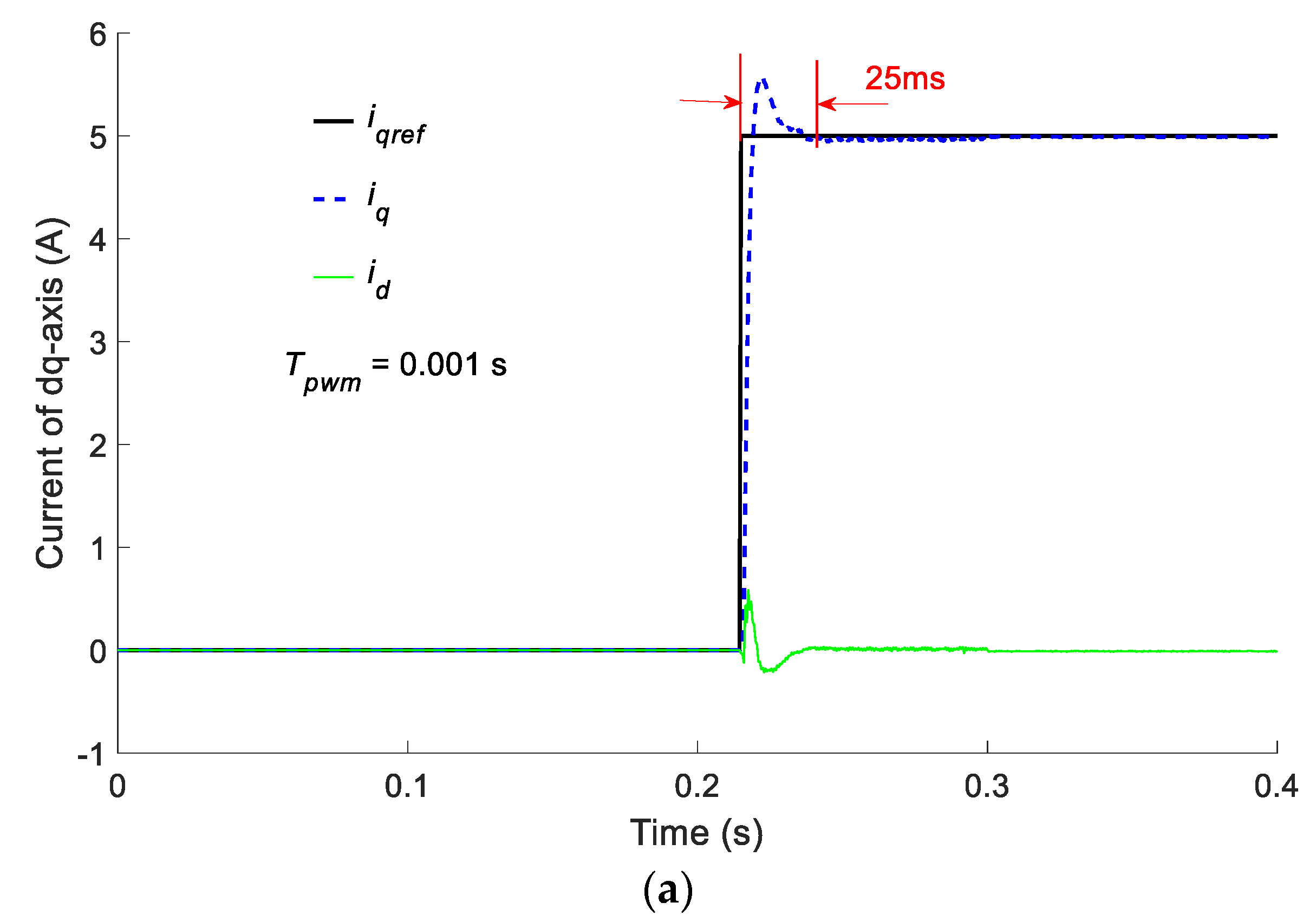

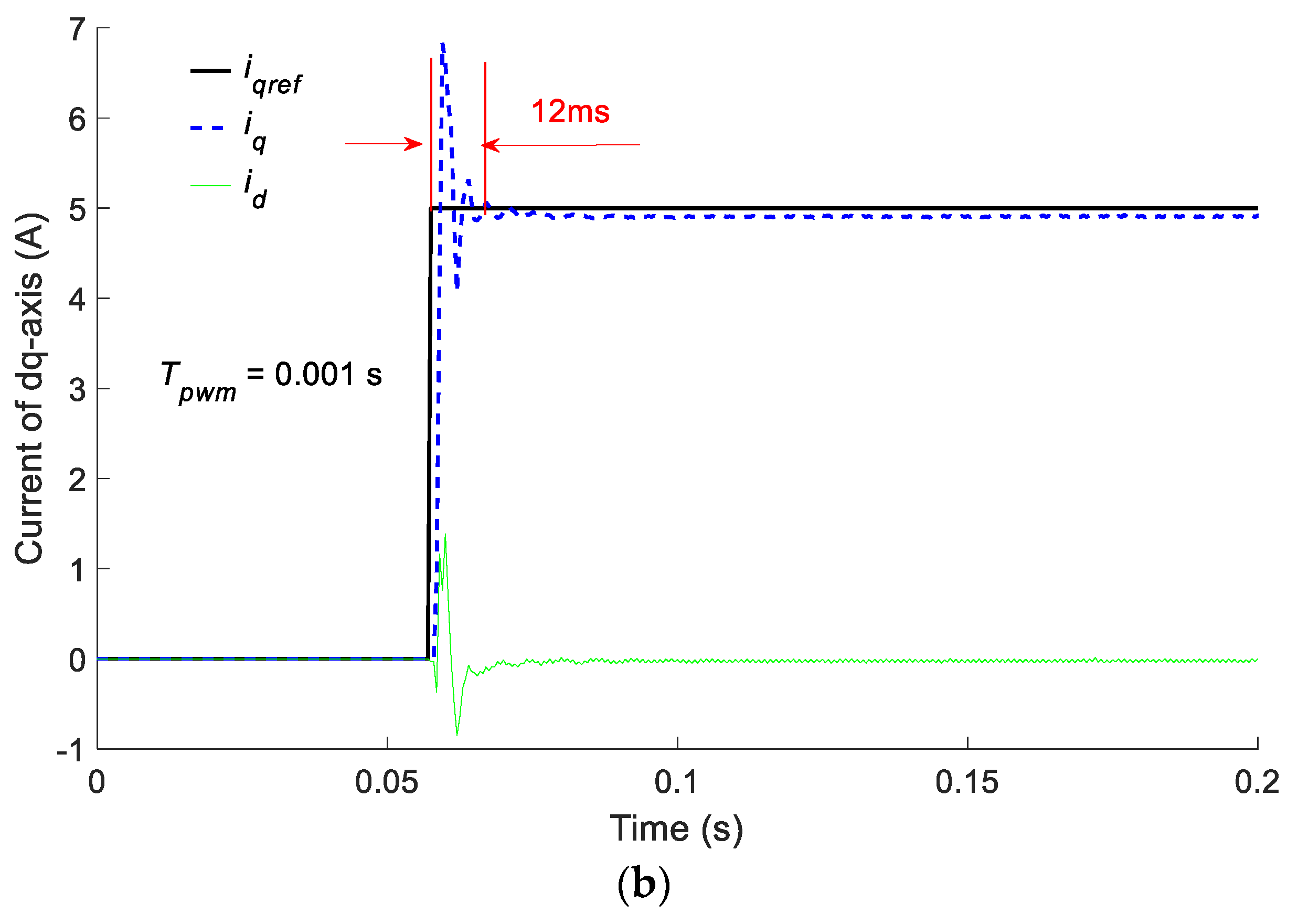

**Figure 10.**The hardware test results of the dq-axis current reaction time of IPMSM (${T}_{pwm}=0.001s$): (

**a**) PI method; (

**b**) IMC-PI method.

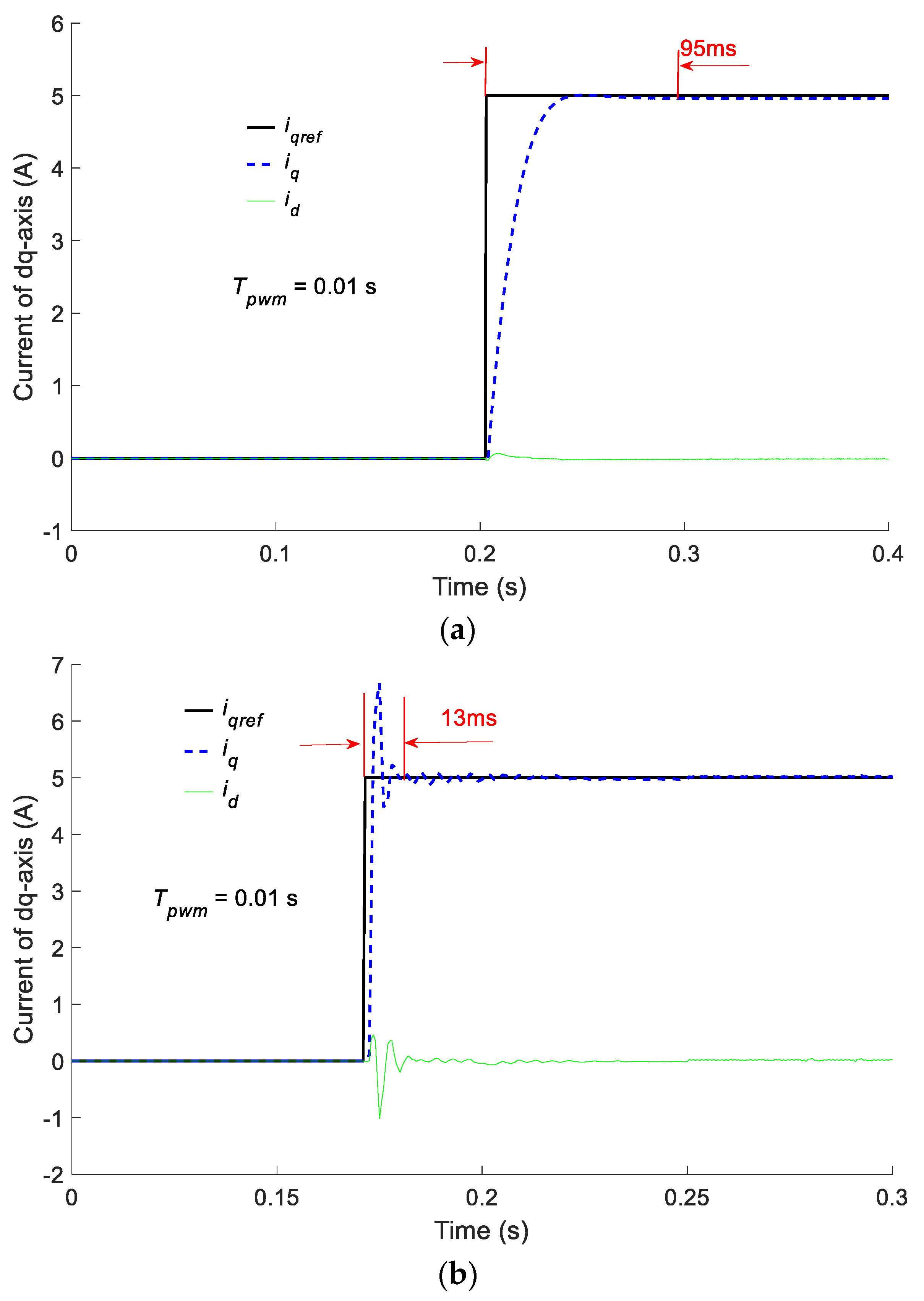

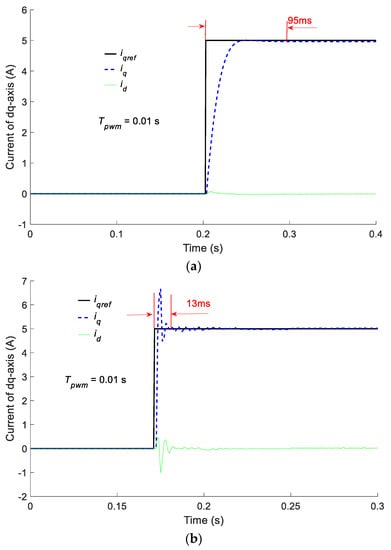

**Figure 11.**The hardware test results of the dq-axis current reaction time of IPMSM (${T}_{pwm}=0.01s$): (

**a**) PI method; (

**b**) IMC-PI method.

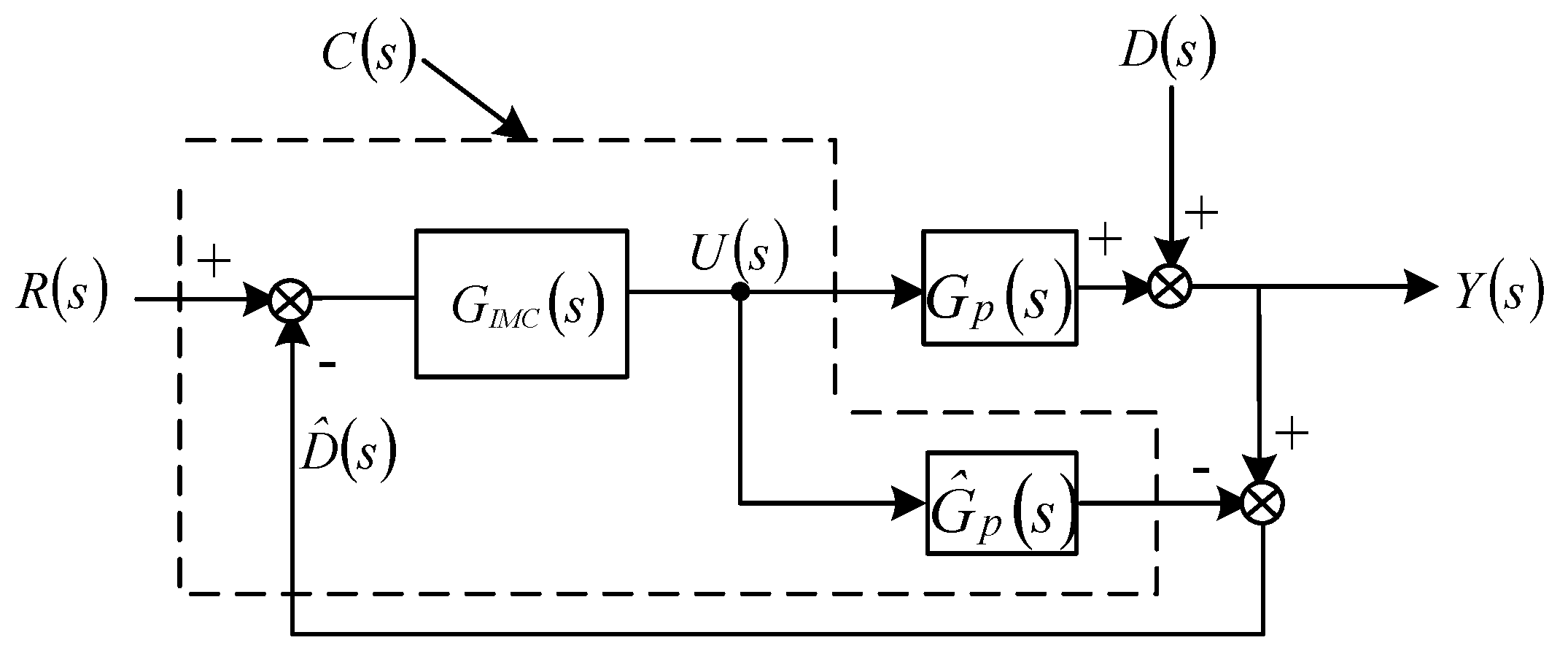

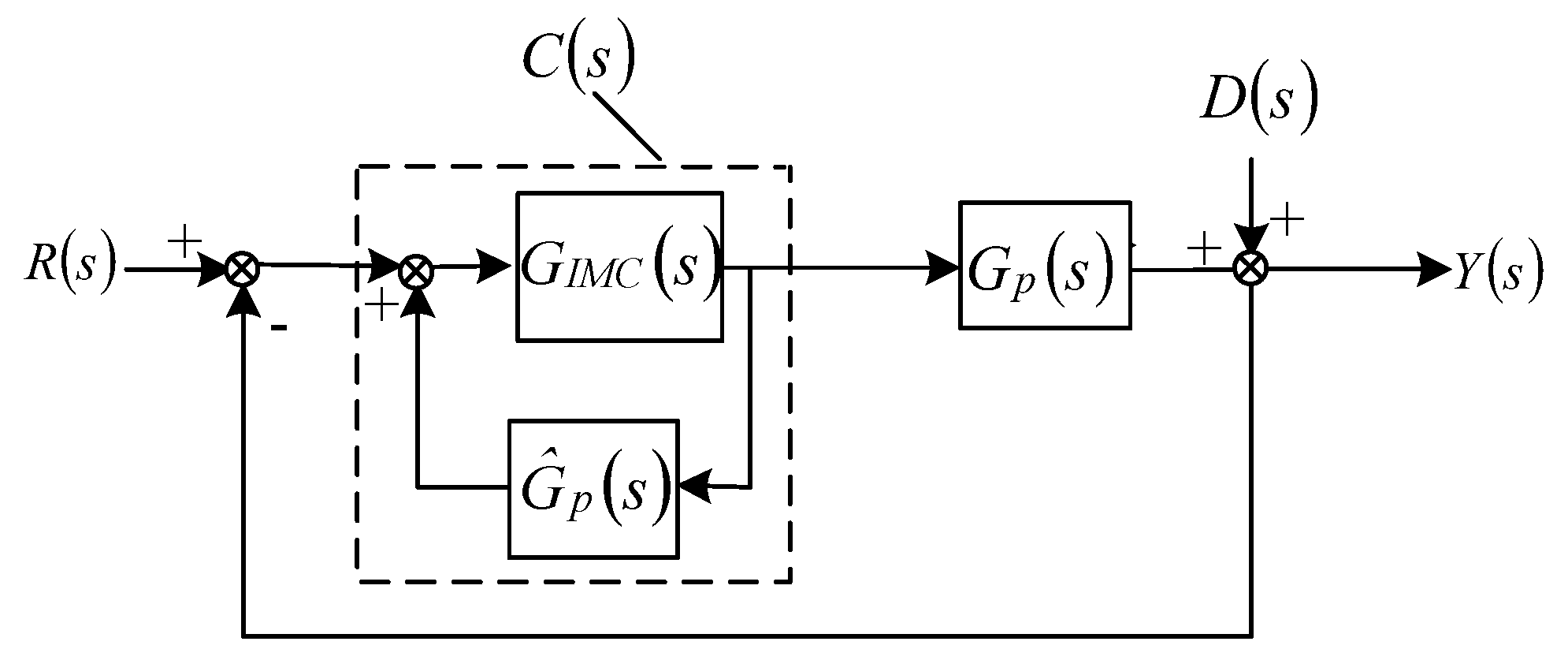

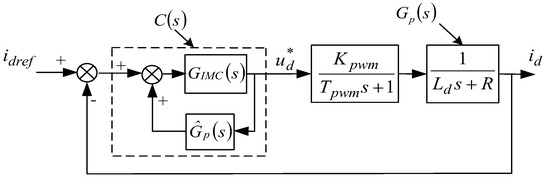

Parameters | Descriptions |
---|---|

$R\left(s\right)$ | System’s input signal |

$C\left(s\right)$ | Feedback controller |

$\widehat{D}\left(s\right)$ | Feedback signal |

${G}_{IMC}\left(s\right)$ | IMC controller |

${G}_{p}\left(s\right)$ | System’s model |

${\widehat{G}}_{p}\left(s\right)$ | Internal model |

$D\left(s\right)$ | Interference signal |

$Y\left(s\right)$ | System’s output signal |

Item | Value | Unit |
---|---|---|

Number of phases | 3 | - |

Power | 1.5 | kW |

Rated line voltage | 220 | V |

Rated line current | 4.5 | A |

Rated speed | 2000 | r/min |

Number of stator slots | 18 | - |

Number of rotor poles | 8 | - |

Air-gap length | 0.5 | mm |

Phase resistance | 2.92 | Ω |

D-axis inductance | 8.96 | mH |

Q-axis inductance | 12.29 | mH |

Excitation flux linkage | 0.955 | Wb |

Item | ${\mathit{T}}_{\mathit{p}\mathit{w}\mathit{m}}=0.001\mathit{s}$ | ${\mathit{T}}_{\mathit{p}\mathit{w}\mathit{m}}=0.01\mathit{s}$ | ${\mathit{T}}_{\mathit{p}\mathit{w}\mathit{m}}=0.1\mathit{s}$ | |
---|---|---|---|---|

PI method | ${K}_{pq}$ | 6.145 | 0.6145 | 0.06145 |

${K}_{iq}$ | 1460 | 146 | 14.6 | |

${K}_{pd}$ | 4.48 | 0.448 | 0.0448 | |

${K}_{id}$ | 1460 | 146 | 14.6 | |

IMC-PI method | ${K}_{pq\left(IMC\right)}$ | 18.3 | 18.3 | 18.3 |

${K}_{iq\left(IMC\right)}$ | 4356 | 4356 | 4356 | |

${K}_{pd\left(IMC\right)}$ | 13.3 | 13.3 | 13.3 | |

${K}_{id\left(IMC\right)}$ | 4356 | 4356 | 4356 |
