# Optimal Planning of Electric Vehicle Charging Stations Considering Traffic Load for Smart Cities

^{1}

^{2}

^{*}

^{†}

## Abstract

**:**

## 1. Introduction

## 2. Related Works

#### 2.1. Assignment and Location Problem

#### 2.2. Resource Allocation under Optimal Criteria

#### 2.3. Planning of Charging Infrastructure for Batteries in Electric Mobility

_{2}emissions by conventional private and public transport. Today there are multiple electric mobility alternatives, such as bicycles, cars, and public transport buses. However, it has not been possible to introduce EVs massively into the land transport system because of variables that do not make large-scale purchases attractive to potential users in urban and rural areas. These unattractive variables to consumers could be limited autonomy, long charging times, battery life, high costs, and lack of charging infrastructure for EVs.

## 3. Problem Description

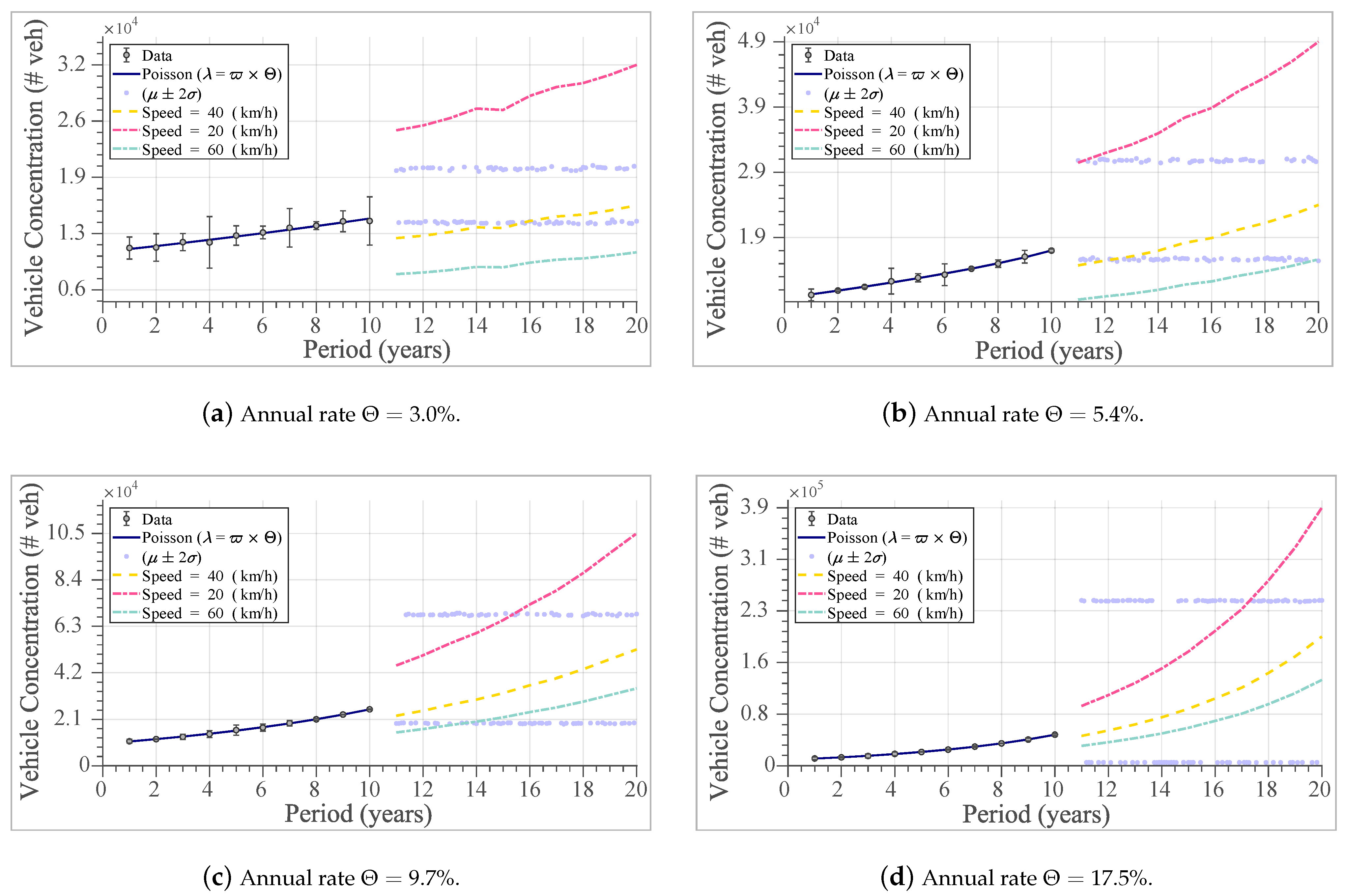

#### 3.1. Stochastic Analysis of Vehicular Traffic and Resource Allocation at ICSEC

#### 3.2. Proposed Strategy and Methodology

#### 3.3. Problem Formulation

- ${\varphi}_{j}$ location variable $\epsilon $, is 1 when it is found any node that is part of the set j, $j\in \kappa $, 0 in any other way.
- ${\theta}_{k}$ subset of assigned arcs, if the arc $k\in \mathcal{M}$ it is used, otherwise 0.
- ${\tau}_{e}^{j}$ path enabled, is 1 if the edge $e\in \mathcal{L}$ and $j\in \kappa $, otherwise 0.

#### Column Generator

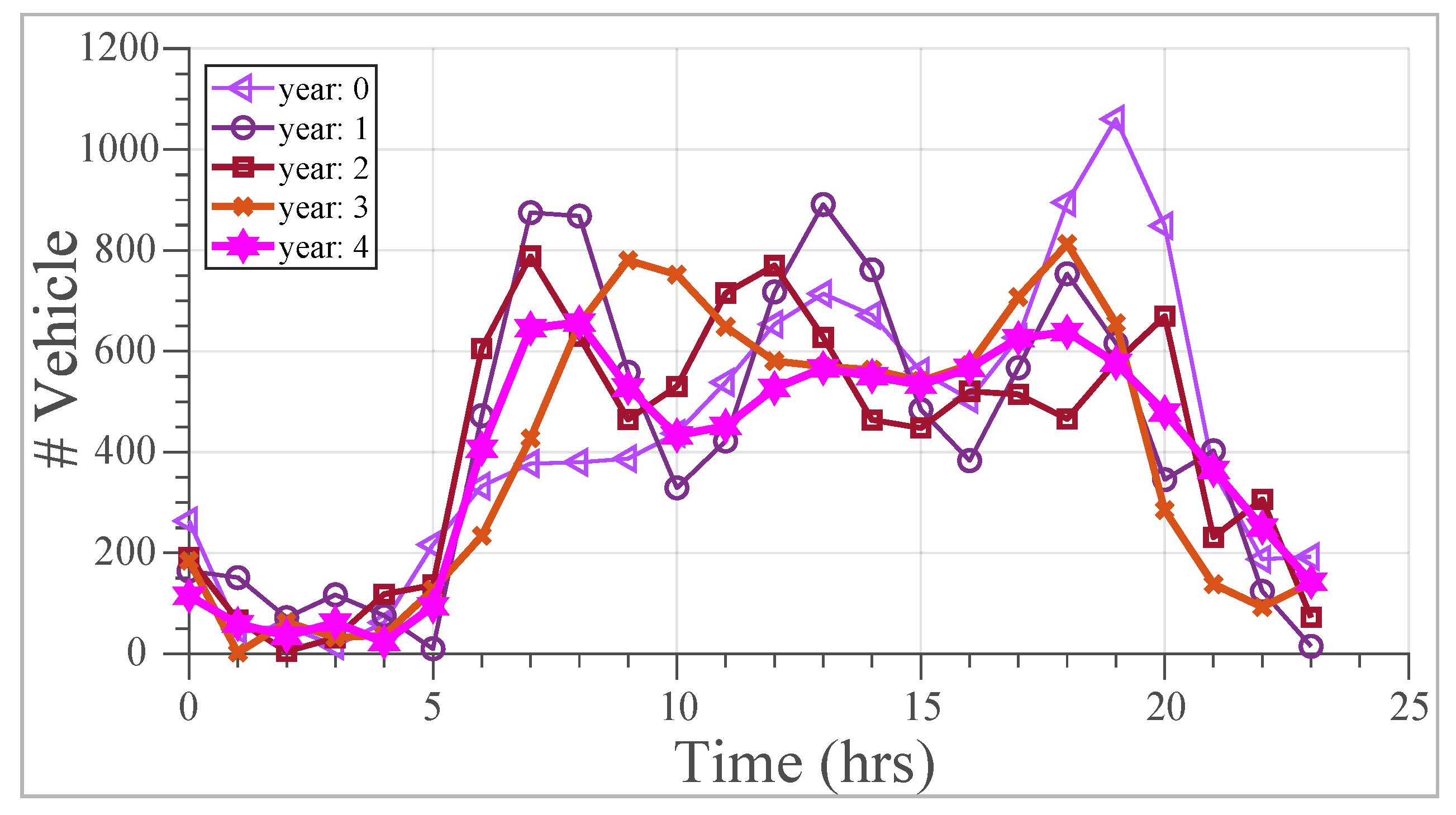

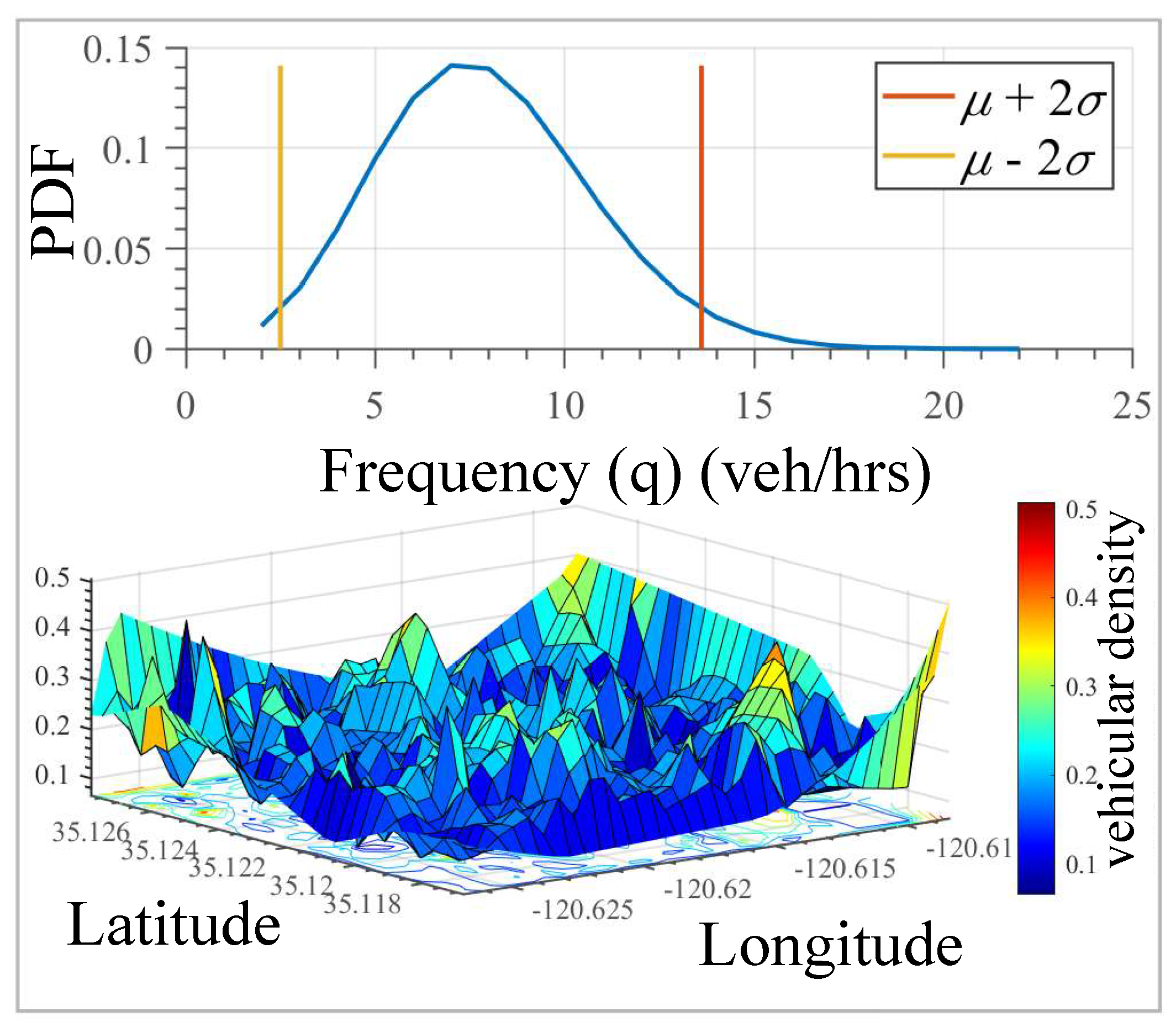

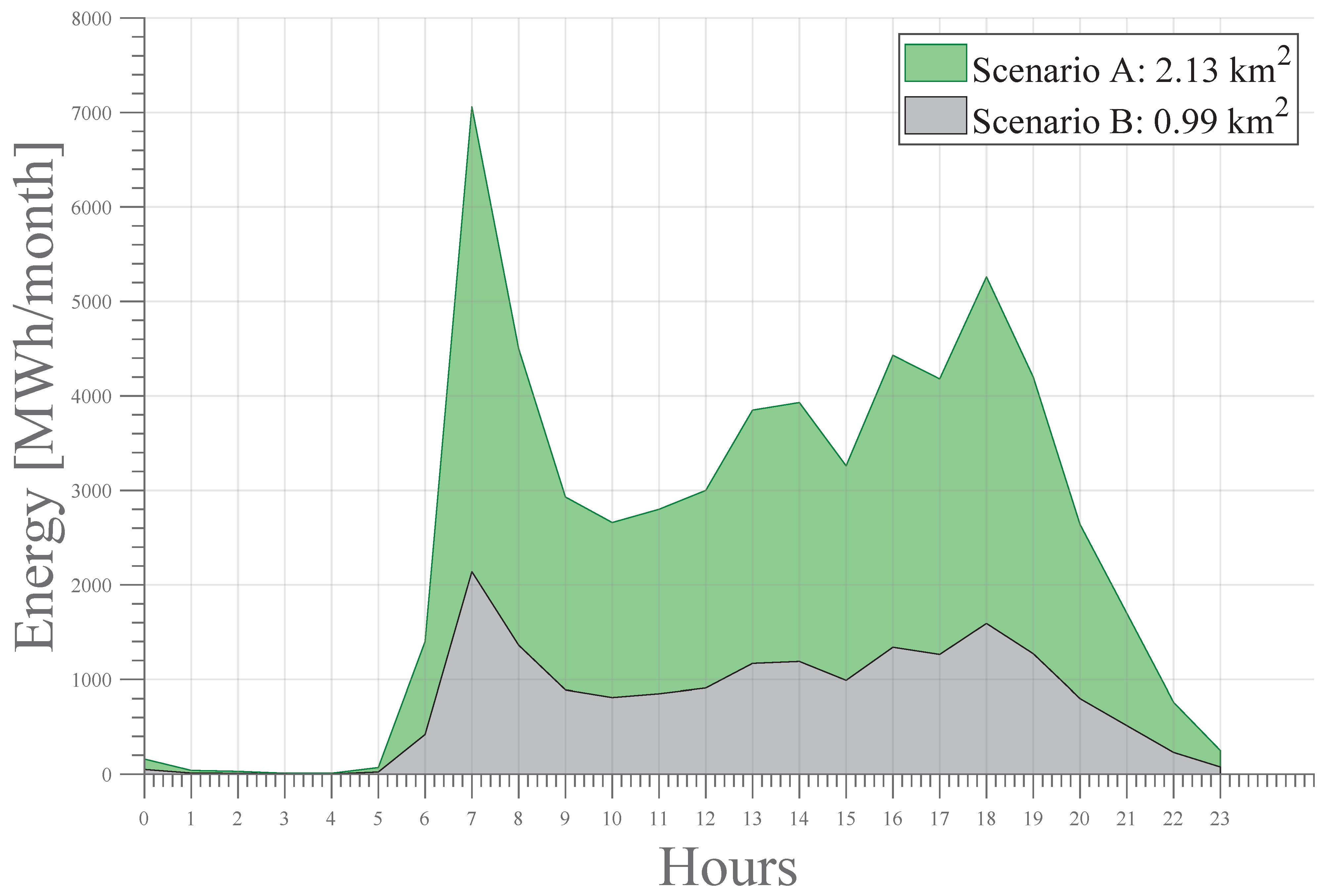

## 4. Analysis of Results

## 5. Discussion

## 6. Conclusions

## Author Contributions

## Funding

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Liu, M.; Richa, A.W.; Rost, M.; Schmid, S. A Constant Approximation for Maximum Throughput Multicommodity Routing and Its Application to Delay-Tolerant Network Scheduling. In Proceedings of the IEEE INFOCOM 2019—IEEE Conference on Computer Communications, Paris, France, 29 April–2 May 2019; pp. 46–54. [Google Scholar] [CrossRef]
- Rabbani, M.; Zenouzzadeh, S.M.; Farrokhi-asl, H. Solving a bi-objective multi-commodity two-echelon capacitated location routing problem. J. Ind. Syst. Eng.
**2019**, 12, 249–268. [Google Scholar] - Song, D.; Tharmarasa, R.; Zhou, G.; Florea, M.C.; Duclos-Hindie, N.; Kirubarajan, T. Multi-Vehicle Tracking Using Microscopic Traffic Models. IEEE Trans. Intell. Transp. Syst.
**2019**, 20, 149–161. [Google Scholar] [CrossRef] - Jiménez-Estévez, G.A.; Vargas, L.S.; Marianov, V. Determination of feeder areas for the design of large distribution networks. IEEE Trans. Power Deliv.
**2010**, 25, 1912–1922. [Google Scholar] [CrossRef] - Zhang, Y.; Ioannou, P.A. Integrated control of highway traffic flow. J. Control. Decis.
**2018**, 5, 19–41. [Google Scholar] [CrossRef] - Jiang, J.; Yue, Y.; He, S. Multimodal-transport collaborative evacuation strategies for urban serious emergency incidents based on multi-sources spatiotemporal data. Leibniz Int. Proc. Inform.
**2018**, 114, 35. [Google Scholar] [CrossRef] - Montoya, D.P.; Ramirez, J.M. A minimal spanning tree algorithm for distribution networks configuration. In Proceedings of the 2012 IEEE Power and Energy Society General Meeting, San Diego, CA, USA, 22–26 July 2012. [Google Scholar] [CrossRef]
- Li, J.; Ma, X.Y.; Liu, C.C.; Schneider, K.P. Distribution system restoration with microgrids using spanning tree search. IEEE Trans. Power Syst.
**2014**, 29, 3021–3029. [Google Scholar] [CrossRef] - Nagarajan, A.; Ayyanar, R. Application of Minimum Spanning Tree Algorithm for Network Reduction of Distribution Systems. In Proceedings of the North American Power Symposium (NAPS), Pullman, WA, USA, 7–9 September 2014; pp. 1–5. [Google Scholar]
- Neagu, B.C.; Georgescu, G. Wind Farm Cable Route Optimization Using a Simple Approach. In Proceedings of the International Conference and Exposition on Electrical and Power Engineering (EPE), Iasi, Romania, 16–18 October 2014; Volume 1, pp. 1004–1009. [Google Scholar]
- Balakrishna, P.; Rajagopal, K.; Swarup, K.S. AMI/GIS based Distribution System Load Flow for Extended Situational Awareness. In Proceedings of the 2014 Eighteenth National Power Systems Conference (NPSC) IEEE, Guwahati, India, 18–20 December 2014; pp. 1–6. [Google Scholar]
- García, J.; Inga, E. Georeferenced rural distribution network model considering scalable growth of users in rural areas. Heliyon
**2023**, 9, e12724. [Google Scholar] [CrossRef] [PubMed] - Tang, X.; Bi, S.; Zhang, Y.J.A. Distributed Routing and Charging Scheduling Optimization for Internet of Electric Vehicles. IEEE Internet Things J.
**2018**, 6, 136–148. [Google Scholar] [CrossRef] - Chung, B.D.; Park, S.; Kwon, C. Equitable distribution of recharging stations for electric vehicles. Socio-Econ. Plan. Sci.
**2018**, 63, 1–11. [Google Scholar] [CrossRef] - Bi, X.; Tang, W.K. Logistical Planning for Electric Vehicles under Time-Dependent Stochastic Traffic. IEEE Trans. Intell. Transp. Syst.
**2019**, 20, 3771–3781. [Google Scholar] [CrossRef] - Napoli, G.; Polimeni, A.; Micari, S.; Andaloro, L.; Antonucci, V. Optimal allocation of electric vehicle charging stations in a highway network: Part 1. Methodology and test application. J. Energy Storage
**2020**, 27, 101102. [Google Scholar] [CrossRef] - Luo, L.; Wu, Z.; Gu, W.; Huang, H.; Gao, S.; Han, J. Coordinated allocation of distributed generation resources and electric vehicle charging stations in distribution systems with vehicle-to-grid interaction. Energy
**2020**, 192, 116631. [Google Scholar] [CrossRef] - Gan, X.; Zhang, H.; Hang, G.; Qin, Z.; Jin, H. Fast Charging Station Deployment Considering Elastic Demand. IEEE Trans. Transp. Electrif.
**2020**, 6, 158–169. [Google Scholar] [CrossRef] - Esteban, I.; Roberto, H.; Sandra, C. Capacitated Multicommodity Flow Problem for Heterogeneous Smart Electricity Metering Communications Using Column Generation. Energies
**2019**, 13, 97. [Google Scholar] [CrossRef] [Green Version] - Demir, E.; Huckle, K.; Syntetos, A.; Lahy, A.; Wilson, M. Vehicle Routing Problem: Past and Future; Springer: Berlin/Heidelberg, Germany, 2019; pp. 97–117. [Google Scholar] [CrossRef]
- Azadi Moghaddam Arani, A.; Jolai, F.; Nasiri, M.M. A multi-commodity network flow model for railway capacity optimization in case of line blockage. Int. J. Rail Transp.
**2019**, 7, 297–320. [Google Scholar] [CrossRef] - Bevrani, B.; Burdett, R.L.; Bhaskar, A.; Yarlagadda, P.K. A Multi Commodity Flow Model Incorporating Flow Reduction Functions; Springer: Berlin/Heidelberg, Germany, 2019. [Google Scholar] [CrossRef]
- Campaña, M.; Inga, E. Despliegue óptimo georreferenciado de estaciones de carga vehicular pública considerando capacidad de flujo y distancias máximas habilitantes. I + D Tecnol.
**2019**, 15, 68–78. [Google Scholar] [CrossRef] [Green Version] - Liu, G.; Kang, L.; Luan, Z.; Qiu, J.; Zheng, F. Charging station and power network planning for integrated electric vehicles (EVs). Energies
**2019**, 12, 2595. [Google Scholar] [CrossRef] [Green Version] - Ghasemi, P.; Khalili-Damghani, K.; Hafezolkotob, A.; Raissi, S. Uncertain multi-objective multi-commodity multi-period multi-vehicle location-allocation model for earthquake evacuation planning. Appl. Math. Comput.
**2019**, 350, 105–132. [Google Scholar] [CrossRef] - Campaña, M.; Inga, E. Optimal Allocation of Public Charging Stations based on Traffic Density in Smart Cities. In Proceedings of the IEEE Colombian Conference on Applications in Computational Intelligence, ColCACI 2019, Barranquilla, Colombia, 5–7 June 2019. [Google Scholar] [CrossRef]
- Zhang, X.; Rey, D.; Waller, S.T.; Chen, N. Range-Constrained Traffic Assignment with Multi-Modal Recharge for Electric Vehicles. Netw. Spat. Econ.
**2019**, 19, 633–668. [Google Scholar] [CrossRef] - Vaziri, S.; Etebari, F.; Vahdani, B. Development and optimization of a horizontal carrier collaboration vehicle routing model with multi-commodity request allocation. J. Clean. Prod.
**2019**, 224, 492–505. [Google Scholar] [CrossRef] - Lu, G.; Zhou, X.; Mahmoudi, M.; Shi, T.; Peng, Q. Optimizing resource recharging location-routing plans: A resource-space-time network modeling framework for railway locomotive refueling applications. Comput. Ind. Eng.
**2019**, 127, 1241–1258. [Google Scholar] [CrossRef] - Ghasemishabankareh, B.; Ozlen, M.; Neumann, F.; Li, X. Parallel Problem Solving from Nature. In Proceedings of the PPSN XV—15th International Conference, Coimbra, Portugal, 8–12 September 2018; Proceedings, Part I. Springer: Berlin/Heidelberg, Germany, 2018; Volume 1, pp. 69–81. [Google Scholar] [CrossRef]
- Du, L.; Song, G.; Wang, Y.; Huang, J.; Yu, Z.; Ruan, M. Model for Expressway Network: A Network Flow Approach. IEEE Intell. Transp. Syst.
**2018**, 10, 107–120. [Google Scholar] [CrossRef] - Moradipari, A.; Alizadeh, M. Electric Vehicle Charging Station Network Equilibrium Models and Pricing Schemes. arXiv
**2018**, arXiv:1811.08582. [Google Scholar] - Campaña, M.; Inga, E.; Hincapié, R. Optimal placement of universal data aggregation points for smart electric metering based on hybrid wireless. CEUR Workshop Proc.
**2017**, 1950, 6–9. [Google Scholar] - Inga, E.; Céspedes, S.; Hincapié, R.; Cárdenas, A. Scalable Route Map for Advanced Metering Infrastructure Based on Optimal Routing of Wireless Heterogeneous Networks. IEEE Wirel. Commun.
**2017**, 24, 26–33. [Google Scholar] [CrossRef]

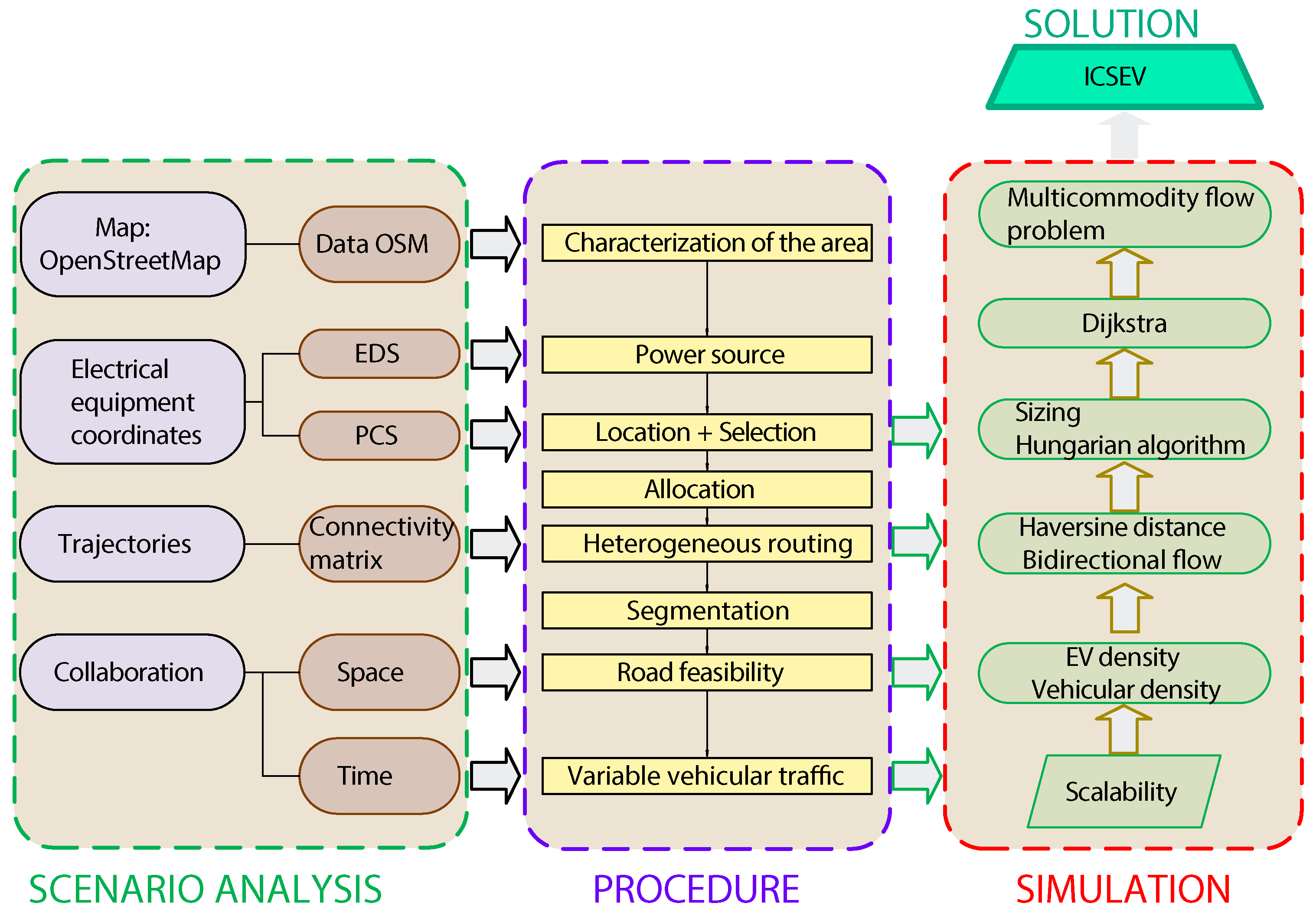

**Figure 3.**Flowchart for solving the Multiple-Product Problem in Location and Resource Allocation by considering Capacity (MP-LRAC).

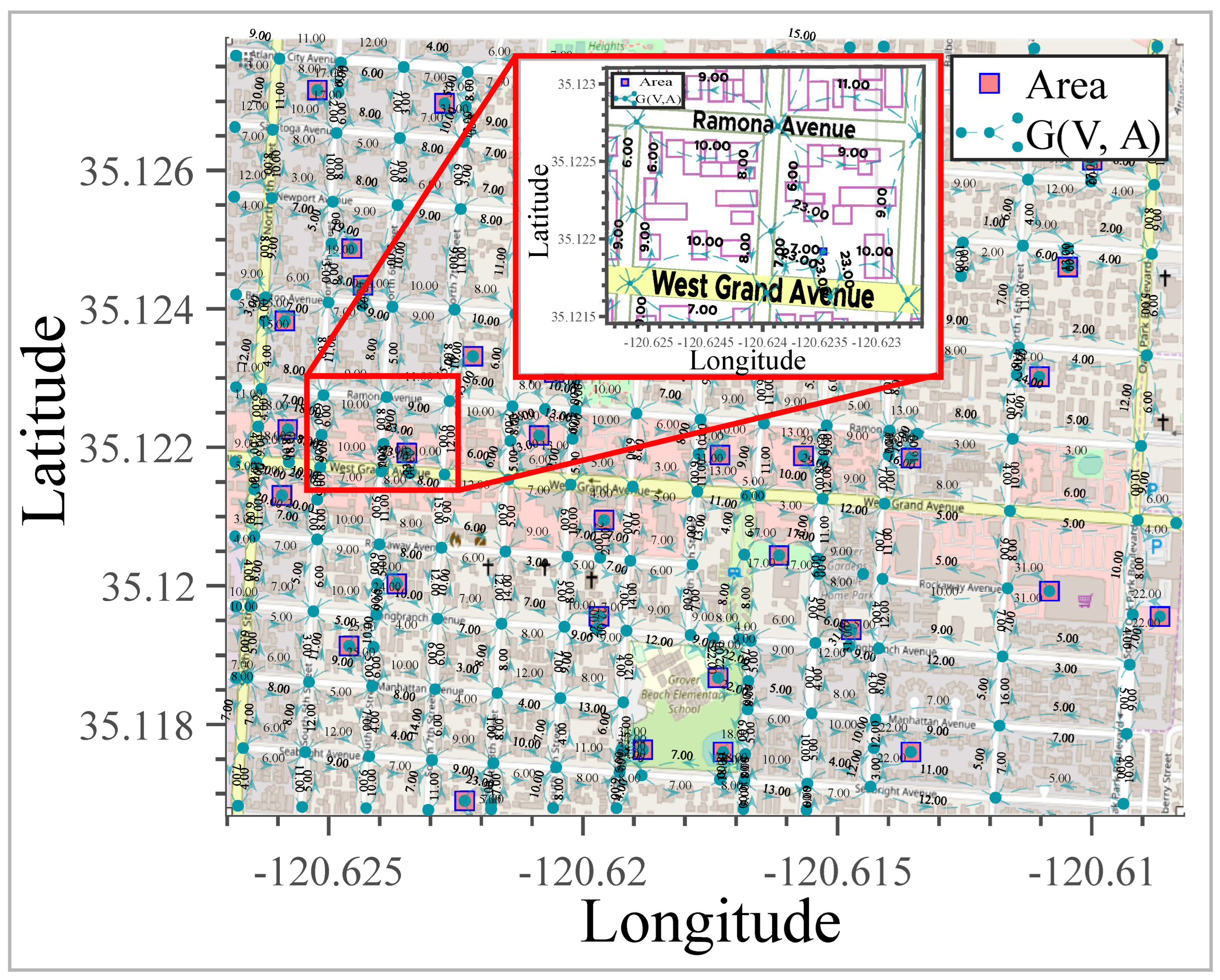

**Figure 4.**Case A, Grover Beach with an area of 2.13 km

^{2}, a city in San Luis Obispo County, US state of California.

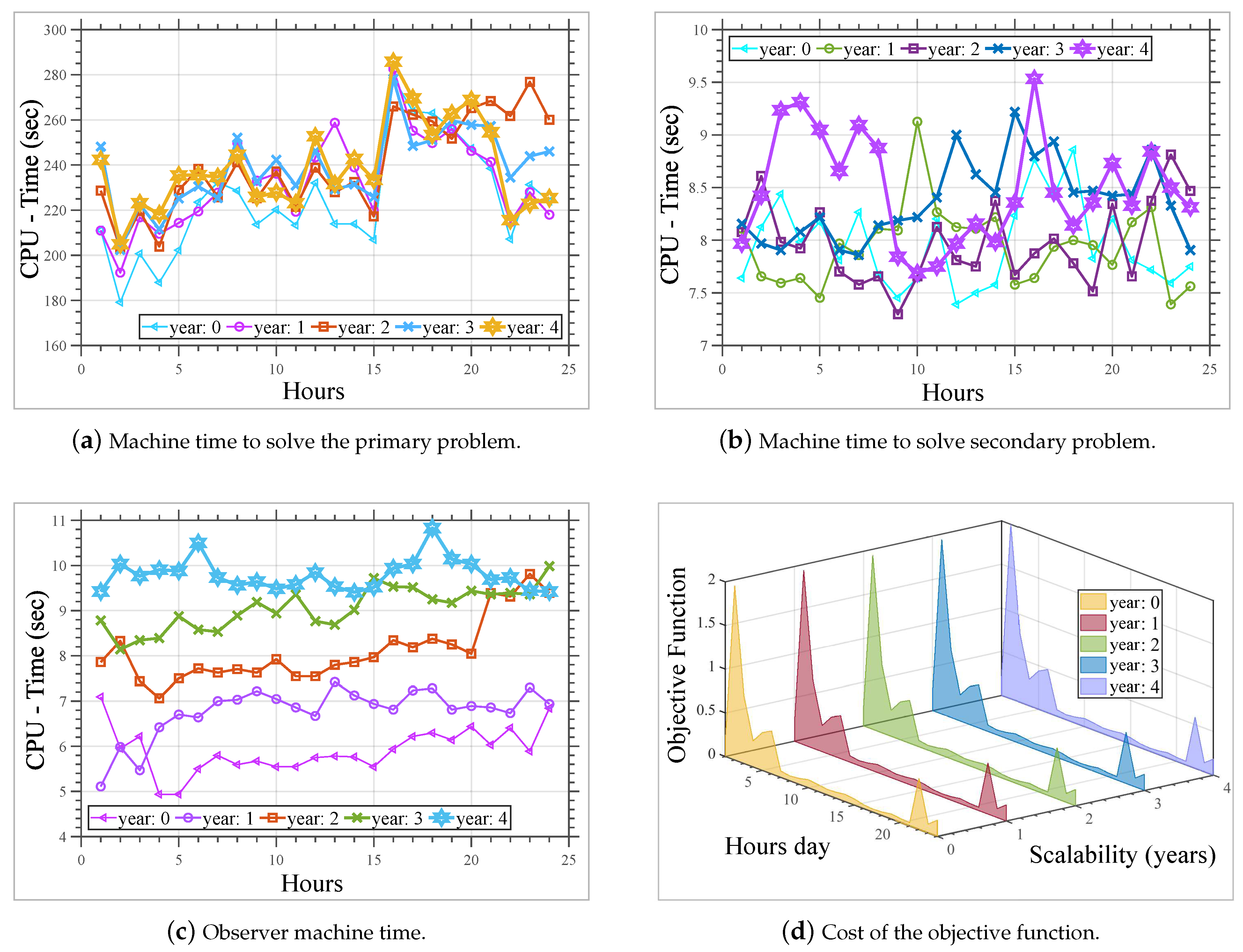

**Figure 9.**Case A: Performance of the algorithm considering scalability of 4 years with a growth rate of 3%.

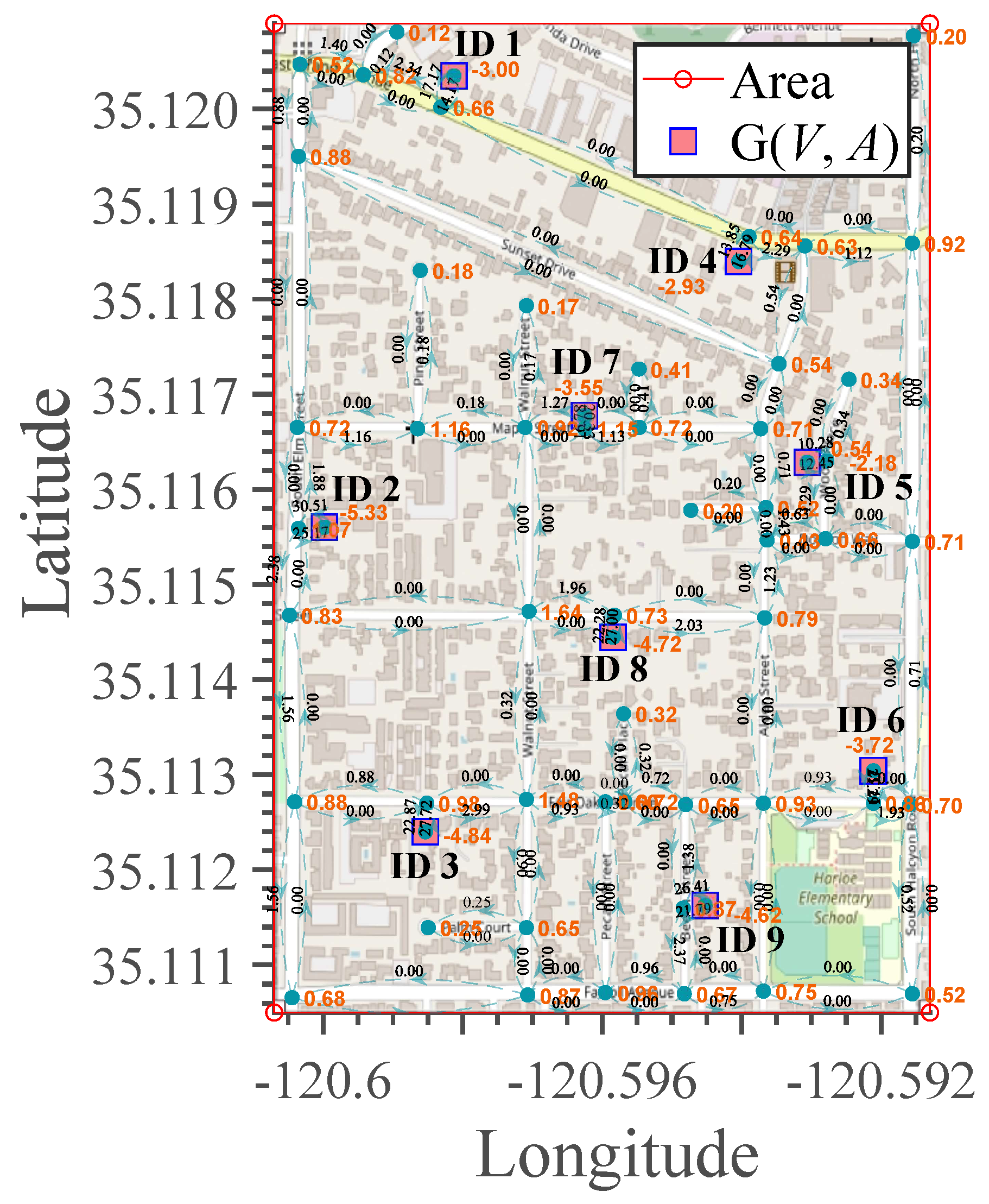

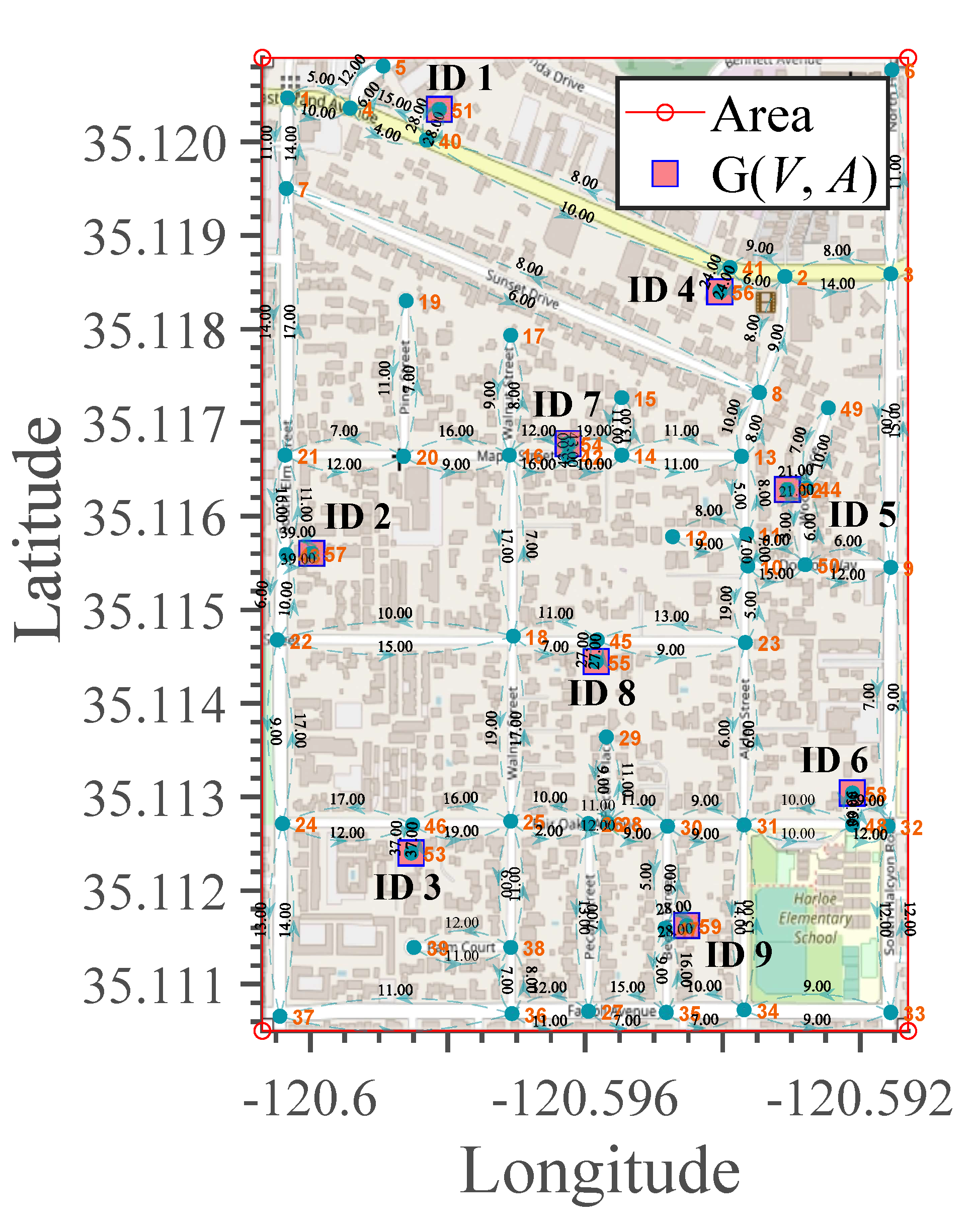

**Figure 10.**Case B: Weights assigned to each track section with microscopic analysis in an area of 0.9887 km

^{2}.

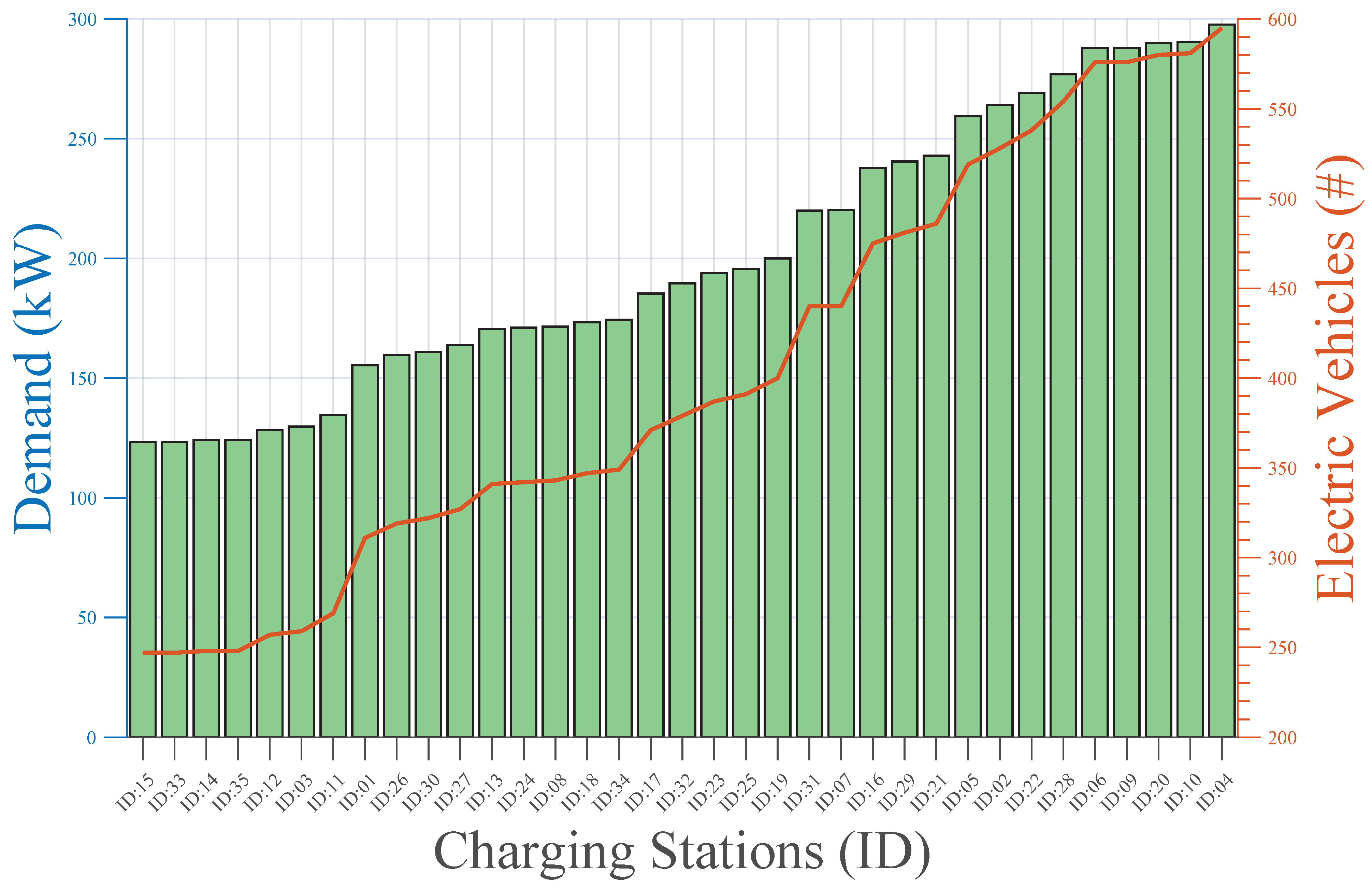

**Figure 13.**Case A. Energy consumption and density of electric vehicles per expected charging station.

Vehicle Electric | Autonomy (km) | Voltage Terminal (V) | Engine (kW) | Maximum Speed (km/h) | System Regenerative | Vehicle Category Dimensions (m) |
---|---|---|---|---|---|---|

Tazzari Zero | 200 | 230 | 15–25 | 90 | ✓ | |

Renault Twizy | 100 | 230 | 17 | 80 | ✓ | height < 2.5 |

Audi Urban | 73 | 230–400 | 15 | 100 | - | width < 1.5 |

Peugeot BB1 | 120 | 230 | 15 | 60 | - | length < 3.7 |

Author, Year | Model | Problem | Obj. Function | Constraints | Solution | Trajectories | Other | ||||
---|---|---|---|---|---|---|---|---|---|---|---|

Theoretical | Experimental | Location Allocation | Route | Exact | Heuristic/Meta | Density Traffic | Urban Study | ||||

Gan, 2020 [18] | ✓ | - | ✓ | ✓ | Maximize Profit Service | Distance Standy time Power grid capacity | - | ✓ | - | - | Elastic demand Stochastic Newton-Raphson NILP |

Inga, 2019 [19] | ✓ | - | ✓ | ✓ | Minimize Costs Flows | Capacity Distance | - | ✓ | - | ✓ | Scalable multi-commodity capacities network |

Demir, 2019 [20] | - | ✓ | - | ✓ | Minimize Travel distance Costs | Flows # Vehicles | - | ✓ | - | - | Deterministic ILP Demand fluctuation NP-hard |

Azadi, 2019 [21] | ✓ | - | - | ✓ | Maximize User Routes Service | Capacity Operation Schedule | ✓ | - | ✓ | - | Multiple commodity flows network Heterogenous traffic MILP Branch and Bound Algorithm |

Bevrani, 2019 [22] | ✓ | - | - | ✓ | Minimize Flow Routs | Congestion Expanstion tree Conservation flow | ✓ | - | - | ✓ | Multi-commodity network flow Flow reduction functions NLP Multiple nodes |

Campaña, 2019 [23] | ✓ | - | ✓ | ✓ | Minimize # Charging stations Trajectory Costs | Distance Minimal tree Coverage | - | ✓ | ✓ | ✓ | ILP Graph theory Homogenous nodes |

Liu, 2019 [24] | ✓ | - | - | ✓ | Minimize Power losses in distribution Maximize Flow | Capacity Congestion | ✓ | - | ✓ | - | Heterogeneous nodes Optimal Solution Charging congestion during fuzzy multi-objective model |

Ghasemi, 2019 [25] | ✓ | - | ✓ | ✓ | Min. Transportation cost Minimize shortages Max. humanitarian | Demand Heterogenous flow Capacity Distance | ✓ | ✓ | ✓ | - | Probability approach Planning periods Multiple-objective PSO Stochastic demand |

Campaña, 2019 [26] | ✓ | - | ✓ | ✓ | Min. Trajectories Min. Charging Station Min. Congestion road | Coverage Distance Capacity | - | ✓ | ✓ | ✓ | Segmentation ILP Need for Users Neighborhood analysis |

Current study | ✓ | - | ✓ | ✓ | Min. Trajectories Min. flow Min. Charging stations Max. Humanitarian | Capacity Distance Coverage Demand | ✓ | ✓ | ✓ | ✓ | Revised-Simplex MILP Multi-commodity network flow Heterogeneous nodes Scalable Multi-objective NP-Hard Non convex |

**Table 3.**Types of charging terminals for ICSEC [23].

Type | Current (Amp) Type | Time (h) | Recharge (%) | Power kW | Owner | INEC Standard |
---|---|---|---|---|---|---|

Slow | 16 AC | 8 | 100 | 4–8 | Public-Private | |

Semi-fast | 32 AC | 1.150 | 50–80 | 22 | Public | |

Fast | 63 AC | 0.500 | 50–80 | 50 | Public | 61,851 |

Ultra-fast | 250–400 DC | 0.170 | 50–80 | 350 | Public | |

Change-Battery | AC-DC | 0.033 | 100 | - | Public |

Nomenclature | Description |
---|---|

m | Number of nodes $\{\nu \cup \epsilon \cup \zeta \cup \beta \}$ |

${G}_{m\times m}$ | Directed graph matrix |

${\phi}_{1,2,\cdots ,m}$, $\phi $ | EV autonomy vector |

$\mathcal{V}$ | Nodes vector |

$\mathcal{A}$ | Edges Vector |

$\nu $ | EV nodes |

$\epsilon $ | CS nodes |

$u,v$ | Origin and destination edges, respectively |

$i,j$ | Origin and destination transversal intersection edges |

$\iota $ | Road cross length |

$\alpha $ | Number of heterogeneous vehicles in $\iota $ |

$\varpi $ | Discrete probability of the number of vehicles |

$\beta $ | Intersections vector |

${W}_{\beta}$ | Total vehicle concentration |

${\mathcal{S}}_{1,2,3\cdots}$ | Set of paths $u,v$ |

${f}_{\beta}$ | Flow rate |

$\kappa $ | CS candidate sites vector |

${\delta}_{\kappa}$ | Fixed cost to install EDS |

${n}_{j}$ | Number of vehicles to cover capacity $\psi $ |

$\psi $ | CS capacity |

$\mathcal{M}$ | Set of enabled paths edges |

$\mathcal{L}$ | Set of edges of a path $u,v$ |

${\varphi}_{j}$ | Location variable |

${\theta}_{k}$ | Subset of assigned arcs |

${\tau}_{e}^{j}$ | Route enabled |

$q,Q$ | Partial and total vehicular flow rate |

${V}_{e}$ | Constant travel speed |

${t}_{s}$ | Time in hours |

t | Number of commodities |

$\Theta $ | Incremental annual rate given as a percentage |

s | Average spacing between vehicles |

k | Index vector |

${\chi}_{\ast}^{k}$ | Revised simplex reduced negative value |

${\mathsf{\Psi}}_{p}$ | Partial solution to the primary problem |

P | Identification for each iteration |

${\pi}_{1,2,\cdots}$ | Dual variables |

$np$ | Number of periods in years |

Approach | Description | Consideration |
---|---|---|

Deployment | Density EV | Variable |

Study cases | A–B | |

Study areas | 0.99 y 2.13 km^{2} | |

Geographical area | Urban | |

Geographic reference | Latitude–Longitude | |

Allocation | Annual rate | Variable |

Scalability | 4 years | |

Spacing | Variable | |

Application | Charging terminal | AC–DC |

Safety distance | 3–6 m | |

Vehicular flow | Variable | |

Vehicular concentration | Variable | |

Traffic speed | [20 40 60] km/h | |

Traffic | Light | 4.3 (m) ≤ |

Buses | 15 (m) | |

Trucks | 12 (m) |

**Table 6.**Case A: Maximum partial demand in each CS at hour 19:00 with 32.97 km of road network in contingency N-0 corresponding to year 0.

ID | Longitude | Latitude | Concentration Vehicular | Vehicles (#) |
---|---|---|---|---|

1 | −120.625225787882 | 35.1271587155963 | −0.77 | 25.41 |

2 | −120.622727167999 | 35.1269678899083 | −1.31 | 43.22 |

3 | −120.617829873029 | 35.1267623853211 | −0.64 | 21.22 |

4 | −120.609994201077 | 35.1261458715596 | −1.48 | 48.71 |

5 | −120.615391220024 | 35.1256174311927 | −1.29 | 42.44 |

6 | −120.620588349380 | 35.1256467889908 | −1.43 | 47.10 |

7 | −120.624546163274 | 35.1248688073394 | −1.09 | 36.03 |

8 | −120.624326284724 | 35.1243403669725 | −0.85 | 28.06 |

9 | −120.619488956631 | 35.1240174311927 | −1.43 | 47.11 |

10 | −120.610473936095 | 35.1246045871560 | −1.44 | 47.52 |

11 | −120.611033626948 | 35.1230192660550 | −0.67 | 22.00 |

12 | −120.620568360421 | 35.1230779816514 | −0.64 | 21.00 |

13 | −120.622167477145 | 35.1233128440367 | −0.85 | 27.90 |

14 | −120.625865434572 | 35.1238266055046 | −0.62 | 20.30 |

15 | −120.625805467695 | 35.1222559633028 | −0.61 | 20.19 |

16 | −120.623466759484 | 35.1219183486239 | −1.18 | 38.89 |

17 | −120.620868194807 | 35.1221678899083 | −0.92 | 30.32 |

18 | −120.617310160094 | 35.1218889908257 | −0.86 | 28.35 |

19 | −120.615671065451 | 35.1218743119266 | −0.99 | 32.73 |

20 | −120.613552235790 | 35.1218449541284 | −1.44 | 47.43 |

21 | −120.610833737358 | 35.1199220183486 | −1.21 | 39.74 |

22 | −120.614731584375 | 35.1193642201835 | −1.34 | 44.03 |

23 | −120.616150800468 | 35.1204357798165 | −0.96 | 31.70 |

24 | −120.619588901427 | 35.1209495412844 | −0.85 | 28.00 |

25 | −120.625925401449 | 35.1213018348624 | −0.97 | 32.00 |

26 | −120.623666649075 | 35.1200247706422 | −0.79 | 26.12 |

27 | −120.619688846222 | 35.1195550458716 | −0.81 | 26.78 |

28 | −120.624606130151 | 35.1191293577982 | −1.37 | 45.32 |

29 | −120.617350138012 | 35.1186743119266 | −1.19 | 39.35 |

30 | −120.617250193216 | 35.1176027522936 | −0.80 | 26.32 |

31 | −120.618829320982 | 35.1176321100917 | −1.09 | 36.00 |

32 | −120.622327388818 | 35.1168981651376 | −0.94 | 31.02 |

33 | −120.613552235790 | 35.1176027522936 | −0.61 | 20.19 |

34 | −120.616050855673 | 35.1232541284404 | −0.87 | 28.53 |

35 | −120.608654940820 | 35.1195550458716 | −0.62 | 20.31 |

Total | −34.92 | 1151.34 |

ID | Vehicle Concentration | # Vehicles |
---|---|---|

1 | −3.00 | 29.95 |

2 | −5.33 | 53.21 |

3 | −4.84 | 48.32 |

4 | −2.93 | 29.25 |

5 | −2.18 | 21.77 |

6 | −3.72 | 37.14 |

7 | −3.55 | 35.44 |

8 | −4.72 | 47.12 |

9 | −4.62 | 46.12 |

Total | −34.89 | 348.34 |

Contingency | Deactivated | ID | ID | ID | ID | ID | ID | ID | ID | ID |
---|---|---|---|---|---|---|---|---|---|---|

(ID) | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | |

N − 0 | − | −3.00 | −5.33 | −4.84 | −2.93 | −2.18 | −3.72 | −3.55 | −4.72 | −4.62 |

N − 1 | 1 | − | −5.60 | −4.38 | −4.97 | −4.08 | −3.90 | −4.20 | −4.16 | −5.08 |

2 | −4.01 | − | −5.98 | −4.99 | −3.65 | −5.96 | −4.48 | −5.03 | −4.93 | |

3 | −4.27 | −6.38 | − | −3.62 | −4.03 | −4.56 | −4.35 | −5.11 | −5.12 | |

4 | −4.42 | −4.32 | −4.06 | − | −3.55 | −5.34 | −4.72 | −5.24 | −5.68 | |

5 | −4.41 | −5.12 | −4.81 | −4.65 | − | −5.24 | −3.40 | −5.48 | −4.75 | |

6 | −3.74 | −4.37 | −4.99 | −6.05 | −3.15 | − | −4.34 | −5.15 | −5.79 | |

7 | −4.25 | −4.05 | −5.31 | −4.91 | −3.53 | −4.89 | − | −5.53 | −4.91 | |

8 | −3.15 | −4.98 | −4.79 | −4.73 | −3.88 | −5.12 | −3.94 | − | −4.85 | |

9 | −4.02 | −4.72 | −5.41 | −4.20 | −3.35 | −4.00 | −4.86 | −4.86 | − | |

Average ($\mathsf{\mu}$) | 4.03 | 4,94 | 4.97 | 4.77 | 3.65 | 4.88 | 4.29 | 5.07 | 5.14 | |

Std. deviation ($\sigma $) | 0.40 | 0.72 | 0.57 | 0.65 | 0.31 | 0.65 | 0.43 | 0.40 | 0.36 | |

$\mu +2\ast \sigma $ | 4.83 | 6.37 | 6.10 | 6.07 | 4.26 | 6.18 | 5.14 | 5.87 | 5.86 | |

N − 2 | 1, 2 | − | − | −4.67 | −5.18 | −4.89 | −5.40 | −5.54 | −4.95 | −5.42 |

2, 3 | −4.05 | − | − | −4.25 | −4.59 | −5.42 | −4.43 | −6.08 | −5.02 | |

8, 9 | −4.13 | −5.40 | −5.49 | −5.56 | −5.12 | −5.76 | −5.46 | − | − | |

4, 5 | −4.46 | −4.89 | −5.09 | − | − | −6.08 | −5.64 | −5.71 | −6.11 | |

7, 9 | −4.83 | −4.01 | −7.10 | −5.73 | −4.31 | −5.70 | − | −5.93 | − | |

5, 7 | −4.38 | −4.20 | −4.71 | −4.25 | − | −5.62 | − | −6.31 | −5.16 | |

3, 7 | −5.37 | −4.68 | − | −5.09 | −4.97 | −5.13 | − | −5.90 | −6.14 | |

3, 5 | −4.15 | −5.03 | − | −5.51 | − | −4.95 | −4.36 | −5.80 | −4.78 | |

2, 4 | −5.20 | − | −6.08 | − | −5.22 | −4.91 | −5.06 | −5.41 | −6.00 | |

5, 6 | −4.19 | −4.94 | −5.38 | −6.36 | − | − | −4.89 | −6.11 | −5.79 | |

7, 8 | −4.30 | −6.30 | −4.50 | −4.78 | −5.27 | −5.06 | − | − | −5.46 | |

1, 3 | − | −5.22 | − | −4.25 | −3.51 | −5.89 | −4.41 | −5.69 | −5.09 | |

3, 4 | −4.77 | −6.39 | − | − | −3.84 | −5.58 | −5.07 | −5.50 | −6.08 | |

Average ($\mathsf{\mu}$) | 4.53 | 5.11 | 5.38 | 5.10 | 4.64 | 5.46 | 4.98 | 5.76 | 5.55 | |

Std. deviation ($\sigma $) | 0.43 | 0.74 | 0.81 | 0.68 | 0.59 | 0.36 | 0.47 | 0.36 | 0.47 | |

$\mu +2\ast \sigma $ | 5.39 | 6.58 | 7.00 | 6.46 | 5.82 | 6.19 | 5.93 | 6.48 | 6.50 | |

Increment N − 1 (%) | 61.0 | 19.5 | 26.0 | 107.2 | 95.4 | 66.1 | 44.8 | 24.4 | 26.8 | |

Increment N − 2 (%) | 79.7 | 23.5 | 44.6 | 120.5 | 167.0 | 66.4 | 67.0 | 37.3 | 40.7 |

**Table 9.**Maximum partial demand at each charging station with 9984 km of road network given a contingency.

Events | ID 1 | ID 2 | ID 3 | ID 4 | ID 5 | ID 6 | ID 7 | ID 8 | ID 9 |
---|---|---|---|---|---|---|---|---|---|

N-0 | 29.95 | 53.22 | 48.32 | 29.25 | 21.77 | 37.14 | 35.44 | 47.13 | 46.13 |

N-1 | 48.22 | 63.60 | 60.90 | 60.60 | 42.53 | 61.70 | 51.32 | 58.61 | 58.51 |

N-2 | 53.81 | 65.70 | 69.89 | 64.50 | 58.11 | 61.80 | 59.21 | 64.70 | 64.90 |
