# I-SA Algorithm Based Optimization Design and Mode-Switching Strategy for a Novel 3-Axis-Simpson Dual-Motor Coupling Drive System of PEV

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

#### 2.1. A Novel 3-Axis-Simpson Dual-Motor Coupling Drive System

_{1}and P

_{2}) are adopted, and two sun gears of double rows, planetary carrier of P

_{1}and gear ring of P

_{2}are bunded.

_{1}, i

_{2}and i

_{3}(among them, i

_{1}adopts the way of setting external gear in P

_{2}gear ring to further realize lightweight), two clutches C

_{1}and C

_{2}and three transmission shafts. The novel system has two working modes. As PEV is running, the output power of motor 1 and motor 2 is transmitted to the sun gear of P

_{1}(or P

_{2}) and the planetary carrier of P

_{1}(or gear ring of P

_{2}), respectively. When the clutch C

_{1}is combined, the coupled power is exported from the gear ring of P

_{1}and then through the i

_{2}gear pair to the output shaft (Mode 1). In a similar manner, when the clutch C

_{2}is combined, the coupled power is exported from the planetary carrier of P

_{2}and then through the i

_{3}gear pair to the output shaft (Mode 2). Therefore, the change of working mode can be easily realized by switching clutch C

_{1}and C

_{2}.

- (1)
- Mode 1:$${n}_{out}=\frac{{i}_{1}{n}_{m1}+(1+{k}_{1}){n}_{m2}}{{i}_{1}{i}_{2}{k}_{1}}$$$$\left|{T}_{m1}\right|=\left|\frac{{i}_{1}{T}_{m2}}{1+{k}_{1}}\right|=\left|\frac{{F}_{L}{r}_{d}}{{i}_{2}{i}_{0}{\eta}_{sys}{k}_{1}}\right|$$
- (2)
- Mode 2:$${n}_{out}=\frac{{k}_{2}{n}_{m2}-{i}_{1}{n}_{m1}}{{i}_{1}{i}_{3}(1+{k}_{2})}$$$$\left|{T}_{m1}\right|=\left|\frac{{i}_{1}{T}_{m2}}{{k}_{2}}\right|=\left|\frac{{F}_{L}{r}_{d}}{{i}_{3}{i}_{0}{\eta}_{sys}(1+{k}_{2})}\right|$$

#### 2.2. Design Demand Calculation of PEV

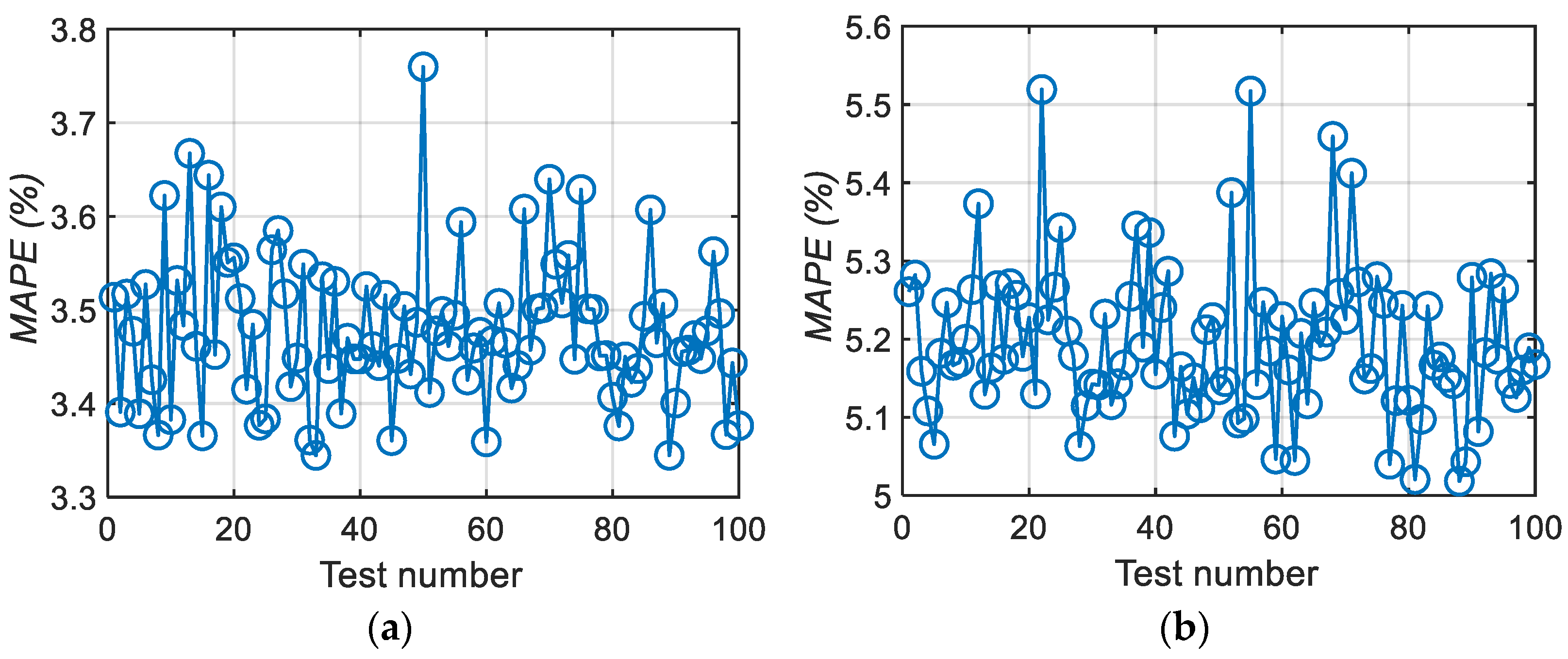

#### 2.3. Data Acquisition of Motor Characteristics and Model Establishment

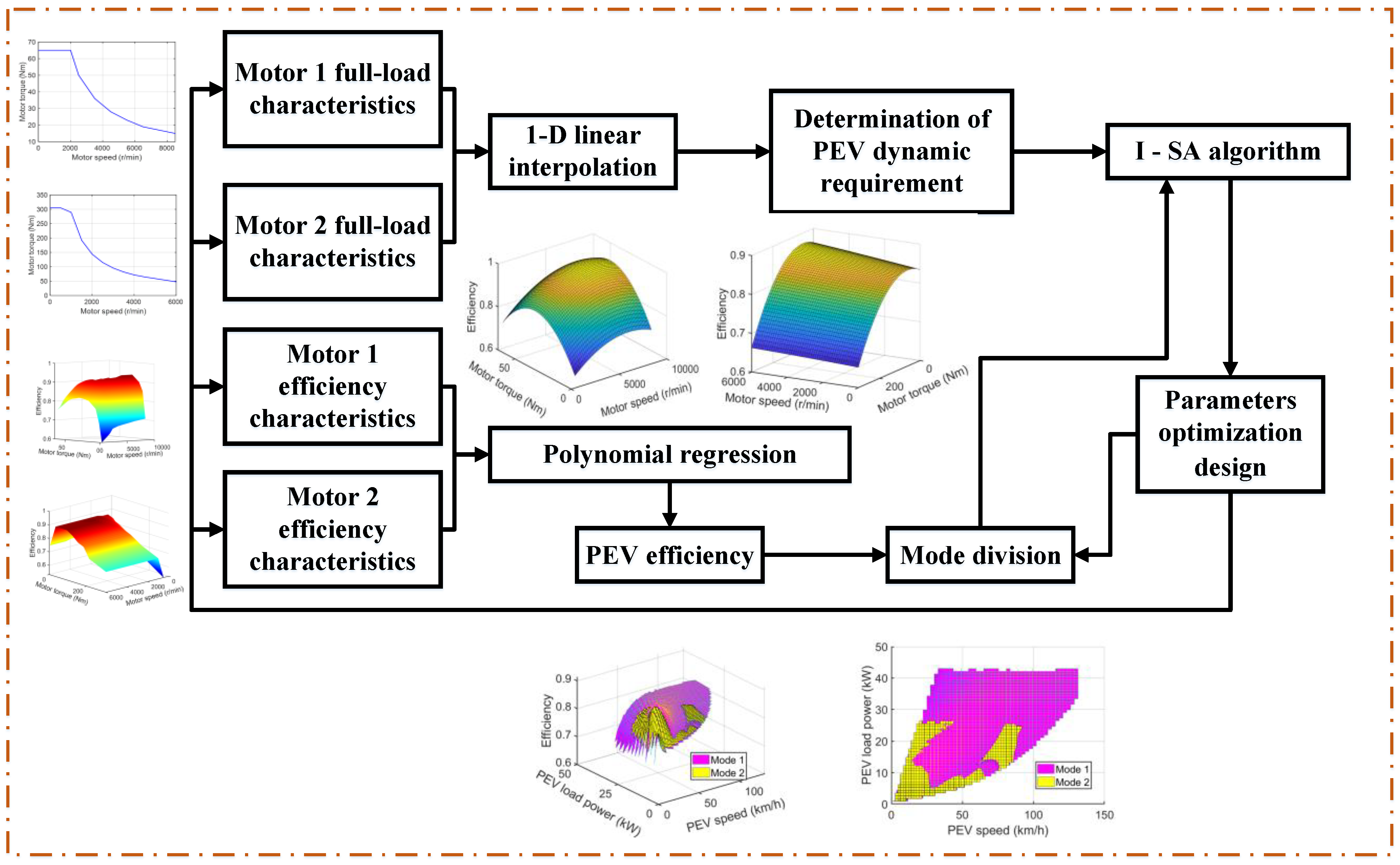

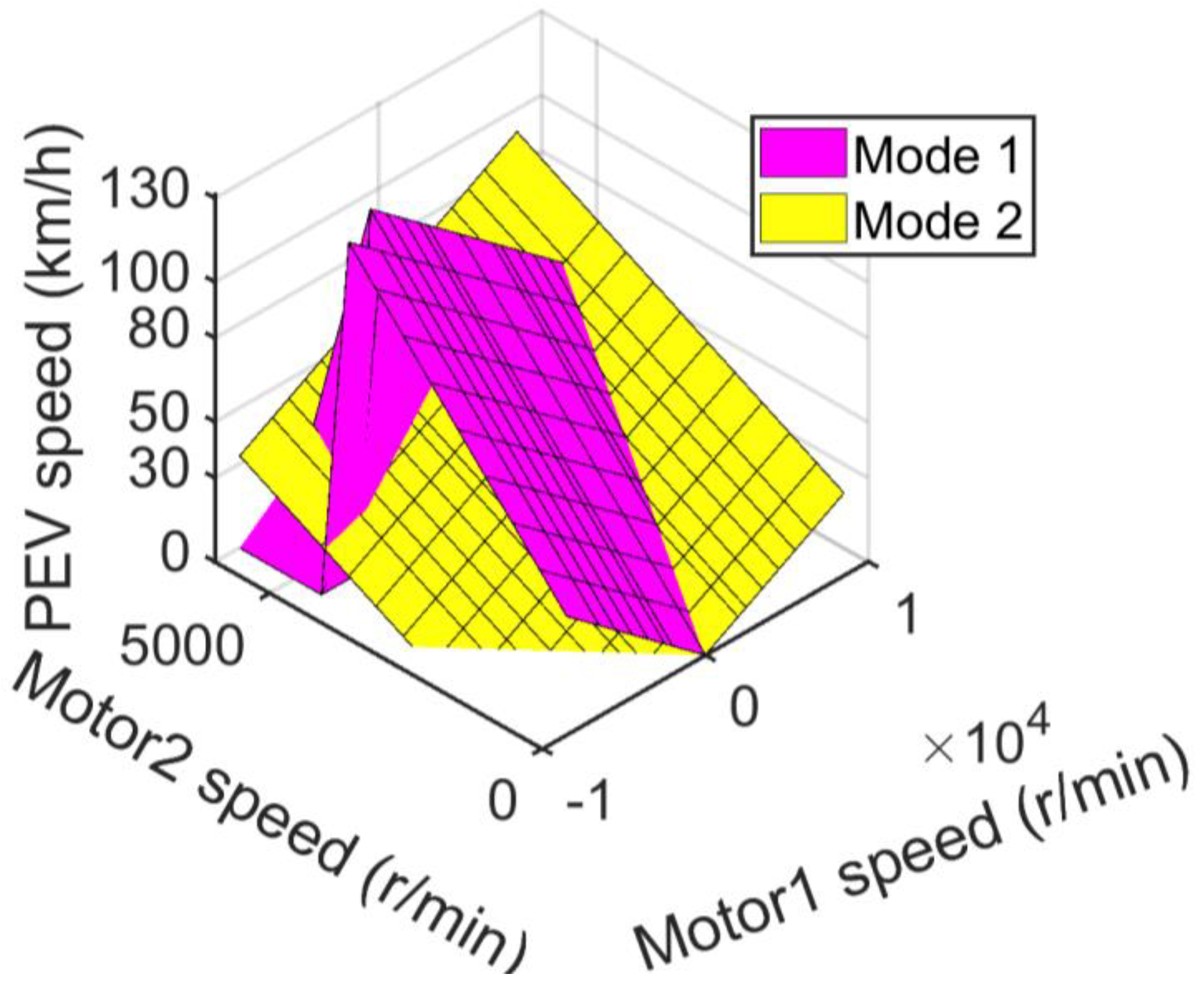

#### 2.4. Method of Parameter Matching and Mode Switching Strategy Based on I-SA

## 3. Results

## 4. Conclusions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Yu, Y.; Jiang, J.; Min, Z.; Wang, P.; Shen, W. Research on energy management strategies of extended-range electric vehicles based on driving characteristics. World Elect. Veh.
**2020**, 11, 54. [Google Scholar] [CrossRef] - Ren, G.Z.; Wang, J.Z.; Chen, C.L.; Wang, H.R. A variable-voltage ultra-capacitor/battery hybrid power source for extended range electric vehicle. Energy
**2021**, 231, 120837. [Google Scholar] [CrossRef] - Chu, S.; Majumdar, A. Opportunities and challenges for a sustainable energy future. Nature
**2012**, 488, 294–303. [Google Scholar] [CrossRef] [PubMed] - Li, T.H.; Xie, B.; Song, Z.H.; Li, J. Transmission characteristics of dual-motor coupling system for electric tractors. Trans. Chin. Soc. Agric. Mach.
**2019**, 50, 379–388. [Google Scholar] - Li, T.H.; Xie, B.; Wang, D.Q.; Zhang, S.L.; Wu, L.P. Real-time adaptive energy management strategy for dual-motor-driven electric tractors. Trans. Chin. Soc. Agric. Mach.
**2020**, 51, 530–543. [Google Scholar] - Ma, C.; Jin, S.W.; Yang, K.; Tan, D.; Gao, J.; Yan, D.C. Particle swarm optimization and real-road/driving-cycle analysis based powertrain system design for dual motor coupling electric vehicle. World Elect. Veh.
**2020**, 11, 69. [Google Scholar] [CrossRef] - Li, T.H.; Xie, B.; Li, Z.; Li, J.K. Design and optimization of a dual-input coupling powertrain system: A case study for electric tractors. Appl. Sci.
**2020**, 10, 1608. [Google Scholar] [CrossRef] [Green Version] - Chen, Y.N.; Xie, B.; Du, Y.F.; Mao, E.R. Powertrain parameter matching and optimal design of dual-motor driven electric tractor. Int. J. Agric. Biol. Eng.
**2019**, 12, 33–41. [Google Scholar] [CrossRef] [Green Version] - Hu, J.J.; Zheng, L.L.; Jia, M.X.; Zhang, Y.; Pang, T. Optimization and model validation of operation control strategies for a novel dual-motor coupling-propulsion pure electric vehicle. Energies
**2018**, 11, 754. [Google Scholar] [CrossRef] [Green Version] - Cheng, Z.; Zheng, S.; Qian, Y.; Lu, Z.; Zhang, H. Based on improved SA and GA a new method for optimizing transmission parameters of automotive HMCVT. J. Mech. Strength
**2020**, 42, 61–66. [Google Scholar] - Bao, M.X.; Ni, X.D.; Zhao, X.; Li, S. Research on the HMCVT gear shifting smoothness of the four-speed self-propelled cotton picker. Mech. Sci.
**2020**, 11, 267–283. [Google Scholar] [CrossRef] - Qian, Y.; Cheng, Z.; Lu, Z.X. Bench testing and modeling analysis of optimum shifting point of HMCVT. Complexity
**2021**, 2021, 6629561. [Google Scholar] [CrossRef] - Volpe, S.S.; Carbone, G.; Napolitano, M.; Sedoni, E. Design optimization of input and output coupled power split infinitely variable transmissions. J. Mech. Des.
**2009**, 131, 111002. [Google Scholar] [CrossRef] - Macor, A.; Rossetti, A. Optimization of hydro-mechanical power split transmissions. Mech. Mach. Theory
**2011**, 46, 1901–1919. [Google Scholar] [CrossRef] - Cheng, Z.; Lu, Z.X. Research on the PID control of the ESP system of tractor based on improved AFSA and improved SA. Comput. Electron. Agric.
**2018**, 148, 142–147. [Google Scholar] [CrossRef] - Cheng, Z.; Lu, Z.X.; Dai, F. Research on HMCVT Efficiency Model Based on the Improved SA Algorithm. Math. Probl. Eng.
**2019**, 2019, 2856908. [Google Scholar] [CrossRef]

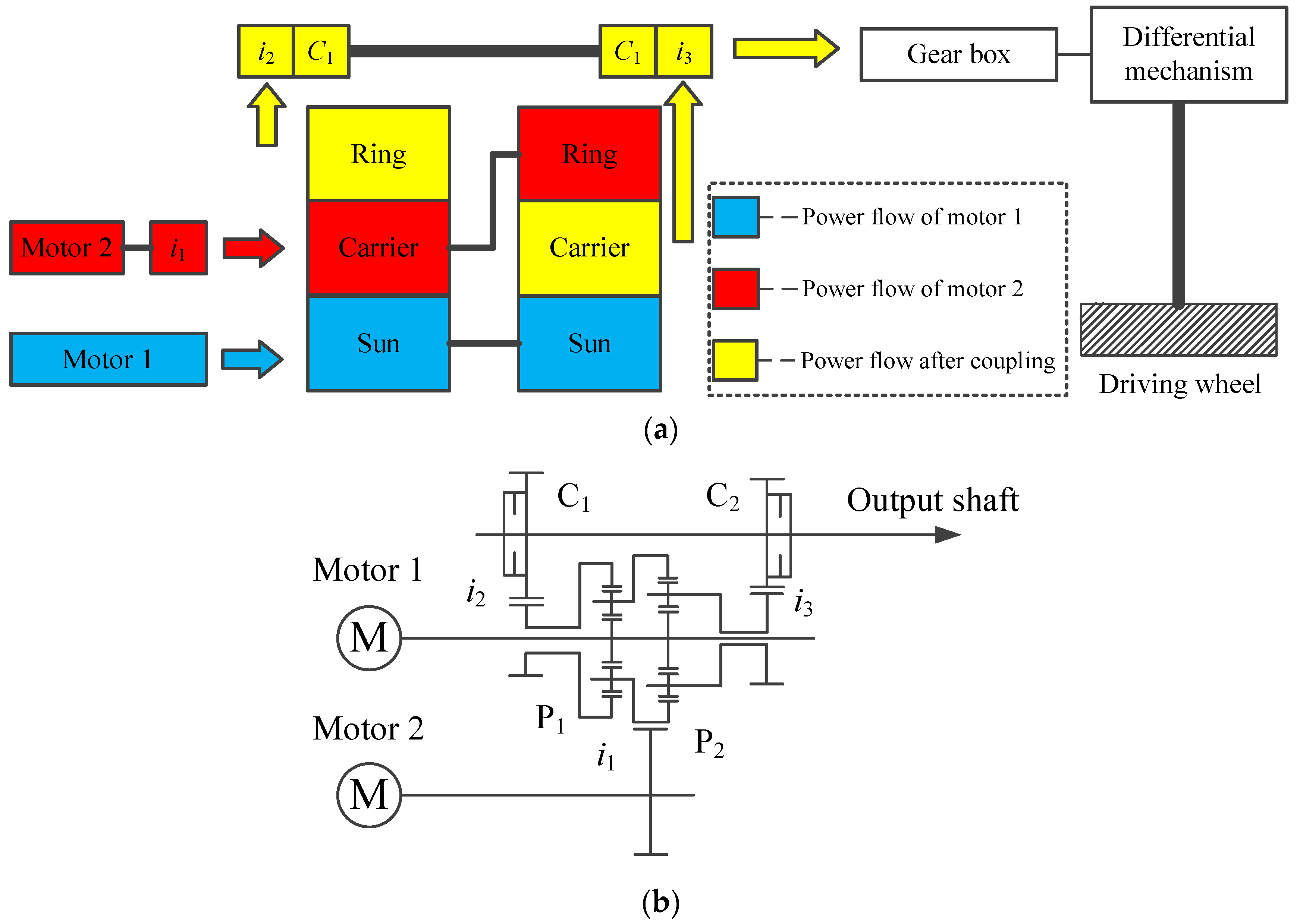

**Figure 1.**The new drive system proposed in this paper: (

**a**) power transmitting route and (

**b**) transmission scheme.

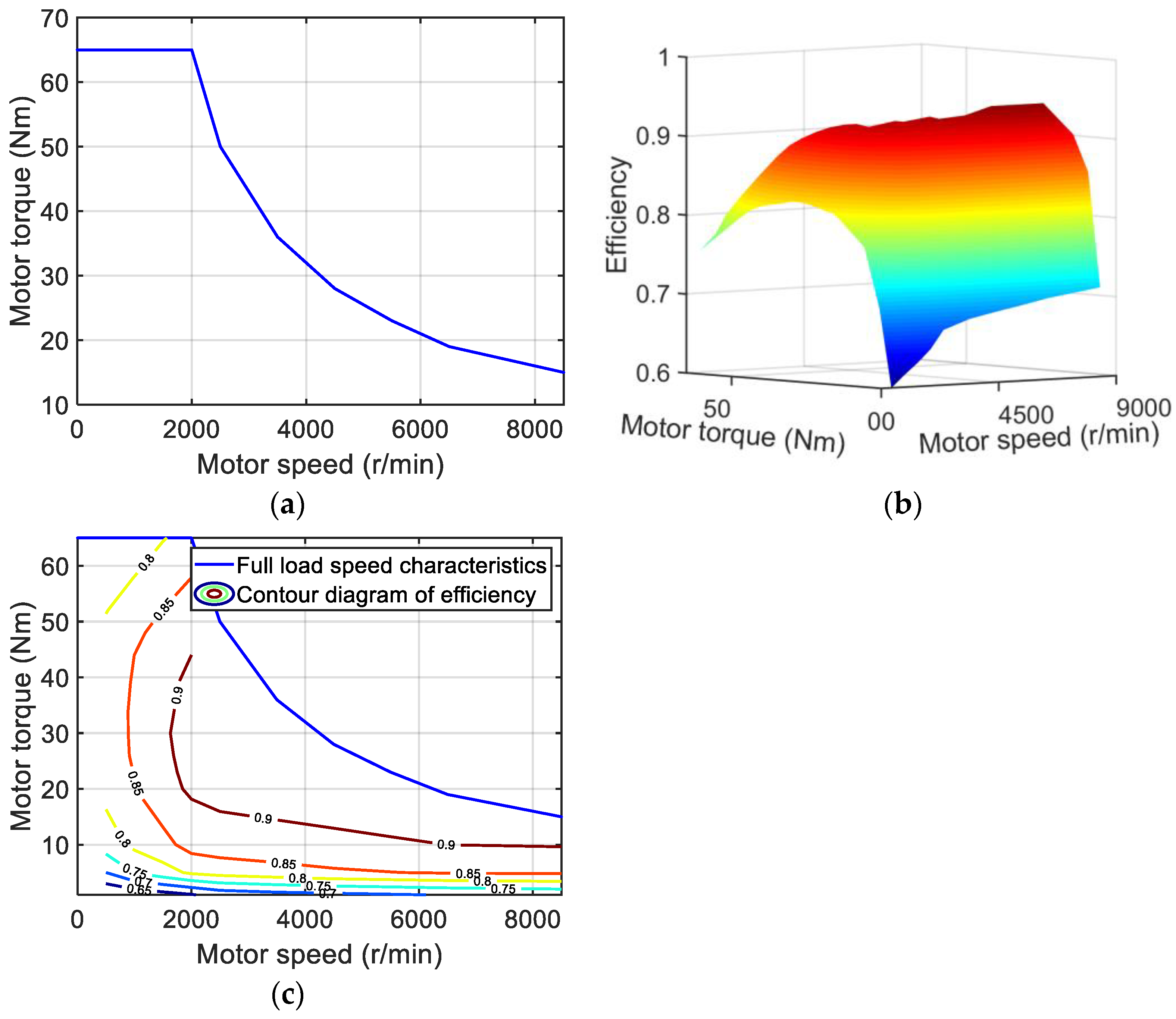

**Figure 2.**Characteristics of motor 1: (

**a**) full load speed characteristics; (

**b**) efficiency characteristics; and (

**c**) contour plot of characteristics.

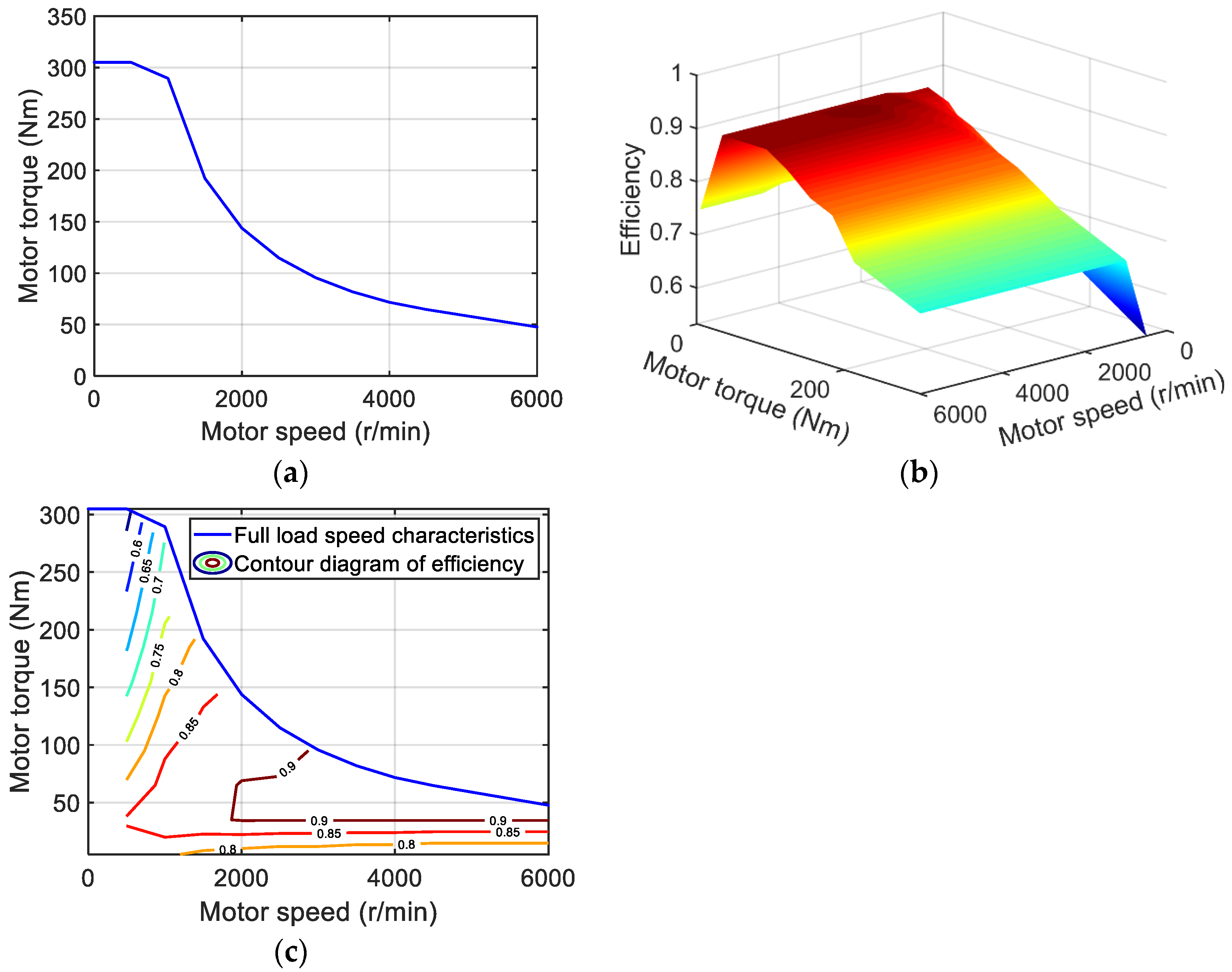

**Figure 3.**Characteristics of motor 2: (

**a**) full load speed characteristics; (

**b**) efficiency characteristics; and (

**c**) contour plot of characteristics.

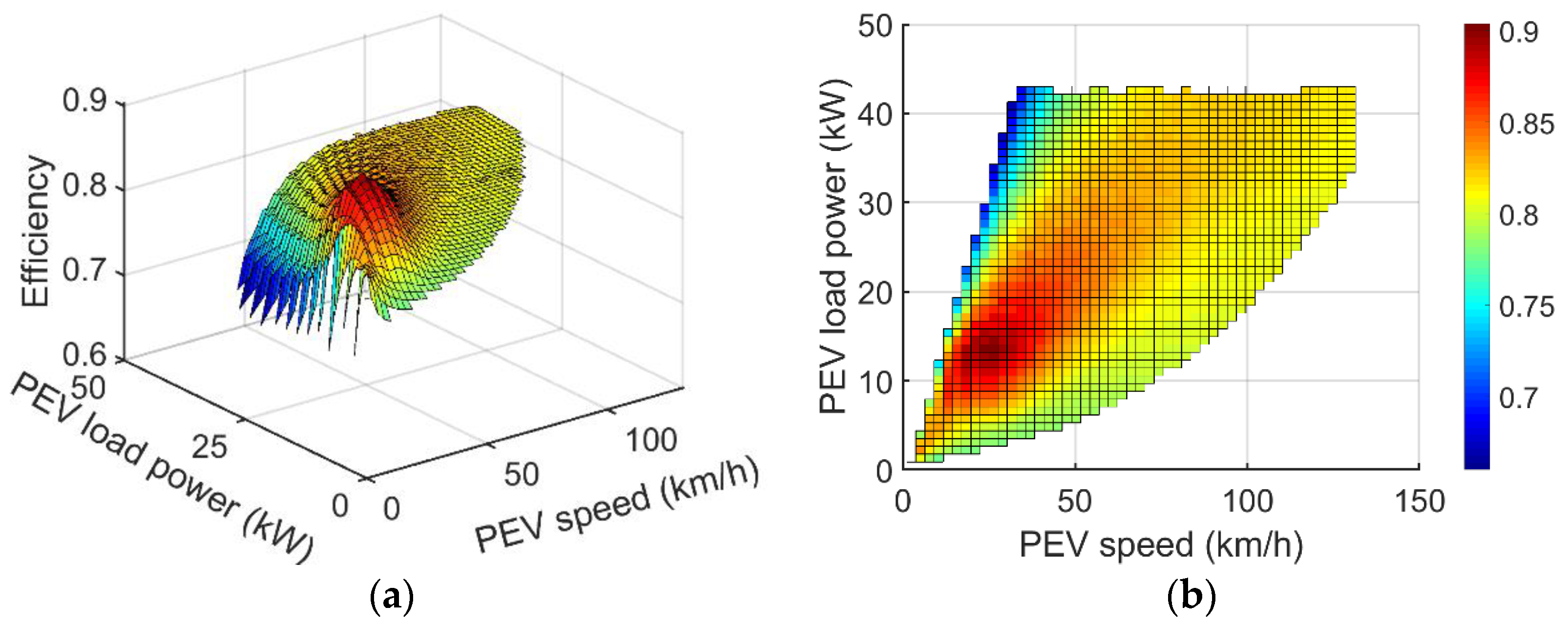

**Figure 7.**Vehicle characteristics of working mode 1 under original parameters. (

**a**) MAP of efficiency characteristic; (

**b**) working area and corresponding efficiency.

**Figure 8.**Vehicle characteristics of working mode 2 under original parameters. (

**a**) MAP of efficiency characteristic; (

**b**) working area and corresponding efficiency.

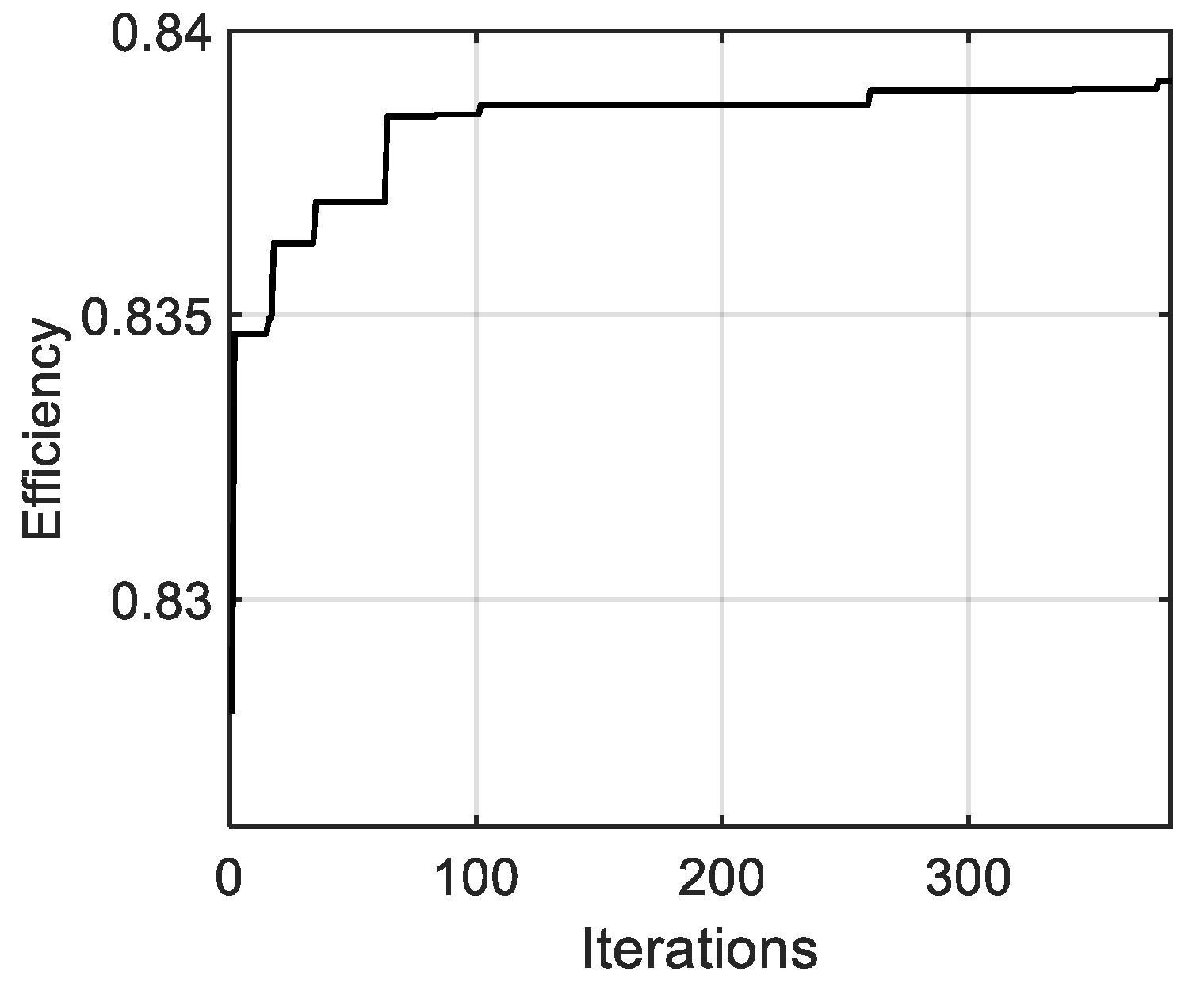

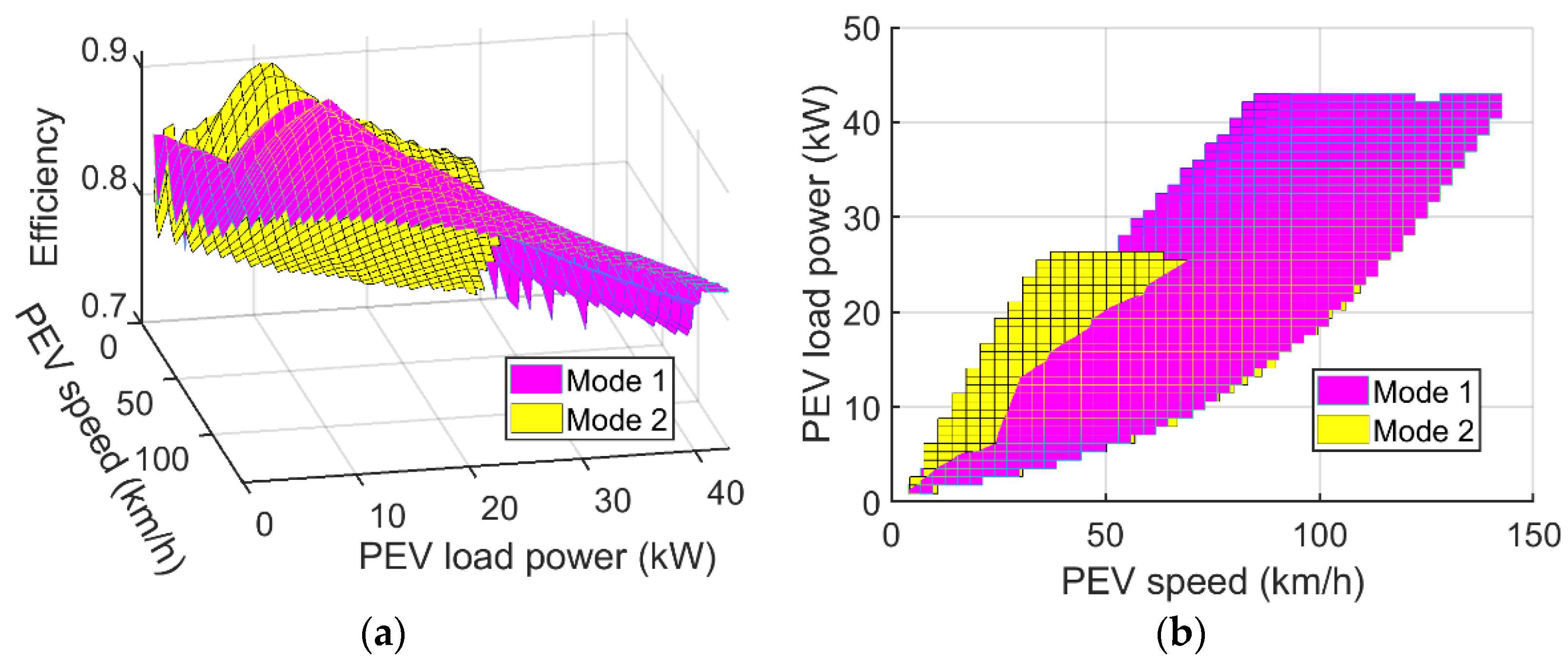

**Figure 10.**Characteristics of optimized PEV. (

**a**) MAP of efficiency characteristic; (

**b**) working area.

Mass of Vehicle m | Frontal Area A | Coefficient of Air Resistance C_{d} | Rolling Radius of Tire r_{d} | Vehicle Maximum Speed u_{a}_{_max} |
---|---|---|---|---|

1330 kg | 2.12 m^{2} | 0.37 | 0.258 m | ≥130 km/h |

i_{1} | i_{2} | i_{3} | k_{1} | k_{2} | |
---|---|---|---|---|---|

Original value | 1.0000 | 0.8000 | 1.0000 | 3.5000 | 3.0000 |

Optimized value | 0.5004 | 0.7054 | 0.9512 | 2.0039 | 2.9034 |

Before Optimization | After Optimization | |||||
---|---|---|---|---|---|---|

PEV | Mode 1 | Mode 2 | PEV | Mode 1 | Mode 2 | |

Maximum speed (km/h) | 131.51 | 131.51 | 92.06 | 142.56 | 142.56 | 109.49 |

Range of power (kW) | 0~43 | 0~43 | 0~26.33 | 0~43 | 0~43 | 0~26.33 |

Highest efficiency (%) | 91.34 | 90.37 | 91.34 | 91.19 | 90.28 | 91.19 |

Mean efficiency (%) | 81.72 | 81.45 | 82.43 | 83.91 | 83.67 | 83.24 |
