# Exploration of Optimal Powertrain Design Using Realistic Load Profiles

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

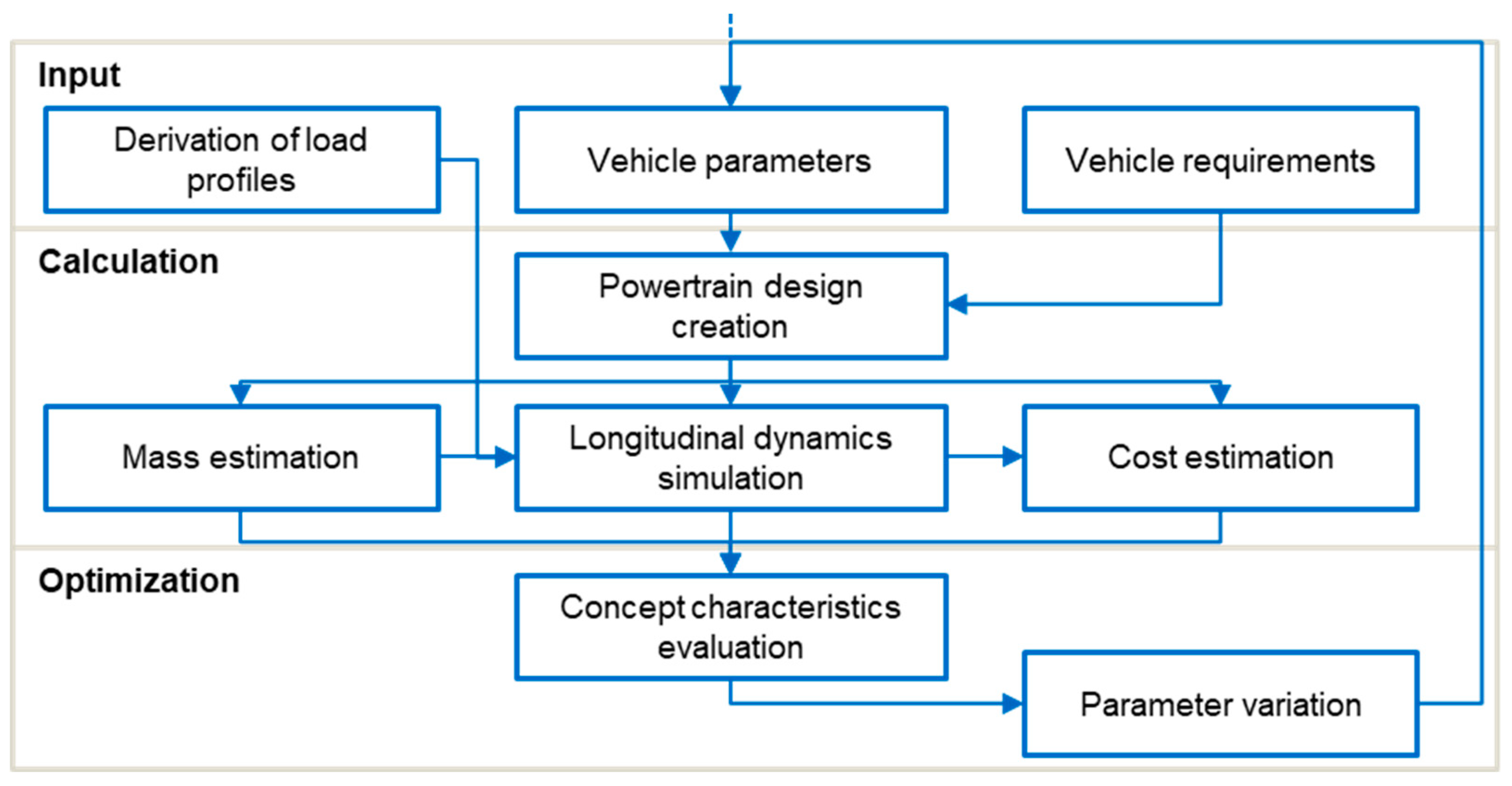

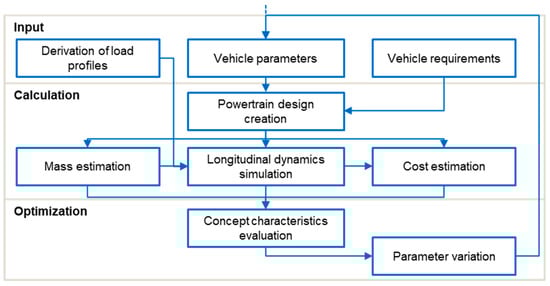

## 2. Methodology

- Powertrain weight;
- Powertrain efficiency;
- Load Point Shifting.

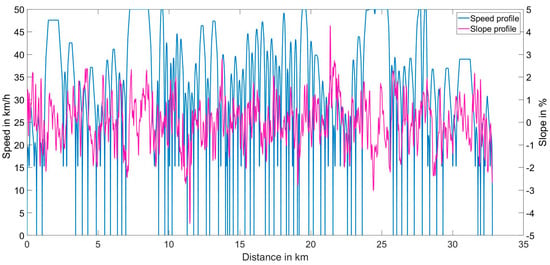

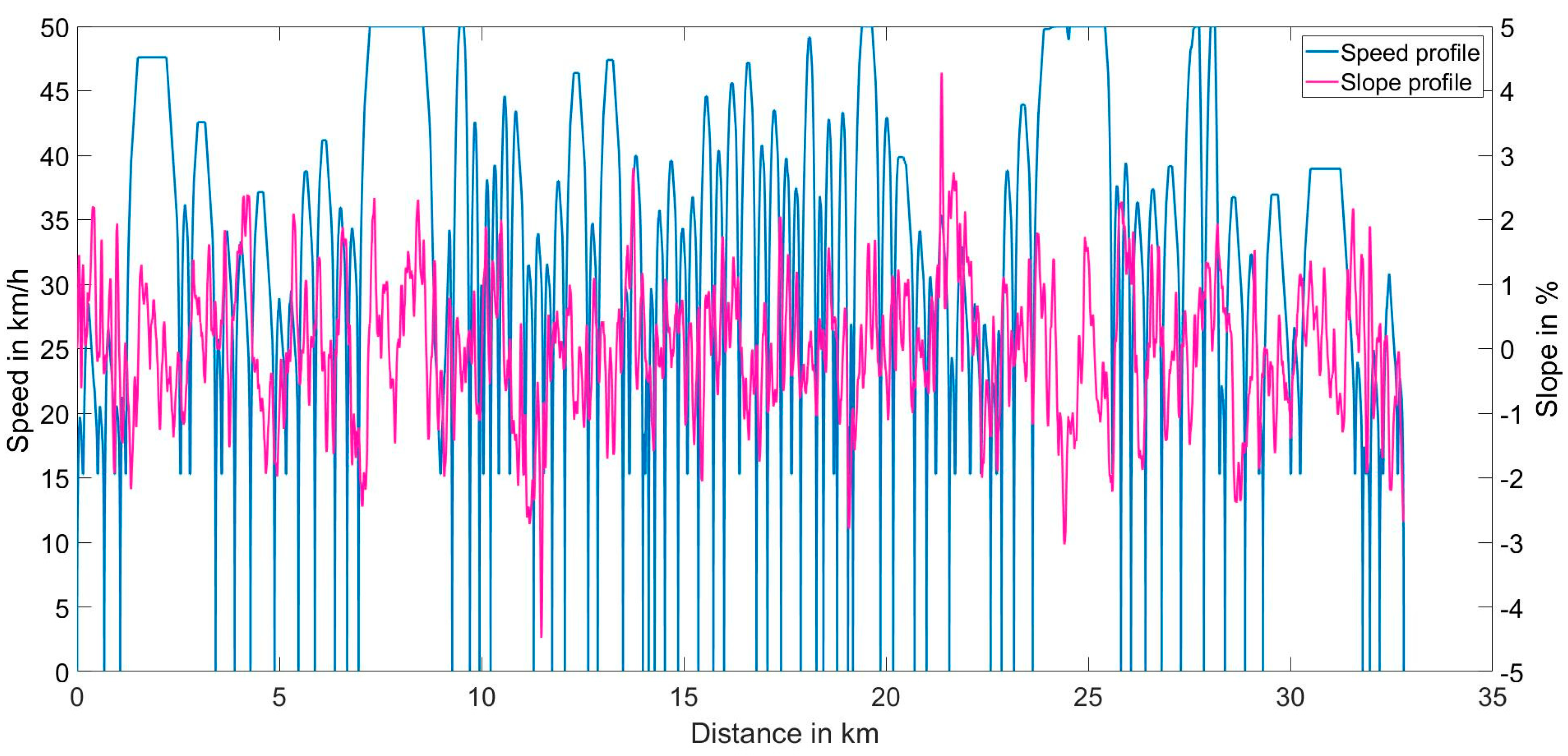

#### 2.1. Derivation of a Realistic Speed and Slope Profile

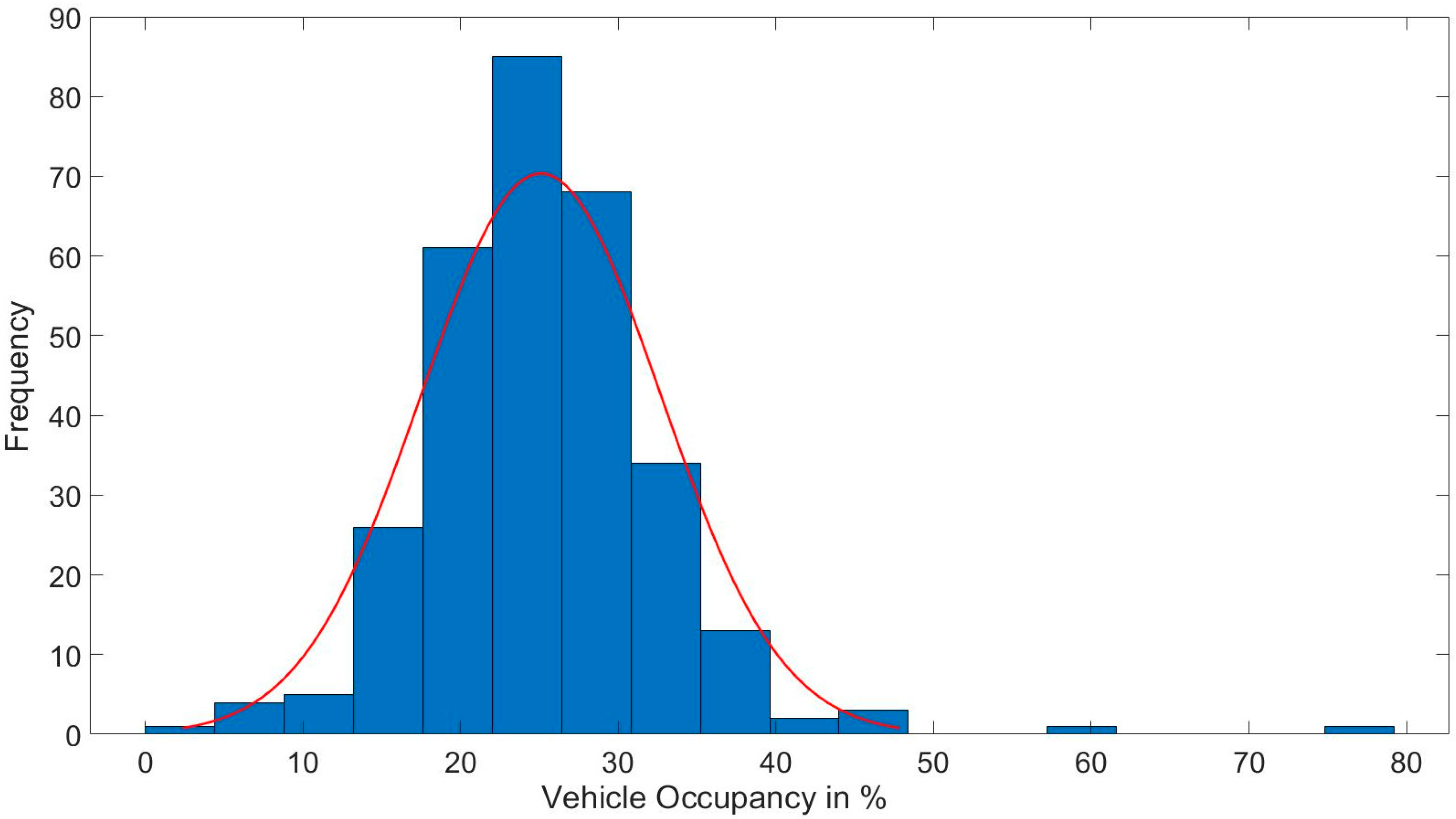

#### 2.2. Estimation of Passenger Occupancy

_{i}is the count of passengers boarding at stop i, z

_{j}is the count of passengers alighting at stop j, and x

_{ij}is the number of passengers on-board the vehicle. The inference model uses a Markov chain to calculate the alighting probability matrix P

_{ij}, using the transitional probability q

_{ij}, that a passenger will alight at stop i given that the passenger is in the vehicle at the i-1 stop, as shown in Equation (1). The probability q

_{j}is calculated in a Bayesian analysis by using a beta distribution to calculate the posterior probability, which is taken to be the posterior mean of the beta distribution, given by Equation (2). The alighting probability matrix is calculated by substituting the transitional probability into Equation (1) from which the trip O-D matrix is estimated using Equation (3).

#### 2.3. Vehicle Specification and Design Requirements

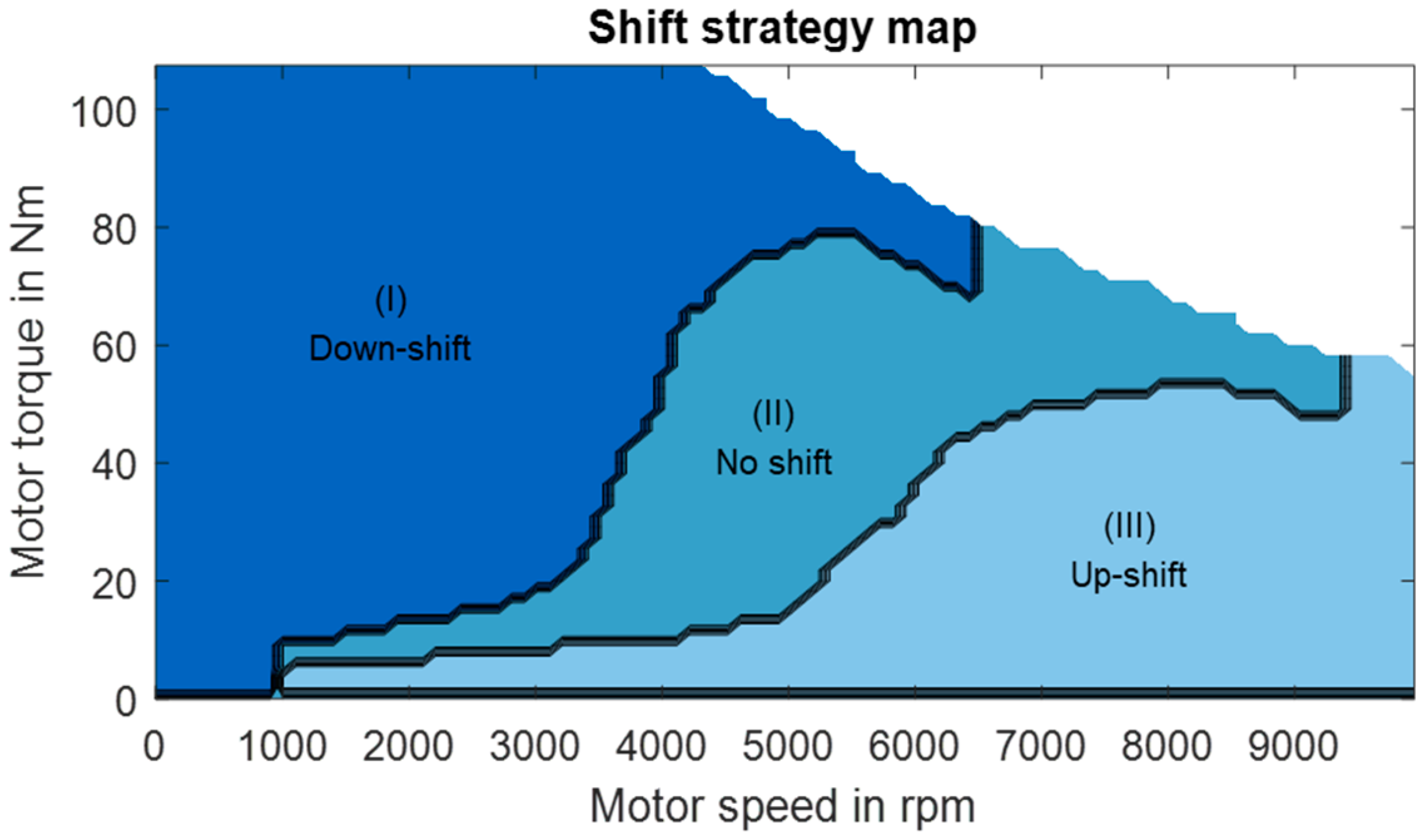

#### 2.4. Simulation Model for Vehicle Longitudinal Dynamics

#### 2.5. Energy Consumption Estimation

#### 2.6. Mass and Cost Estimation

#### 2.7. Optimization Framework

## 3. Results

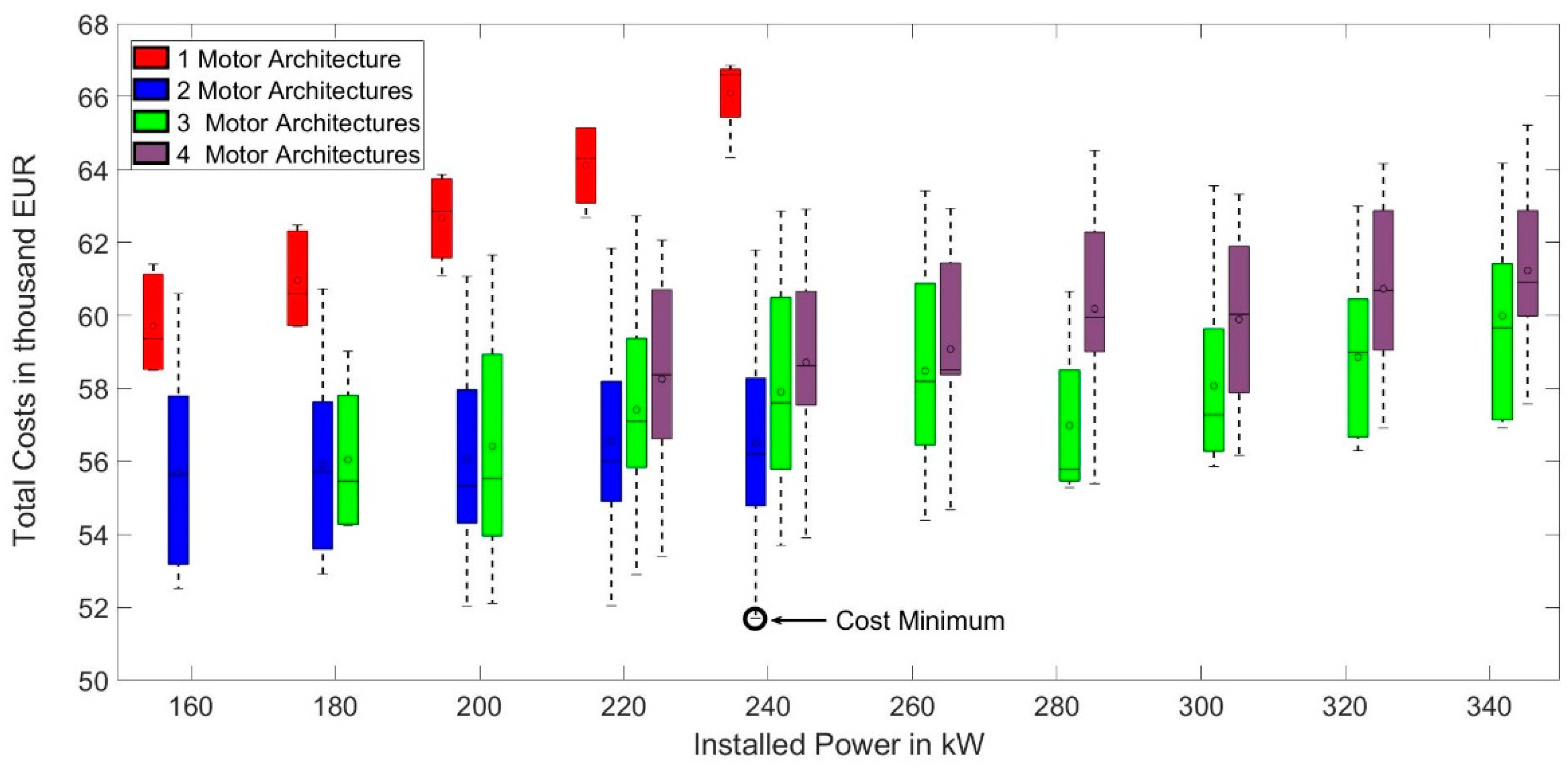

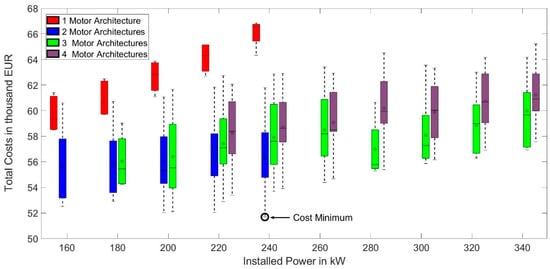

#### 3.1. Effect of Powertrain Architecture Vatiation on the Total Cost

#### 3.2. Effects of Powertrain Architecture Variation on Vehicle Characteristics

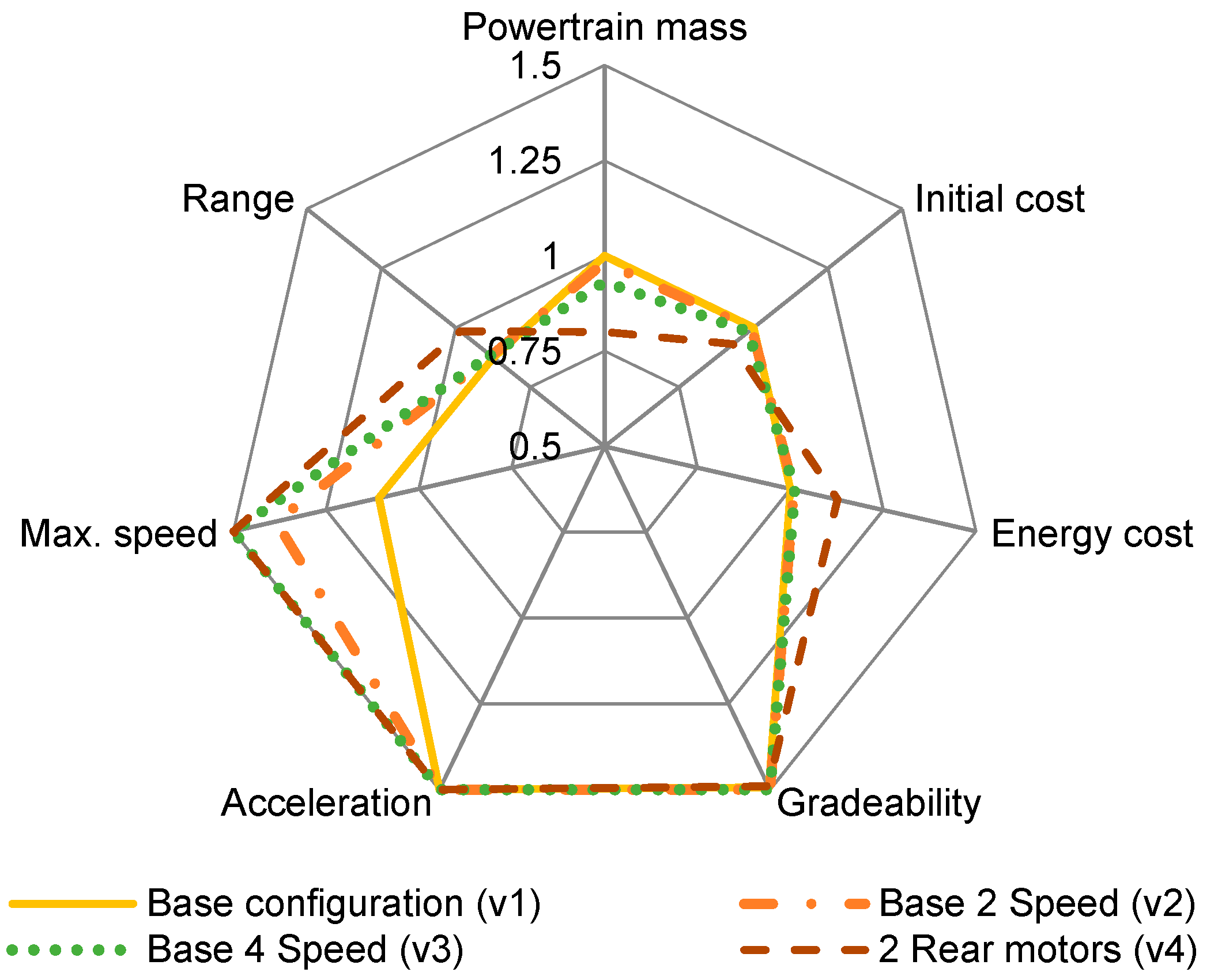

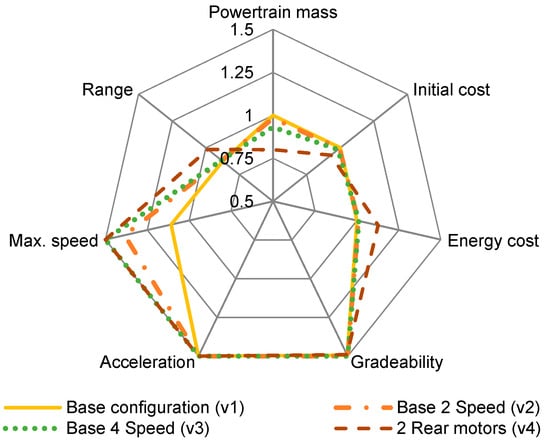

#### 3.2.1. Rear Wheel Drive Powertrain Configuration

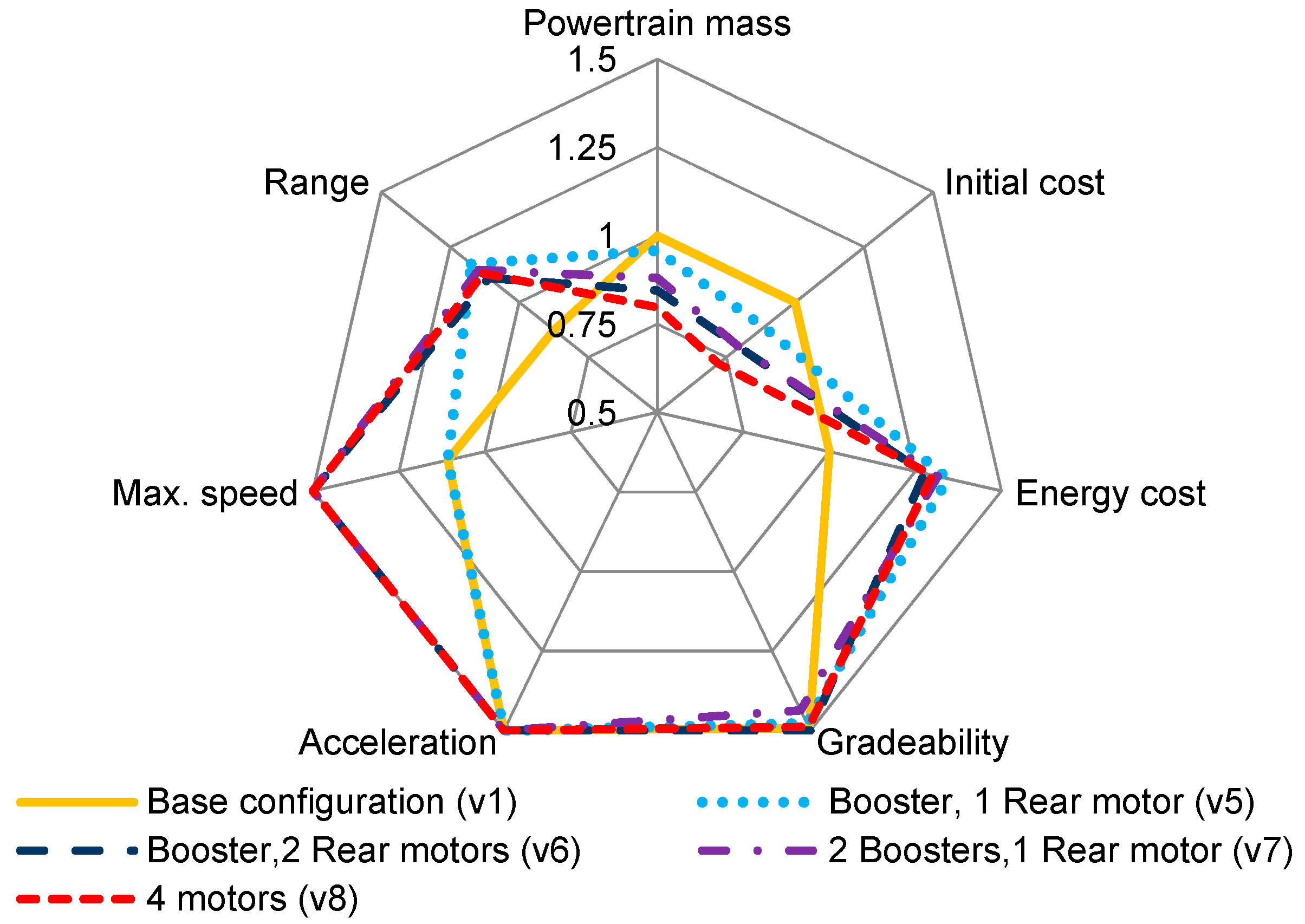

#### 3.2.2. All-Wheel Powertrain Configuration

#### 3.3. Load Point Shifting (Transmission and Motor)

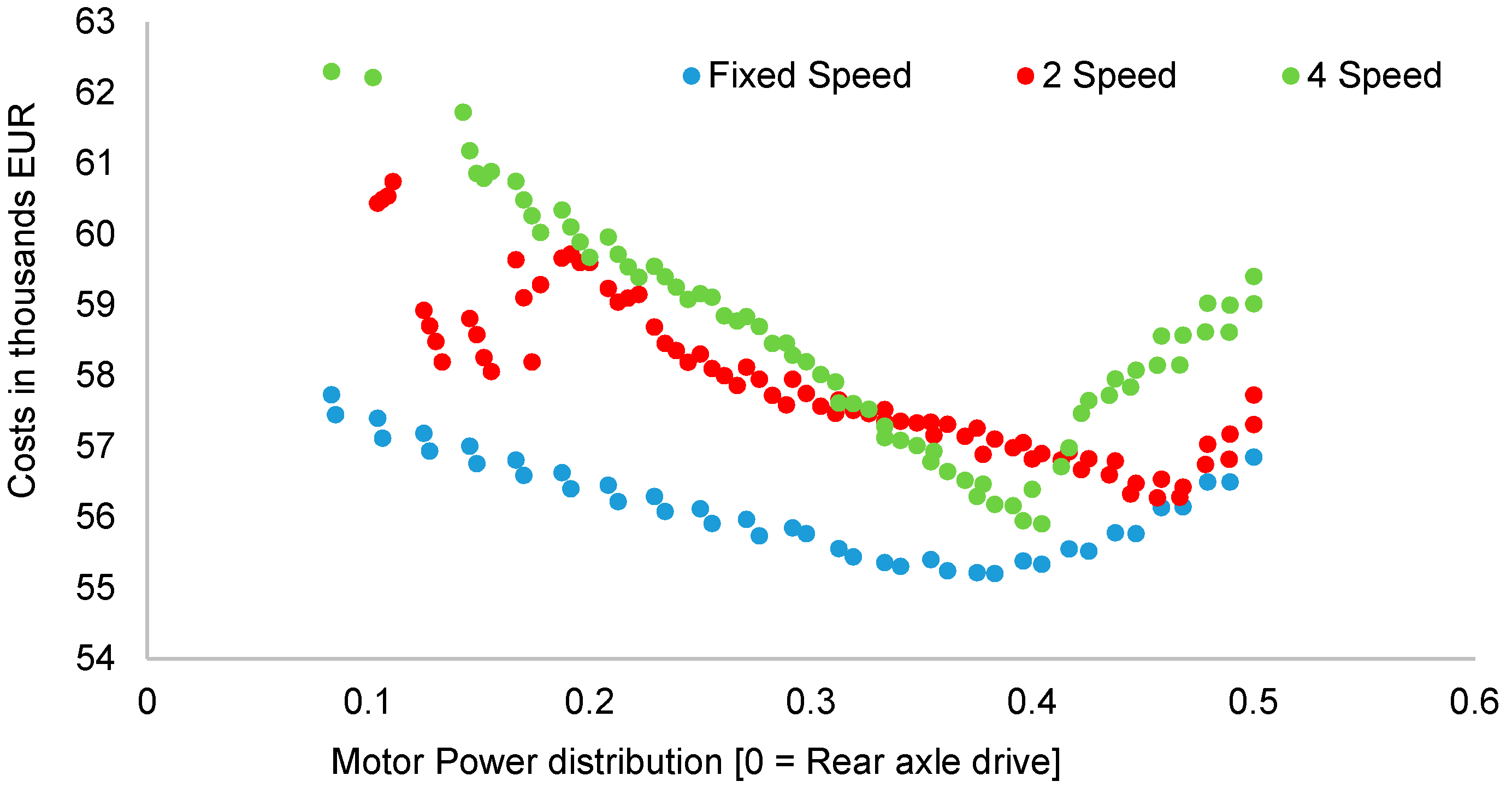

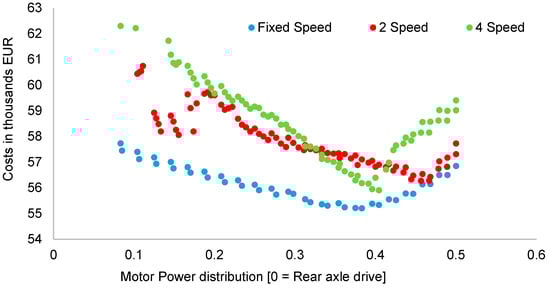

#### 3.4. Effects of Motor Power Distribution

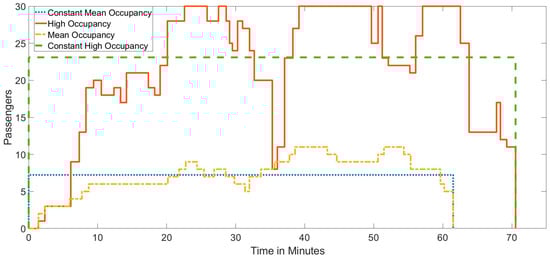

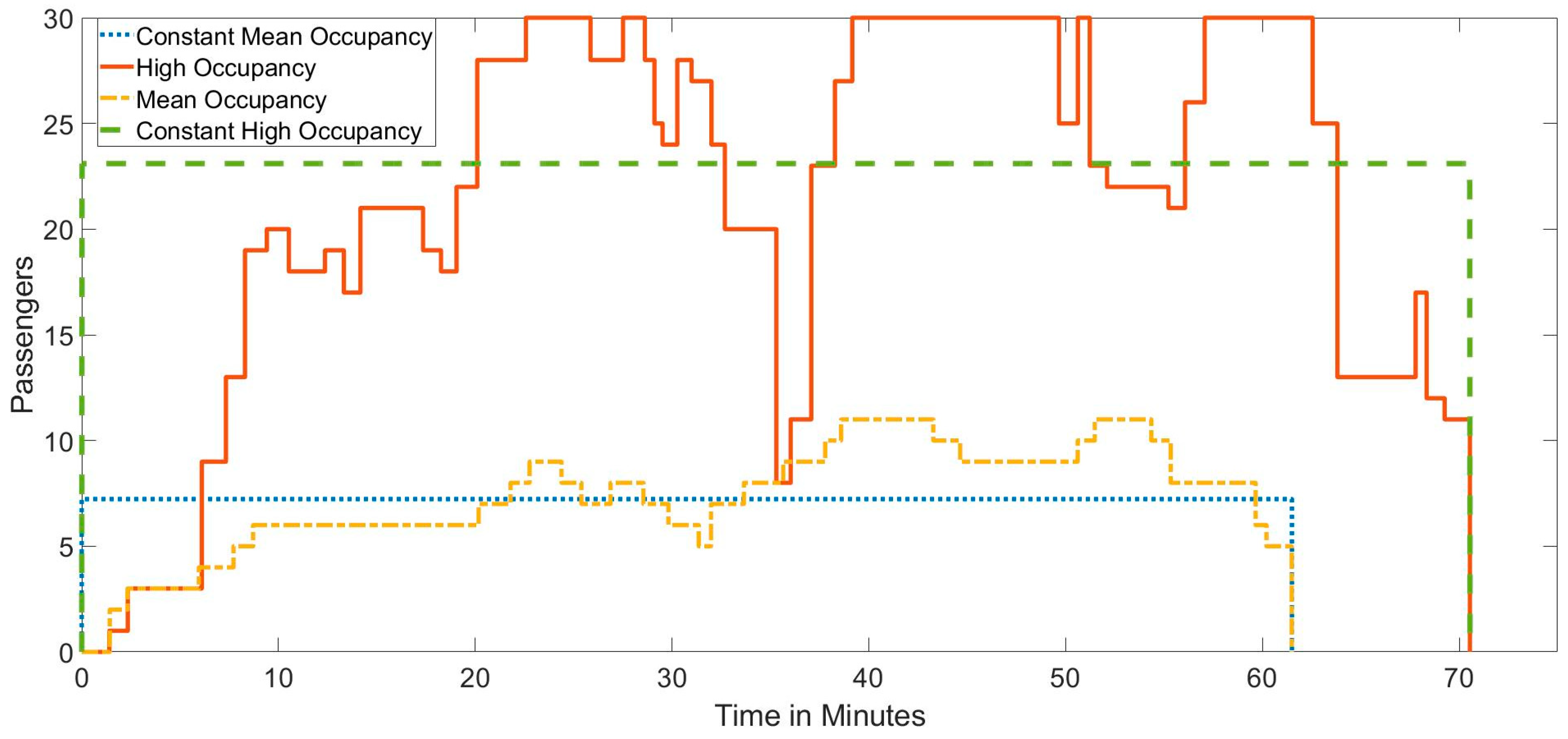

#### 3.5. Influence of Passenger Mass Variation and Occupancy

## 4. Summary and Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Cooney, G.; Hawkins, T.R.; Marriott, J. Life Cycle Assessment of Diesel and Electric Public Transportation Buses. J. Ind. Ecol.
**2013**, 451. [Google Scholar] [CrossRef] - Ercan, T.; Zhao, Y.; Tatari, O.; Pazour, J.A. Optimization of transit bus fleet’s life cycle assessment impacts with alternative fuel options. Energy
**2015**, 93, 323–334. [Google Scholar] [CrossRef] - Zhou, B.; Wu, Y.; Zhou, B.; Wang, R.; Ke, W.; Zhang, S.; Hao, J. Real-world performance of battery electric buses and their life-cycle benefits with respect to energy consumption and carbon dioxide emissions. Energy
**2016**, 96, 603–613. [Google Scholar] [CrossRef] - Berthold, K.; Förster, P.; Rohrbeck, B. Location Planning of Charging Stations for Electric City Buses. In Operations Research, Proceedings of the International Conference of the German, Austrian and Swiss Operations Research Societies (GOR, ÖGOR, SVOR/ASRO), University of Vienna, Austria, 1–4 September 2015; Doerner, K., Ljubic, I., Pflug, G., Tragler, G., Eds.; Springer: Cham, Switzerland, 2017; pp. 237–242. ISBN 978-3-319-42901-4. [Google Scholar]
- Fusco, G.; Alessandrini, A.; Colombaroni, C.; Valentini, M.P. A Model for Transit Design with Choice of Electric Charging System. Procedia Soc. Behav. Sci.
**2013**, 87, 234–249. [Google Scholar] [CrossRef] [Green Version] - Gao, Z.; Lin, Z.; LaClair, T.J.; Liu, C.; Li, J.-M.; Birky, A.K.; Ward, J. Battery capacity and recharging needs for electric buses in city transit service. Energy
**2017**, 122, 588–600. [Google Scholar] [CrossRef] [Green Version] - Pihlatie, M.; Kukkonen, S.; Halmeaho, T.; Karvonen, V.; Nylund, N.-O. Fully electric city buses—The viable option. In IEVC, Proceedings of the IEEE International Electric Vehicle Conference, Palazzo dei Congressi, Florence, Italy, 17–19 December 2014; IEEE: New York, NY, USA, 2015; pp. 1–8. ISBN 978-1-4799-6075-0. [Google Scholar]
- Kuchenbuch, K.; Vietor, T.; Stieg, J. Optimisation Algorithms for the Design of Electric Cars. ATZ Worldw.
**2011**, 113, 16–19. [Google Scholar] [CrossRef] - Matz, S. Nutzerorientierte Fahrzeugkonzeptoptimierung in einer multimodalen Verkehrsumgebung. Ph.D. Thesis, Technical University Munich, Munich, Germany, 2015. [Google Scholar]
- Pesce, T. Ein Werkzeug zur Spezifikation von effizienten Antriebstopologien für Elektrofahrzeuge. Ph.D. Thesis, Technical University Munich, Munich, Germany, 2014. [Google Scholar]
- Schönknecht, A.; Babik, A.; Rill, V. Electric Powertrain System Design of BEV and HEV Applying a Multi Objective Optimization Methodology. Transp. Res. Procedia
**2016**, 14, 3611–3620. [Google Scholar] [CrossRef] [Green Version] - Chang, F.; Ilina, O.; Hegazi, O.; Voss, L.; Lienkamp, M. Adopting MOSFET multilevel inverters to improve the partial load efficiency of electric vehicles. In Proceedings of the 19th European Conference on Power Electronics and Applications (EPE’17 ECCE Europe), Warsaw, Poland, 11–14 September 2017; pp. 1–13. [Google Scholar]
- Ghanaatian, M.; Radan, A. Modeling and simulation of Dual Mechanical Port machine. In Proceedings of the 4th Power Electronics, Drive Systems & Technologies Conference (PEDSTC), Tehran, Iran, 13–14 February 2013; pp. 125–129, ISBN 978-1-4673-4484-5. [Google Scholar]
- Ghanaatian, M.; Radan, A. Application and simulation of dual-mechanical-port machine in hybrid electric vehicles. Int. Trans. Electr. Energ. Syst.
**2015**, 25, 1083–1099. [Google Scholar] [CrossRef] - Liu, Y.; Niu, S.; Ho, S.L.; Fu, W.N. A New Hybrid-Excited Electric Continuous Variable Transmission System. IEEE Trans. Magn.
**2014**, 50, 1–4. [Google Scholar] [CrossRef] - Angerer, C.; Krapf, S.; Buß, A.; Lienkamp, M. Holistic Modeling and Optimization of Electric Vehicle Powertrains Considering Longitudinal Performance, Vehicle Dynamics, Costs and Energy Consumption. In Proceedings of the ASME 2018 International Design Engineering Technical Conferences and Computers and Information in Engineering Conference, Quebec City, QC, Canada, 26–29 August 2018. [Google Scholar]
- Fries, M.; Lehmeyer, M.; Lienkamp, M. Multi-criterion optimization of heavy-duty powertrain design for the evaluation of transport efficiency and costs. In Proceedings of the 20th International Conference on Intelligent Transportation Systems (ITSC), Yokohama, Japan, 16–19 October 2017; pp. 1–8. [Google Scholar]
- Lajunen, A. Comparison of Different Powertrain Configurations for Electric City Bus. In 2014 IEEE Vehicle Power and Propulsion Conference (VPPC), Proceedings of the 2014 IEEE Vehicle Power and Propulsion Conference (VPPC), Coimbra, Portugal, 27–30 October 2014; IEEE: Piscataway, NJ, USA, 2014; pp. 1–5. ISBN 978-1-4799-6783-4. [Google Scholar]
- Krapf, S.; Sethuraman, G.; Pathak, A.; Ongel, A.; Lienkamp, M. Improving electric city bus powertrain efficiency and costs using design space exploration. In Proceedings of the EVS 31 & EVTeC 2018, Kobe, Japan, 1–3 October 2018. [Google Scholar]
- Koch, A.; Teichert, O.; Kalt, S.; Ongel, A.; Lienkamp, M. Powertrain optimization for autonomous buses under optimal speed control. Energy
**2019**. (under review). [Google Scholar] - Farr, T.G.; Rosen, P.A.; Caro, E.; Crippen, R.; Duren, R.; Hensley, S.; Kobrick, M.; Paller, M.; Rodriguez, E.; Roth, L.; et al. The Shuttle Radar Topography Mission. Rev. Geophys.
**2007**, 45, 1485. [Google Scholar] [CrossRef] - Li, B. Markov models for Bayesian analysis about transit route origin–destination matrices. Transp. Res. Part B Methodol.
**2009**, 43, 301–310. [Google Scholar] [CrossRef] - Land Transport Authority. TransitLink eGuide—Bus Enquiry. Available online: https://www.transitlink.com.sg/eservice/eguide/service_route.php?service=15 (accessed on 2 August 2019).
- Sun, L.; Tirachini, A.; Axhausen, K.W.; Erath, A.; Lee, D.-H. Models of bus boarding and alighting dynamics. Transp. Res. Part A Policy Pract.
**2014**, 69, 447–460. [Google Scholar] [CrossRef] [Green Version] - Müller, S.; Rohr, S.; Schmid, W.; Lienkamp, M. Analysing the Influence of Driver Behaviour and Tuning Measures on Battery Aging and Residual Value of Electric Vehicles. In Proceedings of the Electric Vehicle Symposium 30 (EVS30), Stuttgart, Germany, 9–11 October 2017. [Google Scholar]
- Kalt, S.; Erhard, J.; Danquah, B.; Lienkamp, M. Electric Machine Design Tool for Permanent Magnet Synchronous Machines. In 2019 Fourteenth International Conference on Ecological Vehicles and Renewable Energies (EVER), Proceedings of the 2019 Fourteenth International Conference on Ecological Vehicles and Renewable Energies (EVER), Monte-Carlo, Monaco, 8–10 May 2019; IEEE: Piscataway, NJ, USA, 2019; pp. 1–7. ISBN 978-1-7281-3703-2. [Google Scholar]
- Seeger, F. Energetische Modellierung verschiedener Systeme zur Momentenverteilung für ein adaptives Antriebsstrangmodell. Semester Thesis, Technical University Munich, Munich, Germany, 2017. [Google Scholar]
- Ngo, D.V. Gear shift strategies for automotive transmissions. Ph.D. Thesis, Eindhoven University of Technology, Eindhoven, The Netherlands, 2012. [Google Scholar]
- Lee, T.; Kim, Y.; Nam, K. Loss minimizing gear shifting algorithm based on optimal current sets for IPMSM. In Proceedings of the 2017 IEEE Transportation Electrification Conference and Expo (ITEC), Chicago, IL, USA, 22–24 June 2017; pp. 135–140. [Google Scholar]
- Fries, M.; Kerler, M.; Rohr, S.; Sinning, M.; Schickram, S.; Lienkamp, M.; Kochhan, R.; Fuchs, S.; Reuter, B.; Burda, P.; et al. An Overview of Costs for Vehicle Components, Fuels, Greenhouse Gas. Emissions and Total Cost of Ownership—Update 2017; researchgate.com: Berlin, Germany, 2017. [Google Scholar]

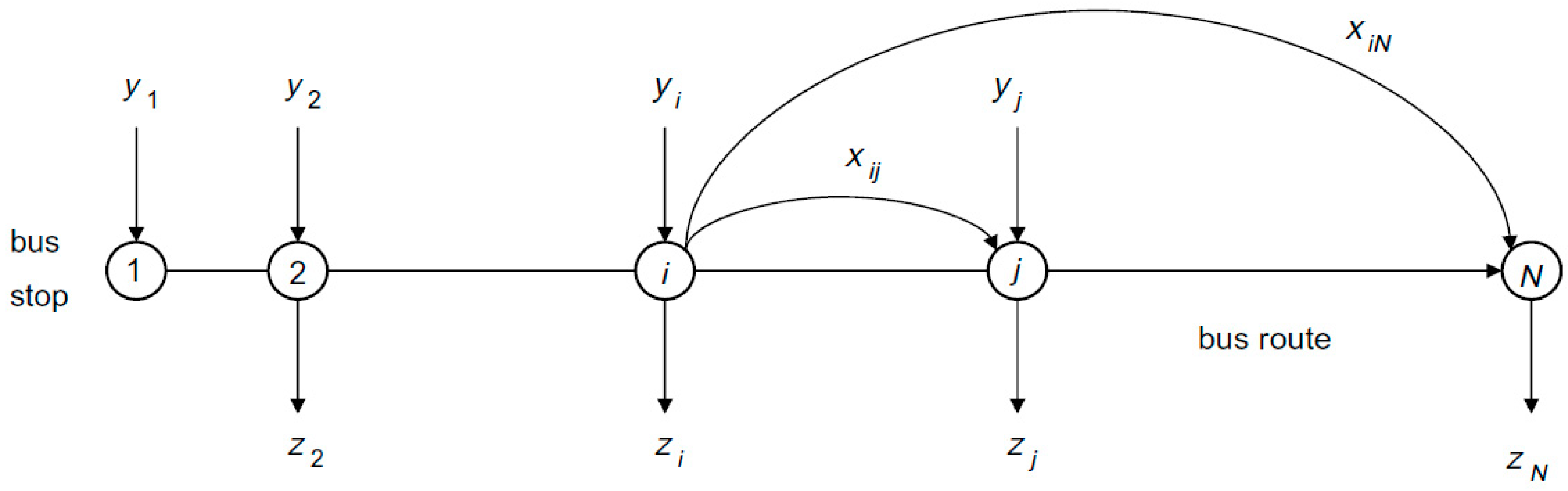

**Figure 3.**Flow of passengers along the route [22].

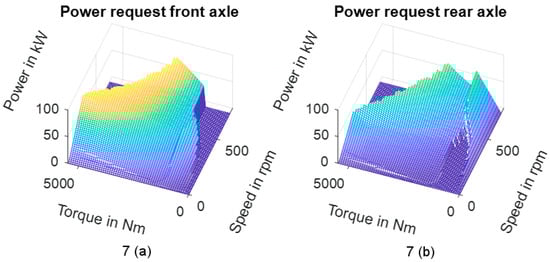

**Figure 7.**Example of the motor power distribution between two 100 kW motors in first gear 7 (

**a**) Power request at front axle; 7 (

**b**) Power request at rear axle.

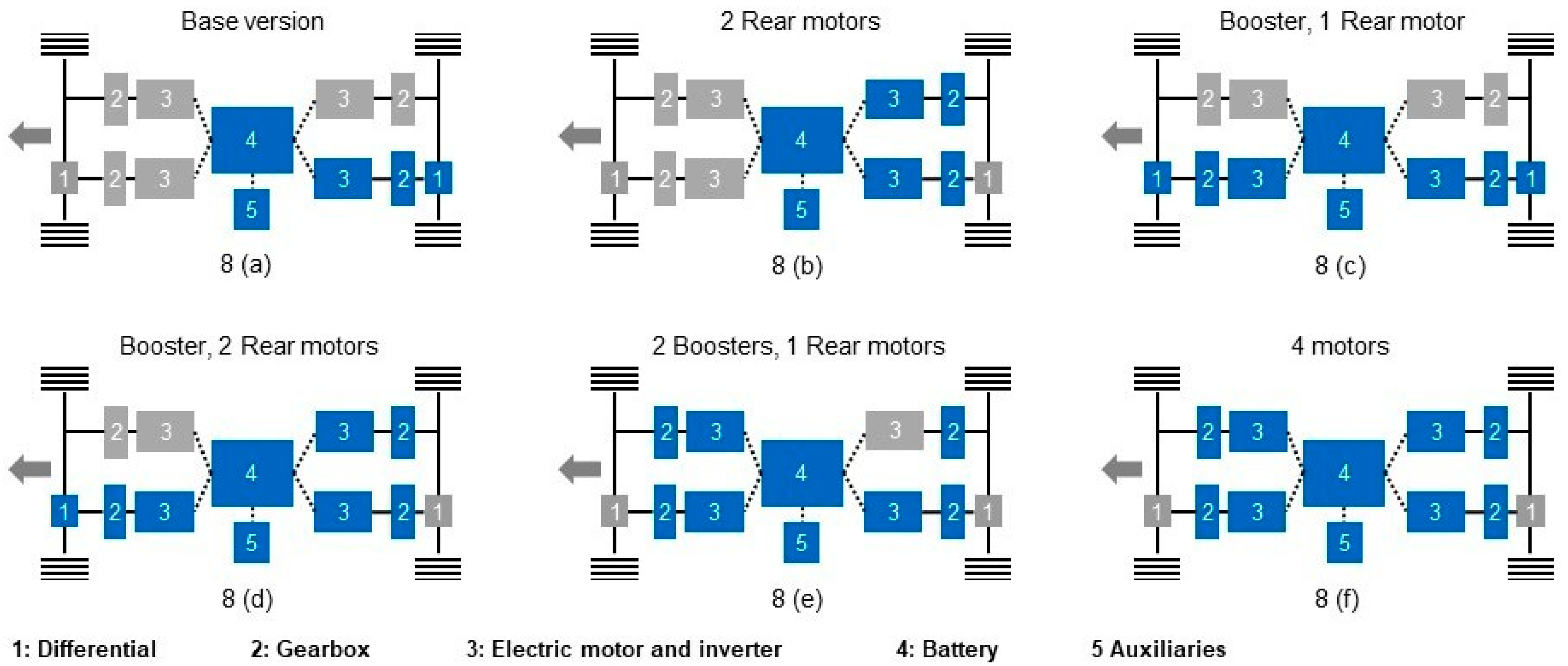

**Figure 8.**Variation of powertrain architectures. 8 (

**a**) Base version; 8 (

**b**) 2 Rear motors; 8 (

**c**) Booster, 1 Rear motor; 8 (

**d**) Booster, 2 Rear motors; 8 (

**e**) 2 Boosters, 1 Rear motor; 8 (

**f**) 4 motors.

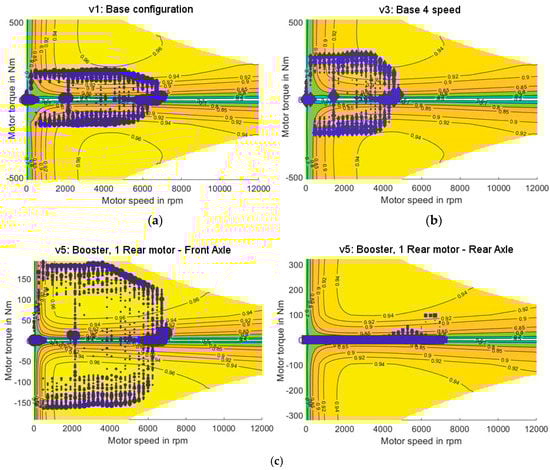

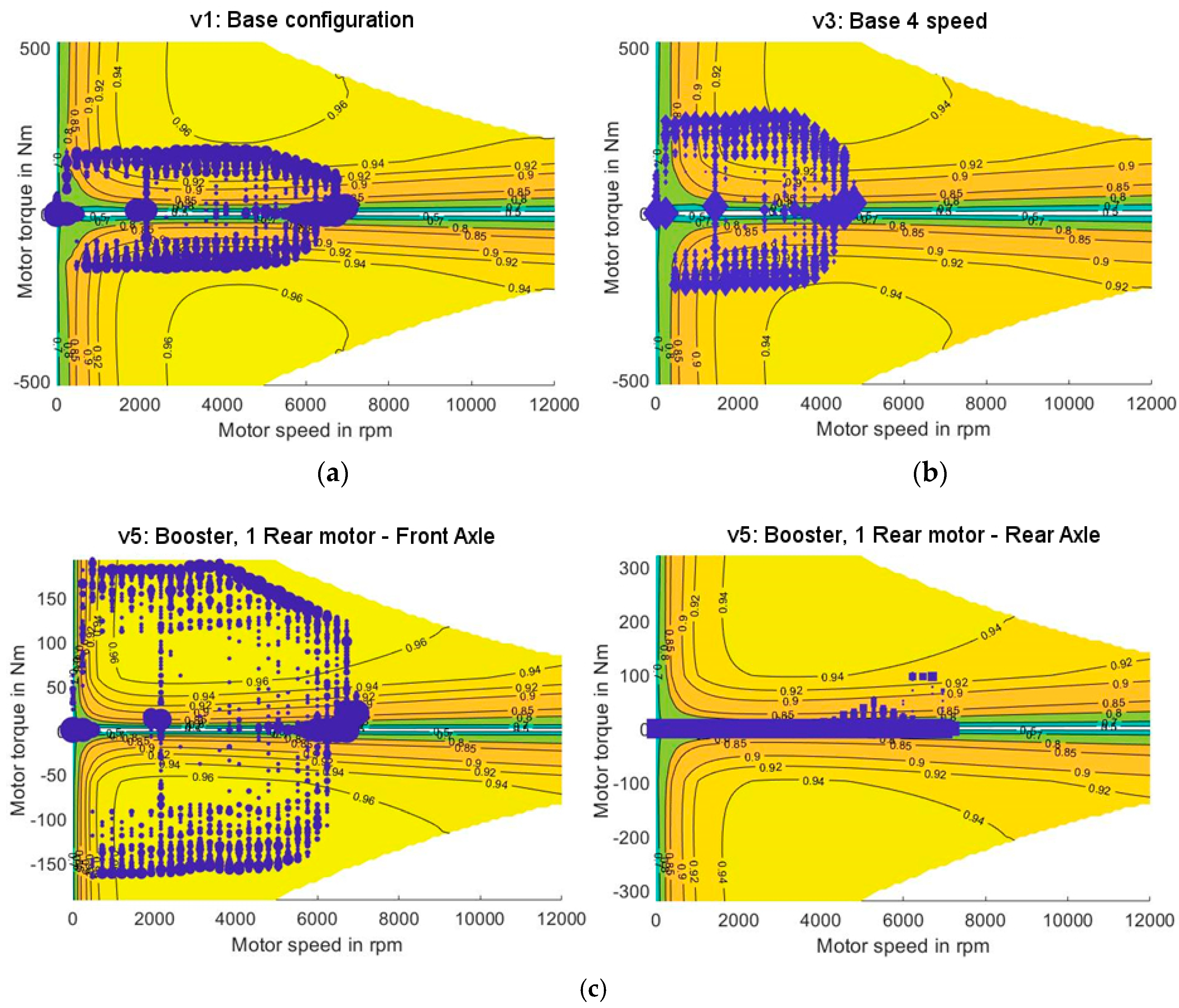

**Figure 12.**Load point shifting by transmission (

**a**) v1 configuration with fixed gear (

**b**) 4 speed configuration (

**c**) v5 Booster configuration.

**Table 1.**Vehicle requirements and parameters [13].

Requirements | Value | Unit |

r1: Maximum speed | 80 | km/h |

r2: Gradeability | 20 | % |

Speed at gradeability | 30 | km/h |

Acceleration at gradeability | 1 | m/s^{2} |

r3: Maximum acceleration | 1.5 | m/s^{2} |

Speed at maximum acceleration | 30 | km/h |

r4: Range | 200 | Km |

Vehicle parameters | Value | Unit |

Gross vehicle weight | 6090 | Kg |

Curb weight | 3654 | Kg |

Front area | 7.1145 | m^{2} |

Drag coefficient | 0.4 | - |

Dynamic tire radius | 0.372 | m |

Rolling resistance | 0.011 | - |

Number of wheels | 4 | - |

Battery energy content | 120 | kWh |

HVAC energy demand | 3 | kW |

Other auxiliaries | 1.5 | kW |

Charging efficiency | 0.90 | - |

**Table 2.**Description of the symbols, their respective unit, and the value of the cost calculation [19].

Parameters | Symbols | Unit | Value |
---|---|---|---|

Costs of powertrain | ${C}_{PWT}$ | EUR | - |

Costs of battery | ${C}_{bat}$ | EUR | - |

Number of drive units | ${n}_{DU}$ | - | [1,2,3,4] |

Costs of inverter | ${C}_{inv}$ | EUR | - |

Costs of motor | ${C}_{mot}$ | EUR | - |

Costs of transmission | ${C}_{TM}$ | EUR | - |

Time of operation | ${t}_{op}$ | Y | - |

Energy consumption | ${E}_{cons}$ | kWh/km | - |

Distance | ${s}_{d}$ | km/day | 200 |

Days of operation | ${t}_{i}$ | - | 360 |

Costs of energy | ${c}_{kWh}$ | EUR/kWh | 0.13 |

Discount rate | ${d}_{i}$ | - | 0.05 |

Distance over lifetime | - | km | 579,600 |

Configurations | Motor Power in kW | No. of Motors | No. of Gears | |||
---|---|---|---|---|---|---|

Front Axle | Rear Axle | Front Axle | Rear Axle | Front Axle | Rear Axle | |

v1: Base configuration | - | 240 | - | 1 | - | 1 |

v2: Base 2 speed | - | 240 | - | 1 | - | 2 |

v3: Base 4 speed | - | 240 | - | 1 | - | 4 |

v4: Two rear Motors | 120 | 120 | - | 2 | - | 4 |

v5: Booster, one rear motor | 90 | 150 | 1 | 1 | 1 | 1 |

v6: Booster, two rear motors | 90 | 150 | 1 | 2 | 4 | 1 |

v7: Tow boosters, one rear motor | 130 | 110 | 2 | 1 | 1 | 4 |

v8: Four motors | 120 | 120 | 2 | 2 | 4 | 1 |

Motor Topology/Power in kW | Number of Gears | Total Power in kW | Energy Cost (EUR) | Total Cost (EUR) | ||
---|---|---|---|---|---|---|

Front Axle | Rear Axle | Front Axle | Rear Axle | |||

Motor 1 | Motor 1 | |||||

Mean occupancy with passenger variation | ||||||

75 | 160 | 1 | 1 | 235 | 31,911.23 | 51,670.23 |

75 | 165 | 1 | 1 | 235 | 31,858.17 | 51,700.54 |

70 | 165 | 1 | 1 | 235 | 32,134.14 | 51,892.35 |

70 | 170 | 1 | 1 | 240 | 32,091.00 | 51,918.94 |

80 | 155 | 1 | 1 | 235 | 32,255.39 | 52,015.09 |

Mean occupancy with a constant number of passengers | ||||||

75 | 160 | 1 | 1 | 235 | 31,995.56 | 51,798.77 |

75 | 165 | 1 | 1 | 240 | 32,039.77 | 51,837.93 |

70 | 165 | 1 | 1 | 235 | 32,133.39 | 51,891.60 |

70 | 170 | 1 | 1 | 240 | 32,133.04 | 51,960.98 |

80 | 155 | 1 | 1 | 235 | 32,253.09 | 52,012.79 |

High occupancy with a constant number of passengers | ||||||

80 | 160 | 1 | 1 | 240 | 35,487.74 | 55,317.20 |

75 | 160 | 1 | 1 | 235 | 35,766.88 | 55,525.90 |

75 | 165 | 1 | 1 | 240 | 35,741.38 | 55,583.75 |

70 | 165 | 1 | 1 | 235 | 35,903.43 | 55,661.63 |

70 | 170 | 1 | 1 | 240 | 36,017.28 | 55,845.21 |

High occupancy with passenger variation | ||||||

90 | 145 | 1 | 1 | 235 | 35,438.75 | 55,199.58 |

90 | 150 | 1 | 1 | 240 | 35,367.71 | 55,214.49 |

85 | 150 | 1 | 1 | 235 | 35,462.29 | 55,238.75 |

80 | 155 | 1 | 1 | 235 | 35,543.55 | 55,303.25 |

95 | 140 | 1 | 1 | 235 | 35,575.27 | 55,332.06 |
