Risk Identification and Analysis for PPP Projects of Electric Vehicle Charging Infrastructure Based on 2-Tuple and the DEMATEL Model

Abstract

Risk management is critical to the success of electric vehicle charging infrastructure public–private partnership (EVCI-PPP) projects, as risks are present throughout the whole life cycle of projects. However, in EVCI-PPP projects, risk factors are often interdependent and, consequently, the interrelationships among factors affect the risk management, which is ignored in the existing studies. To identify the risk factors of EVCI-PPP projects and analyze their internal influence relations, this paper develops a risk identification and analysis model of EVCI-PPP projects based on the 2-tuple linguistic representation model and the decision-making trial and evaluation laboratory (DEMATEL) model. First, a risk factor set is established including 22 criteria involved in 5 dimensions of political/legal risk, economic/market risk, social/environment risk, project/technical risk, and managing risk. Next, the 2-tuple model is introduced to integrate the decision makers’ evaluation information in a linguistic environment, and the direct relation matrix is calculated. Then, the cause–effect relations and a significant degree of risk factors are interpreted using the extended DEMATEL technique. The results show that economic/market risk is the most significant factor of EVCI-PPP projects, and 22 criteria are classified into 14 cause factors and 8 effect factors. Finally, suggestions are provided for decision-makers to ensure the success of EVCI-PPP projects.

1. Introduction

Electric vehicles (EVs) have been considered a promising technology for mitigating greenhouse gas (GHG) emissions, which have attracted the attention of countries all over the world [1,2]. In 2017, the global market share of new energy vehicles exceeded 1 million on the road. As the largest market of electric cars in terms of sales share, China has sold 556,000 electric cars, accounting for 50% globally [3]. As an essential component of supply infrastructure, public charge piles totaled 214,000 in 2017, as shown in Figure 1. However, it is worth noting that the imbalance of demand–supply in electric vehicle charging infrastructure (EVCI) and low charging service have become the prominent obstacles to sustainable development of EVs in China [4]. To deal with the issues mentioned, the public–private partnership (PPP) model has been introduced in EVCI projects to satisfy increasingly urgent charging demand by attracting private sectors to participant in electric vehicle charging infrastructure public–private partnership projects (EVCI-PPPs) [5,6]. EVCI-PPPs have the following advantages: (1) they release the government’s financial pressure and management pressure; (2) they make use of the private sectors’ strengths in financing, construction, operation, and management; and (3) they provide satisfactory, efficient, and diverse charging services, which are beneficial to promote the sustainable development of EVs and EVCI projects.

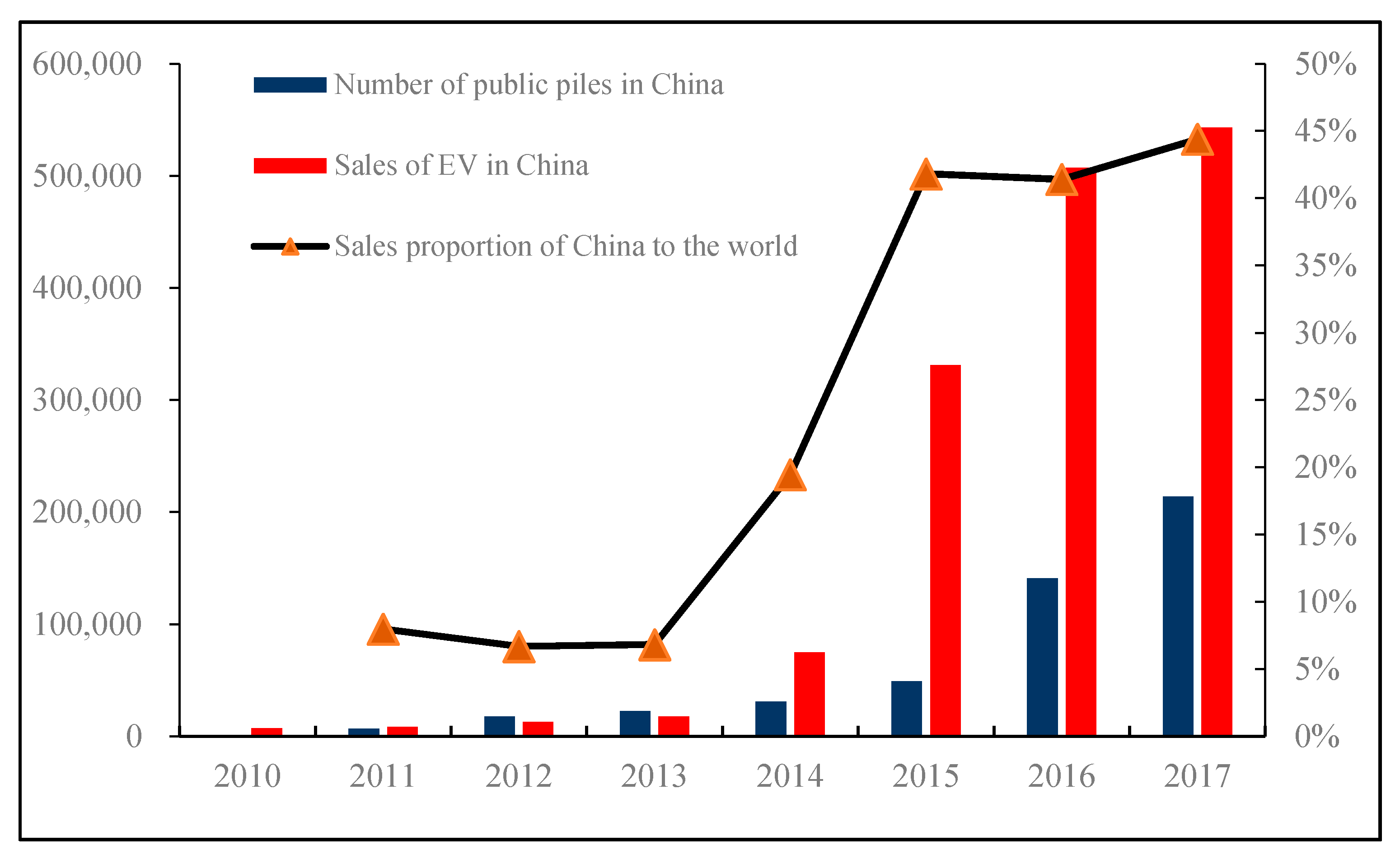

In 2015, the first batch of China’s EVCI-PPP projects appeared, and by 2018, 17 EVCI-PPP projects had been approved. However, there are only a few completed projects and most are still in the preparatory or identification stage. The inherent characteristics of PPP projects—large-scale investment, long-term of construction and operation, and complex construct structure—increase the uncertainty of risks in the whole life of projects [7]. In EVCI-PPPs, the identification of risk factors is the core of full risk management. In the real world, risk elements are always interdependent and the interrelationships may strengthen the transmission effect from one risk factor to another, bringing the domino effect. Therefore, it is necessary to consider the interrelationships among risk factors in risk identification of EVCI-PPP projects, which could support the stakeholders to make the right decisions and take targeted risk control measures.

The charging infrastructure industry is at a nascent stage and research on the risk identification of charging infrastructure projects is limited [8]. Currently, there are three points focused on charging infrastructure: (i) site selection of charging facilities [9]; (ii) business model for charging infrastructure [10,11], the PPP model [3]; and (iii) incentive industry policies [12,13,14]. Although the PPP model is viewed as an effective means to promote the sustainable development of charging facilities [5], the EVCI-PPP project is in the initial stages in China and faces various uncertain risks. The authors of [15] identified risk factors and determined the risk level of specific projects from the view of social investors. The authors of [16] conducted risk management of EVCI-PPP projects. However, they did not discuss the relationship of each risk factor in depth, and neglecting the relationship among risk factors will cause a serious domino effect.

This paper aims to do the following: (1) identify risk criteria of EVCI-PPP projects from the view of the whole life of projects; (2) classify all risk criteria into cause and effect groups; (3) distinguish the interrelationship and draw a cause–effect diagram among dimensions and criteria; and (4) calculate the significant degrees of each risk factor.

The reminder of this paper is organized as follows. Section 2 reviews the risk factors of the EVCI-PPP project and interprets the DEMATEL technique. Section 3 builds a risk factor set of EVCI-PPP projects. A risk identification and analysis model is established in Section 4. Section 5 presents the data analysis and results of this paper. Section 6 discusses the classification of risk factors, and Section 7 provides some suggestions. Finally, the conclusions and further work are shown in Section 8.

2. Literature Review

2.1. Risk Analysis of EVCI-PPP Projects

As a novel financing model, PPP has been successfully applied in charging infrastructure and scholars have achieved some research findings. The authors of [17] pointed out that the PPP model can reduce the financial burden of the government and stimulate innovation of business model for charging facilities. The authors in [6] believed that the introduction of the PPP model into charging facilities could make use of private investors to improve the management and profitability of projects. The authors in [5] illustrated that the PPP model is an effective way to enhance charging service efficiency.

In PPP projects, risk management is an important topic, and factor identification is a critical phase in the risk management process. The authors in [15] developed a framework to identify the most important risk factors influencing EVCI-PPP projects in China, and to evaluate the overall risk level of PPP projects. However, it remains in the risk assessment stage, lacking comprehensive risk management. To fill this gap, the authors in [16] proposed a three-dimensional model to control risks in EVCI-PPP projects. These findings provide comprehensive risk management for the decision makers. However, the existing research neglects the interrelationships among risk criteria when identifying and analyzing risk factors, which also has a significant influence on risk management.

At present, key risk factors associated with public–private partnerships have been identified by multiple scholars in other areas. In another paper [18], public opposition, insufficient supply risk, and improper operation were viewed as the top three risk factors in waste-to-energy incineration PPP projects. The authors of [19] carried out risk allocation in PPP projects in China. The authors in [20] drew a conclusion that insufficient supply, deals with non-licensed resources, environmental risk, payment risk, and lack of supporting facilities are the five critical risk factors.

Table 1. Summary of selected literature on risks/barriers to public–private partnership (PPP) infrastructure projects.

No.	Risk Factors	Reference										Total
		1	2	3	4	5	6	7	8	9	10
1	Unstable government						*				*	2
2	Government corruption	*		*	*		*	*	*	*		7
3	Government intervention	*	*	*			*	*	*	*		7
4	Government credit		*	*	*	*	*	*		*		7
5	Poor public decision-making process	*			*	*	*	*	*	*	*	8
6	Delays in approval and permits		*		*		*		*		*	5
7	Inadequate distribution of responsibilities and risk						*			*	*	3
8	Lack of a sound legal framework							*	*			2
9	No supportive legislations and policies	*				*						2
10	Legislation change		*		*		*	*	*			5
11	Land acquisition/site availability		*		*		*	*	*		*	6
12	Insufficient goods supply	*	*								*	3
13	Market demand change		*	*	*			*	*			5
14	Financial risk		*		*		*	*	*		*	6
15	Payment risk	*	*	*	*	*	*	*				7
16	Inflation risk		*		*		*		*		*	5
17	Interest rate volatility			*	*		*	*	*		*	6
18	Revenue risk	*		*		*	*					4
19	Environment risk	*	*			*	*	*			*	6
20	Public opposition	*			*	*	*		*		*	6
21	Construction time delay						*		*		*	3
22	Design & construction deficiencies						*		*		*	3
23	Completion risk		*		*		*	*		*	*	6
24	Lack of PPP experience	*		*					*		*	4
25	Overrun of construction cost						*		*		*	3
26	Overrun of operation cost		*		*		*	*			*	5
27	Technique risk	*			*	*	*		*		*	6
28	Supporting facilities risk	*	*	*	*	*	*	*	*			8
29	Lack of commitment from either partner						*			*	*	3
30	Insufficient financial audit				*		*	*				3
31	Force majeure		*		*		*	*	*			5

Notes: 1 = [18]; 2 = [20]; 3 = [15]; 4 = [19]; 5 = [21]; 6 = [22]; 7 = [23]; 8 = [24]; 9 = [25]; 10 = [26].

shows some critical risk criteria in PPP projects from representative studies, which provides us with methodological guidance and indicator reference.

This paper aims to study the influence relations among risk factors of EVCI-PPP projects from the view of the system. On the basis of the literature review, opinions of experts and industrial managers, risk elements, associated with PPP projects, are recognized and identified. A risk evaluation index system is established, which consists of five dimensions in the first step—political/legal risk, economic/market risk, social/environmental risk, project/technical risk, and managing risk. The risk factors attributed to those criteria will be discussed in Section 3.

2.2. DEMATEL Method

This paper extracts important risk factors in EVCI-PPP projects in Section 2.1, and these factors influence each other. To make progress in charging infrastructure projects, the influence relations among risk factors should be considered to conduct a comprehensive risk analysis. The decision making trial and evaluation laboratory (DEMATEL) technique is effective to handle this issue [27], which integrates the experts’ evaluation information, and illustrates the interrelationship among risk factors and the significant degree of all factors based on a cause–effect diagram [28].

The DEMATEL technique has been widely applied in various fields [29,30], for example, critical factors identification, information management, and risk management. However, this method cannot deal with the fuzziness of linguistic information in assessment. The authors in [31] developed DEMATEL to conclude the influencing and influenced distress of sewer pipelines. Meanwhile, there are many studies involving innovated DEMATEL models combined other multi-criteria decision methods. The authors in [32] proposed a newly extended 2-tuple and DEMATEL model to evaluate the risks of IT outsourcing and compute the importance, as well as the classification, of risk factors. The authors of [33] estimated the elements of CO₂ capture and storage in the iron and steel industry based on the integrated 2-tuple DEMATEL method.

In general, DEMATEL is an effective tool to handle barriers and risk elements. 2-tuple can effectively retain expert evaluation information and reduce information loss in processing expert linguistic decisions. Moreover, the combined method of 2-tuple and DEMATEL has no loss of evaluation information when computing with linguistic terms, which can deal with complex problems and establish visualization of a cause–effect diagram. Therefore, this paper develops the model based on the 2-tuple fuzzy linguistic representation model and DEMATEL model to identify and analyze the risk factors of EVCI-PPP projects, obtain the weights of each criterion, classify important criteria into cause and effect groups, and depict the cause–effect diagram to visualize the influence interrelationships among risk factors.

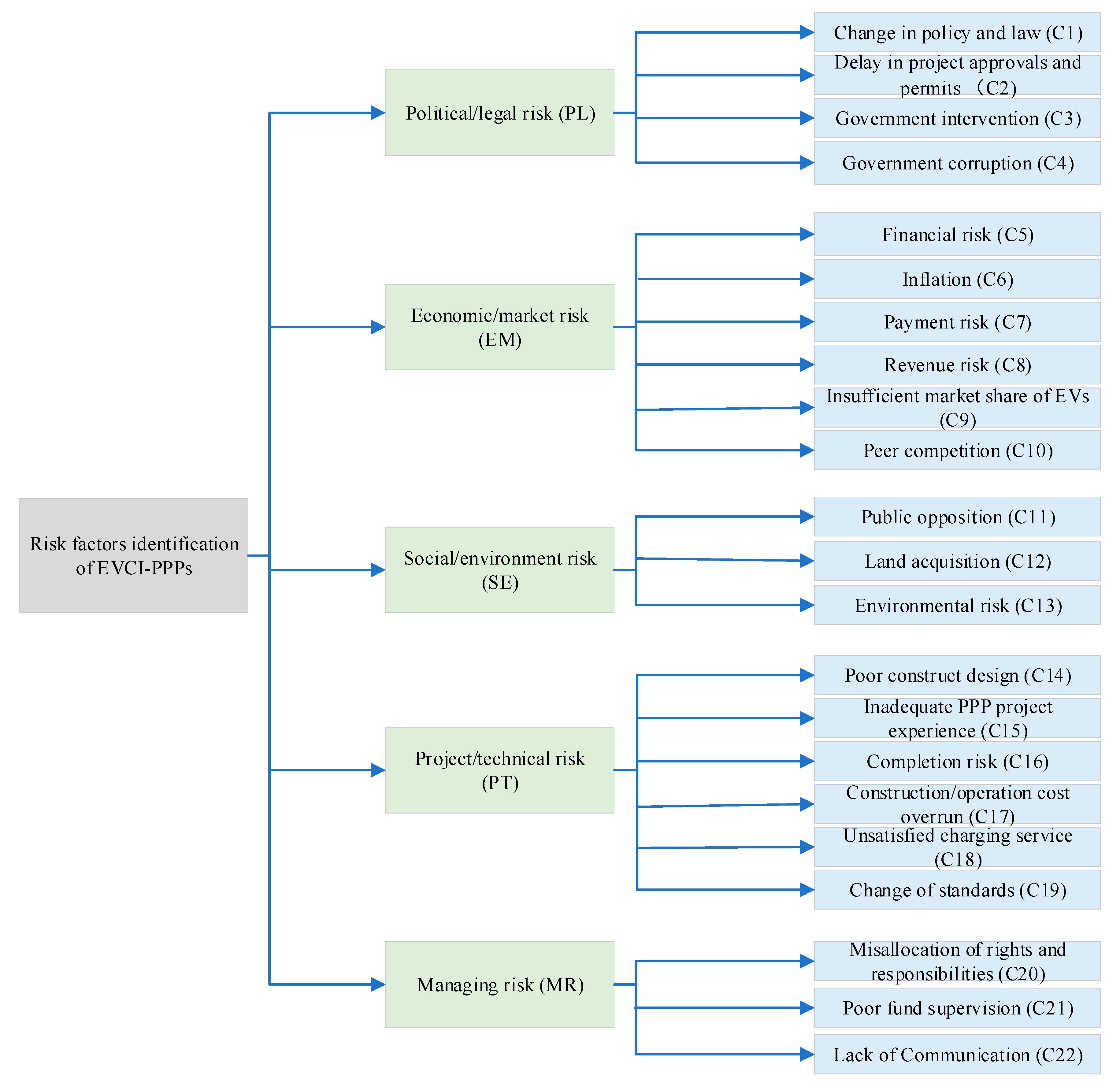

3. Risk Factors of EVCI-PPP Projects

EVCI-PPP projects are recognized as risky investments and are characterized by large initial investment, administrative difficulties, low charge utilization, and poor charge efficiency. From literature reviews, the risk factors of EVCI-PPP projects are identified, which includes 22 risk factors from 5 dimensions (see Figure 2), presented below.

3.1. Political/Legal Risk (PL)

To encourage private investors to participate in the operation of EVCI-PPP projects, regional governments have introduced various incentive policies to create a good political environment for partnership [34]. For example, Hainan province in China has incorporated the approval of charging facilities into the green approval channel, which simplified the approval process and shortened the approval time. On the contrary, China has retreated 30 PPP projects to curb the increasing implicit debt in 2018, which means the regulations of the PPP model will be stricter. Some regions strengthen the approval and review process to prevent excessive government debt. Changing policies and various rules increase the risk of EVCI-PPP projects.

C1: Change in policy and law. In China, the development of charging infrastructure is profit from incentive policies. However, EVCI-PPP projects have a short history in China. It is inevitable that industrial policies will change, even the current political environment is positive to advance the PPP model to deliver charging service and infrastructure [35].

C2: Delay in project approvals and permits. This mainly refers to the fact that the permit process is too complicated and the government lacks PPP experience to deal with this issue, which causes lower permit efficiency and affects a series of risks of PPP projects [24].

C3: Government intervention. This risk refers to government over-intervention EVCI-PPP projects by macroeconomic or administrative means, such as requiring private operators to recruit residents as employees, which may affect the normal business operation of PPP projects [36].

C4: Government corruption. The risk factor of government corruption refers to government officials obtaining property illegally, and private investors having spend large sums of money to get access to local officials, which not only disturbs the normal market competition, but also hampers concessionaires’ operation efficiency, as well as profits [37].

3.2. Economic/Market Risk (EM)

Fluctuation in the economic market, for example, inflation and interest rates, may increase financing risks and revenue risks. Because of the long period, each private operator faces high economic and market risk [38].

C5: Financial risk. Insufficient funds and change of interest rate directly affect the construction of projects. In general, PPP projects require a large investment and social sectors usually obtain a loan from banks, and the change of interest rate increases the financing risks [39].

C6: Inflation. A rise in the price level will decline the purchasing power of money and increase staff cost and materials prices, increasing construction and operating costs. In EVCI-PPPs, private sectors reduce the influence of inflation risk by adjusting the charge price, which also increases charge services [40].

C7: Payment risk. This risk refers to the government possibly not being willing to pay for private sectors in time. Where payment is not guaranteed, the private operator may withdraw [20].

C8: Revenue risk. This risk means that the profits are lower than the anticipated revenue. In EVCI-PPPs, the current market price is still lower than the real cost in public charging services. Operators may reduce the service quality or increase charge fees to compensate for the loss, which deviates from the original intention of introducing the PPP model [19].

C9: Insufficient market share of EVs. Currently, the market share of new energy vehicles is not enough to meet the normal charging needs of charging stations [41].

C10: Competition. This refers to threats from other public charging projects and private charging piles. There are multiple entities in the current charging facility market, which is undesirable because of the uniqueness of the PPP projects. In general, EV users are willing to conduct major charging at their home in the evening because of the low charging price and convenience. Thus, the development of private charging piles will affect the competitiveness and benefits of public charging facilities [42].

3.3. Social/Environment Risk (SE)

EVCI-PPP projects may generate noise and dust during the construction process. At the same time, improper sites of charging stations may have negative effects on approvals, completion of projects, traffic congestion, and the layout of cities’ traffic network.

C11: Public opposition. This risk arises from the opposition from the public because of improper site selection, environmental pollution, and security concerns [43].

C12: Land acquisition. Land acquisition risk concerns both land acquisition and demolishing existing buildings. This risk generally occurs in prosperous urban areas, such as commercial areas and residential areas. The high acquisition cost or duty dereliction of government may cause failure of PPP projects [44].

C13: Environment risk. Environmental pollution, such as noise and dust during the construction stage, will bring negative effects to the EVCI-PPP projects [45].

3.4. Project/Technical Risk (PT)

Charging technology has been in the process of upgrading and concessionaires faces the risk of technology limitations [46].

C14: Poor design. Improper site selection and layout of charging stations are adverse to charging volume, as well as the operation of charging facilities [47].

C15: Inadequate PPP project experience. PPP projects are still in the initial stage in China, and the application of the PPP model in charging facilities has a short history. Both the government and the concessionaire have inadequate PPP project experience in operation, management, and so on [36].

C16: Completion risk. This refers to risk that the project cannot be completed in the planned period because of insufficient staff, financial difficulties, inadequate experience, and so on [48].

C17: Construction/operation cost overrun. This means that actual costs are higher than expected because of changes in the economic and political environment, taxes, and aging of equipment [49].

C18: Unsatisfactory charging service. This refers to the charging service quality and efficiency being unable to satisfy EV drivers’ demand, which directly affects the revenue of EVCI-PPP projects [15].

C19: Charging technology. The supply power way includes direct current (DC), alternating current (AC), wireless charging, and power exchange. Currently, fast charging technology is hitherto explored research-wise and the standards of charging interface and charging facilities are also being upgraded. The immature technology of charging requires improvement of devices, which increases the investments of projects [50].

3.5. Managing Risk (MR)

EVCI-PPP projects combine the advantages of the government and private sectors. The government provides a sound environment for PPP projects by political and economic measures, and the concessionaire relies on their advanced management experience and operation mechanisms. Only cooperation can avoid various risks and achieve a win–win situation in EVCI-PPP projects.

C20: Misallocation of rights and responsibilities. Contracts vaguely define responsibilities and obligations, as well as lack of consistency, which causes alteration and shirks their responsibility of the government and concessionaire [22].

C21: Poor fund supervision. Inadequate fund supervision may make the government lose control over the use of funds in PPP projects, which will cause indiscriminate usage of funds and subsidies [23].

C22: Lack of communication. PPP stakeholders are committed to a long-term relationship with each other, and communication is an effective way to maintain this relationship. Poor communication between the government and the social sectors hampers decision making and successful operation of PPP projects [51].

4. Methodology

4.1. The Definition and Aggregation Operator of the 2-Tuple Linguistic Information

In Section 4.1, basic concepts and operations on the 2-tuple linguistic representation model are performed. Proposed by Herrera in 2000 [52], 2-tuple is based on the concept of symbolic translation. It uses a 2-tuple set, ($S_i,{\alpha }_i$), to demonstrate linguistic evaluation information, where $S_i$ is the symbolic translation of a linguistic term; ${\alpha }_i$ is a numerical value of the symbolic translation; and ${\alpha }_iϵ\left[-0.5,0.5\right)$, indicating the deviation of the evaluation result from $S_i$.

Definition 1.

Let$S=\left\{S_0, S_1, S_2,\cdots , S_{\delta }\right\}$ be a linguistic term set, amount of$S_i\in S$. The function$\beth$used to perform the corresponding 2-tuple of $S_i$ is obtained as follows:

$$\beth =S\to S\times [-0.5,0.5)$$

(1a)

$$\beth (S_i=\left(S_i,0\right),S_i\in S$$

(1b)

Definition 2.

Let$\mathrm{S}=\left\{S_0,S_1, S_2,\cdots , S_{\delta }\right\}$be a finite and totally ordered discrete linguistic term set. And $\beta \in \left[0,\delta \right]$ is a number value, representing a symbolic linguistic aggregation result. The 2-tuple that presents the equivalent information to$\mathsf{\beta }$can be computed by the function$\nabla$.

$$\nabla :\left[0,\mathsf{\delta }\right]\to S\times \left[-0.5,0.5\right)$$

(2a)

$$\nabla \left(\beta \right)=\left(S_i,\alpha \right)=\{\begin{array}{c}{S}_i, i=Round\left(\beta \right)\\ \alpha =\beta -i. \alpha \in \left[-0.5,0.5\right)\end{array}$$

(2b)

where round is the usual round operation.

Definition 3.

Let$\left(S_i,\mathsf{\alpha }\right)$be a 2-tuple, and assume that there is an inverse function${\nabla }^{-}$, which is used to transform the 2-tuple into its corresponding numerical value$\beta \in \left[0,\delta \right]$. The function ${\Delta }^{-}$ is defined as Equations (3a) and (3b).

$${\nabla }^{-}: S\times \left[-0.5, 0.5\right)\to \left[0,\delta \right]$$

(3a)

$${\nabla }^{-}\left(S_i,\alpha \right)=i+\alpha =\beta$$

(3b)

Definition 4.

Let$\left(D_1,{\alpha }_1\right),(D_2,{\alpha }_2),\cdots ,(D_m,{\alpha }_m)$be a group of 2-tuples to be aggregated. The 2-tuple arithmetic mean operator ${\overline{D}}^e$ is defined as follows:

$${\overline{D}}^e=\left(\overline{D},\overline{\alpha }\right)=\nabla \left(\frac{1}{m}{{\displaystyle \sum }}_{i=1}^m{\nabla }^{-}\left(D_i,{\alpha }_i\right)\right), \overline{D}\in S; \overline{\alpha }=\left[-0.5,0.5\right)$$

(4)

Definition 5.

Let$F={\left(\left(r_1,{\alpha }_1^{\prime }\right),\left(r_2,{\alpha }_2^{\prime }\right),\cdots ,\left(r_m,{\alpha }_m^{\prime }\right)\right)}^T$be the corresponding weighted vector of 2-tuples$\left(D_1,{\alpha }_1\right),(D_2,{\alpha }_2),\cdots ,(D_m,{\alpha }_m)$. The 2-tuple weighted average operator ${\widehat{D}}^e$ is defined as follows:

$${\widehat{D}}^e=\left(\widehat{D},\widehat{\alpha }\right)=\nabla \left(\frac{{{\displaystyle \sum }}_{I=1}^m\left[{\nabla }^{-}\left(r_i,{\alpha }_i^{\prime }\right)\times {\nabla }^{-}\left(D_i,{\alpha }_i\right)\right]}{{{\displaystyle \sum }}_{i=1}^m{\nabla }^{-}\left(r_i,{\alpha }_i^{\prime }\right)}\right), \widehat{D}\in S; \widehat{\alpha }\in \left[-0.5,0.5\right]$$

(5)

4.2. The 2-Tuple DEMATEL Method

Between 1972 and 1976, the DEMATEL was proposed, and it has been proven as an effective approach for analyzing interrelationships among factors [53]. Based on digraph theory, the DEMATEL method performs well in analyzing the cause and effect in a system by classifying factors. In this research, a modified 2-tuple DEMATEL model is developed to identify the importance and classification of risk criteria and to build the cause–effect diagram. The framework of the risk analysis model is shown in Figure 3.

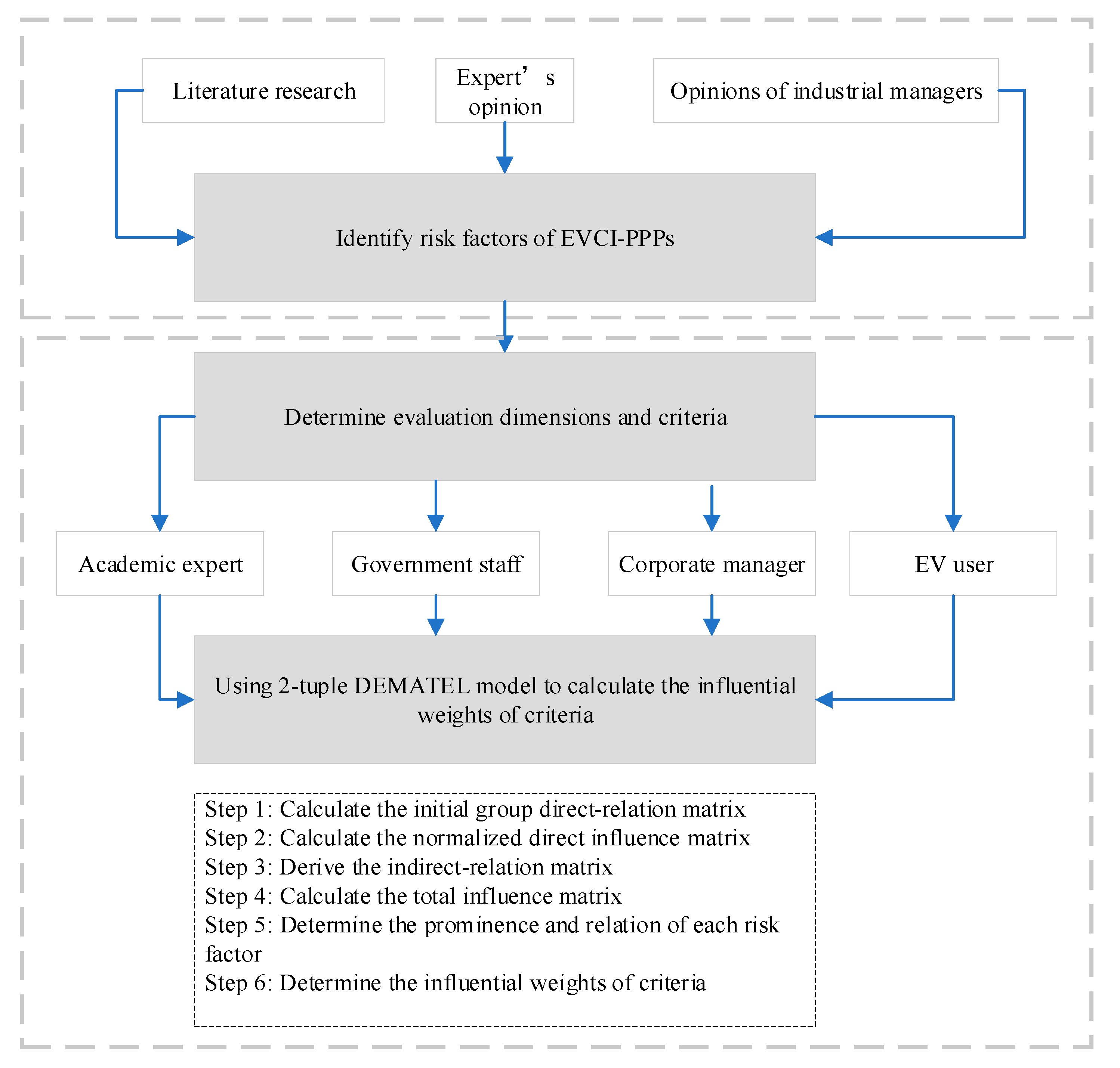

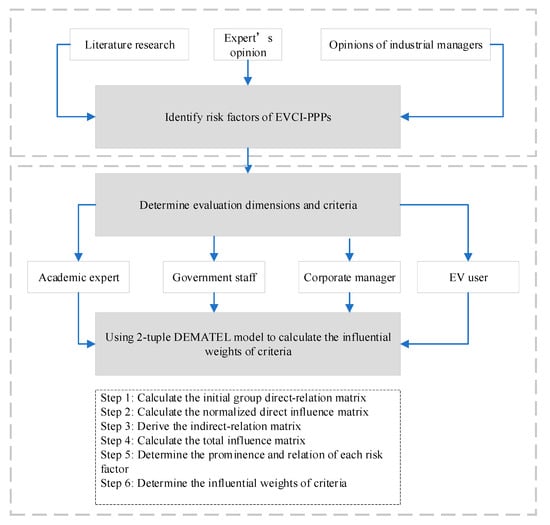

The formulating steps of the classical DEMATEL technique are described below [54].

Step 1: Calculate the direct-relation matrix.

Let $\mathrm{C}=\left\{c_1,c_2,\cdots ,c_n\right\}$ be a risk factors set, $c_j$ be the $j$th criteria, $j=1, 2,\cdots ,n$. $E=\left\{e_1,e_2,\cdots ,e_K\right\}$ is an experts’ decision set, $e_K$ is the $k$th expert, $k=1, 2,\cdots ,K$. In this step, each expert uses a five level scale to rate the risk factors and form a direct relationship matrix.

$$\begin{array}{c}\mathrm{S}=\{s_0=\mathrm{No}\mathrm{influence}\left(\mathrm{NO}\right),s_1=\mathrm{Very}\mathrm{low}\mathrm{influence}\left(\mathrm{VL}\right),s_2=\mathrm{Low}\mathrm{influence}\left(\mathrm{L}\right),\\ s_3=\mathrm{High}\mathrm{influence}\left(\mathrm{H}\right),s_4=\mathrm{Very}\mathrm{high}\mathrm{influence}\left(\mathrm{VH}\right)\}.\end{array}$$

On the basis of this function, defined by Equations (1) and (2), initial direct-relation matrices, $Z_k={\left[z_{ij}^k\right]}_{n\times n}$, are transformed into ${\widehat{Z}}_k={\left[{\widehat{z}}_{ij}^k\right]}_{n\times n}$, ${\widehat{z}}_{ij}^k=\left(z_{ij}^k,0\right),k=1, 2,\cdots ,m, i,j=1, 2,\cdots ,n$. The group direct-influence matrix can be computed by using the 2-tuple arithmetic mean operator as Equation (6).

$${\widehat{z}}_{ij}=\left(z_{ij},{\alpha }_{ij}\right)=\nabla \left(\frac{1}{k}{{\displaystyle \sum }}_{k=1}^K{\nabla }^{-1}\left(z_{ij}^k,0\right)\right)$$

(6)

where $z_{ij}\in S,{\alpha }_{ij}\in \left[-0.5, 0.5\right),i,j=1, 2,\cdots ,n$

Step 2: Compute the normalized direct-influence matrix.

The normalized direct-relation matrix $\mathrm{X}={\left[x_{ij}\right]}_{n\times n}$ is computed as follows:

$$x_{ij}=\frac{{\Delta }^{-1}\left(z_{ij},{\alpha }_{ij}\right)}{s}$$

(7)

where $\mathrm{s}=\max \left\{\underset{1\le i\le n}{\max }{{\displaystyle \sum }}_{j=1}^n{\nabla }^{-1}\left(z_{ij},{\alpha }_{ij}\right)\right\},0\le x_{ij}\le 1,i,j=1,2,\cdots ,n.$

There is at least one element $i$ in the matrix X to let the following inequality exist:

$${\displaystyle \sum }_{\mathrm{j}=1}^n{\nabla }^{-1}\left(z_{ij},{\alpha }_{ij}\right)\le s$$

Step 3: Derive the indirect-relation matrix.

According to essential ideas of DEMATEL, indirect-relation matrix H can be derived as follows:

$$\mathrm{H}=\underset{\tau \to \infty }{\lim }\left(X^2+\cdots +X^{\tau }\right)=X^2{\left(I-X\right)}^{-1}$$

(8)

where I is the identity matrix.

Step 4: Generate the total relation matrix.

On the basis of $X={\left[x_{ij}\right]}_{n\times n}$ and $H={\left[h_{ij}\right]}_{n\times n}$, an overall-relation matrix $T={\left[t_{ij}\right]}_{n\times n}$ is generated by Equation (9).

$$t_{ij}=x_{ij}+h_{ij}, i,j=1,2,\cdots ,n.$$

(9)

where $t_{ij}$ is the overall intensity of the direct and indirect interrelationship between $c_i$ and $c_j$.

Step 5: Obtain the prominence and relation of each risk criteria.

In this step, the influence degree $r$—the sum of rows—and the degree of being influenced $c$—the sum of columns—can be determined based on Equations (10) and (11).

$$r={\left[r_i\right]}_{n\times 1}={\left({{\displaystyle \sum }}_{j=1}^n{t}_{ij}\right)}_{n\times 1},i=1,2,\cdots ,n$$

(10)

$$c={\left[c_j\right]}_{n\times 1}={\left({{\displaystyle \sum }}_{i=1}^n{t}_{ij}\right)}_{1\times n}^T,j=1,2,\cdots ,n$$

(11)

Let $P_i$ denote the prominence of risk factors $c_i$, which represents the importance of risk factor $c_i$. $P_i$ is calculated by Equation (12).

$$P_i=r+c={{\displaystyle \sum }}_{j=1}^n{t}_{ij}+{{\displaystyle \sum }}_{i=1}^n{t}_{ij}$$

(12)

Let $R_i$ denote the relation of risk factor $c_i$. Here, $R_i$ is expressed as Equation (13).

$$R_i=r-c={{\displaystyle \sum }}_{j=1}^n{t}_{ij}-{{\displaystyle \sum }}_{i=1}^n{t}_{ij}$$

(13)

where $i,j=1,2,\cdots ,n$.

Through the value of $R_i$, we can judge where risk factor $c_i$ is a cause risk factor or an effect risk factor. If $R_i>0$, $c_i$ is a cause risk factor, which indicates the factor influences other criteria. On the contrary, $R_i<0$, $c_i$ is an effect risk factor, which is easily influenced by other risk factors.

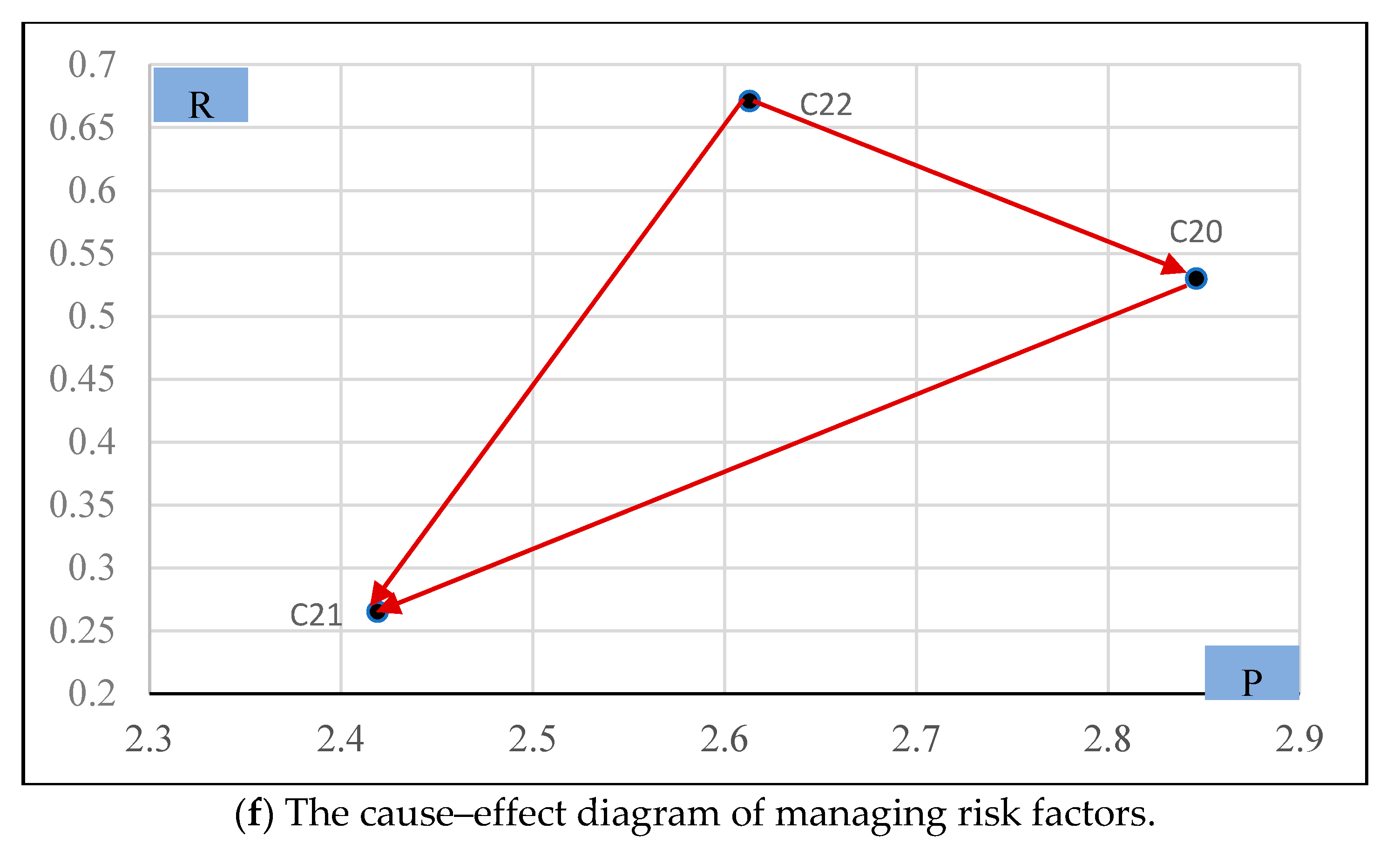

On the basis of prominence $P_i$, horizontal axis, and relation $R_i$ vertical axis, $i=1, 2,\cdots ,n$, a cause–effect diagram can be constructed to visualize the importance and classification of overall risk criteria. According to this cause–effect diagram, the government and private decision makers could take target measures to control EVCI-PPP projects’ risk.

Step 6: Determine the influential weights of criteria.

The relative importance of the risk factors can be determined by Equation (14).

$$w_j={\left[{\left(P_i+R_i\right)}^2+{\left(P_i-R_i\right)}^2\right]}^{\frac{1}{2}}$$

(14)

The weight of any criterion can be normalized by Equation (15).

$$\overline{w_j}=\frac{w_j}{{{\displaystyle \sum }}_{j=1}^n{w}_j}$$

(15)

where $\overline{w_j}$ is the final weights of risk factor $c_i$. Consequently, the influential weight of each risk factor could be obtained by the modified 2-tuple DEMATEL method. Moreover, decision makers can control risk and take targeted measures based on the weights of risk criteria.

5. Data Analysis and Results

To identify and analyze the risk factors of EVCI-PPP projects, significant literature research related to risk management of PPP projects was conducted, and four decision makers (denoted by D1, D2, D3, and D4) were invited to give the direct impact of each factor on others; the backgrounds of the decision makers are shown in

Table 2. Background of decision makers.

Decision Maker	Department	Work Experience
D1	China Public Private Partnerships Center	8
D2	North China Electric Power of University	12
D3	TGOOD	10
D4	an EV user	7

Note: TGOOD is the abbreviation of Qingdao TGOOD Electric Co.,Ltd in China.

. This decision makers group involves a government official, an academic expert, a construction company manager, and an EV user. They have studied in the PPP field for more than five years, and the EV user has been a frequent user of EV services for a long time. On the basis of their extensive working experience, a linguistic term of the first level is obtained, as illustrated in

Table 3. The initial direct-relation matrices by decision makers. PL—political/legal risk; EM—economic/market risk; SE—social/environment risk; PT—project/technical risk; MR—managing risk; NO—no influence; VL—very low influence; L—low influence; H—high influence; VH—very high influence.

Decision Maker	D1					D2					D3					D4
Criteria	PL	EM	SE	PT	MR	PL	EM	SE	PT	MR	PL	EM	SE	PT	MR	PL	EM	SE	PT	MR
PL	NO	VH	L	H	VL	NO	H	L	VL	NO	NO	L	VL	VL	VL	NO	H	L	L	L
EM	VL	NO	VL	H	H	L	NO	H	L	NO	VL	NO	VL	L	VL	VL	NO	L	H	VL
SE	L	VH	NO	H	L	VL	VL	NO	NO	VL	VL	VL	NO	L	NO	L	L	NO	H	NO
PT	VL	L	VL	NO	VL	NO	VH	L	NO	NO	VL	VL	NO	NO	NO	VL	VH	L	NO	L
MR	L	L	L	L	NO	VL	NO	L	NO	NO	NO	VL	VL	L	NO	VL	L	VL	H	NO

.

On the basis of ${\overline{D}}^e$ expressed in Equation (4), the values in Table 1 are transformed into the group direct-relation matrix $\tilde{Z}$.

$$\tilde{Z}=\left[\begin{array}{ccccc}(NO,0)& (H,0)& (L,-0.25)& (L,-0.25)& (VL,0)\\ (VL,0.25)& (NO,0)& (L,-0.25)& (H,-0.5)& (VL,0.25)\\ (L,-0.5)& (L,0)& (NO,0)& (L,0)& (VL,-0.25)\\ (VL,-0.25)& (H,-025)& (VL,0.25)& (NO,0)& (VL,-0.25)\\ (VL,-0.25)& (VL,0.25)& (L,-0.5)& (L,-0.25)& (NO,0)\end{array}\right]$$

The normalized direct-relation matrix X is computed based on Equation (7), as shown in

Table 4. Normalized direct-relation matrix X.

	PL	EM	SE	PT	MR
PL	0	0.400	0.233	0.233	0.133
EM	0.167	0.000	0.233	0.333	0.167
SE	0.200	0.267	0.000	0.267	0.100
PT	0.100	0.367	0.167	0.000	0.100
MR	0.100	0.167	0.200	0.233	0.000

.

The indirect-relation matrix H is calculated by Equation (8), as shown in

Table 5. Indirect-relation matrix H.

	PL	EM	SE	PT	MR
PL	0.751	1.296	0.974	1.245	0.651
EM	0.641	1.252	0.860	1.068	0.566
SE	0.607	1.147	0.869	1.045	0.562
PT	0.569	0.979	0.756	0.992	0.505
MR	0.527	0.975	0.692	0.875	0.474

.

Table 6. Total-relation matrix T.

	PL	EM	SE	PT	MR
PL	0.751	1.696	1.207	1.478	0.784
EM	0.808	1.252	1.093	1.401	0.733
SE	0.807	1.414	0.869	1.312	0.662
PT	0.669	1.346	0.923	0.992	0.605
MR	0.627	1.142	0.892	1.108	0.474

shows the total-relation matrix T based on Equation (9).

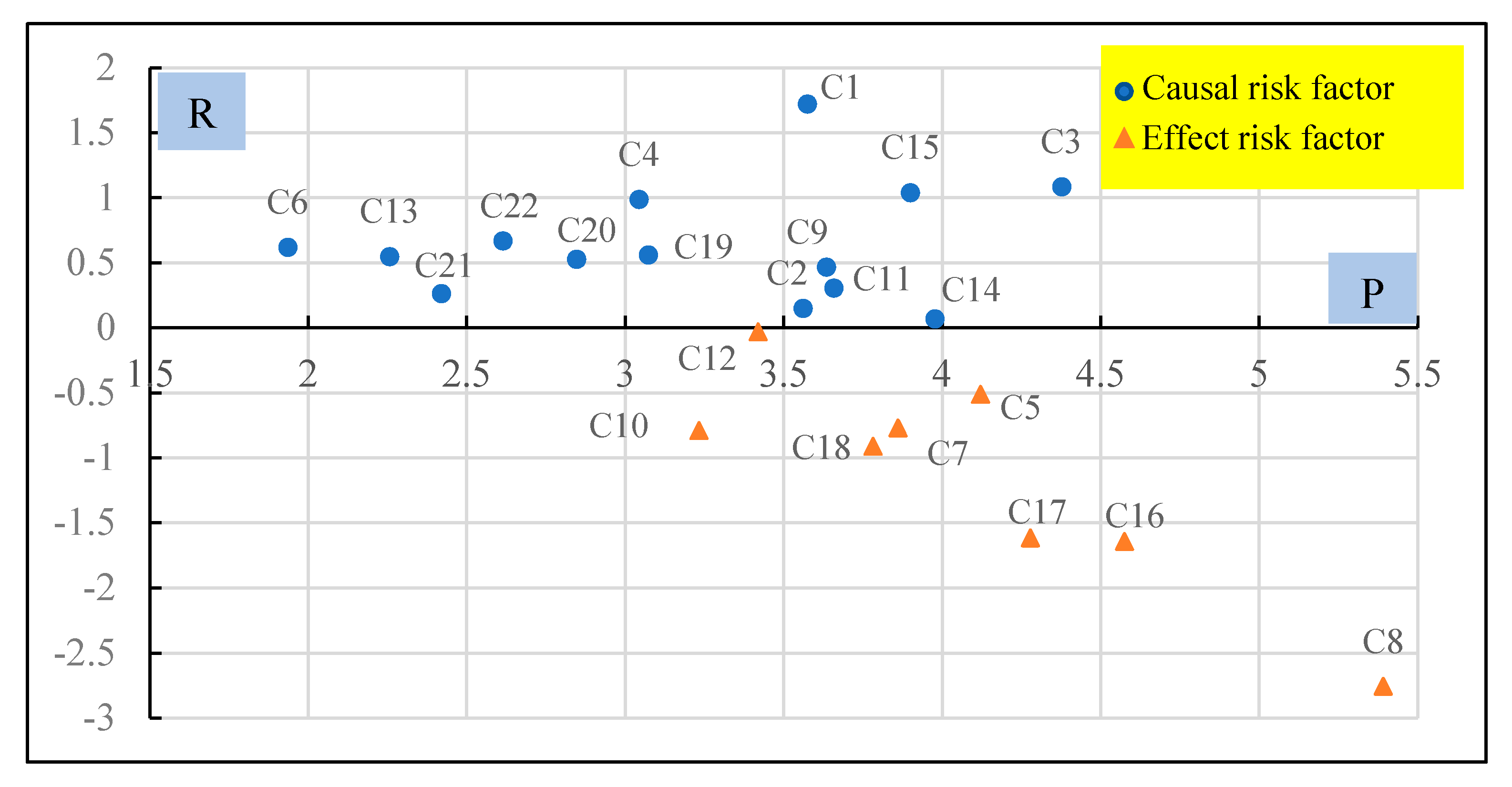

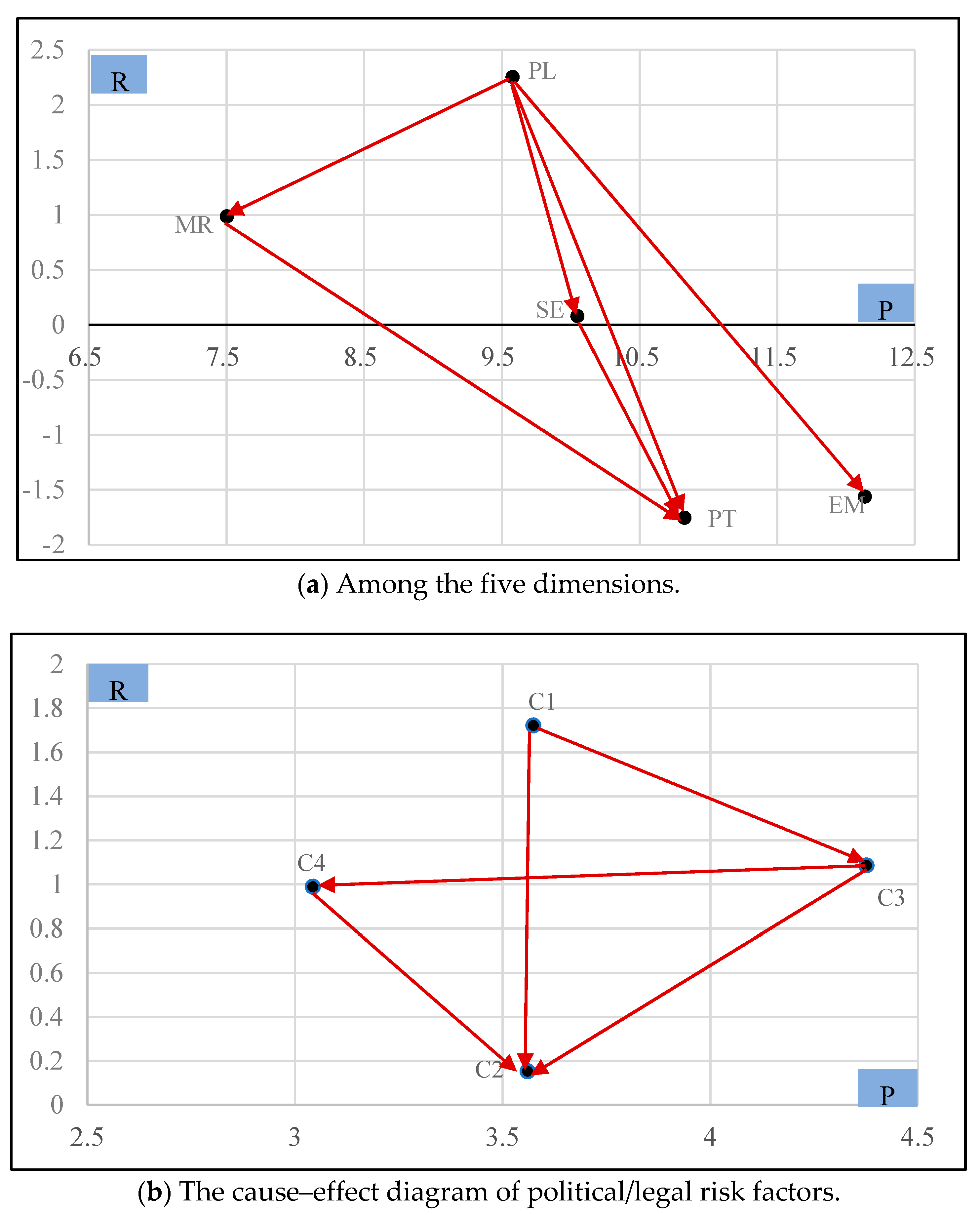

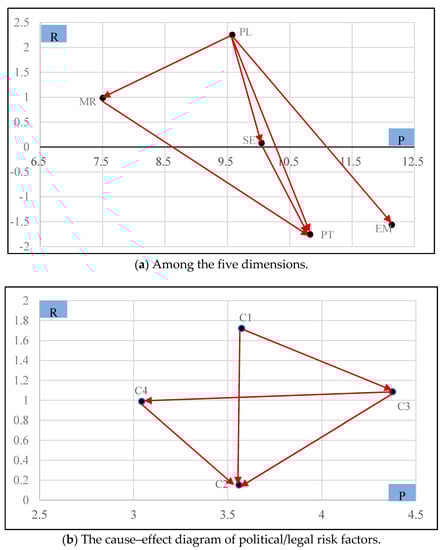

Influences among the criteria (prominence and relation) and their relative weights of risk factors in dimensions can be depicted from Equations (10) to (13), as shown in

Table 7. Influences among the criteria and their relative weights of risk factors.

	r	c	P	R	${\mathit{w}}_{\mathit{j}}$	$\overline{{\mathit{w}}_{\mathit{j}}}$	Rank
PL	5.915	3.663	9.578	2.252	9.839	0.194	4
EM	5.287	6.850	12.137	−1.563	12.237	0.242	1
SE	5.064	4.985	10.049	0.079	10.049	0.198	3
PT	4.536	6.291	10.827	−1.755	10.968	0.216	2
MR	4.244	3.259	7.503	0.986	7.567	0.149	5

.

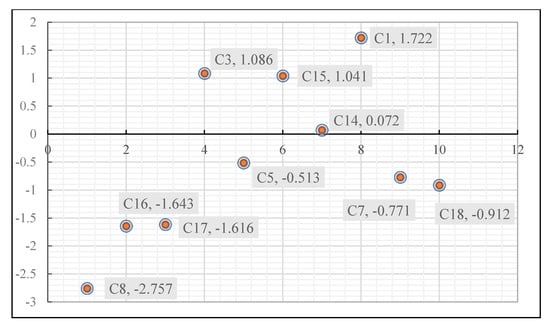

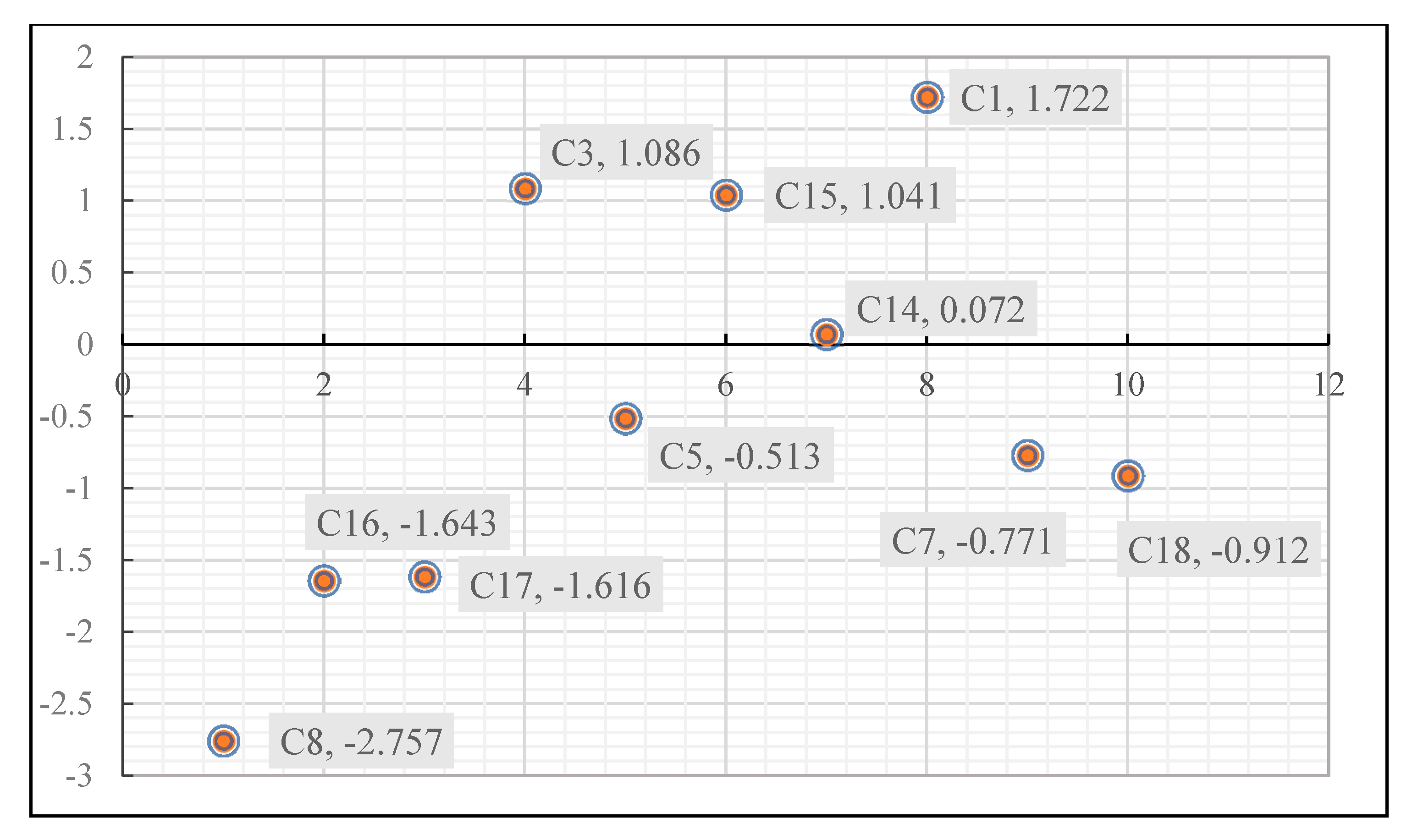

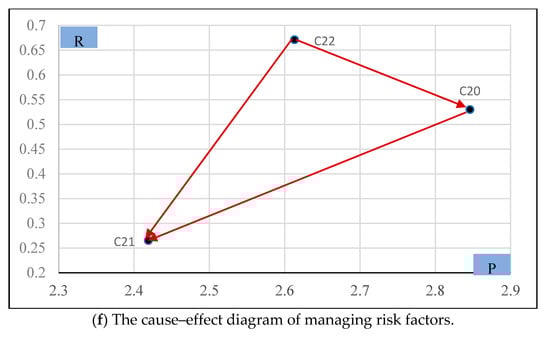

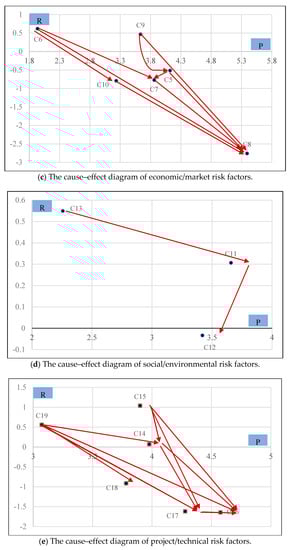

Meanwhile, influences among risk factors and their relative weights in C level can be calculated, as shown in

Table 8. Influences among risk factors and their relative weights in C level.

	r	c	P	R	${\mathit{w}}_{\mathit{j}}$	$\overline{{\mathit{w}}_{\mathit{j}}}$	Rank
C1	2.648	0.926	3.574	1.722	15.739	0.051	8
C2	1.856	1.704	3.560	0.152	12.697	0.041	13
C3	2.731	1.645	4.376	1.086	20.329	0.065	4
C4	2.016	1.027	3.043	0.989	10.238	0.033	16
C5	1.804	2.317	4.121	−0.513	17.246	0.056	5
C6	1.278	0.657	1.935	0.621	4.130	0.013	22
C7	1.545	2.316	3.861	−0.771	15.502	0.050	9
C8	1.317	4.074	5.391	−2.757	36.664	0.118	1
C9	2.051	1.583	3.634	0.468	13.425	0.043	12
C10	1.221	2.012	3.233	−0.791	11.078	0.036	15
C11	1.982	1.675	3.657	0.307	13.468	0.043	11
C12	1.693	1.726	3.419	−0.033	11.691	0.038	14
C13	1.403	0.853	2.256	0.550	5.392	0.017	21
C14	2.024	1.952	3.976	0.072	15.814	0.051	7
C15	2.47	1.429	3.899	1.041	16.286	0.052	6
C16	1.466	3.109	4.575	−1.643	23.630	0.076	2
C17	1.331	2.947	4.278	−1.616	20.913	0.067	3
C18	1.435	2.347	3.782	−0.912	15.135	0.049	10
C19	1.817	1.255	3.072	0.562	9.753	0.031	17
C20	1.688	1.158	2.846	0.530	8.381	0.027	18
C21	1.342	1.077	2.419	0.265	5.922	0.019	20
C22	1.642	0.971	2.613	0.671	7.278	0.023	19

(because of space limitations, only calculation results are given here).

The results show that the factor of government intervention (C3) is the most important risk criterion ($\overline{w_j}$ = 0.065) in the PL risk dimension, while the criterion of delay in project approvals and permits (C2) is the least important factor ($\overline{w_j}=0.042)$. EVCI-PPP projects have obvious geographical features. The local government may impose clauses on the contract to increase regional economic returns, for example, hiring local employees and using local building materials, which hinder the normal operation of PPP projects.

Revenue risk (C8), with an influence weight of 0.069, is the most important risk factor in the EM risk dimension. Following this, financial risk (C5) ($\overline{w_j}=0.056$) and payment risk (C7) ($\overline{w_j}=0.050$) are the second and third risk factors, respectively. For private investors, achieving acceptable revenue is the main purpose and revenue of projects is influenced by various risk elements.

Among the SE risk criteria, public opposition (C11) is the most significant criterion, with $\overline{w_j}=0.043$. The land acquisition (C12) and environmental risk (C13) are the second and third important factors in SE dimension, respectively. To ensure the charging revenue, public charging facilities are installed in dense business districts. However, urban land is tight, and the large-scale construction of charging facilities is inseparable from government support.

Completion risk (C16) and construction/operation cost overrun (C17) are the two significant elements with weights of 0.076 and 0.067, respectively, under the PT risk dimension. Multiple factors may delay the project and cause completion risk, such as inadequate PPP experience, weather risk, force majeure, and so on.

Likewise, in the MR dimension, misallocation of rights and responsibilities (C20) ($\overline{w_j}=0.027$) is viewed as the most critical criterion, compared with others such as lack of communication (C22) and poor fund supervision (C21). Risk and uncertainty are associated with any phase in the life of a PPP project, and significantly influence a project’s outcomes. Consequently, risk allocation is a determinant of PPP projects. Inappropriate allocation of risks leads to inefficiency of management and high costs, and reduces the participation of private sectors in EVCI-PPP projects.

As shown in Table 8, the results illustrate the superficial dependence existing among 5 dimensions and 22 criteria. Furthermore, a cause–effect diagram is constructed with the vertical axis R named “Relation” and the horizontal axis P named “Prominence”, as showed in Figure 4. Through the values of R, risk criteria are divided into two groups: the cause group (R > 0, over the horizontal axis P) and effect group (R < 0, under the horizontal axis P). Moreover, the values of P present how important the factor is. The importance of risk factors is ranked as follows: C8 > C16 > C17 > C3 > C5 > C15 > C14 > C1 > C7 > C18 > C11 > C9 > C2 > C12 > C10 > C4 > C19 > C20 > C22 > C21 > C13 > C6. As illustrated in Figure 4, the causal factors are C10, C3, C9, C4, C15, C1, C19, C22, C14, C20, C21, C22, C6, and C13, and are ranked as follows: C1 > C3 > C15 > C4 > C22 > C6 > C19 > C13 > C20 > C9 > C11 > C21 > C2 > C14. The following risk factors are attributed to the effect group, and are ranked as C12 > C5 > C7 > C10 > C18 > C17 > C16 > C8.

On the basis of Figure 4, C1 has the highest R score among all risk criteria, which demonstrates that C1 is the primary causal factor. Thus, to avoid the chain reaction, relevant policy and law should be adopted to advance the sustainable development of EVCI-PPP projects. Meanwhile, C8 is the most important factor with the highest P value, which means that C8 is in a vital stage in the success of EVCI-PPP projects in China.

6. Discussion

On the basis of Figure 5a, EM and PT risk have more influence on the other three risk dimensions. This demonstrates that decision makers should consider EM and PT risk dimensions first when operating EVCI-PPP projects. The revenue of charging infrastructure projects is affected by the fluctuating market, especially in the open market. The purpose of social capital investment in charging facility projects is to realize profits. Therefore, the economic/market risk dimension is the most important criterion for EVCI-PPP projects, which should be given priority by project managers.

From Figure 5b in the PL risk dimension, it can be found that C1, C2, C3, and C4 are causal factors and can be sorted as C1 > C3 > C4 > C2, according to R score. Meanwhile, C3 is the most significant factor in this dimension, which means that the government should not over-interfere with the design, financing, construction, and operation to ensure the normal operation of PPP projects. The risk factor C2 is influenced by other three risk criteria. This means that two parties, especially the government, should take some measures to increase the efficiency of approvals and permits.

As shown in Figure 5c, C6 and C9 are classed into the causal group in the EM risk dimension. The insufficient market share of EVs has a large p value, which shows that C9 is a more significant risk factor in this dimension. A sufficient market share of EVs is the basic guarantee for the operation of charging facilities. The risk factors of C5, C7, C8, and C10 are indicated as influenced risks and can be ranked as C5 > C7 > C10 > C8 by R values. Meanwhile, C8 is the most important risk criterion in this dimension. As for influence relations, C5, C6, C7, C9, and C10 influence C8. This indicates that the revenue risk plays an important role in EVCI-PPP projects.

As illustrated in Figure 5d, C11 and C13 are classified into the causal group and C12 is the effect element. They are scored as C13 > C11 > C12. With the respect to the influence relations, C13 has a large effect on C11 and C12, and C11 influences C12. The environment risk and public opposition will increase the difficulty of land acquisition.

On the basis of Figure 5e, it can be found that in the PT risk dimension, C14, C15, and C19 are causal factors, while C16, C17, and C18 are effect factors. They are ranked as C15 > C14 > C19 > C18 > C17 > C16, according to R scores. C15 and C19 have a significant effect on other risk criteria, which demonstrates that PPP project experience is essential in order to have the concession to construct and operate EVCI-PPP projects. Additionally, updated charging technology brings certain difficulties to the construction and operation. Operators need to put effort and funds into updating equipment and training employees, which may have a negative effect on cost overrun and completion. Furthermore, C16 is the most significant criterion in this risk group. This indicates that taking target measures to control the completion is beneficial to the success of PPP projects.

On the basis of Figure 5f, the ranking of MR criteria is C22 > C20 > C21, according to R scores, and C20, C21, and C22 are all in the cause group. With respect to the influence relation, C22 has influences on C20 and C21, and C20 influences C21. In practical situations, the PPP mode emphasizes the partnership between the government and concessionaire, thus sound communication between two parties is important for the success of EVCI-PPP projects. The private partners are responsible for financing, construction, and operation. Correspondingly, they should burden the risks of financing risk, completion risk, and cost overrun risk. Furthermore, the government should assist them in access to land use rights, auditing the items, and planning permits to guarantee that the private sector constructs PPP projects legally. The appropriate allocation of rights and responsibilities helps give play to their respective advantages of the government and private sectors, which achieves a win–win situation.

6.1. Cause Group

As shown in Figure 4, 14 criteria are classified into the cause group with positive R scores. Among the factors of the causal group, C1 has the highest value of R, which indicates that it has more effect on EVCI-PPP projects than it receives from other criteria. Additionally, the degree of influential impact (2.648) of C1 has the second largest value among the factors, demonstrating that C1 has a great influence on other risk factors. In China, charging infrastructure is in nurturing stage, and is affected by many uncertain factors, especially from the EV industry policies, region regulations, PPP laws, and so on. Changes in any chain will affect the success of EVCI-PPP projects. The risk factor C3, with the highest p score, has the second highest value of R, and its influential impact degree (2.731) is the highest among all the factors, which demonstrates that government intervention has a great effect on the operation of projects. Both the ${\mathrm{r}}_i$ and ${\mathrm{c}}_i$ values of C15 are relatively higher, and it has a high p value (3.899) and the third highest value of R, which implies that PPP project experience should be paid more attention when choosing concessionaire. C6 has the lowest p value in this group and both the ${\mathrm{r}}_i$ and ${\mathrm{c}}_i$ values are not high enough, which means that C6 lacks great importance in this system, and it is unnecessary to take C6 into consideration.

6.2. Effect Group

The criteria belonging to the effect group tend to be influenced by others. The risk criteria, namely, C5, C7, C8, C10, C12, C16, C17, and C18, are divided into the effect group. The factor C8 has a high p value (5.391), which ranks first among all the elements, indicating that C8 is very significant in EVCI-PPP projects. In addition, C8 has the lowest value of R, meaning that it is easily affected by other risk criteria. The R-value of the factor C12 is slightly below 0, suggesting that it is just slightly net affected by other factors. The significant degree P of C12 is 3.419, which is not high enough to take target measures to control it. The effect factors, C16, C17, and C18, have the same common features. Although they have high p values, their degree of influential impact is not high enough, which indicates that they can be easily avoided by adjusting other factors.

7. Suggestions

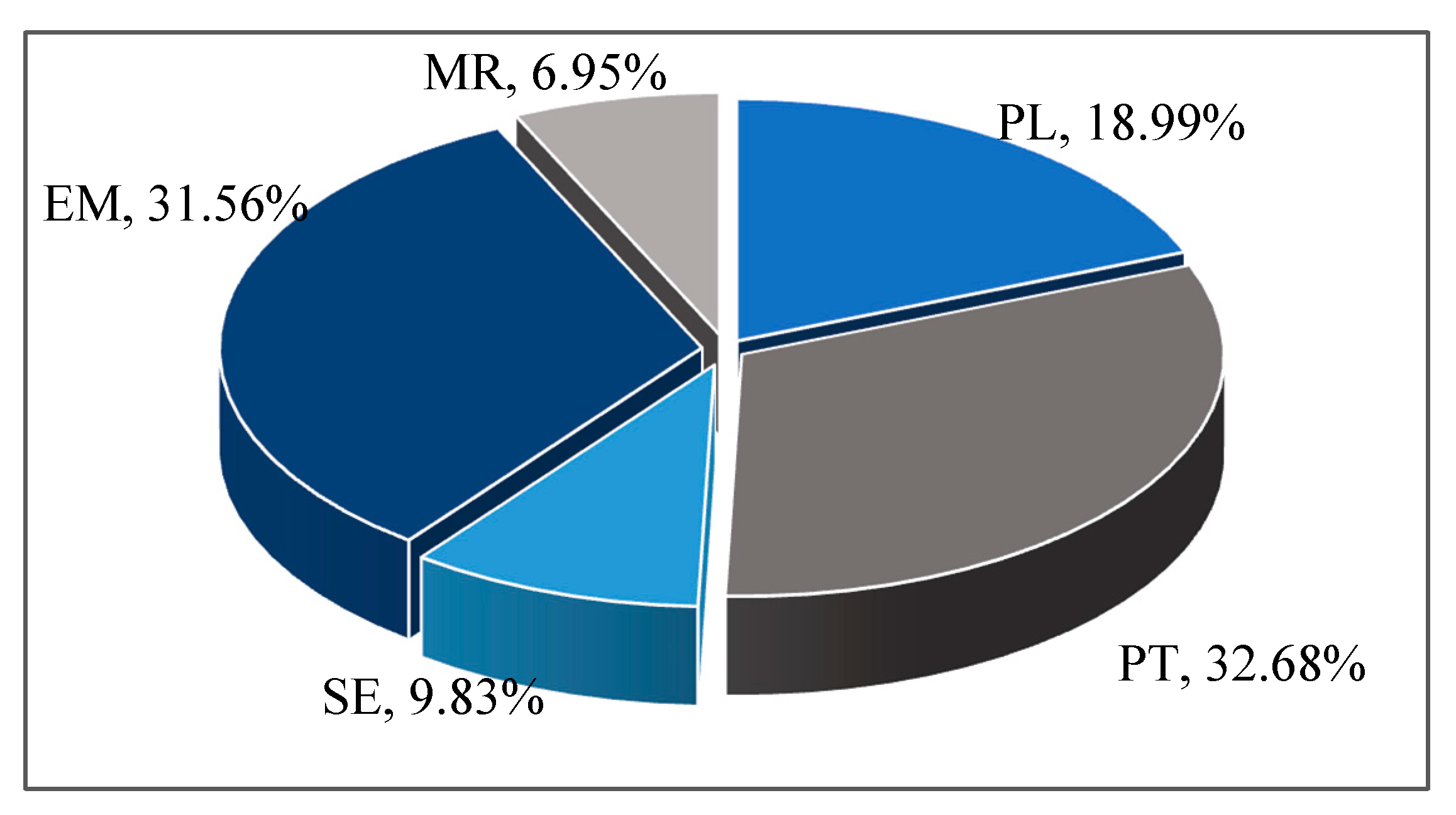

The risk categories are classified into five aspects: political/legal risk (PL), economic/market risk (EM), social/environment risk (SE), project/technical risk (PT), and managing risk (MR). The criteria weights are 18.99%, 31.56%, 9.83%, 32.68%, and 6.95%, respectively, as shown in Figure 6. The risk categories of PT and EM are significant to EVCI-PPP projects, to which close attention should be paid.

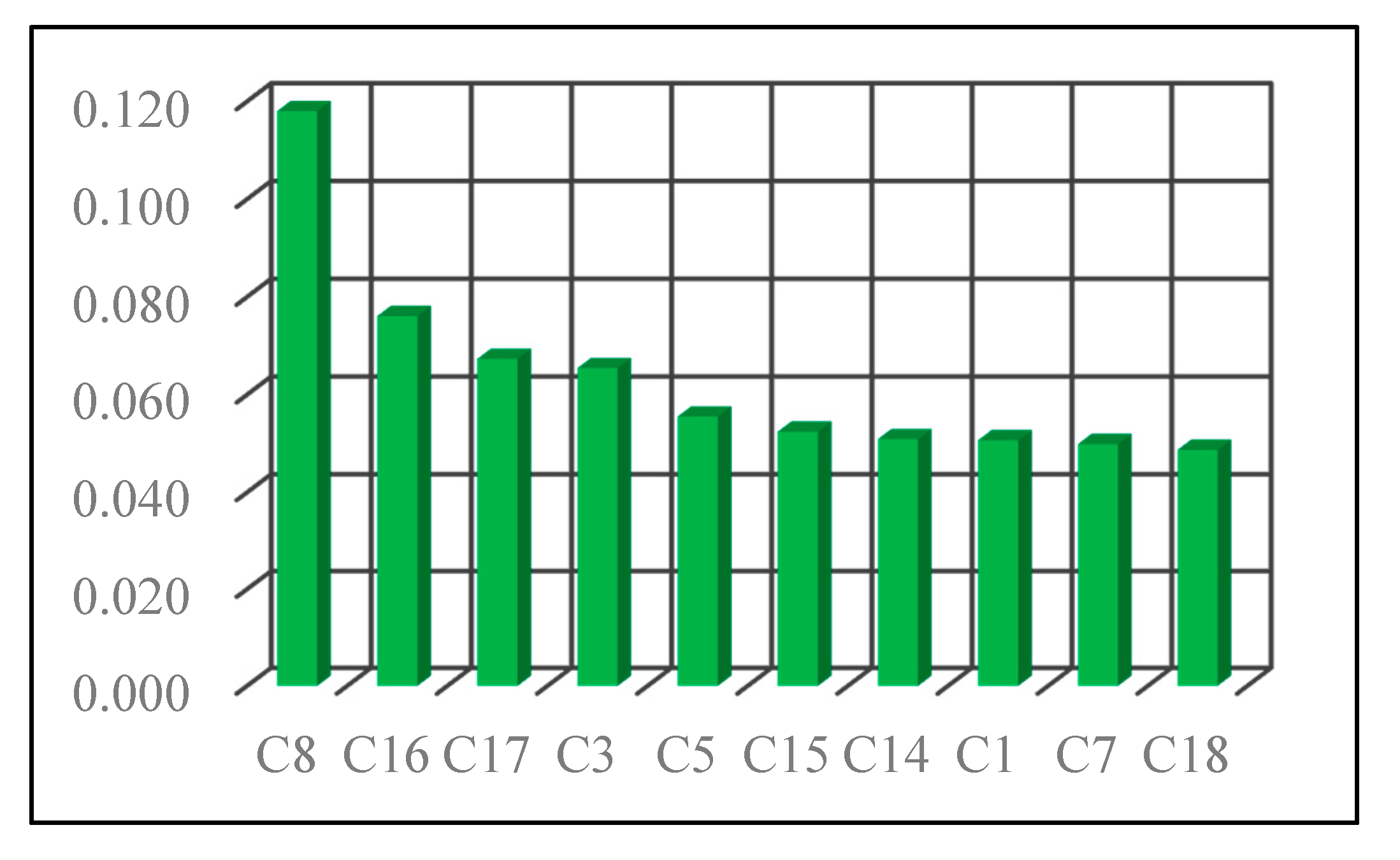

In the sub-criteria, the criterion C8 has the highest weight among the 22 criteria (see Figure 7), and the top 10 criteria affecting EVCI-PPP projects are determined—namely, revenue risk, poor completion risk, construction/operation cost overrun, government intervention, financial risk, inadequate PPP project experience, poor construct design, change in policy and low, payment risk, and unsatisfactory charging service. Among these top 10 risk factors, there are 4 causal criteria (above the horizontal axis) and 6 effect criteria (below the horizontal axis), as presented in Figure 8.

On the basis of the calculation results, this section provides some suggestions from five aspects to mitigate the risks of projects.

7.1. Political/Legal Aspect

A sound political framework is fundamental to the success of the PPP model in becoming popular in EVCI projects. Currently, the development of EVs and charging facilities benefit from adventurous policies. Although current political attitude is the incentive, changes in incentive policies in the future may bring indefinite effects on PPP projects, because EVCI-PPP projects have a long-term period and are influenced by the political policies of the EV industry and PPP regulations. For this concern, the government should promote policy changes step by step. Meanwhile, the private operators should focus on the changes of industry policies and establish a close corporation with relevant departments to ensure support for approvals and permits. Besides, to enable charging operators to give the superiority of management, the government should reduce unreasonable interventions, simplify the approval process, and improve work efficiency. The competent government departments should establish the green channel for regulating the approval, simplifying the permits, and optimizing the procedures. Furthermore, increasing the transparency of bidding can effectively avoid government corruption and reduce project risks.

7.2. Economic/Market Aspect

Economic risks come from the market—high inflation rates, financial risk, payment, and revenue, and so on. The market of financial and charging demand is changeable and cannot be identified precisely, which demonstrates that economic/market risk is uncontrollable. Charging revenue depends on government subsidy, charging volume, and charging fee. In order to guarantee the private sectors’ revenues, the ‘‘take or pay” clause is a universal measure in EVCI-PPP projects [20]. On the basis of our investigations, the concession contract not only sets government acquisitions terms and the minimum attractive rate return, but also regulates the maximum charging price to avoid super-profit. Charging volume is influenced by EVs’ market share. Thus, multiple measures should be taken to popularize the usage of EVs, for example, increasing the investment of R&D (research and development) of EVs, reducing the comprehensive cost of EVs, and improving the coverage of EVs. Concerning completion risk, although PPP projects are characterized by monopoly, various charging supply methods, battery changing, private charging piles, and so on damage the uniqueness of EVCI-PPP projects. Operators must conduct a market survey, select outstanding charging station sites, and optimize infrastructure layout to improve the competitiveness of EVCI-PPP projects and reduce the completion risk. Furthermore, to minimize payment risk, the payment of process, time, and amount of charging subsidy should be stipulated in the concession agreement. The government and private partners should work together to avoid EM risks.

7.3. Social/Environment Aspect

Social/environment risks arise from three aspects; namely, public opposition, land acquisition, and environmental risk. Public opposition and environmental risk can increase the risk of land acquisition. It is required that private sectors should adopt environmentally-friendly materials and apply advanced technologies to reduce environmental pollution. Furthermore, the government must reserve special land resources for charging infrastructure and assist social capital to obtain construction land legally. Only cooperation of the government and private sectors can reduce the occurrence of social/environment risk.

7.4. Project/Technical Aspect

To avoid the risks of projects, the government should establish a reasonable evaluation index system, and implement a competitive mechanism to choose appropriate social capitals. The partners would do better to have experience in PPP projects; perform well in financing, construction, and design; and, finally, provide sound charging services to solve the current problem of charging mileage. Additionally, the operators should optimize the construction layout at various stages, especially in the construction and operation phase, controlling the construction cost and period strictly. On the technical level, because the charging operators are in a weak position in the overall EV industrial chain, and the participation of car companies is relatively low, the upgrade of power charging battery technology is difficult to coordinate. At the same time, although the total amount of charging facilities is large, the technical level is low, and various charging facilities can only achieve one-way charging, which means it is difficult to interact with the grid in terms of charging technology and makes it difficult to achieve charging interaction of the power grid. To overcome the above issues, the government could select excellent car companies for the shortlist when choosing partners. Furthermore, the operators also need to pay more attention to the technology limitations and use advanced technology to provide intelligent charging services.

7.5. Managing Aspect

Communication is the basis for cooperation between two parties, the government and concessionaire. Strengthening the exchange of information can promptly reveal problems in cooperation and measures can be taken to prevent them from aggravating. In the early stage of projects, the government and private sectors should make detailed regulations on risks, benefits, rights, and obligations to avoid dereliction and blaming. The government should supervise finances to prevent social capital from abusing public funds and defrauding subsidies. Although the government’s role is irreplaceable in PPP projects, the private investors should bear some obligations, such as providing quality charging service, a low charging price, and so on. Only through effective coordination between the government and concessionaire can the success of EVCI-PPP projects be ensured [15].

8. Conclusions

Risk identification and analysis is critical to ensuring the success of EVCI-PPP projects, as risks are present throughout the whole life of the projects. The interrelationships among criteria are always neglected in the existing research. This paper developed a risk identification and analysis model based on 2-tuple and the DEMATEL technique to investigate internal relations among risk factors of EVCI-PPP projects, which can be applied by the government and concessionaire to allocate resources and control risks. The results show that the two dimensions of economic/market risk and project/technical risk are critical to EVCI-PPP projects. On the basis of the cause–effect relationships, revenue risk (C8) is the most affected risk factor, and change in policy and law (C1) is a significant causal factor. Thus, the government and decision makers should focus on C8 and C1 when popularizing the PPP model in charging infrastructure projects. In the whole life cycle, the projected revenue is not only related to the operation itself, but also to the related industry policies and market volume of electric vehicles. Incentive policies, such as subsidies and reserved land, have an important influence on the sustainable development of EVCI-PPP projects. Thus, the government should establish a sound political framework for EVCI-PPP projects.

The interrelationships among different risk factors that have an influence on the identification of the importance and controlling risk factors are investigated. This consideration involves the domino effect among risk criteria in the process of risk identification and analysis, which is in accordance with real situations. Therefore, it is beneficial to the government and social capital to carry out risk management in EVCI-PPP projects.

This paper also has some limitations. Because of inadequate project experience in EVCI-PPP projects in China, risk identification has inevitable shortcomings. The risk factor set will be upgraded as the popularization of EVCI-PPP projects advances. Then, although 2-tuple fuzzy linguistic theory has the advantage of being able to deal with the evaluation issue in a linguistic environment, it does not work when the information is vague and incomplete. In terms of future research, a comprehensive risk evaluation system and new methods, such as interval and linguistic terms, will be considered.
