Future Internet 2019, 11(10), 207; https://doi.org/10.3390/fi11100207

Article
Threat Analysis for Smart Homes
1
Department of Information Security and Communication Technology, Norwegian University of Science and Technology, 2815 Gjøvik, Norway
2
Open University of Cyprus, 33 Giannou Kranidioti, Latsia 2220, Cyprus
3
Information Security Group, Royal Holloway University of London, Egham TW20 0EX, UK
*
This paper is an extended version of our paper published in The Proceedings of the 1st International Workshop on Security and Reliability of IoT Systems (SecRIoT 2019), entitled “Threat analysis in dynamic environments: The case of the smart home” © 2019 IEEE.
Received: 29 August 2019 / Accepted: 19 September 2019 / Published: 25 September 2019

Abstract

:
The development and deployment of highly dynamic, cyber+connected operational environments, such as smart homes, smart cities, and smart transportation systems, is increasing. The security analysis of such dynamic environments necessitates the use of dynamic risk assessment methodologies and the modeling of dynamically changing states. In this paper, we focus on the smart home environment, where the deployment of IoT devices increase the attack surface. We examine existing dynamic risk assessment methodologies, and by leveraging a smart home reference architecture we identify the security risks of a smart home’s physical and communication viewpoints, taking into consideration also dynamic operational aspects. Further, we develop a smart home network topology generator and a graph-based attack model to study dependencies among dynamically changing states and the propagation of a malware infection.
Keywords:
dynamic risk assessment; Internet of Things; Threat analysis; Smart Home; malware

1. Introduction

Dynamic environments are characterized by changes in their architecture, data flows, and operational processes. Such changes can appear periodically, continuously, or be event triggered. The Internet of Things (IoT) is a typical example of such an environment, with instantiations across various ecosystems such as smart homes, eHealth, vehicular networks, cloud computing and mobile communications. This dynamicity, along with the increased interconnectivity and enhanced operational features increase the attack surface of such ecosystems [1].
Smart homes is a typical instantiation of a dynamic ecosystem where the ICT penetration is significant since several types of connected devices and locally or remotely deployed services leverage ICT. Many works in the literature have introduced definitions for the “smart home” [2,3,4]. Smart homes can be defined by taking a social perspective or a technical viewpoint. The former describes the influence of the smart home to human and social needs, whilst the latter describes the systems, processes, services, and smart devices which are connected so as to facilitate control over the home’s ecosystem. A smart home is able to support diversified components and entities, such as utility suppliers, infrastructure providers and third party software or hardware vendors [5]. Due to this diversity, the attack surface of the smart home is increasing rapidly, since more security vulnerabilities are introduced, paving the way to an unreliable and insecure ecosystem. To this end, the European Union Agency for Cybersecurity (ENISA) [6] identified potential threats and proposed good practices for their mitigation.
Existing risk assessment methods are mostly suitable for static environments and systems. Dynamic environments such as those described above, require risk assessment methods able to cope with frequent changes in the environment. The scope of this work is to carry out a threat analysis for the smart home ecosystem, as the first step towards a comprehensive dynamic risk assessment method, by leveraging an existing smart home reference architecture.
Furthermore, by considering the technical viewpoint that defines the smart home environment, we design a smart home network topology generator, based on the existing reference architecture. Subsequently, to provide knowledge about the effects of the dynamic dependencies of the network on the propagation of a malware infection, we use the outputs provided by the topology generator to create a graph-based attack model. Our attack model is based on the initial hypothesis that at any given time t each node can be observed at a discrete state and. subsequently, after homogeneous intervals of time Δ t, it can either transit to another state or remain at the current state. The model assumes types of malware that use either random or localized scanning techniques. A malware that employs random scanning selects target IP addresses at random [7]. Localized scanning malware preferentially scans for hosts in the “local” address space, instead of selecting targets randomly [7].
The contributions of this paper can be summarized as follows: (i) a review of dynamic risk assessment methodologies appropriate for identifying and assessing risks within the smart home ecosystem; (ii) a threat analysis on an existing smart home reference architecture focusing on the data flows and cloud services; (iii) an algorithm for modeling and visualizing the dynamic changes in a smart home topology; and (iv) a study of the propagation of a malware infection in such networks, with the use of connected graphs.
The remainder of this paper is structured as follows: Section 2 reviews related work. In Section 3, we describe the reference architecture of the smart home. In Section 4, we briefly discuss the STRIDE (Spoofing, Tampering, Repudiation, Information Disclosure, Denial of Service, and Elevation of Privileges) method and Microsoft’s threat analysis tool, and we apply them in smart home scenarios of various complexity, to identify threats and to establish the attack surface variability in dynamic environments. In Section 5, we present the methodology used for developing a network topology generator, and, in Section 6, we present the attack model. In Section 7, we validate the outputs of the models previously designed by creating a network simulator. Finally, in Section 8, we summarize our conclusions and we propose directions for future work.
This paper is an extended version of the paper entitled “Threat analysis in dynamic environments: The case of the smart home” by Georgios Kavallieratos, Vasileios Gkioulos and Sokratis Katsikas that was published in the Proceedings of the 1st International Workshop on Security and Reliability of IoT Systems (SecRIoT 2019), held in conjunction with the 15th International Conference on Distributed Computing in Sensor Systems (DCOSS), Santorini Island, Greece, 2019, pp. 234–240 © 2019 IEEE [8]. Portions of the work in [8] are reused in the present paper. In particular, Section 1, Section 2, Section 3 and Section 4 and Section 8 follow closely [8], with some changes of an editorial nature. The additional contribution of this work over [8] is described in Section 5, Section 6 and Section 7.

2. Related Work

Several risk assessment methodologies for dynamic environments have appeared in the literature. Merrick et al. [9] proposed a risk modeling method for maritime transport. The authors considered simulations, expert judgment and available data, and proposed a method which handles multiple scenarios reflecting past, present and future operating procedures of the vessel’s ICT systems. Poolsappasit et al. [10] developed a framework for dynamic risk management that uses Bayesian attack graphs to address security issues in a network system. Puppala et al. [11] proposed a dynamic risk assessment system using an improved attack graph to assess dynamic risks in cloud computing, and proposed appropriate mitigation techniques. The authors used the Common Vulnerability Scoring system to initiate each node’s score in the attack graph. The Dynamical Risk Assessment Method for IoT inspired by AIS (DRAMIA) dynamic risk assessment method for the IoT was proposed by Kiu et al. [12]. DRAMIA consists of attack detection agents and sub-systems of dynamic risk assessment, which adopt immune system principles in order to dynamically change the attack detectors and estimate the risk according to the detection results of all attack detection agents. Naumov et al. [13] introduced a dynamic framework to assess cyber risks in continuously changing environments. However, this work is in a preliminary stage. The National technical authority for information assurance in the UK proposed a technical risk assessment and risk treatment standard [14] that is able to assess risks in dynamic systems or services where components are being regularly upgraded or replaced. A risk assessment engine for assessing cyber risks in real-time was also proposed by the WISER-Wide-Impact cyber Security framework project [15]. Specifically, machine-reliable risk assessment algorithms have been developed in order to facilitate the risk identification in dynamic environments. These algorithms take as inputs the business configuration, the vulnerability assessment, the network constraints and the application layer of the environment, to estimate the cyber risk. The aforementioned risk engines could in principle be used to assess risks in the smart home ecosystem.
Dynamic risk assessment tailored specifically to smart home environments has been addressed within the EU project GHOST-Safe—Guarding Home IoT Environments with Personalized Real-time Risk Control [16]. The project has proposed a dynamic risk assessment model for real-time security and risk assessment on the ongoing activities over the network of a smart home, which may be implemented by means of a real time risk engine. Consequently, the risk assessment’s results remain valid since the engine is able to dynamically identify changes in the environment and to re-assess the risk taking into consideration these changes [17].
The security of the smart home ecosystem has been studied in several works that seek to identify potential vulnerabilities, threats and risks in this dynamic environment. Schiefer [18] demonstrated the challenges that risk analysis poses in a smart home installation, due to the heterogeneous nature of the IoT devices. Jacobsson et al. [19] applied an information security risk assessment approach in the development phase of smart home automation systems. The authors identified nine low and four high level risks, and concluded that humans represent the highest risk exposure in smart home automation systems. Further, a risk framework for the smart home was proposed by Denning et al. [5]. This framework focuses on the feasibility of an attack on the system, the attractiveness of the system as a compromised platform, and the damage caused by performing a successful attack. Its drawback is that it examines particular devices of the smart home and does not consider the data flows or the cloud services that are also crucial parts of the smart home’s ecosystem. The security of the information flow in the Home Area Network (HAN) of a smart grid was examined by Tong et al. [20]. They identified the security levels of HAN devices and data packets, and proposed a security model which aims to protect such data flows over the HAN network. Ali et al. [4] proposed the use of the Operationally Critical Threat, Asset, and Vulnerability Evaluation (OCTAVE) Alegro risk assessment method to identify potential risks in the smart home environment. They focused on the cyber and the physical layer of the smart home’s architecture, and they identified ten critical cyber and physical assets. Although they carried out a comprehensive risk assessment, they did not take into consideration the complexity of the smart services and devices. Additionally, Beckers et al. [21] proposed a structured threat analysis method for smart home scenarios by leveraging Microsoft’s Security Development Lifecycle (SDL). In particular, they used a model-based method for the SDL’s threat analysis and they presented an attack path Data Flow Diagram (DFD) pattern in order to explain potential intrusions in the smart home environment.
A great deal of research has been conducted to analyze and validate network topology generators currently available. Haddadi et al. [22] discussed techniques for inference, modeling, and generation of the Internet topology at both the router and administrative levels. They concluded that providing a realistic mapping of the Internet network is challenging, highlighting the importance of defining the physical interconnection of the nodes for routing and resilience purposes. Tangmunarunkit et al. [23] compared structural topology generators to degree-based generators. They concluded that degree-based algorithms produce more accurate results that match the metrics used with higher fidelity than structural models. Nevertheless, they noted that choosing smaller topologies on which to run network simulations would likely provide a drastically different result. Tangmunarunkit et al. [23] noted that a power-law distribution is almost meaningless if the number of nodes is small because, with only a few nodes, it is unlikely that the degree distribution will be able to create the implicit hierarchy necessary for modeling networks.
Attack modeling techniques and analysis have also been the focus of a large number of research works on cyber threat analysis [24]. Cheng and Ji [7] compared the performance of different malware propagation models through a spatial-temporal random process based on local interactions of nodes in networks. They concluded that a Markov model that incorporates both detailed topology information and simple spatial dependence achieves better overall results than the other models analyzed. One limitation of the model proposed by Cheng and Ji is that it does not specifically consider the states at which the nodes could be observed. Wang et al. [25] proposed a discrete-state Markov model that assumes a network node to be observable in one of the five following states: vulnerable, infected, quarantined, healthy and disseminator.

3. Smart Home Reference Architecture

The emerging ICT technologies in the smart home environment aim to facilitate everyday tasks such as the remote control of the home’s functions and the management of energy consumption. A reference architecture can be used as a template in order to develop a specific architectural topology of such an environment, since it provides a common ground around which more detailed architectures can be developed [26]. Such a model is able to better represent aspects such as human users, device implementations and server structures towards a more detailed view of the examined environment [27]. Several reference architectures have been proposed for the smart home ecosystem [28,29,30]. Ghirardello et al. [31] proposed a smart home reference architecture by analyzing three viewpoints of the ecosystem: (i) functional; (ii) physical; and (iii) communication. Particularly, the functional viewpoint consists of the necessary functions that must be supported for the normal operation of the smart home. The physical viewpoint describes all the physical components which are required for executing the smart home’s functions. The communication viewpoint contains the protocols which are necessary for the transmission of control and information flows among the components. We chose to base our approach to threat analysis on this reference architecture, because it offers the appropriate level of detail for this purpose. In particular, it provides good balance between the abstraction layers and the information needed for conducting a risk assessment. In addition, a key characteristic of this reference architecture is the classification of Smart Home’s viewpoints, which facilitates the identification of information, physical and communication assets. In this work, we leverage this reference model to carry out a threat analysis, as the first step towards a comprehensive risk assessment for smart homes.

4. Threat Analysis

4.1. Method

Threat analysis is a statement of threats that are related to vulnerabilities of assets and threat agents [32]. As such, threat analysis is part of the risk assessment process [33]. In dynamic environments, it is important to use a threat analysis method which allows the consideration of potential changes in the targeted environment. Two distinct threat analysis approaches can be identified in the literature, namely the attacker’s perspective and the defender’s perspective. The former is more complex, whilst the latter examines the targeted systems thoroughly, taking into consideration also defensive techniques. The methodology to be used is important for the identification of all vulnerabilities, threats and attacks within the smart home architecture. Focusing on methods which are able to identify threats automatically by means of the use of a supporting tool, we opted to employ the STRIDE (Spoofing, Tampering, Repudiation, Information Disclosure, Denial of Service and Elevation of Privilege) method which is supported by Microsoft’s threat modeling tool. The method was developed by Kohnfelder and Garg and has been used by both academia and industry; it allows the extraction of rigorous results for the risks that the target systems face [34] and can be applied as early as the design phase. The STRIDE threats were described by Shostack [35]. Further details on the use of the method can be found in [36].
Microsoft’s threat modeling tool allows the identification of potential threats which target data flows and back-end services of the reference model of Ghirardello et al. [31]. This tool allows the identification of security problems in processes, data stores and data flows, as the analysis is conducted using DFDs. Hence, DFDs for the smart home ecosystem, each corresponding to a different topology, need to be created. The identification of threats is achieved by using the STRIDE threat taxonomy. The analysis proceeds as follows:
Step 1—Describe Scenario: The scenario description must include all relevant elements within the scope of the examined environment. In this paper, the focus is on the smart home ecosystem and in particular on the data flows and the back-end services.
Step 2—Identify Assets: The assets of the target system must be identified. Such assets include information assets and physical assets.
Step 3—Create DFDs: By leveraging the simplicity of such diagrams, an analyst is able to represent devices, services, and data flows between the assets identified above.
Step 4—Identify constraints for each vulnerability: Each of the identified assets has various security vulnerabilities which have already been analyzed and can be found in existing vulnerability databases (e.g., [37,38]).
Step 5—Determine Threats: The analyst develops different attack scenarios, considering the identified assets and their interconnections. The tool automatically identifies threats, also taking into account the predefined constraints.

4.2. The Case of the Smart Home Ecosystem

The smart home ecosystem includes multiple assets, depending on the viewpoint. In this work, we focus on the physical and communication viewpoints, thus we aim at identifying information and physical assets. These are depicted in Table 1.
Based on the identified assets and various device and back-end service communication scenarios, we then developed six distinct Smart Home scenarios, described by the corresponding DFDs, representing six topologies of varying complexity, so as to approach the dynamic nature of the target environment [8]. These are described below and the corresponding DFDs are shown in Figure 1:
Scenario 1—IP camera and IoT gateway: The first scenario represents the connection between an IP camera and a gateway, as depicted in Figure 1a. The ZigBee protocol is used for communication and our analysis focuses on threats which could harm either the physical assets or information transmitted between the devices. We assume that the IP camera is connected directly to the gateway.
Scenario 2—-Unidirectional communication between an IP camera and the cloud: This topology represents a connection between an IP camera and a cloud server through two gateways. The communication is established using three different protocols, as can be seen in Figure 1b. In this scenario, the IP camera sends only a request to the database. The former is connected directly to the gateway through the ZigBee protocol and the latter is a simple database which uses MySQL 2016.
Scenario 3—Bidirectional communication between an IP camera and the cloud: The third topology is similar to the second, but now the IoT device communicates with the cloud bidirectionally. The used communication protocols are depicted in Figure 1c.
Scenario 4—Smartphone controlled IP camera: A more complex topology is represented in the next scenario depicted in Figure 1d. This topology describes the communication between a smartphone-controlled IP camera and the cloud. The IoT device (smartphone) sends requests to the cloud API in order to control the IP camera through cellular communication.
Scenario 5—Smartphone communication with the cloud: The next topology represents the communication between the smartphone and the cloud as illustrated in Figure 1e. In this topology, we aim to identify potential threats that could provoke damage to the control requests.
Scenario 6—Links among smart devices: The last topology targets only smart devices (IP camera, alarm system and smartphone) and aims to identify potential threats which derive from parallel links among these devices. In particular, the IP camera is able to communicate using 4G and the ZigBee protocol. The topology in Figure 1f depicts the interaction of an IP camera with a smartphone and with an alarm system.
By applying the STRIDE method to these scenarios, in [8], we identified in detail the relevant threats. The number of threats identified in each of the six scenarios is depicted in Table 2. The following conclusions on how the dynamic nature of a smart home environment affects the identified threats can be drawn [8]:
  • As the complexity of the topology increases, more security threats are identified. In the last two scenarios, fewer threats have been identified since the analysis focused on the communication between the smartphone and the cloud and on the identification of threats which derive from parallel links among specific devices.
  • More complex topologies inherit the threats that the simpler ones face.
  • IoT devices such as IP cameras and smart devices increase the attack surface of the smart home. In particular, an attacker can launch elevation of privileges attacks more efficiently by leveraging vulnerabilities of an IP camera and its communication protocols, particularly ZigBee.
  • Devices with transitive or parallel connections, such as an IP camera, are more vulnerable to cyber-attacks since they inherit the security vulnerabilities of each and every protocol.

5. Smart Home Topology Modeling

To effectively analyze the dependencies between the dynamic properties of a smart home network and security threats identified previously, we developed a smart home network topology modeling algorithm. To develop a generator that could provide knowledge and belief about the dynamic states of a smart home topology, in the form of annotated graphs, we first determined a layer-based reference architecture mapping based on the viewpoints discussed in Section 3: functional, physical and communication. The proposed taxonomy is divided in five Layers:
  • Layer 0: Cloud.
  • Layer 1: Home Gateway.
  • Layer 2: IoT Hub.
  • Layer 3: IoT Devices.
  • Layer 4: End-User Devices.
The pseudocode in Algorithm 1 describes the procedural approach used to implement the graph generation algorithm and the condition needed to be satisfied in order to produce the output graph. The steps taken by the algorithm are further detailed in Section 5.2 and Section 5.3.
Algorithm 1 Graph generation algorithm pseudocode.
  • if i n p u t V a r m a x v a l   and   i n p u t V a r m i n v a l then
  •      g e n e r a t e d N o d e s N
  • else
  •     while i n p u t V a r m a x v a l   or   m i n v a l do
  •          p r o m p t : I n s e r t V a l i d I n p u t V a l u e s
  •     end while
  • end if
  • if g e n e r a t e d H u b N o d e s 0 then
  •     for i 0 ; i H ; i + + do
  •          g e n e r a t e H u b C o n n e c t e d N o d e H ( i )
  •     end for
  • end if
  • g e n e r a t e D e f a u l t N o d e s N d
  • g e n e r a t e D e f a u l t E d g e s E ( H , N d )
  • if d i s t a n c e N o d e ( N i ) m a x D i s t a n c e then
  •      g e n e r a t e E d g e E ( H i , N i )
  • else
  • end if
  • if d i s t a n c e N o d e ( N i ) m a x D i s t a n c e then
  •      g e n e r a t e N o d e t o N o d e E d g e E ( N i , N j )
  • end if
  • g e n e r a t e P l o t P
IoT devices are represented in the graph as homogeneous components, as their typical network behavior—with a few exceptions—depends on the adopted communication protocol more than it does on their specific properties. The first step for the algorithm is to generate a vector of n names Nameip(Name1,…,Namen) for each input parameter ip, where n is equal to the input value associated with the input parameters described in Table 3.

5.1. Node Generation

Afterwards, all the nodes corresponding to the IoT appliances at Layer 3 of the taxonomy are generated. For each hub NameH and gateway NameG, a normally distributed number of IoT devices nIoTH and nIoTG is generated. The values for the mean μ of the normal distribution have been set between 10 and 25 and for the standard deviation σ to 2, based on the usage share of the different protocols and the average number of devices that support these protocols. Name vectors IoTNi(IoTn1,…,IoTnm) and weight vectors IoTWi(IoTw1,…,IoTwm) associated to all m IoT vectors nIoTH and nIoTG are also generated. The weight vector corresponds to the physical distance between the IoT device IoTnamea and its associated hub NameH. The algorithm has now generated all the nodes that compose Layers 0–4 of the taxonomy.

5.2. Edge Generation

Next, the algorithm generates the edges between the nodes. Network generators come in two families, namely structure-based that attempt to create a hierarchical structure and degree-based that focus solely on the degree distribution [23]. A degree-based approach was discarded in favor of a structural approach that took into consideration topological information of different communication protocols. All clouds NameC, hubs NameH, smartphones NameS and PCs NamePC are connected to exactly one gateway NameG. The scalability of the dependencies for the connections between all IoT appliances IoTnamea and their hubs NameH has been reduced to ensure clarity and comprehensibility of the final graph. For this reason, we opted to adopt partial mesh topology networks as the standard arrangement for the nodes in a sub-network formed by each hub NameH and its associated appliances IoTnamea. The weight vectors IoTWi(IoTw1,…,IoTwm) previously generated are now used to determine whether an IoT device IoTnamea is connected directly to a hub NameH or to a router node IoTnb. If the weight value IoTw(c) is lower than the maximum range RH supported by the hub’s protocol, then the device is connected directly to NameH. If IoTw(c) is greater than RH, then the device is connected to a router node IoTnb, which itself is directly connected to NameH.

5.3. Plot Generation

The final step of the algorithm consists in visualizing the plot of the generated network topology. The generated plot should correspond to an observable static state of a smart home network. In addition, the algorithm generates two additional plots. These graphs represent two possible dynamic changes in the network. There are different dynamic changes that a smart home network topology could go through over time. One of these changes is the removal of one of its network nodes. The first additional generated plot shows the change of the network topology after the removal of one of its nodes. This could happen due to different causes, e.g., the malfunctioning or intermittent availability of one of the appliances. Figure 2 shows the plot generated with the following input parameters: C l o u d = 1 , Z W = 1 G a t e w a y = 1 S P = 2 P C = 2 . Figure 3 shows the change in the topology after the removal of one node from the network of devices.
The output of the second plot varies greatly depending on which node is removed from the graph. If a node with high nodal degree is removed, the impact it would have on the network would be greater than if it had a lower nodal degree. On the contrary, if a node only has a peer-to-peer connection to another node, its removal would not impact the network as a whole. The third plot generated by the algorithm highlights the nodal mobility property that characterizes certain devices in smart home networks. Since the mobility property is very typical of smartphone devices, it was implemented exclusively for this category of appliances. Figure 4 and Figure 5 highlight the change in position of the smartphone node SP01, which causes the node to lose the connection it had to some of its previous neighbors, but also forms new connections to other nodes in the graph.

6. Attack Model Graph Representation

The threat analysis presented in Section 4.2 identified different threats that can arise as a result of malware infection of the smart home’s network. To delve deeper into the study of such threats, we first developed the smart home network topology modeling algorithm described in Section 5, and then studied the malware propagation in the Smart Home infrastructure. To correctly study and visualize the effects that dynamic changes on a network have on specific security threats, we developed an attack model designed on the smart home networks generated by the topology generator. The attack model focuses on representing malware propagation. The model developed in this work is based on the discrete state Markov model presented by Wang et al. [25] with additional considerations about spatial-temporal dependencies. Figure 6 describes the state-change process of our model.
Our model assumes that a recovered node can either remain healthy or become vulnerable again after a certain time interval. In addition, our model considers the existence of a fifth state, namely the intermittent state. If a node is in the intermittent state at time t, after an interval of time Δ t, it may either remain in the intermittent state or transit back to the state it was at t 1 . The rate for the state-transitions are determined by a set of parameters. Table 4 describes these parameters and their constraints.
The rates are used to determine the set of conditional probability functions of Equation (1), where each state is associated with a state (v = vulnerable, i = infected, q = quarantined, h = healthy, and i = intermittent).
P ( X ( t + 1 ) = v | X ( t ) = v ) = 1 β β n ( i n f ) n θ , P ( X ( t + 1 ) = i | X ( t ) = i ) = 1 δ θ , P ( X ( t + 1 ) = q | X ( t ) = q ) = 1 β α θ , P ( X ( t + 1 ) = h | X ( t ) = h ) = 1 γ θ , P ( X ( t + 1 ) = i | X ( t ) = v , i , q , i ) = θ .
In addition to the intermittent property, the property of spatial dynamicity has also been added to specific nodes. These nodes have been assigned a dynamic attribute that allows them to move from their current location to a different location after an interval of time Δ t. At every iteration, the algorithm selects whether a dynamic node will be moved from its current position to a new position. Figure 7, Figure 8, Figure 9 and Figure 10 show sample outputs of the final algorithm.
To analyze the effects of the two properties implemented-intermittency and spatial dynamicity of nodes-both algorithms were run 50 times with the following inputs: β = 0.2, α = 0.1, δ = 0.2, and γ θ = 0.2. The number of nodes of the network was set to N = 20 and the nodal degree to d = 3. These values were selected in order to represent a small connected network, with medium infection and recovery speed. Table 5 depicts the average number of nodes in each state, after 10 time intervals, for both models.
Table 5 shows that the most significant effect of the presence of intermittent and mobile nodes in the network is the decrease in the number of nodes infected after an equal interval of time. This can be interpreted as a slower propagation of the infection. Two factors that may have influenced the propagation of the malware are:
  • decreased neighborhood of nodes visible to the malware scanning and consequently the malware spreading; and
  • increased average time for the defense mechanisms to quarantine an infected node before it can propagate the infection to its neighborhood.
Further testing of the algorithm has shown that increasing the number of intermittent nodes in the network, or the rate of intermittency, has an inversely proportional effect on the propagation of the infection, in agreement with the previous hypotheses.

7. Network Topology Simulation

To validate the outputs of the network topology algorithm and the attack model graph representation developed and described in Section 5 and Section 6, we developed a network simulation of a smart home system. The simulation was implemented with the INET framework version 4.1.0 of OMNeT++ version 5.4.1 [39]. The simulation, based on a pre-existing configuration provided by the INET framework, consists of a hierarchical mixed wireless/wired network. Two different network configurations are used to highlight the effect of dynamic and intermittent nodes on malware propagation in a network. The first network is comprised of three areas, each containing two local area networks (LANs). Each LAN contains three heterogeneous hosts. The hosts in the LAN connect to an area router through switches. The three area routers connect to a central backbone router. The network contains three hierarchical levels, which correspond to the hosts in the LANs, the area routers, and the backbone router. In addition, two wireless access points are added to the network. The access points are connected to area1router and area3router, respectively. These access points allow for wireless hosts to be connected to the network. Two wireless hosts are connected to each access point. Different Service Set Identifiers (SSIDs) are configured for the members of the two wireless LANs, so they do not communicate directly with each other. To assign IP addresses hierarchically, starting from the central router to the single hosts, the following strategy was adopted: the first octet of the address for all nodes is 10; the second octet denotes the area; the third octet denotes the LAN within the area; and the fourth octet is the host identifier within a LAN. For example, a host host1 found in area 3 in lan 1 would have the IP address 10.3.1.1. Figure 11 shows the configuration for the first network simulation.
To visualize malware scanning and malware propagation, localized routing tables for ping communication are made. These tables determine the routes that packets have to follow when trying to reach a certain host. Packet reception is interpreted as successful malware scanning. A state variable is added to all hosts. Whenever the malware scans a certain host, the state variable is updated following the conditional probability functions of Equation (1). Whenever a host transits between two states, a message stating which state-transition the host has gone through is printed. The second network configuration modifies the behavior of certain devices in the network, to account for intermittent availability and mobility of nodes. First, shut down and startup scenarios have been scripted for certain nodes in the network.This addition allows the implementation of intermittent availability to nodes. In particular, area2lan1host3, area2lan2host1 and area3switch2 are scripted to shut down and start up sequentially after specific time intervals. Nodal mobility is also added to the previously static area1lan3dynamichost1 and area3lan3dynamichost2. A rectangular moving pattern, with constant speed and acceleration is added to these two hosts, taking them out of the range of their initial access points and into the range of another access point during the course of their movement pattern. The results of running the second configuration of the network simulation confirm that intermittent availability of nodes affects malware propagation in a way that is inversely proportional; the more intermittent nodes in a network and the longer these nodes are “hidden” to the malware scanning, the slower the propagation of the malware. The detection and recovery rate of the network nodes are comparable in both models, although the slower propagation of the malware allows for the detection system to offset a rapid expansion. One behavior that is highlighted in the simulation, but is not taken into account in the network topology generator and the attack model, is the somewhat deterministic patterns followed by dynamic nodes. This means that the neighborhood of these nodes after short subsequent instants of time is not random, but usually correspond to adjacent nodes to the current neighborhood. Consequently, the short-term effect of dynamic mobility of nodes is not as significant as suggested by the attack model, but its long-term effects may still affect the malware propagation in a meaningful way.

8. Conclusions

To facilitate threat analysis for dynamic environments, it is necessary to be able to continuously identify and analyze different components, systems and communication protocols. In this work, we conducted a threat analysis for the smart home ecosystem, utilizing the smart home reference architecture of Ghirardello et al. [31], the STRIDE threat analysis method and Microsoft’s threat modeling tool, with an eye towards identifying and analyzing potential threats which target both physical components of a smart home environment and data flows among them. The analysis considered six smart home instances of varying complexity. We later developed a smart home network topology generator and a malware propagation graph-based model to effectively evaluate the effects of the dynamic properties of the environment in specific security threats.
Even though the proposed approach has been demonstrated to allow the capture of dynamic changes of devices and/or back-end services in a smart home environment, it does not come without limitations. These are mostly related to the threat analysis tool, which has not managed to identify denial of service threats and cannot handle physical threats that might affect the physical infrastructure. Furthermore, the existing DFD template does not support all the communication protocols that may be used in a smart home; hence, our analysis was limited only to the ZigBee, HTTPS and 4G protocols. Moreover, the analysis of existing communication protocols considered only spoofing, tampering and elevation of privileges threats, as repudiation and information disclosure threats are not fully supported. What is more, the currently available template does not allow the examination of transitive attacks over the network. Specifically, the specific template analyzes each component of the DFD separately and cannot consider malicious actions which, for example, could occur by a stealthy malware. Despite these limitations, the approach can be used to provide input to one of the dynamic risk assessment methods to identify potential risks to the physical and communication viewpoint.
Results from the attack model algorithm show that the presence of dynamic nodes can change the propagation pattern and rate of a malware, with effects directly proportional to the initial and final neighborhood size of the mobile nodes. The presence of intermittently available nodes also has an impact on the network. With a higher number of intermittent nodes in a network, the final rate of propagation of a malware in otherwise identical conditions is reported to be slower and with a smaller expansion. A network simulation, to showcase real-time malware propagation in a smart home network, was conducted to validate the outputs of the models developed. The results of the simulation confirm that intermittent availability of nodes impact malware propagation. The simulation also highlights that mobility patterns of dynamic nodes should be taken into consideration when developing network topology generators and attack models, as they would allow for more realistic prediction of the neighborhood size and topological position of infected nodes.
As future work, we intend to develop a more flexible template to reflect the smart home ecosystem in higher fidelity, and use this to carry out a refined threat analysis, to be used as input to the dynamic risk assessment approach taken in the GHOST project [16]. To this end, we will analyze the security of the communication protocols and data packets in more detail in order to contribute to the most crucial part of the Risk Engine, namely risk analysis. The more rigorous threat analysis results will be used for Contextual Profiling (CP) as described in the GHOST architecture. In particular, the development of the classification templates and profiles of the typical Smart Home devices will be enhanced, by leveraging the results herein in the training process.
We also intend to adjust the topology generator algorithm in accordance to the results obtained by the network simulation, in particular to characterize the behavior of mobile nodes in the generated networks with more deterministic mobility patterns, based on the structural properties of the topologies. The results of this study and future studies will be utilized during the training process in order to improve the accuracy of the results.

Author Contributions

These authors contributed equally to this work.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Stuckenschmidt, H. Ontology-based information in dynamic environments. In Proceedings of the 2003 Twelfth IEEE International Workshops on Enabling Technologies: Infrastructure for Collaborative Enterprises (WET ICE 2003), Linz, Austria, 9–11 June 2003; p. 295. [Google Scholar]
  2. Fabi, V.; Spigliantini, G.; Corgnati, S.P. Insights on smart home concept and occupants’ interaction with building controls. Energy Procedia 2017, 111, 759–769. [Google Scholar] [CrossRef]
  3. Suryadevara, N.K.; Mukhopadhyay, S.C. Smart Homes: Design, Implementation and Issues; Springer: Cham, Switzerland, 2015; Volume 14. [Google Scholar]
  4. Ali, B.; Awad, A.I. Cyber and Physical Security Vulnerability Assessment for IoT-Based Smart Homes. Sensors 2018, 18, 817. [Google Scholar] [CrossRef] [PubMed]
  5. Denning, T.; Kohno, T.; Levy, H.M. Computer security and the modern home. Commun. ACM 2013, 56, 94–103. [Google Scholar] [CrossRef]
  6. Lévy-Bencheton, C.; Darra, E.; Tétu, G.; Dufay, G.; Alattar, M. Security and Resilience of Smart Home Environments Good Practices and Recommendations; Technical Report; ENISA: Heraklion, Greece, 2015. [CrossRef]
  7. Chen, Z.; Ji, C. Spatial-temporal modeling of malware propagation in networks. IEEE Trans. Neural Netw. 2005, 16, 1291–1303. [Google Scholar] [CrossRef] [PubMed]
  8. Kavallieratos, G.; Gkioulos, V.; Katsikas, S.K. Threat Analysis in Dynamic Environments: The Case of the Smart Home. In Proceedings of the 2019 15th International Conference on Distributed Computing in Sensor Systems (DCOSS), Santorini, Greece, 29–31 May 2019; pp. 234–240. [Google Scholar] [CrossRef]
  9. Merrick, J.R.; van Dorp, J.R.; Mazzuchi, T.A.; Harrald, J.R. Modeling risk in the dynamic environment of maritime transportation. In Proceedings of the 33rd Conference on Winter Simulation, Arlington, VA, USA, 9–12 December 2001; pp. 1090–1098. [Google Scholar]
  10. Poolsappasit, N.; Dewri, R.; Ray, I. Dynamic security risk management using bayesian attack graphs. IEEE Trans. Depend. Secure Comput. 2012, 9, 61–74. [Google Scholar] [CrossRef]
  11. Puppala, G.; Pasupuleti, S.K. Dynamic Security Risk Assessment in Cloud Computing Using IAG. In Progress in Computing, Analytics and Networking; Springer: Singapore, 2018; pp. 105–116. [Google Scholar]
  12. Liu, C.; Zhang, Y.; Zeng, J.; Peng, L.; Chen, R. Research on Dynamical Security Risk Assessment for the Internet of Things inspired by immunology. In Proceedings of the 8th International Conference on Natural Computation (ICNC), Chongqing, China, 29–31 May 2012; pp. 874–878. [Google Scholar]
  13. Naumov, S.; Kabanov, I. Dynamic framework for assessing cyber security risks in a changing environment. In Proceedings of the 2016 International Conference on Information Science and Communications Technologies (ICISCT), Tashkent, Uzbekistan, 2–4 November 2016; pp. 1–4. [Google Scholar]
  14. HMG IA Standard Numbers 1 & 2-Supplement, Standard No. 1 & 2 Supplement Technical Risk Assessment and Risk Treatment; Technical Report; CESG: London, UK, 2012.
  15. Álvarez, A.; González, S.; Díaz, R.; Arce, C.H.; Machnicki, D.; Cernivec, A.; Zitnik, A.; Refsdal, A.; Biasibetti, A.L.; Poidomani, S.; et al. D5.2-WISER REAL-Time Assessment Infrastructure; Technical Report, WISER Project; CYBERWISER.eu: London, UK, 2015. [Google Scholar]
  16. Collen, A.; Nijdam, N.; Augusto-Gonzalez, J.; Katsikas, S.; Giannoutakis, K.; Spathoulas, G.; Gelenbe, E.; Votis, K.; Tzovaras, D.; Ghavami, N. GHOST: Safe-guarding home IoT environments with personalised real-time risk control. In International ISCIS Security Workshop; Springer: Cham, Switzerland, 2018; pp. 68–78. [Google Scholar]
  17. Pandey, P.; Collen, A.; Nijdam, N.; Anagnostopoulos, M.; Katsikas, S.; Konstantas, D. Towards automated threat based risk assessment for cyber security in smart homes. In Proceedings of the 18th European Conference on Cyber Warfare and Security (ECCWS 2019), Coimbra, Portugal, 4–5 July 2019. [Google Scholar]
  18. Schiefer, M. Smart home definition and security threats. In Proceedings of the 2015 9th International Conference on IT Security Incident Management & IT Forensics, Magdeburg, Germany, 18–20 May 2015; pp. 114–118. [Google Scholar]
  19. Jacobsson, A.; Boldt, M.; Carlsson, B. A risk analysis of a smart home automation system. Future Gener. Comput. Syst. 2016, 56, 719–733. [Google Scholar] [CrossRef]
  20. Tong, J.; Sun, W.; Wang, L. An information flow security model for home area network of smart grid. In Proceedings of the IEEE 3rd Annual International Conference on Cyber Technology in Automation, Control and Intelligent Systems (CYBER), Nanjing, China, 26–29 May 2013; pp. 456–461. [Google Scholar]
  21. Beckers, K.; Faßbender, S.; Heisel, M.; Suppan, S. A threat analysis methodology for smart home scenarios. In International Workshop on Smart Grid Security; Springer: Cham, Switzerland, 2014; pp. 94–124. [Google Scholar]
  22. Haddadi, H.; Rio, M.; Iannaccone, G.; Moore, A.; Mortier, R. Network topologies: Inference, modeling, and generation. IEEE Commun. Surv. Tutor. 2008, 10, 48–69. [Google Scholar] [CrossRef]
  23. Tangmunarunkit, H.; Govindan, R.; Jamin, S.; Shenker, S.; Willinger, W. Network Topology Generators: Degree-based vs. Structural. SIGCOMM Comput. Commun. Rev. 2002, 32, 147–159. [Google Scholar] [CrossRef]
  24. Al-Mohannadi, H.; Mirza, Q.; Namanya, A.; Awan, I.; Cullen, A.; Disso, J. Cyber-Attack Modeling Analysis Techniques: An Overview. In Proceedings of the 2016 IEEE 4th International Conference on Future Internet of Things and Cloud Workshops (FiCloudW), Vienna, Austria, 22–24 August 2016; pp. 69–76. [Google Scholar]
  25. Wang, P.F.; Meng, S.; Zhang, H.; Wang, J.C. Markov Model of Malicious Code Propagation. In Proceedings of the 2010 International Conference on Innovative Computing and Communication and 2010 Asia-Pacific Conference on Information Technology and Ocean Engineering, Macao, China, 30–31 Janaury 2010; pp. 260–263. [Google Scholar]
  26. Lin, S.; Miller, B.; Durand, J.; Bleakley, G.; Chigani, A.; Martin, R.; Crawford, M. The Industrial Internet of Things, Volume G1: Reference Architecture. Ind. Internet Consort. 2017, G1, 10–46. [Google Scholar]
  27. Weyrich, M.; Ebert, C. Reference architectures for the internet of things. IEEE Softw. 2016, 33, 112–116. [Google Scholar] [CrossRef]
  28. Chauhan, M.A.; Babar, M.A. Using Reference Architectures for Design and Evaluation of Web of Things Systems: A Case of Smart Homes Domain. Manag. Web Things 2017, 205–228. [Google Scholar] [CrossRef]
  29. Hu, C.; Chen, S.; Guo, L.; Chootong, C.; Hui, L. Home care with IoT support: Architecture design and functionality. In Proceedings of the 10th International Conference on Ubi-Media Computing and Workshops (Ubi-Media), Pattaya, Thailand, 1–4 August 2017; pp. 1–6. [Google Scholar]
  30. Internet of Things (IoT)—Reference Architecture; Standard; International Organization for Standardization: Geneva, Switzerland, 2018.
  31. Ghirardello, K.; Maple, C.; Ng, D.; Kearney, P. Cyber Security of Smart Homes: Development of a Reference Architecture for Attack Surface Analysis; IET: Beijing, China, 2018. [Google Scholar]
  32. Vidalis, S. A Critical Discussion of Risk and Threat Analysis Methods and Methodologies; Technical Report CS-04-03; School of Computing, University of Glamorgan: Pontypridd, UK, 2004. [Google Scholar]
  33. Information Technology—Security Techniques—Information Security Risk Management; Standard; International Organization for Standardization: Geneva, Switzerland, 2018.
  34. Hussain, S.; Kamal, A.; Ahmad, S.; Rasool, G.; Iqbal, S. Threat Modelling Methodologies: A Survey. Sci. Int. 2014, 26, 1607–1609. [Google Scholar]
  35. Shostack, A. Threat Modeling: Designing for Security; Wiley: Hoboken, NJ, USA, 2014. [Google Scholar]
  36. Kavallieratos, G.; Katsikas, S.; Gkioulos, V. Cyber-Attacks Against the Autonomous Ship. In Computer Security. SECPRE 2018, CyberICPS 2018; Springer: Cham, Switzerland, 2019. [Google Scholar]
  37. Vulnerabilities, C. Exposures (CVE). Available online: cve.mitre.org (accessed on 20 November 2018).
  38. National Vulnerability Database. 2008. Available online: https://nvd.nist.gov/ (accessed on 24 November 2018).
  39. OMNeT++, version 5.4.1. Available online: https://omnetpp.org/ (accessed on 24 November 2018).
Figure 1. Developed Scenarios [8]. (a) IP camera and IoT gateway [8]. (b) Unidirectional communication between an IP camera and the cloud [8]. (c) Bidirectional communication between an IP camera and the cloud [8]. (d) Smartphone controlled IP camera [8]. (e) Smartphone communication with the Cloud [8]. (f) Links among smart devices [8].
Figure 1. Developed Scenarios [8]. (a) IP camera and IoT gateway [8]. (b) Unidirectional communication between an IP camera and the cloud [8]. (c) Bidirectional communication between an IP camera and the cloud [8]. (d) Smartphone controlled IP camera [8]. (e) Smartphone communication with the Cloud [8]. (f) Links among smart devices [8].
Futureinternet 11 00207 g001

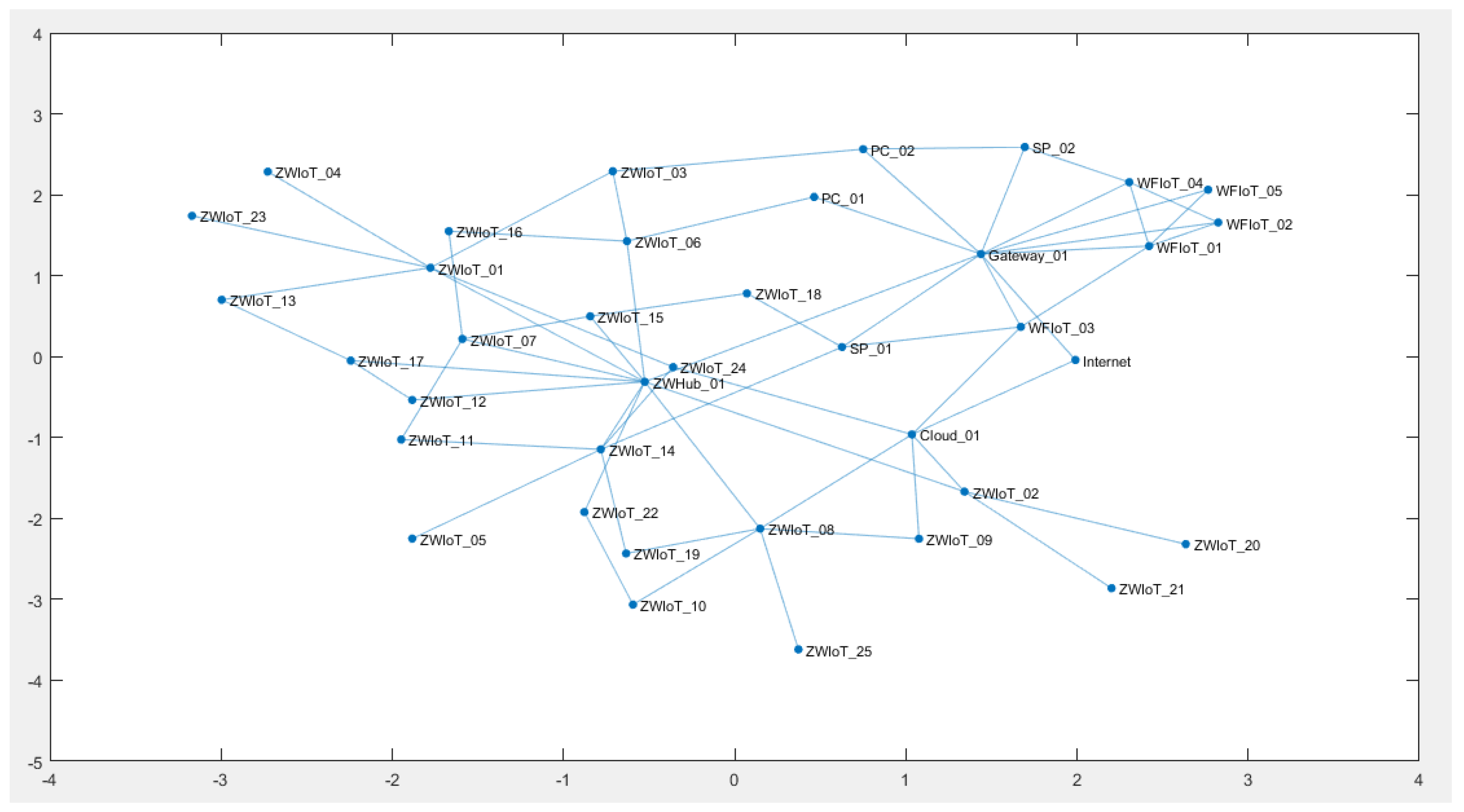

Figure 2. Generated network topology.
Figure 2. Generated network topology.
Futureinternet 11 00207 g002
Figure 3. Node ZWIoT18 (in red) has been removed from the network topology. The connections the node had to ZWIoT15 and SP01 are also removed.
Figure 3. Node ZWIoT18 (in red) has been removed from the network topology. The connections the node had to ZWIoT15 and SP01 are also removed.
Futureinternet 11 00207 g003
Figure 4. Generated network topology, with node SP01, corresponding to a smartphone device, highlighted.
Figure 4. Generated network topology, with node SP01, corresponding to a smartphone device, highlighted.
Futureinternet 11 00207 g004

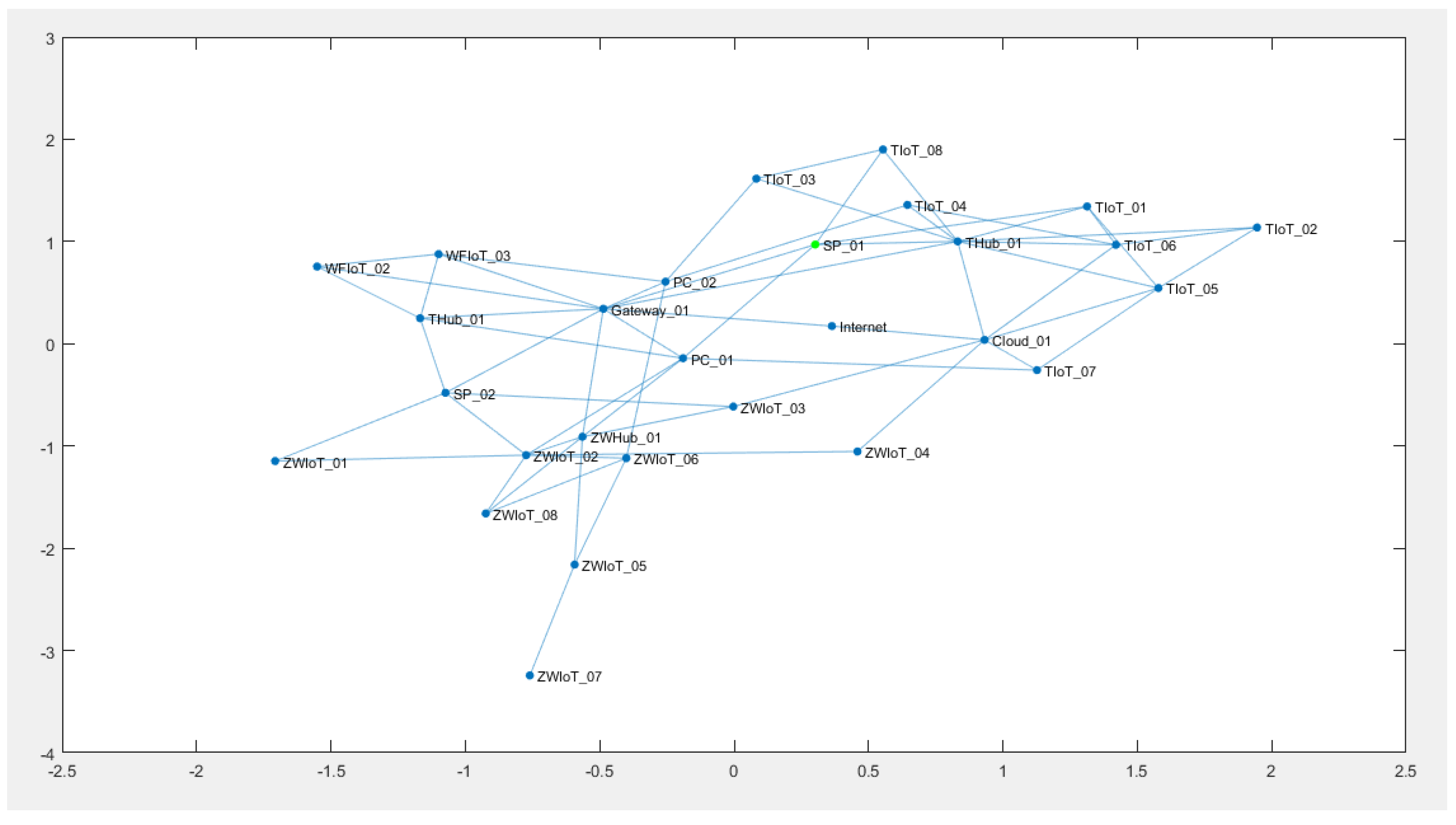

Figure 5. Node SP01 (highlighted) has moved from its original position. This caused the loss of the connection from PC02 and simultaneously the creation of a new connection with node TIoT08.
Figure 5. Node SP01 (highlighted) has moved from its original position. This caused the loss of the connection from PC02 and simultaneously the creation of a new connection with node TIoT08.
Futureinternet 11 00207 g005

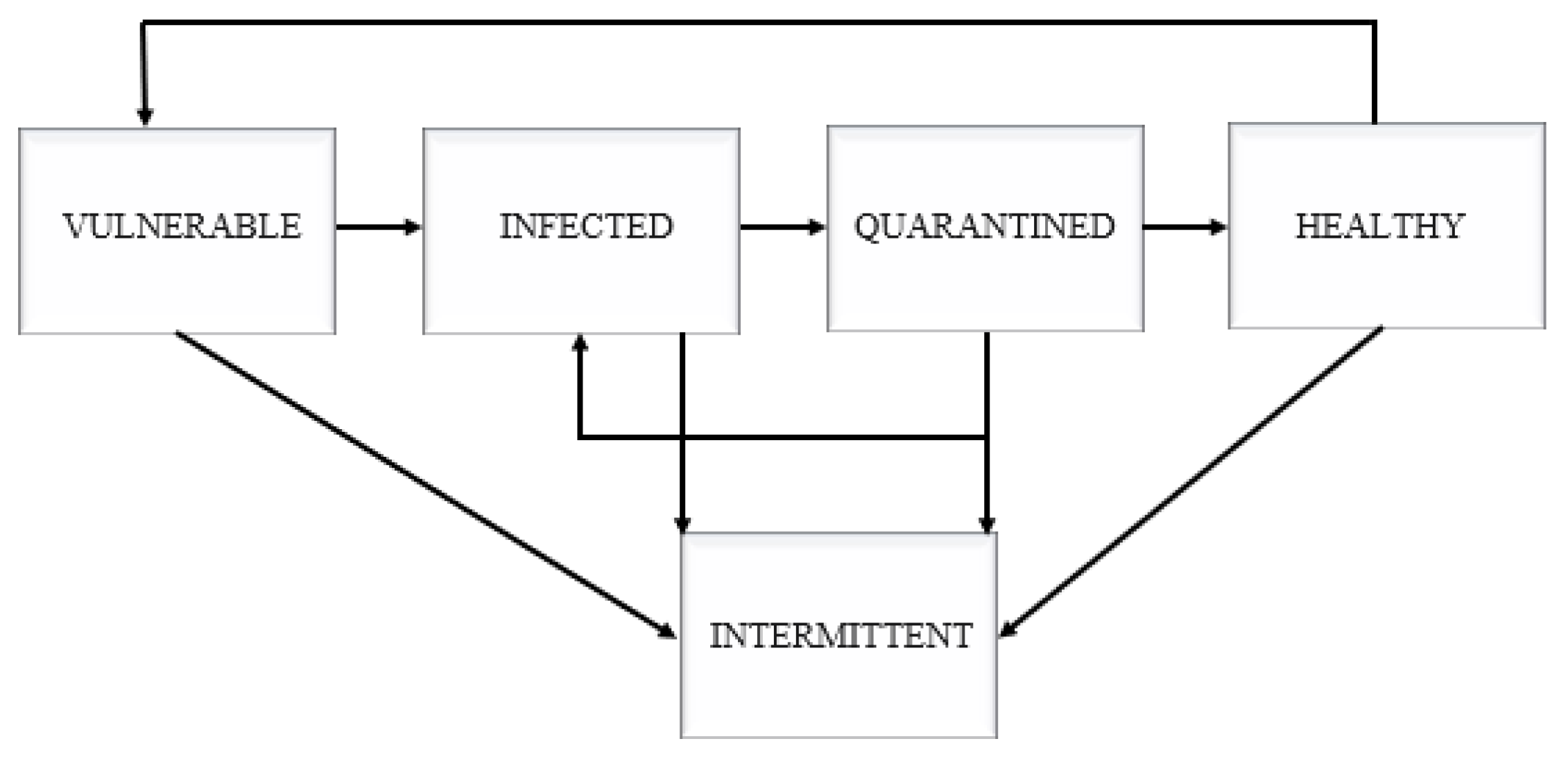

Figure 6. Diagram of the state transitions.
Figure 6. Diagram of the state transitions.
Futureinternet 11 00207 g006

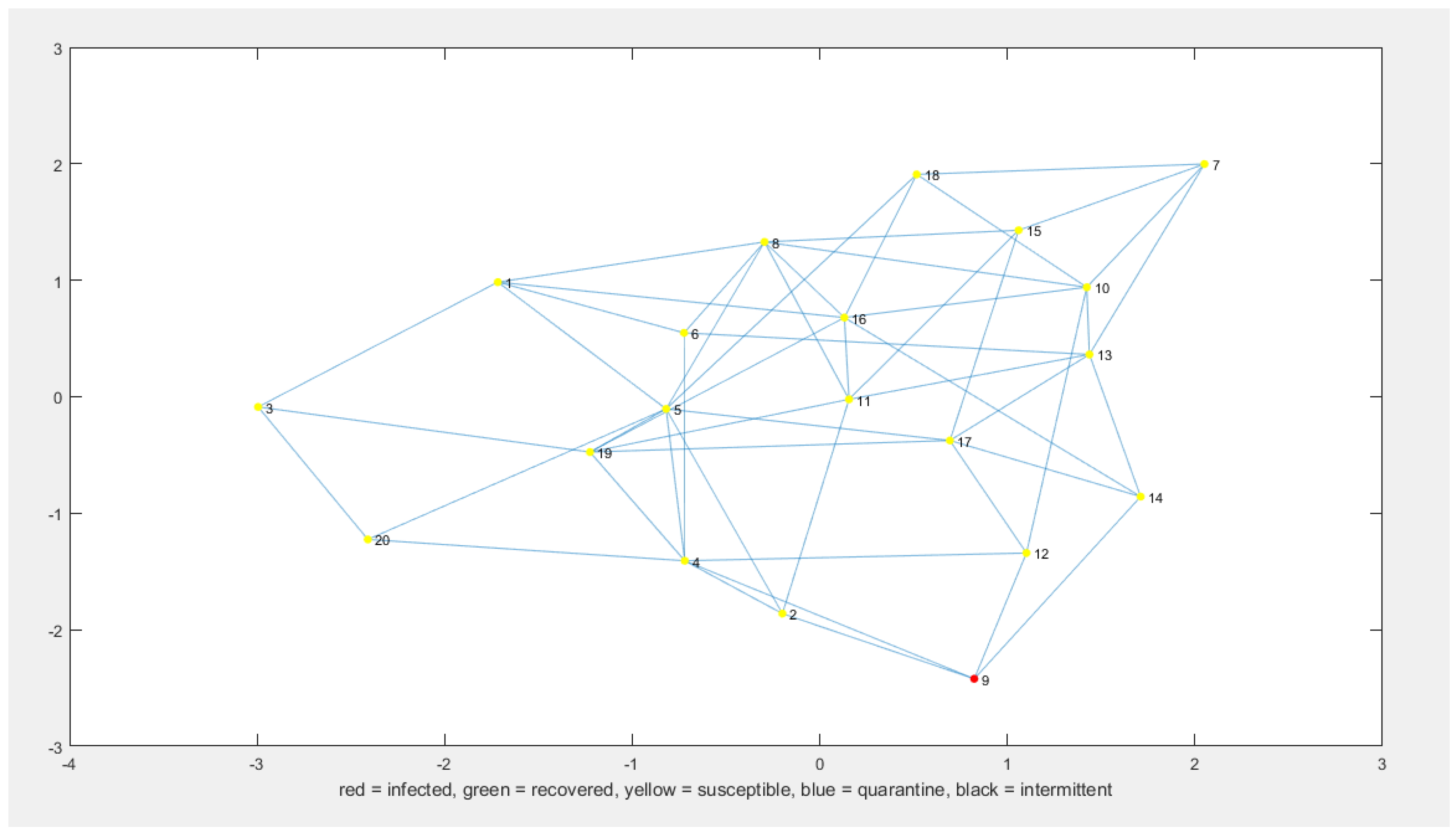

Figure 7. Node-state graph at time t = 0.
Figure 7. Node-state graph at time t = 0.
Futureinternet 11 00207 g007

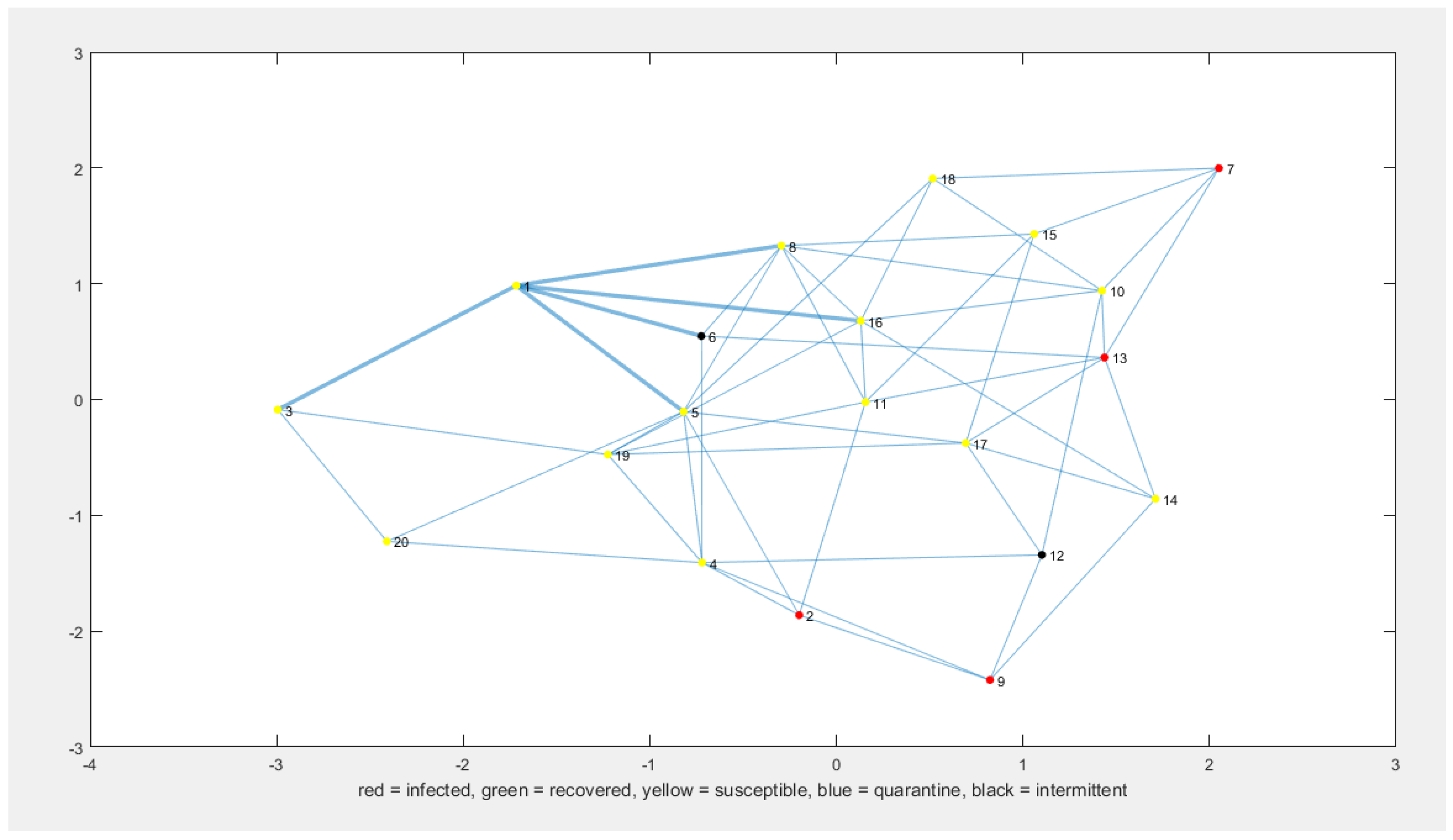

Figure 8. Node-state graph at time t = 3. The dynamic node 1 has been selected to move after the next time interval, hence its current edges are highlighted.
Figure 8. Node-state graph at time t = 3. The dynamic node 1 has been selected to move after the next time interval, hence its current edges are highlighted.
Futureinternet 11 00207 g008

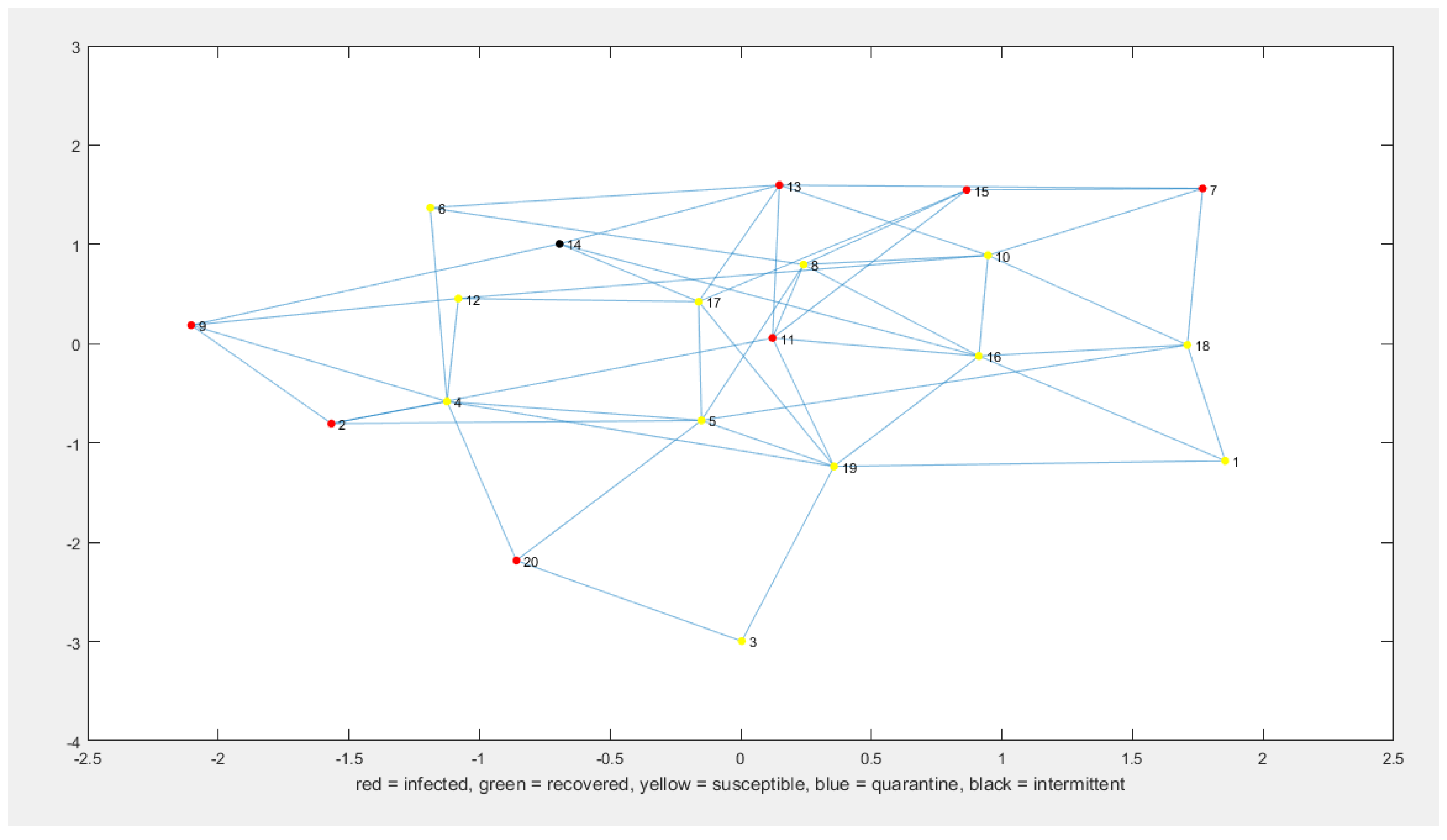

Figure 9. Node-state graph at time t = 4. Node 1 has moved and its neighbouring nodes have changed.
Figure 9. Node-state graph at time t = 4. Node 1 has moved and its neighbouring nodes have changed.
Futureinternet 11 00207 g009

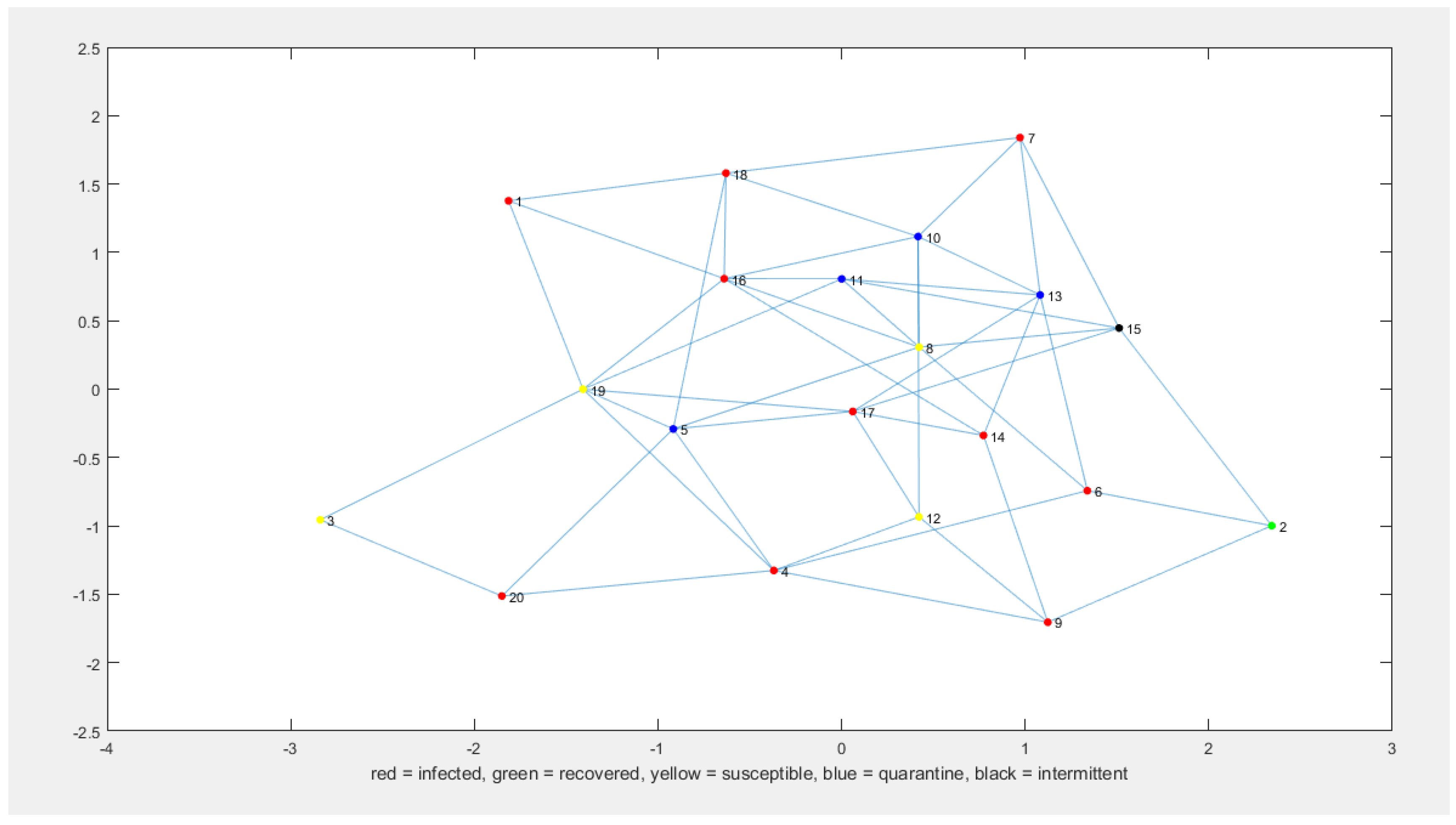

Figure 10. Node-state graph at time t = 11.
Figure 10. Node-state graph at time t = 11.
Futureinternet 11 00207 g010

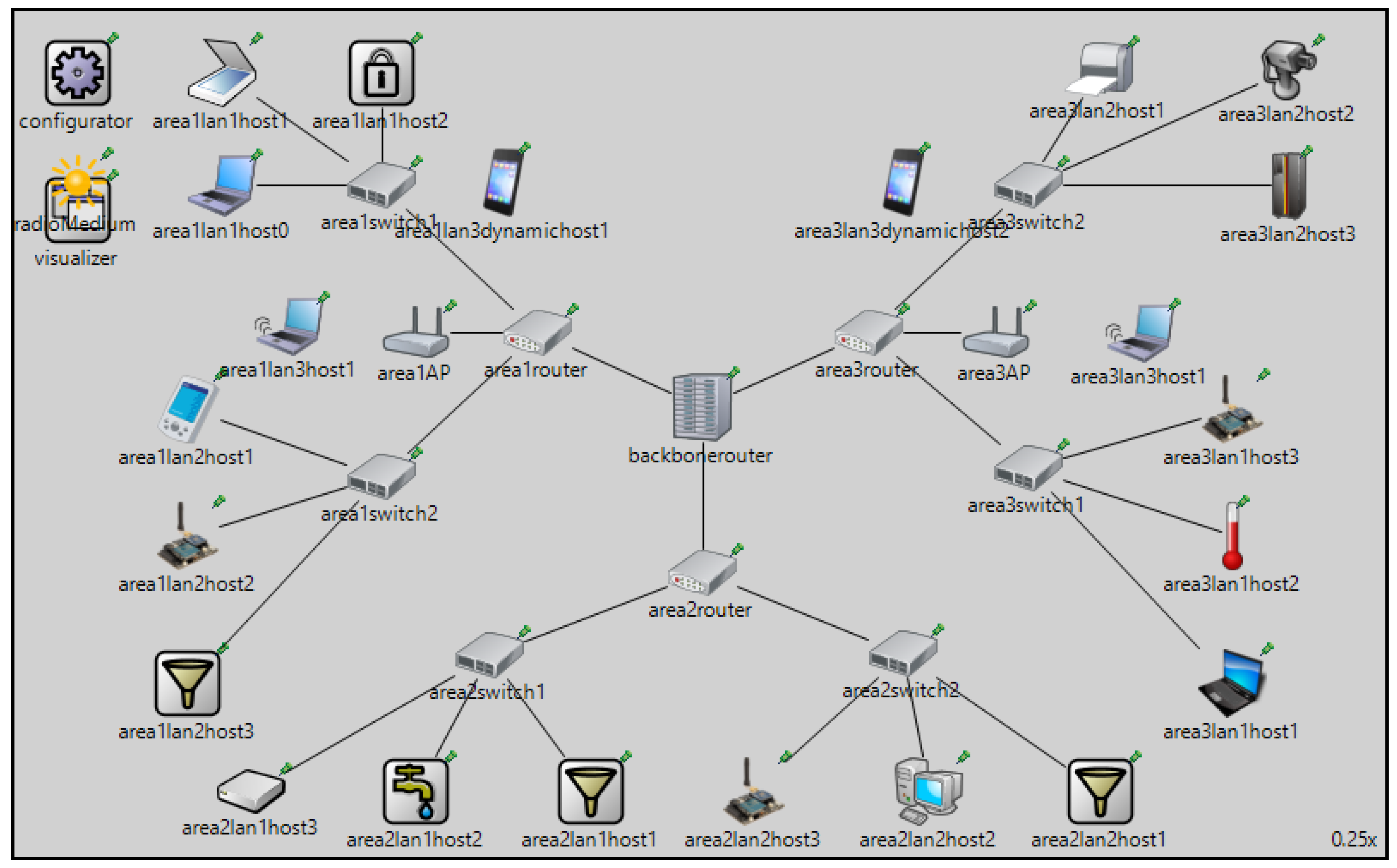

Figure 11. Simulation network architecture.
Figure 11. Simulation network architecture.
Futureinternet 11 00207 g011
Table 1. Identified assets [8].
Table 1. Identified assets [8].
Information AssetsPhysical Assets
User credentialsIoT smart devices
Information collected by smart devicesIoT hubs
Smart home status informationIoT gateways
Information about the installed assetsSensors/Actuators
Log informationCloud server
Video, Picture, Voice Information
Location tracking information
Personal information (e.g., health data)
Table 2. Identified threats for each scenario.
Table 2. Identified threats for each scenario.
ScenariosIdentified Threats
Scenario 113
Scenario 227
Scenario 346
Scenario 448
Scenario 523
Scenario 616
Table 3. Topology generator input parameters table.
Table 3. Topology generator input parameters table.
Input List
Input ParameterDescriptionConditional Constraints
N. of Clouds (NC)Integer value corresponding to the number of clouds in the network0 ≤ NC ≤ 2
N. of Gateways (NG)Integer value corresponding to the number of gateways in the network1 ≤ NG ≤ 8
N. of Z-Wave Hubs (NZW)Integer value corresponding to the number of Z-Wave hubs in the network0 ≤ NZW ≤ 2
N. of ZigBee Hubs (NZB)Integer value corresponding to the number of ZigBee Hubs in the network0 ≤ NZB ≤ 2
Bool. of Insteon Dvcs (BI)Boolean value indicating whether Insteon devices are presentBI == 1 ∨ == 0
N. of Insteon Hubs (NI)Integer value corresponding to the number of Insteon Hubs in the network0 ≤ NI ≤ 2
N. of Bluetooth Hubs (NB)Integer value corresponding to the number of gateways in the network0 ≤ NB ≤ 2
N. of Thread Hubs (NT)Integer value corresponding to the number of Thread Hubs in the network0 ≤ NC ≤ 2
Bool. of We-Mo Dvcs (BWM)Boolean value indicating whether We-Mo devices are presentBWM == 0 ∨ == 1
N. of Smartphones (NS)Integer value corresponding to the number of Smartphone in the network0 ≤ NS ≤ 6
N. of PCs (NP)Integer value corresponding to the number of PCs in the network0 ≤ NP ≤ 8
Table 4. Attack model parameters table.
Table 4. Attack model parameters table.
Input List
ParameterDescriptionConditions
Birthrate ( β )Integer value corresponding to the the probability a vulnerable node has of getting infected0 ≤ β ≤ 1
Death rate ( α )Integer value corresponding to the probability of a quarantined node to recover and be removed from the virus0 ≤ α ≤ 1
Detection rate ( δ )Integer value corresponding to the probability of the internal defense mechanisms of each system to detect infections and put the virus into isolation0 ≤ δ ≤ 1
Vulnerability rate ( γ )Integer value corresponding tothe probability of a recovered node to return to the vulnerable state0 ≤ γ ≤ 1
Table 5. Average results of 50 simulations of the Markov model and the hybrid model.
Table 5. Average results of 50 simulations of the Markov model and the hybrid model.
StateMarkov Model AverageHybrid Model Average
Infected10.37
Recovered2.82.8
Susceptible1.91.2
Quarantined55.8
Intermittentnull3.2

© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Back to TopTop
