Article

Cationic Surfactants Based on Arginine-Phenylalanine and Arginine-Tryptophan: Synthesis, Aggregation Behavior, Antimicrobial Activity, and Biodegradation

Department of Surfactants and Nanobiotechnology, Institute for Advanced Chemistry of Catalonia (IQAC-CSIC), c/Jordi Girona, 18-26, 08034 Barcelona, Spain
*
Author to whom correspondence should be addressed.
Pharmaceutics 2022, 14(12), 2602; https://doi.org/10.3390/pharmaceutics14122602
Received: 6 November 2022 / Revised: 21 November 2022 / Accepted: 22 November 2022 / Published: 25 November 2022
(This article belongs to the Special Issue Recent Trends in Nano-Based Drug Delivery Systems)

Abstract

:
Cationic surfactants have great potential as drug vehicles and for use in gene therapy (cationic vesicles made from cationic surfactants can encapsulate RNA or DNA for cellular transfer). They can also be used as antimicrobial and antifungal agents to treat human infections. In an era of increasing antimicrobial resistance, the development of new biocompatible surfactants suitable for application as antimicrobial agents is of high interest. In this work, a library of amino acid-based surfactants was synthesized, characterized and tested for antimicrobial activity. The head group architecture (number and type of amino acids, density of cationic charge, ionic character) and the hydrophobic moiety (alkyl chain length and position of the hydrophobic group) were systematically modified, and the effect on the surfactant biological and aggregation behavior was studied. Thus, the pKa values, micellization process, antimicrobial efficiency and biodegradability were evaluated. The critical micelle concentration values of the surfactants depended on their hydrophobic character, but changes in the polar head as well as the position and length of the alkyl chain also significantly affected activity against some of the tested microorganisms. Moreover, biodegradability was closely related to the hydrophobic character of the surfactant and attachment of the alkyl chain to the polar head. The structure–activity relationships established here may open perspectives for the design of effective biodegradable antimicrobial materials that can overcome emerging resistance.

Graphical Abstract

1. Introduction

Infectious diseases are a major concern for human and veterinary health and therefore for the global economy [1]. An outcome of the mass usage of antibiotics and biocides in the last century is the rapid evolution of highly resistant microorganisms, including bacteria, fungi, viruses, and parasites, which is threatening our ability to treat common infections. The World Health Organization (WHO) recognizes that infections caused by multi-drug-resistant pathogens are one of the top three threats to global health [2], predicted to cause 10 million deaths per year by 2050 if no action is taken [3]. In May 2015, the 68th World Health Assembly adopted the Global Action Plan on Antimicrobial Resistance [4], with member states proposing specific actions to tackle the problem. These include raising public awareness about the negative effects of antibiotic misuse and stimulating research on novel antimicrobial agents that can prevent the spread of infectious disease.
It has been demonstrated that conventional antimicrobials easily, and sometimes quickly, lose efficacy due to microbial resistance [5,6] and biocidal diffusion can cause environmental contamination and toxicity for humans [7]. Vancomycin-resistant enterococci and methicillin-resistant Staphylococcus aureus can survive for a day on materials used in healthcare systems, while other microbes can endure for 90 days [8]. Microbial cells attached to any artificial surface in a moist environment can proliferate and form a biofilm, a polysaccharide matrix in which the cells are embedded. In this way, microbial cells can withstand harsh conditions and are up to 1000 times less susceptible to most antibiotics and biocides [9]. Biofilms are the cause of nosocomial, recurrent, and chronic infections associated with catheters, implants, or prostheses, and often trigger food-associated outbreaks [10]. Antimicrobial treatment may kill metabolically active cells in biofilms, but without affecting persister cells, which can re-start colonization and biofilm development when the treatment is removed [11]. There is therefore a pressing need for new more efficient broad-spectrum antibacterial agents that not only disarm bacterial resistance but also eradicate bacterial biofilms.
Conventional quaternary ammonium compounds (QACs) are cationic amphiphilic molecules with broad-spectrum antimicrobial activity, widely used as disinfectants and antiseptics for general hygiene and clinical purposes [12]. QACs exert their biological activity mainly by inducing disintegration of bacterial membranes via electrostatic and hydrophobic interactions [13]. Although it is difficult for bacteria to circumvent this non-specific disruption mechanism, the huge consumption of QACs worldwide and their ensuing accumulation in the environment is applying selective pressure on bacteria and triggering the emergence of antimicrobial resistance [14]. Another reason why the use of QACs is being increasingly questioned is their persistence in the environment, due to chemical stability and low biodegradability. Negative environmental impacts of QACs include disruption of wastewater treatment unit operations, proliferation of antimicrobial resistance, toxicity for aquatic species and alterations in the biota of surface water [15]. In Europe, limitations have been recently imposed on QAC usage in food products and consumer hand and body washes [16]. The various drawbacks of QACs call for the development of new biodegradable molecules that meet safety and efficacy requirements for use as antimicrobials in antiseptic formulations and in the development of biomedical material with antimicrobial properties.
Cationic amino acid-based surfactants represent a promising starting point for the development of alternatives to the increasingly controversial QACs. Amino acid-based surfactants consist of one or two amino acids linked to a hydrophobic moiety. Like QACs, they act via perturbation of the bacterial membrane [17,18], but as they can be designed to biodegrade in the environment, their capacity to induce bacterial resistance is expected to be low. Taking advantage of the great variety of existing amino acids, the physicochemical and biological properties of this type of surfactants can be tailored through structural modifications.

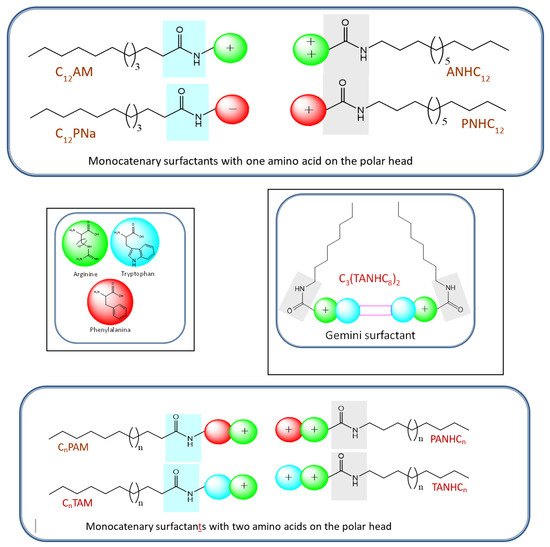

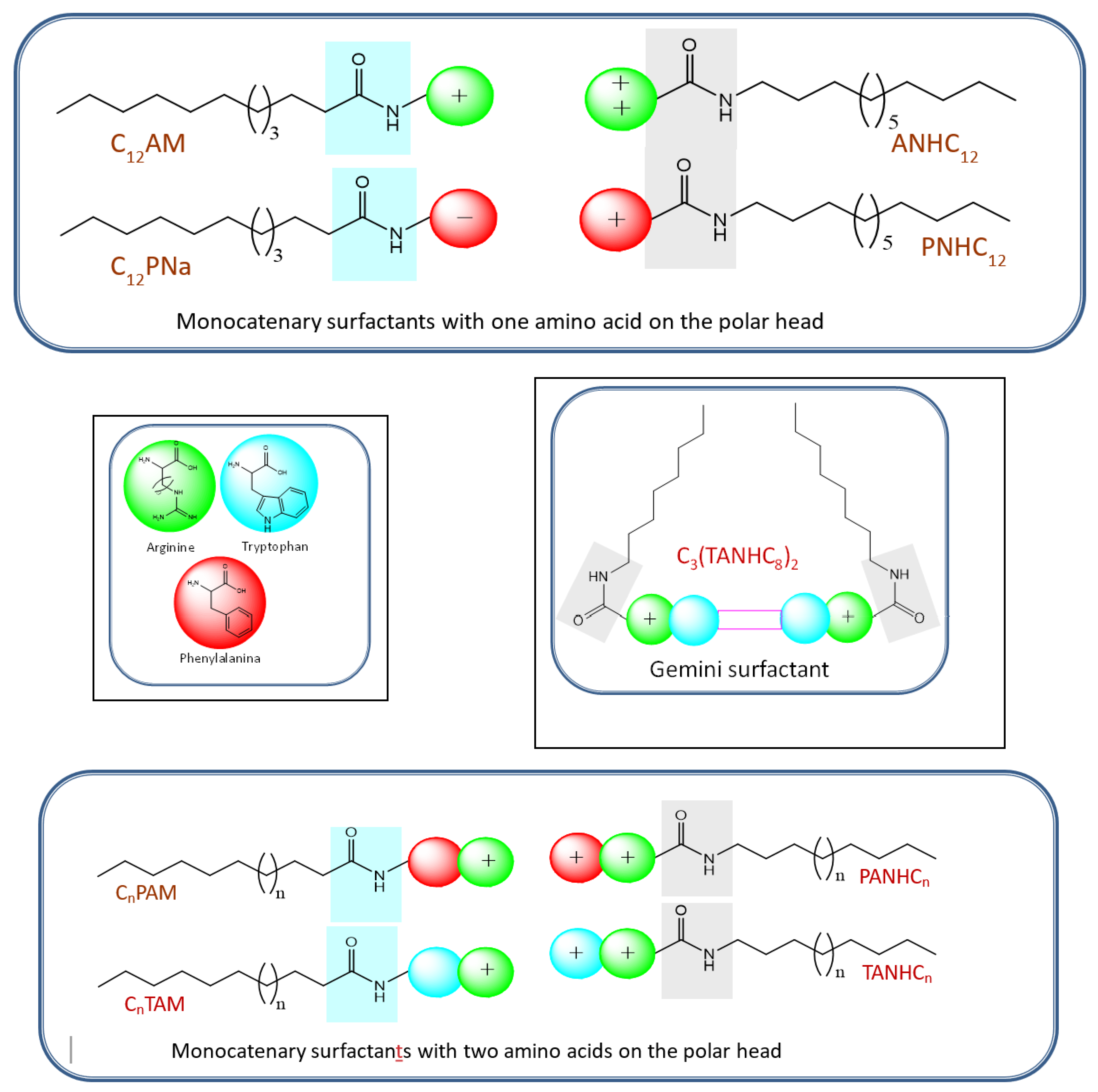

Here, we report the synthesis and characterization of a library of amino acid-based surfactants designed to be used as antimicrobials. The head group architecture (number and type of amino acids, density of cationic charge, ionic character) and hydrophobic moiety (alkyl chain length and position of the hydrophobic group) were systematically changed to modify the surfactant biological and aggregation behavior (Figure 1). The chemical structure of these new compounds and their corresponding acronyms are shown in Figure 1, Figure 2, Figure 3, Figure 4 and Figure 5. The prepared surfactants are described below.
(1)
Four monocatenary surfactants with one amino acid on the polar head and one C12 alkyl chain (Figure 1): Nα-dodecyl-phenylalanine sodium salt (C12PNa), an anionic surfactant with a C12 alkyl chain and negative charge on the carboxylic group of phenylalanine; Nα-dodecyl-arginine methyl ester hydrochloride (C12AM), with a C12 alkyl chain linked to the α-amine group of arginine and a cationic charge on the protonated guanidine group; arginine dodecyl amide dihydrochloride (ANHC12), with two cationic charges on arginine (one on the protonated guanidine group and the other on the protonated amine group) and the alkyl chain linked by an amide bond to the carboxylic group of the amino acid; and phenylalanine dodecyl amide hydrochloride (PNHC12), in which the cationic charge lies on the protonated amine group of phenylalanine and the alkyl chain is linked to the carboxylic group of the amino acid.
(2)
Eight monocatenary surfactants with two amino acids on the polar head (Phe/Arg [PANHCn] or Trp/Arg [TANHCn]), two cationic charges (one on the protonated guanidine group and the other on the protonated amine group of the aromatic amino acid) and the alkyl chain (C8-C14) linked to the carboxylic group of the amino acid by an amide bond (Figure 1): phenylalanine-arginine octyl amide dihydrochloride (PANHC8), phenylalanine-arginine decyl amide dihydrochloride (PANHC10), phenylalanine-arginine dodecyl amide dihydrochloride (PANHC12), phenylalanine-arginine tetradecylamide dihydrochloride (PANHC14), tryptophan-arginine octyl amide dihydrochloride (TANHC8), tryptophan-arginine decyl amide dihydrochloride (TANHC10), tryptophan-arginine dodecyl amide dihydrochloride (TANHC12) and tryptophan-arginine tetradecylamide dihydrochloride (TANHC14).
(3)
Four monocatenary surfactants with two amino acids on the polar head (Phe/Arg [CnPAM] or Trp/Arg [CnTAM]), one cationic charge lying on the protonated guanidine group of arginine and the alkyl chain (C10 or C12) linked to the α-amino group of the aromatic amino acid by an amide bond (Figure 1): Nα-dodecyl-phenylalanine-arginine methyl ester hydrochloride (C12PAM), Nα-decyl-phenylalanine-arginine methyl ester hydrochloride (C10PAM), Nα-dodecyl-tryptophan-arginine methyl ester hydrochloride (C12TAM) and Nα-decyl-tryptophan-arginine methyl ester hydrochloride (C10TAM).
(4)
One gemini surfactant with two C8 alkyl chains, two head groups with Arg-Tryp amino acids and a spacer chain of three methylene groups (C3(TANHC8)2) (Figure 1).
Conductivity and fluorescence were measured to determine the critical micellar concentration (cmc) of all the prepared surfactants. Antimicrobial activity was tested against representative Gram-positive and Gram-negative bacteria. Additionally, the biodegradability of the synthesized amino acid-based surfactants was determined. It is expected that the modification of the head group architecture and the hydrophobic moiety will allow us to modulate aggregation behavior and biological activity. The main aim of this study is to shed light on the effect of different structural features of amino acid-based surfactants on their antibacterial activity and biodegradation profile.

2. Materials and Methods

2.1. Materials

Organic solvents were reagent grade and used without further purification. Acyl chlorides and fatty amines were from Fluka. N-benzyloxycarbonyl-L-phenylalanine (N-Cbz-L-Phe) N-benzyloxycarbonyl-L-tryptophan (N-Cbz-L-Try), L-phenylalanine, L-tryptophan, arginine methyl ester dihydrochloride, L-phenylalanine methyl ester hydrochloride and L-tryptophan methyl ester hydrochloride were obtained from TCI Europe. 1,4 diazabiciclo[2.2.2]octane (DABCO) was from Sigma. Benzotriazol-1-yloxy) tris(dimethylamino) phosphonium hexafluorophosphate (BOP) was from Sigma-Aldrich. Trifluoroacetic acid (TFA) and palladium on activated charcoal (Pd/C, 10%) were supplied by Merck (Darmstadt, Germany). Deuterated solvents were purchased from Eurotop. Mueller-Hinton Broth was purchased from Oxoid Ltd., Basingstoke, UK. The 96-well polypropylene microtiter plates were from Costar; Corning Incorporated, Corning, NY, USA). Water from a Milli-Q Millipore system was used to prepare aqueous solutions.

2.2. Synthesis

2.2.1. Preparation of Dodecyl Arginine Methyl Ester Hydrochloride C12AM (1, Figure 2)

Arginine methyl ester (0.010 mol) was dissolved in a mixture of acetone/water 40/60 (30 mL). A solution of aqueous Na(OH) was added until pH = 10, and the mixture was cooled to 0 °C. After the completion of the reaction, HCl was added, and a white solid precipitated. Pure 1 compound was then obtained after several crystallizations in hot acetonitrile.

2.2.2. Preparation of Arginine Dodecyl Amide Dihydrochloride ANHC12 (2, Figure 2) and Phenylalanine Dodecyl Amide Hydrochloride PNHC12 (3, Figure 2)

Arginine methyl ester or phenylalanine methyl ester (0.003 mol) was weighed in a round flask. Then, 0.014 moles of dodecyl amine were added. The mixture was heated using a glycerol bath to the melting point of the amine and was stirred at this temperature for three hours. After the completion of the reaction, the mixture was cooled at room temperature, and several crystallizations in methanol/acetonitrile were carried out to remove the excess of fatty amine in order to obtain the pure 2 and 3 surfactants.

2.2.3. Preparation of N-Acyl Phenylalanine Sodium Salt (4a, 4b, Figure 2)

A solution of 100 mL of acetone/water (30/70) containing 0.020 moles of L-phenylalanine was placed in a round-bottom flask. A solution of aqueous Na(OH) was added until pH = 10 and the mixture was cooled to 0 °C. The corresponding fatty acid chloride (0.012 mols) was added dropwise and the mixture was stirred at room temperature for 4 h. HCl was then added and a white solid precipitated. The resulting solid was washed with water and dried over vacuum. Pure Nα-acyl phenylalanine compounds were obtained by several crystallizations from hot acetonitrile. After that, 0.005 mol of pure N-acyl phenylalanine dissolved in 15 mL of methanol were neutralized with 0.005 mol of Na(OH) and pure 4a and 4b surfactants were obtained by removing the solvent.

2.2.4. Preparation of Phenylalanine Arginine Alkyl Amide Dihydrochloride (PANHCn, 1518, Figure 3) and Tryptophan-Arginine Alkyl Amide Dihydrochloride (TANHCn, 1922, Figure 3) Surfactants

These compounds were prepared using a three steps procedure:
(a)
Synthesis of Nα-carbobenzoxy-phenylalanine-arginine methyl ester hydrochloride (5, Figure 3) and Nα-carbobenzoxy-tryptophan-arginine methyl ester hydrochloride (6, Figure 3). A solution of Nα-carbobenzoxy-phenylalanine or Nα-carbobenzoxy-tryptophan (0.025 mol) in 50 mL of dichlorometane (CH2Cl2) was treated with 0.060 mol of 1,4-diazabicyclo[2.2.2]octane (DABCO). Then, 0.025 mol of arginine methyl ester dihydrochloride was added until the total solubilization of the starting reagents. Finally, 0.025 mol of benzotriazol-1-yloxytris(dimethylamino)phosphonium hexafluorophosphate (BOP) was added, and the mixture was stirred for 4 h. After that, the mixture reaction was cooled at 0 °C, and the solid precipitated was isolated by filtration. The solid was washed with diethyl ether and water, and pure 5 and 6 compounds were obtained by crystallizations in acetonitrile/methanol.
(b)
Synthesis of Nα-carbobenzoxy-phenylalanine-arginine alkyl amide hydrochloride (710, Figure 3) and Nα-carbobenzoxy-tryptophan-arginine alkyl amide hydrochloride (1114, Figure 3). Compound 5 or 6 (0.010 mol) was weighed in a round flask. Then, 0.100 moles of the corresponding alkyl amine were added. The mixture was heated using a glycerol bath to the melting point of the amine and was stirred at this temperature for three hours. After the completion of the reaction, the mixture was cooled at room temperature, and several crystallizations in methanol/acetonitrile were carried out to remove the excess of fatty amine. Finally, pure 714 surfactants were obtained by preparative HPLC.
(c)
Synthesis of phenylalanine-arginine alkyl amide dihydrochloride (1518) and tryptophan-arginine alkyl amide dihydrochloride (1922). Compounds 1522 were obtained by hydrogenation of the corresponding pure 714 (0.007mol) in 50 mL of MeOH/HCl using Pd in activated charcoal (10% Pd) as catalyst. The reaction was carried out at room temperature and atmospheric pressure. After completion of the reaction, the catalyst was filtered off on Celite, and the methanol was removed at vacuum. Pure 1522 compounds were obtained by crystallizations from Me(OH)/ACN.

2.2.5. Preparation of Nα-Acyl Phenylalanine-Arginine Methyl Ester Hydrochloride (CnPAM, 2728, Figure 4) and Nα-Acyl Tryptophan-Arginine Methyl ester Hydrochloride (CnTAM, 2930, Figure 4)

These compounds were prepared using a three steps procedure:
(a)
Synthesis of Nα-Acyl phenylalanine (23, 24, Figure 4) and Nα-Acyl tryptophan (25, 26, Figure 4). A solution of 40 mL of acetone/water (30/70) containing 0.015 moles of L-phenylalanine or L-tryptophan was placed in a round-bottom flask. A solution of aqueous Na(OH) was added until pH = 10, and the mixture was cooled to 0 °C. Dodecyl or decyl chloride (0.016 mols) was added dropwise, and the mixture was stirred at room temperature for 4 h. HCl was then added and a white solid precipitated. The resulting solid was washed with water and dried over vacuum. Pure compounds were obtained by several crystallizations from hot acetonitrile.
(b)
Synthesis of Nα-Acyl phenylalanine methyl ester hydrochloride (27, 28) and Nα-Acyl tryptophan (29, 30). A solution of 23, 24 or 25, 26 (0.012 mols) in 50 mL of Dimethylformamide was treated with 30 mmol of DABCO. Then, 0.012 mols of arginine methyl ester dihydrochloride were added under stirring until the compounds were completely solubilized. After that, 0.012 mols of BOP were added and the mixture was agitated for 3 h. The DMF was removed over vacuum and the mixture was washed with diethyl ether. Pure 2730 surfactants were obtained by preparative HPLC.

2.2.6. Preparation of the Gemini Tryptophan Arginine Octyl Amide Derivative C3(TANHC8)2 (31, Figure 5)

A solution of TANHC8 (0.005 mols) in 30 mL of CH2Cl was treated with 0.010 mols of DABCO. Then, 0.0025 mols of glutaric acid were added under stirring until the compounds were completely solubilized. After that, 0.025 mols of BOP were added, and the mixture was agitated for 3 h. The CH2Cl was removed over vacuum, and the mixture was washed with diethyl ether. Pure 30 surfactant was obtained by preparative HPLC.
The identification of all synthesized compounds was carried out by HPLC, elemental analysis and NMR experiments. Detailed characterization of the products is included in the Supplementary Materials.

2.3. HPLC, NMR and HRMS Analysis

The reaction progress as well as the purity of the new surfactants were measured by HPLC (Merck-Hitachi D-2500, Gerber Hausen, Germany) using a LiChrosphere 100 CN column 5 μm, 250 × 4 mm. The solvent system used was: aqueous phase, trifluoroacetic acid 0.1% (v/v) in H2O and organic phase, trifluoroacetic acid 0.095% (v/v) in H2O/ACN (1:4). UV-detector at λ = 215 nm and flow rate of 1 mL/min.
The NMR spectra were recorded on a Varian spectrometer at 499.803 (1H) and 125.233 (13C) MHz, respectively. Sample solutions were prepared in deuterated methanol. The HRMS identification of compounds was performed on an Acquity UPLC System and a LTC PremierTM XE Benchtop orthogonal acceleration time-of-flight (Water Corporation) with an electrospray ionization source. All data were processed and displayed using MassLynx software.

2.4. Preparative HPLC

This methodology was used to purify the target surfactants. HPLC was performed using a Waters preparative HPLC system equipped with a Kromasil 100 C8 5 μm 250 × 2.12 column. Crude surfactant (500 mg dissolved in 5 mL of methanol) was loaded onto the preparative column. The solvent system consisted of 0.1% (v/v) TFA in water (solvent A) and 0.1% (v/v) TFA in acetonitrile (solvent B). A flow rate of 20 mL/min with a linear gradient from 40 to 100% of phase B in 20 min was used. The absorbance of the eluate was measured at 215 nm. All collected fractions were analyzed by analytical HPLC, and pure portions were dried under vacuum.

2.5. pKa Determinations

The pKa values of these amino acid-based surfactants were determined by titration 2 mL of a postmicellar aqueous surfactant solution with an aqueous Na(OH) solution, at 25 °C, with a pH electrode (l 8102 ROSS Thermo Orion). The experiments were performed under nitrogen gas atmosphere and magnetic stirring. The pKa was determined based on the pH corresponding to semi equivalent point of the neutralization curve.

2.6. Fluorescence Measurements

A Shidmadzu RF 540 spectrofluorometer (Shimadzu, Kioto, Japan) was used to measure cmc by fluorescence, using pyrene (Sigma-Aldrich, San Luis, MO, USA) as a fluorescence probe, at 25 °C. The fluorescence emission spectra of pyrene dissolved in surfactant aqueous solutions were recorded from 340 to 450 nm after excitation at 332 nm. The ratio of the first to the third vibrionic peaks of the fluorescence spectra (II/IIII) in this region depends on the environment polarity and can be used to calculate the cmc.

2.7. Conductivity

The conductivity of aqueous surfactant solutions was measured with an Orion Cond Cell 011010A (Thermo scientific, Waltham, MA, USA) with platinized platinum electrodes in conjunction with a Thermo Orion 550A with a cell constant of 0.998 cm−1. The cell constant was calibrated with NaCl/KCl solutions. Measurements of samples prepared in Millipore water were carried out at increasing concentrations to minimize errors from possible electrode contamination. The conductivity of pure water was substrated from the conductivity of each sample.

2.8. Antimicrobial Activity

2.8.1. Antimicrobial Susceptibility Test

The minimal inhibitory concentration (MIC) of the new surfactants was determined using a broth microdilution assay [19]. Serial dilutions of every compound, between 256 and 2 μg/mL, in MH Broth were dispensed (200 μL) in the corresponding wells of a 96-well polypropylene microtiter plate. The nutrient broth starter culture of each bacterial strain (10 μL) was added to achieve final inoculum of ca. 5 × 10−5 colony-forming units (CFU) per mL. Nutrient broth medium without the compound served as growth control. The development of turbidity in an inoculated medium is a function of growth, and reflects an increase in both mass and cell number. The MIC was defined as the lowest concentration of antibacterial agent that inhibited development of visible growth after 24 h of incubation, at 37 °C. To confirm this observation, 20 μL of resazurin at 0.015% w/v was added to each well and left to react for approximately 1 h for bacteria, at 35°. After the incubation period, the indicative of bacterial growth, i.e., changing from blue to pink, confirmed the MIC value. To obtain the MBC, the antimicrobial concentration corresponding to at least 3-log reductions in viable cells, an aliquot of 10 μL of the MIC well and the 2 concentrations immediately above were seeded over agar MH and incubated for 24 h, at 35 °C. The MBC were determined as the lowest concentration in which no colonies were observed on the agar plates.

2.8.2. Exposure of Cationic Surfactants to Microorganisms

Suspensions of microorganisms were obtained from an overnight culture of S. aureus ATCC 6538 and P. aeruginosa ATCC 9027, at 30 °C. Four colonies were suspended in 10 mL of peptone buffered solution (pH 7.0). Each bacterial suspension was pelleted by centrifugation at 8000× g for 20 min, washed in sterile filtered peptone buffered solution (pH 7.0), centrifuged again, and finally suspended to obtain a concentration of 107–108 CFU/mL. An appropriate volume (250 μL) of the respective cell suspensions was used to inoculate flasks containing 24 mL of buffered peptone water (pH 7) to obtain a cell density of ca 105–106 CFU/mL. To flasks containing 24 mL of the respective bacterial suspensions, surfactant stock solution (1 mL) was added to reach a final concentration of surfactant corresponding to the MIC. The inoculated flasks were kept in darkness, at room temperature. The contact time established for flow cytometry (FC) was 30 min. Then, suspensions were centrifuged at 8000× g for 30 min, and the sediment resuspended in 2 mL of filtered peptone buffered water (pH 7.0). In parallel control experiments, cells were incubated in surfactant-free buffer solution and treated under the same conditions.

2.8.3. Bacterial Counts

After contact with C12PAM, reduction in bacterial viability was calculated by viable cell counts, according to the colony forming units (CFU mL−1) obtained on TSA. After appropriate dilution in Ringer’s solution, 0.1 mL was inoculated on plates and incubated at 30 °C for 8–24 h. The cell count was performed in triplicate, and the mean was determined. Based on these data, growth inhibition was calculated according to the reduction in viability as follows [20]:
(1 − NT/NC) × 100
where NT is the bacterial count in the treated sample and Nc is the bacterial count in the control sample.

2.8.4. Flow Cytometry

The staining protocols for FC experiments were as follows: 10 μL of a 1 mg mL−1 stock solution of propidium iodide (PI) in distilled water was added to 1 mL of the bacterial suspension containing 107–108 CFU/mL (prepared as described above) in filtered buffered peptone water. Staining was carried out at room temperature before the FC analysis. To evaluate membrane potential, 2 μL of a 250 mmol/L stock solution of bis-oxonol in ethanol was added to 1 mL of the bacterial suspension. Heat-killed cells (30 min at 70 °C) were used as a positive control for PI and bis-oxonol staining protocols. FC experiments were performed in duplicate using a Cytomics FC500 MPL flow cytometer (Beckman Coulter, Inc., Fullerton, CA, USA). Samples were excited using a 488 nm air-cooled argon-ion laser at 15 mW power. The instrument was set up with the standard configuration: green (525 nm) fluorescence for bis-oxonol, red (675 nm) for PI. The results were collected on logarithmic scales. Optical alignment was checked using 10 nm fluorescent beads (Flow-Check fluorospheres, Beckman Coulter). The cell population was selected by gating in a FS vs. SS dot plot, excluding aggregates and cell debris. Fluorescence histograms were represented in single-parameter histograms (1024 channels). The windows used to calculate percentages were set using living and dead cell populations for each strain. Data were analyzed using Summit® ver. 3.1 software (Cytomation, Fort Collins, CO, USA).

2.9. Aerobic Biodegradability

The aerobic biodegradability of amino acid-based surfactants was evaluated using the OECD 310 method (CO2 headspace test). This standard method evaluates the mineralization of an organic compound in an aqueous medium by measuring the production of CO2. Therefore, the rate of biodegradation of amino acid-based surfactants was determined by measuring over time the CO2 generated from the degradation of these molecules by microorganisms. Each surfactant, as the sole source of carbon and energy, was added at 15 mg C/L to a mineral buffered aqueous medium (pH 7.4 ± 0.2) inoculated with a mixed population of microorganisms obtained from activated sludge from a waste water treatment plant (Manresa, Barcelona). Sodium benzoate (NaBz) at 20 mg C/L was used as reference substance. Biodegradation tests ran for 28 days. For each test surfactant, inhibition tests with binary mixtures of NaBz and amino acid-based surfactant at 20 and 15 mg C/L, respectively, were also conducted. Biodegradation was determined by measuring the net increase in inorganic carbon over time, i.e., the excess of CO2 generated in the vessels containing surfactant relative to blank vessels that measured the CO2 endogenous production, using a carbon analyzer (Shimadzu TOC-5050). Biodegradation extent was determined as a percentage of the theoretical maximum production of inorganic carbon based on the initial concentration of surfactant. The pass level of the method is set at 60%, and therefore, a compound that undergoes a higher biodegradation percentage can be considered readily biodegradable.

3. Results and Discussion

3.1. Synthesis

The self-assembling and biological properties of surfactants depend on the structural features of their hydrophobic and hydrophilic moieties. In this work, we prepared amino acid-based surfactants in which the two moieties were systematically modified to study the effects of structural parameters on the surfactant physicochemical properties, antimicrobial activity and biodegradation. Four types of amino acid-based surfactants were prepared based on arginine, phenylalanine and tryptophan (Figure 2, Figure 3, Figure 4 and Figure 5). The effect of the hydrophilic group was determined by preparing surfactants with one of two amino acids on the polar head and one or two cationic charges. Variable alkyl chain lengths (C8–C14 derivatives) and positioning of the hydrophobic group was also tested (compounds with the alkyl chain linked to the α-amino group of the amino acid, and others in which the hydrophobic part is linked to the carboxylic group of the amino acid). Finally, a gemini surfactant was prepared consisting of two monocatenary tryptophan-arginine-octyl amide compounds connected at the head group by a spacer chain of three methylene groups. All these new surfactants were prepared from natural fatty acids, fatty amines, and amino acids, the amide bonds ensuring stability and improving biodegradability.

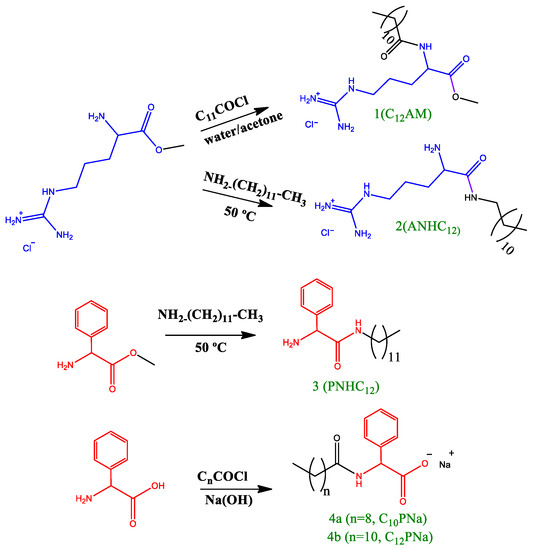

3.1.1. Monocatenary Surfactants with a Single Amino Acid on the Polar Head (Figure 2)

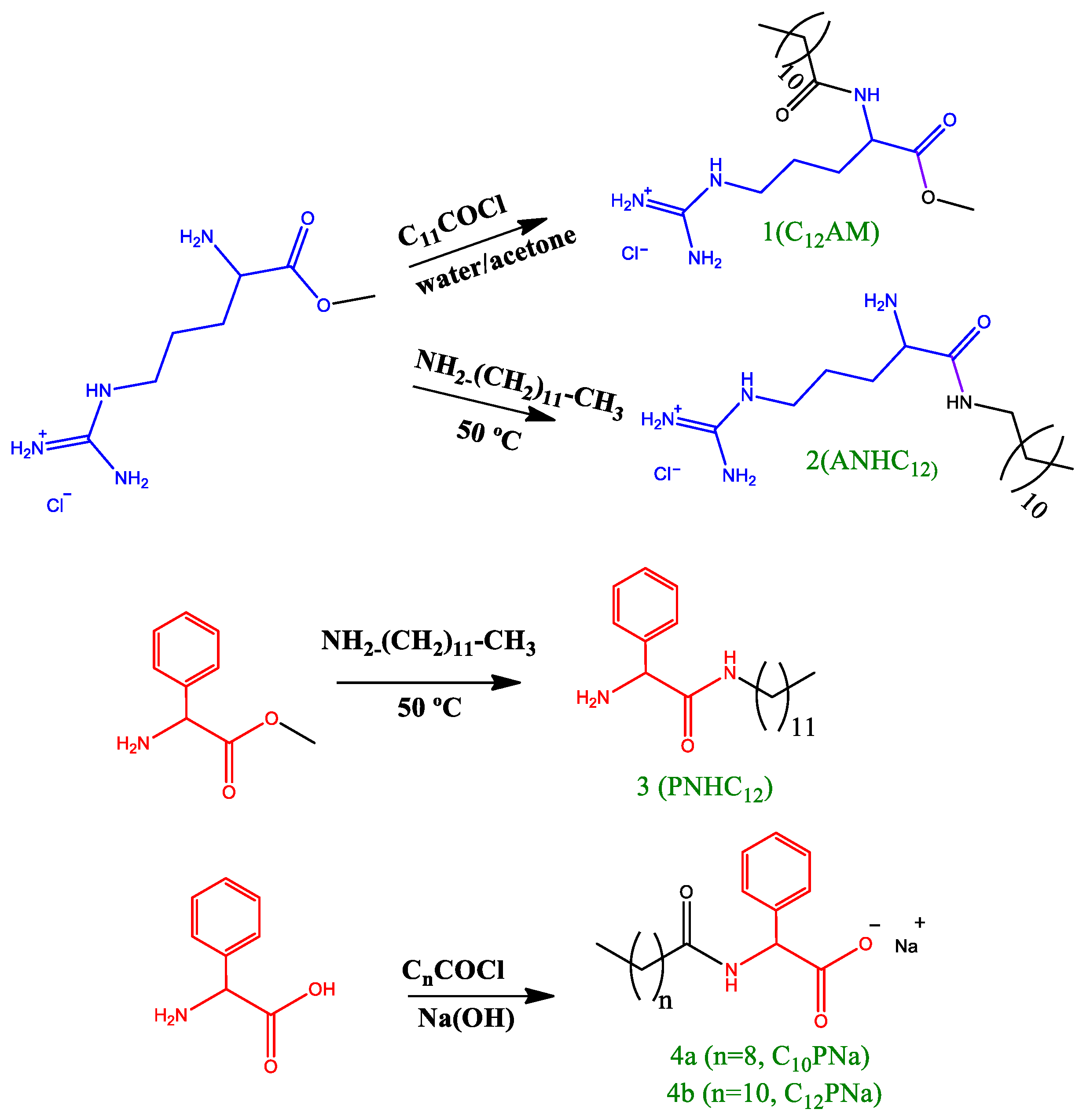

The monocatenary C12AM (1) was prepared in a one-step procedure using commercially available arginine methyl ester. The acylation of the free amino group of Arg-OMe-2HCl with dodecyl chloride was carried out in water/acetone (70/30) at pH = 9.0. No protecting group was required, as at this pH, the guanidine group of the arginine remains protonated and cannot react with the dodecyl chloride. Several crystallizations in hot acetonitrile gave pure C12AM. The monocatenary ANHC12 (2) and PNHC12 (3) were prepared simply by heating the starting Arg-OMe-2HCl or Phe-OMe-HCl with dodecyl amine without any solvent. The anionic derivatives CnPNa (4a, 4b) were prepared by acylation of the free amino group of phenylalanine in acetone/water (30/70) at pH = 9.0. The four procedures were monitored by HPLC, and after four hours, more than 92% of the starting materials had been converted. Large-scale synthesis was achieved in a short time and without the use of any activation agent. The nuclear magnetic resonance (NMR) spectra and mass spectra are consistent with the target compounds (see Supplementary Materials).

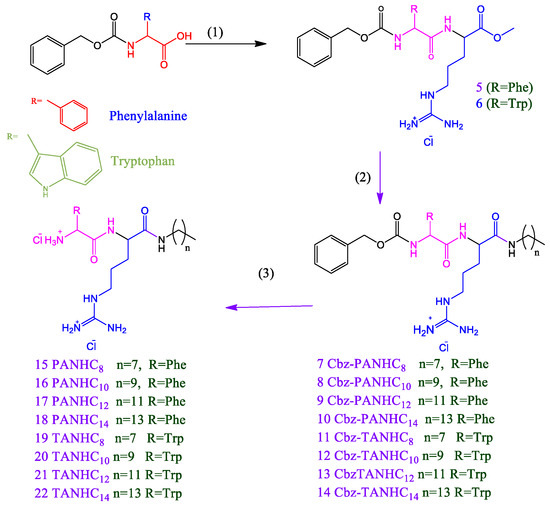

3.1.2. Monocatenary Surfactants Based on Phenylalanine-Arginine Alkyl Amide Dihydrochloride (PANHCn) and Tryptophan-Arginine Alkyl Amide Dihydrochloride (TANHCn) (Figure 3)

The eight compounds in the second group of surfactants, four arginine-phenylalanine derivatives (PANHCn) and four tryptophan-arginine derivatives (TANHCn), have two amino acids in the polar head bound by peptide linkages. All have two positive charges on the polar head and an alkyl chain of C8–C14, and the hydrophobic chain is also linked to the carboxylic group of arginine by a peptide linkage.

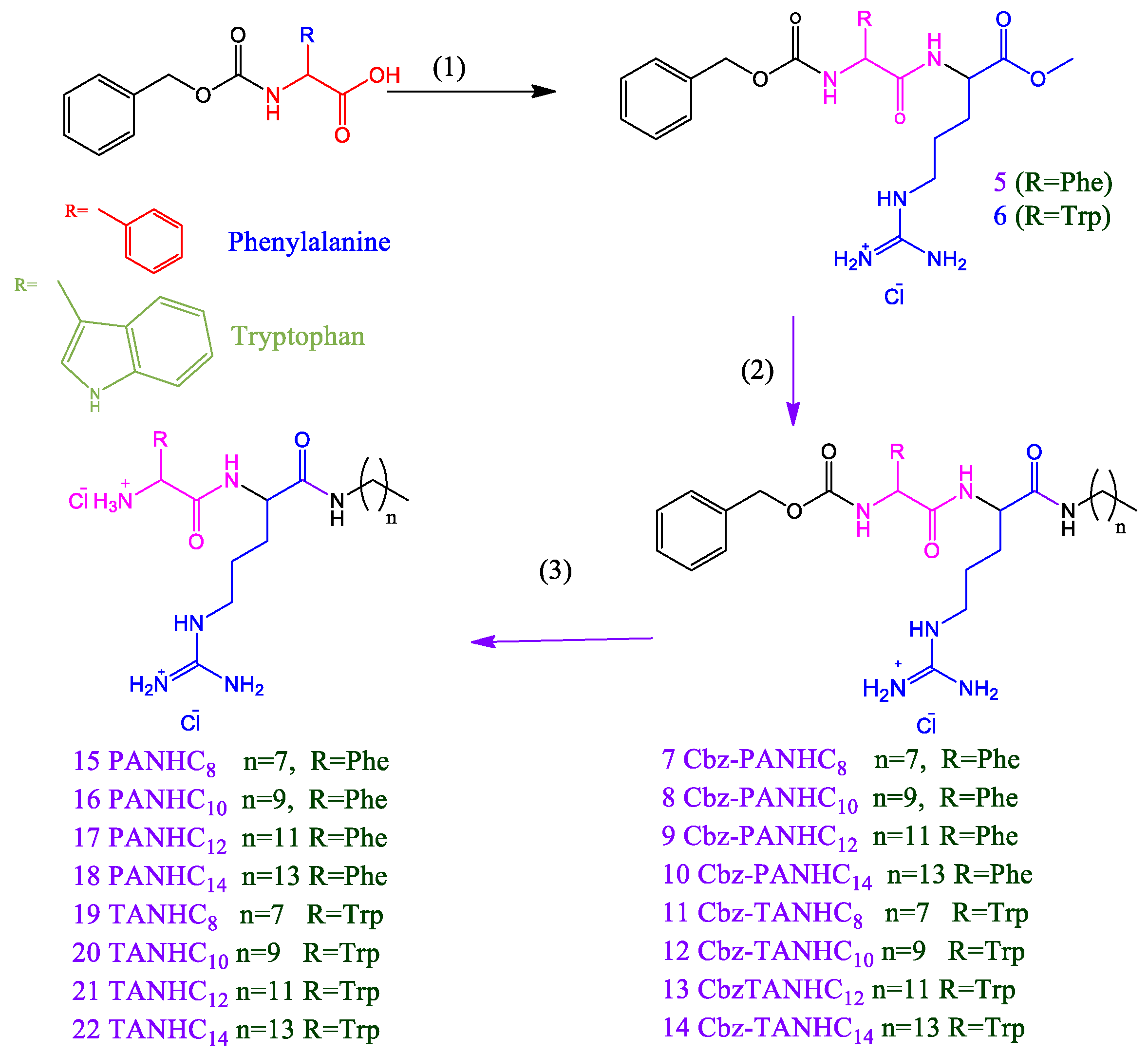

The three-step synthetic procedure for the preparation of the O-alkyl amide derivatives is outlined in Figure 3. Compounds 5 and 6 were obtained using the BOB reagent to condense the α-carboxylic group of Cbz-phenylalanine/tryptophan methyl ester with the amino group of Arg-OMe-2HCl. These reactions occurred at room temperature in CH2Cl2, and the conversion of starting material was over 90% after one hour. The formation of amide bonds between amino acids usually requires the use of activating agents. Intermediates 714 were obtained using the procedure for the preparation of ANHC12 and PNHC12 (Figure 2); compounds 5 and 6 were mixed with the corresponding fatty amine (C8–C14) at the amine melting point. The reactions were also completed in 2–3 h. Finally, removal of the Cbz protecting group by means of catalytic hydrogenation in methanol using Pd/C as the catalyst allowed us to obtain the target cationic surfactants 1522. The reaction was carried out at room temperature and atmospheric pressure. Hydrochloric acid was added to obtain the surfactants as dihydrochloride salts. In this approach, organic solvents were used in the first step because they enabled the synthesis to be carried out in a short time, with typical overall yields of 70–75%. The other two steps were performed without using dangerous organic solvents; moreover, the reactions were achieved at room temperature and atmospheric pressure.

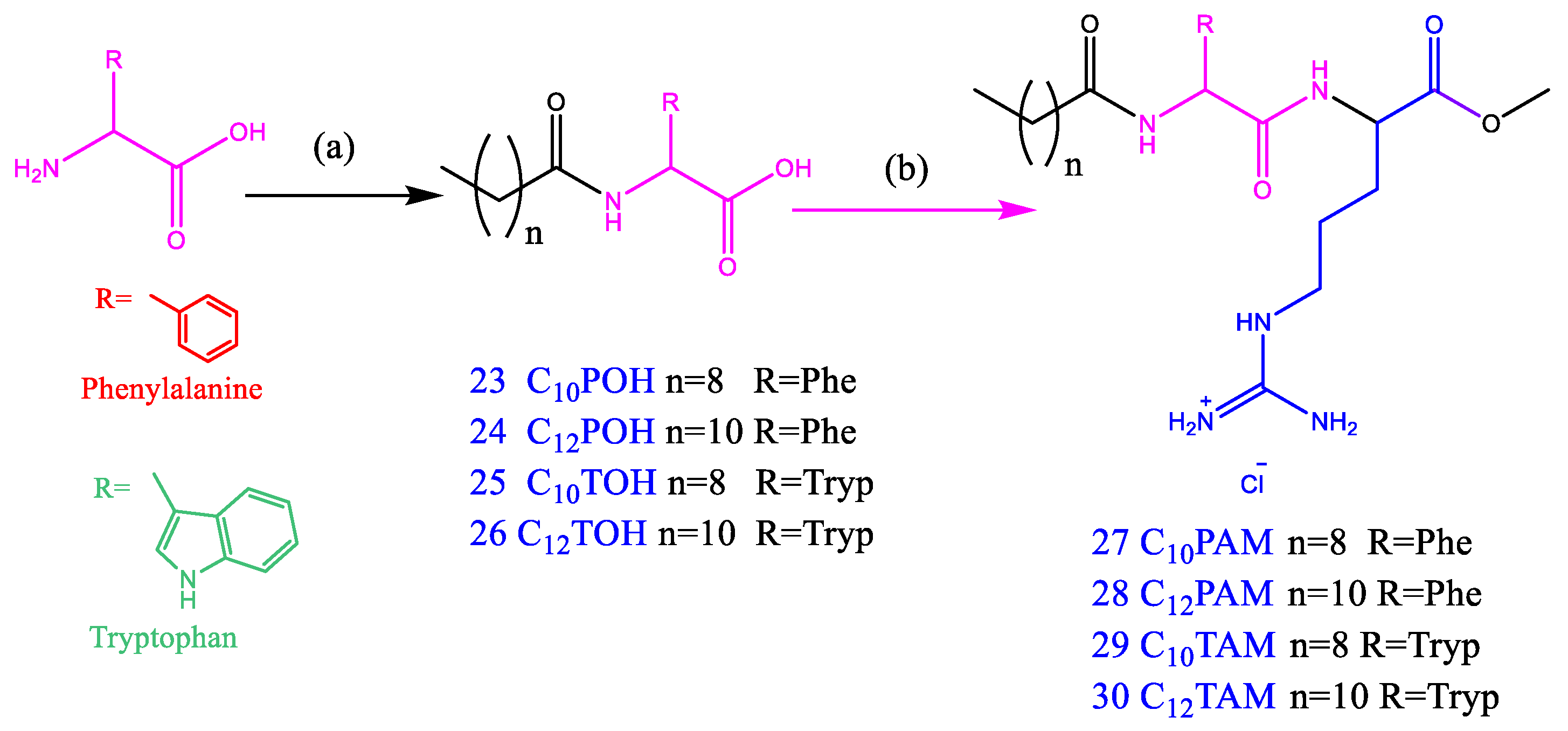

3.1.3. Monocatenary Surfactants Based on Nα-Acyl-Phenylalanine-Arginine-Methyl Ester Hydrochloride (CnPAM) and N-α-Acyl-Trypthophan-Arginine-Methyl Ester (CnTAM) (Figure 4)

A two-step procedure was used to prepare these derivatives. In the first step, Nα-acyl-tryptophan (25, 26) and Nα-acyl-phenylalanine (23, 24) were obtained by acylation of the α-amino group of commercial tryptophan and phenylalanine with the corresponding acyl chloride. The reaction was monitored by HPLC, and at 6 h, 90% of the starting amino acid had been converted. The compounds were purified by several crystallizations in methanol/acetonitrile. The second step involved the condensation of the free carboxylic group of 2326 with the α-amino group of the arginine methyl ester. The use of the coupling agent BOP in the presence of the base DABCO to activate the carboxylic groups rapidly afforded the target compounds 2730. The 1HNMR and 13CNMR spectra agreed with the target structure, and the mass spectra showed the positive molecular ion (Supplementary Materials). The procedure used to prepare these surfactants was easy and efficient, and by avoiding the use of protected amino acids, it allowed us to carry out a rapid synthesis on a large scale and at a reasonable cost.

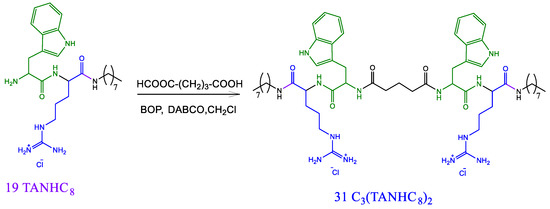

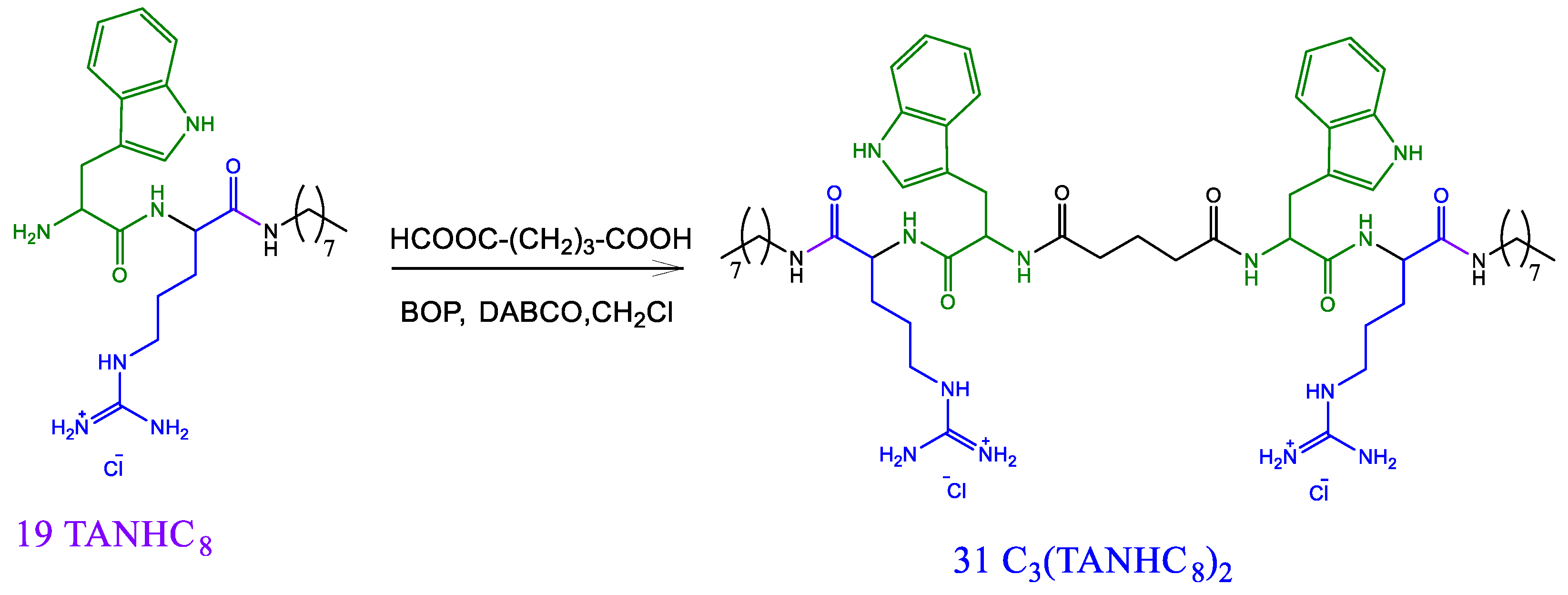

3.1.4. Gemini Surfactant Based on Tryptophan-Arginine Octyl Amide (Figure 5)

This gemini derivative was prepared using compound 19 (TANHC8) as the starting material via the synthetic pathway depicted in Figure 5. Two TANHC8 molecules were condensed to both carboxylic groups of the glutaric acid, using BOP as the condensing agent and DABCO as the organic base. In a previous study, our group successfully used this method to prepare gemini surfactants from arginine, lysine, and histidine [21]. The target gemini derivative was purified using preparative HPLC.

3.1.5. Determination of pKa

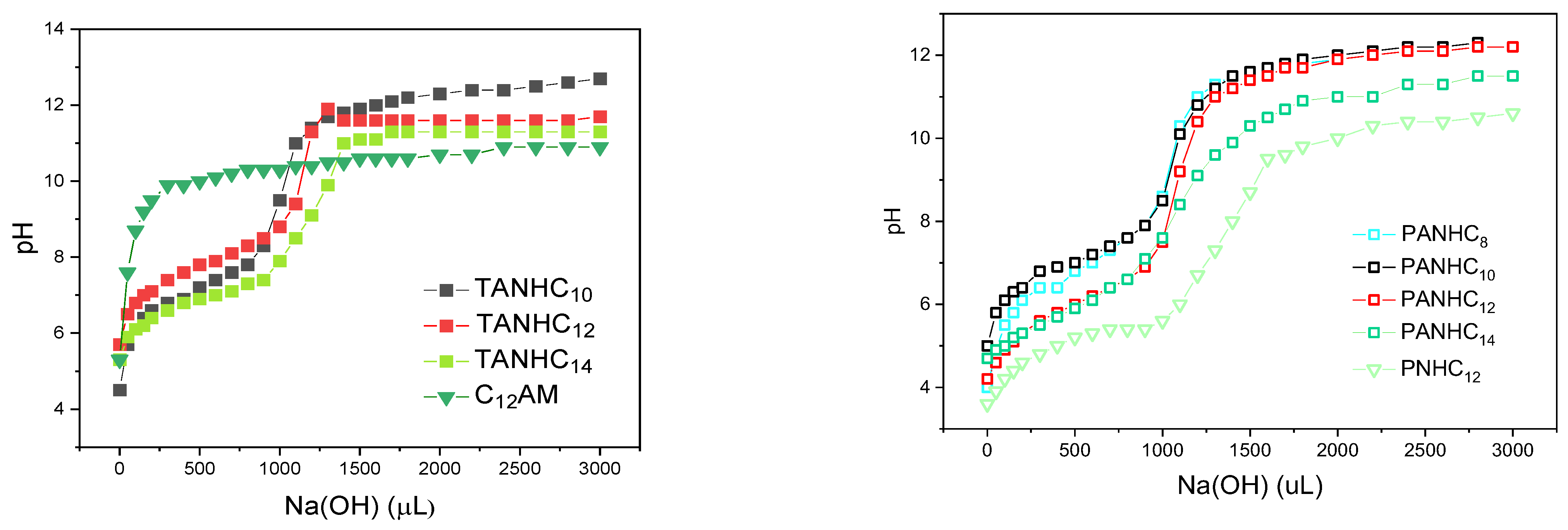

The pKa values of these amino acid-based surfactants were determined by titration of a post-micellar surfactant solution (2 mL) of the corresponding surfactant (Figure 2) with aqueous Na(OH), at 25 °C. The apparent pKa was based on the pH corresponding to the semi-equivalent point of the neutralization curve.
The cationic charge of the prepared pH-sensitive surfactants lies on the protonated amine or guanidine group of the amino acids, and its density depends on the apparent pKa corresponding to the acid-base equilibrium of the protonated groups. Given that the biological properties of cationic surfactants are governed by the cationic charge density [13], it is essential to know the number of cationic charges as well as the pKa values at the pH at which antimicrobial activity is determined. Figure 6 shows the pH values plotted as a function of the volume of NaOH added. According to the equilibria, the pKa corresponds to the pH value obtained at the semi-equivalent titration point (Table 1).
In the monocatenary C12AM, diamino acid-based surfactants of the Nα-acyl type (C12PAM, C10PAM, C12TAM, C10TAM) and the gemini (C3(TANHC8)2), the cationic charge lies on the arginine guanidine group. The strong basic character of this guanidine group makes it difficult to obtain the pKa values from the pH/Na(OH) curves (see the titration curve obtained for C12AM in Figure 6). However, considering the results obtained for C12AM and the data reported for other amphiphiles containing arginine [22] the pKa can be expected to be similar to that of C12AM (around 9–10). It is therefore likely that the guanidine group in these surfactants remained fully protonated in all the biological experiments carried out in this work. Considering that the pKa of the guanidine group of the arginine amino acid is 12.5, it underwent a significant decrease, perhaps induced by aggregation [22]. The monocatenary PNHC12 has one cationic charge on the chlorohydrate amino group of phenylalanine, and its pKa is 5.4; thus, aqueous solutions of this surfactant with pH values of 4.4–6.4 contain protonated and non-protonated species, whereas solutions with pH values higher than 7 contain non-protonated molecules.
The diamino acid-based compounds of the O-alkyl amide type (PANHCn and TANHCn) contain two cationic charges: the protonated chlorohydrate α-amino group of the aromatic amino acid and the chlorohydrate guanidine group of arginine. The pKa corresponding to the protonated guanidine group is expected to be around 9–10, indicating that this group maintained a cationic charge in all the experiments. The pKa of the protonated amino group of PANHCn decreased as the alkyl chain increased, ranging from 6.8 for PANHC8 to 6.0 for the C14 derivative. This tendency was not observed in TANHCn, in which the pKa values varied randomly from 7 to 8 regardless of the alkyl chain length.
The pKa values obtained for the α-amino group of PANHCn and TANHCn indicate weak acidic properties, and their cationic nature therefore depends on the pH of the solubilizing media. At pH 7, these surfactants had a percentage of molecules with two positive charges, the rest having only one positive charge. Similar pKa values were obtained for the α-amino group of glycerolipid arginine-based surfactants [23].

3.1.6. Micellization

The aggregation properties of these amino acid-based surfactants in aqueous media were determined by fluorescence and conductivity measurements. The steady-state fluorescence was measured using pyrene as the solvatochromic probe.

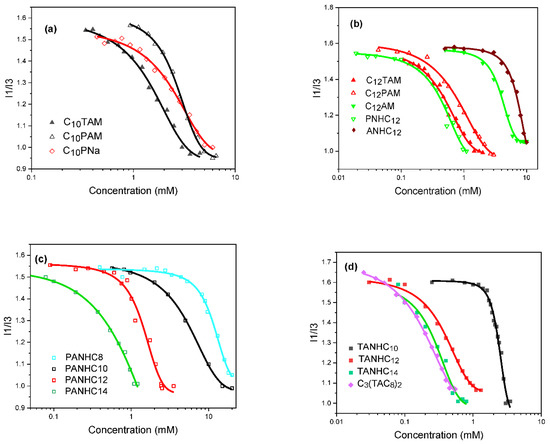

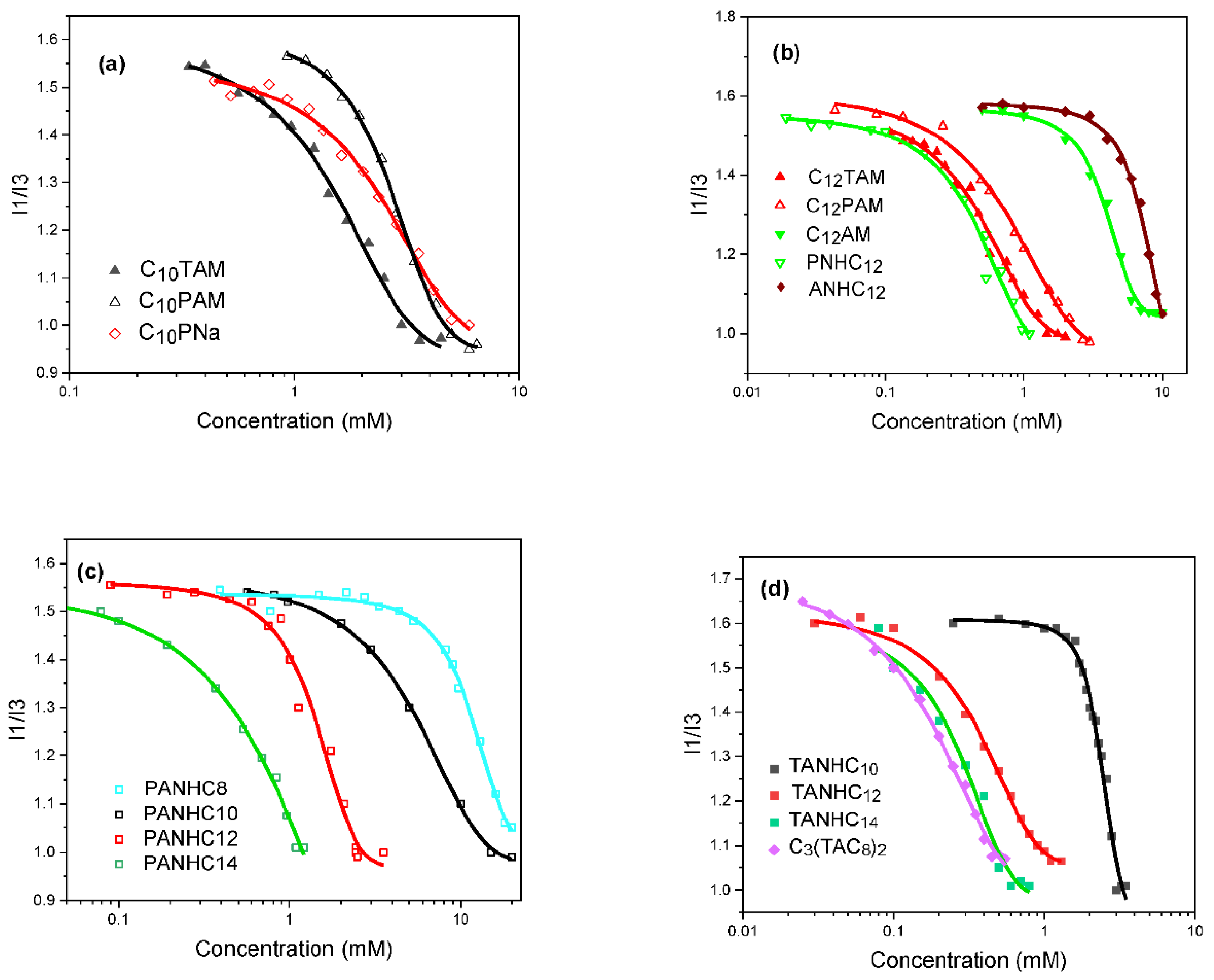

Figure 7 shows the I1/I3 ratio of pyrene as a function of the surfactant concentration. The abrupt sigmoidal decrease in the curves indicates that the pyrene migrated to a more hydrophobic environment and that molecular aggregates were formed in the aqueous surfactant solutions. The cmc values were taken from the intersection of the stable line corresponding to the low surfactant concentrations and the line corresponding to the abrupt change in the I1/I3 ratio (Table 2).
The cmc values of surfactants with 12-carbon alkyl chains, C12AM, ANHC12, PNHC12, C12PAM, C12TAM, PANHC12 and TANHC12, were 4, 7.2, 0.9, 1.1, 0.6, 1.6 and 0.6 mM, respectively. C12AM and ANHC12 share a common feature in the polar head: an arginine amino acid with a protonated guanidine group. However, as ANHC12 contains an extra cationic charge (the protonated amino group of arginine), its polarity and cmc are higher compared to C12AM. The cmc of these two derivatives is similar to those reported for monocatenary surfactants based on lysine and histidine amino acids [24] and for alkyl dimethyl ammonium bromides bearing a side chain with two additional CH2 groups [25].
Compared with C12AM/ANHC12, the cmc values of C12PAM, C12TAM, PANHC12 and TANHC12 were much lower. The incorporation of an aromatic amino acid with a hydrophobic character significantly reduces the polarity of the resulting surfactants, which has a pronounced effect on their micellization process. The higher hydrophobicity of these diamino acid surfactants enhances their tendency to form micelles in water. Quantitatively, the cmc of C12PAM was similar to that of the Nα-acyl arginine methyl ester derivative bearing an alkyl chain with two additional CH2 groups, and the cmc of C12TAM was comparable to that of the Nα-dodecyl arginine methyl ester derivative with four extra CH2 groups. According to the literature, the influence of structural changes in the polar head on cmc values depends on the polarity of the added moieties. We observed that PANHC12 and PNHC12 shared similar cmc values. Cholinium, imidazolinium and pyridinium ILs with phenylalanine on the polar head had much lower cmc values than their IL homologs without the aromatic amino acid [26]. The cmc reported for a series of cationic surfactants, ester hydrochlorides of phenylalanine, were lower than those of PANHCn and PNHC12 [27]. It has also been observed that the incorporation of a polar amino acid such as lysine on the molecular structure of C12AM increases its polarity and cmc [24]. Structural changes in the head group of surfactants with neutral moieties do not significantly affect the cmc [28].
Due to the presence of two aromatic rings on the side chain of tryptophan, C12TAM and TANHC12 showed lower cmc values than the phenylalanine derivatives C12PAM and PANHC12. On comparing the Nα-derivatives C12PAM and C12TAM with the O-alkyl amide derivatives PANHC12 and TANHC12, it can be observed that very similar cmc values were obtained for surfactants with the same amino acid, which indicates a similar polarity of the polar head. Neither the second cationic charge nor the position of the alkyl chain affected the cmc of these surfactants. The micellization process seems to be governed by the alkyl chain length, the hydrophobicity of the aromatic amino acid, and the cationic charge of the guanidine group. The scarce effect of the second cationic charge may be due to the low pKa of the protonated amine group. It was also observed that the ionic character of the polar head did not affect the cmc. Notably, the cmc of the anionic surfactant C10PNa was similar to that of the cationic C10PAM with the same alkyl chain length. These results agree with those reported by Bahri et al. for SDS and DTAB [29].
As expected, cmc values also depended on the alkyl chain length. In homologs with the same polar head (PANHCn and TANHCn), the cmc decreased as the number of carbons in the hydrophobic chain increased. This behavior, common in all types of surfactants, is ascribed to the more hydrophobic character of molecules with longer alkyl chains [25]. The increase in hydrophobicity reduces water solubility, and the surfactants are forced to form molecular aggregates in solution. In an aqueous medium, the cmc usually decreases as the CH2 groups increase, until about 16 [25].

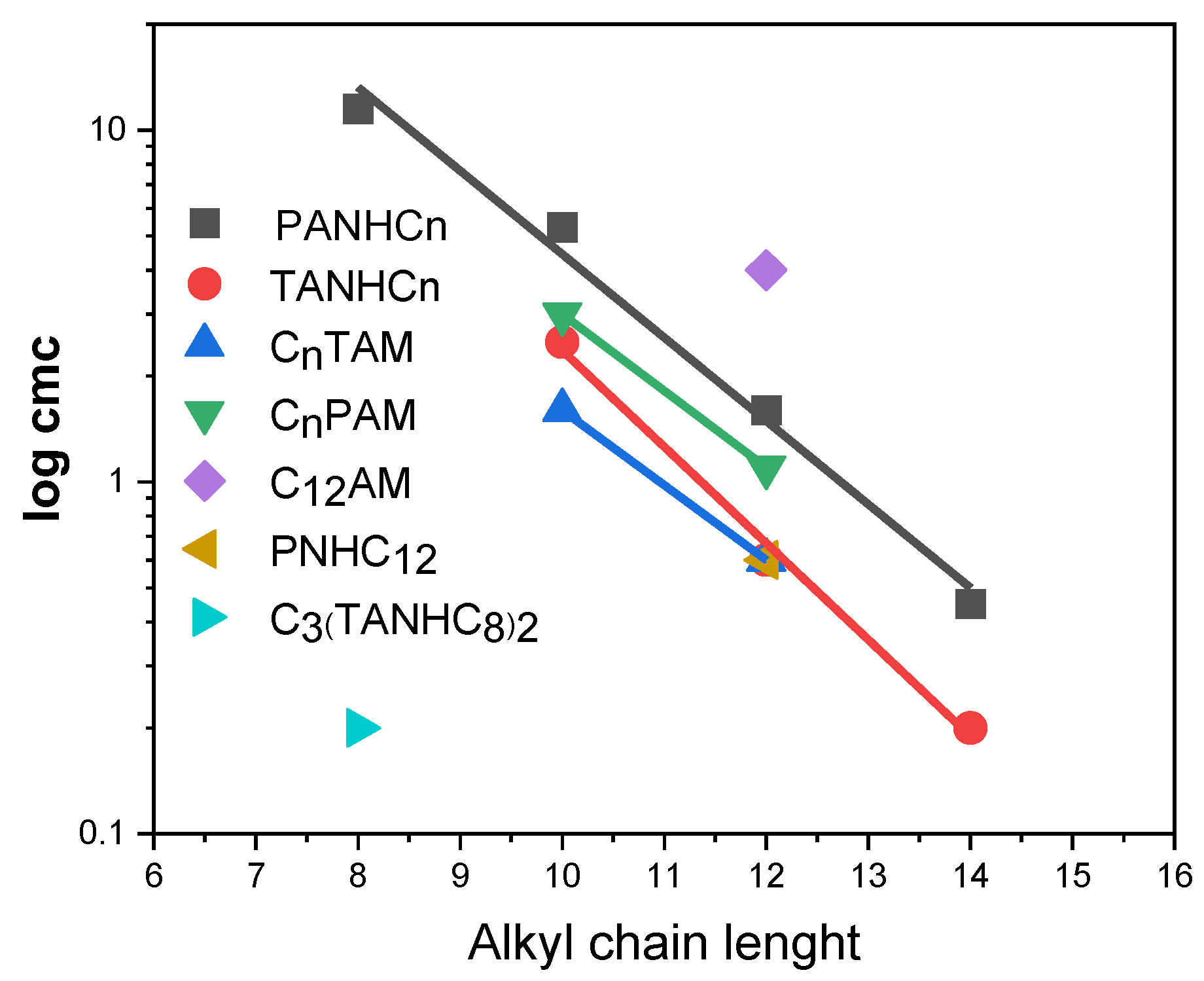

In surfactant homologs, the cmc decreases logarithmically as the number of carbons in the alkyl chain increases, following the empirical Klevens equation [30]: log cmc = A − Bn, where A and B are constant parameters for a particular homologous series. Parameter A is related to the contribution of the polar head to micelle formation, whereas parameter B reflects the average contribution to the micelle formation of each additional CH2 group in the alkyl chain. The CnPAM, CnTAM, PANHCn and TANHCn series showed nearly parallel plots with similar slope values (0.21–0.27, Figure 8). This means that the incorporation of a CH2 group in the alkyl chain approximately halves the cmc values. The B value obtained for these surfactants is similar to that reported for cationic surfactants with different polar heads bearing phenylalanine [26,27] histidine [31], pyridinium, imidazolinium [32], and cholinium head groups [26].
Considering its C8 alkyl chain, the cmc value of the gemini C3(TANHC8) was very low, being similar to the cmc of the C14 derivative monomeric counterparts. In general, all types of gemini surfactants [33], including those based on amino acids [21], have lower cmc values and are more efficient in reducing surface tension than their monocatenery homologs. It seems that the hydrophobicity associated with the second alkyl chain and hydrophobic spacer chain largely compensates for the polarity conferred by the second head group.

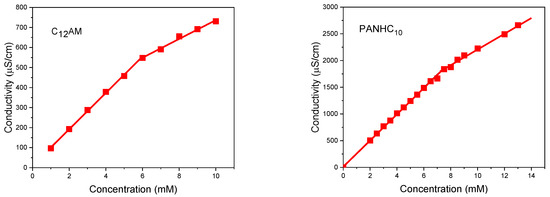

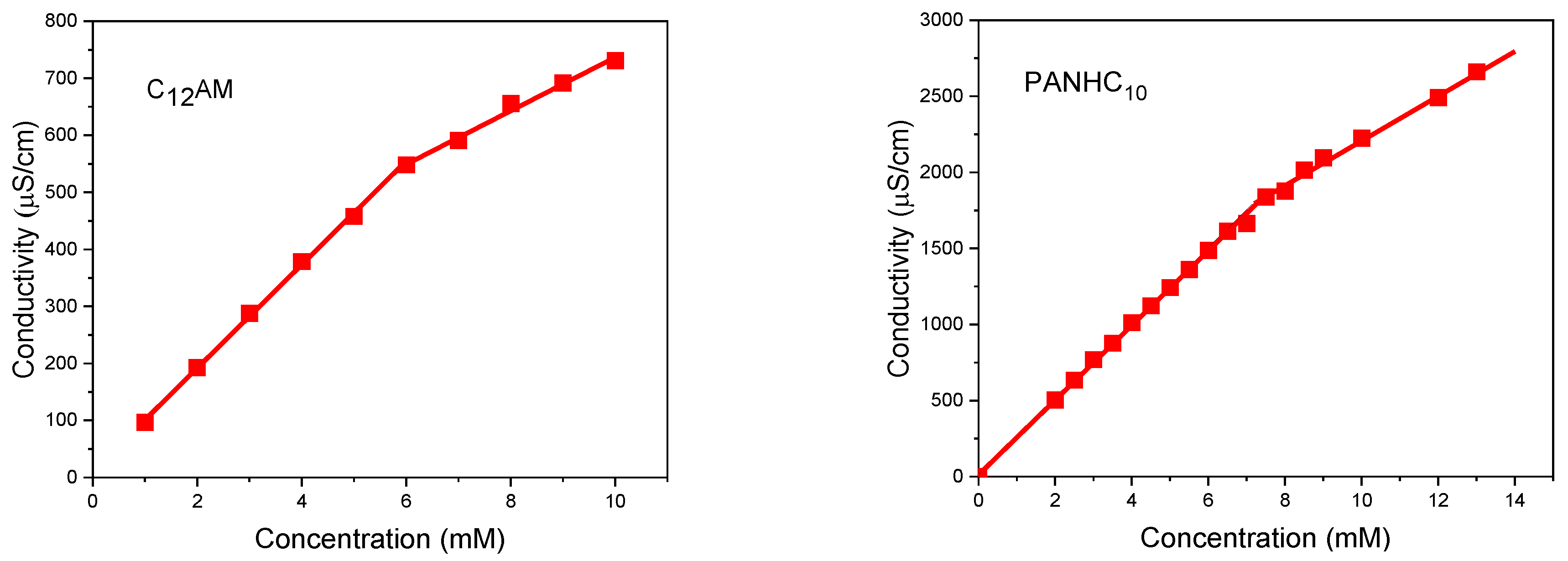

The cmc values of these amino acid-based surfactants were also determined by conductivity. As shown in Figure 9, in C12AM and PANHC10 the conductivity depends on the surfactant concentration. Similar plots were obtained for the other surfactants (see Supplementary Materials). The specific conductivity values fit into two straight lines with different slopes, and an abrupt change in the slopes corresponds to the cmc. In the low concentration range, the increase in conductivity (κ) is due to the increase in free cationic surfactant monomers and counterions. After the cmc, the dependence of κ on concentration has a smaller slope due to lower micelle mobility and the binding of a fraction of the counterions to the micellar surface [34]. The values obtained using this technique agree with those obtained by fluorescence measurements (Table 2) and confirm the cmc values obtained for the new surfactants. Table 2 also shows the retention time (Rt) obtained by HPLC measurements. This parameter follows the same tendency as the cmc, increasing with the reduction in polarity of the head group while the alkyl chain stays the same, and also increasing with the hydrophobicity of the alkyl chain, with the polar group remaining the same.

3.1.7. Antimicrobial Activity

In the search for novel, safe and efficient antimicrobials, considerable attention has been focused on the development of cationic amino acid-based surfactants, whose antimicrobial activity depends on different structural features. In the present study, we prepared new amino acid-based surfactants in which a head group containing one or two amino acids and a hydrophobic alkyl chain were assembled using an amide bond. The different molecular structures prepared allowed us to determine the effect of several parameters (cationic charge density, alkyl chain length and position, and presence of aromatic groups) on the antimicrobial efficiency of these small amphiphilic molecules.
The antimicrobial activity of the new amino acid-based surfactants was tested against a range of representative Gram-positive bacteria (S. aureus ATCC 6538, S. epidermidis ATCC 1222, B. subtilis ATCC 6633, L. monocytogenes ATCC 15313) and Gram-negative bacteria (E. coli ATCC 8739, P. aeruginosa ATCC 9027, A. baumannii ATCC 19606) by determining their minimum inhibitory concentration (MIC), the concentration of surfactants required to completely inhibit the growth of microorganism, and the minimum bactericidal concentration (MBC), the concentration of surfactants required to kill microorganisms.

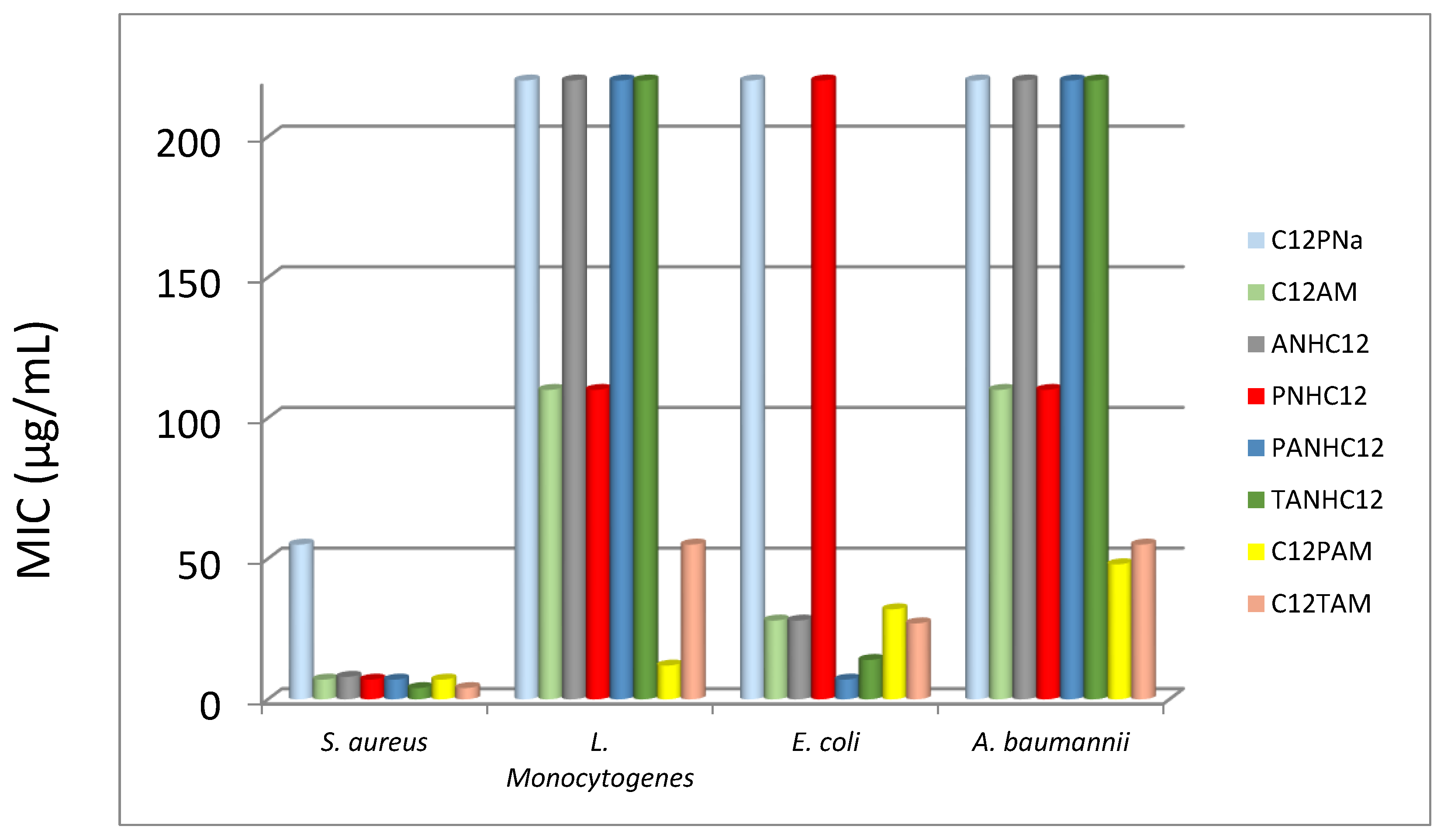

Table 3 and Figure 10 show the MIC values corresponding to the monocatenary surfactants with a similar alkyl chain (C12 derivatives) but different polar group. The anionic analog only exhibited moderate activity against two of the bacteria, the Gram-positive S. aureus and S. epidermidis. As expected, the cationic charge on the polar head was found to be a key structural determinant of the antimicrobial activity of the amino acid-based surfactants.
The adsorption of cationic surfactants on bacterial cell membranes, usually negatively charged, is enhanced by electrostatic interactions [35]. The monocatenary surfactants with one amino acid on the polar head, PNHC12 (cationic charge on the α-amino group of phenylalanine, pKa = 5.5), ANHC12 (two cationic charges, one on the protonated amino group of arginine, pKa = 5.7, and the other on the protonated guanidine moiety, pKa = 10) and C12AM (one cationic charge on the protonated guanidine group), exhibited similar activity against the Gram-positive bacteria. However, the MIC values against Gram-negative bacteria were quite different: whereas C12AM and ANHC12 showed comparable activity against P. aeruginosa E. coli, PNHC12 was roughly five-fold less active than either of them. This behavior could be attributed to the higher pKa of the protonated guanidine group. Notably, the antimicrobial activity was determined at pH = 7.2, the value at which most of the PNHC12 molecules are expected to be unprotonated. Similarly, at pH = 7, almost all ANHC12 molecules have only one positive charge on the guanidine group. This highlights the role of the cationic charge density and consequently the pKa values in the antibacterial efficiency of cationic surfactants. pKa-dependent antimicrobial activity was also observed in other pH-sensitive amino acid-based surfactants, being good when pKa values were higher than nine and less so below seven, especially against Gram-negative bacteria [18]. These results are of great interest, given the growing demand for antibacterial agents effective against opportunistic human pathogens such as P. aeruginosa and E. coli. P. aeruginosa is currently a leading cause of hospital-acquired infections and shows resistance to almost all clinically approved antibiotics [36].
To elucidate the role of polar head aromatic groups in antibacterial activity, we synthesized series of PANHCn, TANHCn, CnTAM and CnPAM. All these compounds have a protonated guanidine group and an aromatic group of tryptophan or phenylalanine amino acids. The incorporation of an aromatic core did not affect the activity of C12AM against Gram-positive bacteria, as compounds C12TAM and C12PAM displayed comparable MIC values against all the tested Gram-positive bacteria. However, these surfactants showed higher activity against L. monocytogenes and A. baumannii. Different results have been reported regarding the effect of the aromatic group on antibacterial activity. For example, benzalkonium bromide bearing a benzyl group on the head group was more active than its counterpart dodecyl trimethyl ammonium by around one order of magnitude [37,38].
Ghosh et al. observed that in surfactants with short alkyl chains, the aromatic group has a stronger influence than the hydrophobic chain on antimicrobial effectivity, and vice versa in surfactants with long alkyl chains [35]. Cationic antimicrobial surfactants containing two amino acids on the polar head, tryptophan-proline, phenylalanine-proline, and phenylalanine-tryptophan, markedly inhibited both Gram-positive (MIC between 5 and 150 μg/mL) and Gram-negative bacteria (MIC between 5 and 150 μg/mL) [39]. It seems that the ability of cationic surfactants to disrupt bacterial membranes can be enhanced by the incorporation of two amino acids on the polar head, especially when this hydrophilic moiety contains an aromatic amino acid combined with a cationic charge. In fact, arginine and tryptophan are found in high proportion in numerous antimicrobial peptides [40]. However, Taleb et al. found that the incorporation of phenyl groups into gemini surfactants reduced their antimicrobial activity [41]. These reports suggest that antimicrobial properties can be enhanced by the incorporation of hydrophobic groups, including aromatic ones, but they are reduced if too many are added.
Increasing the cationic charge density on the polar head is one of the most frequently used strategies to boost surfactant antibacterial properties [42]. Activity against Gram-negative bacteria of lysine-based surfactants was found to decrease with the pKa values and cationic charge density [24]. In contrast, TANHC12 and PANHC12, which have two positive charges on the polar head, exhibited lower activity against Gram-negative bacteria than their homologs C12PAM and C12TAM, with only one positive charge. This anomalous behavior can be ascribed to the low pKa value of the cationic charge on the protonated amine group of TANHC12 and PANHC12.
Our results indicate that the alkyl chain position also affects antimicrobial activity. C12PAM and C12TAM, in which the alkyl chain is bonded to the α-amino group of the amino acid, were more efficient against two problematic pathogens, L. monocytogenes and A. baumannii, compared to PANHC12 and TANHC12, in which it is bonded to the carboxylic group. This behavior could be attributed to the different polarity of their polar heads. Nα-derivatives contain two amide bonds on the polar head, whereas the O-alkyl homologs have one amide bond and one partially protonated amine group at pH = 7.0. Amide appears to be more polar than amine, and consequently, it can both hydrogen bond and accept hydrogen bonds. The better activity of C12PAM and C12TAM suggests that the presence of two amide bonds provides the optimum hydrophobic/hydrophilic balance to interact with bacterial membranes. On other hand, this dissimilar polarity can promote the self-assembly of structures of diverse shape and stability, parameters that affect the antimicrobial activity of cationic surfactants [43,44].
From these results, it can be concluded that the amino acid-based surfactants were effective against Gram-positive bacteria, regardless of the type of polar head group, but changes in the polar head and alkyl chain position significantly affected activity against L. monocytogenes and Gram-negative bacteria. It should be stressed that effective agents against these microorganisms are urgently needed. The incidence of listeriosis (an infection caused by L. monocytogenes) in developed countries has grown significantly due to several factors: a higher proportion of immunocompromised persons, increased use of refrigeration to extend the shelf life of perishable food, and growing consumer demand for refrigerated or frozen foods. Cationic surfactants usually exhibit lower activity against Gram-negative bacteria, whose outer membranes are less permeable due to the presence of peptidoglycan, glycerophospholipids and lipopolysaccharides, which hinders electrostatic interactions with cationic amphiphiles [45]. Consequently, to prepare surfactants with good activity against Gram-negative bacteria, more fine-tuning is required to obtain an appropriate hydrophobic-hydrophilic balance.
The alkyl chain length, associated with the hydrophobic character of amphiphilic compounds, is another structural parameter that affects antimicrobial efficiency. Table 4 shows the MIC values of the tryptophan and phenylalanine derivatives with variable alkyl chains. The derivative with the shortest alkyl chain, PANHC8, was found to be moderately active against three of the four Gram-positive bacteria tested (S. aureaus, S. epidermidis, B. subtilis) and non-active against L. monocytogenes and the Gram-negative E. coli, P. aeruginosa and A. baumannii. Increasing the chain length improved the antibacterial activity. In the PANHCn and TANHCn series, C12 derivatives were the most effective, whereas the longer alkyl chain of the C14 derivatives compromised activity against some microorganisms, including P. aeruginosa. Similar behavior was observed for CnTAM and CnPAM, where antibacterial efficiency was improved when the alkyl chain length was increased from 10 to 12 carbons; moreover, the difference between C10 and C12 was more striking in these series. The most potent C12 derivatives were C12TAM and C12PAM, given that they were active against all the bacteria tested, with MIC values between 4 and 64 μg/mL. The structure–activity study indicates that the optimum chain length for these families of amino acid-based surfactants lies between dodecyl and tetradecyl. A similar performance has been reported for numerous series of surfactants. Antibacterial activity and other biological properties usually exhibit a non-linear dependence on the alkyl chain length, known as the cutoff effect; efficiency tends to reach a peak with C12 and C14 derivatives, gradually decreasing thereafter. Different reasons have been postulated to explain this behavior. Inacio et al. [46] suggest that the cmc values of surfactants play an important role. The formation and elimination of free volume in the bilayer hydrophobic region of the bacterial membrane are also thought to be involved [13,47,48]. Additionally, recent studies show that C12PAM and C12TAM exhibit very good antifungal and antibiofilm activity against some resistant candida strains [49]. The antimicrobial activity of these surfactants was higher than that reported for cationic surfactants with only phenylalanine [27], histidine [31], or tyrosine [27] on the polar head. Likewise, similar antimicrobial efficiency has been described for peptoid mimics containing two amino acids on the polar head (phenylalanine-proline, tryptophan-proline and tryptophan-phenylalanine) [39]. The greater efficacy of surfactants bearing two amino acids on the hydrophilic moiety can be ascribed to the larger polar head, which increases both the molecular area at the membrane–water interface and the cone angle, thus enhancing membrane damage. Moreover, in the aforementioned dipeptide, the delocalized cationic charge in the guanidine group facilitated transmembrane translocation [50]. It seems that effectivity increases when the polar head contains an aromatic as well as a cationically charged amino acid. In fact, arginine and tryptophan are found in very high proportions in several antimicrobial peptides [51].
The in vitro antibacterial activity of a gemini surfactant based on arginine-tryptophan was also investigated, and the results are provided in Table 4. The MIC values indicate that this compound is an effective bacteriostatic agent and was also able to kill problematic Gram-negative bacteria (E. coli, P. aeruginosa and A. baumannii) at low concentrations. This gemini surfactant was clearly more active than the most effective monocatenary C12TAM. These results are not surprising, as studies have shown that gemini Dabco surfactants, gemini surfactants of the bisQuat type [37,52,53], arginine-based dimeric surfactants [54] and histidine-based gemini amphiphiles are more active than their corresponding single-chain derivatives [34]. The antimicrobial activity of cationic surfactants is governed by their electrostatic interaction with anionic compounds in biological membranes as well as hydrophobic interactions with hydrophobic lipid bilayers. The presence of two cationic charged head groups may induce a faster electrostatic interaction with negatively charged cell membrane molecules (lipopolysaccharides in Gram-negative bacteria and teichoic acids in Gram-positive bacteria). Accordingly, antibacterial activity of cationic surfactants is reported to increase with the number of positive charges, due to the multidentate interaction with bacterial membranes. Studies of penetration kinetics indicate that arginine-based gemini surfactants insert more readily into anionic DPPG than zwitterionic DPPC lipid monolayers, suggesting that lipid-antimicrobial interaction is mostly governed by electrostatic forces. Additionally, the two alkyl chains can facilitate hydrophobic interactions with lipid bilayers [55]. These results show that by varying both the alkyl chain length and its position, we were able to fine-tune surfactant antimicrobial efficiency against some recalcitrant microbes such as L. monocytogenes and Gram-negative bacteria.
The action of an antibacterial agent on a bacterial strain can also be characterized by the MBC, the dosage at which >99.9% of bacteria are killed. The MBC of all the synthesized compounds is shown in Table 5, where it can be observed that the MBC/MIC ratio ranged from 1 to 2, indicating that these surfactants exhibited a potent bactericidal effect against the tested microorganisms.
To explore the antimicrobial mechanisms of these amino acid-based surfactants, two problematic species were chosen, the Gram-positive S. aureus and Gram-negative P. aeruginosa. The experiments were carried out using one of the most powerful antimicrobial surfactants prepared (C12PAM).

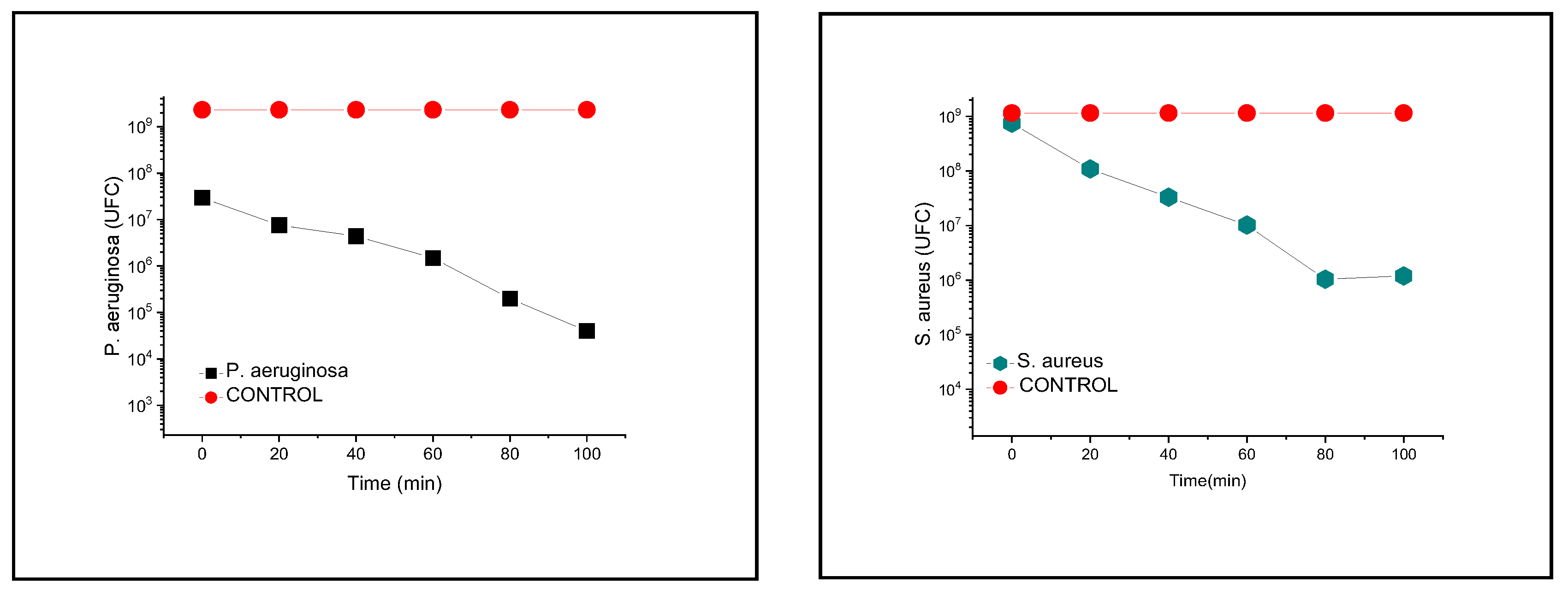

Figure 11 shows the reduction in bacterial growth on exposure to C12PAM at the MIC. The reduction in viability of P. aeruginosa and S. aureus after 20 min of contact was 77% and 85%, respectively. The maximum reduction was observed at 100 min for P. aeruginosa (more than 99%) and at 80 min for S. aureus. A notable and rapid reduction in cell viability has previously been observed in different bacteria treated with lauroyl arginine ethyl ester (LAE) at the MIC [56,57,58].

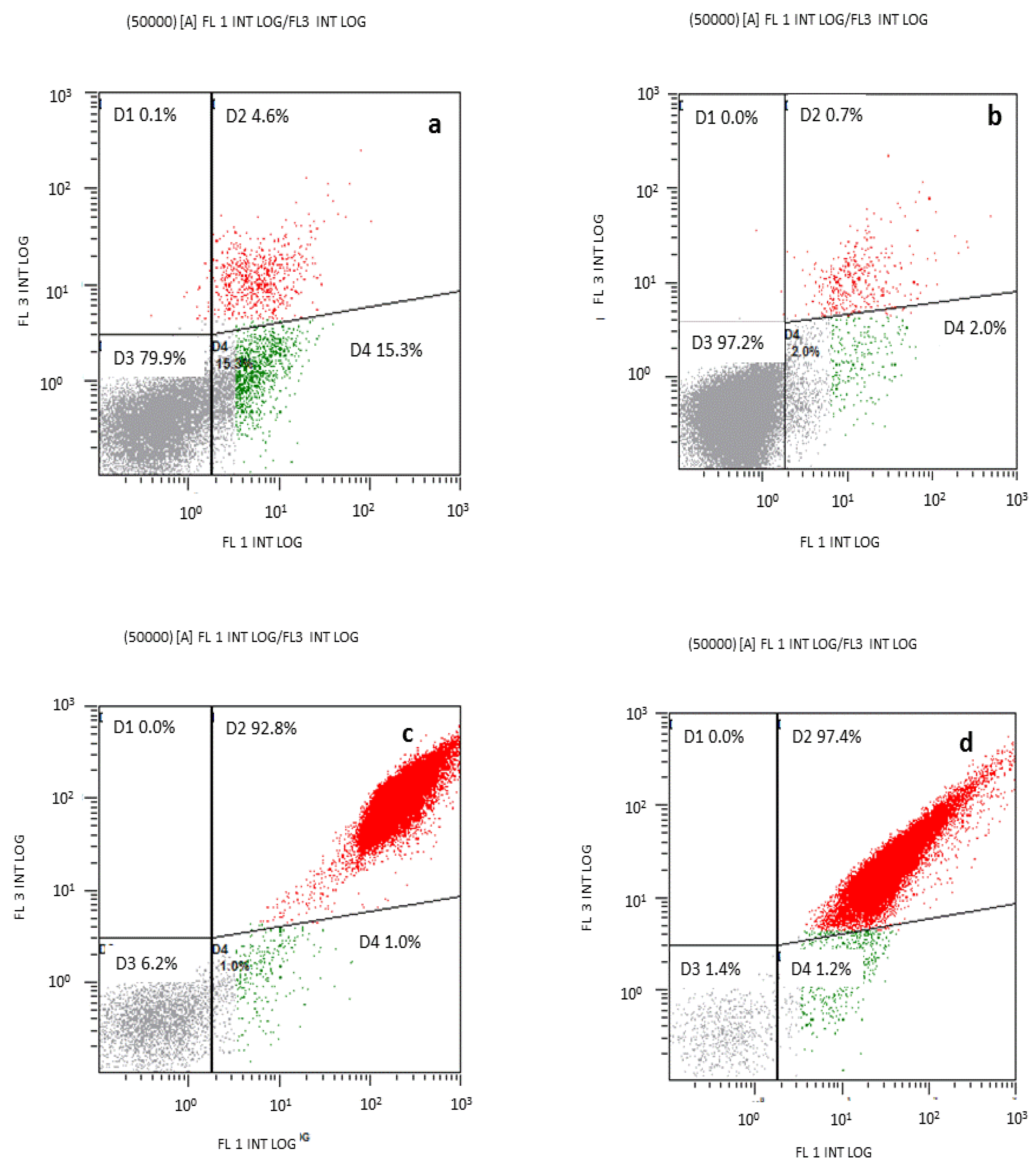

Flow cytometry has been widely used to measure physical and chemical parameters in cells. Fluorescence signals obtained by labelling cells with specific probes allow the detection of certain indicators of cell functionality. In the present study, the loss of membrane potential was evaluated by the anionic dye bis-oxonol, which binds to lipid-rich components after entering depolarized cells. Cell membrane permeability was assessed by the positively charged dye PI, which enters the cell through permeabilized membranes and intercalates between RNA and DNA. Figure 12 shows the cell damage caused by C12PAM in the two bacteria tested. When E. coli and S. aureus were treated with C12PAM in the presence of PI and bis-oxonol, three subpopulations of cells were observed: (a) unstained intact cells (D3 in grey), (b) depolarized cells stained with bis-oxonol (D4 in green) and (c) cells with dissimilar degrees of permeabilized membranes stained with PI (D1, D2 in red). When C12PAM was added to an S. aureus culture, only 1.4% of cells remained intact and 1.2% of cells retained bis-oxonol, indicating a depolarized membrane. However, almost the entire population (97.4%) retained PI, indicating cell death by membrane permeabilization. These results agree with the almost 100% reduction in viability depicted in Figure 11. The same behavior was found in the Gram-negative P. aeruginosa treated with the same surfactant.
Given its amphiphilic nature, this amino acid-based surfactant operates by mechanisms similarly to those described for quaternary ammonium compounds (QUATs). Electrostatic interactions between the positive charge of cationic surfactants and the negatively charged bacterial cellular membranes are followed by the permeation of the hydrophobic chains into the intermembrane region, giving rise to a leakage of cytoplasmatic material and cell lysis. By targeting bacterial cell membranes, these surfactants can affect a broad spectrum of microorganisms. This mechanism of action is supported by the higher activity exhibited against Gram-positive than Gram-negative bacteria. The former have a single phospholipid cellular membrane and a thicker cell wall composed of peptidoglycan, whereas the latter are encapsulated by two cellular membranes and a rather thin peptidoglycan cell wall. Consequently, membrane-targeting antimicrobials exhibit lower activity against Gram-negative bacteria [14]. The mode of action of the cationic LAE has been found to depend on the concentration: at the MIC, membrane permeabilization was the main mechanism responsible for cell death, whereas at 2/3 MIC a notable percentage of cells showed membrane depolarization [57]. When P. digitatum and P. carotovorum were treated with LAE, the permeability of their cell membranes increased dramatically, and cellular material was released from the inactivated microorganisms [59] Recent studies show that the antifungal properties of C12PAM seem to be based on its ability to damage and structurally change cell membranes [49].

3.1.8. Aerobic Biodegradability

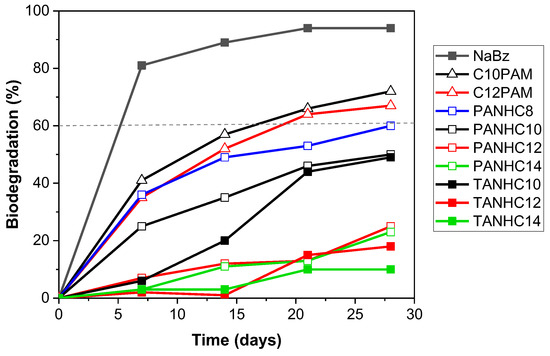

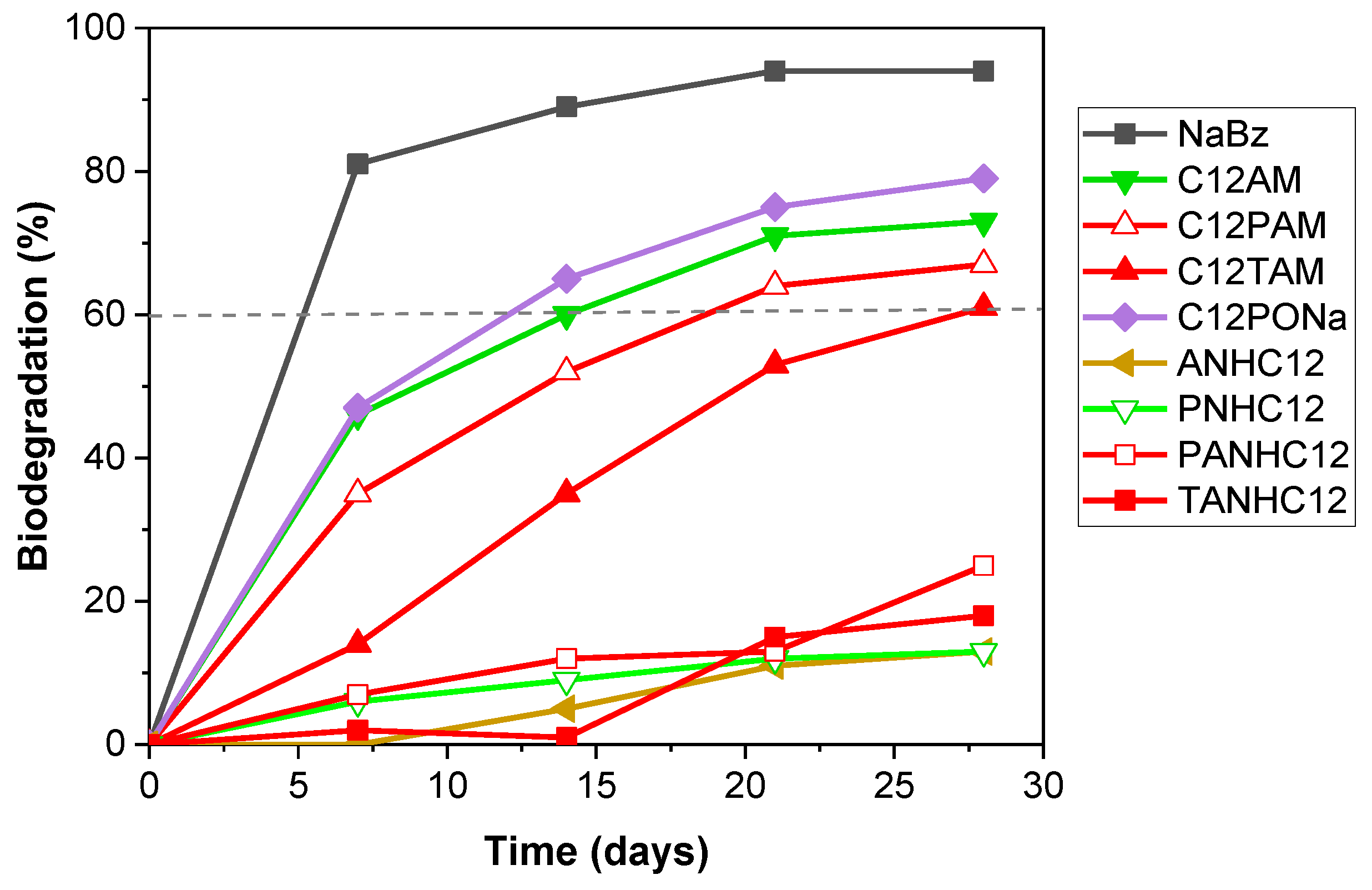

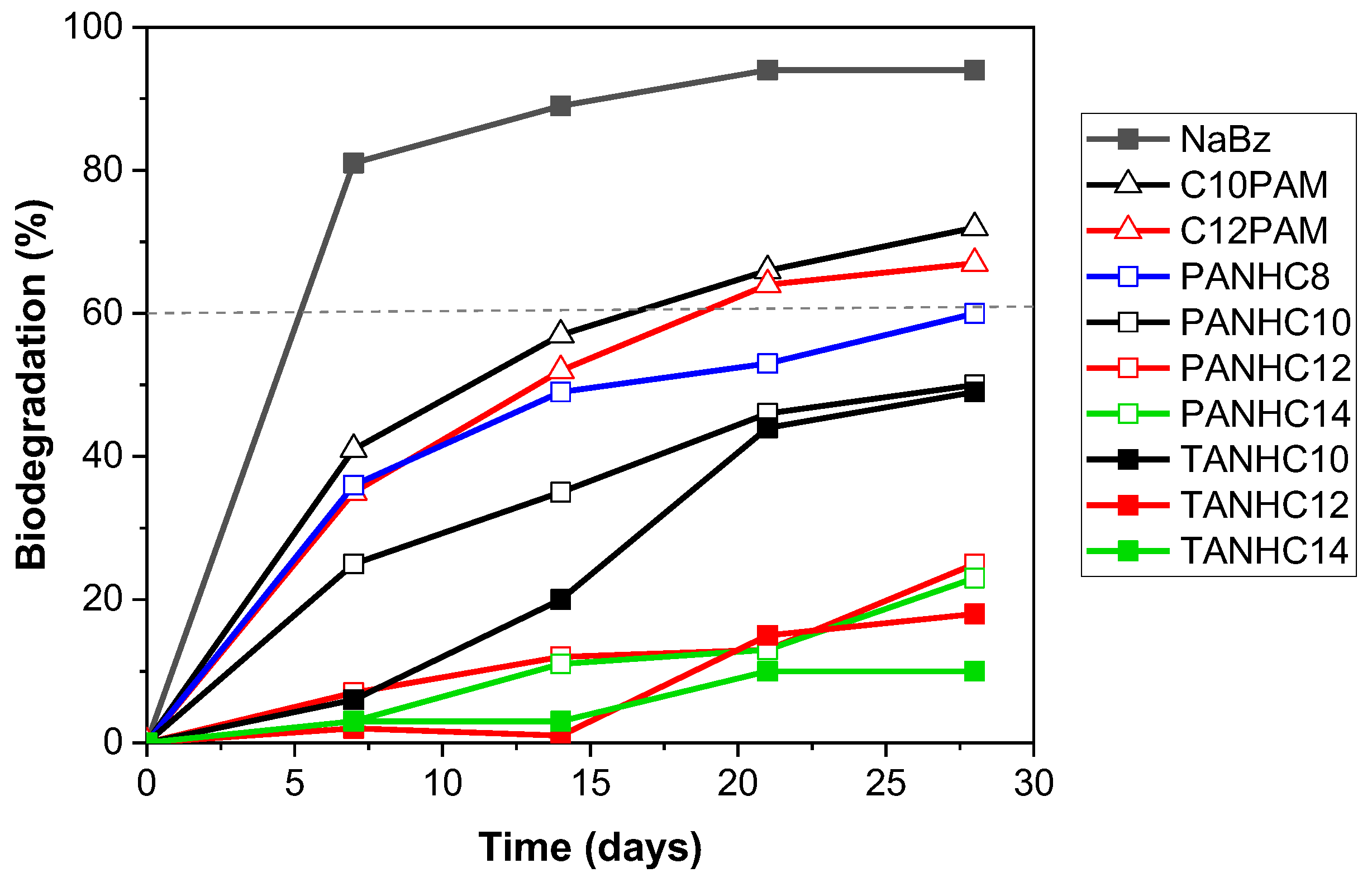

Biodegradation of amino acid-based surfactants was assessed by applying the CO2 Headspace Test (OECD 310), a reference method approved by the European Union to evaluate the aerobic biodegradability of surfactants in European legislation. The extent of biodegradation is expressed as a percentage of the theoretical maximum generation of inorganic carbon based on the initial surfactant amount added. Table 6 displays the biodegradation percentages for the amino acid-based surfactants and the 95% confidence interval for the 28-day biodegradation mean.
All the amino acid-based surfactants underwent some degree of mineralization under the test conditions over the 28-day period (Table 6), but the percentage of biodegradation differed significantly, ranging from 10 to 79% (Table 6). The biocidal activity demonstrated in most of the investigated amino acid-based surfactants could negatively affect their biodegradation. To determine if the low degradation rate of some of the surfactants could be attributed to their potential toxicity against the inoculum, inhibitory checks were included in the biodegradation test design. The toxicity of the amino acid-based surfactants for aerobic microorganisms was assessed by determining the inhibition of the biodegradation of the reference substance (sodium benzoate) in binary mixtures with the test surfactant (Table 7).
The amino acid-based surfactants were found not to inhibit the inoculum activity and did not present a high percentage of inhibition (Table 7), all the values being clearly below 25%, which is the minimum value indicating inhibitory effects in this standard biodegradation test [60]. Therefore, none of the surfactants negatively affected the activity of the aerobic microorganisms and the incomplete degradation observed is not attributable to biocidal effects but solely to non-amenability to the microbial attack under the test conditions. Biodegradation curves for amino acid-based surfactants with one amino acid on the polar head and a 12-carbon alkyl chain or with two amino acids on the polar head and an alkyl chain of different lengths are shown in Figure 13 and Figure 14, respectively.
Among monocatenary surfactants with one amino acid on the polar head and a 12-carbon alkyl chain (Figure 13), C12AM and C12PNa exceeded the 60% threshold and can be regarded as readily biodegradable compounds. In contrast, the biotransformation of ANHC12 and PNHC12 was a modest 13% at the end of the test. Among surfactants containing two amino acids on the polar head group and different alkyl chain lengths (Figure 14), CnPAM and CnTAM underwent more than 60% biodegradation and can be classified as easily biodegradable, whereas the PANHCn and TANHCn homologs did not pass this threshold. It should be noted that in the latter surfactants, biological oxidation decreased significantly with increasing alkyl chain length, biodegradation values varying from ≥50% for C8–C10 to ≤ 25% for C12–C14 homologs (Figure 14). This indicates that the hydrophobicity of the hydrocarbon chain of the surfactant plays a crucial role in its biodegradation.
Hydrophilic and hydrophobic moieties of amino acid-based surfactants are linked by a primary amide bond susceptible to base- or enzyme-catalyzed hydrolysis. As amidases are widespread in nature [61], it is generally accepted that the aerobic biodegradation pathway of primary amides involves initial hydrolysis of the amide bond [62].
Our results underline the important role of the alkyl chain linkage with the polar head group in the biodegradation of monocatenary amino acid-based surfactants. Thus, if the hydrocarbon chain is linked to the carbonyl carbon atom of the amide functional group (C12AM, C12PONa, CnPAM and CnTAM), the surfactants undergo rapid and complete aerobic oxidation (>60%) (Table 6, Figure 13 and Figure 14). However, when the hydrocarbon chain is directly linked to the N atom of the amide group (ANHC12, PNHC12, PANHCn and TANHCn), the degree of biodegradation varies from low to moderate and does not reach the 60% pass level of the biodegradation test (Table 6, Figure 13 and Figure 14).
The biodegradation results can be explained by the following mechanisms. In surfactants with the hydrocarbon chain attached to the carbonyl carbon atom of the amide group, hydrolysis of the amide bond leads to the release of fatty acids and amino acids. The fatty acids are then rapidly broken down by the ubiquitous β-oxidation process [63]. The expected rapid and complete oxidation was confirmed by the results. In surfactants with the hydrophobic chain attached to the N atom, hydrolysis of the amide functional group results in the formation of primary amines and amino acids. Ultimate biodegradation depends on the biodegradability of the released fatty amines. Although primary amines are generally considered to be readily or inherently biodegradable (ECCC 2021) [64], fatty amines are relatively insoluble and have a high tendency to adsorb onto glass surfaces [65] which reduces their availability to microorganisms (EC2008). This could be the main reason for the partial oxidation observed for these surfactants in the test conditions. Moreover, the reduction in biodegradation with increasing hydrophobicity supports that the lower availability of longer-chain amines generated by amide bond hydrolysis was responsible for the incomplete surfactant degradation.

4. Conclusions

Biodegradable and antimicrobial cationic surfactants were prepared with systematic structural modifications (head group architecture and hydrophobic moiety) using renewable raw materials such as amino acids, fatty acids, and fatty amines. The surfactant cmc depended mainly on the hydrophobic/hydrophilic balance, but antimicrobial activity and biodegradability were also affected by the type of amino acid in the polar head and the position of the hydrophobic moiety. Antimicrobial efficacy was improved by the presence of an aromatic amino acid and the optimum alkyl chain proved to be C12. Among Nα-acyl surfactants, those with the alkyl chain linked to the α-amino group of the amino acid exhibited better activity against problematic microorganisms such as L. monocytogenes and Gram-negative bacteria. The surfactant mechanism of action involves the disintegration of bacterial cell membranes and release of cellular material. All the investigated amino acid-based surfactants underwent biological degradation under aerobic conditions, the extent of which was crucially dependent on the attachment of the hydrocarbon chain to the polar head group. Thus, the biodegradation of Nα-acyl amino acid surfactants was rapid and complete (>60%), whereas surfactants with the hydrocarbon chain attached to the amino acid carboxyl group generally underwent a partial biological oxidation related to the alkyl chain length. Incomplete degradation of the homologues with the longest alkyl chains is attributable to the reduced bioavailability of the fatty amines released in the initial hydrolysis of the amide bond.
The development of bacterial resistance to some of these amino acid-based surfactants seems a priori improbable for two main reasons: (a) their mode of action, the disintegration of bacterial membranes, is nonspecific and fundamental to bacterial survival, and (b) high levels of biodegradation render their accumulation in the environment unlikely, and therefore, bacterial populations would not be subjected to lethal doses of these surfactants. Thus, these highly effective biodegradable surfactants show great potential as novel antibacterial agents for future biomedical applications.
