Article

Molecular Dynamics Simulation of Drug Solubilization Behavior in Surfactant and Cosolvent Injections

by
Meiqi He
1,2,3,†,
Wenwen Zheng
4,†,
Nannan Wang
2,
Hanlu Gao
2,
Defang Ouyang
2,* and
Zunnan Huang
1,3,*
1
The First Dongguan Affiliated Hospital, Guangdong Medical University, Dongguan 523710, China
2
State Key Laboratory of Quality Research in Chinese Medicine, Institute of Chinese Medical Sciences (ICMS), University of Macau, Macau 999078, China
3
Key Laboratory of Big Data Mining and Precision Drug Design of Guangdong Medical University, Key Laboratory of Computer-Aided Drug Design of Dongguan City, Key Laboratory for Research and Development of Natural Drugs of Guangdong Province, School of Pharmacy, Guangdong Medical University, Dongguan 523808, China
4
Department of Clinical Laboratory, The Sixth Affiliated Hospital of Sun Yat-sen University, Guangzhou 510655, China
*
Authors to whom correspondence should be addressed.
†
These authors equally contributed to this work.
Pharmaceutics 2022, 14(11), 2366; https://doi.org/10.3390/pharmaceutics14112366
Submission received: 8 September 2022 / Revised: 21 October 2022 / Accepted: 27 October 2022 / Published: 3 November 2022
(This article belongs to the Special Issue Feature Papers in Physical Pharmacy and Formulation)
Browse Figures
Versions Notes

Abstract

:
Surfactants and cosolvents are often combined to solubilize insoluble drugs in commercially available intravenous formulations to achieve better solubilization. In this study, six marketed parenteral formulations with surfactants and cosolvents were investigated on the aggregation processes of micelles, the structural characterization of micelles, and the properties of solvent using molecular dynamics simulations. The addition of cosolvents resulted in better hydration of the core and palisade regions of micelles and an increase in both radius of gyration (Rg) and the solvent accessible surface area (SASA), causing a rise in critical micelle concentration (CMC), which hindered the phase separation of micelles. At the same time, the presence of cosolvents disrupted the hydrogen bonding structure of water in solution, increasing the solubility of insoluble medicines. Therefore, the solubilization mechanism of the cosolvent and surfactant mixtures was successfully analyzed by molecular dynamics simulation, which will benefit future formulation development for drug delivery.

1. Introduction

Intravenous administration is an essential type of drug delivery that allows the drug to avoid absorption obstacles to enter the circulation directly. New drugs are usually administered intravenously for toxicological evaluation and to obtain basic pharmacokinetic parameters such as volume of distribution, clearance, half-life, and absolute bioavailability during preclinical development [1,2]. With a more extensive utilization of combinatorial chemistry and high-throughput screening technology in drug development, more and more candidate chemicals with high molecular weight, lipid solubility, and low water solubility are entering the research field [3]. More than 40% of the new chemical substances developed by the pharmaceutical industry are poorly water-soluble [3,4,5]. In order to achieve favorable intravenous delivery, the required dosage of the drug should be formulated in a solution-type state that would prevent precipitation at the injection spot from further reduction of the drug in the blood. Thus, drugs with low solubility are a dominant obstacle in the development of intravenous administration [2].
Conventional methods for developing intravenous formulations of practically insoluble drugs include pH modification, addition of cosolvents, micellar solubilization, and complexation of cyclodextrins [6,7,8,9]. The addition of cosolvents is one of the most effective techniques to promote the solubilization of nonpolar drug molecules by reducing the polarity of a large number of solvents more closely to nonpolar solutes [10,11,12]. Cosolvents commonly used in the market for intravenous injections include methanol, ethanol, glycerol, propylene glycol, dimethylacetoamide, and polyethylene glycol 300 [13]. Intravenous formulations solubilized with cosolvents are diluted many times before administration to reduce pain and discomfort at the injection site. Although cosolvent approaches can increase drug solubility and dissolution rates at multiple magnitudes, their success is constrained primarily by toxic effects, especially at high concentrations. In addition, dilution could induce precipitation of drugs due to the exponential relationship between the ratio of cosolvent and the solubility of the solute [14,15].
Surfactant adding is also a technology that can improve the solubility of drugs. Due to their amphiphilic structure, surfactants have been usually employed to dissolve drugs with low water solubility by incorporating them into micelles [16,17,18]. Nonionic surfactants have been more extensively applied to the pharmaceutical field than anionic and cationic surfactants, owing to their high efficacy and low toxicity, including Tween 60, Tween 80, Cremophor EL, and Poloxamer 188 [19]. To maximize solubility and prevent precipitation after dilution, cosolvents are widely used in the market along with surfactants [14,15,20]. For example, Cyclosporine is dissolved by a combination of 65% v/v polyoxyethylene castor oil 35 and 32.9% v/v ethanol. It needs to be diluted at least 50–100 times with 0.9% sodium chloride or 5% dextrose solution before administration [21]. However, to our knowledge, the combined solubilizing effect of surfactants and cosolvents on water-insoluble drugs in terms of molecular mechanisms is lacking.
In recent years, along with the massive increment of computational power and the application of efficient computing equipment, Molecular dynamic simulation (MD) has been demonstrated to be a remarkably powerful tool for characterizing and analyzing drug-carrier interactions at the molecular level, and is currently used extensively in the field of pharmaceutical formulation [22,23]. Maleki et al. employed a molecular dynamics simulation approach and discovered that five mer N-isopropyl acrylamide-Carbon nanotube carriers with short polymer chain lengths exhibited optimum interaction with Doxorubicin, which indicated the most desired loading delivery for Doxorubicin [24]. Rezaeisadat et al. used MD to investigate the drug delivery system of PNIPAAm-b-PEG block copolymer solubilizing curcumin molecule, showing that the presence of PNIPAAm-b-PEG polymer increased the solubility of drug by about 88% [25]. Khezri et al. investigated the interaction and release properties of curcumin with chitosan through MD simulations and experimental studies, which revealed the ability of chitosan nanoparticles to carry curcumin [26].
In order to improve the solubilized effect of combined solubilization and develop the formulation better, it is of great importance to investigate the mechanism of the combination solubilization of surfactant and cosolvent for intravenous injection. In this study, six intravenous formulations in which the surfactants and cosolvents co-solubilize poorly soluble drugs were collected in the Food and Drug Administration database firstly. The MD simulation was employed to study the above six marketed available parenteral formulations solubilized by surfactants and cosolvents. We built the system using one molecule of the drug and a corresponding number of surfactant and cosolvent molecules based on the molar ratio of drug, surfactant, and cosolvent used in the formulation, as well as the number of water molecules. We mainly analyzed the process of micelle formation, the structural characteristics of micelles, and the properties of solvents to evaluate the solubilizing ability of surfactants and cosolvents. To further analyze the mechanism of the combination solubilization of surfactant and cosolvent, we also established the system without a cosolvent by keeping the number of drug and surfactant molecules unchanged and adding the number of water molecules to replace the removed cosolvent molecules. The mechanism of insoluble drugs solubilized by the combination of surfactant and cosolvent was further revealed by studying the changes in the solubilization process relating to the existence and absence of cosolvent.

2. Modeling and Methods

2.1. Formulation Information

Six commercially available injectable formulations with co-solubilization of surfactants and cosolvents from the FDA are illustrated in Table 1. Notably, the surfactants used in the six formulations all use the nonionic surfactants Polyoxyl 35 Castor oil or Tween 80. Moreover, ethanol is used as a cosolvent in all formulations. However, Etoposide prescription uses ethanol and polyethylene glycol 300 (PEG 300) for cosolvent solubilization. These injectable formulations are prepared in a non-aqueous preconcentrate form before use and diluted to a particular concentration in a solution medium with 5% dextrose or 0.9% sodium chloride.

2.2. Simulation Details

Chemical structures of 6 drugs (Cyclosporine, Docetaxel, Etoposide, Paclitaxel, Valrubicin, Cabazitaxel), 2 cosolvents (ethanol, PEG 300), and 2 surfactants (polysorbate 80 and polyoxyl 35 castor oil) are illustrated in Figure 1. Molecular types of polysorbate 80 with branched chains of the same length were used (w, x, y, and z = 5) [27]. In addition, the commonly used chain length (x = y = 12, z = 13) was adopted for each polyoxyl 35 castor oil [28]. The models of all drugs and excipients were built and minimized in Discovery Studio 2019 (DS). In the first step of the minimization process, each drug and excipients were minimized with an initial energy using a conjugate gradient algorithm. Then, equilibration was performed at 300 K temperature and NVT ensemble for 100 ps.
In this paper, the molecular dynamics models are set up based on the drug and excipient concentrations of the marketed formulations. To approach a realistic drug delivery environment, the amounts of drug and excipients used in our models are dependent on the molar ratio of drug, surfactant, andcosolvent in the drug formulations. Initial models in the presence and absence of cosolvent containing a single drug and the corresponding number of surfactant molecules in solution were built under periodic boundary conditions. The details of the simulated systems are provided in Table 2. The number of water molecules was set to keep the drug within the clinical use concentration range.
All simulations were performed using the AMBER 2018 program with general AMBER force field (GAFF) [29]. The TIP3P water model was loaded [30]. The partial atomic charges for drugs and excipients were generated from AM1-BCC. The LEaP, Antechamber, SANDER, and CPPTRAJ modules in the AMBER package were used for preparing MD simulation and analyzing the MD trajectories, respectively. The cut-off distance for the non-bonded interaction was set to 1.0 nm for all systems. The integration time step was set to 2 fs and the SHAKE algorithm was performed to restrain the hydrogen bonds [31]. Then, all systems performed a 5000-step steepest-descent energy minimization followed by a 5000-step conjugate gradient energy minimization. Finally, another 20,000 steps of the steepest-descent energy minimization were carried out for all the systems. Once all models were prepared, the models were subjected to a 20 ps temperature raise to 300 K at NVT ensemble firstly, followed by a 500 ps NPT equilibration at 300 K temperature and 1 atm pressure. In the end, the simulation was run for 150 ns in the NPT ensemble for production.

3. Analyses and Results

3.1. Aggregation Processes of Micelles

The self-assembly processes of surfactants and drug encapsulation in different water-media systems could be obtained by analyzing the trajectories of the 150 ns simulations. The micellar solubilization processes of Valrubicin systems containing cosolvents and without cosolvents at different times, for instance, are shown in Figure 2. At 0 ns, the drug, cosolvent, and surfactant molecules were randomly scattered in a solvent box filled with water molecules. Because of the hydrophobicity of drugs, relatively large amounts of surfactants gathered around the drug molecules, forming a larger pre-micelle at 5 ns. Then, as time increased, the clusters became more compact, and the drug molecules continuously rearranged their locations in the micelles until a steady state was achieved. After 150 ns of simulation, the water and cosolvent molecules mixed to fill the box, while the surfactant formed a rough ellipsoid to load the drug molecules. The trajectory processes of systems containing cosolvents and without cosolvents showed a similar solubilization behavior.
The morphological structure of the drug-carrying micelles could be probed by observing the global and local images of the drugs, micelles, and cosolvents in the last frame of the trajectory snapshots, as shown in Figure 3. It could be observed that the surfactants eventually formed a core-shell ellipsoid, with the hydrophilic chains of the surfactants distributed in the outer layer of the micelles, whereas the alkyl groups dominated the core region of the micelles in all systems. Because of the interaction between drug and solvent molecules, drugs were primarily located on the contact surface of the micelles and the solution. Similar results were also obtained for systems without cosolvents. It was intuitively challenging to determine the differences in interaction mode between the systems with and without cosolvents, and further comprehensive analyses should be investigated in the following section.
The ratio of the mean principal axis of inertia (PAI) I1:I2:I3 can be estimated by the mean principal moments of inertia (PMI) over the last 30 ns simulation time to gain the exact morphology of final micelles, which are shown in Table 3. The eccentricity (e) of a micelle is a general measurement of the morphology and magnitude of a micelle and is obtained by the equation e = 1 − c 2 a 2 , in which c and a represent the shortest and longest semi-axis in the micelle. From Table 3, it can be observed that the eccentricity of the micelles in the simulation varies between the range of 0.63 and 0.96. This indicates that the micelles formed by the surfactant are ellipsoidal spheres, as determined by the eccentricity and the PAI ratio, where a lower eccentricity indicates a more ellipsoidal shape of the micelles.
Radial distribution functions (RDFs) could describe how the density of surrounding matters varies as a function of the distance from a point, which could be used to provide insight into the microscopic structure of a drug-loaded micelle. Radial density distribution diagrams for drugs, cosolvents, waters, and the hydrophobic and hydrophilic chains of surfactants as a function of the distance against the center of mass of drug-loading micelles are shown in Figure 4. It could be concluded that hydrophobic groups are primarily distributed in the micellar core, hydrophilic groups are mainly located in the shell layer in all formulations, and drug molecules are dominantly soluble in the micellar core-shell structure. At the same time, the drug molecules also have some contact with the water phase. In addition, the water molecules are mainly distributed in the solution phase, and a small number of water molecules will contact the micellar core. In the distribution range of hydrophilic chains of surfactants, cosolvents have a certain amount of distribution concentration, which indicates that a small fraction of cosolvent molecules permeate into the micelles and interact with hydrophilic chain molecules. Except for the Paclitaxel formulation, there were no significant differences in the micellar internal structure between the systems containing cosolvents and without cosolvents. The RDF of the Paclitaxel system comprising cosolvents showed that hydrophilic groups and hydrophobic groups tend to be located in the core of the micelle; however, this is due to the limitations of RDF analysis methods. The eccentricity of Paclitaxel micelles in the system with cosolvents was 0.96 and formed a relatively flat ellipsoid according to the analysis of the last frame diagram and eccentricity described above, so the radial density distribution diagram could not exactly explain its structure.
By depicting the location and local environment of the drug molecules in the carrier environment, the interactions of drugs with excipients can be derived. Figure 5 shows the RDFs for water particles, cosolvents, and hydrophobic and hydrophilic groups against drug particles at the solubilized state in the presence and absence of cosolvents. From these analyses, we could conclude that drug molecules mainly solubilized in the interface of hydrophobic and hydrophilic groups, where drug molecules interacted with water molecules and cosolvents at the same time. In addition, cosolvent molecules gathered around drug molecules within 4–8 angstroms, indicating that drug molecules and cosolvent molecules have a certain affinity. The Etoposide molecule was gathered by a considerable volume of PEG 300 chains and ethanol chains under the solubilization of two cosolvents [24,25].

3.2. The Effect of Cosolvent on the Properties of Bulk Solvent

Under the concept of solubility, a nonpolar solute in aqueous solution would be limited by the ordered water structure around the nonpolar moieties, which would restrict the solubility of the substance with low solubility [32,33]. It has been reported that the existence of some cosolvents, for example, ethanol, propanol and DMSO, could act as structure breakers, leading to the breakdown of the hydrogen bonding structure of water around hydrocarbon substances, weakening the hydrophobic interaction between the nonpolar group and water molecules and thus increasing drug solubility [34,35]. Therefore, it is crucial to study the properties of the bulk solution after adding the cosolvents, since changes in the solution properties would indirectly impact the solubility of insoluble solutes and surfactants [36,37].
Based on the above analysis, the ethanol molecules added to the micellar solution were dominantly distributed in the bulk solution, with a small number of molecules penetrating the micelles to interact with surfactants. The hydrogen bonding number (per water) between water–water for all systems is plotted in Figure 6. The differences in the number of water molecule–water molecule hydrogen bonds formed per water molecule between the systems without cosolvents and those with cosolvents were analyzed using the Student’s t-test and the Mann–Whitney U test by R software (version 4.1.0, R Foundation, Vienna, Austria), as shown in Table S1. Regarding the effect of cosolvents on the hydrogen bonding number of water–water, we observed that their values decreased after the addition of the cosolvents for all systems except for the Etoposide system, which is particularly obvious for the Paclitaxel and Valrubicin systems. It could be associated with the differences in the concentrations of ethanol added to the different systems. The concentrations of ethanol added to the Paclitaxel and Valrubicin systems were about 7.61% w/w and 10.27% w/w, respectively, which were much larger than those of the Docetaxel (1.42% w/w), Cyclosporine (1.31% w/w), Etoposide (0.52% w/w), and Cabazitaxel (0.27% w/w) systems. Because ethanol molecules could form hydrogen bonds with water, a number of water–water hydrogen bonds were replaced by water–ethanol hydrogen bonds. An ethanol molecule could not replace a water molecule to create a tetrahedron hydrogen bond network since an ethanol molecule contains only one hydrogen bond, whereas a water molecule contains two. Therefore, the original hydrogen bonding network of pure water molecules was destroyed, and the average hydrogen bonds formed by each water molecule were reduced [38]. As for the Etoposide system, the cosolvents formulated consist of ethanol and PEG 300. The PEG 300 fails to break the water hydrogen bonding network as ethanol does, despite being miscible with water [39]. Since the the octanol and water partition coefficients (log P) of PEG 300 is close to −1.93, which is closer to the log P of ethanol (−2.4) compared to water, it is possible for a part of the alcohol molecule to be adsorbed on PEG 300, leading to a reduction in the distribution of alcohol in the solution.
To investigate the effect of cosolvents on the water structure, the radial distribution functions of the water-oxygen–water-oxygen (Ow–Ow) sites for all simulations are shown in Figure 7. The first peak of the Ow–Ow site distribution function at 2.75 corresponded to the first adjacent hydrogen bond on the tetrahedron. The first peak of the Ow–Ow distribution function overlapped with the system without the cosolvent molecule after adding cosolvents, however, the height showed an insignificant decrease. The overall Ow–Ow height became shallower with respect to the system without cosolvents after the first peak. It was obvious that the number of water–water hydrogen bonds developed in the system containing cosolvents was reduced, and the water hydrogen bonding network was interrupted compared to the system without cosolvents. The addition of cosolvents promoted the solubility of nonpolar solutes by interfering with the hydrogen bonding network of aqueous solutions, thereby reducing the structure of water molecules near nonpolar hydrocarbon groups [33]. The hydrophilic hydrogen bonding groups of most cosolvents ensured miscibility with water, whereas their hydrophobic hydrocarbon regions interfered with the hydrogen bonding network of water, reducing the hydrogen bond density of water and lowering the chemical potential of the solution, thereby providing a less polar environment to attract more drug molecules into the solution [32].

3.3. The Effect of Cosolvent on Micellar Formation

In addition to modifying the properties of the overall solution phase and weakening the hydrophobic effect, the presence of cosolvents could also affect the micelle formation by surfactant molecules, thus affecting the micellar solubilization capacity.
The variation of radius of gyration (Rg) of drug-loaded micelles throughout simulation time was used as a factor to indicate the collapsed structure of micelles. Figure 8 shows the time variations of Rg of drug-loaded micelles in the systems with and without cosolvents during the 150 ns simulation. As it could be seen, the Rg of micelles became smaller and smaller over time until they reached a stable state and fluctuated around a certain value in both systems with and without cosolvents, which indicated that micellar aggregates became more and more compact. This also shows that the simulation time we used is sufficient to reach equilibrium. In addition, the average Rg during the last 30 ns of the simulation time was shown to characterize the size of micelles in Figure 9. The Student’s t-test and Mann–Whitney U test in R software (version 4.1.0, R Foundation, Vienna, Austria) were adopted to analyze the differences of the Rg during the last 30 ns between the systems with cosolvents and without cosolvents, as shown in Table S2. It could be found that the Rg of systems solubilized by surfactants and cosolvents were larger than systems without cosolvents. The impact of the addition of cosolvents on the micellar structure should be further analyzed.
The surface area of biomolecules that could be contacted by solvents was called the solvent accessible surface area (SASA), which was an analytical method to measure the solubility of insoluble substances [40]. In order to investigate the variation of micellar structure more intensively, the polyethylene oxide (PEO) chains are classified as hydrophilic chains and the other hydrocarbon moieties as hydrophobic chains (Figure 10). To quantify the hydrophilicity of micelles, we calculated the time evolutions of SASA of all surfactants in formulations and their hydrophilic groups and hydrophobic groups over the simulation time, as shown in Figure 11. It could be seen from the figure that the SASA of surfactants and their hydrophilic ends and hydrophobic groups in all systems increased or decreased and finally reached equilibrium at a certain value. In addition, the SASA of the hydrophilic chains of all the surfactants was more significant than the SASA of the hydrophobic chains, indicating that surfactants gradually formed a stable micelle with hydrophilic chains distributing in the outer layer and hydrophobic groups gathering at the core. Moreover, the average SASA of surfactants, hydrophilic groups, and hydrophobic chains were calculated to characterize the micelle structure during the last 30 ns time, as shown in Table 4. Hydrophobic contribution parameters (hydrophobic%) as the ratio of SASA of hydrophobic chains to the total SASA of the last 30 ns time were also displayed in Table 4. The SASA of micelles in formulations containing cosolvents was more significant than that of corresponding formulations without cosolvents. It was consistent with the comparative analysis of Rg mentioned above. Except for the Etoposide formulation, the SASA of their hydrophobic chains, hydrophilic groups, and hydrophobic% in all formulations containing cosolvents were more significant than that of corresponding formulations without cosolvents. These indicated that the affinity of micelles formed by surfactants and solution was relatively larger in the presence of cosolvents, which indicated the addition of ethanol resulted in swelling (higher degree of solvation) of both the core and corona. Moreover, it also revealed that the hydrophobic chains of surfactants in the systems containing cosolvents interacted more with the solvent molecules, which may lead to changes in the distribution of the micelle structure. The Etoposide formulation was slightly different because its cosolvents were composed of ethanol and PEG 300. The average SASA of hydrophobic chains in the Etoposide formulation containing cosolvents was 4.7982 square nm, whereas the average SASA of hydrophobic chains without cosolvents was 5.7641 square nm. The latter has a larger hydrophobic surface area because the hydrophilic and hydrophobic chains of micelles competed to bind the PEG 300 chains. However, both hydrophilic chains and PEG 300 have longer polyoxyethylene segments [-CH2-CH2-O-] in their structures, and the octanol and water partition coefficients (log P) for both near ethylene glycol is –1.93, indicating that PEG 300 has a greater affinity for hydrophilic chains. Therefore, PEG 300 had more interaction with the hydrophilic chain than with the hydrophobic chain, resulting in a restricted activity interval for the hydrophobic chain.

3.4. The Interactions between Drugs and Excipients

The interactions between micellar chains, solution particles, and drug molecules were analyzed to characterize the solubility variation of the drug after co-solubilization by surfactants and cosolvents, as shown in Figure 12. In this regard, the solution molecules comprise water molecules and cosolvent molecules in the solution phase. The van der Waals interactions between the drugs and the micelles are more significant than the electrostatic interactions because fewer groups in the micellar chains are capable of forming hydrogen bonds with the drug particles. In contrast, electrostatic interactions between drugs and solvent molecules are more prominent than van der Waals interactions owing to the presence of a large number of -O-H that can form hydrogen bonds between water molecules. However, few hydrogen bonds are formed between drug and water molecules. As observed in Figure 12, the interaction between drug particles and solvent molecules was more robust in the system containing cosolvents than in the system without cosolvents, except for the Docetaxel system. The addition of ethanol rendered the aqueous solution more favorable for dissolving the drug. It increased the solvation of the micelles with reduced contact with the drugs, resulting in a greater affinity of the drug molecules to the solution. It is indicated that the micelles would reduce the encapsulation of drug particles after adding cosolvents.
When the cosolvents were added to the aqueous solution of the surfactants, the Rg and SASA of the micelles increased, indicating an increase in the solvation of the hydrophilic and hydrophobic chains of the micelles, which was related to the change of properties of the solution. As the hydrogen bonding network of the aqueous solution was broken after the addition of the cosolvents, the disruption of the water structure around the nonpolar groups made the hydrophobic interaction of the hydrophobic chains weaker. Since the hydrophobic interaction generated by the hydrophobic tail is the main driving force for micelle formation, the addition of ethanol hindered the binding and stability of micelles, leading to an increase in the critical micelle concentration, which is detrimental to the formation of micelles. Furthermore, ethanol molecules were distributed mainly in the solution and penetrated less into the micelles when added to the solution, so the effect of ethanol on the formation of micelles through this mechanism will be limited. Moreover, the addition of ethanol molecules diminishes the encapsulation capacity of micelles. There are several experimental studies that correspond to this finding. Alexandridis et al. added ethanol molecules into the solution of block copolymer Pluronic P105, and the solvent content in both the micelle core and corona increased [34]. Kawakami et al. observed that the solubility of the Tween 80 solution increased when ethanol was added [41]. In the face of dilution, surfactants with a higher critical micelle concentration (CMC) are more likely to face the risk of drug precipitation and lower solubilization ability to solubilize drugs.

4. Discussion

Nonionic surfactants and ethanol are widely used in surfactant and cosolvent co-solubilized injections. These injectable formulations are prepared in a non-aqueous preconcentrate form before use and are diluted to a particular concentration in a solution medium. The molecular dynamics simulation study showed that the surfactants formed ellipsoidal micelles rapidly after dilution and were wrapped insoluble drugs between the hydrophilic and hydrophobic chains of the micelles. Only a small fraction of cosolvent and water molecules penetrated into the micelles and mostly mixed in a homogeneous solvent phase. However, the research mainly focused on nonionic surfactants and ethanol, and the lack of research on ionic surfactants and other cosolvents will lead to the lack of study of overall excipients and relevant information on the application of formulations. In the future, we plan to extend this analysis to the formulation applications of other surfactants, cosolvents, and insoluble drugs.
The drug exhibits linear solubilization in surfactant solution and follows a log-linear model in cosolvent solution [41,42]. However, the combined solubilization of surfactants and cosolvents depends on the interaction of surfactant and cosolvent and is not simply a superposition. In general, in the case of surfactant and cosolvent solubilization, a portion of the cosolvent molecules is distributed in the bulk solution, and part of the cosolvent molecules penetrates into the micelle to interact with surfactants. In this work, with the addition of ethanol to the solution, most of the ethanol molecules were distributed in the solution, which changed the properties of the solution and disrupted the hydrogen bonding network of the aqueous solution, making the solution less polar and more suitable for the solubilization of insoluble drugs and surfactants. However, the decreased hydrophobic interaction of surfactants hindered the formation of micelles, which decreased micelle stability and affected the solubilization of drugs in micelles. Therefore, the solubilization capacity of insoluble drugs in surfactants and cosolvents is difficult to be directly generalized empirically and needs to be obtained by analytically observing the combined interaction of the cosolvent and surfactant. In this paper, molecular dynamics simulation was adopted to study the co-solubilization mode of surfactants and cosolvents, which could reveal the interaction between the cosolvent and the surfactant from a microscopic molecular perspective; therefore, it is of great significance to use molecular dynamics simulation for the research of drug delivery.

5. Conclusions

Our MD simulation study provided a molecular perspective for understanding the solubilization behavior of nonpolar drugs in systems solubilized by surfactants and cosolvents. We could conclude that randomly dispersed surfactant molecules self-assembled into ellipsoidal micelle with a core of hydrophobic groups and an outer layer of hydrophilic groups encapsulating poorly water-soluble drugs. It was found that drug particles were preferentially localized at the core–shell interface of micelles, where they interacted with water, cosolvent molecules, and hydrophobic and hydrophilic groups. A small fraction of water and cosolvent molecules were inserted into the outer shell of the micelles. It could also be concluded that the addition of ethanol increased the solvation of the core and palisade regions of the micelles, which contributed to the rise in the CMC of the micelles. At the same time, ethanol increased the solubility of insoluble drugs in solution due to the disruption of the hydrogen bonding network of water molecules. Therefore, the molecular mechanism of cosolvent and surfactant co-solubilization was successfully explored by molecular dynamics simulations, which is expected to play a central role in the future in the drug delivery field. In the future, we may be able to use molecular dynamics simulation to screen the excipients for the combined solubilization approach of surfactants and cosolvents.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/pharmaceutics14112366/s1, Table S1: The significance test between the number of hydrogen bonds between water−water (per water) in formulations without cosolvents and the formulations containing cosolvents. Table S2: The significance test between the average Rg values of different systems without cosolvents and containing cosolvents during the last 30 ns simulation time.

Author Contributions

Conceptualization, M.H., W.Z., H.G., D.O. and Z.H.; methodology, M.H., W.Z., N.W., H.G., Z.H. and D.O.; validation, M.H.; formal analysis, M.H., W.Z. and H.G.; investigation, M.H. and N.W.; resources, M.H., W.Z. and N.W.; data curation, M.H.; writing—original draft preparation, M.H. and W.Z.; writing—review and editing, M.H., W.Z., N.W., D.O. and Z.H.; visualization, M.H.; supervision, D.O. and Z.H.; project administration, M.H., D.O. and Z.H.; funding acquisition, Z.H. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (grant no. 31770774) and the Key Discipline Construction Project of Guangdong Medical University (grant no. 4SG22004G).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All related data and methods are presented in this paper. Additional inquiries should be addressed to the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Van Hoogevest, P.; Liu, X.; Fahr, A. Drug delivery strategies for poorly water-soluble drugs: The industrial perspective. Expert Opin. Drug Deliv. 2011, 8, 1481–1500. [Google Scholar] [CrossRef] [PubMed]
  2. Shi, Y.; Porter, W.; Merdan, T.; Li, L.C. Recent advances in intravenous delivery of poorly water-soluble compounds. Expert Opin. Drug Deliv. 2009, 6, 1261–1282. [Google Scholar] [CrossRef]
  3. Jain, S.; Patel, N.; Lin, S. Solubility and dissolution enhancement strategies: Current understanding and recent trends. Drug Dev. Ind. Pharm. 2015, 41, 875–887. [Google Scholar] [CrossRef] [PubMed]
  4. Guo, S.; Huang, L. Nanoparticles containing insoluble drug for cancer therapy. Biotechnol. Adv. 2014, 32, 778–788. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Savjani, K.T.; Gajjar, A.K.; Savjani, J.K. Drug solubility: Importance and enhancement techniques. ISRN Pharm. 2012, 2012, 195727. [Google Scholar] [CrossRef] [Green Version]
  6. Rodriguez-Aller, M.; Guillarme, D.; Veuthey, J.-L.; Gurny, R. Strategies for formulating and delivering poorly water-soluble drugs. J. Drug Deliv. Sci. Technol. 2015, 30, 342–351. [Google Scholar] [CrossRef]
  7. Kalepu, S.; Nekkanti, V. Insoluble drug delivery strategies: Review of recent advances and business prospects. Acta Pharm. Sin. B 2015, 5, 442–453. [Google Scholar] [CrossRef] [Green Version]
  8. Kawabata, Y.; Wada, K.; Nakatani, M.; Yamada, S.; Onoue, S. Formulation design for poorly water-soluble drugs based on biopharmaceutics classification system: Basic approaches and practical applications. Int. J. Pharm. 2011, 420, 1–10. [Google Scholar] [CrossRef]
  9. Fahr, A.; Liu, X. Drug delivery strategies for poorly water-soluble drugs. Expert Opin. Drug Deliv. 2007, 4, 403–416. [Google Scholar] [CrossRef]
  10. Miyako, Y.; Khalef, N.; Matsuzaki, K.; Pinal, R. Solubility enhancement of hydrophobic compounds by cosolvents: Role of solute hydrophobicity on the solubilization effect. Int. J. Pharm. 2010, 393, 48–54. [Google Scholar] [CrossRef]
  11. Jouyban, A. Review of the cosolvency models for predicting solubility of drugs in water-cosolvent mixtures. J. Pharm. Pharm. Sci. 2008, 11, 32–58. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Millard, J.W.; Alvarez-Nunez, F.A.; Yalkowsky, S.H. Solubilization by cosolvents. Establishing useful constants for the log-linear model. Int. J. Pharm. 2002, 245, 153–166. [Google Scholar] [CrossRef]
  13. Strickley, R.G. Solubilizing Excipients in Oral and Injectable Formulations. Pharm. Res. 2004, 21, 201–230. [Google Scholar] [CrossRef] [PubMed]
  14. Williams, H.D.; Trevaskis, N.L.; Charman, S.A.; Shanker, R.M.; Charman, W.N.; Pouton, C.W.; Porter, C.J.H. Strategies to Address Low Drug Solubility in Discovery and Development. Pharmacol. Rev. 2013, 65, 315–499. [Google Scholar] [CrossRef] [PubMed]
  15. Mallick, S.; Pattnaik, S.; Swain, K.; De, P.K. Current perspectives of solubilization: Potential for improved bioavailability. Drug Dev. Ind. Pharm. 2007, 33, 865. [Google Scholar] [CrossRef]
  16. Vinarov, Z.; Katev, V.; Radeva, D.; Tcholakova, S.; Denkov, N.D. Micellar solubilization of poorly water-soluble drugs: Effect of surfactant and solubilizate molecular structure. Drug Dev. Ind. Pharm. 2017, 44, 677–686. [Google Scholar] [CrossRef]
  17. Torchilin, V.P. Micellar nanocarriers: Pharmaceutical perspectives. Pharm. Res. 2007, 24, 1–16. [Google Scholar] [CrossRef]
  18. Rangel-Yagui, C.O.; Pessoa Jr, A.; Tavares, L.C. Micellar solubilization of drugs. J. Pharm. Pharm. Sci. 2005, 8, 147–163. [Google Scholar]
  19. Akers, M.J. Excipient-drug interactions in parenteral formulations. J. Pharm. Sci. 2002, 91, 2283–2300. [Google Scholar] [CrossRef]
  20. Zana, R. Aqueous surfactant-alcohol systems: A review. Adv. Colloid Interface Sci. 1995, 57, 1–64. [Google Scholar] [CrossRef]
  21. Neoral, P. Pr SANDIMMUNE® IV (Cyclosporine for Injection). Available online: https://pdf.hres.ca/dpd_pm/00028894.PDF (accessed on 25 July 2022).
  22. Katiyar, R.S.; Jha, P.K. Molecular simulations in drug delivery: Opportunities and challenges. Wiley Interdiscip. Rev. Comput. Mol. Sci. 2018, 8, e1358. [Google Scholar] [CrossRef]
  23. Hossain, S.; Kabedev, A.; Parrow, A.; Bergström, C.A.; Larsson, P. Molecular simulation as a computational pharmaceutics tool to predict drug solubility, solubilization processes and partitioning. Eur. J. Pharm. Biopharm. 2019, 137, 46–55. [Google Scholar] [CrossRef] [PubMed]
  24. Maleki, R.; Afrouzi, H.H.; Hosseini, M.; Toghraie, D.; Rostami, S. Molecular dynamics simulation of Doxorubicin loading with N-isopropyl acrylamide carbon nanotube in a drug delivery system. Comput. Methods Programs Biomed. 2020, 184, 105303. [Google Scholar] [CrossRef] [PubMed]
  25. Rezaeisadat, M.; Bordbar, A.-K.; Omidyan, R. Molecular dynamics simulation study of curcumin interaction with nano-micelle of PNIPAAm-b-PEG co-polymer as a smart efficient drug delivery system. J. Mol. Liq. 2021, 332, 115862. [Google Scholar] [CrossRef]
  26. Khezri, A.; Karimi, A.; Yazdian, F.; Jokar, M.; Mofradnia, S.R.; Rashedi, H.; Tavakoli, Z. Molecular dynamic of curcumin/chitosan interaction using a computational molecular approach: Emphasis on biofilm reduction. Int. J. Biol. Macromol. 2018, 114, 972–978. [Google Scholar] [CrossRef]
  27. Amani, A.; York, P.; de Waard, H.; Anwar, J. Molecular dynamics simulation of a polysorbate 80 micelle in water. Soft Matter 2011, 7, 2900–2908. [Google Scholar] [CrossRef] [Green Version]
  28. Suys, E.J.A.; Warren, D.B.; Pham, A.C.; Nowell, C.J.; Clulow, A.J.; Benameur, H.; Porter, C.J.H.; Pouton, C.W.; Chalmers, D.K. A Nonionic Polyethylene Oxide (PEO) Surfactant Model: Experimental and Molecular Dynamics Studies of Kolliphor EL. J. Pharm. Sci. 2019, 108, 193–204. [Google Scholar] [CrossRef] [Green Version]
  29. Salomon-Ferrer, R.; Case, D.A.; Walker, R.C. An overview of the Amber biomolecular simulation package. Wiley Interdiscip. Rev. Comput. Mol. Sci. 2013, 3, 198–210. [Google Scholar] [CrossRef]
  30. Mark, P.; Nilsson, L. Structure and dynamics of the TIP3P, SPC, and SPC/E water models at 298 K. J. Phys. Chem. A 2001, 105, 9954–9960. [Google Scholar] [CrossRef]
  31. Andersen, H.C. Rattle: A “velocity” version of the shake algorithm for molecular dynamics calculations. J. Comput. Phys. 1983, 52, 24–34. [Google Scholar] [CrossRef] [Green Version]
  32. Nayak, A.K.; Panigrahi, P.P. Solubility enhancement of etoricoxib by cosolvency approach. Int. Sch. Res. Not. 2012, 2012, 820653. [Google Scholar]
  33. Sobisch, T.; Wüstneck, R. The influence of alcohols of different alkyl chain length on the solubilization of solutions containing polyoxyethylene p-tert-octylphenyl ether. Colloids Surf. 1992, 62, 187–198. [Google Scholar] [CrossRef]
  34. Alexandridis, P.; Yang, L. SANS Investigation of Polyether Block Copolymer Micelle Structure in Mixed Solvents of Water and Formamide, Ethanol, or Glycerol. Macromolecules 2000, 33, 5574–5587. [Google Scholar] [CrossRef]
  35. Huang, J.B.; Mao, M.; Zhu, B.Y. The surface physico-chemical properties of surfactants in ethanol–water mixtures. Colloids Surf. A Physicochem. Eng. Asp. 1999, 155, 339–348. [Google Scholar] [CrossRef]
  36. Sarkar, B.; Ravi, V.; Alexandridis, P. Micellization of amphiphilic block copolymers in binary and ternary solvent mixtures. J. Colloid Interface Sci. 2013, 390, 137–146. [Google Scholar]
  37. Das, S.; Mondal, S.; Ghosh, S. Physicochemical Studies on the Micellization of Cationic, Anionic, and Nonionic Surfactants in Water–Polar Organic Solvent Mixtures. J. Chem. Eng. Data 2013, 58, 2586–2595. [Google Scholar] [CrossRef]
  38. Sundar, S.; Sandilya, A.A.; Priya, M.H. Unraveling the influence of osmolytes on water hydrogen-bond network: From local structure to graph theory analysis. J. Chem. Inf. Model. 2021, 61, 3927–3944. [Google Scholar] [CrossRef]
  39. Huang, L.; Nishinari, K. Interaction between poly (ethylene glycol) and water as studied by differential scanning calorimetry. J. Polym. Sci. Part B Polym. Phys. 2001, 39, 496–506. [Google Scholar] [CrossRef]
  40. Richmond, T.J. Solvent accessible surface area and excluded volume in proteins: Analytical equations for overlapping spheres and implications for the hydrophobic effect. J. Mol. Biol. 1984, 178, 63–89. [Google Scholar] [CrossRef]
  41. Kawakami, K.; Oda, N.; Miyoshi, K.; Funaki, T.; Ida, Y. Solubilization behavior of a poorly soluble drug under combined use of surfactants and cosolvents. Eur. J. Pharm. Sci. 2006, 28, 7–14. [Google Scholar] [CrossRef]
  42. Kawakami, K.; Miyoshi, K.; Ida, Y. Solubilization behavior of poorly soluble drugs with combined use of Gelucire 44/14 and cosolvent. J. Pharm. Sci. 2004, 93, 1471–1479. [Google Scholar] [CrossRef] [PubMed]
Pharmaceutics 14 02366 g001 550

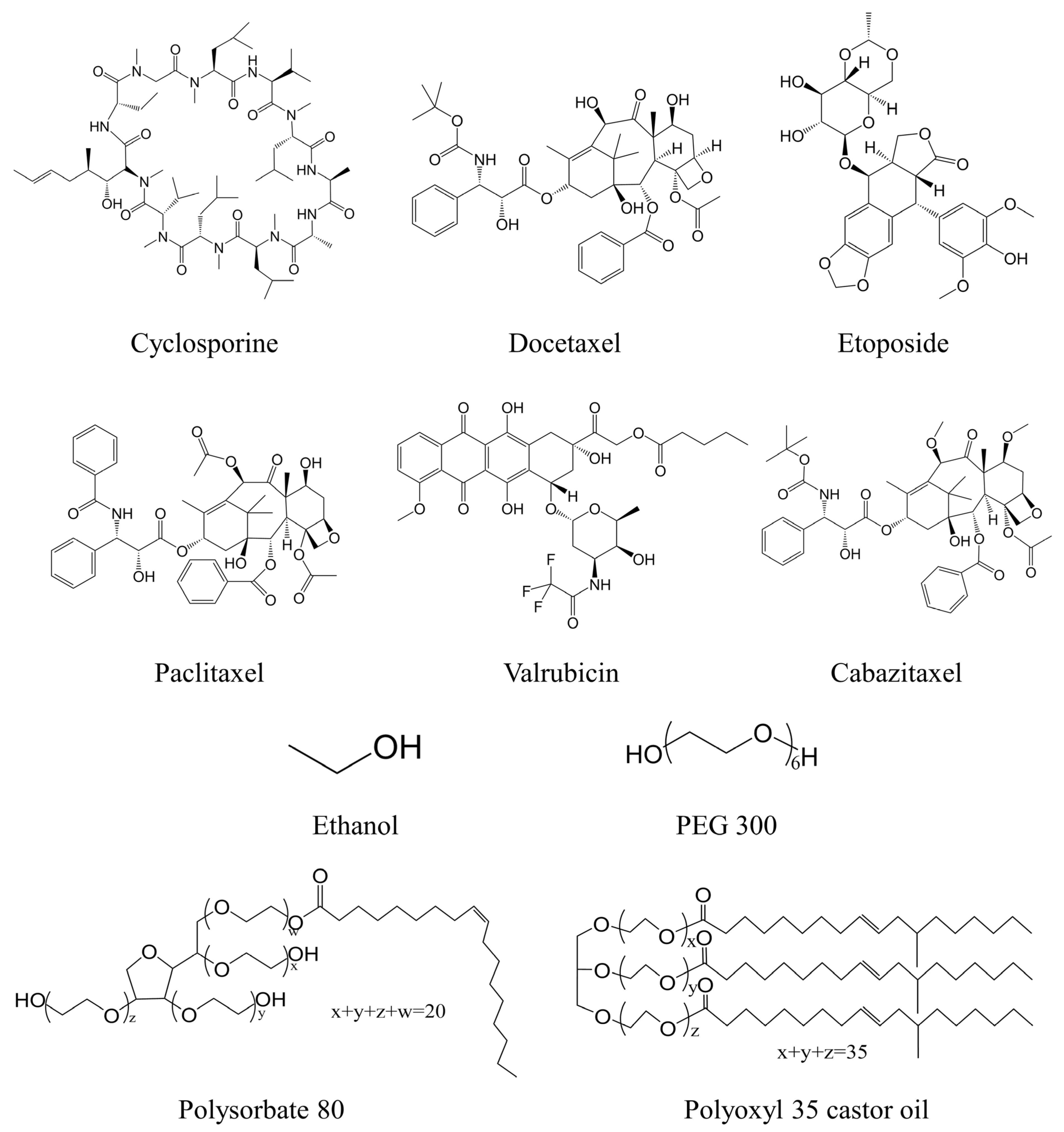

Figure 1. Chemical structures of drugs and excipients.
Figure 1. Chemical structures of drugs and excipients.
Pharmaceutics 14 02366 g001
Pharmaceutics 14 02366 g002 550

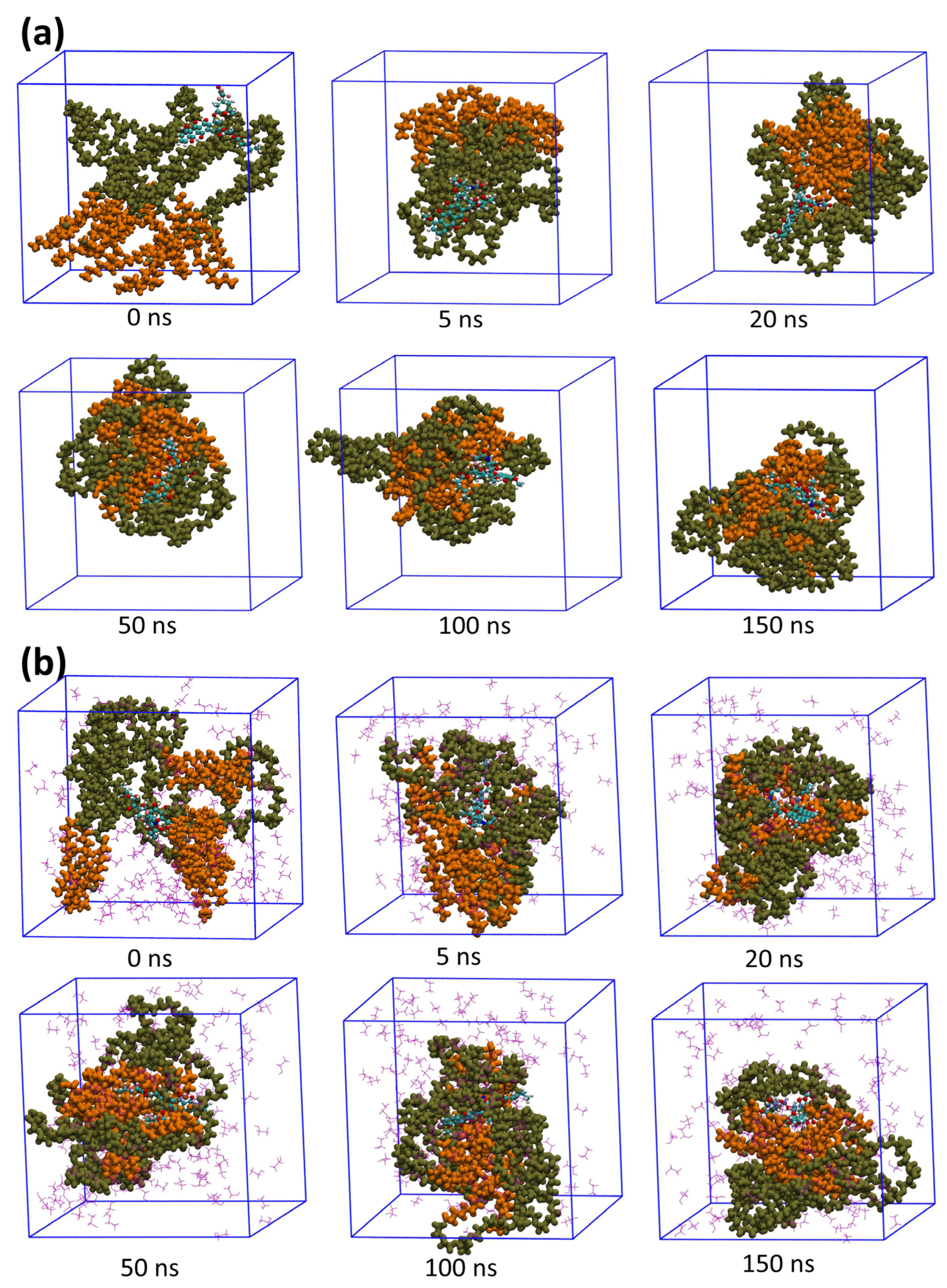

Figure 2. Trajectory snapshots at different simulation times of Valrubicin system (a) without cosolvents and (b) with cosolvents. The color scheme of atoms: purple lines represent cosolvent molecules; orange balls represent hydrophobic chains of polyoxyethylene 35 castor oil; brown balls represent hydrophilic chains of polyoxyethylene 35 castor oil; red, blue, cyan, and gray balls represent oxygen, carbon, nitrogen, and hydrogen atoms of drug molecules respectively. (Water particles have been removed for clarity).
Figure 2. Trajectory snapshots at different simulation times of Valrubicin system (a) without cosolvents and (b) with cosolvents. The color scheme of atoms: purple lines represent cosolvent molecules; orange balls represent hydrophobic chains of polyoxyethylene 35 castor oil; brown balls represent hydrophilic chains of polyoxyethylene 35 castor oil; red, blue, cyan, and gray balls represent oxygen, carbon, nitrogen, and hydrogen atoms of drug molecules respectively. (Water particles have been removed for clarity).
Pharmaceutics 14 02366 g002
Pharmaceutics 14 02366 g003 550

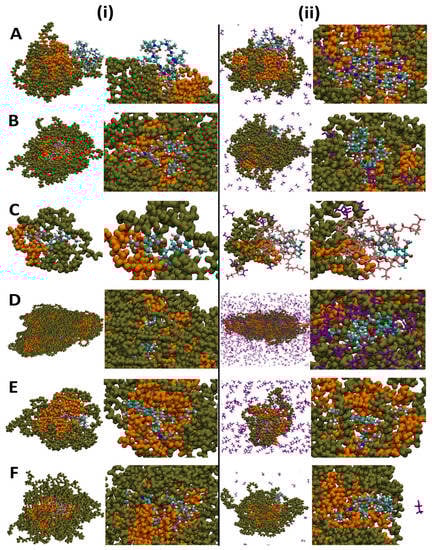

Figure 3. Global and local pictures of the last snapshot in the simulation of (i) the systems without cosolvents and (ii) the systems with cosolvents. (A) represents the Cyclosporine system, (B) represents the Docetaxel system, (C) represents the Etoposide system, (D) represents the Paclitaxel system, (E) represents the Valrubicin system, and (F) represents the Cabazitaxel system. (Water molecules have been removed for clarity).
Figure 3. Global and local pictures of the last snapshot in the simulation of (i) the systems without cosolvents and (ii) the systems with cosolvents. (A) represents the Cyclosporine system, (B) represents the Docetaxel system, (C) represents the Etoposide system, (D) represents the Paclitaxel system, (E) represents the Valrubicin system, and (F) represents the Cabazitaxel system. (Water molecules have been removed for clarity).
Pharmaceutics 14 02366 g003
Pharmaceutics 14 02366 g004a 550Pharmaceutics 14 02366 g004b 550

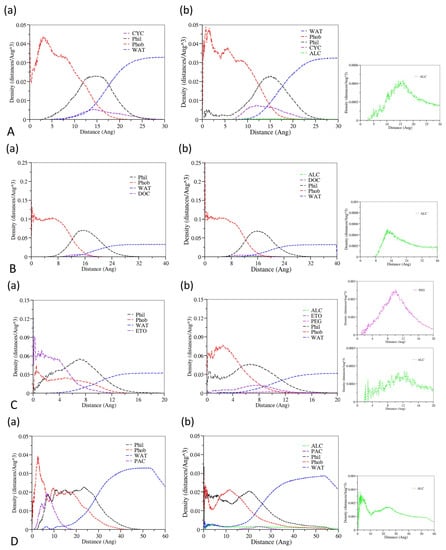

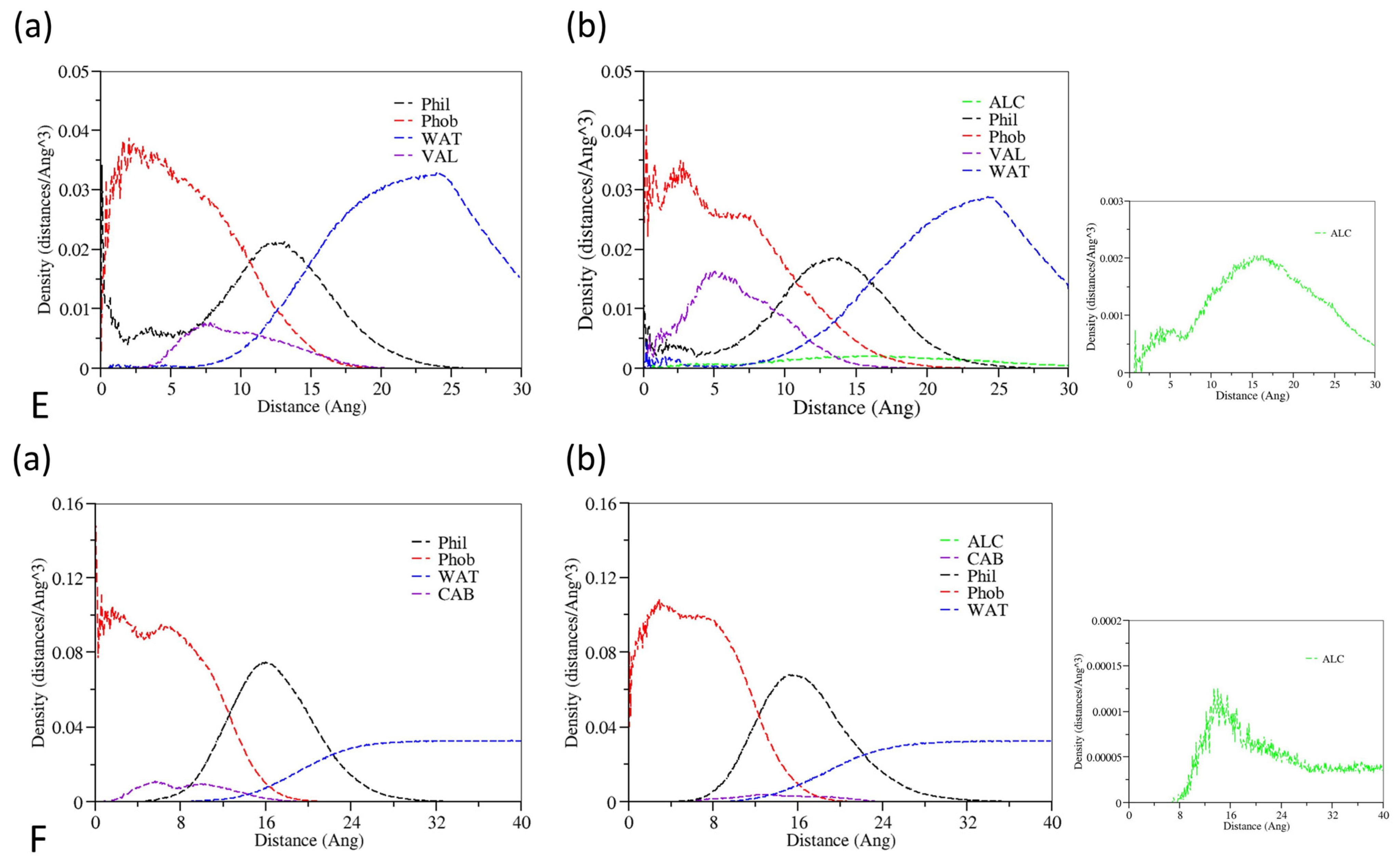

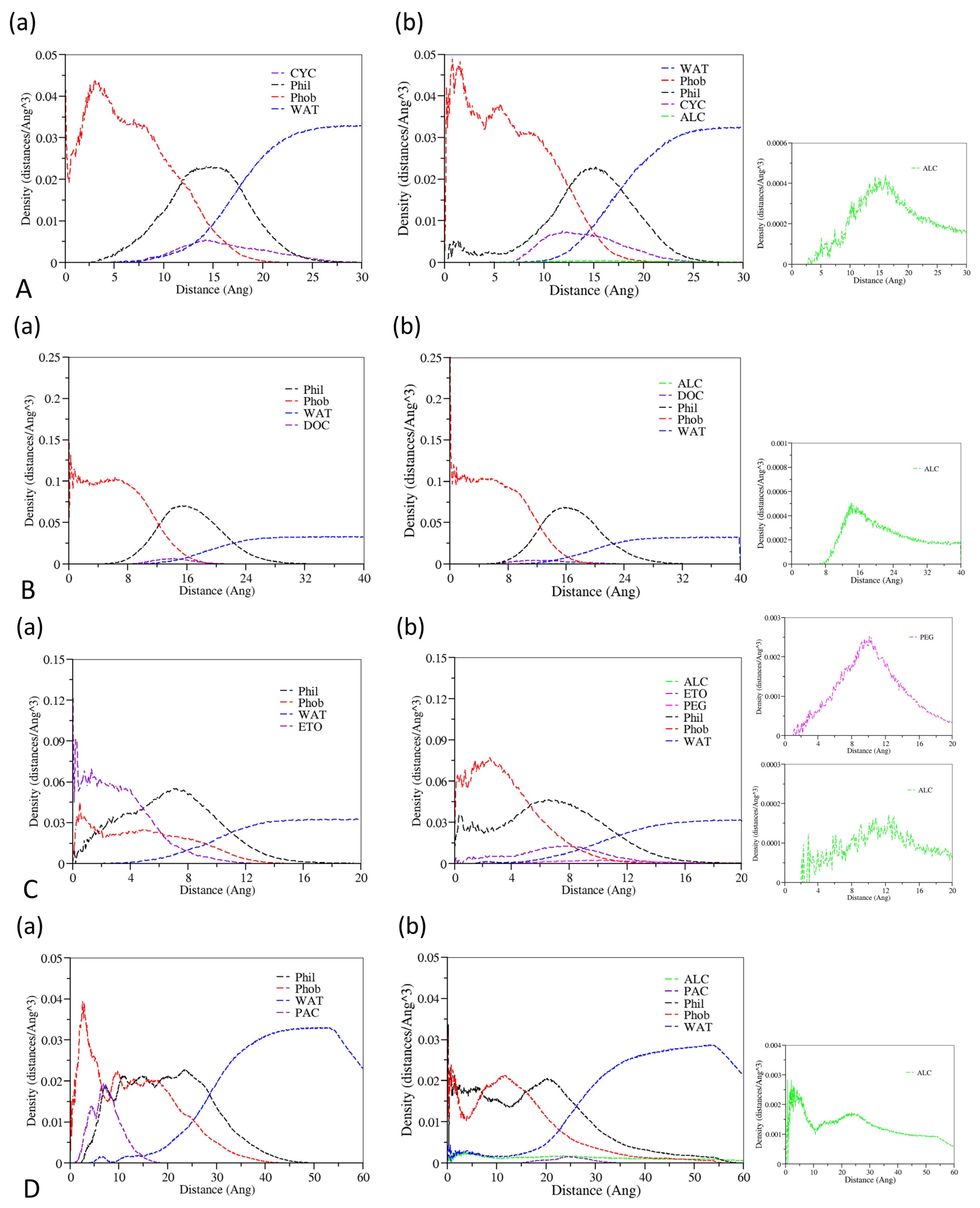

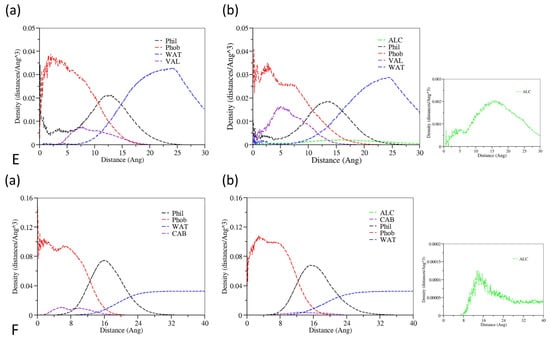

Figure 4. Radial density distributions for various molecular groups against the center core of micelle of (a) the formulations without cosolvents and (b) the formulations containing cosolvents. (A) represents the Cyclosporine system, (B) represents the Docetaxel system, (C) represents the Etoposide system, (D) represents the Paclitaxel system, (E) represents the Valrubicin system, and (F) represents the Cabazitaxel system. Red represents the hydrophobic groups of the surfactants, black represents the hydrophilic groups of the surfactants, blue represents the water molecules, purple represents the drug molecules, green represents the ethanol molecules, and pink represents PEG 300.
Figure 4. Radial density distributions for various molecular groups against the center core of micelle of (a) the formulations without cosolvents and (b) the formulations containing cosolvents. (A) represents the Cyclosporine system, (B) represents the Docetaxel system, (C) represents the Etoposide system, (D) represents the Paclitaxel system, (E) represents the Valrubicin system, and (F) represents the Cabazitaxel system. Red represents the hydrophobic groups of the surfactants, black represents the hydrophilic groups of the surfactants, blue represents the water molecules, purple represents the drug molecules, green represents the ethanol molecules, and pink represents PEG 300.
Pharmaceutics 14 02366 g004aPharmaceutics 14 02366 g004b
Pharmaceutics 14 02366 g005a 550Pharmaceutics 14 02366 g005b 550

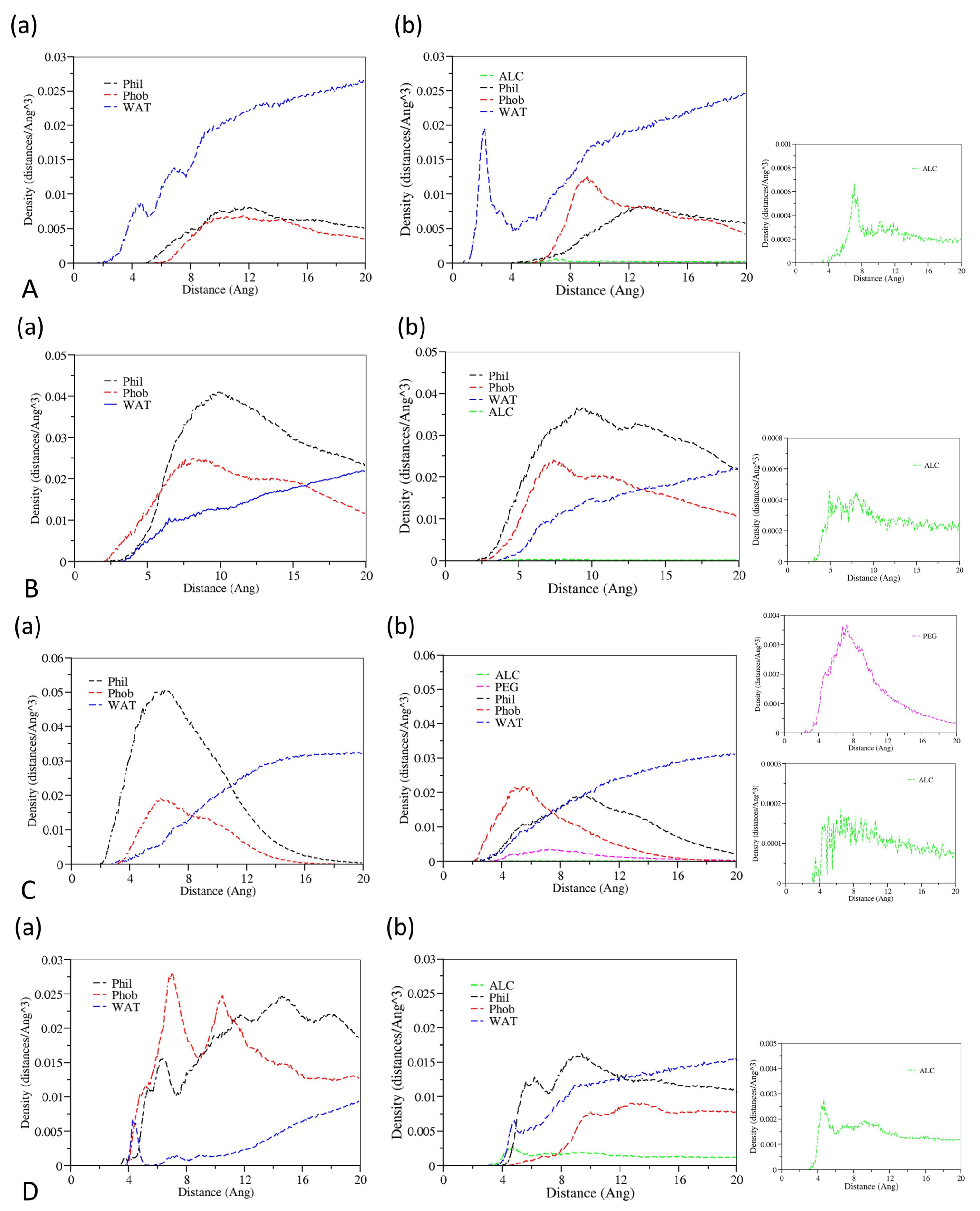

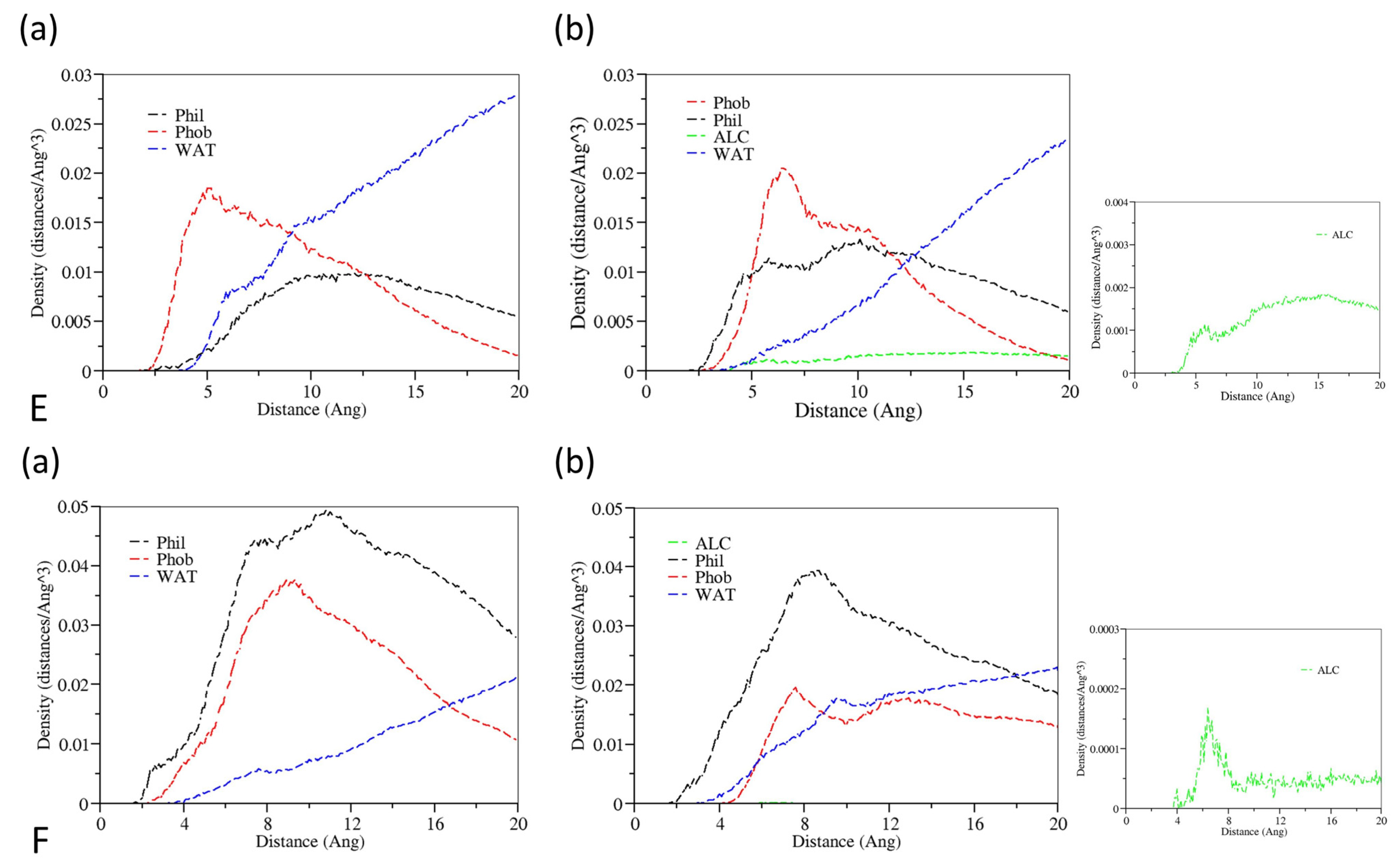

Figure 5. Radial density distributions for various molecular groups against the center of drug particles of (a) the formulations without cosolvents and (b) the formulations containing cosolvents. (A) represents the Cyclosporine system, (B) represents the Docetaxel system, (C) represents the Etoposide system, (D) represents the Paclitaxel system, (E) represents the Valrubicin system, and (F) represents the Cabazitaxel system. Red represents the hydrophobic groups of the surfactants, black represents the hydrophilic groups of the surfactants, blue represents the water molecules, purple represents the drug molecules, green represents the ethanol molecules, and pink represents PEG 300.
Figure 5. Radial density distributions for various molecular groups against the center of drug particles of (a) the formulations without cosolvents and (b) the formulations containing cosolvents. (A) represents the Cyclosporine system, (B) represents the Docetaxel system, (C) represents the Etoposide system, (D) represents the Paclitaxel system, (E) represents the Valrubicin system, and (F) represents the Cabazitaxel system. Red represents the hydrophobic groups of the surfactants, black represents the hydrophilic groups of the surfactants, blue represents the water molecules, purple represents the drug molecules, green represents the ethanol molecules, and pink represents PEG 300.
Pharmaceutics 14 02366 g005aPharmaceutics 14 02366 g005b
Pharmaceutics 14 02366 g006 550

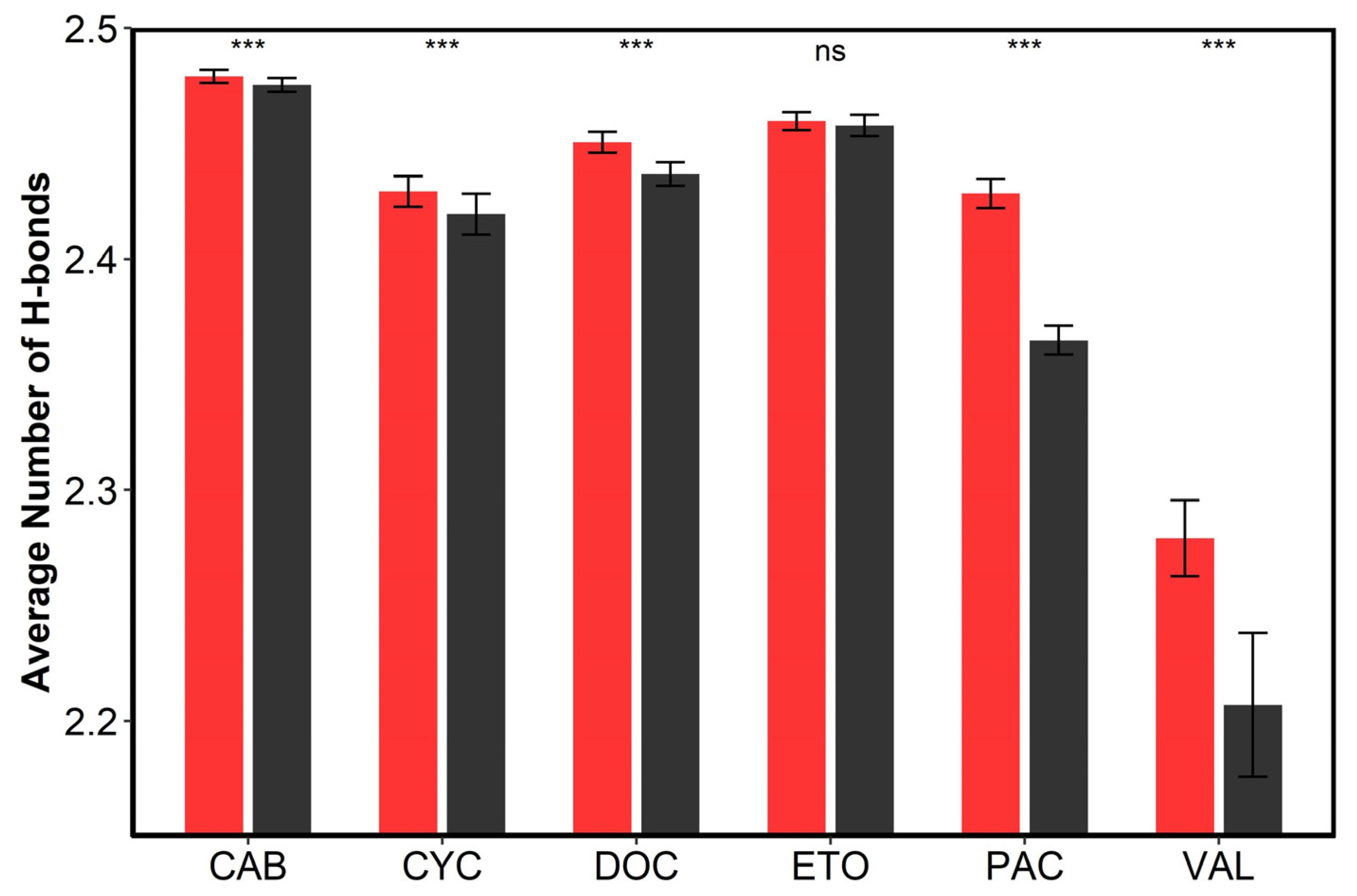

Figure 6. The number of hydrogen bonds between water−water (per water) in formulations without cosolvents (red column) and the formulations containing cosolvents (black column). Error bars are plotted as ±SD. The symbol “***” represents statistical significance with p < 0.001, and the symbol “ns” represents no statistical significance.
Figure 6. The number of hydrogen bonds between water−water (per water) in formulations without cosolvents (red column) and the formulations containing cosolvents (black column). Error bars are plotted as ±SD. The symbol “***” represents statistical significance with p < 0.001, and the symbol “ns” represents no statistical significance.
Pharmaceutics 14 02366 g006
Pharmaceutics 14 02366 g007 550

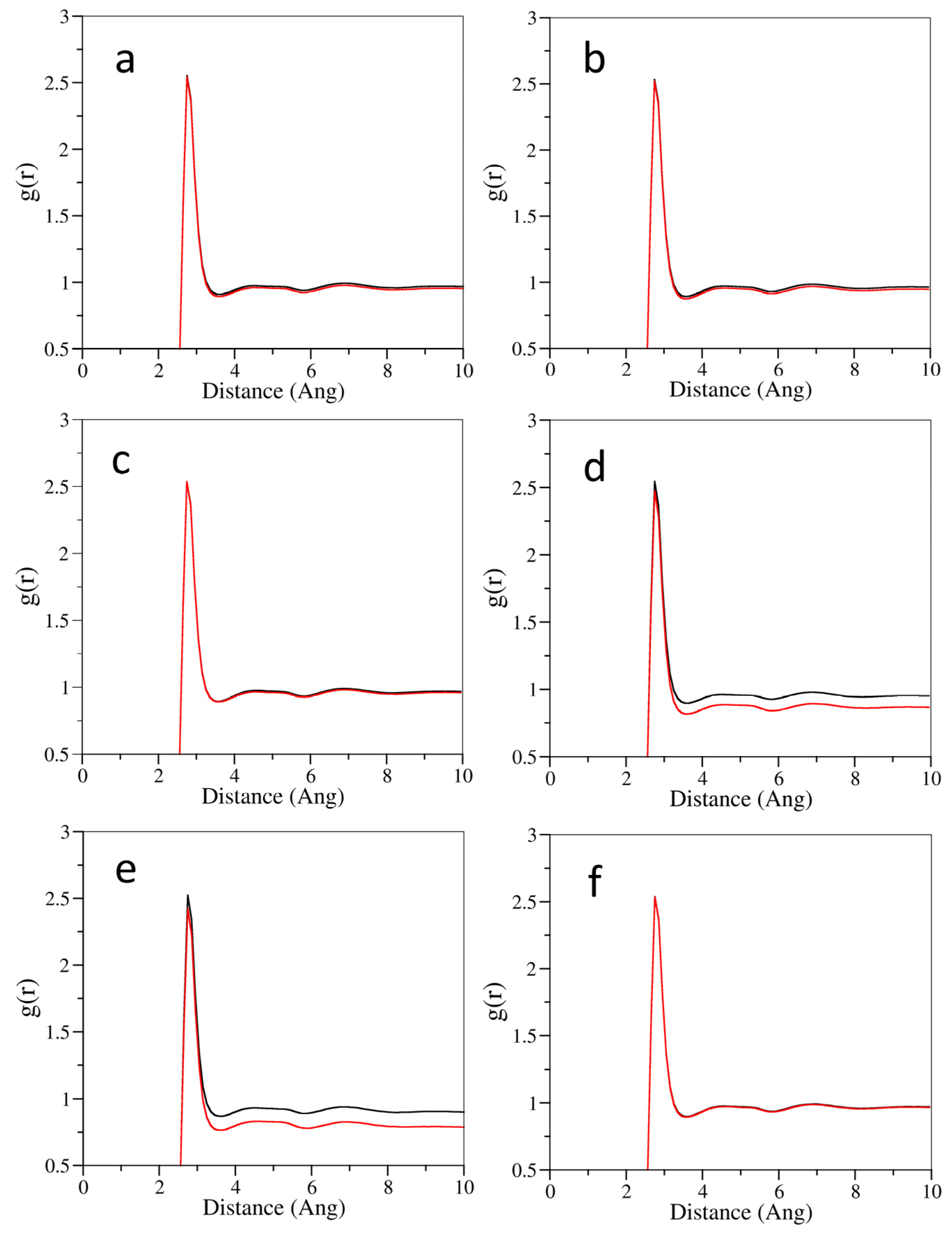

Figure 7. The radial distribution functions for water oxygen–water oxygen (Ow–Ow) sites of formulations without cosolvents (dark line) and the formulations containing cosolvents (red line). (a) represents the Cyclosporine system, (b) represents the Docetaxel system, (c) represents the Etoposide system, (d) represents the Paclitaxel system, (e) represents the Valrubicin system, and (f) represents the Cabazitaxel system.
Figure 7. The radial distribution functions for water oxygen–water oxygen (Ow–Ow) sites of formulations without cosolvents (dark line) and the formulations containing cosolvents (red line). (a) represents the Cyclosporine system, (b) represents the Docetaxel system, (c) represents the Etoposide system, (d) represents the Paclitaxel system, (e) represents the Valrubicin system, and (f) represents the Cabazitaxel system.
Pharmaceutics 14 02366 g007
Pharmaceutics 14 02366 g008 550

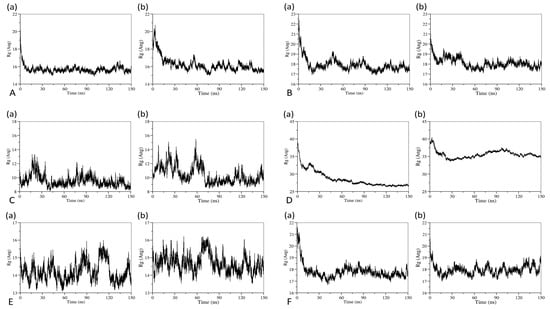

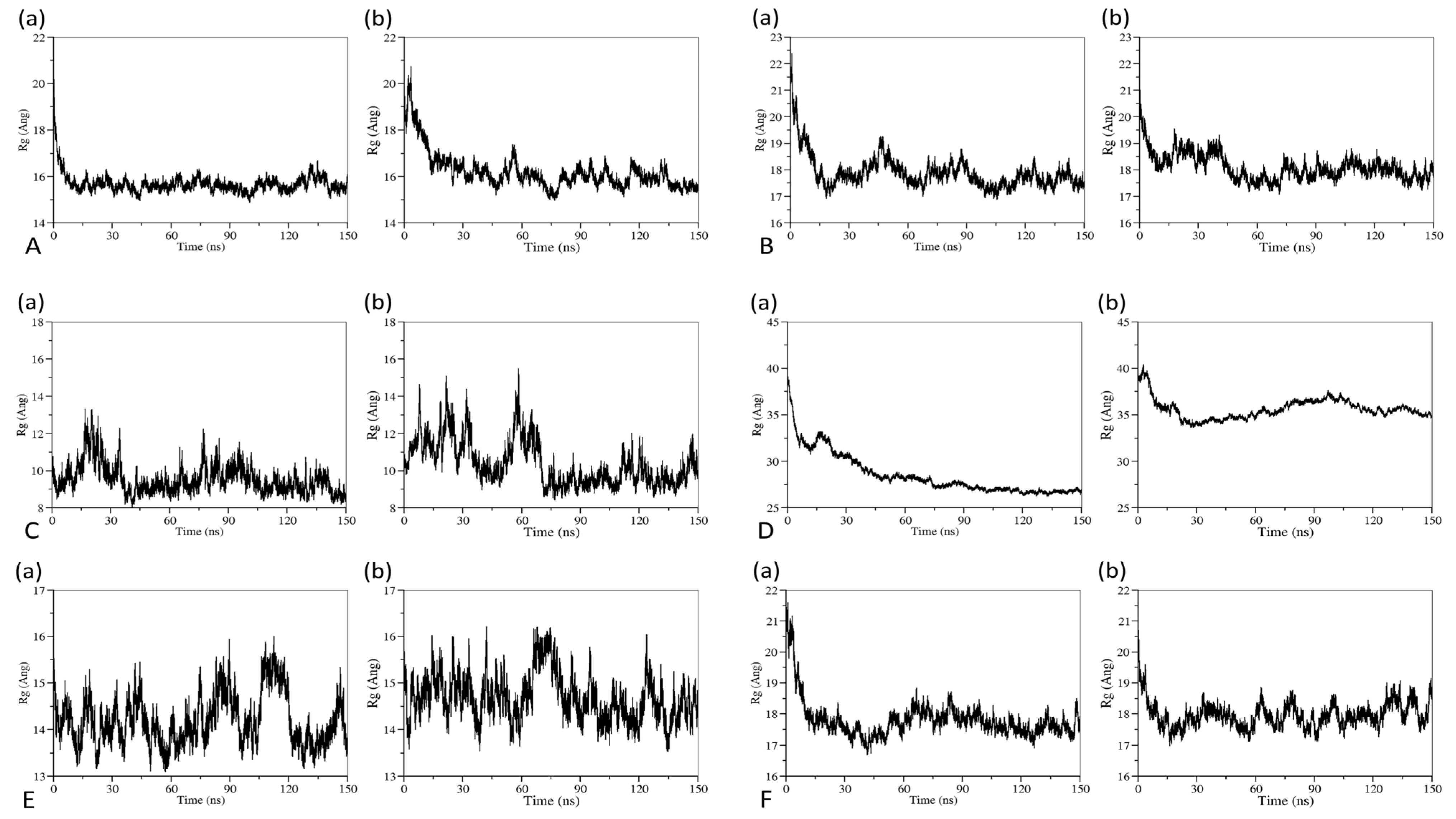

Figure 8. Rg evolutions during the simulation time of (a) the systems without cosolvents and (b) the systems with cosolvents. (A) represents the Cyclosporine system, (B) represents the Docetaxel system, (C) represents the Etoposide system, (D) represents the Paclitaxel system, (E) represents the Valrubicin system, and (F) represents the Cabazitaxel system.
Figure 8. Rg evolutions during the simulation time of (a) the systems without cosolvents and (b) the systems with cosolvents. (A) represents the Cyclosporine system, (B) represents the Docetaxel system, (C) represents the Etoposide system, (D) represents the Paclitaxel system, (E) represents the Valrubicin system, and (F) represents the Cabazitaxel system.
Pharmaceutics 14 02366 g008
Pharmaceutics 14 02366 g009 550

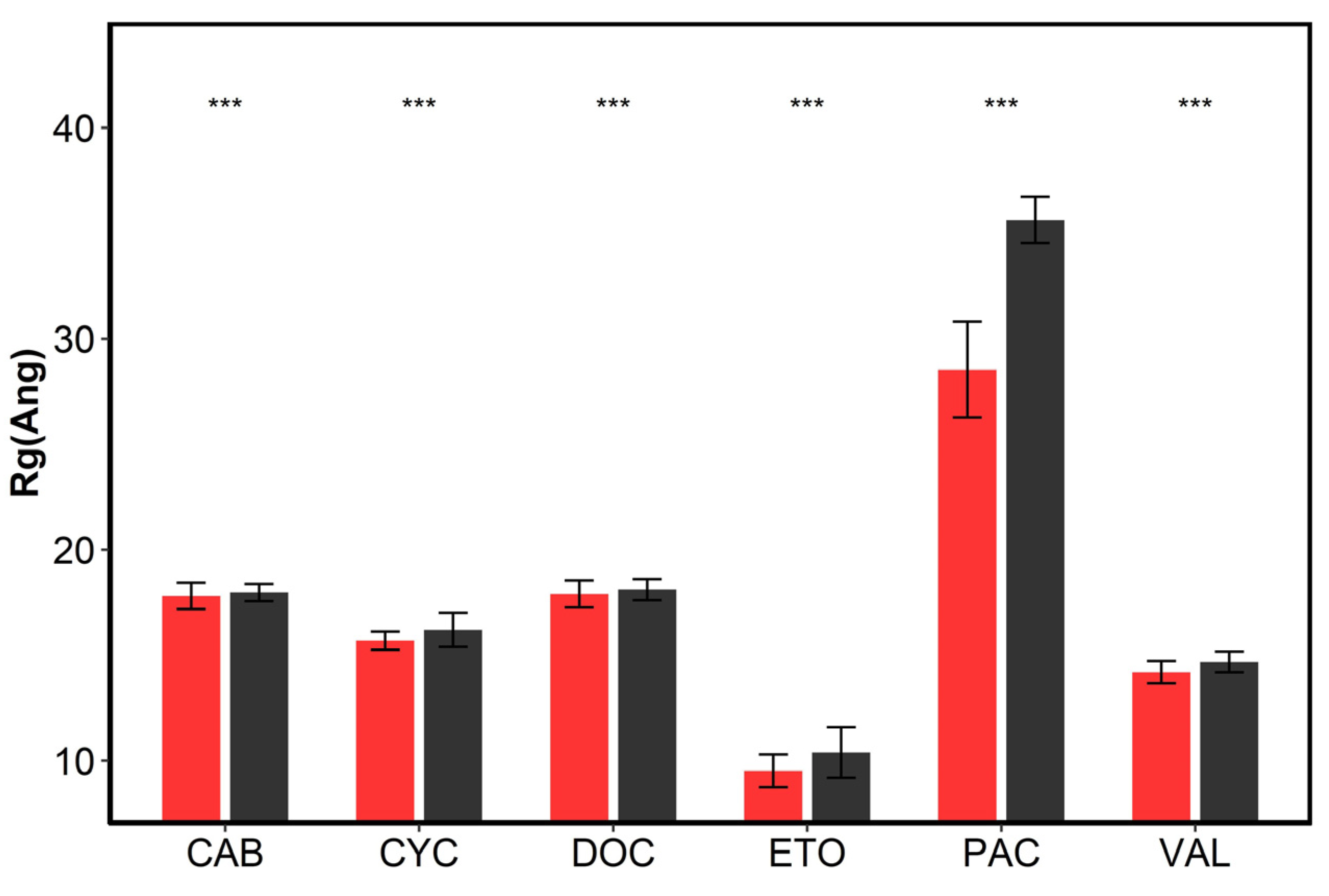

Figure 9. The average Rg values of different systems without cosolvents (red column) and containing cosolvents (black column) during the last 30 ns simulation time. Error bars are plotted as ±SD. The symbol “***” represents statistical significance with p < 0.001.
Figure 9. The average Rg values of different systems without cosolvents (red column) and containing cosolvents (black column) during the last 30 ns simulation time. Error bars are plotted as ±SD. The symbol “***” represents statistical significance with p < 0.001.
Pharmaceutics 14 02366 g009
Pharmaceutics 14 02366 g010 550

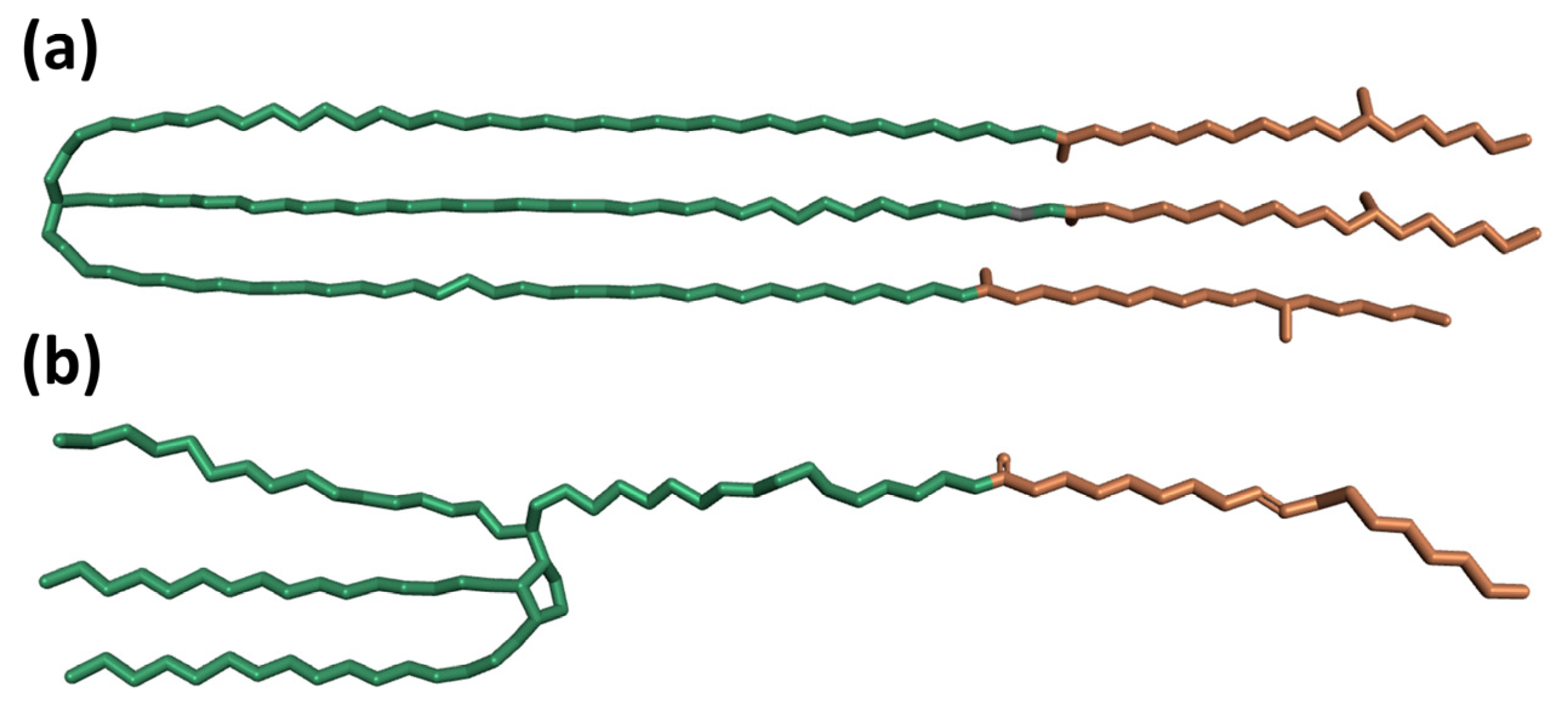

Figure 10. The hydrophilic (green) and hydrophobic (orange) chains of (a) Polyoxyl 35 castor oil and (b) Polysorbate 80.
Figure 10. The hydrophilic (green) and hydrophobic (orange) chains of (a) Polyoxyl 35 castor oil and (b) Polysorbate 80.
Pharmaceutics 14 02366 g010
Pharmaceutics 14 02366 g011 550

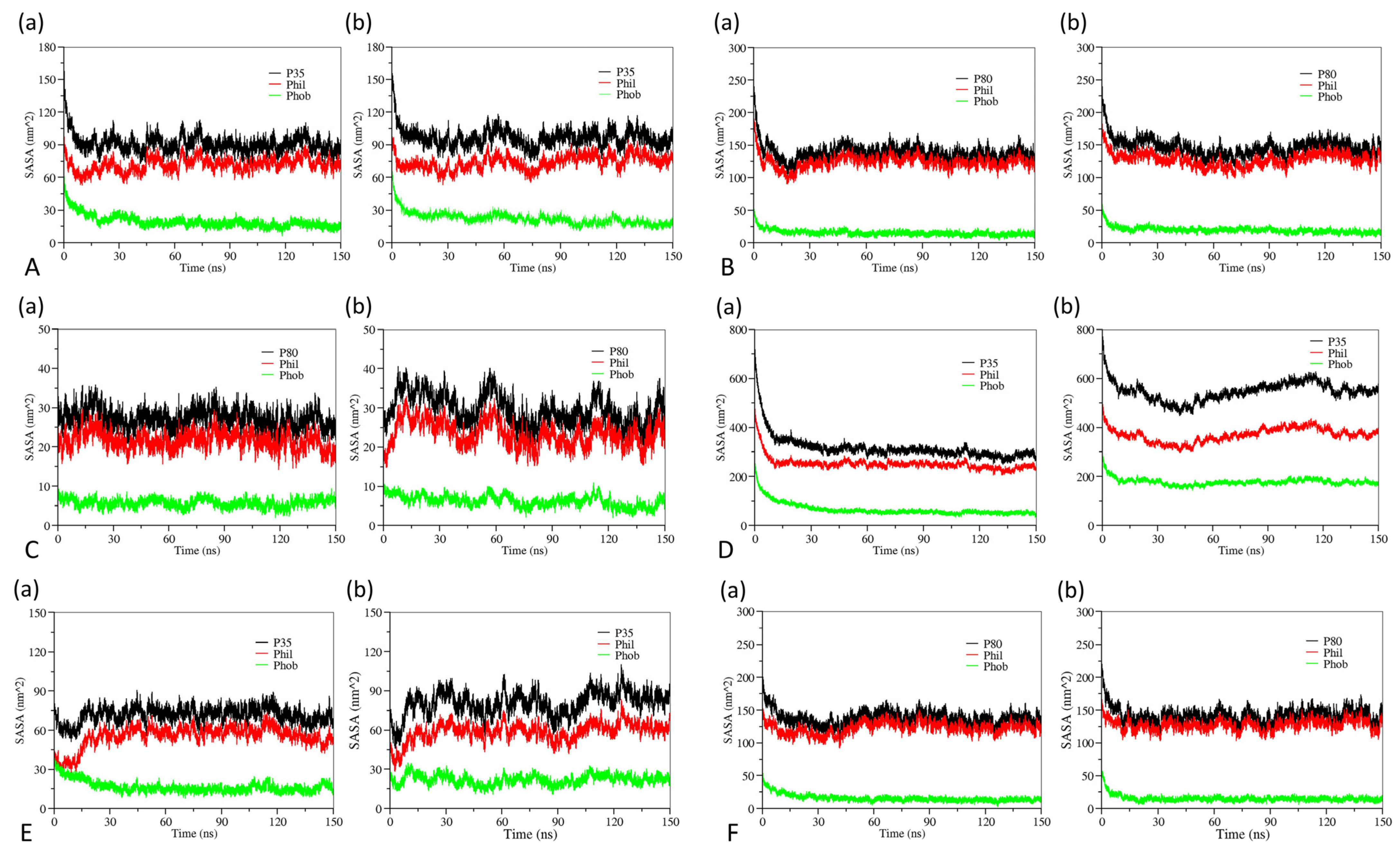

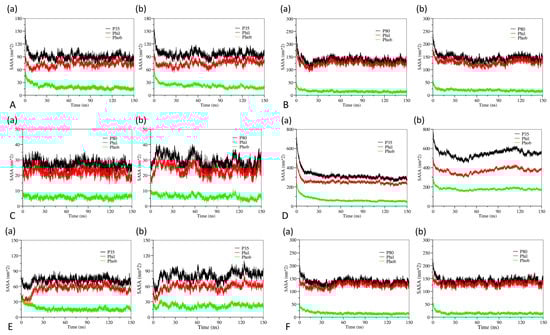

Figure 11. The time-evolution of the solvent accessible surface area (SASA) of (a) the formulations without cosolvents and (b) the formulations containing cosolvents. (A) represents the Cyclosporine system, (B) represents the Docetaxel system, (C) represents the Etoposide system, (D) represents the Paclitaxel system, (E) represents the Valrubicin system, and (F) represents the Cabazitaxel system.
Figure 11. The time-evolution of the solvent accessible surface area (SASA) of (a) the formulations without cosolvents and (b) the formulations containing cosolvents. (A) represents the Cyclosporine system, (B) represents the Docetaxel system, (C) represents the Etoposide system, (D) represents the Paclitaxel system, (E) represents the Valrubicin system, and (F) represents the Cabazitaxel system.
Pharmaceutics 14 02366 g011
Pharmaceutics 14 02366 g012 550

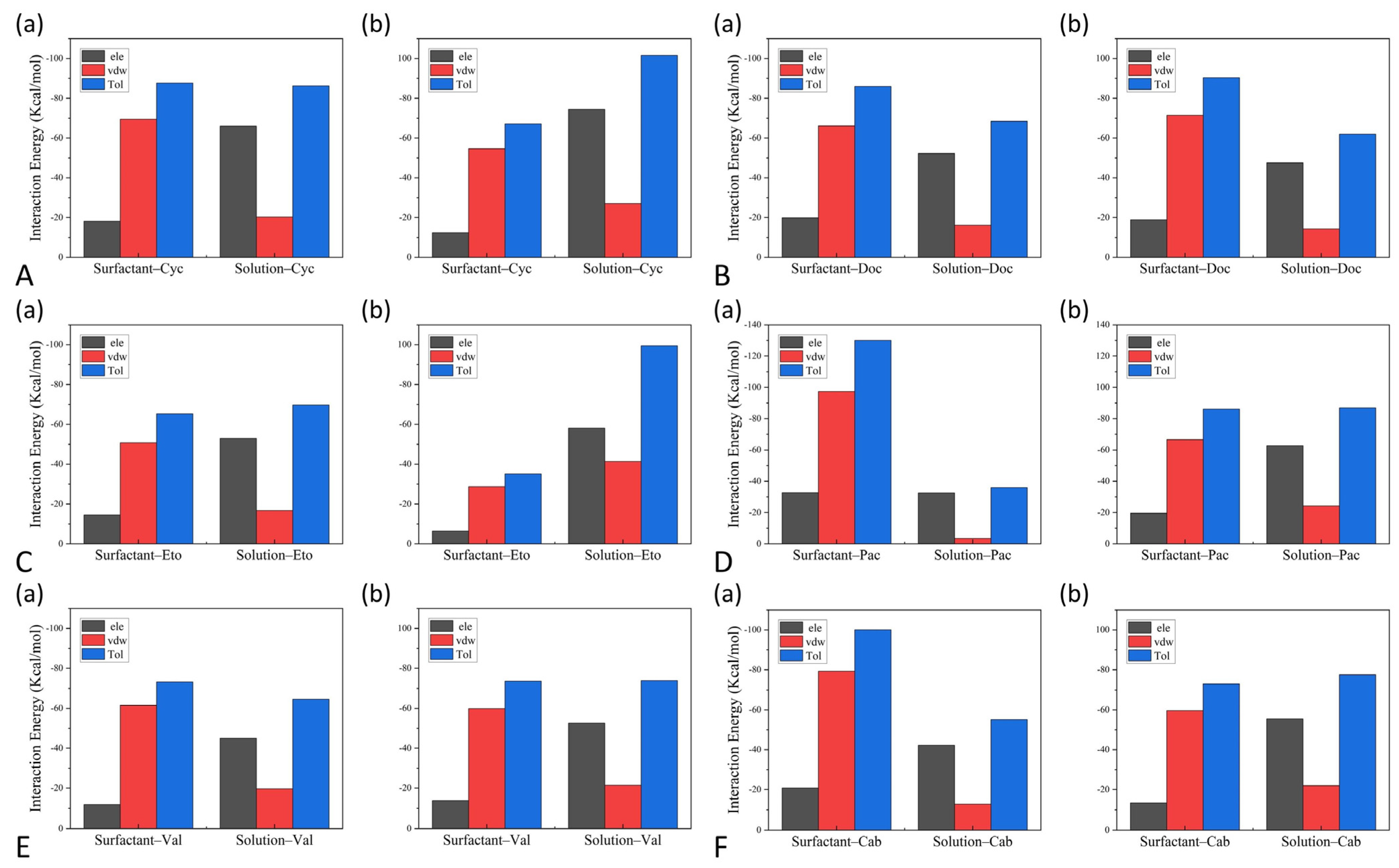

Figure 12. Interaction energies of each binary component of (a) the formulations without cosolvents and (b) the formulations with cosolvents, where ele stands for the electrostatic interaction energy and vdw refers to the van der Waals interaction energy. (A) represents the Cyclosporine system, (B) represents the Docetaxel system, (C) represents the Etoposide system, (D) represents the Paclitaxel system, E represents the Valrubicin system, and F represents the Cabazitaxel system.
Figure 12. Interaction energies of each binary component of (a) the formulations without cosolvents and (b) the formulations with cosolvents, where ele stands for the electrostatic interaction energy and vdw refers to the van der Waals interaction energy. (A) represents the Cyclosporine system, (B) represents the Docetaxel system, (C) represents the Etoposide system, (D) represents the Paclitaxel system, E represents the Valrubicin system, and F represents the Cabazitaxel system.
Pharmaceutics 14 02366 g012
Table
Table 1. Market formulations solubilized by the combination of surfactants and cosolvents.
Table 1. Market formulations solubilized by the combination of surfactants and cosolvents.
Brand Name/Generic NameFormulation
(Each mL)		Clinical Use
Sandimmune/CyclosporineCyclosporine 50 mg
Polyoxyl 35 castor oil 650 mg
Ethanol 32.9% (v/v)		20 mL solution diluted with 100 mL Sodium Chloride or Dextrose injection
Taxotere/DocetaxelDocetaxel 20 mg
Polysorbate 80 540 mg
Ethanol 395 mg		Diluted with Sodium Chloride or Dextrose injection to 0.3–0.74 mg/mL
Toposar/EtoposideEtoposide 20 mg
Citric acid 2 mg
Polysorbate 80 80 mg
Polyethylene glycol 300 650 mg
Ethanol 262 mg		Diluted with Dextrose or Sodium Chloride Injection to 0.2–0.4 mg/mL
Taxol/PaclitaxelPaclitaxel 6 mg
Polyoxyl 35 castor oil 527 mg
Ethanol 49.7% (v/v)
Citric acid 2 mg		Diluted with Sodium Chloride or Dextrose injection to 0.3–1.2 mg/mL
Valstar/ValrubicinValrubicin 40 mg
Polyoxyl 35 castor oil 50% v/v
Ethanol 50% v/v		20 mL Valstar diluted with 55 mL Sodium Chloride Injection
Jevtana/CabazitaxelCabazitaxel 40 mg
Polysorbate 80 1040 mg		Diluted with 5.7 mL 13% (w/w) ethanol solution, followed by dilution of sodium chloride or dextrose solution
Table
Table 2. The details of the simulated systems.
Table 2. The details of the simulated systems.
SystemNO. of Molecule(s)Cdrug 3 (mg/mL)Cdrug 4 (mg/mL)
DrugSurfactantCosolventWater
Cyc 11613725,5020.5–2.52.45
Doc 111734660,0260.3–0.740.70
Eto 11268/167 580,2580.2–0.40.40
Pac 1130122833,9330.3–1.21.12
Val 114157291710.6710.04
Cab 1117183160,9320.1–0.260.26
Cyc 216-25,927-2.45
Doc 2117-61,091-0.70
Eto 212-81,794-0.40
Pac 2130-37,622-1.12
Val 214-3388-10.04
Cab 2117-161,486-0.26
1 The system containing cosolvents, 2 The system without cosolvents, 3 The clinical concentration of drugs in collected formulations, 4 The final concentration of drug used in the simulations, 5 The system contains 68 PEG 300 molecules and 167 ethanol molecules.
Table
Table 3. The PAI ratio and eccentricity of the simulated systems.
Table 3. The PAI ratio and eccentricity of the simulated systems.
ComplexCyc 1Cyc 2Doc 1Doc 2Eto 1Eto 2
I1:I2:I31.37:1.26:11.43:1.26:11.34:1.18:11.30:1.18:11.76:1.51:11.81:1.55:1
e0.690.710.670.640.820.83
ComplexPac 1Pac2Val 1Val 2Cab 1Cab 2
I1:I2:I31.68:1.49:13.62:3.52:11.59:1.34:11.49:1.33:11.28:1.17:11.46:1.28:1
e0.800.960.780.740.630.73
1 The system without cosolvents, 2 The system containing cosolvents.
Table
Table 4. The Rg and SASA values of systems without cosolvents and with cosolvents.
Table 4. The Rg and SASA values of systems without cosolvents and with cosolvents.
SystemCycCyc-coDocDoc-coEtoEto-co
SASA(nm2) 190.2595.36135.89147.0226.2327.12
SASA(phob) 216.2217.8812.9216.135.764.80
SASA(phil) 374.0377.48122.97130.8920.4722.32
hydrophobic % 417.9718.759.5110.9721.9717.69
SystemPacPac-coValVal-coCabCab-co
SASA(nm2) 1284.55574.5369.2190.31135.24143.44
SASA(phob) 251.29176.9314.9623.9512.7313.81
SASA(phil) 3233.26397.6054.2566.36122.51129.63
hydrophobic% 418.0230.8021.6226.529.419.63
1 The average SASA of all surfactants, 2 The average SASA of the hydrophobic chains of all the surfactants, 3 The average SASA of the hydrophilic chains of all the surfactants, 4 Hydrophobic contribution parameters.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

He, M.; Zheng, W.; Wang, N.; Gao, H.; Ouyang, D.; Huang, Z. Molecular Dynamics Simulation of Drug Solubilization Behavior in Surfactant and Cosolvent Injections. Pharmaceutics 2022, 14, 2366. https://doi.org/10.3390/pharmaceutics14112366

AMA Style

He M, Zheng W, Wang N, Gao H, Ouyang D, Huang Z. Molecular Dynamics Simulation of Drug Solubilization Behavior in Surfactant and Cosolvent Injections. Pharmaceutics. 2022; 14(11):2366. https://doi.org/10.3390/pharmaceutics14112366

Chicago/Turabian Style

He, Meiqi, Wenwen Zheng, Nannan Wang, Hanlu Gao, Defang Ouyang, and Zunnan Huang. 2022. "Molecular Dynamics Simulation of Drug Solubilization Behavior in Surfactant and Cosolvent Injections" Pharmaceutics 14, no. 11: 2366. https://doi.org/10.3390/pharmaceutics14112366

APA Style

He, M., Zheng, W., Wang, N., Gao, H., Ouyang, D., & Huang, Z. (2022). Molecular Dynamics Simulation of Drug Solubilization Behavior in Surfactant and Cosolvent Injections. Pharmaceutics, 14(11), 2366. https://doi.org/10.3390/pharmaceutics14112366

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
