Review

New Applications of Lipid and Polymer-Based Nanoparticles for Nucleic Acids Delivery

by
Adelina-Gabriela Niculescu
1,
Alexandra Cătălina Bîrcă
1 and
Alexandru Mihai Grumezescu
1,2,3,*
1
Department of Science and Engineering of Oxide Materials and Nanomaterials, University Politehnica of Bucharest, 011061 Bucharest, Romania
2
Research Institute of the University of Bucharest—ICUB, University of Bucharest, 050657 Bucharest, Romania
3
Academy of Romanian Scientists, Ilfov No. 3, 50044 Bucharest, Romania
*
Author to whom correspondence should be addressed.
Pharmaceutics 2021, 13(12), 2053; https://doi.org/10.3390/pharmaceutics13122053
Submission received: 29 October 2021 / Revised: 26 November 2021 / Accepted: 29 November 2021 / Published: 1 December 2021
(This article belongs to the Special Issue Novel Nanoparticles for Targeted Delivery of Therapeutic Nucleic Acids)
Browse Figures
Versions Notes

Abstract

:
Nucleic acids represent a promising lead for engineering the immune system. However, naked DNA, mRNA, siRNA, and other nucleic acids are prone to enzymatic degradation and face challenges crossing the cell membrane. Therefore, increasing research has been recently focused on developing novel delivery systems that are able to overcome these drawbacks. Particular attention has been drawn to designing lipid and polymer-based nanoparticles that protect nucleic acids and ensure their targeted delivery, controlled release, and enhanced cellular uptake. In this respect, this review aims to present the recent advances in the field, highlighting the possibility of using these nanosystems for therapeutic and prophylactic purposes towards combatting a broad range of infectious, chronic, and genetic disorders.

1. Introduction

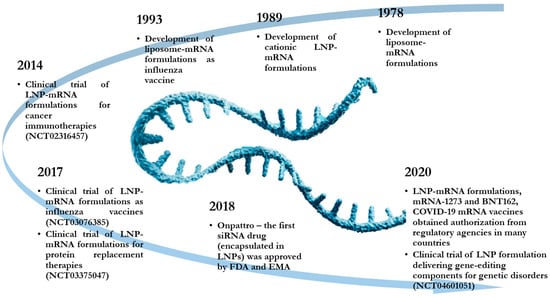

The recent investigation of a multitude of therapeutic nucleic acids (TNAs) has paved the way for developing new treatment strategies for various wounds, infectious diseases, and chronic conditions. TNAs, such as plasmid DNA (pDNA), small interfering (or silencing) RNA (siRNA), self-amplifying RNA (saRNA), microRNA mimics, anti-microRNA oligonucleotides, messenger RNA (mRNA), and antisense oligonucleotides (ASOs), can be employed for creating therapeutics and vaccines that provide a cell-mediated immune response [1,2,3,4,5,6,7].
TNAs have gained increasing scientific interest, especially due to the long-lasting effects they offer in contrast to conventional treatments. Specifically, traditional medication induces temporary effects as it targets proteins instead of the underlying causes. In comparison, TNAs have the potential to produce long-term and even curative effects by gene inhibition, addition, replacement, or editing [2].
However, the direct delivery of nucleic acids has several drawbacks as naked nucleic acids are prone to enzymatic degradation, renal clearance, and poor cellular uptake as they face difficulties in crossing the cell membrane [4,8,9,10]. These challenges are mainly due to TNAs’ large molecular weight, negatively charged backbone, and more fragile and immunogenic potential than their oligonucleotide counterparts [6,11]. Thus, the clinical translation of such treatments is highly dependent on the delivery technologies that must enhance TNAs’ stability, protect against extracellular degradation, facilitate cell internalization, and improve target affinity [2,3,8].
In this respect, a broad range of delivery systems has been studied. Delivery vehicles such as lipid nanoparticles, polymeric micelles, dendrimers, polymer-based nanoparticles, hydrogels, polyplexes, proteins, and inorganic nanomaterials are under investigation [1,12]. Out of this plethora of possibilities, lipid nanoparticles are the most clinically advanced [11,13,14]; however, polymer and polymer–lipid hybrid particles have also recently become important categories of carrier platforms [15,16,17,18]. Moreover, such delivery systems have become highly attractive due to their targeting potential as they can be surface functionalized to allow accumulation and payload release in specific tissues [11,19,20].
In this context, this paper aims to provide an overview of the newly developed lipid and polymer-based nanosystems for nucleic acid delivery, emphasizing their importance in combatting various infectious, chronic, and genetic disorders.

2. Lipid-Based Delivery Systems

Lipid nanoparticles (LNPs) have attracted considerable research interest for encapsulating TNAs, especially due to their ionizable lipid presence, which is cationic at a low pH, thus, allowing complexation with negatively charged RNA or DNA [21,22]. Various generations of lipid nanocarriers have been tackled for TNAs delivery, including liposomes, solid lipid nanoparticles, nanostructured lipid carriers, and cationic lipid–nucleic acid complexes [23]. A brief history of how lipid-based RNA delivery systems evolved until the date is represented in Figure 1.

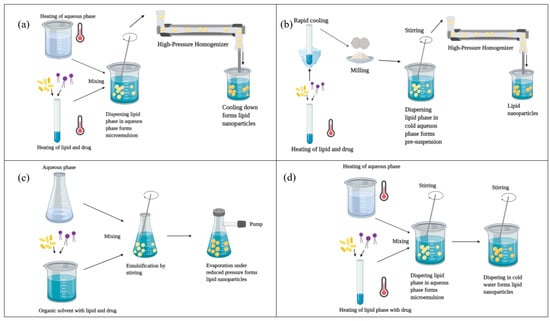

LNPs have also been extensively studied due to the relatively easy and scalable manufacturing processes they can be obtained through [3]. Specialized manufacturing and control techniques ensure the complex morphology and tailored lipid components and proportions required to create functional and efficient LNP-based delivery systems [11]. Examples of conventional synthesis methods include high-pressure homogenization [25,26], solvent emulsification–evaporation [27], ethanol injection nanoprecipitation [28], freeze-drying [29], and preformed vesicle method [30] (Figure 2).
For instance, Gomez-Aguado et al. [27] used the solvent emulsification-evaporation method to develop different solid lipid nanoparticles (SLNs) that combine cationic and ionizable lipids for the delivery of mRNA and pDNA. Their comparative study showed a higher percentage of transfected cells in mRNA formulation than for particles containing pDNA, especially in human retinal pigment epithelial cells (ARPE-19). Nonetheless, pDNA delivery resulted in greater protein production per cell in the mentioned cell line. Among the tested lipid formulations, SLNs containing only 1,2-dioleoyl-3-trimethylammonium-propane are considered the most promising for TNAs delivery.
Other synthesis methods were used by Wang et al. [29], who have created aerosolizable dry powder of lipid nanoparticles by thin-film freeze-drying (TFFD), spray drying, and conventional shelf freeze-drying. The researchers comparatively evaluated the obtained powders and tested the feasibility of engineering SLNs using the TFFD method, concluding that this synthesis strategy leads to better aerosol performance properties than the powders obtained otherwise.

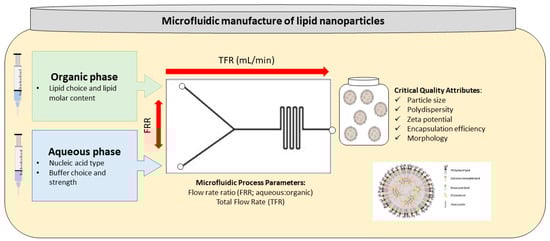

However, some of the newest approaches for synthesizing LNPs are based on the direct mix of the organic phase (containing the lipids) with the aqueous phase (containing the TNA) using a microfluidic device [32]. Microfluidics represents a robust, scalable, and reproducible synthesis method [33]. This strategy has several advantages compared to conventional techniques as it allows the strict and easy control of flow rates, rapid mixing of the phases, and decreased synthesis time, resulting in nanoparticles with a small size, high monodispersity, and high encapsulation efficiency [28,34].
For instance, Bailet-Hytholt et al. [21] have synthesized LNPs encapsulated with mRNA or pDNA by means of a precise microfluidic mixing platform. Their experimental setup allowed the self-assembly of nanoparticles under laminar flow, benefiting from advantages such as reproducibility, speed, and low volume screening. Microfluidic methods were also employed by Roces et al. [33], who have prepared PolyA, ssDNA, and mRNA encapsulated LNPs in a Y-shape staggered herringbone micromixer (Figure 3). In this manner, the researchers obtained a consistent range of particle sizes, with dimensions below 100 nm, narrow size distribution, spherical shape, good stability, and high encapsulation efficiencies.
In what concerns their applicability, numerous lipid-based TNA delivery platforms have been recently constructed as potent novel platforms for cancer immunotherapies [35]. In particular, the use of mRNA formulations for different types of solid tumors and hematological malignancies is currently examined by various studies and even clinical trials [28]. Targeted LNPs can deliver RNA-based therapeutics to leukocytes to allow the precise and modular manipulation of gene expression, thus being a highly promising approach for many immune-related disorders, such as cancer, autoimmunity, and susceptibility to infectious diseases [36].
TNAs can also be employed in formulations for the treatment and prevention of cardiovascular diseases [37,38]. Clinical trials have investigated ASOs for lowering low-density lipoprotein cholesterol (LDL-C) [39], lowering transthyretin (TTR) blood levels [40,41,42], reducing atrial fibrillation burden [43], reducing serum lipoprotein (a) levels [44], and preventing neovascular glaucoma [45]. mRNA has also been evaluated for cardiovascular conditions, with several LNP-based formulations being tested for enhancing cardiac function and regeneration [46], reducing LDL-C levels [47], and treating endotheliopathy associated with vascular senescence [48,49]. Similarly, siRNA lipid-based formulations have been clinically tested for TTR-mediated amyloidosis [50] and hypercholesterolemia [51].
Another highly researched application of LNPs is for the development of COVID-19 vaccines, out of which several formulations have already entered clinical use for mRNA delivery [16,52,53,54,55]. Generally, these vaccines work on the principle of encoding the spike glycoprotein of SARS-CoV-2 (Figure 4) and directing the immune system against these antigens [56,57]. Clinical trials demonstrated the efficacy of LNP-mRNA formulations and an acceptable safety profile, leading to their approval for mass immunization [58,59].

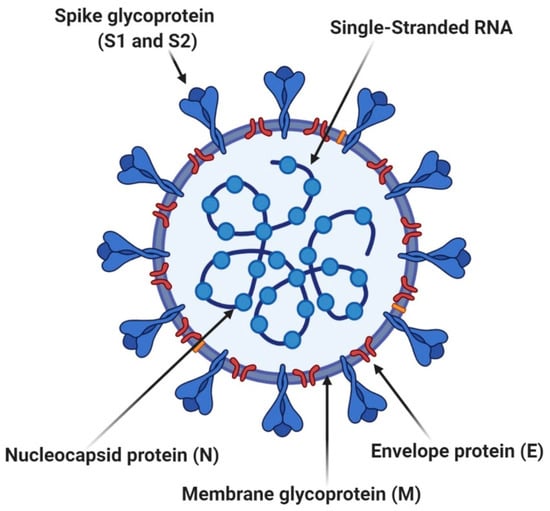

COVID-19 vaccines are the most known current examples that make use of LNPs encapsulated with TNA, but this approach can be used for other infectious diseases as well [37,61,62,63,64,65,66,67]. TNA-LNP formulations have been evaluated against Zika virus [68], influenza [69,70], cytomegalovirus [71,72], chikungunya virus [73], hepatitis B [74,75,76], hepatitis C [77,78,79], human immunodeficiency virus (HIV) [80,81], and genital herpes [82].
The development of nonviral platforms for prenatal TNA delivery has recently emerged among the scientific research hot topics as a strategy to treat diseases before the onset of irreversible pathology and a non-invasive alternative to difficult-to-perform surgeries. What is more, the small size of a fetus compared to a postnatal recipient is a key factor for maximizing the delivery vector titer per weight of the recipient, thus, facilitating gene transduction [37,83]. In this regard, Riley et al. [84] have recently developed a library of ionizable LNPs for in utero mRNA delivery to mouse fetuses. Their LNPs successfully accumulated within fetal livers, lungs, and intestines, with higher therapeutic efficacy and safety than reference delivery systems (i.e., DLin-MC3-DMA and jetPEI), being promising candidates for protein replacement and gene editing platforms.
A series of examples of potential applications of lipid-based TNA delivery systems have been synthesized in Table 1 to summarize the above discussion and emphasize the versatility of such formulations.

3. Polymer-Based Delivery Systems

Cationic polymers have attracted interest for the development of innovative TNA carriers. The main reasoning is that they form electrostatic nanocomplexes with nucleic acids, which are highly negative, to facilitate their uptake by targeted cells. Alternatively, other hydrophobic polymers can physically entrap TNAs within nanoparticles [4].
The first polymer tested as a vehicle for in vitro-transcribed mRNA was diethylaminoethyl (DEAE) dextran. However, after it was proven that lipid-mediated mRNA transfection is 100 to 1000 times more efficient than DEAE-dextran, the evolution of polymeric carriers has been stalled, the attention shifting towards creating perpetually improved lipid-based nanosystems [111].
Nonetheless, after some time, research started being oriented towards developing natural and synthetic polymer-based nanosystems for TNAs delivery as an alternative for cancer treatments and non-viral vaccine formulations. Polymers such as hyaluronic acid [94,112,113,114], chitosan [94,113], DEAE dextran [111], poly-L-lysine (PLL) [94], poly-beta-amino-esters (PBAE) [111], polyethylenimine (PEI) [94,111], dimethylaminoethyl methacrylate (DEAMA) [111], poly(ethylene glycol) methacrylate (PEGMA) [111], and DEAEMA-co-n-butyl methacrylate [111] represent promising candidates for various TNAs delivery platforms.
Another interesting possibility is to combine two or more polymers in the same delivery system. For instance, Lü et al. [115] have developed antibody (Ab)-conjugated lactic-co-glycolic-PEI nanoparticles (LGA-PEI NPs) for the active-targeting delivery of TNAs. The research group obtained promising results for pancreatic cancer cells delivery both in vitro and in vivo, concluding that the synthesized carriers can be employed for other types of cancers as well if other specific biomarkers are targeted.
Polymers have also been tested for microneedle-based TNA delivery [111]. Koh et al. [116] have fabricated an mRNA-loaded dissolving microneedle patch from polyvinylpyrrolidone (PVP) for cutaneous TNA administration. This RNA-patch can mediate in vivo transgene expression for up to 72 h, the transfection efficiency and kinetics being comparable to subcutaneous injection. Moreover, this innovative delivery system induced higher cellular and humoral immune responses than subcutaneous injection. A similar administration strategy was used by Pan et al. [117], who have delivered signal transducer and activity transcription 3 (STAT3)-targeting PEI-encapsulated siRNA through dextran-hyaluronic acid dissolving microneedles. The researchers obtained promising results as the microneedles effectively penetrated and rapidly dissolved into the skin. In addition, the delivered complex successfully suppressed the development of melanoma by silencing the STAT3 gene.
To briefly summarize the current research progress, several examples of polymer-based TNA delivery systems and their applications have been gathered in Table 2.
Although various types of polymers and copolymers have been tested for TNAs delivery, the poorly understood correlation between their structure and their biological response hinders their development. Moreover, the polydispersity and difficulty in metabolizing large molecular weight polymers make them less appealing than LNPs. Their clinical application is also impeded by potential toxicity, colloidal instability, and relatively poor transfection efficiency [64,111]. Therefore, more research is required for understanding the influence of polymers’ chemical structure on their biological activity and optimally modulating their properties to overcome current challenges.

4. Lipid-Polymer Hybrid-Based Delivery Systems

Hybrid delivery systems have recently appeared as an alternative solution for overcoming the limitations of each individual lipid or polymer component. Specifically, the adverse effects of ionizable lipids (e.g., potential immune activation, cytotoxicity) are commonly mediated by shielding the LNPs with polyethylene glycol (PEG) [11].
For example, Sanghani et al. [123] have PEGylated LNPs made of pH-sensitive cationic lipid CL4H6 to safely and efficiently deliver myocardin-related transcription factor B (MRTF-B) siRNA into human conjunctival fibroblasts. A similar hybrid approach on TNA delivery was taken by Scmendel et al. [20], who have developed folate-containing lipoconjugates with PEG spacers incorporated into a liposome. These delivery systems exhibited higher transfection efficiency compared to non-targeted liposomal formulations and the commercial agent Lipofectamine 2000. Improved transfection efficiency was also obtained using the hybrid nanoparticles created by Siewert et al. [124]. The researchers have developed vehicles for mRNA delivery using different proportions of the cationic lipid DOTAP and the cationic biopolymer protamine, reporting significantly increased transfection in comparison to lipid/mRNA and polymer/mRNA particles alone. Another mRNA hybrid carrier was created by Xiong et al. [125]. This research group developed theranostic dendrimer-based LNPs containing PEGylated BODIPY dyes that combine mRNA delivery and NIR imaging, holding great promise for cancer’s simultaneous detection and treatment.
Zhou et al. [126] have synthesized a series of linear-dendritic PEG lipids (PEG-GnCm) to investigate the effect of modulating their hydrophobic domain for siRNA delivery as the surface component of dendrimer lipid-based nanoparticles (DLNPs). The researchers used different lipid alkyl lengths (C8, C12, C16) and different dendrimer generations (G1, G2, G3), creating vehicles with different physical properties and anchoring potential. These alterations did not affect particle size, RNA encapsulation, and stability but had a huge impact on delivery efficacy. PEG-G1C8, PEG-G1C12, PEG-G1C16, and PEG-G2C8 could effectively deliver siRNA in vitro and in vivo; however, all the other tested formulations lost their delivery ability, as the escape of DLNPs from endosomes at early cell incubation times was affected.
Furthermore, by tailoring the surface charge of LNPs, they can be endowed with targeting ability. According to the comparative study performed by Gabal et al. [127], anionic nanostructured lipid carriers exhibited 1.2 times higher targeting efficiency in the brain than their cationic counterparts. Thus, such anionic particles hold promise as carriers for brain disorders therapeutics. Nonetheless, anionic formulations have not faced the same development because of difficulties encountered in nucleic acid packaging and poor transfection efficiency. To overcome these challenges, Tagalakis et al. [128] have used cationic targeting peptides as a bridge between the PEGylated anionic liposomes and the pDNA freight. The newly developed structures demonstrated improved tissue penetration, enhanced dispersal, and more widespread cellular transfection than cationic systems. Similar anionic targeting hybrid nanocarriers have also shown promising results for siRNA delivery to neuroblastoma tumors with reduced systemic and cellular toxicity [129].
Another polymer that can be used in combination with LNPs is poly(lactic-co-glycolic acid) (PLGA). In this respect, Yang et al. [130] have developed a PLGA-LNP hybrid delivery system loaded with CRISPR/Cas9 plasmids targeting the MGMT gene and modified with the cRGD peptide. This system was constructed to open the blood–brain barrier (BBB) and ensure targeted gene delivery in vivo under focused ultrasound (FUS) irradiation. The obtained results emphasized a synergic targeting ability of the physically site-specific characteristics of FUS and the biologically active targeting ability of cRGD peptide, recommending this innovative carrier as a candidate for central nervous system TNA delivery.

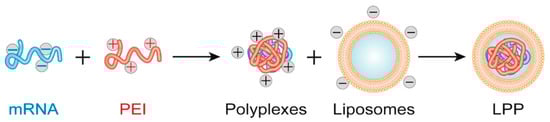

A recently approached strategy for designing performant hybrid carriers is the creation of lipopolyplexes (LPPs), complexes combining nucleic acids with lipids and polymers (Figure 5). Such structures are promising delivery systems for gene therapy, especially due to their compositional, physical, and functional versatility [131,132,133]. For instance, Wang et al. [134] have synthesized a tumor-selective LPP consisting of a PEI/p21-saRNA-322 core and a hyaluronan-modulated lipid shell. The system was tested against colorectal cancer, and it was reported that it accumulated preferentially at the tumor site, leading to superior antitumor efficacy in vitro and in vivo. Alternatively, Shah et al. [135] have proposed the incorporation of ultrasound contrast agents in the liposomal cavity, followed by polyplexes addition. Thus, the scientists obtained ultrasound-activated LPPs that promote cancer cell uptake, elevate transfection efficiency, and reduce carrier cytotoxicity.

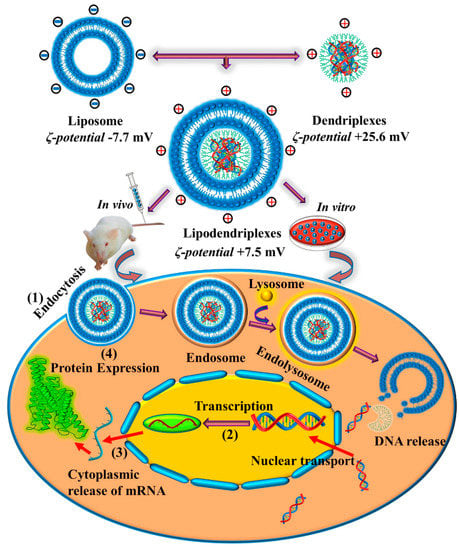

One more emerging delivery possibility is TNA transport via lipodendriplexes which are complex structures formed by non-covalent hybridization of dendriplexes with the liposomal membrane. In this respect, Tariq et al. [136] have incorporated pDNA-PAMAM-based dendriplexes into an optimized liposomal formulation (Figure 6). The researchers reported significantly improved pDNA transfection, lower LDH release, lower ROS generation, higher cellular protein content, and higher cell viability compared to dendriplexes without the lipid components. Thus, these new carriers can be considered promising candidates for efficient and biocompatible gene delivery systems.
To summarize the current status of lipid polymer-hybrid-based TNA carriers, Table 3 presents several examples of such delivery systems together with their potential applications.

5. Challenges and Emerging Solutions to Overcome Them

LNPs are undeniably promising innovative nonviral vectors for gene delivery. Nonetheless, several challenges still exist, limiting their potential. One of the main unresolved issues is represented by the poor endosomal escape after LNP cell entry. Attempting to understand this phenomenon, Herrera et al. [140] have created a highly sensitive and robust galectin 8-GFP (Gal8-GFP) cell reporter system to visualize the endosomal escape capabilities of LNP-encapsulated mRNA. This sensor system allows the rapid and efficient distinction of endosomal membrane integrity as an indicator of cytosolic availability of mRNA. Moreover, it helped the researchers identify differences in endosomal escape capabilities elicited by the varying sterol composition of mRNA LNP-based delivery systems.
Alternatively, Mihaila et al. [141] propose the optimization of siRNA LNP-mediated delivery by use of an ordinary differential equation (ODE)-based model. By means of mathematical modeling, the researchers designed and validated a predictive model that can compare the relative kinetics of different classes of LNPs towards choosing the best option.
Another problem associated with LNPs is that their intravenous administration results in liver accumulation where the reticuloendothelial system takes them up. To avoid this situation, Saunders et al. [142] propose the administration of a liposome (i.e., Nanoprimer) that can temporarily occupy liver cells as a pretreatment before LNPs delivery. The researchers obtained promising results as the Nanoprimer improved the bioavailability of tested RNA-encapsulated LNPs, increased protein production, and enhanced FVII silencing.

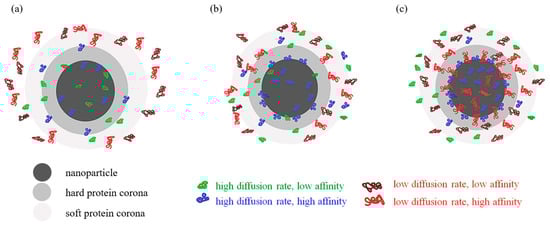

One more aspect that must be considered regarding lipid and polymer-based TNA delivery systems is the development of a biomolecular corona around these nanoparticles (Figure 7). This “crown” is formed by electrolytes, proteins, and lipids adsorbed on nanomaterials’ surfaces when in contact with a biological environment. As the association process is almost irreversible, the biomolecular corona defines the biological identity of the nanosystem, impacting in vivo characteristics, such as circulation time, biodistribution, uptake kinetics, macrophage recognition, release profile, or targeting [143,144,145].
Thus, when moving from in vitro models to in vivo studies or clinical trials, it may be expected to encounter a weaker delivery efficiency and therapeutic effect of carried nucleic acids. To overcome this issue, Yang et al. [147] have proposed the design of a corona made from cyclic RGDyK peptide-modified bovine serum albumin to be used as a precoat on a redox-responsive chitosan-based nanocarrier for siRNA delivery. The synthesized corona remained steady around the delivery vehicle, improved the system’s stability, biocompatibility, and targeting ability, reduced serum proteins adsorption, increased intracellular uptake, facilitated the lysosomal escape while maintaining the redox-sensitive responsiveness of the nanocarrier.

6. Conclusions

To conclude, TNAs represent a promising therapeutic strategy for a broad range of diseases. Benefiting from tremendous scientific interest in the recent years, numerous LNP-based delivery systems for pDNA, mRNA, siRNA, and other nucleic acids have appeared that can help fight against various cancers, infectious diseases, cardiovascular diseases, and inherited disorders. Several such formulations have reached the clinical trials testing stage or have even been approved for use in the general population in record time, as is the case of LNP-mRNA COVID-19 vaccines.
Other TNA delivery possibilities started to emerge as well, including polymer and lipid–polymer hybrid carriers. Nonetheless, these delivery systems are still in their infancy, most of them requiring further thorough research before moving from in vitro and in vivo tests to clinical studies.
Overall, the evolution in developing targeted and controlled release vehicles for efficient cellular uptake faces exponentially increasing progress. Given the recent research growth in the field and the precedent it has been created with the approval of the COVID-19 vaccines, it can be expected that other TNA delivery systems will soon enter the market.

Author Contributions

Conceptualization, A.-G.N., A.C.B. and A.M.G.; methodology, A.-G.N., A.C.B. and A.M.G.; writing—original draft preparation, A.-G.N., A.C.B. and A.M.G.; writing—review and editing, A.-G.N., A.C.B. and A.M.G. All authors have read and agreed to the published version of the manuscript.

Funding

The present work was possible due to the project 36355/23.05.2019 POCU/380/6/13.

Institutional Review Board Statement

Not applicable.

Acknowledgments

The present work was possible due to the project “Excelența academică și valori antreprenoriale—sistem de burse pentru asigurarea oportunităților de formare și dezvoltare a competențelor antreprenoriale ale doctoranzilor și postdoctoranzilor”—ANTREPRENORDOC (36355/23.05.2019 POCU/380/6/13).

Conflicts of Interest

The authors declare no conflict of interest.
