Structural and Functional Properties of the Hepatitis C Virus p7 Viroporin

Vanesa Madan
1,* and
Ralf Bartenschlager
Department of Infectious Diseases, Molecular Virology, University of Heidelberg, 69120 Heidelberg, Germany
Division of Virus-Associated Carcinogenesis, German Cancer Research Center (DKFZ), 69120 Heidelberg, Germany
Authors to whom correspondence should be addressed.
Viruses 2015, 7(8), 4461-4481;
Submission received: 17 June 2015 / Revised: 28 July 2015 / Accepted: 30 July 2015 / Published: 6 August 2015
(This article belongs to the Special Issue Viroporins)


The high prevalence of hepatitis C virus (HCV) infection in the human population has triggered intensive research efforts that have led to the development of curative antiviral therapy. Moreover, HCV has become a role model to study fundamental principles that govern the replication cycle of a positive strand RNA virus. In fact, for most HCV proteins high-resolution X-ray and NMR (Nuclear Magnetic Resonance)-based structures have been established and profound insights into their biochemical and biological properties have been gained. One example is p7, a small hydrophobic protein that is dispensable for RNA replication, but crucial for the production and release of infectious HCV particles from infected cells. Owing to its ability to insert into membranes and assemble into homo-oligomeric complexes that function as minimalistic ion channels, HCV p7 is a member of the viroporin family. This review compiles the most recent findings related to the structure and dual pore/ion channel activity of p7 of different HCV genotypes. The alternative conformations and topologies proposed for HCV p7 in its monomeric and oligomeric state are described and discussed in detail. We also summarize the different roles p7 might play in the HCV replication cycle and highlight both the ion channel/pore-like function and the additional roles of p7 unrelated to its channel activity. Finally, we discuss possibilities to utilize viroporin inhibitors for antagonizing p7 ion channel/pore-like activity.

1. Introduction

The hepatitis C virus (HCV) forms the genus Hepacivirus within the Flaviviridae family. HCV is a positive-strand RNA virus encoding a single polyprotein precursor [1] that is generated by RNA translation at the rough endoplasmic reticulum (ER). This polyprotein is proteolytically processed into 10 mature proteins in a preferential, but not obligatory order (Figure 1) [2,3]. Of these, p7 separates the structural proteins (i.e., Core and the envelope glycoproteins E1 and E2) from the nonstructural proteins that save for NS2 are essential for viral RNA replication (NS3, NS4A, NS4B, NS5A and NS5B) [4]. Importantly, polyprotein processing is a regulated event giving rise to cleavage intermediates, which is best illustrated with p7. In fact, the identification of p7 as an isolated product was not evident or predictable. This is due to inefficient cleavage of E2-p7-NS2 and E2-p7 precursors by signal peptidase at the ER [5,6,7] (Figure 1).
Initial attempts to ascribe distinct function(s) of p7 to the viral life cycle were complicated by the lack of adequate cell culture models to propagate HCV in cultured cells and limited availability of reliable antibodies recognizing p7. The initial development of a self-replicating subgenomic replicon, based on the HCV replicase factors (i.e., NS3, NS4A, NS4B, NS5A, NS5B and the NTRs), demonstrated that the structural proteins and p7 were dispensable for viral RNA replication [8]. However, since these replicons only recapitulate the intracellular steps of the HCV replication cycle, the possible role of p7 for virus production could not be addressed.
By that time it was speculated that p7 might be a membrane permeabilizing protein and involved in virus production/release [9]. This assumption was based on in silico prediction of p7 membrane topology that was similar to the p7 protein of the related pestiviruses and the 6K protein of alphaviruses, the latter being a well-studied member of the family of viroporins [10,11]. Strong support for the ion channel/pore-like activity of HCV p7 was obtained by in vitro studies demonstrating a partial selectivity for cations, but also for small molecules [12,13,14,15,16,17]. However, studies on the role of HCV p7 for virus production only became possible with the molecular cloning of a genotype (Gt) 2a isolate (designated JFH-1) from a Japanese patient suffering from fulminant hepatitis [18,19]. This isolate that efficiently replicates in human hepatoma cell lines and produces infectious virus particles was used to demonstrate that p7 is essential for particle assembly and release [20,21], a finding that is consistent with an earlier study demonstrating that p7 is essential for productive HCV propagation in vivo [22]. By using a series of intra- and intergenotypic chimeric HCV genomes, these observations were extended to many other HCV Gts [20,21]. Interestingly, by using HCV-like particles and p7 inhibitors a contribution of p7 as enhancer of virus entry has been proposed [23,24]. However, difficulties in detection of p7 in infectious virus particles, as well as the observation that deletion of p7 does not affect HCV specific infectivity raise controversies [20,25].

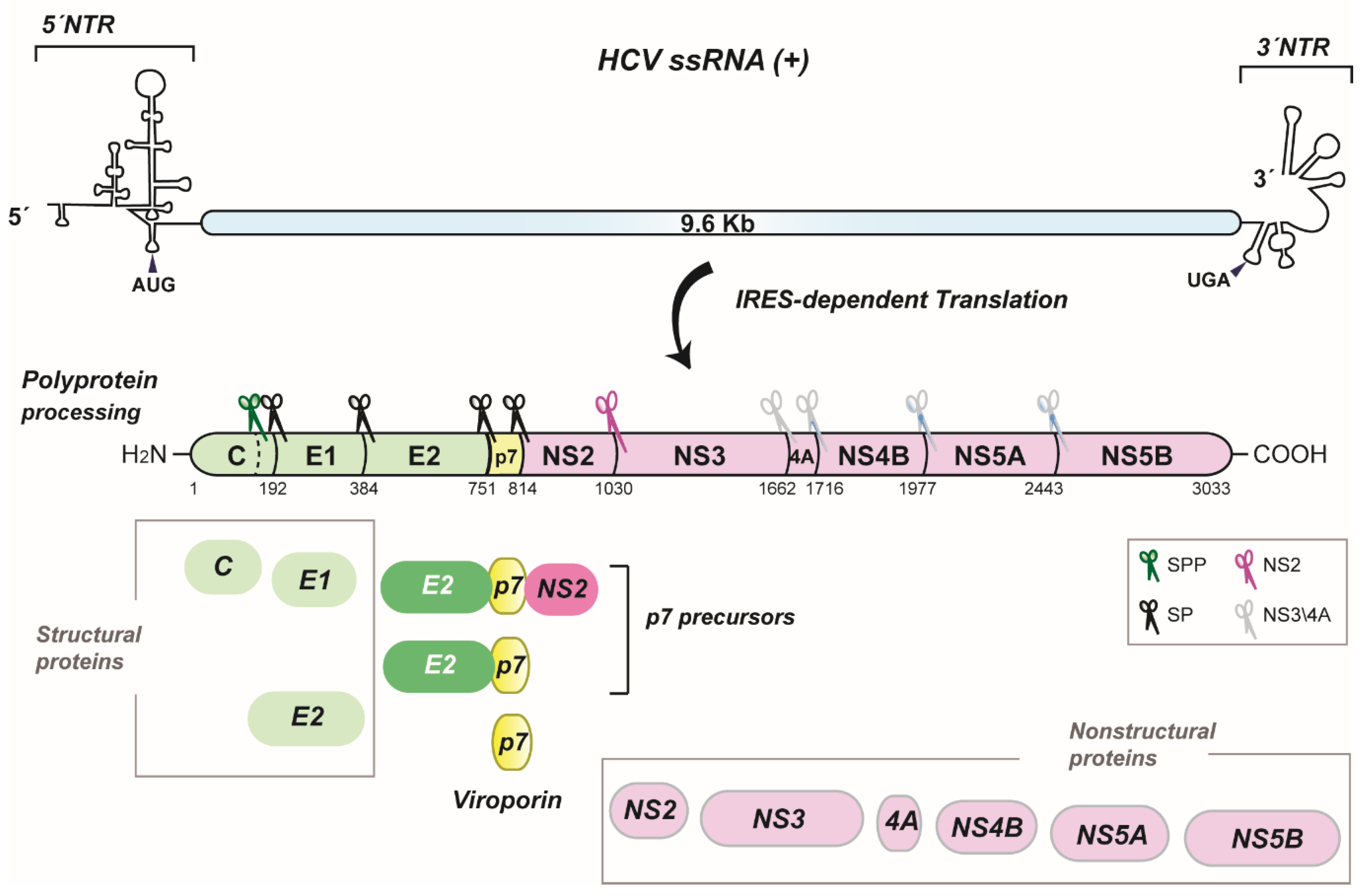

Figure 1. HCV genome organization, polyprotein processing and p7 precursors. A schematic representation of the HCV RNA genome including the non-translated regions (NTR) at the 5′ and 3′ ends and the coding region is shown on the top. AUG and UGA indicate the start and stop codons of the long open reading frame, respectively. The polyprotein precursor generated by IRES-dependent RNA translation and cleavage products are shown below. Numbers refer to amino acid positions of the JFH-1 isolate (GenBank accession number AB047639). Nonstructural proteins are depicted in pink color, p7 in yellow and structural proteins in green. Cellular and viral proteases responsible for polyprotein cleavage are represented by scissors and specified in the box. SPP, signal peptide peptidase; SP, signal peptidase. p7 precursors and p7 are highlighted.
Figure 1. HCV genome organization, polyprotein processing and p7 precursors. A schematic representation of the HCV RNA genome including the non-translated regions (NTR) at the 5′ and 3′ ends and the coding region is shown on the top. AUG and UGA indicate the start and stop codons of the long open reading frame, respectively. The polyprotein precursor generated by IRES-dependent RNA translation and cleavage products are shown below. Numbers refer to amino acid positions of the JFH-1 isolate (GenBank accession number AB047639). Nonstructural proteins are depicted in pink color, p7 in yellow and structural proteins in green. Cellular and viral proteases responsible for polyprotein cleavage are represented by scissors and specified in the box. SPP, signal peptide peptidase; SP, signal peptidase. p7 precursors and p7 are highlighted.
Viruses 07 02826 g001
Viroporins are formed by a growing family of viral proteins identified in RNA and DNA viruses. These proteins are able to oligomerize, forming hydrophilic pores/ion channels in host cell membranes [26,27]. Viroporins share common features such as their small size, hydrophobicity, the presence of at least one amphiphatic transmembrane domain and the cytopathogenicity. The main consequence of viroporin expression during infection is the disruption of ionic gradients across target membranes thereby altering physiological cell functions [27,28]. On the other hand, viroporin action results in establishment of a favorable environment for different steps of the viral life cycle, very often, but not exclusively assembly of virions and their release from infected cells [26]. For instance, in case of HIV-1 Vpu, alphavirus 6K, influenza A virus M2, SARS-CoV (severe acute respiratory syndrome coronavirus) E and HCV p7, deletion of the viroporin coding sequence reduces the production of infectious virus particles and the pathogenicity [22,29,30,31,32,33].
In the following sections we will discuss the major findings related to the structure and function of HCV p7 viroporin, as well as its possible use for antiviral therapy.

2. HCV p7 Topology and Structure

Based on protein structure and membrane topology, two major classes (I and II) and two subclasses (a and b) of viroporins have been defined. A third class including viroporins with three hydrophobic domains has been also proposed [26]. In this respect, HCV p7 is a class IIA viroporin; it has a length of 63 amino acid residues forming two transmembrane spanning regions that are separated by a basic cytoplasmic loop with both N- and C-termini facing the ER lumen [9] (Figure 2A). However, an alternative topology with the C-terminus exposed to the cytoplasm has been proposed as deduced from the expression of an E2-p7 precursor protein [34]. The tendency of p7 to form homo-oligomers and to assemble into ion channel-like structures in vitro has been reported by several laboratories [12,13,14,15,16,17,35]. These results are based on the use of recombinant p7 or synthetic peptides inserted into artificial lipid bilayers, overexpression of p7 in Xenopus oocytes and electrophysiological recording techniques, including patch-clamp and two-electrode voltage clamp [12,13,14,15,17,35]. Supported by electron microscopy (EM), biochemical data and computational modeling techniques, in silico analysis of the HCV p7 sequence predicted a hairpin-like structure of the monomer with the N-terminal transmembrane domain (TMD) lining the lumen of the pore [12,36,37] (Figure 2A). Initial studies using transmission EM (TEM) and computer-based image analysis revealed that p7 fusion proteins form a mix of hexameric and heptameric complexes in liposomes [12,15]. Results obtained with equilibrium sedimentation experiments of p7 were consistent with the formation of different p7 oligomeric states comprising 6 ± 1 subunits, with the heterogeneity depending strongly on detergent [17]. Thus, in biological membranes p7 might exist as a mixture of oligomers with variable size. A subsequent TEM study combined with single particle reconstruction of chemically synthesized full-length p7 of Gt2a, solubilized in short chain DHPC (1,2-diheptanoyl-snglycero-3-phosphocholine) detergent micelles at pH 7.0, provided the first 3D structure of hexameric p7 channels at a resolution of 16Å [16]. It was found that the p7 channel exists as a flower-shaped complex with 6 petals emerging from a conical base. The generation of the first EM density map from this study allowed modeling of simulated p7 monomers into the hexameric volume with a high fitting value (97.3%) as well as to predict interactions between them at the lower part of the channel. Moreover, a topology of the complex indicating that the N- and C-termini in each monomer are exposed towards the tip of the petals could be confirmed by immunogold labeling with p7 specific antibodies. Accordingly, the more open part of the channel was suggested to protrude into the ER lumen (Figure 2B). This EM-based 3D model was subsequently adopted as a useful template to reconstruct p7 channels of other Gts from NMR-solved monomeric structures [38].
Currently, four NMR-based structures of the HCV p7 monomer have been reported (Figure 2A). First, Monserret and coworkers obtained the structure of the second TMD of p7 from Gt1b dissolved in trifluoroethanol/water mixture and presented a model of the p7 monomer based on structural data from experiments in membrane mimetics [17]. A NMR-structure of full-length p7 was obtained in methanol by Foster and colleagues [39]. The structure by Cook and coworkers revealed Gt1b p7 monomers at pH 4.0 and reconstituted into micelles formed by DHPC containing short acyl chains [40]. Interestingly, the NMR-based structure reported by Ouyang and coworkers was determined with p7 in micelles of DPC (i.e., dodecylphosphocholine containing longer acyl chains) and was assumed to have hexameric oligomeric size on the basis of parallel negative staining EM experiments [35].
While clear similarities were found between different subtypes of HCV p7 from Gt1b, notable discrepancies were apparent to the structure of the Gt5a p7 [35] (Figure 2A,B). Whereas the monomers of Gt1b exhibit a classic “hairpin-like” conformation, Gt5a p7 monomers display an extended and more complex distribution of α-helical elements tilted in an unusual way (Figure 2A,B). In the hairpin model, three or four helical segments can be distinguished with variable positioning depending on the reported structure (Figure 2C). In the structures by the groups of Opella and Penin, an N-terminal α-helix connected to the first TM helix by a flexible turn has been proposed to interact with the head groups of the lipid bilayer as deduced from molecular dynamics simulations [17,40]. This helical region at the membrane interface might adopt an almost perpendicular angle to the subsequent transmembrane helix [40]. In the structure by the Griffin group these first two helical segments of a Gt1b p7 (isolate J4) appear as a single transmembrane helix [39] (Figure 2A). In addition, in all Gt1b structures a cytosolic loop separates the first transmembrane region from the second one, the latter exhibiting certain variability and including one or two helical elements at different positions [17,39,40]. The most C-terminal part has been proposed to be either structured or to include a short and flexible helix (Figure 2A,C). Overall, p7 appears to be a flexible protein as supported by the structural differences observed by various groups. Very important to note is the role of lipids or organic solvents that define the composition and thickness of the membrane thus influencing the final conformation of p7 [37,41].

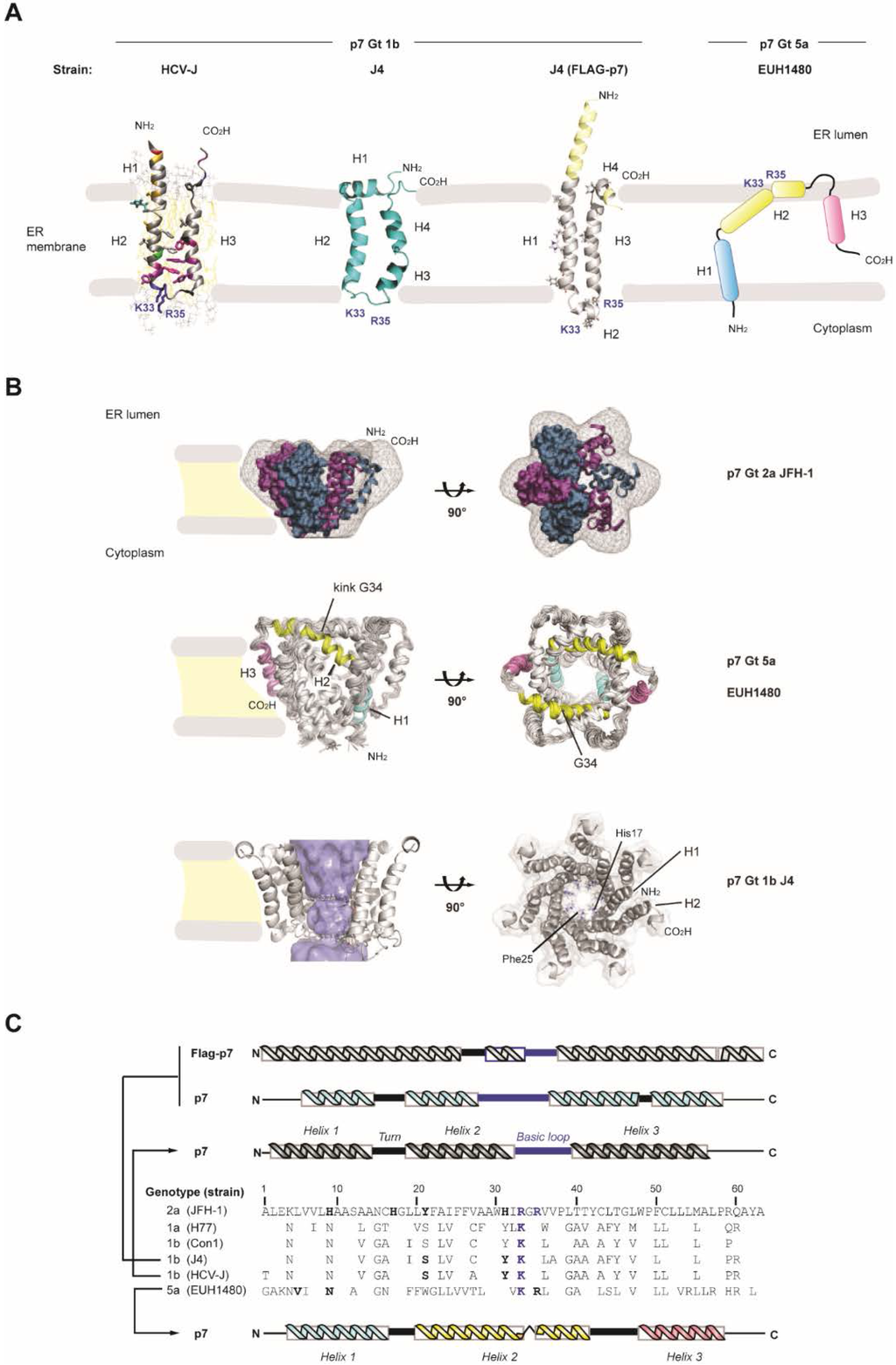

Figure 2. Structures of the p7 monomer and hexamer. (A) The membrane topology of HCV p7 Gt1b (HCV-J) as deduced from the NMR structure [17] is shown in the left. NMR-based structures of p7 (2MTS; middle. Adapted with permission from [40]. Copyright 2013 American Chemical Society) and Flag-p7 (3ZD0; right) of the Gt1b isolate J4 are shown as ribbons in the middle panels [39,40]. A schematic representation of the membrane topology of HCV p7 Gt5a as deduced from the NMR structure is shown in the right [35]. α-helices proposed for each structure are indicated. Basic conserved residues in the cytosolic loop of Gt1b p7 or in helix 2 of Gt5a p7 are indicated in blue bold letters. Yellow regions in the Flag-p7 structure represent the FLAG α-helix and extra residues. Note that shown monomeric structures of Gt1b p7 exhibit a “hairpin” conformation, whereas the p7 monomer of Gt5a adopts a “staple” conformation; (B) Upper panel: EM density map of the p7 hexamer of a Gt2a HCV isolate in vertical (left) and top (right) view [16]. Simulated p7 monomers (in purple and blue) were fitted into the flower-shape map with their N- and C-termini oriented to the petal tips. The topology of p7 is represented as described with both N- and C-termini exposed to the ER lumen [9,16]. Middle panel: NMR-based hexameric structure of p7 of a Gt5a HCV isolate (2M6X) [35]. α-helices in the monomeric structure are highlighted in colors. Residue Gly34 residing between the conserved basic residues, corresponds to a kink in the second α-helix. Bottom panel; heptameric model of p7 of the Gt1b HCV isolate J4 deduced from NMR data (3ZD0) [39]. The side chains of His17 and Phe25 are highlighted; (C) Multiple alignment of p7 sequences from representative Gts, including p7 of the two strains displayed in (A) and (C). Numbers refer to amino acid positions in p7 of Gt2a (JFH-1) which was used as a reference. Conserved basic residues are indicated in blue and bold. Residues highlighted in bold and black letters have been suggested to participate in ion gating and reside in the pore lumen of the oligomeric channel. Schematic representations of α-helical, turn and loop regions corresponding to the structures of the p7 monomers in (A) and (B) (same colors) are shown on the top and bottom, respectively.
Figure 2. Structures of the p7 monomer and hexamer. (A) The membrane topology of HCV p7 Gt1b (HCV-J) as deduced from the NMR structure [17] is shown in the left. NMR-based structures of p7 (2MTS; middle. Adapted with permission from [40]. Copyright 2013 American Chemical Society) and Flag-p7 (3ZD0; right) of the Gt1b isolate J4 are shown as ribbons in the middle panels [39,40]. A schematic representation of the membrane topology of HCV p7 Gt5a as deduced from the NMR structure is shown in the right [35]. α-helices proposed for each structure are indicated. Basic conserved residues in the cytosolic loop of Gt1b p7 or in helix 2 of Gt5a p7 are indicated in blue bold letters. Yellow regions in the Flag-p7 structure represent the FLAG α-helix and extra residues. Note that shown monomeric structures of Gt1b p7 exhibit a “hairpin” conformation, whereas the p7 monomer of Gt5a adopts a “staple” conformation; (B) Upper panel: EM density map of the p7 hexamer of a Gt2a HCV isolate in vertical (left) and top (right) view [16]. Simulated p7 monomers (in purple and blue) were fitted into the flower-shape map with their N- and C-termini oriented to the petal tips. The topology of p7 is represented as described with both N- and C-termini exposed to the ER lumen [9,16]. Middle panel: NMR-based hexameric structure of p7 of a Gt5a HCV isolate (2M6X) [35]. α-helices in the monomeric structure are highlighted in colors. Residue Gly34 residing between the conserved basic residues, corresponds to a kink in the second α-helix. Bottom panel; heptameric model of p7 of the Gt1b HCV isolate J4 deduced from NMR data (3ZD0) [39]. The side chains of His17 and Phe25 are highlighted; (C) Multiple alignment of p7 sequences from representative Gts, including p7 of the two strains displayed in (A) and (C). Numbers refer to amino acid positions in p7 of Gt2a (JFH-1) which was used as a reference. Conserved basic residues are indicated in blue and bold. Residues highlighted in bold and black letters have been suggested to participate in ion gating and reside in the pore lumen of the oligomeric channel. Schematic representations of α-helical, turn and loop regions corresponding to the structures of the p7 monomers in (A) and (B) (same colors) are shown on the top and bottom, respectively.
Viruses 07 02826 g002
Despite the differences in number and distribution of secondary structure elements within Gt1b p7 monomers, it is surprising that all of these channel subunits share a hairpin conformation with anti-parallel TM regions slightly tilted to the lipid bilayer (Figure 2A,C). In this regard, it is unclear why the p7 monomer from Gt5a presents an unusual and distinct conformation (Figure 2A, right panel). Nevertheless, this structure represents the first example in which the conformation of p7 subunits was extracted from a NMR-based hexameric complex [35]. It reveals three alpha helical regions tilted with sharp angles and adopting a curved “staple-like” conformation where the first and third helix are separated through a second helix kinked at Gly 34 (Figure 2B). Interestingly, this residue is located between two highly conserved basic amino acid residues (K/R33, R35) that are crucial for virus particle infectivity in vivo and important for p7 ion channel activity [22,42]. This different positioning of the helical elements between p7 proteins of different Gts and a more extended arrangement of the monomer within the assembled channel revealed unexpected features when compared with models of Gt1b p7 such as the lack of an unstructured loop connecting the two transmembrane regions or a C-terminal region that is embedded into the lipid bilayer (Figure 2B).
The study by Ouyang and coworkers also provided important details on the overall architecture of the pore. Interestingly, the p7 oligomer embedded into the membrane exhibits a funnel-like shape resembling the flower-like shape model and fitting within its EM map with high accuracy (correlation coefficient 0.94), even though the detergent concentration used to reconstitute p7 for NMR and EM analysis was not the same. This hexameric architecture is stabilized by multiple interactions amongst the monomers in such a way that the third C-terminal helix (H3) of one monomer interacts both with the second helix (H2) of the neighboring monomer and with the first N-terminal helix (H1) of the consecutive one (Figure 2B). This complex rearrangement of subunits might evoke a process of co-folding, at least under the in vitro conditions used during protein “renaturation” in the presence of DPC [43]. However, it remains enigmatic whether such a structure could be obtained in a physiological context since such co-folding cannot be explained by our current understanding of protein folding in cellulo. The fact that intra-monomer interactions, suggested from previous NMR- and EM-based studies, are absent in this structure is novel and noteworthy. In this NMR structure, the narrower part of the hydrophilic channel is formed by tight association of H1 helices (N-termini), followed by a wider region formed by H2 helices. According to this study the structural protrusions or “petals” mainly correspond to the H3 helices surrounding and packaging the central cavity while the second half of H2 helices and H2-H3 interconnecting regions represent the petals tips. Therefore, this flower-like architecture presents a topology distinct to that previously described [16,35] (Figure 2B). The existence of alternative structures between p7 monomers from Gt1b and Gt5a could be explained, at least in part, by the genetic diversity of the amino acid sequences and by used experimental conditions employed in each study. However, other possibilities might account for apparent structural discrepancies linked to Gt. Further characterization of the p7 structure ideally in cells infected with HCV of different Gts will help to corroborate this new finding.
Models for hexameric or heptameric p7 channels from Gt1a, 1b and 2a have been obtained by molecular dynamics using either predicted or NMR-based structures of the corresponding monomers inserted into lipid bilayers [37,38,39,40]. In these studies p7 bundles display a luminal orientation of the first TMD with the C-terminal TM region facing the membrane hydrophobic phase and surrounding the channel (Figure 2B). Strikingly, in silico-based studies of the secondary structure of the Gt5a p7 monomer predicts a hairpin-like fold reminiscent of the NMR structure of Gt1b p7 [38]. On this basis, the reported curved “staple-like” conformation of the Gt5a monomer assembled into the channel could not have been predicted a priori. Similarly, the structure of the complete Gt5a oligomeric p7 complex reported by Ouyang and coworkers is not expected in the light of the computer-predicted conformation of the p7 monomer. Thus, one can expect that conformational changes are induced in the monomeric p7 hairpins upon oligomerization. In this case p7 monomers might exert different functions as compared to oligomers, which is consistent with the different reported functions of p7 in the HCV life cycle that are either dependent or independent on the ion channel activity (see sections below). However, other analyses of the Gt5a p7 hexamer revealed features arguing against the existence of such a structure in a physiological membrane environment. One of them is the presence of 18 positively charged side chains corresponding to arginine residues exposed to the hydrophobic membrane phase [44]. Although this might be due to micelle composition and shape, it is difficult to reconcile in a cellular membrane environment. Another example is the existence, in p7 hexamer, of several hydrophilic cavities embedded into the hydrophobic core of the lipid membrane [41]. Thus, in view of the very flexible structure of p7 and its interaction with lipids, obtaining a physiologically relevant structure will require the study of p7 in a true membrane-like environment mimicking composition and thickness of the ER.
Although it is well established that p7 of different HCV Gts forms homo-oligomers of heterogeneous size in vitro, the existence of such a mixture of p7 species in infected hepatocytes remains to be determined. Additionally, initial studies of p7 membrane topology in cells were based on the expression of isolated p7 or the E2-p7 precursor and, therefore, validation in infection-based systems using full-length HCV genomes encoding fully functional (tagged versions) of p7 from different Gts will be required. The biochemical characterization of p7 complexes forming in infected cells should allow to determine the physiological relevance of the structures/conformations proposed for the p7 monomer that, so far, are predominantly deduced from NMR-based approaches in vitro.

3. HCV p7 Ion Channel and Pore-Like Function

Due to its small size, high hydrophobicity, and its tendency to form oligomers in cellular membranes, viroporins are ideal candidates to explain changes in membrane permeability occurring in cells infected by different viruses [26]. This membrane alteration has been further described in studies assessing the entry or release of small compounds into and out of cultured cells and artificial liposomes. For instance, the antibiotic hygromycin B (HB; molecular weight of 527.5 Dalton) has been extensively used as a probe to evaluate the increase of membrane permeability upon individual expression of various viroporins [45,46,47,48,49,50,51,52,53,54]. Although this is an indirect assay (i.e., HB selectively enters cells with enhanced membrane permeability and inhibits protein synthesis) and the presence of viroporins at the cell surface is not a common hallmark of virus-infected cells, this approach has been invaluable to study the viroporin function of many family members. Nevertheless, whether the entry of HB into cells occurs directly via viroporin-assembled pores at the cell surface or indirectly by upregulation of endocytosis remains to be explored. Other biophysical assays monitoring the release of dyes with defined size from preloaded liposomes were initially used to establish the pore-like properties of these proteins as well as to predict the size of their inner channel [55,56,57]. Similar liposome-based approaches using small fluorescent probes such as carboxyfluorescein (0.37 KDa) or the pH-sensor HPTS (8-hydroxypyrene-1,3,6-trisulfonic acid; 0.52KDa) were employed to corroborate the formation of pores by HCV p7 of different Gts [24,58]. This system has also been adapted for high throughput screenings aimed at finding HCV p7-specific inhibitors [40,59,60]. Taken together, p7 non-selective pore properties are evidenced from all these in vitro assays, however further studies are required to corroborate the assumed direct passage of large molecules into cultured cells via p7.
While the M2 protein of influenza A virus and the Kcv protein of chlorella virus PBCV-1 are highly selective for proton and potassium, respectively [61,62], most viroporins show low ion selectivity. This appears to be the case also for HCV p7 that has minor preference for cations vs. anions as shown by electrophysiological recording techniques in artificial bilayers and Xenopus laevis oocytes [12,13,14,15,17,35]. Recent studies provided strong evidence for proton conductance of p7 from different Gts (i.e., 1a, 1b and 2a) in isolated intracellular membrane vesicles and in HCV-infected cells [58,63].
The functional resemblance of HCV p7 with the M2 viroporin of influenza A virus (IAV) and their common acid-activated proton channel activity suggests that both viroporins might share a similar gating mechanism for protons. The gating mechanism of M2 has been extensively studied. It involves a sequence motif in the TM region with two key amino acids that project to the center of the pore: His37, the proton-conducting residue, and Trp41, identified as the proton “gate” [64]. Based on NMR data obtained with monomeric p7, potentially equivalent residues line the lumen of the channel. These residues correspond to conserved amino acid residues His17 and Tyr/Trp 21 present in Gt2a and 5a, but absent in Gt1a or 1b, where Ser is found (Figure 2C). The functional relevance of these and other residues that differ between the Gts was confirmed in several mutagenesis-based studies [20,65,66,67,68,69,70]. Moreover, a role for Phe25 as “gate” residue has been suggested from liposome-based assays measuring the enhanced permeabilization capacity conferred by an alanine substitution for Phe25 [71]. By using molecular dynamics simulations this Phe25 residue, together with Ile32, was observed to form an energetic barrier to water permeation [37]. Consistent with its sequence and structural divergence, the hexameric structure of Gt5a p7 revealed an alternative gating mechanism on the basis of its hypothetical cation selectivity. Here, two constriction points would regulate the ion flux: a basic ring formed by Arg35 at the wider (C-terminal) opening and a double ring including Asn9 and Ile6 at the narrow base. Although cation channel activity has not been proven for Gt5a p7, in the case of Gt2a, mutations of amino acids at equivalent positions (Arg35; His9) decreased cation channel activity [35]. Whilst the structural data is not conclusive to validate the proposed gating system for Gt5a, it still supports the functional influence of these residues on the ion channel activity of p7. Additional channel structures of p7 will be required to elucidate whether Phe25 and Ile32 of p7 function as gate residues in all HCV Gts or just in some distinct Gts or subtypes. Moreover, it has to be taken into account that the lipidic environment influences p7 structure and, thus, its electrophysiological properties [72]. In fact, a recent study suggested that two different conformations of p7 of Gt1a, presumably influenced by the lipidic environment, likely account for proton selectivity (influenced by the content of α-helix structure) and permeability to large molecules (affected by the content of β-structures), at least in liposome-based assays [73]. Even though the high content of β-structure is thought to be an artifact, this study corroborated the plasticity of the p7 structure and suggests that alternative conformers of p7 might exist thereby explaining the multiple functions of p7 in HCV infected cells.
Although great advances have been made in the HCV field in the last few years, we are still far away from a comprehensive understanding of the structure–function relationship of the p7 viroporin. This is mainly due to use of different HCV Gts and subtypes, the presence of tags used for protein purification and detection, as well as experimental conditions and technologies, applied in different laboratories. Thus, future research in this field will require multidisciplinary and Gt cross-comparative analyses of p7 to discern which of the reported biophysical and functional in vitro channel properties are acting in HCV-infected cells.

4. Role of p7 Channel Activity in Production and Release of Infectious HCV Particles

It has been proposed that p7 acts as a low pH-activated channel in HCV-infected cells, similar to the IAV M2 viroporin, by equilibrating the proton gradient across the membrane of acidic compartments [58,63,64]. The dissipation of protons from the lumen of acidic compartments to the cytoplasm results in alcalinization of such organelles that is required for final steps of virus assembly and subsequent egress of virions [20,58,63]. Mutants in which the conserved dibasic motif in the cytosolic loop is affected are unable to regulate the proton gradient, resulting in impaired pore-like and ion channel activity in artificial lipid bilayers [12,58,63]. Moreover, peptides containing such mutations show reduced membrane binding affinity [74]. Although some of these mutations are associated with delayed cleavage of the E2-p7-NS2 precursor (e.g., RR33/35 in Gt2a and KR33/35 in Gt1b and 1a) or E2 degradation (e.g., RGR33-35/AAA), which might account for impaired virus production, recent studies have now confirmed the importance of the basic residues for p7 ion channel activity and point to a direct link between the proton channel activity of p7 and production of HCV infectious particles [20,33,63]. Consistent with this observation is the partial restoration of virus production by the IAV M2 viroporin or the rescue of a Gt2a p7 mutant by Gt1b p7 using a transcomplementation assay [58,63]. Likewise, a partial rescue of infectious virus production was achieved by pharmacological inhibition of endosomal vesicle acidification using bafilomycin A1, an inhibitor of the vacuolar-type proton-ATPase. Accordingly, a pH-dependent maturation process has been suggested to precede the secretion of infectious virions. This assumption is reinforced by the fact that infectious intracellular particles are highly sensitive to treatment with acidic pH whereas secreted virions are acid-resistant [58]. Moreover, the acid stability of secreted virus particles seems to be influenced by p7 in a Gt-dependent manner [69]. Considering all these data, p7 ion channel might be regarded as a modulator of the pH-mediated maturation process of HCV particles. However, how this maturation process is regulated and confers the “acid resistance” signature to secreted particles during exit is not known. Prevention of premature conformational changes in the HCV envelope glycoproteins, reminiscent to the function of IAV M2 as proposed by others is an attractive possibility that deserves further investigation [58,75]. It has recently been shown that the HCV envelope glycoproteins interact with apolipoproteins which are an integral component of infectious virions [76,77,78,79]. Since p7 also interacts with the envelope glycoproteins, it is tempting to speculate that p7 might also influence apolipoprotein incorporation into HCV particles or particle maturation, thus contributing to virus production and infectivity.

5. Functions of p7 Unrelated to the Ion-/Proton Channel

Biochemical studies have confirmed that p7 mainly, but not exclusively, interacts with NS2, which is assumed to act as an organizer of virion assembly [25,80,81,82,83,84,85]. This interaction does not require the p7 ion channel activity, but instead likely serves to recruit the envelope glycoproteins, via p7 interaction, which in turn associates with NS2 to the sites of HCV assembly. In this way p7 can regulate the subcellular localization of NS2 and core protein [85,86]. Additionally, p7/NS2 association has been shown to dictate the relocalization of core from LDs to ER in infected cells. This redistribution, likely required for HCV assembly and reflecting assembly efficiency, correlated with high infectivity titers [86]. Apart from these p7 interactions, a recent study of the interaction network of HCV proteins has pointed to core and the two envelope glycoproteins E1 and E2 as new direct binding partners of p7 [87], while genetic data suggest an NS2-dependent association of p7 with NS5A [88].
By using expression-based systems, p7 was found to localize mainly at the ER, but also in membranes close to mitochondria and at the plasma membrane [9,58,89,90]. However, these studies have been limited because of the lack of p7-specific antibodies and therefore, tagged versions of p7 with unclear physiological functionality had to be used. Only recently, several groups have generated JFH1-derived full-length HCV genomes encoding double HA-tagged or chimeric 2a/1b p7 proteins that are fully functional. These studies revealed a predominant localization of p7 at the ER and the perinuclear region. Moreover, p7 was found to colocalize with the E2 glycoprotein as well as NS5A, core, NS2 and NS3 [25,63].
It is generally assumed that nucleocapsid formation and envelopment of HCV particles are coupled reactions. Thus, a block in envelopment would prevent nucleocapsid assembly, concomitant with an intracellular accumulation of core protein on the surface of LDs and of the envelope glycoproteins in the vicinity of assembly sites. Consistent with these assumptions, studies of p7 dibasic motif mutants revealed a Gt-dependent reduction of intracellular infectivity, likely resulting from the incomplete incorporation of viral RNA into nucleocapsids that aberrantly accumulate on the surface of LDs, as demonstrated with the Jc1 (J6/JFH1) HCV chimera [63,91,92,93]. Moreover, these immature capsids lack the ER membrane-derived viral envelope. Strikingly, non-infectious nucleocapsid-containing particles with density comparable to infectious HCV, and thus likely possessing an envelope with E1/E2 glycoproteins, were isolated from cells infected with mutant HCV of the JFH-1 isolate. These apparent discrepancies between viruses with different assembly fitness could be explained, at least in part, by Gt-specific interactions between p7, NS2 and the structural proteins [86].
Overall these findings suggest that p7 is involved in consecutive steps during assembly of HCV particles including the early encapsidation of the viral genome, the relocalization of RNA-containing core complexes from LDs to the ER and eventually the acquisition of the membrane envelope. The fact that these steps are not sufficient to confer infectivity to viral particles of the JFH-1 isolate, argues that p7-mediated particle maturation is a late and rate-limiting step for production and release of infectious HCV virions. In this respect, p7 would have two functions: first, to participate in the envelopment of virus particles by mediating the interaction between the envelope glycoproteins and NS2 (which in turn via association with NS3 “recruits” the replicase) and second, by mediating or regulating an intracellular maturation step of HCV particles to render them pH-resistant and fully infectious.

6. HCV p7 Channel as Antiviral Drug Target

A number of compounds have been reported to exert an inhibitory effect on HCV p7 channel activity. These comprise classic inhibitors of the IAV M2 viroporin, such as the adamantanes, amantadine and rimantadine, iminosugar derivatives (e.g., N-nonyl deoxynojirimycin,NN-DNJ), hexamethylamiloride (HMA) and GSK-2, a specific compound developed by Glaxo-Smith-Kline. Their effect on ion channel/pore-like activity of p7 in vitro has been assessed either by electrophysiological recording techniques using p7 reconstituted in artificial lipid bilayers or by liposome-based assays [13,14,39,58,59,68,94]. Overall, these compounds inhibit p7 depending on the HCV Gt and subtype and with various efficiencies. For instance, higher theoretical binding affinity of rimantadine to p7 of Gt1b and Gt2a (Kd 0.251 and 0.617, respectively) as compared to amantadine (Kd 1.32 and 7.41, respectively) is reflected by its lower Kd values and explains its increased inhibitory potency [71].
Several of these compounds have also been studied in infected cells and were found to reduce virus production up to 10-fold in a Gt-dependent manner [20,39,95]. This inhibitory phenotype is characterized by a reduced secretion of HCV particles without impairment of infectivity of intracellular virions [20,24,71]. For most of these compounds, the mechanism responsible for the reduction of virus secretion is poorly understood. In case of the iminosugar derivative NN-DNJ, inhibition of α-glucosidases, leading to altered glycosylation pattern and total level of HCV E2, might be a mechanism adding to the direct binding and inhibition of p7 [13,24]. However, it has recently been reported that productive HCV release is linked to inhibition of acidification of virus-containing compartments mediated by p7 and this process is blocked by adamantanes and HMA [58].
Consistent with the proposed role of the p7 ion channel for the early infection steps of HCV, a Gt-dependent block of virus entry has been described for adamantanes, GSK-2 and NN-DNJ [24]. However, the observation that an inactive p7 mutant does not affect specific infectivity of released HCV particles is not consistent with such a mechanism of p7 inhibition [20]. Moreover, the involvement of p7 ion channel activity in cell-to-cell transmission of HCV is unlikely as deduced from the limited inhibitory effect of p7 antagonists on this mode of virus spread [24,96]. Thus, p7 is primarily considered an attractive target to block virus release.
Taking advantage of the 3D structure of the p7 heptamer (Gt1bJ4), in silico-based screening of potential p7 ligands has been conducted leading to the identification of a series of compounds with improved inhibitory effect on the J4/JFH-1 virus chimera [39]. These compounds bind to a peripheral allosteric site in p7 predicted to be the rimantadine binding pocket. Consistently, secretion of a rimantadine-resistant virus containing a phenylalanine substitution for Leu20 in p7 is suppressed by these new drugs. Additional encouraging data show that doses at the compound concentrations in the low micro molar range are sufficient to suppress the production of chimeric viruses derived from several non-1b Gts. Thus far, resistance against these novel p7 inhibitors has not been reported.
Clinical development of p7 inhibitors has met limited success. Consistent with the very low antiviral efficacy of amantadine in HCV cell culture systems [20], no clinical benefit of amantadine-based combination therapy was found in comparison to standard of care (peg-IFNα plus ribavirin) [97]. Thus far, the only promising effect reported for a triple therapy of amantadine/pegIFNα/ribavirin was an early reduction of viremia, but this effect was not accompanied by a sustained virological response [98]. Perhaps the most efficient effect for a p7 inhibitor has been reported for BIT225, an amiloride derivative developed by Biotron that targets in addition to HCV p7 the HIV viroporin Vpu and p7 of the pestivirus BVDV both in vitro and in infected cells [99,100]. The inhibitory effect of BIT225 on the HCV p7 channel has been suggested by docking assays and confirmed in lipid bilayer systems, although no data have been reported in the context of HCV infection [100,101]. These docking studies revealed that amiloride derivatives seem to bind best to hexameric p7 Gt1a, with BIT225 exhibiting the lowest binding energy (−25.5 Kcal/mol) as compared to other p7 inhibitors such as amantadine (−7.9 Kcal/mol) and NN-DNJ (−6.5 Kcal/mol) [101]. One early clinical trial (phase Ib/IIa) in 24 treatment naïve Gt1 HCV patients indicated a significant reduction of viral load after twelve weeks treatment with BIT225 in combination with IFNα/ribavirin ( biotron 2011).
Currently, a phase 2a/2 clinical trial is in progress and first results indicate activity against several HCV Gts, including the difficult-to-treat Gt3a and 1a (; 29 May 2015). Moreover, BIT225 might be suitable for treatment of HCV/HIV co-infected patients. However, in the light of the high potency of available inhibitors targeting the NS3 serine-type protease, the NS5A replicase factor and the NS5B RNA-dependent RNA polymerase, the clinical niche of p7 inhibitors is unclear.
One limitation of selective antiviral therapy is drug resistance and unfortunately, p7 inhibitors are not an exception. In the case of adamantanes, the Leu20Phe mutation in p7 conferring rimantadine resistance was found in patients not responding to the triple therapy [71]. In case of the iminosugar derivatives that disrupt p7 oligomerization and thus, channel activity, a Phe25Ala polymorphism present in HCV Gt 3a but not in Gt1b was shown to mediate NN-DNJ resistance by stabilization of the p7 channel [71].

7. Conclusions

With the availability of efficient and fully permissive cell culture models for HCV, our knowledge about the role of p7 in the viral life cycle has increased profoundly. It became clear that this protein plays a major role in the assembly and release of infectious HCV particles. This appears to be mediated by two complementary functions of p7. First, by associating with the envelope glycoproteins and NS2 it participates in the coordination of the envelopment of virus particles and second, by forming a channel, it appears to be required for an intracellular maturation step of virions required for their secretion and rendering them pH resistant. The recent resolution of the p7 homo-hexamer structure by means of cryo-EM and NMR revealed an unexpected arrangement of p7 subunits that is different from the typical hairpin conformation and that proposes a novel gating mechanism. While these are notable achievements, important questions still remain to be solved. For instance, what is the basis for the structural diversity of the p7 ion channel? How does p7 contribute to virus release? How does p7 render intracellular HCV particles pH resistant? While from a clinical point of view, chronic hepatitis C might be regarded as a solved problem, studies of HCV will continue to provide important insights into the intricate virus–host cell interplay. In this respect, studies of HCV p7 will help to unravel how viroporins that are also used by many other viruses promote the production of infectious progeny particles and eventually contribute to pathogenicity.


The authors are grateful to François Penin (Lyon) for critical reading of the manuscript and very helpful comments and advise, and to all members of the Molecular Virology research unit for productive discussions and support. Work in the authors laboratory was supported by the Deutsche Forschungsgemeinschaft, TRR83, TP13 and SFB1129, TP11.

Author Contributions

V.M. and R.B. wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Simmonds, P. The origin of hepatitis C virus. Curr. Top. Microbiol. Immunol. 2013, 369, 1–15. [Google Scholar] [PubMed]
  2. Niepmann, M. Hepatitis C virus RNA translation. Curr. Top. Microbiol. Immunol. 2013, 369, 143–166. [Google Scholar] [PubMed]
  3. Moradpour, D.; Penin, F. Hepatitis C virus proteins: From structure to function. Curr. Top. Microbiol. Immunol. 2013, 369, 113–142. [Google Scholar] [PubMed]
  4. Lohmann, V. Hepatitis C virus RNA replication. Curr. Top. Microbiol. Immunol. 2013, 369, 167–198. [Google Scholar] [PubMed]
  5. Lin, C.; Lindenbach, B.D.; Pragai, B.M.; McCourt, D.W.; Rice, C.M. Processing in the hepatitis C virus E2-NS2 region: Identification of p7 and two distinct E2-specific products with different C termini. J. Virol. 1994, 68, 5063–5073. [Google Scholar] [PubMed]
  6. Mizushima, H.; Hijikata, M.; Asabe, S.; Hirota, M.; Kimura, K.; Shimotohno, K. Two hepatitis C virus glycoprotein E2 products with different C termini. J. Virol. 1994, 68, 6215–6222. [Google Scholar] [PubMed]
  7. Carrere-Kremer, S.; Montpellier, C.; Lorenzo, L.; Brulin, B.; Cocquerel, L.; Belouzard, S.; Penin, F.; Dubuisson, J. Regulation of hepatitis C virus polyprotein processing by signal peptidase involves structural determinants at the p7 sequence junctions. J. Biol. Chem. 2004, 279, 41384–41392. [Google Scholar] [CrossRef] [PubMed]
  8. Lohmann, V.; Korner, F.; Koch, J.; Herian, U.; Theilmann, L.; Bartenschlager, R. Replication of subgenomic hepatitis C virus RNAs in a hepatoma cell line. Science 1999, 285, 110–113. [Google Scholar] [CrossRef] [PubMed]
  9. Carrere-Kremer, S.; Montpellier-Pala, C.; Cocquerel, L.; Wychowski, C.; Penin, F.; Dubuisson, J. Subcellular localization and topology of the p7 polypeptide of hepatitis C virus. J. Virol. 2002, 76, 3720–3730. [Google Scholar] [CrossRef] [PubMed]
  10. Harada, T.; Tautz, N.; Thiel, H.J. E2-p7 region of the bovine viral diarrhea virus polyprotein: Processing and functional studies. J. Virol. 2000, 74, 9498–9506. [Google Scholar] [CrossRef] [PubMed]
  11. Sanz, M.A.; Madan, V.; Nieva, J.L; Carrasco, L. The Alphavirus 6 K Protein. In Viral Membrane Proteins: Structure, Function, and Drug Design; Fischer, W.B., Ed.; Kluwer Academic/Plenum Publishers: New York, NY, USA, 2005; Volume 1, pp. 233–242. [Google Scholar]
  12. Griffin, S.D.; Beales, L.P.; Clarke, D.S.; Worsfold, O.; Evans, S.D.; Jaeger, J.; Harris, M.P.; Rowlands, D.J. The p7 protein of hepatitis C virus forms an ion channel that is blocked by the antiviral drug, Amantadine. FEBS Lett. 2003, 535, 34–38. [Google Scholar] [CrossRef]
  13. Pavlovic, D.; Neville, D.C.; Argaud, O.; Blumberg, B.; Dwek, R.A.; Fischer, W.B.; Zitzmann, N. The hepatitis C virus p7 protein forms an ion channel that is inhibited by long-alkyl-chain iminosugar derivatives. Proc. Natl. Acad. Sci. USA 2003, 100, 6104–6108. [Google Scholar] [CrossRef] [PubMed]
  14. Premkumar, A.; Wilson, L.; Ewart, G.D.; Gage, P.W. Cation-selective ion channels formed by p7 of hepatitis C virus are blocked by hexamethylene amiloride. FEBS Lett. 2004, 557, 99–103. [Google Scholar] [CrossRef]
  15. Clarke, D.; Griffin, S.; Beales, L.; Gelais, C.S.; Burgess, S.; Harris, M.; Rowlands, D. Evidence for the formation of a heptameric ion channel complex by the hepatitis C virus p7 protein in vitro. J. Biol. Chem. 2006, 281, 37057–37068. [Google Scholar] [CrossRef] [PubMed]
  16. Luik, P.; Chew, C.; Aittoniemi, J.; Chang, J.; Wentworth, P., Jr.; Dwek, R.A.; Biggin, P.C.; Venien-Bryan, C.; Zitzmann, N. The 3-dimensional structure of a hepatitis C virus p7 ion channel by electron microscopy. Proc. Natl. Acad. Sci. USA 2009, 106, 12712–12716. [Google Scholar] [CrossRef] [PubMed]
  17. Montserret, R.; Saint, N.; Vanbelle, C.; Salvay, A.G.; Simorre, J.P.; Ebel, C.; Sapay, N.; Renisio, J.G.; Bockmann, A.; Steinmann, E.; et al. NMR structure and ion channel activity of the p7 protein from hepatitis C virus. J. Biol. Chem. 2010, 285, 31446–31461. [Google Scholar] [CrossRef] [PubMed]
  18. Kato, T.; Date, T.; Miyamoto, M.; Furusaka, A.; Tokushige, K.; Mizokami, M.; Wakita, T. Efficient replication of the genotype 2a hepatitis C virus subgenomic replicon. Gastroenterology 2003, 125, 1808–1817. [Google Scholar] [CrossRef] [PubMed]
  19. Wakita, T.; Pietschmann, T.; Kato, T.; Date, T.; Miyamoto, M.; Zhao, Z.; Murthy, K.; Habermann, A.; Krausslich, H.G.; Mizokami, M.; et al. Production of infectious hepatitis C virus in tissue culture from a cloned viral genome. Nat. Med. 2005, 11, 791–796. [Google Scholar] [CrossRef] [PubMed]
  20. Steinmann, E.; Penin, F.; Kallis, S.; Patel, A.H.; Bartenschlager, R.; Pietschmann, T. Hepatitis C virus p7 protein is crucial for assembly and release of infectious virions. PLoS Pathog. 2007, 3, e103. [Google Scholar] [CrossRef] [PubMed]
  21. Jones, C.T.; Murray, C.L.; Eastman, D.K.; Tassello, J.; Rice, C.M. Hepatitis C virus p7 and NS2 proteins are essential for production of infectious virus. J. Virol. 2007, 81, 8374–8383. [Google Scholar] [CrossRef] [PubMed]
  22. Sakai, A.; Claire, M.S.; Faulk, K.; Govindarajan, S.; Emerson, S.U.; Purcell, R.H.; Bukh, J. The p7 polypeptide of hepatitis C virus is critical for infectivity and contains functionally important genotype-specific sequences. Proc. Natl. Acad. Sci. USA 2003, 100, 11646–11651. [Google Scholar] [CrossRef] [PubMed]
  23. Saunier, B.; Triyatni, M.; Ulianich, L.; Maruvada, P.; Yen, P.; Kohn, L.D. Role of the asialoglycoprotein receptor in binding and entry of hepatitis C virus structural proteins in cultured human hepatocytes. J. Virol. 2003, 77, 546–559. [Google Scholar] [CrossRef] [PubMed]
  24. Griffin, S.; Stgelais, C.; Owsianka, A.M.; Patel, A.H.; Rowlands, D.; Harris, M. Genotype-dependent sensitivity of hepatitis C virus to inhibitors of the p7 ion channel. Hepatology 2008, 48, 1779–1790. [Google Scholar] [CrossRef] [PubMed]
  25. Vieyres, G.; Brohm, C.; Friesland, M.; Gentzsch, J.; Wolk, B.; Roingeard, P.; Steinmann, E.; Pietschmann, T. Subcellular localization and function of an epitope-tagged p7 viroporin in hepatitis C virus-producing cells. J. Virol. 2013, 87, 1664–1678. [Google Scholar] [CrossRef] [PubMed]
  26. Nieva, J.L.; Madan, V.; Carrasco, L. Viroporins: Structure and biological functions. Nat. Rev. Microbiol. 2012, 10, 563–574. [Google Scholar] [CrossRef] [PubMed]
  27. Scott, C.; Griffin, S.D. Viroporins: Structure, function and potential as antiviral targets. J. Gen. Virol. 2015. [Google Scholar] [CrossRef] [PubMed]
  28. Madan, V.; Castello, A.; Carrasco, L. Viroporins from RNA viruses induce caspase-dependent apoptosis. Cell Microbiol. 2008, 10, 437–451. [Google Scholar] [CrossRef] [PubMed]
  29. Klimkait, T.; Strebel, K.; Hoggan, M.D.; Martin, M.A.; Orenstein, J.M. The human immunodeficiency virus type 1-specific protein vpu is required for efficient virus maturation and release. J. Virol. 1990, 64, 621–629. [Google Scholar] [PubMed]
  30. Sanz, M.A.; Carrasco, L. Sindbis virus variant with a deletion in the 6K gene shows defects in glycoprotein processing and trafficking: Lack of complementation by a wild-type 6K gene in trans. J. Virol. 2001, 75, 7778–7784. [Google Scholar] [CrossRef] [PubMed]
  31. Watanabe, T.; Watanabe, S.; Kim, J.H.; Hatta, M.; Kawaoka, Y. Novel approach to the development of effective H5N1 influenza A virus vaccines: Use of M2 cytoplasmic tail mutants. J. Virol. 2008, 82, 2486–2492. [Google Scholar] [CrossRef] [PubMed]
  32. Regla-Nava, J.A.; Nieto-Torres, J.L.; Jimenez-Guardeno, J.M.; Fernandez-Delgado, R.; Fett, C.; Castano-Rodriguez, C.; Perlman, S.; Enjuanes, L.; DeDiego, M.L. Severe acute respiratory syndrome coronaviruses with mutations in the E protein are attenuated and promising vaccine candidates. J. Virol. 2015, 89, 3870–3887. [Google Scholar] [CrossRef] [PubMed]
  33. Atoom, A.M.; Jones, D.M.; Russell, R.S. Evidence suggesting that HCV p7 protects E2 glycoprotein from premature degradation during virus production. Virus Res. 2013, 176, 199–210. [Google Scholar] [CrossRef] [PubMed]
  34. Isherwood, B.J.; Patel, A.H. Analysis of the processing and transmembrane topology of the E2p7 protein of hepatitis C virus. J. Gen. Virol. 2005, 86, 667–676. [Google Scholar] [CrossRef] [PubMed]
  35. OuYang, B.; Xie, S.; Berardi, M.J.; Zhao, X.; Dev, J.; Yu, W.; Sun, B.; Chou, J.J. Unusual architecture of the p7 channel from hepatitis C virus. Nature 2013, 498, 521–525. [Google Scholar] [CrossRef] [PubMed]
  36. Patargias, G.; Zitzmann, N.; Dwek, R.; Fischer, W.B. Protein-protein interactions: Modeling the hepatitis C virus ion channel p7. J. Med. Chem. 2006, 49, 648–655. [Google Scholar] [CrossRef] [PubMed]
  37. Chandler, D.E.; Penin, F.; Schulten, K.; Chipot, C. The p7 protein of hepatitis C virus forms structurally plastic, minimalist ion channels. PLoS. Comput. Biol. 2012, 8, e1002702. [Google Scholar] [CrossRef] [PubMed]
  38. Kalita, M.M.; Griffin, S.; Chou, J.J.; Fischer, W.B. Genotype-specific differences in structural features of hepatitis C virus (HCV) p7 membrane protein. Biochim. Biophys. Acta 2015, 1848, 1383–1392. [Google Scholar] [CrossRef] [PubMed]
  39. Foster, T.L.; Thompson, G.S.; Kalverda, A.P.; Kankanala, J.; Bentham, M.; Wetherill, L.F.; Thompson, J.; Barker, A.M.; Clarke, D.; Noerenberg, M.; et al. Structure-guided design affirms inhibitors of hepatitis C virus p7 as a viable class of antivirals targeting virion release. Hepatology 2014, 59, 408–422. [Google Scholar] [CrossRef] [PubMed]
  40. Cook, G.A.; Dawson, L.A.; Tian, Y.; Opella, S.J. Three-dimensional structure and interaction studies of hepatitis C virus p7 in 1,2-dihexanoyl-sn-glycero-3-phosphocholine by solution nuclear magnetic resonance. Biochemistry 2013, 52, 5295–5303. [Google Scholar] [CrossRef] [PubMed]
  41. Radoicic, J.; Lu, G.J.; Opella, S.J. NMR structures of membrane proteins in phospholipid bilayers. Q. Rev. Biophys. 2014, 47, 249–283. [Google Scholar] [CrossRef] [PubMed]
  42. Griffin, S.D.; Harvey, R.; Clarke, D.S.; Barclay, W.S.; Harris, M.; Rowlands, D.J. A conserved basic loop in hepatitis C virus p7 protein is required for amantadine-sensitive ion channel activity in mammalian cells but is dispensable for localization to mitochondria. J. Gen. Virol. 2004, 85, 451–461. [Google Scholar] [CrossRef] [PubMed]
  43. Brass, V.; Berke, J.M.; Montserret, R.; Blum, H.E.; Penin, F.; Moradpour, D. Structural determinants for membrane association and dynamic organization of the hepatitis C virus NS3–4A complex. Proc. Natl. Acad. Sci. USA 2008, 105, 14545–14550. [Google Scholar] [CrossRef] [PubMed]
  44. Cross, T.A.; Murray, D.T.; Watts, A. Helical membrane protein conformations and their environment. Eur. Biophys. J. 2013, 42, 731–755. [Google Scholar] [CrossRef] [PubMed]
  45. Guinea, R.; Carrasco, L. Influenza virus M2 protein modifies membrane permeability in E. coli cells. FEBS Lett. 1994, 343, 242–246. [Google Scholar] [CrossRef]
  46. Sanz, M.A.; Perez, L.; Carrasco, L. Semliki Forest virus 6K protein modifies membrane permeability after inducible expression in Escherichia coli cells. J. Biol. Chem. 1994, 269, 12106–12110. [Google Scholar] [PubMed]
  47. Perez, M.; Garcia-Barreno, B.; Melero, J.A.; Carrasco, L.; Guinea, R. Membrane permeability changes induced in Escherichia coli by the SH protein of human respiratory syncytial virus. Virology 1997, 235, 342–351. [Google Scholar] [CrossRef] [PubMed]
  48. Aldabe, R.; Barco, A.; Carrasco, L. Membrane permeabilization by poliovirus proteins 2B and 2BC. J. Biol. Chem. 1996, 271, 23134–23137. [Google Scholar] [PubMed]
  49. Gonzalez, M.E.; Carrasco, L. The human immunodeficiency virus type 1 Vpu protein enhances membrane permeability. Biochemistry 1998, 37, 13710–13719. [Google Scholar] [CrossRef] [PubMed]
  50. Chang, Y.S.; Liao, C.L.; Tsao, C.H.; Chen, M.C.; Liu, C.I.; Chen, L.K.; Lin, Y.L. Membrane permeabilization by small hydrophobic nonstructural proteins of Japanese encephalitis virus. J. Virol. 1999, 73, 6257–6264. [Google Scholar] [PubMed]
  51. Sanz, M.A.; Madan, V.; Carrasco, L.; Nieva, J.L. Interfacial domains in Sindbis virus 6K protein. Detection and functional characterization. J. Biol. Chem. 2003, 278, 2051–2057. [Google Scholar] [CrossRef] [PubMed]
  52. Han, Z.; Harty, R.N. The NS3 protein of bluetongue virus exhibits viroporin-like properties. J. Biol. Chem. 2004, 279, 43092–43097. [Google Scholar] [CrossRef] [PubMed]
  53. Madan, V.; Garcia, M.J.; Sanz, M.A.; Carrasco, L. Viroporin activity of murine hepatitis virus E protein. FEBS Lett. 2005, 579, 3607–3612. [Google Scholar] [CrossRef] [PubMed]
  54. Suzuki, T.; Orba, Y.; Okada, Y.; Sunden, Y.; Kimura, T.; Tanaka, S.; Nagashima, K.; Hall, W.W.; Sawa, H. The human polyoma JC virus agnoprotein acts as a viroporin. PLoS Pathog. 2010, 6, e1000801. [Google Scholar] [CrossRef] [PubMed]
  55. Agirre, A.; Barco, A.; Carrasco, L.; Nieva, J.L. Viroporin-mediated membrane permeabilization. Pore formation by nonstructural poliovirus 2B protein. J. Biol. Chem. 2002, 277, 40434–40441. [Google Scholar] [CrossRef] [PubMed]
  56. Gladue, D.P.; Holinka, L.G.; Largo, E.; Fernandez, S.I.; Carrillo, C.; O’Donnell, V.; Baker-Branstetter, R.; Lu, Z.; Ambroggio, X.; Risatti, G.R.; et al. Classical swine fever virus p7 protein is a viroporin involved in virulence in swine. J. Virol. 2012, 86, 6778–6791. [Google Scholar] [CrossRef] [PubMed]
  57. Wetherill, L.F.; Holmes, K.K.; Verow, M.; Muller, M.; Howell, G.; Harris, M.; Fishwick, C.; Stonehouse, N.; Foster, R.; Blair, G.E.; et al. High-risk human papillomavirus E5 oncoprotein displays channel-forming activity sensitive to small-molecule inhibitors. J. Virol. 2012, 86, 5341–5351. [Google Scholar] [CrossRef] [PubMed]
  58. Wozniak, A.L.; Griffin, S.; Rowlands, D.; Harris, M.; Yi, M.; Lemon, S.M.; Weinman, S.A. Intracellular proton conductance of the hepatitis C virus p7 protein and its contribution to infectious virus production. PLoS Pathog. 2010, 6, e1001087. [Google Scholar] [CrossRef] [PubMed]
  59. Stgelais, C.; Tuthill, T.J.; Clarke, D.S.; Rowlands, D.J.; Harris, M.; Griffin, S. Inhibition of hepatitis C virus p7 membrane channels in a liposome-based assay system. Antivir. Res. 2007, 76, 48–58. [Google Scholar] [CrossRef] [PubMed]
  60. Gervais, C.; Do, F.; Cantin, A.; Kukolj, G.; White, P.W.; Gauthier, A.; Vaillancourt, F.H. Development and validation of a high-throughput screening assay for the hepatitis C virus p7 viroporin. J. Biomol. Screen. 2011, 16, 363–369. [Google Scholar] [CrossRef] [PubMed]
  61. Pinto, L.H.; Holsinger, L.J.; Lamb, R.A. Influenza virus M2 protein has ion channel activity. Cell 1992, 69, 517–528. [Google Scholar] [CrossRef]
  62. Plugge, B.; Gazzarrini, S.; Nelson, M.; Cerana, R.; van Etten, J.L.; Derst, C.; DiFrancesco, D.; Moroni, A.; Thiel, G. A potassium channel protein encoded by chlorella virus PBCV-1. Science 2000, 287, 1641–1644. [Google Scholar] [CrossRef] [PubMed]
  63. Bentham, M.J.; Foster, T.L.; McCormick, C.; Griffin, S. Mutations in hepatitis C virus p7 reduce both the egress and infectivity of assembled particles via impaired proton channel function. J. Gen. Virol. 2013, 94, 2236–2248. [Google Scholar] [CrossRef] [PubMed]
  64. Hong, M.; DeGrado, W.F. Structural basis for proton conduction and inhibition by the influenza M2 protein. Protein Sci. 2012, 21, 1620–1633. [Google Scholar] [CrossRef] [PubMed]
  65. Chew, C.F.; Vijayan, R.; Chang, J.; Zitzmann, N.; Biggin, P.C. Determination of pore-lining residues in the hepatitis C virus p7 protein. Biophys. J. 2009, 96, L10–L12. [Google Scholar] [CrossRef] [PubMed]
  66. Meshkat, Z.; Audsley, M.; Beyer, C.; Gowans, E.J.; Haqshenas, G. Reverse genetic analysis of a putative, influenza virus M2 HXXXW-like motif in the p7 protein of hepatitis C virus. J. Viral Hepat. 2009, 16, 187–194. [Google Scholar] [CrossRef] [PubMed]
  67. Brohm, C.; Steinmann, E.; Friesland, M.; Lorenz, I.C.; Patel, A.; Penin, F.; Bartenschlager, R.; Pietschmann, T. Characterization of determinants important for hepatitis C virus p7 function in morphogenesis by using trans-complementation. J. Virol. 2009, 83, 11682–11693. [Google Scholar] [CrossRef] [PubMed]
  68. Stgelais, C.; Foster, T.L.; Verow, M.; Atkins, E.; Fishwick, C.W.; Rowlands, D.; Harris, M.; Griffin, S. Determinants of hepatitis C virus p7 ion channel function and drug sensitivity identified in vitro. J. Virol. 2009, 83, 7970–7981. [Google Scholar] [CrossRef] [PubMed]
  69. Atkins, E.; Tatineni, R.; Li, H.; Gretch, D.; Harris, M.; Griffin, S. The stability of secreted, acid-labile H77/JFH-1 hepatitis C virus (HCV) particles is altered by patient isolate genotype 1a p7 sequences. Virology 2014, 448, 117–124. [Google Scholar] [CrossRef] [PubMed]
  70. Li, H.; Atkins, E.; Bruckner, J.; McArdle, S.; Qiu, W.C.; Thomassen, L.V.; Scott, J.; Shuhart, M.C.; Livingston, S.; Townshend-Bulson, L.; et al. Genetic and functional heterogeneity of the hepatitis C virus p7 ion channel during natural chronic infection. Virology 2012, 423, 30–37. [Google Scholar] [CrossRef] [PubMed]
  71. Foster, T.L.; Verow, M.; Wozniak, A.L.; Bentham, M.J.; Thompson, J.; Atkins, E.; Weinman, S.A.; Fishwick, C.; Foster, R.; Harris, M.; et al. Resistance mutations define specific antiviral effects for inhibitors of the hepatitis C virus p7 ion channel. Hepatology 2011, 54, 79–90. [Google Scholar] [CrossRef] [PubMed]
  72. Whitfield, T.; Miles, A.J.; Scheinost, J.C.; Offer, J.; Wentworth, P., Jr.; Dwek, R.A.; Wallace, B.A.; Biggin, P.C.; Zitzmann, N. The influence of different lipid environments on the structure and function of the hepatitis C virus p7 ion channel protein. Mol. Membr. Biol. 2011, 28, 254–264. [Google Scholar] [CrossRef] [PubMed]
  73. Gan, S.W.; Surya, W.; Vararattanavech, A.; Torres, J. Two different conformations in hepatitis C virus p7 protein account for proton transport and dye release. PLoS ONE 2014, 9, e78494. [Google Scholar] [CrossRef] [PubMed]
  74. Perez-Berna, A.J.; Guillen, J.; Moreno, M.R.; Bernabeu, A.; Pabst, G.; Laggner, P.; Villalain, J. Identification of the membrane-active regions of hepatitis C virus p7 protein: Biophysical characterization of the loop region. J. Biol. Chem. 2008, 283, 8089–8101. [Google Scholar] [CrossRef] [PubMed]
  75. Sakaguchi, T.; Leser, G.P.; Lamb, R.A. The ion channel activity of the influenza virus M2 protein affects transport through the Golgi apparatus. J. Cell Biol. 1996, 133, 733–747. [Google Scholar] [CrossRef] [PubMed]
  76. Merz, A.; Long, G.; Hiet, M.S.; Brugger, B.; Chlanda, P.; Andre, P.; Wieland, F.; Krijnse-Locker, J.; Bartenschlager, R. Biochemical and morphological properties of hepatitis C virus particles and determination of their lipidome. J. Biol. Chem. 2011, 286, 3018–3032. [Google Scholar] [CrossRef] [PubMed]
  77. Catanese, M.T.; Uryu, K.; Kopp, M.; Edwards, T.J.; Andrus, L.; Rice, W.J.; Silvestry, M.; Kuhn, R.J.; Rice, C.M. Ultrastructural analysis of hepatitis C virus particles. Proc. Natl. Acad. Sci. USA 2013, 110, 9505–9510. [Google Scholar] [CrossRef] [PubMed]
  78. Lee, J.Y.; Acosta, E.G.; Stoeck, I.K.; Long, G.; Hiet, M.S.; Mueller, B.; Fackler, O.T.; Kallis, S.; Bartenschlager, R. Apolipoprotein E likely contributes to a maturation step of infectious hepatitis C virus particles and interacts with viral envelope glycoproteins. J. Virol. 2014, 88, 12422–12437. [Google Scholar] [CrossRef] [PubMed]
  79. Boyer, A.; Dumans, A.; Beaumont, E.; Etienne, L.; Roingeard, P.; Meunier, J.C. The association of hepatitis C virus glycoproteins with apolipoproteins E and B early in assembly is conserved in lipoviral particles. J. Biol. Chem. 2014, 289, 18904–18913. [Google Scholar] [CrossRef] [PubMed]
  80. Jirasko, V.; Montserret, R.; Appel, N.; Janvier, A.; Eustachi, L.; Brohm, C.; Steinmann, E.; Pietschmann, T.; Penin, F.; Bartenschlager, R. Structural and functional characterization of nonstructural protein 2 for its role in hepatitis C virus assembly. J. Biol. Chem. 2008, 283, 28546–28562. [Google Scholar] [CrossRef] [PubMed]
  81. Jirasko, V.; Montserret, R.; Lee, J.Y.; Gouttenoire, J.; Moradpour, D.; Penin, F.; Bartenschlager, R. Structural and functional studies of nonstructural protein 2 of the hepatitis C virus reveal its key role as organizer of virion assembly. PLoS Pathog. 2010, 6, e1001233. [Google Scholar] [CrossRef] [PubMed]
  82. Ma, Y.; Anantpadma, M.; Timpe, J.M.; Shanmugam, S.; Singh, S.M.; Lemon, S.M.; Yi, M. Hepatitis C virus NS2 protein serves as a scaffold for virus assembly by interacting with both structural and nonstructural proteins. J. Virol. 2011, 85, 86–97. [Google Scholar] [CrossRef] [PubMed]
  83. Popescu, C.I.; Callens, N.; Trinel, D.; Roingeard, P.; Moradpour, D.; Descamps, V.; Duverlie, G.; Penin, F.; Heliot, L.; Rouille, Y.; et al. NS2 protein of hepatitis C virus interacts with structural and non-structural proteins towards virus assembly. PLoS Pathog. 2011, 7, e1001278. [Google Scholar] [CrossRef] [PubMed]
  84. Stapleford, K.A.; Lindenbach, B.D. Hepatitis C virus NS2 coordinates virus particle assembly through physical interactions with the E1-E2 glycoprotein and NS3-NS4A enzyme complexes. J. Virol. 2011, 85, 1706–1717. [Google Scholar] [CrossRef] [PubMed]
  85. Tedbury, P.; Welbourn, S.; Pause, A.; King, B.; Griffin, S.; Harris, M. The subcellular localization of the hepatitis C virus non-structural protein NS2 is regulated by an ion channel-independent function of the p7 protein. J. Gen. Virol. 2011, 92, 819–830. [Google Scholar] [CrossRef] [PubMed]
  86. Boson, B.; Granio, O.; Bartenschlager, R.; Cosset, F.L. A concerted action of hepatitis C virus p7 and nonstructural protein 2 regulates core localization at the endoplasmic reticulum and virus assembly. PLoS Pathog. 2011, 7, e1002144. [Google Scholar] [CrossRef] [PubMed]
  87. Hagen, N.; Bayer, K.; Rosch, K.; Schindler, M. The intraviral protein interaction network of hepatitis C virus. Mol. Cell Proteom. 2014, 13, 1676–1689. [Google Scholar] [CrossRef] [PubMed]
  88. Scheel, T.K.; Prentoe, J.; Carlsen, T.H.; Mikkelsen, L.S.; Gottwein, J.M.; Bukh, J. Analysis of functional differences between hepatitis C virus NS5A of genotypes 1–7 in infectious cell culture systems. PLoS Pathog. 2012, 8, e1002696. [Google Scholar] [CrossRef] [PubMed]
  89. Griffin, S.; Clarke, D.; McCormick, C.; Rowlands, D.; Harris, M. Signal peptide cleavage and internal targeting signals direct the hepatitis C virus p7 protein to distinct intracellular membranes. J. Virol. 2005, 79, 15525–15536. [Google Scholar] [CrossRef] [PubMed]
  90. Haqshenas, G.; Mackenzie, J.M.; Dong, X.; Gowans, E.J. Hepatitis C virus p7 protein is localized in the endoplasmic reticulum when it is encoded by a replication-competent genome. J. Gen. Virol. 2007, 88, 134–142. [Google Scholar] [CrossRef] [PubMed]
  91. Pietschmann, T.; Kaul, A.; Koutsoudakis, G.; Shavinskaya, A.; Kallis, S.; Steinmann, E.; Abid, K.; Negro, F.; Dreux, M.; Cosset, F.L.; et al. Construction and characterization of infectious intragenotypic and intergenotypic hepatitis C virus chimeras. Proc. Natl. Acad. Sci. USA 2006, 103, 7408–7413. [Google Scholar] [CrossRef] [PubMed]
  92. Gentzsch, J.; Brohm, C.; Steinmann, E.; Friesland, M.; Menzel, N.; Vieyres, G.; Perin, P.M.; Frentzen, A.; Kaderali, L.; Pietschmann, T. Hepatitis c Virus p7 is critical for capsid assembly and envelopment. PLoS Pathog. 2013, 9, e1003355. [Google Scholar] [CrossRef] [PubMed]
  93. Paul, D.; Madan, V.; Bartenschlager, R. Hepatitis C virus RNA replication and assembly: Living on the fat of the land. Cell Host Microbe 2014, 16, 569–579. [Google Scholar] [CrossRef] [PubMed]
  94. Pavlovic, D.; Fischer, W.; Hussey, M.; Durantel, D.; Durantel, S.; Branza-Nichita, N.; Woodhouse, S.; Dwek, R.A.; Zitzmann, N. Long alkylchain iminosugars block the HCV p7 ion channel. Adv. Exp. Med. Biol. 2005, 564, 3–4. [Google Scholar] [PubMed]
  95. Gottwein, J.M.; Jensen, T.B.; Mathiesen, C.K.; Meuleman, P.; Serre, S.B.; Lademann, J.B.; Ghanem, L.; Scheel, T.K.; Leroux-Roels, G.; Bukh, J. Development and application of hepatitis C reporter viruses with genotype 1 to 7 core-nonstructural protein 2 (NS2) expressing fluorescent proteins or luciferase in modified JFH1 NS5A. J. Virol. 2011, 85, 8913–8928. [Google Scholar] [CrossRef] [PubMed]
  96. Meredith, L.W.; Zitzmann, N.; McKeating, J.A. Differential effect of p7 inhibitors on hepatitis C virus cell-to-cell transmission. Antivir. Res. 2013, 100, 636–639. [Google Scholar] [CrossRef] [PubMed]
  97. Mihm, U.; Grigorian, N.; Welsch, C.; Herrmann, E.; Kronenberger, B.; Teuber, G.; von Wagner, M.; Hofmann, W.P.; Albrecht, M.; Lengauer, T.; et al. Amino acid variations in hepatitis C virus p7 and sensitivity to antiviral combination therapy with amantadine in chronic hepatitis C. Antivir. Ther. 2006, 11, 507–519. [Google Scholar] [PubMed]
  98. Castelain, S.; Bonte, D.; Penin, F.; Francois, C.; Capron, D.; Dedeurwaerder, S.; Zawadzki, P.; Morel, V.; Wychowski, C.; Duverlie, G. Hepatitis C Virus p7 membrane protein quasispecies variability in chronically infected patients treated with interferon and ribavirin, with or without amantadine. J. Med. Virol. 2007, 79, 144–154. [Google Scholar] [CrossRef] [PubMed]
  99. Khoury, G.; Ewart, G.; Luscombe, C.; Miller, M.; Wilkinson, J. Antiviral efficacy of the novel compound BIT225 against HIV-1 release from human macrophages. Antimicrob. Agents Chemother. 2010, 54, 835–845. [Google Scholar] [CrossRef] [PubMed]
  100. Luscombe, C.A.; Huang, Z.; Murray, M.G.; Miller, M.; Wilkinson, J.; Ewart, G.D. A novel Hepatitis C virus p7 ion channel inhibitor, BIT225, inhibits bovine viral diarrhea virus in vitro and shows synergism with recombinant interferon-alpha-2b and nucleoside analogues. Antiviral Res. 2010, 86, 144–153. [Google Scholar] [CrossRef] [PubMed]
  101. Bichmann, L.; Wang, Y.T.; Fischer, W.B. Docking assay of small molecule antivirals to p7 of HCV. Comput. Biol. Chem. 2014, 53, 308–317. [Google Scholar] [CrossRef] [PubMed]
