GEM-PA-Based Subunit Vaccines of Crimean Congo Hemorrhagic Fever Induces Systemic Immune Responses in Mice

by
Qi Wang
1,2,
Shen Wang
2,
Zhikang Shi
2,3,
Zhengrong Li
2,4,
Yongkun Zhao
2,
Na Feng
2,
Jinhao Bi
2,3,
Cuicui Jiao
4,
Entao Li
2,
Tiecheng Wang
2,
Jianzhong Wang
3,
Hongli Jin
4,
Pei Huang
4,
Feihu Yan
2,*,
Songtao Yang
2,* and
Xianzhu Xia
1,2,*
1
College of Animal Science and Technology, Shihezi University, Shihezi 832003, China
2
Key Laboratory of Jilin Province for Zoonosis Prevention and Control, Changchun Veterinary Research Institute, Chinese Academy of Agricultural Sciences, Changchun 130122, China
3
Animal Science and Technology College, Jilin Agricultural University, Changchun 130118, China
4
College of Veterinary Medicine, Jilin University, Changchun 130062, China
*
Authors to whom correspondence should be addressed.
Viruses 2022, 14(8), 1664; https://doi.org/10.3390/v14081664
Submission received: 23 June 2022 / Revised: 24 July 2022 / Accepted: 27 July 2022 / Published: 28 July 2022
(This article belongs to the Section Animal Viruses)
Browse Figures
Review Reports Versions Notes

Abstract

:
The Crimean Congo Hemorrhagic Fever Virus (CCHFV) is a tick-borne bunyavirus of the Narovirus genus, which is the causative agent of Crimean Congo Hemorrhagic Fever (CCHF). CCHF is endemic in Africa, the Middle East, Eastern Europe and Asia, with a high case-fatality rate of up to 50% in humans. Currently, there are no approved vaccines or effective therapies available for CCHF. The GEM-PA is a safe, versatile and effective carrier system, which offers a cost-efficient, high-throughput platform for recovery and purification of subunit proteins for vaccines. In the present study, based on a GEM-PA surface display system, a GEM-PA based vaccine expressing three subunit vaccine candidates (G-GP, including G-eGN, G-eGC and G-NAb) of CCHFV was developed, displaying the ectodomains of the structural glycoproteins eGN, eGC and NAb, respectively. According to the immunological assays including indirect-ELISA, a micro-neutralization test of pseudo-virus and ELISpot, 5 μg GPBLP3 combined with Montanide ISA 201VG plus Poly (I:C) adjuvant (A-G-GP-5 μg) elicited GP-specific humoral and cellular immunity in BALB/c mice after three vaccinations via subcutaneous injection (s.c.). The consistent data between IgG subtype and cytokine detection, ELISpot and cytokine detection indicated balanced Th1 and Th2 responses, of which G-eGN vaccines could elicit a stronger T-cell response post-vaccination, respectively. Moreover, all three vaccine candidates elicited high TNF-α, IL-6, and IL-10 cytokine levels in the supernatant of stimulated splenocytes in vitro. However, the neutralizing antibody (nAb) was only detected in A-G-eGC and A-G-eGC vaccination groups with the highest neutralizing titer of 128, suggesting that G-eGC could elicit a stronger humoral immune response. In conclusion, the GEM-PA surface display system could provide an efficient and convenient purification method for CCHFV subunit antigens, and the G-GP subunit vaccine candidates will be promising against CCHFV infections with excellent immunogenicity.

1. Introduction

Crimean-Congo Hemorrhagic Fever (CCHF) is a tick-borne zoonotic disease and has spread to more than 30 countries in Africa, Europe, Asia, the Middle East and Europe [1], with obvious locality, seasonality, and sporadic cases. CCHF is caused by Crimean Congo Hemorrhagic Fever Virus (CCHFV), which is a member of the Nairoviridae family in the Bunyavirales, and its genome comprises three single negative-stranded RNA segments that are known as small (S), medium (M) and large (L) segments, respectively. The small (S) segment encodes the nucleocapsid protein (NP) and the nonstructural protein NSs [2], the M segment encodes a polyprotein precursor (GPC), the large RNA segment (L) encodes an RNA dependent RNA polymerase [1]. The GPC is processed by cellular proteases during maturation, which are cleaved into two structural surface glycoproteins (GN and GC) and three other domains: a variable mucin-like domain (MLD), a GP38 domain, and an Nsm domain. The GN gene segment is flanked by the conserved cleavage sites RRLL and RKLL; the GC gene segment starts with RKPL [3], they bind target cells and influence infectivity [4] and cell tropism, and are the targets for neutralizing antibodies [5]. Therefore, GN and GC are the important structural proteins for vaccine development. CCHFV can be transmitted to humans or animals through the bites of infected ticks, directly contacting with contaminated tissues, secretions, blood of infected animals or humans [1], and nosocomial infections [6]. According to the serum positive rate of CCHFV-specific antibodies in wild and domestic animals [7], CCHFV infects a wide range of hosts [8]. There were also cases of transmission from wild and domestic animals to humans [9,10,11,12,13]. Animals infected with CCHFV often remain asymptomatic except for suckling mice, even with high viremia. Infected humans develop severe illnesses, with a case fatality rate of up to 50%. Therefore, CCHFV is a zoonotic potential virus, with wild and domestic animals playing an important role in the risk of transmission to humans. Due to its expanding range, high fatality rate and the lack of an approved vaccine, up to 2017, CCHFV has been designated as one of ten priority emerging infectious diseases by the World Health Organization; and in 2018, the National Institute of Allergy and Infectious Diseases (NIAID) classified the virus as the Category A Priority Pathogen, together with Hantaviruses and Rift Valley Fever within the family Bunyaviridae.
The only vaccine candidate which entered human clinical trials was an inactivated vaccine, which was used since 1974 to immunize mainly military and medical personnel, farmers, and persons living or working in endemic regions in Bulgaria [14,15]. Since it was originated from mouse neural tissue content, it was likely to cause autoimmune and allergic responses, so the vaccine was discontinued later. Even though there are currently no licensed vaccines for either humans or animals, researchers have developed a number of approaches for CCHFV, and several vaccine candidates have been demonstrated variable efficacy in multiple animal models for CCHFV, such as whole inactivated virus and cell culture [14,15,16,17], DNA [18,19,20], viral subunits [21], transgenic plant [22], virus-like particle (VLP) [20,23] and mRNA [24]. In addition, viral vectors were used in vaccine development, such as modified vaccinia virus Ankara (MVA) [25,26], human adenovirus type 5 (Ad5) [27], Vesicular Stomatitis Virus (VSV) [28], and bovine herpesvirus type 4 Vector (BoHV-4) [29].
Subunit protein vaccines, as the first choice for developing a safe CCHFV vaccine candidate, offer many advantages, such as high product purity, minimal side effects, high safety and yield, and low production costs. At present, there are some subunit protein vaccines about expressions of GN or GC in Drosophila Schneider 2 (S2) or Spodoptera frugiperda 9 (Sf9) cells that are purified by using His or Strep-Tactin® Superflow® High-Capacity. However, these purification methods are cumbersome in operation and have low yield problems, so they are not promising for large-scale purification. In order to purify the protein conveniently and efficiently, we used an affinity purification method based on a gram-positive enhancer matrix-protein anchor (GEM-PA) surface display system, in which Lactococcus lactis (L. lactis) was inactivated by hot acid, all intracellular and cell wall components were removed, leaving the rigid peptide-glycan (PGN) matrix remaining [30]. Treated L. lactis were also called GEM particles (GEMs) that were non-living and have a diameter of approximately 1–2 um [31]. An antigen may be expressed with a peptidoglycan anchoring domain (PA) as a fusion protein in different expression systems; the fusion protein can be purified by noncovalently attached to the peptidoglycan surface of GEMs through PA, generating a GEM-PA-antigen complex [32]. L. lactis is considered as safe by the Food and Drug Administration (FDA), and the efficacy of the GEM-PA display system has been demonstrated in various protein vaccine candidates including antigens of parasitic, viral, or bacterial antigens [32,33,34,35,36,37,38,39,40,41,42,43,44]. Therefore, the GEM-PA surface display system could provide an efficient and simple purification method for CCHFV subunit antigens.
In this study, we used the GEM-PA display system to display the eGN, eGC and conserved neutralizing body epitope (NAb, aa1443 and 1566 of the M gene in IbAr10200 strain) of glycoprotein and studied the immunogenicity in BALB/c mice. This study provides an efficient and convenient purification method for CCHFV subunit antigens; the subunit vaccine was termed G-GP (including G-eGN, G-eGC, G-NAb), which represents a promising vaccine candidate against CCHFV infections.

2. Materials and Methods

2.1. Construction and Expression of Recombinant Baculoviruses

In this study, three truncated fragments of CCHFV Ibar10200 GP (GenBank ID: AF467768) were designed, namely the extracellular region of mature GN (eGN,520-696aa), the extracellular region of GC with truncation of C-terminal 19aa (eGC,1041-1579aa) and the conservative neutralizing antibody region of GC (NAb,1443-1566aa). To improve the expression of recombinant CCHFV GP, all genes were codon optimized according to the specific codon usage of Sf9 cells. Target protein genes were fused at the amino terminus to the gp67 signal sequence and were co-expressed with a gene encoding PA3 through a 24-amino acid glycine linker (GGTGGTTCTGGTGGTGGTTCTGGT), respectively. PA3 genes encoding three LysMs were amplified by PCR using codon-optimized pUC57-PA3 (L. lactis MG1363) as a template with the oligonucleotide primers linker-PA3-F and PA3-R. Followed by a 6 × His-tag (CATCACCATCACCATCAC) for the easy detection of protein expression, KpnI cleavage site was added at the 5′ end of the construct, cleavage site for XbaI was designed at 3′ termini. The GPLP3 (including eGN-LP3, eGC-LP3, NAb-LP3) fusion gene was amplified by PCR using synthetic oligonucleotide primers as listed in Table 1 and the amplified segments were inserted into the baculovirus expression vector pFastBac1-gp67 (Invitrogen, Carlsbad, CA, USA), respectively. The successfully constructed plasmids (pFastBac1-gp67-eGN-LP3, pFastBac1-gp67-eGC-LP3, pFastBac1gp67-NAb-LP3) were then transformed into Escherichia coli DH10Bac competent cells to generate recombinant bacmids (rBacmid-eGNLP3, rBacmid-eGCLP3, rBacmid-NAbLP3). Sf9 insect cells (Thermo Fisher Scientific, Waltham, MA, USA) were cultured in TNM-FH insect medium (Sigma, St. Louis, MO, USA) and supplemented with 10% fetal bovine serum (FBS, Gibco, Grand Island, NY, USA) and 1% Penicillin-Streptomycin (Caisson, Grand Island, NY, USA). According to CellfectinTM II Reagent (Invitrogen, Waltham, MA, USA) and Bac-to-Bac Expression Systems manual, we transfected several 2 ug of validated bacmids (rBacmid-eGNLP3, rBacmid-eGCLP3, rBacmid-NAbLP3) into 2 × 106 cells/mL Sf9 cells that were seeded beforehand in 6-well plates. 4 days post transfection (p.t.), cell debris were removed and three kinds of supernatant containing proteins were collected, which were defined as the first passage1 (P1) of recombinant baculoviruses (rBVs), including rBV-eGNLP3, rBV-eGCLP3, rBV-NAbLP3. P1rBVs were expanded in Sf9 cells that were incubated in a cell culture dish with a 100 nm × 20 mm style (Corning-Costar, Corning, NY, USA) at 27 °C, after 96 h post infection (p.i.), passage 2 (P2) rBVs were harvested, and so on, until the generation of P3 rBVs.

2.2. Expression of CCHFV GPLP3 Fusion Protein

The expression of exogenous genes was identified by indirect immunofluorescence assay (IFA) and the expression forms of proteins were assessed by western blot (WB).
For IFA, Sf9 cells were infected with P2 rBVs and were cultured in 24-well plates for 48 h, then fixed in 80% cold acetone for 30 min at room temperature and washed three times with phosphate buffer saline (PBS containing 0.05% Tween 20, PBST), then cultured plates were incubated with a mouse polyclonal anti CCHFV-GN, a mouse mAb clone 11E7anti-CCHFV pre-Gc, a mouse mAb clone 11E7 anti-CCHFV pre-Gc (prepared and stored in our laboratory; BEI Resources, Manassas, VA, USA; BEI Resources, Manassas, VA, USA, with a 1:500 or 1:1000 dilution containing 1% bovine serum albumin, BSA) at 37 °C for 1 h, after three washing steps, an FITC-labeled goat against mouse IgG antibody with a 1:200 dilution (Bioworld, Minnesota, MN, USA) was added with Evans blue with a 1:100 dilution (Sigma, St. Louis, MO, USA) for 1 h at 37 °C. After repeating the washing steps, results were observed by the fluorescence microscope (Zeiss, Oberkochen, Germany).
For WB analysis, cell cultures infected with P2 rBVs were centrifuged at 6500× g at 4 °C for 10 min, cell supernatants were directly collected, precipitates were then resuspended in the same volume of 0.01 M PBS (pH 7.2–7.4) and crushed by ultrasound, after SDS-PAGE under denaturing conditions, prepared samples were transferred onto a nitrocellulose (NC) membrane (GE Healthcare Life Sciences, Freiburg, Germany) for immunoblot with a mouse anti-CCHFV-GP antibody (anti-CCHFV-GN polyclonal antibody, a mouse mAb clone 11E7anti-CCHFV pre-Gc, a mouse mAb clone 11E7anti-CCHFV pre-Gc), and an HRP-conjugated secondary antibody (Bioworld, Minnesota, MN, USA).

2.3. Production of GEM and binding GPLP3 proteins to Immunobiotic G-GP

GEM particles were prepared as described previously [45]. Briefly, overnight cultures (100 mL) of L. lactis MG1363 in M17 Broth (Hopebiol, Qingdao, China) were harvested by centrifugation (10 min, 12,000× g) and washed with PBS, precipitates were then boiled in 10% trichloroacetic acid (Sigma, St. Louis, MO, USA) for 30 min, followed by extensive washing with PBS five times. Finally, treated GEMs were re-suspended in sterile PBS (pH 7.2–7.4), with a Bürker-Turk counting chamber (Lab Unlimited, UK); the number of GEMs per milliliter was counted. Finally, one unit (U) was defined as 2.5 × 109 GEM particles, and the GEMs were stored at −80 °C until use.
Cell-free antigen (eGNLP3, eGCLP3, NAbLP3) of culture supernatant was separately bound to the surface of the formulated GEMs (one U of GEM particles were added into 10 mL of each rBVs culture supernatant, in contrast, poor solubility of the eGCLP3 protein, which must be broken by ultrasound to obtain sufficient protein. Following by gentle agitation for 1 h at room temperature and a centrifugation step (8 min, 6500× g at 4 °C), precipitates (the bound fractions) were washed five times to eliminate unbound proteins, collected proteins were stored in sterile PBS (pH 7.2–7.4, 0.01 mM) at a concentration of 200 μL/U at −20 °C until further use.
The capacity of this purification method was explored. 0.5 U of GEMs separately mixed 0–10 mL of treated GPLP3 (eGNLP3, eGCLP3, NAbLP3) supernatant proteins, formulated G-GP (G-eGN, G-eGC, G-NAb) in 10 mL crude protein-containing extract were calculated with using the Pierce BCA protein assay kit (Thermo Fisher Scientific, Waltham, MA, USA) and following the formula: Content GPLP3 = Content G-GP- Content GEM.

2.4. SDS-PAGE, Western Blot and Immuno-Electron Microscope (IEM) Identification of the Binding GEM Particles

Surface display of GPLP3 proteins on GEM particles (G-GP) was verified by SDS-PAGE, Western Blot, and the immuno-electron microscope (IEM).
For the SDS-PAGE and WB identification of the binding GEM particles, the GPBLP3 was resuspended in 5 × SDS-PAGE sample buffer (Beyotime Biotechnology, Shanghai, China), separated by 10% SDS-PAGE and then transferred by electroblotting onto NC transfer membranes under denaturing conditions for Western blotting with a mouse anti-CCHFV-GN specific for CCHFV-GN polyclonal antibody (diluted 1:500), a mouse mAb clone 11E7 anti-CCHFV pre-Gc (diluted 1:1000; BEI Resources, Manassas, VA, USA), a mouse mAb clone 11E7 anti-CCHFV pre-Gc (diluted 1:1000, BEI Resources, USA), and an HRP-conjugated secondary antibody (diluted 1:5 000; Bioworld, Minnesota, MN, USA).
For IEM, a mouse antiserum specific for CCHF-GN (diluted 1:200), mouse mAb clone 11E7 anti-CCHFV pre-Gc (diluted 1:1000), a mouse mAb clone 11E7 anti-CCHFV pre-Gc (diluted 1:1000), the immuno-electron microscope anti-Mouse IgG (whole molecule) Gold antibody produced in goat (diluted 1:200, Sigma, St. Louis, MO, USA) were used. Samples were observed under the electronic microscope.

2.5. Immunization of Mice

To evaluate the immunogenicity of the G-GP (G-eGN, G-eGC, G-NAb) vaccine candidates against CCHFV Negeria-IbAr10200 strain in mice, a total of 75 female BALB/c (6–8 week-old) mice were randomly divided into 15 groups (Table 2), nine groups of BALB/c mice (n = 5 per group) subcutaneously received different doses of A-G-GP (A-G-eGN, A-G-eGC, A-G-NAb), namely G-GP (1, 5, or 20 μg dose) was adjuvanted with a complex of ISA201VG (Seppic, Paris, France) and PolyI:C (Sigma, St. Louis, MO, USA), respectively. Another three groups of BABL/c mice (n = 5 per group) subcutaneously received a 5 μg dose of the G-GP vaccine candidate alone (G-eGN, G-eGC, G-NAb). The final three control groups of BABL/c mice (n = 5 per group) were subcutaneously immunized with GEM + 201 + polyI:C, 201 + polyI:C or PBS. Booster doses were administered 3, 6 and 9 weeks after the initial immunization. Sera were collected via submandibular bleeds 2 weeks after each post-immunization (2, 5, 8, 11 wpi) and inactivated at 56 °C for 30 min before stored at −80 °C until further use in the indirect-ELISA and virus neutralization assays.

2.6. Virus-Specific IgG and Subtype Detection

To detect the potential of our G-GP constructs to induce specific IgG antibody responses in BALB/c mice, we developed an indirect enzyme linked immunosorbent assay (ELISA) to quantify the specific IgG and subtype antibody levels (IgG1, IgG2a) in serum from mice vaccinated with 5 μg A-G-GP and 5 μg G-GP, following the steps described below. Meanwhile, we also used the ratio of IgG2a to IgG1 as an indirect method to evaluate induced T-helper 1 (Th1) and T-helper 2 (Th2) biases, respectively.
Briefly, recombinant eGN and NAb of the CCHFV specific glycoprotein expressed in a prokaryotic system were used as ELISA antigens, which were diluted in 0.05 M carbonate-bicarbonate buffer pH 9.6 (Sigma, St. Louis, MO, USA), and used to coat Maxisorp 96-well plates (Corning-Costar, Corning, NY, USA) at 100 and 400 ng/well in a volume of 100 μL/ well, respectively. Plates were covered with plate sealers and incubated overnight at 4 °C. The next day plates were washed with PBST (PBS containing 0.05% Tween-20) for three times and blocked with 150 μL/well of 3% bovine serum albumin in ddH2O (3%BSA, Sigma, St. Louis, MO, USA) for 1 h at 37 °C. After plates were washed again, serum samples from immunized BALB/c mice were serially diluted two-fold starting at a dilution of 1:80 in 1% BSA buffer, and added to the wells. Finally, the plates were incubated at 37 °C for 1.5 h. After 3 rounds of wash, anti-mouse IgG-HRP antibody (Bioworld, St. Louis, MO, USA) at a dilution of 1:10,000, anti-mouse IgG1-HRP and anti-mouse IgG2a-HRP (Southern Biotech, Birmingham, AL, USA) at 1:5000 dilution was separately added to each well and further incubated for 1.5 h at 37 °C. Finally, plates were washed three times with PBST, and incubated for 5~10 min with tetramethyl l benzidine substrate (TMB, Sigma, St. Louis, MO, USA) at room temperature. Subsequently, the reaction was stopped by adding 0.5 M H2SO4 (Sigma, St. Louis, MO, USA), the plates read at 450 nm in an ELISA reader (Bio-Rad, Hercules, CA, USA). For data analysis, titers were determined as the highest dilution at which the mean absorbance of the sample was 2-fold greater than the mean absorbance of the same dilution of control serum, additional analysis was carried out using GraphPad Prism 8.0. software (GraphPad Software Inc., San Diego, CA, USA).

2.7. Neutralization Assay

Handling of CCHFV requires high-containment facilities, biosafety level 3 (BSL-3) and BSL-4 facilities in endemic and non-endemic areas, respectively. To overcome this limitation, we generated a pseudo-typed virus-CCHFVPV, in which the G gene of VSV was replaced by the CCHFV-GP (IbAr10200 strain), an enhanced green fluorescent protein (eGFP) reporter gene was cloned between the N gene and P gene of the full-length genome cDNA of VSV [46]. CCHFVPV titration was performed on 10-fold serial dilutions (prepared in DMEM) of transfected cell supernatants, using a TCID50 assay on Vero E6 cells in 96-well plates. Plates were incubated with the supernatants 48 h at 37 °C, and were observed under a fluorescence microscope. CCHFVPV titration was calculated using the Reed and Muench formula, and expressed as TCID50 per mL of stock.
CCHFVPV system was used to evaluate the potential of neutralizing activity in sera from mice immunized with G-GP (G-eGN, G-eGC, G-NAb). Mice sera were diluted in a 2-fold dilution series, with 4-fold in the initial dilution, and mixed with an equal volume of CCHFVPV-containing supernatant and incubated for 1–2 h at 37 °C. The mixture was then applied to Vero E6 cells cultured in a 96-well plate. Meanwhile, Anti-CCHFV pre-GC mAb clone 11E7 (BEI Resources, Manassas, VA, USA), anti-control serum of mouse and CCHFVPV in different dilutions were set as the positive, negative antibody and antigen control, respectively. 11E7 was diluted in a 2-fold dilution series (1:32 to 1:16384-fold dilution). Plates were incubated for 48 h at 37 °C and observed with a fluorescence microscope. Data were analyzed as previously reported using GraphPad Prism 8.0. software (GraphPad Software Inc., San Diego, CA, USA).

2.8. IFN-γ and IL-4 Cytokine Detection

Specific T cell responses were detected by the quantification of IFN-γ and IL-4 production from splenocytes by ELISpot. Groups of 3 BALB/c mice were vaccinated subcutaneously with 5 μg either the A-G-GP (A-G-eGN, A-G-eGC, A-G-NAb) vaccines or G-GP (G-eGN, G-eGC, G-NAb) vaccines for three times. 2 weeks after the third immunization (8 wpi), the plate was blocked with RPMI 1640 medium (Gibco, Grand Island, NY, USA) for 1 h before the addition of the splenocytes. 2.5 × 105 freshly isolated mouse splenocytes were added to each well, and then stimulated with purified eGN or NAb antigen produced in E. coli, PBS was used as a negative control. Splenocytes incubated in culture media alone served as a background control and splenocytes stimulated with 10 μg/mL of concanavalin A (Sigma, St. Louis, MO, USA) as a cell viability control.
The splenocytes were stimulated and cultured at 37 °C for 24 h. IFN-γ and IL-4 were detected by using mouse enzyme-linked immune-spot (ELISpot) kits (MABTECH, Nacka, Sweden) according to the manufacturer’s instructions. Spot-forming cells (SFCs) were counted with an ELISpot reader (AID ELISPOT reader-iSpot, AID GmbH, GER).

2.9. Cytokine Measurement of Splenocyte Culture Supernatants

Mouse ELISA cytokine kits (MABTECH, Nacka, Sweden) were applied to detect the levels of the cytokines Th1 (IFN-γ, TNF-α, IL-2) and Th2 (IL-4,6,10) in supernatants of stimulated splenocytes, which were harvested 14 days after the third immunization from mice immunized with 5 μg A-G-GP or 5 μg G-GP; collected splenocytes were spread at 2.5 × 105 cells/well into 96-well plates and were stimulated with purified eGN or NAb antigen (10 μg/mL) produced in E. coli for 72 h at 37 °C and 5% CO2. According to the manufacturer’s instructions, IL-2,4,6,10, IFN-γ, and TNF-α levels in supernatants were analyzed.

2.10. Data Analysis

The results are expressed as the means ± SD. Figures were generated using GraphPad Prism 8.0. software (GraphPad Software Inc., San Diego, CA, USA). Significance differences between the groups were analyzed using one-way ANOVA or two-way ANOVA were deemed significant at p values of 0.05 or less. Statistical significance is indicated as * p < 0.05, ** p < 0.01, *** p < 0.001, and **** p < 0.0001.

3. Results

3.1. Generation of Recombinant Baculovirus and Expression of CCHFV-eGNLP3, CCHFV-eGCLP3 and CCHFV-NAbLP3 Fusion Proteins

A schematic representation of the glycoprotein ORF of CCHFV Ibar10200 strain was shown in Figure 1A. We designed three GPLP3 (eGNLP3, eGCLP3, NAbLP3) fusion proteins, as shown in Figure 1B, in which eGN, eGC-19aa and NAb gene were fused to PA3 gene with a linker, respectively. IFA results showed that rBV-GPLP3 (rBV-eGNLP3, rBV-eGCLP3, rBV-NAbLP3) infected Sf9 cells fluoresced green (Figure 1(D5–D7)), compared with the control cells (Figure 1(D8)), suggesting that three exogenous genes were successfully expressed. Western blot analysis also proved that three fusion proteins were successfully expressed, in which two recombinant proteins (eGNLP3, NAbLP3) were secreted successfully into the supernatants, respectively, presenting as a soluble 55 KDa and 50 KDa protein boxed out in red (Figure 1(D9,D11)), while eGCLP3 had poor solubility, which must be broken by ultrasound to obtain sufficient protein, presenting as a 100 KDa protein boxed out in red (Figure 1(D10)).

3.2. Location of Fusion Proteins on GEM Particles

Schematic representation of GP-PA binding with GEM particles was shown in Figure 2A. The surface location of GPLP3 (eGNLP3, eGCLP3, NAbLP3) fusion proteins on GEM particles, which were confirmed by SDS-PAGE, Western blot and immunogold electron microscopy (IEM).
Western blot analysis with antibody demonstrated that binding to the 55KDa, 100 KDa and 50 KDa were recombinant proteins, and no expression of any immune reactivity protein was detected in mock preparations (Figure 2(B1,B2)). Analysis by SDS-PAGE revealed that three recombinant proteins with the expected apparent molecular weight of approximately 55 KDa, 100 KDa and 50 KDa, respectively (Figure 2(C1–C3)). All target proteins are boxed out in red. In addition, IEM analysis exhibited that the elliptical shape of GEM particles could be clearly observed with evident surface gold particles, which strongly indicated that the G-GP (G-eGN, G-eGC, G-NAb) fusion proteins successfully were displayed on the surface of GEM particles (Figure 2(D6–D8)).
In this experiment, SDS-PAGE and Western blot analysis showed that three G-GP proteins were observed in precipitates recovered after incubation with GEM particles. The IEM results were consistent with Western blot analysis, suggesting binding of fusion proteins on GEM particles did not affect the immune reactivity.

3.3. Binding Activity of Fusion Proteins on GEM Particles

To analyze the maximum binding capacity of each fusion protein on the GEM particles, 0.5 U GEM particles were mixed with 0, 2, 4, 6, 8 and 10 mL of each recombinant baculovirus culture supernatant or supernatant after ultrasonic crushing; after washing, three mixtures were prepared into samples, respectively. The results were displayed in Figure 3A–C, with the increase in binding culture supernatant volume, the relative quantity of binding fusion proteins (G-eGN and G-NAb) increased. The binding capacity of G-eGC fusion protein increased, when 0.5 U GEM particles were combined with 8 and 10 mL of recombinant baculovirus culture supernatant after ultrasonic crushing. All relative maximum binding capacity of 0.5 U GEM particles were 10 mL volumes, which was consistent with descriptions in other reports [33,34]. Furthermore, we estimated that 1 U GEM particles can bind 280 μg eGNLP3 fusion protein, 220 μg eGCLP3 fusion protein and 260 ug NAbLP3 fusion protein with using the Pierce BCA protein assay kit. Thus, a yield of approximately 14 mg eGNLP3, 11 mg eGCLP3, 13 mg NAbLP3 proteins were obtained from three baculovirus cultures per liter, respectively.

3.4. Virus-Specific IgG and Subtype

To determine the antibody responses of G-GP (A-G-eGN, A-G-eGC, A-G-NAb) vaccines against CCHFV-GP, BALB/c mice were immunized subcutaneously with the three vaccine preparations containing 1 μg, 5 μg, 20 μg for four times; the sera in each subgroup were collected at 2 weeks after each immunization and analyzed by indirect-ELISA.
As expected, the IgG antibody in the control groups were below the limit of detection from 2 wpi to 11 wpi (Figure 4A–C). The first immunization of mice with G-GP vaccines containing 1 μg, 5 μg and 20 μg dose groups did not generate any detectable IgG antibodies at 2 wpi (Figure 4A–C and Table 3). Mice in all G-GP (1 μg, 5 μg and 20 μg) vaccination groups did not generate detectable IgG antibodies at 2 wpi post first-dose vaccination (Figure 4A–C and Table 3). The booster vaccination with G-eGN, G-eGC and G-NAb dramatically increased the IgG antibodies, with the geometric mean titer (GMT) reaching (G-eGN1536,3072,3584; G-eGC 2048,5120,1126.4; G-NAb 2304, 3584, 4096) in 1 μg, 5 μg and 20 μg dose vaccination groups, respectively (Figure 4A–C and Table 3). 5 μg and 20 μg dose groups showed relatively high levels of anti-CCHFV GP IgG titer and significantly higher than that in the 1μg dose A-G-GP group after three immunizations, whereas there was no significant difference between the 20 μg dose A-G-GP group and 5 μg dose A-G-GP group (Figure 4A–C). Furthermore, a fourth immunization was added. However, IgG antibody levels in all sera from A-G-GP immunized mice showed no significant differences between 8 wpi and 11 wpi (Figure 4A–C), suggesting IgG antibody titers were close to saturation after the third immunization. Therefore, three vaccinations with a 5 μg dose A-G-GP were selected for further vaccination experiments in mice, which were sufficient to produce IgG antibodies, reaching endpoint GMT of IgG up to 22,528, 20,480, 22,528, respectively (Figure 4A–C and Table 3).
The subtypes of CCHFV-specific IgG antibodies were detected in 5 μg A-G-eGN, A-G-eGC, A-G-NAb and 5 μg G-eGN, G-eGC, G-NAb groups. The antibody subtype could reflect the bias of Th1 and Th2 responses. All immunized mice clearly responded with IgG1and IgG2a, a similar phenomenon to IgG antibodies was found for CCHFV specific IgG1 antibodies, which were detected in high levels at 5 wpi and increased significantly at 8 wpi, and there were no significant differences between 8 wpi and 11 wpi, advising IgG1 antibody titer was saturated in the collected sera from A-G-GP-5 μg immunized mice (Figure 4D–F). Interestingly, IgG1 antibody titer in 5 μg G-eGN and G-NAb alone group at 11 wpi were significantly higher than those at 8 wpi, whereas the phenomenon did not appear in the 5 μg G-eGC group (Figure 4D–F). Specific IgG2a antibodies were detectable in the sera at a lower level than IgG1 at 5 wpi, and were found to have increased dramatically at 8 wpi and reached the highest level at 11 wpi (Figure 4D–F), indicating IgG2a had a delay with respect to IgG1. We also detected all the ratios of IgG2a/IgG1of sera in 5 μg A-G-GP and 5 μg G-GP alone group and found that all the ratios of IgG2a/IgG1of sera in 5 μg A-G-GP and 5 μg G-GP alone group increased and significantly increased from the 5 wpi to 11 wpi, with the times of immunizations increasing (Figure 4G–I), indicating a process of reaching a balanced Th1 and Th2 immune response.
Altogether, both A-G-GP and G-GP could induce a mixed Th1 and Th2 immune response after three vaccinations, which are considered to be important correlates of protection [20]. 201 + polyI:C adjuvant could significantly enhance G-GP to produce IgG1 antibody responses (Th2), but repeated doses were required to induce IgG2a antibodies against CCHFV. In addition, the increased IgG2a and IgG2a/IgG1 ratio reflected a strengthened Th1 response in all the immunized BALB/c mice except the control group (Figure 4G–I).

3.5. Virus Neutralization Assay

To evaluate the nAbs developed in all vaccination groups, a CCHFVPV neutralization assay in a BSL-2 setting was established and applied. The first immunization of mice with the eGCBLP3 vaccine containing 1 μg, 5 μg and 20 μg dose groups did not develop any detectable neutralization antibodies (Figure 5 and Table 3). After the second immunization, the 1, 5, and 20 μg dose groups showed neutralizing antibody titers of 1:5.6, 1:16 and 1:19.2, respectively, against CCHFVVPV (Figure 5 and Table 3). The third immunization led to significantly elevated levels of neutralizing antibody titers in the 5 μg and 20 μg dose groups, with the neutralizing antibody titers of 1:70.4 and 1:76.8, respectively (Figure 5 and Table 3), while neutralizing antibody titers in the 1 μg dose group remained at a low level, 1:14.4 (Figure 5 and Table 3). These results advised that the neutralizing antibody titer elicited by the G-eGC vaccine increased in a dose-dependent manner. There was no significant difference in the CCHFV-specific neutralizing response between three and four immunizations with A-G-eGC-5 μg, 20 μg and A-eGC-5 μg, 20 μg (Figure 5 and Table 3), suggesting the neutralizing antibody levels from mice immunized with A-G-eGC-5 μg gradually increased to plateau at 8 wpi (Figure 5 and Table 3), and the addition of 201 + polyI:C adjuvant did not significantly increase the neutralizing antibody titers in three immunological doses group. Interestingly, compared with the neutralizing capacity of sera in 1 μg soluble G-eGC group, sera in all the G-eGN and G-NAb groups were not sufficient to neutralize pseudo-virus infection in Vero E6 cells, albeit very low (Figure 5 and Table 3), which was inconsistent with the study that aa 1443 and 1566 of the M gene in Ibar10200 strain was the conserved neutralizing epitope. At the same time, our results demonstrated that the mAb 11E7 were able to neutralize the pseudo-virus infection in Vero E6 cells (the neutralizing titer up to 1:512), and sera in control groups were unable to block pseudo-virus infection in Vero E6 cells, suggesting that the CCHFVPV system was effective in neutralization test.
In a word, the results showed that all of the CCHFV-G-eGC vaccinated BALB/c mice developed detectable IgG and neutralization antibodies to CCHFV-GP after two-dose immunizations (Figure 5 and Table 3), indicating G-eGC could elicit stronger humoral immune response, but non-neutralization antibody response was detected in all serum samples from mice vaccinated with G-eGN or G-NAb.

3.6. Antigen-Specific Cellular Immune Responses

To further investigate antigen-specific cellular immune responses, the secretion of IFN-γ and IL-4 by mouse splenocytes was measured by ELISpot assay. In Figure 6A,B, the ELISpot assay showed that the amount of splenocytes secreting IFN-γ and IL-4 from mice immunized with 5 μg A-G-GP or 5 μg G-GP alone was significantly higher than from mice in the control group, suggesting 5 μg G-GP could increase in production of this cytokine. Additionally, the secretion of IFN-γ and IL-4 by splenocytes from mice in A-G-GP group were significantly strong than that from mice in G-GP group, indicating that the 201 + polyI:C adjuvant could significantly enhance cellular immune responses. In addition, the A-G-eGN and G-eGN vaccines were capable of producing significantly higher numbers of IFN-γ and IL-4 SFCs, when compared with the numbers observed for the A-G-eGC, G-eGC, A-G-NAb and G-NAb vaccines (Figure 6A,B), suggesting the A-G-eGN and G-eGN vaccines could elicit a stronger T-cell response. Together, our ELISpot data demonstrated that the G-GP vaccine induced CCHFV-specific IFN-γ and IL-4 recall responses against three vaccine antigens. As a negative control, we included naive splenocyte cells from GEM + 201 + polyI:C immunized negative control mice.

3.7. Cytokine Secretion by Restimulated Splenocytes

Th1 (IFN-γ, TNF-α, IL-2) and Th2 (IL-4, IL-6, and IL-10) cytokines in the supernatants from splenocytes ex vivo restimulated with eGN or NAb were detected by ELISA.
As the Figure 7A–F showed, the levels of the Th1 (IFN-γ, TNF-α, IL-2) and Th2(IL-4, IL-6, IL-10) cytokines secreted by splenocytes from immunized with 5 μg A-G-GP (A-G-eGN, A-G-eGC or A-G-NAb) or the 5 μg G-GP alone group were significantly higher than those from the mice in the control group, suggesting 5 μg dose G-GP resulted in significant increases in the secretion of these cytokines, and that these levels were also significantly enhanced in the presence of the ISA 201VG plus Poly (I:C) adjuvant. The A-G-eGN and G-eGN vaccines were capable of producing significantly higher levels of cytokine, when compared with the numbers observed for the A-G-eGC, G-eGC, A-G-NAb and G-NAb vaccines (Figure 7A–F), suggesting that the A-G-eGN and G-eGN vaccines could elicit a stronger Th1 and Th2 immune response. In addition, the results showed that the potential to stimulate the production of adequate amounts of TNF-α, IL-6, IL-10 in the supernatant samples (Figure 7B,E,F), and the G-GP (G-eGN, G-eGC or G-NAb) vaccine enhanced the secretion of both Th1 and Th2 cytokines in splenocytes, when vaccinated with adjuvant (Figure 7A–F). In conclusion, cytokine secretion data demonstrated that the GP-GP vaccine induced a balanced Th1 and Th2 immune response against CCHFV-GP.

4. Discussion

The CCHFV is one of the most geographically widespread tick-borne viruses. Due to high case fatality rates, expanding of endemic regions, and the lack of licensed vaccines or effective therapeutics, potentially increasing risk of transmission from human-to-human, animal-to-animal, and even animal-to-human, CCHFV is a serious threat to public health, which has been added by the World Health Organization to the list of priority pathogens (http://www.who.int/blueprint/priority-diseases/en/, accessed on 18 June 2022). Therefore, establishing reasonable vector control, especially developing safe and effective vaccines against CCHFV for all populations at risk of exposure to CCHFV, is critically important.
Currently, in addition to employing inactivated viruses, vaccine design of CCHFV is mainly based on delivering two main immunodominant viral genes, namely S and M. Since the exposed position on the virion surface makes it able for antibody binding and neutralization, glycoprotein is often used as the candidate antigenic target in novel vaccine designs. The two structural surface glycoproteins (GN and GC) are the focus in our subunit vaccines, as they have good immunogenicity and can elicit virus-neutralizing antibodies. In addition, we also developed a highly conserved and neutralizing antibody (NAb) region of GP (between aa 1443 and 1566 of the M gene in IbAr10200 strain) [47], which could be recognized by mAb11E7 that was identified as an antibody possessing broadly cross-neutralizing abilities [48], and has shown protection against the lethal strain IbAr10200 of CCHFV infection in the suckling mouse [5]. To our knowledge, this is the first related vaccine expressing the NAb region of the glycoprotein. Furthermore, an effective affinity purification method called GEM-PA surface display technology was used in the purification of the expressed proteins. Purity of protein is so important that it is necessary to adopt an efficient, economical and safe purification method. At present, traditional purification methods for protein subunit vaccines mainly rely on His or Strep-tag purification resin [21,49,50], in which many unavoidable problems exist, such as cumbersome operation, low purification efficiency, the need of many expensive purification columns and so on. However, in the GEM-PA surface display system, we just need to combine cultural supernatant or cell lysate with treated L. lactis for an hour at room temperature, followed by repeated centrifugation steps and washing with sterile PBS, for us to obtain high purity protein. It is such a convenient and timesaving method that the whole purification process only took 1.5 h, as well as having a high purification efficiency, which could maximize condensed proteins from cultural supernatant or lysate, and a yield of approximately 14 mg protein was obtained from cultures of baculovirus in our study. Furthermore, the method could be easily manipulated for later dilution, storage, and preparation for vaccines, and is economical to scale up. In addition, it is the first time that the GEM-PA surface display system is applied to the purification of CCHFV GP subunit vaccines.
In the present study, we developed three subunit vaccine candidates, namely G-eGN, G-eGC, G-NAb, which were combined with Montanide ISA 201VG plus Poly (I:C) adjuvant and elicited humoral and cellular immunity against CCHFV.
ELISA and the pseudo-typed virus neutralization assay were successfully used for the detection of specific IgG and neutralizing activities against the CCHFV glycoproteins of collected mice serum in vitro under BSL-2 containment. The data demonstrated that the variation trend of neutralizing antibody had some consistence with IgG antibody, including the time point of seroconversion, the saturation effect and the dose-dependent manner of immunogenicity (Figure 4A–C and Table 3). The difference was that specific IgG antibodies produced in all the G-GP vaccinated mice, whereas specific neutralizing antibodies were only detected in the group that mice were vaccinated with A-G-eGC and G-eGC vaccine (Figure 5), which were consistent with what has been mentioned in the literature [5], in which only a number of mAbs against GC, were able to neutralize the virus infection of SW-13 cells in vitro; none of the mAbs directed against GN exhibited neutralizing activity in plaque reduction assays. In another bunyavirus, La Crosse virus (LACV), whose GC glycoprotein is sufficient to block virus infection in mammalian cells, while antibodies against GN neutralize infection in a mosquito cell line but not in a vertebrate cell line [51]. Therefore, G-eGC could elicit a stronger humoral immune response, and CCHFV neutralization is likely to be related to cell lines that needs more in-depth studies. Regrettably, all the sera from mice immunized with A-G-NAb (1, 5, 20 μg) and G-NAb-5 μg did not demonstrate any neutralization against CCHFV-GP, albeit at low levels. This result was not completely unexpected since NAb protein is made up of just 124 amino acids (1443–1566aa, 124aa), which may be too short for the extracellular region of GC made up of just 558 amino acids (1041–1598aa, 558aa), the single expression of the NAb region may not produce natural conformation structure. Furthermore, we found that the 5 μg A-G-eGC vaccine could produce high levels of IgG antibodies (1:40,960) but low neutralizing antibodies (the highest level was 1:128 in individual mice), even though we immunized the mice four times, which was similar to previously reports, such as neutralization antibodies from the only study on CCHFV in vaccinated individuals (PRNT50< 1:32) [14], cell culture based and the mouse brain derived inactivated vaccines in the BALB/c mice (FRNT:114.3, in 20 μg group) [16], the first DNA vaccine in BALB/c mice (PRNT50 < 1:40–1:160) [52], and it has been shown to have low neutralizing activity of convalescent-phase serums from patients (titers ranging from 8 to 32) [53]. The reason why the levels of IgG antibodies and neutralizing antibodies differ so much deserves further study.
We also used ELISpot and ELISA assays to detect T-cell responses and the Th1 and Th2 cytokines of the systemic pattern in the splenocyte supernatants, respectively. ELISpot analysis demonstrated a significantly increased IFN-γ and IL-4 T-cell response in all mice vaccinated with A-G-GPand G-GP compared to mice vaccinated with control antigen (Figure 6A,B). The levels of Th1-type biomarkers (IFN-γ, TNF-α and IL-2) and Th2-type biomarkers (IL-4, IL-6, IL-10), were shown to be significantly elevated in all the G-GP vaccine-immunized mice after three immunizations, indicating G-GP induced a balanced Th1 and Th2 immune profile again (Figure 7A–F). Additionally, the secretion of cytokines indicated that the production of adequate amounts of TNF-α, IL-6, IL-10 in the splenocyte supernatants, among high levels of TNF-α, IL-6 were considered as associated with survival in the challenged mice [29]. Notably, immunization with the A-G-eGN and G-eGN vaccine was capable of eliciting higher numbers of IFN-γ and IL-4 SFCs and level of cytokines compared with the numbers observed for A-G-eGC, G-eGC, A-G-NAb and G-NAb vaccinated mice (Figure 6A,B), which may be one reason why the mAbs of GN has a better protective effect than those of GC [5], which is worthy of further research.
In the previous subunit vaccines [21], two-dose immunizations elicited high levels of neutralizing antibodies (1:5120), and delayed the death but could not produce enough protection to fight off viral infection in STAT129, the authors held that the high susceptibility of STAT129 mice to virus infection may result in under valuing the vaccine potential of experimental vaccines. However, except for mouse models, we also have different opinions, namely there were no relevant descriptions about a systemic immune response, namely specific antibody, a balanced Th1 and Th2 and T-cell immunity response in previous study that could be concerned with offering protection against lethal challenges [16,17,18,20,25,54]. In contrast to most other CCHFV vaccine studies, the study differed in that we performed IgG2a vs IgG1-specific ELISAs on samples collected 2 weeks after every immunization (Figure 4D–F). The data were shown that two vaccinations with 5 μg A-G-GP produced a dominant IgG1antibody response (Th2 immune response) and a delayed IgG2a antibody, suggesting that the Th1 immune response was really not as strong as Th2 immune response after two immunizations; a strong IgG2a antibody (Th1 response) was detected after three or four vaccinations in present study, which may be one reason why the previous protein subunit vaccines did not provide a protection. We also determined the ratio of IgG2a to IgG1 as an indirect method to evaluate induced Th1 and Th2-type biases, respectively, the result was shown that as the number of immunizations increased, all the ratios of IgG2a/IgG1 increased in 5 μg A-G-GP and 5 μg G-GP alone group, suggesting a Th1 immune response strengthened gradually until a balanced Th1and Th2 immune responses appeared, which might contribute protective immunity to CCHFV [20]. Therefore, we thought additional immunizations were needed to be added in the previous study. In addition, in the cell culture based and the mouse brain derived inactivated vaccines [16] and mRNA vaccine [24], authors held that all the immunocompetent mice may have a more balanced response than the type I interferon receptor knockout (IFNAR−/−) mice and antibody response in immunocompetent mice may be more reliable than the interferon knock-out mice. Therefore, it is reasonable that we verified the immunogenicity of G-GP in BALB/c mice and it is important to continue efforts to develop alternative CCHF animal models that can be used to evaluate the efficacy of glycoprotein-based subunit vaccines. In the future, we will verify the efficacy of the vaccine in suitable animal models, if the result show that the G-GP vaccines can achieve protection, additional experiments, such as passive antibody and T cell transfer assays are required to demonstrate which of the antibody responses and/or CD4+, CD8+ T cell after vaccination/infection are responsible for surviving from CCHFV infection.
In a word, we successfully developed three G-GP vaccine candidates displaying the GP subunits in this study. Our results clearly demonstrated that G-GP with ISA 201VG plus Poly (I:C) (A-G-GP) could elicit systemic immune responses in BALB/c mice, including specific humoral, T-cell and a balanced cell-mediated Th1 and humoral-mediated Th2 immune response. Therefore, the GEM-PA delivery system is promising for the development of subunit vaccines against CCHFV. In addition, it is the first report regarding a subunit vaccine expressing the conserved neutralizing antibody (NAb) region of CCHFV with good antigen-specific immunogenicity in BABL/c mice. The effectiveness of a G-GP vaccine against CCHFV has been severely hampered due to the lack of a suitable animal model and the requirement of a high-containment laboratory to handle the virus; we, along with others, recently developed small adult-animal models to test the protective effects and longevity, and even investigated whether the G-GP vaccine could offer cross-protection against multiple CCHFV strains in the future.

5. Conclusions

GEM-PA surface display system could provide an efficient and simple purification method for CCHFV subunit antigens and G-GP produced systematic humoral and cellular immune responses, which has the potential to be developed into a promising candidate vaccine against CCHFV infections.

Author Contributions

Conceptualization, N.F., Y.Z., F.Y., S.Y. and X.X.; methodology, Z.S., Z.L., J.B. and C.J.; software, Q.W.; formal analysis, Q.W.; writing original draft preparation, Q.W.; writing review and editing, S.W., T.W., Y.Z.; supervision, E.L., J.W., H.J. and P.H.; project administration, F.Y.; funding acquisition, F.Y., S.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the National Key Research and Development Program of China (2021YFF0703600).

Institutional Review Board Statement

The animal study protocol was approved by the Ethics Committee of Changchun Veterinary Research Institute, Chinese Academy of Agricultural Sciences, (protocol code AMMS-11-2020-020).

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Whitehouse, C.A. Crimean-Congo hemorrhagic fever. Antivir. Res. 2004, 64, 145–160. [Google Scholar] [CrossRef] [PubMed]
  2. Barnwal, B.; Karlberg, H.; Mirazimi, A.; Tan, Y.J. The Non-structural Protein of Crimean-Congo Hemorrhagic Fever Virus Disrupts the Mitochondrial Membrane Potential and Induces Apoptosis. J. Biol. Chem. 2016, 291, 582–592. [Google Scholar] [CrossRef] [PubMed]
  3. Vincent, M.J.; Sanchez, A.J.; Erickson, B.R.; Basak, A.; Chretien, M.; Seidah, N.G.; Nichol, S.T. Crimean-Congo hemorrhagic fever virus glycoprotein proteolytic processing by subtilase SKI-1. J. Virol. 2003, 77, 8640–8649. [Google Scholar] [CrossRef] [PubMed]
  4. Bergeron, E.; Vincent, M.J.; Nichol, S.T. Crimean-Congo hemorrhagic fever virus glycoprotein processing by the endoprotease SKI-1/S1P is critical for virus infectivity. J. Virol. 2007, 81, 13271–13276. [Google Scholar] [CrossRef] [PubMed]
  5. Bertolotti-Ciarlet, A.; Smith, J.; Strecker, K.; Paragas, J.; Altamura, L.A.; McFalls, J.M.; Frias-Staheli, N.; Garcia-Sastre, A.; Schmaljohn, C.S.; Doms, R.W. Cellular localization and antigenic characterization of crimean-congo hemorrhagic fever virus glycoproteins. J. Virol. 2005, 79, 6152–6161. [Google Scholar] [CrossRef] [PubMed]
  6. Conger, N.G.; Paolino, K.M.; Osborn, E.C.; Rusnak, J.M.; Gunther, S.; Pool, J.; Rollin, P.E.; Allan, P.F.; Schmidt-Chanasit, J.; Rieger, T.; et al. Health care response to CCHF in US soldier and nosocomial transmission to health care providers, Germany, 2009. Emerg. Infect. Dis. 2015, 21, 23–31. [Google Scholar] [CrossRef]
  7. Spengler, J.R.; Bergeron, E.; Rollin, P.E. Seroepidemiological Studies of Crimean-Congo Hemorrhagic Fever Virus in Domestic and Wild Animals. PLoS Negl. Trop. Dis. 2016, 10, e0004210. [Google Scholar] [CrossRef]
  8. Capua, I. Crimean-Congo haemorrhagic fever in ostriches: A public health risk for countries of the European Union? Avian. Pathol. 1998, 27, 117–120. [Google Scholar] [CrossRef]
  9. Shepherd, A.J.; Swanepoel, R.; Leman, P.A.; Shepherd, S.P. Field and laboratory investigation of Crimean-Congo haemorrhagic fever virus (Nairovirus, family Bunyaviridae) infection in birds. Trans. R. Soc. Trop. Med. Hyg. 1987, 81, 1004–1007. [Google Scholar] [CrossRef]
  10. Papa, A.; Sidira, P.; Kallia, S.; Ntouska, M.; Zotos, N.; Doumbali, E.; Maltezou, H.C.; Demiris, N.; Tsatsaris, A. Factors associated with IgG positivity to Crimean-Congo hemorrhagic fever virus in the area with the highest seroprevalence in Greece. Ticks Tick Borne Dis. 2013, 4, 417–420. [Google Scholar] [CrossRef]
  11. Chumakov, M.; Vafakulov, K.B.; Zavodova, T. Cases of transmission of Crimean hemorrhagic fever virus in Uzbekistan by contacts with blood of a sick cow and a human patient as well as by tick bites (Russian). Proc. Inst. Polios. Viral Enceph. Acad. Med. Sci. CCR 1974, 22, 29–34. [Google Scholar]
  12. Nabeth, P.; Cheikh, D.O.; Lo, B.; Faye, O.; Vall, I.O.; Niang, M.; Wague, B.; Diop, D.; Diallo, M.; Diallo, B.; et al. Crimean-Congo hemorrhagic fever, Mauritania. Emerg. Infect. Dis. 2004, 10, 2143–2149. [Google Scholar] [CrossRef] [PubMed]
  13. Humolli, I.; Dedushaj, I.; Zupanac, T.A.; Mucaj, S. Epidemiological, serological and herd immunity of Crimean-Congo haemorrhagic fever in Kosovo. Med. Arh. 2010, 64, 91–93. [Google Scholar] [PubMed]
  14. Mousavi-Jazi, M.; Karlberg, H.; Papa, A.; Christova, I.; Mirazimi, A. Healthy individuals’ immune response to the Bulgarian Crimean-Congo hemorrhagic fever virus vaccine. Vaccine 2012, 30, 6225–6229. [Google Scholar] [CrossRef]
  15. Papa, A.; Papadimitriou, E.; Christova, I. The Bulgarian vaccine Crimean-Congo haemorrhagic fever virus strain. Scand. J. Infect. Dis. 2011, 43, 225–229. [Google Scholar] [CrossRef]
  16. Pavel, S.T.I.; Yetiskin, H.; Kalkan, A.; Ozdarendeli, A. Evaluation of the cell culture based and the mouse brain derived inactivated vaccines against Crimean-Congo hemorrhagic fever virus in transiently immune-suppressed (IS) mouse model. PLoS Negl. Trop. Dis. 2020, 14, e0008834. [Google Scholar] [CrossRef]
  17. Canakoglu, N.; Berber, E.; Tonbak, S.; Ertek, M.; Sozdutmaz, I.; Aktas, M.; Kalkan, A.; Ozdarendeli, A. Immunization of knock-out alpha/beta interferon receptor mice against high lethal dose of Crimean-Congo hemorrhagic fever virus with a cell culture based vaccine. PLoS Negl. Trop. Dis. 2015, 9, e0003579. [Google Scholar] [CrossRef]
  18. Garrison, A.R.; Shoemaker, C.J.; Golden, J.W.; Fitzpatrick, C.J.; Suschak, J.J.; Richards, M.J.; Badger, C.V.; Six, C.M.; Martin, J.D.; Hannaman, D.; et al. A DNA vaccine for Crimean-Congo hemorrhagic fever protects against disease and death in two lethal mouse models. PLoS Negl. Trop. Dis. 2017, 11, e0005908. [Google Scholar] [CrossRef]
  19. Hawman, D.W.; Ahlen, G.; Appelberg, K.S.; Meade-White, K.; Hanley, P.W.; Scott, D.; Monteil, V.; Devignot, S.; Okumura, A.; Weber, F.; et al. A DNA-based vaccine protects against Crimean-Congo haemorrhagic fever virus disease in a Cynomolgus macaque model. Nat. Microbiol. 2021, 6, 187–195. [Google Scholar] [CrossRef]
  20. Hinkula, J.; Devignot, S.; Akerstrom, S.; Karlberg, H.; Wattrang, E.; Bereczky, S.; Mousavi-Jazi, M.; Risinger, C.; Lindegren, G.; Vernersson, C.; et al. Immunization with DNA Plasmids Coding for Crimean-Congo Hemorrhagic Fever Virus Capsid and Envelope Proteins and/or Virus-Like Particles Induces Protection and Survival in Challenged Mice. J. Virol. 2017, 91, e02076-16. [Google Scholar] [CrossRef]
  21. Kortekaas, J.; Vloet, R.P.; McAuley, A.J.; Shen, X.; Bosch, B.J.; de Vries, L.; Moormann, R.J.; Bente, D.A. Crimean-Congo Hemorrhagic Fever Virus Subunit Vaccines Induce High Levels of Neutralizing Antibodies But No Protection in STAT1 Knockout Mice. Vector Borne Zoonotic Dis. 2015, 15, 759–764. [Google Scholar] [CrossRef] [PubMed]
  22. Ghiasi, S.M.; Salmanian, A.H.; Chinikar, S.; Zakeri, S. Mice orally immunized with a transgenic plant expressing the glycoprotein of Crimean-Congo hemorrhagic fever virus. Clin. Vaccine Immunol. 2011, 18, 2031–2037. [Google Scholar] [CrossRef] [PubMed]
  23. Zivcec, M.; Metcalfe, M.G.; Albarino, C.G.; Guerrero, L.W.; Pegan, S.D.; Spiropoulou, C.F.; Bergeron, E. Assessment of Inhibitors of Pathogenic Crimean-Congo Hemorrhagic Fever Virus Strains Using Virus-Like Particles. PLoS Negl. Trop. Dis. 2015, 9, e0004259. [Google Scholar] [CrossRef] [PubMed]
  24. Aligholipour Farzani, T.; Földes, K.; Ergünay, K.; Gurdal, H.; Bastug, A.; Ozkul, A. Immunological Analysis of a CCHFV mRNA Vaccine Candidate in Mouse Models. Vaccines 2019, 7, 115. [Google Scholar] [CrossRef]
  25. Buttigieg, K.R.; Dowall, S.D.; Findlay-Wilson, S.; Miloszewska, A.; Rayner, E.; Hewson, R.; Carroll, M.W. A novel vaccine against Crimean-Congo Haemorrhagic Fever protects 100% of animals against lethal challenge in a mouse model. PLoS ONE 2014, 9, e91516. [Google Scholar] [CrossRef]
  26. Dowall, S.D.; Buttigieg, K.R.; Findlay-Wilson, S.J.; Rayner, E.; Pearson, G.; Miloszewska, A.; Graham, V.A.; Carroll, M.W.; Hewson, R. A Crimean-Congo hemorrhagic fever (CCHF) viral vaccine expressing nucleoprotein is immunogenic but fails to confer protection against lethal disease. Hum. Vaccines Immunother. 2016, 12, 519–527. [Google Scholar] [CrossRef] [PubMed]
  27. Zivcec, M.; Safronetz, D.; Scott, D.P.; Robertson, S.; Feldmann, H. Nucleocapsid protein-based vaccine provides protection in mice against lethal Crimean-Congo hemorrhagic fever virus challenge. PLoS Negl. Trop. Dis. 2018, 12, e0006628. [Google Scholar] [CrossRef]
  28. Rodriguez, S.E.; Cross, R.W.; Fenton, K.A.; Bente, D.A.; Mire, C.E.; Geisbert, T.W. Vesicular Stomatitis Virus-Based Vaccine Protects Mice against Crimean-Congo Hemorrhagic Fever. Sci. Rep. 2019, 9, 7755. [Google Scholar] [CrossRef]
  29. Aligholipour Farzani, T.; Foldes, K.; Hanifehnezhad, A.; Yener Ilce, B.; Bilge Dagalp, S.; Amirzadeh Khiabani, N.; Ergunay, K.; Alkan, F.; Karaoglu, T.; Bodur, H.; et al. Bovine Herpesvirus Type 4 (BoHV-4) Vector Delivering Nucleocapsid Protein of Crimean-Congo Hemorrhagic Fever Virus Induces Comparable Protective Immunity against Lethal Challenge in IFNalpha/beta/gammaR-/- Mice Models. Viruses 2019, 11, 590. [Google Scholar] [CrossRef]
  30. Bosma, T.; Kanninga, R.; Neef, J.; Audouy, S.A.; van Roosmalen, M.L.; Steen, A.; Buist, G.; Kok, J.; Kuipers, O.P.; Robillard, G.; et al. Novel surface display system for proteins on non-genetically modified gram-positive bacteria. Appl. Environ. Microbiol. 2006, 72, 880–889. [Google Scholar] [CrossRef]
  31. Van Braeckel-Budimir, N.; Haijema, B.J.; Leenhouts, K. Bacterium-like particles for efficient immune stimulation of existing vaccines and new subunit vaccines in mucosal applications. Front. Immunol. 2013, 4, 282. [Google Scholar] [CrossRef]
  32. Choudhari, S.P.; Chen, X.; Kim, J.H.; Van Roosmalen, M.L.; Greenwood, J.C., 2nd; Joshi, S.B.; Picking, W.D.; Leenhouts, K.; Middaugh, C.R.; Picking, W.L. Biophysical characterization of the type III secretion tip proteins and the tip proteins attached to bacterium-like particles. J. Pharm. Sci. 2015, 104, 424–432. [Google Scholar] [CrossRef] [PubMed]
  33. Li, E.; Chi, H.; Huang, P.; Yan, F.; Zhang, Y.; Liu, C.; Wang, Z.; Li, G.; Zhang, S.; Mo, R.; et al. A Novel Bacterium-Like Particle Vaccine Displaying the MERS-CoV Receptor-Binding Domain Induces Specific Mucosal and Systemic Immune Responses in Mice. Viruses 2019, 11, 799. [Google Scholar] [CrossRef] [PubMed]
  34. Xu, S.; Jiao, C.; Jin, H.; Li, W.; Li, E.; Cao, Z.; Shi, Z.; Yan, F.; Zhang, S.; He, H.; et al. A Novel Bacterium-Like Particle-Based Vaccine Displaying the SUDV Glycoprotein Induces Potent Humoral and Cellular Immune Responses in Mice. Viruses 2019, 11, 1149. [Google Scholar] [CrossRef] [PubMed]
  35. Rigter, A.; Widjaja, I.; Versantvoort, H.; Coenjaerts, F.E.; van Roosmalen, M.; Leenhouts, K.; Rottier, P.J.; Haijema, B.J.; de Haan, C.A. A protective and safe intranasal RSV vaccine based on a recombinant prefusion-like form of the F protein bound to bacterium-like particles. PLoS ONE 2013, 8, e71072. [Google Scholar] [CrossRef]
  36. Bi, J.; Li, F.; Zhang, M.; Wang, H.; Lu, J.; Zhang, Y.; Ling, H.; Wang, J.; Gao, F.; Kong, W.; et al. An HIV-1 vaccine based on bacterium-like particles elicits Env-specific mucosal immune responses. Immunol. Lett. 2020, 222, 29–39. [Google Scholar] [CrossRef] [PubMed]
  37. Nganou-Makamdop, K.; van Roosmalen, M.L.; Audouy, S.A.; van Gemert, G.J.; Leenhouts, K.; Hermsen, C.C.; Sauerwein, R.W. Bacterium-like particles as multi-epitope delivery platform for Plasmodium berghei circumsporozoite protein induce complete protection against malaria in mice. Malar J. 2012, 11, 50. [Google Scholar] [CrossRef] [PubMed]
  38. Zhang, Y.; Guo, X.; Guo, M.; Chen, X.; Li, B.; Yu, J.; Gu, T.; Kong, W.; Wu, Y. Combined prime-boost immunization with systemic and mucosal pneumococcal vaccines based on Pneumococcal surface protein A to enhance protection against lethal pneumococcal infections. Immunol. Res. 2019, 67, 398–407. [Google Scholar] [CrossRef] [PubMed]
  39. Cheng, H.; Chen, J.; Cai, Z.; Du, L.; Hou, J.; Qiao, X.; Zheng, Q. Development of GEM-PA-nanotrap for purification of foot-and-mouth disease virus. Vaccine 2019, 37, 3205–3213. [Google Scholar] [CrossRef] [PubMed]
  40. Audouy, S.A.; van Selm, S.; van Roosmalen, M.L.; Post, E.; Kanninga, R.; Neef, J.; Estevao, S.; Nieuwenhuis, E.E.; Adrian, P.V.; Leenhouts, K.; et al. Development of lactococcal GEM-based pneumococcal vaccines. Vaccine 2007, 25, 2497–2506. [Google Scholar] [CrossRef] [PubMed]
  41. Qiao, X.W.; Yu, X.M.; Li, P.C.; Yu, S.S.; Chen, J.; Zhang, Y.P.; Yang, L.; Hou, L.T.; Zheng, Q.S.; Hou, J.B. Immune efficacy of a porcine circovirus type 2 vaccine purified using Gram-positive enhancer matrix surface display technology. J. Appl. Microbiol. 2019, 127, 658–669. [Google Scholar] [CrossRef] [PubMed]
  42. Ramirez, K.; Ditamo, Y.; Rodriguez, L.; Picking, W.L.; van Roosmalen, M.L.; Leenhouts, K.; Pasetti, M.F. Neonatal mucosal immunization with a non-living, non-genetically modified Lactococcus lactis vaccine carrier induces systemic and local Th1-type immunity and protects against lethal bacterial infection. Mucosal. Immunol. 2010, 3, 159–171. [Google Scholar] [CrossRef]
  43. Arce, L.P.; Raya Tonetti, M.F.; Raimondo, M.P.; Muller, M.F.; Salva, S.; Alvarez, S.; Baiker, A.; Villena, J.; Vizoso Pinto, M.G. Oral Vaccination with Hepatitis E Virus Capsid Protein and Immunobiotic Bacterium-Like Particles Induce Intestinal and Systemic Immunity in Mice. Probiotics Antimicrob. Proteins 2020, 12, 961–972. [Google Scholar] [CrossRef] [PubMed]
  44. Lu, J.; Hou, H.; Wang, D.; Leenhouts, K.; Roosmalen, M.L.V.; Sun, T.; Gu, T.; Song, Y.; Jiang, C.; Kong, W.; et al. Systemic and mucosal immune responses elicited by intranasal immunization with a pneumococcal bacterium-like particle-based vaccine displaying pneumolysin mutant Plym2. Immunol. Lett. 2017, 187, 41–46. [Google Scholar] [CrossRef] [PubMed]
  45. van Roosmalen, M.L.; Kanninga, R.; El Khattabi, M.; Neef, J.; Audouy, S.; Bosma, T.; Kuipers, A.; Post, E.; Steen, A.; Kok, J.; et al. Mucosal vaccine delivery of antigens tightly bound to an adjuvant particle made from food-grade bacteria. Methods 2006, 38, 144–149. [Google Scholar] [CrossRef] [PubMed]
  46. Wang, S.; Zhang, C.; Liang, B.; Wang, W.; Feng, N.; Zhao, Y.; Wang, T.; Guo, Z.; Yan, F.; Yang, S.; et al. Characterization of Immune Response Diversity in Rodents Vaccinated with a Vesicular Stomatitis Virus Vectored COVID-19 Vaccine. Viruses 2022, 14, 1127. [Google Scholar] [CrossRef] [PubMed]
  47. Ahmed, A.A.; McFalls, J.M.; Hoffmann, C.; Filone, C.M.; Stewart, S.M.; Paragas, J.; Khodjaev, S.; Shermukhamedova, D.; Schmaljohn, C.S.; Doms, R.W.; et al. Presence of broadly reactive and group-specific neutralizing epitopes on newly described isolates of Crimean-Congo hemorrhagic fever virus. J. Gen. Virol. 2005, 86, 3327–3336. [Google Scholar] [CrossRef] [PubMed]
  48. Zivcec, M.; Guerrero, L.I.W.; Albarino, C.G.; Bergeron, E.; Nichol, S.T.; Spiropoulou, C.F. Identification of broadly neutralizing monoclonal antibodies against Crimean-Congo hemorrhagic fever virus. Antivir. Res. 2017, 146, 112–120. [Google Scholar] [CrossRef] [PubMed]
  49. Rahpeyma, M.; Fotouhi, F.; Makvandi, M.; Ghadiri, A.; Samarbaf-Zadeh, A. Crimean-Congo Hemorrhagic Fever Virus Gn Bioinformatic Analysis and Construction of a Recombinant Bacmid in Order to Express Gn by Baculovirus Expression System. Jundishapur J. Microbiol. 2015, 8, e25502. [Google Scholar] [CrossRef] [PubMed]
  50. Rahpeyma, M.; Samarbaf-Zadeh, A.; Makvandi, M.; Ghadiri, A.A.; Dowall, S.D.; Fotouhi, F. Expression and characterization of codon-optimized Crimean-Congo hemorrhagic fever virus Gn glycoprotein in insect cells. Arch. Virol. 2017, 162, 1951–1962. [Google Scholar] [CrossRef] [PubMed]
  51. Ludwig, G.V.; Israel, B.A.; Christensen, B.M.; Yuill, T.M.; Schultz, K.T. Role of La Crosse virus glycoproteins in attachment of virus to host cells. Virology 1991, 181, 564–571. [Google Scholar] [CrossRef]
  52. Spik, K.; Shurtleff, A.; McElroy, A.K.; Guttieri, M.C.; Hooper, J.W.; SchmalJohn, C. Immunogenicity of combination DNA vaccines for Rift Valley fever virus, tick-borne encephalitis virus, Hantaan virus, and Crimean Congo hemorrhagic fever virus. Vaccine 2006, 24, 4657–4666. [Google Scholar] [CrossRef] [PubMed]
  53. Shepherd, A.J.; Swanepoel, R.; Leman, P.A. Antibody response in Crimean-Congo hemorrhagic fever. Rev. Infect. Dis. 1989, 11 (Suppl. S4), S801–S806. [Google Scholar] [CrossRef] [PubMed]
  54. Dowall, S.D.; Graham, V.A.; Rayner, E.; Hunter, L.; Watson, R.; Taylor, I.; Rule, A.; Carroll, M.W.; Hewson, R. Protective effects of a Modified Vaccinia Ankara-based vaccine candidate against Crimean-Congo Haemorrhagic Fever virus require both cellular and humoral responses. PLoS ONE 2016, 11, e0156637. [Google Scholar] [CrossRef] [PubMed]
Viruses 14 01664 g001 550

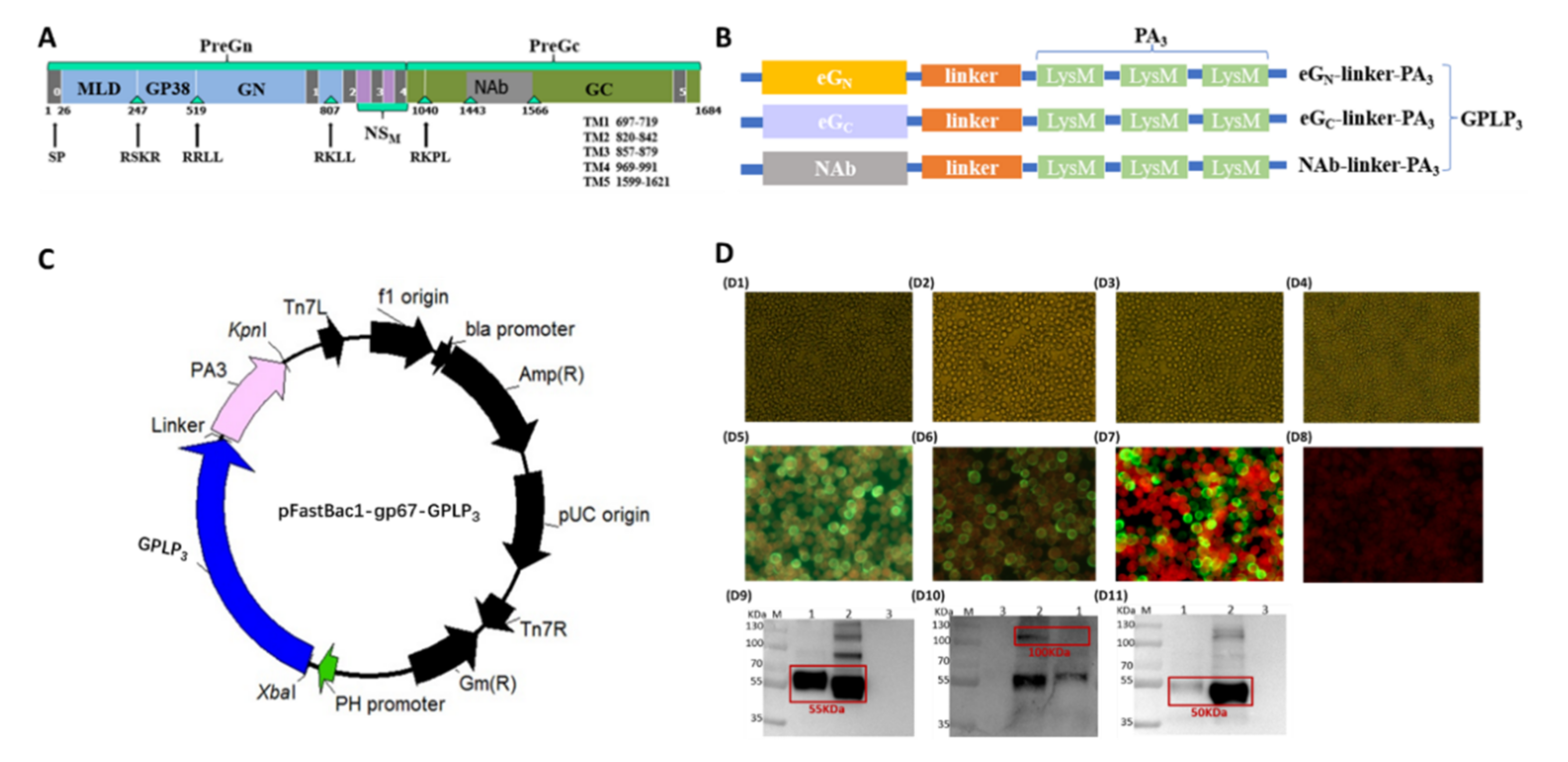

Figure 1. (A) Schematic representation of the glycoprotein ORF of CCHFV Ibar10200 strain and construction of the fusion proteins. The precise location of the signal peptide was predicted at aa 1 to 26 by the prediction server Signal P V1.1 (22). TM helix meaning transmembrane helix, and inside meaning the cytoplasmic side, the precise locations of the various regions of glycoprotein ORF predicted by the TMHMM server are as follows: aa 1 to 696 (outside), aa 697 to 719 (TM helix), aa 720 to 819 (inside), aa 820 to 842 (TM helix), aa 843 to 856 (outside), aa 857 to 879 (TM helix), aa 880 to 968 (inside), aa 969 to 991 (TM helix), aa 992 to 1598 (outside), aa 1699 to 1621 (TM helix), and aa 1622 to 1684 (inside). The tetrapeptide RRLL (aa 516 to 519) precedes the confirmed N terminus of GN, and RKPL (aa 1037 to 1040) precedes the confirmed N terminus of GC. The triangular symbols denote potential cleavage recognition sites: RSKR, aa 244 to 247 and RKLL, aa 804 to 807. The precise location of GN ectodomain was predicted at aa 520 to 696, Gc ectodomain was predicted at aa 1041 to 1598, the truncated the protein by 19 carboxy-terminal amino acids, corresponding to the membrane-proximal stem region (FFYGLKNMLSGIFGNVFMG) was predicted at aa 1041 to 1579. NAb is a conserved neutralizing epitope of CCHFV glycoprotein was predicted at aa 1443 to 1566. (B) Schematic illustration of eGN-linker-PA3, eGC-linker-PA3, and NAb-linker-PA3 fusion proteins. (C) Schematic of the recombinant baculovirus expressing the CCHFV GPLP3 fusion protein. (D) CPE and detection of the expression of eGN-linker-PA3, eGC-linker-PA3, and NAb-PA3 fusion proteins. D1–D4: CPE of Sf9 cells were infected with recombinant baculoviruses rBV-eGNLP3, rBV-eGCLP3, rBV-NAbLP3, uninfected cells. D5–D8: Expression of eGPLP3 (Sf9 were infected with eGNLP3, eGCLP3, NAbLP3 or rBV) was evaluated by IFA using a mouse anti-CCHFV GN polyclonal antibody or mouse anti-CCHFV G monoclonal antibody (magnification of microscopy images, 200×). D9–D11: Western blot analysis of the eGNLP3, eGCLP3, NAbLP3 or rBV protein expression in Sf9-infected cells. Expression was detected with a mouse anti-CCHFV GN polyclonal antibody or mouse anti-CCHFV GC monoclonal antibody. All target proteins are boxed out in red. (A) eGNLP3 was present as a 55 kDa protein.; (B) eGCLP3 was present as a 100 kDa protein; (C) NAbLP3 was present as a 50 kDa protein. M: molecular weight marker, 1: culture supernatant, 2: cell sedimentation, 3: rBV infected cells.
Figure 1. (A) Schematic representation of the glycoprotein ORF of CCHFV Ibar10200 strain and construction of the fusion proteins. The precise location of the signal peptide was predicted at aa 1 to 26 by the prediction server Signal P V1.1 (22). TM helix meaning transmembrane helix, and inside meaning the cytoplasmic side, the precise locations of the various regions of glycoprotein ORF predicted by the TMHMM server are as follows: aa 1 to 696 (outside), aa 697 to 719 (TM helix), aa 720 to 819 (inside), aa 820 to 842 (TM helix), aa 843 to 856 (outside), aa 857 to 879 (TM helix), aa 880 to 968 (inside), aa 969 to 991 (TM helix), aa 992 to 1598 (outside), aa 1699 to 1621 (TM helix), and aa 1622 to 1684 (inside). The tetrapeptide RRLL (aa 516 to 519) precedes the confirmed N terminus of GN, and RKPL (aa 1037 to 1040) precedes the confirmed N terminus of GC. The triangular symbols denote potential cleavage recognition sites: RSKR, aa 244 to 247 and RKLL, aa 804 to 807. The precise location of GN ectodomain was predicted at aa 520 to 696, Gc ectodomain was predicted at aa 1041 to 1598, the truncated the protein by 19 carboxy-terminal amino acids, corresponding to the membrane-proximal stem region (FFYGLKNMLSGIFGNVFMG) was predicted at aa 1041 to 1579. NAb is a conserved neutralizing epitope of CCHFV glycoprotein was predicted at aa 1443 to 1566. (B) Schematic illustration of eGN-linker-PA3, eGC-linker-PA3, and NAb-linker-PA3 fusion proteins. (C) Schematic of the recombinant baculovirus expressing the CCHFV GPLP3 fusion protein. (D) CPE and detection of the expression of eGN-linker-PA3, eGC-linker-PA3, and NAb-PA3 fusion proteins. D1–D4: CPE of Sf9 cells were infected with recombinant baculoviruses rBV-eGNLP3, rBV-eGCLP3, rBV-NAbLP3, uninfected cells. D5–D8: Expression of eGPLP3 (Sf9 were infected with eGNLP3, eGCLP3, NAbLP3 or rBV) was evaluated by IFA using a mouse anti-CCHFV GN polyclonal antibody or mouse anti-CCHFV G monoclonal antibody (magnification of microscopy images, 200×). D9–D11: Western blot analysis of the eGNLP3, eGCLP3, NAbLP3 or rBV protein expression in Sf9-infected cells. Expression was detected with a mouse anti-CCHFV GN polyclonal antibody or mouse anti-CCHFV GC monoclonal antibody. All target proteins are boxed out in red. (A) eGNLP3 was present as a 55 kDa protein.; (B) eGCLP3 was present as a 100 kDa protein; (C) NAbLP3 was present as a 50 kDa protein. M: molecular weight marker, 1: culture supernatant, 2: cell sedimentation, 3: rBV infected cells.
Viruses 14 01664 g001
Viruses 14 01664 g002 550
Figure 2. (A) Schematic representation of GP-PA binding with GEM particles. The CCHFV GP fragment of interest was fused at its C terminus with three LysM motifs (PA3). The PA bound noncovalently to the peptidoglycan to formulate G-GP antigen. (B) Western blot analysis of the proteins displayed on GEM particles. Lane B1–1, Lane B2–2, Lane B2–3: eGNLP3, NAbLP3, eGCLP3 proteins on GEM particles, proteins were detected with a mouse anti-CCHFV-GN polyclonal antibody or a mouse anti-CCHFV-pre-Gc monoclonal antibody (11E7); Lane B1-2, Lane B2-1: the mock control. (C) Detection of the fusion proteins displaying the GEM particles. C1-C3: SDS-PAGE analysis of the displaying of eGNLP3, eGCLP3 and NAbLP3 proteins on GEM particles. Lane C-1, C-3: GEM particles displaying eGNLP3/ NAbLP3 from the culture supernatant of rBV-eGNLP3-infected Sf9 cells; Lane C-2: GEM particles displaying eGCLP3 from the supernatant after ultrasonic crushing of rBV-eGCLP3-infected Sf9 cells; (D) GEM particles identified by thin sectioning and immunoelectron microscopy of bacterium-like particles. D1: Untreated MG1363; D2: GEM particles; D3–D5: (G-eGN, G-eGC, G-NAb) particles; D6–D8: Immunoelectron microscopy of (G-eGN, G-eGC, G-NAb) particles.
Figure 2. (A) Schematic representation of GP-PA binding with GEM particles. The CCHFV GP fragment of interest was fused at its C terminus with three LysM motifs (PA3). The PA bound noncovalently to the peptidoglycan to formulate G-GP antigen. (B) Western blot analysis of the proteins displayed on GEM particles. Lane B1–1, Lane B2–2, Lane B2–3: eGNLP3, NAbLP3, eGCLP3 proteins on GEM particles, proteins were detected with a mouse anti-CCHFV-GN polyclonal antibody or a mouse anti-CCHFV-pre-Gc monoclonal antibody (11E7); Lane B1-2, Lane B2-1: the mock control. (C) Detection of the fusion proteins displaying the GEM particles. C1-C3: SDS-PAGE analysis of the displaying of eGNLP3, eGCLP3 and NAbLP3 proteins on GEM particles. Lane C-1, C-3: GEM particles displaying eGNLP3/ NAbLP3 from the culture supernatant of rBV-eGNLP3-infected Sf9 cells; Lane C-2: GEM particles displaying eGCLP3 from the supernatant after ultrasonic crushing of rBV-eGCLP3-infected Sf9 cells; (D) GEM particles identified by thin sectioning and immunoelectron microscopy of bacterium-like particles. D1: Untreated MG1363; D2: GEM particles; D3–D5: (G-eGN, G-eGC, G-NAb) particles; D6–D8: Immunoelectron microscopy of (G-eGN, G-eGC, G-NAb) particles.
Viruses 14 01664 g002
Viruses 14 01664 g003 550

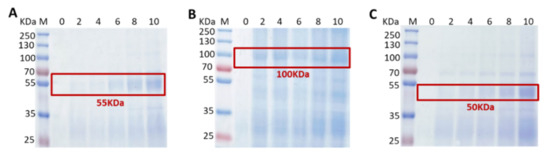

Figure 3. Detection of binding activity of the fusion proteins on GEM particles by SDS-PAGE. (A–C) The maximum binding capacity of each fusion protein binding to the GEM particles when 0.5 U GEM particles were combined with 0, 2, 4, 6, 8 and 10 mL of each recombinant baculovirus culture supernatant. All target proteins are boxed out in red. (A) G-eGN was present as a 55 kDa protein; (B) G-eGC was present as a 100 kDa protein; (C) G-NAb was present as a 50 kDa protein. M: molecular weight marker; 0: GEM particles.
Figure 3. Detection of binding activity of the fusion proteins on GEM particles by SDS-PAGE. (A–C) The maximum binding capacity of each fusion protein binding to the GEM particles when 0.5 U GEM particles were combined with 0, 2, 4, 6, 8 and 10 mL of each recombinant baculovirus culture supernatant. All target proteins are boxed out in red. (A) G-eGN was present as a 55 kDa protein; (B) G-eGC was present as a 100 kDa protein; (C) G-NAb was present as a 50 kDa protein. M: molecular weight marker; 0: GEM particles.
Viruses 14 01664 g003
Viruses 14 01664 g004 550

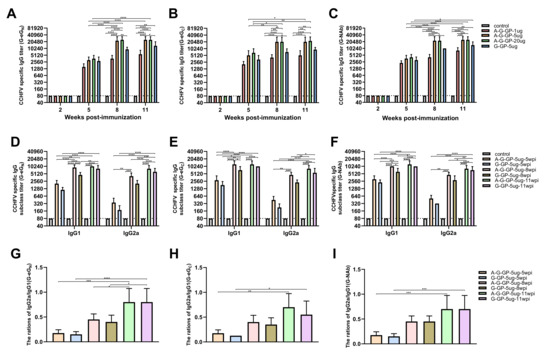

Figure 4. Serum antibody responses induced by CCHFV G-GP. Serum samples were collected by retro-orbital plexus puncture at weeks 2, 5, 8 and 11. CCHFV GP-specific total IgG (n = 5 mice/group/time point), IgG1and IgG2a (n = 5 mice/group/time point) antibody responses were measured by indirect ELISA with the purified eGN protein and eGC and are displayed as the end-point dilution titers. The horizontal dotted line in the figure indicates the limit of determination (LOD). (A–C) Analysis of serum antibody titers induced by different doses and time points on the immune system in mice by ELISA, data are shown as the mean ± SD and were analyzed by two-way ANOVA; (D–F) Analysis of serum antibody subclass titers induced by time points on the immune dose (5 μg G-GP) by ELISA, data are shown as the mean ± SD and were analyzed by one-way ANOVA; (G–I) Analysis of serum antibody ratios of IgG2a/IgG1 induced by time points on the immune dose (5 μg G-GP) by ELISA, data were shown as the mean ± SD and were analyzed by one-way ANOVA, * p < 0.05, ** p < 0.01, *** p < 0.001, **** p < 0.0001.
Figure 4. Serum antibody responses induced by CCHFV G-GP. Serum samples were collected by retro-orbital plexus puncture at weeks 2, 5, 8 and 11. CCHFV GP-specific total IgG (n = 5 mice/group/time point), IgG1and IgG2a (n = 5 mice/group/time point) antibody responses were measured by indirect ELISA with the purified eGN protein and eGC and are displayed as the end-point dilution titers. The horizontal dotted line in the figure indicates the limit of determination (LOD). (A–C) Analysis of serum antibody titers induced by different doses and time points on the immune system in mice by ELISA, data are shown as the mean ± SD and were analyzed by two-way ANOVA; (D–F) Analysis of serum antibody subclass titers induced by time points on the immune dose (5 μg G-GP) by ELISA, data are shown as the mean ± SD and were analyzed by one-way ANOVA; (G–I) Analysis of serum antibody ratios of IgG2a/IgG1 induced by time points on the immune dose (5 μg G-GP) by ELISA, data were shown as the mean ± SD and were analyzed by one-way ANOVA, * p < 0.05, ** p < 0.01, *** p < 0.001, **** p < 0.0001.
Viruses 14 01664 g004
Viruses 14 01664 g005 550

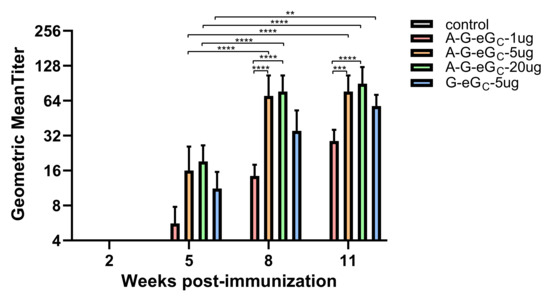

Figure 5. Analysis of serum antibody titers induced by different immunizing doses by neutralization of CCHFV GP-pseudo-typed virus. Neutralizing antibody titers were measured with Vero E6 cells and 200TCID50 of pseudo-typed virus. Serum samples were collected 2 weeks after every immunization. Data are shown as the mean ± SD and were analyzed using one-way ANOVA (** p < 0.01, *** p < 0.001, **** p < 0.0001).
Figure 5. Analysis of serum antibody titers induced by different immunizing doses by neutralization of CCHFV GP-pseudo-typed virus. Neutralizing antibody titers were measured with Vero E6 cells and 200TCID50 of pseudo-typed virus. Serum samples were collected 2 weeks after every immunization. Data are shown as the mean ± SD and were analyzed using one-way ANOVA (** p < 0.01, *** p < 0.001, **** p < 0.0001).
Viruses 14 01664 g005
Viruses 14 01664 g006 550

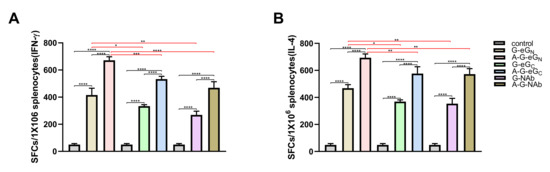

Figure 6. ELISpot analysis of IFN-γ, IL-4 secretion by mouse splenocytes (A,B). The splenocytes were collected from each group 14 days after the third immunization treated and restimulated with eGN or NAb (10 μg/mL). Data are shown as the mean ± SD and were analyzed using one-way ANOVA (* p < 0.05, ** p < 0.01, *** p < 0.001, **** p < 0.0001).
Figure 6. ELISpot analysis of IFN-γ, IL-4 secretion by mouse splenocytes (A,B). The splenocytes were collected from each group 14 days after the third immunization treated and restimulated with eGN or NAb (10 μg/mL). Data are shown as the mean ± SD and were analyzed using one-way ANOVA (* p < 0.05, ** p < 0.01, *** p < 0.001, **** p < 0.0001).
Viruses 14 01664 g006
Viruses 14 01664 g007 550
Figure 7. Detection of cytokine secretion levels in splenocytes that were restimulated with eGN or NAb (10 μg/mL and cultured in vitro. The secretion of (A) IFN-γ, (B) TN-α, (C) IL-2, (D) IL-4, (E) IL-6, (F) IL-10 was measured by using ELISA kit. Data are shown as the mean ± SD and were analyzed using one-way ANOVA (* p < 0.05, ** p < 0.01, *** p < 0.001, **** p < 0.0001).
Figure 7. Detection of cytokine secretion levels in splenocytes that were restimulated with eGN or NAb (10 μg/mL and cultured in vitro. The secretion of (A) IFN-γ, (B) TN-α, (C) IL-2, (D) IL-4, (E) IL-6, (F) IL-10 was measured by using ELISA kit. Data are shown as the mean ± SD and were analyzed using one-way ANOVA (* p < 0.05, ** p < 0.01, *** p < 0.001, **** p < 0.0001).
Viruses 14 01664 g007
Table
Table 1. Oligonucleotide primers used in this study.
Table 1. Oligonucleotide primers used in this study.
Oligonucleotide Primers Sequence (5’–3’) Enzyme Site
eGN-F 1,3TGCTCTAGACATCACCATCACCATCACTCTGAGGAACCTAGCGACGXBaI
eGN-RACCAGAACCACCACCAGAACCACCCAGGAAGGCCATGGTGGTCT
eGC-F 1,3TGCTCTAGACATCACCATCACCATCACTTCCTGGACTCCACCGCCXBaI
eGC-RACCAGAACCACCACCAGAACCACCGCTCTTCACGGATTCCAGCCAAC
NAb-F 1,3 TGCTCTAGACATCACCATCACCATCACTCCGGCCTGAAGTTCGCXBaI
NAb-RACCAGAACCACCACCAGAACCACCACAGGTGGAGTTCTGCTTGCC
PA3-F 2GGTGGTTCTGGTGGTGGTTCTGGTGATGGTGCTTCTTCAGCTGGT
PA3-R 1CGGGGTACCTTACTTGATACGCAGGTATTGACCKpnI
1 Restriction enzyme sites are underlined and italicized. 2 The middle linker (Gly-Gly-Ser-Gly) × 2 base sequences are underlined. 3 His-tag base sequences are in bold.
Table
Table 2. The mouse vaccination protocols.
Table 2. The mouse vaccination protocols.
GroupnImmunization RouteAntigenAdjuvant
A-G-eGN15subcutaneous1/5/20 μg A-G-eGN201VG + Poly(I/C)
A-G-eGC15subcutaneous1/5/20 μg A-G-eGC201VG + Poly(I/C)
A-G-NAb15subcutaneous1/5/20 μgA-G-NAb201VG + Poly(I/C)
G-eGN5subcutaneous5 μg G-eGN-
G-eGC5subcutaneous5 μg G-eGC-
G-NAb5subcutaneous5 μg G-NAb-
Viruses 14 01664 i001GEM + 201 + polyI:C5subcutaneousGEM + 201 + polyI:C-
Control201 + polyI:C5subcutaneous201 + polyI:C-
PBS5subcutaneousPBS-
Table
Table 3. Comparison of the serological responses in BALB/c mice subcutaneously immunized with G-GP vaccines against CCHFV. Booster doses were given at 3, 6 and 9 weeks after the first immunization, and virus-specific antibodies in mice were assessed at 2, 5, 8, 11 weeks after the first immunization. The results were recorded as the geometric mean titer (GMT) ± the standard error (S.D.).
Table 3. Comparison of the serological responses in BALB/c mice subcutaneously immunized with G-GP vaccines against CCHFV. Booster doses were given at 3, 6 and 9 weeks after the first immunization, and virus-specific antibodies in mice were assessed at 2, 5, 8, 11 weeks after the first immunization. The results were recorded as the geometric mean titer (GMT) ± the standard error (S.D.).
VaccineDose (μg)Antibody Titer (GMT)
First ImmunizationSecond ImmunizationThird ImmunizationFourth Immunization
ELISAN abELISAN abELISAN abELISAN ab
G-eGN20NDND3584 ± S.DND24576 ± S.DND24576 ± S.DND
5NDND3072 ± S.DND22528 ± S.DND24576 ± S.DND
1NDND1536 ± S.DND3584 ± S.DND5632 ± S.DND
G-eGC20NDND1126.4 ± S.D19.2 ± S.D20480 ± S.D76.8 ± S.D22528 ± S.D89.6 ± S.D
5NDND5120 ± S.D16 ± S.D20480 ± S.D70.4 ± S.D20480 ± S.D76.8 ± S.D
1NDND2048 ± S.D5.6 ± S.D4096 ± S.D14.4 ± S.D5120 ± S.D28.8 ± S.D
G-NAb20NDND4096 ± S.DND22528 ± S.DND24576 ± S.DND
5NDND3584 ± S.DND22528 ± S.DND24576 ± S.DND
1NDND2304 ± S.DND4096 ± S.DND8192 ± S.DND
GMT: The end point antibody titer represented as the mean ± S.D. of five animals. N ab; Neutralization antibody titer. ND: Not determined.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Wang, Q.; Wang, S.; Shi, Z.; Li, Z.; Zhao, Y.; Feng, N.; Bi, J.; Jiao, C.; Li, E.; Wang, T.; et al. GEM-PA-Based Subunit Vaccines of Crimean Congo Hemorrhagic Fever Induces Systemic Immune Responses in Mice. Viruses 2022, 14, 1664. https://doi.org/10.3390/v14081664

AMA Style

Wang Q, Wang S, Shi Z, Li Z, Zhao Y, Feng N, Bi J, Jiao C, Li E, Wang T, et al. GEM-PA-Based Subunit Vaccines of Crimean Congo Hemorrhagic Fever Induces Systemic Immune Responses in Mice. Viruses. 2022; 14(8):1664. https://doi.org/10.3390/v14081664

Chicago/Turabian Style

Wang, Qi, Shen Wang, Zhikang Shi, Zhengrong Li, Yongkun Zhao, Na Feng, Jinhao Bi, Cuicui Jiao, Entao Li, Tiecheng Wang, and et al. 2022. "GEM-PA-Based Subunit Vaccines of Crimean Congo Hemorrhagic Fever Induces Systemic Immune Responses in Mice" Viruses 14, no. 8: 1664. https://doi.org/10.3390/v14081664

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
