# Sensitivity of SARS-CoV-2 Life Cycle to IFN Effects and ACE2 Binding Unveiled with a Stochastic Model

^{1}

^{2}

^{3}

^{4}

^{5}

^{6}

^{7}

^{*}

^{†}

## Abstract

**:**

## 1. Introduction

- The cell-to-cell variability in SARS-CoV-2 progeny production;
- The multiplicity of single cell infection;
- The probability of infection;
- The local sensitivity of the virus production to specific life-cycle steps;
- The impact of type I IFN; and
- The effect of the RBD-ACE2 binding affinity.

## 2. Methods

#### 2.1. Deterministic Equations of SARS-CoV-2 Single Cell Infection

**Entry.**This phase is split into four stages:

- (i)
- Binding of the receptor-binding domain (RBD) of the viral spike (S) protein to ACE2 receptor (Equation (1));
- (ii)
- Priming of the virus S protein at the host cell surface by the transmembrane protease serine 2 (TMPRSS2), which leads to cleavage of the S proteins at the S1/S2 and S2 sites (Equation (2));
- (iii)
- Fusion at the cellular or endosomal membrane (Equation (3)); and
- (iv)
- Release and uncoating of viral genomic RNA (Equation (4)).

- ${x}_{1}=\left[{\mathrm{V}}_{\mathrm{free}}\right]$ is the number of free virions outside the cell membrane;
- ${x}_{2}=\left[{\mathrm{V}}_{\mathrm{bound}}\right]$ is the number of virions bound to ACE2 and activated by TMPRSS2;
- ${x}_{3}=\left[{\mathrm{V}}_{\mathrm{endosome}}\right]$ is the number of virions in endosomes; and
- ${x}_{4}=\left[{\mathrm{gRNA}}_{(+)}\right]$ is the number of ss-positive sense genomic RNA.

**Genome transcription and replication.**This phase is split into three stages:

- (v)
- The translation of the released genomic RNA into viral polyproteins (pp1a, pp1ab) which generate a number of non-structural proteins (nsp1-16), including nsp-12, which encodes the RNA-dependent RNA polymerase (RdRp) (Equation (5));
- (vi)
- The RdRp-dependent transcription of a negative sense subgenomic and genomic RNAs (Equation (6)); and
- (vii)
- The RdRp-dependent transcription of a positive sense subgenomic and genomic RNAs (Equation (7)).

- ${x}_{5}=\left[\mathrm{NSP}\right]$ is the number of non-structural proteins;
- ${x}_{6}=\left[{\mathrm{gRNA}}_{(-)}\right]$ is the number of negative sense genomic and subgenomic RNAs; and
- ${x}_{7}=\left[\mathrm{gRNA}\right]$ is the number of positive sense genomic and subgenomic RNAs.

**Translation of structural and accessory proteins.**This phase is split into two major stages:

- (viii)
- The translation of the structural nucleocapsid protein N from subgenomic RNAs by cytosolic ribosomes (Equation (8));
- (ix)
- The translation of the structural proteins S, envelope E, and membrane M proteins characterised in the model by their total abundance $\left[\mathrm{SP}\right]$, which takes place in the endoplasmic reticulum (ER) (Equation (9)).

- ${x}_{8}=\left[\mathrm{N}\right]$ is the number of N proteins per virion and
- ${x}_{9}=\left[\mathrm{SP}\right]$ is the total abundance of the structural proteins S, envelope E, and membrane M proteins.

**Assembly and release of virions.**This final phase is split into three major stages:

- (x)
- The binding of N proteins and gRNA, resulting in nucleocapsid formation (viral RNA genome coated with N protein) (Equation (10));
- (xi)
- The assembly of virions via encapsulating N-RNA complexes at the ER–Golgi compartment (Equation (11)); and
- (xii)
- The release of the assembled new virions by the infected cell via exocytosis, budding, or cell death (Equation (12)).

- ${x}_{10}=[\mathrm{N}-\mathrm{gRNA}]$ is the number of ribonucleoprotein molecules;
- ${x}_{11}=\left[{\mathrm{V}}_{\mathrm{assembled}}\right]$ is the number of assembled virions; and
- ${x}_{12}=\left[{\mathrm{V}}_{\mathrm{released}}\right]$ is the number of released virions.

#### 2.2. Quantification of SARS-CoV-2 Replication Parameters

#### 2.3. The Stochastic Model

#### 2.4. Stochastic Modelling Algorithm

- At every interval between the reactions, two uniformly distributed random numbers ${r}_{1},{r}_{2}$ on $(0,1)$ are generated. The first number gives the next timestep $\delta t=-(ln{r}_{1})/A$, where $A={\sum}_{m=1}^{M}{a}_{m}$; M is the number of reactions in the Markov chain; and ${a}_{m}$ is the propensity of the mth reaction: ${a}_{m}\mathrm{d}t$ is the probability that the mth reaction occurs in time-interval $\mathrm{d}t$. The second random number determines the next reaction index p: the smallest integer satisfying ${A}_{p}\ge A{r}_{2}$, where ${A}_{p}={\sum}_{m=1}^{p}{a}_{m}$. As we have to search among $M=26$ reactions, a binary search is employed to accelerate finding the reaction index p (see [49]). At the end of the step, the pth transition is performed, i.e., the state vector $\mathbf{x}$ is updated in accordance with Table 2.
- After updating the state vector, the propensities should be updated as well. Here, to accelerate the computation, the propensities are updated only for those reactions in which ${a}_{m}$ depends on the updated components in the given step. For this purpose, a special array is prepared in which propensities to be updated are indicated for given component ${x}_{n}$ and another similar array for every reaction m.
- The process is terminated as soon as the current time exceeds the maximal time ${t}_{\mathrm{final}}$ set in advance. To decrease the amount of stored information, the values of the state vector are stored at a uniform time-grid with the preset timestep $\Delta t$.

#### 2.5. Local Stochastic Sensitivity Analysis

## 3. Results

#### 3.1. Deterministic Versus Stochastic Dynamics of SARS-CoV-2 Replication

#### 3.2. Variability in Net Virus Production

#### 3.3. Variability of the Individual Reaction Products

#### 3.4. Probability of Productive Infection

#### 3.5. Efficiency of Life Cycle

#### 3.6. Sensitivity Analysis of the Model Parameters

- Degradation of the positive-sense vRNA in cytoplasm (${d}_{\mathrm{gRNA}}$);
- Threshold number of non-structural proteins enhancing vRNA transcription (${K}_{\mathrm{NSP}}$);
- Translation rate of non-structural proteins (${k}_{\mathrm{transl}}{f}_{\mathrm{ORF}1}$);
- Degradation rate of extracellular virions (${d}_{\mathrm{V}}$); and
- Assembly rate of structural proteins (${k}_{\mathrm{assembl}}{n}_{\mathrm{SP}}$).

#### 3.7. Inhibitory Effect of Type I IFN

- (a)
- The rate constant of translation of released genomic RNA into viral polyproteins pp1a and pp1ab (${k}_{\mathrm{transl}}{f}_{\mathrm{ORF}1}$);
- (b)
- The degradation rate constant of RNA (${d}_{\mathrm{gRNA}},\phantom{\rule{4pt}{0ex}}{d}_{{\mathrm{gRNA}}_{(-)}}$); and
- (c)
- = (a) + (b): simultaneous variation in both parameters.

#### 3.8. Effect of Binding Affinity

## 4. Discussion

## Author Contributions

## Funding

## Conflicts of Interest

## Abbreviations

RT | Reverse Transcription |

ODE | ordinary differential equation |

MC | Markov chain |

MCMC | Markov chain Monte Carlo (method) |

## References

- Bost, P.; Giladi, A.; Liu, Y.; Bendjelal, Y.; Xu, G.; David, E.; Blecher-Gonen, R.; Cohen, M.; Medaglia, C.; Li, H.; et al. Host-Viral Infection Maps Reveal Signatures of Severe COVID-19 Patients. Cell
**2020**, 181, 1475–1488.e12. [Google Scholar] [CrossRef] [PubMed] - Vabret, N.; Britton, G.J.; Gruber, C.; Hegde, S.; Kim, J.; Kuksin, M.; Levantovsky, R.; Malle, L.; Moreira, A.; Park, M.D.; et al. Immunology of COVID-19: Current State of the Science. Immunity
**2020**, 52, 910–941. [Google Scholar] [CrossRef] - Raoult, D.; Zumla, A.; Locatelli, F.; Ippolito, G.; Kroemer, G. Coronavirus infections: Epidemiological, clinical and immunological features and hypotheses. Cell Stress
**2020**, 4, 66–75. [Google Scholar] [CrossRef] [PubMed] - Ostaszewski, M.; Niarakis, A.; Mazein, A.; Kuperstein, I.; Phair, R.; Orta-Resendiz, A.; Singh, V.; Aghamiri, S.S.; Acencio, M.L.; Glaab, E.; et al. COVID-19 Disease Map Community, a computational knowledge repository of virus-host interaction mechanisms. Mol. Syst. Biol.
**2021**, 17, e10387. [Google Scholar] [CrossRef] [PubMed] - Bocharov, G.; Casella, V.; Argilaguet, J.; Grebennikov, D.; Güerri-Fernandez, R.; Ludewig, B.; Meyerhans, A. Numbers Game and Immune Geography as Determinants of Coronavirus Pathogenicity. Front. Cell. Infect. Microbiol.
**2020**, 10, 559209. [Google Scholar] [CrossRef] - Brodin, P. Immune determinants of COVID-19 disease presentation and severity. Nat. Med.
**2021**, 27, 28–33. [Google Scholar] [CrossRef] - Maecker, H.T. Immune profiling of COVID-19: Preliminary findings and implications for the pandemic. J. Immunother. Cancer
**2021**, 9, e002550. [Google Scholar] [CrossRef] - Aleem, A.; Akbar Samad, A.; Slenker, A. Emerging Variants of SARS-CoV-2 and Novel Therapeutics against Coronavirus (COVID-19); StatPearls Publishing: Treasure Island, FL, USA, 2021. [Google Scholar]
- Sanyaolu, A.; Okorie, C.; Marinkovic, A.; Haider, N.; Abbasi, A.F.; Jaferi, U.; Prakash, S.; Balendra, V. The emerging SARS-CoV-2 variants of concern. Ther. Adv. Infect. Dis.
**2021**, 8, 20499361211024372. [Google Scholar] [CrossRef] - Callaway, E. Heavily mutated Omicron variant puts scientists on alert. Nature
**2021**, 600, 21. [Google Scholar] [CrossRef] - Karim, S.S.A.; Karim, Q.A. Omicron SARS-CoV-2 variant: A new chapter in the COVID-19 pandemic. Lancet
**2021**, 398, 2126–2128. [Google Scholar] [CrossRef] - Yang, L.; Li, J.; Guo, S.; Hou, C.; Liao, C.; Shi, L.; Ma, X.; Jiang, S.; Zheng, B.; Fang, Y.; et al. SARS-CoV-2 Variants, RBD Mutations, Binding Affinity, and Antibody Escape. Int. J. Mol. Sci.
**2021**, 22, 12114. [Google Scholar] [CrossRef] [PubMed] - Cheemarla, N.R.; Watkins, T.A.; Mihaylova, V.T.; Wang, B.; Zhao, D.; Wang, G.; Landry, M.L.; Foxman, E.F. Dynamic innate immune response determines susceptibility to SARS-CoV-2 infection and early replication kinetics. J. Exp. Med.
**2021**, 218, e20210583. [Google Scholar] [CrossRef] [PubMed] - Kim, S.; Liu, Y.; Lei, Z.; Dicker, J.; Cao, Y.; Zhang, X.F.; Im, W. Differential Interactions Between Human ACE2 and Spike RBD of SARS-CoV-2 Variants of Concern. bioRxiv
**2021**. [Google Scholar] [CrossRef] [PubMed] - Li, H.; Liu, T.; Wang, L.; Wang, M.; Wang, S. SARS-CoV-2 Delta variant infects ACE2low primary human bronchial epithelial cells more efficiently than other variants. J. Med. Virol.
**2021**, 94, 821–822. [Google Scholar] [CrossRef] [PubMed] - V’kovski, P.; Kratzel, A.; Steiner, S.; Stalder, H.; Thiel, V. Coronavirus biology and replication: Implications for SARS-CoV-2. Nat. Rev. Microbiol.
**2021**, 19, 155–170. [Google Scholar] [CrossRef] - Shibabaw, T.; Molla, M.; Teferi, B.; Ayelign, B. Role of IFN and Complements System: Innate Immunity in SARS-CoV-2. J. Inflamm. Res.
**2020**, 13, 507–518. [Google Scholar] [CrossRef] - Harrison, A.G.; Lin, T.; Wang, P. Mechanisms of SARS-CoV-2 Transmission and Pathogenesis. Trends Immunol.
**2020**, 41, 1100–1115. [Google Scholar] [CrossRef] - Grebennikov, D.; Kholodareva, E.; Sazonov, I.; Karsonova, A.; Meyerhans, A.; Bocharov, G. Intracellular life cycle kinetics of SARS-CoV-2 predicted using mathematical modelling. Viruses
**2021**, 13, 1735. [Google Scholar] [CrossRef] - Aya, A.V.; Aldila, D.; Handari, B.D. SDE model of SARS disease in Hong Kong and Singapore with parameter stochasticity. AIP Conf. Proc.
**2018**, 2023, 020218. [Google Scholar] [CrossRef] - Wang, Y.; Zhao, T.; Liu, J. Viral dynamics of an HIV stochastic model with cell-to-cell infection, CTL immune response and distributed delays. Math. Biosci. Eng.
**2019**, 16, 7126–7154. [Google Scholar] [CrossRef] - Yuan, Y.; Allen, L.J. Stochastic models for virus and immune system dynamics. Math. Biosci.
**2011**, 234, 84–94. [Google Scholar] [CrossRef] [PubMed][Green Version] - Gillespie, D.T. Exact stochastic simulation of coupled chemical reactions. J. Phys. Chem.
**1977**, 81, 2340–2361. [Google Scholar] [CrossRef] - Gillespie, D. Stochastic simulation of chemical kinetics. Annu. Rev. Phys. Chem.
**2007**, 58, 35–55. [Google Scholar] [CrossRef] [PubMed] - Sazonov, I.; Grebennikov, D.; Meyerhans, A.; Bocharov, G. Markov chain based stochastic modelling of HIV-1 life cycle in a CD4 T cell. Mathematics
**2021**, 9, 2025. [Google Scholar] [CrossRef] - Shcherbatova, O.; Grebennikov, D.; Sazonov, I.; Meyerhans, A.; Bocharov, G. Modeling of the HIV-1 life cycle in productively infected cells to predict novel therapeutic targets. Pathogens
**2020**, 9, 255. [Google Scholar] [CrossRef] [PubMed][Green Version] - Bar-On, Y.M.; Flamholz, A.; Phillips, R.; Milo, R. SARS-CoV-2 (COVID-19) by the numbers. eLife
**2020**, 9, e57309. [Google Scholar] [CrossRef] [PubMed] - Sender, R.; Bar-On, Y.M.; Flamholz, A.; Gleizer, S.; Bernsthein, B.; Phillips, R.; Milo, R. The total number and mass of SARS-CoV-2 virions in an infected person. medRxiv
**2020**. [Google Scholar] [CrossRef] - Buccitelli, C.; Selbach, M. mRNAs, proteins and the emerging principles of gene expression control. Nat. Rev. Genet.
**2020**, 21, 630–644. [Google Scholar] [CrossRef] - Klein, S.; Cortese, M.; Winter, S.L.; Wachsmuth-Melm, M.; Neufeldt, C.J.; Cerikan, B.; Stanifer, M.L.; Boulant, S.; Bartenschlager, R.; Chlanda, P. SARS-CoV-2 structure and replication characterized by in situ cryo-electron tomography. Nat. Commun.
**2020**, 11, 5885. [Google Scholar] [CrossRef] - Baggen, J.; Persoons, L.; Vanstreels, E.; Jansen, S.; Van Looveren, D.; Boeckx, B.; Geudens, V.; De Man, J.; Jochmans, D.; Wauters, J.; et al. Genome-wide CRISPR screening identifies TMEM106B as a proviral host factor for SARS-CoV-2. Nat. Genet.
**2021**, 53, 435–444. [Google Scholar] [CrossRef] - Jack, A.; Ferro, L.; Trnka, M.; Wehri, E.; Nadgir, A.; Nguyenla, X.; Costa, K.; Stanley, S.; Schaletzky, J.; Yildiz, A. SARS-CoV-2 Nucleocapsid Protein Forms Condensates with Viral Genomic RNA. bioRxiv
**2021**. [Google Scholar] [CrossRef] - Ozono, S.; Zhang, Y.; Ode, H.; Sano, K.; Tan, T.S.; Imai, K.; Miyoshi, K.; Kishigami, S.; Ueno, T.; Iwatani, Y.; et al. SARS-CoV-2 D614G spike mutation increases entry efficiency with enhanced ACE2-binding affinity. Nat. Commun.
**2021**, 12, 848. [Google Scholar] [CrossRef] [PubMed] - Adelman, K.; La Porta, A.; Santangelo, T.J.; Lis, J.T.; Roberts, J.W.; Wang, M.D. Single molecule analysis of RNA polymerase elongation reveals uniform kinetic behavior. Proc. Natl. Acad. Sci. USA
**2002**, 99, 13538–13543. [Google Scholar] [CrossRef] [PubMed][Green Version] - Baccam, P.; Beauchemin, C.; Macken, C.A.; Hayden, F.G.; Perelson, A.S. Kinetics of influenza A virus infection in humans. J. Virol.
**2006**, 80, 7590–7599. [Google Scholar] [CrossRef][Green Version] - Nelson, D.; Cox, M. Leninger Principles of Biochemistry, 5th ed.; W.H. Freeman and Company: New York, NY, USA, 2008. [Google Scholar]
- Mooney, J.; Thakur, S.; Kahng, P.; Trapani, J.G.; Poccia, D. Quantification of exocytosis kinetics by DIC image analysis of cortical lawns. J. Chem. Biol.
**2013**, 7, 43–55. [Google Scholar] [CrossRef] [PubMed][Green Version] - Heldt, F.S.; Kupke, S.Y.; Dorl, S.; Reichl, U.; Frensing, T. Single-cell analysis and stochastic modelling unveil large cell-to-cell variability in influenza A virus infection. Nat. Commun.
**2015**, 6, 8938. [Google Scholar] [CrossRef] [PubMed] - Irigoyen, N.; Firth, A.E.; Jones, J.D.; Chung, B.Y.; Siddell, S.G.; Brierley, I. High-Resolution Analysis of Coronavirus Gene Expression by RNA Sequencing and Ribosome Profiling. PLoS Pathog.
**2016**, 12, e1005473. [Google Scholar] [CrossRef][Green Version] - Zhu, Y.; Yu, D.; Yan, H.; Chong, H.; He, Y. Design of potent membrane fusion inhibitors against SARS-CoV-2, an emerging coronavirus with high fusogenic activity. J. Virol.
**2020**, 94, e00635-20. [Google Scholar] [CrossRef] - Gillespie, D. A General method for numerically simulating the stochastic time evolution of coupled chemical reactions. J. Comput. Phys.
**1976**, 22, 403–434. [Google Scholar] [CrossRef] - Darling, R.; Norris, J. Differential equation approximations for Markov chains. Probab. Surv.
**2008**, 5, 37–79. [Google Scholar] [CrossRef][Green Version] - Pearson, J.E.; Krapivsky, P.; Perelson, A.S. Stochastic Theory of Early Viral Infection: Continuous versus Burst Production of Virions. PLoS Comput. Biol.
**2011**, 7, e1001058. [Google Scholar] [CrossRef] [PubMed][Green Version] - Sazonov, I.; Kelbert, M.; Gravenor, M.B. A two-stage model for the SIR outbreak: Accounting for the discrete and stochastic nature of the epidemic at the initial contamination stage. Math. Biosci.
**2011**, 234, 108–117. [Google Scholar] [CrossRef] [PubMed] - Sazonov, I.; Grebennikov, D.; Kelbert, M.; Bocharov, G. Modelling stochastic and deterministic behaviours in virus infection dynamics. Math. Model. Nat. Phenom.
**2017**, 12, 63–77. [Google Scholar] [CrossRef][Green Version] - Boudec, J.; McDonald, D.; Mundinger, J. A generic mean field convergence result for systems of interacting objects. In Proceedings of the Fourth International Conference on the Quantitative Evaluation of Systems (QEST 2007), Edinburgh, UK, 17–19 September 2007; p. 3. [Google Scholar] [CrossRef][Green Version]
- Sazonov, I.; Grebennikov, D.; Kelbert, M.; Meyerhans, A.; Bocharov, G. Viral infection dynamics model based on a Markov process with time delay between cell infection and progeny production. Mathematics
**2020**, 8, 1207. [Google Scholar] [CrossRef] - Gibson, M.A.; Bruck, J. Efficient exact stochastic simulation of chemical systems with many species and many channels. J. Phys. Chem. A
**2000**, 104, 1876–1889. [Google Scholar] [CrossRef] - Marchetti, L.; Priami, C.; Thanh, V.H. Simulation Algorithms for Computational Systems Biology; Texts in Theoretical Computer Science. An EATCS Series; Springer: Berlin/Heidelberg, Germany, 2017. [Google Scholar] [CrossRef][Green Version]
- Degasperi, A.; Gilmore, S. Sensitivity analysis of stochastic models of bistable biochemical reactions. In Formal Methods for Computational Systems Biology; Bernardo, M., Degano, P., Zavattaro, G., Eds.; Lecture Notes in Computer Science; Springer: Berlin/Heidelberg, Germany, 2008; pp. 1–20. [Google Scholar] [CrossRef][Green Version]
- Hogg, R.V.; Craig, A.T. Introduction to Mathematical Statistics; Macmillan: New York, NY, USA, 1978. [Google Scholar] [CrossRef]
- Klyatskin, V.I. Lectures on Dynamics of Stochastic Systems; Elsevier: Amsterdam, The Netherlands, 2011. [Google Scholar]
- Yao, H.; Song, Y.; Chen, Y.; Wu, N.; Xu, J.; Su, N.C.; Zhang, J.; Weng, T.; Zhang, Z.; Wu, Z.; et al. Molecular Architecture of the SARS-CoV-2 Virus. Cell
**2020**, 183, 730–738. [Google Scholar] [CrossRef] - Lin, F.; Shen, K. Type I interferon: From innate response to treatment for COVID-19. Pediatr. Investig.
**2020**, 4, 275–280. [Google Scholar] [CrossRef] - Bojkova, D.; Widera, M.; Ciesek, S.; Wass, M.N.; Michaelis, M.; Cinatl, J., Jr. Reduced interferon antagonism but similar drug sensitivity in Omicron variant compared to Delta variant of SARS-CoV-2 isolates. Cell Res.
**2022**, 1–3. [Google Scholar] [CrossRef] - Fung, T.S.; Liu, D.X. Human Coronavirus: Host-Pathogen Interaction. Annu. Rev. Microbiol.
**2019**, 73, 529–557. [Google Scholar] [CrossRef][Green Version]

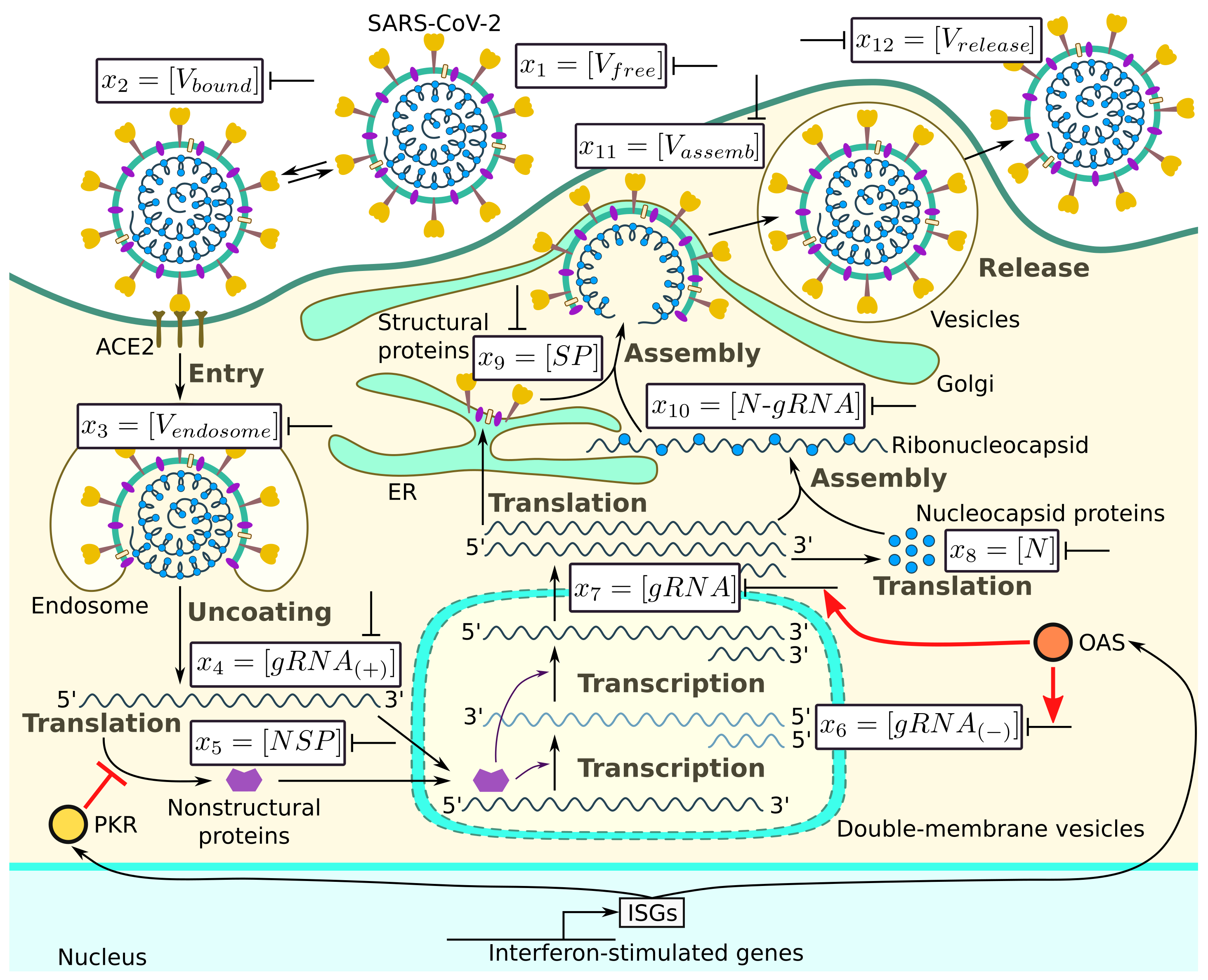

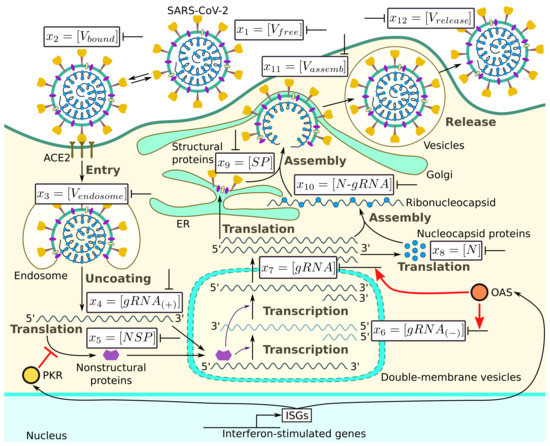

**Figure 1.**Biochemical scheme of the SARS-CoV-2 replication cycle. Targets of type I IFN-mediated inhibition of virus replication are marked.

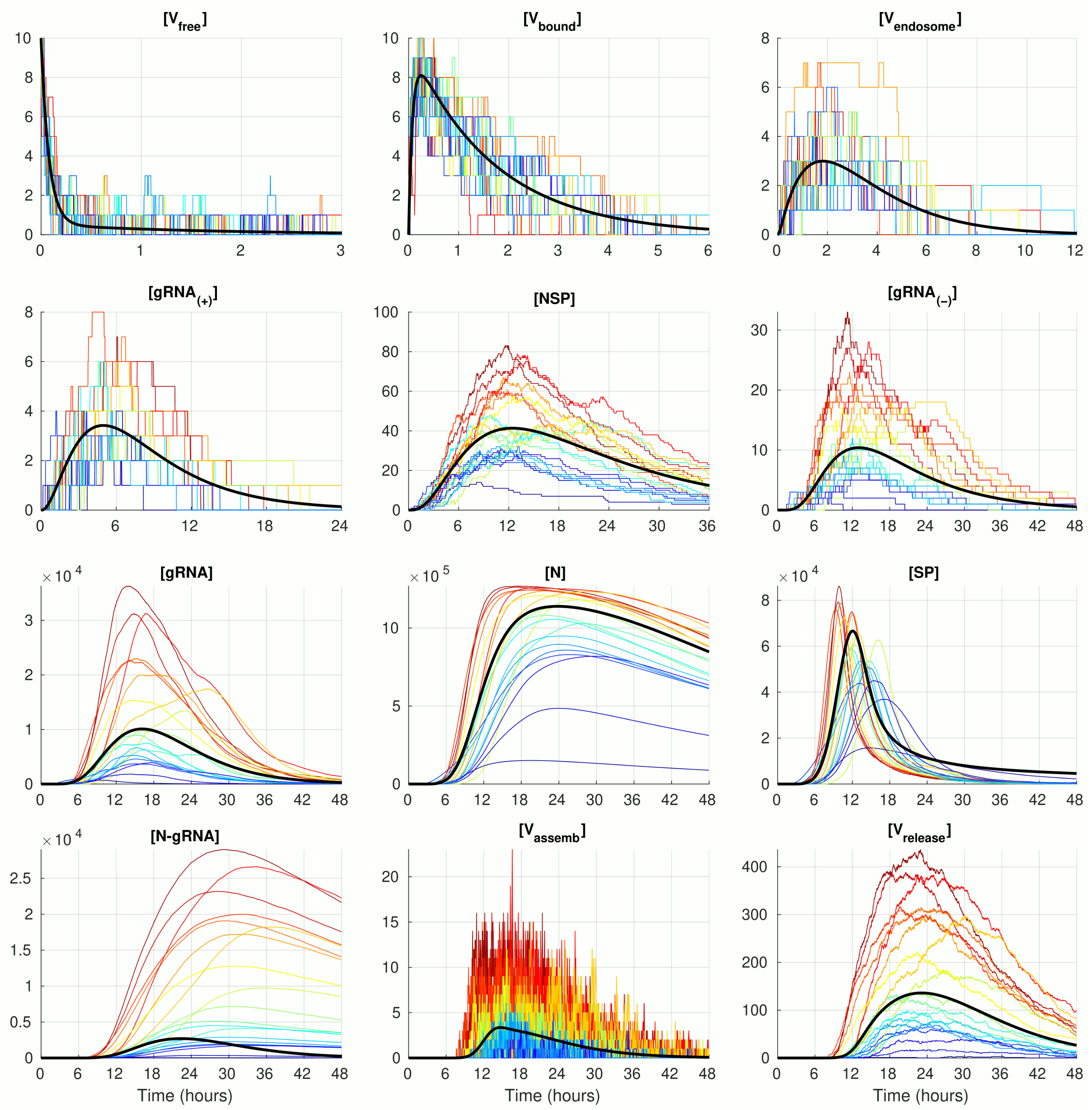

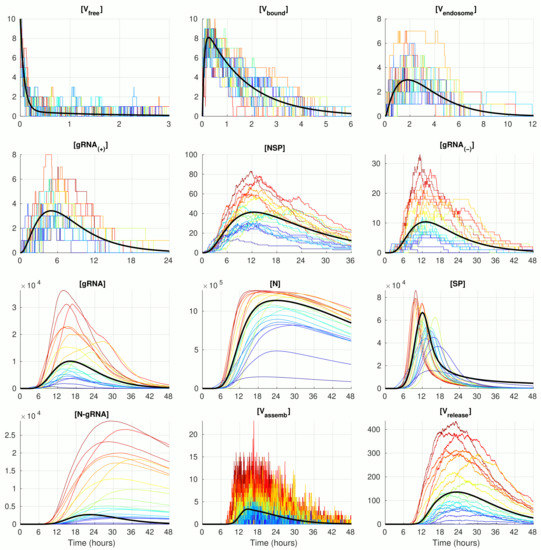

**Figure 2.**Examples of stochastic realisations for $\left[{\mathrm{V}}_{\mathrm{free}}\right]\left(0\right)=10$. The black curves indicate the solution of the deterministic model.

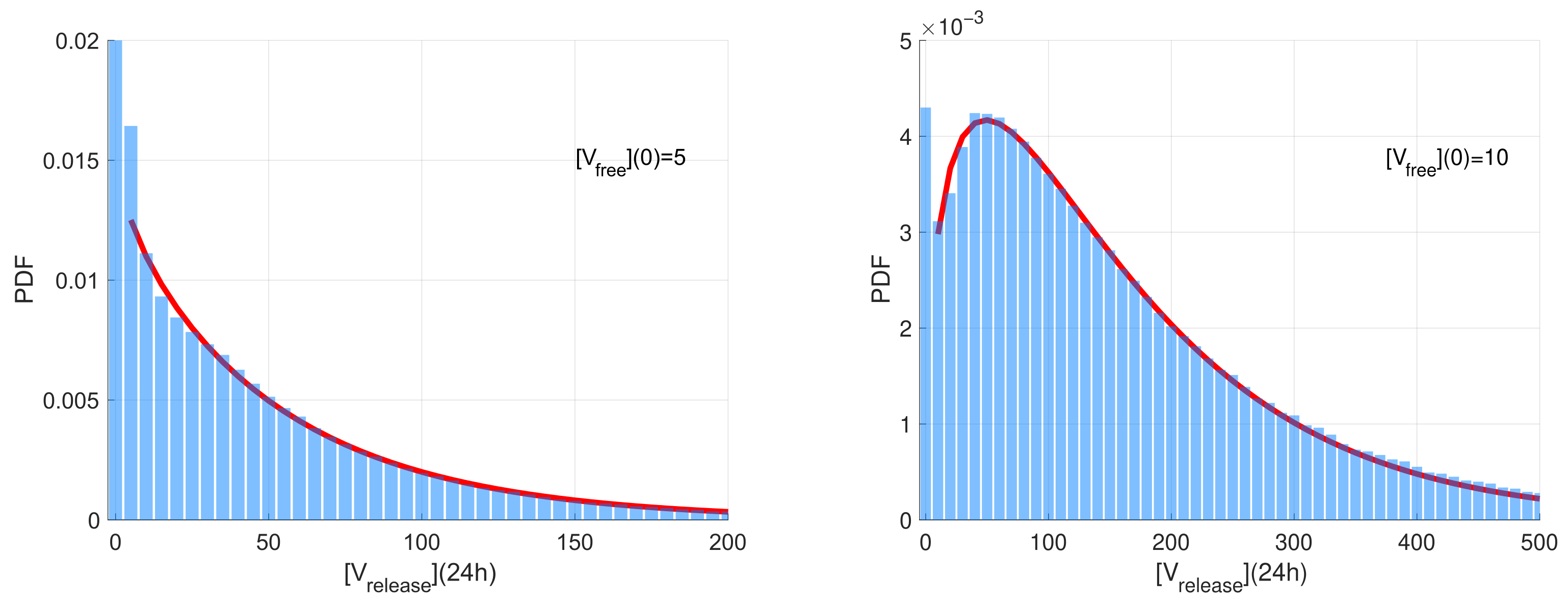

**Figure 3.**Normalised histograms for the released virions number for $\left[{\mathrm{V}}_{\mathrm{free}}\right]\left(0\right)=5$ (

**left**) and $\left[{\mathrm{V}}_{\mathrm{free}}\right]\left(0\right)=10$ (

**right**). The red line shows the approximation of the histogram by the Gamma distribution fitted to the histogram by the least squares method.

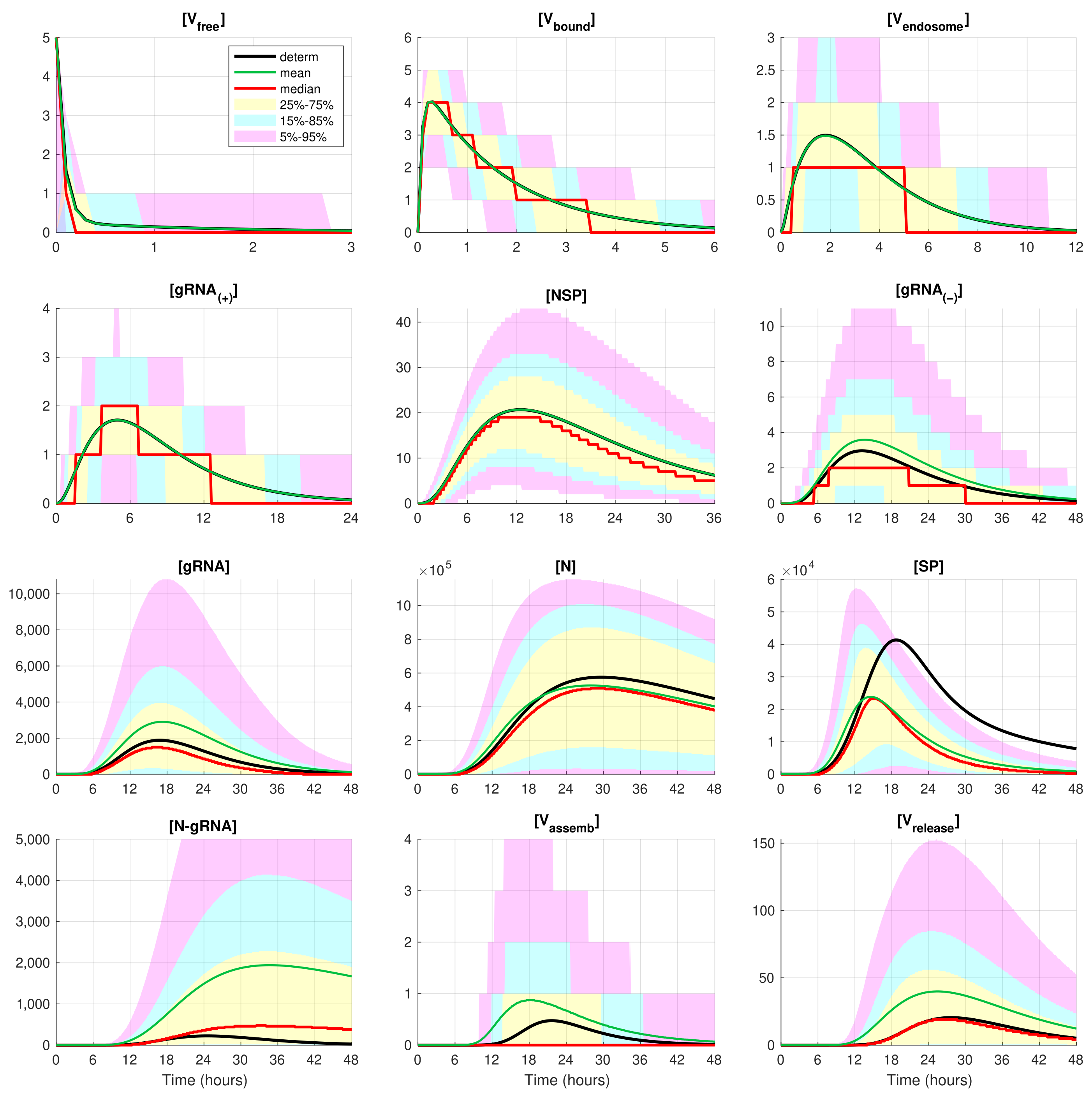

**Figure 4.**Evolution of the confidence intervals for all 12 species participating in the SARS-CoV-2 replication for $\left[{\mathrm{V}}_{\mathrm{free}}\right]\left(0\right)=5$. The green, red, and black lines indicate the mean, median, and the deterministic solution, respectively.

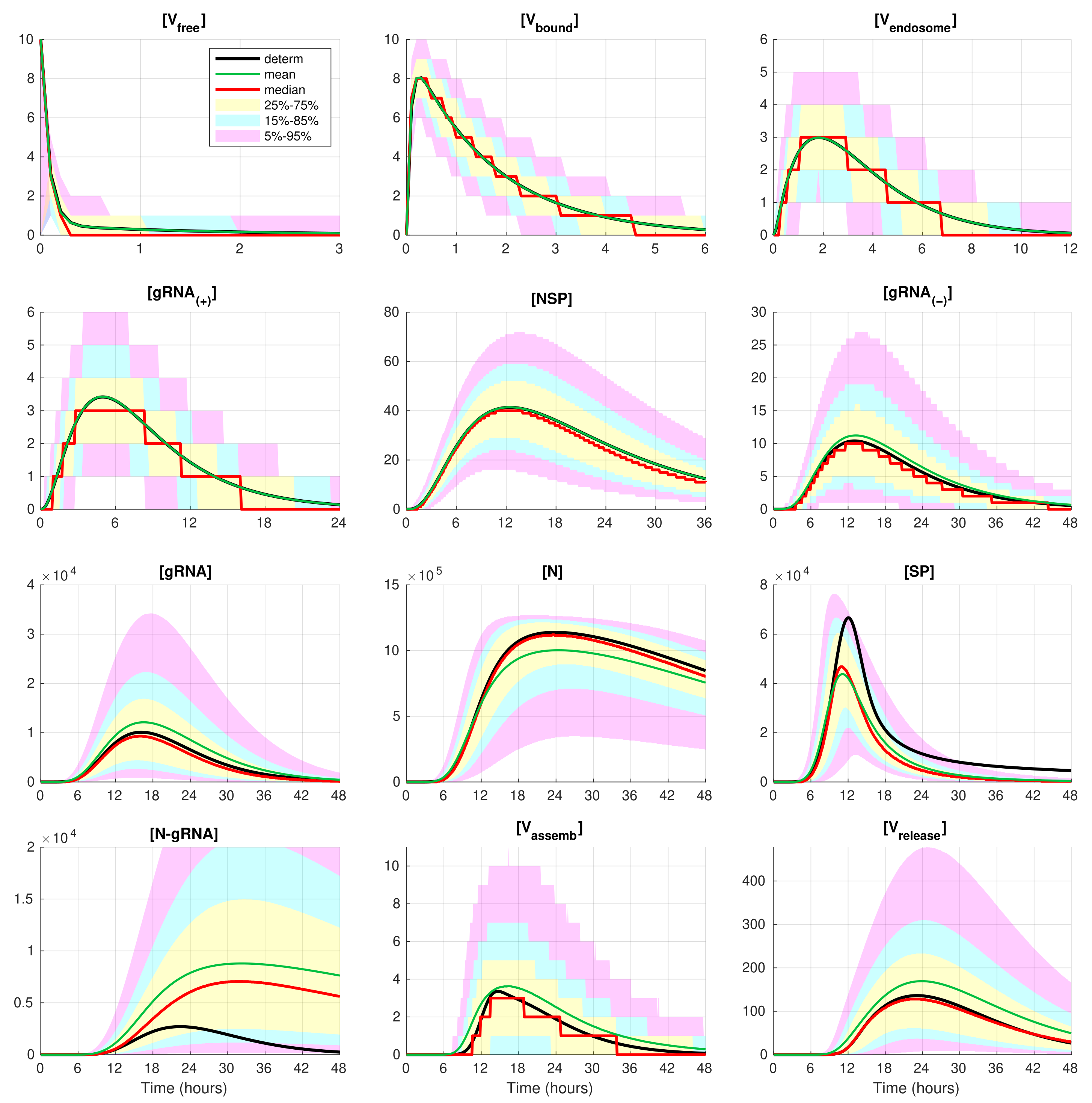

**Figure 5.**Evolution of the confidence intervals for all 12 components participating in the SARS-CoV-2 replication for $\left[{\mathrm{V}}_{\mathrm{free}}\right]\left(0\right)=10$. The green, red, and black lines indicate the mean, median, and the deterministic solution, respectively.

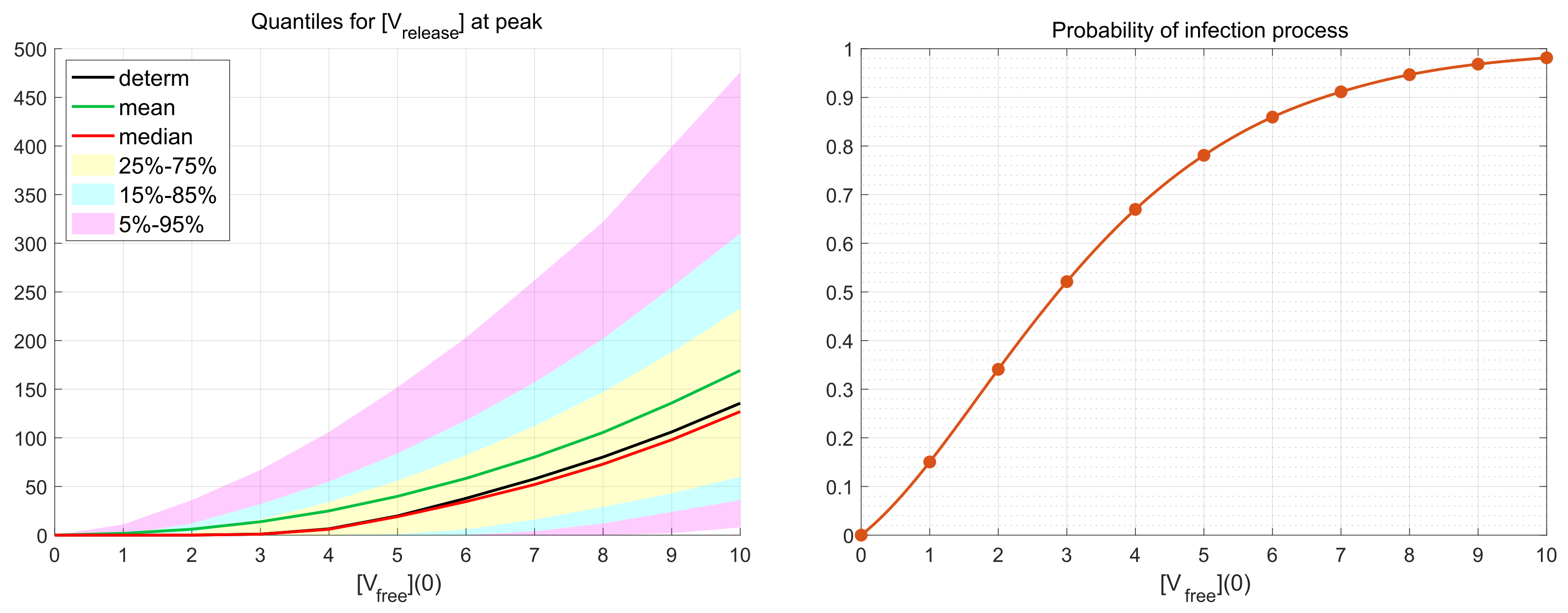

**Figure 6.**(

**Left**) Dependence of confidence intervals, sample mean (green) and median (red) estimates, and the deterministic solution (black) on the initial number of free virions per cell $\left[{\mathrm{V}}_{\mathrm{free}}\right]\left(0\right)$ at $t=24$ h. (

**Right**) Probability for productive infection of the target cell in relation to the initial number of free virions per cell (MOI).

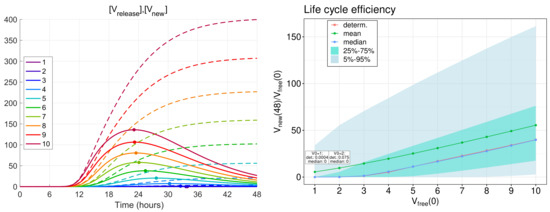

**Figure 7.**(

**Left**) Kinetics of the total number of new virions secreted by an infected cell (dotted lines) for different MOIs (explained by the colour code) and the kinetics of virions release (solid lines) computed by the deterministic model [19]. (

**Right**) The life cycle efficiency computed by the deterministic model (the red curve with circles). The mean, median, and the confidence intervals of the life cycle efficiency computed by the stochastic model (explained in the legend).

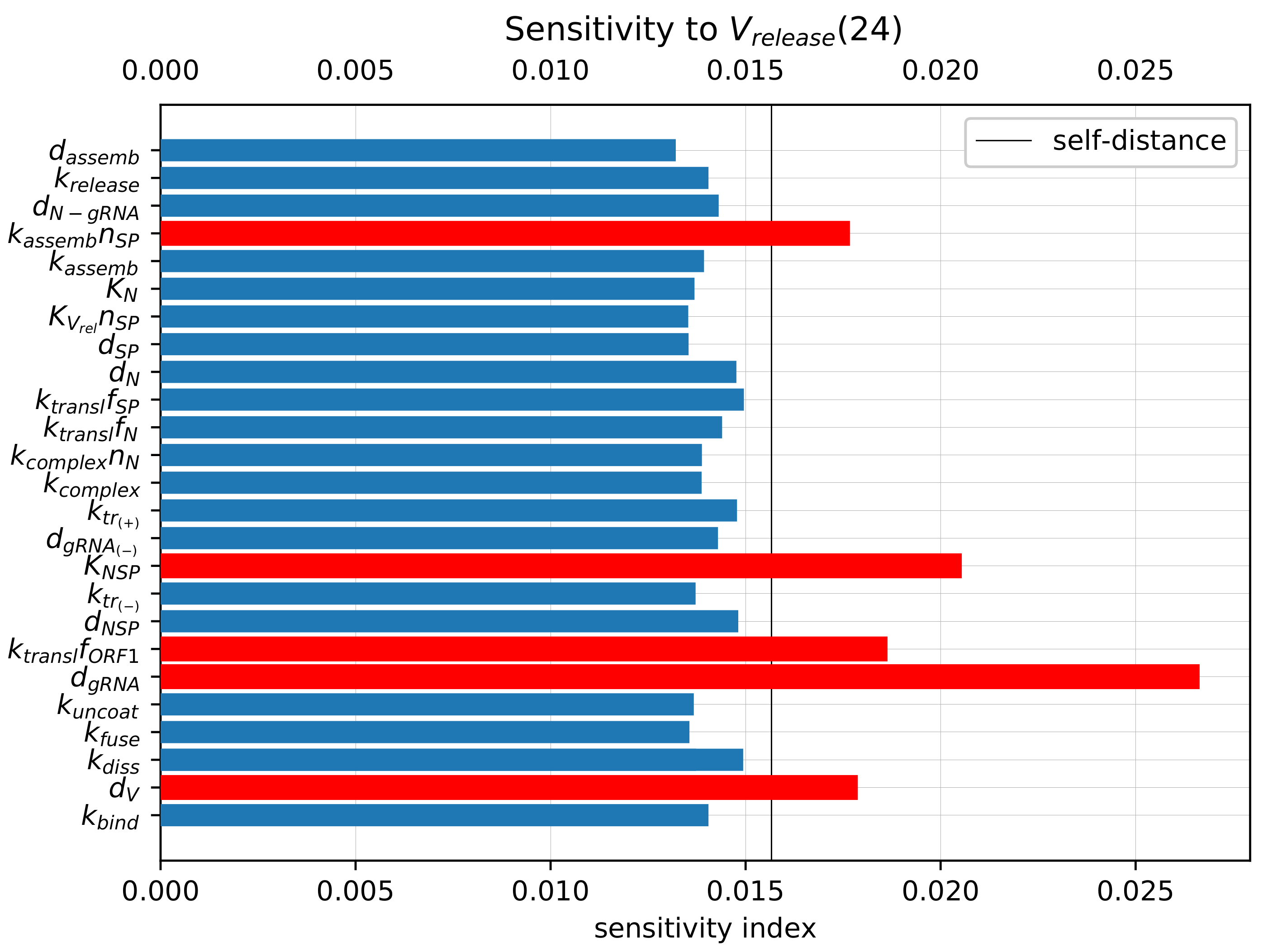

**Figure 8.**Local sensitivity indices for the number of released virions at 24 h computed with the stochastic model. The significant indices with greater values than the self-distance for the sets with baseline model parameters are marked by red.

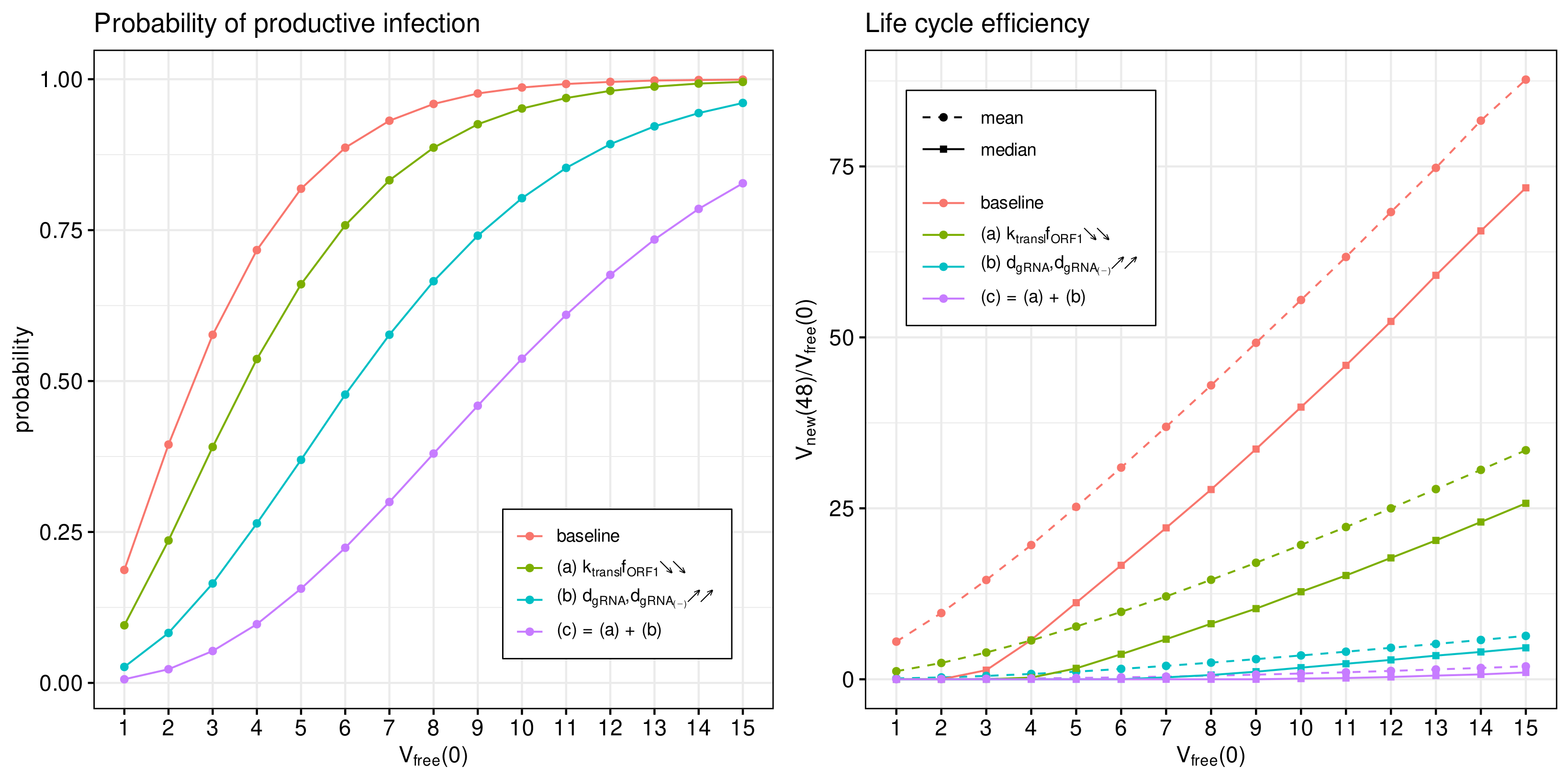

**Figure 9.**Type I IFN-mediated effects on the probability of non-degenerate infection (

**left**) and the efficient reproduction number for MOI ranging from 1 to 15 (

**right**). The ascending/descending arrows in the legend show the four-fold increase/decrease in the indicated parameters.

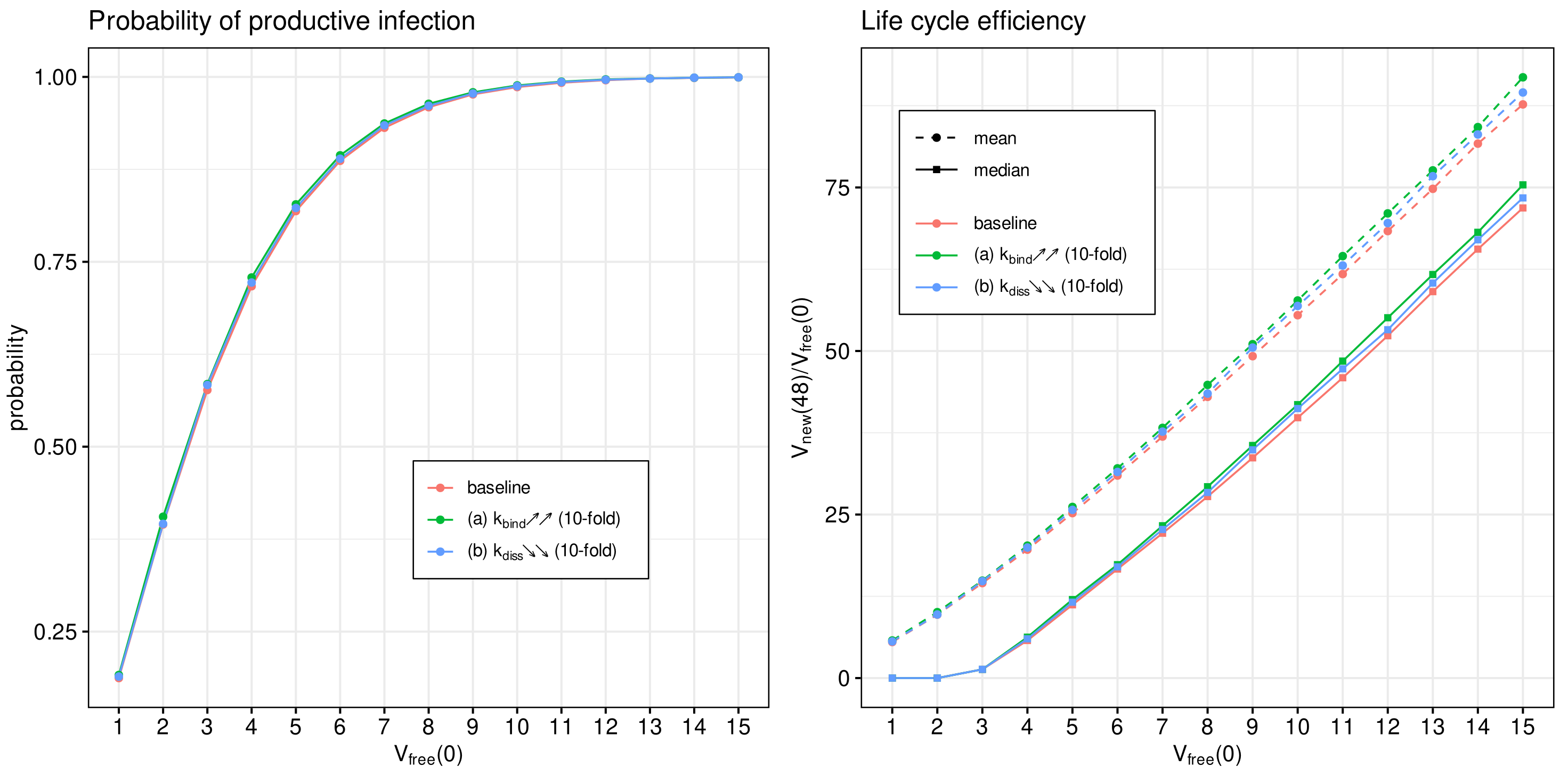

**Figure 10.**Effect of binding of SARS-CoV-2 to ACE2 on the probability of non-degenerate infection (

**left**) and the efficient reproduction number (

**right**) for MOI ranging from 1 to 15. The ascending/descending arrows in the legend show the 10-fold increase/decrease in the indicated parameters.

${\mathit{k}}_{\mathrm{bind}}$ | = 12 h${}^{-1}$ | ${\mathit{d}}_{\mathrm{V}}$ | $=0.12$ h${}^{-1}$ | ${\mathit{K}}_{\mathrm{NSP}}$ | = 100 |

${k}_{\mathrm{diss}}$ | $=0.61$ h${}^{-1}$ | ${d}_{\mathrm{endosome}}$ | $=0.06$ h${}^{-1}$ | ${K}_{\mathrm{N}}$ | $=5\times {10}^{6}$ |

${k}_{\mathrm{fuse}}$ | $=0.5$ h${}^{-1}$ | ${d}_{\mathrm{gRNA}}$ | $=0.2$ h${}^{1}$ | ${K}_{{\mathrm{V}}_{\mathrm{rel}}}$ | = 1000 |

${k}_{\mathrm{uncoat}}$ | $=0.5$ h${}^{-1}$ | ${d}_{\mathrm{NSP}}$ | $=0.069$ h${}^{-1}$ | ${f}_{\mathrm{ORF}1}$ | = 1/21,000 |

${k}_{{\mathrm{tr}}_{(-)}}$ | = 3 h${}^{-1}$ | ${d}_{{\mathrm{gRNA}}_{(-)}}$ | $=0.1$ h${}^{-1}$ | ${f}_{\mathrm{N}}$ | $=1/1200$ |

${k}_{{\mathrm{tr}}_{(+)}}$ | = 1000 h${}^{-1}$ | ${d}_{\mathrm{N}}$ | $=0.023$ h${}^{-1}$ | ${f}_{\mathrm{SP}}$ | = 1/10,000 |

${k}_{\mathrm{complex}}$ | $=0.4$ h${}^{-1}$ | ${d}_{\mathrm{SP}}$ | $=0.044$ h${}^{-1}$ | ||

${k}_{\mathrm{transl}}$ | $=4.536\times {10}^{4}$ h${}^{-1}$ | ${d}_{\mathrm{N}-\mathrm{gRNA}}$ | $=0.2$ h${}^{-1}$ | ${n}_{\mathrm{N}}$ | = 456 |

${k}_{\mathrm{assemb}}$ | = 1 h${}^{-1}$ | ${d}_{\mathrm{assemb}}$ | $=0.06$ h${}^{-1}$ | ${n}_{\mathrm{SP}}$ | = 2000 |

${k}_{\mathrm{release}}$ | = 8 h${}^{-1}$ |

**Table 2.**The Markov chain: the list of individual reactions, the corresponding state transitions, and the propensities of reactions.

m | Reaction (Transition) | Propensity, ${\mathit{a}}_{\mathit{m}}$ | Equations |
---|---|---|---|

1 | $\phantom{\rule{3.0pt}{0ex}}{x}_{1}\to \phantom{\rule{3.0pt}{0ex}}{x}_{1}-1,\phantom{\rule{0.277778em}{0ex}}{x}_{2}\to {x}_{2}+1$ | ${k}_{\mathrm{bind}}{x}_{1}$ | (1), (2) |

2 | $\phantom{\rule{3.0pt}{0ex}}{x}_{1}\to \phantom{\rule{3.0pt}{0ex}}{x}_{1}+1,\phantom{\rule{0.277778em}{0ex}}{x}_{2}\to {x}_{2}-1$ | ${k}_{\mathrm{diss}}{x}_{2}$ | (1), (2) |

3 | $\phantom{\rule{3.0pt}{0ex}}{x}_{1}\to \phantom{\rule{3.0pt}{0ex}}{x}_{1}-1$ | ${d}_{\mathrm{V}}{x}_{1}$ | (1) |

4 | $\phantom{\rule{3.0pt}{0ex}}{x}_{2}\to \phantom{\rule{3.0pt}{0ex}}{x}_{2}-1,\phantom{\rule{0.277778em}{0ex}}{x}_{3}\to {x}_{3}+1$ | ${k}_{\mathrm{fuse}}{x}_{2}$ | (2), (3) |

5 | $\phantom{\rule{3.0pt}{0ex}}{x}_{2}\to \phantom{\rule{3.0pt}{0ex}}{x}_{2}-1$ | ${d}_{\mathrm{V}}{x}_{2}$ | (2) |

6 | $\phantom{\rule{3.0pt}{0ex}}{x}_{3}\to \phantom{\rule{3.0pt}{0ex}}{x}_{3}-1,\phantom{\rule{0.277778em}{0ex}}{x}_{4}\to {x}_{4}+1$ | ${k}_{\mathrm{uncoat}}{x}_{3}$ | (3), (4) |

7 | $\phantom{\rule{3.0pt}{0ex}}{x}_{3}\to \phantom{\rule{3.0pt}{0ex}}{x}_{3}-1$ | ${d}_{\mathrm{endosome}}{x}_{3}$ | (3) |

8 | $\phantom{\rule{3.0pt}{0ex}}{x}_{4}\to \phantom{\rule{3.0pt}{0ex}}{x}_{4}-1$ | ${d}_{\mathrm{gRNA}}{x}_{4}$ | (4) |

9 | $\phantom{\rule{3.0pt}{0ex}}{x}_{5}\to \phantom{\rule{3.0pt}{0ex}}{x}_{5}+1$ | ${k}_{\mathrm{transl}}{f}_{\mathrm{ORF}1}{x}_{4}$ | (5) |

10 | $\phantom{\rule{3.0pt}{0ex}}{x}_{5}\to \phantom{\rule{3.0pt}{0ex}}{x}_{5}-1$ | ${d}_{\mathrm{NSP}}{x}_{5}$ | (5) |

11 | $\phantom{\rule{3.0pt}{0ex}}{x}_{6}\to \phantom{\rule{3.0pt}{0ex}}{x}_{6}+1$ | ${k}_{{\mathrm{tr}}_{(-)}}{\theta}_{\mathrm{RdRp}}{x}_{4}$ | (6) |

12 | $\phantom{\rule{3.0pt}{0ex}}{x}_{6}\to \phantom{\rule{3.0pt}{0ex}}{x}_{6}-1$ | ${d}_{{\mathrm{gRNA}}_{(-)}}{x}_{6}$ | (6) |

13 | $\phantom{\rule{3.0pt}{0ex}}{x}_{7}\to \phantom{\rule{3.0pt}{0ex}}{x}_{7}+1$ | ${k}_{{\mathrm{tr}}_{(+)}}{\theta}_{\mathrm{RdRp}}{x}_{6}$ | (7) |

14 | $\phantom{\rule{3.0pt}{0ex}}{x}_{7}\to \phantom{\rule{3.0pt}{0ex}}{x}_{7}-1,\phantom{\rule{0.277778em}{0ex}}{x}_{10}\to {x}_{10}+1$ | ${k}_{\mathrm{complex}}{\theta}_{\mathrm{complex}}{x}_{7}$ | (7), (10) |

15 | $\phantom{\rule{3.0pt}{0ex}}{x}_{8}\to \phantom{\rule{3.0pt}{0ex}}{x}_{8}-1$ | ${n}_{\mathrm{N}}{k}_{\mathrm{complex}}{\theta}_{\mathrm{complex}}{x}_{7}$ | (8) |

16 | $\phantom{\rule{3.0pt}{0ex}}{x}_{7}\to \phantom{\rule{3.0pt}{0ex}}{x}_{7}-1$ | ${d}_{\mathrm{gRNA}}{x}_{7}$ | (7) |

17 | $\phantom{\rule{3.0pt}{0ex}}{x}_{8}\to \phantom{\rule{3.0pt}{0ex}}{x}_{8}+1$ | ${k}_{\mathrm{transl}}{f}_{\mathrm{N}}{x}_{7}$ | (8) |

18 | $\phantom{\rule{3.0pt}{0ex}}{x}_{8}\to \phantom{\rule{3.0pt}{0ex}}{x}_{8}-1$ | ${d}_{\mathrm{N}}{x}_{8}$ | (8) |

19 | $\phantom{\rule{3.0pt}{0ex}}{x}_{9}\to \phantom{\rule{3.0pt}{0ex}}{x}_{9}+1$ | ${k}_{\mathrm{transl}}{f}_{\mathrm{SP}}{x}_{7}$ | (8) |

20 | $\phantom{\rule{3.0pt}{0ex}}{x}_{9}\to \phantom{\rule{3.0pt}{0ex}}{x}_{9}-1$ | ${n}_{\mathrm{SP}}{k}_{\mathrm{assemb}}{\theta}_{\mathrm{assemb}}{x}_{10}$ | (9) |

21 | $\phantom{\rule{3.0pt}{0ex}}{x}_{9}\to \phantom{\rule{3.0pt}{0ex}}{x}_{9}-1$ | ${d}_{\mathrm{SP}}{x}_{9}$ | (9) |

22 | ${x}_{10}\to {x}_{10}-1,\phantom{\rule{0.277778em}{0ex}}{x}_{11}\to {x}_{11}+1$ | ${k}_{\mathrm{assemb}}{\theta}_{\mathrm{assemb}}{x}_{10}$ | (10), (11) |

23 | ${x}_{10}\to {x}_{10}-1$ | ${d}_{\mathrm{N}}{x}_{10}$ | (10) |

24 | ${x}_{11}\to {x}_{11}-1$,${x}_{12}\to {x}_{12}+1$ | ${k}_{\mathrm{release}}{x}_{11}$ | (11), (12) |

25 | ${x}_{11}\to {x}_{11}-1$ | ${d}_{\mathrm{assemb}}{x}_{11}$ | (11) |

26 | ${x}_{12}\to {x}_{12}-1$ | ${d}_{\mathrm{V}}{x}_{12}$ | (12) |

Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |

© 2022 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Sazonov, I.; Grebennikov, D.; Meyerhans, A.; Bocharov, G. Sensitivity of SARS-CoV-2 Life Cycle to IFN Effects and ACE2 Binding Unveiled with a Stochastic Model. *Viruses* **2022**, *14*, 403.
https://doi.org/10.3390/v14020403

**AMA Style**

Sazonov I, Grebennikov D, Meyerhans A, Bocharov G. Sensitivity of SARS-CoV-2 Life Cycle to IFN Effects and ACE2 Binding Unveiled with a Stochastic Model. *Viruses*. 2022; 14(2):403.
https://doi.org/10.3390/v14020403

**Chicago/Turabian Style**

Sazonov, Igor, Dmitry Grebennikov, Andreas Meyerhans, and Gennady Bocharov. 2022. "Sensitivity of SARS-CoV-2 Life Cycle to IFN Effects and ACE2 Binding Unveiled with a Stochastic Model" *Viruses* 14, no. 2: 403.
https://doi.org/10.3390/v14020403
