Meta-Transcriptomic Identification of Divergent Amnoonviridae in Fish

Abstract

Tilapia lake virus (TiLV) has caused mass mortalities in farmed and wild tilapia with serious economic and ecological consequences. Until recently, this virus was the sole member of the Amnoonviridae, a family within the order Articulavirales comprising segmented negative-sense RNA viruses. We sought to identify additional viruses within the Amnoonviridae through total RNA sequencing (meta-transcriptomics) and data mining of published transcriptomes. Accordingly, we sampled marine fish species from both Australia and China and discovered several segments of two new viruses within the Amnoonviridae, tentatively called Flavolineata virus and Piscibus virus, respectively. In addition, by mining vertebrate transcriptome data, we identified nine additional virus transcripts matching to multiple genomic segments of TiLV in both marine and freshwater fish. These new viruses retained sequence conservation with the distantly related Orthomyxoviridae in the RdRp subunit PB1, but formed a distinct and diverse phylogenetic group. These data suggest that the Amnoonviridae have a broad host range within fish and that greater animal sampling will identify additional divergent members of the Articulavirales.

1. Introduction

The Amnoonviridae are a recently described family of segmented and enveloped negative-sense RNA viruses associated with disease in fish. Until recently, the Amnoonviridae comprised only a single species, tilapinevirus or tilapia lake virus (TiLV) [1,2], which is associated with high rates of morbidity and mortality in both farmed and wild tilapia (Oreochromis niloticus and Oreochromis niloticus x O. aureus hybrid). As the second most farmed fish globally [3] and an important subsistence organism for farmers and high value markets [4], tilapia contribute USD 7.5 billion annually to the aquaculture industry. Outbreaks of TiLV have resulted in significant economic and ecological loss. The virus causes gross lesions of the eyes and skin, while also impacting brain, liver and kidney tissue [2], with associated mortality rates up to 90% [5,6]. While ongoing surveillance has detected the virus across numerous countries in Asia, Africa and South America [7], whether related viruses infect other fish hosts remains unclear.

The Amnoonviridae are members of the order Articulavirales that also includes the Orthomyxoviridae [8] that are particularly well-known because they contain the mammalian and avian influenza viruses. Unlike the Amnoonviridae, the Orthomyxoviridae, and closely related but unclassified orthomyxo-like viruses, infect a broad range of host species comprising both invertebrates and vertebrates. Notably, a divergent member of the Amnoonviridae, Lauta virus, was recently identified in an Australian gecko [9], strongly suggesting that members of this family are present in a wider range of vertebrate hosts. In addition, the large phylogenetic distance between Lauta virus and TiLV suggests that the former may even constitute a new genus within the Amnoonviridae, with the long branches throughout the Articulavirales phylogeny likely indicative of very limited sampling.

To help address whether the Amnoonviridae might be present in a wider range of vertebrate taxa, we screened for their presence using a meta-transcriptomic analysis of marine fish sampled in Australia and China, combined with data mining of published transcriptomes.

2. Materials and Methods

2.1. Fish Collection in Australia

Fish samples were collected from the Bass Strait (40°15′ S–42°20′ S, 147°05′ E–148°35′ E), Australia, in November 2018. The fish species collected included Rhombosolea tapirina, Platycephalus bassensis, Platycephalus speculator, Trachurus declivis, Trachurus novaezelandiae, Scorpaena papillosa, Pristiophorus nudipinnis, Pentaceropsis recurvirostris and Meuschenia flavolineata. Fish were caught via repeated research trawls on the fisheries’ training vessel, Bluefin, following the methodology outlined in [10]. Ten individuals from each species were caught and stored separately. Gill tissues were dissected and snap frozen at −20 °C on the vessel, and then stored in a −80 °C freezer at Macquarie University, Sydney. Sampling was conducted under the approval of the University of Tasmania Animal Ethics Committee, approval number A0015366.

2.2. Fish Collection in China

As well as Australia, we analysed the transcriptome data derived from a previous study of the viromes of fish sampled from the South China Sea [11]. For that study, the fish species sampled and subsequently pooled for shotgun RNA sequencing included Proscyllium habereri, Urolophus aurantiacus, Rajidae sp., Eptatretus burgeri, Heterodontus zebra, Dasyatis bennetti, Acanthopagrus latus, Epinephelus awoara, Conger japonicus, Siganus canaliculatus, Glossogobius circumspectus, Halichoeres nigrescens and Boleophthalmus pectinirostris. Liver samples from each species were pooled and stored in a −80 °C freezer. The procedures for sampling and sample processing were approved by the ethics committee of the National Institute for Communicable Disease Control and Prevention of the China CDC.

2.3. RNA Sequencing

For RNA extraction, frozen tissue was partially thawed and submerged in lysis buffer containing 1% ß-mercaptoethanol and 0.5% Reagent DX before tissues were homogenized together with TissueRupture (Qiagen, Hilden, Germany). The homogenate was centrifuged to remove any potential tissue residues, and RNA from the clear supernatant was extracted using the Qiagen RNeasy Plus Mini Kit. RNA was quantified using NanoDrop (ThermoFisher, Waltham, MA, USA). RNA isolated from the Australian samples was pooled for each host species, whereas RNA isolated from the Chinese samples was pooled from all species [11], resulting in 3 μg per pool (250 ng per individual). Libraries were constructed using the TruSeq Total RNA Library Preparation Protocol (Illumina) and host ribosomal RNA (rRNA) was depleted using the Ribo-Zero-Gold Kit (Illumina) to facilitate virus discovery. Fish caught in Australia were subject to paired-end (100 bp) sequencing performed on the NovaSeq 500 platform (Illumina) carried out by the Australian Genome Research Facility (AGRF). RNA sequencing of the pooled fish sampled from China were sequenced on the HiSeq 2500 platform (Illumina) at BGI Tech (Shenzhen, China).

2.4. Transcript Sequence Similarity Searching for Novel Amnoonviruses

Sequencing reads were first quality trimmed then assembled de novo using Trinity RNA-Seq (v.2.11.0) [12]. The assembled contigs were annotated based on similarity searches against the National Center for Biotechnology Information (NCBI) nucleotide (nt) and non-redundant protein (nr) databases using BLASTn and Diamond BLASTX (v.2.0.2) [13]. To infer the evolutionary relationships of the amnoonviruses, newly discovered the translated viral contigs were combined with representative protein sequences from TiLV and Lauta virus obtained from NCBI GenBank. The sequences retrieved were then aligned with those generated here using MAFFT (v7.4) employing the E-INS-i algorithm. Ambiguously aligned regions were removed using trimAl (v.1.2) [14]. To estimate phylogenetic trees, we utilized the maximum likelihood approach available in IQ-TREE (v 1.6.8) [15], selecting the best-fit model of amino acid substitution with ModelFinder [16], and using 1000 bootstrap replicates to assess nodal support. Phylogenetic trees were annotated with FigTree (v.1.4.2).

2.5. PCR Confirmation

To further confirm the presence of Flavolineata virus in the yellow-striped leatherjacket collection, 10μl of extracted RNA was transcribed into cDNA using SuperScript^® VILO™ reverse transcriptase (Invitrogen, CA USA). PCR amplification was performed using Platinum™ II Hot-Start PCR Master Mix (2X) (Invitrogen, CA, USA) and 3 sets of primers (Table S1) designed to cover different regions of the virus sequence. PCR products were visualized on 2% agarose gel stained with SYBR^® Safe (Invitrogen, CA USA).

2.6. TSA Mining

To identify additional novel vertebrate viruses within the Amnoonviridae we screened de novo transcriptome assemblies available at the NCBI Transcriptome Shotgun Assembly (TSA) database (https://www.ncbi.nlm.nih.gov/genbank/tsa/). Amino acid sequences of Flavolineata virus, Piscibus virus and TiLV were queried against the assemblies using the translated Basic Local Alignment Search Tool (tBLASTn) algorithm. We restricted the search to transcriptomes within the Vertebrata (taxonomic identifier: 7742). Putative virus contigs were subsequently queried using BLASTx against the non-redundant virus database.

2.7. Virus Naming

New viruses identified in this study are tentatively named by drawing from the names of their host species.

2.8. Data Availability

Sequencing reads are available at the NCBI Sequence Read Archive (SRA). For Piscibus virus, see Bioproject PRJNA418053 (BioSample: SAMN08013970; Library name: BHFishG), and for Flavolineata virus, see Bioproject: PRJNA667570. Alignments with new virus transcripts are available at https://github.com/jemmageoghegan/Amnoonviridae-in-fish.

3. Results

3.1. Identification of a Novel Amnoonviridae in Yellow-Striped Leatherjacket

As part of a large virological survey on nine species of marine fish, our meta-transcriptomic analysis identified several segments of a novel member of the Amnoonviridae, tentatively named Flavolineata virus, in a sequencing library of 10 pooled individuals of yellow-striped leatherjacket (Meuschenia flavolineata) sampled from the Bass Strait off the coast of Tasmania, Australia. No amnoonviruses were identified in the remaining eight fish species. We identified a complete, highly divergent protein in which a Diamond BLASTx analysis revealed 37% amino acid identity to TiLV segment 1, characterized as the PB1 subunit (Genbank accession: QJD15207.1, e-value: 2.0 × 10⁻⁸⁰, query coverage 95%), with a GC composition of 48.2% and a standardised abundance of 0.00004% of the total non-rRNA library. The presence of Flavolineata virus was further confirmed in the unpooled samples using RT-PCR (Figure S1).

3.2. Identification of a Novel Amnoonviridae in Pooled Marine Fish from the South China Sea

An additional novel member of the Amnoonviridae, which we have provisionally termed Piscibus virus, was identified in a pool of various marine species (including sharks, eels, stingrays, jawless fish and perch-like fish) sampled in the South China Sea as described previously [11]. Specifically, we identified a short contig (270 nucleotides) that shared highest amino acid sequence similarity (48.8%, e-value: 1.5 × 10⁻¹⁵) to Flavolineata virus using a custom database including the known members of the family Amnoonviridae. In addition, a comparison to the NCBI nr database showed that Piscibus virus had 48.5% amino acid similarity (e-value: 2.0 × 10⁻⁰⁷) to the PB1 subunit of the TiLV RdRp. The GC composition of the assembled sequence was 49.2%, and it had a standardized abundance of 0.0001% of the total non-rRNA library. Despite the limited contig length for Piscibus virus, such that its status as a bona fide novel virus will need to be confirmed with additional sequencing, we did identify conserved motifs within the PB1 subunit (see below).

3.3. Identification of Novel Amnoonviridae in Published Transcriptomes

To identify additional novel vertebrate viruses within the Amnoonviridae, we screened de novo transcriptome assemblies available at NCBI’s TSA database. In doing so, we identified nine further potentially novel viruses in fish matching segments 1–4 of TiLV (

Table 1. Novel viruses identified in this study.

Virus Name	Host	Geographic Location of Sample Collection	Detection Method (NCBI Accession of TSA Data)	Contig Length Matching Segment 1 or 4 of TiLV (nt)	Closest Amino Acid Match to Segment 1 or 4 (GenBank Accession)
Flavolineata virus	Meuschenia flavolineata	Australia	Fish sampling + meta-transcriptomics	1536	37% TiLV (QJD15207.1)
Piscibus virus	Pooled marine fish (see methods)	China	Fish sampling + meta-transcriptomics	270	49% TiLV (QJD15207.1)
Dolomieu virus	Micropterus dolomieu	USA	TSA search (GDQU01066121.1, GDQU01106321.1, GDQU01283605.1, GDQU01532168.1)	1440	34% TiLV (QJD15204.1)
Namensis virus	Gymnocypris namensis	China	TSA search (GHYH01080462.1, GHYH01005036.1, GHYH01084204.1)	1503	35% TiLV (AOE22913.1)
Hamatus virus	Chionodraco hamatus	China	TSA search (GFMN01088333.1)	321	51% TiLV (QJD15205.1)
Stewartii virus	Oxygymnocypris stewartii	China	TSA search (GIBO01031171.1, GIBO01013027.1)	1743	28% TiLV (QJD15204.1)
Plagiostomus virus	Schizothorax plagiostomus	China	TSA search (GHXZ01024367.1, GHXZ01079240.1)	366	39% TiLV (AOE22912.1)
Przewalskii virus	Gymnocypris przewalskii	China	TSA search (GHYJ01002273.1, GHYJ01008047.1, GHYJ01010906.1)	1761	26% TiLV (QJD15208.1)
Asotus virus 1	Silurus asotus	Japan	TSA search (GHGF01026383.1, GHGF01034639.1, GHGF01033499.1, GHGF01028660.1, GHGF01037407.1)	1710	32% TiLV (QMT29723.1)
Asotus virus 2	Silurus asotus	Japan	TSA search (GHGF01016319.1, GHGF01027066.1, GHGF01047620.1)	1719	29% TiLV (QJD15204.1)
Nudifrons virus	Lindbergichthys nudifrons	Antarctic Peninsula	TSA search (HACN01008153.1)	1032 (segment 4)	44% Flavolineata virus (segment 4)

).

Relatives of the Amnoonviridae were identified in ray-finned fish species (Actinopterygii) from marine (Lepidonotothen nudifrons and Chionodraco hamatus) and freshwater ecosystems (Gymnocypris przewalskii, Gymnocypris namensis, Micropterus dolomieu, Oxygymnocypris stewartia, Schizothorax plagiostomus and Silurus asotus) (Table 1). All viral sequences corresponded to segments 1–4 and ranged from 209 to 1784 nucleotides in length. The putative segments shared 26–51% sequence identity with TiLV. Most of the identified viral sequences corresponded to segment 1, containing the RdRp and covered motifs II and III (Figure 1). Notably, no other vertebrate class within the TSA was identified as potential hosts of these viruses.

3.4. Evolutionary Relationships of Novel Amnoonviridae

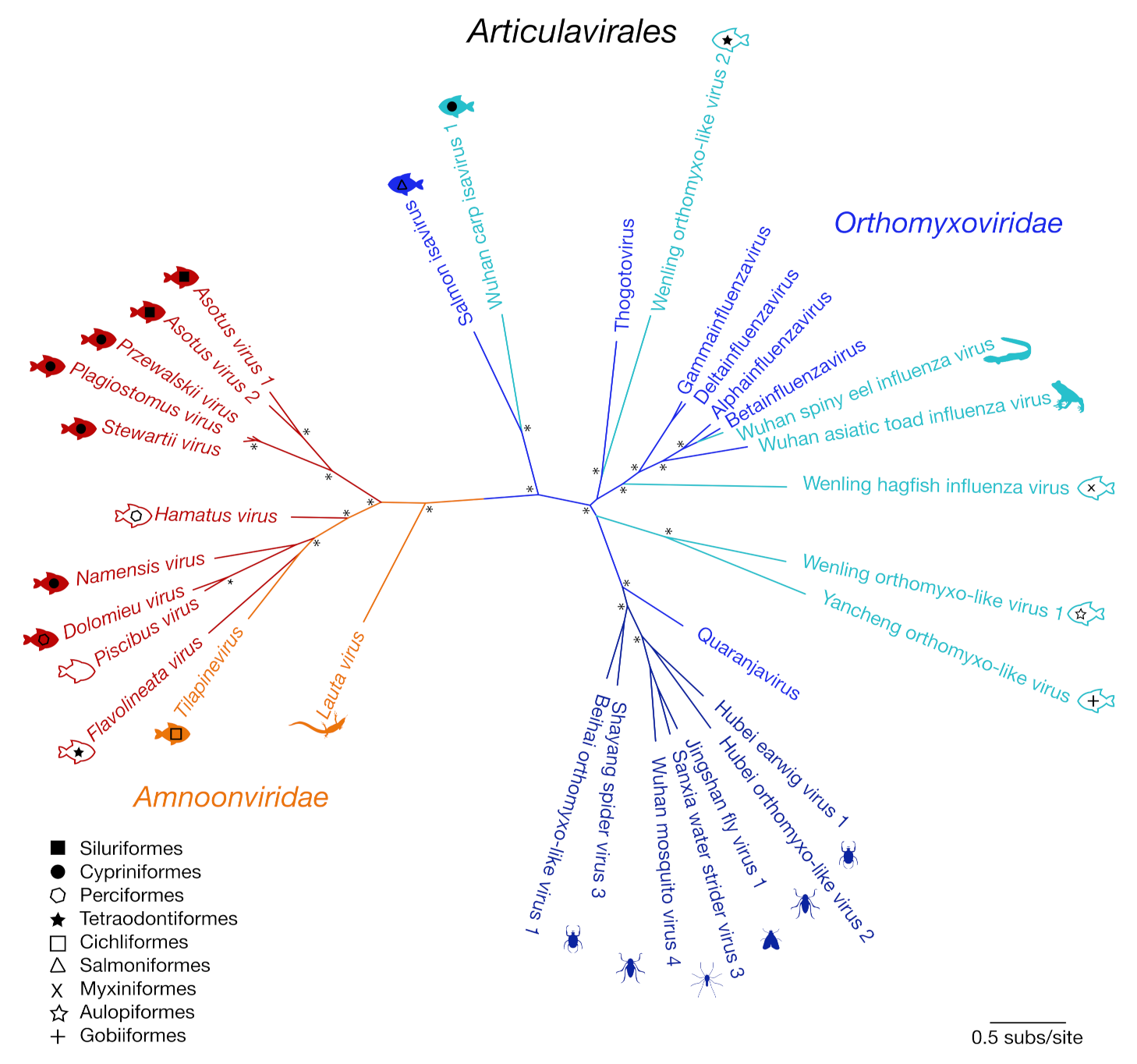

We next performed phylogenetic analysis of the RdRp subunit (segment 1) across the order Articulavirales (Figure 2). This revealed two distinct clades of fish viruses within the Amnoonviridae (with 83% bootstrap support). The original member of this virus family, TiLV, grouped with Flavolineata virus, Piscibus virus, Dolomieu virus, Namensis virus and Hamatus virus in one clade. The second fish virus clade comprised the newly identified Stewartii virus, Plagiostomus virus, Przewalskii virus, Asotus virus 1 and Asotus virus 2. Lauta virus, identified in a native Australian gecko, appears to form a distinct lineage, suggestive of a separate genus. This phylogenetic analysis clearly illustrates the diversity of these viruses within both marine and freshwater fish, with no apparent host taxonomic structure (Figure 2).

3.5. Genome Composition of the Novel Amnoonviridae

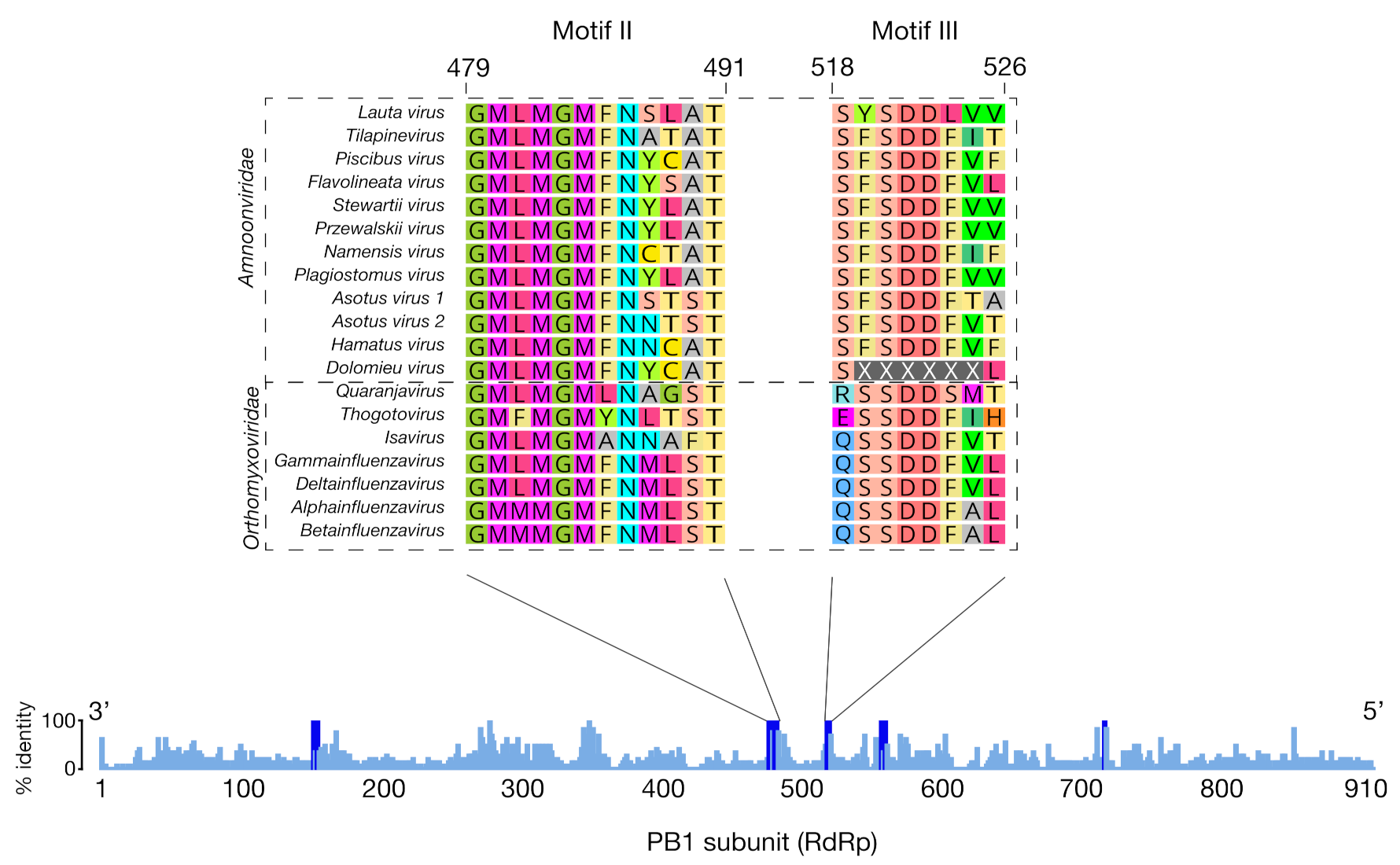

Ten of the novel viruses identified included segment 1, corresponding to the RdRp subunit PB1, and sharing clear sequence homology with different members of the Articulavirales including the Orthomyxoviridae (Figure 1). These viruses had the closest genetic match to TiLV, ranging from 28 to 51% sequence similarity at the amino acid level to segment 1 (Table 1). Segment 4 was the only segment found from the tentatively named nudifrons virus (Table 1, Table S2).

Despite the lack of genomic characterization of TiLV, a sequence comparison across the Articulavirales revealed several conserved PB1 motifs, which included those described previously [1]. Sequence similarities with other viral RNA-dependent RNA polymerases suggest that motif III plays a key functional role at the core of the transcriptase-replicase activity [17,18]. Defined by the consensus serine-aspartic acid-aspartic acid (SDD) sequence in the Articulavirales, this motif is highly conserved and is critical for protein stability and function.

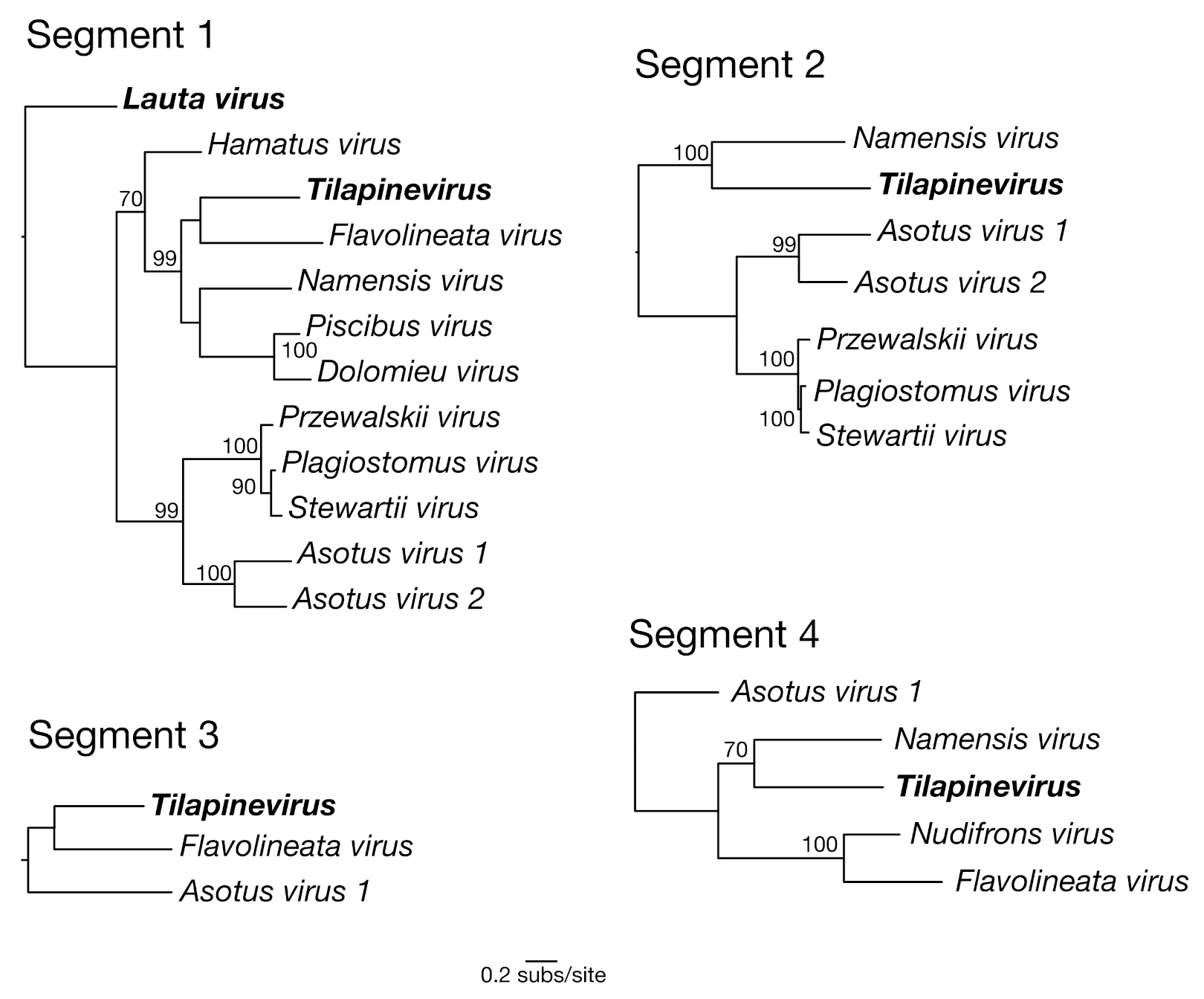

In contrast to the six to eight genomic coding segments that comprise viruses within the Orthomyxoviridae, TiLV contains 10 segments with open reading frames, none of which have been functionally characterized to date [19]. While we were able to distinguish virus transcripts with sequence similarity to segments 1–4 of TiLV (Figure 3), it is possible that the other segments are present but too divergent in sequence to be detected, and this will need to be addressed in future studies. Indeed, the remaining segments of TiLV exhibit no sequence similarity to any other known viruses [1,2] or eukaryotic genes.

It is also of note that we found some evidence for phylogenetic incongruence between the topologies of the different gene segments, although this analysis is complicated by the differing numbers of viruses available for each segment, the short sequence alignments and the highly divergent nature of the sequences being analysed. For example, Flavolineata virus and TiLV appear as sister taxa in segment 1 yet are seemingly more divergent in segment 4 (Figure 3). Hence, this phylogenetic pattern tentatively suggests that amnoonviruses may have undergone reassortment in a similar manner to influenza A viruses in the Orthomyxoviridae, although this will need to be confirmed with the addition of longer sequences and more taxa. Reassortment has previously been observed within circulating TiLV strains, which has added complexity to inferring its evolutionary history [20].

4. Discussion

Through both sampling marine fish and mining publicly available sequence data, we discovered 11 new viruses, all of which are the closest genetic relatives of TiLV. These viruses fall within the Amnoonviridae, which currently comprises only two viruses: TiLV and Lauta virus. The discovery of these new viruses expands our understanding of the host range of the Amnoonviridae to include host species across multiple taxonomic orders of freshwater and marine fish, including Cypriniformes, Siluriformes, Perciformes and Tetraodontiformes, and includes animals sampled in a range of geographic localities (Australia, China, North America, Antarctica and Japan). Not only does the identification of these new viruses greatly increase the phylogenetic diversity in this newly identified group of viruses, but it may also provide insight into the potential origins and host range of TiLV, a virus that has major economic and ecological impacts on fisheries and aquaculture.

The viruses discovered here were highly divergent in sequence, likely limiting our ability to detect all genome segments present in the data. Nevertheless, sequence conservation within segment 1 across the entire taxonomic order strongly supports the inclusion of these new viruses within the Amnoonviridae. While we only found new viruses in fish and no other vertebrate classes, it is important to note that fish comprise 44% of currently available vertebrate transcriptomes (as of September 2020). With the expansion of these databases, it is likely we will identify additional highly divergent viruses within the Amnoonviridae and hence of the Articulavirales as a whole. The discovery of these 11 viruses invites further research into the true diversity and evolutionary origins of the Amnoonviridae.
