A Functional K+ Channel from Tetraselmis Virus 1, a Member of the Mimiviridae

1
Membrane Biophysics, Department of Biology, Technische Universität Darmstadt, 64287 Darmstadt, Germany
2
Department of Oceanography, Daniel K. Inouye Center for Microbial Oceanography: Research and Education, University of Hawai’i at Mānoa, 1950 East-West Road, Honolulu, HI 96822, USA
3
Department of Biosciences and CNR IBF-Mi, Università degli Studi di Milano, Via Giovanni Celoria 26, 20133 Milano, Italy
4
University Clinic for Psychiatry and Psychotherapy, Brandenburg Medical School, Immanuel Klinik Rüdersdorf, Seebad 82/83, 15562 Rüdersdorf, Germany
5
Department of Plant Pathology and Nebraska Center for Virology, University of Nebraska Lincoln, Lincoln, NE 68583-0900, USA
6
Institute of Biophysics, Consiglio Nazionale delle Ricerche, Via Celoria 26, 20133 Milan, Italy
*
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Viruses 2020, 12(10), 1107; https://doi.org/10.3390/v12101107
Received: 7 September 2020 / Revised: 25 September 2020 / Accepted: 25 September 2020 / Published: 29 September 2020
(This article belongs to the Collection Unconventional Viruses)

Abstract

Potassium ion (K+) channels have been observed in diverse viruses that infect eukaryotic marine and freshwater algae. However, experimental evidence for functional K+ channels among these alga-infecting viruses has thus far been restricted to members of the family Phycodnaviridae, which are large, double-stranded DNA viruses within the phylum Nucleocytoviricota. Recent sequencing projects revealed that alga-infecting members of Mimiviridae, another family within this phylum, may also contain genes encoding K+ channels. Here we examine the structural features and the functional properties of putative K+ channels from four cultivated members of Mimiviridae. While all four proteins contain variations of the conserved selectivity filter sequence of K+ channels, structural prediction algorithms suggest that only two of them have the required number and position of two transmembrane domains that are present in all K+ channels. After in vitro translation and reconstitution of the four proteins in planar lipid bilayers, we confirmed that one of them, a 79 amino acid protein from the virus Tetraselmis virus 1 (TetV-1), forms a functional ion channel with a distinct selectivity for K+ over Na+ and a sensitivity to Ba2+. Thus, virus-encoded K+ channels are not limited to Phycodnaviridae but also occur in the members of Mimiviridae. The large sequence diversity among the viral K+ channels implies multiple events of lateral gene transfer.
Keywords: viral K+ channel; Kcv; K+ channel evolution; Phycodnaviridae; Mimiviridae viral K+ channel; Kcv; K+ channel evolution; Phycodnaviridae; Mimiviridae

1. Introduction

After the discovery that the M2 protein of influenza virus A exhibits ion channel function [1], many more viruses were discovered to contain genes encoding channel-forming proteins [2,3,4,5,6]. Structure and function studies have shown that these proteins have little in common. In terms of function, the known viral channels exhibit a large diversity ranging from some with high ion selectivity [1,7] to a majority with non-selective channels [4,5]. Furthermore, the structures of viral channels are very diverse. The only common feature is that they all contain variable numbers of α-helical transmembrane domains and most are small, consisting of only about 100 amino acids [2,5].
The structures of many known viral channels have no resemblance to channel proteins from prokaryotes and eukaryotes [2,5,8]. A prominent exception is viral channels that have the structural hallmarks of prokaryotic and eukaryotic K+ channels. Genes encoding this type of protein have been detected in phages (Vibrio phages, Mycobacterium phages) and in giant dsDNA viruses infecting algae [8]. The first viral K+ channel gene was detected in the genome of the chlorovirus Paramecium bursaria Chlorella virus 1 (PBCV-1) [7]. Subsequent analyses confirmed that the viral gene product had the basic structural and functional hallmarks of the pore module of all K+ channels, including those in human neurons and muscles. The channel, named Kcv for K+ channel of chloroviruses, has two transmembrane domains that are separated by a stretch of amino acids containing the pore helix and the highly conserved selectivity filter of all K+ channels [9]. Four of these monomers assemble into a homotetramer, which creates a central water-filled pore for ion transport. Different from the related prokaryotic and eukaryotic Kir channels, which have the same pore module architecture, the PBCV-1 channel has no appreciable cytosolic domains [10], which accounts for its small size (93 amino acids).
A large number of studies have confirmed that Kcv proteins from many chloroviruses not only look like a K+ channel, but they also share the functional features of complex K+ channels from prokaryotes and eukaryotes [7,11,12]. This includes the same mechanism of ion selectivity, which provides the channel with a distinct preference for transport of K+ over Na+ as well as a sensitivity to Ba2+ block [7,9,12]. Moreover, like their prokaryotic and eukaryotic relatives, the viral channel is gated, meaning that it switches stochastically between defined open and closed states [12,13].
Intensive sequencing and analysis of environmental samples has led to the discovery of ca. 100 diverse K+ channel sequences in different species of Phycodnaviridae [6,8,14,15,16,17]. This includes not only viruses that infect unicellular Chlorella-like green algae in freshwater but also a range of viruses that have marine algae as hosts [16,17].
The widespread occurrence of viral K+ channels indicates that they are not just a peculiarity of one virus/host system. This also raises the question of the evolutionary origin of the viral K+ channels. The most obvious scenario would be that the viruses have obtained the K+ channel genes by molecular piracy from their host. However, a phylogenetic comparison of viral K+ channel sequences with those of two host cells revealed no evidence for such a recent gene transfer between host and virus [11,18]. Another open question in this context is whether genes encoding K+ channels are more broadly distributed in the phylum Nucleocytoviricota (also known as nucleocytoplasmic large DNA viruses (NCLDVs)) or unique to the family Phycodnaviridae. While the genomes of initially discovered amoeba-infecting mimiviruses contained no K+ channel sequences, recent data suggest that putative K+ channel genes are present in some alga-infecting members of the family Mimiviridae. These include possible K+ channel genes in Aureococcus anophagefferens virus (AaV), Tetraselmis virus 1 (TetV-1), and Organic Lake phycodnavirus 2 (OLPV2) viruses [8,19,20,21].
The annotation of genes in newly sequenced organisms relies on a few crucial hallmarks for a protein family, so sequence data alone does not guarantee that the gene product exhibits the annotated function. Fortunately, small channel proteins can easily be synthesized in vitro and functionally reconstituted in planar lipid bilayers [22]. This makes them ideal for testing whether the annotated function is real, which has important consequences for understanding their origins and mechanisms of action. Comparative analyses of the structure and function of K+-channel-like proteins from the different virus families, for example, will shed light on the evolution of these proteins within members of the Mimiviridae (mimivirids) and possibly even on the origin of all K+ channels. Furthermore, the minimal size, high structural variability, and robust function of viral K+ channels [6,12,14] makes these proteins valuable model systems for understanding basic the structure/function correlates of all K+ channel pores [12].
Here we tested the function of putative K+ channels from four alga-infecting mimivirids and confirmed channel function with a distinct selectivity for K+ over Na+ for one of them (TetV-1). The results of this study confirm that functional K+ channels are present not only in the members of Phycodnaviridae, but they also occur in viruses in the Mimiviridae family. The phylogenetic similarity between K+ channel genes from the different viruses advocates a common evolutionary origin.

2. Materials and Methods

2.1. Sequence Sources

The putative K+ channel sequences used in this study are from four mimivirids that infect marine phytoplankton (algae): TetV-1 [20], Florenciella virus Station ALOHA 1 (FloV-SA1), Rhizochromulina virus Station ALOHA 1 (RhiV-SA1), and Chrysochromulina sp. virus Kāne‘ohe Bay 1 (CsV-KB1) [23]. The virus-host systems derive from coastal waters of the island of O‘ahu (Kāne‘ohe Bay) in the State of Hawaii, USA (TetV-1, CsV-KB1) or an open ocean site (Station ALOHA) 100 km north of O‘ahu (FloV-SA1, RhiV-SA1). TetV-1 infects a strain of Tetraselmis [20]. CsV-KB1, FloV-SA1, and RhiV-SA1 infect unicellular algae in the genera Chrysochromulina, Florenciella, and Rhizochromulina, respectively [23]. Putative K+ channel genes encoded in the genomes of CsV-KB1, FloV-SA1, and RhiV-SA1 were predicted using Prodigal v2.6.3 [24] and identified based on protein sequence similarity searches employing webBLAST [25], CD-Search [26], Pfam [27], and InterProScan [28], as described in [23].

2.2. Sequence Analysis

Sequence alignment was performed with Clustal omega algorithm (https://www.ebi.ac.uk/Tools/msa/clustalo). Transmembrane domains were predicted by TMHMM (http://www.cbs.dtu.dk/services/TMHMM-2.0/), MINNOU (http://minnou.cchmc.org), TMpred: https://embnet.vital-it.ch/software/TMPRED_form, HMMTop: http://www.enzim.hu/hmmtop/ and SOSUI: http://harrier.nagahama-i-bio.ac.jp/sosui/sosui_submit.html algorithms. We used MEGA software version X to construct the phylogenetic trees [29]. Primary sequences of putative K+ channels were compared with sequences in databanks using the BLASTP algorithm (https://blast.ncbi.nlm.nih.gov/Blast.cgi?PROGRAM=blastp&PAGE_TYPE=BlastSearch&LINK_LOC=blasthome).

2.3. 3D Modeling

The 3D model structure for the TetV-1 protein was created by using the web portal for protein modeling Phyre2 [30] on the basis of the X-ray template structure of the K+ channel of Streptomyces lividans (KcsA; Protein Data Bank (PDB) ID: 1K4C). The 3D model was further refined [31] by using the web server 3Drefine [32].

2.4. Planar Lipid Bilayer Experiments

These experiments were done either on a vertical bilayer set up (IonoVation, Osnabrück, Germany) as described previously [6,22] or in horizontal bilayers using an eNPR amplifier, equipped with a BLM_chip flowcell (Elements srl, Cesena, Italy). A 1% hexadecane solution (MERCK KGaA, Darmstadt, Germany) in n-hexane (Carl ROTH, Karlsruhe, Germany) was used for pretreating the Teflon foil (Goodfellow GmbH, Hamburg, Germany). The hexadecane solution (ca. 0.5 μL) was added to the rim of the hole (100 μm in diameter) in the Teflon foil with a bent Hamilton syringe (Hamilton Company, Reno, NV, USA). The experimental solution contained 100 mM KCl and was buffered to pH 7.0 with 10 mM HEPES/KOH. As a lipid we used 1,2-diphythanoyl-sn-glycero-3-phosphocholine (DPhPC), 1,2-diphythanoyl-sn-glycerol-3 phosphatidyl-serine DPhPS, or n1,2-diphytanoyl-sn-glycero-3-phospho-(1′-rac-glycerol) DPhPG.

2.5. Channel Protein Synthesis

All channels were synthesized cell-free with the MembraneMaxTM HN Protein Expression Kit (Invitrogen, Carlsbad, CA, USA) as reported previously [22]. In vivo synthesis occurred on a shaker with 1000 rpm at 37 °C for 1.5 h in the presence of nanodiscs (NDs) with 1,2-dimyristoyl-sn-glycero-3-phosphocholine (DMPC) lipids (Cube Biotech GmbH, Monheim, Germany). The scaffold proteins of the NDs were His-tagged, which allowed purification of channel/ND complexes via metal chelate affinity chromatography. The concentration of His-tagged NDs in the reaction mixture was adjusted to 30 µM. For purification of the channel/ND complexes, the crude reaction mixture was adjusted to 400 µL with equilibration buffer (10 mM imidazole, 300 mM KCl, 20 mM NaH2PO4, pH 7.4 with KOH) and then loaded on an equilibrated 0.2 mL HisPur nickel–nitrilotriacetic acid agarose (Ni–NTA) spin column (Thermo Scientific). For binding of His-tagged NDs to the Ni–NTA resin, the columns were incubated for 45 min at RT and 200 rpm on an orbital shaker. In the subsequent step, the buffer was removed by centrifugation. To eliminate unspecific binders, the column was washed three times with 400 µL of a 20 mM imidazole solution. Finally, the His-tagged NDs were eluted in three fractions with 200 µL of a 250 mM imidazole solution. All centrifugation steps were performed at 700× g for 2 min. After purification, the preparations were stored at 4 °C. For the reconstitution of channel proteins into the lipid bilayer, a small amount (~2 µL) of the purified channel/ND conjugates (1:1000 dilutions) was added directly below the bilayer in the trans compartment.

2.6. Ion Channel Recordings, Data Analysis, and Statistics

After the insertion of an active channel into the bilayer, the membrane was routinely clamped for periods between 10 s and 15 min to a range of positive and negative voltages (usually from +160 mV to −160 mV in 20 mV steps). Data analysis was performed with KielPatch (version 3.20 ZBM/2011) and Patchmaster (HEKA Electronik, Lambrecht, Germany). Experimental data are presented as mean ± standard deviation (sd) of n independent experiments. Statistical significances were evaluated by one-way ANOVA and Student T-tests.

3. Results and Discussion

3.1. Putative K+ Channels

The amino acid sequences of the putative K+ channels from TetV-1, CsV-KB1, FloV-SA1, and RhiV-SA1 viruses exhibit a low degree of identity/homology with the exception of a small cluster of amino acids around the conserved motif (TXXTXGYG) characteristic of the selectivity filter of K+ channels (Figure 1). All of them have the conserved GYG sequence, but some have unusual substitutions or features at other positions. For example, the third variable position of the selectivity filter motif is often a threonine but may be substituted by serine, leucine, or valine [33]. In CsV-KB1, this position is replaced with a cysteine. The second conserved threonine (position 4 of the motif) is occasionally a serine or cysteine [33], but in CsV-KB1, it is substituted with a leucine, which is unusual for K+ channels. A BLAST search shows that a leucine is not present at this position in the consensus sequence of human K+ channels. In all but one of the sequences (RhiV-SA1), the amino acid immediately following the GYG is aspartate, which is found in the same position in many K+ channels [7,33], with the exception of those in which the tyrosine of GYG is substituted with a phenylalanine (GFG).
In addition to having the consensus motif itself, all of the sequences have a cluster of aromatic amino acids upstream of the motif (Figure 1). This is consistent with structural requirements of a K+ channel pore in which aromatic side chains in this position keep the pore at the appropriate diameter for K+ transport [34]. Hence, aside from a few unusual residues in or immediately after the GYG motif in two of the sequences, it would appear at first glance that any of these sequences could form functional K+ channels. To better understand the relationship of these four putative K+ channels with similar proteins from other viruses, we constructed a multisequence alignment and a phylogenetic tree (Figure 2). The tree includes sequences from all known viral K+ channel prototypes ([8]; Supplementary Table S1). Because of the small size of the proteins, most nodes only have bootstrap values. However, the tree still suggests that sequences from phage proteins are separated from the proteins from eukaryote-infecting viruses. While TetV-1, CsV-KB1, and FloV-SA1 cluster with proteins from other mimivirids (AaV1, OLPV2, and YLPV2), RhiV-SA1 is closer to the chlorovirus channels.
We then searched among viral and non-viral sequences in the protein databank for candidates that are most similar to the putative channels from the four Mimiviridae isolates using BLAST (Table 1). The best hits within the viruses confirm the results of the phylogenetic tree, in that, the putative channels show a distinct relationship to channel proteins from freshwater and marine phycodnaviruses as well as to a putative channel from other members of the Mimiviridae (Aureococcus anophagefferens virus; AaV). The high degree of diversity among the mimivirid sequences already suggests multiple independent events of lateral gene transfer.
The BLAST results also show that the putative channel proteins share up to 40% sequence identity with bacterial proteins. Most interesting in this context is the similarity between the primary sequences (low E values, Table 1) of some of the viral channel candidates to proteins with unknown function in bacteria in the phylum Actinobacteria. These organisms are thought to be very ancient, dating back to a pre-oxygen atmosphere on earth ~2.7 billion years ago [36,37]. It is possible that the recurrent similarity between viral and Actinobacteria proteins and the fact that both Actinobacteria and NCLDVs have ancient ancestors [36,37,38,39] could provide clues on the evolutionary origin of the viral K+ channels.
In addition to the consensus motif, which is part of the selectivity filter, a functional K+ channel requires additional structural elements. This includes at least two transmembrane domains that are able to span the bilayer and a short α-helix upstream of the selectivity filter motif [33,34]. The latter forms the pore helix and is essential for the correct positioning of the filter motif in the ion conducting pore [34]. A visualization of the bacterial channel KcsA (Figure 3A) serves as a reference for the pore structure. KcsA was the first crystalized K+ channel and serves as a model structure for K+ channel pores with all the aforementioned essential structural elements [34]. The same building elements can be recognized in the primary sequence of viral K+ channels by structural prediction algorithms. In the case of the functional viral channel KcvPBCV1 [7] these algorithms predict with high propensity two transmembrane domains and an α-helix upstream of the selectivity filter (Figure 3B). To examine whether the new sequences fulfill these requirements, we applied the same structural prediction algorithms. The results show that TetV-1 has the predicted transmembrane domains (Figure 3B) and required structural elements in the exact positions that are expected for a functional K+ channel (Figure 3C). The combination of the overall structural architecture of a K+ channel pore and the presence of a consensus sequence suggest that this protein could indeed be a functional K+ channel.
The same analysis conducted with all four mimivirid sequences shows a more diverse picture (Figure 4A). Based on TMHMM and the consensus results from four additional prediction programs, both TetV-1 and RhiV-SA1 are robustly predicted to have both transmembrane domain (TMD)1 and TMD2 in the expected positions. In FloV-SA1, all programs predict an upstream TMD1-like domain, but there is no consensus prediction of a TMD2. CsV-KB1 also has a predicted upstream TMD, but the predicted second TMD is in the wrong position with the selectivity filter in the center of the transmembrane helix. We then examined whether a structural prediction algorithm provides evidence for an α-helix region prior to the canonical filter motive of K+ channels (Figure 1 and Figure 4B). In a previous study on other viral K+ channels, the prediction of α-helices in this position was very robust [17]. The data show α-helices in the correct position in 3 of the 4 viral protein sequences; only CsV-KB1 lacked this structure.
Collectively, the data indicate that at least three of the four protein sequences have the major structural elements consistent with a K+ channel function. TetV-1 and RhiV-SA1 show the most convincing evidence. FloV-SA1 is somewhat less convincing, because of disagreements in the prediction of TMD2, but it has the other expected features. The CsV-KB1 protein seems unlikely to be a functional K+ channel; it shows some deviation from the consensus sequence of K+ channels and the bioinformatic scrutiny of the amino acid sequence reveals no strong evidence for some essential structural elements.

3.2. The TetV-1 Protein Has K+ Channel Function

To test all four proteins for channel function, they were synthesized in vitro into nanodiscs and, after purification, reconstituted into planar lipid bilayers. Typical channel fluctuations were routinely obtained with the 79 amino acid TetV-1 protein (Figure 5A). None of the other proteins generated any perceivable channel activity in multiple repetitions (Table 2). These results establish that TetV-1 is a protein with typical K+ channel functions and that the other proteins do not work under conditions in which most viral K+ channels function [6,12,22,40]. Since it is known that the activity of some ion channels depends on factors such as the presence of anionic lipids [41], we cannot completely exclude the possibility that these other three proteins might function as K+ channels under different conditions.
We then conducted a basic characterization of the TetV-1 K+ channel protein, named Ktv1 for K+ channel from Tetraselmis virus 1. The channel generated in a solution with 100 mM K+ on both sides of the membrane an asymmetric current/voltage (I/V) in which the conductance at positive voltages (57 ± 7 pS) was about 2 times larger than that a negative voltages (27 ± 5 pS) (Figure 5B). This value of unitary conductance is similar to that of other viral K+ channels [12]. The Ktv1 channel also exhibited an appreciable voltage dependency; it was nearly always open at negative voltages and exhibited increasingly long closed times at positive voltages (Figure 5A). The open probability/voltage (P0/V) plot shows that this results in a progressive decrease in channel activity with increasing positive voltages. If we assume that, like the other viral K+ channels, the Ktv1 channel inserts preferentially with the n- and c-terminus into the membrane [22,42], the low open probability at positive voltages would imply that the channel is an inward rectifier.
To test the selectivity of Ktv1, the K+ on the cis side of the bilayer was replaced by Na+ (Figure 6A). As a result, the channel activity was only visible at negative voltages. This means that the channel conducts K+ inward, but there is no Na+ outward current. The assumption that the channel has a high preference for K+ over Na+ was confirmed by experiments in which the K+ on the trans side was replaced by Na+. In this situation, only outward K+ current but no Na+ inward current was visible. The mean I/V relations obtained from experiments with K+/Na+ on different sides of the membrane (Figure 6B) confirm that the channel transports exclusively K+. The I/V curves do not intersect with the voltage axis indicating perfect selectivity of the channel for K+ over Na+. Hence in agreement with the structure of its selectivity filter, Ktv1 is a highly selective K+ channel.
K+ channels are typically blocked by Ba2+ in a voltage dependent manner [43,44]. To test whether Ktv1 also exhibited this Ba2+ sensitivity, channel activity was recorded in 100 mM KCl and BaCl2 added at 5 mM first to the trans and then also to the cis chamber. The results indicate that the presence of the divalent cation on the trans side had no effect on the open channel amplitude (Figure 6C) but greatly reduced the open probability of the channel. The effect of the blocker is seen in Figure 6C: In the absence of the blocker the channel typically exhibits only short closures, while in its presence only short openings are seen. This mode of block and the voltage dependency of this effect, which increased with negative voltages (Figure 6D), is typical for the Ba2+ block of K+ channels [44]. Further addition of Ba2+ to the cis chamber resulted in a complete block of channel activity at positive voltages (Figure 6D). This effect is also typical for K+ channels in which Ba2+ blocks the channel with a higher affinity from the cytosolic than from the external side of the protein [45].
In summary, the combination of structural and functional data confirms that the Ktv1 79 amino acid protein from virus TetV-1, a member of the family Mimiviridae, functions as an ion channel with the typical hallmarks of a K+ channel. Modeling indicates that Ktv1 has the same architecture as the KcsA channel with all the structural elements of a K+ channel pore. However, like all other functional viral K+ channels, the transmembrane helixes are significantly shorter than those of the reference channel. This is most obvious for the inner transmembrane domains, which form the so-called bundle crossing gate in KcsA [34]. In the case of Ktv1, they are too short to form this gate (Figure 3C).

4. Conclusions

We provide the first direct evidence of a functional K+ channel encoded by a member of Nucleocytoviricota outside of the family Phycodnaviridae. All four members of the Mimiviridae family that were examined here code for proteins in which the structural hallmarks of functional K+ channels were either completely or partially conserved. Hence, like other giant viruses, the two families not only share a set of core genes that are typical for Nucleocytoviricota but also share subsets of other genes [46]. Scrutiny of the proteins of interest revealed high conservation of the selectivity filter with the typical K+ channel consensus sequence plus the upstream aromatic amino acids and the common aspartic acid after the GYG motif. However, this central domain was the only region common to all four proteins. Such structural diversity among the proteins from Mimiviridae and their distinct similarities to K+ channels from Phycodnaviridae tentatively suggests independent events of lateral gene transfer. A long evolutionary history of these proteins is possible since these viruses and their hosts are ancient. However, these evolutionary details cannot be resolved given the small datasets available so far.
We demonstrated that channel activity having the typical functional features of highly evolved K+ channels from mammals was present in the virus-encoded channel named Ktv1. Ktv1 had a remarkable high selectivity for K+ over Na+, channel gating, and a distinct voltage dependent sensitivity to Ba2+ block. These results indicate that the protein is not generating an unspecific leak conductance in the membrane but rather has all the structural and functional features of a bona fide selective K+ channel. That the other three putative channels did not generate detectable K+ channel activity does not rule out a channel function of these proteins. From an experimental point of view, there are several reasons for why these proteins were not generating measurable channel activity in our recording system. Based on experience with other channels, it is possible, for example, that these proteins require a distinct composition of the lipid bilayer [41] or the correct thickness of the bilayer in relation to the length of the transmembrane domains [47] for function. It is also possible that they are not properly folded and/or inserted into the membrane in the in vitro translation system with the result that they are not functional in the host bilayer. Another reasonable explanation for the negative results is that the channels may have a very small unitary conductance and/or very high flicker type open probability, which is not resolved with the standard measuring equipment [48,49].
We find it intriguing that all viral genes encoding K+ channels in Nucleocytoviricota are present in viruses that infect algae even though they are not necessarily obligatory for these viruses [50]. The hosts for the viruses with K+ channels vary from unicellular to multicellular [18] and from freshwater to marine algae [17,20,23]. It is possible that the K+ channel provides a function in these viruses that is of particular benefit when infecting algal hosts. However, the apparent exclusivity may simply reflect the very limited phylogenetic diversity of non-algal protists that have been used to isolate viruses in the phylum Nucleocytoviricota thus far.
For the PBCV1/Chlorella system, it is well established that the activity of the viral K+ channel is crucial early during infection when the viral membrane fuses with the plasma membrane of the host [51]. This triggers a depolarization and a loss of osmolytes and water from the host, which in turn lowers the high internal turgor pressure of host and promotes ejection of the viral DNA into the host [51,52]. Since marine algae do not have the same high internal pressure of freshwater algae [53], it is unlikely that the same mechanism is employed by all viruses that code for K+ channels. This implies these proteins may display alternative functions in the infection/replication cycle. An attractive hypothesis is that the activity of viral channel could indirectly alter crucial cellular parameters such as pH or Ca2+ in order to favor the activity of viral proteins [54]. This could be a successful and parsimonious way for individual virus to take command over their large hosts in the early steps of infection. If generally useful, K+ channels may yet turn up in nucleocytoplasmic viruses infecting non-photosynthetic protists with additional targeted isolation and screening.

Supplementary Materials

The following are available online at https://www.mdpi.com/1999-4915/12/10/1107/s1, Table S1: Virus names and abbreviations.

Author Contributions

Conceptualization, G.T., A.M. and O.R.; methodology, O.R. and K.K.; software, O.R.; formal analysis, T.G. and K.K.; investigation, K.K., B.H., M.M. and U.B.; resources, C.R.S.; data curation, C.R.S. and T.G.; writing—original draft preparation, G.T., A.M., J.L.V.E., T.G., G.F.S. and O.R.; writing—review and editing, G.T., J.L.V.E. and G.F.S.; visualization, O.R., G.T. and A.S.; supervision, G.T.; project administration, G.T. and O.R.; funding acquisition, G.T. and A.M. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded in part by the European Research Council (ERC; 2015 Advanced Grant 495 (AdG) n. 695078 noMAGIC (A.M., G.T.), and by, funding from the National Science Foundation under grant no. 1736030, (J.L.V.E. and G.F.S.) and 1559356 (G.F.S).

Acknowledgments

We thank Sebastian Mach for synthesizing channel proteins. We acknowledge support by the German Research Foundation and the Open Access Publishing Fund of Technical University of Darmstadt.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Pinto, L.H.; Holsinger, L.J.; Lamb, R.A. Influenza virus M2 protein has ion channel activity. Cell 1992, 69, 517–528. [Google Scholar] [CrossRef]
  2. Fischer, W.B.; Sansom, M.S. Viral ion channels: Structure and function. Biochim. Biophys. Acta 2002, 1561, 27–45. [Google Scholar] [CrossRef]
  3. Gonzalez, M.E.; Carrasco, L. Viroporins. FEBS Lett. 2003, 552, 28–34. [Google Scholar] [CrossRef]
  4. Wang, K.; Xie, S.Q.; Sun, B. Viral proteins function as ion channels. Biochim. Biophys. Acta 2011, 1808, 510–515. [Google Scholar] [CrossRef]
  5. Nieva, J.L.; Madan, V.; Carrasco, L. Viroporins: Structure and biological functions. Nat. Rev. Microbiol. 2012, 10, 563–574. [Google Scholar] [CrossRef]
  6. Murry, C.; Agarkova, I.V.; Ghosh, J.; Fitzgerald, F.; Carlson, R.; Hertel, B.; Kukovetz, K.; Rauh, O.; Thiel, G.; Van Etten, J.L. Genetic diversity of potassium ion channel proteins encoded by chloroviruses that infect Chlorella heliozoae. Viruses 2020, 12, 678. [Google Scholar] [CrossRef]
  7. Plugge, B.; Gazzarini, S.; Cerana, R.; Van Etten, J.; Nelson, M.; DiFrancesco, D.; Moroni, A.; Thiel, G. A potassium ion channel protein encoded by chlorella virus PBCV-1. Science 2000, 287, 1641–1644. [Google Scholar] [CrossRef]
  8. Greiner, T.; Moroni, A.; Van Etten, J.L.; Thiel, G. Genes for membrane transport proteins: Not so rare in viruses. Viruses 2018, 10, 456. [Google Scholar] [CrossRef]
  9. Tayefeh, S.; Kloss, T.; Kreim, M.; Gebhardt, M.; Baumeister, D.; Hertel, B.; Richter, C.; Schwalbe, H.; Moroni, A.; Thiel, G.; et al. Model development for the viral Kcv potassium channel. Biophys. J. 2009, 96, 485–498. [Google Scholar] [CrossRef]
  10. Thiel, G.; Baumeister, D.; Schroeder, I.; Kast, S.M.; Van Etten, J.L.; Moroni, A. Minimal art: Or why small viral K+ channels are good tools for understanding basic structure and function relations. Biochim. Biophys. Acta 2011, 1808, 580–588. [Google Scholar] [CrossRef]
  11. Thiel, G.; Moroni, A.; Blanc, G.; Van Etten, J.L. Potassium ion channels: Could they have evolved from viruses? Plant Physiol. 2013, 162, 1215–1224. [Google Scholar] [CrossRef]
  12. Rauh, O.; Urban, M.; Henkes, L.M.; Winterstein, T.; Greiner, T.; Van Etten, J.L.; Moroni, A.; Kast, S.M.; Thiel, G.; Schroeder, I. Sequence specific distortions of a transmembrane helix generate a gate in a K+ channel with a long lived closed state. J. Am. Chem. Soc. 2017, 139, 7494–7503. [Google Scholar] [CrossRef]
  13. Rauh, O.; Hansen, U.P.; Scheub, D.D.; Thiel, G.; Schroeder, I. Site-specific ion occupation in the selectivity filter causes voltage-dependent gating in a viral K+ channel. Sci. Rep. 2018, 8, 10406. [Google Scholar] [CrossRef]
  14. Kang, M.; Moroni, A.; Gazzarrini, S.; DiFrancesco, D.; Thiel, G.; Severino, M.; Van Etten, J.L.; Severino, M.; Van Etten, J.L. Small potassium ion channel protein encoded by chlorella viruses. Proc. Natl. Acad. Sci. USA 2004, 101, 5318–5324. [Google Scholar] [CrossRef]
  15. Gazzarrini, S.; Kang, M.; Epimashko, S.; Van Etten, J.L.; Dainty, J.; Thiel, G.; Moroni, A. Chlorella virus MT325 encodes water and potassium channels that interact synergistically. Proc. Natl. Acad. Sci. USA 2006, 103, 5355–5360. [Google Scholar] [CrossRef]
  16. Balss, J.; Mehmel, M.; Baumeister, D.; Hertel, B.; Delaroque, N.; Chatelain, F.C.; Minor, D.J.; Van Etten, J.L.; Moroni, A.; Thiel, G. Transmembrane domain length of viral K+ channels is a signal for mitochondria targeting. Proc. Natl. Acad. Sci. USA 2008, 105, 12313–12318. [Google Scholar] [CrossRef]
  17. Siotto, F.; Martin, C.; Rauh, O.; Van Etten, J.L.; Schroeder, I.; Moroni, A.; Thiel, G. Viruses infecting marine picoplancton encode functional potassium ion channels. Virology 2014, 467, 103–111. [Google Scholar] [CrossRef]
  18. Hamacher, K.; Greiner, T.; Van Etten, J.L.; Gebhardt, M.; Cosentino, C.; Moroni, A.; Thiel, G. Phycodnavirus potassium ion channel proteins question the virus molecular piracy hypothesis. PLoS ONE 2012, 7, e38826. [Google Scholar] [CrossRef]
  19. Moniruzzaman, M.; LeCleir, G.R.; Brown, C.M.; Gobler, C.J.; Bidle, K.D.; Wilson, W.H.; Wilhelm, S.W. Genome of brown tide virus (AaV), the little giant of the Megaviridae, elucidates NCLDV genome expansion and host-virus coevolution. Virology 2014, 466–467, 60–70. [Google Scholar] [CrossRef]
  20. Schvarcz, C.R.; Steward, G.F. A giant virus infecting green algae encodes key fermentation genes. Virology 2018, 518, 423–433. [Google Scholar] [CrossRef]
  21. Yau, S.; Lauro, F.M.; DeMaere, M.Z.; Brown, M.V.; Thomas, T.; Raftery, M.J.; Andrews-Pfannkoch, C.; Lewis, M.; Hoffman, J.M.; Gibson, J.A.; et al. Virophage control of antarctic algal host-virus dynamics. Proc. Natl. Acad. Sci USA 2011, 108, 6163–6168. [Google Scholar] [CrossRef]
  22. Winterstein, L.M.; Kukovetz, K.; Rauh, O.; Turman, D.L.M.; Braun, C.; Moroni, A.; Schroeder, I.; Thiel, G.; Turman, D.L.M.; Braun, C.; et al. Reconstitution and functional characterization of ion channels from nanodiscs in lipid bilayers. J. Gen. Physiol. 2018, 150, 637–646. [Google Scholar] [CrossRef]
  23. Schvarcz, C.R. Cultivation and Characterization of Viruses Infecting Eukaryotic Phytoplankton from the Tropical North Pacific Ocean. Doctoral Dissertation, University of Hawai’i at Mānoa, Honolulu, HI, USA, 2019. Available online: http://hdl.handle.net/10125/62656 (accessed on 14 August 2020).
  24. Hyatt, D.; Chen, G.-L.; LoCascio, P.F.; Larimer, F.W.; Hauser, L.J. Prodigal: Prokaryotic gene recognition and translationinitiation site identification. BMC Bioinform. 2020, 11, 119. [Google Scholar] [CrossRef]
  25. Camacho, C.; Coulouris, G.; Avagyan, V.; Ma, N.; Papadopoulos, J.; Bealer, K.; Madden, T.L. BLAST+: Architecture and applications. BMC Bioinform. 2009, 10, 421. [Google Scholar] [CrossRef]
  26. Marchler-Bauer, A.; Derbyshire, M.K.; Gonzales, N.R.; Lu, S.; Chitsaz, F.; Geer, L.Y.; Geer, R.C.; He, J.; Gwadz, M.; Hurwitz, D.I.; et al. CDD: NCBI’s conserved domain database. Nucleic Acids Res. 2015, 43, D222–D226. [Google Scholar] [CrossRef]
  27. Finn, R.D.; Coggill, P.; Eberhardt, R.Y.; Eddy, S.R.; Mistry, J.; Mitchell, A.L.; Potter, S.C.; Punta, M.; Qureshi, M.; Sangrador-Vegas, A.; et al. The Pfam protein families database: Towards a more sustainable future. Nucleic Acids Res. 2016, 44, D279–D285. [Google Scholar] [CrossRef]
  28. Jones, P.; Binns, D.; Chang, H.Y.; Fraser, M.; Li, W.; McAnulla, C.; McWilliam, H.; Maslen, J.; Mitchell, A.; Nuka, G.; et al. InterProScan 5: Genome-scale protein function classification. Bioinformatics 2014, 30, 1236–1240. [Google Scholar] [CrossRef]
  29. Kumar, S.; Stecher, G.; Li, M.; Knyaz, C.; Tamura, K. MEGA X: Molecular evolutionary genetics analysis across computing platforms. Mol. Biol. Evol. 2018, 35, 1547–1549. [Google Scholar] [CrossRef]
  30. Kelley, L.A.; Mezulis, S.; Yates, C.M.; Wass, M.N. The Phyre2 web portal for protein modeling, prediction and analysis. Nat. Protoc. 2015, 10, 845–858. [Google Scholar] [CrossRef]
  31. Weissgraeber, S.; Saponaro, A.; Thiel, G.; Hamacher, K. A reduced mechanical model for cAMP modulated gating in HCN channels. Sci. Rep. 2017, 7, 40168. [Google Scholar] [CrossRef]
  32. Bhattacharya, D.; Nowotny, J.; Cao, R.; Cheng, J. 3Drefine: An interactive web server for efficient protein structure refinement. Nucleic Acids Res. 2016, 44, W406–W409. [Google Scholar] [CrossRef]
  33. Shealy, T.R.; Murphy, A.D.; Ramarathnam, R.; Jakobsson, E.; Subramanian, S. Sequence-function analysis of the K-selective family of ion channels using a comprehensive alignment and the KcsA channel structure. Biophys. J. 2003, 84, 2929–2942. [Google Scholar] [CrossRef]
  34. Doyle, D.; Cabral, J.M.; Pfuetzner, R.A.; Kuo, A.; Gulbis, J.M.; Cohen, S.L.; Chait, B.T.; MacKinnon, R. The structure of the potassium channel: Molecular basis of K+ conduction and selectivity. Science 1998, 280, 69–77. [Google Scholar] [CrossRef]
  35. Jones, D.T.; Taylor, W.R.; Thornton, J.M. The rapid generation of mutation data matrices from protein sequences. Bioinformatic 1992, 8, 275–282. [Google Scholar] [CrossRef]
  36. Watanabe, Y.; Martini, J.E.; Ohmoto, H. Geochemical evidence for terrestrial ecosystems 2.6 billion years ago. Nature 2000, 408, 574–578. [Google Scholar] [CrossRef]
  37. Lewin, G.R.; Carlos, C.; Chevrette, M.G.; Horn, H.A.; McDonald, B.R.; Stankey, R.J.; Fox, B.G.; Currie, C.R. Evolution and ecology of Actinobacteria and their bioenergy applications. Annu. Rev. Microbiol. 2016, 70, 235–254. [Google Scholar] [CrossRef]
  38. Koonin, E.V.; Senkevich, T.G.; Dolja, V.V. The ancient virus world and evolution of cells. Biol. Direct. 2006, 29. [Google Scholar] [CrossRef]
  39. Guglielmini, J.; Woo, A.C.; Krupovic, M.; Forterre, P.; Gaia, M. Diversification of giant and large eukaryotic dsDNA viruses predated the origin of modern eukaryotes. Proc. Natl. Acad. Sci. USA 2019, 116, 19585–19592. [Google Scholar] [CrossRef]
  40. Braun, C.J.; Lachnit, C.; Becker, P.; Henkes, L.M.; Arrigoni, C.; Kast, S.M.; Moroni, A.; Thiel, G.; Schroeder, I. Viral potassium channels as a robust model system for studies of membrane-protein interaction. Biochim. Biophys. Acta 2014, 1838, 1096–1103. [Google Scholar] [CrossRef]
  41. Valiyaveetil, F.I.; Zhou, Y.; MacKinnon, R. Lipids in the structure, folding, and function of the KcsA K+ channel. Biochemistry 2002, 41, 10771–10777. [Google Scholar] [CrossRef]
  42. Rondelli, V.; Del Favero, E.; Brocca, P.; Fragneto, G.; Trapp, M.; Mauri, L.; Ciampa, M.G.; Romani, G.; Braun, C.J.; Schroeder, I.; et al. Vectional K+ Channel insertion in a single phospholipid bilayer: Neutron reflectometry and electrophysiology in the joint exploration of a model membrane functional platform. Biochim. Biophys. Acta (BBA) Gen. Subj. 2018, 1862, 1742–1750. [Google Scholar] [CrossRef]
  43. Hille, B. Ion Channels of Excitable Membranes, 3th ed.; Sinauer Associates Inc.: Sunderland, MA, USA, 2001. [Google Scholar]
  44. Piasta, K.N.; Theobald, D.L.; Millerm, C. Potassium-selective block of barium permeation through single KcsA channels. J. Gen. Physiol. 2011, 138, 421–436. [Google Scholar] [CrossRef]
  45. Sohma, Y.; Harris, A.; Wardle, C.J.C.; Argent, B.R.E.; Gray, M.A. Two barium binding sites on a maxi K+ channel from human vas deferens epithelial cells. Biophys. J. 1996, 70, 1316–1325. [Google Scholar] [CrossRef]
  46. Colson, P.; La Scola, B.; Levasseur, A.; Caetano-Anolles, G.; Raoult, D. Mimivirus: Leading the way in the discovery of giant viruses of amoebae. Nat. Rev. Microbiol. 2017, 15, 243–253. [Google Scholar] [CrossRef]
  47. Strandberg, E.; Killian, J.A. Snorkeling of lysine side chains in transmembrane helices: How easy can it get? FEBS Lett. 2003, 544, 69–73. [Google Scholar] [CrossRef]
  48. Zakharian, E. Recording of ion channel activity in planar lipid bilayer experiments. Methods Mol. Biol. 2013, 998, 109–118. [Google Scholar]
  49. Hartel, A.J.W.; Shekar, S.; Ong, P.; Schroeder, I.; Thiel, G.; Shepard, K.L. High bandwidth approaches in nanopore and ion channel recordings—A tutorial review. Anal. Chim. Acta 2019, 1061, 13–27. [Google Scholar] [CrossRef]
  50. Sandaa, R.-A.; Dahle, H.; Brussaard, C.P.D.; Ogata, H.; Blanc-Mathieu, R. Algal viruses belonging to a subgroup within the Mimiviridae family. Ref. Modul. Life Sci. 2020. [Google Scholar] [CrossRef]
  51. Thiel, G.; Moroni, A.; Dunigan, D.; Van Etten, J.L. Initial Events Associated with Virus PBCV-1 Infection of Chlorella NC64A. Prog. Bot. 2010, 71, 169–183. [Google Scholar]
  52. Lee, S.W.; Lee, H.H.; Thiel, G.; Van Etten, J.L.; Saraf, R.F. Noninvasive measurement of a single viral infection in a cell. ACS Nano 2016, 10, 5123–5130. [Google Scholar] [CrossRef]
  53. Kirst, G.O.; Bisson, M. Regulation of turgor pressure in marine algae: Ions and low molecular-weight organic compounds. Funct. Plant Biol. 2029, 6, 539–556. [Google Scholar] [CrossRef]
  54. Zhou, Y.; Yang, T.K. Viral calciomics: Interplay between Ca2+ and virus. Cell Calcium 2009, 46, 1–7. [Google Scholar] [CrossRef]

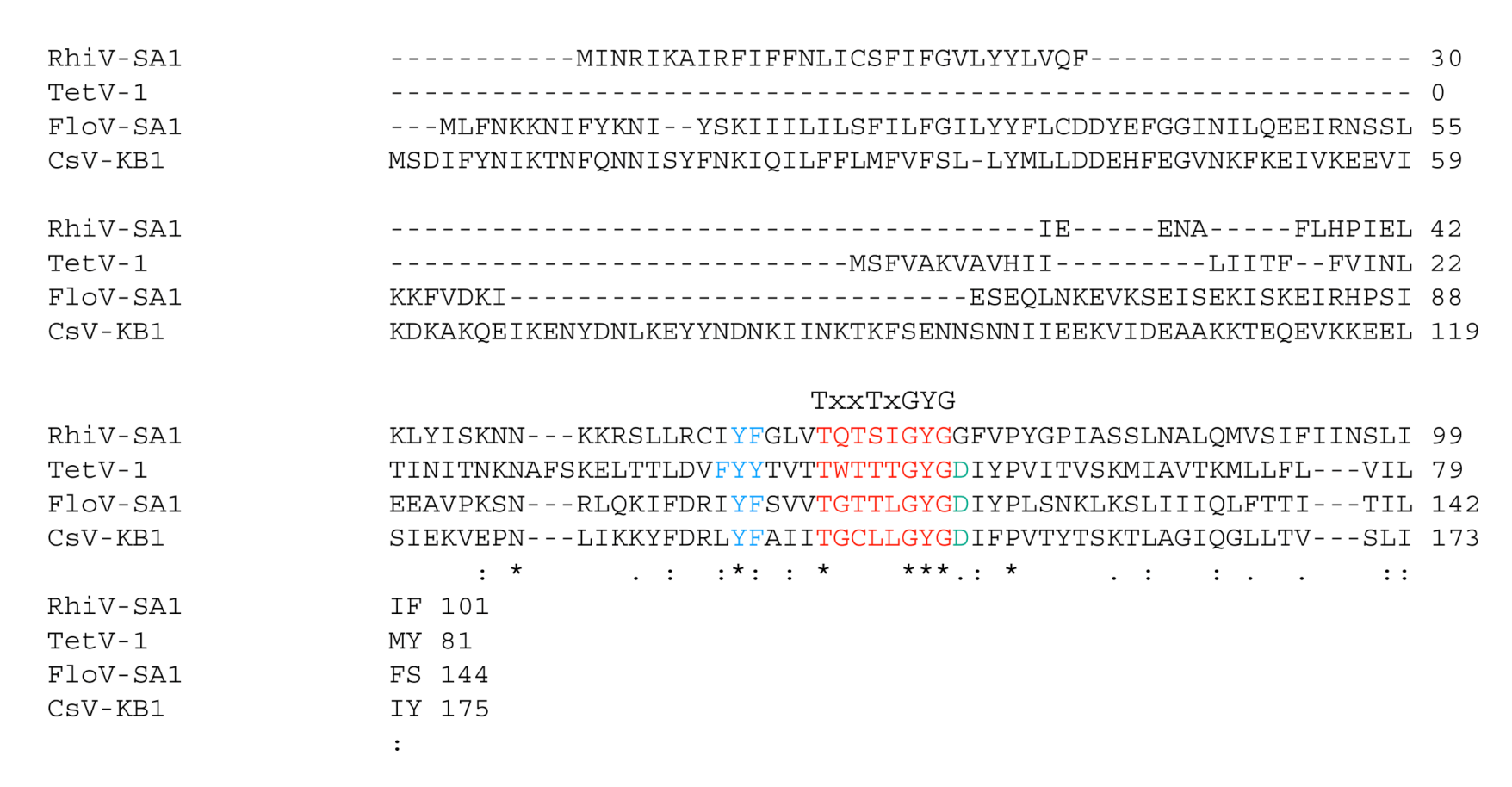

Figure 1. Multiple sequence alignment of putative K+ channels from viruses RhiV-SA1, TetV-1, FloV-SA-1, and CsV-KB1. The consensus sequence of K+ channels (on top) is highlighted in red. The residues in blue indicate functionally important aromatic amino acids in K+ channels upstream of the consensus motif. In the alignment, identical amino acids are indicated by “*” and conserved (amino acids with similar characteristics) and semi-conserved (amino acids having similar shape) amino acids are indicated by “:” and “.”, respectively.
Figure 1. Multiple sequence alignment of putative K+ channels from viruses RhiV-SA1, TetV-1, FloV-SA-1, and CsV-KB1. The consensus sequence of K+ channels (on top) is highlighted in red. The residues in blue indicate functionally important aromatic amino acids in K+ channels upstream of the consensus motif. In the alignment, identical amino acids are indicated by “*” and conserved (amino acids with similar characteristics) and semi-conserved (amino acids having similar shape) amino acids are indicated by “:” and “.”, respectively.
Viruses 12 01107 g001

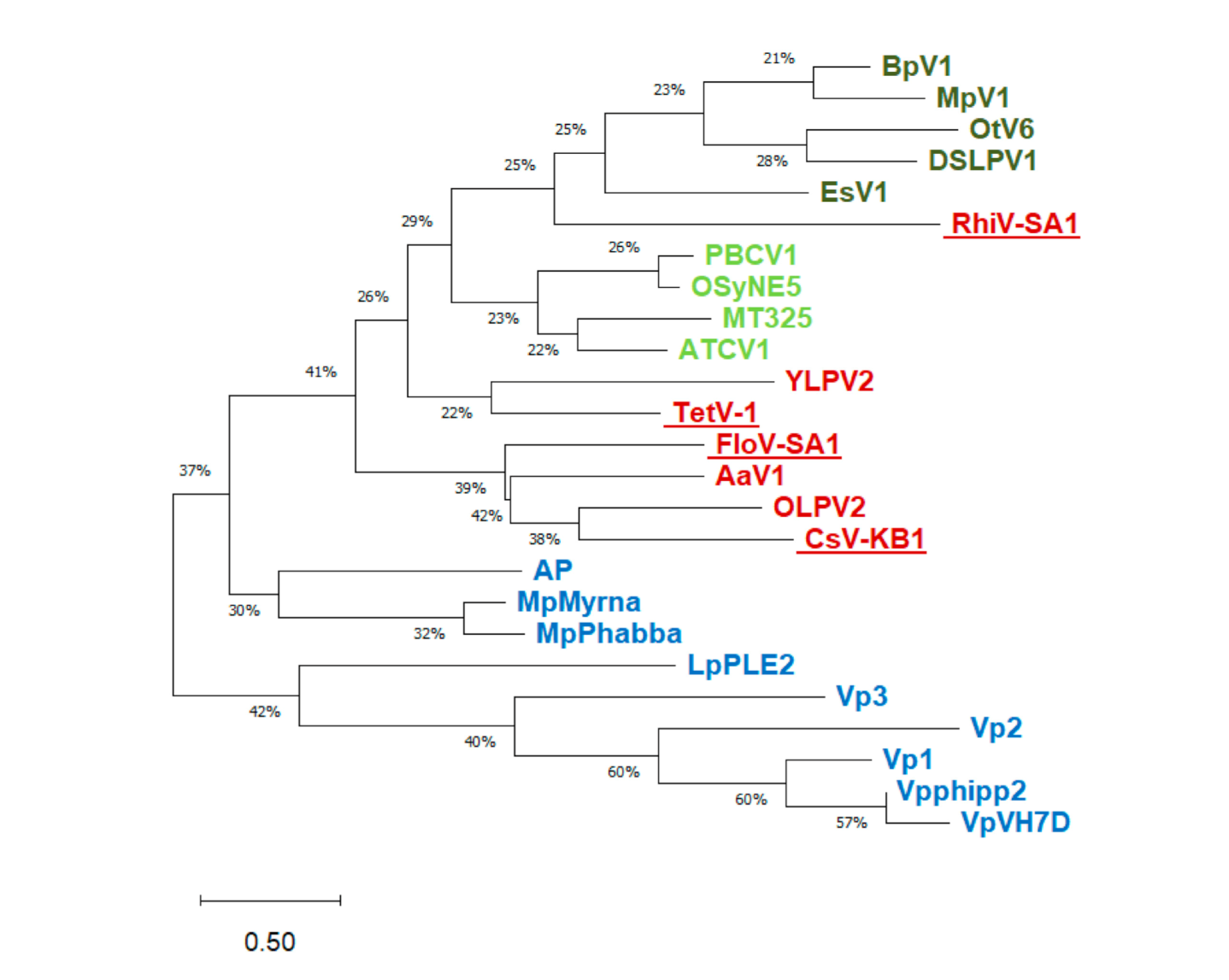

Figure 2. Phylogenetic tree of viral K+ channels including new sequences of putative K+ channels (underlined) from Figure 1. A possible evolutionary history was inferred by using the maximum-likelihood method and JTT matrix-based model [35]. The tree with the highest log likelihood (−7636.59) is shown. Initial trees for the heuristic search were obtained automatically by applying neighbor-join and BioNJ algorithms to a matrix of pairwise distances estimated using the JTT model, and then selecting the topology with superior log likelihood value. The tree is drawn to scale, with branch lengths measured in the number of substitutions per site. The proportion of sites where at least 1 unambiguous base is present in at least 1 sequence for each descendent clade is shown next to each internal node in the tree. This analysis involved 25 amino acid sequences. The final dataset contained a total of 366 positions. Evolutionary analyses were conducted in MEGA X [29]. Percentages are data coverage for each node. Color coding of the proteins is as follows: green = phycodnaviruses/chloroviruses, dark green = other phycodnaviruses, blue = phages, red = mimivirids.
Figure 2. Phylogenetic tree of viral K+ channels including new sequences of putative K+ channels (underlined) from Figure 1. A possible evolutionary history was inferred by using the maximum-likelihood method and JTT matrix-based model [35]. The tree with the highest log likelihood (−7636.59) is shown. Initial trees for the heuristic search were obtained automatically by applying neighbor-join and BioNJ algorithms to a matrix of pairwise distances estimated using the JTT model, and then selecting the topology with superior log likelihood value. The tree is drawn to scale, with branch lengths measured in the number of substitutions per site. The proportion of sites where at least 1 unambiguous base is present in at least 1 sequence for each descendent clade is shown next to each internal node in the tree. This analysis involved 25 amino acid sequences. The final dataset contained a total of 366 positions. Evolutionary analyses were conducted in MEGA X [29]. Percentages are data coverage for each node. Color coding of the proteins is as follows: green = phycodnaviruses/chloroviruses, dark green = other phycodnaviruses, blue = phages, red = mimivirids.
Viruses 12 01107 g002

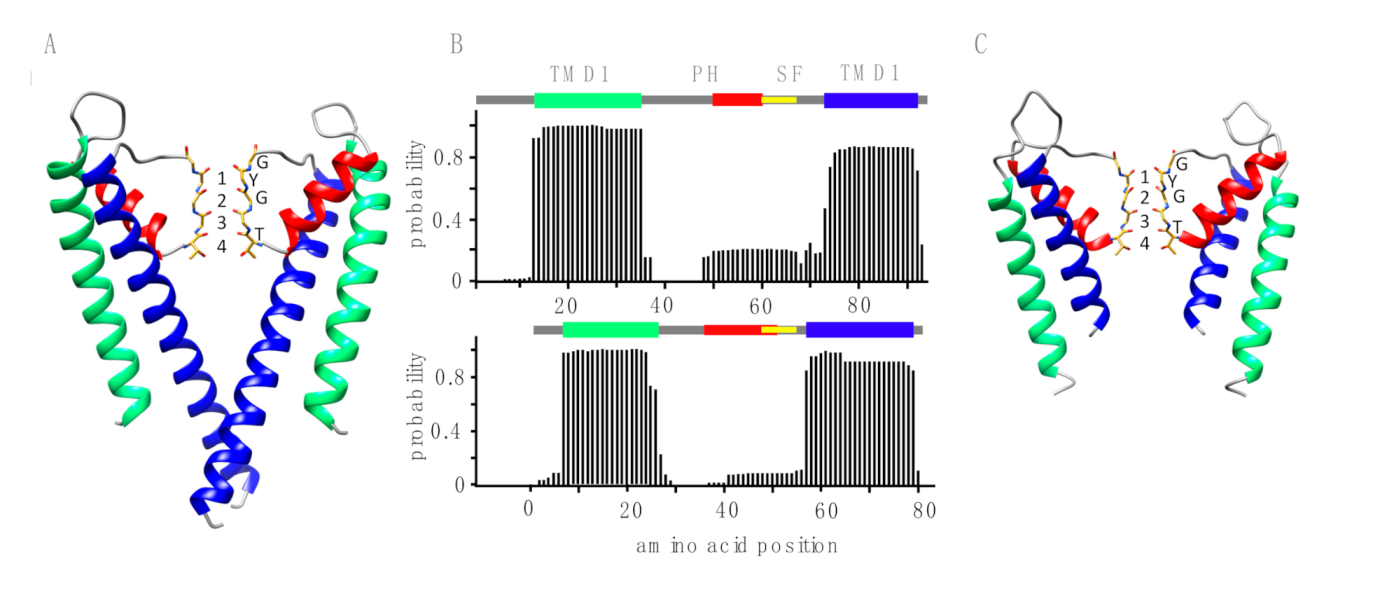

Figure 3. Structural elements of K+ channels. (A) Two of the four monomers of the crystal structure of KcsA channel (PDB ID: 1K4C) with outer (TMD1, green) and inner (TMD2, blue) transmembrane domains, pore helix (PH, red), and consensus sequence of the selectivity filter (SF, yellow). Atoms of the main chain of SF are shown. Atoms of the side chain of T75 are shown as it contributes to the K+ permeation pathway. Residues of the TXGYG consensus sequence are labeled, and the four K+ binding sites are numbered. (B) Structural predictions for the sequences of functional Kcv (K+ channel of chloroviruses) channel (KcvPBCV1, top) and putative TetV-1 channel (bottom). The algorithm TMHMM predicts transmembrane domains with a high probability in both sequences (green and blue bars). From their location, they are equivalent to TMD1 and TMD2 of KcsA. The JPred algorithm predicts an α-helix (red) upstream of the selectivity filter in both proteins. This is equivalent to the pore helix of KcsA. The colors in B correspond to the colored structural elements in A. (C) Two of the four monomers of the model structure of the TetV-1 protein (based on the KcsA structure, PDB ID: 1K4C (https://www.rcsb.org/structure/1K4C)) with outer (TMD1, green) and inner (TMD2, blue) transmembrane domains, pore helix (PH, red), and consensus sequence of the selectivity filter (SF, yellow). Atoms of the main chain of SF are shown. Atoms of the side chain of T51 are shown as it contributes to the K+ permeation pathway. Residues of the TXGYG consensus sequence are labeled, and the four K+ binding sites are numbered.
Figure 3. Structural elements of K+ channels. (A) Two of the four monomers of the crystal structure of KcsA channel (PDB ID: 1K4C) with outer (TMD1, green) and inner (TMD2, blue) transmembrane domains, pore helix (PH, red), and consensus sequence of the selectivity filter (SF, yellow). Atoms of the main chain of SF are shown. Atoms of the side chain of T75 are shown as it contributes to the K+ permeation pathway. Residues of the TXGYG consensus sequence are labeled, and the four K+ binding sites are numbered. (B) Structural predictions for the sequences of functional Kcv (K+ channel of chloroviruses) channel (KcvPBCV1, top) and putative TetV-1 channel (bottom). The algorithm TMHMM predicts transmembrane domains with a high probability in both sequences (green and blue bars). From their location, they are equivalent to TMD1 and TMD2 of KcsA. The JPred algorithm predicts an α-helix (red) upstream of the selectivity filter in both proteins. This is equivalent to the pore helix of KcsA. The colors in B correspond to the colored structural elements in A. (C) Two of the four monomers of the model structure of the TetV-1 protein (based on the KcsA structure, PDB ID: 1K4C (https://www.rcsb.org/structure/1K4C)) with outer (TMD1, green) and inner (TMD2, blue) transmembrane domains, pore helix (PH, red), and consensus sequence of the selectivity filter (SF, yellow). Atoms of the main chain of SF are shown. Atoms of the side chain of T51 are shown as it contributes to the K+ permeation pathway. Residues of the TXGYG consensus sequence are labeled, and the four K+ binding sites are numbered.
Viruses 12 01107 g003

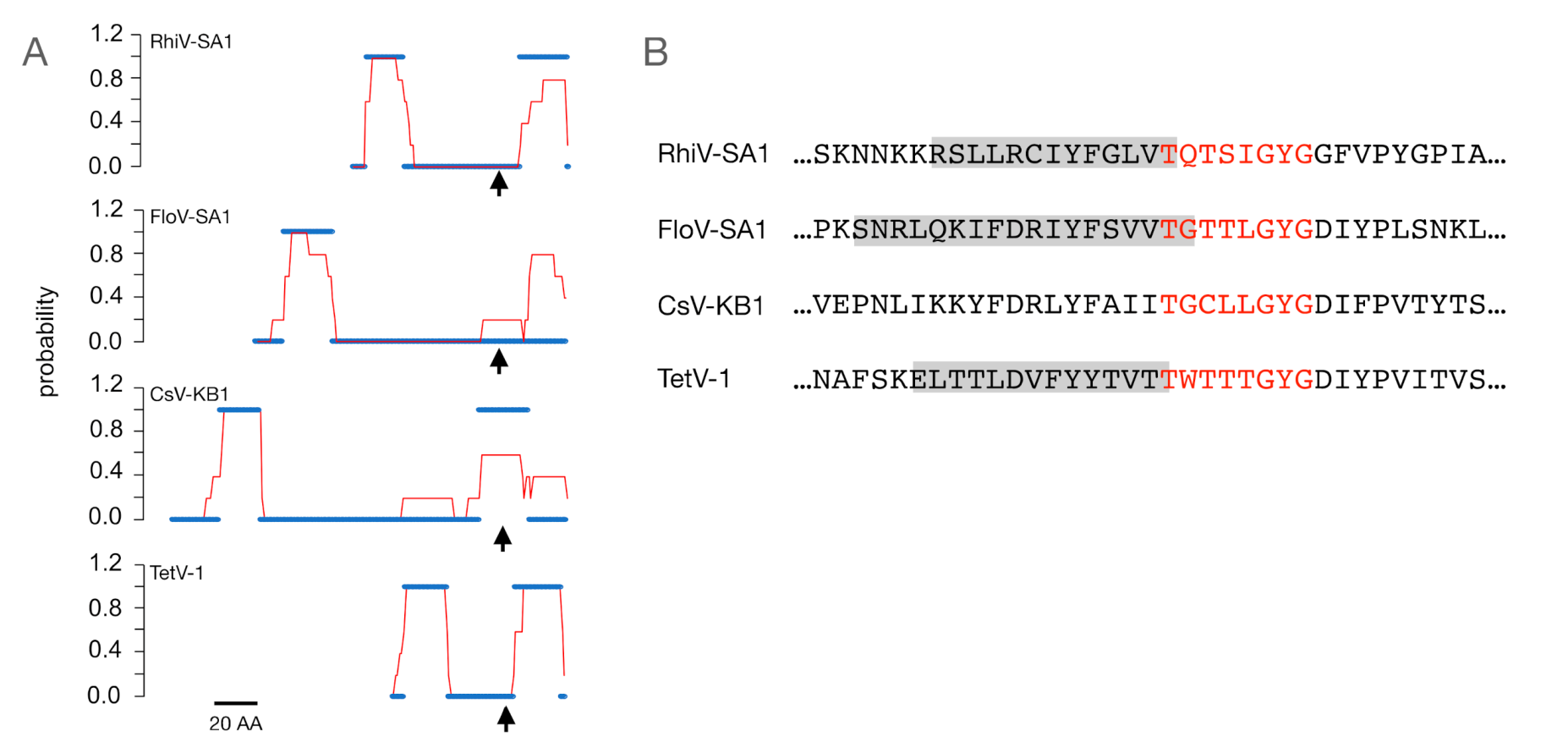

Figure 4. Structural predictions for putative K+ channel proteins. (A) Probability for transmembrane domains in four putative K+ channel sequences. The amino acid sequences from Figure 1 were analyzed with five different algorithms for predicting transmembrane domains. The red line shows the prediction by TMHMM and the blue line represents the mean of all predictions. For calculating the mean value, each amino acid which was predicted to be part of a transmembrane domain was set to 1 and all others to 0. The results are aligned to the position of the first glycine in the first G in the GYG motif (arrow). (B) Prediction of α-helices with the JPred algorithm. The grey bars indicate the predicted location of an α-helix upstream of the selectivity filter sequence (red) in 3 of the 4 sequences.
Figure 4. Structural predictions for putative K+ channel proteins. (A) Probability for transmembrane domains in four putative K+ channel sequences. The amino acid sequences from Figure 1 were analyzed with five different algorithms for predicting transmembrane domains. The red line shows the prediction by TMHMM and the blue line represents the mean of all predictions. For calculating the mean value, each amino acid which was predicted to be part of a transmembrane domain was set to 1 and all others to 0. The results are aligned to the position of the first glycine in the first G in the GYG motif (arrow). (B) Prediction of α-helices with the JPred algorithm. The grey bars indicate the predicted location of an α-helix upstream of the selectivity filter sequence (red) in 3 of the 4 sequences.
Viruses 12 01107 g004

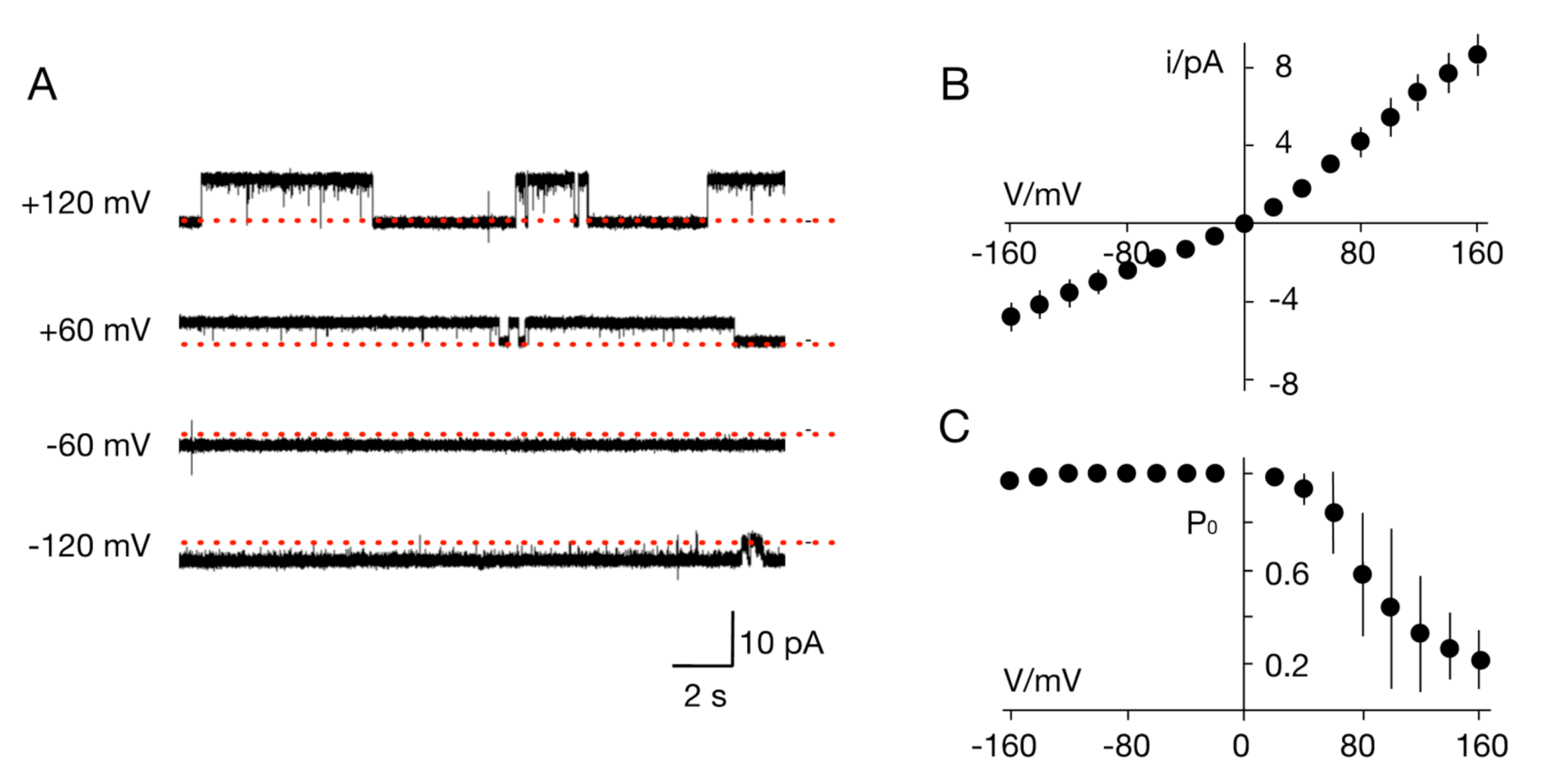

Figure 5. Ktv1 (K+ channel from Tetraselmis virus 1) is a functional K+ channel. (A) Reconstitution of the in vitro-synthesized proteins in planar phosphatidylcholine bilayers generates distinct fluctuations between closed (red line) and open states. The representative recordings in a symmetrical bilayer with 100 mM KCl at voltages between ±120 mV show frequent opening events at positive voltages and only rare closing events at negative voltages. Open channel current/voltage relation (B) and open probability/voltage (P0/V) plots (C). Data are the mean (± S.D.) of 3 independent recordings in same conditions as in A.
Figure 5. Ktv1 (K+ channel from Tetraselmis virus 1) is a functional K+ channel. (A) Reconstitution of the in vitro-synthesized proteins in planar phosphatidylcholine bilayers generates distinct fluctuations between closed (red line) and open states. The representative recordings in a symmetrical bilayer with 100 mM KCl at voltages between ±120 mV show frequent opening events at positive voltages and only rare closing events at negative voltages. Open channel current/voltage relation (B) and open probability/voltage (P0/V) plots (C). Data are the mean (± S.D.) of 3 independent recordings in same conditions as in A.
Viruses 12 01107 g005

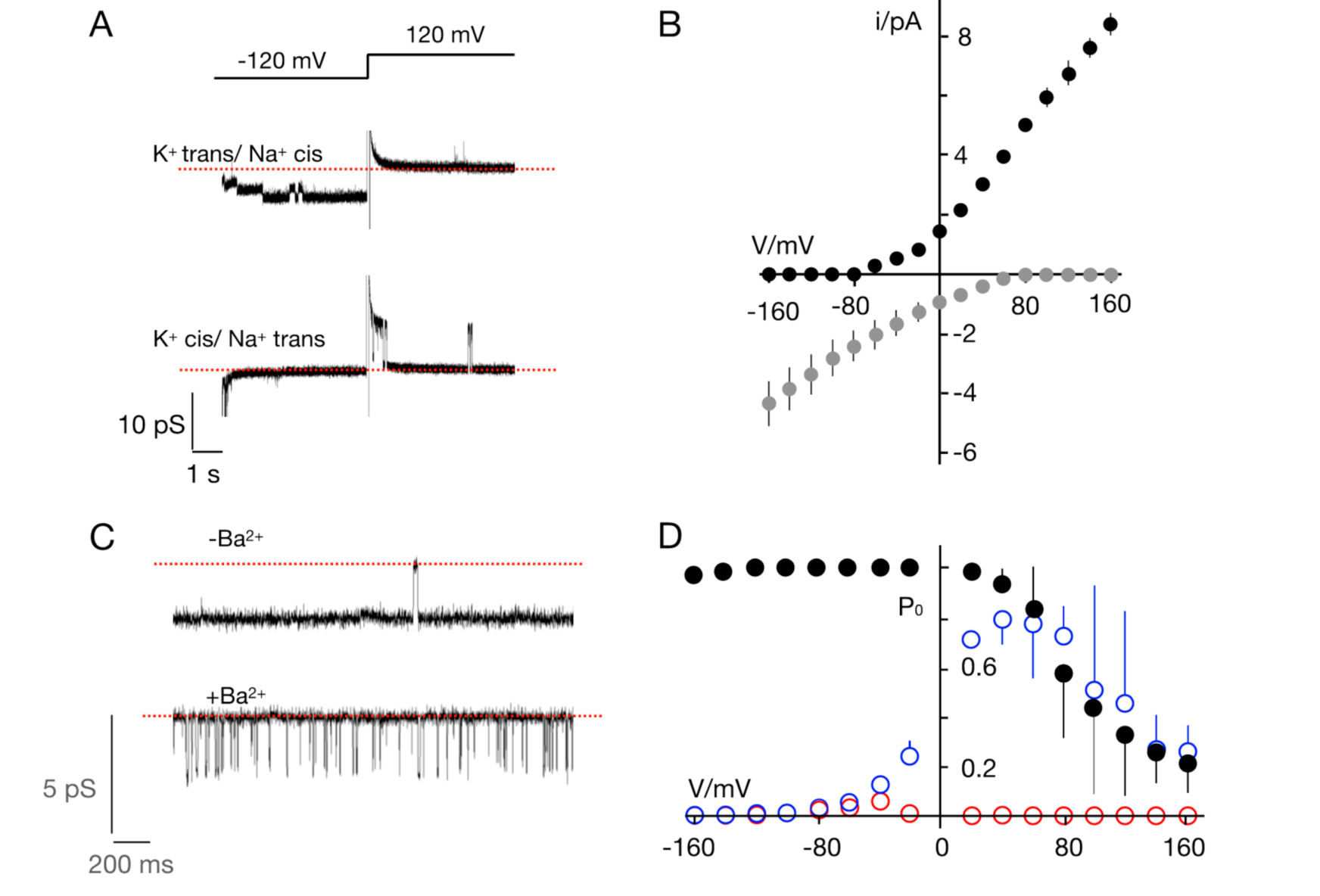

Figure 6. Ktv1 is K+ selective and blocked by Ba2+. (A) Current recordings of Ktv1 at −120 and +120 mV. Channel activity was measured with 100 mM KCl in trans and 100 mM NaCl in cis chamber (top) and in the inverse orientation (bottom). The dashed red line shows zero current level. Open channel currents are only recorded in the direction of the K+ fluxes. (B) Mean unitary channel current/voltage (I/V) relations for recordings with K+/Na+ on cis/trans (black symbols) or on trans/cis (grey symbols). (C) Channel fluctuations at −80 mV in symmetrical 100 mM KCl in the absence (−Ba2+) and presence (+Ba2+) of 5 mM BaCl2 in the trans chamber. The dashed red lines mark the closed state of the channel. (D) Probability/voltage (P0/V) plot from control measurements in symmetrical 100 mM KCl (black symbols, same as 5C) and after adding 5 mM BaCl2 to trans chamber (blue symbols) and to both chambers (red symbols). Data in B and C are means (± S.D.) of 3 independent recordings.
Figure 6. Ktv1 is K+ selective and blocked by Ba2+. (A) Current recordings of Ktv1 at −120 and +120 mV. Channel activity was measured with 100 mM KCl in trans and 100 mM NaCl in cis chamber (top) and in the inverse orientation (bottom). The dashed red line shows zero current level. Open channel currents are only recorded in the direction of the K+ fluxes. (B) Mean unitary channel current/voltage (I/V) relations for recordings with K+/Na+ on cis/trans (black symbols) or on trans/cis (grey symbols). (C) Channel fluctuations at −80 mV in symmetrical 100 mM KCl in the absence (−Ba2+) and presence (+Ba2+) of 5 mM BaCl2 in the trans chamber. The dashed red lines mark the closed state of the channel. (D) Probability/voltage (P0/V) plot from control measurements in symmetrical 100 mM KCl (black symbols, same as 5C) and after adding 5 mM BaCl2 to trans chamber (blue symbols) and to both chambers (red symbols). Data in B and C are means (± S.D.) of 3 independent recordings.
Viruses 12 01107 g006
Table 1. Best non-virus and virus hits from BLAST searches of the four putative K+ channel candidates from viruses in the family Mimiviridae (aa = amino acid).
Table 1. Best non-virus and virus hits from BLAST searches of the four putative K+ channel candidates from viruses in the family Mimiviridae (aa = amino acid).
Source of Putative Channel Protein (NCBI Accession #)Most Similar Non-Virus Hit, Organism Max Score, Total Score, Query Cover, E-Value, aa Identity, Accession #Most Similar Virus Hit, Virus Max Score, Total Score, Query Cover, E-Value, aa Identity, Accession #
RhiV-SA1
(MT926120)
Oleiphilus messinensis (Proteobacteria)
49.7, 49.7, 72%, 2 × 10−4, 36%, WP_087462234.1
Acanthocystis turfacea chlorella virus mid_1.1 ATCV-1 (Chlorovirus)
43.9, 43.9, 46%, 4 × 10−5, 34%, QLC35876.1
FloV-SA1
(MT926122)
Actinomycetales bacterium (Actinobacteria)
77.8, 77.8, 88%, 3 × 10−15, 38%, PQM59864.1
Aureococcus anophagefferens virus (Aav)
58.2, 58.2, 90%, 1 × 10−9, 33%, YP_009052228.1
CsV-KB1
(MT926121)
Actinomycetales bacterium (Actinobacteria)
93.2, 93.2, 86%, 8 × 10−21, 36%, PQM59864.1
Organic Lake phycodnavirus 2 (OLPV2)
82.8, 82.8, 76%, 4 × 10−19, 39%, ADX06223.1
TetV-1
(AUF82121.1)
Streptomyces laurentii (Actinobacteria)
55.5, 55.5, 67%, 4 × 10−7, 42%, BAU83004.1
Ostreococcus tauri virus RT-201
40.8, 40.8, 61%, 4 × 10−4, 41%, AFC34969.1
Table 2. Ratio of measurements with channel activity (nc) divided by the number of attempts of reconstituting (na) a putative channel protein in a bilayer of either DPhPC or DPhPG.
Table 2. Ratio of measurements with channel activity (nc) divided by the number of attempts of reconstituting (na) a putative channel protein in a bilayer of either DPhPC or DPhPG.
Source of Putative
Channel Protein
nc/na in DPhPCnc/na in DPhPG
RhiV-SA10/3not tested
FloV-SA10/30/1
CsV-KB10/3not tested
TetV-139/39not tested
