Open AccessArticle

Protection of Phage Applications in Crop Production: A Patent Landscape

1
Laboratory of Gene Technology, KU Leuven, 3001 Heverlee, Belgium
2
Clinical Pharmacology and Pharmacotherapy, KU Leuven, 3000 Leuven, Belgium
*
Authors to whom correspondence should be addressed.
Viruses 2019, 11(3), 277; https://doi.org/10.3390/v11030277
Received: 19 February 2019 / Revised: 14 March 2019 / Accepted: 16 March 2019 / Published: 19 March 2019
(This article belongs to the Special Issue Hurdles for Phage Therapy (PT) to Become a Reality)

Abstract

In agriculture, the prevention and treatment of bacterial infections represents an increasing challenge. Traditional (chemical) methods have been restricted to ensure public health and to limit the occurrence of resistant strains. Bacteriophages could be a sustainable alternative. A major hurdle towards the commercial implementation of phage-based biocontrol strategies concerns aspects of regulation and intellectual property protection. Within this study, two datasets have been composed to analyze both scientific publications and patent documents and to get an idea on the focus of research and development (R&D) by means of an abstract and claim analysis. A total of 137 papers and 49 patent families were found from searching public databases, with their numbers increasing over time. Within this dataset, the majority of the patent documents were filed by non-profit organizations in Asia. There seems to be a good correlation between the papers and patent documents in terms of targeted bacterial genera. Furthermore, granted patents seem to claim rather broad and cover methods of treatment. This review shows that there is indeed growing publishing and patenting activity concerning phage biocontrol. Targeted research is needed to further stimulate the exploration of phages within integrated pest management strategies and to deal with bacterial infections in crop production.
Keywords: phage biocontrol; patent landscape; crop production phage biocontrol; patent landscape; crop production

1. Introduction

Soon after the discovery of bacteriophages by d’Herelle and Twort at the beginning of the 20th century [1,2], the potential to use these bacterial viruses as a therapeutic was recognized. Although the first applications of phages focused on human medicine [3], other fields including agriculture soon began to explore the potential of bacteriophages as biocontrol agents [4]. The first isolation of phages infecting plant pathogenic bacteria (PPB) dates back to 1924, when it was shown that Xanthomonas campestris pv. campestris, causing black rot in Brassicaceae, could be lysed by the filtrate of diseased cabbages [4,5]. In the following years, interest in phages as biocontrol agents remained relatively high [4]. However, the discovery of broad-spectrum antibiotics and other bactericidal chemicals resulted in a dwindling interest in phage therapy research in general [6].
Within the agricultural sector, the prevention and treatment of bacterial infections represents an increasing challenge. For farmers, devastating losses by bacterial pathogens are generally estimated to reach 10% of the total production [7] and for some bacterial species like Xanthomonas campestris pv. campestris, crop yield can be reduced by 25% [8]. Other major threats include Ralstonia solanacearum, Xylella fastidiosa, and Pseudomonas syringae pathovars [9]. In recent years, general antibiotics like streptomycin, as well as copper-based chemicals, have been restricted in crop production to ensure public health and to limit the occurrence of resistant strains [10,11,12,13]. Because of these restrictions, the search for sustainable, natural biocontrol of PPBs has reached a critical stage, especially considering the increased food production needs [14]. Governments have decided to implement integrated pest management strategies (IPMs) as the standard for crop protection (e.g., the European Parliament and the Council of the European Union (2009) Directive 2009/128/EC of the European Parliament and of the Council of 21 October 2009) [15]. These strategies are based on the implementation of sustainable pest control strategies with the emphasis on biological control not to eradicate pests, but to maintain their populations to avoid economical losses [15]. As phages are the natural predators of bacteria, and thus fit into this framework of IPM, research on phage-based biocontrol is coming back into the picture. Some critical proofs of concept on the efficacy of phages as biocontrol agents have been demonstrated in recent years, as reviewed elsewhere [4].
A major hurdle towards the commercial implementation of these phage-based biocontrol strategies in crop protection concerns aspects of regulation and intellectual property protection. The cost to develop new crop protectants can reach $286 million and may take eleven years [16,17]. Therefore, patents can act as a tool to stimulate innovations in the field. They provide the applicant(s) the right to prohibit others to use their invention for a time-span of twenty years in a specific geographical area in which the patent has been filed. As a consequence, when an applicant wants to have an exclusive right for the invention in different countries, the patent application should be filed for each country individually (full application procedure available [18]). This exclusive right could assure a return-on-investment to the patent holder and hence serve as an incentivizing tool for research and innovation [19,20]. However, patenting biological substances like bacteriophages has been shown to be difficult [21,22]. Nevertheless, the question remains as to whether phages and phage-containing products are protectable by patents and what the scope is of these patents. Here, we present a patent landscape on the existing patents within the field of phage biocontrol using natural phages in agriculture and correlate this with a systematic survey of the scientific literature. A database containing the relevant patent documents within this research area has been set up and analyzed. The number, geographical distribution, and legal status were examined and the scope of the patents was investigated by means of a claim analysis. In parallel, a database of scientific publications within the same research topic was analyzed to enable comparisons with the patent information. This analysis allows us to draw conclusions on the amount and scope of protection of phage-based biocontrol applications in crop production.

2. Materials and Methods

2.1. Dataset Scientific Publications

A dataset consisting of scientific publications on the topic of phage biocontrol in crop production was created by searching Web of Science and PubMed using Boolean search operators combined with a set of keywords relevant for this topic (((“phage”[Title/Abstract] OR “phage therapy” [Title/Abstract] OR “bacteriophage” [Title/Abstract] OR “phage biocontrol” [Title/Abstract] OR “bacteriophage therapy” [Title/Abstract])) AND ((“plant”[Title/Abstract] OR “crop”[Title/Abstract])). The database was manually curated by eliminating non-relevant papers (papers discussing human phage therapy or phage biocontrol in food). Therefore, all abstracts of the scientific publications were manually curated to verify the relevance to the topic. The last update of the dataset was on 17 February 2019 (Supplementary Table S1) and can be considered as an up-to-date snapshot of the situation.

2.2. Patent Search, Legal Status, and Geographical Distribution

An algorithm based on Verbeure et al. (2006) [23] was used to set up a dataset of relevant patent applications and granted patents. In short, a classification search was performed using the International Patent Classification system (IPC) (A01N63—C12N7) combined with a set of keywords relevant for phage applications in the agricultural sector (bacteriophage, phage, phage biocontrol, phage therapy, bacteriophage therapy, plant, crop) in public databases (EspaceNet, Patent Scope, Google Patents). The dataset was manually evaluated and was last updated 17 February 2019 (Supplementary Table S2).
The patent landscape was performed according to Huys et al. (2009) [24]. Three different categories of the legal status were used as retrieved from EspaceNet by evaluating the “Global dossier” in the case of non-European patents or the “INPADOC legal status” and “EP register” for European patents: pending (patent application in consideration), granted (patent that is active in a specific territory), dead (meaning that the application or patent is abandoned) (e.g., WO2014177996 (A1)), refused (e.g., JP2005073562 (A)), withdrawn or deemed to be withdrawn (e.g., CN103430973 (A)), or lapsed (e.g., US19840662065). A patent and/or application is considered “active” when the application is still pending or when the patent is granted. On the contrary, if the patent and/or application is dead, it is considered “non-active”.
The applicants and the geographical span of the patents were evaluated by looking at the patent document and its attributed number. The documents were categorized according to continent to have a better overview (Africa (ZA), Asia (CN, IN, JP, KR), Oceania (AU, NZ), Europe (DE, EA, EP, ES, GB, HU, IT), North America (CA, US), South America (AR, BR, CL, CR, GT, MX, PE)).

2.3. Categorization of Patent Documents and Scientific Publications

To have an understanding of the core focus of patent documents and scientific publications in terms of genera of bacteria being addressed, both were categorized among the most prominent bacterial genera causing plant bacterial diseases, as determined by Mansfield et al. 2012: Agrobacterium, Dickeya, Erwinia, Pectobacterium, Pseudomonas, Ralstonia, Xanthomonas, Xylella, and Other [9]. Here, “Other” was defined as any other bacterial genus or if the document did not specify the bacterium addressed. The categorization was based on a claim analysis (both dependent and independent claims) of the patent documents and an abstract analysis of the scientific publications.
A detailed independent claim analysis was performed for the granted, active patents to determine the scope of the patent. Independent claims were analyzed as these generally define the broadest scope. Claims were categorized into four categories: (i) the phage itself (“phage”), (ii) the composition of the phage cocktail and the final product (“composition”), (iii) methods for producing and/or obtaining phages (“production”), and (iv) the use of phages to treat (non-human) bacterial diseases (“treatment”). One limitation of this research is that the authors had to rely on automatic translations of the claims in Asian patents in order to understand their scope. The same categories were applied on the scientific publications by interpreting the abstracts of the papers, enabling a comparison between the scope of patents and scientific papers.
Moreover, the impact of the independent claims was evaluated based on Huys et al. 2009 [24] according to Art. 69, Art. 83, and the Protocol of the European Patent Convention (EPC) (“fair protection for the patentee with a reasonable degree of certainty for third parties”). In the case of U.S. patents, the claim interpretation was based on U.S. Utility Patent Act §112, demanding a “clear written description” and “best mode for carrying out the invention”. Non-European and non-U.S. patents were interpreted by the authors in a similar way. Using this methodology, three impact levels could be defined: narrow, intermediate, and broadly-defined claims. The circumvention of the claims was estimated according to the author’s appraisal. Narrow defined claims (green) cover specific details of the invention and can easily be circumvented, for example, changes in the genomic sequence of the phage, adaptations to the product composition, different protocols, and methods of treatment not covered by the claims. Intermediate claims (orange) cover the invention as such without describing details (e.g., a specific phage for a specific bacterium, a composition of a product or production process). These claims can be circumvented, though this would require substantial inventiveness. The authors categorized production and treatment claims as intermediate when these claims cover broad methods of production of treatment, but only for a particular phage. On the other hand, broadly defined claims (red) cover every aspect of the invention, but are vaguely described and hence claim outside the invention. However, no full freedom-to-operate analysis for each individual invention was conducted, as this is beyond the scope of this study.

3. Results

3.1. Patent Search, Scientific Papers, and Legal Status

Searching the different databases resulted in the identification of 49 different patent families within the field of phage biocontrol in crop production. A patent family is defined as a group of patents and/or patent applications that have been filed in different countries, but protect one and the same invention and have the same inventor(s). To highlight specific patent families, the first attributed application number was chosen to represent the family. Within the database, the families comprise in total 97 patents and applications (both active and non-active). Figure 1 shows the different patent families organized per year (priority year—dark blue area chart). It shows that the number of patent families slightly increases in time (peak at 2013) and decreases again as less patents were filed in 2016. The information on patent applications from 2017, 2018, and 2019 is not complete as these applications may not have been published yet.
In sharp contrast, 137 scientific publications (1984–2019) were found within Web of Science and PubMed (Figure 1—light blue area chart). Publications on phage biocontrol were scarce in the eighties and nineties of the 20th century. However, from the year 2000 onwards, this number has increased steadily (25 peer reviewed publications in 2018). In other words, there is an increasing trend in the number of publications over the past decade, demonstrating a discrepancy between scientific publishing and patent filing. However, not all patent applications from 2017, 2018, and 2019 are publically available, as the 18-month period before publishing has not passed yet.
When looking at the patent documents in more detail (Figure 1—bar charts), a distinction should be made between “Granted”, “Pending”, and “Dead”, based on their legal status as derived from Espacenet. In total, 59 patents and patent applications (61%) are active, 22 patents (23%) have been granted, 37 applications (38%) are pending, and 38 patent documents (39%) can be considered dead. From the latter, 39% are applications that were deemed to be withdrawn, 16% are rejected applications, and 16% are lapsed patents. Figure 1 shows an overview of the percentages of granted, pending, and dead documents with the same priority year. The first active patent from the dataset dates from 2004 (JP4532959 (B2)). In 2011, there were two families filed, represented by GB20110010647 and JP20110102153, containing in total six patents and four applications, respectively. All the applications and patents within the first family remain active—50% is granted and 50% is pending—whereas two out of four patent applications from the latter family have been rejected. The year 2012 has the most patents—26 in total, divided among four different families represented by GB20120017097, KR101584214, MX2012011440, and US201261716245. This last family contains four granted patents and sixteen applications. The family represented by GB20120017097 consists of one pending and two dead applications and one granted patent (US9278141 (B2)). In 2013, there was a peak in the amount of patent families filed as the number reached nine families. These families consist in total of ten applications, all of which are dead. The majority of these applications were deemed to be withdrawn (80%), meaning that the designation fee was not paid.

3.2. Applicants and Geographical Distribution

Analyzing the applicants of the different patent documents, it shows that 56% (54) of the 97 patent documents have been filed by academia, whereas 37% (36) are linked to industry (without joint applicants), and 7% (7) are joint applicants. This means that the family, or patent documents belonging to a family, have more than one applicant and thus the rights of the patent are distributed among the different partners. The most prominent academic applicants based on the amount of patent families filed by these applicants are the University of Hiroshima (JP) (21% of patent families –6/28) and the Rural Development Administration (KR) (14%, 4/28). The most prolific company in terms of patent filing is Qingdao Biological Technology Corporation LTD (CN), accounting for 50% (8/16). However, it is worthwhile to mention that all patents within the database from the Qingdao Biological Technology Corporation LTD have been withdrawn. Remarkably, only 4 out of 21 granted patents are filed by applicants from the private sector and all of these patents belong to the same family (represented by GB20110010647—Fixed Phage).
Figure 2 provides an overview of the relative contributions by countries in terms of filed and granted patent applications. One percent of all patent documents were filed in Africa (ZA), 3% in Oceania (AU, NZ), 13% in Europe (DE, EA, EP, ES, GB, HU, IT), and 13% worldwide. The majority of the patent documents have been filed in North America and Asia—16% in the USA and Canada and 43% in Asia. These Asian documents consist of 45% (19/42) Chinese, 31% (13/42) Japanese, 21% (9/42) Korean, and 2% (1/42) Indian applications and patents. When analyzing the legal status of the different patents organized per continent, 33% (14/42) of the Asian patents have been granted, 26% (11/42) of the applications are pending, and 40% (17/42) are dead. The large portion of dead patents and applications is also visible among the European (54%, 7/13) and North American (44%, 7/16) documents. Only 8% (1/13) of European patents have been granted, while this figure is 25% (4/16) for North American patents. The amount of pending applications is similar at 38% (5/13) and 31% (5/16) of the European and North American applications, respectively. On the other hand, in the case of the South American patent applications, 89% (8/9) are pending and 11% are dead. Notably, 7/9 of these South American patents are part of the same patent family (US2016309723).
Furthermore, China has the highest percentage of dead patents, with 63% (12/19). The majority of these patent were deemed to be withdrawn after the admission fee was not paid (92%). On the contrary, Japan and Korea have the highest amount of granted patents, 38% (5/13) and 67% (6/9) of the patents filed, respectively, are granted and still active.

3.3. Categorization of Patents and Scientific Publications

As the most prominent bacterial species belong to the genera of Agrobacterium, Dickeya, Erwinia, Pectobacterium, Pseudomonas, Ralstonia, Xanthomonas, and Xylella [9], patent families and scientific publications were categorized and quantified among these groups according to (in)dependent claims (patent applications) and abstracts (scientific publications) (Figure 3). Combinations of genera were created when phages against certain pathogens were combined in a single cocktail (Dickeya/Pectobacterium and Xanthomonas/Xylella). A patent family or publication was classified as “Other” if it concerns a phage infecting bacteria of other genera (e.g., Streptomyces—“McKenna, F., et al. 2001. Novel In vivo use of a polyvalent Streptomyces phage to disinfest Streptomyces scabies-infected seed potatoes. Plant Pathol. 50:666–675.” [25]) or if the paper/publication has no specification of the type of phage neither in the independent nor in the dependent claims (e.g., WO2016154602—“A method of preparing a phage composition for killing or degrading fitness of a pest”).
The least researched bacterial genera within both databases are Agrobacterium (0% patent families, 3% publications), Pseudomonas (6% patent families, 5% publications), and Erwinia (4% patent families, 9% publications). The most represented bacterial genera within the datasets as suggested by Figure 3 are Ralstonia, Xanthomonas/Xylella, and Dickeya/Pectobacterium. Sixteen percent of the scientific publications discuss phages infecting Ralstonia; 15% Xanthomonas, Xylella, or a combination of Xanthomonas and Xylella; and 12% Dickeya, Pectobacterium, or a combination of Dickeya and Pectobacterium. In the case of the patent applications, a similar trend can be observed—27% Ralstonia, 16% Xanthomonas/Xylella, and 10% Dickeya/Pectobacterium.
A closer inspection of the different categories reveals that three patent families within the category of Ralstonia have included a private company as co-applicant (23%, 3/13). On the other hand, inventions from all patent families filed by public institutes have also been published in scientific papers (Supplementary Table S3). In the case of the category of Xanthomonas/Xylella, a similar trend can be observed, as there are three families filed by industrial applicants represented by WO2015200519 by Auxergen (US), US2017142976 by Fairhaven Vineyards (US), and HU1700178 Enviroinvest Koernyezetvedelmi es biotechnologiai (HU).
The other families are filed by the University of Hiroshima (JP), Texas A&M University (US), University Huazhong (CN), and the National institute for Agro-Environmental Sciences (JP), all situated in the public sector. This is also the case for Dickeya and Pectobacterium, as no patents were filed by private institutes. The applicants here include the Rural Development Administration (KR) and the national university of Seoul (KR). The majority of the families filed by private institutes are classified as “Other” (37%), indicating that the patents are not discussing the major genera of bacteria, but rather do not specify the phages nor their host. Hence, the claims are defined broadly. Within this group, the majority of the families are filed by industrial applicants (88%): Fixed phage (GB), Epibiome (US), Qingdao Biological Technology Corporation LTD (CN), and Internalle (US).

3.4. Claim and Abstract Analysis

A claim analysis was performed to determine the scope of the individual patents along with an analysis of the scientific publications. Among the dataset of 91 patent documents analyzed, 21 were active, granted patents. In total, 79 independent claims were systematically analyzed and classified into four different categories (Figure 4): (1) Phage (e.g., “A bacteriophage able to lyse cells of Ralstonia solanacearum selected from the group of the following: (a) vRsoP-WF2 (DSM 32039), vRsoP-WM2 (DSM32040), vRsoP-WR2 (DSM32041); or (b) a podovirus whose genome has the sequence of SEQ ID NO: 1 (corresponding to vRsoP-WF2), SEQ ID NO: 2 (corresponding to vRsoP- WM2), or SEQ ID NO: 3 (corresponding to vRsoP-WR2)”—ES2592352), (2) Composition (e.g., “A composition for inhibiting or preventing the growth of Pectobacterium carotovorum, which comprises as an active ingredient bacteriophage PM-2 (KACC97022P) having an entire genome sequence consisting of the nucleotide sequence of SEQ ID NO: 1.”—KR101797463), (3) Production (e.g., “A method of propagating a virulent bacteriophage that includes X fastidiosa in its host range, comprising the steps of the following: (a) infecting a culture of Xanthomonas bacteria with said virulent bacteriophage; (b) allowing said bacteriophage to propagate; and (c) isolating virulent bacteriophage particles from the culture.”—“Production claim”: AU2013331060), and (4) Treatment (e.g., “A method of preventing or reducing symptoms or disease associated with Xylella fastidiosa or Xanthomonas in a plant, comprising contacting said plant with particles of at least one virulent bacteriophage, wherein Xylella fastidiosa and/or Xanthomonas axonopodis are hosts of the bacteriophage, wherein the bacteriophage is a Xfas 300-type bacteriophage and displays the following characteristics: (a) the bacteriophage is capable of lysing said Xylella fastidiosa and/or Xanthomonas bacteria; (b) the bacteriophage infects a cell by binding to a Type IV pilus; (c) the bacteriophage comprises a non-contractile tail with a capsid size ranging from 58–68 nm in diameter and belongs to the Podoviridae family; (d) the genomic size of the bacteriophage is about 43,300 bp to 44,600 bp; and (e) the bacteriophage prevents or reduces symptoms associated with Pierce’s disease in a plant or plants.”—US9357785). The same categories were used to classify the scientific publications based on the abstract of the publication. Both scientific papers and patents can fall in different categories as they may discuss one or more phages and their basic characterization, the composition of a cocktail, and the testing of this cocktail in bioassays and/or field trials. As Figure 4 shows, there are differences between the relative contributions of scientific papers and patents that address a specific topic. The majority of the scientific papers focus on the isolation and basic characterization of one or more phages (84%). Thirty-six percent of the manuscripts discuss the composition of a phage cocktail and 39% use this cocktail in bioassays and/or field trials. The least represented topic discusses production methods of phage (4%). In contrast, the majority of the patents (90%) protect the use of phages to treat a plant in one way or another. Seventy-six percent of the patents claim the composition of a product containing phage, 62% protect the phage itself, and 24% contain claims protecting the production of the phage product. On the other hand, no patents within the database contain claims to protect methods of detection nor of the phage nor of the host.
When evaluating the 77 independent claims of all active, granted patents, the majority of the claims are process claims protecting different methods to use phages as a treatment for bacterial infection (40%—Supplementary Figure S1). Furthermore, this data shows that 30% of the claims protect the composition of the phage product. This means that a combination of phages is protected and/or the formulation of the final product. Nineteen percent can be considered as compound claims as the claim is protecting the phage(s) as an active ingredient and only 10% of the claims are production claims.
The 77 independent claims were also categorized within three classes: narrow, intermediate, and broadly-defined. This gives an indication of whether a specific claim can be easily circumvented (narrowly-defined) or not (broadly-defined). Table 1 gives an overview of all the granted patents and the independent claims that belong to these patents. Twenty-six percent of the claims are narrow claims (e.g., "The invention relates to a method for applying a bacteriophage of R. solanacearum, characterized in that the bacteriophage liquid of R. solanacearum is placed in a sterile syringe needle obliquely inserted into the stem of the tobacco plant, and then the bacterial phage liquid is covered with sterile mineral oil to prevent evaporation. And pollution, so that the R. solanaceans phage directly enters the stem of the tobacco through a sterile syringe needle; the sterile mineral oil is prepared by pouring 300 mL of mineral oil into a 500 mL screw bottle and sterilizing at 121 °C 30 min, then stored and reserved after cooling; the sterile syringe needle is prepared by using a sterile blister needle overnight, rinsing twice with sterile water, drying at 50 °C after autoclaving, and after cooling to room temperature, Packed and stored for use; each tobacco stem is injected with 50–100 μL of R. solanacearum phage solution; in the sterile syringe needle inserted into the stem of the tobacco plant, the amount of sterile mineral oil is 50–100 μL”—“Treatment claim”: CN104542717). Thirty percent of the claims are intermediate as they do not cover specific details on the invention (e.g., "A method for controlling bacterial wilt disease bacteria, which comprises spraying the bacteriophage strain according to any one of claims 1 to 3 to a plant or soil.”—“Treatment claim”: JP4532959). Finally, 44% can be defined as broad claims (e.g., “An isolated bacteriophage which is toxic to X. fastidiosa and Xanthomonas species, wherein said bacteriophage is at least one member selected from the group consisting of Xfas 100 phage type bacteriophage and Xfas 300 phage type bacteriophage Of the bacteriophage, wherein the Xfas 100 phage type is selected from the group consisting of SEQ ID NO: 11, SEQ ID NO: 12, SEQ ID NO: 13, SEQ ID NO: 14, SEQ ID NO: 15, SEQ ID NO: 16, SEQ ID NO: 17, and SEQ ID NO: 18 Wherein the Xfas 300 phage type comprises a genome having a DNA sequence that is 99% or more identical to the sequence of SEQ ID NO: 19, SEQ ID NO: 20, SEQ ID NO: 21, SEQ ID NO: 22, SEQ ID NO: 23 and SEQ ID NO: 24 Select from It comprises a sequence a genome having the same DNA sequence 99% or more that is, the bacteriophage.”—“Phage claim”: JP6391579).
The claims categorized as “Phage claims” are generally narrowly-defined (41%), as the claims protect the phage and its genomic sequence. However, highly similar phages with differences in their genomic sequence fall outside the scope of these claims. Thus, the claims can be circumvented. A judge, however, may interpret by the claim as equivalent by the doctrine of equivalence. The isolation of a different phage that targets the same bacterium also circumvents the claim. On the other hand, the majority of the “Composition claims” and “Production claims” are difficult to circumvent as they are broadly defined (56% and 75%, respectively).
As mentioned above, 4 out of 21 granted patents have been filed by a private organization (Fixed Phage) and these patents belong to the same patent family. When looking at the claims for these patents, one notices that all the claims are broadly-defined. As the invention discusses the use of phages in a composition to fight bacterial infections without defining the phage itself, the majority of the claims protect the composition of the product rather than the phage or the production of the product.

4. Discussion

Within this study, we analyzed publishing and patenting activities in phage biocontrol as a crop protectant using the number of scientific papers and patent documents as a measuring tool for assessing interest in this area. Furthermore, we looked into the applicants, geographical distribution, legal status, and scope of the patent documents by categorizing both the patents and scientific manuscripts by claims and abstracts. This allowed us to make a general comparison between the focus of patents and scientific literature and the willingness of R&D to look into the potential of phages as a part of IPM.

4.1. Despite a Growing Interest in Phage Biocontrol, Patenting Activities Remain Limited

The increasing number of scientific publications (Figure 1) shows that there is indeed a growing interest in using phages as an alternative to existing plant protecting products. The number of patent filings seems to fall behind in 2016, but increases slightly in 2017. However, it is premature to determine a trend because not all the applications filed in 2017 and 2018 have passed the 18-month period before publication and thus are not made publicly available [26]. Fifty-six percent of the patent documents were filed by non-profit organizations like the University of Hiroshima (JP), the Rural Development Administration of South-Korea (KR), and Texas A&M University (US). This confirms the slightly stronger interest from non-profit organizations in protecting phage biocontrol inventions compared with industry. It might also suggest that private companies are still dangling in the start-up phase or have not picked up the topic yet (apart from a few early adopters). This could also indicate that the expertise still remains in non-profit and needs to be transferred to the private sector.
The assessment of the legal status of the documents shows a high fraction of dead documents (39%). Within this group of dead applications, 16% of the applications were rejected as the invention was not considered novel (US2009053179) and/or did not include an inventive step (JP2005073562). The majority of the dead documents are applications that were deemed to be withdrawn (39%) and patents that are lapsed (16%—no oppositions were filed, e.g., EP0182106). In both cases, the applicants did not pay the fees needed to maintain the rights of the patent. For some patent applications, this is because of a negative search report (GB2519913 and WO2007044428), in which the invention was not found novel nor inventive. On the other hand, not paying the fees may also imply internal shifts of interest for commercial or other reasons. Hurdles in the regulation of biopesticides may influence such decisions as well. In Europe, for instance, the registration exists for two phases: registration of the active ingredient at European level by the European Food Safety Authority (EFSA), and the authorization of the formulated product at member state level leading to bureaucratic difficulties and high cost [17]. In the United States, a similar procedure should be taken as the product needs to be registered by the Environmental Protection Agency (EPA) [27]. Other countries including China and South Korea have similar agencies [28,29]. As phages are highly specific and can only infect a few strains of one bacterial species, they are often combined in a cocktail [30]. In terms of registrations, this means that every phage in the cocktail should be registered as an active ingredient (Regulation (EC) No 1107/2009) and reformulations of the product require re-registrations [4]. The cost of such registrations may be high, for example, the registration costs of products corresponding to a “New Active Ingredient, Non-food use; outdoor; reduced risk” can reach $436,004 in the United States [31] and in Europe, the total R&D costs (including registration fees) are estimated to reach $286 million [16]. Moreover, phage genomes are variable as a result of evolutionary fluxes [32], thus phages cannot be considered as stable, fixed products that could impede registration [33]. Luckily, this can partially be addressed by recent insights on genome-based taxonomy that phages sharing 95% nucleotide similarity are considered as isolates the same species [34]. Changes in the regulation including fast track registration, priority registration, and zonal authorization (i.e., authorization for all of the EU instead of registration per country) could function as an incentive to further develop innovations and promote patenting in biocontrol [35]. These reasons could also explain the low number of filed applications in Europe and North America, as observed in Figure 2. Nevertheless, a first phage product line, AgriPhageTM, was registered in the United States (2005) by Omnilytics (part of Phagelux). AgriPhageTM is approved by the Environmental Protection Agency (EPA) and contains products with phages against Xanthomonas campestris pv. vesicatoria and Pseudomonas syringae pv. tomato. Currently, Omnilytics has added cocktails against Erwinia amylovora and Clavibacter michiganensis subsp. michiganensis to their product line [36]. Notably, none of these products or phages were found by the authors in the public assessed databases. This may imply that the patents could be licensed (e.g., from an academic partner); the applications are not publicly available yet; or the product is not patented, opening the discussion of whether patenting is indeed crucial for commercial activities of phage applications in agriculture. Also, in Europe, a few phage-containing products are on the market. In Hungary, Enviroinvest has a product (available since March 2018) on the Hungarian market called Erwiphage PLUS, containing bacteriophages targeting Erwinia amylovora [37]. Moreover, the Scottish company APS Biocontrol distributes a product line Biolyse®, a food-packaging aid that contains phages that prevent soft rot disease in stored potatoes [38].

4.2. Efforts in Asia to Protect Phage Biocontrol Preparations

The geographical distribution of the patent documents (Figure 2) shows that the majority were filed in Asia (43%). This observation might be explained by local governmental stimuli to promote patenting to cause rapid economic growth [39,40]. China, for instance, has implemented so-called patent promotion policies. These policies stimulate patenting as tax incentives and subsidies are linked to patent ownership, and have caused a booming growth in the number of Chinese patent applications and patents [40]. Furthermore, Asia, in general, is taking measures to reduce the amount of chemical pesticides and fertilizers. China, for instance, has launched a “national research program on reduction in chemical pesticides and fertilizers in China” ($340 million) [35]. Within the study presented here, 19% of all documents were filed in China. In contrast, 63% of these documents are dead, from which 92% are applications that were deemed to be withdrawn as fees were not paid. This might implicate that the applicants lost their confidence in the invention. The number of granted, active patents is high in Japan and South Korea, further illustrating Asian efforts to develop new biocontrol strategies. A study from the Food and Agriculture Organization from the United Nations (FAO) and the Asia and Pacific Plant Protection Commission (APPPC) has shown that both Japan and South Korea are promoting integrated pest management strategies by setting pesticide reduction targets (KR) and appointing IPM expert groups (JP) [41].

4.3. Scientific Publications and Patent Documents Show a Correlation in Terms of Targeted Pathogens

To get a more profound idea about the focus of the patent and scientific literature, both datasets were classified according to the most prominent bacterial genera causing plant diseases [9] (Figure 3). In general, the percentages of scientific publications and patent families discussing a specific bacterial genus correspond quite well. Within the datasets presented here, the most studied bacterial genus is Ralstonia; not surprisingly, as these bacteria cause disease in a wide range of cash crops like tomato, potato, tobacco, eggplant, and banana [42]. In the dataset, tomato is the most researched crop. The majority of the documents categorized within this group were filed by non-profit organizations rather than industrial applicants. This suggests that the actual interest from industry is still rather limited compared with that of academia. The second most prominent group is the combination of Xanthomonas and Xylella. Both pathogens can have a significant impact in crop production and hence, it is not remarkable that these bacteria are largely represented in phage biocontrol research [43,44]. Furthermore, the majority of the applications were filed by the public sector. The Pseudomonas genus, including that of Pseudomonas syringae and its pathovars, is less represented within both databases. This is striking as P. syringae pathovars are considered as one of the most important PPBs causing disease in different crops (tomato, bean, kiwi, leek, and others) [45]. As Figure 3 shows, there is a discrepancy within the “Other” group. This category combines documents that talk about other bacterial genera or do not specify the bacterium that is being addressed. The majority of the patents and patent applications were classified in this category because these do not specify a particular bacterial genus. From these patent documents, we observe that all the granted patents filed by industrial applicants have chosen this option (Table 1). This might suggest that industry defines claims containing bacteriophages as broad as possible to get patent exclusive rights to any phage product that falls under the protection of the patent. By applying this strategy, companies are taking risks in their patenting strategy because these broad claims are more susceptible in terms of novelty anticipation, which may invalidate them [46].

4.4. Granted Patents Include Broad Claims

The main focus of the scientific publications and the granted patents indicate a difference in emphasis (Figure 4). While the majority of the manuscripts discuss the isolation of one or more bacteriophages and their basic characterization, the majority of the patents claim a method of treating a bacterial infection by means of a phage product. Only 39% of scientific papers address the latter, although this could be considered as the ultimate goal of phage biocontrol. This illustrates that first efforts are made in the field, but that there are still opportunities for further innovations.
Limited efforts have been made towards patenting detection strategies for and by phages in the field of phage biocontrol in crop production. As phages are highly specific to a specific bacterium and can locate their host in a complex matrix of bacteria, they can easily be used as a detection tool [47]. However, this study suggests that little published evidence is available in this area by both the scientific community and the industrial early adopters, as there are no claims protecting possible methods of detection and only a small minority (8%) of scientific papers discuss this matter.
The claims that belong to the “Phage” category consist of claims that protect a natural occurring phage. According to Art. 3 of the Biotechnology Directive 98/44/EC (European Commission), natural phages can be patented because the phage is isolated from the environment [22]. The techniques to isolate phages, however, are similar to those used in 1920, which makes the patentability of natural phages fragile [21]. Nevertheless, claims for isolated phages can be of great value as patents covering such claims may give the right to prevent others from using that particular phage. On the contrary, as phages are abundantly present in the environment, the chances of finding a similar, yet different phage, which may circumvent the claim, exists. However, as the literature on phages applicable for phage biocontrol increases, anticipation of novelty as a patentability requirement of a particular phage may become an issue. In the United States, the requirement of novelty is more complicated, as the phage will be excluded for patentability if on the one side it is known or used within the United States, or on the other side, published or patented wherever in the world [22].
Figure 4 also shows that there is limited evidence on the optimization of the production of phage cocktails based on both scientific and patent literature. One could argue that the production of phages is phage-dependent (specific bacterial strains, media, temperature) and thus keeping the production of phages secret could be a valid strategy to maintain a competitive edge [19].
On the other hand, many patents claim the combination of phages or phages as part of a formulation. This is illustrated by Supplementary Figure S1. Claiming a combination of phages can act as a buffer to reduce the risk of resistance development of the target bacterium. Phages are known to have different infection strategies and highly diverse genomes, leading to the chance that a certain bacterium develops resistance (by altering receptors, CRISPRs, restriction enzymes) against two or even three phages in one cocktail are theoretically small [4,48,49]. The strength of these claims can be questioned as minor changes to the cocktail could already be sufficient to circumvent claims.
Table 1 depicts in which categories the individual patents can be classified. Here, it is clear that the different patents combine different types of claims. Combined with the scope of the claims, this might support the previous statement that companies employ a “throw everything at the wall to see what sticks” patenting strategy because of the uncertainty and the ignorance in how to achieve a strong protection for the invention [19].

4.5. Phages and Other Viruses as Part of an Integrated Pest Management Strategy

To safeguard public health and minimize impact on the environment, traditional pesticides used in crop production are currently being stigmatized. This triggers the research community to evaluate new, alternative methods to deal with different kinds of pests like fungi, bacteria, and insects. The use of relatively high concentrations of natural predators to eradicate a certain pest, also known as augmentative biocontrol, is gaining in popularity [35]. In this regard, bacteriophages and other viruses, like insect viruses and mycoviruses, are ideal candidates as biocontrol agents because they are sustainable, specific, and do not leave residues on the crop. Moreover, they fit into the framework of integrated pest management, where the use of biocontrol agents is heavily promoted [35]. Viruses as biocontrol agents are, however, sometimes overlooked in IPM [15], which indicates that more efforts need to be taken to integrate these viral strategies. This review shows that there is indeed a basis within the scientific community to investigate the potential of phages to be used as biocontrol agents. In 2018, a Horizon 2020 consortium was established to investigate viruses and their potential to serve as a possible solution against pests as both a probiotic and viral treatment strategy (https://viroplant.eu/). Initiatives like these, together with more in-depth research, are needed to provide fundamental insights to close the gap between academia and industry in this matter and to stimulate the industry to invest in phage biocontrol.

Supplementary Materials

Supplementary materials can be found at https://www.mdpi.com/1999-4915/11/3/277/s1.

Author Contributions

Conceptualization, D.H., R.L., I.H., and J.W.; methodology, D.H. and I.H.; writing—original draft preparation, D.H.; writing—review and editing, R.L., I.H., and J.W.

Funding

D.H., I.H., R.L., and J.W. are supported by the European Union’s Horizon 2020 Research and Innovation Program (773567; www.viroplant.eu) and by a VLAIO LA-grant (150914). DH holds a predoctoral scholarship from FWO-strategic basic research (1S02518N).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Twort, F.W. An Investigation On The Nature Of Ultra-Microscopic Viruses. Lancet 1915, 186, 1241–1243. [Google Scholar] [CrossRef]
  2. D’Herelle, F. Roux On an invisible microbe antagonistic toward dysenteric bacilli: Brief note by Mr. F. D’Herelle, presented by Mr. Roux. Res. Microbiol. 2007, 158, 553–554. [Google Scholar] [PubMed]
  3. Pirnay, J.P.; De Vos, D.; Verbeken, G.; Merabishvili, M.; Chanishvili, N.; Vaneechoutte, M.; Zizi, M.; Laire, G.; Lavigne, R.; Huys, I.; et al. The phage therapy paradigm: Prêt-à-porter or sur-mesure? Pharm. Res. 2011, 28, 934–937. [Google Scholar] [CrossRef]
  4. Buttimer, C.; McAuliffe, O.; Ross, R.P.; Hill, C.; O’Mahony, J.; Coffey, A. Bacteriophages and bacterial plant diseases. Front. Microbiol. 2017, 8, 34. [Google Scholar] [CrossRef]
  5. Mallmann, W.; Hemstreet, C. Isolation ofan inhibitory substance from plants. Agric. Res. 1924, 28, 599–602. [Google Scholar]
  6. Okabe, N.; Goto, M. Bacteriophages of Plant Pathogens. Annu. Rev. Phytopathol. 1963, 1, 397–418. [Google Scholar] [CrossRef]
  7. Strange, R.; Scott, P.R. Plant disease: A threat to global food security. Annu. Rev. Phytopathol. 2005, 43, 83–116. [Google Scholar] [CrossRef] [PubMed]
  8. Inagro IWT—Beheersing bacteriële pathogeen opkweek kolen-prei. Available online: http://leden.inagro.be/Wie-is-Inagro/Projecten/project/13960 (accessed on 27 December 2018).
  9. Mansfield, J.; Genin, S.; Magori, S.; Citovsky, V.; Sriariyanum, M.; Ronald, P.; Dow, M.; Verdier, V.; Beer, S.V.; Machado, M.A.; et al. Top 10 plant pathogenic bacteria in molecular plant pathology. Mol. Plant Pathol. 2012, 13, 614–629. [Google Scholar] [CrossRef] [PubMed][Green Version]
  10. Cooksey, D.A. Genetics of Bactericide. Annu. Rev. Phytopathol. 1990, 28, 201–219. [Google Scholar] [CrossRef]
  11. Frampton, R.A.; Pitman, A.R.; Fineran, P.C. Advances in bacteriophage-mediated control of plant pathogens. Int. J. Microbiol. 2012, 2012, 326452. [Google Scholar] [CrossRef]
  12. Pietrzak, U.; McPhail, D.C. Copper accumulation, distribution and fractionation in vineyard soils of Victoria, Australia. Geoderma 2004, 122, 151–166. [Google Scholar] [CrossRef]
  13. Copping, L.G.; Duke, S.O. Natural products that have been used commercially as crop protection agents. Pest Manag. Sci. 2007, 63, 524–554. [Google Scholar] [CrossRef] [PubMed]
  14. Ray, D.K.; Mueller, N.D.; West, P.C.; Foley, J.A. Yield Trends Are Insufficient to Double Global Crop Production by 2050. PLoS ONE 2013, 8, e66428. [Google Scholar] [CrossRef] [PubMed]
  15. Stenberg, J.A. A Conceptual Framework for Integrated Pest Management. Trends Plant Sci. 2017, 22, 759–769. [Google Scholar] [CrossRef] [PubMed]
  16. Phillips, M.D. The Cost of New Agrochemical Product Discovery, Development and Resgistration in 1995, 2000, 2005–8 and 2010 to 2014. R&D Expenditure in 2014 and Expectations for 2019. A Consultancy Study for CropLife International, CropLife America and the European Crop; Pathhead: Midlothian, UK, 2016. [Google Scholar]
  17. European Crop Protection Registering Plant Protection Products in the EU. Available online: https://www.ecpa.eu/sites/default/files/7450_Registrationbrochure_3.pdf%0Ahttp://www.ecpa.eu/files/attachments/20110125_PPPBrochure_ECPA.pdf (accessed on 5 February 2019).
  18. WIPO—Protecting Your Inventions Abroad: Frequently Asked Questions About the Patent Cooperation Treaty (PCT). Available online: https://www.wipo.int/pct/en/faqs/faqs.html (accessed on 12 March 2019).
  19. Todd, K. The Promising Viral Threat To Bacterial Resistance: The Uncertain Patentability of Phage Therapeutics and the Necessity of Alternative Incentives. J. D. Expect. 2019, 68, 767–805. [Google Scholar]
  20. Williams, H.L. How do patents affect research investments? Annu. Rev. Econ. 2017, 9, 441–469. [Google Scholar] [CrossRef]
  21. Pirnay, J.-P.; Verbeken, G.; Rose, T.; Jennes, S.; Zizi, M.; Huys, I.; Lavigne, R.; Merabishvili, M.; Vaneechoutte, M.; Buckling, A.; et al. Introducing yesterday’s phage therapy in today’s medicine. Future Virol. 2012, 7, 379–390. [Google Scholar] [CrossRef][Green Version]
  22. Verbeken, G. Towards An Adequate Regulatory Framework For Bacteriophage Therapy; KU Leuven and Royal Military Academy: Leuven, Belgium, 2015. [Google Scholar]
  23. Verbeure, B.; Matthijs, G.; Van Overwalle, G. Analysing DNA patents in relation with diagnostic genetic testing. Eur. J. Hum. Genet. 2006, 14, 26–33. [Google Scholar] [CrossRef]
  24. Huys, I.; Berthels, N.; Matthijs, G.; Van Overwalle, G. Legal uncertainty in the area of genetic diagnostic testing. Nat. Biotechnol. 2009, 27, 903–909. [Google Scholar] [CrossRef]
  25. McKenna, F.; El-Tarabily, K.A.; Hardy, G.S.J.; Dell, B. Novel in vivo use of a polyvalent Streptomyces phage to disinfest Streptomyces scabies-infected seed potatoes. Plant Pathol. 2001, 50, 666–675. [Google Scholar] [CrossRef][Green Version]
  26. EPO—Basic Definitions. Available online: https://www.epo.org/searching-for-patents/helpful-resources/first-time-here/definitions.html (accessed on 14 February 2019).
  27. Braverman, M. United States. In Use and Regulation of Microbial Pesticides in Representative Jurisdictions Worldwide; 2015; Available online: https://www.IOBC-Global.org (accessed on 14 February 2019).
  28. Wang, B.; Li, Z. Use and Regulation of Biopesticides in China. In Use And Regulation Of Microbial Pesticides In Representative Jurisdictions Worldwide; 2015; Available online: https://www.IOBC-Global.org (accessed on 14 February 2019).
  29. Kim, J.J.; Lee, S.G.; Lee, S.; Jee, H.-J. South Korea. In Use and Regulation of Microbial Pesticides in Representative Jurisdictions Worldwide; 2015; Available online: https://www.IOBC-Global.org (accessed on 14 February 2019).
  30. Rombouts, S.; Volckaert, A.; Venneman, S.; Declercq, B.; Vandenheuvel, D.; Allonsius, C.N.; Van Malderghem, C.; Jang, H.B.; Briers, Y.; Noben, J.P.; et al. Characterization of novel bacteriophages for biocontrol of bacterial blight in leek caused by Pseudomonas syringae pv. porri. Front. Microbiol. 2016, 7, 1–15. [Google Scholar] [CrossRef]
  31. EPA PRIA Fee Category Table—Registration Division—New Active Ingredients. Available online: https://www.epa.gov/pria-fees/pria-fee-category-table-registration-division-new-active-ingredients (accessed on 15 February 2019).
  32. Barbosa, C.; Venail, P.; Holguin, A.V.; Vives, M.J. Co-Evolutionary Dynamics of the Bacteria Vibrio sp. CV1 and Phages V1G, V1P1, and V1P2: Implications for Phage Therapy. Microb. Ecol. 2013, 66, 897–905. [Google Scholar] [CrossRef]
  33. European Commission. Guidance Document For The Assessment Of The Equivalence Of Technical Grade Active Ingredients For Identical Microbial Strains Or Isolates Approved Under Regulation (EC) No 1107/2009; European Commission Health and Food safety: Brussels, Belgium, 2014. [Google Scholar]
  34. Adriaenssens, E.M.; Rodney Brister, J. How to name and classify your phage: An informal guide. Viruses 2017, 9, 70. [Google Scholar] [CrossRef]
  35. Van Lenteren, J.C.; Bolckmans, K.; Köhl, J.; Ravensberg, W.J.; Urbaneja, A. Biological control using invertebrates and microorganisms: Plenty of new opportunities. BioControl 2018, 63, 39–59. [Google Scholar] [CrossRef]
  36. AgriPhageTM Product Info AgriPhage. Available online: https://www.agriphage.com/product-info/ (accessed on 9 February 2019).
  37. Enviroinvest Zrt. Erwiphage PLUS. Available online: http://www.erwiphage.com/ (accessed on 12 March 2019).
  38. APS Biocontrol Ltd. Biolyse Products. Available online: https://www.apsbiocontrol.com/products (accessed on 12 March 2019).
  39. Erstling, J.; Strom, R. Korea’s Patent Policy and Its Impact on Economic Development: A Model for Emerging Countries. San Diego Int. Law J. 2009, 11, 441–481. [Google Scholar]
  40. Long, C.X.; Wang, J. China’s patent promotion policies and its quality implications. Sci. Pub. Policy 2018, 46, 91–104. [Google Scholar] [CrossRef]
  41. APPPC; FAO. Plant Protion Profiles from Asia-Pacific countries—Chapter 3 Intergrated Pest Management. Available online: http://www.fao.org/docrep/010/ag123e/AG123E22.htm (accessed on 13 February 2019).
  42. Álvarez, B.; Biosca, E.G. Bacteriophage-Based Bacterial Wilt Biocontrol for an Environmentally Sustainable Agriculture. Front. Plant Sci. 2017, 8, 1–7. [Google Scholar] [CrossRef]
  43. Ryan, R.P.; Vorhölter, F.J.; Potnis, N.; Jones, J.B.; Van Sluys, M.A.; Bogdanove, A.J.; Dow, J.M. Pathogenomics of Xanthomonas: Understanding bacterium-plant interactions. Nat. Rev. Microbiol. 2011, 9, 344–355. [Google Scholar] [CrossRef]
  44. Janse, J.D.; Obradovic, A. Xylella Fastidiosa: Its Biology, Diagnosis, Control And Risks. J. Plant Pathol. 2010, 92, S1.35–S1.48. [Google Scholar]
  45. Xin, X.F.; Kvitko, B.; He, S.Y. Pseudomonas syringae: What it takes to be a pathogen. Nat. Rev. Microbiol. 2018, 16, 316–328. [Google Scholar] [CrossRef]
  46. WIPO. IP and Business: Quality Patents: Claiming what Counts. Available online: https://www.wipo.int/wipo_magazine/en/2006/01/article_0007.html (accessed on 14 February 2019).
  47. Schofield, D.A.; Bull, C.T.; Rubio, I.; Wechter, W.P.; Westwater, C.; Molineux, I.J. Development of an engineered bioluminescent reporter phage for detection of bacterial blight of crucifers. Appl. Environ. Microbiol. 2012, 78, 3592–3598. [Google Scholar] [CrossRef] [PubMed]
  48. Labrie, S.J.; Samson, J.E.; Moineau, S. Bacteriophage resistance mechanisms. Nat. Rev. Microbiol. 2010, 8, 317–327. [Google Scholar] [CrossRef] [PubMed]
  49. Chan, B.K.; Abedon, S.T.; Loc-Carrillo, C. Phage cocktails and the future of phage therapy. Future Microbiol. 2013, 8, 769–783. [Google Scholar] [CrossRef] [PubMed]

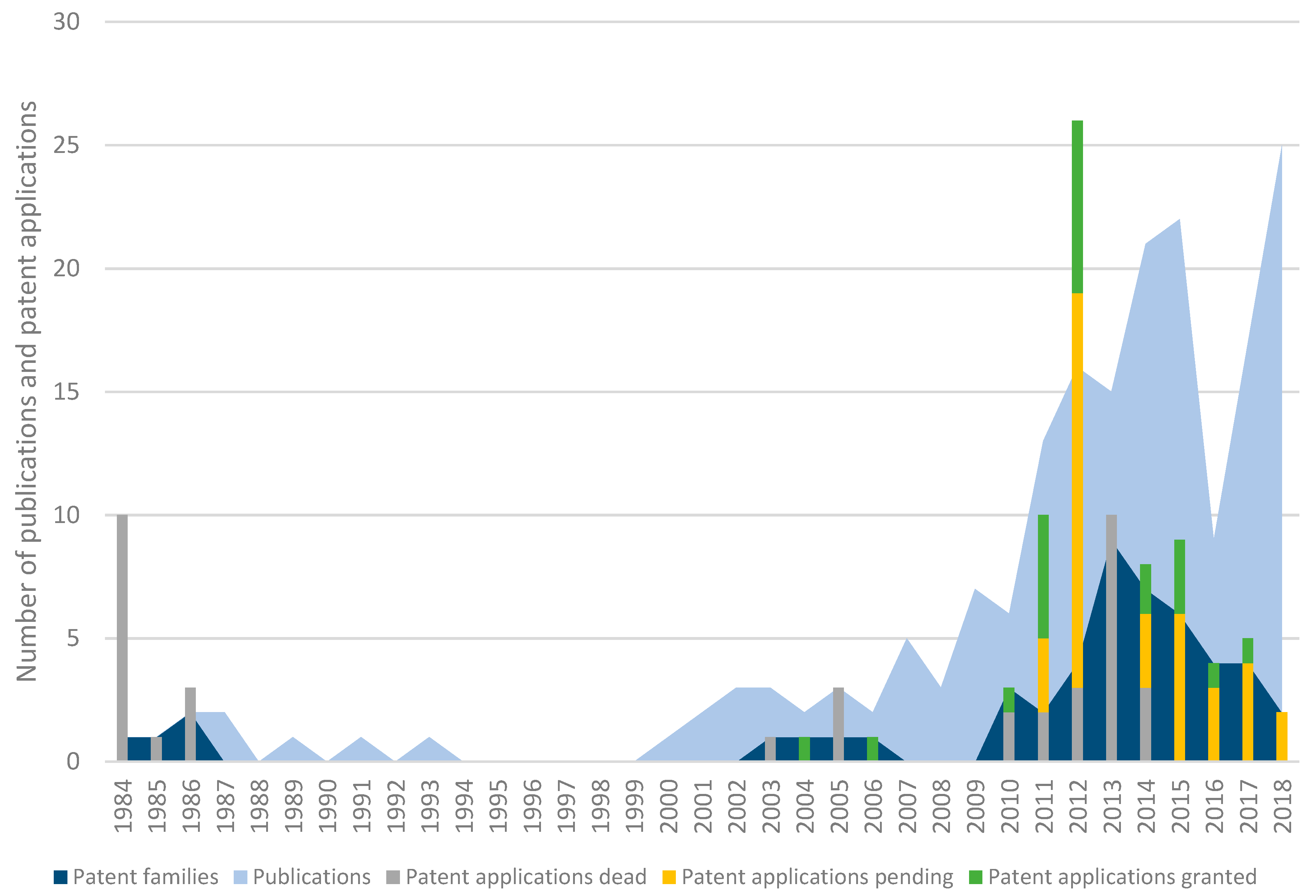

Figure 1. An overview of the number of scientific publications, patent families, patents, and patent applications in the field of phage biocontrol in crop production organized by year. The light blue area chart represents the number of scientific publications and the dark blue area chart the number of patent families per priority year. The bars represent the number of patent applications per priority year: green (“Granted patents”) corresponds to the number of granted patents, yellow (“Pending applications”) to pending applications, and grey (“Dead applications and patents”) to dead patents and applications. This last group consists of patents and applications that are abandoned, refused, withdrawn, deemed to be withdrawn, or lapsed.
