Review

Mechanisms Mediating Nuclear Trafficking Involved in Viral Propagation by DNA Viruses

by
Guohui Li
,
Xinyu Qi
,
Zhaoyang Hu
and
Qi Tang
*
Institute of Life Sciences, Jiangsu University, Zhenjiang 212013, Jiangsu, China
*
Author to whom correspondence should be addressed.
Viruses 2019, 11(11), 1035; https://doi.org/10.3390/v11111035
Submission received: 13 October 2019 / Revised: 30 October 2019 / Accepted: 31 October 2019 / Published: 7 November 2019
(This article belongs to the Section Insect Viruses)
Browse Figures
Versions Notes

Abstract

:
Typical viral propagation involves sequential viral entry, uncoating, replication, gene transcription and protein synthesis, and virion assembly and release. Some viral proteins must be transported into host nucleus to facilitate viral propagation, which is essential for the production of mature virions. During the transport process, nuclear localization signals (NLSs) play an important role in guiding target proteins into nucleus through the nuclear pore. To date, some classical nuclear localization signals (cNLSs) and non-classical NLSs (ncNLSs) have been identified in a number of viral proteins. These proteins are involved in viral replication, expression regulation of viral genes and virion assembly. Moreover, other proteins are transported into nucleus with unknown mechanisms. This review highlights our current knowledge about the nuclear trafficking of cellular proteins associated with viral propagation.

1. Introduction

Nuclear trafficking of cellular proteins is critical for the regulation of cellular processes, including DNA replication, transcriptional regulation, gene expression, signal transduction and apoptosis [1]. However, the double-membraned nuclear envelope restricts macromolecular movement between the cytoplasmic and nuclear compartments in eukaryotic cells [2]. Some proteins are required to execute their accurate and specific cellular functions at specific times and in the correct locations within cells. Therefore, dynamic nucleocytoplasmic shuttling plays an important role in the regulation of cellular function, and the appropriate proteins need to be translocated and further activated in the right place via control of nuclear import and export. A prominent example regulated in this way is viral propagation, as viral biological processes occur in a specified cellular compartment [3,4]. For instance, the series of events in viral infection, such as viral replication, transcription and assembly, usually occur in the cell nucleus [5], while translation, post-translational modification and protein degradation usually occur in the cytoplasm [6,7,8]. Most DNA virus replication and capsid assembly steps take place in the nucleus of infected cell. However, the mechanisms underlying such processes as the delivery of viral proteins to the nucleus and the export of progeny virus from the nucleus remain elusive. It is evident that nuclear transport signals play an important role in these processes. To their own advantage, the recruitment of some cellular cofactors is required to ensure the occurrence of cellular events during viral propagation. Therefore, intracellular trafficking between nucleus and cytoplasm—including that of the viral capsid, viral genome, viral polymerase, and some transcriptional regulation factors—is a prerequisite for viral propagation and modulation of the interactions between hosts and viruses. Some key shuttling events involved in the infection of a host by DNA viruses are shown schematically in Figure 1, below.
Nuclear import of numerous proteins is mainly mediated by nuclear localization signals (NLSs), and these trafficking events are essential for expression regulation of functional proteins in biological processes, such as cell-cycle progression, signal transduction, viral infection and the replication cycle of diverse viruses [9,10,11,12]. Nucleocytoplasmic trafficking of functional proteins across the nuclear membrane occurs through the nuclear pore complex (NPC), which has been exploited to develop new diagnostic and therapeutic targets [13,14]. It is generally accepted that some small proteins (<40 kDa) can passively diffuse between cytoplasm and nucleus, and NLSs are required for nuclear import of larger proteins [15,16]. NLSs are characterized by clusters of basic amino acids, which can be classified into classical (cNLS) and non-classical (ncNLS) types. The cNLSs are further divided into classical monopartite NLSs and bipartite NLSs. In this paper, we summarize the current knowledge about nuclear import of proteins involved in viral propagation, which may help us to better understand the molecular pathogenesis of viruses.

2. Diversity of NLSs Identified in Viral Proteins

A growing number of viral proteins are known to be transported into the nucleus of host cells. Monopartite NLSs were first identified in the SV40 large T antigen, which contains a continuous stretch of basic amino acids [17]. Bipartite NLSs contain two clusters of basic residues separated by a short amino acid linker, which is regarded as a potential NLS [18]. Some unconventional NLSs have been identified in the human parvovirus B19 major capsid protein (VP2) and parvovirus minute virus of mice VP2, which contain some basic amino acids (K and R) in KLGPRKATGRW and KGKLTMRAKLR [19,20]. Surprisingly, the coiled-coil domain of signal transducer and activator of transcription (STAT5) functions as an unconventional NLS [21], which does not conform to a conventional monopartite or bipartite NLS.
Some baculovirus proteins, such as polyhedron, 38K, VP39, Bm65 and LEF-11, have also been reported to exert their functions in the nucleus [22,23,24,25,26]. Researches have further revealed some cNLSs in their amino acid sequences. For example, the KRKK sequence has been identified as necessary for the nuclear localization of polyhedron [22], whereas R(537) and R(538) of IE1 function as a dimeric nuclear localization element for nuclear import and promoter activation [27]. Bm65 is an early protein associated with the repair of ultraviolet-induced DNA damage, and accumulates mainly in the nuclei of infected cells [24,26,28]. Li et al. (2019) have revealed the mechanism of Bm65 importation into nucleus through analysis of transient expression and a series of mutations (unpublished). The study’s transient expression assay indicated that the 76KRKCSK motif was necessary for the nuclear localization of Bm65, but 33RRIK had no effect on Bm65’s nuclear import (Figure 2A). Additionally, BmBDV NS1 was found to be a multifunctional protein that accumulated mainly in nucleus to perform its function. The phosphorylation sites of BmBDV NS1 were characterized and the phosphorylation was reported to regulate the activity [29,30]. Li et al. [30] further demonstrated that the 100 N-terminal amino acids of BmBDV NS1 have an important role in controlling the transport of BmBDV NS1 from cytoplasm to nucleus (Figure 2B). The NLS of Bm65 conforms to the structure of a cNLS, and the N-terminal domain of BmBDV NS1 potentially functions as an ncNLS. Mutations in these NLSs result in failure of nuclear import of target proteins, which is likely to impair or inhibit the generation of mature virions.
From the above description of NLSs identified in viral proteins, it is believed that the observed diversity of NLSs inevitably arose from various different sequences and the complexity of amino acid composition. The identification of diverse NLSs may provide important information for the development of new anti-viral drugs.

3. Entry of the Viral Genome and Capsid

3.1. Nuclear Import of the Viral Genome

Most DNA viruses replicate their genomes in the nucleus of an infected cell. According to the general concept of viral proliferation, the replication of most DNA viruses requires delivery of the viral genome into the host cell’s nucleus. In this way, viruses are able to replicate their genomes in the nuclei of infected cells in the early stages of viral infection, while the synthesized viral genome and capsids are assembled into new viral particles during the latter stages. However, the viral genome is too large to passively diffuse through the NPC, and so it must be actively transported into the nucleus. As a result, there are questions concerning the entry of the viral genome into the host cell’s nucleus and the subsequent release of assembled viruses into the cytoplasm. Nuclear targeting of proteins depends on the recognition of a stretch of basic amino acids by cellular transport proteins. However, the nuclear delivery mechanism of the viral genome has not been fully elucidated.
Many viruses depend on nuclear proteins for replication. Therefore, the viral genome is required to enter the nucleus of a host cell for viral DNA synthesis. Upon reaching the cellular compartment where viral replication occurs, the viral genome is released from the capsid or nucleoprotein complex. To date, viruses have evolved to exploit diverse strategies for the nuclear import of viral nucleocapsids. Taking baculoviruses as an example, several modes have been proposed for the nuclear import of their nucleocapsids. In agreement with the replication of most DNA viruses, the rod-shaped, 250-nm long nucleocapsids of baculoviruses must deliver their genomes into the host cell’s nucleus for replication. Nucleocapsids from baculoviruses in the genus granulovirus (GV) can eject their nucleic acids into the nucleus by docking at the cytoplasmic side of an infected cell’s nuclear pore complex (NPC), leaving the empty capsids at the NPC [31]. Recently, Au et al. [32] reported a new mechanism for nuclear import by a baculovirus nucleocapsid, which utilized actin-based propulsion. In the proposed model, Autographa californica multicapsid nucleopolyhedrovirus (AcMNPV) exploits the propulsive force of actin polymerization to drive migration of the nucleocapsid through the cytoplasm, as well as to achieve nuclear import of the nucleocapsid. These contradictory findings suggest that the mechanism of nuclear import by baculovirus nucleocapsids is genus specific. A similar mechanism is now well-established for the genome delivery of herpes simplex virus (HSV). In this mechanism, dynein is used to propel nucleocapsids to the cytoplasmic side of the NPC and the viral genome is injected into the nucleus, leaving an empty capsid at the NPC [33,34]. Moreover, the motility mediated by dynein has been reported to deliver the adenovirus capsid to the NPC. Unlike HSV-1, the viral genome and capsid proteins travel through the NPC into the nucleus [35]. Papillomaviruses are non-enveloped DNA viruses with the major capsid protein L1 and minor capsid protein L2, which can cause malignancies such as cervical cancer [36,37]. Like most DNA viruses, papillomaviruses must deliver their genomes to the host cell’s nucleus to initiate viral transcription and replication. A new model for papillomaviruses genome delivery was proposed by Aydin et al. in 2017 [38]. In the model, a central region in the minor capsid protein L2 was identified to facilitate viral genome tethering and membrane penetration for mitotic nuclear entry, which required initiation of mitosis associated with breakdown of the nuclear envelope. The conventional mechanism for genome delivery is that specific regions of proteins mediate nuclear import of the viral genome by the formation of a protein–DNA complex. Conversely, the NLSs at the N and C termini of papillomavirus L2 are not necessary for the complexes involving the viral genome and L2 through the nuclear pores.
As far as the hepatitis B virus (HBV) is concerned, there are two possibilities of how the HBV genome enters the nucleus. One possibility is that the specific regions of some nucleocapsids mediate nuclear import of the viral genome. For example, the PreS2 domain of HBV is a membrane-permeable peptide designated the translocation motif (TLM). The TLM is conserved in all hepadnaviridae, and fully assembled nucleocapsids with TLM-peptides on their surface can deliver packaged nucleic acids to the nucleus [39,40]. Another possibility is facilitation of the formation of a polymerase–DNA complex, which mediates nuclear import of the viral genome. For example, the entry of the genome complex into the nucleus can be mediated by HBV polymerase [41,42]. The mechanism of nuclear import of viral genomes definitely exists, but different viruses have already been shown to use different mechanisms. As the size and structure of viruses vary enormously, each virus has evolved a unique strategy to deliver its genome into the nucleus. Evidently, DNA viruses have evolved a wide variety of strategies to invade host nuclei, and take advantage of host cell machinery for DNA replication and viral production. According to the different strategies exploited by DNA viruses, it is believed that NLSs play an important role in targeting the viral capsid to the NPC prior to nuclear entry.

3.2. Requirements for Nuclear Transport of Viral Capsids

Parvoviruses are a group of non-enveloped single-stranded (ss) DNA viruses with genomes 4–6 kb in length. They are divided into two groups, Parvovirinae and Densovirinae, and include the minute virus of mice, porcine parvovirus, and human parvovirus B19 [43,44]. Most of these viruses are characterized by their capsids with nuclear targeting [45]. Alignment studies have revealed that four clusters of basic amino acids and some single amino acids are highly conserved in the sequence of parvovirus capsids (Figure 3). The basic amino acids are regarded as potential NLSs, which may play an important role in directing the nuclear transport of capsids. Some basic amino acids in the capsids have been identified as efficient NLSs for nuclear targeting. For example, the N-terminal residues 4–13 (PAKRARRGYK) of the VP1 capsid have nuclear targeting activity [46], and the basic amino acid cluster of PAKRAKR is a cNLS for nuclear import of porcine parvovirus capsids [47]. A recent study found a highly conserved NLS motif in five viruses of the Densovirinae subfamily, which was confirmed to drive trafficking of the newly synthesized Blattella germanica Densovirus (BgDV1) capsid proteins into the host nucleus [48,49].
Like parvoviruses, Bombyx mori bidensovirus (BmBDV) is also a small, non-enveloped, linear ssDNA virus, and it was previously classified as a member of the Parvovirus genus in Parvoviridae [50,51]. However, as the BmBDV genome encodes a protein-primed type B DNA polymerase (pPolB) and contains two viral DNA segments, BmDV-2 is excluded from the family of Parvoviridae and is instead classified in the new family Bidnaviridae [52,53,54]. However, no cNLSs have been found in BmBDV-encoded proteins, including in the BmBDV capsid [53,55]. At present, the mechanism of nuclear import of the BmBDV VP capsid remains unclear. Research has shown that a transient expression vector is constructed for expression of BmBDV VP-EGFP under the control of an ie1 promoter. Subsequent fluorescent observations have revealed uniform distribution of green fluorescence in BmN cells. Therefore, further research is required to determine the transport mechanism of BmBDV capsids into host nuclei.
According to the discussion above, it can be inferred that viruses apply different strategies for nuclear import of their viral genomes. The disassembly and uncoating of capsids can occur in either the cytoplasm or nucleus, as some virus capsids stay outside of the nucleus while others enter the nucleus. For example, herpesviruses and adenoviruses attach to the cytoplasmic side of the NPC and eject their genome into the host nucleus, whereas the capsids of HBV and baculoviruses may enter the nucleus intact and therefore disassemble within. As far as parvovirus is concerned, the nucleocapsids do not use the NPC to deliver their genome, but rather disrupt the capsid for nuclear import. In summary, NLSs clearly perform unique functions in these different strategies used by different viruses. Such variation may arise from the size and structure of different DNA viruses, which vary enormously.

4. Requirements for the Localization of Viral Self-Encoded DNA Polymerase

Viral replication is contingent on DNA-dependent DNA polymerase. Some viruses can encode DNA polymerase to guide viral DNA synthesis in the nucleus of host cells. For the viruses, the replication and transcription of their viral genome, as well as viral particle assembly, occurs within the nuclei of infected cells, which necessitates the timely nuclear import of viral proteins. To date, most viral self-encoded DNA polymerases have been shown to contain some NLSs, which correctly direct their localization to facilitate viral replication. However, some double-stranded (ds) DNA viruses can replicate in the cytoplasm of host cells, and therefore do not require the nuclear import of DNA polymerase. As a result, no NLSs are found in the sequences of such viral DNA polymerases. Moreover, ssDNA viruses can exploit the host cell’s DNA polymerase to replicate in the nucleus, with the exception of BmBDV. The differences among viral DNA polymerases encoded by DNA viruses are very likely to be a consequence of the evolution of the viral genome.

4.1. Replication of Double-Stranded DNA Viruses in the Cytoplasm

Replication of some DNA virus genomes occurs either at cytoplasmic or nuclear sites. Most nucleocytoplasmic large DNA viruses (NCLDVs), including Poxviridae, Asfarviridae, Iridoviridae, Ascoviridae, Phycodnaviridae, Mimiviridae and Marseilleviridae families, replicate and express exclusively in the cytoplasm of infected cells [5,56]. Some NCLDVs, such as vaccinia virus (VACV) and African swine fever virus (ASFV), encode viral polymerase for synthesis of their viral DNA in the cytoplasm [57,58]. For example, VACV is a large, enveloped virus with dsDNA. VACV encodes most of the viral replication machinery including its own DNA polymerase, which is a member of the B family of replicative polymerases encoded by the E9L gene. VACV replication mainly takes place in the cytoplasm, and therefore does not require translocation of VACV DNA polymerase into host cell nuclei [58]. Concordant with the site of VACV replication, the ASFV genome is also replicated and expressed in the cytoplasm. ASFV encodes a DNA polymerase consisting of 174 amino acids which belongs to the polymerase (Pol)X family of DNA polymerases, and is the smallest naturally occurring DNA-directed DNA polymerase described so far [59]. Further research has revealed that ASFV PolX plays an important role in the repair of damaged viral DNA during ASFV infection [60]. DNA polymerases are characterized by their cytoplasmic localization for viral DNA synthesis, and they do not contain NLSs in their sequences. Until now, no progress has been made on this topic. So, NLSs may be involved in the evolution process of viral replication sites.

4.2. Replication of dsDNA Viruses in Host Cell Nuclei

Except for the NCLDVs, the replication of other DNA viruses—including double-stranded DNA baculoviruses, herpesviruses and adenoviruses—takes place in the nucleus [61]. Although the method of replication and components of the replisome may vary between different DNA viruses, several fundamental similarities exist among DNA viruses that replicate in the nucleus. These similarities originate from the requirement for viral replication complexes and a specialized nuclear compartment. A key component of viral replication complexes is DNA-dependent DNA polymerase, and most DNA viruses, such as baculoviruses, HBV and herpesviruses, exploit virally self-encoded DNA polymerase to proceed with the synthesis of viral DNA [57,62,63,64,65,66]. As a crucial enzyme in viral replication, DNA polymerase is also the main target for antiviral therapeutics. Some inhibitors against virus-encoded polymerases have been developed for antiviral therapy. In particular, HBV polymerase inhibitors have been widely used in clinical treatment and can maintain viral suppression in patients with chronic hepatitis B [67,68].
Viral DNA polymerases are synthesized in the cytoplasm and subsequently translocated into host nuclei for viral DNA replication. Some DNA viruses, including dsDNA and ssDNA viruses, can cause infection and different symptoms in humans. Therefore, the identification of viral DNA polymerase NLSs will be helpful for the development of novel antiviral drugs. Adenovirus DNA polymerase is mediated by bipartite cNLSs [69], while some functional NLSs have been identified in human cytomegalovirus (HCMV) DNA polymerase UL54 and HSV-1 DNA polymerase UL30 [70,71,72]. A novel bipartite cNLS has also been identified in HBV polymerase [34]. These NLSs have an important role in mediating nuclear import of viral DNA polymerases for viral replication. DNA polymerase is highly conserved in all baculoviruses and is crucial in viral DNA replication, and some novel NLSs have been identified in baculovirus-encoded viral DNA polymerases. For example, the DNA polymerase of AcMNPV contains a typical bipartite cNLS motif at residues 804–827 and a monopartite cNLS motif at 939–948. A cNLS has also been identified at the C-terminal residues 827–838 of Spodoptera litura nucleopolyhedrovirus-encoded DNA polymerase [73,74]. Pseudorabies virus (PRV) has a dsDNA molecule 143 kb in length, and viral DNA polymerase is required for viral DNA replication in the nuclei of infected cells. Further research has revealed that PRV UL42 contains a functional and transferable bipartite cNLS at amino acids 354–370 and that K(354), R(355) and K(367) are important for NLS function [75]. Thus, NLSs are essential for nuclear import of viral DNA polymerases, which guide the synthesis of viral DNA in the nucleus, thereby potentially protecting newly synthesized viral DNA from nuclease degradation.

4.3. Replication of ssDNA Viruses in Host Cell Nuclei

Aside from the above dsDNA viruses, viruses with ssDNA genomes that replicate exclusively in the nuclei of infected cells constitute a large class of economically, medically and ecologically important pathogens [76]. BmBDV DNA has two large genome segments, VD1 (6543 nucleotides (nt)) and VD2 (6022 nt), that are packaged into separate capsids, and the virus replicates only in silkworm midgut columnar cells, where it causes a fatal disease [51,53]. Almost all ssDNA viruses lack DNA polymerase genes, but BmBDV is an exception. BmBDV acquired a type B DNA polymerase gene by horizontal gene transfer, and purportedly replicates its genome via a protein-primed mechanism [51,76,77]. However, the mechanism of nuclear import of DNA polymerase encoded by BmBDV is still unclear, which limits our understanding of its dynamic role in infected cells. A greater insight into the functional research of BmBDV polymerase is required to illuminate this scientific issue.
The Parvoviridae family comprises a group of small icosahedral, non-enveloped ssDNA viruses [78]. These viruses occur in both invertebrates and vertebrates, including mammals. Parvoviruses are a group of ssDNA viruses that infect a wide range of animal species and humans. Although not all parvoviruses are pathogenic to humans, some can cause life-threatening human diseases, such as human B19 virus and human bocavirus 1 (HBoV1). The genomes of B19 and HBoV carry limited genetic information, which is usually split into two parts. The left part encodes non-structural (NS) proteins, while the right part encodes two or three structural proteins [79,80,81]. Due to the lack of a DNA polymerase gene in these viral genomes, they utilize host cellular DNA replication machinery for viral DNA replication. Notably, B19 and HBoV are two parvoviruses known to be pathogenic to humans, and can lead to the development of various diseases such as respiratory disease, autoimmune disease and myocarditis [82,83,84,85]. Such afflictions show that B19 and HBoV may have a critical role in the development of pediatric lung disease, as well as immunodeficiency.
Some NLSs of viral DNA polymerases have been identified and summarized in Table 1. Viral DNA polymerases with some mutations in NLSs fail to accumulate in the nucleus as a result of blocking or impairment of viral DNA replication [73,74,75,86]. Although differences exist in the amino acid sequences of these NLSs, they play an important role in passing through the corresponding NPCs. Collectively, NLSs are usually characterized by one or two clusters of basic amino acids that are required for nuclear import of DNA polymerase, viral DNA synthesis, and virus production.
With reference to the above discussion, it is clear that NLSs are required for nuclear import of viral DNA polymerase. Further, mutations in NLSs in viral DNA polymerases appear to result in failure of viral DNA replication, with the NLSs of other viral proteins also being important for viral replication. As we know, some non-structural proteins, such as LEF-11, large T antigen and E1, are also important for viral replication [25,89,90,91], with studies showing these proteins are mediated into the nucleus by NLSs. The monopartite NLSs of PKKKRKV (residues 126 to 132) were first identified in the SV40 large T antigen [17]. Pan et al. reported a novel NLS in the baculovirus late expression factor 11, and further research revealed that the NLS of baculovirus LEF-11 is important for viral DNA replication [25,88]. It has been reported that the cNLSs of baculovirus IE-1 and ME53 are critical for optimal levels of budded virus production [27,92]. Moreover, Yu and colleagues identified a bipartite NLS of KRK (residues 83 to 85) and KKVK (residues 120 to 123) that is essential for the final destination of E1 in the nucleus to exert its function during viral replication [93]. It is worth mentioning that nuclear accumulation of E1 is regulated by post-translational modifications [94]. In a word, NLSs are necessary for the situating of a number of proteins in the nucleus, directly affecting viral genome replication and viral propagation.

5. Mechanism of Nuclear Import of Viral Proteins Lacking NLSs

Although many viral proteins accumulate in the nucleus of a host cell, not all of these proteins contain effective NLSs to direct their final destination. The resulting question is how these viral proteins, which lack NLSs, are transported into the nucleus. One possible explanation is that some small proteins (<40 kDa) can passively diffuse between the cytoplasm and nucleus, and NLSs are not necessary for their nucleocytoplasmic shuttling. Larger proteins (>40 kDa) can be efficiently mediated into the nucleus with the assistance of other proteins. Of course, the possibility that some viral proteins may contain unconventional NLSs to facilitate reaching their final destination in the nucleus is not precluded, and this pathway of nuclear import may be similar to the dynamic trafficking of STAT5, which depends on an unconventional NLS [21].
However, it remains a challenge for scientists to identify the mechanism by which those large viral proteins lacking NLSs are transported into host cell nucleus. Some viral proteins lacking NLSs can enter the nucleus for expression regulation of viral genes and facilitation of viral assembly. The family Baculoviridae comprises a large and diverse group of rod-shaped, enveloped, dsDNA viruses, and is divided into four genera: alpha, beta, gamma and delta, according to their evolutionary relationship [95]. Over 600 different baculoviruses have been identified and the genomes of 81 have been sequenced. The genomes range in size from 80 to 180 kb, encoding between 90 and 180 genes [96,97]. AcMNPV is the best-studied baculovirus and most extensively used vector for protein expression. Baculovirus replication and nucleocapsid assembly take place in the nuclei of infected cells. For example, the transport of some baculovirus proteins lacking NLSs into the nucleus is mediated by the formation of protein complexes. Prominent examples are the baculovirus proteins P143 and P78/83. The transport of helicase protein P143 into the nuclei of infected cells requires the assistance of the ssDNA binding protein LEF-3 [98,99]. Additionally, the nuclear entry of nucleocapsid protein P78/83 is mediated by the 41.5-kDa viral nucleocapsid protein BV/ODV-C42, containing a putative NLS motif (357KRKK) at the C terminus, which potentially functions as a functional NLS in the nuclear import of P78/83 and BV/ODV-C42 complexes [100].
The nucleocapsid proteins used for viral assembly need to be transported into the nuclei of infected cells. Proteomics research has revealed that the composition of AcMNPV BV nucleocapsids include P6.9, VP39, VP1054, VLF1, 38K, Ac109, 49K, BV/ODV-EC27, PP78/83, BV/ODV-C42 and VP80 [35]. Ac102 is also part of the AcMNPV BV nucleocapsid [101]. In all known BV capsids, only BV/ODV-C42 and VP80 contain a putative cNLS motif (357KRKK and 424KRSAEDDLLPTRSSKR, respectively) [102]. To examine whether some potential NLSs exist in the sequences of all the BV nucleocapsid proteins, the online software of cNLS mapper (http://nls-mapper.iab.keio.ac.jp/cgi-bin/NLS_Mapper_form.cgi) has been exploited to predict importin-α-dependent NLSs. cNLS mapper results show that VP39, 38K, BV/ODV-EC27, and VLF-1 contain one potential NLS, whereas two potential NLSs are present in VP80. The potential cNLSs of the BV nucleocapsid proteins are shown in Table 2. However, it remains to be demonstrated whether these sequences are functional NLSs and mediate the nuclear import of baculovirus nucleocapsids. Nevertheless, there are some BV nucleocapsid proteins lacking NLSs in their sequences (Table 2). Except for P78/83, it remains unclear how these nucleocapsid proteins lacking NLSs enter the nuclei of infected cells. It is hypothesized that those proteins lacking NLSs are transported into the nuclei with assistance from other proteins, a model which requires further research for confirmation.

6. Conclusions and Future Studies

It remains a major challenge to develop effective antiviral agents for therapy of some infections. Chronic HBV infection is used as an example to demonstrate the difficulty in the development of antiviral agents. HBV attacks the liver and triggers both acute and chronic disease, causing a major global health burden [103]. However, cure is rarely achieved using current antiviral therapies. Although many antiviral agents against viral DNA polymerase have been developed for the treatment of viral infection, infectious viruses easily rebound in patients and the viral load increases significantly within a short time after use of the antiviral drug is stopped. Chronic HBV infection is a notorious example. Additionally, HBV-specific immunity is an interesting target for new therapeutic strategies. Although promising, the immunotherapy approach is labor intensive, time-consuming and expensive. These setbacks restrict the widespread use of immunotherapy in patients with viral infections. Therefore, there is an urgent need for the development of new therapeutic options, and the development of effective antiviral agents is required to improve long-term quality of life.
DNA viruses are internalized into the cytoplasm by binding to receptors on the host cell surface during infection. Subsequent transport of the viral genome and some proteins into the nucleus is typically mediated by NLSs, facilitating viral replication and assembly in the nucleus of the host cell. Extensive research has revealed the pleiotropic roles of NLSs during the viral life cycle. In the process of viral propagation, NLSs are required for the viral life cycle, especially for the nuclear import of progeny viral proteins. Some viral proteins are involved in viral replication, transcription, gene expression regulation, and assembly, and these proteins must be transported from the cytoplasm to the nucleus to facilitate the production of mature virions. On the other hand, dysfunction of NLSs blocks or impairs the production of infectious virions.
Although sequence diversity of NLSs exists in different proteins, NLSs are able to direct target proteins into the nuclei of infected cells to ensure the production of progeny virions. However, mutations or deletions of NLSs usually make the corresponding proteins accumulate in the cytoplasm, leading to failure of production of progeny virions. Therefore, an alternative therapeutic strategy to control a number of viral infections, such as HBV, may involve blocking nuclear import of some viral proteins.

Funding

This research was supported by research grants from the National Natural Science Foundation of China (31402016, 31570150 and 31270192).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Di Ventura, B.; Kuhlman, B. Go in! Go out! Inducible control of nuclear localization. Curr. Opin. Chem. Biol. 2016, 34, 62–71. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Lim, R.Y.H.; Aebi, U.; Fahrenkrog, B. Towards reconciling structure and function in the nuclear pore complex. Histochem. Cell Biol. 2008, 129, 105–116. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Dou, D.; Revol, R.; Östbye, H.; Wang, H.; Daniels, R. Influenza A Virus Cell Entry, Replication, Virion Assembly and Movement. Front. Immunol. 2018, 9, 1581. [Google Scholar] [CrossRef] [PubMed]
  4. Lv, Y.; Zhou, S.; Gao, S.; Deng, H. Remodeling of host membranes during herpesvirus assembly and egress. Protein Cell 2019, 10, 315–326. [Google Scholar] [CrossRef]
  5. Schmid, M.; Speiseder, T.; Dobner, T.; Gonzalez, R.A. DNA virus replication compartments. J. Virol. 2014, 88, 1404–1420. [Google Scholar] [CrossRef]
  6. Au, H.H.; Jan, E. Novel viral translation strategies. Wiley Interdiscip. Rev. RNA 2014, 5, 779–801. [Google Scholar] [CrossRef]
  7. Roberts, L.; Wieden, H.-J. Viruses, IRESs, and a universal translation initiation mechanism. Biotechnol. Genet. Eng. Rev. 2018, 34, 60–75. [Google Scholar] [CrossRef]
  8. Tang, Q.; Wu, P.; Chen, H.; Li, G. Pleiotropic roles of the ubiquitin-proteasome system during viral propagation. Life Sci. 2018, 207, 350–354. [Google Scholar] [CrossRef]
  9. Lange, A.; Mills, R.E.; Lange, C.J.; Stewart, M.; Devine, S.E.; Corbett, A.H. Classical nuclear localization signals: Definition, function, and interaction with importin alpha. J. Biol. Chem. 2007, 282, 5101–5105. [Google Scholar] [CrossRef]
  10. Pouton, C.W.; Wagstaff, K.M.; Roth, D.M.; Moseley, G.W.; Jans, D.A. Targeted delivery to the nucleus. Adv. Drug Deliv. Rev. 2007, 59, 698–717. [Google Scholar] [CrossRef]
  11. Zhou, W.; Zhang, J.; Yang, B.; Zhou, L.; Hu, Y. The nuclear localization signal of the NS1 protein is essential for Periplaneta fuliginosa densovirus infection. Virus Res. 2009, 145, 134–140. [Google Scholar] [CrossRef] [PubMed]
  12. Wulan, W.N.; Heydet, D.; Walker, E.J.; Gahan, M.E.; Ghildyal, R. Nucleocytoplasmic transport of nucleocapsid proteins of enveloped RNA viruses. Front. Microbiol. 2015, 6, 553. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Terry, L.J.; Shows, E.B.; Wente, S.R. Crossing the Nuclear Envelope: Hierarchical Regulation of Nucleocytoplasmic Transport. Science 2007, 318, 1412–1416. [Google Scholar] [CrossRef] [PubMed]
  14. Kim, Y.H.; Han, M.-E.; Oh, S.-O. The molecular mechanism for nuclear transport and its application. Anat. Cell Biol. 2017, 50, 77–85. [Google Scholar] [CrossRef]
  15. Macara, I.G. Transport into and out of the Nucleus. Microbiol. Mol. Biol. Rev. 2001, 65, 570–594. [Google Scholar] [CrossRef] [Green Version]
  16. Hawkins, J.; Davis, L.; Bodén, M. Predicting nuclear localization. J. Proteome Res. 2007, 6, 1402–1409. [Google Scholar] [CrossRef]
  17. Kalderon, D.; Roberts, B.L.; Richardson, W.D.; Smith, A.E. A short amino acid sequence able to specify nuclear location. Cell 1984, 39, 499–509. [Google Scholar] [CrossRef]
  18. Robbins, J.; Dilwortht, S.M.; Laskey, R.A.; Dingwall, C. Two interdependent basic domains in nucleoplasmin nuclear targeting sequence: Identification of a class of bipartite nuclear targeting sequence. Cell 1991, 64, 615–623. [Google Scholar] [CrossRef]
  19. Lombardo, E.; Ramírez, J.C.; Agbandje-McKenna, M.; Almendral, J.M. A Beta-Stranded Motif Drives Capsid Protein Oligomers of the Parvovirus Minute Virus of Mice into the Nucleus for Viral Assembly. J. Virol. 2000, 74, 3804–3814. [Google Scholar] [CrossRef] [Green Version]
  20. Pillet, S.; Annan, Z.; Fichelson, S.; Morinet, F. Identification of a nonconventional motif necessary for the nuclear import of the human parvovirus B19 major capsid protein (VP2). Virology 2003, 306, 25–32. [Google Scholar] [CrossRef]
  21. Shin, H.Y.; Reich, N.C. Dynamic trafficking of STAT5 depends on an unconventional nuclear localization signal. J. Cell Sci. 2013, 126, 3333–3343. [Google Scholar] [CrossRef] [PubMed]
  22. Jarvis, D.L.; Bohlmeyer, D.A.; García, A. Requirements for nuclear localization and supramolecular assembly of a baculovirus polyhedrin protein. Virology 1991, 185, 795–810. [Google Scholar] [CrossRef]
  23. Wu, W.; Liang, H.; Kan, J.; Liu, C.; Yuan, M.; Liang, C.; Yang, K.; Pang, Y. Autographa californica Multiple Nucleopolyhedrovirus 38K Is a Novel Nucleocapsid Protein That Interacts with VP1054, VP39, VP80, and Itself. J. Virol. 2008, 82, 12356–12364. [Google Scholar] [CrossRef] [PubMed]
  24. Tang, Q.; Hu, Z.; Yang, Y.; Wu, H.; Qiu, L.; Chen, K.; Li, G. Overexpression of Bm65 correlates with reduced susceptibility to inactivation by UV light. J. Invertebr. Pathol. 2015, 127, 87–92. [Google Scholar] [CrossRef] [PubMed]
  25. Chen, T.; Dong, Z.; Hu, N.; Hu, Z.; Dong, F.; Jiang, Y.; Li, J.; Chen, P.; Lu, C.; Pan, M. Baculovirus LEF-11 nuclear localization signal is important for viral DNA replication. Virus Res. 2017, 238, 133–140. [Google Scholar] [CrossRef] [PubMed]
  26. Tang, Q.; Wu, P.; Hu, Z.; Yang, Y.; Qiu, L.; Liu, H.; Zhu, S.; Guo, Z.; Xia, H.; Chen, K.; et al. Evidence for the role of BmNPV Bm65 protein in the repair of ultraviolet-induced DNA damage. J. Invertebr. Pathol. 2017, 149, 82–86. [Google Scholar] [CrossRef]
  27. Olson, V.A.; Wetter, J.A.; Friesen, P.D. Baculovirus Transregulator IE1 Requires a Dimeric Nuclear Localization Element for Nuclear Import and Promoter Activation. J. Virol. 2002, 76, 9505–9515. [Google Scholar] [CrossRef] [Green Version]
  28. Tang, Q.; Li, G.; Yao, Q.; Chen, L.; Feng, F.; Yuan, Y.; Chen, K. Bm65 is essential for the propagation of Bombyx mori nucleopolyhedrovirus. Curr. Microbiol. 2013, 66, 22–29. [Google Scholar] [CrossRef]
  29. Li, G.; Li, M.; Wang, P.; Hu, Z.; Yao, Q.; Tang, Q.; Chen, K. Characterization of recombinant expression of Bombyx mori bidensovirus ns1 using a modified vector. Acta Biochim. Pol. 2014, 61, 787–794. [Google Scholar] [CrossRef]
  30. Li, G.; Li, M.; Xu, W.; Zhou, Q.; Hu, Z.; Tang, Q.; Chen, K.; Yao, Q. Regulation of BmBDV NS1 by phosphorylation: Impact of mutagenesis at consensus phosphorylation sites on ATPase activity and cytopathic effects. J. Invertebr. Pathol. 2016, 133, 66–72. [Google Scholar] [CrossRef]
  31. Summers, M. Electron microscopic observations on granulosis virus entry, uncoating and replication processes during infection of the midgut cells of Trichoplusia ni. J. Ultrastruct. Res. 1971, 35, 606–625. [Google Scholar] [CrossRef]
  32. Au, S.; Wu, W.; Zhou, L.; Theilmann, D.A.; Panté, N. A new mechanism for nuclear import by actin-based propulsion used by a baculovirus nucleocapsid. J. Cell Sci. 2016, 129, 2905–2911. [Google Scholar] [CrossRef] [PubMed]
  33. Sodeik, B. Microtubule-mediated Transport of Incoming Herpes Simplex Virus 1Capsids to the Nucleus. J. Cell Biol. 1997, 136, 1007–1021. [Google Scholar] [CrossRef] [PubMed]
  34. Ojala, P.M.; Sodeik, B.; Ebersold, M.W.; Kutay, U.; Helenius, A. Herpes Simplex Virus Type 1 Entry into Host Cells: Reconstitution of Capsid Binding and Uncoating at the Nuclear Pore Complex In Vitro. Mol. Cell. Biol. 2000, 20, 4922–4931. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Trotman, L.C.; Mosberger, N.; Fornerod, M.; Stidwill, R.P.; Greber, U.F. Import of adenovirus DNA involves the nuclear pore complex receptor CAN/Nup214 and histone H1. Nat. Cell Biol. 2001, 3, 1092–1100. [Google Scholar] [CrossRef]
  36. Modis, Y.; Trus, B.; Harrison, S. Atomic model of the papillomavirus capsid. At. Model Papillomavirus Capsid 2002, 21, 4754–4762. [Google Scholar] [CrossRef] [Green Version]
  37. Li, Z.; Yan, X.; Yu, H.; Wang, D.; Song, S.; Li, Y.; He, M.; Hong, Q.; Zheng, Q.; Zhao, Q.; et al. The C-Terminal Arm of the Human Papillomavirus Major Capsid Protein Is Immunogenic and Involved in Virus-Host Interaction. Structure 2016, 24, 874–885. [Google Scholar] [CrossRef] [Green Version]
  38. Aydin, I.; Villalonga-Planells, R.; Greune, L.; Bronnimann, M.P.; Calton, C.M.; Becker, M.; Lai, K.-Y.; Campos, S.K.; Schmidt, M.A.; Schelhaas, M. A central region in the minor capsid protein of papillomaviruses facilitates viral genome tethering and membrane penetration for mitotic nuclear entry. PLoS Pathog. 2017, 13, 1006308. [Google Scholar] [CrossRef]
  39. Oess, S.; Hildt, E. Novel cell permeable motif derived from the PreS2-domain of hepatitis-B virus surface antigens. Gene Ther. 2000, 7, 750–758. [Google Scholar] [CrossRef] [Green Version]
  40. Brandenburg, B.; Stockl, L.; Gutzeit, C.; Roos, M.; Lupberger, J.; Schwartlander, R.; Gelderblom, H.; Sauer, I.M.; Hofschneider, P.H.; Hildt, E. A novel system for efficient gene transfer into primary human hepatocytes via cell-permeable hepatitis B virus-like particle. Hepatology 2005, 42, 1300–1309. [Google Scholar] [CrossRef]
  41. Kann, M.; Bischof, A.; Gerlich, W.H. In vitro model for the nuclear transport of the hepadnavirus genome. J. Virol. 1997, 71, 1310–1316. [Google Scholar] [PubMed]
  42. Lupberger, J.; Schaedler, S.; Peiran, A.; Hildt, E. Identification and characterization of a novel bipartite nuclear localization signal in the hepatitis B virus polymerase. World J. Gastroenterol. 2013, 19, 8000–8010. [Google Scholar] [CrossRef] [PubMed]
  43. Cotmore, S.F.; Tattersall, P. Parvovirus Diversity and DNA Damage Responses. Cold Spring Harb. Perspect. Biol. 2013, 5, a012989. [Google Scholar] [CrossRef]
  44. Cotmore, S.F.; Tattersall, P. Parvoviruses: Small Does Not Mean Simple. Annu. Rev. Virol. 2014, 1, 517–537. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Tu, M.; Liu, F.; Chen, S.; Wang, M.; Cheng, A. Role of capsid proteins in parvoviruses infection. Virol. J. 2015, 12, 114. [Google Scholar] [CrossRef]
  46. Vihinen-Ranta, M.; Kakkola, L.; Kalela, A.; Vilja, P.; Vuento, M.; Vihinen-Ranta, M. Characterization of a Nuclear Localization Signal of Canine Parvovirus Capsid Proteins. JBIC J. Biol. Inorg. Chem. 1997, 250, 389–394. [Google Scholar] [CrossRef] [PubMed]
  47. Boisvert, M.; Bouchard-Lévesque, V.; Fernandes, S.; Tijssen, P. Classic Nuclear Localization Signals and a Novel Nuclear Localization Motif Are Required for Nuclear Transport of Porcine Parvovirus Capsid Proteins. J. Virol. 2014, 88, 11748–11759. [Google Scholar] [CrossRef] [Green Version]
  48. Kozlov, E.N.; Mukha, D.V. Mammalian cell culture as a model for studying the intracellular traffic of densovirus proteins. Genetika 2015, 51, 218–222. [Google Scholar] [CrossRef]
  49. Kozlov, E.N.; Martynova, E.U.; Popenko, V.I.; Schal, C.; Mukha, D.V. Intracellular Localization of Blattella germanica Densovirus (BgDV1) Capsid Proteins. Viruses 2018, 10, 370. [Google Scholar] [CrossRef]
  50. Adams, M.J.; Carstens, E.B. Ratification vote on taxonomic proposals to the International Committee on Taxonomy of Viruses (2012). Arch. Virol. 2012, 157, 1411–1422. [Google Scholar] [CrossRef] [Green Version]
  51. Hu, Z.; Li, G.; Li, G.; Yao, Q.; Chen, K. Bombyx mori bidensovirus: The type species of the new genus Bidensovirus in the new family Bidnaviridae. Chin. Sci. Bull. 2013, 58, 4528–4532. [Google Scholar] [CrossRef]
  52. Hayakawa, T.; Kojima, K.; Nonaka, K.; Nakagaki, M.; Sahara, K.; Asano, S.I.; Iizuka, T.; Bando, H. Analysis of proteins encoded in the bipartite genome of a new type of parvo-like virus isolated from silkworm—Structural protein with DNA polymerase motif. Virus Res. 2000, 66, 101–108. [Google Scholar] [CrossRef]
  53. Wang, Y.J.; Yao, Q.; Chen, K.P.; Wang, Y.; Lu, J.; Han, X. Characterization of the genome structure of Bombyx mori densovirus (China isolate). Virus Genes 2007, 35, 103–108. [Google Scholar] [CrossRef] [PubMed]
  54. Gupta, T.; Ito, K.; Kadono-Okuda, K.; Murthy, G.N.; Gowri, E.V.; Ponnuvel, K.M. Characterization and genome comparison of an Indian isolate of bidensovirus infecting the silkworm Bombyx mori. Arch. Virol. 2018, 163, 125–134. [Google Scholar] [CrossRef] [PubMed]
  55. Lu, P.; Xing, Y.; Hu, Z.; Yang, Y.; Pan, Y.; Chen, K.; Zhu, F.; Zhou, Y.; Chen, K.; Yao, Q. A characterization of structural proteins expressed by Bombyx mori bidensovirus. J. Invertebr. Pathol. 2017, 144, 18–23. [Google Scholar] [CrossRef] [PubMed]
  56. Colson, P.; De Lamballerie, X.; Yutin, N.; Asgari, S.; Bigot, Y.; Bideshi, D.K.; Cheng, X.W.; Federici, B.A.; Van Etten, J.L.; Koonin, E.V.; et al. “Megavirales”, a proposed new order for eukaryotic nucleocytoplasmic large DNA viruses. Arch. Virol. 2013, 158, 2517–2521. [Google Scholar] [CrossRef] [PubMed]
  57. Chen, Y.; Zhang, J.; Liu, H.; Gao, Y.; Li, X.; Zheng, L.; Cui, R.; Yao, Q.; Rong, L.; Huang, Z.; et al. Unique 5′-P recognition and basis for dG:dGTP misincorporation of ASFV DNA polymerase X. PLoS Biol. 2017, 15, 1002599. [Google Scholar] [CrossRef] [PubMed]
  58. Czarnecki, M.W.; Traktman, P. The vaccinia virus DNA polymerase and its processivity factor. Virus Res. 2017, 234, 193–206. [Google Scholar] [CrossRef] [Green Version]
  59. Oliveros, M.; Yáñez, R.J.; Salas, M.L.; Salas, J.; Viñuela, E.; Blanco, L. Characterization of an African Swine Fever Virus 20-kDa DNA Polymerase Involved in DNA Repair. J. Biol. Chem. 1997, 272, 30899–30910. [Google Scholar] [CrossRef] [Green Version]
  60. García-Escudero, R.; García-Díaz, M.; Salas, M.L.; Blanco, L.; Salas, J. DNA Polymerase X of African Swine Fever Virus: Insertion Fidelity on Gapped DNA substrates and AP lyase Activity Support a Role in Base Excision Repair of Viral DNA. J. Mol. Biol. 2003, 326, 1403–1412. [Google Scholar] [CrossRef]
  61. Sobhy, H. A comparative review of viral entry and attachment during large and giant dsDNA virus infections. Arch. Virol. 2017, 162, 3567–3585. [Google Scholar] [CrossRef] [PubMed]
  62. Radziwill, G.; Tucker, W.; Schaller, H. Mutational analysis of the hepatitis B virus P gene product: Domain structure and RNase H activity. J. Virol. 1990, 64, 613–620. [Google Scholar] [PubMed]
  63. Chen, G.; Yan, Q.; Fang, Y.; Wu, L.; Krell, P.J.; Feng, G. The N Terminus of Autographa californica Multiple Nucleopolyhedrovirus DNA Polymerase Is Required for Efficient Viral DNA Replication and Virus and Occlusion Body Production. J. Virol. 2018, 92, e00398-18. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  64. Chen, G.; Fang, Y.; Wu, L.; Yan, Q.; Krell, P.J.; Feng, G. A betabaculovirus DNA polymerase cannot substitute for the DNA polymerase of the alphabaculovirus Autographa californica nucleopolyhedrovirus. Arch. Virol. 2017, 162, 3487–3492. [Google Scholar] [CrossRef]
  65. Zarrouk, K.; Piret, J.; Boivin, G. Herpesvirus DNA polymerases: Structures, functions and inhibitors. Virus Res. 2017, 234, 177–192. [Google Scholar] [CrossRef]
  66. Lawler, J.L.; Mukherjee, P.; Coen, D.M. Herpes Simplex Virus 1 DNA Polymerase RNase H Activity Acts in a 3′-to-5′ Direction and Is Dependent on the 3′-to-5′ Exonuclease Active Site. J. Virol. 2018, 92, e01813-17. [Google Scholar] [CrossRef]
  67. Menéndez-Arias, L.; Alvarez, M.; Pacheco, B. Nucleoside/nucleotide analog inhibitors of hepatitis B virus polymerase: Mechanism of action and resistance. Curr. Opin. Virol. 2014, 8, 1–9. [Google Scholar] [CrossRef]
  68. Mak, L.-Y.; Seto, W.-K.; Lai, C.-L.; Yuen, M.-F. DNA polymerase inhibitors for treating hepatitis B: A safety evaluation. Expert Opin. Drug Saf. 2016, 15, 383–392. [Google Scholar] [CrossRef]
  69. Ramachandra, M.; Padmanabhan, R. Expression, Nuclear Transport, and Phosphorylation of Adenovirus DNA Replication Proteins. Curr. Top. Microbiol. Immunol. 1995, 199, 49–88. [Google Scholar]
  70. Loregian, A.; Piaia, E.; Cancellotti, E.; Papini, E.; Marsden, H.S.; Palù, G. The Catalytic Subunit of Herpes Simplex Virus Type 1 DNA Polymerase Contains a Nuclear Localization Signal in the UL42-Binding Region. Virology 2000, 273, 139–148. [Google Scholar] [CrossRef]
  71. Alvisi, G.; Ripalti, A.; Ngankeu, A.; Giannandrea, M.; Caraffi, S.G.; Dias, M.M.; Jans, D.A. Human Cytomegalovirus DNA Polymerase Catalytic Subunit pUL54 Possesses Independently Acting Nuclear Localization and ppUL44 Binding Motifs. Traffic 2006, 7, 1322–1332. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  72. Alvisi, G.; Musiani, D.; Jans, D.A.; Ripalti, A. An importin alpha/beta-recognized bipartite nuclear localization signal mediates targeting of the human herpes simplex virus type 1 DNA polymerase catalytic subunit pUL30 to the nucleus. Biochemistry 2007, 46, 9155–9163. [Google Scholar] [CrossRef]
  73. Feng, G.; Krell, P.J. Autographa californica Multiple Nucleopolyhedrovirus DNA Polymerase C Terminus Is Required for Nuclear Localization and Viral DNA Replication. J. Virol. 2014, 88, 10918–10933. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  74. Chen, G.; Fang, Y.; Hu, Z.; Krell, P.J.; Feng, G. Rescue of dnapol-null Autographa californica multiple nucleopolyhedrovirus with DNA polymerase (DNApol) of Spodoptera litura nucleopolyhedrovirus (SpltNPV) and identification of a nuclear localization signal in SpltNPV DNApol. J. Gen. Virol. 2016, 97, 1968–1980. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  75. Wang, Y.-P.; Du, W.-J.; Huang, L.-P.; Wei, Y.-W.; Wu, H.-L.; Feng, L.; Liu, C.-M. The Pseudorabies Virus DNA Polymerase Accessory Subunit UL42 Directs Nuclear Transport of the Holoenzyme. Front. Microbiol. 2016, 7, 547. [Google Scholar] [CrossRef]
  76. Krupovič, M.; Koonin, E.V. Evolution of eukaryotic single-stranded DNA viruses of the Bidnaviridae family from genes of four other groups of widely different viruses. Sci. Rep. 2014, 4, 5347. [Google Scholar] [CrossRef] [Green Version]
  77. Tijssen, P.; Bergoin, M. Densonucleosis viruses constitute an increasingly diversified subfamily among the parvoviruses. Semin. Virol. 1995, 6, 347–355. [Google Scholar] [CrossRef]
  78. Krupovič, M. Networks of evolutionary interactions underlying the polyphyletic origin of ssDNA viruses. Curr. Opin. Virol. 2013, 3, 578–586. [Google Scholar] [CrossRef]
  79. Schildgen, O.; Qiu, J.; Söderlund-Venermo, M. Genomic features of the human bocaviruses. Futur. Virol. 2012, 7, 31–39. [Google Scholar] [CrossRef] [Green Version]
  80. Guido, M.; Tumolo, M.R.; Verri, T.; Romano, A.; Serio, F.; De Giorgi, M.; De Donno, A.; Bagordo, F.; Zizza, A. Human bocavirus: Current knowledge and future challenges. World J. Gastroenterol. 2016, 22, 8684–8697. [Google Scholar] [CrossRef]
  81. Qiu, J.; Söderlund-Venermo, M.; Young, N.S. Human Parvoviruses. Clin. Microbiol. Rev. 2017, 30, 43–113. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  82. Wiersbitzky, S.; Bruns, R.; Ballke, E.-H.; Wiersbitzky, H.; Schwarz, T.F.; Roggendorf, M.; Deinhardt, F. Acute obstructive respiratory diseases in infants and children associated with parvovirus B19 infection. Infection 1991, 19, 252. [Google Scholar] [CrossRef] [PubMed]
  83. Zeng, M.; Zhu, Q.-R.; Wang, X.-H.; Yu, H.; Shen, J. Human bocavirus in children with respiratory tract infection in Shanghai: A retrospective study. World J. Pediatr. 2010, 6, 65–70. [Google Scholar] [CrossRef]
  84. Kerr, J.R. The role of parvovirus B19 in the pathogenesis of autoimmunity and autoimmune disease. J. Clin. Pathol. 2016, 69, 279–291. [Google Scholar] [CrossRef] [PubMed]
  85. Hii, H.; Chiu, C.; Lin, D.; Shi, Y.; Hsu, T.; Tzang, B. Selective activation of inflammation factors by human parvovirus B19 and human bocavirus VP1 unique region on H9c2 cardiomyocyte. Mol. Med. Rep. 2018, 18, 4072–4078. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  86. Kawashima, D.; Kanda, T.; Murata, T.; Saito, S.; Sugimoto, A.; Narita, Y.; Tsurumi, T. Nuclear Transport of Epstein-Barr Virus DNA Polymerase Is Dependent on the BMRF1 Polymerase Processivity Factor and Molecular Chaperone Hsp90. J. Virol. 2013, 87, 6482–6491. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  87. Olesen, A.S.; Lohse, L.; Dalgaard, M.D.; Woźniakowski, G.; Belsham, G.J.; Bøtner, A.; Rasmussen, T.B. Complete genome sequence of an African swine fever virus (ASFV POL/2015/Podlaskie) determined directly from pig erythrocyte-associated nucleic acid. J. Virol. Methods 2018, 261, 14–16. [Google Scholar] [CrossRef] [Green Version]
  88. Zou, W.; Wang, Z.; Xiong, M.; Chen, A.Y.; Xu, P.; Ganaie, S.S.; Badawi, Y.; Kleiboeker, S.; Nishimune, H.; Ye, S.Q.; et al. Human Parvovirus B19 Utilizes Cellular DNA Replication Machinery for Viral DNA Replication. J. Virol. 2018, 92, e01881-17. [Google Scholar] [CrossRef]
  89. Zhang, J.; Dong, Z.-Q.; Zhang, C.-D.; He, Q.; Chen, X.-M.; Cao, M.-Y.; Li, H.-Q.; Xiao, W.-F.; Lu, C.; Pan, M.-H. Identification of a novel nuclear localization signal of baculovirus late expression factor 11. Virus Res. 2014, 184, 111–119. [Google Scholar] [CrossRef]
  90. Wang, D.; Álvarez-Cabrera, A.L.; Chen, X.S. Study of SV40 large T antigen nucleotide specificity for DNA unwinding. Virol. J. 2017, 14, 79. [Google Scholar] [CrossRef] [Green Version]
  91. Murakami, I.; Egawa, N.; Griffin, H.; Yin, W.; Kranjec, C.; Nakahara, T.; Kiyono, T.; Doorbar, J. Roles for E1-independent replication and E6-mediated p53 degradation during low-risk and high-risk human papillomavirus genome maintenance. PLoS Pathog. 2019, 15, e1007755. [Google Scholar] [CrossRef] [PubMed]
  92. Liu, Y.; De Jong, J.; Nagy, É.; Theilmann, D.A.; Krell, P.J. Nuclear Translocation Sequence and Region in Autographa californica Multiple Nucleopolyhedrovirus ME53 That Are Important for Optimal Baculovirus Production. J. Virol. 2016, 90, 3953–3965. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  93. Yu, J.-H.; Lin, B.Y.; Deng, W.; Broker, T.R.; Chow, L.T. Mitogen-Activated Protein Kinases Activate the Nuclear Localization Sequence of Human Papillomavirus Type 11 E1 DNA Helicase to Promote Efficient Nuclear Import. J. Virol. 2007, 81, 5066–5078. [Google Scholar] [CrossRef] [PubMed]
  94. Bergvall, M.; Melendy, T.; Archambault, J. The E1 proteins. Virology 2013, 445, 35–56. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  95. Jehle, J.A.; Blissard, G.W.; Bonning, B.C.; Cory, J.S.; Herniou, E.A.; Rohrmann, G.F.; Theilmann, D.A.; Thiem, S.M.; Vlak, J.M.; Herniou, E. On the classification and nomenclature of baculoviruses: A proposal for revision. Arch. Virol. 2006, 151, 1257–1266. [Google Scholar] [CrossRef]
  96. Miele, S.A.B.; Garavaglia, M.J.; Belaich, M.N.; Ghiringhelli, P.D. Baculovirus: Molecular Insights on Their Diversity and Conservation. Int. J. Evol. Biol. 2011, 2011, 1–15. [Google Scholar] [CrossRef] [Green Version]
  97. Nguyen, T.T.; Suryamohan, K.; Kuriakose, B.; Janakiraman, V.; Reichelt, M.; Chaudhuri, S.; Guillory, J.; Divakaran, N.; Rabins, P.E.; Goel, R.; et al. Comprehensive analysis of single molecule sequencing-derived complete genome and whole transcriptome of Hyposidra talaca nuclear polyhedrosis virus. Sci. Rep. 2018, 8, 8924. [Google Scholar] [CrossRef]
  98. Chen, Z.; Carstens, E.B. Identification of Domains in Autographa californica Multiple Nucleopolyhedrovirus Late Expression Factor 3 Required for Nuclear Transport of P143. J. Virol. 2005, 79, 10915–10922. [Google Scholar] [CrossRef]
  99. Au, V.; Yu, M.; Carstens, E.B. Characterization of a baculovirus nuclear localization signal domain in the late expression factor 3 protein. Virology 2009, 385, 209–217. [Google Scholar] [CrossRef] [Green Version]
  100. Wang, Y.; Wang, Q.; Liang, C.; Song, J.; Li, N.; Shi, H.; Chen, X. Autographa californica Multiple Nucleopolyhedrovirus Nucleocapsid Protein BV/ODV-C42 Mediates the Nuclear Entry of P78/83. J. Virol. 2008, 82, 4554–4561. [Google Scholar] [CrossRef]
  101. Hepp, S.E.; Borgo, G.M.; Ticau, S.; Ohkawa, T.; Welch, M.D. Baculovirus AC102 Is a Nucleocapsid Protein That Is Crucial for Nuclear Actin Polymerization and Nucleocapsid Morphogenesis. J. Virol. 2018, 92, e00111-18. [Google Scholar] [CrossRef] [PubMed]
  102. Marek, M.; Merten, O.-W.; Galibert, L.; Vlak, J.M.; Van Oers, M.M. Baculovirus VP80 Protein and the F-Actin Cytoskeleton Interact and Connect the Viral Replication Factory with the Nuclear Periphery. J. Virol. 2011, 85, 5350–5362. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  103. Ginzberg, D.; Wong, R.J.; Gish, R. Global HBV burden: Guesstimates and facts. Hepatol. Int. 2018, 12, 315–329. [Google Scholar] [CrossRef] [PubMed]
Viruses 11 01035 g001 550

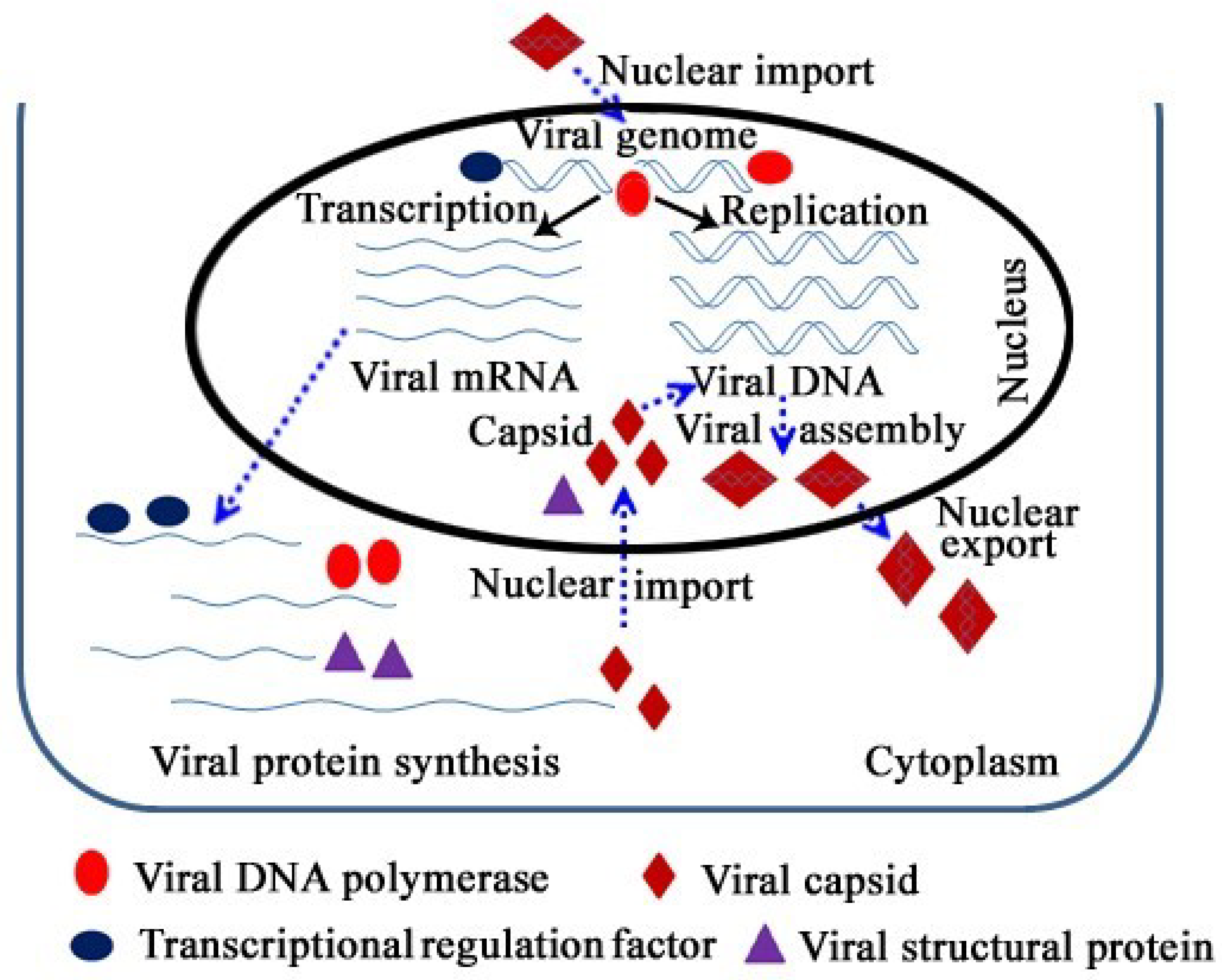

Figure 1. Schematic representation of the nucleocytoplasmic shuttling of viral proteins and particles.
Figure 1. Schematic representation of the nucleocytoplasmic shuttling of viral proteins and particles.
Viruses 11 01035 g001
Viruses 11 01035 g002 550
Figure 2. Distribution of green fluorescence signal in BmN cells transfected with a transient expression vector. (A) Effect of mutations in the motifs of 33RRIK and 76KRKCSK of Bm65 on the subcellular localization of the Bm65–EGFP fusion protein. Compared with the wild type (WT) and the mutation in 33RRIK of Bm65, the mutations in the motif of 76KRKCSK block the nuclear import of Bm65. (B) Effect of N-deletion of BmBDV NS1 on subcellular localization of the NS1–EGFP fusion protein. Compared with NS1–EGFP, deletions of the N-terminal of BmBDV NS1 impaired the nuclear import of NS1. The WT indicates the amino acid sequence of Bm65 WT. EGFP indicates enhanced green fluorescence protein. The amino acids of RRIK were mutated into 33AAAA, and 76KRKCSK into 76AAACSA in the mutant type (MT) of Bm65. WT BmBDV NS1 consists of 316 amino acids (aa), with 291 aa and 216 aa indicating the deletion of 25 and 100 amino acids from the N-terminal of BmBDV NS1, respectively.
Figure 2. Distribution of green fluorescence signal in BmN cells transfected with a transient expression vector. (A) Effect of mutations in the motifs of 33RRIK and 76KRKCSK of Bm65 on the subcellular localization of the Bm65–EGFP fusion protein. Compared with the wild type (WT) and the mutation in 33RRIK of Bm65, the mutations in the motif of 76KRKCSK block the nuclear import of Bm65. (B) Effect of N-deletion of BmBDV NS1 on subcellular localization of the NS1–EGFP fusion protein. Compared with NS1–EGFP, deletions of the N-terminal of BmBDV NS1 impaired the nuclear import of NS1. The WT indicates the amino acid sequence of Bm65 WT. EGFP indicates enhanced green fluorescence protein. The amino acids of RRIK were mutated into 33AAAA, and 76KRKCSK into 76AAACSA in the mutant type (MT) of Bm65. WT BmBDV NS1 consists of 316 amino acids (aa), with 291 aa and 216 aa indicating the deletion of 25 and 100 amino acids from the N-terminal of BmBDV NS1, respectively.
Viruses 11 01035 g002
Viruses 11 01035 g003 550

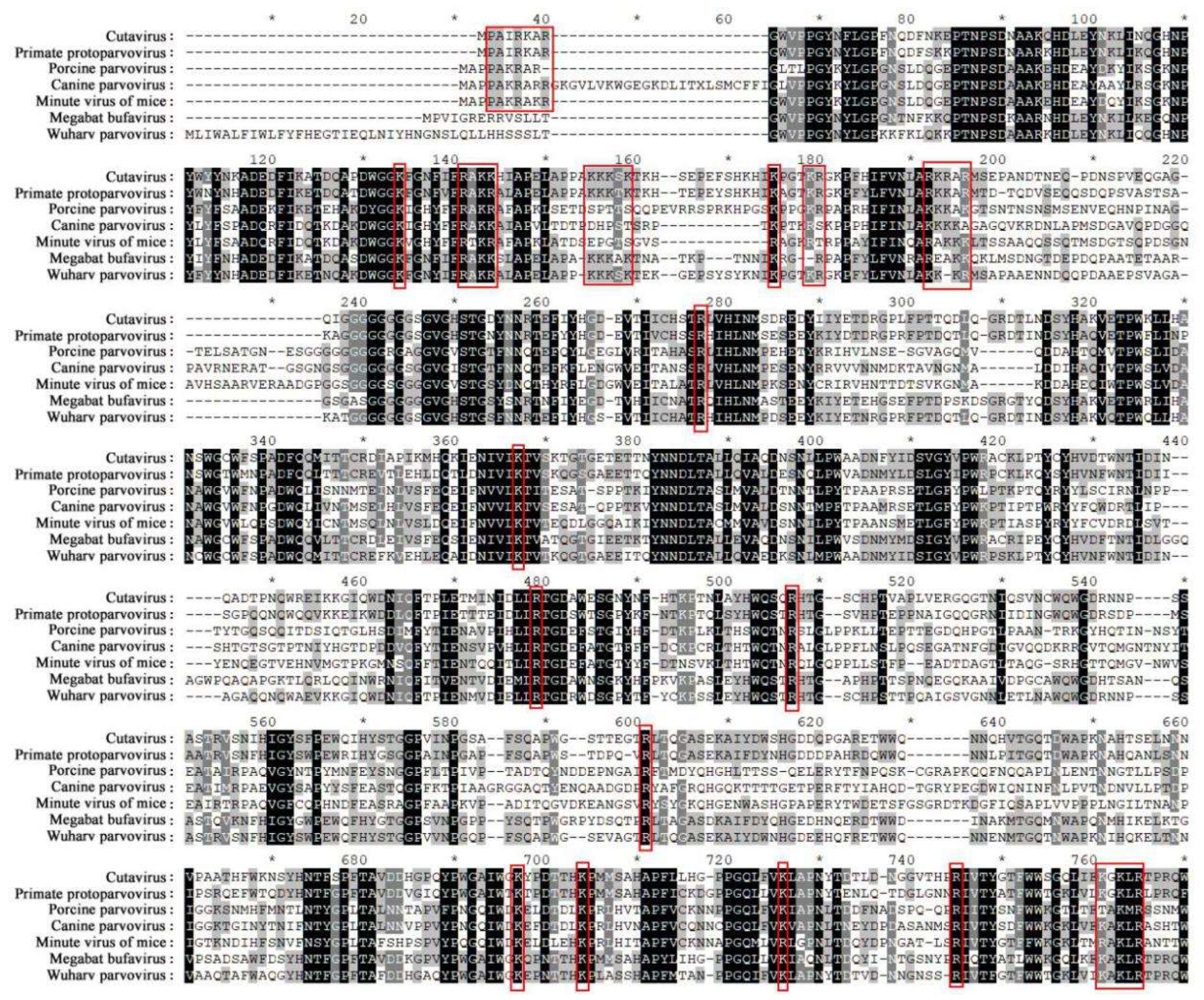

Figure 3. Multiple sequence alignment showed that basic amino acid clusters, corresponding to potential NLSs, are found in viral capsid sequences. Some single amino acids (lysine (R) and arginine (K)) are highly conversed in these sequences, which are potentially involved in nuclear import. These sequences are from GenBank, and their accession numbers are as follows: cutavirus (AMS35095.1), Wuharv parvovirus (AFV48070.1), primate protoparvovirus (YP_009507380.1), megabat bufavirus (BAU69605.1), minute virus of mice (NP_041244.1), canine parvovirus (NP_041400.1) and porcine parvovirus (NP_757371.1). Clusters of basic amino acids and some highly conserved R and K are presented within a red frame.
Figure 3. Multiple sequence alignment showed that basic amino acid clusters, corresponding to potential NLSs, are found in viral capsid sequences. Some single amino acids (lysine (R) and arginine (K)) are highly conversed in these sequences, which are potentially involved in nuclear import. These sequences are from GenBank, and their accession numbers are as follows: cutavirus (AMS35095.1), Wuharv parvovirus (AFV48070.1), primate protoparvovirus (YP_009507380.1), megabat bufavirus (BAU69605.1), minute virus of mice (NP_041244.1), canine parvovirus (NP_041400.1) and porcine parvovirus (NP_757371.1). Clusters of basic amino acids and some highly conserved R and K are presented within a red frame.
Viruses 11 01035 g003
Table
Table 1. Identification of nuclear localization signals (NLSs) from virally encoded-DNA polymerases.
Table 1. Identification of nuclear localization signals (NLSs) from virally encoded-DNA polymerases.
NumVirus NameViral Genome (size)dsDNA or ssDNAViral PolymeraseNLS MotifReferences
1VACV192 kbdsDNAE9No NLS[58]
2ASFV189 kbdsDNAPolXNo NLS[25,87]
3HAd2V36 kbdsDNAAd2V PolRARR11, RRRVR29, RARRRR46[69]
4HCMV236 kbdsDNAUL54NLSA (PAKKRAR1159),
NLSB (PRRLHL1227)		[71]
5HSV-1153 kbdsDNAUL30RRMLHR1229, PRRSRLW130, PAKRPRETPSPADPPGGASKPRK1136[70,72]
6HBV3.2 kbdsDNAP proteina bipartite nuclear localization signal (residues K90-K91, K104-R106)[34]
7AcMNPV134 kbdsDNADNApolDNPGKKRKSTDDNEGPSPKRRVIT827, CSVKRKRDDD948[73]
8SpltNPV139 kbdsDNADNApolQE PPA KRARMPT838[74]
9PRV143 kbdsDNAUL42KRPAAPRMYTPIAKRPR370[75]
10BmBDVVD1 (6543 nts); VD2 (6022 nts).ssDNABmBDV pPolBUnclear[51]
11B19 virus5.6 ntsssDNANoNo[81,88]
12HBoV15.3 ntsssDNANoNo[79,80]
Abbreviations: VACV vaccinia virus, ASFV African swine fever virus, hAd2V human adenovirus type 2, HCMV human cytomegalovirus, HSV-1 herpes simplex virus type 1, HBV hepatitis B virus, AcMNPV Autographa californica multiple nucleopolyhedrovirus, SpltNPV Spodoptera litura nucleopolyhedrovirus, PRV pseudorabies virus, BmBDV Bombyx mori bidensovirus, HBoV1 human bocavirus 1, dsDNA double-stranded DNA, ssDNA single-stranded DNA.
Table
Table 2. Possible classical NLSs of budded virus nucleocapsid proteins.
Table 2. Possible classical NLSs of budded virus nucleocapsid proteins.
NumTarget ProteinsPredicted MWAcMNPV ORFHomlogs in BmNPVPotential NLS
1VP3939 kDa89BmNPV Orf7652HLIKRFKMS
238K38 kDa98BmNPV Orf8613RLNDAIIKRHVLVLSEYADLKYLGFEKYKFFEY
3BV/ODV-EC2734 kDa144BmNPV Orf1282KRIKCNKVRTVTEIVNSDEKIQKTYEL
4VP8080 kDa104BmNPV Orf92424KRSAEDDLLPTRSSKR; 464YEKESKRRKLEDEDF
5VLF-144 kDa77BmNPV Orf67225LIKRGKLHSDTINLKRKRSRNN
6BV/ODV-C4242 kDa101BmNPV Orf 89357KRKK
7P78/8361 kDa9BmNPV Orf2No NLS
849K55 kDa142BmNPV Orf126No NLS
9Ac10945 kDa109BmNPV Orf96No NLS
10VP105442 kDa54BmNPV Orf46No NLS
11Ac10213 kDa102BmNPV Orf90No NLS
Abbreviations: MW, molecular weight, NLS: nuclear localization sequence; ORF: open reading frame; BV: budded virus.

Share and Cite

MDPI and ACS Style

Li, G.; Qi, X.; Hu, Z.; Tang, Q. Mechanisms Mediating Nuclear Trafficking Involved in Viral Propagation by DNA Viruses. Viruses 2019, 11, 1035. https://doi.org/10.3390/v11111035

AMA Style

Li G, Qi X, Hu Z, Tang Q. Mechanisms Mediating Nuclear Trafficking Involved in Viral Propagation by DNA Viruses. Viruses. 2019; 11(11):1035. https://doi.org/10.3390/v11111035

Chicago/Turabian Style

Li, Guohui, Xinyu Qi, Zhaoyang Hu, and Qi Tang. 2019. "Mechanisms Mediating Nuclear Trafficking Involved in Viral Propagation by DNA Viruses" Viruses 11, no. 11: 1035. https://doi.org/10.3390/v11111035

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
