Bending Properties of Finger-Jointed Elements of Differently Modified Beech (Fagus sylvatica L.) Wood

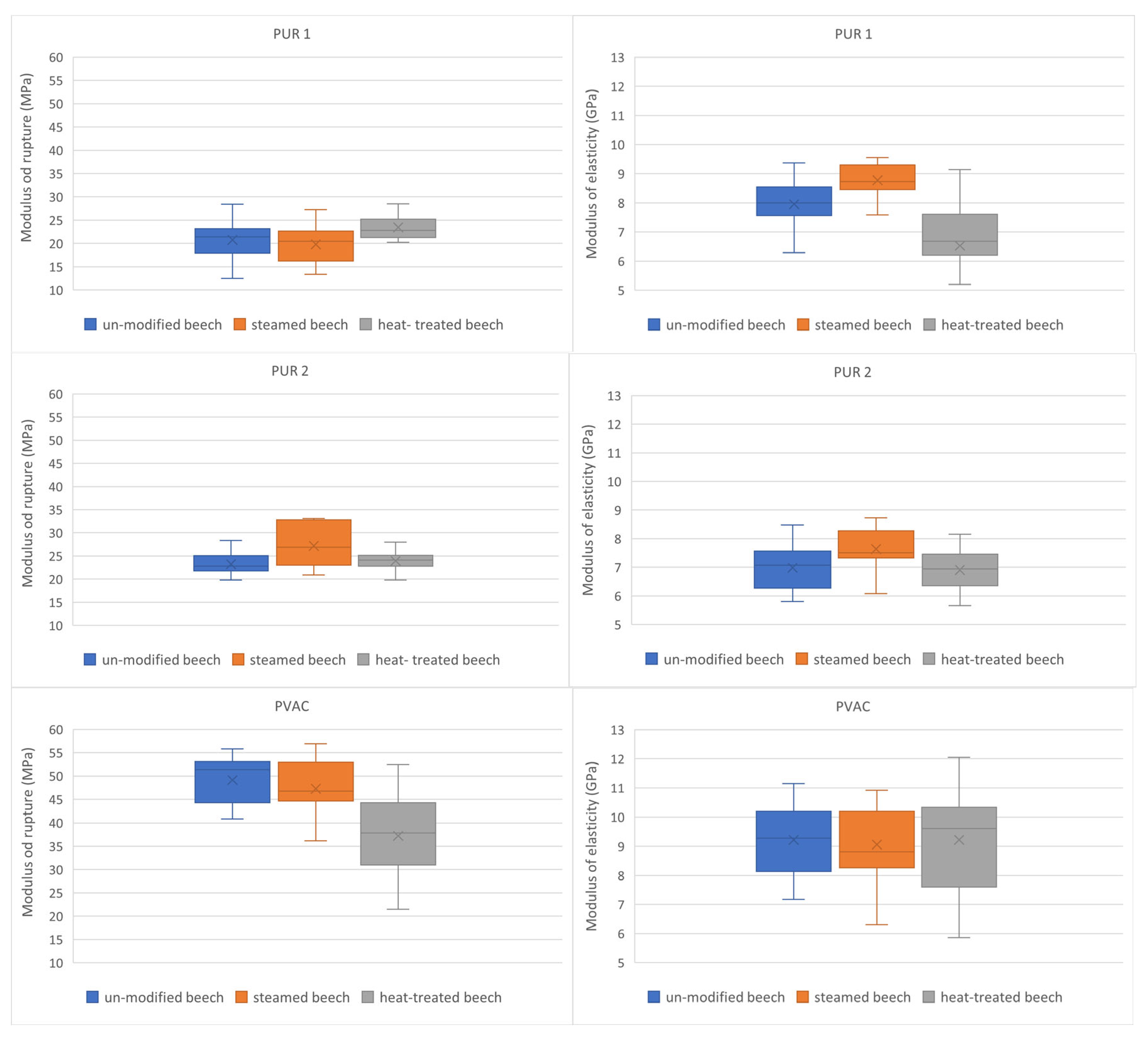

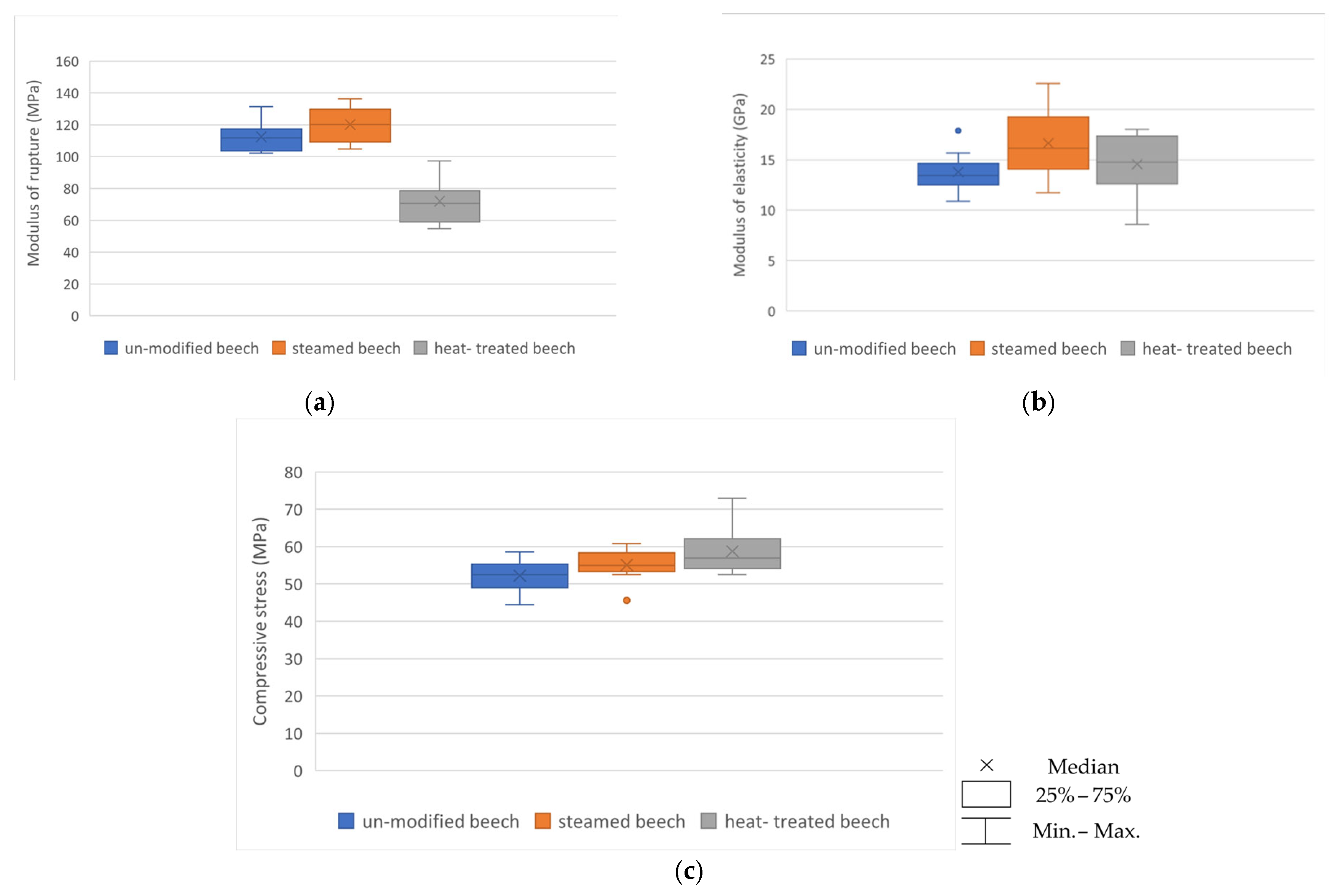

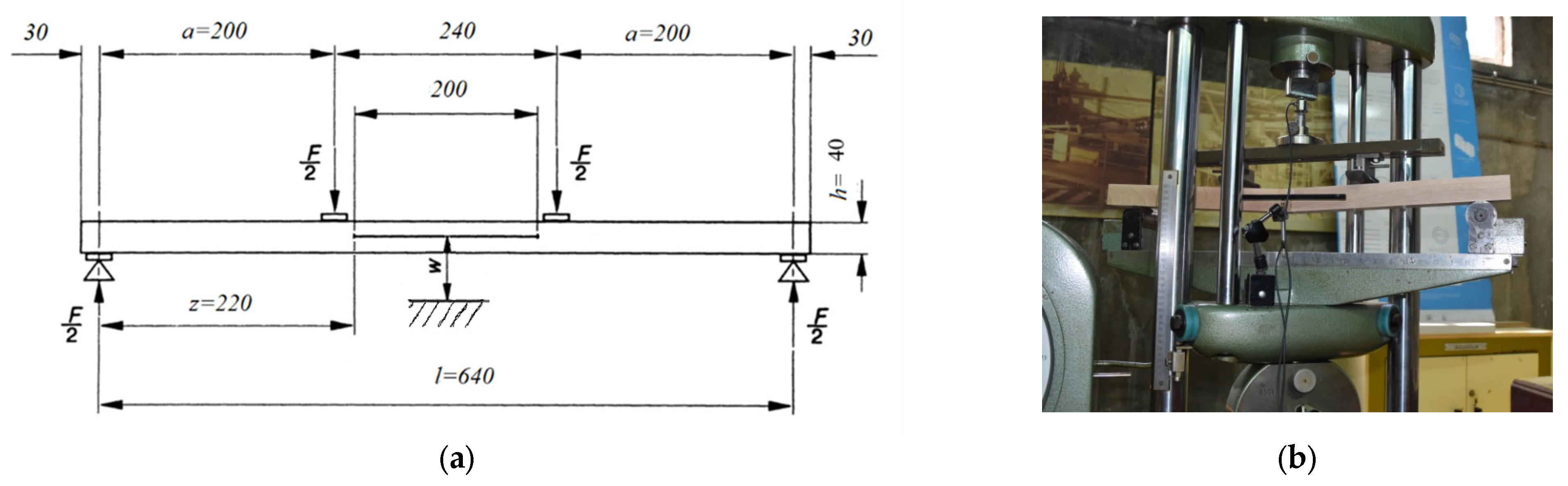

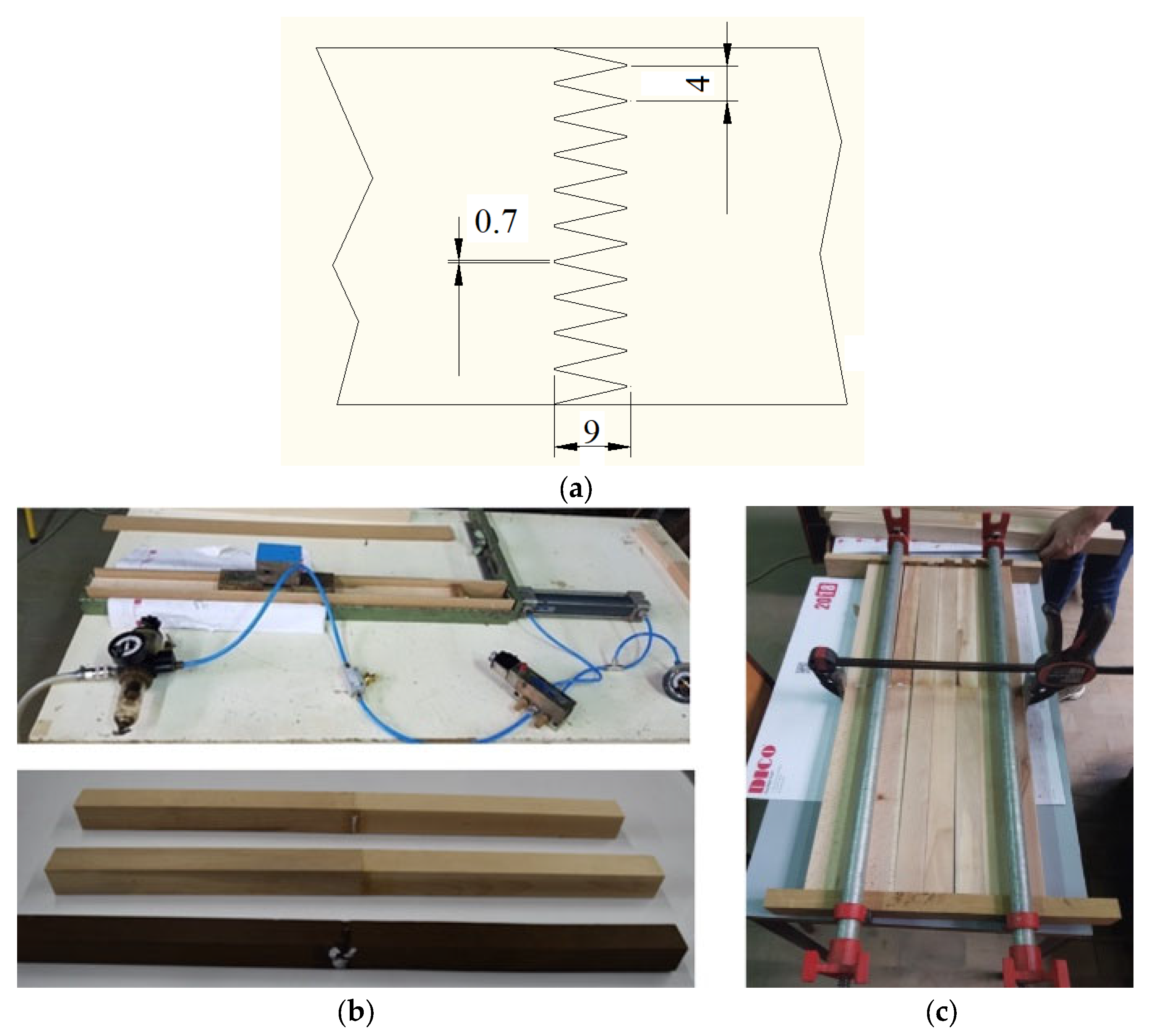

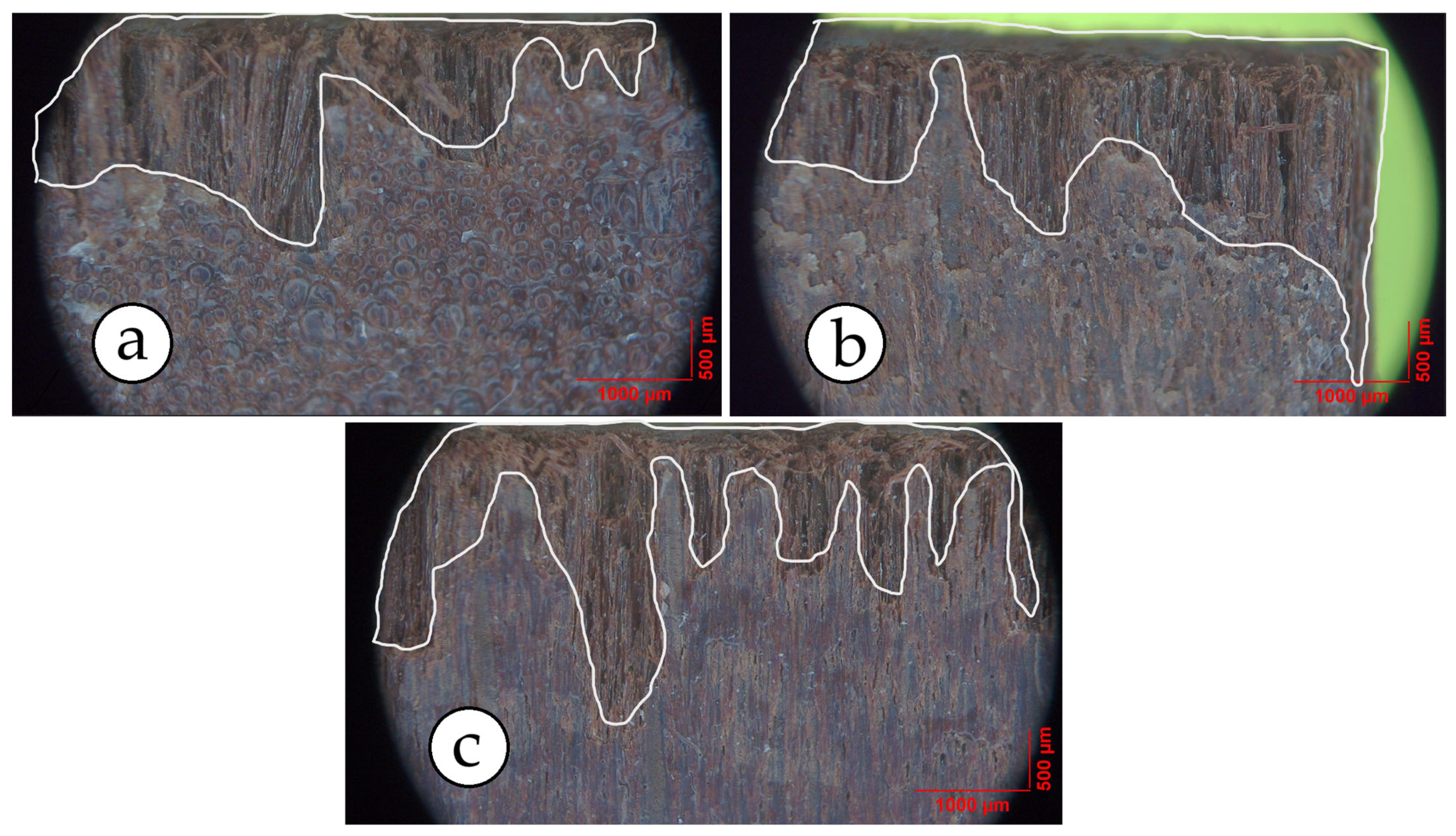

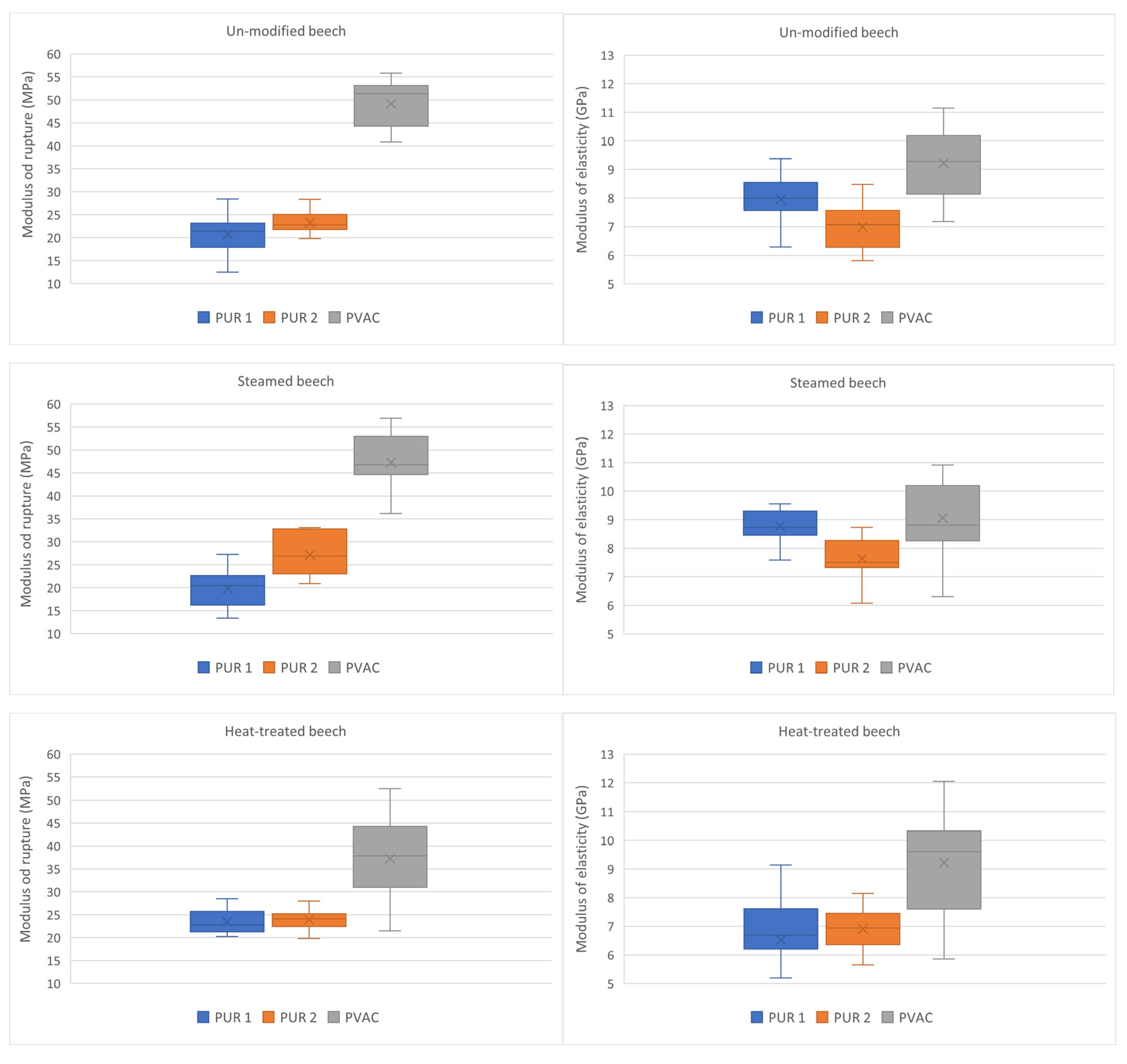

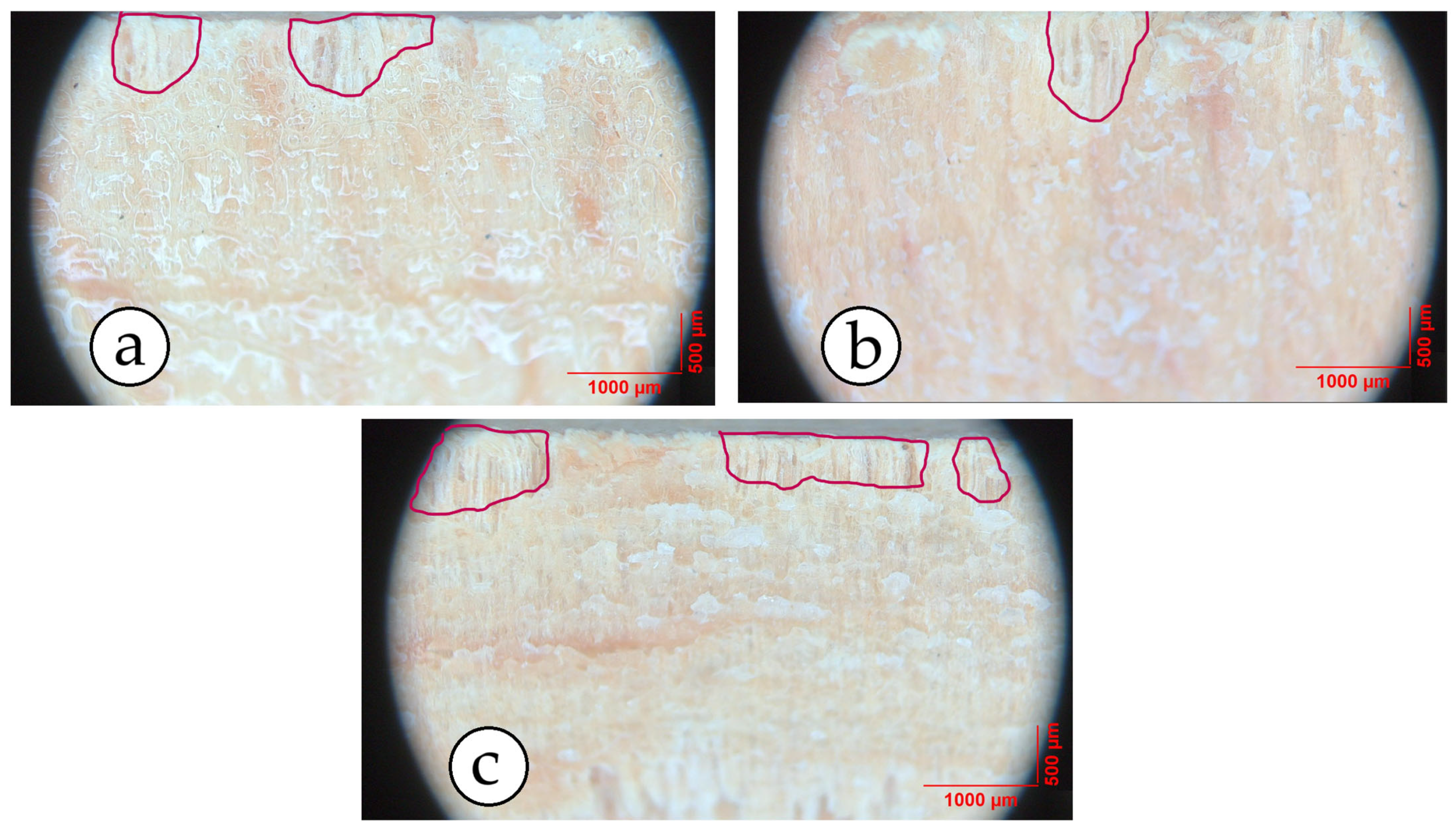

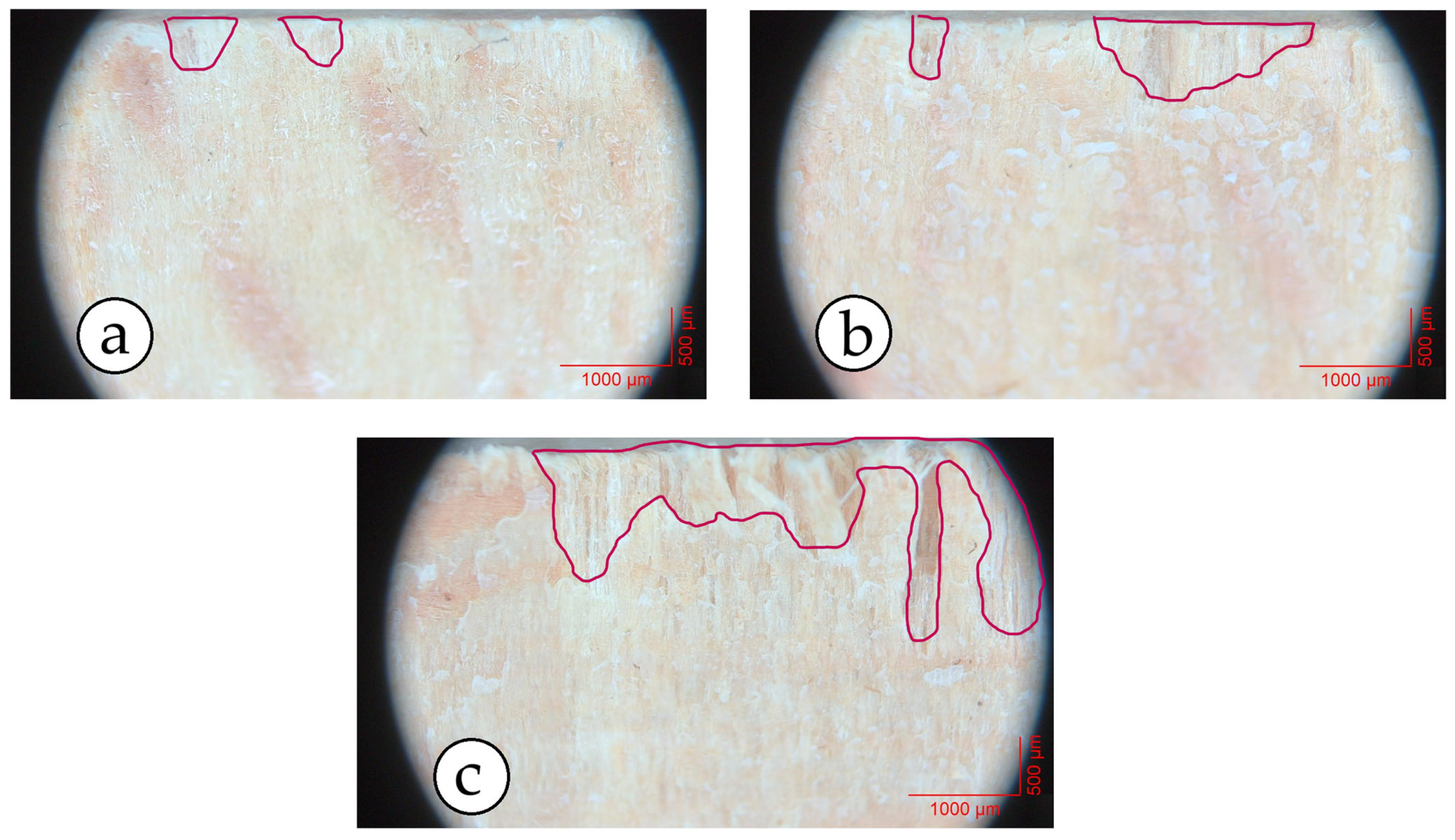

The scarcity of high-quality wood encouraged the development of various technological processes for joining wood. The finger joint is one of the most widespread technological processes for wood joining. This study aimed to determine the effect of steaming and heat modification of beech wood, as well as the type of adhesive, on the mechanical characteristics of finger joints. Samples made from un-modified beech, steamed-treated, and heat-treated beech wood were bonded with polyvinyl acetate (PVAC), non-structural, and structural polyurethane (PUR) adhesives. Compressive tests on wood materials were used to evaluate their mechanical performance. The finger joint samples were tested for their bending performance. Modulus of rupture, modulus of elasticity, and compressive strength were calculated. An analysis of variance (ANOVA) was conducted to evaluate the impact of wood modification type and adhesive used on the mechanical characteristics of the finger joints. According to the results of this study, it can be concluded that the steaming process does not influence changes in the mechanical characteristics of the finger joints. Heat treatment of beech and the type of adhesive used significantly influence the tested mechanical characteristics of the finger joints and beech wood. Heat-treated beech had lower values of modulus of rupture (70 MPa) and density (690 kg/m³) and higher values of compression strength (59 MPa) in relation to un-modified (780 kg/m³) and steamed-treated (800 kg/m³) beech wood.
