Modeling Tree Mortality Induced by Climate Change-Driven Drought: A Case Study of Korean Fir in the Subalpine Forests of Jirisan National Park, South Korea

by
Wontaek Lim
1,
Hong-Chul Park
2,
Sinyoung Park
3,
Jeong-Wook Seo
4,
Jinwon Kim
2 and
Dongwook W. Ko
5,6,*
1
Industry-Academic Cooperation Foundation, Kookmin University, Seoul 02707, Republic of Korea
2
Korea National Park Research Institute, Wonju 26441, Republic of Korea
3
Department of Forest Resources, Graduate School, Kookmin University, Seoul 02707, Republic of Korea
4
Department of Wood & Paper Science, Chungbuk National University, Chungbuk 28644, Republic of Korea
5
Department of Forest Environment and Systems, Kookmin University, Seoul 02707, Republic of Korea
6
Forest Carbon Graduate School, Kookmin University, Seoul 02707, Republic of Korea
*
Author to whom correspondence should be addressed.
Forests 2025, 16(1), 84; https://doi.org/10.3390/f16010084
Submission received: 10 December 2024 / Revised: 31 December 2024 / Accepted: 31 December 2024 / Published: 6 January 2025
(This article belongs to the Special Issue Forest Dieback, Tree Mortality Risks and Post-disturbance Resilience to Environmental Changes)
Browse Figures
Versions Notes

Abstract

:
Increased drought frequency due to climate change is intensifying tree mortality, a critical issue in forest ecosystem management, especially in vulnerable subalpine ecosystems. Korean fir (Abies koreana E.H. Wilson), an endemic species of South Korea that grows in subalpine areas, is threatened by climate change-induced drought. However, our understanding of drought’s impact on tree mortality, particularly its seasonal and legacy effects, remains limited. To better understand drought-related mortality of Korean fir, we conducted annual mortality surveys, starting in 2012, at 10 fixed transects in Jirisan National Park, identified seasonal and legacy effects using redundancy analysis, and modeled Korean fir mortality, incorporating biotic and abiotic factors, using random forests. We found that early growing season drought had the greatest impact on Korean fir mortality, with legacy effects extending up to three years, while late growing season drought affected mortality only in the previous year. The mortality model achieved high predictive accuracy (94%) and revealed significant site- and size-dependent mortality patterns. These findings provide critical insights into the complex interactions between biotic and abiotic factors affecting tree mortality and offer valuable guidance for conservation strategies aimed at preserving climate-sensitive species in the face of ongoing climate change.

1. Introduction

Tree mortality, particularly that related to drought, is being increasingly reported due to rising temperatures and shifting precipitation patterns driven by climate change [1,2]. Temperature and precipitation are crucial factors that define climate zones and are directly linked to drought stress in ecosystems [3,4], which, defined as the deficit of available water relative to potential evapotranspiration, is a key factor influencing climate-induced vegetation distributions [5,6,7]. Currently, climate change is causing unprecedented temperature increases and altering the water cycle, resulting in changes in precipitation patterns. These changes are intensifying competition for resources within vegetation communities and increasing the vulnerability of forest ecosystems [8,9], contributing to accelerated tree mortality rates [10,11]. With predicted rises in the frequencies of droughts and high-temperature events due to climate change, drought-related tree mortality is expected to increase [1,2,8,12]. This mortality poses major challenges for forest ecosystem management, as it adversely impacts forest biomass production, biodiversity, and carbon storage and uptake [13]. Consequently, drought-related tree mortality has emerged as a critical issue in forest ecosystem management.
Subalpine areas are particularly vulnerable to drought-related tree mortality [14,15,16,17]. These areas, often referred to as glacial refugia, host boreal tree species that migrated to cooler environments following the last glacial maximum [18,19,20]. Increasing global temperatures and drought pose a threat to these refugia, leading to higher mortality rates among boreal species [21,22,23]. Korean fir (Abies koreana E.H. Wilson), an endemic tree species native to the subalpine areas of Korea, has experienced a catastrophic dieback [24,25,26,27,28], leading to its classification as Endangered on the IUCN Red List. To conserve this species and its associated biodiversity, various stakeholders, including government agencies, academia, and private research organizations, are investigating the causes of the Korean fir dieback to develop effective conservation plans. However, the causes remain contentious [29]. While several studies suggest that drought is a primary factor contributing to mortality across most of the distribution range of Korean fir, including Jirisan National Park (hereafter referred to as Jirisan) [28,30,31,32,33,34,35], excessive soil moisture was suggested as an important mortality factor in Hallasan National Park [24]. Therefore, the causes of Korean fir mortality may vary by region, and it is necessary to more clearly determine when and where drought is a contributing factor to guide region-specific management for Korean fir.
In the context of drought, the impact on tree mortality is not equal across seasons. Droughts occurring during the growing season have a greater effect on tree mortality than those occurring during the dormant season, and within the growing season, the impact may vary depending on the timing [14,36]. Seasonal differences in drought effects may be related to growth characteristics and stages, as the growth rates of fixed-growth conifers, such as Korean fir, typically increase until the summer solstice and decline afterward [37,38]. This pattern may be associated with the xylem growth process, which involves cell division and expansion in the cambium layer until the summer solstice, followed by xylem maturation through secondary cell wall formation and lignification [39,40,41]. The seasonal effects of drought may influence long-term tree mortality rates, and this legacy effect has been reported to vary depending on species and the timing of drought [14]. The legacy effect is associated with the carbon starvation mechanism, which explains tree mortality as a result of exhaustion of non-structural carbohydrates caused by prolonged drought events [12]. Therefore, to understand and accurately predict drought-related tree mortality, it is essential to clarify the species-specific seasonal and legacy effects of drought.
Drought-related tree mortality can also be influenced by various biotic and abiotic factors, particularly vegetation and topographic characteristics [42,43]. Generally, drought-related tree mortality is higher in stands with high tree densities and basal areas [44,45], where vulnerability to mortality is high due to intensified competition for water [8,46,47]. Tree size is also linked to drought vulnerability [48,49,50], with larger trees typically experiencing higher mortality due to greater solar exposure [51,52,53]. However, these relationships are complex and can show both linear and non-linear patterns, even within the same species [54,55]. Topographic features such as elevation, slope, and aspect, which are related to temperature and solar radiation, significantly affect the spatial patterns of drought-related mortality by influencing soil water availability and evapotranspiration [56,57,58,59]. Therefore, understanding and predicting drought-related tree mortality requires careful consideration of the interactions between biotic and abiotic factors that impact water availability and demand.
Unfortunately, our understanding of the impact of drought on tree mortality remains limited, making it difficult to accurately analyze and simulate how drought impacts tree mortality [60]. Deriving a unified mechanism for drought-related tree mortality is challenging due to the physiological complexities and uncertainties of tree’s drought responses, as well as variations across species, seasons, populations, and individuals [60,61,62,63,64]. Empirical data, statistical analysis, and modeling are crucial tools for identifying the patterns of tree mortality linked to climate change [62,65], which requires analytical techniques capable of handling both linear and non-linear complex relationships.
Using a single model to analyze and make predictions from complex data characterized by both linear and non-linear relationships is highly challenging. Random forests, a machine learning technique [66], has demonstrated robust performance with such complex data and is widely used in ecology to examine intricate interactions between biotic and abiotic factors [67,68]. It has also been applied to predict tree mortality [65,69,70,71], however, few studies have incorporated and assessed seasonal and legacy effects.
In this study, we developed an individual-level mortality prediction model using random forests for Korean fir in Jirisan. The model predicts individual tree mortality based on weather, topographic, community, and individual characteristics, with a particular focus on the seasonal and legacy effects of drought on Korean fir. To confirm the seasonal and legacy effects of drought, we employed a multivariate statistical analysis comparing multi-year mortality rates with drought information. The results aim to offer insights into the analysis and prediction of mortality for climate-sensitive species, such as Korean fir, in response to climate change.

2. Materials and Methods

2.1. Study Sites

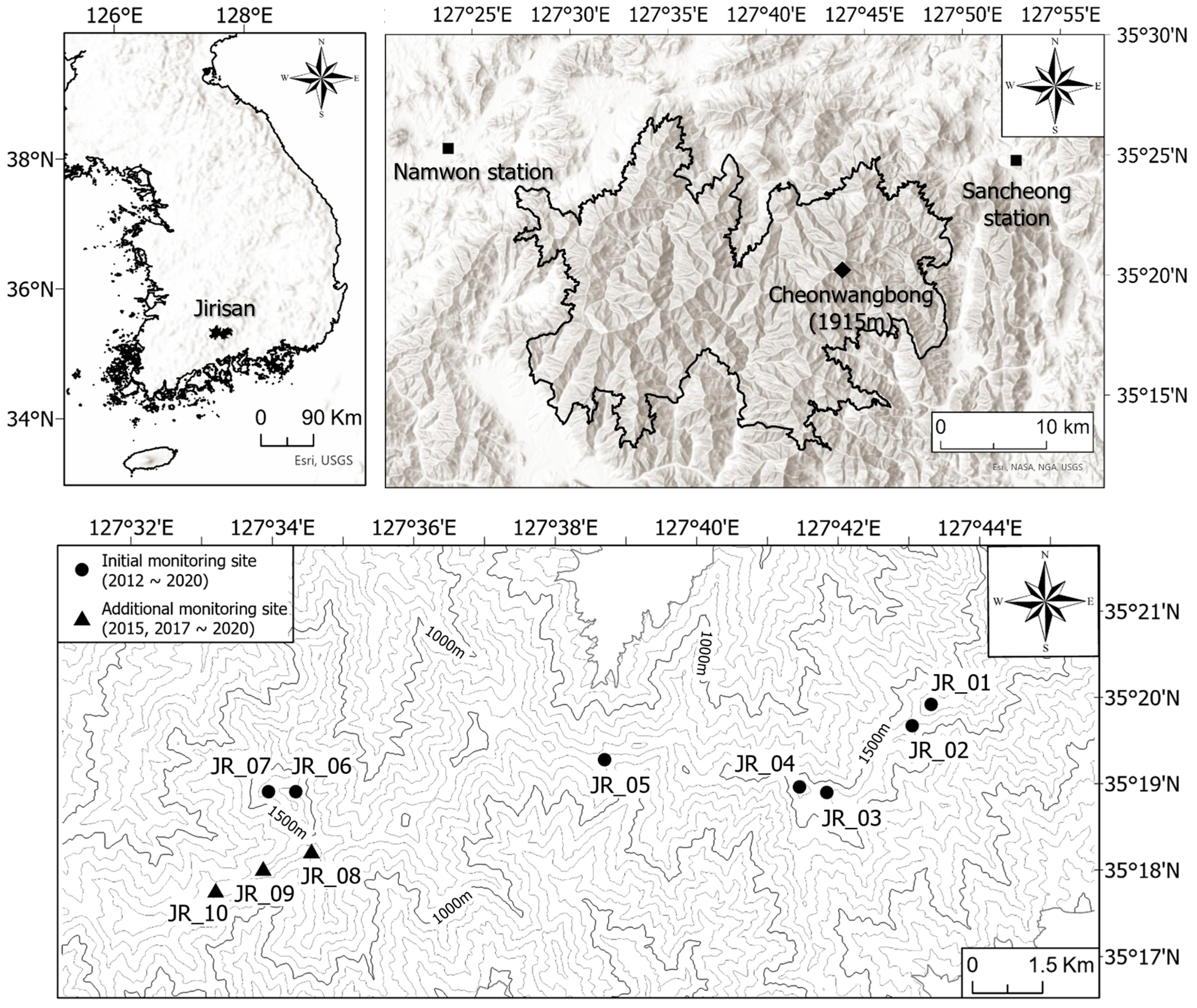

We investigated the impact of drought on the mortality of Korean fir in the subalpine region of Jirisan, a mountainous national park located in south-central South Korea. We also developed a model to predict Korean fir mortality caused by drought. Jirisan’s highest peak, Cheonwangbong, reaches 1915 m above sea level, with a long ridge extending from east to west maintaining elevations above 1300 m (Figure 1). The elevation gradient results in diverse climatic conditions, supporting a variety of vegetation communities at different elevations. The subalpine zone of Jirisan functions as an interglacial refugia for boreal tree species such as Korean fir, spruce, and yew [72,73].

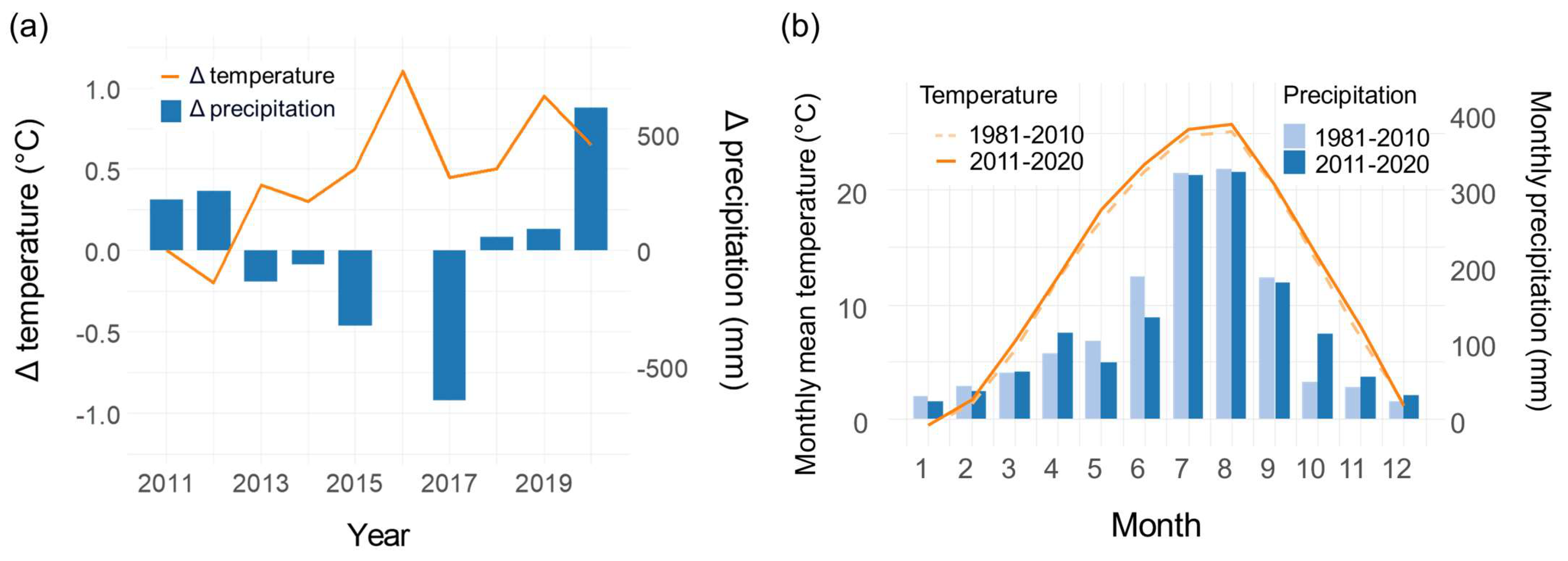

Recently, local mean temperatures in study sites have been rising due to climate change, while total yearly precipitation has remained relatively stable. However, there have been notable decreases in monthly precipitation during May and June (Figure 2).

2.2. Field Data

In response to the severe mortality of Korean fir, the Korea National Park Research Institute began monitoring Korean fir mortality in Jirisan in 2012 by establishing seven fixed transects, with three additional transects added in 2017 (Figure 1, Table 1). Surveys were conducted annually in April and May, just before the start of the growing season, to record the diameter at breast height (DBH) and mortality status of all tree species with a DBH greater than 6 cm. Newly dead trees identified during these surveys were considered to have died in the previous year. By 2020, 238 out of 472 Korean firs in the initial transects and 15 out of 135 trees in the additional transects were confirmed dead. However, no Korean fir mortality has been observed in one transect, JR_03.

2.3. Drought Information

Drought information was quantified at the local scale using the climatic water deficit (CWD), defined as the difference between potential evapotranspiration and actual evapotranspiration [7]. Monthly CWDs were calculated in R using the “CWD and AET function” [74,75,76], which is based on the Thornthwaite-Mather soil-water balance model [77,78]. Weather data for CWD were sourced from the Automated Synoptic Observing System of the Korea Meteorological Administration. In this study, Namwon and Sancheong stations, located near Jirisan at elevations of 133 m and 138 m above sea level, respectively, were selected to compare long-term drought conditions since the 1980s.
To analyze the seasonal effects of drought, monthly CWDs were divided into three groups: the early growing season CWD (EG_CWD), late growing season CWD (LG_CWD), and dormant season CWD (D_CWD). The growing season of Korean fir near Jirisan typically begins in May and ends in September [79] and was separated into the early and late growing seasons based on the summer solstice, considering the different physiologic phases of the growth cycle. Consequently, the early growing season was defined as May–June, the late growing season as July–September, and the dormant season as the previous October–April, with CWD accumulated for each period.

2.4. Analysis of Drought’s Impacts on Korean Fir Mortality

The seasonal and legacy effects of drought on Korean fir mortality was assessed using redundancy analysis (RDA), a multivariate statistical technique [80,81]. For this analysis, a species mortality matrix was constructed based on annual mortality rates for each tree species, calculated based on basal area:
M R i j = D B A i j B A i j
in which MRij, DBAij, and BAij represent the annual mortality rate, dead basal area, and total basal area of species i in year j, respectively.
The explanatory variable matrix used the EG_CWDs, LG_CWDs, and D_CWDs from the past 10 years to capture both the seasonal and legacy effects of drought.
The RDA was conducted using the “rda” function of the vegan package [82,83] in the R version 4.1.1 [84] environment. Significant explanatory variables were identified through stepwise selection using the “ordistep” function. Multicollinearity among the selected variables was assessed using the variance inflation factor (VIF). The significance of the variances explained by the axes and the selected variables was evaluated through permutation tests [85,86].

2.5. Development of Random Forest-Based Korean Fir Mortality Models

An individual-level mortality model for Korean fir was developed using the random forest algorithm, incorporating weather-, topography-, individual-, and stand-related variables (Table 2). Each surveyed Korean fir was labeled as either dead or alive at each year. The dataset included 253 individuals labeled as dead and 2643 labeled as alive.
Weather variables included the EG_CWD, LG_CWD, and D_CWD based on the results of the RDA of drought impacts on Korean fir mortality. Topographic variables included elevation, slope, and aspect, with aspect expressed as northness, ranging from 0 to 180°, where 0° represents North and 180° represents South. For individual variables, DBH was used to represent tree sizes, and relative DBH (RDBH), the ratio of DBH to the 95th percentile of all trees across all monitoring sites, was used to represent the relative size within the population. Stand variables reflected both Korean fir population and community characteristics, using density and basal area to represent each.
Tree mortality data are inevitably class-imbalanced because they are a relatively rare event. This imbalance can present challenges for machine learning models, including random forests, as rare classes are often underrepresented during the learning process [87,88,89]. To mitigate bias caused by class imbalance, sampling techniques such as over-sampling and under-sampling are commonly used [65,90]. In this study, the number of individuals categorized as dead was notably smaller than the number categorized as alive. Using only under-sampling would result in a substantial loss of information from the alive samples, while over-sampling could lead to overfitting due to the replication of identical samples. Therefore, we applied a hybrid approach that combined over-sampling for the minority class and under-sampling for the majority class [65,90]. The survival class was reduced to 1327 samples (50% of the original 2643 samples), while the dead class was increased to 673 samples (265% of the original 253 samples).
The Korean fir mortality models were trained using the randomForest package [91] in the R version 4.1.1 [84] environment. Each decision tree in the random forest model was trained with bootstrapped samples and cross-validated through out-of-bag sampling. Hyperparameter tuning was performed through a grid search approach, optimizing ntree, mtry, and nodesize. The relative importance of each explanatory variable was assessed using mean decrease accuracy, which quantifies the contribution of each variable to model performance by measuring the reduction in accuracy when the variable is permuted. Model performance was evaluated based on producer accuracy, user accuracy, overall accuracy, and Cohen’s Kappa. Additionally, predicted mortality rates were compared to the mortality rates observed during field monitoring by site and diameter class.

2.6. Confirming the Effect of Climate Change on Korean Fir Mortality

The impact of climate change on Korean fir mortality was evaluated using the Korean fir mortality models based on a recent weather scenario and two historical weather scenarios. For this, mortality rates were simulated and compared under the weather scenarios at the initial monitoring sites. To consider legacy effects on Korean fir mortality, the weather scenarios reflected drought conditions for specific time frames. The time frame of the recent weather scenario was determined based on the Korean fir mortality monitoring period at Jirisan and the legacy effect periods of drought identified in this study. The time frames of the two historical weather scenarios were set to 20 and 30 years prior to the recent weather scenario’s time frame, respectively.

3. Results

3.1. CWD of Growing Stages in the Study Area

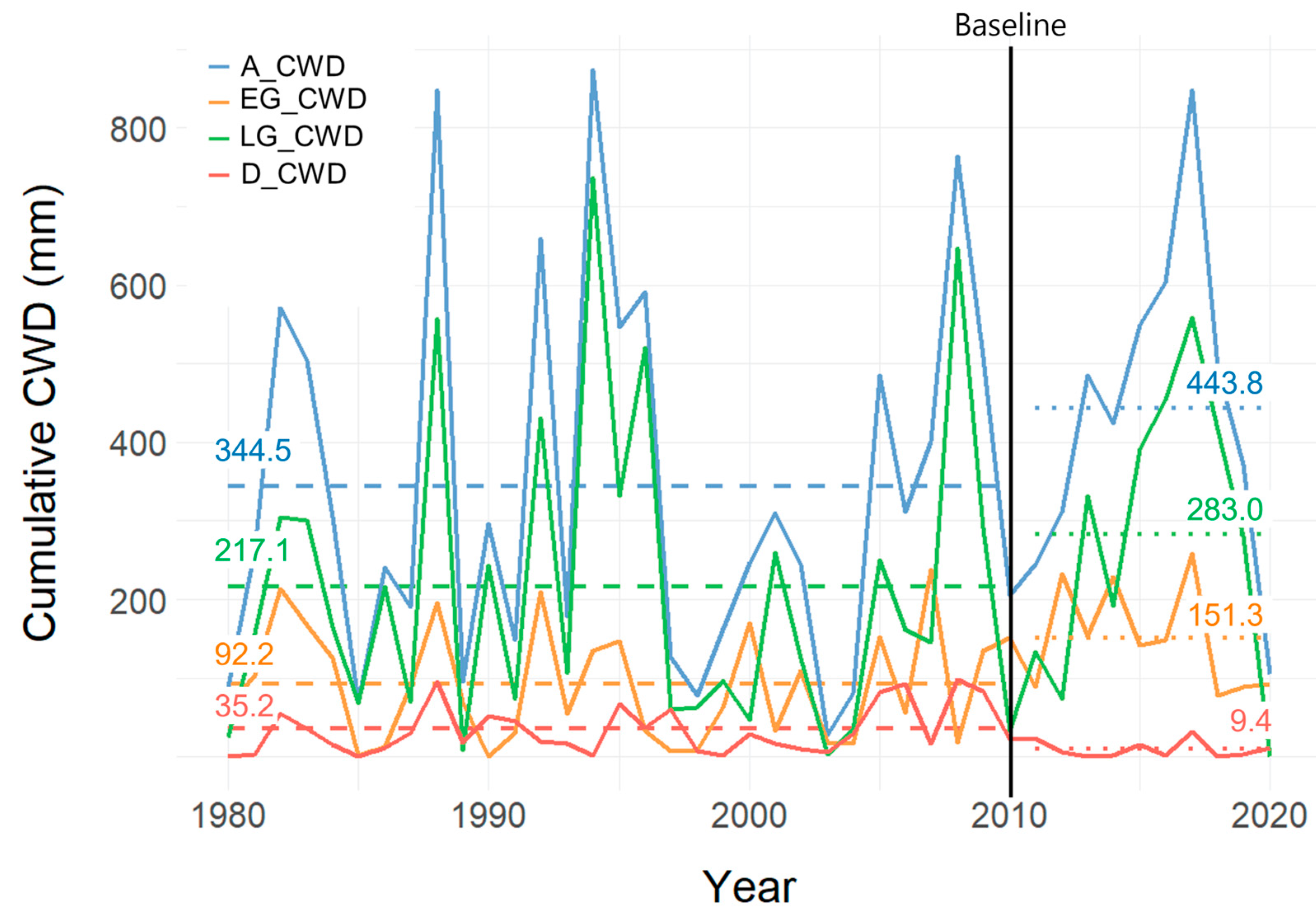

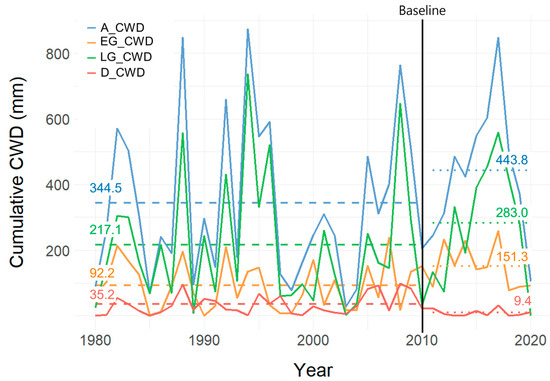

The mean annual and growing season CWDs in the Jirisan area were higher during the 2011–2020 period than they were during the 1981–2010 period (Figure 3). Although the maximum CWD values have not increased over time, extremely high CWD values have recently been recorded frequently and continuously. For the annual CWD, extremely high values were recorded from 2013 to 2019, while during the growing seasons, extremely high EG_CWDs were recorded from 2012 to 2017, and extremely high LG_CWDs were recorded from 2013 to 2019. On the other hand, D_CWDs from 2011 to 2020 were lower than the 1981–2010 mean.

3.2. Seasonal and Legacy Effects of Drought on Korean Fir Mortality

In the RDA of Korean fir mortality at the monitoring sites, the EG_CWDs from the past three years and the previous year’s LG_CWD were found to influence tree mortality (Table 3). However, D_CWD was found to have no influence. The VIFs of the selected variables were all lower than 5, indicating no problems with multicollinearity. All selected variables had a significant effect, explaining a combined 91.5% of the variance in tree mortality. The EG_CWD from two years ago explained the largest portion, accounting for 24.8% of the variance (p < 0.001). The current year’s EG_CWD explained 21.8% of the variance (p < 0.001), the EG_CWD from three years ago explained 15.9% (p < 0.01), the previous year’s LG_CWD explained 15.3% (p < 0.01), and the previous year’s EG_CWD explained 13.7% of the variance (p < 0.01).

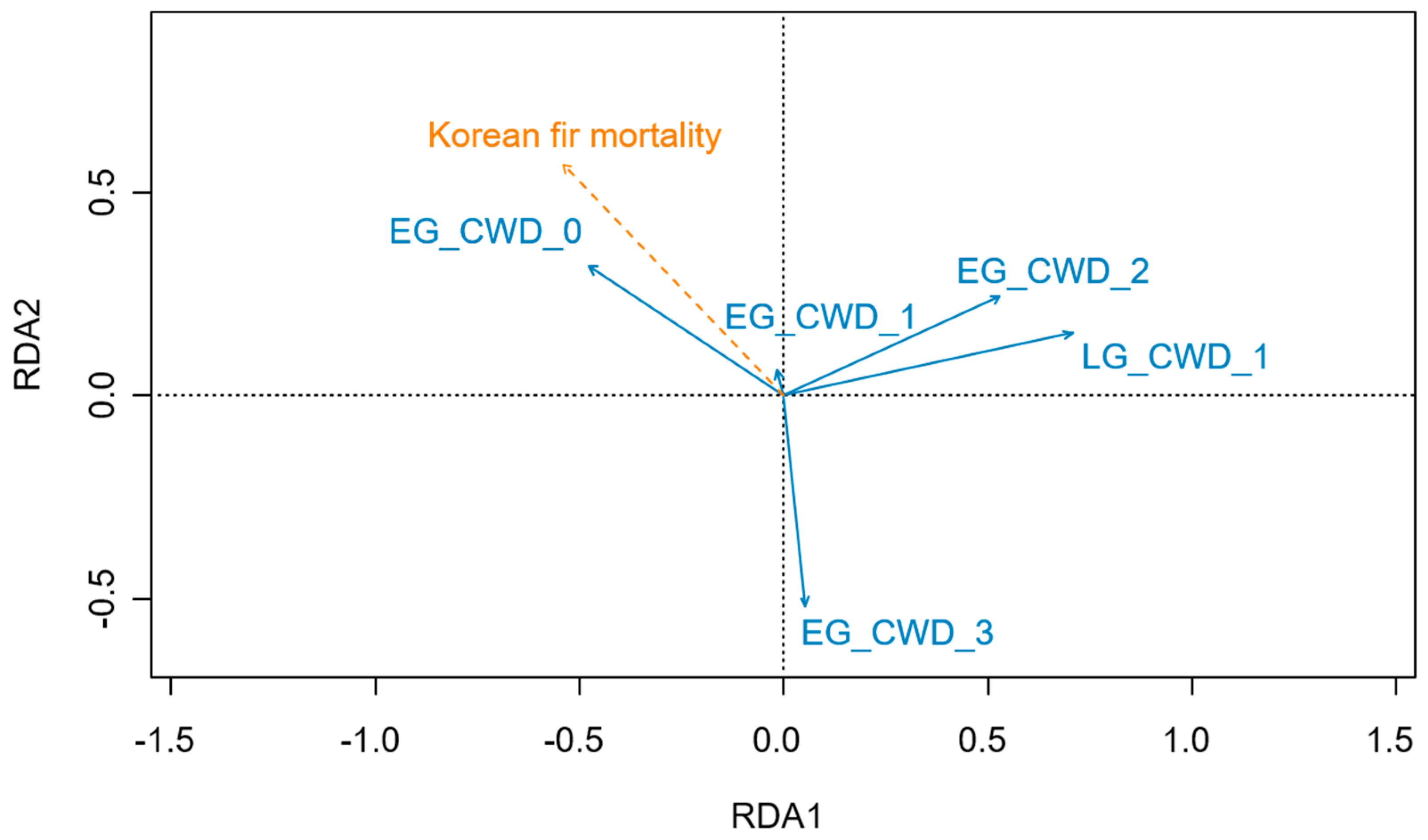

The biplot of the RDA explains 58.5% of the variance in tree mortality (Figure 4), with the first and second axes explaining 35.5% (p < 0.01) and 23.0% (p < 0.05), respectively. Korean fir mortality shows a negative relationship with the first axis and a positive relationship with the second axis. This was interpreted as indicating that mortality is most closely related to the EG_CWDs of the current and previous years, which have a negative relationship with the first axis and a positive relationship with the second axis. The EG_CWD from two years ago and LG_CWD from one year ago can be linked to mortality only in the second axis, showing a positive relationship with the second axis. However, the EG_CWD from three years ago exhibited a positive relationship with the first axis and a negative relationship with the second axis, indicating a lower correlation with Korean fir mortality. Therefore, EG_CWDs from the past two years and the previous year’s LG_CWD were used as weather variables in the Korean fir mortality model.

3.3. Evaluation of the Korean Fir Mortality Model

The random forests Korean fir mortality model was trained using annual monitoring data and predicted mortality by incorporating weather-, topography-, individual-, and stand-related variables. The model achieved an overall accuracy of 94.7%, with a Cohen’s Kappa of 0.732 (Table 4). The producer accuracy was 96.0% for mortality and 94.6% for survival, while the user accuracy was 63.0% for mortality and 99.6% for survival. Among the explanatory variables, DBH and RDBH were found to be the most important for predicting mortality, followed by slope, stand basal area, stand density, and the current year’s EG_CWD (Figure 5).

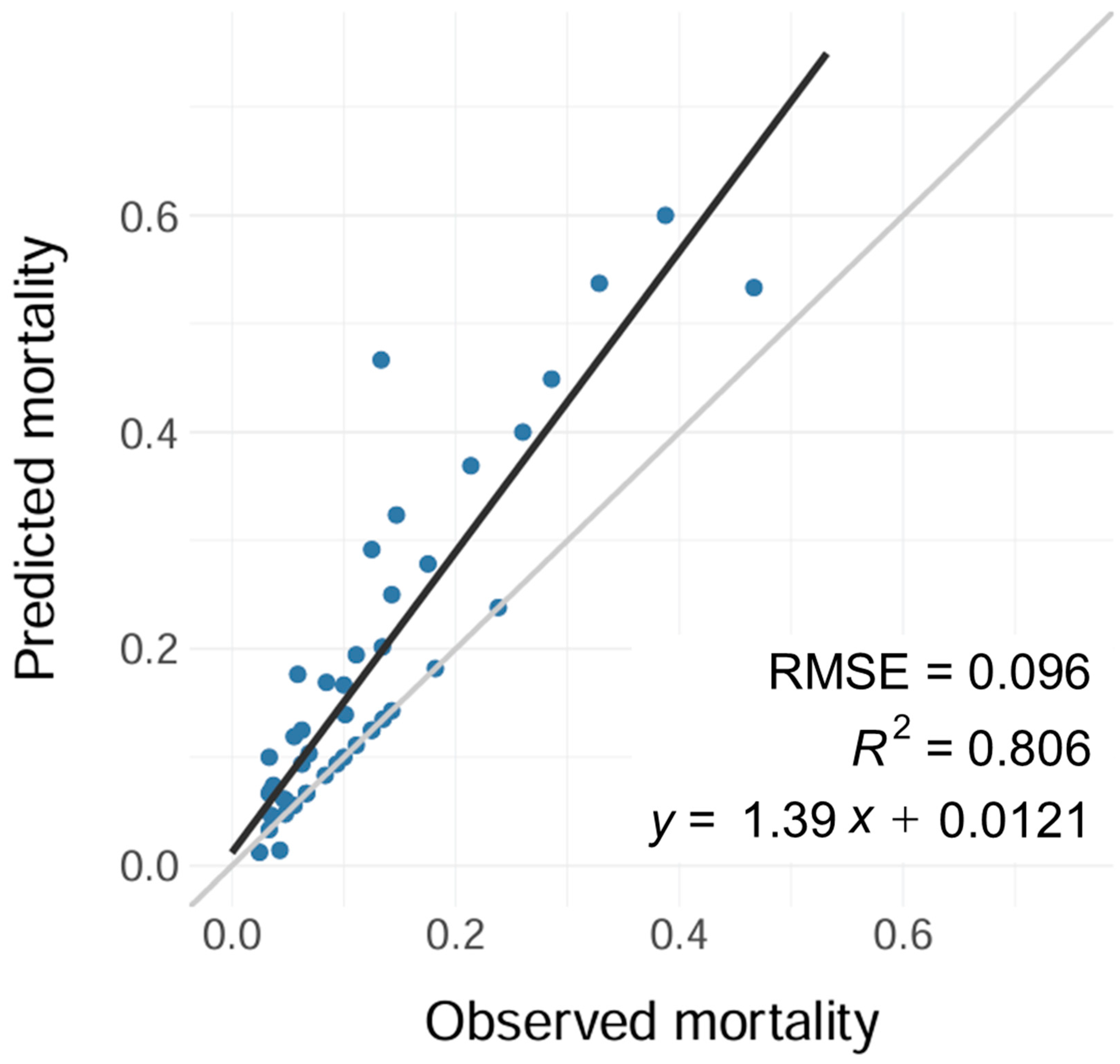

The model showed reasonable performance, with a root mean square error of 9.6% (Figure 6). The regression coefficient between the observed and predicted mortality rates by site and year was 1.39, indicating a tendency to overestimate mortality (Figure 6). However, a strong correlation between observed and predicted mortality rates (R2 = 0.81) suggests that the model provides a sufficiently accurate explanation of Korean fir mortality.

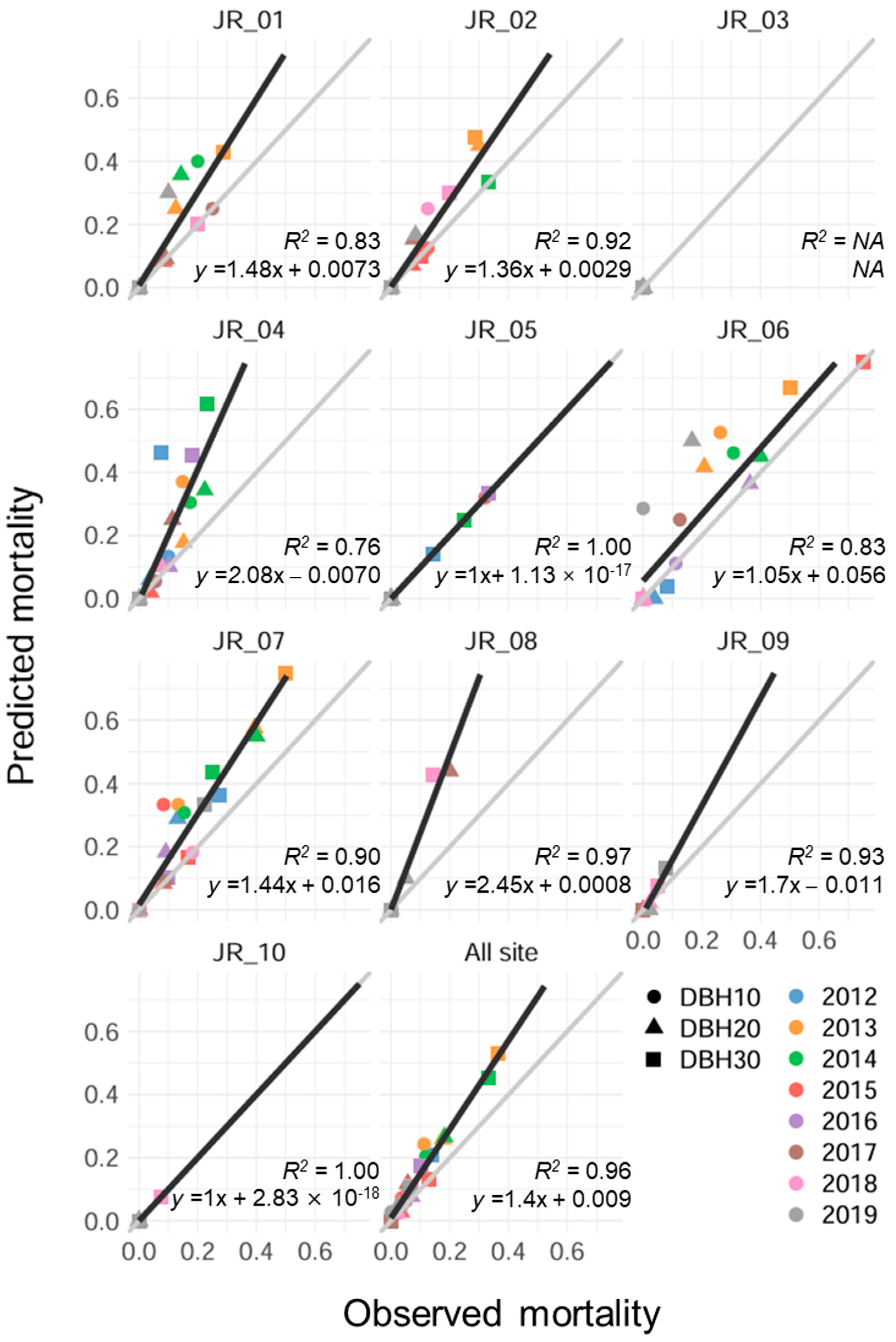

To compare the observed and predicted mortality rates by site and diameter class, the mortality rates were refined accordingly (Figure 7). The observed and predicted mortality rates were highly correlated across all sites, and the model accurately predicted no mortality in JR_03, where no mortality was observed. Overall, the model tended to overestimate mortality, though the degree of overestimation varied by site. In JR_05 and JR_10, the predicted mortality rates closely matched the observed mortality, while only a slight overestimation was seen in JR_06. Similar levels of overestimation were seen for sites JR_01, JR_02, JR_07, and JR_09. However, mortality was highly overestimated for JR_04 and JR_08, with regression coefficients exceeding 2.

3.4. Effect of Climate Change on Korean Fir Mortality

Before analyzing the effect of climate change, a recent weather scenario and two historical weather scenarios for comparing Korean fir mortality due to drought conditions were established considering the legacy effects of drought on Korean fir mortality. The recent weather scenario reflected drought conditions from 2010 to 2019, and the two historical weather scenarios reflected drought conditions from 20 years ago (1990–1999) and 30 years ago (1980–1989), respectively. The mean EG_CWD was 166 mm for the recent, 82 mm for the 20-years-ago, and 109 mm for the 30-years-ago scenarios. The mean LG_CWD was 337 mm for the recent, 293 mm for the 20-years-ago, and 211 mm for the 30-years-ago scenarios. The mean D_CWD was 7 mm for the recent, 26 mm for the 20-years-ago, and 32 mm for the 30-years-ago scenarios.
We compared the predicted Korean fir mortality rates using the recent and historical weather scenarios to confirm the impact of drought conditions on Korean fir mortality (Table 5). The prediction using the recent weather scenario presented an annual mean mortality rate of 12.8% over an 8-year period. In contrast, predictions using historical weather scenarios, which had lower mean CWDs during the growing season, presented lower mortality rates compared to the recent weather scenario: an annual mean mortality rate of 6.4% for weather data from 20 years ago and 8.2% for those from 30 years ago. However, the impact of CWD on Korean fir mortality varied by site. In JR_01, JR_02, JR_04, and JR_06, the predictions presented substantially lower predicted mortality rates at the lower growing season CWDs of the historical scenarios, while in JR_05 and JR_07, differences were minimal.

4. Discussion

The results of this study provide notable insights into the drought influencing Korean fir mortality in Jirisan, with particular attention to the seasonal and legacy effects of drought. The high accuracy of the random forest model in predicting mortality suggests that the model effectively captures the complex interactions between individual, stand, topographic, and weather factors influencing tree mortality.

4.1. Drought’s Impact on Korean Fir Mortality

We analyzed the impact of drought on Korean fir mortality using annual monitoring data from Jirisan. Typically, forest monitoring data are collected at multi-year intervals, making it challenging to precisely determine the dieback timing [14,16]. However, the monitoring data in this study were collected annually, providing a high temporal resolution. This enabled a clearer analysis of the impacts of drought, the severity of which fluctuates year by year.
The results of the RDA revealed that Korean fir mortality is strongly linked to drought stress during the growing season, with EG_CWD, representing drought stress during the early growing season, showing a particularly pronounced effect [25,31,33,35]. Cell division and growth in the cambium layer of conifers generally occur during the early growing season [39,40,41], which may increase their vulnerability to drought stress [92]. Increases in EG_CWD, related to precipitation decreases and temperature increases during the early growing season (May–June), are believed to have been a major factor in Korean fir mortality in Jirisan.
Moreover, legacy effects of drought on Korean fir mortality were confirmed [14,93], with notable effects depending on the period in the growing season [36,94]. The EG_CWDs from the preceding three years had a significant impact on mortality, while only the previous year’s LG_CWD had a significant impact. Compared to previous studies on similar species, this response period is notably short, indicating that Korean firs in Jirisan are particularly vulnerable to climate change [14]. This finding underscores the importance of both current and past drought conditions when assessing drought’s impacts on forest ecosystems and predicting drought-related mortality. Additionally, further investigation into carbon starvation in Korean firs is necessary to clarify the physiological mechanisms underlying drought-related mortality [12].

4.2. The Korean Fir Mortality Model

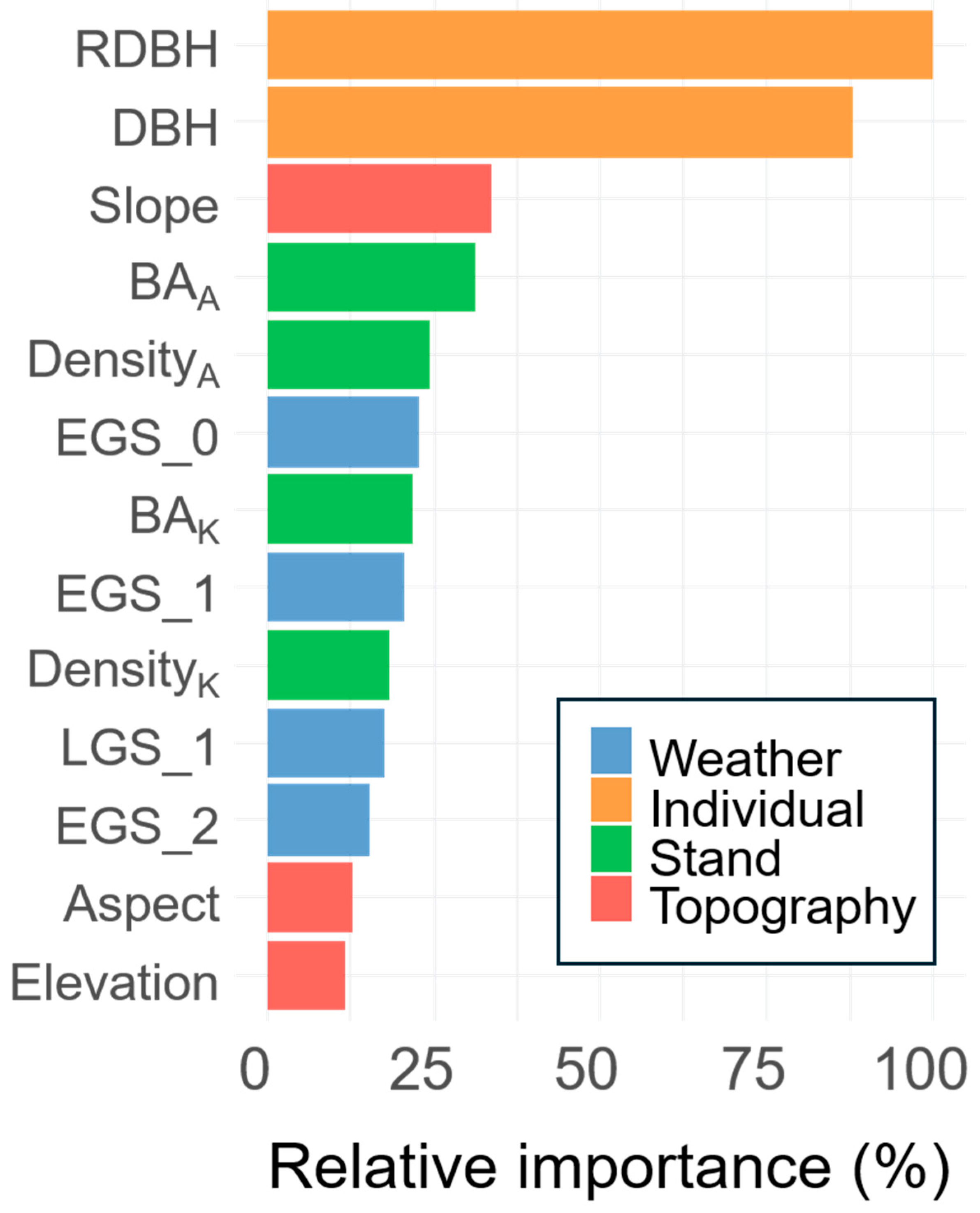

The mortality model in this study simulated the mortality and survival of Korean fir using a small number of variables, including weather-, topography-, individual-, and stand-related characteristics, achieving a high prediction accuracy of 94%. The primary factors predicting mortality and survival of Korean fir during the monitoring period were two relating to tree size, indicating that sensitivity to drought stress varies significantly with tree size, as has been shown in other studies [49,55,65]. Larger trees may experience a greater reduction in net productivity under drought stress because they must allocate more resources to foliage than smaller trees and have lower hydraulic conductivity [95,96,97]. Furthermore, larger tree’s crowns receive direct sunlight, leading to higher transpiration rates and, thus, an increased sensitivity to drought stress compared to understory trees [52,53]. At the stand level, mortality rates and tree diameter class have shown both linear [48,49,50,54,98] and nonlinear [55] relationships. The model successfully captured these relationship types between tree size and mortality, which varied by year and stand.
Among the topographic variables, slope was identified as an important variable in predicting Korean fir mortality, with trees in steeper areas simulated as being more sensitive to drought [28,48,93]. In areas with steep slopes, water runoff occurs more easily, leading to relatively lower soil water availability [99,100]. However, while Korean fir in Hallasan National Park has been reported to exhibit higher mortality rates on gentle slopes [24], this pattern was not observed in Jirisan. At JR_03, the site with the gentlest slope, no Korean fir mortality was observed, and the model also predicted no mortality. Additionally, JR_06 and JR_07, sites with steep slopes, showed high mortality rates both in monitoring and model predictions.
Other topographic variables, such as aspect and elevation, were found to have the lowest importance. Although aspect and elevation influence potential evapotranspiration, a factor in the calculation of ecosystem water demand, through solar radiation and temperature, respectively [101,102], the gradient range of the monitoring sites in this study appears too narrow to capture the impact of variables effectively (Table 1). To better analyze the effects of aspect and elevation, further spatial statistical research using remote sensing and GIS techniques and study sites over a broader spatial scale is necessary.
Stand variables, such as basal area and density, representing both the community and Korean fir populations were also important variables in predicting Korean fir mortality. Drought-related mortality has shown both linear [50,55,98] and non-linear [54] relationships with stand density and basal area, likely due to intensified competition for water under drought conditions [8,47,103,104]. However, based on the results of this study, it is difficult to determine the precise impacts of competition intensity on drought-related mortality. Resolving uncertainties regarding the role of stand density and basal area in Korean fir mortality will require further research, including long-term monitoring and the direct quantification of water competition, particularly as it shifts with climate change at the landscape scale [15].
Weather variables were assessed as having less importance in predicting Korean fir mortality than other variables. The CWD was used as a weather variable in this study, representing local scale drought conditions across the Jirisan area, and site-specific and individual variables that contribute to differences in drought intensity were more important in the model. Among weather variables, the current year’s EG_CWD had the highest importance, followed, in descending order, by the previous year’s EG_CWD, the previous year’s LG_CWD, and the EG_CWD from two years ago. Showing consistency with the findings of previous studies, drought immediately preceding Korean fir mortality was assessed as having the greatest impact [31,33,35,105].

4.3. Application and Limitations of the Korean Fir Mortality Model

The mortality model is also applicable for assessing the impact of climate change on Korean fir mortality. Despite the relatively low importance of weather variables, simulations using the lower growing season CWDs from two historical weather scenarios (1980–1989 and 1990–1999) predicted lower mortality rates. At JR_01, JR_02, JR_04, and JR_06, simulations using both historical weather scenarios predicted substantially lower mortality rates than the simulation using the recent weather scenario, suggesting that Korean fir mortality at these locations may be closely associated with climate change-induced rising EG_CWDs. Notably, simulations at JR_06, even though lower under historical weather conditions, showed high mortality rates, suggesting that additional factors may be contributing to the mortality rates at this site. In contrast, simulations for JR_05 and JR_07 showed few differences in mortality rates between the recent and historical scenarios, indicating that Korean fir mortality at these sites may be driven by species or stand characteristics, such as the short lifespan of Korean fir [25] or the dieback and regeneration wave often observed in subalpine Abies species [106,107].
This study confirmed that increased Korean fir mortality rates are associated with extreme changes in local precipitation patterns, with reduced precipitation during May and June identified as a key factor. At the JR_03 site, no Korean fir mortality was observed, suggesting this site may serve as a refugia for Korean fir. However, the long-term sustainability of this refugia remains uncertain. To evaluate the sustainability of potential refugia, climate scenarios incorporating extreme weather pattern changes are necessary. However, climate scenarios based on global circulation models often simplify future climate by presenting mean weather conditions, which fail to capture extreme weather events at local scales [108,109,110]. This is especially problematic for precipitation, for which local and regional biases can be pronounced [111,112,113]. To assess the potential of future refugia for Korean fir, it will be essential to adjust the local and regional biases of climate change scenarios [114,115].

5. Conclusions

Tree mortality results from the complex interactions of numerous factors, making it extremely challenging to predict accurately. In this study, we confirmed that increases in drought frequency influence Korean fir mortality in the subalpine area of Jirisan, highlighting both the seasonal and legacy effects of drought. The impact of drought on Korean fir mortality was found to exhibit dependency by season, with drought during the growing season influencing dieback, particularly during the early growing season, which was found to be most detrimental. Drought during the early growing season had a significant impact on mortality up to three years later, and drought during the late growing season had a significant effect on mortality in the next year. Based on the seasonal and legacy effects, our mortality model effectively explained Korean fir mortality using a simplified set of variables, including weather, topography, stand, and individual characteristics, and successfully predicted the complex relationships between these variables and tree mortality, which vary by site and year. By comparing simulations using both recent and historical weather data, the model demonstrated its potential to assess the effects of climate change on Korean fir mortality.
These results provide valuable insights into Korean fir mortality and offer essential information for conservation efforts. Additionally, the methodology can contribute to a detailed analysis of the drivers of mortality and the development of mortality models for trees experiencing severe dieback due to climate change. We also suggest where future research should focus in order to address uncertainties related to Korean fir conservation in Jirisan. Although elevation and aspect are important variables affecting the spatial patterns of mortality, their influence could not be confirmed within the scope of this study, necessitating spatial statistical research at a larger scale. Furthermore, the study was unable to explain the relationship between intensified water competition under drought conditions and mortality. To better interpret these dynamics, efforts directly quantifying water competition will be required.

Author Contributions

Conceptualization, W.L., H.-C.P., J.-W.S., and D.W.K.; methodology, W.L., H.-C.P., and S.P.; software, W.L. and S.P.; validation, W.L. and H.-C.P.; formal analysis, W.L. and S.P.; investigation, W.L., H.-C.P., and J.K.; resources, W.L., J.K., and D.W.K.; data curation, W.L., S.P., and J.K.; writing—original draft preparation, W.L.; writing—review and editing, W.L., H.-C.P., J.-W.S., and D.W.K.; visualization, W.L. and S.P.; supervision, H.-C.P. and D.W.K.; project administration, H.-C.P. and J.K.; funding acquisition, J.K. and D.W.K. All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported by the Korea National Park Research Institute (KNPRI), Korea National Park Service (KNPS), Ministry of Environment (MOE) of the Republic of Korea, as the “The monitoring project of Ecosystem in National Park according to climate change (NPRI 2017-36; 2018-14; 2021-31)”.

Data Availability Statement

The datasets presented in this article are not readily available because they play a role in policy decision-making. Requests to access the datasets should be directed to the corresponding author. However, public access is expected to be granted at a subsequent stage.

Acknowledgments

We are grateful to all contributors for the subalpine forest monitoring program of the Korea National Park Research Institute.

Conflicts of Interest

The authors declare no conflicts of interest.
