Article

Validation of the Physical and Mechanical Properties of Eucalyptus benthamii Maiden & Cambage Wood and Cross Laminated Timber Panels Using the Finite Element Method

by
Matheus Zanghelini Teixeira
1,*,
Rodrigo Figueiredo Terezo
2,
Alexsandro Bayestorff da Cunha
2,
Gustavo Faggiani Tomio
2,
Hector Bovo Coelho
2 and
Camila Alves Corrêa
2
1
Civil Engineering Department, Center for Optimization and Reliability in Engineering (CORE), Federal University of Santa Catarina (UFSC), Rua João Pio Duarte Silva, Florianópolis 88040-970, SC, Brazil
2
Forestry Engineering Department, Center for Agroveterinary Sciences (CAV), State University of Santa Catarina (UDESC), Av. Luiz de Camões, 2090, Conta Dinheiro, Lages 88520-000, SC, Brazil
*
Author to whom correspondence should be addressed.
Forests 2024, 15(5), 881; https://doi.org/10.3390/f15050881
Submission received: 7 April 2024 / Revised: 7 May 2024 / Accepted: 14 May 2024 / Published: 19 May 2024
(This article belongs to the Special Issue Sustainable Materials in the Forest Products Industry)
Browse Figures
Versions Notes

Abstract

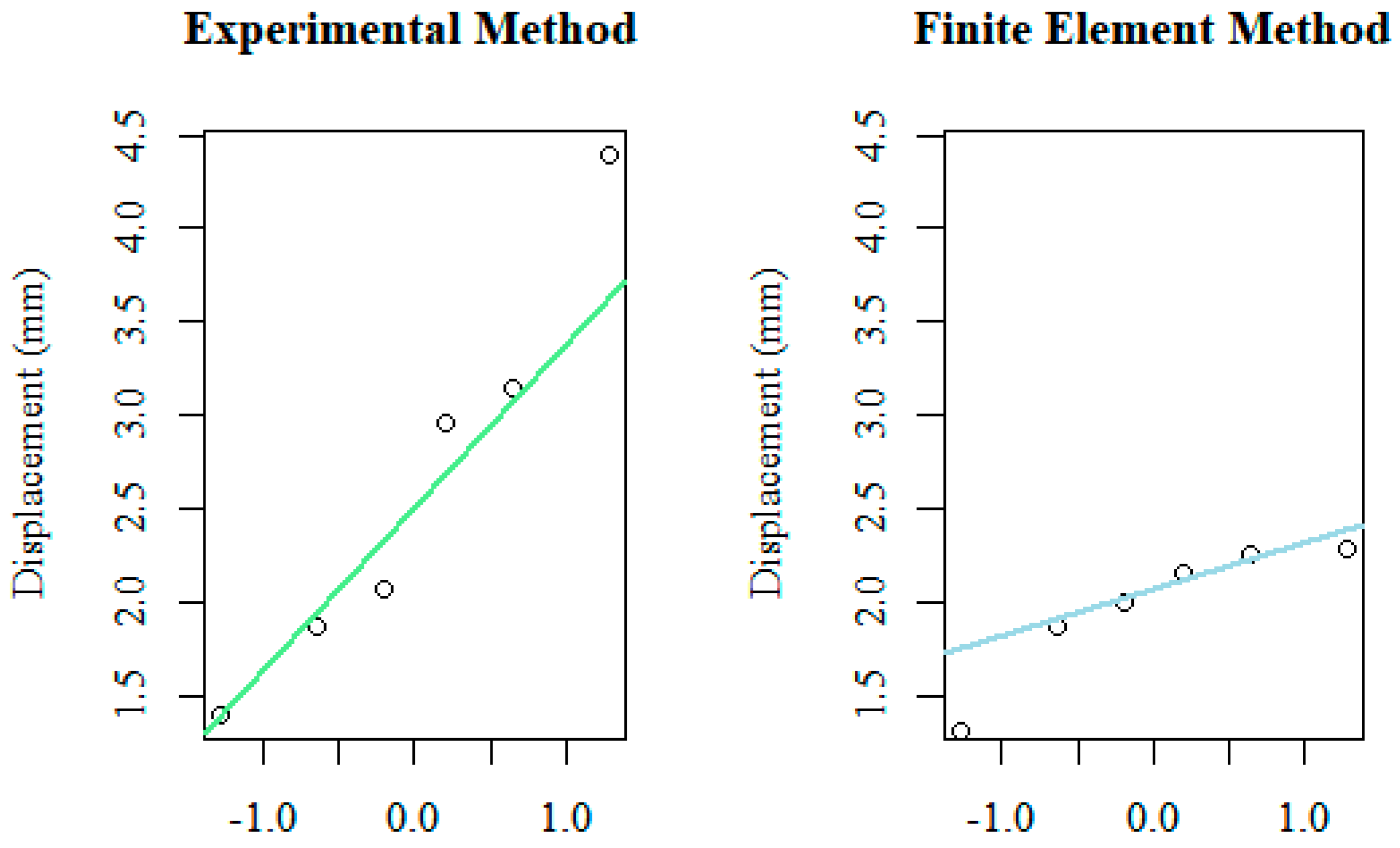

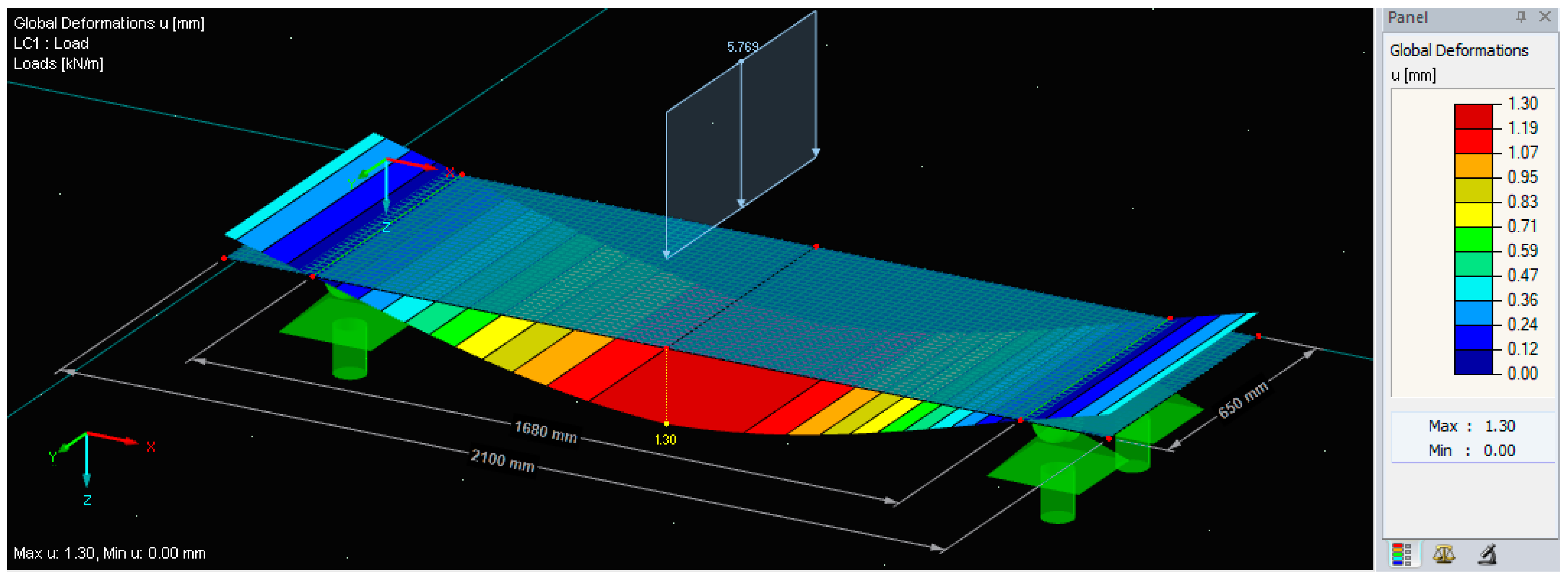

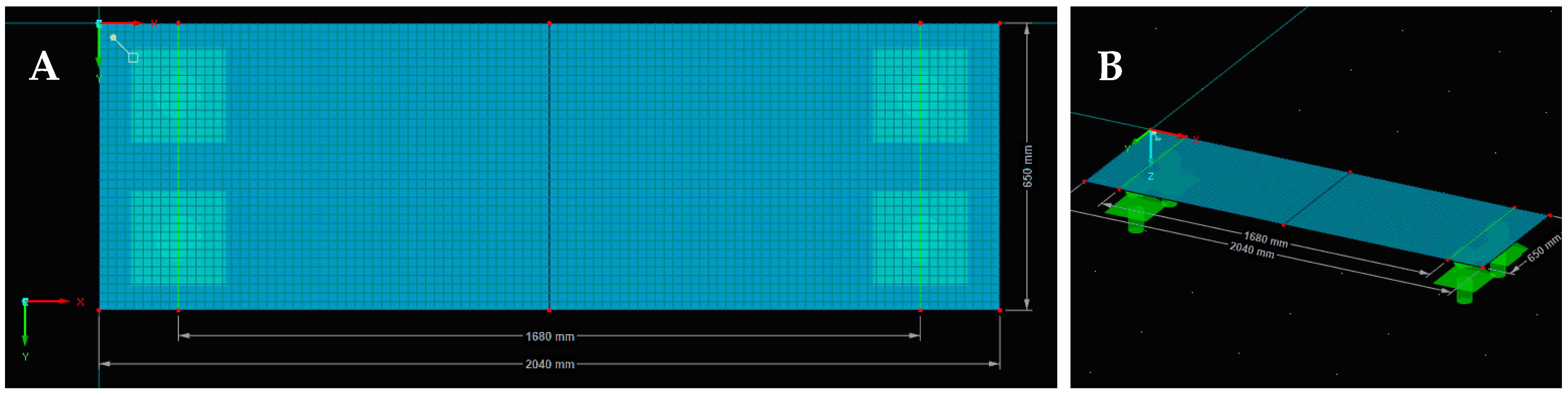

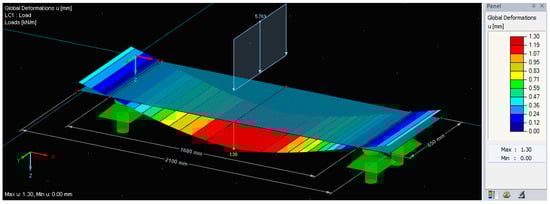

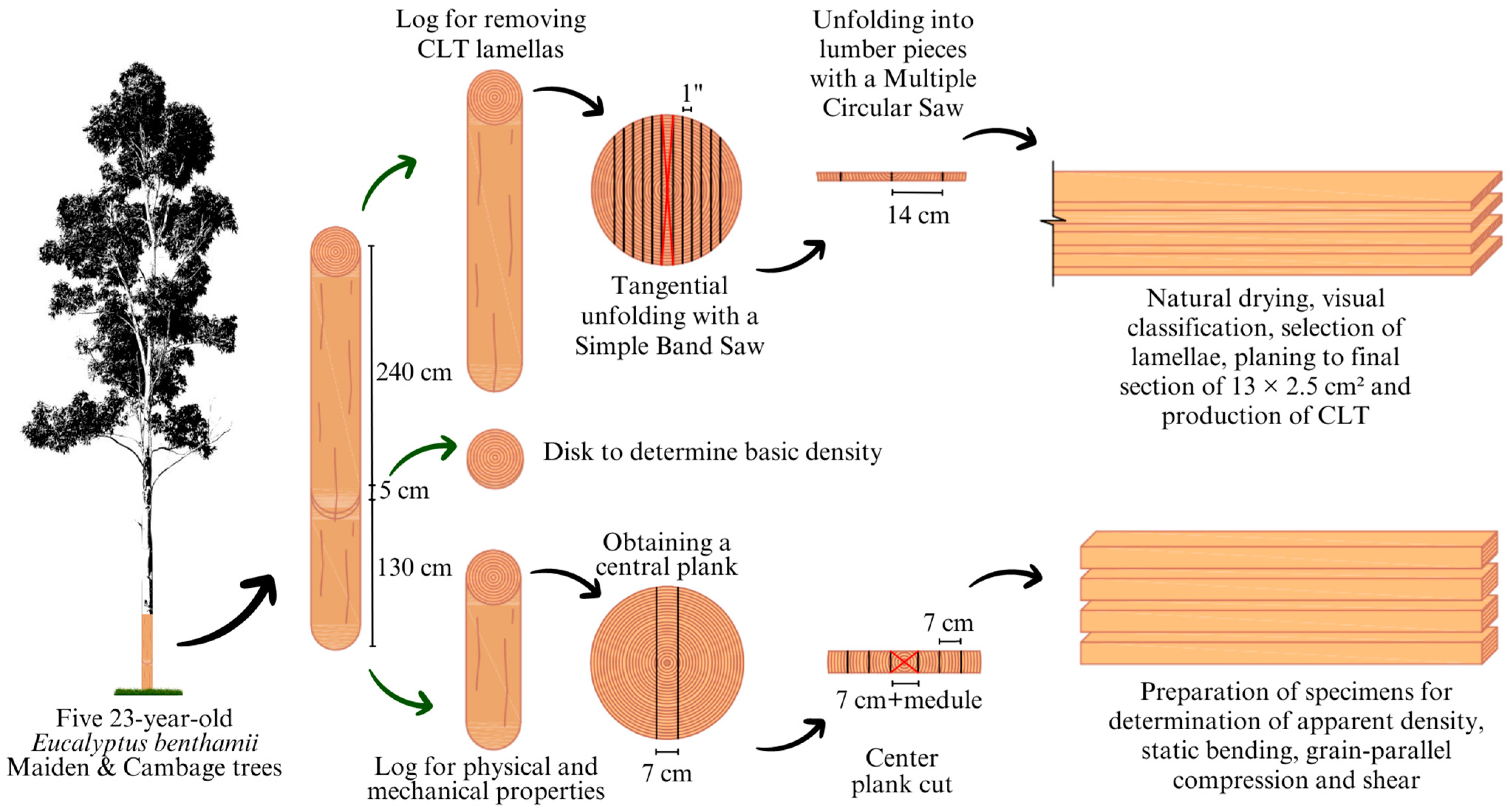

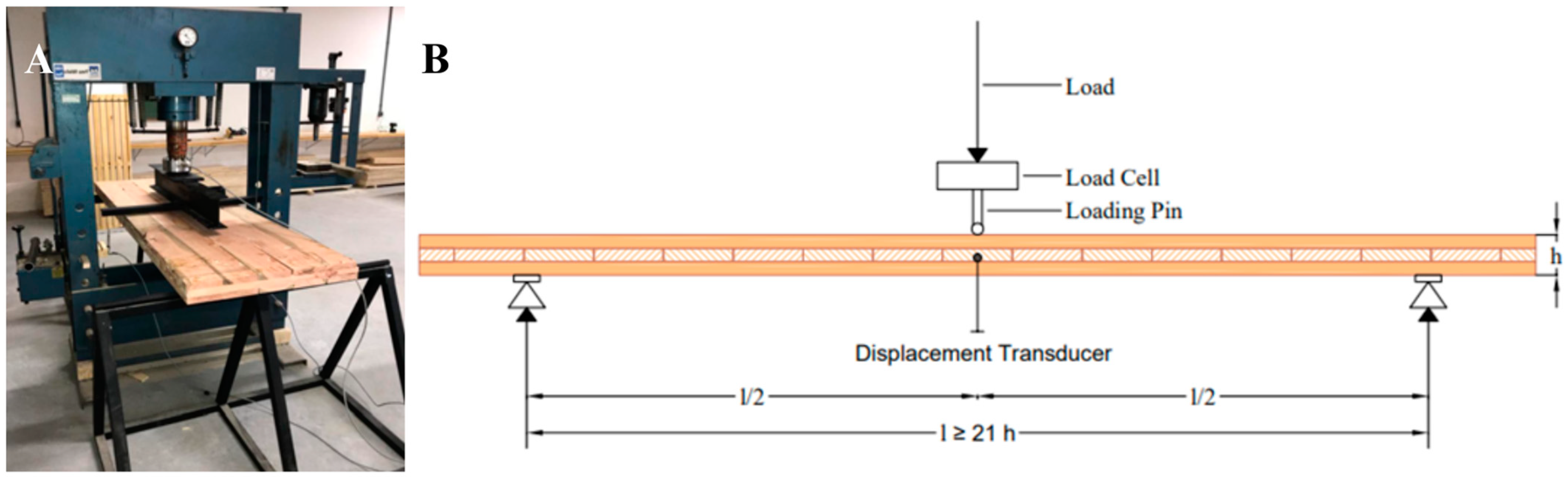

Cross Laminated Timber (CLT) is a structurally complex panel that poses challenges in analysis due to the anisotropic nature of wood and the orthotropic characteristics of the composite. Numerical modeling using the Finite Element Method (FEM) offers a viable solution for analysis, particularly for addressing boundary value problems that are analytically challenging. Therefore, it is crucial to validate the experimental properties to ensure accurate results. The objective of this study was to validate the physical and mechanical properties for structural modeling using FEM, based on the characterization of Eucalyptus benthamii Maiden & Cambage wood and CLT panels. For wood characterization, the basic and apparent density were determined, and mechanical tests, including static bending, parallel-to-grain compression, and shear tests, were conducted. Utilizing the same batch of wood, three-layer CLT panels were manufactured and subjected to a non-destructive three-point bending test. This test was simulated in RFEM finite element software, employing Mindlin’s theory, and the displacements obtained were compared with the experimental method. The results from a Student’s t-test at a 5% significance level indicated no significant difference between the experimental and numerical methods, suggesting that the properties of the experimental E. benthamii CLT panel can be accurately represented by FEM.
Keywords: timber structures; numerical simulation; deflection; wood characterization timber structures; numerical simulation; deflection; wood characterization
