Article

Characteristics of the Complete Plastid Genome Sequences of the Monotypic Genus Dodecadenia (Family: Lauraceae) and Its Phylogenomic Implications

by
Chao Liu
1,2,
Huanhuan Chen
1,2,
Jian Cai
1,2,
Xiangyu Tian
3,
Lihong Han
1,2,* and
Yu Song
4,5,*
1
College of Biological Resource and Food Engineering, Qujing Normal University, Qujing 655011, China
2
Yunnan Engineering Research Center of Fruit Wine, Qujing Normal University, Qujing 655011, China
3
School of Life Sciences, Zhengzhou University, Zhengzhou 450001, China
4
Key Laboratory of Ecology of Rare and Endangered Species and Environmental Protection (Ministry of Education), Guangxi Normal University, Guilin 541004, China
5
Guangxi Key Laboratory of Landscape Resources Conservation and Sustainable Utilization in Lijiang River Basin, Guangxi Normal University, Guilin 541004, China
*
Authors to whom correspondence should be addressed.
Forests 2022, 13(8), 1240; https://doi.org/10.3390/f13081240
Submission received: 7 July 2022 / Revised: 31 July 2022 / Accepted: 4 August 2022 / Published: 5 August 2022
(This article belongs to the Section Genetics and Molecular Biology)
Browse Figures
Review Reports Versions Notes

Abstract

:
As one of a dozen monotypic genera in the family Lauraceae, the systematic position of Dodecadenia Nees remains controversial. Here, two complete plastomes of Dodecadenia grandiflora Nees were sequenced. The two plastid genomes, with the length of 152,659 bp and 152,773 bp, had similar quadripartite structure. Both consisted of one large single-copy (LSC) region with 93,740 bp and 93,791 bp, one small single-copy region (SSC) with 18,805 bp and 18,846 bp, and a pair of inverted repeats (IR) regions with 20,057 bp and 20,068 bp. A total of 128 genes were annotated for the D. grandiflora plastid genomes (plastomes), which included 84 protein-coding genes (PCGs), 36 tRNA genes and eight rRNA genes. Codon usage analysis of the D. grandiflora plastomes showed a bias toward A/U at the third codon. A total of 122 RNA editing events were predicted, and all codon conversions were cytosine to thymine. There were 30/36 oligonucleotide repeats and 89/94 simple sequence repeats in these two plastomes of D. grandiflora. Based on 71 plastomes, both Bayesian and maximum likelihood phylogenetic analyses showed that D. grandiflora are nested among the species of Litsea Lam. together with Litsea auriculata Chien et Cheng and suggested that the monotypic genus Dodecadenia Nees should be revised. In addition, the highly variable loci trnG intron and ycf3-trnS could be used as excellent candidate markers for population genetic and phylogenetic analyses of D. grandiflora.

1. Introduction

The monotypic genus in the family Lauraceae includes Dahlgrenodendron J.J.M.van der Merwe and A.E.van Wyk, Dodecadenia Nees, Eusideroxylon Teijsm. and Binn., Hexapora Hook.f. Hypodaphnis Stapf, Iteadaphne Blume, Paraia Rohwer, H.G.Richt. and van der Werff, Parasassafras D.G.Long, Potoxylon Kosterm., Sinopora J.Li, N.H.Xia & H.W.Li, Sinosassafras H.W.Li, and Umbellularia Nutt. (http://foc.iplant.cn/, accessed on 20 June 2022). Dodecadenia comprises D. grandiflora Nees 1831 and belongs to the tribe Laureae, mainly distributed in Himalayan and Hengduan Mountains (Bhutan, India, Myanmar, Nepal, and Yunnan, Tibet and Sichuan of China) [1]. The tribe Laureae, also known as the Litsea complex, is composed approximately of 500 species and 10 genera: Actinodaphne Nees, Adenodaphne, Dodecadenia, Iteadaphne, Laurus L., Lindera Thunb, Litsea Lam., Neolitsea Merr., Parasassafras and Sinosassafras H.W.Li [2,3,4,5,6,7]. In the previous classification system of Lauraceae, the Litsea complex is characterized by consistent morphological features of racemose inflorescences [1,8]. In Kostermans’ system, the tribe Litseeae was divided into 4-celled anther subtribe Litseineae and 2-celled anther subtribe Lauriineae, including Litsea/Neolitsea and Lindera/Laurus, respectively. Dodecadenia and Iteadaphne were treated as subgenera in the Litsea and Lindera, respectively [9]. In the process of the transformation of the racemose inflorescence into a pseudo-umbel, a single flower occurs in the involucre of Dodecadenia and Iteadaphne [2]. The Litsea complex is basically characterised by introrse pollen sacs, and latrorse pollen sacs occurring in the Iteadaphne and Dodecadenia [2]. However, androecial characteristics are often variable, even within genera, and should not be used in the classification of Lauraceae [8]. The number of anther cells is not a valuable characteristic for phylogenetic identification of core Lauraceae [10]. Generic delimitation within the Litsea complex has traditionally been problematic [11]. Furthermore, a major disparity exists between molecular data and morphology-based classifications, probably due to the complex interpretation of the morphological characteristics of Lauraceae [12,13]. In order to distinguish the D. grandiflora and Litsea species and reconstruct their systematic relationships, a molecular approach is of considerable interest.
The earlier reported molecular markers for the Lauraceae were the trnL-trnF, trnT-trnL, psbA-trnH, and rpll6 regions of plastid, and the 26S and 5.8S regions of ribosomal DNA (rDNA) [3]. Based on the matK of the plastid genome (plastome) and the internal transcribed spacer (ITS) of rDNA of the nuclear genome, Li et al. [11] revealed that most genera of the Litsea complex are polyphyletic and display conflicts between matK and ITS. In the Litsea complex, D. grandiflora has previously been retrieved as the sister to Laurus nobilis L., with 89% support in their matK data, and to Litsea glutinosa (Lour.) C. B. Rob. and Litsea sect. Cylicodaphne (BS = 78%) in the matK and ITS combined data [11]. Another study [12], using ITS and the external transcribed spacer (ETS) sequences with 71 species, constructed a phylogenetic tree in order to settle the positions of core Laureae, which indicated the close relationships between D. grandiflora and Litsea elongata (Wall. ex Nees) Benth. et Hook. f., Litsea yaoshanensis Yang et P. H. Huang, and Litsea acutivena Hay. Fijridiyanto and Murakami [4] performed the phylogenetic relationships of the tribe Laureae based on matK and ITS regions and found that several species of Litsea and Lindera were nested with each other; Actinodaphne and Neolitsea were monophyletic with a close relationship.
Due to its high conservation, few recombination incidents, low nucleotide replacement rates, and rapid evolution rate, the plastome has become an ideal tool for studying the phylogenetic relationships among species [14,15]. As more and more plastomes are decoded, phylogenetic analyses based on plastome have become increasingly popular, which provides an effective solution for solving systematic problems [16,17,18]. Compared to DNA barcodes or specific regions, plastome data provided a modest increase in discrimination in Lauraceae [13]. Based on plastome sequences, Lauraceae was divided into nine clades and Laurus–Neolitsea clade formed the Litsea complex [6]. Indeed, a large number of plastomes of Lauraceae have been released [6,15,19,20], while the plastid genome of D. grandiflora is not available yet.
Dodecadenia grandiflora is a terrestrial evergreen species used as an antihyperglycemic agent by the traditional medical practitioners [21]. Four compounds, two phenylpropanoyl esters of catechol glycosides and two lignane bis esters, extracted from the leaves of D. grandiflora showed significant antihyperglycemic activity in streptozotocin-induced diabetic rats [21]. In the present study, the complete plastomes of two D. grandiflora samples were de novo assembled using Illumina sequencing technology, and the features of the plastomes were fully elucidated. Combined with the other 69 plastomes of the Lauraceae species from a public database, the genealogical relationships between D. grandiflora and other species were elucidated. Our aims were to investigate the structural pattern of complete plastome, and to determine phylogenetic status for D. grandiflora species based on complete plastome sequences. Our results would enrich the plastome database of Lauraceae and provide resources for utilizing D. grandiflora in future studies.

2. Materials and Methods

2.1. Plant Materials and Plastome Sequencing

Fresh leaves from two wild D. grandiflora seedlings were collected and identified by Dr. Yu Song (Guangxi Normal University): D. grandiflora I from Yongsheng County Yunnan and D. grandiflora II from Jilong County Tibet, China. The specimens were deposited at the herbarium of Guangxi Normal University with the archival number of BRG-SY37528 and BRG-SY61123. Total genomic DNA was extracted from the leaf using the CTAB method [22]. The 150 bp paired-end reads were produced to construct libraries by next-generation sequencing platform on an Illumina NovaSeq 6000 at Novogene Bioinformatics Technology Co., Ltd. (Tianjin, China). Approximately 3.4 Gb of raw data were yielded. The qualities of the clean reads were checked with FastQC v0.11.8.

2.2. Plastome Assembly and Annotation

The sequencing adapters and low-quality reads were filtered, and the circular plastomes were assembled de novo using GetOrganelle v1.7.0 [23]. Average read coverage of 95× of plastomes were assembled. The plastomes were annotated with GeSeq (https://chlorobox.mpimp-golm.mpg.de/geseq.html, accessed on 4 February 2022) [24] and Geneious v8.0.2 [25]. The map of annotated D. grandiflora plastome was generated with CHLOROPLOT software (https://irscope.shinyapps.io/Chloroplot/, accessed on 4 February 2022) [26]. The well-annotated plastomes of D. grandiflora was submitted to the public GenBank database under the accessions ON931229 (D. grandiflora I) and ON931230 (D. grandiflora II).

2.3. Sequence Analysis

The long repeats of the D. grandiflora plastomes, including the forward, reverse, palindrome, and complement types, were detected by the online REPuter program (https://bibiserv.cebitec.uni-bielefeld.de/reputer, accessed on 4 February 2022) [27] with a minimum repeat size of 30 bp and a hamming distance of 3. In addition, simple sequence repeats (SSR) were detected via MISA (https://webblast.ipk-gatersleben.de/misa/, accessed on 4 February 2022) [28] by setting the minimum number of repeats to 10, 5, 4, 3, 3 and 3 for mononucleotide, di-, tri-, tetra-, penta- and hexa-, respectively. The relative synonymous codon usage (RSCU) and amino acid frequencies were calculated using EMBOSS (http://emboss.toulouse.inra.fr/, accessed on 4 February 2022) and MEGA X [29] with default parameters. The RNA editing sites of 35 protein-coding genes (PCGs) in D. grandiflora were predicted by PREP-Cp program (http://prep.unl.edu/, accessed on 4 February 2022) [30].

2.4. Phylogenetic Analysis

To determine the phylogenetic status of D. grandiflora in the Lauraceae family, a total of 71 Lauraceae species plastomes were performed to construct phylogenetic trees (Table S1). We downloaded plastome sequences of 66 taxa across the litsea complex which correspond to seven genera (Actinodaphne, Iteadaphne, Laurus, Lindera, Litsea, Neolitsea, and Parasassafras) and three outgroup species (Cinnamomum camphora, Cinnamomum micranthum, and Sassafras albidum). These sequences were aligned by MAFFT v7 (https://mafft.cbrc.jp/alignment/server/, accessed on 4 February 2022) [31] and manually edited by BioEdit v7.0.9. Bayesian inference (BI) analyses were conducted with MrBayes v3.2 [32] for one million generations and tree sampling every 200 generations. Maximum-Likelihood (ML) analysis were performed using IQ-TREE v2.1.1 [33] with the GTR + F + R2 model and a bootstrap value (BS) of 1000.

2.5. Sequence Divergence and Comparative Genome Analysis

The plastomes pairwise alignments and sequence divergence between the D. grandiflora and those of 13 closely related species were analyzed using the mVISTA program (https://genome.lbl.gov/vista/mvista/submit.shtml, accessed on 4 February 2022) [34] in Shuffle-LAGAN mode with Litsea auriculata as the reference. Gene order comparison of newly assembled D. grandiflora plastomes were performed using the Mauve plugin in Geneious v8.0.2 [25]. The nucleotide diversity (Pi) of the plastome sequences was calculated using DnaSP v6.10 [35] with a window length of 600 bp for sliding window with a step size of 200 bp.

3. Results

3.1. General Feature of the Plastome

The newly assembled plastomes of D. grandiflora had a quadripartite structure forming a circular molecule, and the size of the two genomes were 152,659 bp and 152,773 bp in length (Figure 1). The LSCs were 93,740 bp and 93,791 bp, the SSCs were 18,805 bp and 18,846 bp, and a pair of inverted repeats were 20,057 bp and 20,068 bp. The two genomes of D. grandiflora showed variation of 51, 41 and 11 bp in LSC, SSC and IR to some extent. The overall guanine-cytosine (GC) contents were 39.2% and 39.1%, respectively. The GC contents were unevenly distributed in different regions of the plastome, with 37.9%, 34.0%, and 44.4% for the LSC, SSC, and IR regions, respectively. In total, 128 genes were annotated in the plastome of D. grandiflora, including 84 PCGs, 36 tRNA genes and eight rRNA genes. Among 113 unique genes, 15 genes were duplicated in the IR regions, including four rRNA genes, six tRNA genes and five protein coding genes. A total of 14 PCGs and eight tRNA genes, and two genes (ycf3 and clpP) possess two introns.

3.2. Amino Acid Frequency and Codon Usage Analysis

The two genomes of D. grandiflora showed similar patterns of amino acid frequency and codon usage. The results showed that the most abundant amino acids encoded are leucine (Leu, 10.27%), isoleucine (Ile, 8.53%), serine (Ser, 7.83%), and glycine (Gly, 7.11%). Least represented in the plastomes examined were cysteine (Cys, 1.18%) and tryptophan (Trp, 1.72%) (Figure S1). The RSCU of 31 codons was greater than 1.0. The count of preferred codons ending with A, U, C, G were 13, 16, one, and one, which showed a bias toward A and U at the third codon usage. Furthermore, the highest RSCU value was AGA (1.80) in arginine (Arg), and the lowest was AGC (0.34) in Ser (Figure 2, Table S2).

3.3. RNA Editing Sites Analysis

The RNA editing analyses showed consistent results with respect to genes and the position of editing sites in the PCGs of the two D. grandiflora genomes. A total of 122 putative RNA editing sites were identified using the PREP-CP software, which were distributed in 31 PCGs (Table S3). All the RNA editing nucleotide changes were from cytidine (C) to thymine (T), and 84 codons were substituted in second nucleotide position (68.9%) and 38 codons were substituted in first nucleotide position (31.1%). All amino acids showed only one type of nucleotide conversion position except Proline, which changed at the first nucleotide position converting proline (Pro) to Ser and phenylalanine (Phe) and changed at second nucleotide converting Pro to Leu. The highest number of RNA editing sites was observed in ndhB (15 sites), followed by ndhD (13 sites), and rpoB (12 sites) genes. The post-transcriptional substitutions of Arg to Cys, Arg to tryptophan, histidine to tyrosine, Leu to Phe, Pro to Phe, and Pro to Ser amino acids changes occurred due to the first codon positions, while the alanine to valine, Pro to Leu, Ser to Leu, Ser to Phe, threonine (Thr) to Ile, and Thr to methionine changes occurred due to the second codon positions (Figure 3). Of the 122 RNA editing sites, 70 changed the encoded amino acid from polar to apolar, and the most abundant amino acid change (42) was the Ser to Leu (Figure 3).

3.4. Repeats Analysis

Thirty/thirty-six long repeats (>30 bp) were predicted in two genomes of D. grandiflora, and the number of palindromic (P) was 11/14, the number of forward (F) was 11/14, the number of both reverse (R) was six, and the number of both complement (C) was two. Most of the repeat ranged from 30 to 39 bp in length and repeat number of 41 bp and 48 bp was one. A total of 8/10 long repeats were identified in LSC region, 13/17 were in IR, two were in SSC, and seven were distributed in the junctions, among which 1/0 were present in the LSC/SSC region, and 6/7 in the LSC/IR region (Figure 4, Table S4).
The number of SSRs of plastome of D. grandiflora was detected using MISA (Figure 5). A total of 89/94 SSRs were detected in two genomes of D. grandiflora. Among these SSRs, the mononucleotide repeat units were the most identified SSRs, and 66/71 for mono nucleotide repeats were identified, all of them belong to A or T base repeats. while AT/TA, AAT/TAA, and AAAT/ATTT repeats were found most in the di-, tri-, and tetranucleotide types, respectively. There were 68/73, 17, and four SSR repeats distributed in LSC, SSC, and IRs of both genomes (Table S5). These SSRs may be potential specific molecular markers in genetic diversity and phylogenetic studies for Dodecadenia.

3.5. Phylogenetic Analyses

Seventy-one plastomes of Lauraceae were used to examine the phylogenetic status of D. grandiflora. The topology of the phylogenetic trees produced with BI and ML methods were similar and topologically congruent and highly supported based on our complete plastome sequences. The relationship of the tribe Laureae clustered in a monophyletic group. The phylogenetic tree revealed that all species of the Litsea complex formed four strongly supported major clades (Figure 6). Five Lindera species (Lindera glauca (Siebold & Zucc.) Blume, Lindera angustifolia Cheng, Lindera fragrans Oliv., Lindera nacusua (D. Don) Merr., and Lindera communis Hemsl.) formed clade I. In clade II, two Laurus (Laurus azorica (Seub.) Franco and Laurus nobilis), two Litsea (Litsea acutivena, and Litsea glutinosa), and Lindera megaphylla Hemsl. formed a monophyletic group that was sister to the other six Lindera and nine Litsea species. Clade III comprised two monophyletic groups, one group was two Lindera and four Litsea species, another group contained D. grandiflora and the other 13 Litsea species. Dodecadenia grandiflora and Litsea auriculata grouped together in the tree with a strong support (BI = 1, BS = 100). In clade IV, eight Lindera species, eight Neolitsea species, four Actinodaphne species, Iteadaphne caudata (Nees) H. W. Li, and Parasassafras confertiflorum (Meisner) D. G. Long formed a monophyletic group that was sister to clade III.

3.6. Comparative Plastome Sequence Divergence and Hotspots Regions

A global sequence alignment of two D. grandiflora and 13 Litsea species plastomes in Clade IIIb were compared to determine interspecific divergence by mVISTA online software with Litsea auriculata as the reference. The results showed that these closely related species had few differences in gene sequence and content (Figure 7). Collinearity detection showed no gene rearrangements within the 15 plastomes (Figure S2). The divergences were more stable in the coding regions than the non-coding regions, and the sequences were more conserved in IR than LSC and SSC.
The nucleotide variability (Pi) values in Lauraceae plastome were calculated using DnaSP. The analysis indicated that the LSC and SSC exhibited higher Pi in comparison to IRs (Figure S3), and the most diverse regions were the intergenic spacers. The Pi values across the 15 plastomes varied from 0 to 0.0149, with an average value of 0.0031. Three highly variable loci trnG-intron, trnC-petN, and ycf3-trnS (Pi ≥ 0.0095) were located in the LSC, and five loci ndhF, ndhF-rpl32, rpl32-trnL, rps15-ycf1, and ycf1 (Pi ≥ 0.0095) were located in the SSC (Figure S3a). The Pi values among the 68 Litsea complex plastomes vary from 0 to 0.0159, with a mean value of 0.0038 (Figure S3b). Six variable loci (Pi > 0.0095) were identified in the LSC region (psbK-psbI, psbI-trnS, trnS-trnG, trnC-petN, psbM-trnD, and ycf2) and five loci in the SSC region (ndhF, ndhF-rpl32, rpl32-trnL, rps15-ycf1, and ycf1). Additionally, six highly variable regions (petA-psbJ, ycf1-ndhF, ccsA-ndhD, ndhH-rps15, rps15-ycf1, and ycf1, Pi > 0.0095) and 325 mutation sites were identified between the two D. grandiflora plastomes, including ten microinversions, 77 indels, and 238 substitutions. Because of indels, ndhF of D. grandiflora II had an 81 bp longer coding sequence.

4. Discussion

Complete plastomes analyses demonstrated utility and simplicity in making inferences regarding systematics and phylogeny [6,15,17,18,36]. In the study, two complete plastomes of D. grandiflora were firstly reported, which broaden the knowledge about phylogeny of the Litsea complex. The genome sizes of the D. grandiflora examined here are similar to those of other Lauraceae [6,19,20,37]. The two newly assembled D. grandiflora plastomes size were 152,659 bp and 152,773 bp, and show some length variation in LSC, SSC and IR. Compared with D. grandiflor I, D. grandiflor II has three sequence inserts with lengths of 17, 18 and 28 bp, located in the intergenic region trnT-psbD, rps16-trnQ, and rpoB-trnC of LSC, and an insert of 96 bp located in the intergenic region ndhF-rpl32 of SSC. Ten microinversions, 77 indels, and 238 substitutions were identified between the two D. grandiflora plastomes. A total of 128 (113 unique) genes were identified in D. grandiflora. For most plastomes of Lauraceae species examined so far, the number of genes was indicated as 127–134 (112–116 unique) [6,15,19,37,38,39,40,41,42,43,44]. A total of 84 PCGs were identified in D. grandiflora. The differences among the counts of genes in the Lauraceae species may be due to different annotation methods [20] or reference genome.
Like most other Lauraceae, the codons coding for leucine and for cysteine in D. grandiflora plastomes were the most and the least frequent [19,20]. About one-half of the codons (31/64) were used more frequently than expected with an RSCU value >1, and the preferred codons in D. grandiflora more frequently ended in A/U (29) than in G/C (2). These results are similar to those reports in other Lauraceae [19]. However, the count of preferred codons of Ocotea species ending in A/U than in G/C were 25 vs. six [20].
The high levels of sequence variations could be used as a potential molecular marker for population genetic diversity analysis [14,19,37,45,46]. The number of repeats has a positive correlation with the level of biological evolution, and a large number of repeats indicates the stronger stability of the plastome. In the study, 30/36 repeats (>30 bp) were found in two genomes of D. grandiflora, and mainly distributed in LSC and IRs, which was similar with other Lauraceae. Due to its analytical and highly polymorphic nature, SSR has been widely used to assess genetic diversity within species and their relatives [47]. Mononucleotide SSRs were the most abundant in the D. grandiflora plastomes, while A/T, AT/TA, AAT/TAA, and AAAT/ATTT repeats were most found in the mono-, di-, tri-, and tetranucleotide types, which showed A/T repeats were common in the plastomes [18]. This might be due to the AT-rich composition in the plastome. Consistent with most of other angiosperm plant, most of the SSRs were located in the LSC region compared to SSC and IR regions [14,18,47].
Generally, the different value range of nucleotide diversity depends on the number of species used or the region of the genome analyzed of land plants [48]. To develop accurate and cost-effective molecular markers for phylogenetic analysis, we analyzed Pi within different plastome regions of 15 (two D. grandiflora and 13 Litsea species) and 68 Litsea complex species. The average Pi values across the 15 and 68 Lauraceae plastomes vary from 0.0031 to 0.0038, which shows more species are associated with greater variability. By comparing the Litsea complex plastome, we confirmed that the IR regions are more conservative than the LSC and SSC. The highly variable loci trnG intron and ycf3-trnS were specific to the hypervariable region among D. grandiflora and 13 Litsea plastomes, which could be used in D. grandiflora phylogenetic analyses or as excellent candidate markers for population genetic and phylogenetic analyses. Eleven regions psbK-psbI, psbI-trnS, trnS-trnG, trnC-petN, psbM-trnD, ycf2, ndhF, ndhF-rpl32, rpl32-trnL, rps15-ycf1, and ycf1 were identified as hypervariable loci (Pi ≥ 0.0095) at the species level among the Litsea complex, which could be employed for facilitating a better-resolved molecular phylogeny of Litsea complex species. The highly variable hotspots psbM-trnD, ndhF, ndhF-rpl32, rpl32-trpL, and ycf1 also were identified in other Litsea complex studies [10,19,37,41]. Four different hypervariable loci (psbA-trnH, ycf2, ndhH, trnL-ndhF) were found in the Ocotea complex [20]. The highly variable regions detected by comparing complete plastomes may be used as markers for species identification and phylogenetic study.
Due to the significant polymorphism, constructing the phylogeny of plant species using the complete plastome might serve as excellent information for the identification of plant species. Plastome sequences have been widely used to reconstruct phylogenetic relationships among angiosperms. The phylogenetic relationships based on complete plastome were consistent with the Angiosperm Phylogeny Group IV system [49]. According to the phylogenetic tree, 71 Litsea complexes are clustered into four clades, which are supported with relatively high node support values. Earlier studies of core Lauraceae showed that the phylogenetic position of D. grandiflora has been controversial. Li et al. support D. grandiflora as the sister to Laurus nobilis or with a close relationship to several Litsea based on plastid gene or nuclear rDNA [11,12]. Our results support that Lindera, Litsea, and Actinodaphne were either poly- or paraphyletic [13]. Dodecadenia grandiflora is closely related to 12 species of Litsea and exhibited the closest relationship with Litsea auriculata. The phylogeny analysis based on the nrDNA sequences also showed a close relationship between D. grandiflora and the other 12 species of Litsea (unpublished data). Based on the above results, we suggested that the genus Dodecadenia could be reassigned to a new genus with 12 species of clade IIIb. This study provides significant insights into plastome evolution and phylogenetic reconstruction of Dodecadenia species. Further studies using mitochondrial and nuclear datasets could help to understand the phylogenetic relationship of the Litsea complex.

5. Conclusions

This study firstly sequenced and assembled two complete plastomes of D. grandiflora from China. Two highly specific hypervariable loci, trnG intron and ycf3-trnS, were identified among D. grandiflora and related Litsea plastomes, which may be useful in species identification or as excellent candidate markers for population genetic and phylogenetic analyses. The phylogenetic analyses revealed D. grandiflora is closely related to 12 species of the Litsea genus. Our results will help improve our understanding of phylogenetics and provide substantial guidance for plastome engineering research of D. grandiflora.

Supplementary Materials

The supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/f13081240/s1, Figure S1: Amino acids frequencies in the Dodecadenia grandiflora plastome protein-coding sequences; Figure S2: Mauve alignment of Dodecadenia grandiflora and 13 Litsea plastome revealing no interspecific rearrangements; Figure S3: Comparison of Pi values, (a) among D. grandiflora and 13 Litsea plastomes, and (b) among 68 plastomes of the Litsea complex; Table S1: List and accession number of 71 taxa used in this study; Table S2: Relative synonymous codon usage of Dodecadenia grandiflora plastoms; Table S3: RNA editing sites amino acid changes of Dodecadenia grandiflora chloroplast genomes; Table S4: Oligonucleotide repeats (>30 bp) identified within the plastoms of Dodecadenia grandiflora; Table S5: SSRs within the Dodecadenia grandiflora plastome.

Author Contributions

Conceptualization, Y.S. and C.L.; methodology, C.L. and J.C.; validation, C.L., L.H. and Y.S.; formal analysis, C.L., H.C. and Y.S.; resources, Y.S.; data curation, C.L., X.T. and Y.S.; writing—original draft preparation, C.L. and Y.S.; writing—review and editing, C.L., L.H., Y.S. and X.T.; funding acquisition, C.L., L.H. and Y.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research and the APC was funded by the National Natural Science Foundation of China (grant no. 32060710, 32100010 to C.L. and L.H.) and Applied Basic Research Projects of Yunnan (grant no. 2019FB057 to Y.S.).

Data Availability Statement

The data presented in this study are available in the article and Supplementary Materials. The complete plastomes data of this study are openly available in GenBank of NCBI at https://www.ncbi.nlm.nih.gov; accession number: ON931229 and ON931230 (accessed on 3 July 2022).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Rohwer, J.G. Lauraceae. In Flowering Plants Dicotyledons; Springer: Berlin/Heidelberg, Germany, 1993; pp. 366–391. [Google Scholar]
  2. Li, J.; Christophel, D.C. Systematic relationships within the Litsea complex (Lauraceae): A cladistic analysis on the basis of morphological and leaf cuticle data. Aust. Syst. Bot. 2000, 13, 1–13. [Google Scholar] [CrossRef]
  3. Chanderbali, A.S.; Van Der Werff, H.; Renner, S.S. Phylogeny and historical biogeography of Lauraceae: Evidence from the chloroplast and nuclear genomes. Ann. Mo. Bot. Gard. 2001, 88, 104–134. [Google Scholar] [CrossRef] [Green Version]
  4. Fijridiyanto, I.A.; Murakami, N. Molecular systematics of Malesian Litsea Lam. and putative related genera (Lauraceae). Acta Phytotax. Geobot. 2009, 60, 1–18. [Google Scholar] [CrossRef]
  5. Jo, S.; Kim, Y.K.; Cheon, S.H.; Fan, Q.; Kim, K.J. Characterization of 20 complete plastomes from the tribe Laureae (Lauraceae) and distribution of small inversions. PLoS ONE 2019, 14, e0224622. [Google Scholar] [CrossRef] [PubMed]
  6. Song, Y.; Yu, W.B.; Tan, Y.H.; Jin, J.J.; Wang, B.; Yang, J.B.; Liu, B.; Corlett, R.T. Plastid phylogenomics improve phylogenetic resolution in the Lauraceae. J. Syst. Evol. 2020, 58, 423–439. [Google Scholar] [CrossRef]
  7. Xiao, T.W.; Xu, Y.; Jin, L.; Liu, T.J.; Yan, H.F.; Ge, X.J. Conflicting phylogenetic signals in plastomes of the tribe Laureae (Lauraceae). PeerJ 2020, 8, e10155. [Google Scholar] [CrossRef] [PubMed]
  8. Van Der Werff, H.; Richter, V.D.H. Toward an improved classification of Lauraceae. Ann. Mo. Bot. Gard. 1996, 83, 409–418. [Google Scholar] [CrossRef]
  9. Kostermans, A.J.G.H. Lauraceae. Reinwardtia 1957, 4, 193–256. [Google Scholar]
  10. Tian, X.; Ye, J.; Song, Y. Plastome sequences help to improve the systematic position of trinerved Lindera species in the family Lauraceae. PeerJ 2019, 7, e7662. [Google Scholar] [CrossRef] [Green Version]
  11. Li, J.; Christophel, D.C.; Conran, J.G.; Li, H.W. Phylogenetic relationships within the ‘core’ Laureae (Litsea complex, Lauraceae) inferred from sequences of the chloroplast gene matK and nuclear ribosomal DNA ITS regions. Plant Syst. Evol. 2004, 246, 19–34. [Google Scholar] [CrossRef]
  12. Li, J.; Conran, J.G.; Christophel, D.C.; Li, Z.M.; Li, L.; Li, H.W. Phylogenetic relationships of the Litsea complex and core Laureae (Lauraceae) using ITS and ETS sequences and morphology. Ann. Mo. Bot. Gard. 2008, 95, 580–599. [Google Scholar] [CrossRef]
  13. Liu, Z.F.; Ma, H.; Ci, X.Q.; Li, L.; Song, Y.; Liu, B.; Li, H.W.; Wang, S.L.; Qu, X.J.; Hu, J.L. Can plastid genome sequencing be used for species identification in Lauraceae? Bot. J. Linn. Soc. 2021, 197, 1–14. [Google Scholar] [CrossRef]
  14. Han, C.; Ding, R.; Zong, X.; Zhang, L.; Chen, X.; Qu, B. Structural characterization of Platanthera ussuriensis chloroplast genome and comparative analyses with other species of Orchidaceae. BMC Genom. 2022, 23, 1–13. [Google Scholar] [CrossRef]
  15. Xiao, T.W.; Yan, H.F.; Ge, X.J. Plastid phylogenomics of tribe Perseeae (Lauraceae) yields insights into the evolution of East Asian subtropical evergreen broad-leaved forests. BMC Plant Biol. 2022, 22, 1–15. [Google Scholar] [CrossRef]
  16. Zong, D.; Gan, P.; Zhou, A.; Zhang, Y.; Zou, X.; Duan, A.; Song, Y.; He, C. Plastome sequences help to resolve deep-level relationships of Populus in the family Salicaceae. Front. Plant Sci. 2019, 10, 5. [Google Scholar] [CrossRef] [Green Version]
  17. Dong, S.S.; Wang, Y.L.; Xia, N.H.; Liu, Y.; Liu, M.; Lian, L.; Li, N.; Li, L.F.; Lang, X.A.; Gong, Y.Q.; et al. Plastid and nuclear phylogenomic incongruences and biogeographic implications of Magnolia s.l. (Magnoliaceae). J. Syst. Evol. 2022, 161, 107171. [Google Scholar] [CrossRef]
  18. Yu, J.; Fu, J.; Fang, Y.; Xiang, J.; Dong, H. Complete chloroplast genomes of Rubus species (Rosaceae) and comparative analysis within the genus. BMC Genom. 2022, 23, 1–14. [Google Scholar] [CrossRef]
  19. Liu, C.; Chen, H.; Tang, L.; Khine, P.K.; Han, L.; Song, Y.; Tan, Y. Plastid genome evolution of a monophyletic group in the subtribe Lauriineae (Laureae, Lauraceae). Plant Divers. 2022, 44, 377–388. [Google Scholar] [CrossRef]
  20. Trofimov, D.; Cadar, D.; Schmidt-Chanasit, J.; Rodrigues De Moraes, P.L.; Rohwer, J.G. A comparative analysis of complete chloroplast genomes of seven Ocotea species (Lauraceae) confirms low sequence divergence within the Ocotea complex. Sci. Rep. 2022, 12, 1120. [Google Scholar] [CrossRef]
  21. Kumar, M.; Rawat, P.; Rahuja, N.; Srivastava, A.K.; Maurya, R. Antihyperglycemic activity of phenylpropanoyl esters of catechol glycoside and its dimers from Dodecadenia grandiflora. Phytochemistry 2009, 70, 1448–1455. [Google Scholar] [CrossRef]
  22. Doyle, J.J.; Dickson, E.E. Preservation of plant samples for DNA restriction endonuclease analysis. Taxon 1987, 36, 715–722. [Google Scholar] [CrossRef]
  23. Jin, J.J.; Yu, W.B.; Yang, J.B.; Song, Y.; Depamphilis, C.W.; Yi, T.S.; Li, D.Z. GetOrganelle: A fast and versatile toolkit for accurate de novo assembly of organelle genomes. Genome Biol. 2020, 21, 241. [Google Scholar] [CrossRef]
  24. Tillich, M.; Lehwark, P.; Pellizzer, T.; Ulbricht-Jones, E.S.; Fischer, A.; Bock, R.; Greiner, S. GeSeq-versatile and accurate annotation of organelle genomes. Nucleic Acids Res. 2017, 45, W6–W11. [Google Scholar] [CrossRef]
  25. Kearse, M.; Moir, R.; Wilson, A.; Stones-Havas, S.; Cheung, M.; Sturrock, S.; Buxton, S.; Cooper, A.; Markowitz, S.; Duran, C. Geneious Basic: An integrated and extendable desktop software platform for the organization and analysis of sequence data. Bioinformatics 2012, 28, 1647–1649. [Google Scholar] [CrossRef]
  26. Zheng, S.; Poczai, P.; Hyvönen, J.; Tang, J.; Amiryousefi, A. Chloroplot: An online program for the versatile plotting of organelle genomes. Front. Genet. 2020, 11, 1123. [Google Scholar] [CrossRef]
  27. Kurtz, S.; Choudhuri, J.V.; Ohlebusch, E.; Schleiermacher, C.; Stoye, J.; Giegerich, R. REPuter: The manifold applications of repeat analysis on a genomic scale. Nucleic Acids Res. 2001, 29, 4633–4642. [Google Scholar] [CrossRef] [Green Version]
  28. Beier, S.; Thiel, T.; Münch, T.; Scholz, U.; Mascher, M. MISA-web: A web server for microsatellite prediction. Bioinformatics 2017, 33, 2583–2585. [Google Scholar] [CrossRef] [Green Version]
  29. Kumar, S.; Stecher, G.; Li, M.; Knyaz, C.; Tamura, K. MEGA X: Molecular evolutionary genetics analysis across computing platforms. Mol. Biol. Evol. 2018, 35, 1547–1549. [Google Scholar] [CrossRef]
  30. Mower, J.P. The PREP suite: Predictive RNA editors for plant mitochondrial genes, chloroplast genes and user-defined alignments. Nucleic Acids Res. 2009, 37, W253–W259. [Google Scholar] [CrossRef]
  31. Katoh, K.; Rozewicki, J.; Yamada, K.D. MAFFT online service: Multiple sequence alignment, interactive sequence choice and visualization. Brief. Bioinform. 2019, 20, 1160–1166. [Google Scholar] [CrossRef] [Green Version]
  32. Ronquist, F.; Teslenko, M.; Van Der Mark, P.; Ayres, D.L.; Darling, A.; Höhna, S.; Larget, B.; Liu, L.; Suchard, M.A.; Huelsenbeck, J.P. MrBayes 3.2: Efficient Bayesian phylogenetic inference and model choice across a large model space. Syst. Biol. 2012, 61, 539–542. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Minh, B.Q.; Schmidt, H.A.; Chernomor, O.; Schrempf, D.; Woodhams, M.D.; Von Haeseler, A.; Lanfear, R. IQ-TREE 2: New models and efficient methods for phylogenetic inference in the genomic era. Mol. Biol. Evol. 2020, 37, 1530–1534. [Google Scholar] [CrossRef] [Green Version]
  34. Frazer, K.A.; Pachter, L.; Poliakov, A.; Rubin, E.M.; Dubchak, I. VISTA: Computational tools for comparative genomics. Nucleic Acids Res. 2004, 32, W273–W279. [Google Scholar] [CrossRef] [PubMed]
  35. Rozas, J.; Ferrer-Mata, A.; Sánchez-Delbarrio, J.C.; Guirao-Rico, S.; Librado, P.; Ramos-Onsins, S.E.; Sánchez-Gracia, A. DnaSP 6: DNA sequence polymorphism analysis of large data sets. Mol. Biol. Evol. 2017, 34, 3299–3302. [Google Scholar] [CrossRef] [PubMed]
  36. Liu, C.; Wu, Y.; Liu, Y.; Yang, L.; Dong, R.; Jiang, L.; Liu, P.; Liu, G.; Wang, Z.; Luo, L. Genome-wide analysis of tandem duplicated genes and their contribution to stress resistance in pigeonpea (Cajanus cajan). Genomics 2021, 113, 728–735. [Google Scholar] [CrossRef] [PubMed]
  37. Zhang, Y.; Tian, Y.; Tng, D.Y.P.; Zhou, J.; Zhang, Y.; Wang, Z.; Li, P.; Wang, Z. Comparative chloroplast genomics of Litsea Lam. (Lauraceae) and its phylogenetic implications. Forests 2021, 12, 744. [Google Scholar] [CrossRef]
  38. Song, Y.; Yao, X.; Tan, Y.; Gan, Y.; Yang, J.; Corlett, R.T. Comparative analysis of complete chloroplast genome sequences of two subtropical trees, Phoebe sheareri and Phoebe omeiensis (Lauraceae). Tree Genet. Genom. 2017, 13, 120. [Google Scholar] [CrossRef]
  39. Song, Y.; Yu, W.B.; Tan, Y.; Liu, B.; Yao, X.; Jin, J.; Padmanaba, M.; Yang, J.B.; Corlett, R.T. Evolutionary comparisons of the chloroplast genome in Lauraceae and insights into loss events in the Magnoliids. Genome Biol. Evol. 2017, 9, 2354–2364. [Google Scholar] [CrossRef] [Green Version]
  40. Song, Y.; Yao, X.; Liu, B.; Tan, Y.; Corlett, R.T. Complete plastid genome sequences of three tropical Alseodaphne trees in the family Lauraceae. Holzforschung 2018, 72, 337–345. [Google Scholar] [CrossRef]
  41. Zhao, M.L.; Song, Y.; Ni, J.; Yao, X.; Tan, Y.H.; Xu, Z.F. Comparative chloroplast genomics and phylogenetics of nine Lindera species (Lauraceae). Sci. Rep. 2018, 8, 8844. [Google Scholar] [CrossRef] [Green Version]
  42. Liu, C.; Chen, H.; Cai, J.; Han, L. The complete plastid genome of a medicinal tree Lindera chienii Cheng 1934 (Lauraceae: Laureae). Mitochondrial DNA B 2022, 7, 1252–1254. [Google Scholar] [CrossRef]
  43. Liu, C.; Chen, H.; Han, L.; Tang, L. The complete plastid genome of an evergreen tree Litsea elongata (Lauraceae: Laureae). Mitochondrial DNA B 2020, 5, 2483–2484. [Google Scholar] [CrossRef] [PubMed]
  44. Li, H.; Liu, B.; Davis, C.C.; Yang, Y. Plastome phylogenomics, systematics, and divergence time estimation of the Beilschmiedia group (Lauraceae). Mol. Phylogenet. Evol. 2020, 151, 106901. [Google Scholar] [CrossRef]
  45. Zhu, B.; Qian, F.; Hou, Y.; Yang, W.; Cai, M.; Wu, X. Complete chloroplast genome features and phylogenetic analysis of Eruca sativa (Brassicaceae). PLoS ONE 2021, 16, e0248556. [Google Scholar] [CrossRef]
  46. Zhang, W.; Zhao, Y.; Yang, G.; Peng, J.; Chen, S.; Xu, Z. Determination of the evolutionary pressure on Camellia oleifera on Hainan Island using the complete chloroplast genome sequence. PeerJ 2019, 7, e7210. [Google Scholar] [CrossRef] [Green Version]
  47. Dong, W.L.; Wang, R.N.; Zhang, N.Y.; Fan, W.B.; Fang, M.F.; Li, Z.H. Molecular evolution of chloroplast genomes of orchid species: Insights into phylogenetic relationship and adaptive evolution. Int. J. Mol. Sci. 2018, 19, 716. [Google Scholar] [CrossRef] [Green Version]
  48. Mehmetoglu, E.; Kaymaz, Y.; Ates, D.; Kahraman, A.; Tanyolac, M.B. The complete chloroplast genome sequence of Cicer echinospermum, genome organization and comparison with related species. Sci. Hortic. 2022, 296, 110912. [Google Scholar] [CrossRef]
  49. The Angiosperm Phylogeny Group. An update of the Angiosperm Phylogeny Group classification for the orders and families of flowering plants: APG IV. Bot. J. Linn. Soc. 2016, 181, 1–20. [Google Scholar] [CrossRef] [Green Version]
Forests 13 01240 g001 550

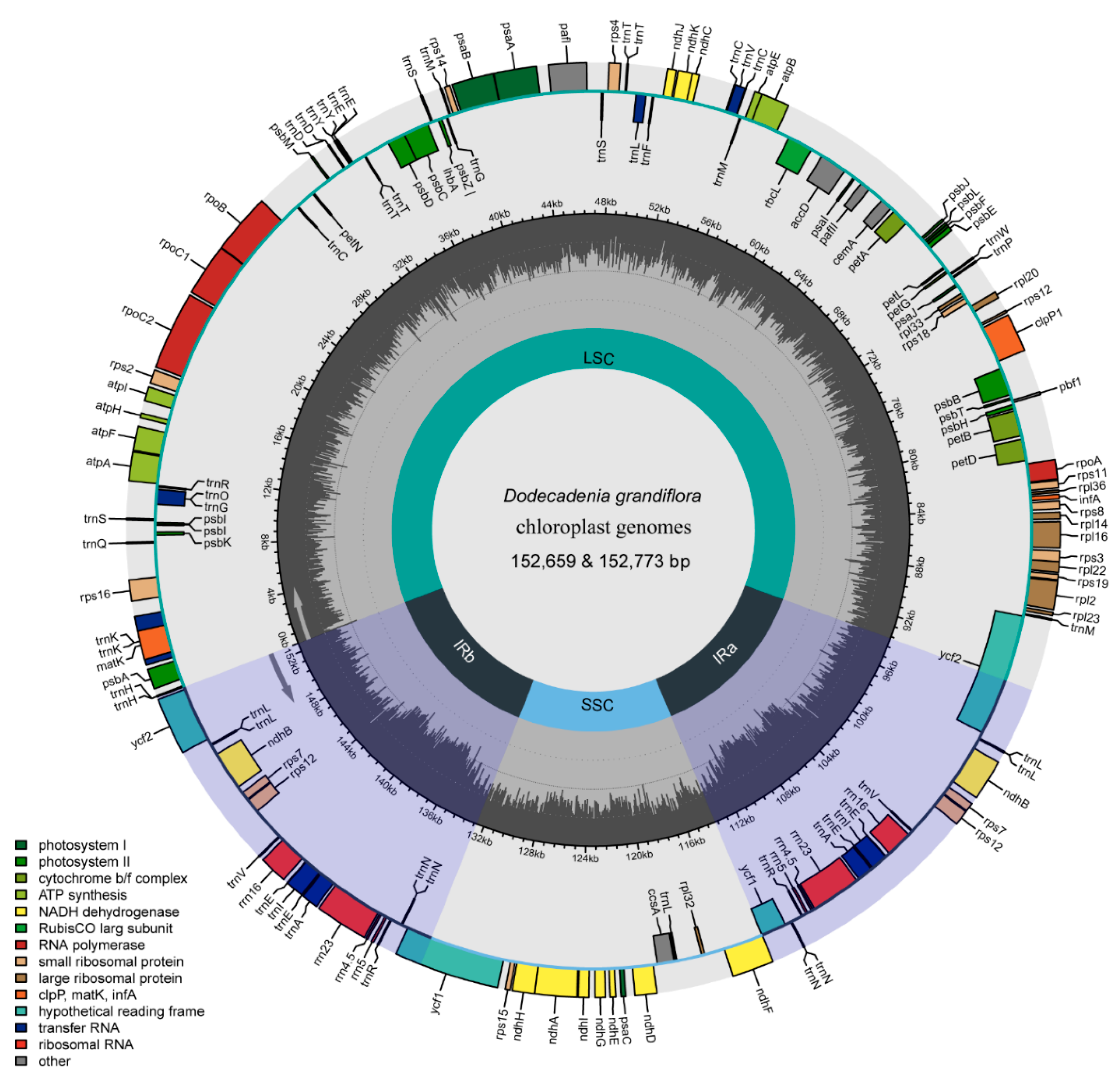

Figure 1. Gene map of D. grandiflora plastomes.
Figure 1. Gene map of D. grandiflora plastomes.
Forests 13 01240 g001
Forests 13 01240 g002 550

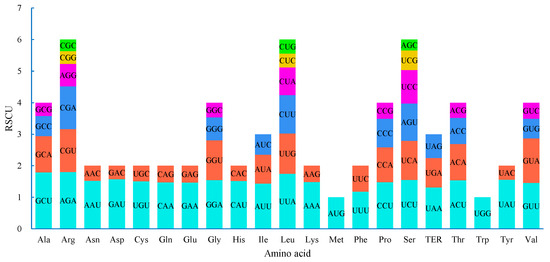

Figure 2. Codon usage patterns of D. grandiflora plastome. The y-axis represents the relative synonymous codon usage whereas x-axis represents the codons.
Figure 2. Codon usage patterns of D. grandiflora plastome. The y-axis represents the relative synonymous codon usage whereas x-axis represents the codons.
Forests 13 01240 g002
Forests 13 01240 g003 550

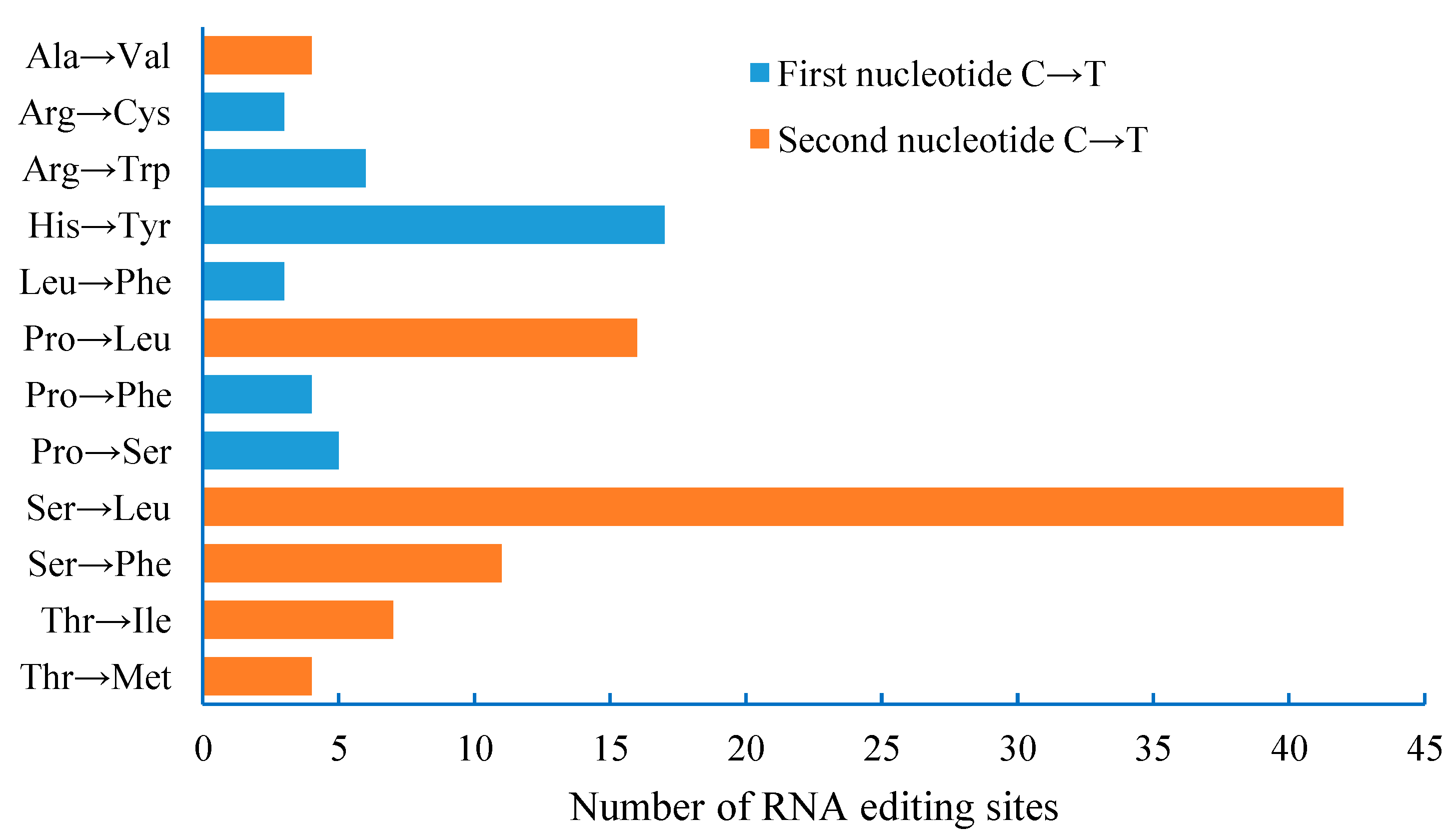

Figure 3. The prediction of RNA editing sites number and amino acid changes.
Figure 3. The prediction of RNA editing sites number and amino acid changes.
Forests 13 01240 g003
Forests 13 01240 g004 550

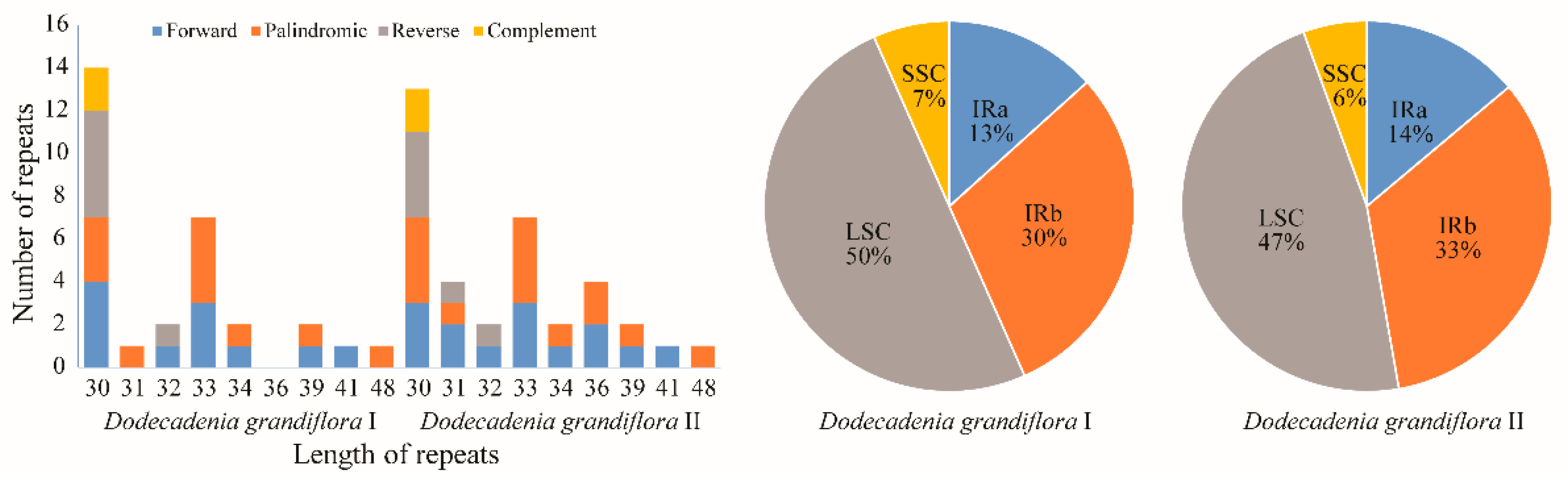

Figure 4. Number and distribution of long repeats in two plastomes of D. grandiflora.
Figure 4. Number and distribution of long repeats in two plastomes of D. grandiflora.
Forests 13 01240 g004
Forests 13 01240 g005 550

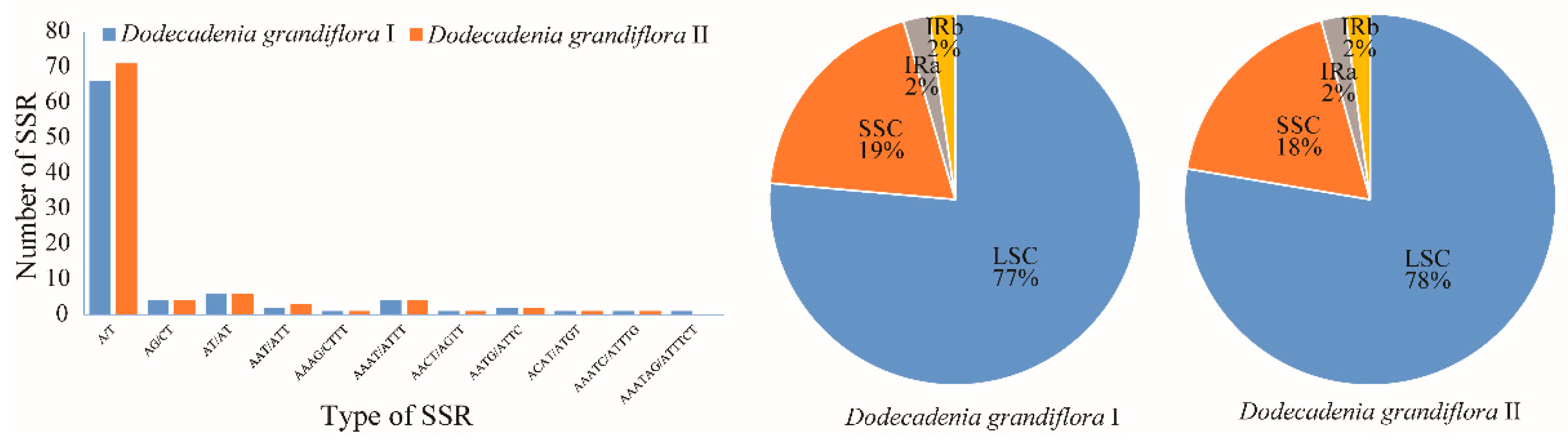

Figure 5. Number and distribution of SSRs in two plastomes of D. grandiflora.
Figure 5. Number and distribution of SSRs in two plastomes of D. grandiflora.
Forests 13 01240 g005
Forests 13 01240 g006 550

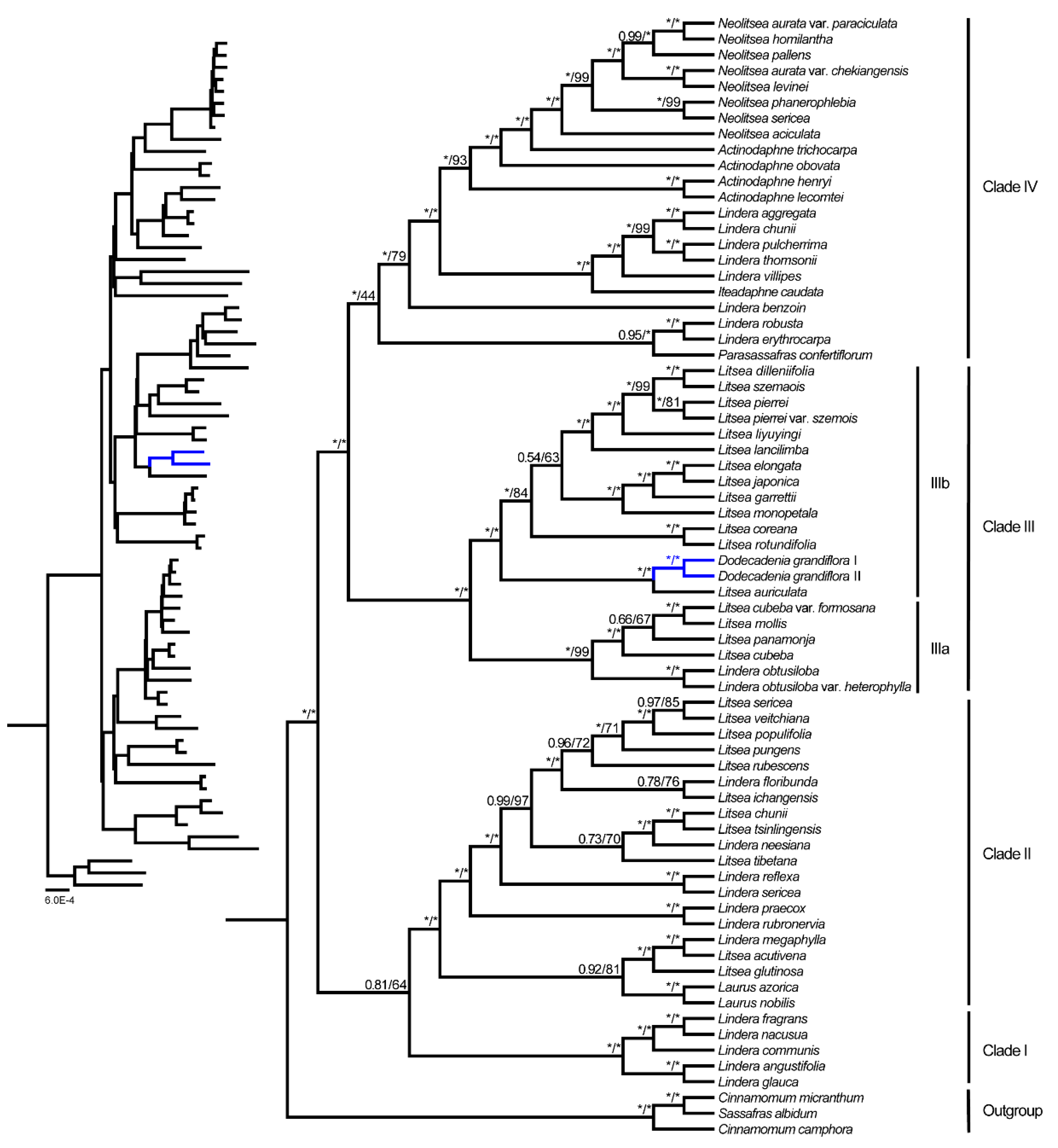

Figure 6. Complete plastome phylogenetic tree of Litsea complex inferred from Bayesian inference and maximum likelihood analysis. The support values (Bayesian inference/bootstrap value) are indicated at the branches. The star represents the value 1 or 100.
Figure 6. Complete plastome phylogenetic tree of Litsea complex inferred from Bayesian inference and maximum likelihood analysis. The support values (Bayesian inference/bootstrap value) are indicated at the branches. The star represents the value 1 or 100.
Forests 13 01240 g006
Forests 13 01240 g007 550

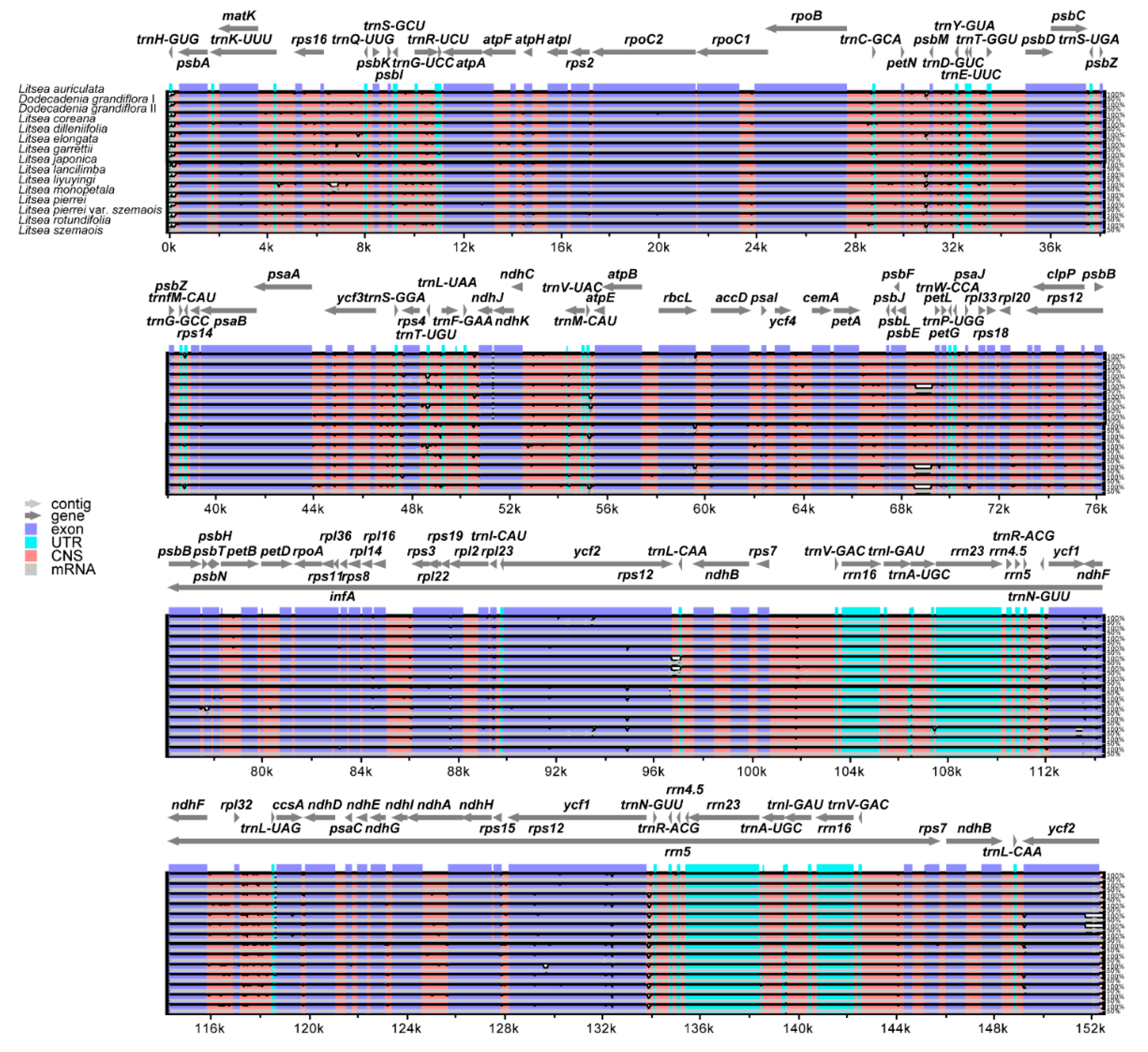

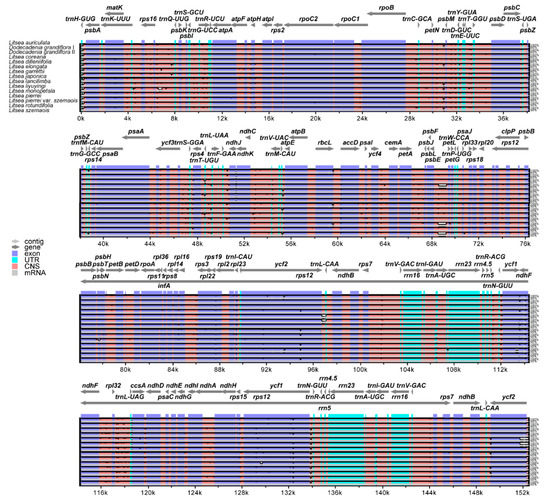

Figure 7. Visualization of D. grandiflora and 13 Litsea plastomes with Litsea auriculata as reference.
Figure 7. Visualization of D. grandiflora and 13 Litsea plastomes with Litsea auriculata as reference.
Forests 13 01240 g007
