Application of the Energy-Conserving Integration Method to Hybrid Simulation of a Full-Scale Steel Frame

Abstract

The nonlinear unconditionally stable energy-conserving integration method (ECM) is a new method for solving a continuous equation of motion. To our knowledge, there is still no report about its application on a hybrid test. Aiming to explore its effect on hybrid tests, the nonlinear beam-column element program is developed for computation. The program contains both the ECM and the average acceleration method (AAM). The comparison of the hybrid test results with thesetwo methods validates the effectiveness of the ECM in the hybrid simulation. We found that the energy error of hybrid test by using ECM is less than that of AAM. In addition, a new iteration strategy with reduction factor is presented to avoid the overshooting phenomena during iteration process with the finite element program.

1. Introduction

As an effective testing technique, hybrid simulation is widely utilized in the experimental research of seismic behavior of large-scale structures. In a hybrid simulation, the whole structure is divided into numerical substructures modeled in computers and physical substructures loaded by actuators in laboratories. To obtain the seismic responses of the structure, the whole equations of motion must be solved through explicit or implicit integration algorithms. When an explicit method, such as the central difference method, is applied to the structures with high frequency, time increment must be limited within a very small critical one due to its conditional stability [1]. Then the displacement increment might be too small to be controlled by the actuator with limited resolution.

The limitation of explicit algorithms may be overcome by most classical implicit integration methods [2,3,4,5] due to their unconditional stability. However, the so-called unconditional stability was rigorously proved only for linear structures, and it could be lost in nonlinear cases [6,7], especially those with geometric nonlinearity [8]. To avoid iteration in implicit methods, some scholars proposed unconditional explicit methods [9,10,11,12]. However, the stability of all these methods was investigated with linear theory, and hence it is suspicious if it is valid for nonlinear systems.

Deng discussed a relationship between the concepts of B-stability and unconditional stability and showed that the numerical response of a nonlinear structure with B-stability is also unconditionally stable [13]. However, Deng proved that an SDOF structure with nonlinear damping is B-stable. An alternative approach to investigating the numerical stability of nonlinear structures is the energy approach. With the energy approach, the stabilities of the average acceleration method and midpoint rule for structures with nonlinear damping have been proved unconditionally stable in [14,15]. For other types of nonlinearities, the discussion on the stability of these classical integration methods was not reported.

Because the unconditional stability of classic time-stepping algorithms such as the Newmark average method holds only for linear structures in a strict mathematical sense, significant concerns have been raised on the numerical reliability for nonlinear structures since the 1970s in the circle of computational mechanics. For more general nonlinear structures, the energy-conserving method (ECM) with unconditional stability was proposed by Simo [16] and has been developed into different styles [17,18,19,20]. The local finite difference scheme at element or material point level is adopted for ECM; this is different from the global scheme in classical integration methods. The ECM can be used not only for numerical analyses of structural dynamics with geometric nonlinearity but also hybrid simulation.

Although many ECMs are available, the one by Galvanetto and Crisfield [17] is proposed for hybrid simulation in this paper because of its clarity and concise form. In the remainder of the paper, an overview of the ECM is given in Section 2, an improved approach of iteration is proposed to avoid the overshooting in hybrid simulation, and a hybrid test for validation is described in Section 3.

2. Theory of Energy Conserving Integration

2.1. Integration Method

The equation of motion for a nonlinear structure can be written as

$$\mathbf{Ma}+\mathbf{Cv}+{\mathbf{q}}_{\text{in}}(\mathbf{u})={\mathbf{q}}_{\text{ex}}$$

(1)

where M and C are the mass and damping matrixes, respectively; u, v, a, q_in and q_ex represent the vectors of displacement, velocity, acceleration, internal force and external load, respectively. With implicit midpoint rule [21], the discretized solution to Equation (1) at the n + 1 step can be expressed as

$${\mathbf{v}}_{n+1}={\mathbf{v}}_n+\Delta t{\mathbf{M}}^{-1}[{\mathbf{q}}_{\text{ex},\mathrm{m}}-{\mathbf{\text{Cv}}}_{\mathrm{m}}-{\mathbf{q}}_{\text{in},\mathrm{m}}({\mathbf{u}}_{\mathrm{m}})]$$

(2)

$${\mathbf{u}}_{n+1}={\mathbf{u}}_n+\Delta t\frac{{\mathbf{v}}_{n+1}+{\mathbf{v}}_n}{2}$$

(3)

in which v_m, u_m, and q_ex,m are the average velocity, displacement, and external load, respectively, i.e.,

$${\mathbf{v}}_{\mathrm{m}}=\frac{{\mathbf{v}}_{n+1}+{\mathbf{v}}_n}{2}$$

(4)

$${\mathbf{u}}_{\mathrm{m}}=\frac{{\mathbf{u}}_{n+1}+{\mathbf{u}}_n}{2}$$

(5)

$${\mathbf{q}}_{\text{ex},\mathrm{m}}=\frac{{\mathbf{q}}_{\text{ex},n+1}+{\mathbf{q}}_{\text{ex},n}}{2}$$

(6)

Letting

$${\mathbf{a}}_{\mathrm{m}}=\frac{({\mathbf{v}}_{n+1}+{\mathbf{v}}_n)}{\Delta t}$$

(7)

then Equation (2) becomes

$${\mathbf{Ma}}_{\mathrm{m}}+{\mathbf{Cv}}_{\mathrm{m}}+{\mathbf{q}}_{\text{in},\mathrm{m}}({\mathbf{u}}_{\mathrm{m}})={\mathbf{q}}_{\text{ex},\mathrm{m}}$$

(8)

As a modified format of the implicit midpoint method, the ECM was firstly proposed for nonlinear dynamics by Simo and Tarnow [16]. Galvanetto and Crisfield presented an implementation of energy conserving method for structures with beam elements [17]. The difference of the ECM and implicit midpoint algorithm is the calculation of internal force. With Crisfield’s approach, the average internal force of a plane beam element is expressed as

$${\mathbf{q}}_{\text{in},\mathrm{m}}={\mathsf{\theta }}_{\mathrm{a}}{N}_{\text{av}}{\mathbf{b}}_{\mathrm{m}}+{\mathsf{\theta }}_{\mathrm{b}}{\mathbf{B}}_{\mathrm{m}}^T{\mathbf{M}}_{\text{av}}+{\mathbf{B}}_0^T{\mathbf{M}}_{\text{av}}$$

(9)

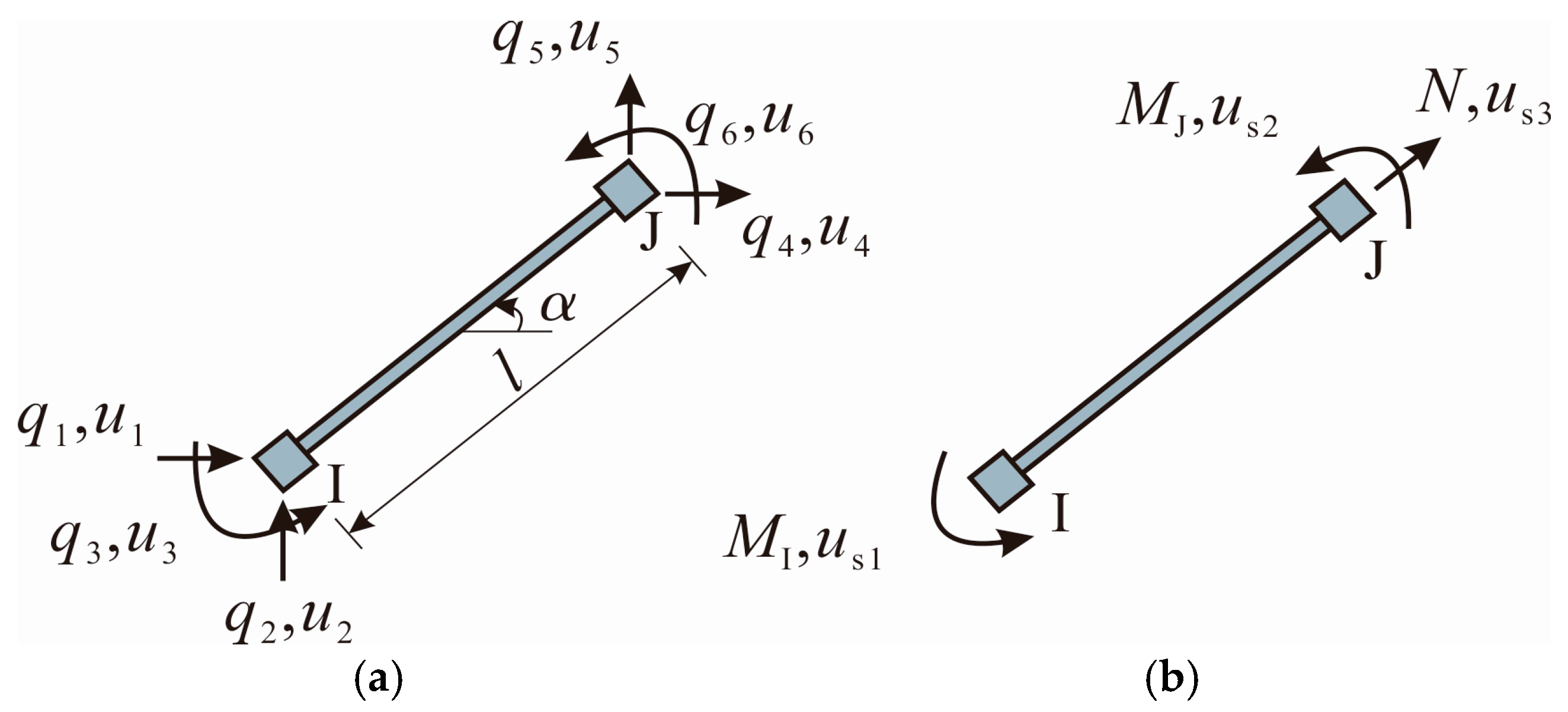

in which, N_av and M_av are average value of axial force and end bending moments in a basic (simply supported) system, respectively; b_m, B_m and B₀ are nonlinear transformation matrices of midpoint internal forces from basic to global systems (see Figure 1), and they are expressed as

$${\mathbf{b}}_{\mathrm{m}}=\frac{{\mathbf{b}}_n+{\mathbf{b}}_{n+1}}{2}$$

(10)

$${\mathbf{b}}_n^T=\left[\begin{array}{cccccc}-c_n& -s_n& 0& c_n& s_n& 1\end{array}\right]$$

(11)

$${\mathbf{B}}_{\mathrm{m}}=\frac{({\mathbf{B}}_n+{\mathbf{B}}_{n+1})}{2}$$

(12)

$${\mathbf{B}}_n^T=\left[\begin{array}{cccccc}-s_n/l_n& c_n/l_n& 1& s_n/l_n& -c_n/l_n& 0\\ -s_n/l_n& c_n/l_n& 0& s_n/l_n& -c_n/l_n& 1\end{array}\right]$$

(13)

$${\mathbf{B}}_0^T=\left[\begin{array}{cccccc}0& 0& 1& 0& 0& 0\\ 0& 0& 0& 0& 0& 1\end{array}\right]$$

(14)

where l and ∆α are the length and rigid-body rotation angle of the beam element, respectively; s = sine(∆α), and c = cosine(∆α). The parameters featuring energy conserving in Equation (9) are θ_a and θ_b, which can be expressed by

$${\mathsf{\theta }}_{\mathrm{a}}=\frac{2}{1+\text{cos} \Delta \mathsf{\alpha }}$$

(15)

$${\mathsf{\theta }}_{\mathrm{b}}=\frac{\Delta \mathsf{\alpha }}{\text{sin} \Delta \mathsf{\alpha }}$$

(16)

2.2. Improved Iteration for Hybrid Simulation

Substituting Equations (3)–(7) into Equation (8) yields a nonlinear algebraic equation expressed as

$$\mathbf{M}(2\frac{{\mathbf{u}}_{n+1}-{\mathbf{u}}_n}{\Delta t^2}-2{\mathbf{v}}_n)+\mathbf{C}\frac{{\mathbf{u}}_{n+1}-{\mathbf{u}}_n}{\Delta t}+{\mathbf{q}}_{\text{in},\mathrm{m}}(\frac{{\mathbf{u}}_{n+1}+{\mathbf{u}}_n}{2})=\frac{{\mathbf{q}}_{\text{ex},n+1}+{\mathbf{q}}_{\text{ex},n}}{2}$$

(17)

The above equation can be considered as an equivalent static equation written as

$$\mathbf{R}({\mathbf{u}}_{n+1})={\mathbf{F}}_{n+1}$$

(18)

in which R(u_n+1) and F_n+1 are the equivalent internal and external forces respectively. With Newton-type iteration, the displacement increment from t_i to t_i+1 can be obtained as

$$\Delta \mathbf{u}={\displaystyle \sum {\mathbf{K}}^{-1}[{\mathbf{F}}_{n+1}-\mathbf{R}({\mathbf{u}}_{n+1,i})]}$$

(19)

where K is the equivalent initial or tangent stiffness matrix; subscript i represents the number of iterative step. Defining the exact secant stiffness K_sec as the stiffness with which the exact solution is obtained with just one iteration, we have

$$\Delta {\mathbf{u}}_{\mathrm{T}}={\mathbf{K}}_{\text{sec}}^{-1}[{\mathbf{F}}_{n+1}-\mathbf{R}({\mathbf{u}}_n)]$$

(20)

In each iterative step, the overshoot can be identified by a difference vector written as

$${\mathbf{\Phi }}_i=\left|\Delta {\mathbf{u}}_{n+1,i}\right|-\left|\Delta {\mathbf{u}}_{\mathrm{T}}\right|$$

(21)

in which | | denotes absolute value of a vector. If some components of K are smaller than those of K_sec, the relevant component of Φ could be negative, which indicates overshoot taking place.

For hybrid tests, a possible significant problem arising from iteration is the overshooting with which the displacement exceeds the true value and then goes back, approaching the true value. The overshoot would bring artificial hysteresis for inelastic materials, and hence should be avoided or at least confined at an acceptable level. In a hybrid simulation with Newton-type iteration algorithm, the stiffness matrix used for the iteration consists of two parts: one from the numerical substructure and the other from the experimental substructure. The former is assembled and updated from the FE program, while the latter is usually fixed and the initial stiffness is quite often an option. In some cases, this iterative stiffness could be “smaller” than exact secant stiffness, and hence produce the reciprocating iterative phenomenon [22]. This iteration will lead to artificial numerical dissipation and inaccurate structure response. The authors of [22] presented a solution of introducing a reducing parameter in every iteration, which can reduce the possibility of spurious loading/unloading cycles. However, in the same condition of convergence criterion, it takes much more computation time to reach a satisfactory equilibrium, and the uniform displacement increment cannot be ensured.

In general, the application of the iterative stiffness matrix always makes the overshooting phenomenon take place in the first or second iteration and disappear in the following iterations of each time step. Thus, the current paper presents a solution of increment reduction factor θ only for the first one or two iterations. The reduction factor θ of displacement increment is used in first or first two iterations for the balance of overshoot remedy and computation efficiency. For the ith iteration, displacement increment with modified Newton iteration can be expressed as

$$\Delta {\mathbf{u}}_{n+1,i}={\mathbf{K}}^{-1}[{\mathbf{F}}_{n+1}-\mathbf{R}({\mathbf{u}}_{n+1,i})]$$

(22)

By suppressing the displacement increment of first or first two iterations with the parameter θ < 1, the total displacement increment can be expressed as

$$\Delta {\mathbf{u}}_{n+1}=\mathsf{\theta }\Delta {\mathbf{u}}_{n+1,1}+{\displaystyle \sum _{i=2}\Delta {\mathbf{u}}_{n+1,i}} \text{or} \Delta {\mathbf{u}}_{n+1}=\mathsf{\theta }(\Delta {\mathbf{u}}_{n+1,1}+\Delta {\mathbf{u}}_{n+1,2})+{\displaystyle \sum _{i=3}\Delta {\mathbf{u}}_{n+1,i}}$$

(23)

The value of θ is determined according to the amount of overshooting: the more the overshoot, the less the value of θ is needed.

2.3. FE Program

Based on the above theory, a nonlinear fiber beam element program is compiled with Matlab as the computational tool for the hybrid simulation in this paper. The material nonlinearity of elasto-plasticity is taken into account, as is geometric nonlinearity. The return-mapping algorithm is performed in calculating the stress and stiffness of each fiber [23]. Through using the co-rotation technique, the internal forces can only be calculated in a simply supported system. For comparison, both energy conserving and the average acceleration method (AAM) are incorporated in this FE program.

3. Hybrid Test

3.1. Experimental Setup

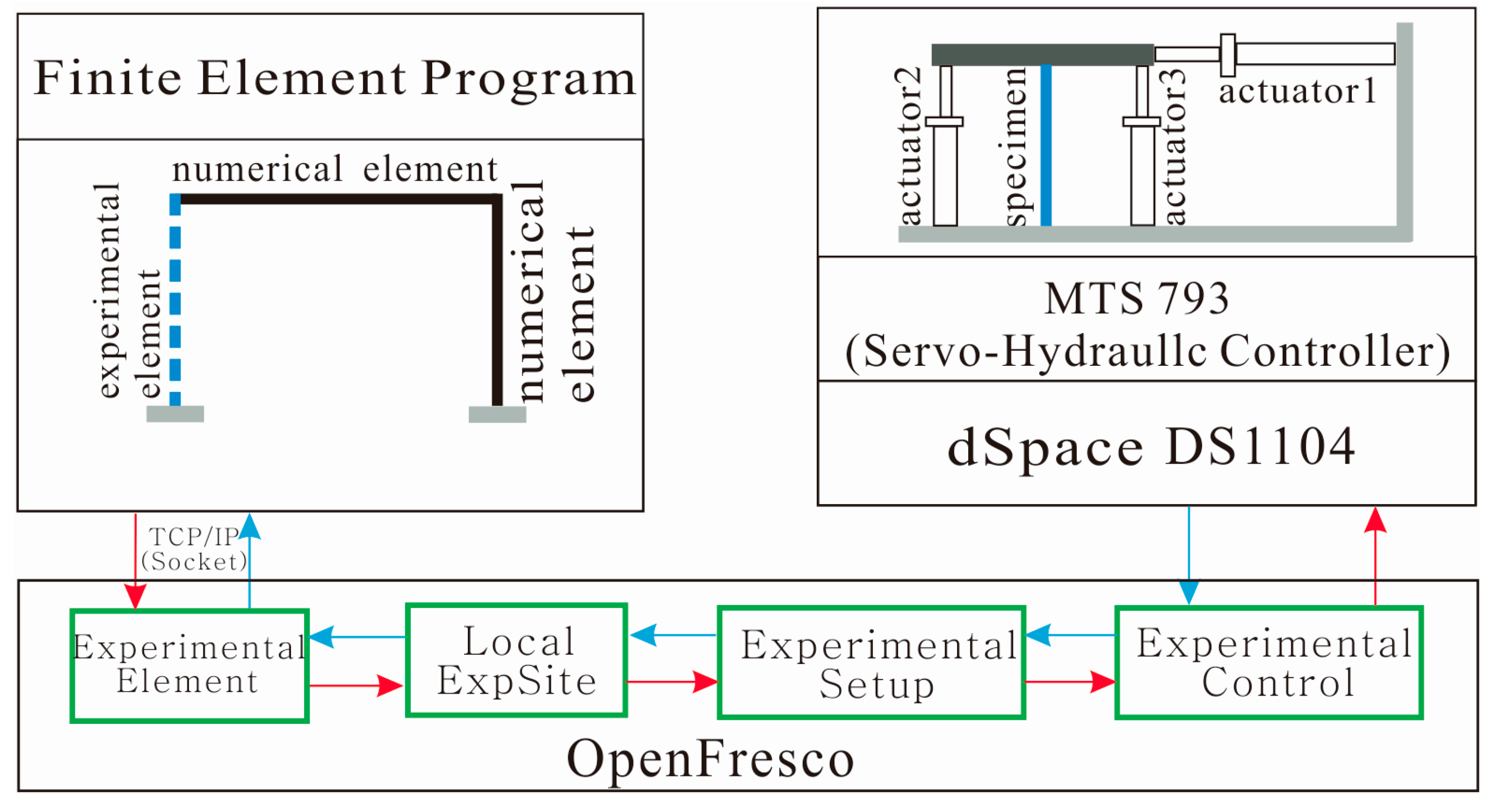

The test facilities were located at the Structural and Seismic Testing Center, Harbin Institute of Technology. The hardware of the test system mainly consisted of a PC, dSpace-DS1104 RD controller board, servo-hydraulic controller and three MTS actuators (1000 kN, ±500 mm), as shown in Figure 2. The displacement command calculated from the FE program described in Section 2.3 was transmitted to dSpace through OpenFresco software [24]. To make the actuators run smoothly, the displacement command was interpolated in dSpace, and then passed to Servo-Hydraulic Controller to drive the actuators. The forces of actuators were measured and sent back to the FE program for the iteration of the next step.

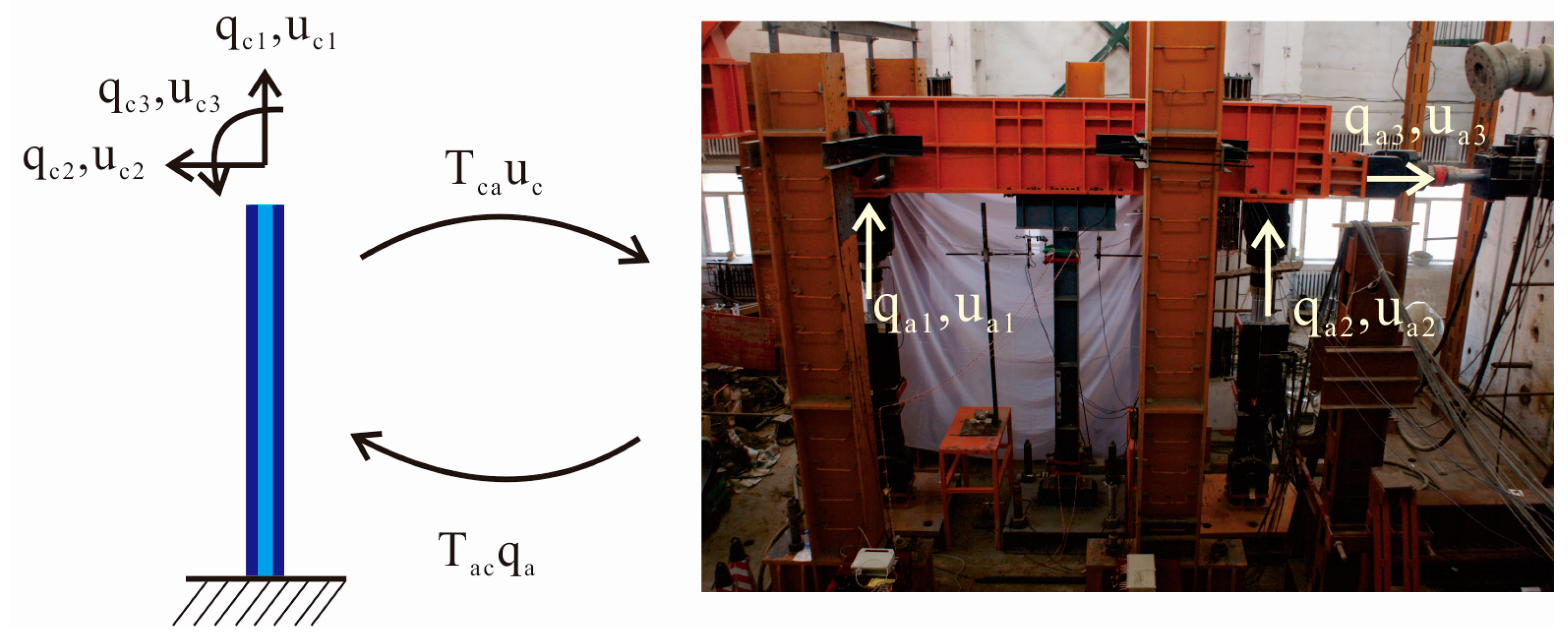

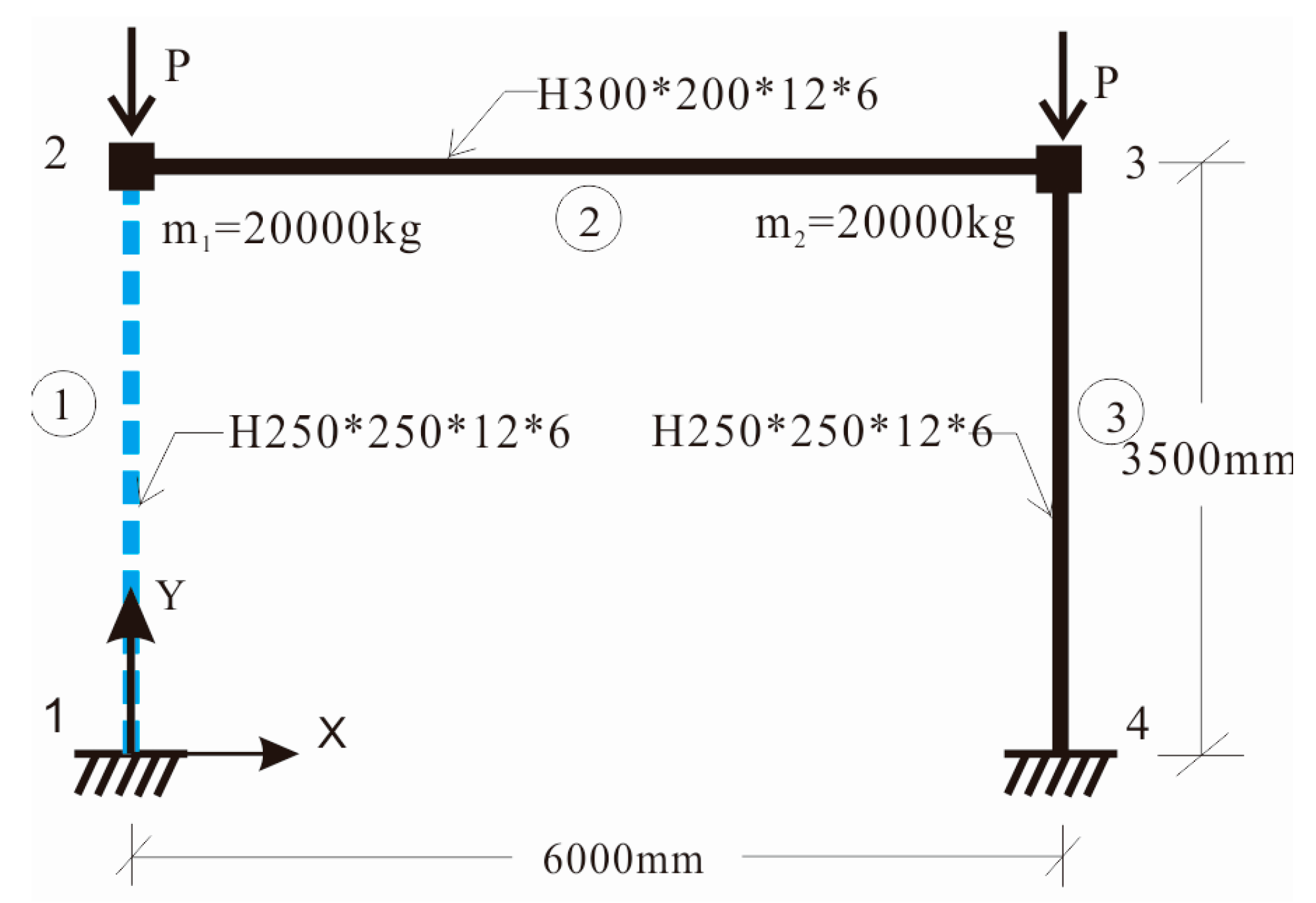

The structure to be emulated was a steel frame with single floor and single bay as shown in Figure 3. The mass was lumped at the top of the columns. The Rayleigh damping matrix was determined based on the damping ratio of 5% for the first two modes. Before seismic analysis, the structure was subjected to static gravity load in the form of concentrated force. The numerical substructure in the FE program contains two beam-column elements with six DOFs, and the physical substructure was the left column as shown in Figure 3. There are three DOFs, i.e., two translational and one rotational, on the top of the tested column. Three actuators were used to achieve the three DOFs of the column as shown in Figure 4: two vertically placed actuators for the vertical displacement and rotation, and the horizontal actuator for the horizontal displacement. The actuators were connected to the column through a rigid loading girder. The bottom of the column was fixed on the ground. The displacements of the actuators were related to those at the DOFs of the specimen through

$${\mathbf{u}}_{\mathrm{a}}={\mathbf{T}}_{\text{ca}}{\mathbf{u}}_{\mathrm{c}}$$

(24)

where u_a, u_c were displacement vectors of the actuators and specimen, respectively; T_ca was the transformation matrix which was expressed as

$${\mathbf{T}}_{\text{ca}}=\left[\begin{array}{ccc}0& -1& 0\\ 1& 0& -L\\ 1& 0& L\end{array}\right]$$

(25)

in which L = 2 m is half length of the loading girder. The transpose of T_ca was used for force transformation backwards.

3.2. Software Validation

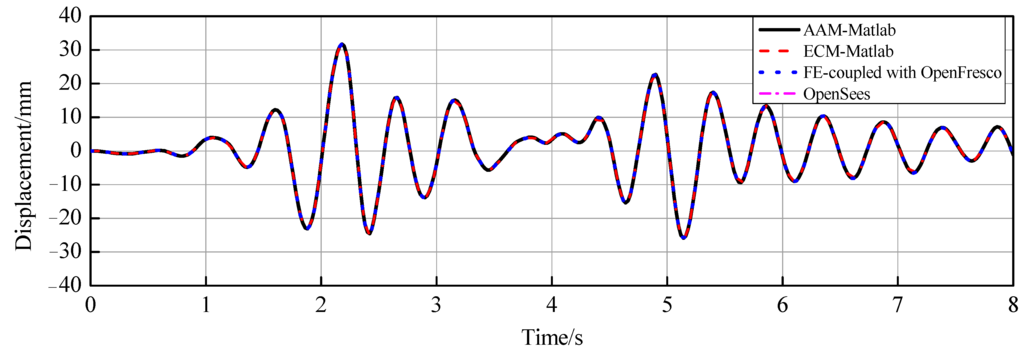

The software including the nonlinear FE program described in Section 2.3 and OpenFresco should be validated before actual hybrid simulation. The seismic responses of the steel frame of the last subsection are evaluated with the energy conserving method and average acceleration method encoded in the FE program written in Matlab. The earthquake input is El Centro (NS, 1940) with peak ground acceleration scaled to 220 Gal. The results are shown in Figure 5, where we see that the two are almost identical, as they should be, since the responses are not large enough to cause significant energy imbalance for the average acceleration method. The result with OpenSees is also shown in Figure 5. The three results matched each other perfectly. Then the steel frame was divided into two parts just as in a hybrid simulation: the left column is modeled in OpenSees and, through OpenFresco, connected to the rest that is modeled in the FE program. Figure 5 shows that the result with OpenFresco agreed very well with all the others.

3.3. Analysis of Reduction Factor for Iteration

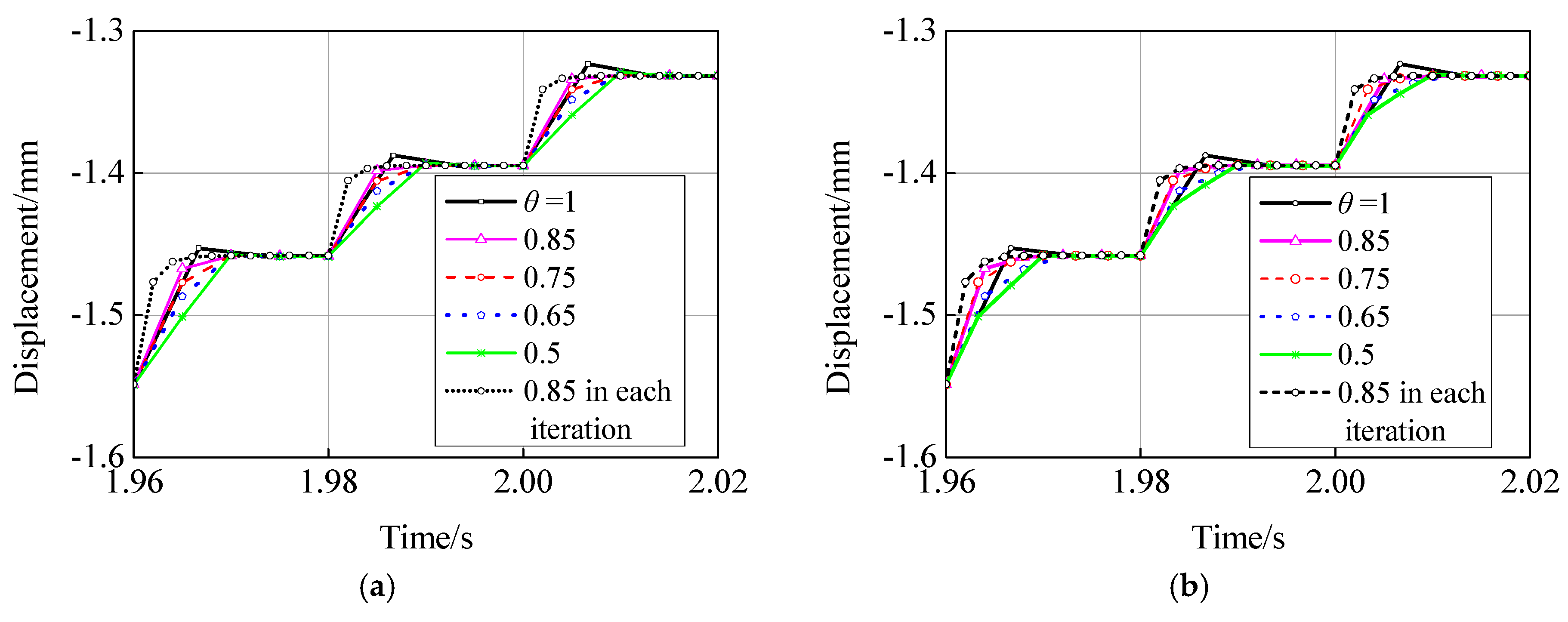

In the case studied in Section 3.2, no treatment for overshooting is employed, i.e., the reduction factor θ takes the value of unity. In this subsection, the effects of different value of θ are investigated. The results with θ used for the first and first two iterations are shown in Figure 6a,b, respectively. For comparison, the result of θ = 0.85 for all iterations is also included. From Figure 6, it is seen that overshooting is almost eliminated for all θ < 1, and the number of iterations with θ used for first or first two iterations is much less than the case in which θ = 0.85 is employed for each iteration. The results also indicate that θ = 0.85, which is used only for the first iteration, is optimal in the sense that the overshooting is effectively suppressed and the iteration times are the least. So the strategy of θ = 0.85 for the first iteration is adopted for the hybrid test in this paper.

3.4. Test Results and Discussions

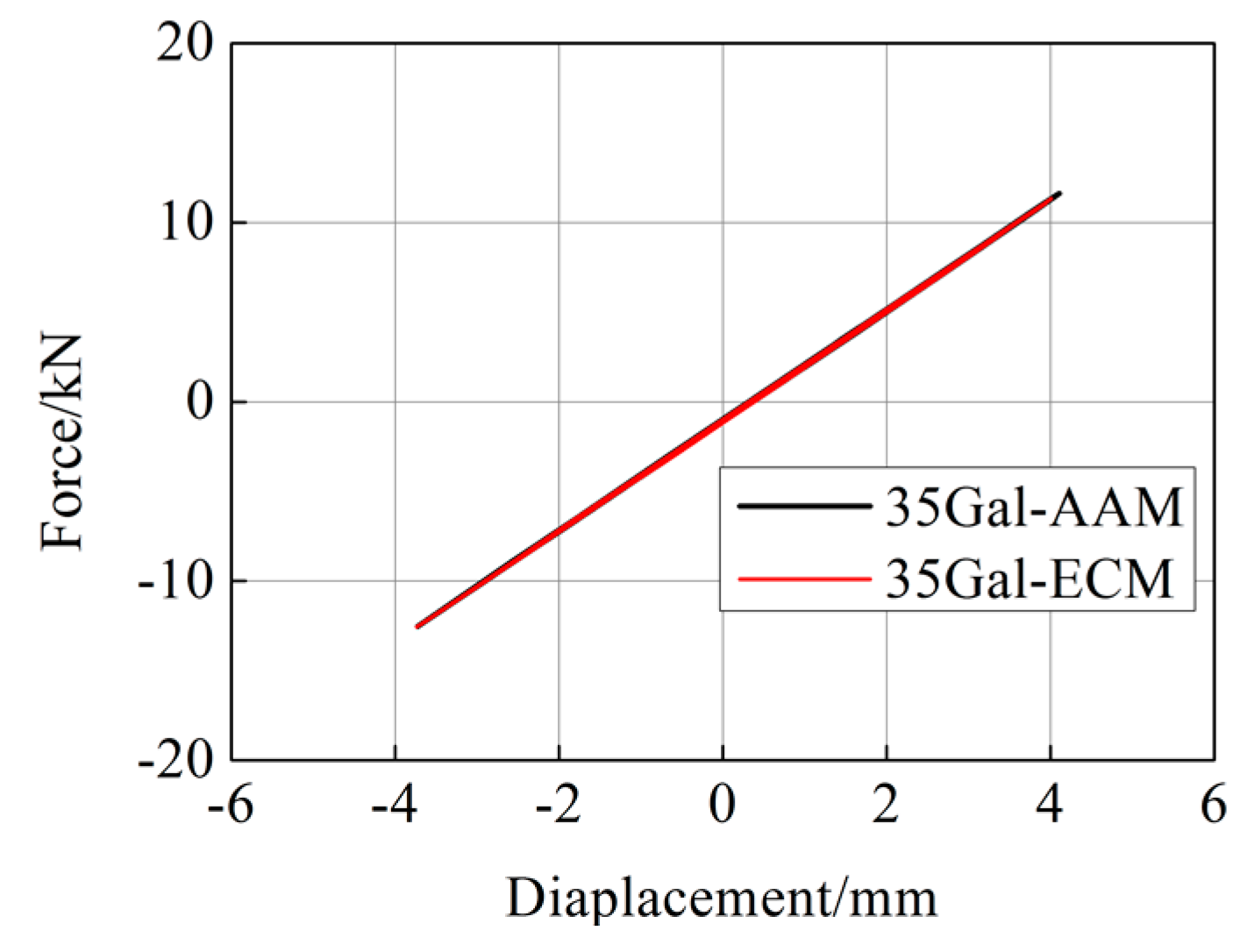

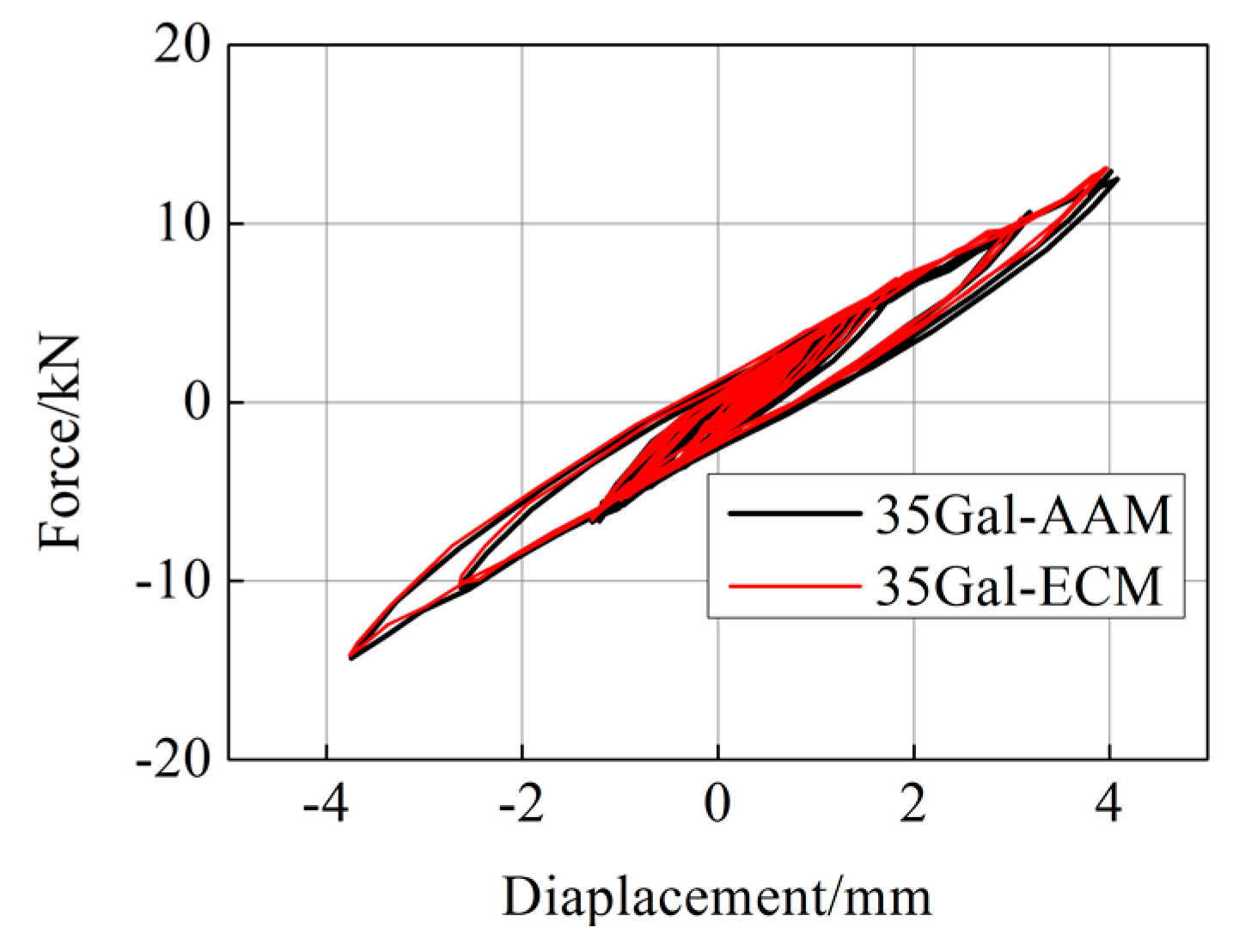

The hybrid simulations were conducted on the steel frame, which has been shown in Figure 3. Prior to hybrid simulation, the stiffness matrix of specimen used for iteration was obtained based on the data of the static loading test. For comparison, both the ECM and the AAM were used in the hybrid simulation. The integration time step was 0.02 s. Figure 7 shows the horizontal displacement responses of the experimental column when the frame was subjected to the El Centro (NS, 1940) earthquake scaled to a PGA of 35 Gal. The results with two integration methods were almost identical. Figure 8 and Figure 9 show the force-displacement responses of the experimental and numerical columns. It is seen that the numerical column was in elastic range, while the experimental one exhibited slight hysteretic behavior.

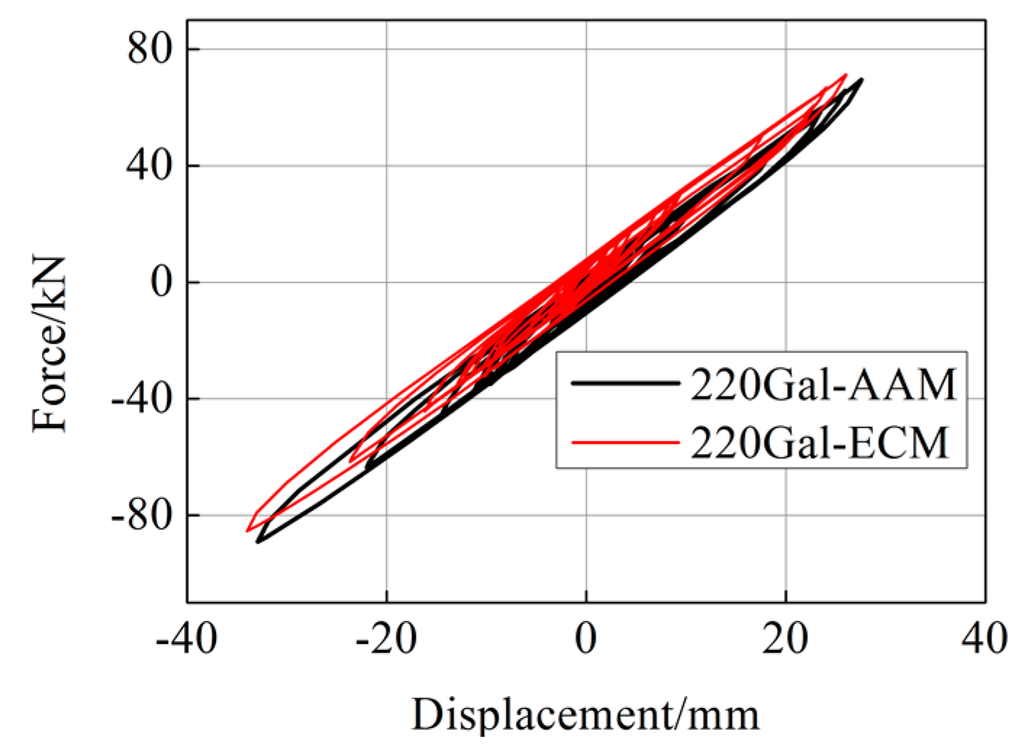

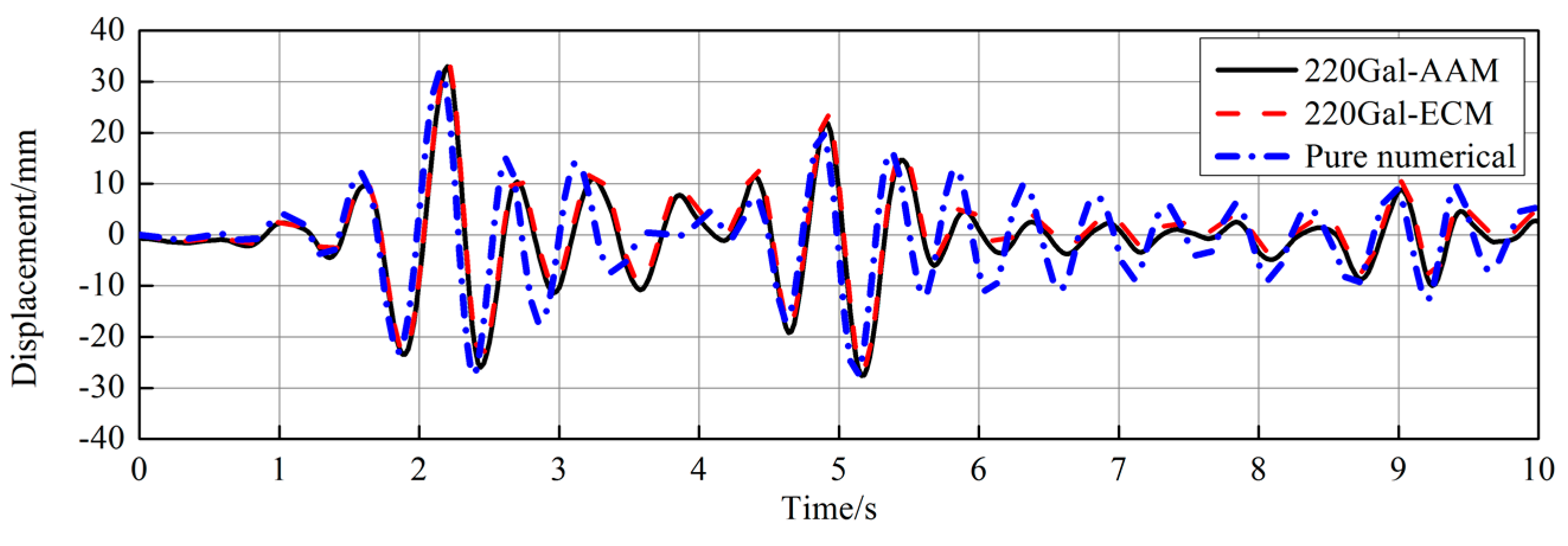

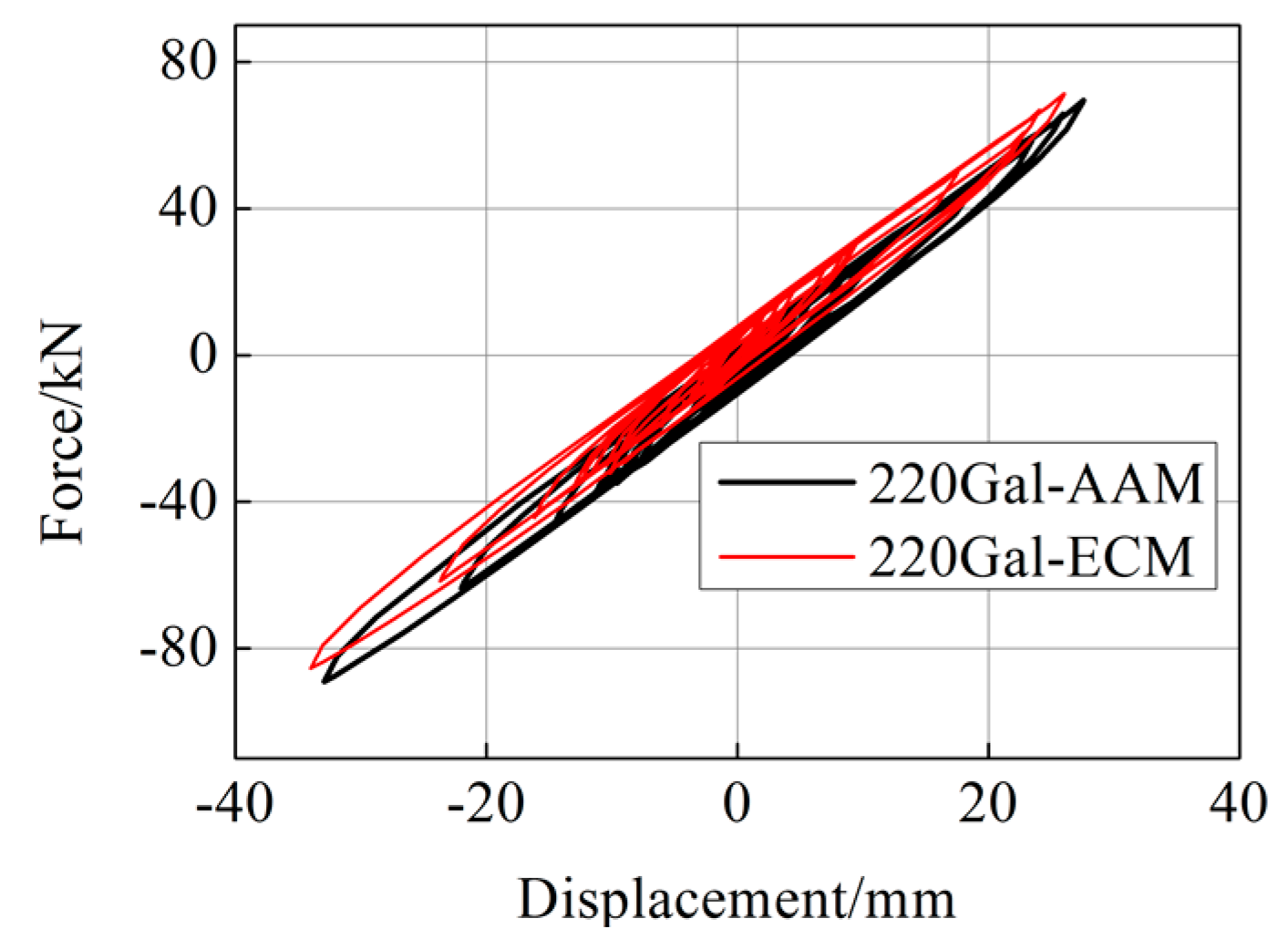

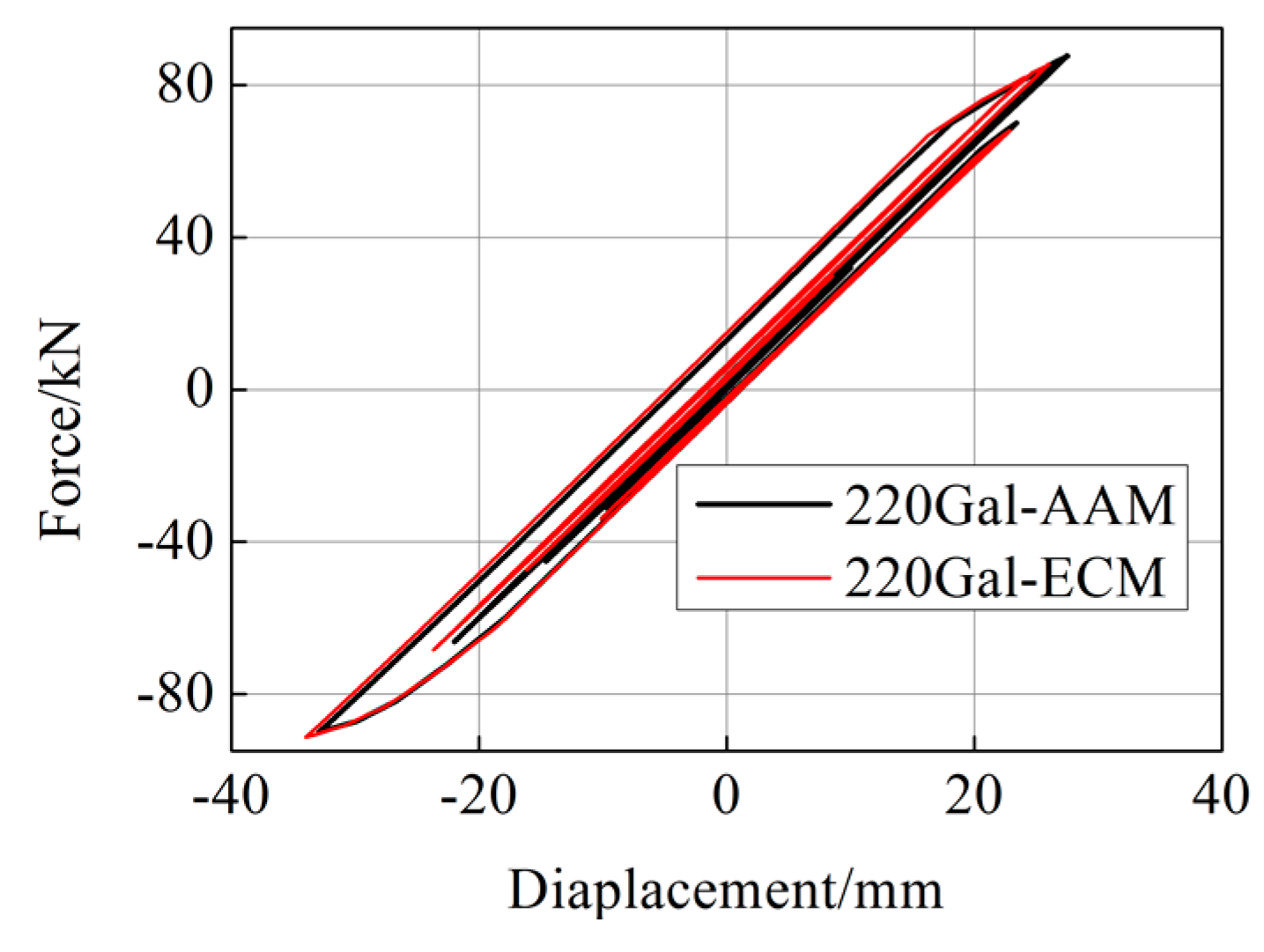

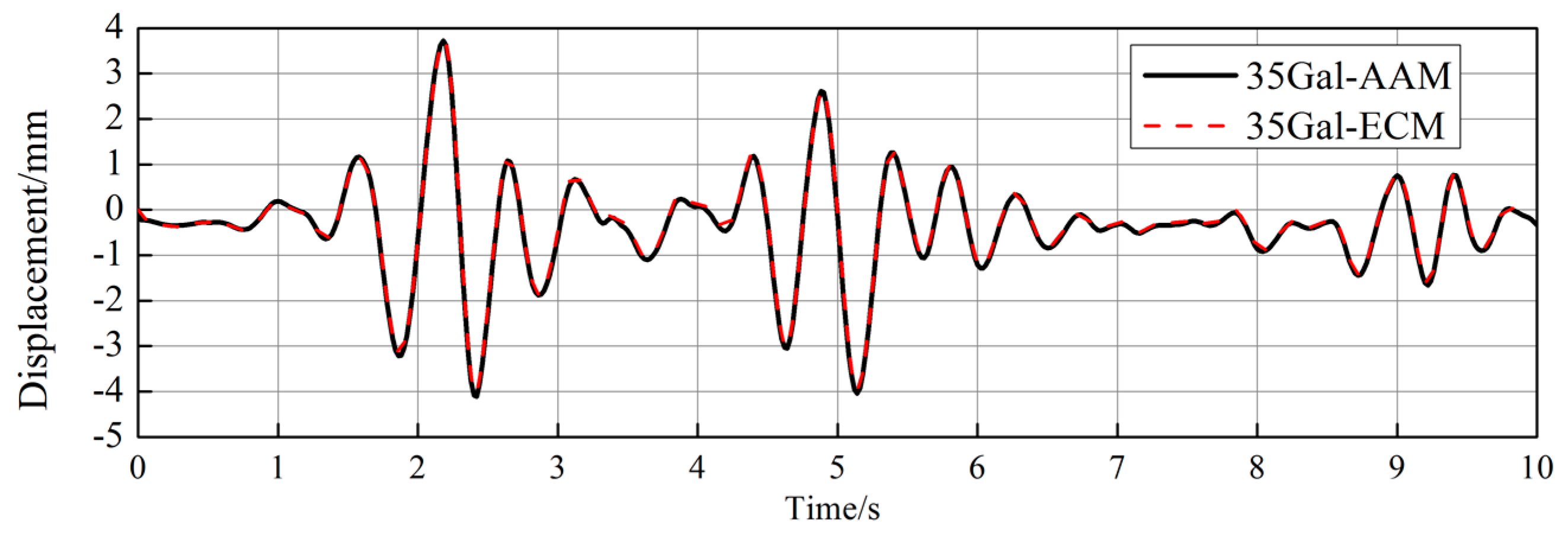

Figure 10, Figure 11 and Figure 12 show the responses subjected to the El Centro (NS, 1940) earthquake with a PGA of 220 Gal, where it is seen that the difference between the two integration methods appeared slightly more significant than the case of 35 Gal. The result of pure numerical analysis with the ECM is also shown in Figure 10, from which we see that the numerical result basically agreed with that of hybrid simulation.

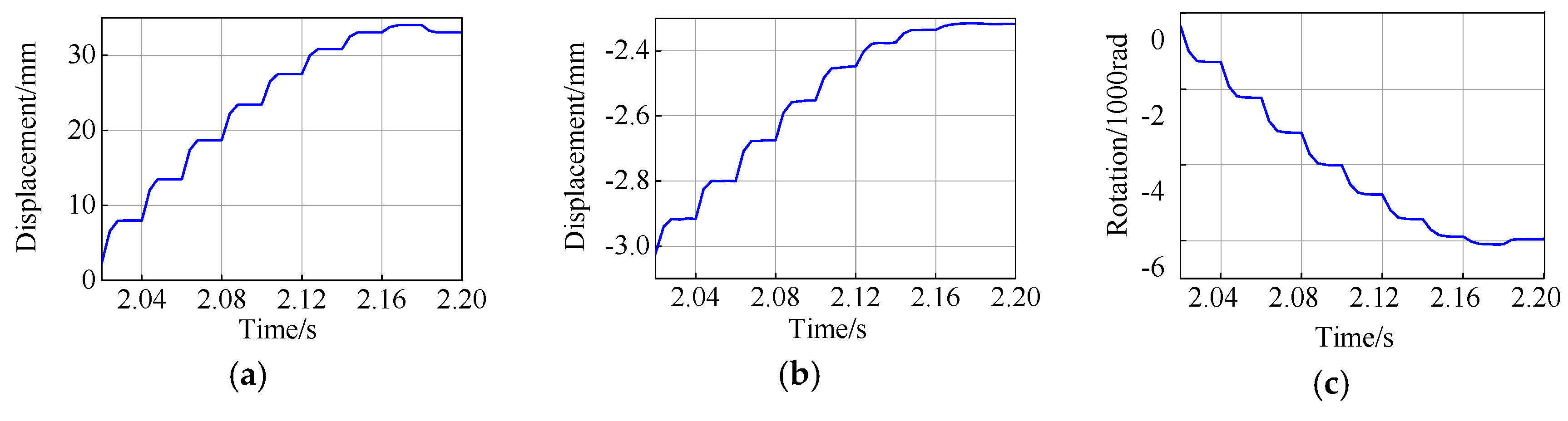

In the hybrid simulations, the factor θ = 0.75 was adopted for the first iteration in every time step. Part of the responses during iteration for the case of 220 Gal with the ECM is shown in Figure 13, where no overshooting can be observed in all three DOFs.

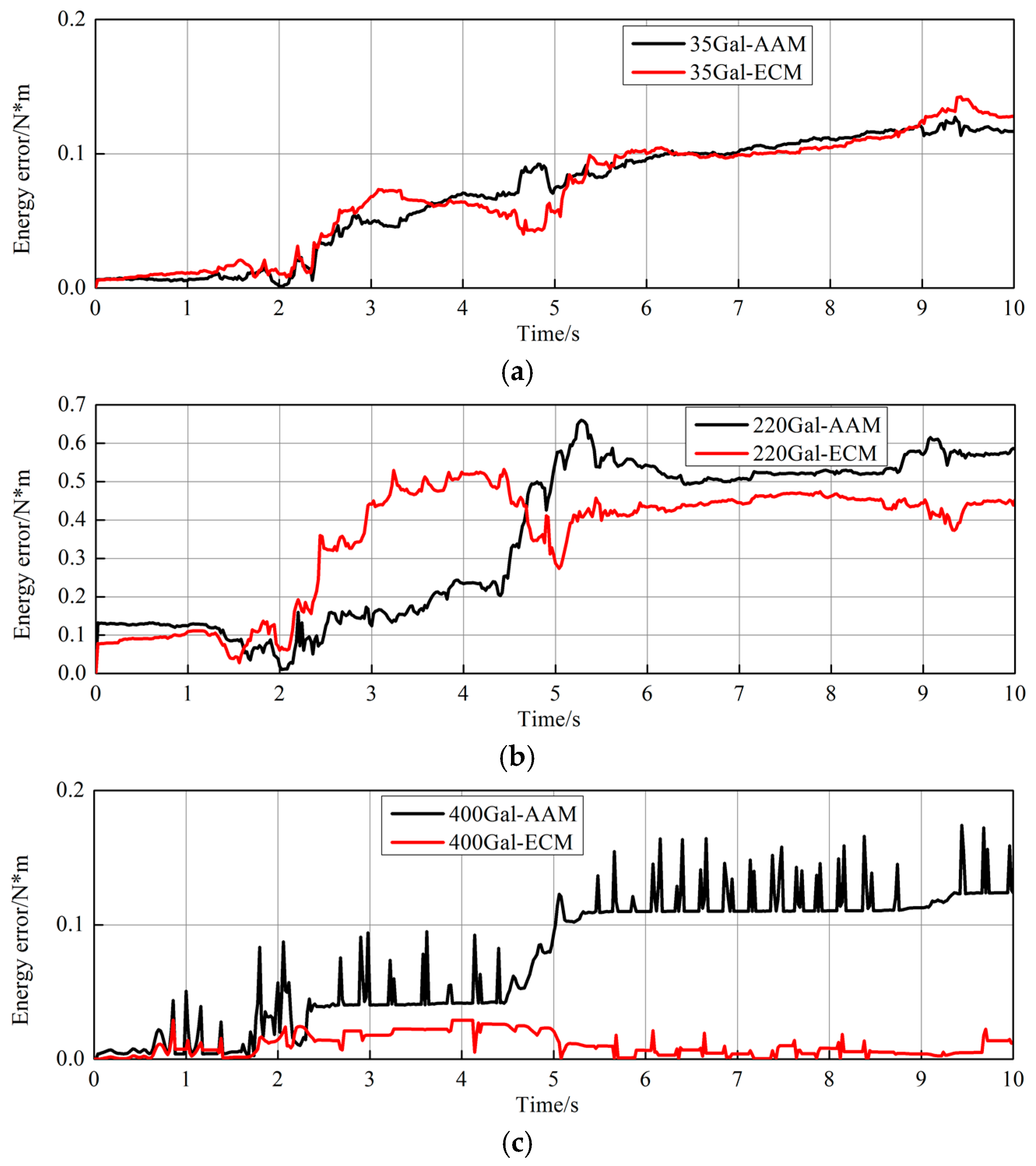

To further reveal the difference of the two integration methods, the energy errors are shown in Figure 14. The energy error is defined as the difference of external work and the sum of internal, damping and kinetic energy. It is seen from the energy errors from the hybrid simulation as shown in Figure 14a,b that the ECM was not shown to be advantageous compared to AAM. The reason for this may be attributed to the small response which resulted in insignificant geometric nonlinearity, and the small advantage of the ECM was covered by the experimental errors. Unfortunately, the specimen was used for another test, and hence no further hybrid simulation with higher PGA was carried out to reveal the advantage of the ECM experimentally. Due to this, we have to rely on the results of pure numerical analysis which is shown in in Figure 14c for the case of 400 Gal. It is clearly seen that the energy error of the ECM is much lower than that of the AAM.

4. Conclusions

In this paper, the ECM is applied to hybrid simulation of structures with both geometrical and material nonlinearities. The method was validated by numerical analysis using OpenSees and hybrid simulation of a steel frame structure. The simulation and experimental results show that the ECM has less energy error than traditional average acceleration method. The energy error of AAM becomes larger with increasing response, while the energy error of ECM is still in limited range.

Furthermore, we presented a new iteration strategy to avoid overshooting phenomenon in the hybrid test. A reduction factor that was introduced only in the first or first two iterations could avoid artificial dissipation. The effect of the new strategy is also validated by hybrid simulation and test.
