A Survey of Visual SLAM Based on RGB-D Images Using Deep Learning and Comparative Study for VOE

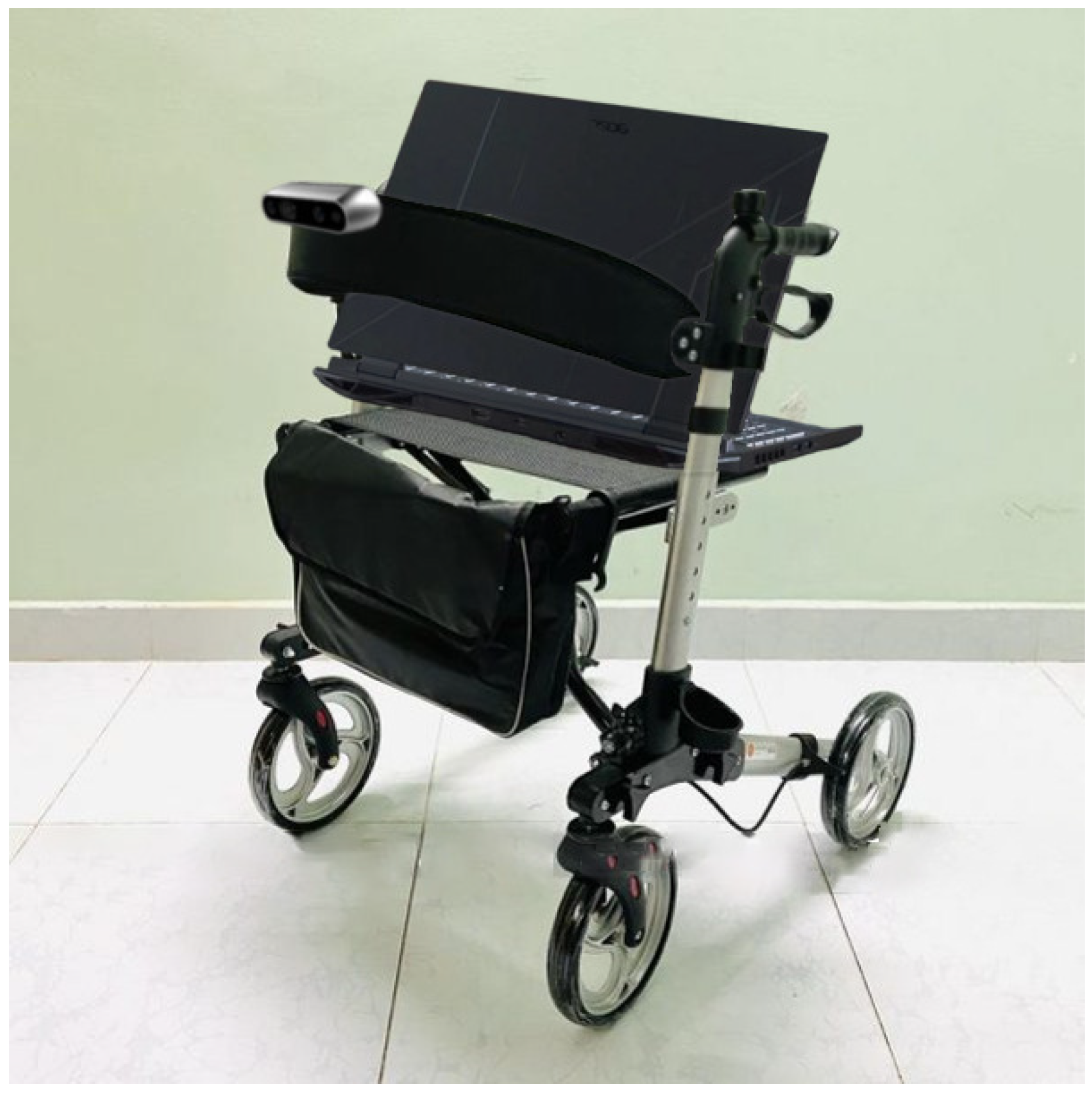

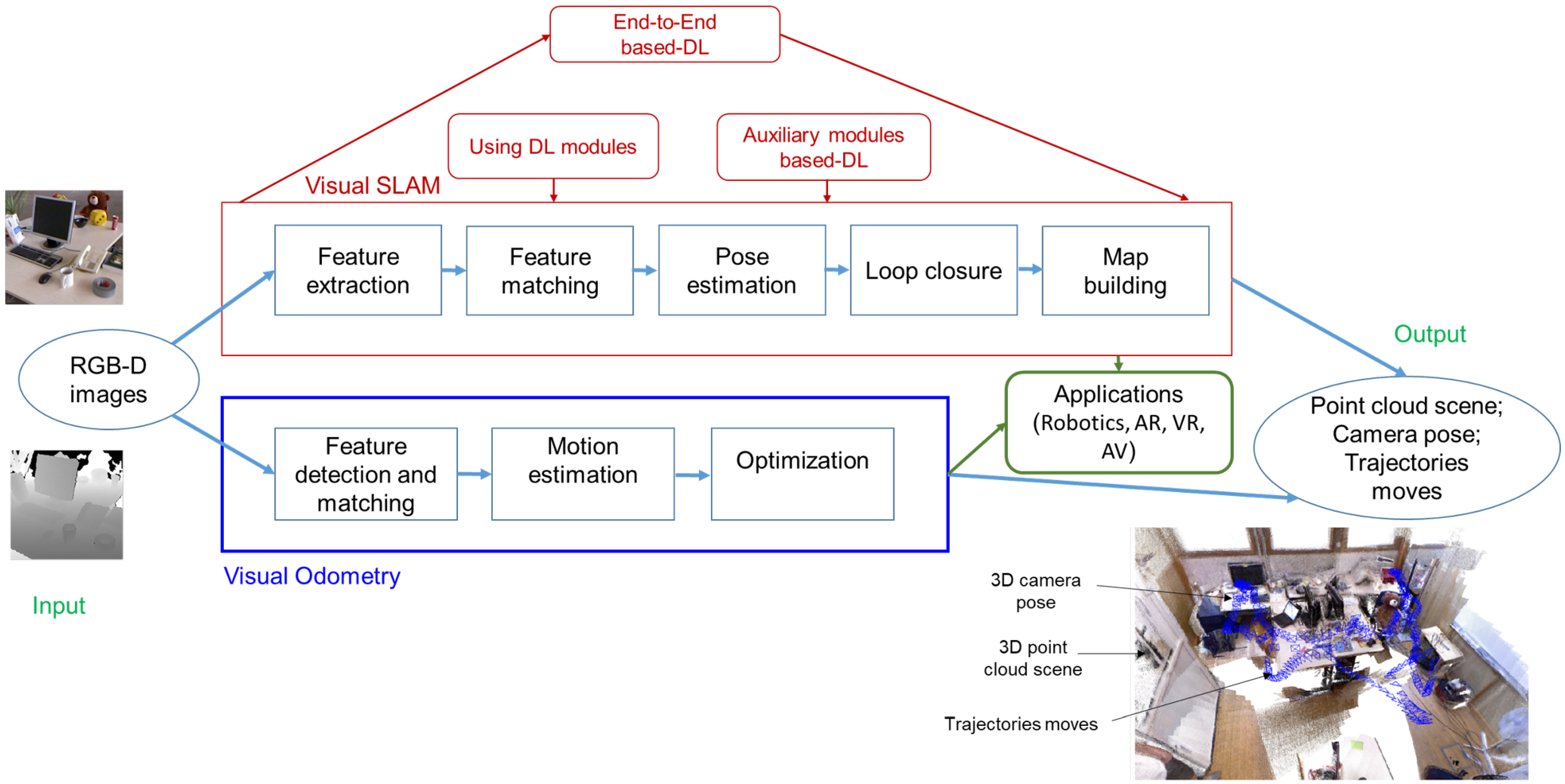

Visual simultaneous localization and mapping (Visual SLAM) based on RGB-D image data includes two main tasks: One is to build an environment map, and the other is to simultaneously track the position and movement of visual odometry estimation (VOE). Visual SLAM and VOE are used in many applications, such as robot systems, autonomous mobile robots, assistance systems for the blind, human–machine interaction, industry, etc. To solve the computer vision problems in Visual SLAM and VOE from RGB-D images, deep learning (DL) is an approach that gives very convincing results. This manuscript examines the results, advantages, difficulties, and challenges of the problem of Visual SLAM and VOE based on DL. In this paper, the taxonomy is proposed to conduct a complete survey based on three methods to construct Visual SLAM and VOE from RGB-D images (1) using DL for the modules of the Visual SLAM and VOE systems; (2) using DL to supplement the modules of Visual SLAM and VOE systems; and (3) using end-to-end DL to build Visual SLAM and VOE systems. The 220 scientific publications on Visual SLAM, VOE, and related issues were surveyed. The studies were surveyed based on the order of methods, datasets, evaluation measures, and detailed results. In particular, studies on using DL to build Visual SLAM and VOE systems have analyzed the challenges, advantages, and disadvantages. We also proposed and published the TQU-SLAM benchmark dataset, and a comparative study on fine-tuning the VOE model using a Multi-Layer Fusion network (MLF-VO) framework was performed. The comparison results of VOE on the TQU-SLAM benchmark dataset range from 16.97 m to 57.61 m. This is a huge error compared to the VOE methods on the KITTI, TUM RGB-D SLAM, and ICL-NUIM datasets. Therefore, the dataset we publish is very challenging, especially in the opposite direction (OP-D) when collecting and annotation data. The results of the comparative study are also presented in detail and available.
