Nemesis: Neural Mean Teacher Learning-Based Emotion-Centric Speaker

Abstract

Image captioning is the multi-modal task of automatically describing a digital image based on its contents and their semantic relationship. This research area has gained increasing popularity over the past few years; however, most of the previous studies have been focused on purely objective content-based descriptions of the image scenes. In this study, efforts have been made to generate more engaging captions by leveraging human-like emotional responses. To achieve this task, a mean teacher learning-based method has been applied to the recently introduced ArtEmis dataset. ArtEmis is the first large-scale dataset for emotion-centric image captioning, containing 455K emotional descriptions of 80K artworks from WikiArt. This method includes a self-distillation relationship between memory-augmented language models with meshed connectivity. These language models are trained in a cross-entropy phase and then fine-tuned in a self-critical sequence training phase. According to various popular natural language processing metrics, such as BLEU, METEOR, ROUGE-L, and CIDEr, our proposed model has obtained a new state of the art on ArtEmis.

1. Introduction

Image captioning is an important step towards developing scene-understanding ability in deep learning models for plenty of purposes. This multi-modal task deals with both textual and visual modalities with the goal of generating fluent natural language descriptions according to the contents of a digital image [1]. The applications of image captioning include usage in virtual assistants, helping visually impaired people to obtain a better perception of their surroundings, and industrial quality control. The early studies were based on retrieval-based [2,3], and template-based methods [4,5,6], where the captions are directly retrieved from an existing database causing the captions to be repetitive and not completely specific to the input image. The next step in the evolution of image captioning models was utilizing convolutional neural networks as visual feature extractors [7,8,9,10], and recurrent-neural-network-based modules as the caption generator of their model operating in an auto-regressive manner [7,10]. Recently, fully attentive transformer-based models have been one of the main trending methods to tackle this problem, following different variations of attentive encoder/decoder configurations utilizing self-attention [11].

However, most of the previous work is focused on generating purely objective content-based descriptions. Over time, these descriptions have gotten increasingly accurate, but they lack personality, emotion, and other human-like attributes. Stylized image captioning was the next step to overcome this limitation by generating captions following a given linguistic style. The absence of a large-scale dataset containing stylized (image, text) pairs has also led to adopting semi-supervised approaches, usually exploiting an unpaired stylized corpus to extract different styles [12,13,14,15]. However, some datasets have been introduced, such as Personality-Captions [12], containing 215 personality traits paired with images and their corresponding captions. FlickrStyle10k [16] also contains (image, text) pairs with two different styles. In stylized image captioning, the core concept is generating objective descriptions, only with different wording according to the target linguistic style.

Various modalities can be utilized in the task of attention-based image captioning. Lu et al. [17] introduced a novel sound active attention framework to generate captions more specific to the interest of the observer. The process is similar to the active attention in the human mind generated by top-down signals. On the other hand, Wang et al. [18] proposed NUAN, a non-uniform attention network for multi-modal feature fusion. The attention mechanism in NUAN considers three modalities of text, sound, and vision non-uniformly, where the text is utilized as a determinative representation while visual and acoustic representations are leveraged to obtain a solid representation.

Achlioptas et al. [19] introduced ArtEmis, the first large-scale dataset for affective image captioning accompanied by baseline neural speakers to generate emotion-based descriptions. In addition to being subjective, rich, and diverse, this dataset contains affective language. Figure 1 shows an example from the ArtEmis dataset containing multiple emotional responses for the same artwork. In this paper, we propose Nemesis, a Neural Mean Teacher Learning-based Emotion-centric Speaker trained on ArtEmis. Our model is capable of generating affective utterances describing the triggered human-like emotional responses stemming from visual stimuli. The generated utterances are according to both the visual features and emotion-based supervision signals.

The proposed pipeline consists of:

• Auxiliary text-to-emotion and image-to-emotion classification tasks;
• A visual encoder to extract visual features from the input image;
• Two interconnected language models following a transformer-based encoder/decoder architecture.

In Nemesis, we introduce two main contributions:

• A novel approach for the image-to-emotion classification task by decreasing the texture bias of the classifier and encouraging the model towards a shape-based classification. This is because of the differing local textures in our input images (artworks) in comparison to the real world;
• Achieving a state-of-the-art performance using the Nemesis on the ArtEmis dataset. We suggest that a self-critical mean teacher learning-based approach, supervised by extra emotional signals, is a promising path towards generating more human-like, emotionally rich captions.

1.1. Related Work

1.1.1. Mean Teacher Learning

Mean teacher learning is a semi-supervised paradigm based on the interaction between two models referred to as the teacher model and the student model. In the first place, Samuli et al. [20] proposed a novel architecture in which the temporal ensembling maintains an exponential moving average of the target predictions, while the inconsistent predictions are penalized by taking the mean squared error between the predictions of both models. However, temporal ensembling had a slow pace in utilizing the learned information in the training process since the targets are updated only once per epoch. Hence, it was not efficient when applied to large-scale datasets. Tarvainen et al. [21] proposed mean teacher learning, in which the teacher model maintains an average of the student model’s weights consecutively during the training steps instead of the label predictions. We follow the latter approach in our proposed model.

1.1.2. Knowledge Distillation

The latent knowledge encapsulated within a larger network is often referred to as “dark knowledge” [22]. Knowledge distillation (KD) [23] is the self-supervised process of transferring dark knowledge from a bigger model to a smaller one, which has been shown to be utilized effectively in various vision-language tasks. The same process is called self-distillation when the models have equal sizes. In our case, the teacher model supplies an extra supervision signal to the student model to improve in the imitation of its behavior by providing predicted soft labels [24].

1.1.3. Self-Critical Sequence Training

Policy gradient-based reinforcement learning methods, such as REINFORCE [25], have been utilized in image captioning to overcome the mismatch and the exposure bias between the optimizing function and the non-differentiable evaluation metrics [26,27,28]. Self-critical sequence training (SCST) [29] is a special case of REINFORCE in which the model’s own test-time inference is used to normalize the rewards it experiences rather than estimating the reward and the normalization method. Rennie et al. [29] proposed that directly optimizing the CIDEr metric [30] through the SCST process during the test-time can be a highly effective way to overcome the non-differentiability of such metrics and boost the performance significantly. Yang et al. [31] introduced Variational Transformer, in which the SCST process uses the range median of all samples to improve the diversity without sacrificing the accuracy.

1.1.4. Visual Encoding

As an early stage in an image captioning pipeline, the spatial information and structure are extracted from our input image to achieve a proper visual representation. Some works utilize non-attentive CNNs to extract the global features [7,10], while some other methods are based on grid-based and region-based feature extraction using additive attention [9,32]. In our case, we extract the visual features following the recent approach of employing large-scale vision-language architectures [33], such as CLIP [34] and BLIP [35].

1.1.5. Auxiliary Emotion Classification Tasks

Emotions in ArtEmis dataset are divided into 9 emotional classes; we have amusement, awe, contentment, and excitement as positive emotions, while we have anger, fear, disgust, and sadness as negative emotions. In addition, a ninth class named something else has been considered to express having no particular emotions or an additional feeling not listed. Following the work of [19], we employ two classifiers for our auxiliary emotion classification tasks, which will be utilized in both the captioning process and evaluation. We are basically facing a nine-way classification problem corresponding to each emotional class. The first module is a text-to-emotion classifier to predict the dominant emotional class of an utterance, and the utilization of this module has been discussed in Section 3.2.2. The text-to-emotion classification task is achieved by utilizing a fine-tuned pre-trained Bert model [36] to classify utterances to the emotional class to which they most likely belong.

The second module is an image-to-emotion classifier to predict the dominant emotional class of a visual input. Since the ArtEmis dataset consists of artworks and sketches, the local textures mostly differ from the ones in the real world. In addition, the human mind also tends to focus on shape-based information. On the other hand, the models pre-trained on the ImageNet [37] dataset are biased towards local textures. Therefore, we have utilized a ResNet-50 [38] encoder pre-trained on the Stylized-ImageNet [39] dataset, which is an augmentation of the standard ImageNet dataset. In Stylized-ImageNet, the local textures are heavily distorted, while the shapes have remained intact to increase the shape bias. Basically, we want to train our classifier to detect objects based on shapes rather than local textures.

2. Materials and Methods

Neural Mean Teacher Learning-based Emotion-centric Speaker or Nemesis is our proposed neural speaker capable of leveraging emotional supervision signals in the caption generation process. In this section, we will elaborate on the pipeline, architecture, and finally, the training strategy.

2.1. Pipeline

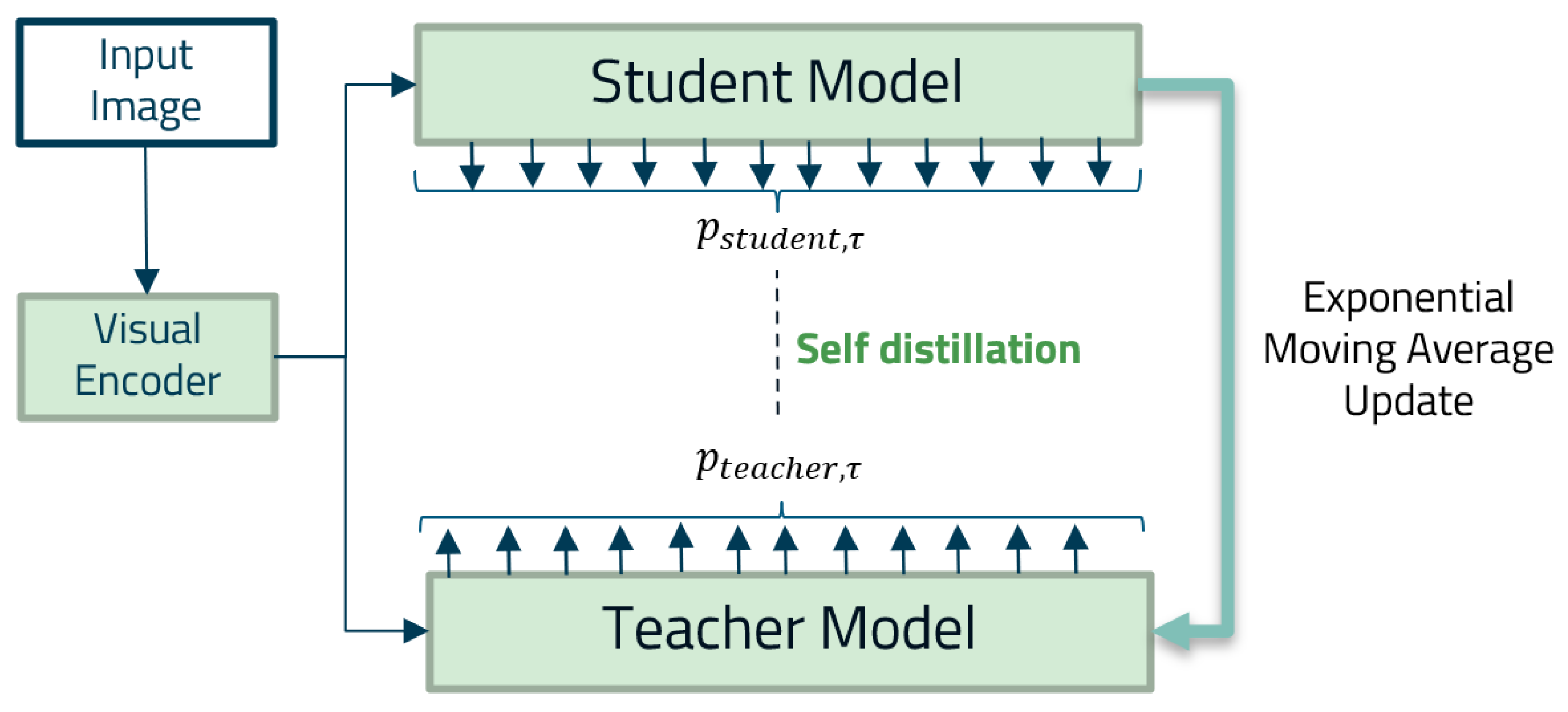

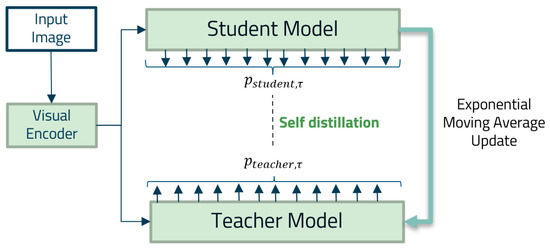

The pipeline of Nemesis, as shown in Figure 2, consisted of a visual encoder extracting visual features from the input image, then passing them to both the student model and the teacher model. Inspired by the work of Barraco et al. [40], both models had identical architectures linked based on two types of interactions: (1) the self-distillation process, where the teacher model provides regression targets via passing its predicted logits as soft labels to the equally sized student model [24]. This extra supervision signal enhances the ability of the student model to imitate the behavior of the teacher model. (2) The teacher model performs a form of model ensembling by updating its parameters ${\theta }_t$ according to the exponential moving average (EMA) [41] of the student model’s parameters ${\theta }_s$. This updating procedure can be formally defined by the equation below:

$${\theta }_t\leftarrow \lambda {\theta }_t+\left(1-\lambda \right){\theta }_s,$$

(1)

where $\lambda$ is a value between $\left[0, 1\right]$, indicating the intensity of this update. The exact role of these interactions in the training process is discussed in the training strategy section.

Emotional Grounding

In this process, at each time-step, an additional feature according to the dominant emotional class of the input image was also passed to the language models alongside the extracted visual features. This extra emotional signal enabled the model to decouple the emotion conveyed during the caption generation process from the input image’s dominant emotional class. This was inspired by how the human mind works while describing an emotional response, where we decide how to feel about something first, and then we put it into words. The dominant emotional class was selected utilizing the image-to-emotion classifier during evaluation. The neural speaker leveraging this supervision signal was called Emotionally Grounded Nemesis or EGNemesis.

2.2. Architecture

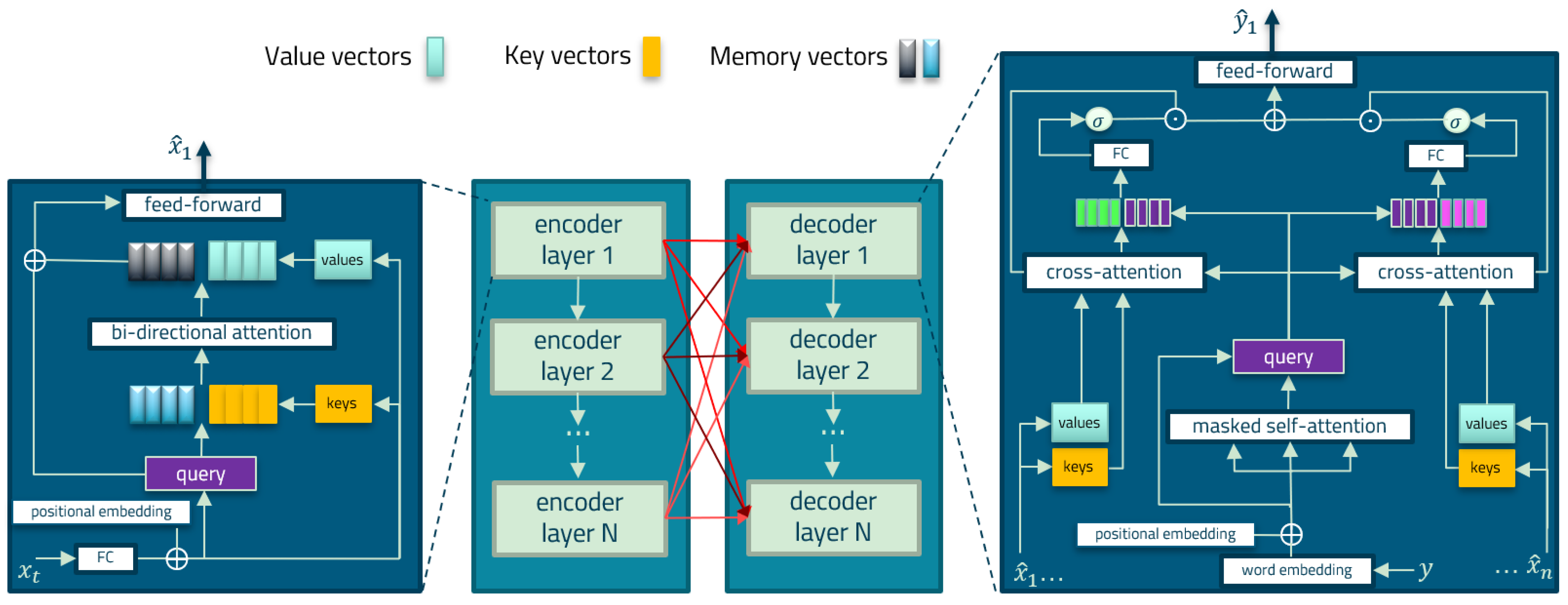

Both language models followed the same architecture consisting of a stack of memory-augmented encoders and a stack of meshed decoders [42]. This architecture is illustrated in Figure 3, and different components are elaborated in the following.

2.2.1. Memory-Augmented Encoder

The memory-augmented encoder utilized bi-directional attention to process the visual features received from the visual encoder. However, using only bi-directional attention would have deprived us of incorporating any priori knowledge in our encoding procedure. Hence, we utilized additional independent learnable memory vectors along with the key and value vectors to encode the additional priori knowledge. Finally, the encoder’s output was the result of a feed-forward network applied to the memory-augmented bi-directional attention result. The outputs of all encoder layers were passed to each decoder layer via a meshed-like connectivity. The memory-augmented attention is formally defined by the equation below:

$$\begin{array}{c}MemAu{g}_{att}\left(X\right)=Attention\left(W_{q}X, K_{MemAug}, V_{MemAug}\right),\\ K_{MemAug}=concat\left(W_{k}X, Me{m}_k\right),\\ V_{MemAug}=concat\left(W_{v}X, Me{m}_v\right),\end{array}$$

(2)

where $X$ is the input set, $W_q$, $W_k$, $W_v$ are matrices of learnable weights, and $Me{m}_k$ and $Me{m}_v$ are learnable memory matrices.

2.2.2. Meshed Decoder

Our decoder predicted the next word in an auto-regressive manner according to both the previously generated words and the encoder outputs. It applied right-masked self-attention to process the input sequence and utilized cross-attention to process the encoder outputs received through the meshed-like connection. This meshed-like connectivity enabled our model to extract both low-level and high-level features through a meshed cross-attention process. The cross-attention module used queries based on the self-attention results and keys and values from the encoder outputs. Finally, the output of the position-wise feed-forward layer gave us the output logit at each time-step.

2.3. Training Strategy

2.3.1. Cross-Entropy (XE) Training

In this phase, the student model faces two objectives. The first objective is to optimize the cross-entropy loss according to the previously generated utterances, the input image, and the model parameters. This process is formally defined by the equation below:

$$ℒ\left(\theta \right)={\mathbb{E}}_{x~D}{\sum }_{\tau }\log (u_{\tau }|u_{k<\tau }, i, \theta ),$$

(3)

where $\theta$ is the model parameters, $u_{\tau }$ is the generated utterance at time-step $\tau$, and $i$ is the input image.

The second objective for the student model was to optimize the self-distillation loss with respect to the student model’s parameters. Self-distillation loss is defined as the mean squared error (MSE) between the output logits of both models. This process follows the expression below:

$$\underset{{\theta }_s}{\min }{\sum }_{\tau }{\left(p_{t, \tau }-p_{s, \tau }\right)}^2,$$

(4)

where $p_{t, \tau }$ and $p_{s, \tau }$ are the output logits over the vocabulary of $N$ words at time-step $\tau$ for the teacher model and the student model, respectively.

The next step was the EMA update of the teacher model’s parameters ${\theta }_t$ based on the student model’s parameters ${\theta }_s$ following the expression mentioned in Equation (1). This process was conducted after each stochastic gradient descent (SGD) update of the student model. It enabled the teacher model to keep up with the improvement in the student model in a stable and steady manner.

2.3.2. SCST Fine-Tuning

This phase is a special case of REINFORCE [25], where the idea is to weight the samples outperforming the current test-time model positively and, in contrast, weight the samples inferior to the current test-time model negatively. This weighting process was completed via the reward function utilized to assign a proper score to the generated utterances at each time-step. For this purpose, the CIDEr-D [30] metric was used as the reward function, and we used the model’s own test-time inference to normalize the rewards. Specifically, at each time-step, the top-1 utterance in each of the $k$ returned beams was assigned with a proper reward, and the average of the rewards was used as a baseline to normalize them and reduce the variance. This phase enabled us to overcome the non-differentiability of such metrics and boost the performance significantly. The SCST-based fine-tuning process is formally defined by the expression below:

$${\nabla }_{\theta }ℒ\left(\theta \right)=-\frac{1}{k}{\sum }_{j=1}^k((r\left(u^j\right)-(({\sum }_{j}r\left(u^j\right))/k)){\nabla }_{\theta }\log p\left(u^j\right)),$$

(5)

where $u^j$ is the $j$-th utterance in the beam, $r(.)$ is the reward function, and $({\sum }_{j}r\left(u^j\right))/k$ is the average of the rewards to normalize the value. The utilization of other metrics, such as emotional alignment [19], was also experimented with. In this metric, the text-to-emotion classifier was utilized to predict the emotional class of the generated caption, then it was compared to the dominant emotional class of the ground-truth captions, and the percentage of matches is our score. However, the results were not acceptable due to the high variance of such metrics.

2.4. Dataset

The ArtEmis dataset [19] was utilized to train and evaluate our proposed model. It contains 454,684 emotion-centric utterances related to 80,031 artworks publicly available in the WikiArt (https://www.wikiart.org, accessed on 21 February 2022) dataset. The corpus contains 37,250 distinct words, which took 11,138 h to gather by 6788 annotators via Amazon’s Mechanical Turk (AMT) services. The reason for using artworks is that they are the best tools to trigger emotional responses. Each utterance belonged to one of these 9 emotional classes: amusement, awe, contentment, and excitement as positive emotions, while we have anger, fear, disgust, and sadness as negative emotions. In addition, a ninth class named something else was considered to express having no particular emotions or an additional feeling not listed. Efforts were made to include at least one negative and one positive emotional response for each artwork. Partitions of 85%, 5%, and 10% were considered for train, validation, and test splits, respectively.

3. Results

3.1. Metrics and Implementation Details

We employ the following captioning metrics: BLEU [43], METEOR [44], ROUGE [45], and CIDEr [30]. For the cross-entropy training and SCST fine-tuning stages, batch sizes of 50 and 30 were considered, respectively. In the captioning model’s training phase, the byte pair encoding (BPE) [46] method was utilized to represent the words. Sinusoidal positional encodings [11] were employed to represent word positions. Three layers of both encoders and decoders were utilized, each with a dimensionality of 512. The emotional grounding module was a single layer linear feed-forward network where the input was a one-hot vector of size 9 corresponding to our emotional classes, and the output was an embedding vector of size 10. The feed-forward dimensionality was 2058 in EGNemesis and 2048 in Nemesis with a head-number of 8. The memory size was set to 40. In addition, a dropout of 0.1 was applied to each sub-layer.

Adam [47] optimizer has been employed in all experiments along with a beam size of 5. In the cross-entropy training, the typical transformer learning rate scheduling strategy [11] has been utilized with a 10,000 iteration warmup. While in the SCST fine-tuning phase, a fixed learning rate of $5\times {10}^{-6}$ has been considered, with a momentum $\lambda$ of 0.999 for the teacher model.

3.2. Ablation Study

3.2.1. Visual Encoder

First, we evaluated the role of employing different models as the visual encoder to extract visual features. We experimented with detecting the object bounding boxes using a Faster R-CNN [48] model using a ResNet-101 [38] module pre-trained on the Visual Genome dataset [49]. Additionally, extracting grid-based features via CLIP [34] and region-based features via BLIP [35] was examined. In particular, the CLIP-RN50 × 16 variant was utilized, which is based on an EfficientNet-style [50] scaling. On the other hand, we utilized the $BLI{P}_{ViT-L/16}$ variant, which is based on the vision transformer [51] approach.

As can be observed in

Table 1. Performance of the teacher model utilizing different visual encoders for both the Nemesis and EGNemesis models. (B: BLEU, M: METEOR, R: ROUGE, C: CIDEr).

Model	Visual Encoder	Teacher Model
		B-1	B-2	B-3	B-4	M	R	C
	Faster R-CNN	0.503	0.277	0.154	0.089	0.141	0.278	0.093
Nemesis	CLIP-RN50 × 16	0.539	0.311	0.178	0.106	0.141	0.294	0.130
	$BLI{P}_{ViT-L/16}$	0.526	0.304	0.175	0.105	0.138	0.291	0.127
	Faster R-CNN	0.458	0.233	0.121	0.066	0.118	0.242	0.070
EGNemesis	CLIP-RN50 × 16	0.475	0.252	0.136	0.076	0.124	0.254	0.095
	$BLI{P}_{ViT-L/16}$	0.470	0.252	0.137	0.077	0.123	0.255	0.099

and

Table 2. Performance of the student model utilizing different visual encoders for both the Nemesis and EGNemesis models. (B: BLEU, M: METEOR, R: ROUGE, C: CIDEr).

Model	Visual Encoder	Student Model
		B-1	B-2	B-3	B-4	M	R	C
	Faster R-CNN	0.498	0.273	0.151	0.086	0.130	0.276	0.087
Nemesis	CLIP-RN50 × 16	0.532	0.304	0.172	0.102	0.137	0.290	0.120
	$BLI{P}_{ViT-L/16}$	0.509	0.290	0.165	0.097	0.137	0.281	0.116
	Faster R-CNN	0.455	0.233	0.122	0.066	0.114	0.243	0.066
EGNemesis	CLIP-RN50 × 16	0.472	0.251	0.134	0.076	0.124	0.254	0.095
	$BLI{P}_{ViT-L/16}$	0.479	0.260	0.141	0.080	0.129	0.262	0.099

, the best performance was achieved by the teacher model of Nemesis utilizing CLIP-RN50 × 16 as the visual encoder; hence, we will be referring to this exact configuration when mentioning the Nemesis. For the EGNemesis, the best performance was achieved by the student model utilizing $BLI{P}_{ViT-L/16}$; therefore, this particular configuration will be referred to as the EGNemesis in the following sections. As mentioned previously, the student and teacher models had equal sizes. In addition, the student model experiencing a higher number of parameter updates provided the opportunity to outperform the teacher model.

On the other hand, to experiment with handling the big data in various paradigms, these visual encoders have been utilized in two visual encoding modes. The CLIP and BLIP visual encoders have been incorporated in online visual encoding mode, where the visual feature extraction is carried out in real-time while training. On the other hand, the Faster R-CNN visual encoder has been utilized in offline visual encoding mode, where the features have been extracted before training the language models. These extracted features are stored on the disk and accessed during the training process. Data parallelism has been leveraged with the BLIP visual encoder in the XE training phase to reduce the training time.

Table 3. Training time based on utilizing different visual encoding modes.

Training Phase	Visual Encoder	Encoding Mode	Data Parallelism	GPU Type	Time Per Epoch
	Faster R-CNN	Offline	-	NVIDIA P100	1 h
XE	CLIP-RN50 × 16	Online	-	NVIDIA V100	4 h
	$BLI{P}_{ViT-L/16}$	Online	✓	NVIDIA V100	1 h
	Faster R-CNN	-	-	-	-
SCST	CLIP-RN50 × 16	Online	-	NVIDIA V100	7 h
	$BLI{P}_{ViT-L/16}$	Online	-	NVIDIA V100	7 h

contains training times corresponding to each visual encoding mode for both training phases. However, the SCST fine-tuning was not carried out for the model trained on the Faster R-CNN encoder due to the incompetent results.

3.2.2. SCST Fine-Tuning

Table 4. The comparison of the results before and after applying the SCST fine-tuning.

Metric	$\mathit{N}\mathit{e}\mathit{m}\mathit{e}\mathit{s}\mathit{i}\mathit{s}$	$\mathit{N}\mathit{e}\mathit{m}\mathit{e}\mathit{s}\mathit{i}{\mathit{s}}_{\mathit{S}\mathit{C}\mathit{S}\mathit{T}}$	$\mathit{E}\mathit{G}\mathit{N}\mathit{e}\mathit{m}\mathit{e}\mathit{s}\mathit{i}\mathit{s}$	$\mathit{E}\mathit{G}\mathit{N}\mathit{e}\mathit{m}\mathit{e}\mathit{s}\mathit{i}{\mathit{s}}_{\mathit{S}\mathit{C}\mathit{S}\mathit{T}}$
BLEU-1	0.539	0.711	0.479	0.700
BLEU-2	0.311	0.406	0.260	0.403
BLEU-3	0.178	0.211	0.141	0.214
BLEU-4	0.106	0.113	0.080	0.115
METEOR	0.141	0.166	0.129	0.165
ROUGE-L	0.294	0.341	0.262	0.336
CIDEr	0.130	0.219	0.099	0.224

shows the effect of the SCST fine-tuning stage, where the CIDEr-D metric was used as the reward function to encourage the model’s generations that outperform the current test-time model following Equation (5). As is observable, the model’s performance is boosted with respect to all utilized metrics in comparison with the same model after the cross-entropy training phase. The most significant improvements are related to the CIDEr and BLEU-1 scores. The BLEU-1 metric increased from 0.539 to 0.711 for the Nemesis, and from 0.479 to 0.700 for the EGNemesis. On the other hand, the CIDEr score was boosted from 0.130 to 0.219 for the Nemesis, and from 0.099 to 0.224 for the EGNemesis.

3.2.3. Image-to-Emotion Classifier

A comparison of the model’s performance according to the utilization of different image-to-emotion classifiers can be found in

Table 5. Results with respect to the utilized image-to-emotion classifiers.

Metric	$\mathit{E}\mathit{G}\mathit{N}\mathit{e}\mathit{m}\mathit{e}\mathit{s}\mathit{i}{\mathit{s}}_{\mathit{I}\mathit{N}}$	$\mathit{E}\mathit{G}\mathit{N}\mathit{e}\mathit{m}\mathit{e}\mathit{s}\mathit{i}{\mathit{s}}_{\mathit{S}\mathit{I}\mathit{N}}$
BLEU-1	0.466	0.479
BLEU-2	0.251	0.260
BLEU-3	0.137	0.141
BLEU-4	0.077	0.080
METEOR	0.128	0.129
ROUGE-L	0.253	0.262
CIDEr	0.093	0.099

. These classifiers are: (1) the ResNet-32 classifier pre-trained on the ImageNet dataset (IN), which gave the best performance in the previous work by Achlioptas et al. [19]. (2) The ResNet-50 classifier pre-trained on the Stylized-ImageNet dataset (SIN), which is our proposed classifier.

As is observable, the performance has improved by using our proposed classifier module in all the utilized metrics. For instance, the BLEU-1 score has improved from 0.466 to 0.479, and the CIDEr metric has improved from 0.093 to 0.099. This shows that the decrease in texture bias while increasing shape bias achieved a better performance in our auxiliary image-to-emotion classification task.

3.2.4. Emotional Grounding

The results with and without incorporating the extra emotional supervision signal are shown in Table 4. This signal is provided based on the emotional class indicated by the image-to-emotion classifier during the training time to keep the assessment fair.

As can be observed, the evaluation scores experience a decrease after emotional grounding; however, this degradation in evaluation metrics does not necessarily indicate a decrease in the quality of generated captions in our case. Most evaluation metrics return a higher score if the generated caption includes more words from the ground-truth captions or their synonyms, which is not the best way to assess generated captions in our subjective emotion-centric utterances. In fact, an increase in the diversity of the captions can result in a degradation of evaluation metrics. As shown in Figure 4, the generated caption of Nemesis for the first image is “it looks like a cold winter day”. While the EGNemesis generated “this painting makes me feel nostalgic. it reminds me of my childhood” grounded in the Contentment emotional class, which is more emotionally rich according to human judgment. However, this emotionally grounded utterance will achieve a lower evaluation score since it does not contain the frequent words in the ground-truth captions, which are “cold” and “winter”.

3.3. Comparison with the State-of-the-Art

3.3.1. Auxiliary Classification

The nine-way emotional classification problem is an extremely challenging task because of the subjectivity of emotions and diversity of emotional utterances. In a previous work, a user study was conducted to measure the accuracy of this classification task by humans [19]. This study consisted of three human experts attempting to guess the dominant emotional class based on a ground-truth utterance of ArtEmis, where they achieved an accuracy of only 61.2%. This depicts how challenging this task is, even based on human judgment. However, the BERT-based text-to-emotion classifier utilized in our model achieved a 64.8% accuracy, which is a surprising performance compared to the human results.

For the image-to-emotion classification task, which is arguably more difficult than the text-to-emotion classification, the ResNet-32 module pre-trained on ImageNet (IN) achieved a 60.2% accuracy, while the ResNet-50 module pre-trained on Stylized-ImageNet (SIN) achieved a 59.4% accuracy. However, the accuracy of this auxiliary task is not directly important to us. As mentioned earlier, Table 5 shows that our model performs better when utilizing the classifier trained on SIN because of the more diverse and shape-driven label predictions.

3.3.2. Emotion-Centric Image Captioning Task

We compared our proposed neural speaker to the best-performing emotion-centric image captioning models introduced by [19] on the ArtEmis dataset. These neural speakers include a captioning model inspired by meshed-memory transformer ($M^2$) [42] architecture, and an LSTM-based model inspired by “Show, Attend and Tell” (SAT) [9]. In addition, this comparison included the emotionally grounded variations of these models (i.e., $M^2$-EG and SATEG).

As can be observed in

Table 6. Comparison of state-of-the-art results and Nemesis after both cross-entropy training and SCST fine-tuning.

Metric	$\mathit{S}\mathit{A}\mathit{T}$	$\mathit{S}\mathit{A}\mathit{T}\mathit{E}\mathit{G}$	${\mathit{M}}^2$	${\mathit{M}}^2$$-\mathit{E}\mathit{G}$	$\mathit{N}\mathit{e}\mathit{m}\mathit{e}\mathit{s}\mathit{i}\mathit{s}$	$\mathit{N}\mathit{e}\mathit{m}\mathit{e}\mathit{s}\mathit{i}{\mathit{s}}_{\mathit{S}\mathit{C}\mathit{S}\mathit{T}}$	$\mathit{E}\mathit{G}\mathit{N}\mathit{e}\mathit{m}\mathit{e}\mathit{s}\mathit{i}\mathit{s}$	$\mathit{E}\mathit{G}\mathit{N}\mathit{e}\mathit{m}\mathit{e}\mathit{s}\mathit{i}{\mathit{s}}_{\mathit{S}\mathit{C}\mathit{S}\mathit{T}}$
BLEU-1	0.536	0.520	0.507	0.511	0.539	0.711	0.479	0.700
BLEU-2	0.290	0.280	0.282	0.282	0.311	0.406	0.260	0.403
BLEU-3	0.155	0.146	0.159	0.154	0.178	0.211	0.141	0.241
BLEU-4	0.087	0.079	0.095	0.090	0.106	0.113	0.080	0.115
METEOR	0.142	0.134	0.140	0.137	0.141	0.166	0.129	0.165
ROUGE-L	0.297	0.294	0.280	0.286	0.294	0.341	0.262	0.336

, our proposed model outperforms both the emotionally grounded and standard variations of $M^2$ and SAT speakers with respect to all incorporated metrics. This improvement is more notable in models after the SCST fine-tuning stage. The only exception is the EGNemesis, and the reason for this degradation has been elaborated on previously. As an example, Figure 5 shows some generated utterances from SATEG and EGNemesis models, where EGNemesis appears to generate more abstract, diverse, emotionally rich, and human-like captions.

3.3.3. Limitations

The main challenge in the task of emotion-centric image captioning is the lack of a proper evaluation metric that aligns well with human judgment. Most of the evaluation metrics focus on comparing words in the generated captions with the words or synonyms in the reference captions, which is not the best approach for our diverse and subjective task. On the other hand, the generated captions are still far from including the ideal human-like properties to describe both emotionally and linguistically accurate emotional responses.

4. Conclusions

Neural speakers capable of producing affective utterances are an important step toward generating more engaging captions by provoking human emotions. As humans, emotions are a crucial part of expressing ourselves when we aim to describe different phenomena. Therefore, it is logical to expect the automatic image captioning process to consider this essential aspect of our perceptions. In this paper, we introduced Nemesis, a Neural Mean Teacher Learning-based Emotion-centric Speaker, an image captioning model capable of describing emotional responses to visual stimuli. We used the ArtEmis dataset to train our proposed neural speaker, the first large-scale dataset for affective image captioning containing 455K emotional descriptions of 80K artworks from WikiArt. We showed that incorporating a mean teacher learning-based approach followed by SCST-based fine-tuning, which utilizes extra emotional supervision signals, is a promising path toward generating more human-like emotion-centric descriptions. This was achieved by both experimenting with the utilization of different modules in the proposed pipeline and comparing it with the latest state-of-the-art methods.
