1. Introduction
Cyberspace has become a fundamental component of everyday activities, being the core of most economic, commercial, cultural, social, and governmental interactions [
1]. As a result, the ever-growing threat of cyber-attacks not only implies a financial loss, but also jeopardizes the performance and survival of companies, organizations, and governmental entities [
2]. It is vital to recognize the increasing pace of cybercrime as the estimated monetary cost of cybercrime skyrocketed from approximately
$600 billion in 2018 to over
$1 trillion in 2020 [
3]. This effect has increased even further due to the COVID-19 pandemic [
4].
In this context, the necessity for better cyber information sources and a standardized cybersecurity knowledge database is of paramount importance, as a means to identify and combat the emerging cyber-threats [
5]. Efforts to build such globally accessible knowledge bases already exist. MITRE Corporation set up two powerful public sources of cyber threat and vulnerability information, namely the Common Vulnerabilities and Exposures list and the MITRE ATT&CK Enterprise Matrix.
The
Common Vulnerabilities and Exposures list is a community-based dictionary of standardized names for publicly known cybersecurity vulnerabilities. Its effort converges toward making the process of identifying, finding, and fixing software vulnerabilities more efficient, by providing a unified naming system [
6]. Despite their benefits and widespread usage, CVE entries offer little to no information regarding mitigation techniques or existing defense strategies that could be employed to address a specific vulnerability. Moreover, the meta-information of a CVE does not include sufficient classification qualities, resulting in sub-optimal usage of this database. Better classification would translate to mitigating a larger set of vulnerabilities since they can be grouped and addressed together [
7].
The
MITRE ATT&CK Enterprise Matrix links techniques to tangible configurations, tools, and processes that can be used to prevent a technique from having a malicious outcome [
8]. By associating an ATT&CK technique to a given CVE, more context and valuable information for the CVE can be extracted, since CVEs and MITRE ATT&CK techniques have complementary value. Furthermore, security analysts could discover and deploy the necessary measures and controls to monitor and avert the intrusions pointed out by the CVE and cluster the CVEs by technique [
9].
Even though linking CVEs to the MITRE ATT&CK Enterprise Matrix would add massive value to the cybersecurity community, these two powerful tools are currently separated. However, manually mapping all 189,171 [
10] CVEs currently recorded to one or more of the 192 different techniques in the MITRE ATT&CK Enterprise Matrix is a non-trivial task and the need for automated models emerges to map all existing entries to corresponding techniques. In addition, even if new CVEs would be manually labeled, an initial pre-labeling using a machine learning model before expert validation would be time effective and beneficial. Moreover, the model would provide technique labeling for zero-day vulnerabilities, which would be extremely helpful for security teams.
The ATT&CK matrix supports a better understanding of vulnerabilities and what an attacker could achieve by exploiting a certain vulnerability. ATT&CK technique details, such as detection and mitigation, are useful for system administrators, SecOps, or DevSecOps teams to obtain an assessment risk report in a short period of time while generating a remediation plan for discovered vulnerabilities. The Center for Threat-Informed Defense team has created a very useful methodology [
11] that helps the community build a more powerful threat intelligence database. The organization’s defender team has to understand how important it is to bridge vulnerability and threat management with the adoption of this methodology as more reliable and consistent risk assessment reports will be obtained [
12].
Baker [
12] highlights the importance of combining CVEs with the ATT&CK framework to achieve threat intelligence. Years ago, it was considerably harder for security teams to understand the attack surface, thus reducing their capacity to protect the organization against cyber attacks. With the emergence of the ATT&CK project, the security teams have a better overview of the CVEs based on known attack techniques, tactics, and procedures.
Vulnerability management can be divided into three categories, namely: the “Find and fix” game, the “Vulnerability risk” game, and the “Threat vector” game. The first one is a traditional approach where the vulnerabilities are prioritized by CVSS Score; this is applicable for small organizations with less dynamic assets. The second category consists of risk-based vulnerability management where organizational context and threat intelligence (such as CVE exploited in the wild properties) are considered; this applies to organizations that have security teams, but the number of CVEs is too large. The “Threat Vector” game includes the understanding of how the hackers might exploit the vulnerabilities while accounting for the MITRE ATT&CK framework mappings between CVEs and techniques, tactics, and procedures. The third category is the most efficient model of threat intelligence, with inputs delivered to the vulnerability risk management process from cyber attacks that have occurred and are trending. As such, security teams should take into account risks for building the vulnerability management program, but also threat intelligence to have a better understanding of vulnerabilities and to discover the attack chains within the network [
13].
The aim of this paper is to develop a model that leverages the textual description found in CVE metadata to create strong correlations with the MITRE ATT&CK Enterprise Matrix techniques. To achieve this goal, a data collection methodology is developed to build our manually labeled CVE corpus containing more than 18,100 entries. Moreover, state-of-the-art Natural Language Processing (NLP) techniques that consider BERT-based architectures are employed to create robust models. We also target addressing the problem of a severely imbalanced dataset by developing an oversampling method based on adversarial attacks.
Efforts have been already undertaken to interconnect CVEs to the MITRE ATT&CK Framework. However, we identified limitations of existing solutions based on the research gap in the literature regarding the identification of correspondences between CVEs to the corresponding techniques from the MITRE ATT&CK Enterprise Matrix. The following subsections details existing state-of-the-art techniques relevant for our task.
1.1. BRON
BRON [
9] is a bi-directional aggregated data graph which allows relational path tracing between MITRE ATT&CK Enterprise Matrix tactics and techniques, Common Weakness Enumerations (CWE), Common Vulnerabilities and Exposures (CVE), and Common Attack Pattern Enumeration and Classification list (CAPEC). BRON creates a graph framework that unifies all scattered data through inquiries performed of the resulted graph representation by data-mining the relational links between all these cyber-security knowledge sources. In this manner, it connects the CVE list to MITRE ATT&CK by traversing the relational links in the resulted graph.
Each information source has a specific node type, interconnected by external linkages as edges. MITRE ATT&CK techniques are linked to Attack Patterns. Attack Patterns are connected to CWE Weaknesses, which have relational links to a CVE entry. Thus, BRON can respond to several different queries, including linking the CVE list to the MITRE ATT&CK Framework.
However, the model falls short as it does not connect new CVEs to MITRE ATT&CK Enterprise Matrix techniques, but it uses already existing information and links to create a more holistic overview of the already available knowledge. It does not solve our problem, since the main aim is to correctly label new emergent samples.
1.2. CVE Transformer (CVET)
The CVE Transformer (CVET) [
14] is a model that combines the benefits of using the pre-trained language model RoBERTa with a self-knowledge distillation design used for fine-tuning. Its main aim is to correctly associate a CVE with one of 10 tactics from the MITRE ATT&CK Enterprise Matrix. Although the CVET approach obtains increased performance in F1-score, it is unable to identify all 14 tactics from the MITRE ATT&CK Matrix on the training knowledge base.
Moreover, the problem of technique labeling is much more complex than tactic mapping, since the number of available techniques is ten times higher (i.e., there are 14 tactics and 192 different techniques in the MITRE ATT&CK Enterprise Matrix). Additionally, tactic labeling can be viewed as a subproblem of our main goal given the correlation between tactics and techniques. Overall, technique labeling is out of scope for the CVE Transformer project.
1.3. Unsupervised Labeling Technique of CVEs
The unsupervised labeling technique introduced by Kuppa et al. [
15] considers a multi-head deep embedding neural network model that learns the association between CVEs and MITRE ATT&CK techniques. The proposed representation identifies specific regular expressions from the existing threat reports and then uses the cosine distance to measure the similarity between ATT&CK technique vectors and the text description provided in the CVE metadata. This technique manages to map only 17 techniques out of the existing 192. As such, multiple techniques are not covered by the proposed model. Thus, a supervised approach for technique labeling might improve the recognition rate among techniques.
1.4. Automated Mapping to ATT&CK: The Threat Report ATT&CK Mapper (TRAM) Tool
Threat Report ATT&CK Mapping (TRAM) [
16] is an open-source tool developed by
The Center for Threat-Informed Defense that automates the process of mapping MITRE ATT&CK techniques on cyber-threat reports. TRAM utilizes classical pre-processing techniques (i.e., tokenization, stop-words removal, lemmatization) [
17] and applies Logistic Regression on the bag-of-words representations. Since the tool maps any textual input on MITRE ATT&CK techniques, it could, in theory, be adapted to link the CVE list to the MITRE ATT&CK Framework by simply using it on the CVE textual description. However, due to its simplicity, the tool has serious limitations when it comes to its capacity to learn the right association between text descriptions and techniques. In addition, TRAM labels each sentence individually, failing to capture dependencies in textual passages. In this way, the overall meaning of the text is lost.
The main contributions of this paper are as follows:
Introducing a new publicly available dataset of 1813 CVEs annotated with all corresponding MITRE ATT&CK techniques;
Experiments with classical machine learning and Transformer-based models, coupled with data augmentation techniques, to establish a strong baseline for the multi-label classification task;
A qualitative analysis of the best performing model, coupled with error analysis that considers Lime explanations [
18] to point out limitations and future research directions.
We open-source our dataset on TagTog [
19] and the code on GitHub [
20].
3. Results
This section analyses the results of the empirical experiments performed using the previously detailed models. First, it compares the performance of various models. Second, it assesses the impact of data augmentation on performance and investigates the metrics obtained by the best model.
Multiple observations can be made based on the results of our experiments shown in
Table 1. From the classical machine learning models, LabelPowerset is the best multi-label strategy and SVC with a linear kernel and C = 32 has the higher F1-score, competing even with our deep-learning models. The SecBERT model has the highest F1-score (42.34%) among all considered models, proving to be the most powerful solution to labeling a CVE. An important observation is that the CNN + Word2Vec architecture obtained better results than those using simple BERT. Thus, domain-related pre-training on large security databases leads to increased performance by providing better contextualization and partially compensating for the scarce training set.
Table 2 points out the appropriateness of employing data augmentation techniques on our dataset for deep learning models (approximately 6% performance gain). Only the best multi-label strategy for classical machine learning algorithms was considered. The F1-score falls considerably by 10% for Naive Bayes, in particular, since Naive Bayes places great importance on the number of appearances of a word in a document; however, swapping a relevant word with synonyms and performing random insertions or deletions (i.e., the strategies employed by the EasyDataAugmenter [
28]) only confuse the model. The SVC model had a similar performance, whereas the BERT-based models take advantage of the increased sample size/the decreased class imbalance, and generalize better. Not only is performance increased, but the models also tend to learn faster (see faster convergence in

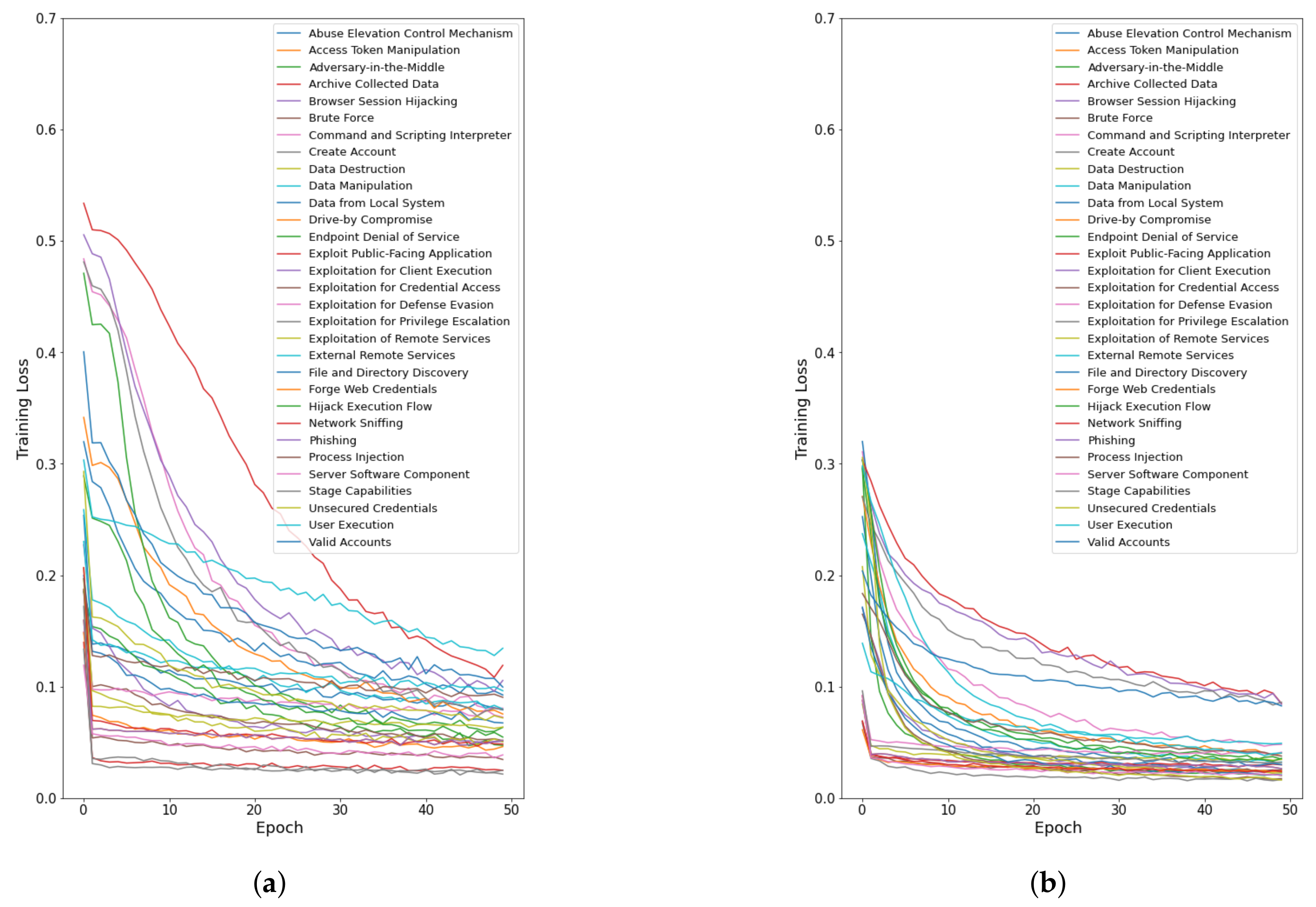

Figure 7 in terms of training loss for each output layer associated with a technique in the multi-output BERT model). Moreover,
Figure 7 denotes which techniques are more easily learned by the model.
Since
Table 2 only provides a global overview of the average performance of the SciBERT model trained on the augmented data, exploring the particular difference between how the model handles different techniques provides additional insights into our model’s behavior.

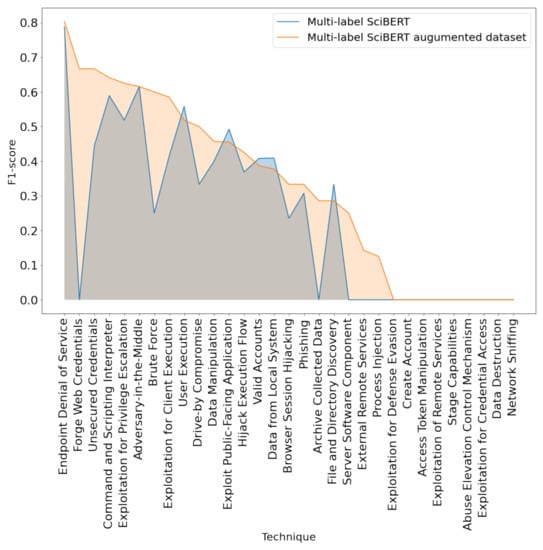

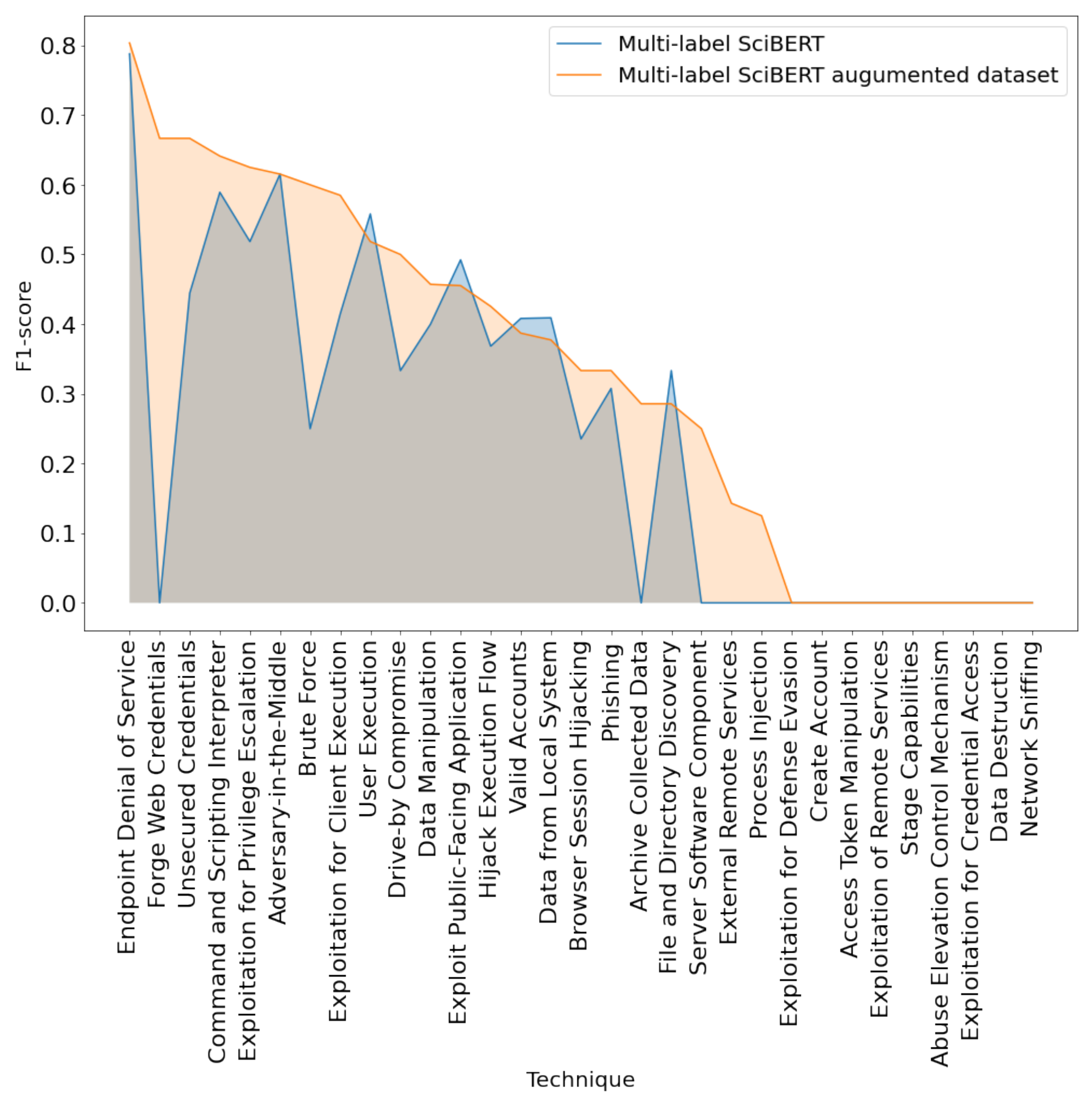

Figure 8 plots the F1-score obtained for each individual technique, for both the original model and the one trained on the augmented dataset. Apart from four exceptions (
Data from Local System,
Hijack Execution Flow,
User Execution and
File and Directory Discovery), the model obtains considerably higher or at least equal scores for all the other 27 techniques. Moreover, the difference between models is minimal (close to 0) for the techniques where the initial model obtains a better F1-score.
The added gain of the multi-label SciBERT model trained on the augmented dataset resides in its ability to maximize the F1-score for techniques where the initial model performed poorly. One such example is Forge Web Credentials. The initial model obtained an F1-score of 0% since both recall and precision were 0%. However, the improved version of the model obtained an F1-score of 66.66%, with a recall of 50% and precision of 100% after data augmentation; similarly, data augmentation tuned the model to predict the Forge Web Credentials technique with 100% precision. Overall, the number of techniques with which the model had difficulty in learning has decreased substantially.

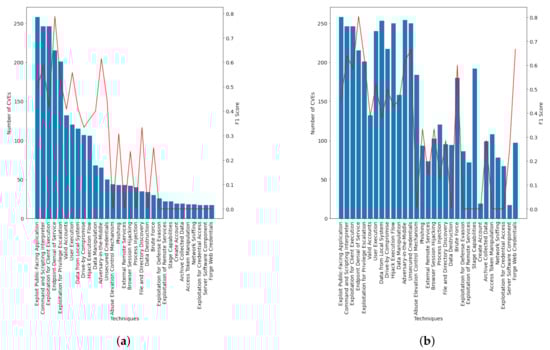

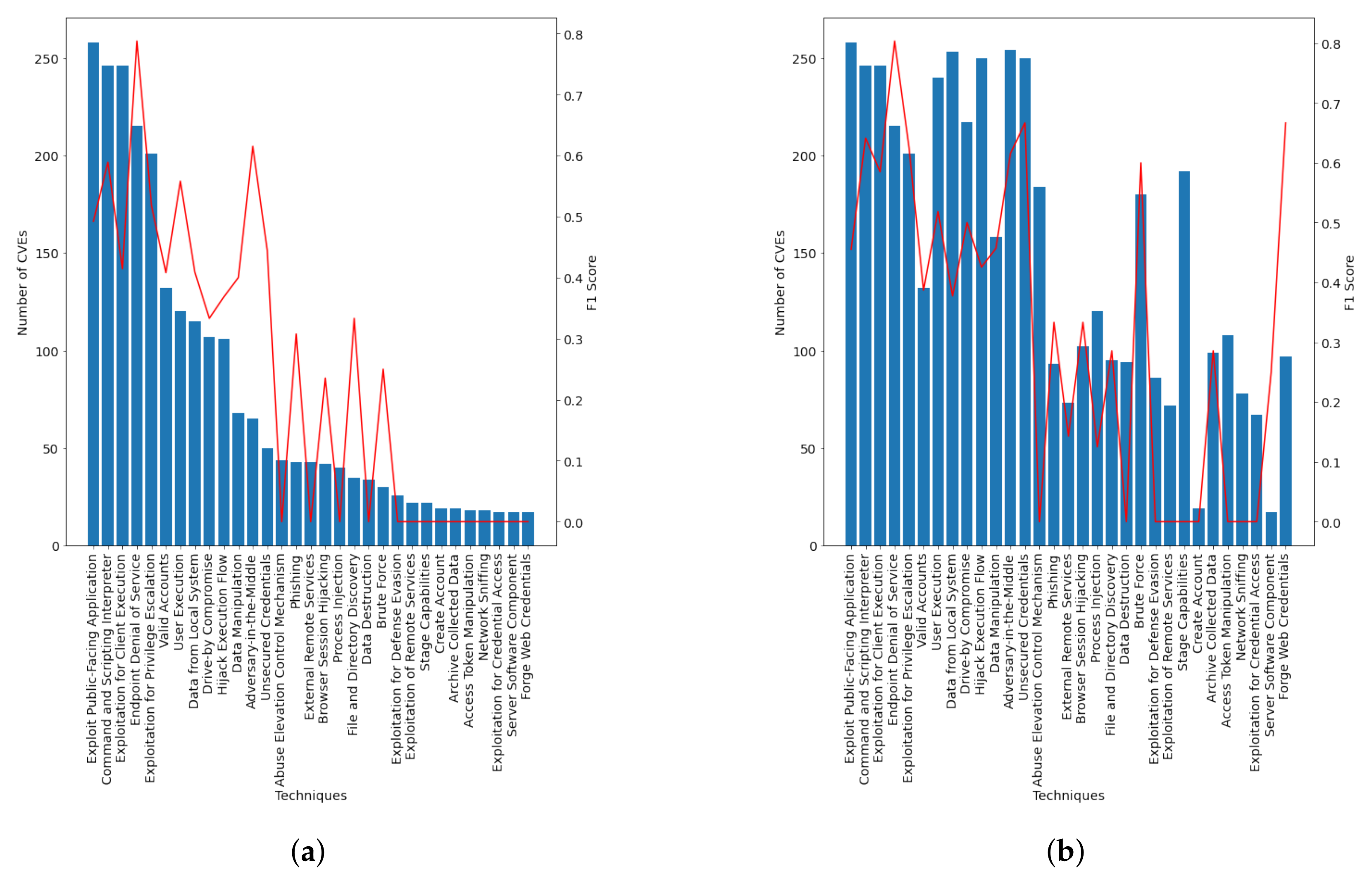

Figure 9 shows the correlation between the CVE distribution and the F1-score obtained for the SciBERT models, both using the initial dataset and the one trained after augmentation. The techniques are displayed on both graphs in the same order to indicate how the CVE distribution changed after performing the process of data augmentation and how the adjustments in CVE distribution impacted the F1-score. We observe that not only the techniques initially associated with a small number of CVEs benefited from the augmentation method, but also the techniques associated with a high distribution of samples—for example, the F1-score for the
Command and Scripting Interpreter technique increased from the initial 58.92% to 64.12%.
4. Discussion
4.1. In-Depth Analysis of the Best Model
Table 3 introduces a complete overview of the results recorded for the best model, the multi-label SciBERT trained on the augmented dataset. The F1-score per technique from the MITRE ATT&CK Enterprise Matrix ranges from 80.35% for
Endpoint Denial of Service to 0.00%; the last techniques at the end of
Table 3 marked with italics and including the corresponding number of training samples in parenthesis. Even though the model scores on a global scale an F1-score of 47.84%, the model fails to capture any knowledge about nine out of the thirty-one techniques, though fewer instances than the other evaluated models. We can associate this inability of the model to recognise the distinct features of these techniques with the extremely reduced number of samples for each technique, even after performing data augmentation. The existing samples in the dataset do not contain enough relevant characteristics for these techniques; as such, the model cannot differentiate them.
Nevertheless, the model successfully captures the essence of other techniques, obtaining a precision of 100.00% for Forge Web Credentials and Brute Force. For almost all techniques, precision exceeds recall, thus indicating that the general tendency of the model is to omit a label, rather than misplace a technique that cannot be mapped to a particular CVE.
Overall, given the complexity of the multi-label problem and the severe imbalance of the training set, the model obtains promising performance for a subset of techniques, while managing to maximize its overall F1-score.
4.2. Error Analysis
This subsection revolves around understanding the roots of the multi-label SciBERT model limitation. After a methodological investigation that aims to identify the cause of the model’s errors, the observed performance deficiencies are further discussed.
Table 4 presents different CVEs whose predicted techniques differ partially or completely from the labeled ones. For most errors in the dataset with multiple techniques tagged, the model succeeds in labeling a subset of correct techniques. This observation stands true for errors 1, 2, and 3 from
Table 4. While analyzing error #1, the model extracts the most obvious technique, pointed out by language markers such as
password unencrypted,
global file, but fails to make the deduction that, in order for a user to access the file system, a valid account must be used. In contrast, the model successfully identifies the
Valid Accounts technique for error #2. In general, techniques that are not clearly textually encapsulated and whose understanding requires prerequisite knowledge are overlooked by the model.

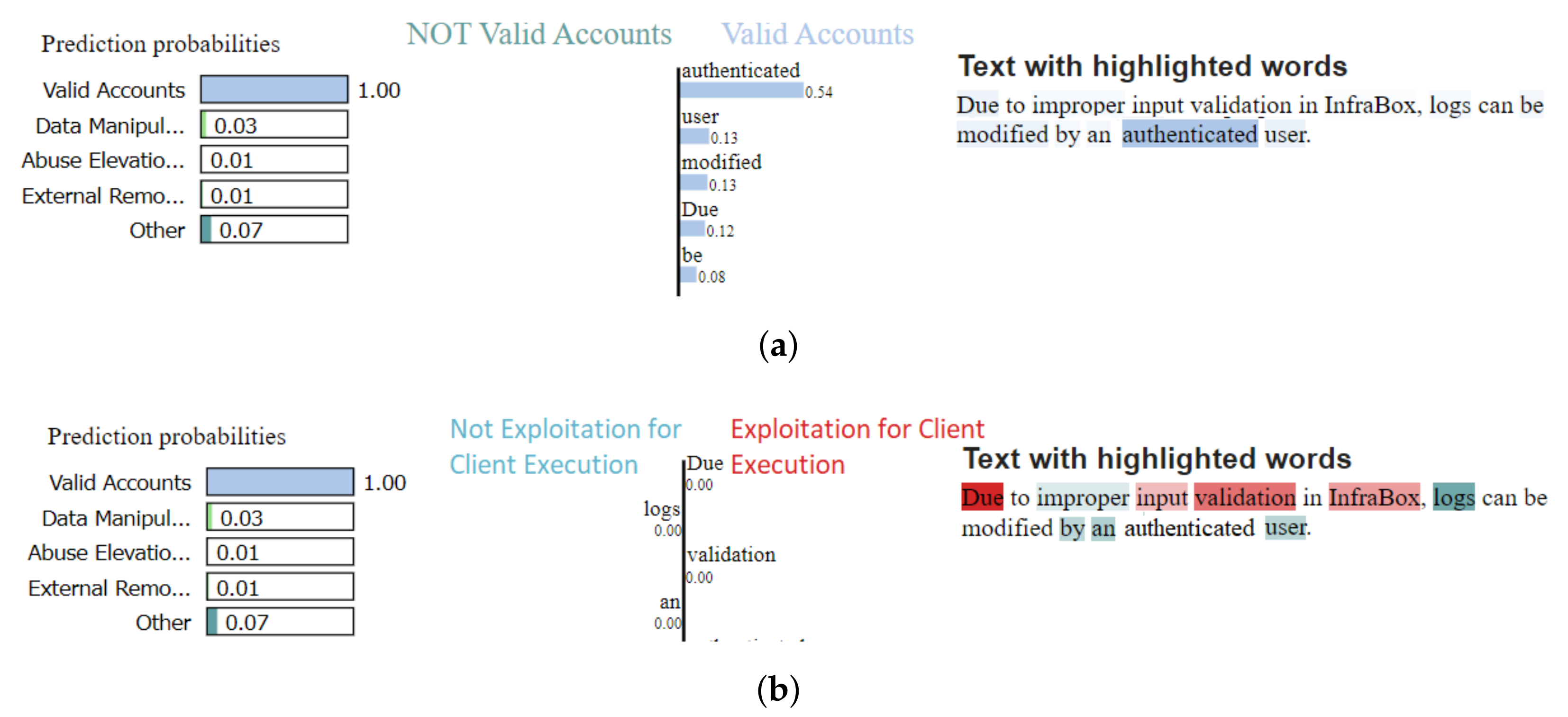

Figure 10 studies the model’s choice of labels for CVE #2 from
Table 4 using Lime [
18], the model successfully recognizes the predominant label (i.e.,
Valid Accounts). Moreover, the model correctly identifies the most important concept, the word
authenticated, which points in the direction of
Valid Accounts. We can observe that there are techniques that are not ambiguous for the model and for which the labeling process is straightforward; such an example is
Valid Accounts. The model extracts only the relevant features for the label and the technique is correctly identified. For the
Exploitation for Client Execution, the model identifies patterns that suggest that the CVE should be mapped to the given technique, as well as patterns that suggest the contrary. Being capable to identify features that are correlated to both situations confuses the model. This problem results from the fact that the meaning behind multiple techniques is overlapping and, as a result, relevant features for a given technique cannot be differentiated.
An interesting aspect is revealed in error #3, namely that the model correctly tags File and Directory Discovery, but also associates the CVE with Exploit Public Facing Application, instead of Command and Scripting Interpreter. Both techniques in the MITRE ATT&CK Enterprise Matrix could be equally correctly mapped on the given text description. This is an important observation and points out the established CVE labeling methodology; this highlights a fault in the data collection procedure, rather than the model’s capacity to learn the multi-labeling problem. Example #4 presents a similar case, since the predicted technique Endpoint Denial of Service is a correct label for the CVE, although it does not appear among the true labels.
Error #4 is analyzed in detail in

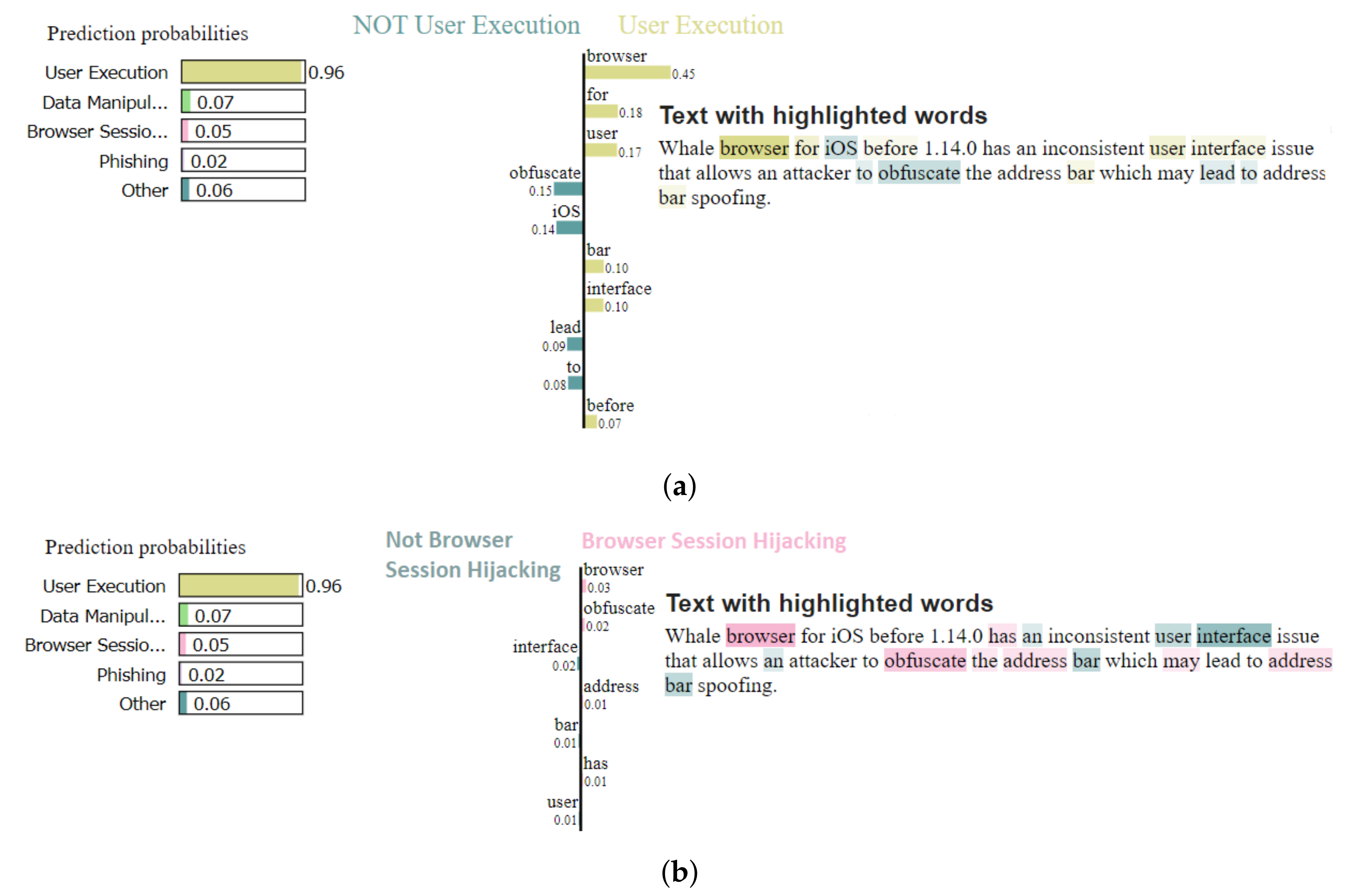

Figure 11 to observe insights on how the model associates the features. The word
browser is highlighted for both the predicted and the correct label. However, the difference resides in the relevance percentage associated with the word for each label, namely 0.45 for
User Execution and 0.03 for
Browser Session Hijacking. While the word
browser is recognized as being relevant for both labels, the label with the higher percentage is selected. This finding can be associated with the discrepancy between training examples—240 for
User Execution, while
Browser Session Hijacking has only 102. Thus, the class imbalance affects the model’s capability to recognize the real correlation between features and techniques, and leads the model to a biased decision.
The model extracts a correct technique for error #5 in
Table 4, although it was not among the true labels. As

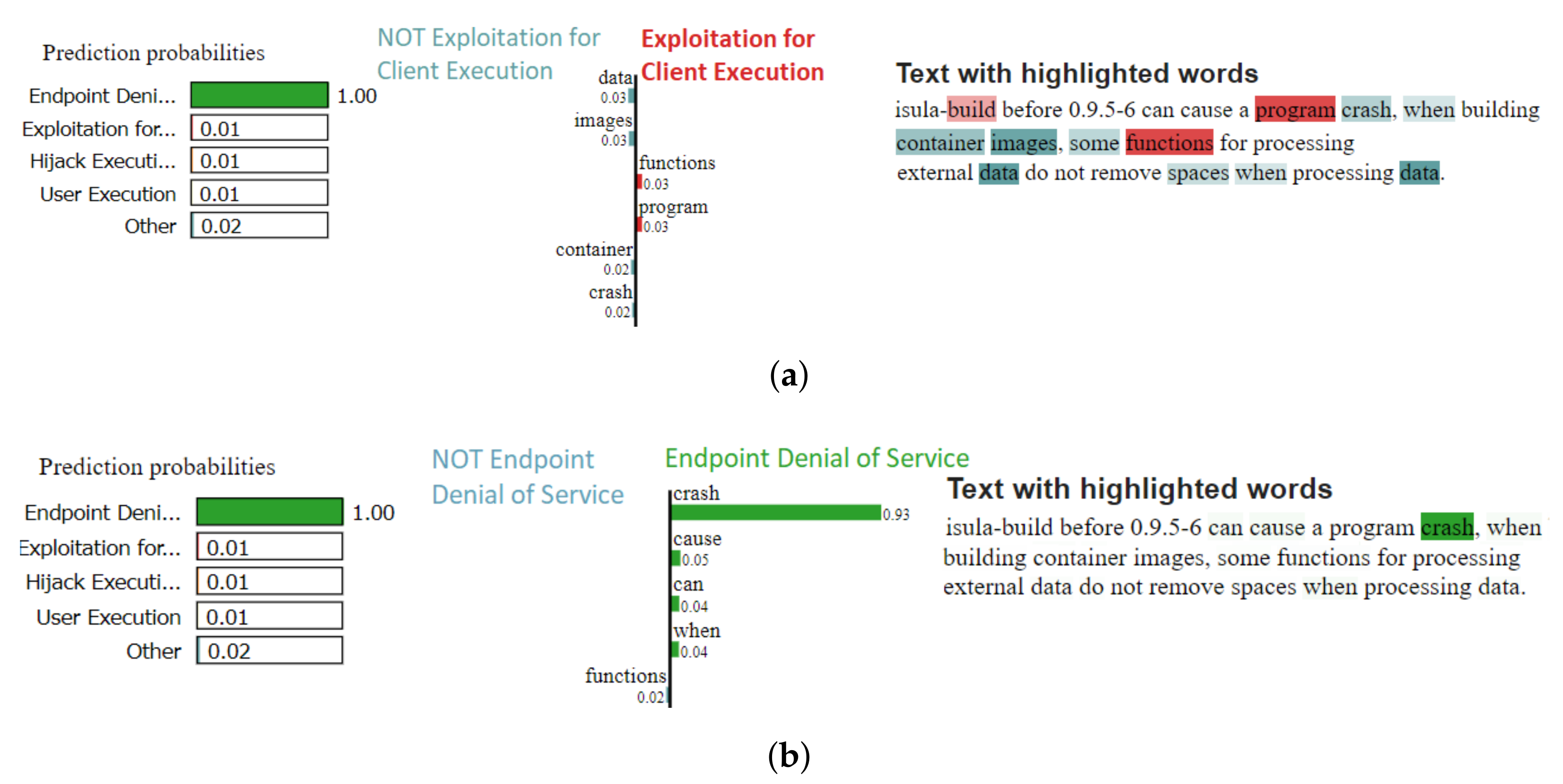

Figure 12 shows, the CVE text description indicates the
Endpoint Denial of Service technique, since the word
crash is present and the relevance of the word for the
Endpoint Denial of Service technique is 0.93.
Figure 12 also suggests that the word
crash is the only word that has a high impact on the model’s decision to label the CVE as
Endpoint Denial of Service.
Two observations can be made based on
Figure 12. One is that the model successfully captures a technique overlooked by the reviewer. The technique labeling process is error-prone due to the ambiguity of the CVE text description and also the complexity of the labeling processing given the wide range of available techniques. Second, the model assigns a higher relevance to features that suggest
Endpoint Denial of Service even though key features for the
Exploitation for Client Execution are identified (i.e.,
program and
functions).
Table 5 presents the most relevant words when performing feature extraction for each technique. More than 50% of the techniques have the same most relevant feature in common with other techniques in the MITRE ATT&CK Enterprise Matrix. For example,
Exploitation for Privilege Escalation,
Data from Local System,
Data Destruction,
Browser Session Hijacking,
Archive Collected Data, and
Create Account are all mapped to the same feature. Having the same most relevant extracted feature implies a strong intersection between techniques. This further emphasizes that the separation between labels is fuzzy. The opinion and consensus among reviewers were used to separate ambiguous examples, making use of previous experience and context obtained from other resources. This is inherited by the model since the labels from the training set reflect the reviewers’ perspective. In this context, more information would be valuable to counter the bias encapsulated in the training set by offering more background information to the model.
4.3. Limitations
We have identified a number of limitations for our model, which have a toll on the model’s performance; these limitations are detailed further. First, the process of manually labeling a CVE is inevitably affected by the subjective perspective of the reviewer. Even though multiple attempts to limit this undesired outcome were taken (i.e., following a clear methodology and establishing general guidelines for the reviewers), the annotators were unable to fully eliminate the inconsistency in the dataset labels.
Second, the quality of the information in the CVE text descriptions must also be taken into consideration when discussing the general limitations of the proposed model. Inconsistencies among the CVE descriptions (incomplete, outdated, or even erroneous details) are highly prevalent [
45], thus narrowing the attainable performance of the model.
Third, there is no clear delimitation between certain techniques. Multiple techniques have overlapping meanings and follow the same attack pattern (e.g., Exploitation for Defence Evasion and Abuse Elevation Control Mechanism). Due to this, a CVE might have multiple possible correct labels, depending on the methodology used to mark the CVE since techniques are closely interconnected and the difference between relating techniques is generally subtle.
Lastly, the rather small dataset and the severe imbalance between the number of CVEs associated with a technique has a toll on the capacity of the model to accumulate enough knowledge to correctly label future samples. Having a larger knowledge base for training the model would help provide samples so that the model perceives also sensitive nuances in CVE text descriptions.
5. Conclusions
In this paper, we emphasized the need for an automatic linkage between the CVE list and MITRE ATT&CK Enterprise Matrix techniques. The problem was transposed into a multi-label task for Natural Language Processing for which we introduce a novel labeled CVE corpus that was augmented using adversarial attacks to limit the severe impact of imbalance between labels. Our baseline includes several classic machine learning models and BERT-based architectures, and the best performing model (i.e., Multi-label SciBERT) was evaluated within a series of experiments from multiple perspectives to extract a complete overview of the data augmentation impact. Comparing the obtained metrics against classical machine learning models accentuates the significant benefits brought by our solution to labeling CVEs with corresponding techniques.
Despite our model obtaining promising results in terms of well-represented techniques, the inherent limitations imposed by the training set tops up the maximum achievable performance. Future work will focus on improving the robustness of the labeled CVE corpus. On one hand, we will focus on enforcing homogeneity among labeling methodology; on the other, we will address the severe imbalance between labels and also its reduced size. Possible new strategies might consider Few-Shot Learning methods [
46] for task generalization considering few samples. Semi-supervised learning [
47] could also be a possible research direction, given the reduced number of labeled CVEs and the significant number of unlabeled samples that exist in the CVE list. Another aspect that is worth exploring is whether or not gathering extra information from additional sources (e.g.,
Common Weakness Enumeration CWE [
48]) can address the incompleteness and inconsistency of the textual CVE description.
