R2D2: A Dbpedia Chatbot Using Triple-Pattern Like Queries

Abstract

Chatbots, also known as conversation agents, are programs that are able to simulate and reproduce an intelligent conversation with humans. Although this type of program is not new, the explosion of the available information and the rapid increase of the users seeking this information have renewed the interest in their development. In this paper, we present R2D2, an intelligent chatbot relying on semantic web technologies and offering an intelligent controlled natural language interface for accessing the information available in DBpedia. The chatbot accepts structured input, allowing users to enter triple-pattern like queries, which are answered by the underlying engine. While typing, an auto-complete service guides users on creating the triple patterns, suggesting resources available in the DBpedia. Based on user input (in the form of triple-pattern like queries), the corresponding SPARQL queries are automatically formulated. The queries are submitted to the corresponding DBpedia SPARQL endpoint, and then the result is received by R2D2 and augmented with maps and visuals and eventually presented to the user. The usability evaluation performed shows the advantages of our solution and its usefulness.

1. Introduction

During the last years, chatbots have played a prominent role as human–computer interfaces. Chatbots are computer programs that are capable of establishing a conversation with users, with either written messages or vocal commands. Such programs provide easy and pleasant conversations and answers; they can automatically manage large volumes of users, replacing human operators, which are not always available [1]. The first chatbot was ELIZA [2], trying to simulate a psychotherapist, whereas many chatbots are currently promoted and used by commercial vendors such as Apple’s Siri, Amazon Alexa, Microsoft Cortana, and Google Assistant [3], whereas it is foreseen that between 2017 and 2023, the spread of chatbots will be increased up to 37% [1].

In addition, although a vast amount of information is now available online, still, users find it difficult to identify the information of interest and navigate to the numerous and large information sources [4,5]. DBpedia [6] is a crowd-sourced community effort, including 38.4 million resources in multiple languages, trying to extract structured content from the information already available in various Wikimedia projects. Data are available as Linked Open Data, and one can navigate through the available information through standard web browsers, automated crawlers, recommendation engines [7,8], or pose complex SPARQL queries. Although the information there is highly interconnected, trying to retrieve answers through browsing events to trivial queries for the interconnected information is really difficult. On the other hand, SPARQL endpoints are a no-go territory for the average web user.

On the other hand, traditional question answering systems enable users to issue queries in natural text, which is then usually transformed internally to a query over the knowledge graph, and the results are returned to the users. However, despite the progress in those systems, still, many of the user questions remain unanswered, and even simple questions in many cases return erroneous results. Toward this direction, in this paper, we present R2D2, a novel chatbot that enables real-time conversation with end users that is able to answer complex queries using an intuitive graphical user interface. The system trades expressivity for correctness, meaning that it imposes a triple-pattern like controlled language to the end users, heavily supported by auto-completion; however, it guarantees that the correct information will be retrieved from the knowledge base.

More specifically, the contributions of this work are the following:

We implement R2D2, an interactive chatbot answering complex queries using an intuitive graphical user interface, employing interactive cards, clickable images, and maps to enhance user experience.

• The chatbot accepts queries in a structured yet naïve triple-like language with the help of an auto-completion service that helps the users structure their query and explore the available information and in real time.
• The query is automatically transformed into the corresponding SPARQL query and sent to the DBpedia SPARQL endpoint to be further answered.
• Then, another module receives the results and formulates the answer to the end-user using nice cards, graphs, and maps.

Exploiting our approach for a different knowledge base only requires the availability of a SPARQL endpoint and an update in the auto-complete mechanism. As such, it has the potential to be linked to other knowledge bases as well. To the best of our knowledge, there is not currently available an alternative simple yet powerful platform enabling access to SPARQL endpoints through an intelligent chatbot offering a controlled natural language interface.

The remainder of this paper is structured as follows. In Section 2, we present related work. Then, in Section 3, we present the architecture of the proposed system and describe the various components implemented. Section 4 presents our user-based evaluation, whereas Section 5 concludes this paper and presents directions for future work.

2. Related Work

As chatbots are supposed to provide answers to user queries, developing query-answering systems has been the target of several research works [9]. For an overview in the area, the interested reader is forwarded to [10].

As there have been several chatbots already developed, we could distinguish them into two categories: the retrieval-based and the generative-model ones [11]. The retrieval-based chatbots come with a set of written responses to minimize grammatical errors, improve coherence, and avoid situations where the system can be hacked to respond in less appropriate ways. Retrieval-based chatbots are best suited for closed-domain systems, which are built to specifically solve simple recurring problems. However, the set of data available usually cannot foresee responses for all possible scenarios. Trying to mitigate the aforementioned problem, the generative-model conversational agents are more intelligent but more difficult to implement than retrieval-based chat bots. With generative chatbots, a program without any active human assistance generates responses. Generative-model chatbots best suit open-domain systems that are not constrained to a particular type of conversation domain and they can easily be adapted or trained to be used in diverse domains. R2D2 is an open domain system limited only by the knowledge available in the linked SPARQL endpoint. As there have been many approaches falling in these two categories, we only focus on the ones using semantic technologies.

Among these approaches, we can further distinguish ones that exploit templates and ones that exploit semantic-like search algorithms. One system in the former category is proposed by Unger et al. [12] for RDF data. The authors transform a method that parses user questions to produce a SPARQL template that directly mirrors the internal structure of the question. Other template-based approaches employ graph learning to map user queries to SPARQL queries [13]. In the second category, we can find approaches such as those of [14,15] that focus on semantic search-like algorithms, performing entity linking on properties and entities and eventually retrieving the top k-ranked entities representing the intention behind a natural language query. However, in our case, we do not match the input queries with template queries but directly transform them into fully fledged queries that can be directly issued to the triple store. Of course this is possible, since the user input is really close to triple patterns.

In another approach by Vegesna et al. [16], the authors propose an ontology-based chatbot for the e-commerce domain. Available e-commerce APIs (e.g., eBay API) are used for retrieving external data, whereas ontology templates are used to retrieve data from the data source using Jape rules. When data have been extracted, users can ask questions which are parsed using NLP techniques and the results are being returned to the users. However, in R2D2 no time-consuming data transformation is happening, whereas the agent can also provide figures and maps to better inform the end user.

Another approach based on semantics is proposed within the research project FRASI [17] trying to develop a question-answering system supporting consumers to find information regarding products of interest. The choice was to implement a Question-Answering (QA) system using a pattern-matching chatbot technology. However, their design required the definition of all possible interactions with the user, leading to a cumbersome Knowledge Base (KB) and a time-consuming development process. A common sense ontology was used trying to recognize the kind of sentence and to consequently reduce it to a simpler structure. However, in our case, we do not rely on recording all possible user interactions, nor do we try to reduce input to simpler structures.

In addition, there are works such as those that focus solely on the generation of textual descriptions of sets of triples [18,19], which generate textual summaries from knowledge base triples [20] or exploit neural networks to generate explanations in natural language from knowledge graphs [21]. However, although relevant to one component of our work (the one transforming the results into text), those approaches could be used off the shelf to our purpose, and we target to a more generic solution that includes also services such as auto-completion of user query, graphical visualization of the results, chatbot functionality, etc.

Finally, we have to mention that there are approaches already that are specifically designed for DBpedia such as the DBNQA dataset [22] that provides a comprehensive dataset of questions and SPARQL queries. However, in our case, the construction of the corresponding SPARQL queries is trivial from the user input. In addition, there is already a chatbot available for the DBpedia [23]. The bot is capable of responding to users in the form of simple short text messages or through more elaborate interactive messages. Users can communicate or respond to the bot through text and through interactions (such as clicking on buttons/links). However, in order for the engine to work, the intent of the questions should be appropriately classified and used for query answering, with many rules being defined and exploited by the system. Our approach moves to the same direction as the existing DBpedia chatbot using interactive cards, clickable images, and maps. However, our system can work as is, without requiring any additional preprocessing, cleaning, or rule definition, which makes it really simple to be exploited and used.

3. Architecture

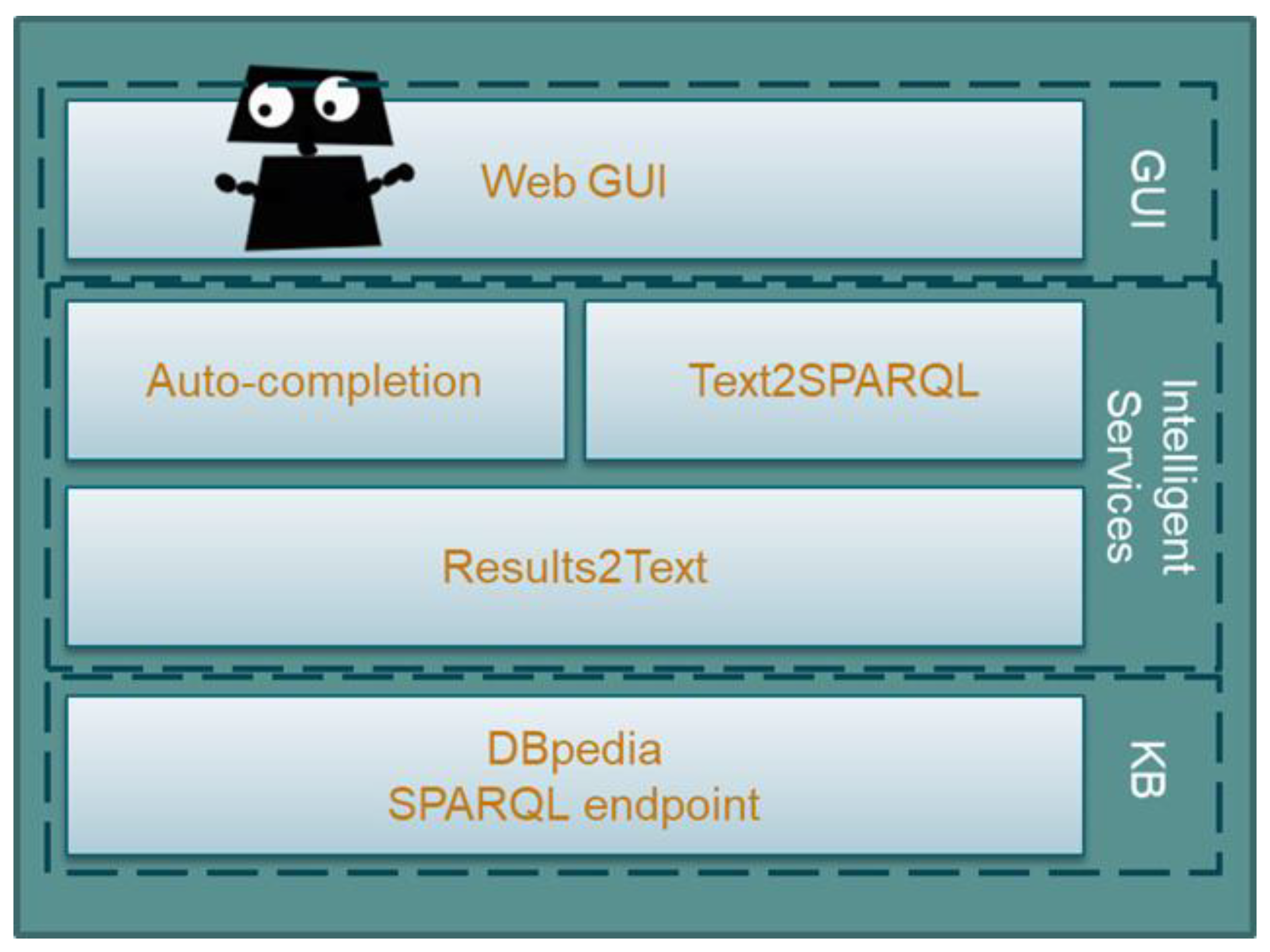

The architecture of the R2D2 chatbot is composed of three layers as shown in Figure 1: (a) the graphical user interface (GUI), (b) the intelligent services including a recommendation service, a text-to-SPARQL service, and a results-to-text and images service, and finally, (c) the DBpedia knowledge base. In the following, we will analyze each one of those components in detail.

3.1. The Graphical User Interface

The graphical user interface has been developed using HTML, CSS, and JavaScript. In addition, Bootstrap was used, which is a free and open-source front-end framework for enabling a responsive website. The generated website includes relevant information and the main chatbot where the users can interactively ask for information from the DBpedia. A screenshot of the chatbot is shown in Figure 2. The R2D2 chatbot accepts queries in a structured language and consists of one or more of triple patterns of the following form:

Entity Property Value

(1)

where Entity is a resource from the DBpedia knowledge base linked with a Property to some Value. Entities, properties, and values might be variables, whereas many triple patterns can be used for a single query. As a running example, consider the following query asking for Albert Einstein’s birth date and birthplace.

Albert_Einstein birth_date? x Albert_Einstein birth_place?y.

(2)

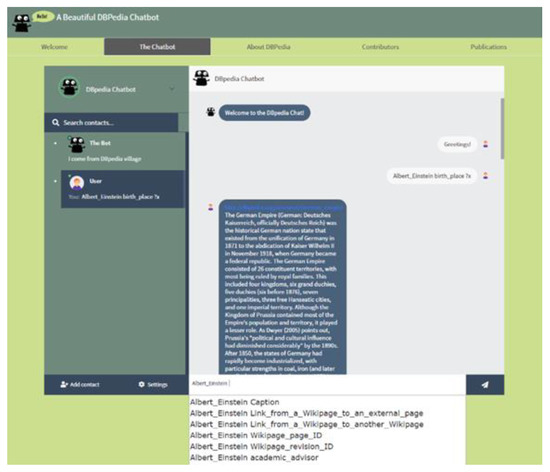

As soon as the user starts typing, the system suggests possible auto-completions from the knowledge already available to the DBpedia KB. As soon the entity part is typed, then the available connections to that entity are also proposed to the user, making really trivial the formulation of the whole query—without requiring any knowledge about triple patterns and structured query languages (it only needs 5 min explanation to the untrained end users, as our evaluation results showed; refer to Section 4).

Then, the query is issued to the system, and the result is visualized back to the end user, which is usually accompanied by a related image, map, or information card. We have to mention that we have added trivial answers to trivial user questions (e.g., who am I, hello, good morning, etc.) in order to reply to those questions without even going to the knowledge base.

3.2. Query Completion

As already mentioned, a service is constantly used to auto-complete end-user input and to guide query formulation. When the user starts typing in the input field, as soon as more than three characters are typed, the plugin starts to search for entries that match and displays a list of entries to choose from. As soon as the first part of the triple pattern is retrieved (i.e., the entity part), the same service is the called to retrieve properties that are linked with the entities that might have been inserted in the entity part of the triple pattern. The properties are retrieved and presented to the user as a drop-down list, as well, allowing him to select the one of interest. If a variable is inserted at the entity part of the triple pattern, then all properties are retrieved matching the first three characters that the user has entered. In any case, the user can ignore the recommendations and continue writing; the auto-completion suggestions are constantly updated as more characters are typed. However, in case of incomplete labels, the query will return no answers.

This is implemented using a JQuery autocomplete widget. For searching, the DBpedia lookup service has been used and extended. The available service is used to lookup DBpedia URIs using as input related keywords. Those keywords can either be the label of a resource or frequently used anchor text in Wikipedia. The results are ranked by the number of links from other Wikipedia pages and automatically sorted and presented to the user as s/he types. The implemented service offers a web API for prefix search and for given partial keyword, it returns the URIs of the related DBpedia resources. All data can be returned in either XML or JSON.

For example, for DBpedia, the following SPARQL query is issued to the corresponding SPARQL endpoint to get the available labels of the various properties that are used to link an already typed <ENTITY> in the query with other information:

SELECT DISTINCT ?label

WHERE {

   <ENTITY> ?p ?o.

   ?p <http://www.w3.org/2000/01/rdf-schema#label> ?label.

   FILTER(LANG(?label) = ““ || LANGMATCHES(LANG(?label), “en”))

   }

The FILTER for the language is used as the current implementation is focusing only in the English language; nevertheless, this is quite easy to be updated for other languages as well. Then, the output is parsed, and the list of properties is formulated and presented to the user. All the properties, which consist of more than one word, are converted to snake_case format, enabling a better segmentation of the three parts of the triple patterns.

We have to note that this auto-completion service can be directly connected to other SPARQL endpoints as well, but we foresee that minor adjustments might be needed according to the peculiarities of the individual data sources. However, this configuration should be implemented only once per SPARQL endpoint.

3.3. Text2SPARQL Service

This service receives a query string as formulated by the end user and constructs the SPARQL query to be issued to the SPARQL endpoint for retrieving the information of interest. Before formulating the SPARQL query, the web service checks if there is a malformed user input and returns appropriate messages to the end user. Then, it first adds the prefixes of the SPARQL query and identifies the triple patterns in the query string. The variables in the triple patterns are added in the select clause of the SPARQL query, and the necessary triple patterns for retrieving the related images, the primary topics, and the correct language are added. In our running example, Equation (2) is transformed to the following SPARQL query:

PREFIX dbr: <http://dbpedia.org/resource/>

PREFIX dbo: <http://dbpedia.org/ontology/>

PREFIX dbp: <http://dbpedia.org/property/>

PREFIX foaf: <http://xmlns.com/foaf/0.1/>

SELECT *

WHERE {

    dbr:Albert_Einstein dbo:birth_date ?x.

    dbr:Albert_Einstein dbo:birth_place ?y.

    OPTIONAL {

        ?x dbo:abstract ?x1;

        foaf:isPrimaryTopicOf ?x2;

        foaf:depiction ?x3

        } .

    FILTER (lang(?x) = ‘‘ || lang(?x) = ‘en’)

    OPTIONAL {

        ?y dbo:abstract ?y1;

        foaf:isPrimaryTopicOf ?y2;

        foaf:depiction ?y3

        } .

    FILTER (lang(?y) = ‘‘ || lang(?y) = ‘en’)

}

3.4. Results2Text

This service retrieves as input (a) the user query and (b) the SPARQL query formulated by the Text2SPARQL and returns the results to be visualized by the web GUI.

There are two modes in the result formulation: (a) natural language answers and (b) references to card boxes, maps, and figures.

Using the first option, the triple patterns are seen as sentences that can be reused to answer user’s queries trivially. Although there are many works for optimizing the presentation of the results (see [18] for an example where the authors use machine learning for sentence creation out of triples), we leave this as future work and we present a simple yet effective algorithm. This algorithm that is used for transforming the triple answers into text is presented in Algorithm 1. As shown, first, the SPARQL query is forwarded to the Virtuoso triple store for execution. The results are retrieved, and the mapping of the variables in the user triple patterns and the retrieved results is recorded. Then, based on this mapping between the user triple patterns and the returned results, for each user, triple pattern, and returned result, the corresponding sentence is added to the text that will be presented to the user (lines 2–4). When all individual sentences have been constructed, the final result is returned to the user.

Algorithm 1. Results2Text.

Input: TQ: The user triple patterns, Q: The SPAROL query Output: result_text: The text to be presented to the user. 1. result:-execute(Q) 2. result_text:-“” 2. for each (entity property value) in TQ 3. for each binding of the (entity property value) in the results 4. result_text:-result_text + entity + ‘ ′+ property+ ‘ is ′+ value ‘ ′. 5. 6. return result_text

For example, the triple pattern “Albert_Einstein birth_date ?x.” and the result of the query “14 March 1879” can be combine to return the following sentence:

Albert Einstein birth date is 14 March 1879

Using the second option, the corresponding summary is retrieved by DBpedia and presented as a card to the user, visualizing also interesting images or maps. Although a combination of those might be seen as useful, preliminary experiments showed that users preferred the card/image/map approach only, and we configured the chatbot to use the second option.

We have to note that besides star-shaped queries, queries of arbitrary shape are also possible, which are similar to the way SPARQL queries are being formulated. For example, searching Barack Obama’s spouse’s religion would require the formulation of the following query:

Barack_Obama wife ?x. ?x religion ?y.

The result on the aforementioned question would be:

Barack Obama’s wife is Michelle Obama. Michele Obama’s religion is United Methodist

4. Evaluation

For evaluating the chatbot, we recruited 70 students of the Department of Electrical and Computer Engineering at the Hellenic Mediterranean University. The requirements for using the system are minimal, and only 5 min were adequate to explain how the chatbot works to the untrained students. After a short demonstration of the system, we asked them to use the system for 5 min searching for information through R2D2. We instructed them to perform at will at least 3 queries with at least one of them including more than one triple pattern. Although we did not recorded individual user queries, we provide online a set of examples provided to the students to better understand query formulation (note that the last three of those queries are the three example queries proposed from the DBpedia chatbot). As most of the students were already familiar with chatbots such as Apple Siri and Cortana, they quickly grasped the idea behind the chatbot and were able to use it effectively.

Then, we asked them to fill in a questionnaire (Appendix A). The questionnaire was constructed using the quality features from the product quality model of the ISO/IEC 25.000 series [24] together with the System Usability Scale (SUS) [25], which we transformed to simple questions. The results are reported in

Table 1. The results for the various evaluation categories.

Functionality	Suitability	4.18	4.15
	Accurateness	4.09
	Compliance	4.18
Efficiency	Time Behavior	4.2	4.25
	Resource Utilization	4.3
Compatibility	Co-Existence	4.09	4.27
	Interoperability	4.45
Usability	Understandability	4.36	4.33
	Learnability	4.54
	Operability	4
	Attractiveness	4.45
Reliability	Fault tolerance	3.4	3.47
	Recoverability	3.54
Maintainability	Analyzability	3.7	3.94
	Changeability	4
	Stability	3.9
	Testability	4.18
Portability	Adaptability	4.18	4.04
	Installability	3.90
	Conformance	3.94
	Replaceability	4.14
Quality of Use	Effectiveness	4	3.96
	Efficiency	4
	Satisfaction	3.90
SUS	78/100 (Kappa 0.8)

for the various evaluation categories.

Values greater than three represent the high level of the specific software feature; values between 2.5 and 3 are at low risk, whereas values below 2.5 are considered high risk. In our case, all were graded with a satisfactory average above 3.47, showing the high quality of the software. The lowest average score was for the reliability (3.7/5), since in some cases, errors appeared (e.g., images not shown) without allowing a proper recovery or adequate explanation. Reliability of the system is also affected by the external services that are used (directly from DBpedia), as in several cases, the services were not functioning—however, not during the user evaluation.

In addition, as the different services have been developed using many different technologies, users identified as a relatively hard task the maintainability of the system (average maintainability 3.94/5). The questions regarding the quality of use also score relatively high, demonstrating again the quality of the system. The evaluation provided us with valuable feedback on the current state and was used to correct the reported errors. The highest average score for efficiency (4.25/5) shows that the system can quickly respond to the queries issued and uninterruptedly provide answers from such a large source of information. In essence, the execution time required for query answering is the time required to return the result through DBpedia SPARQL endpoint, with only milliseconds spent in the trivial SPARQL formulation and result presentation.

Furthermore, the SUS usability score was 78 on a scale of 0 to 100, whereas the inter-rater agreement was rather good (kappa 0.8). The average SUS score from published studies has been measured by Sauro et al. [26] as 62.1, but 68 is often used as a gold standard. Therefore, SUS scores exceeding 68 are considered above average, while SUS scores below 68 are below average. Our SUS score of 79.18 exceeds by far the reference point of 68, yet future improvements can be made to provide even higher levels of reliability, perhaps by installing a triple store within the R2D2 so that the whole system does not have to rely on external SPARQL endpoints.

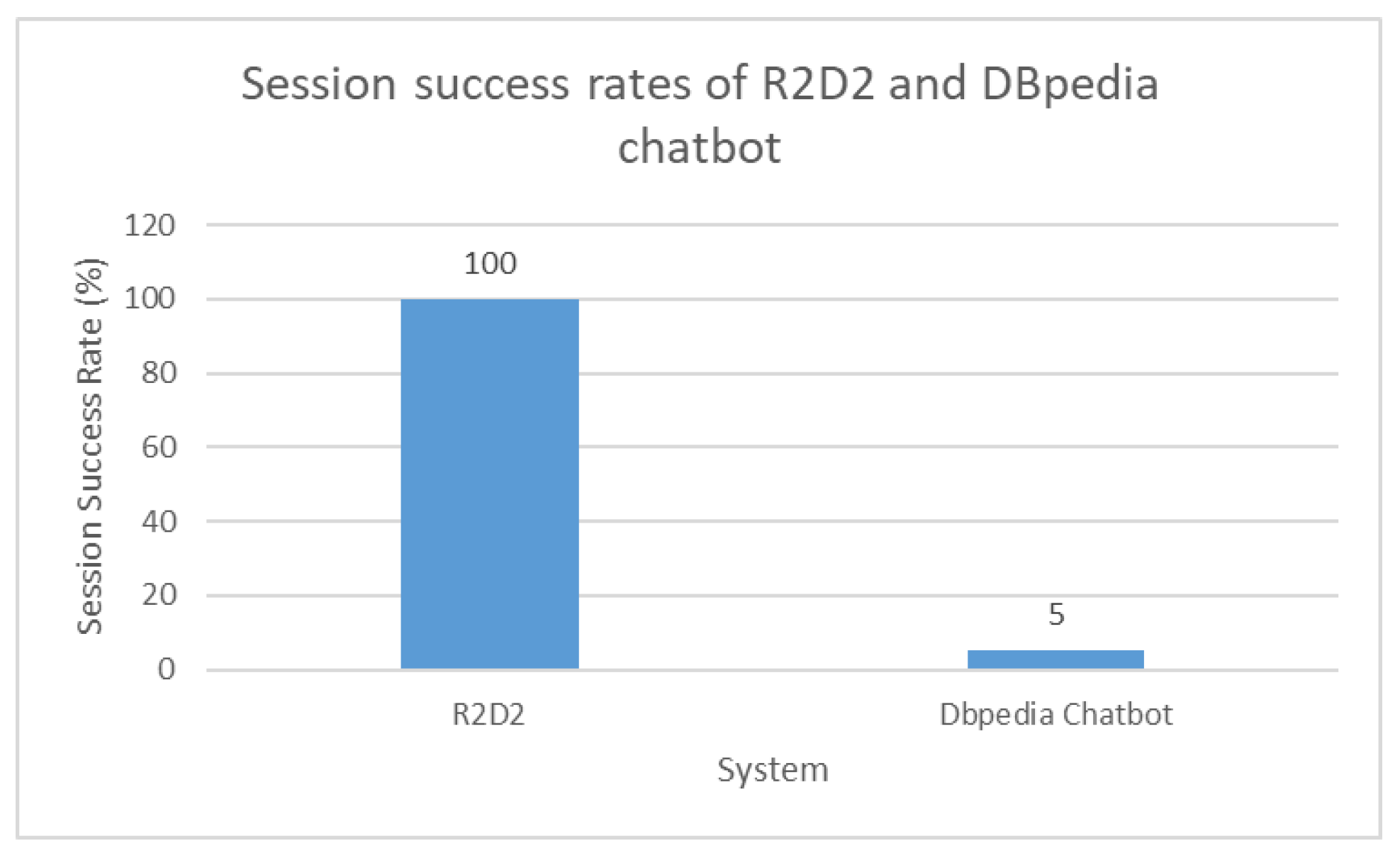

Finally, we used the 20 examples that we provided to the students for comparing R2D2 with the DBpedia chatbot [23]. We have to note that three of those examples were proposed in the corresponding DBpedia chatbot site. In addition, as the DBpedia chatbot accepts textual input and R2D2 accepts triple-pattern like input, in the online Excel sheet, we provide both the textual and the triple-pattern like queries. We measured the session success rate of using the two systems and the results are shown in Figure 3: the session success rate measures the ratio of user sessions that lead to a success.

As shown, all queries were able to be appropriately formulated and answered using the R2D2 system, whereas for the DBpedia chatbot, only one query returned an actual answer (despite the fact that three of the queries were examples presented in the DBpedia chatbot site). This corresponds to only 5% of the cases in our evaluation.

Overall, what we observe is that 5 min were enough for the untrained students to use the chatbot, enabling students to formulate simple triple-like queries and effectively returning the corresponding answers. As triple pattern formulation is guided by an auto-complete service, the engine guarantees that if there is a corresponding result available in DBpedia, the information will always be retrieved and presented to the user. This is not true for the DBpedia chatbot as previously shown, which struggles to answer textual user input.

5. Discussion and Conclusions

This paper presents a novel chatbot that is able to respond to user queries regarding information stored in the DBpedia. User input is received in the form of triple-pattern like queries. The chatbot accepts structured input and guides users on query formulation. Then, those queries are transformed to SPARQL queries and are sent to the DBpedia SPARQL endpoint to be answered. The answers are collected by another service, which enriches the results with natural text, graphical images, maps, and cards, and it sends the corresponding information to the GUI to be finally visualized and presented to the user. Our system differs from a traditional question-answering system in the fact that it employees a cleaner, user-friendly interface, it provides multimedia answers, and it also provides answers to trivial queries without even going to the DBpedia. The user evaluation performed shows the high usability of our solution and the advantages gained when R2D2 is used for searching information available through DBpedia. An advantage of the system is that it requires no complex, costly mapping of natural language input to templates, SPARQL queries, or parts of the graph, as the triples patterns are provided as input by the user through a triple-pattern like language. The simplicity of the triple-pattern like queries makes the system usable by non-trained experts, trading expressivity with usability.

Limitations. As SPARQL cannot handle queries with missing label parts, to mitigate partially provided labels by the users, the auto-complete service is used/enforced. As such, the end user has to select and complete the missing part of each label. However, a more natural approach would be to allow partially provided labels and do a search and importance ranking (e.g., [27]) for automatically solving the problem without relying on user input. In addition, another problem is that when the returned results are many, then the text returned by our algorithms can have a considerable length with obvious information repetition. Further, solution modifiers (for example queries including how long, how many, average, count, etc.) performing calculation over the retrieved data are not currently supported. Although SPARQL queries are supporting this functionality, more research is required on ways that the user would prefer to optimally formulate these requests in our triple-pattern like queries. Finally, in several cases, we experienced unavailability of the external services used from DBpedia, which impacts the reliability of the system.

Future Work. Our immediate plans include extending the functionality of the chatbot for tackling the aforementioned limitations. We are already in the process of installing locally the services of the DBpedia so as not to rely in external services. However, as ontologies and KBs are constantly evolving [28,29], this might lead to access to outdated information, trading effectiveness for the always more recent information. A solution there would be to rely on the online DBpedia services and only in case of failures to use locally deployed services. In addition, we intend to extend our approach to include non-expected text and by asking questions for refining the result (for example, when multiple results are available). To this direction, a memory will be added to the chatbot being able to expand over previous results, not repeating the same information and providing more information about a certain entity based on user feedback.
