Kalman-Filter-Based Tension Control Design for Industrial Roll-to-Roll System

Abstract

This paper presents a robust and precise tension control method for a roll-to-roll (R2R) system. In R2R processing, robust and precise tension control is very important because improper web tension control leads to deterioration in the quality of web material. However, tension control is not easy because the R2R system has a model variation in which the inertia of the web in roll form is changed and external disturbances caused by web slip and crumpled web. Therefore, a disturbance observer (DOB) was proposed to achieve robustness against model variations and external disturbances. DOB is a robust control method widely used in various fields because of its simple structure and excellent performance. Moreover, the web passes through various process steps to achieve the finished product in the R2R process. Particularly, it is important to track the tension when magnitude of the tension varies during process. Feedforward (FF) controller was applied to minimize the tracking error in the transient section where tension changes. Moreover, the signal processing of a sensor using the Kalman filter (KF) in the R2R system greatly improved control performance. Finally, the effectiveness of the proposed control scheme is discussed using experimental results.

1. Introduction

Roll-to-roll (R2R) technology has recently attracted a great deal of attention for the mass production of electronic devices in the field of display and battery [1]. The R2R machine is composed of rewinder, unwinder, and feeder motors. The rewinder motor is used to wind the web made in roll form with the desired tension. On the other hand, the unwinder motor is used to unwind the web. The feeder motor is used for web transfer motions at the proper speed.

In the R2R system, tension control is usually achieved by using a load cell or dancer roll. In R2R processing, robust and precise tension control is essential because it affects the quality of the web materials. The web has flexible substrates including metal foils, glass, and ceramics. In particular, these substrates used in electronic devices require precise tension control because coating and printing thickness variation occurs despite minute tension changes, resulting in changes in electrical properties.

Some studies have investigated the tension control of R2R equipment. In 1993, Ebler investigated web tension control with dancer rolls and load cells [2]. The two different systems have been analyzed and experimental results have been provided. In 1998, K. Okada designed an adaptive fuzzy control for a web tension control system [3]. In 2002, Koç analyzed modeling and robust control of a winding system [4]. The effectiveness of robust control strategy in a web system is compared to a proportional-integral-derivative (PID) controller commonly used in the industry. In 2007, Shin presented the effect of tension on the lateral dynamics and control of a moving web [5]. Experimental studies of the lateral motion of a web were carried out and a cross-couple controller was proposed, which automatically tunes the proportional and integral gains of a lateral-position controller according to the web tension.

However, despite these numerous studies, tension control is not easy because it has model variations in which the inertia of the web in roll form is changed and external disturbances caused by web slip and crumpled web. To achieve robustness against model variations and external disturbances, robust control such as a disturbance observer (DOB) is required [6,7,8,9,10]. DOB has been widely used as an effective methodology to overcome model uncertainty and external disturbance. Eum proposed DOB for the robust tension control of the R2R system [11].

Unlike previous studies, we propose feedforward (FF) controller and signal processing technology using the Kalman filter (KF) to improve tension control performance. The web is continuously subjected to various processes for the final production. Particularly, it is important to control the tension when magnitude of the tension varies during process. To improve tracking performance in the transient section where tension changes, the feedforward controller was applied [12,13,14]. Moreover, a high-price load cell with a highly accurate and noiseless signal should be used to improve tension control performance in the R2R system. In order to reduce costs, which is an unavoidable issue in today’s industry, the KF algorithm was suggested for signal processing [15,16,17,18]. Almost all load cell applications require filtering to remove noise from the measured signal. A signal filter has a trade-off between noise suppression and phase delay. Phase delay may cause a change in phase margin, stability of the whole system, and accuracy of present information in the signal. Unlike the low pass filter (LPF), a conventional signal filter, the KF minimizes the phase delay [19]. The KF is capable of processing the signal by overcoming the phase delay problem even using a low-cost load cell.

This paper suggests a robust and precise tension control method for the R2R system and is organized as follows. In Section 2, we suggest dynamic model of the R2R system and how to identify the nominal parameters of the system experimentally. In Section 3, the design of a signal filter is presented. In Section 4, the proposed tension control for the R2R system is introduced and robust stability is shown using the small-gain theorem [20,21,22]. The performance of the proposed control method is verified with experimental results in Section 5. Finally, Section 6 provides some concluding remarks.

2. System Modeling

In this section, modeling of the suggested R2R system is introduced. Moreover, we suggest how to identify the nominal parameters of the system through an experiment [23].

2.1. Dynamic System Model

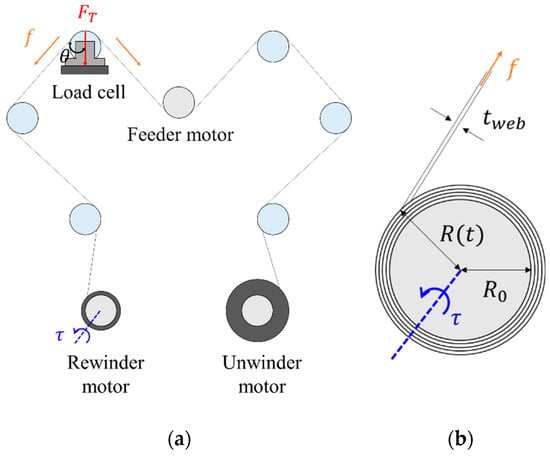

As shown in Figure 1a, the web is fed at a constant speed by the feeder motor and is wound with the proper tension by the rewinder motor. The web dynamics Equation (1) and roll-to-roll system dynamics model Equations (2)–(8) used throughout the paper are described in References [11] and [24]. The web can be represented in terms of spring and dashpot elements, which are described by the elasticity modulus E and the viscosity modulus $\mathsf{\eta }$. Lumped parameter models are expressed as the Kelvin-Voigt model for web dynamics. In the case of the Kelvin-Voigt model, the web tensile stress $\mathsf{\sigma }$ is expressed as follows:

$$\mathsf{\sigma }\left(\mathrm{t}\right)=E\epsilon \left(t\right)+\eta \frac{d\epsilon \left(t\right)}{dt}$$

(1)

where $\epsilon$ is web strain. Then web tension force $f$ is related to the web tensile stress $\mathsf{\sigma }$ and web cross sectional area $\mathrm{A}$ as follows:

$$f\left(\mathrm{t}\right)=A\mathsf{\sigma }\left(t\right)$$

(2)

The load cell signal output $F_T$ varies depending on the web tension force $f$. According to Figure 1a,b, it is expressed as follows:

$$F_T\left(t\right)=2f\left(t\right)cos\theta +F_d\left(t\right)$$

(3)

where $F_d$ is external disturbance. Here, the load cell signal $F_T$ feeds back to control the web tension force $f$. The torque $\tau$ generated by the rewinder motor is related to the web tension force $f$ as follows:

$$f\left(t\right)=\frac{\tau \left(t\right)}{R\left(t\right)}$$

(4)

$$R\left(t\right)=R_0+\frac{t_{web}}{2\pi }{\theta }_m\left(t\right)$$

(5)

$$F_T\left(t\right)=2\tau \left(t\right)cos\theta {\left\{R_0+\frac{t_{web}}{2\pi }{\theta }_m\left(t\right)\right\}}^{-1}+F_d\left(t\right)$$

(6)

where $R$ is the radius of the web, $R_0$ is the initial radius of the web, $t_{web}$ is the web thickness, and ${\theta }_m$ is the angular position of the rewinder motor. The transfer function of the system from torque input $\tau$ to load cell signal output $F_T$ is calculated as follows:

$$P\left(s\right)=\frac{F_T\left(s\right)}{\tau \left(s\right)}=2cos\theta {\{R_0+\frac{t_{web}}{2\pi }{\theta }_m\left(s\right)\}}^{-1}$$

(7)

where P is the actual plant. Finally, we designed the plant as a first order lag element because it is a simple structure and represents a system with time lag. It is expressed as follows:

$$P\left(s\right)=\frac{F_T\left(s\right)}{\tau \left(s\right)}=\frac{2cos\theta {\{R_0+\frac{t_{web}}{2\pi }{\theta }_m\left(s\right)\}}^{-1}}{1+{\tau }_{n}s}$$

(8)

where ${\tau }_n$ is a time constant. The nominal model was obtained using an experimental method known as system identification, which develops mathematical models of dynamic systems from the measured input and output data of the system. The process of accurately obtaining a nominal model is important. Because the proposed KF in Section 3 and the tension controller, FF, and DOB in Section 4 largely vary in performance, depending on how accurately the nominal model is obtained, the experiment was carried out in three cases depending on the state of the film being wound. When step input with various magnitudes is applied to the system, the dynamic model is determined through the output data measured by the load cell. As shown in Figure 2, we focused on the characteristics of the system by 100 N because the experiment was performed from 0 N to 100 N.

3. Design of a Signal Filter

Signal processing of the sensor using a filter is essential to achieve precise control. Filters have a trade-off between noise reduction and phase response, so the more noise is reduced, the higher phase delay. The phase delay has an adverse effect on the phase margin and stability of the system. In this paper, it was possible not only to eliminate the noise contained in the observed data but also to minimize the phase delay by using the KF. The KF is an optimal estimation method that finds the true value of variables from a set of noisy measurements. In this section, we introduce how to design the KF and signal processing results. The design procedure of the KF is as follows. Firstly, the state space model of the linear system should be constructed. Subsequently, the state variables of the system are estimated by the KF algorithm using the state space model and measured values of the target system. The KF algorithm has two steps: prediction process and estimation process. Figure 3 illustrates the relationship of the KF with the actual system [15].

3.1. Linear State Space Model

To design a KF, the linear state space model must be first obtained by modeling the target system. The performance of the KF depends largely on how similar the system model is to the actual system. Equation (8) can be described by the following differential equation:

$${\tau }_n\dot{F_T}+F_T-2cos\theta R_n{}^{-1}{\tau }_e-F_{\xi }=0$$

(9)

where $R_n$ is the nominal radius of the web and $F_{\xi }$ is the sensor noise. Defining the state variables $x\left(t\right)$ = $F_T\left(t\right)$, $w\left(t\right)=F_{\xi }\left(t\right),$ the state differential equation is

$$\dot{x\left(t\right)}=-\frac{1}{{\tau }_n}x\left(t\right)+\frac{2cos\theta R_n{\left(t\right)}^{-1}}{{\tau }_n}u\left(t\right)+w\left(t\right)$$

(10)

$$z\left(t\right)=x\left(t\right)+v\left(t\right)$$

(11)

where x is the state of the system, z is the output of the system, u is the system input, w is the system noise, and v is the measurement noise.

3.2. Kalman Filter Algorithm

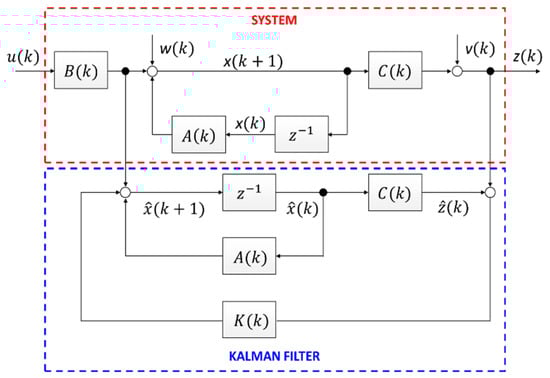

The KF algorithm is divided into two stages: prediction process and correction process. Based on the system model variables A and Q, the prediction process guesses how the estimated value ${\widehat{x}}_k$ changes when the time changes from $t_k$ to $t_{k+1}$. A is the system matrix and Q is the covariance matrix of W. Depending on how the system model variables, such as A, Q, R, and H, are selected, the performance of KF varies. Equations (12)–(17) refer to the KF algorithm mentioned in Reference [15]. The following equation is the state variable and error covariance, which are the predicted variables as follows:

$${\widehat{x}}_k{}^{-}=A{\widehat{x}}_{k-1}+B{u}_k$$

(12)

$$P_k{}^{-}=A{P}_{k-1}{A}^T+Q$$

(13)

In the correction process, the KF’s final estimated value ${\widehat{x}}_k$ is calculated using the system model variables H and R. H is the measurement matrix and R is the covariance matrix of V. The KF computes the final estimated value ${\widehat{x}}_k$ by adding the predicted value ${\widehat{\mathrm{x}}}_{\mathrm{k}}{}^{-}$ and the current measurement $Z_k$ multiplied by the appropriate weight value as follows:

$${\widehat{x}}_k={\widehat{x}}_k{}^{-}+K_k\left(Z_k-H{\widehat{x}}_k{}^{-}\right)$$

(14)

Here, the weight value $K_k$ is known as a Kalman gain, and is newly calculated by repeating the algorithm differently from the LPF and high pass filter (HPF) as follows:

$$K_k=P_k{}^{-}{H}^T{\left(H{P}_k{}^{-}{H}^T+R\right)}^{-1}$$

(15)

$P_k$ is the error covariance. The error covariance reflects how far the estimated value is from the true value as follows:

$$P_k=\left(I-K_{k}H\right)P_k{}^{-}$$

(16)

According to the definition of error covariance, if $P_k$ is large, the estimation error is large, and if $P_k$ is small, the estimation error is then small. Error covariance is defined as follows:

$$P_k=E\{\left(x_k-{\widehat{x}}_k\right){(x_k-{\widehat{x}}_k)}^T\}$$

(17)

where E($·$) refers to the expected value.

Noise covariance matrices Q and R have limitations to be determined analytically because it is difficult to grasp noise characteristics with multiple errors. In this paper, the Q and R values were determined experimentally through trial and error process. The larger the Q, the more influenced by the measured value. Since R has the opposite tendency to Q, the larger the R, the less affected the measured value.

3.3. Signal Processing Results

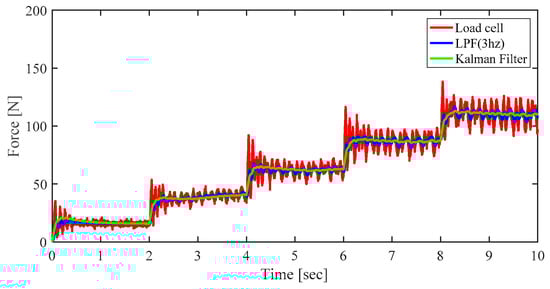

Figure 4 shows the load cell signal, the signal processed by the LPF, and the signal processed by the KF. Unlike LPF, which has a limitation in lowering the cutoff frequency due to the phase delay, the KF further reduced noise.

4. Control Design

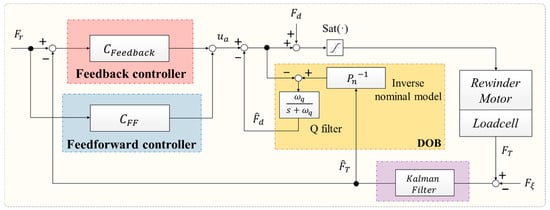

In this study, the main purpose was to control the tension robustly and precisely in all sections with constant and varying tension. To achieve this goal, we propose a tension controller design based on a model expression and FF controller with excellent tracking performance in the transient section. Moreover, model uncertainty and external disturbance were compensated for by using the DOB. Finally, robust stability of proposed control system was proved by using the small-gain theorem. The proposed tension control structure is shown in Figure 5 and the unwinder motor was also controlled by the same control structure.

4.1. Tension Controller

In this study, the tension controller was designed using a proportional-integral (PI) controller based on the model expression. The model-based PI controller is widely used in practice because it is simple to apply and easy to analyze in the frequency domain [25]. If the zero of a PI controller is designed to cancel the pole of system, the closed loop response characteristic can be made to be equal to the first order lag element. The equation is written as follow:

$$\frac{F_T}{F_r}=\frac{C_{Fb}{P}_n}{1+C_{Fb}{P}_n}=\frac{{\omega }_c}{s+{\omega }_c}$$

(18)

where $F_r$ is the input signal, $P_n$ is the nominal plant, $C_{Fb}$ is the tension controller, and ${\omega }_c$ is the control bandwidth. Therefore, the tension controller has the following form:

$$C_{Fb}=\frac{K_{p}s+K_i}{s}=\frac{1+{\tau }_{n}s}{2cos\theta R_n{\left(s\right)}^{-1}}\times \frac{{\omega }_c}{s}$$

(19)

As shown in Equation (18), the frequency bandwidth of the controller is given by ${\omega }_c$. Therefore, it is possible to design a controller without overshoot only by determining the frequency bandwidth of the desired controller.

4.2. Feedforward Controller

Unlike the feedback control, which can only react after the error between the reference signal and the measured system state occurs, a FF controller that does not feed back the signal provides excellent tracking performance in the transient section because the response speed is fast. Thus, the FF is used to quickly implement the desired behavior when we know the dynamics model of the control system. It is designed as shown below:

$$\frac{F_T}{F_r}=\frac{C_{FF}{P}_n+C_{Fb}{P}_n}{1+C_{Fb}{P}_n}=1$$

(20)

where $C_{FF}$ is the FF controller. Therefore, the FF controller has the form of

$$C_{FF}=P_n{}^{-1}$$

(21)

Theoretically, to achieve perfect control without any error between the reference signal and the actual system state, the transfer function must be 1. Therefore, the FF controller must have an exact reciprocal relationship with the plant. In this way, the FF controller is simple in design and powerful in performance, but it has the disadvantage that it is impossible to compensate the uncertainty of the model and the external disturbance.

4.3. Disturbance Observer

The DOB is an effective method of robust control to solve external disturbance and model uncertainty, and is widely used in various fields. It is not only excellent in control performance but also convenient to apply because of its simple structure. In particular, by simply adding the DOB to the inner loop of the existing controller, the performance of the outer loop controller can be guaranteed without separately considering the performance degradation due to disturbance and model uncertainty. The DOB estimates the disturbance, and the estimated disturbance signal is used as a disturbance cancellation input. The DOB is composed of an inverse nominal plant $P_n{\left(s\right)}^{-1}$ and LPF $Q\left(s\right)$ that cuts off the disturbance in the low-frequency region. $Q\left(s\right)$ is expressed as follows:

$$Q\left(s\right)=\frac{{\omega }_q}{s+{\omega }_q}$$

(22)

where ${\omega }_q$ is the cutoff frequency. To improve the performance in suppressing disturbance, the cutoff frequency should be increased. However, this is restricted to guarantee robust stability, as more unnecessary frequencies can be passed. Thus, it is critical to design an appropriate cutoff frequency.

The effectiveness of the DOB is clearly explained by transfer functions written as follows:

$$\frac{F_T}{u_a}=\frac{P\left(s\right)P_n\left(s\right)}{Q\left(s\right)\left[P\left(s\right)-P_n\left(s\right)\right]+P_n\left(s\right)}$$

(23)

$$\frac{F_T}{F_d}=\frac{P\left(s\right)P_n\left(s\right)\left[1-Q\left(s\right)\right]}{Q\left(s\right)\left[P\left(s\right)-P_n\left(s\right)\right]+P_n\left(s\right)}$$

(24)

$$\frac{F_T}{\xi }=\frac{P\left(s\right)Q\left(s\right)}{Q\left(s\right)\left[P\left(s\right)-P_n\left(s\right)\right]+P_n\left(s\right)}$$

(25)

where $u_a$ is the control input and $\xi$ is the measurement noise.

$Q\left(s\right)$ plays an important role in compensating disturbance and model uncertainty in the DOB. If the input frequency is smaller than the bandwidth of the $Q\left(s\right)$(i.e., $Q$ = 1), the first expression is $P_n$ and the second expression is zero. This means that model uncertainty is compensated for and low frequency disturbances are rejected. On the other hand, if the input frequency is higher than the band-width of the $Q\left(s\right)$(i.e., $Q$ = 0), the third equation is zero. Therefore, the high-frequency noise is removed.

4.4. Robust Stabilty Analysis of a Closed Loop Control System

In this section, we demonstrate the robust stability of the closed loop control system. The R2R system has model uncertainty because the inertia of the web in roll form changes during the process. To reflect this model variation, the actual plant is expressed as follows:

$$P\left(s\right)=P_n\left(s\right)\left[1+\Delta \left(s\right)\right]$$

(26)

where $\Delta$ is the multiplicative model uncertainty.

In Equation (8), the actual plant can be represented by the following parameters as follows:

$$P\left(s\right)=\frac{2cos\theta R{\left(s\right)}^{-1}}{1+{\tau }_{n}s}= \frac{1}{As+B}$$

(27)

Actually, these parameters have confidence intervals, not single values (i.e., confidence interval A = (0.005, 0.0015), B = (0.15, 0.25)) Moreover, the multiplicative model uncertainty $\Delta \left(\mathrm{s}\right)$ is calculated as follows:

$$\Delta \left(s\right)=\frac{ P\left(s\right) - P_n\left(s\right) }{P_n\left(s\right)}$$

(28)

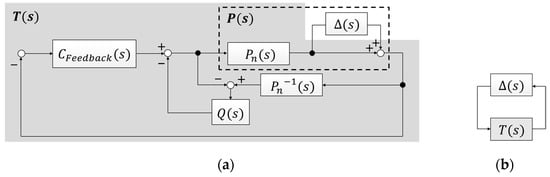

The small-gain theorem was applied to demonstrate the robust stability of the closed loop control system. As shown in Figure 6b, the following conditions are given by the small-gain theorem:

$$\left|\Delta \left(j\omega \right)\times T \left(j\omega \right)\right|<1$$

(29)

where $T\left(j\omega \right)$ is the complementary sensitivity function and is expressed as follows:

$$T \left(j\omega \right)=\frac{P_n\left(j\omega \right)C_{Fb}\left(j\omega \right)+Q\left(j\omega \right)}{1+P_n\left(j\omega \right)C_{Fb}\left(j\omega \right)}$$

(30)

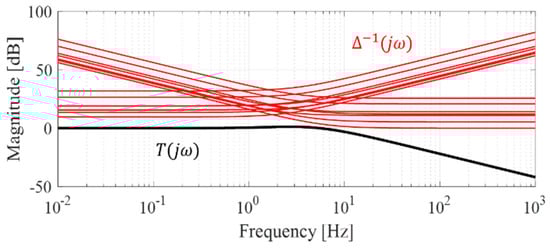

In the bode plot of Figure 7, the magnitude of the complementary sensitivity function $T\left(s\right)$ is below the magnitude of inverse multiplicative uncertainty. This means it is possible to implement good tracking performance over the whole range of frequencies.

5. Experimental Verification

In this section, we introduce the R2R system used in the experiment and the experimental results of the proposed control scheme.

5.1. Experimental Setup

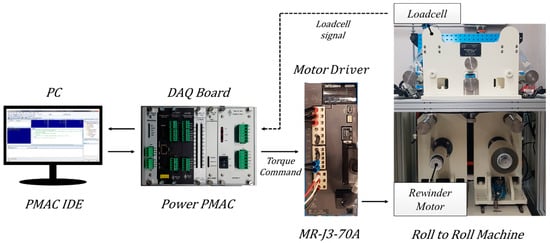

All experiments were conducted on the R2R system depicted in Figure 8 and the procedure was as follows. After fixing the web of the roll form to the rewinder motor, the load cell signal, which varies according to the rewinder motor torque, was controlled in real time by the proposed control algorithm. Then, the opposite ends of the web were fixed to the unwinder motor and the motor was controlled equally. Finally, the feeder motor, which operates only for web feed, was controlled at a constant speed by the proportional-integral controller. A Mitsubishi AC servo motor HF-KP43 and Mitsubishi motor driver MR-J3-70A were driven as rewinder, unwinder, and feeder motors. These were controlled in real time by a Power PMAC ACC 24E3 axis-interface board with 0.1-ms sampling time. The Power PMAC’s Integrated Development Environment (IDE) program includes the GNU compiler; thus, we designed the control algorithm with a C-based user code. Figure 8 and Figure 9 show the overall control system and program flow chart for the R2R system.

5.2. Experimental Results

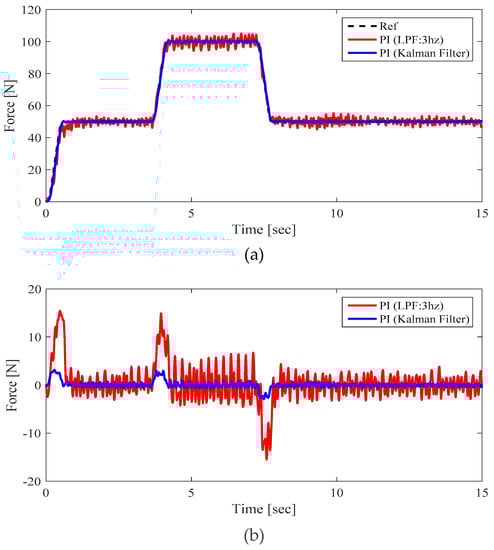

In order to evaluate the tension tracking performance of the proposed control scheme, experiments were carried out under the following conditions. The web was transported at a constant speed by the feeder motor and the tension command had a section varying from 0 N to 100 N. Figure 10 shows the experimental results for verifying the performance of the KF. As shown in Figure 10b, the tracking error could be reduced and the bandwidth could be increased when signal processing was performed with the proposed KF relative to the LPF, which is a conventional signal processing method in R2R systems.

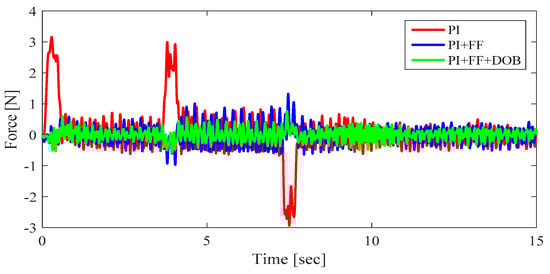

Figure 11 shows the results of applying the proposed control scheme in the case of signal processing with KF. Particularly, the tracking performance of the FF controller was powerful in the transient section where the tension changes. Moreover, the experimental results demonstrate that the DOB is effective in compensating for disturbance and model uncertainty.

6. Conclusions

This paper aims to propose a robust and precise control scheme for a R2R machine to overcome the problems of conventional tension control method. A robust control method such as a DOB is essential in R2R systems with model variation and external disturbance. Therefore, a DOB with PI controller was employed to nominalizes the plant and reject external disturbance. The robust stability of the closed loop control system was proved using the small-gain theorem. Moreover, a FF controller was applied to minimize the tracking error in the transient section. The signal processing of the sensor is very important for precise control in the R2R system. The KF not only reduces sensor noise but also overcomes phase delay problem to improve control performance. Experimental results demonstrate the performance of the proposed control schemes.
