1. Introduction
Radar emitter identification is the key link in radar reconnaissance. It extracts the characteristic parameters and working parameters on the basis of radar signal sorting. Based on these parameters, we can obtain the information such as the system, use, type and platform of the target radar, and further deduce the battlefield situation, threat level, activity rule, tactical intention, etc., and provide important intelligence support for one’s own decisionmaking [
1]. The most commonly used radar emitter identification method is the pulse described wordbased method. As new radar systems are born, and the radar is becoming more complex, the method is difficult to cope with the complex electromagnetic environment of modern battlefields. In order to obtain better identification results, researchers began to extract a variety of new features in the time domain [
2], frequency domain [
3] and timefrequency domain [
4] for the identification of radar emitters.
With the rise of deep learning techniques, more and more researchers have applied CNN and DBN in the radar emitter identification task, which achieves good performance. Zhou Z et al. [
5] developed a novel deep architecture for automatic waveform recognition, which outperformed the existing shallow algorithms and other handcrafted, featurebased methods. Cain L et al. [
6] investigated an application of convolutional neural networks (CNN) for rapid and accurate classification of electronic warfare emitters. Sun J et al. [
7] proposed a deep learning model named as unidimensional convolutional neural network (UCNN) to classify the encoded highdimension sequences with big data.
Kong M et al. [
8] used the CNN deep learning algorithm to identify the radar radiation sources, which could extract more detailed features of the radar and improve the recognition rate. To cope with the complex electromagnetic environment and varied signal styles, Wang X et al. [
9] proposed a novel method based on the energy cumulant of short time Fourier transform and reinforced deep belief network to gain a higher correct recognition rate for radar emitter intrapulse signals at a low signaltonoise ratio.
In the past battlefields, the types of radar emitters are single and limited, and the above methods can solve the problem of radar emitter identification well. However, with the increasing number and variety of radar emitters, many unknown emitters will appear in the future battlefield. As time goes by and the location changes, the current identification methods will face two problems. First, the training data and testing data no longer satisfy the samedistribution hypothesis, resulting in a decrease in the classification performance of the machine learning model. Second, the number of available labeled samples for unknown emitters is seriously insufficient, which may lead to overfitting of the machine learning model.
In recent years, the transfer learning methods [
10] and the semisupervised learning methods [
11] have gained more and more attention. Transfer learning does not require that the training data and testing data meet the conditions of the same distribution in the model training process, and utilizes the knowledge in a large number of known samples for training, which is good for crossdomain learning. However, the transferring of a large amount of irrelevant information will also cause negative transfer, which reduces the effect of identification. Semisupervised learning can use the information in a small number of labeled samples and find patterns from a large number of unlabeled samples, and then perform classification, avoiding the use of only a small number of labeled samples for training, which may result in overfitting. However, as information continues to increase, the training data and testing data will also not satisfy the samedistribution hypothesis.
In view of the different characteristics of transfer learning and semisupervised learning, this paper combines the two methods to propose an unknown radar emitter identification method based on semisupervised and transfer learning. Firstly, we construct the support vector machine model based on transfer learning, using the information of labeled samples in the source domain to train in the target domain, which can solve the problem that the training data and the testing data do not satisfy the samedistribution hypothesis. Then we design a semisupervised, cotraining algorithm, using the information of unlabeled samples to enhance the training effect, which can solve the problem that insufficient labeled data results in inadequate training of the classifier. Finally, we combine the transfer learning method with the semisupervised learning method for the unknown radar emitter identification task.
Our major contributions are summarized as follows: (1) Focusing on the actual application scenarios to study radar emitter identification, and simultaneously solving the problem that training data and testing data do not satisfy the samedistribution hypothesis and the problem of insufficient labeled data, which provides a good thinking way for future research in this area; (2) proposing a method combining support vector machine based on transfer learning with semisupervised cotraining algorithm; (3) verifying the interaction between the transfer learning method and the semisupervised learning method for unknown radar emitter identification task.
3. Unknown Radar Emitter Identification Based on SemiSupervised and Transfer Learning
In this section, we use the support vector machine model as the base classifier. Firstly, we construct the support vector machine based on transfer learning, and define the calculation index to measure the transfer ability. Then we study the training effect enhancement method based on the semisupervised cotraining algorithm. Finally, we combine the transfer learning method with the semisupervised learning method for the unknown radar emitter identification task.
3.1. Support Vector Machine Based on Transfer Learning
The support vector machine (SVM) model has the characteristics of simple structure and global optimization, and is good at solving small sample and nonlinear problems. Therefore, this section chooses the support vector machine model as the base classifier to perform radar emitter identification.
In the process of constructing the SVM model based on transfer learning, it is necessary to utilize the data in two domains at the same time, namely source domain ${D}_{s}$ and target domain ${D}_{t}$. The data in source domain ${D}_{s}$ refers to the known radar emitters that are detected during nonwartime, and the data in target domain ${D}_{t}$ refers to the emerging radar emitters in wartime.
When the amount of data in source domain ${D}_{s}$ is large, noise in source domain ${D}_{s}$ affects the use of the data in target domain ${D}_{t}$.
In order to better optimize the target equation, this section filters the data with high similarity in the source domain
${D}_{s}$ in the process of transferring the SVM model, and uses the Euclidean distance to define the distance function
$\sigma ({V}_{s}^{i},{D}_{t}^{j})$, which can measure the similarity between the source domain data and the target domain data. Its formula is as follows:
where
${V}_{s}^{i}$ is the support vector for source domain,
$\beta $ is the importance degree of
${V}_{s}$,
$({x}_{j},{y}_{j})$ is the sample in target domain
${D}_{t}$ and its real category,
$\parallel {V}_{s}^{i}{x}_{j}{\parallel}_{2}^{2}$ is the Euclidean distance between
${V}_{s}$ and
${D}_{t}$, k is the number of samples in target domain
${D}_{t}$.
The specific steps of the support vector machine based on transfer learning are shown in Algorithm 1.
Algorithm 1. Support vector machine based on transfer learning
Train the initial SVM model in the source domain ${D}_{s}$ to get the support vector ${V}_{s}$, and calculate the similarity distance function $\sigma ({V}_{s}^{i},{D}_{t}^{j})$. Add ${V}_{s}$ to the source domain data, and add the similarity distance function $\sigma $ to the objective function of the SVM model as follows: $\underset{w}{\mathrm{min}}0.5\parallel w{\parallel}_{2}^{2}+C{\displaystyle \sum _{j=1}^{k}{\epsilon}_{j}}+{\displaystyle \sum _{i=1}^{m}\sigma ({V}_{s}^{i},{D}_{t}^{j}){\overline{\epsilon}}_{i}}$ Where m is the number of samples in source domain ${D}_{s}$, C is the penalty term, w is the weights of classification hyperplane in the SVM model. Generate new training set $\tilde{D}$ in target domain ${D}_{t}$, and retrain the SVM model. The optimization problem of the objective function is described with the Lagrangian coefficient as follows: $\mathrm{max}L(\alpha )={\displaystyle \sum _{i=1}^{m+k}{\alpha}_{i}}0.5{\displaystyle \sum _{i=1}^{m+k}{\displaystyle \sum _{j=1}^{m+k}{\alpha}_{i}{\alpha}_{j}{y}_{i}{y}_{j}({x}_{i}\ast {x}_{j})}}$ Where ${x}_{i}\ast {x}_{j}$ is the inner product of the vector ${x}_{i}$ and the vector ${x}_{j}$, ${y}_{i}$ is the real category label of ${x}_{i}$, ${y}_{j}$ is the real category label of ${x}_{j}$, ${\alpha}_{i}$ and ${\alpha}_{j}$ are the Lagrangian multipliers, $\alpha ={({\alpha}_{1},{\alpha}_{2},\cdots ,{\alpha}_{m+k})}^{T}$ is the Lagrangian multiplier vector. Solve the above optimization problem and get the optimal solution ${\alpha}^{\ast}$, which means getting the final SVM model. Its form is as follows: $f(x)=sign[{\displaystyle \sum _{j=1}^{m+k}{y}_{i}{\alpha}^{\ast}({x}_{i}\ast {x}_{j})}+{y}_{i}{\epsilon}_{i}{({\displaystyle \sum _{i=1}^{m+k}{\alpha}^{\ast}{x}_{i}{y}_{i}})}^{T}{x}_{i}]$

3.2. Transfer Ability
The transfer ability can reflect the influencing ability of the samples in source domain
${D}_{s}$ on the target domain
${D}_{t}$. The calculation process involves two important indices: the similarity between the sample in source domain
${D}_{s}$ and the sample in target domain
${D}_{t}$; the consistency between the prediction result of the sample
${x}_{i}$ in the classifier f and its real category. Therefore, the calculation formula of transfer ability is as follows:
where
$\sigma ({V}_{s}^{i},{D}_{t}^{j})$ is the similarity distance function, f is the SVM classifier trained by the above transfer learning method,
$f({x}_{i})$ is the predicted value of
${x}_{i}$ in source domain
${D}_{s}$ by the classifier f,
${y}_{i}$ is the real category label of
${x}_{i}$. By calculating the transfer ability, it is helpful to select the samples in source domain
${D}_{s}$ which are related to target domain
${D}_{t}$.
3.3. Training Effect Enhancement Based on SemiSupervised CoTraining Algorithm
The transfer learningbased support vector machine can select the appropriate samples from source domain
${D}_{s}$ for the training on target domain
${D}_{t}$, which can improve the final identification performance. Unlike the above, semisupervised learning can use the unlabeled samples in target domain
${D}_{t}$ to enhance the final training effect. This section constructs the semisupervised cotraining algorithm based on the base classifier SVM model. The specific steps are shown in Algorithm 2.
Algorithm 2. Semisupervised cotraining algorithm
For the radar emitter identification task, define and construct a feature set $x$, and divide it into two parts ${x}_{1}$ and ${x}_{2}$. Train the base classifier SVM model on the small number of labeled samples in target domain ${D}_{t}$ by using the feature sets ${x}_{1}$ and ${x}_{2}$ respectively, and obtain the classifiers ${f}_{1}$ and ${f}_{2}$. For t = 1: N
Perform identification on the unlabeled samples in target domain ${D}_{t}$ by using the classifiers ${f}_{1}$ and ${f}_{2}$, respectively, and obtain the posterior probabilities of the samples belonging to each emitter category, and select p samples with the highest confidence for each category; Add the selected samples to the training set and retrain the classifiers ${f}_{1}$ and ${f}_{2}$ on the training set.

The two feature sets ${x}_{1}$ and ${x}_{2}$ in the cotraining algorithm refer to two views and need to satisfy sufficient redundancy and conditional independence. Through continuous iterative training, unlabeled samples in the target domain ${D}_{t}$ are available for labeling, which helps to enhance the training effect.
3.4. Combination of Transfer Learning Method and SemiSupervised Learning Method
This section combines the transfer learning method with the semisupervised learning method, while taking advantage of the two methods, which can use useful information in source domain
${D}_{s}$ for crossdomain learning, and can enhance the training effect with unlabeled samples in target domain
${D}_{t}$. The specific process is shown in
Figure 1.
The basic idea of the semisupervised transfer learning algorithm is to first use the small number of labeled samples in the target domain as training data to train two different classification models, namely the SVM model based on transfer learning and the semisupervised cotraining model; then we select some samples from source domain, use the SVM model based on transfer learning to evaluate the transfer ability of each sample, delete the samples that are not related to the target domain and obtain candidate sample set. After this we select some unlabeled samples from the target domain, use the semisupervised cotraining model to evaluate the confidence of each sample, delete the samples with lower confidence and add the remaining samples to the candidate sample set.
In the process of selection training samples, not only must we consider the transfer ability, but we must assess the confidence of the sample’s category. Then we add the samples satisfying the conditions to the training set. The above sample selection method is based on the basic assumptions of transfer learning and semisupervised learning. By repeating the process, the number of labeled samples in target domain ${D}_{t}$ can be continuously increased.
4. Experiments
4.1. Experiment Settings
4.1.1. Experiment Environment
We build the simulation experiment development environment of Windows7 + Matlab2017b + Libsvm3.22, where Libsvm3.22 is used to implement the SVM model as the base classifier. Its kernel function is based on the radial basis function $\mathrm{exp}(\frac{x{x}_{i}{}^{2}}{{\sigma}^{2}})$. On this basis we use Matlab to realize the transfer learning and semisupervised learning method in this paper.
4.1.2. Experiment Data
We use the characteristic parameters such as pulse amplitude(PA), carrier frequency (CF), pulse width (PW), pulse repetition interval (PRI) and angle of arrival (AOA) to simulate generating the emitter data of six systemlike radars. For the signal parameters, they are set at the same intermediate frequency: 10 MHz, and the sampling frequency is 100 MHz. 1000 signal samples are generated using the above five pulse description words for radar 1, radar 2 and radar 3, respectively, and a total of 3000 signal samples are as known radar emitter data corresponding to the source domain data above.
In addition, 1000 signal samples are generated for radar 4, radar 5 and radar 6, respectively, and a total of 3000 signal samples are as unknown radar emitter data corresponding to the target domain data above. The mean values and standard deviations after normalization of the known radar emitter data and the unknown radar emitter data are significantly different, so they no longer satisfy the assumption of the same distribution, which can be used to verify the transfer learning and semisupervised learning method. The details of the experiment data are shown in
Table 1 and
Table 2.
A radar signal sample is written as
${W}_{i}={[P{A}_{i},C{F}_{i},P{W}_{i},PR{I}_{i},AO{A}_{i}]}^{T}$. The distribution of the specific parameters of the radar is shown in
Figure 2, (a) describes the entire data set from the perspective of parameters PA and AOA, and (b) describes the entire data set from the perspective of parameters of CF, PW and PRI.
4.2. Interaction between Transfer Learning Method and SemiSupervised Learning Method
The experiment uses the known radar emitter data as labeled samples for auxiliary training, and the unknown radar emitter data as unlabeled samples to be identified. The number of unlabeled samples and labeled samples can be adjusted to verify the interaction between the transfer learning method and the semisupervised learning method.
First, we keep the number of labeled samples unchanged, and adjust the number of unlabeled samples to verify the impact of the semisupervised learning method on the transfer learning method. The results are shown in
Figure 3. It can be seen from the experiment results that when the number of unlabeled samples is zero, that is, we only carry out transfer learning without semisupervised learning, the identification accuracy is 11.3% lower than the optimal identification accuracy.
When the number of unlabeled samples is slowly increasing, the identification accuracy will also continue to rise, indicating that the unlabeled samples help to make the transfer learning method select highsimilarity samples from the unknown radar emitter data; that is, the semisupervised learning method is positively correlated with the transfer learning method, and has not weakened it. As the number of unlabeled samples increases further, the identification accuracy will gradually stabilize, indicating that the highsimilarity samples in the unknown radar emitter data have been completely screened out, and the optimal recognition rate can reach 93.6%.
Secondly, we keep the number of unlabeled samples unchanged, and adjust the number of labeled samples to verify the impact of the transfer learning method on the semisupervised learning method. The results are shown in

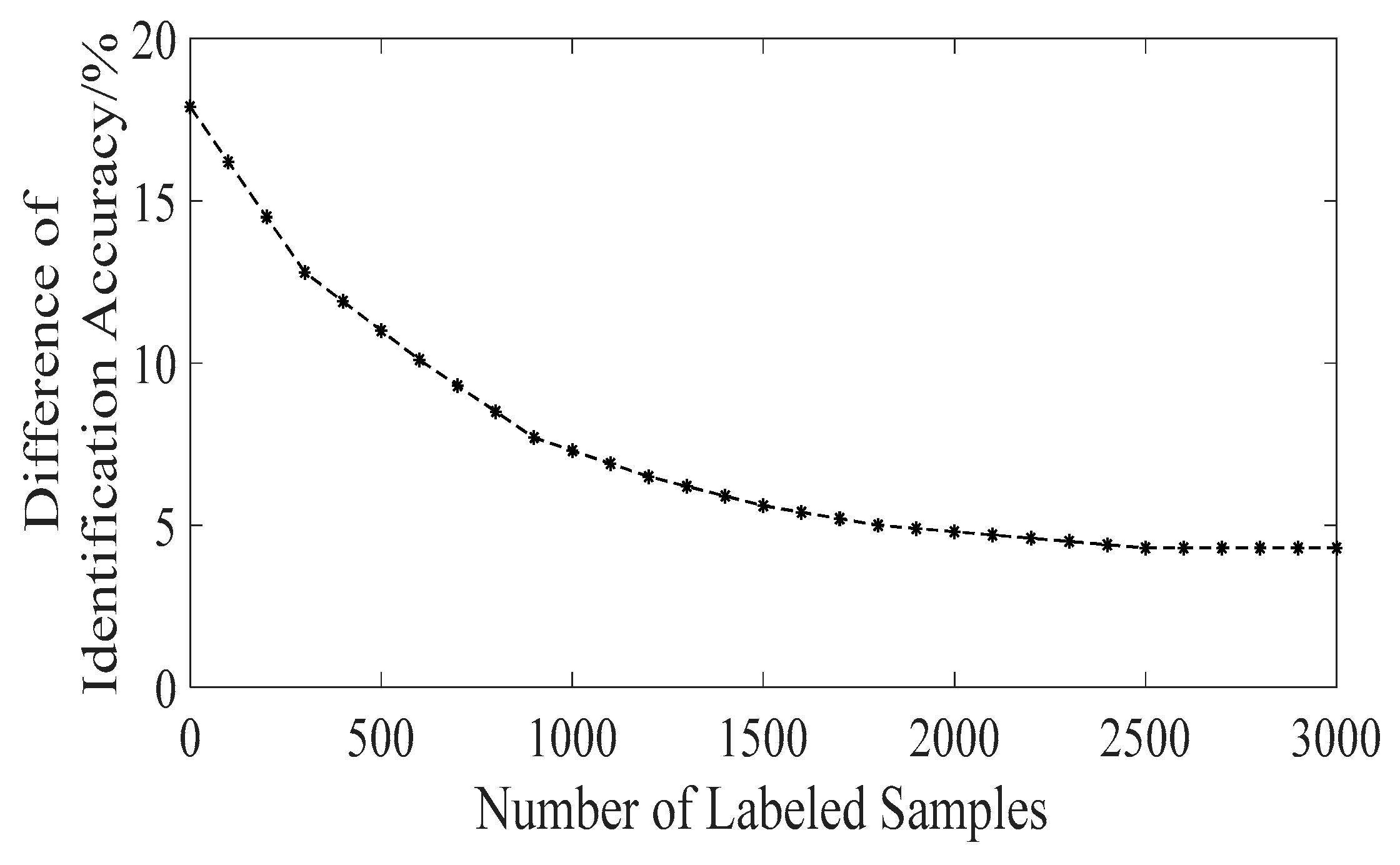

Figure 4. It can be seen from the experiment results that when the number of labeled samples is zero, that is, we only carry out semisupervised learning without transfer learning, the difference between the maximum identification accuracy and the minimum identification accuracy in the classification identification results reaches 17.9%, indicating that the use of semisupervised learning alone makes the model less stable. When the number of labeled samples is slowly increased, the difference between the maximum identification accuracy and the minimum identification accuracy in the classification identification results will continue to drop to 4.3%, indicating that the transfer learning method helps to make selfcorrection of the semisupervised learning method.
It can be seen from the above experiment results that the semisupervised and transfer learning method proposed in this paper can comprehensively utilize the information of unlabeled samples and labeled samples. When the number of unlabeled samples is greater than 1000, and the number of labeled samples is greater than 1500, the performance of the model will tend to be stable and achieve the highest identification accuracy. Therefore, in the following we use 1500 known radar emitter samples and 1000 unknown radar emitter samples to train the model for contrast experiments.
4.3. Contrast Experiments
In order to further verify the effectiveness of the proposed method, we train the base classifier SVM model, the SVM model based on transfer learning, the SVM model based on semisupervised learning and the SVM model based on semisupervised and transfer learning respectively to identify the unknown radar emitter samples. In addition, in order to verify the adaptability of the model to the measurement error, we introduce an error deviation level test algorithm [
21]. The specific experiment results are shown in
Figure 5.
From the contrast experiment results, it can be known that when only using the base classifier SVM model for identification, the identification accuracy obtained is less than 55%. The main reason is that the known radar emitter data and the unknown radar emitter data do not satisfy the samedistribution hypothesis, resulting in an inability to obtain a valid classifier. When using the SVM model based on semisupervised and transfer learning for identification, the optimal identification accuracy can be achieved within a certain measurement error range. Identification accuracy can reach more than 90% in the measurement error range of 15%, indicating that the method has good noise adaptability, and is obviously superior to the SVM model based on transfer learning, and the SVM model based on semisupervised learning. The main reason is that the semisupervised and transfer learning can make full use of sample information to achieve good performance without a lot of iteration.
The identification accuracy obtained by the SVM model based on transfer learning is slightly better than that obtained by the SVM model based on semisupervised learning. The main reason is that there are not many available training samples in the target domain, which leads to the fact that only using the semisupervised learning method cannot enhance the training effect. When the measurement error is greater than 10%, the identification accuracy of the transfer learning method and the semisupervised learning method will be significantly reduced, indicating that their noise adaptability is not good.
4.4. Results Discussion
For the radar emitter identification task, deep learning models can often achieve the best results. Therefore, in this section, we construct the CNN model [
6] and the UCNN model [
7] to compare with our method proposed in this paper. In the two deep learning models, radar pulse description words are used to represent radar signals, and as input to the model, which is the same as the processing of our method, so it is appropriate to compare CNN, UCNN and our method together. The specific experiment results of different models are shown in
Table 3. In the traditional identification scenario, that is, where we only use the labeled samples in source domain to train the models and then test on the source domain data, UCNN can achieve the best performance. Its identification accuracy is up to 98.5%, while the identification accuracy of our method is only 95.3%. In the unknown identification scenario, that is, wherein we use the labeled samples in source domain and the unlabeled samples in target domain to train the models and then test on the unknown radar emitters in target domain, the identification accuracy of CNN and UCNN decrease sharply. However, our method can still reach an identification accuracy of 91.6%. The experiment results show that compared with the currently most popular deep learning models, although our method still has disadvantages in the traditional identification scenario, it can achieve the best performance when facing unknown radar emitters.
