Next Article in Journal / Special Issue
The Effect of Lithium Doping on the Sintering and Grain Growth of SPS-Processed, Non-Stoichiometric Magnesium Aluminate Spinel
Previous Article in Journal
Synthesis of Mixed Cu/Ce Oxide Nanoparticles by the Oil-in-Water Microemulsion Reaction Method
Previous Article in Special Issue
Formation of Aluminum Particles with Shell Morphology during Pressureless Spark Plasma Sintering of Fe–Al Mixtures: Current-Related or Kirkendall Effect?
Open AccessArticle

Spark Plasma Co-Sintering of Mechanically Milled Tool Steel and High Speed Steel Powders

1
Department of Industrial Engineering, University of Trento, via Sommarive 9, Trento 38123, Italy
2
Iveco Defence Vehicles, Product Development & Engineering, via Volta 6, Bolzano 39100, Italy
3
K4Sint, via Dante 300–B.I.C., Pergine Valsugana 38057, Italy
*
Author to whom correspondence should be addressed.
Academic Editor: Eugene A. Olevsky
Materials 2016, 9(6), 482; https://doi.org/10.3390/ma9060482
Received: 15 May 2016 / Revised: 7 June 2016 / Accepted: 9 June 2016 / Published: 16 June 2016

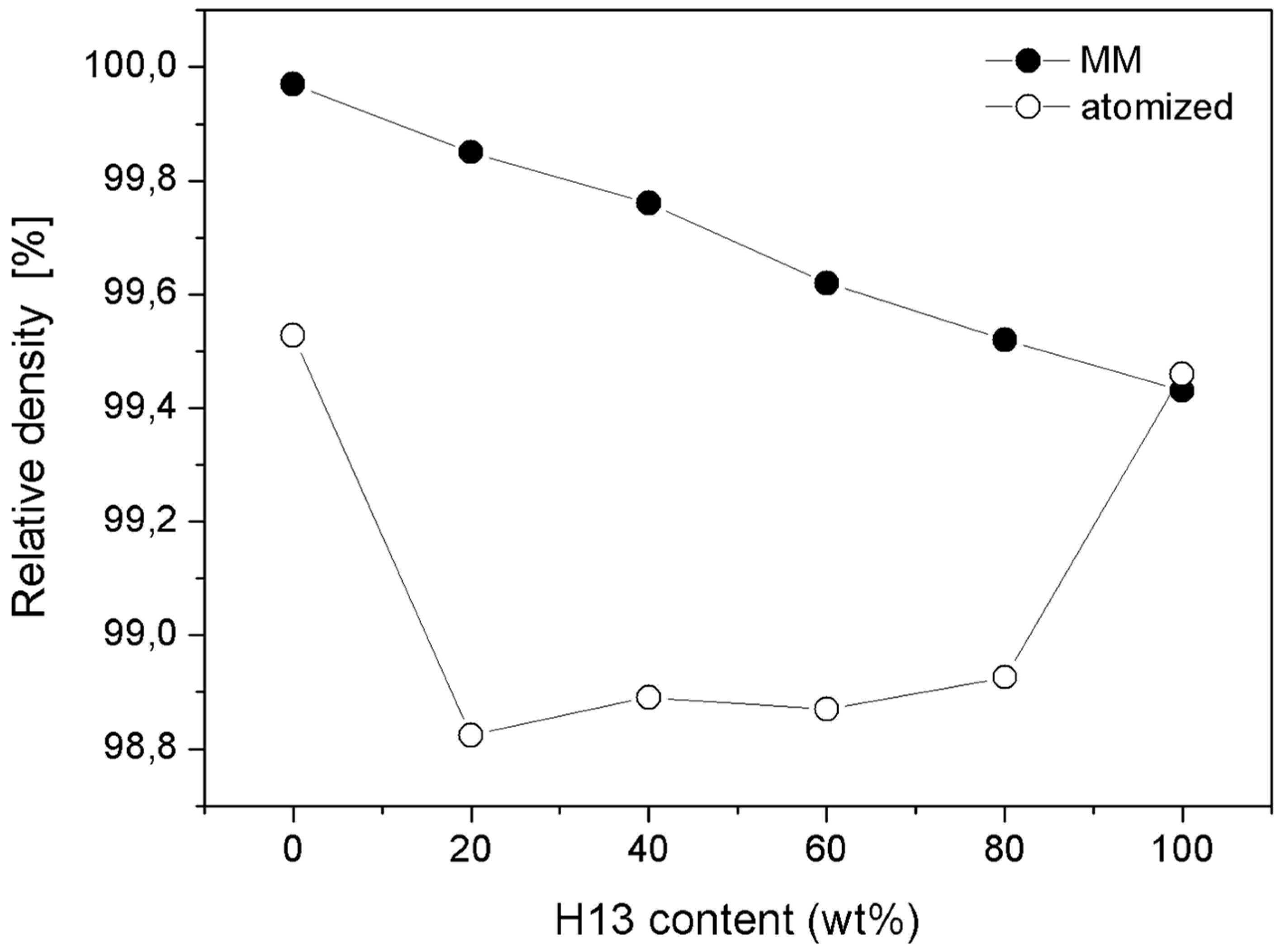

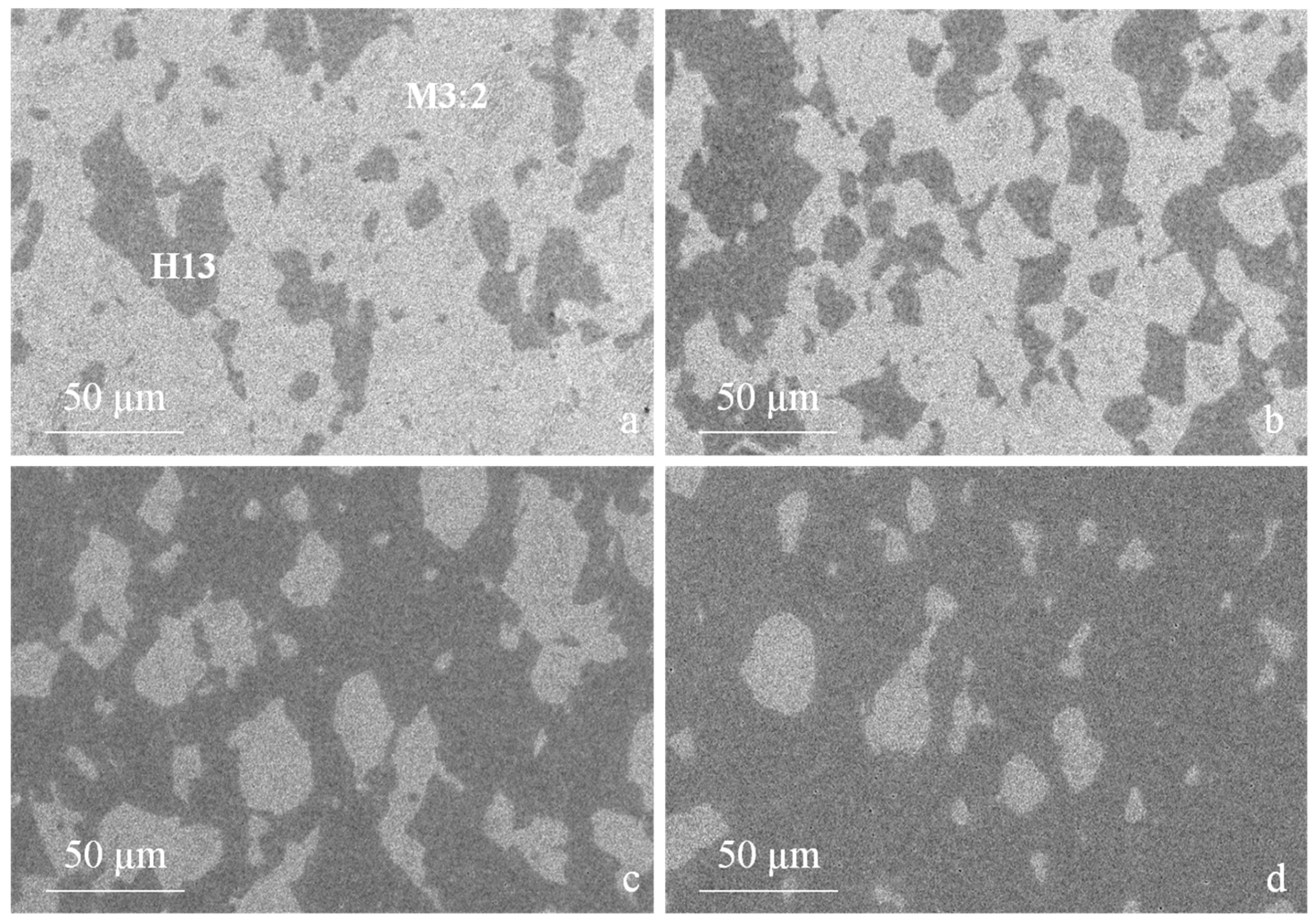

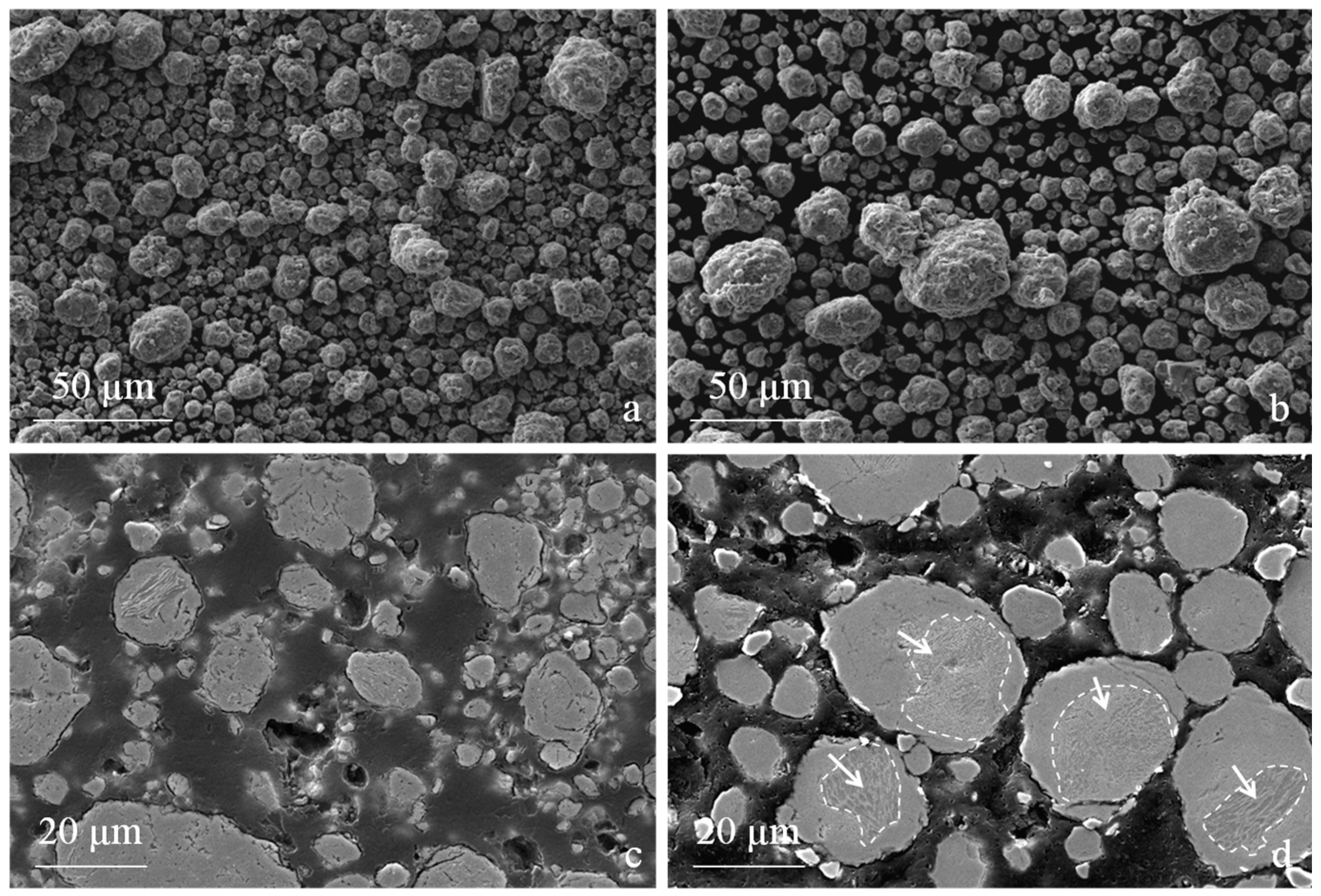

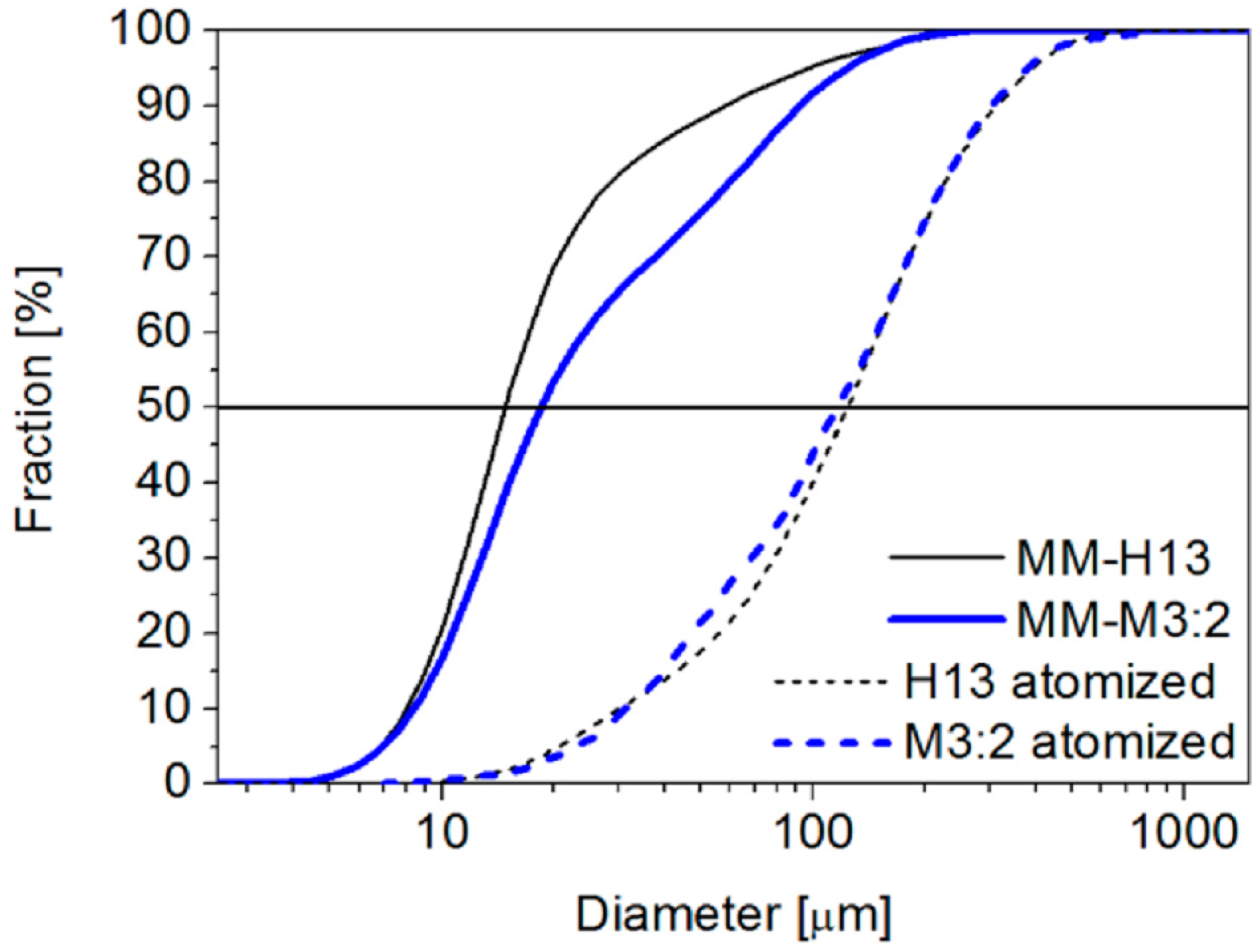

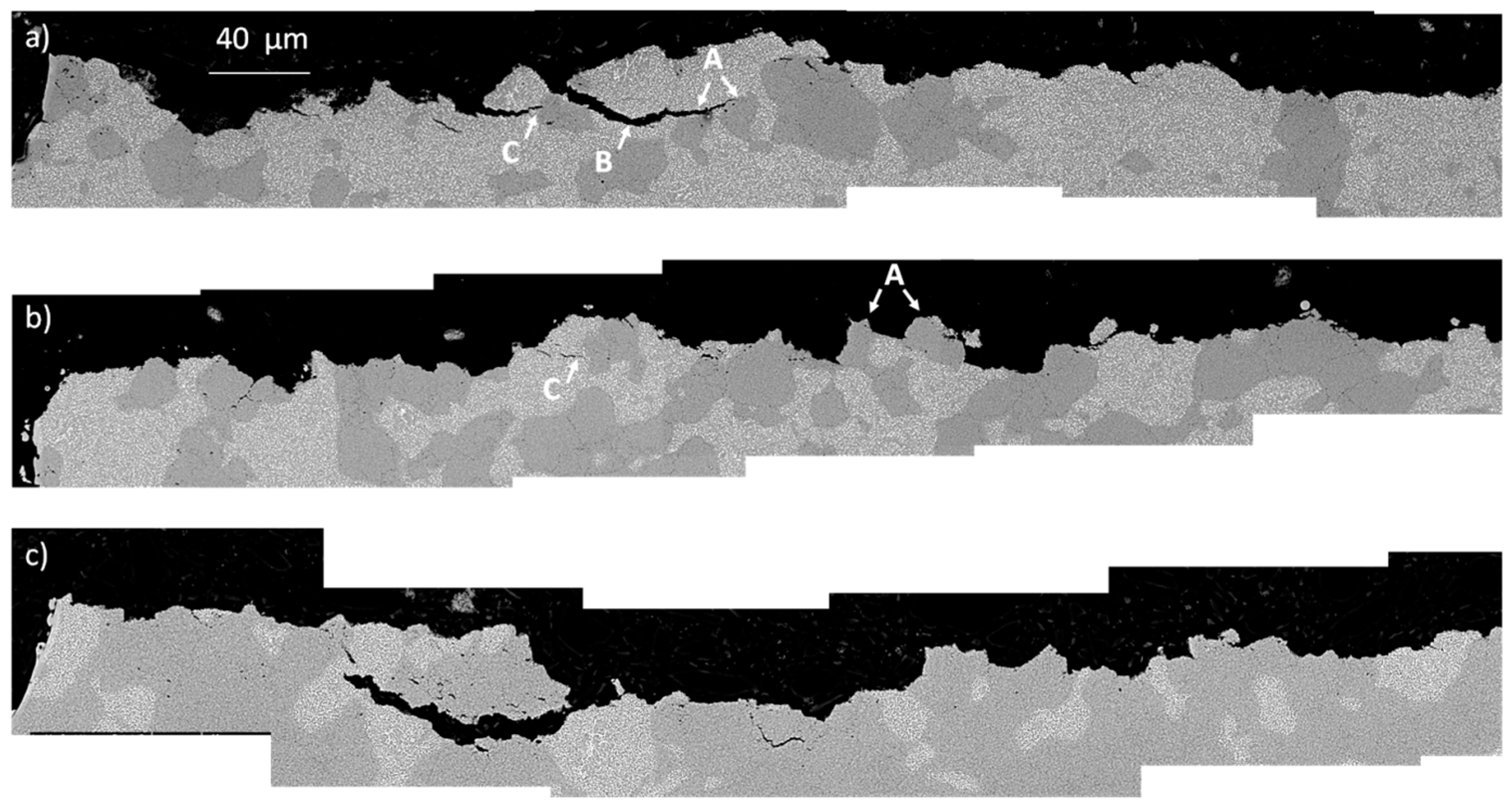

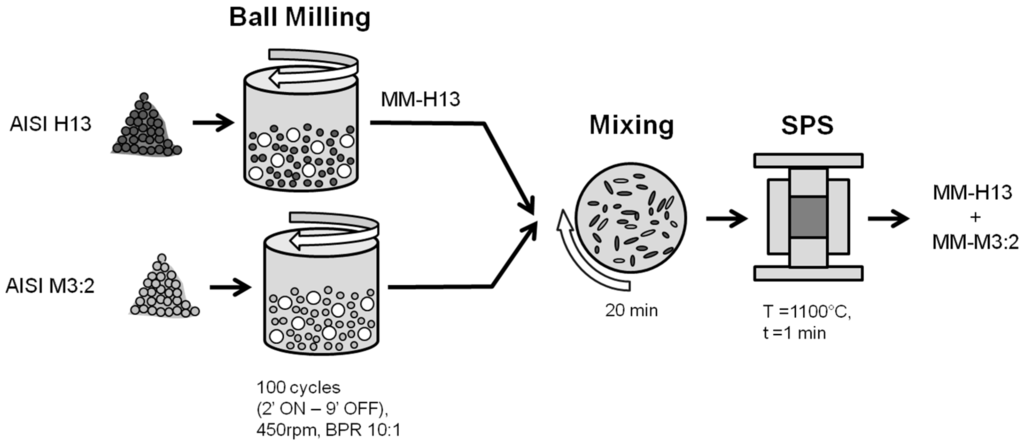

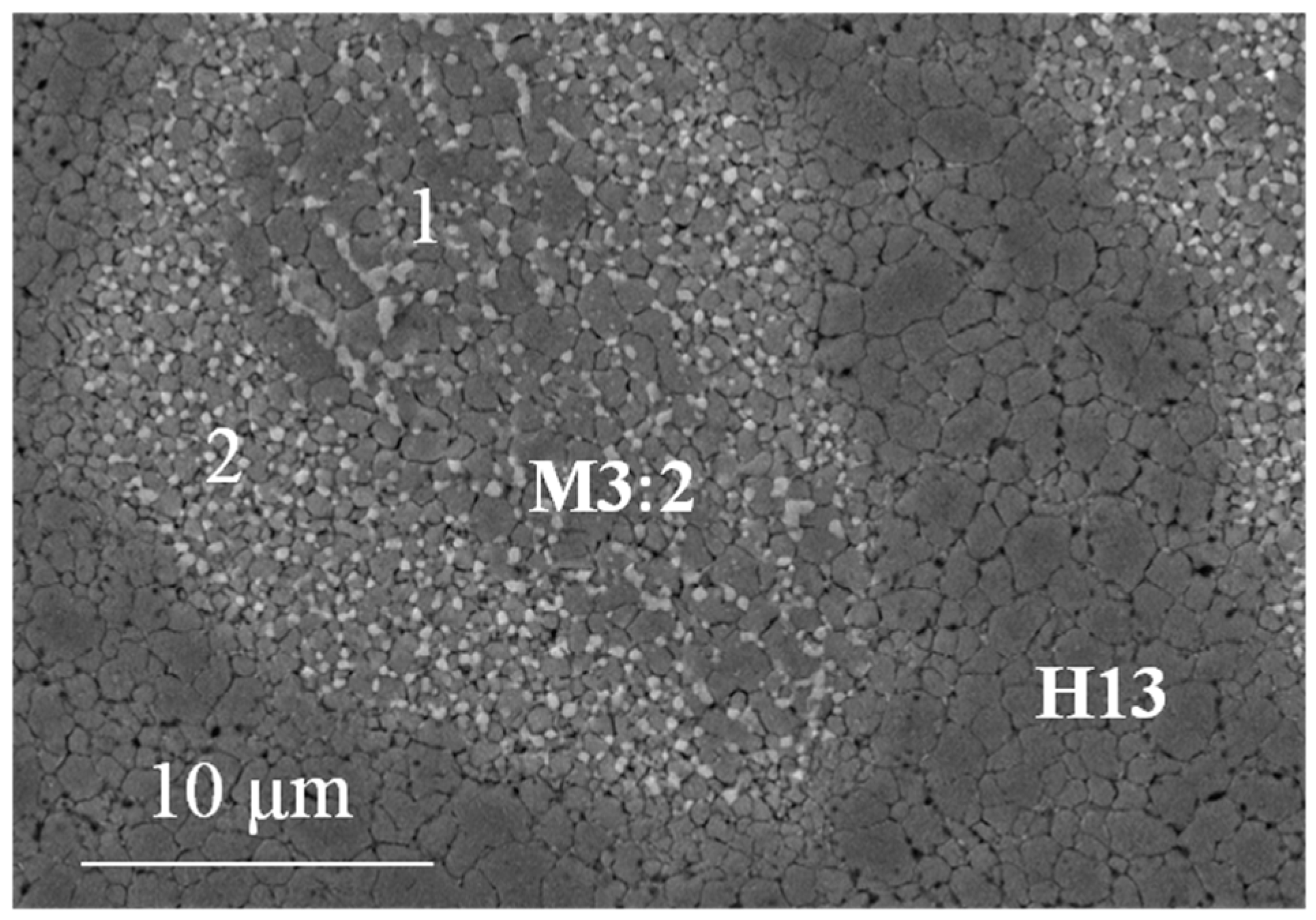

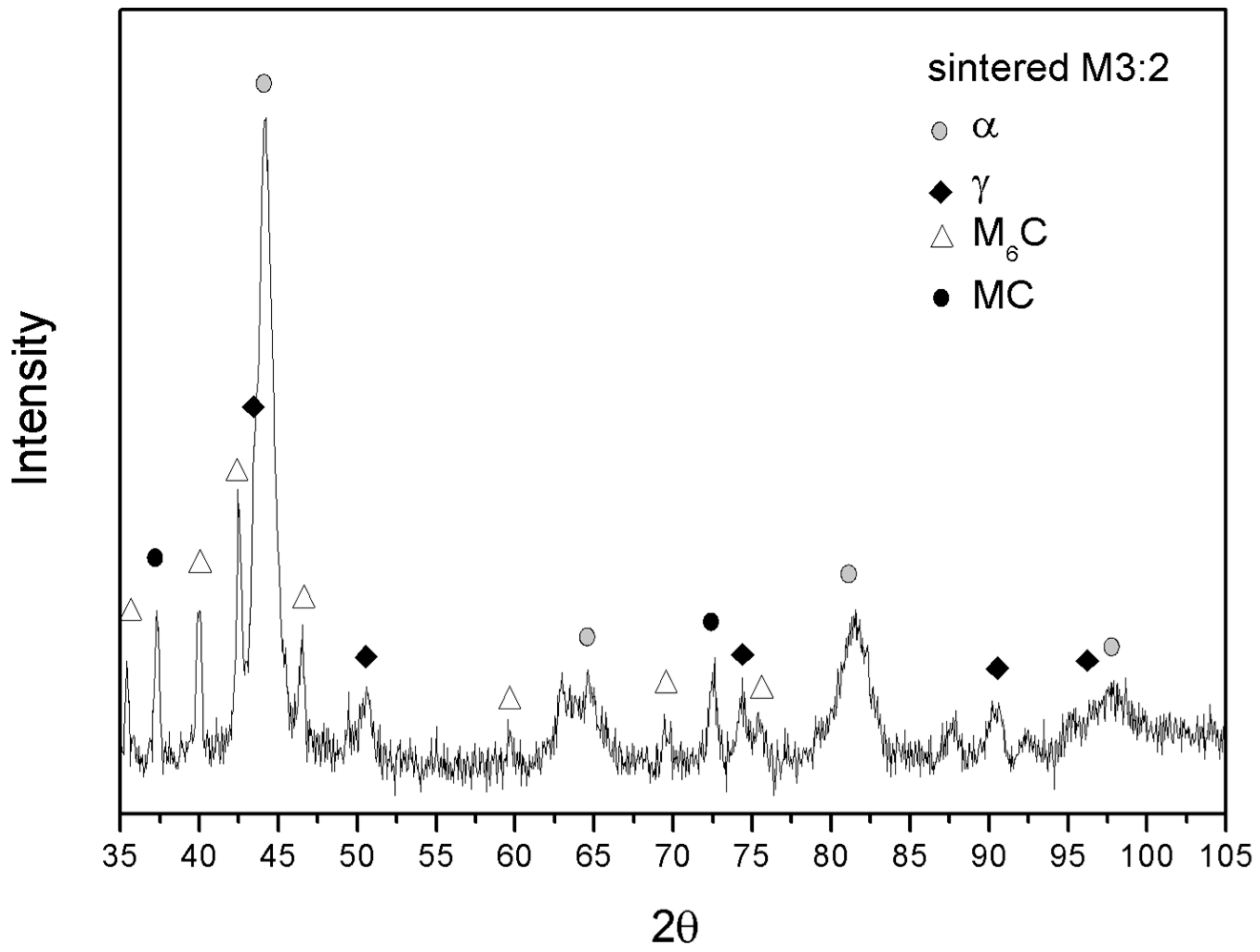

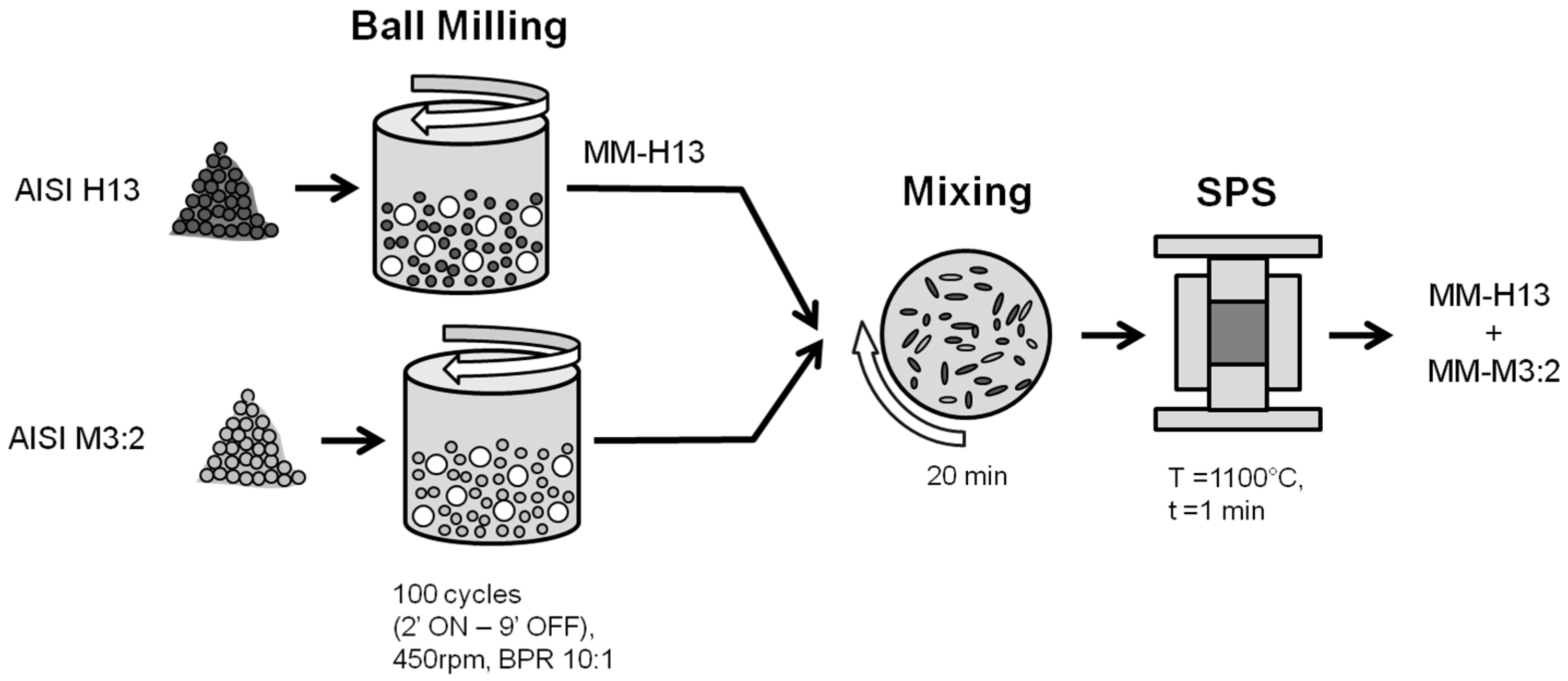

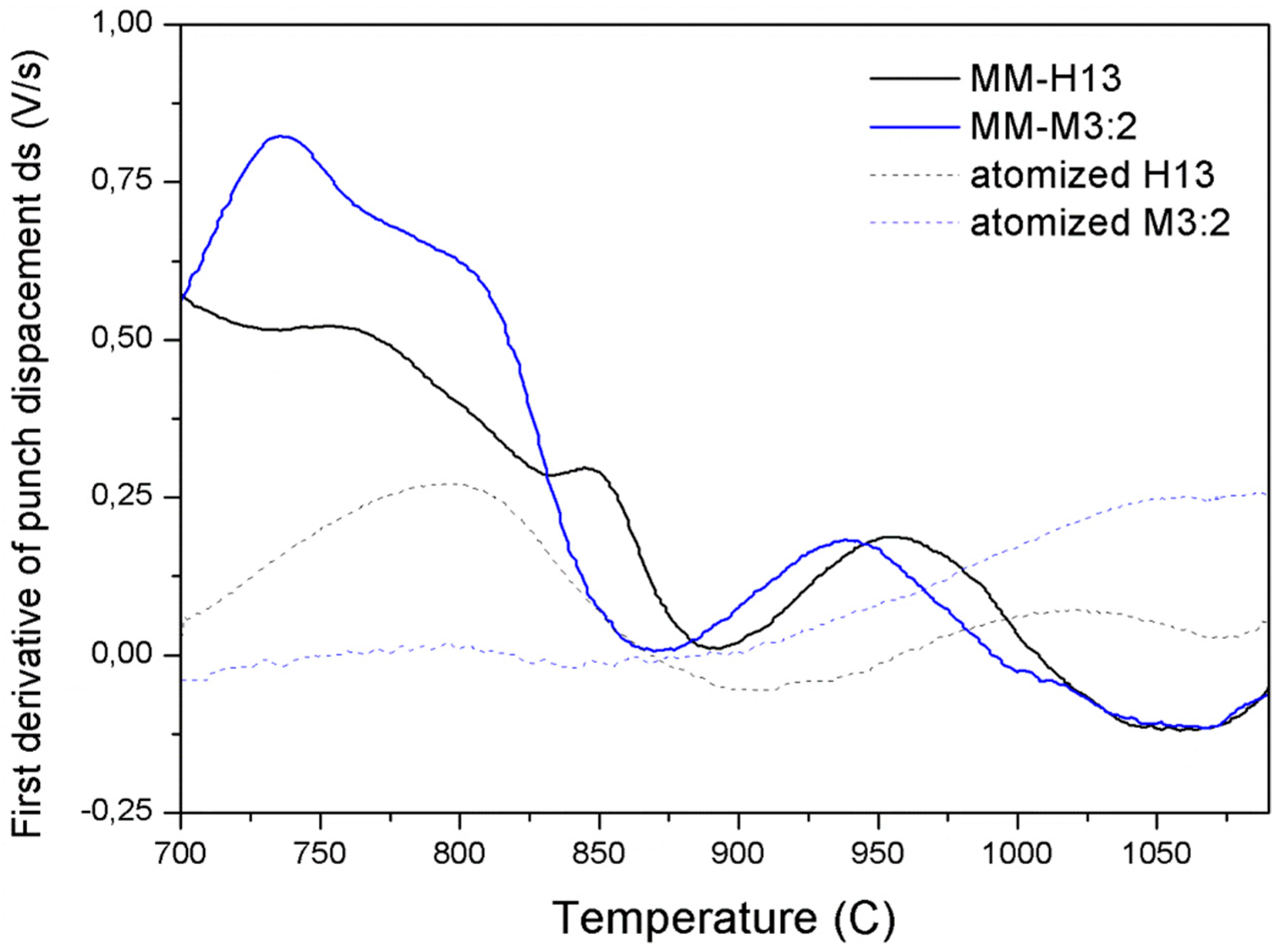

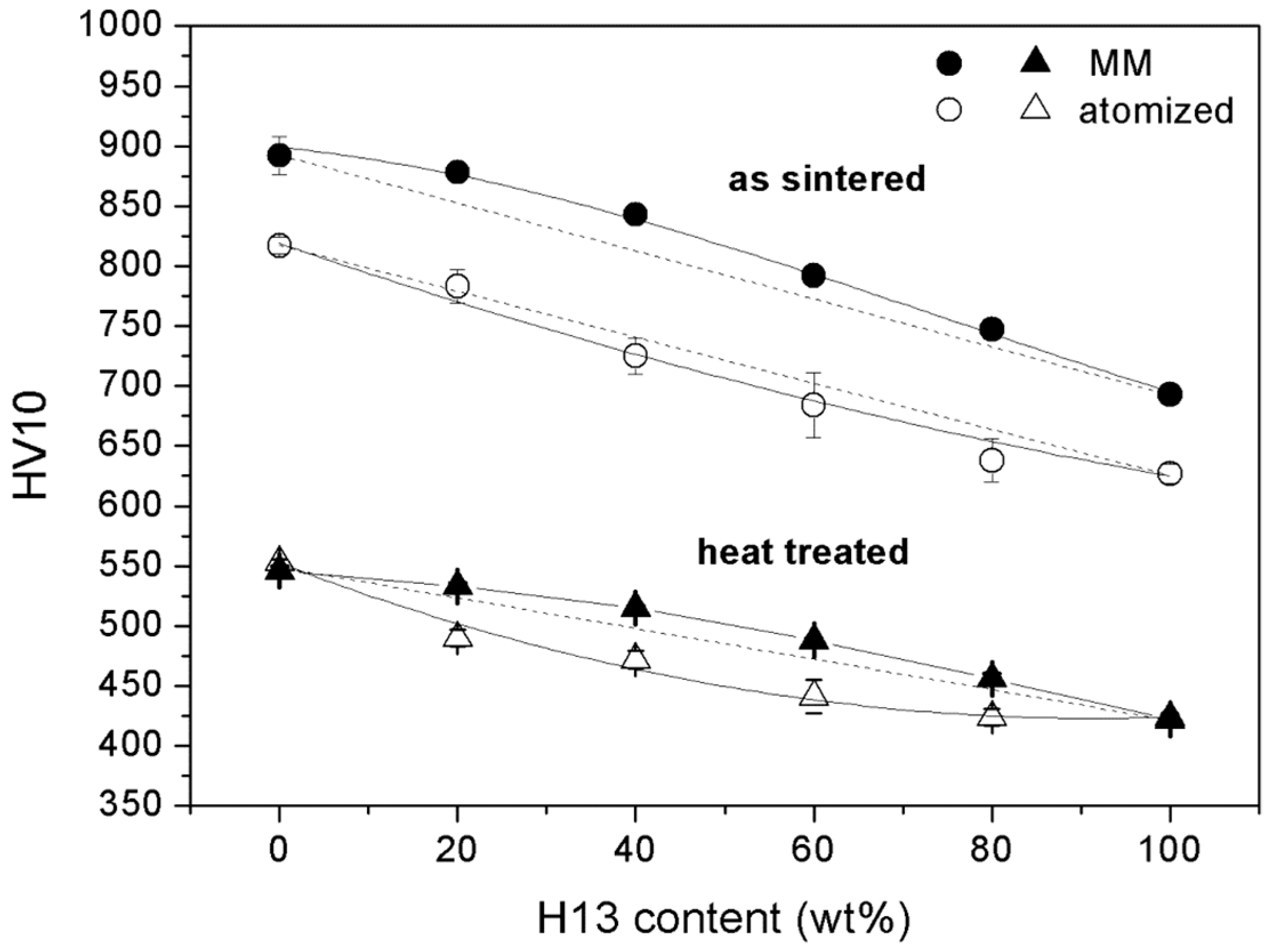

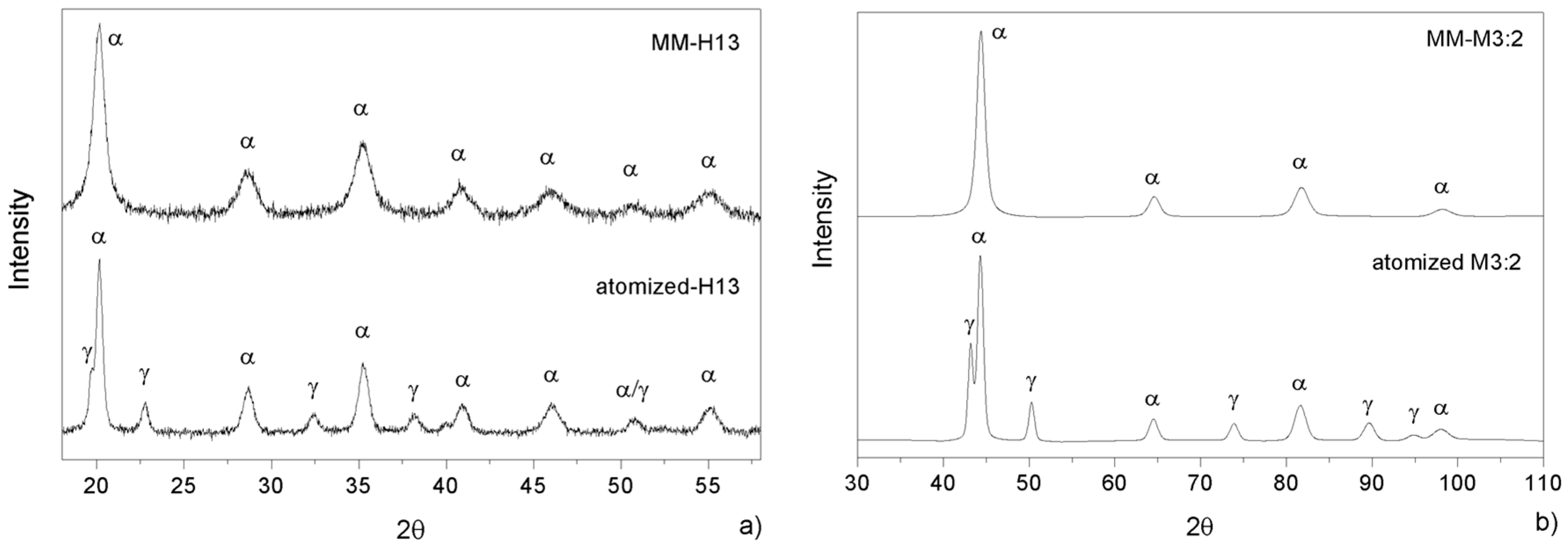

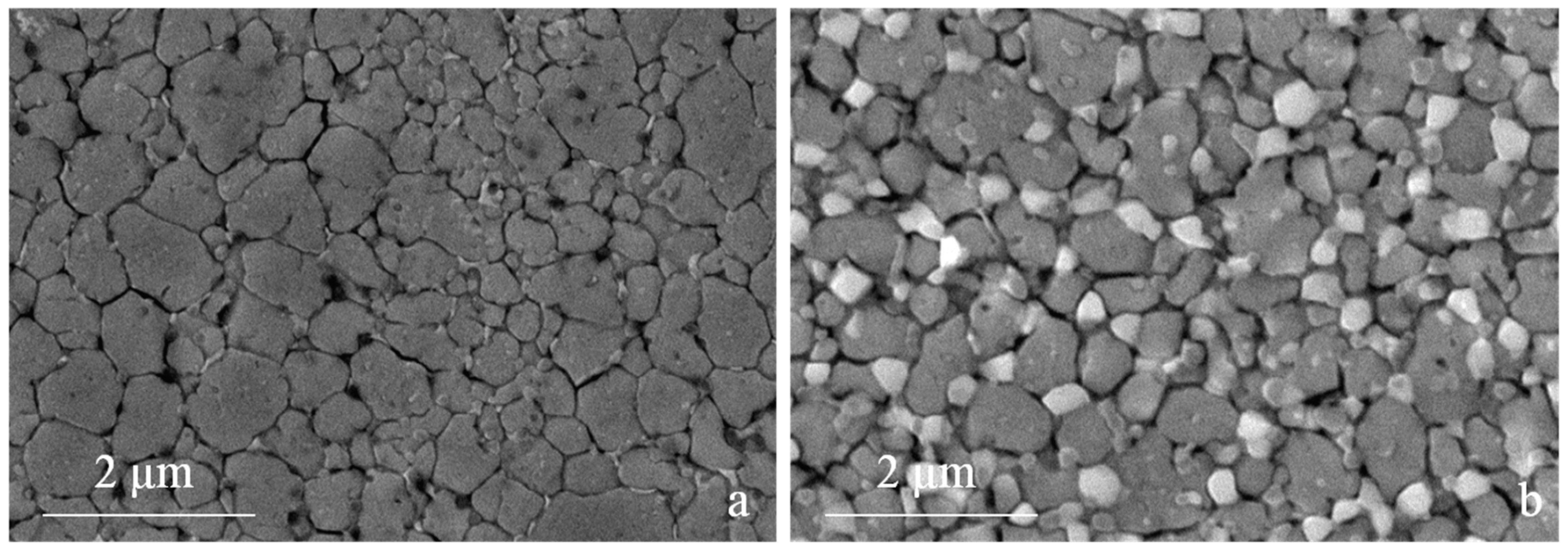

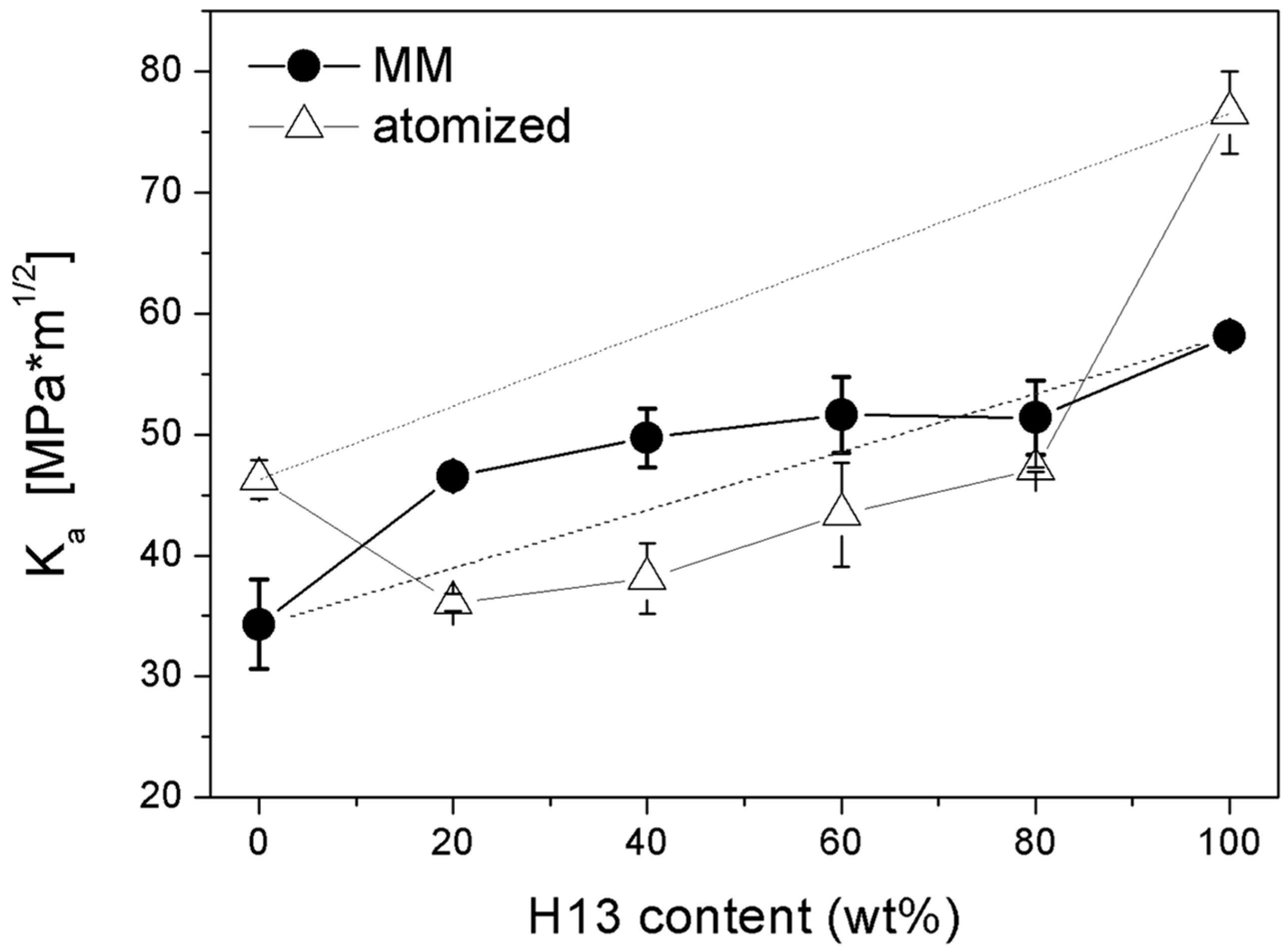

Hot work tool steel (AISI H13) and high speed steel (AISI M3:2) powders were successfully co-sintered to produce hybrid tool steels that have properties and microstructures that can be modulated for specific applications. To promote co-sintering, which is made difficult by the various densification kinetics of the two steels, the particle sizes and structures were refined by mechanical milling (MM). Near full density samples (>99.5%) showing very fine and homogeneous microstructure were obtained using spark plasma sintering (SPS). The density of the blends (20, 40, 60, 80 wt % H13) was in agreement with the linear rule of mixtures. Their hardness showed a positive deviation, which could be ascribed to the strengthening effect of the secondary particles altering the stress distribution during indentation. A toughening of the M3:2-rich blends could be explained in view of the crack deviation and crack arrest exerted by the H13 particles. View Full-Text
Keywords: mechanical milling; hot work tool steel; high speed steel; spark plasma sintering mechanical milling; hot work tool steel; high speed steel; spark plasma sintering
Show Figures

Graphical abstract

MDPI and ACS Style

Pellizzari, M.; Fedrizzi, A.; Zadra, M. Spark Plasma Co-Sintering of Mechanically Milled Tool Steel and High Speed Steel Powders. Materials 2016, 9, 482. https://doi.org/10.3390/ma9060482

AMA Style

Pellizzari M, Fedrizzi A, Zadra M. Spark Plasma Co-Sintering of Mechanically Milled Tool Steel and High Speed Steel Powders. Materials. 2016; 9(6):482. https://doi.org/10.3390/ma9060482

Chicago/Turabian Style

Pellizzari, Massimo; Fedrizzi, Anna; Zadra, Mario. 2016. "Spark Plasma Co-Sintering of Mechanically Milled Tool Steel and High Speed Steel Powders" Materials 9, no. 6: 482. https://doi.org/10.3390/ma9060482

Find Other Styles
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Search more from Scilit

Search
Back to TopTop
