Next Article in Journal
Green Composites Made of Bamboo Fabric and Poly (Lactic) Acid for Packaging Applications—A Review
Previous Article in Journal
Calcium Phosphate as a Key Material for Socially Responsible Tissue Engineering
Article Menu
Issue 6 (June) cover image

Export Article

Open AccessArticle
Materials 2016, 9(6), 433;

Effect of Rolling Route on Microstructure and Tensile Properties of Twin-Roll Casting AZ31 Mg Alloy Sheets

Key Laboratory of Automobile Materials of Ministry of Education & School of Materials Science and Engineering, Nanling Campus, Jilin University, No. 5988 Renmin Street, Changchun 130025, China
Key Laboratory of Bionic Engineering (Ministry of Education), Jilin University, Changchun 130025, China
Authors to whom correspondence should be addressed.
Academic Editor: Richard Thackray
Received: 6 April 2016 / Revised: 18 May 2016 / Accepted: 24 May 2016 / Published: 1 June 2016
(This article belongs to the Section Manufacturing Processes and Systems)
Full-Text   |   PDF [4606 KB, uploaded 1 June 2016]   |

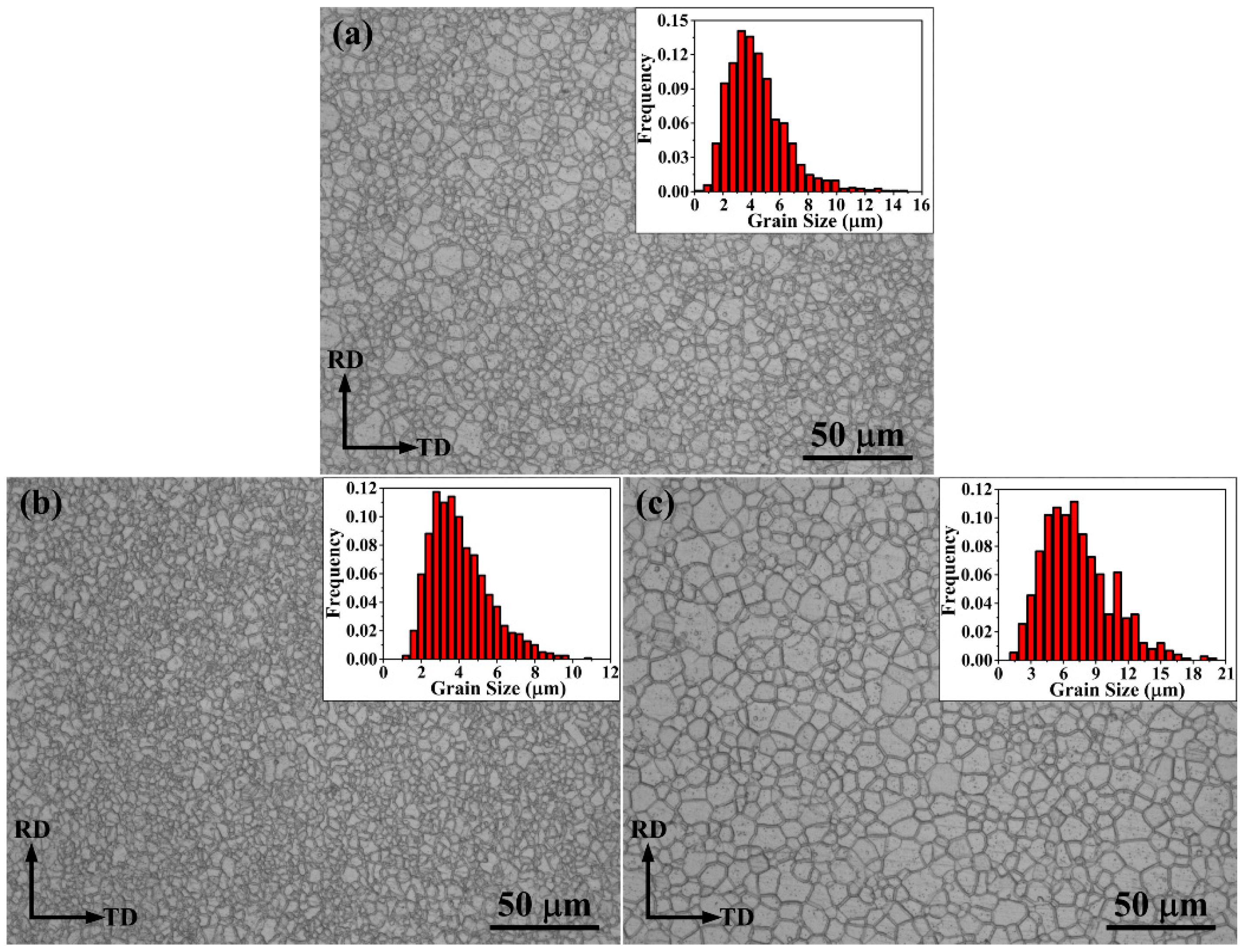

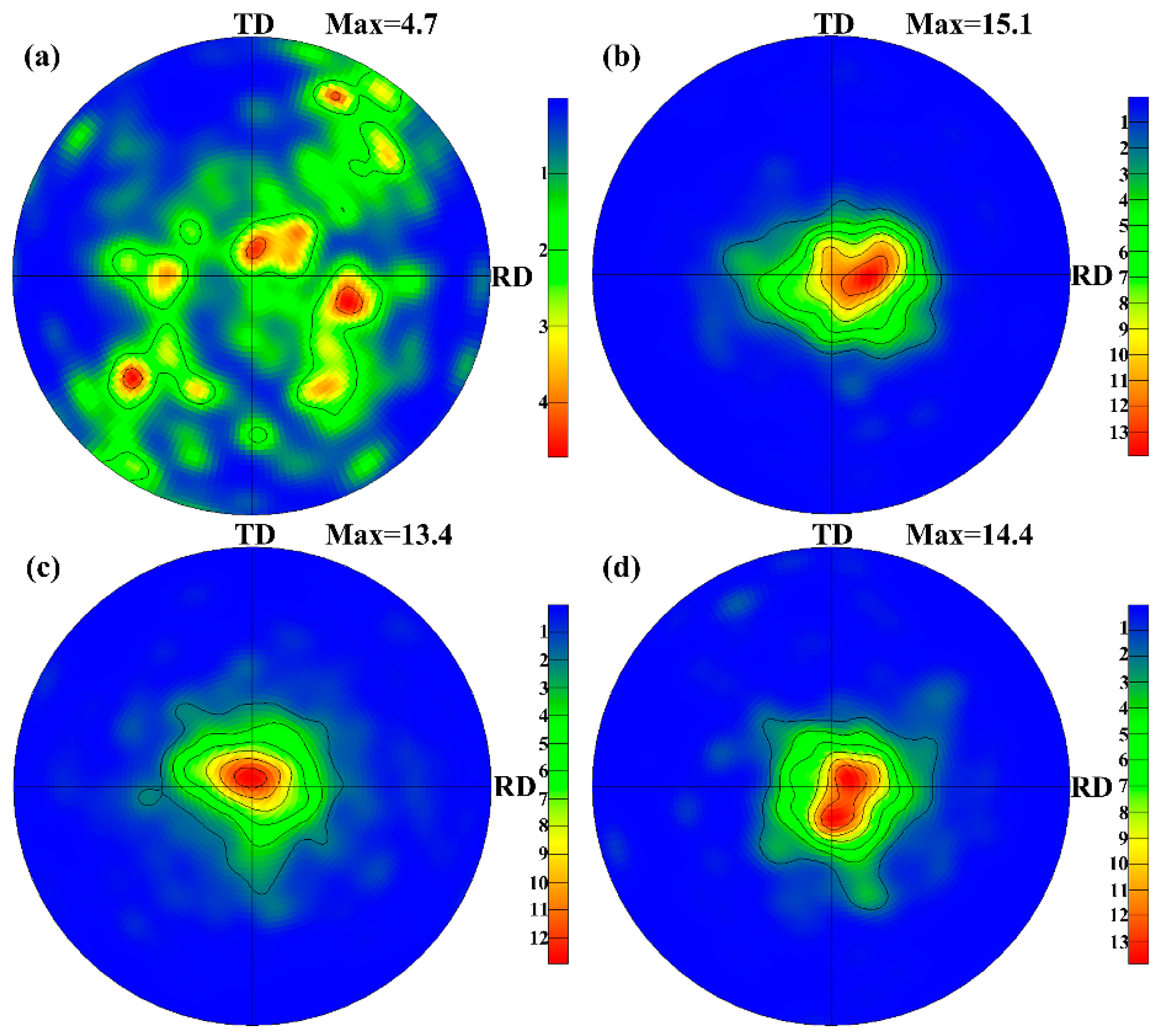

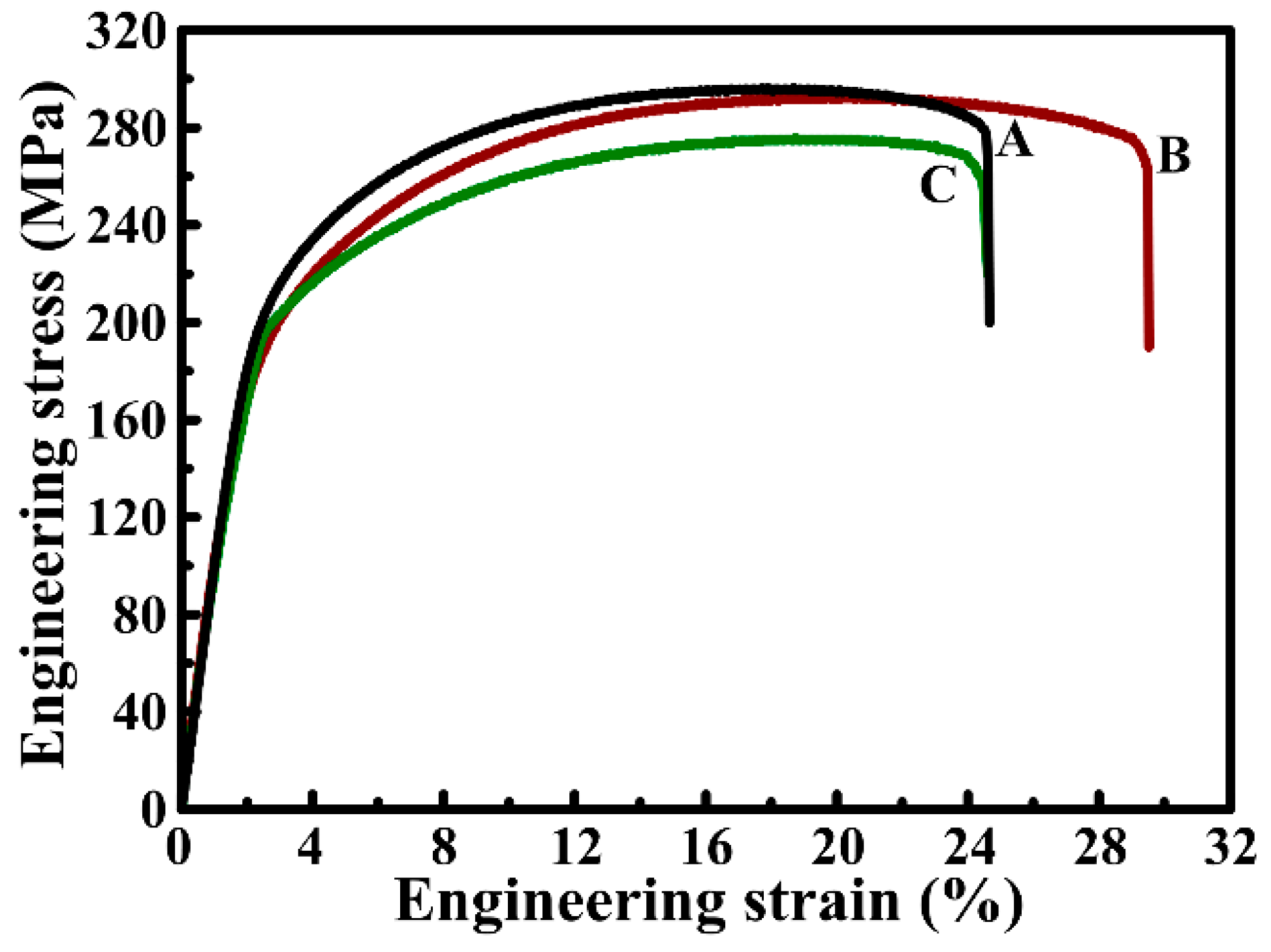

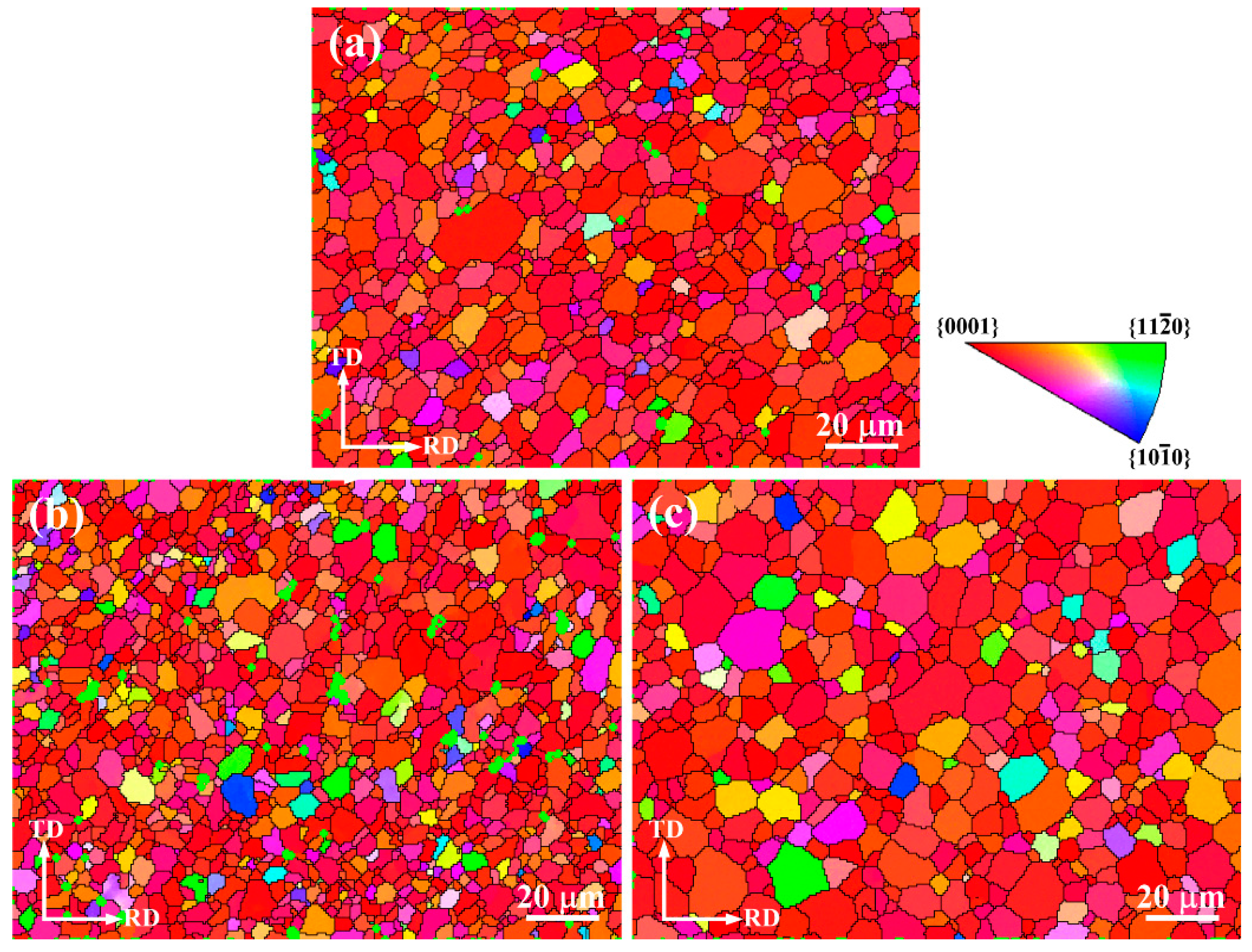

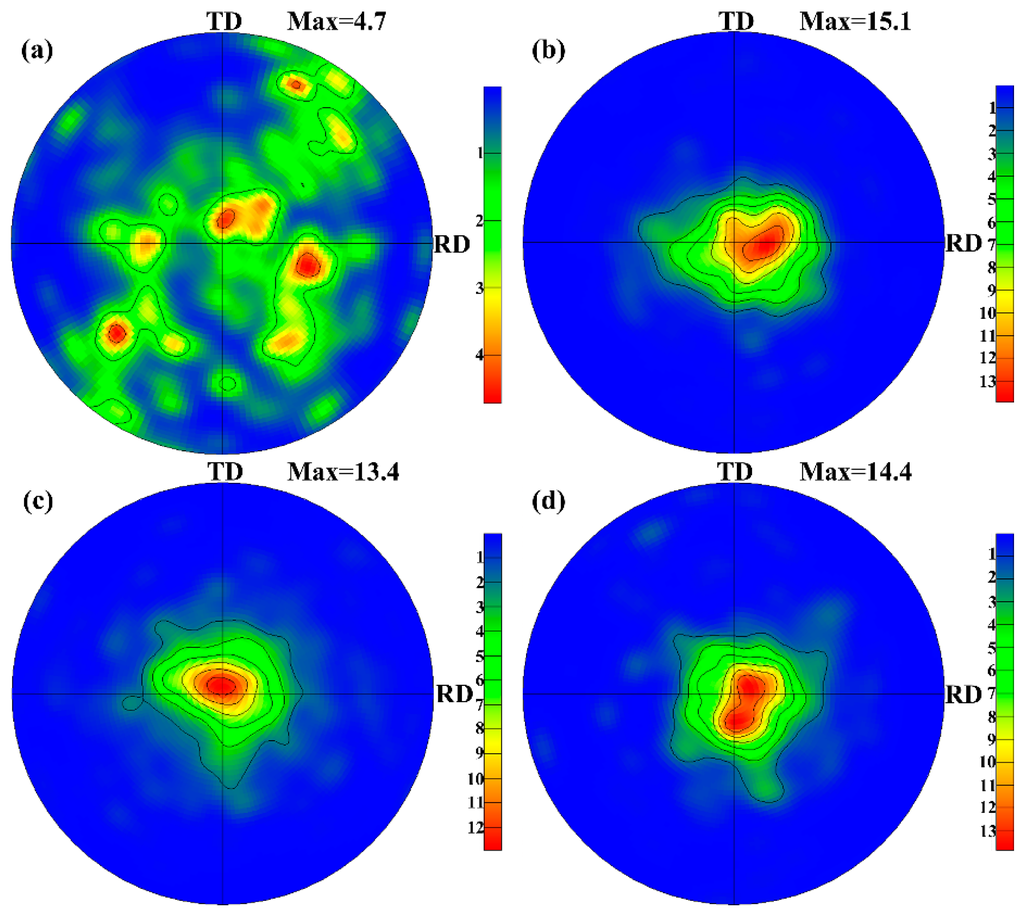

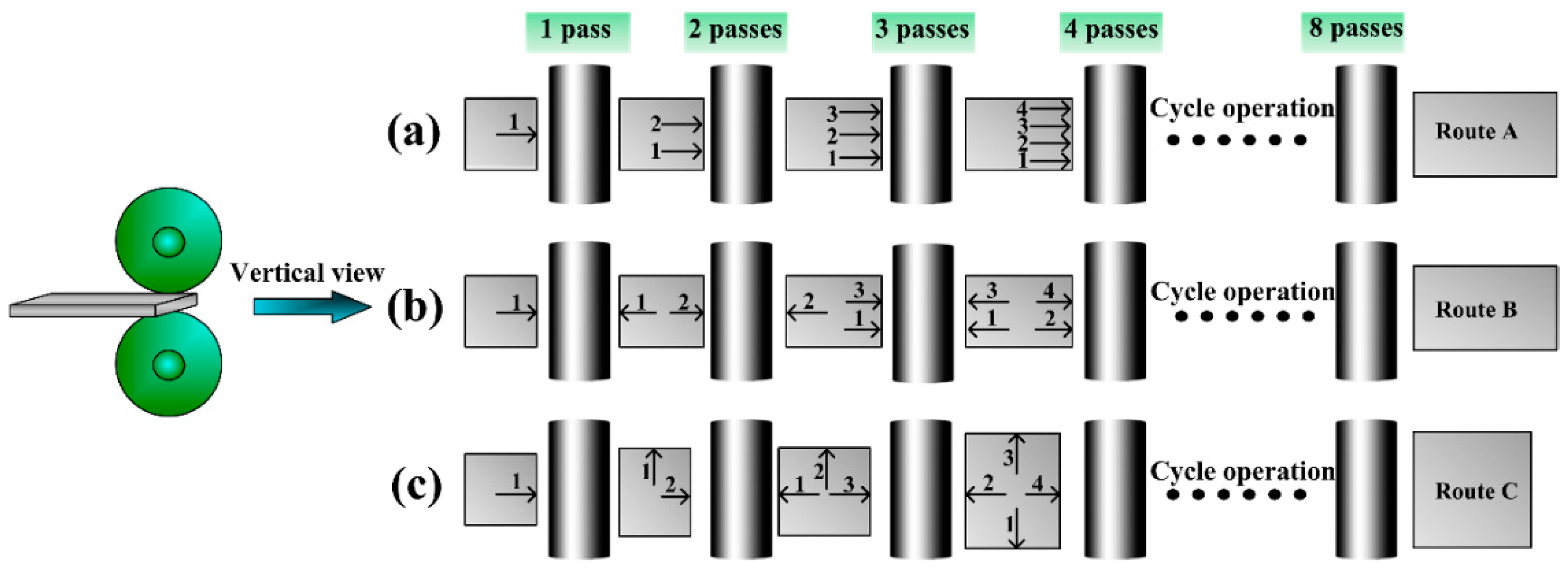

Twin-roll casting AZ31 Mg alloy sheets have been fabricated by normal unidirectional-rolling, head-to-tail rolling, and clock-rolling, respectively. It has been demonstrated that head-to-tail rolling is the most effective to refine the microstructure and weaken the basal texture among the three rolling routes. Excellent integrated tensile properties can be obtained by the head-to-tail rolling. The yield strength, ultimate tensile strength, and plastic elongation are 196 MPa, 301 MPa, and 28.9%, respectively. The strength can benefit from the fine grains (average value of 4.0 μm) of the AZ31 alloy processed by the head-to-tail rolling route, while the excellent plastic elongation is achieved owing to the weakened basal texture besides the fine grains. Results obtained here can be used as a basis for further study of some simple rolling methods, which is critical to the development of Mg alloys with high strength and plasticity. View Full-Text
Keywords: magnesium alloy; texture; rolling route; mechanical properties magnesium alloy; texture; rolling route; mechanical properties

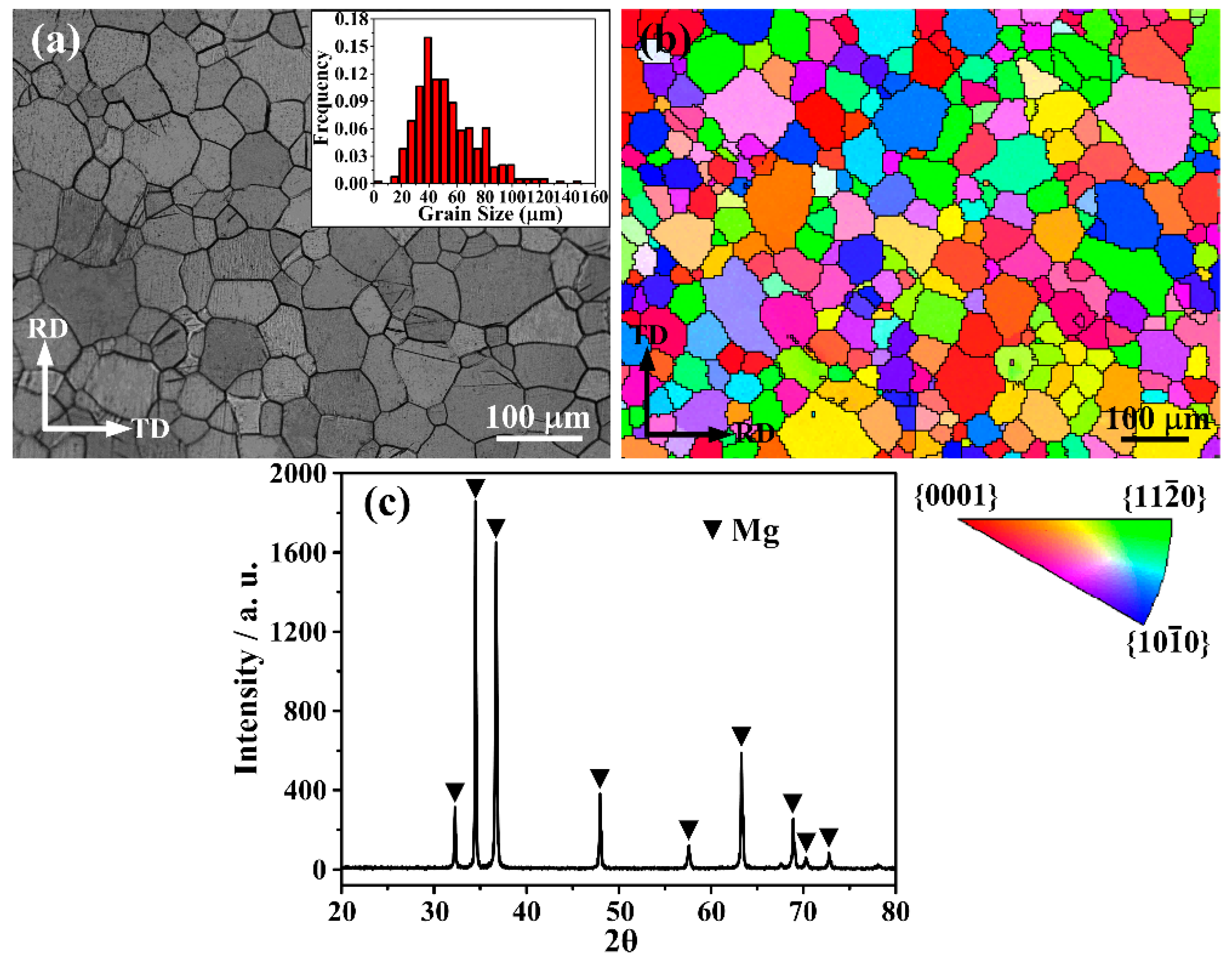

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Luo, D.; Pan, Y.; Wang, H.-Y.; Zhao, L.-G.; Liu, G.-J.; Liu, Y.; Jiang, Q.-C. Effect of Rolling Route on Microstructure and Tensile Properties of Twin-Roll Casting AZ31 Mg Alloy Sheets. Materials 2016, 9, 433.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
