Controlled Photocatalytic Synthesis of Core–Shell SiC/Polyaniline Hybrid Nanostructures

by
Attila Kormányos
1,2,
Balázs Endrődi
1,2,
Róbert Ondok
1,2,
András Sápi
3 and
Csaba Janáky
1,2,*
1
Department of Physical Chemistry and Materials Science, University of Szeged, 6720 Szeged, Hungary
2
MTA-SZTE ”Lendület” Photoelectrochemistry Research Group, Rerrich Square 1, 6720 Szeged, Hungary
3
Department of Applied and Environmental Chemistry, University of Szeged, 6720 Szeged, Hungary
*
Author to whom correspondence should be addressed.
Materials 2016, 9(3), 201; https://doi.org/10.3390/ma9030201
Submission received: 31 January 2016 / Revised: 4 March 2016 / Accepted: 7 March 2016 / Published: 16 March 2016
(This article belongs to the Special Issue Advancement of Photocatalytic Materials 2016)
Browse Figures
Versions Notes

Abstract

:
Hybrid materials of electrically conducting polymers and inorganic semiconductors form an exciting class of functional materials. To fully exploit the potential synergies of the hybrid formation, however, sophisticated synthetic methods are required that allow for the fine-tuning of the nanoscale structure of the organic/inorganic interface. Here we present the photocatalytic deposition of a conducting polymer (polyaniline) on the surface of silicon carbide (SiC) nanoparticles. The polymerization is facilitated on the SiC surface, via the oxidation of the monomer molecules by ultraviolet-visible (UV-vis) light irradiation through the photogenerated holes. The synthesized core–shell nanostructures were characterized by UV-vis, Raman, and Fourier Transformed Infrared (FT-IR) Spectroscopy, thermogravimetric analysis, transmission and scanning electron microscopy, and electrochemical methods. It was found that the composition of the hybrids can be varied by simply changing the irradiation time. In addition, we proved the crucial importance of the irradiation wavelength in forming conductive polyaniline, instead of its overoxidized, insulating counterpart. Overall, we conclude that photocatalytic deposition is a promising and versatile approach for the synthesis of conducting polymers with controlled properties on semiconductor surfaces. The presented findings may trigger further studies using photocatalysis as a synthetic strategy to obtain nanoscale hybrid architectures of different semiconductors.

1. Introduction

Hybrid materials, based on conducting polymers (CP) and inorganic materials, attracted a lot of interest in the past two decades [1,2]. Nanocomposite materials, exploiting the synergistic combination of the CP and the incorporated component (for example, metal nanoparticles, carbon nanotubes, and inorganic semiconductors (SC)) have been synthesized [3,4,5,6]. Hybrid assemblies of CPs and inorganic SCs provide the possibility of constructing high quality CP/SC interfaces, enabling a wide range of promising applications, such as photocatalysis, solar cells, sensors, and supercapacitors [7,8]. A wide array of synthetic approaches have been deployed, from simple mechanical mixing and in situ chemical polymerization, to electrochemical methods [9]. As shown in our recent review article, however, sophisticated synthetic protocols are indeed necessary to obtain sufficient control over the composition and morphology [9].
Silicon carbide (SiC) is a wide bandgap SC (EBG = 2.4–3.1eV, depending on which polymorph we are looking at) [10] with excellent physical and chemical properties, such as good mechanical and chemical stability, biocompatibility, photoluminescent behavior, high thermal conductivity and, last but not least, an affordable price [11,12,13,14,15]. Thus, SiC has been employed in a wide range of applications, for example, as substrate for high-temperature and high-power electronics [16], spintronics [17], optoelectronic devices [17] and quantum information processing [18]. As another prominent application area, SiC nanoparticles have been used in photocatalytic environmental remediation, for example, to degrade acetaldehyde [19] as a model compound. In addition, the conduction band edge position of SiC allows this material to photocatalytically reduce water or CO2 (in the presence of a sacrificial electron donor), which was first demonstrated in 1979 [20].
SiC-based hybrid materials offer an attractive avenue to simultaneously harness the eminent properties of SiC as well as those of the other component. In this vein, SiC has been already combined with different CPs, such as polypyrrole (PPy) [21,22], polyaniline (PANI) [5,23], and poly(3-thiophene-acetic-acid) [24]. PANI is particularly attractive, because of its versatile redox behavior, excellent chemical and electrochemical stability, large capacitance, and electrochromic properties [25,26,27]. The commonality in these reports is that every synthesis was carried out by in situ oxidative chemical polymerization, differing only in the oxidizing agent employed (e.g., FeCl3). In such procedures the oxidant reacts with the monomer to form a radical cation, which initiates the polymerization by reacting with another monomer or radical cation. This method, however, gives only very limited control over the structure and morphology of the synthesized composite material. On the other hand, to efficiently harness the possible synergies of the components, the precise control over composition, morphology and thus the interfacial properties is inevitable. Consequently, there is a massive demand for new synthesis strategies, which allow hybrid materials with properties tailored towards specific applications to be obtained.
Photocatalysis, occurring at the SC/electrolyte interface is a broadly studied phenomenon [28], mostly in the field of solar energy conversion and environmental remediation. On the other hand, much less attention is devoted to its utility as a synthesis tool. Biomass valorization using photocatalysis is a promising example [29], but other areas still have to be explored. The limited number of studies on the photocatalytic synthesis of hybrid materials of inorganic SCs and organic CPs is indeed surprising, considering the photoactivity of both components. The most important beneficial feature of this approach is that the CP is formed in situ, on the surface of the inorganic SC nanostructure, thus bringing the two SCs into intimate contact [30].
The pioneering studies were performed on colloidal, or nanoparticulate, titanium dioxide (TiO2) slurries [31,32], using pyrrole as the monomer. In these cases, the nanoparticles were dispersed in the monomer- and supporting electrolyte-containing solution. The dispersion was exposed to ultraviolet (UV) irradiation under continuous stirring and saturation with O2 (which acts as electron scavenger). As the result of polymerization, a thin PPy film was deposited on the surface of TiO2. Follow-up studies demonstrated the suitability of this method using other SCs, such as cadmium sulfide (CdS) [33], cadmium telluride (CdTe) [33], cadmium sulfide@zinc sulfide CdSe@ZnS [34], and polymers (e.g., poly(3,4-ethylenedioxytiophene)-PEDOT) [35], and also yielded further mechanistic details [36]. Finally, we note that two sophisticated varients of this approach were also demonstrated: (i) photoelectrochemical polymerization (where external electrical bias is employed instead of a chemical electron scavenger) [9,37]; and (ii) the photocatalytic deposition of CdS on the surface of poly(3-hexylthiophene) (in this case, the photoactivity of the CP is exploited in a similar manner) [38].
In this study we add another composite material, namely SiC/PANI, to the library of photocatalytically prepared hybrid assemblies. A carefully designed synthetic protocol is presented, which results in core–shell nanostructures, with a high quality organic/inorganic junction. Finally, it is demonstrated that it is possible to tune the composition of the composite material by simply changing the irradiation time.

2. Materials and Methods

2.1. Chemicals

For the nanocomposite synthesis, SiC (U.S. Research Nanomaterials Inc, Houston, TX, USA average diameter ≈ 50 nm), aniline (Sigma-Aldrich), and sulfuric acid (95%–98%, Sigma Aldrich, Sigma Aldrich, Budapest, Hungary) were used, along with O2 gas (99.995%, Messer, Budapest, Hungary). For the preparation of the dispersions used for spray coating, Nafion solution (10%, Fuelcellstore.com) was employed. All chemical reagents were of analytical grade and were used without further purification, except for the aniline monomer, which was freshly distilled before use. Deionized water (MilliPore, 18 MΩ) was used to prepare all solutions.

2.2. Nanocomposite Synthesis

A solution (Vtotal = 5 mL), containing 0.2 M aniline, 10 mg SiC nanoparticles, and 0.5 M H2SO4 was prepared for each synthesis. In the two sets of experiments (with or without hard UV irradiation), the slurries were put in a quartz or Pyrex® photoreactor, (custom designed and manufactured in Hungary) depending on the type of illumination (Pyrex® absorbs all the components of the irradiating light below 300 nm, while quartz transmits the whole spectrum). The dispersion was constantly stirred and saturated with O2 during the synthesis, and illuminated by a 300 W Hamamatsu L8251 Hg-Xe arc lamp (Hamamatsu Photonics, Hamamatsu, Japan). The time of irradiation was varied (5, 10, 30, and 60 min). After the core–shell nanocomposite synthesis, the samples were centrifuged with a VWR 1814 centrifuge, then washed and centrifuged consecutively two more times. Finally, the samples were dried under vacuum at 80 °C for 4 h.
For the electrochemical characterizations, the samples were spray-coated on an Au electrode surface. The dispersion contained 2 mg/mL nanocomposite (or pristine SiC) and 25% Nafion®. The mass of the material on the electrode surface was approximately 2 mg in each case.

2.3. Characterization

Thermoanalytical measurements (thermogravimetry-TG and differential thermogravimetry- dTG) were performed on a TA Q800 thermogravimetric analysis (TGA) instrument. In a typical experiment, 3–5 mg of a sample was heated in synthetic air (20.5% O2 in N2) from room temperature to 800 °C with a heating rate of 10 °C/min. Raman spectroscopy was performed on a DXR Raman microscope (Thermo Scientific, Waltham, MA, USA) using a λ = 532 nm green laser with 10 mW laser power. Attenuated total reflectance Fourier transformed infrared spectroscopy (ATR-FT-IR) studies were performed using a Bio-Rad Digilab Division FTS-65A/896 Fourier transform infrared spectrometer (Bio-Rad Laboratories, California, CA, USA), equipped with a Harrick’s Meridian® SplitPea single-reflection diamond attenuated total reflectance (ATR) accessory. All presented spectra are an average of 256 interferograms with 4 cm−1 optical resolution. Transmission electron microscopic (TEM) images were taken at various magnifications on a FEI Tecnai G2 20 X-Twin instrument (FEI, Hillsboro, OR, USA), operating at an acceleration voltage of 200 kV. For the scanning electron microscopy (SEM), a Hitachi S-4700 FE-SEM instrument (Hitachi, Tokoy, Japan) was used. Cyclic voltammetric experiments were carried out on a PGSTAT 10 (Autolab) instrument (Metrohm Autolab, Kanaalweg, Netherlands). A classical, sealed three-electrode cell was used, purged with Ar gas during the measurements. An Au foil, spray-coated with the hybrid materials, was used as a working electrode (A = 1 cm2). A Pt foil and a Ag/AgCl/3M NaCl were used as counter and as reference electrodes, respectively. The measurements were carried out in 0.5 M H2SO4 at a 25 mV/s sweep rate.

3. Results and Discussion

3.1. Synthesis of the Core–Shell Nanocompostites

The schematic illustration of the nanocomposite synthesis is given in Figure 1. The SiC nanoparticles were dispersed in the solution of the aniline monomer and the sulfuric acid supporting electrolyte, and stirred constantly, ensuring that the incident photon flux evenly reached the surface of the dispersed SiC nanoparticles. As a result of ultraviolet-visible (UV-vis) light irraditation, electron-hole pairs are formed in the SiC nanoparticles. After charge separation, some of the photogenerated charge carriers reach the particle surface before they could recombine. These charge carriers can initiate various reactions at the SiC/electrolyte interface. In our case, the holes oxidize the aniline monomers, generating radical cations. These first form oligomers in the solution, close to the surface of the SC nanoparticles and, thereafter, a continuous ultrathin polymer coating is deposited on the surface. Contrastingly, the photogenerated electrons react with dissolved O2, which is present in the solution as an e− scavenger. The polymerization can be terminated in two ways: (i) by turning off the illumination; (ii) or by coating the surface of the SiC nanoparticles evenly (without any gaps) with the gradually thickening PANI film, which causes optical shielding by absorbing the irradiating light.
The first spectacular difference between the two synthetic methods (i.e., with and without hard UV light irradiation) is manifested in the color of the solution after centrifuging the SiC/PANI nanoparticles. The first, irradiated with the full white light irradiation, turned dark red, while the second one remained almost transparent. After centrifuging and filtering, the UV-vis spectra of the two residual solutions were measured (Figure 2). Beyond the obvious low-wavelength band of the monomer, two wide bands appeared in the case of the hard UV-illuminated sample: one corresponds to the formed oligomers with low segment number, the other one to the polymer fragments in the solution [39]. Contrastingly, on the spectrum recorded for the UV-filtered sample, no band appears which could correspond to the polymer/oligomers. There are at least three possible factors contributing to these observations: (i) because of the hard UV illumination, more polymer forms and the excess stays in the solution causing the dark reddish color; (ii) when the hard UV illumination occurs, the aniline is photopolymerized in the solution; (iii) finally, it is also possible that the high energy UV illumination degrades PANI, which is already formed on the SiC surface of the nanoparticles, which may therefore leach into the solution.
Thermogravimetric analysis (TGA) was employed to determine the amount of the formed PANI after certain irradiation time periods, and thus to assess the composition of the various nanocomposite samples. As a first step, the pure SiC was studied, where an 18% mass increase was observed between ~330 °C–800 °C, attributed to the oxidation of SiC nanoparticles (the black line in Figure 3A). As for the pure PANI sample, two major decomposition steps occurred in the range of 25 °C–660 °C. In the first step (25 °C–275 °C), the weight loss of 22% can be ascribed to the water and SOx desorption (from the HSO4− dopant ions) from the sample. In the second step (275 °C–660 °C), the complete oxidation of the polymer backbone was observed (the blue trace in Figure 3A) [40].
For all SiC/PANI composites, a two-step weight loss occurred in the range of 25 °C–~485 °C attributed to the thermal degradation of PANI. This is followed by a two-step weight increment due to the oxidation of SiC in the range of 400 °C–800 °C. The TG curves are the superposition of those registered for the pure materials in Figure 3A. In the first step (25 °C–250 °C), the water and dopant content desorbed, followed by the degradation of the PANI polymer chain in the range of ~250–~500 °C. As the irradiation time was increased from 5 min to 60 min, the maximum weight loss (at elevated temperatures) increased from 1.9% to 3.2%, showing the gradually growing portion of PANI in the composites. In addition, at elevated temperatures (500 °C–800 °C), the oxidation of the SiC occurred in a two-step process, as opposed to pure SiC, where only one-step oxidation was witnessed. We suspect that some carbon-based residual of PANI may influence the oxidation and sintering of the SiC nanoparticles.

3.2. Structural Characterization

3.2.1. Raman Spectroscopy

Figure 4A compares and contrasts the Raman spectra of the synthesized hybrid core–shell SiC/PANI nanoparticles (the irradiation was cut below 300 nm), the bare SiC, and the pure PANI. There are three strong bands on the Raman spectra of the SiC nanoparticles (Figure 4A, curve ”a”). The one, centered at 790 cm−1, is attributed to the lattice vibration of the material, specifically to the zone-center transverse optical (TO) phonons of 3C-SiC [41]. There are two additional characteristic bands, centered at 1334 cm−1, and at 1595 cm−1, corresponding to the vibrational properties of isolated carbon arrangements [41,42], indicating the existence of an ultrathin carbon film on the surface of the SiC nanoparticles.
The characteristic Raman bands of PANI are summarized in Table 1. The bands, appearing on the spectra of the nanocomposite samples (Figure 4A), are marked with grey. It is visible in the series of spectra (b–e) that with increasing illumination time, the quantity of the deposited polymer increases as well. Note that the intensity ratio of the bands, centered at 1334 cm−1, and 1595 cm−1 completely flipped over (because these bands are overlapping with those of PANI). In addition, most of the characteristic bands of PANI appeared on the spectra of the nanocomposite, proving the formation of the SiC/PANI hybrid. When the hard UV component of the illumination was not removed, some of the characteristic bands completely vanished, some others can still be identified (but with much smaller intensities (see the comparison in Figure 4B)).

3.2.2. Infrared Spectroscopic Studies

The infrared (IR) spectra of the synthesized samples with the longest irradiation time (60 min) are presented in Figure 5. On the spectra of SiC (the black curve), only one sharp, characteristic band is visible, which corresponds to the Si-C stretching vibration, and there is an additional, rather weak band, centered around 1090 cm−1, which can be assigned to both the stretching vibration of Si-O-C and Si-O-Si bonds [24]. Table 2 contains the characteristic IR vibrations of PANI, with the bands appearing on the spectra of the SiC/PANI nanocomposites, marked with grey. Note that on the spectrum of the UV-illuminated composite there are no characteristic PANI peaks, which may indicate that the deposited polymer layer is overoxidized. Contrastingly, almost all the characteristic bands of the PANI appear on the spectra of the UV-filtered sample, which is another direct evidence that this milder synthesis procedure results in SiC/PANI nanocomposites containing high-quality PANI.

3.3. Morphological Characterization

3.3.1. Transmission Electron Microscopic Studies

The morphological characteristics of the SiC/PANI samples were first investigated by TEM. Figure 6 shows the TEM images recorded for the pristine SiC and for the SiC/PANI nanocomposites, synthesized with the shortest (5 min) and with the longest (60 min) irradiation time. The first conspicuous difference between the SiC and the nanocomposite samples, which can be observed on the images captured at a smaller magnification, is that the degree of aggregation is higher in the PANI-containing materials, despite the thorough mixing during synthesis. The images, taken at higher magnification, allow us to visualize both the lattice fringes of the SiC nanoparticles and the deposited PANI as a few nm-thick amorphous film on the surface of the nanoparticles (NP). Note that in the case of the pristine SiC, the lattice fringes are visible till the edges of the nanoparticles, but in the case of the nanocomposites an outer shell can be spotted, corresponding to the formed PANI film.
After taking the images with the same magnifications for all the other samples, the thickness of the deposited polymer layer was determined. Figure 7 shows the distribution of the PANI shell thicknesses, thus allowing for quantitative comparison. It is visible that with increasing illumination time, the average film thickness is increasing from 1.0 to 2.5 nm, indicating that the thickness of the deposited PANI can be regulated by simply varying the illumination time. In addition, the forming PANI also glues together the individual SiC nanoparticles, as seen in the High Resolution Transmission Electron Microscopy (HR)-TEM images (Figure 6D,E). Importantly, there is no major difference between the thickness of the PANI layers synthesized with different light irradiations (see above).

3.3.2. Scanning Electron Microscopic Studies

SEM images were taken to characterize the overall morphology of the samples. Figure 8 shows SEM images for SiC and for the two hybrid SiC/PANI samples, synthesized with the longest irradiation time (60 min), differing only in the type of irradiation. As shown in Figure 8, the pristine SiC sample has a granular morphology, where the individual nanoparticles can be spotted. Contrastingly, in the other two images (Figure 8B,C), a more coherent structure is seen, where the polymer covers the SiC nanoparticles. In addition, it seems that PANI deposits not just on the surface, but also among the nanoparticles, thus gluing them together.

3.4. Cyclic Voltammetric Analysis

The electrochemical behavior of the samples was probed by cyclic voltammetry (Figure 9). It is visible that SiC has only limited electroactivity in this potential window (the red curve), which is comparable with the current densities measured for the SiC/PANI sample prepared under full UV irradiation. The shape of this latter voltammogram (the blue curve), however, is more pronounced: it has one anodic and one cathodic peak. If the synthesis procedure was milder (UV-filtered), the shape of the voltammogram clearly exhibits the features of the electrochemical transformation of PANI [26,27]. The most important conclusions to be drawn from these observations is that the SiC/PANI nanocomposite, prepared with filtering all the hard-UV component of the irradiation, was much more electroactive compared to its counterpart prepared using the full output of the lamp. This observation is in perfect agreement with the vibrational spectroscopic data presented above, namely that the hard UV component degrades the conjugated structure of PANI.

4. Conclusions

In this study we demonstrated how photoexcitation of SiC nanoparticles can be used to deposit a conductive PANI coating on the particles’ surface. The presented photocatalytic polymerization is a facile and versatile approach to obtain hybrid organic/inorganic semiconductor assemblies. The only requirement is that the valence band edge of the semiconductor (e.g., TiO2 or CdS) is positive enough, so that the photogenerated holes can oxidize the monomer molecules to initiate (and sustain) the polymerization. As it was shown in the example of SiC/PANI, the thickness of the polymer shell can be varied between 1.0 nm and 2.5 nm (as confirmed via TEM analysis), simply by changing the irradiation time. This increasing PANI content was also corroborated by the TGA data, which additionally confirmed that there is no bulk PANI in the hybrid samples. As gleaned from vibrational spectroscopic and electrochemical studies, it was key to filter out the irradiation below 300 nm during synthesis. While polymer formation was evidenced even when the full UV-vis output of the lamp was utilized, the formed polymer was of low quality, both in terms of structure and electroactivity. This effect is mostly related to the formation of insulating polymer upon direct photopolymerization (i.e., not by the photogenerated holes in SiC), as well as to the degradation caused by the high energy irradiation. In contrast, such problems did not occur when the hard UV component was filtered out during the synthesis. Overall, this study adds to the library of hybrid organic/inorganic materials obtained via photocatalytic synthesis. We hope that the presented results will encourage other researchers to exploit this attractive method to synthesize such hybrid nanoarchitectures with controlled composition and morphology.

Acknowledgments

C. J. gratefully acknowledges the support from the Hungarian Academy of Sciences, through its “Momentum” Excellence Program (LP2014-3).

Author Contributions

Attila Kormányos and Csaba Janáky conceived and designed the experiments; Attila Kormányos and Róbert Ondok synthesized the materials, performed the UV-vis spectroscopic, SEM, and electrochemical experiments; Balázs Endrődi took the TEM images and recorded IR and Raman spectra, András Sápi recorded and analyzed TGA data, Attila Kormányos and Csaba Janáky analyzed the data; Attila Kormányos and Csaba Janáky wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

The following abbreviations are used in this manuscript:
ATR-FT-IR
Attenuated Total Reflectance Fourier Transformed Infrared Spectroscopy
CP
Conducting Polymer
HR-TEM
High Resolution Transmission Electron Microscopy
NP
Nanoparticle
PANI
Polyaniline
PPy
Polypyrrole
SC
Semiconductor
SEM
Scanning Electron Microscopy
TEM
Transmission Electron Microscopy
TGA
Thermogravimetric Analysis
TO
Transverse Optical
UV-vis
Ultraviolet-visible

References

  1. Inzelt, G. Rise and rise of conducting polymers. J. Solid State Electrochem. 2011, 15, 1711–1718. [Google Scholar] [CrossRef]
  2. Li, C.; Bai, H.; Shi, G. Conducting polymer nanomaterials: Electrosynthesis and applications. Chem. Soc. Rev. 2009, 38, 2397–2409. [Google Scholar] [CrossRef] [PubMed]
  3. Endrődi, B.; Kormányos, A.; Janáky, C.; Berkesi, O.; Visy, C. Fixation of laccase enzyme into polypyrrole, assisted by chemical interaction with modified magnetite nanoparticles: A facile route to synthesize stable electroactive bionanocomposite catalysts. Electrochim. Acta. 2014, 122, 282–288. [Google Scholar] [CrossRef]
  4. Lemos, H.G.; Santos, S.F.; Venancio, E.C. Polyaniline-Pt and polypyrrole-Pt nanocomposites: Effect of supporting type and morphology on the nanoparticles size and distribution. Synth. Met. 2015, 203, 22–30. [Google Scholar] [CrossRef]
  5. Kassiba, A.; Bednarski, W.; Pud, A.; Errien, N.; Makowska-Janusik, M.; Laskowski, L.; Tabellout, M.; Kodjikian, S.; Fatyeyeva, K.; Ogurtsov, N.; et al. Hybrid core-shell nanocomposites based on silicon carbide nanoparticles functionalized by conducting polyaniline: Electron paramagnetic resonance investigations. J. Phys. Chem. C 2007, 111, 11544–11551. [Google Scholar] [CrossRef]
  6. Oueiny, C.; Berlioz, S.; Perrin, F.-X. Carbon nanotube–polyaniline composites. Prog. Polym. Sci. 2014, 39, 707–748. [Google Scholar] [CrossRef]
  7. Wu, Q.; Xu, Y.; Yao, Z.; Liu, A.; Shi, G. Supercapacitors based on flexible graphene/polyaniline nanofiber composite films. ACS Nano 2010, 4, 1963–1970. [Google Scholar] [CrossRef] [PubMed]
  8. Janáky, C.; Visy, C. Conducting polymer-based hybrid assemblies for electrochemical sensing: A materials science perspective. Anal. Bioanal. Chem. 2013, 405, 3489–3511. [Google Scholar] [CrossRef] [PubMed]
  9. Janáky, C.; Rajeshwar, K. The role of (photo)electrochemistry in the rational design of hybrid conducting polymer/semiconductor assemblies: From fundamental concepts to practical applications. Prog. Polym. Sci. 2015, 43, 96–135. [Google Scholar] [CrossRef]
  10. Lauermann, I. Electrochemical properties of silicon carbide. J. Electrochem. Soc. 1997, 144, 73–80. [Google Scholar] [CrossRef]
  11. Hao, J.-Y.; Wang, Y.-Y.; Tong, X.-L.; Jin, G.-Q.; Guo, X.-Y. Photocatalytic hydrogen production over modified SiC nanowires under visible light irradiation. Int. J. Hydrogen Energy 2012, 37, 15038–15044. [Google Scholar] [CrossRef]
  12. He, C.; Wu, X.; Shen, J.; Chu, P.K. High-efficiency electrochemical hydrogen evolution based on surface autocatalytic effect of ultrathin 3C-SiC nanocrystals. Nano Lett. 2012, 12, 1545–1548. [Google Scholar] [CrossRef] [PubMed]
  13. Zhuang, H.; Yang, N.; Zhang, L.; Fuchs, R.; Jiang, X. Electrochemical properties and applications of nanocrystalline, microcrystalline, and epitaxial cubic silicon carbide films. ACS Appl. Mater. Interfaces 2015, 7, 10886–10895. [Google Scholar] [CrossRef] [PubMed]
  14. Mwania, M.; Janáky, C.; Rajeshwar, K.; Kroll, P. Fabrication of β-SiC quantum dots by photo-assisted electrochemical corrosion of bulk powders. Electrochem. Commun. 2013, 37, 1–4. [Google Scholar] [CrossRef]
  15. Wu, R.; Zhou, K.; Yue, C.Y.; Wei, J.; Pan, Y. Recent progress in synthesis, properties and potential applications of SiC nanomaterials. Prog. Mater. Sci. 2015, 72, 1–60. [Google Scholar] [CrossRef]
  16. Harris, G.L. Properties of Silicon Carbide; EMIS datareviews series; IEE: London, 1995. [Google Scholar]
  17. Palmour, J.W.; Edmond, J.A.; Kong, H.S.; Carter, C.H. 6H-silicon carbide devices and applications. Phys. B Condens. Matter. 1993, 185, 461–465. [Google Scholar] [CrossRef]
  18. Koehl, W.F.; Buckley, B.B.; Heremans, F.J.; Calusine, G.; Awschalom, D.D. Room temperature coherent control of defect spin qubits in silicon carbide. Nature 2011, 479, 84–87. [Google Scholar] [CrossRef] [PubMed]
  19. Zhou, W.; Yan, L.; Wang, Y.; Zhang, Y. SiC nanowires: A photocatalytic nanomaterial. Appl. Phys. Lett. 2006, 89, 013105–1–013105–3. [Google Scholar] [CrossRef]
  20. Inoue, T.; Fujishima, A.; Konishi, S.; Honda, K. Photoelectrocatalytic reduction of carbon dioxide in aqueous suspensions of semiconductor powders. Nature 1979, 277, 637–638. [Google Scholar] [CrossRef]
  21. Mavinakuli, P.; Wei, S.; Wang, Q.; Karki, A.B.; Dhage, S.; Wang, Z.; Young, D.P.; Guo, Z. Polypyrrole/silicon carbide nanocomposites with tunable electrical conductivity. J. Phys. Chem. C 2010, 114, 3874–3882. [Google Scholar] [CrossRef]
  22. Omastová, M.; Boukerma, K.; Chehimi, M.M.; Trchová, M. Novel silicon carbide/polypyrrole composites; preparation and physicochemical properties. Mater. Res. Bull. 2005, 40, 749–765. [Google Scholar] [CrossRef]
  23. Pud, A.A.; Noskov, Y.V.; Kassiba, A.; Fatyeyeva, K.Y.; Ogurtsov, N.A.; Makowska-Janusik, M.; Bednarski, W.; Tabellout, M.; Shapoval, G.S. New aspects of the low-concentrated aniline polymerization in the solution and in SiC nanocrystals dispersion. J. Phys. Chem. B 2007, 111, 2174–2180. [Google Scholar] [CrossRef] [PubMed]
  24. Peled, A.; Lellouche, J.P. Preparation of a novel functional SiC@polythiophene nanocomposite of a core – shell morphology. J. Mater. Chem. 2012, 22, 2069–2073. [Google Scholar] [CrossRef]
  25. Kang, E.; Neoh, K.; Tan, K. Polyaniline: A polymer with many interesting intrinsic redox states. Prog. Polym. Sci. 1998, 23, 277–324. [Google Scholar] [CrossRef]
  26. Janaky, C.; de Tacconi, N.R.; Chanmanee, W.; Rajeshwar, K. Electrodeposited polyaniline in a nanoporous WO3 matrix: An organic/inorganic hybrid exhibiting both p-and n-type photoelectrochemical activity. J. Phys. Chem. C 2012, 116, 4234–4242. [Google Scholar] [CrossRef]
  27. Samu, G.F.; Pencz, K.; Janáky, C.; Rajeshwar, K. On the electrochemical synthesis and charge storage properties of WO3/polyaniline hybrid nanostructures. J. Solid State Electrochem. 2015, 19, 2741–2751. [Google Scholar] [CrossRef]
  28. Rajeshwar, K.; Thomas, A.; Janáky, C. Photocatalytic Activity of Inorganic Semiconductor Surfaces: Myths, Hype, and Reality. J. Phys. Chem. Lett. 2015, 6, 139–147. [Google Scholar] [CrossRef] [PubMed]
  29. Colmenares, J.C.; Luque, R. Heterogeneous photocatalytic nanomaterials: Transformations of biomass-derived compounds. Chem. Soc. Rev. 2014, 43, 765–778. [Google Scholar] [CrossRef] [PubMed]
  30. Janáky, C.; de Tacconi, N.R.; Chanmanee, W.; Rajeshwar, K. Bringing conjugated polymers and oxide nanoarchitectures into intimate contact: Light-induced electrodeposition of polypyrrole and polyaniline on nanoporous WO3 or TiO2 nanotube array. J. Phys. Chem. C 2012, 116, 19145–19155. [Google Scholar] [CrossRef]
  31. Yildiz, A.; Sobczynski, A.; Bard, A.J.; Campion, A.; Fox, M.A.; Mallouk, T.E.; Webber, S.E.; White, J.M. Sensitized polypyrrole-coated semiconducting powders as materials in photosystems for hydrogen generation. Langmuir 1989, 5, 148–149. [Google Scholar] [CrossRef]
  32. Fox, M.A.; Worthen, K.L. Comparison of the physical properties of polypyrrole produced by anodic oxidation and by photoelectrochemical activation of TiO2. Chem. Mater. 1991, 3, 253–257. [Google Scholar] [CrossRef]
  33. Jarkov, A.; Bereznev, S.; Volobujeva, O.; Traksmaa, R.; Tverjanovich, A.; Öpik, A.; Mellikov, E. Photo-assisted electrodeposition of polypyrrole back contact to CdS/CdTe solar cell structures. Thin Solid Films 2013, 535, 198–201. [Google Scholar] [CrossRef]
  34. Ramanavicius, A.; Karabanovas, V.; Ramanaviciene, A.; Rotomskis, R. Stabilization of (CdSe)ZnS quantum dots with polypyrrole formed by UV/vis irradiation initiated polymerization. J. Nanosci. Nanotechnol. 2009, 9, 1909–1915. [Google Scholar] [CrossRef] [PubMed]
  35. Goubard, F.; Aubert, P.-H.; Boukerma, K.; Pauthe, E.; Chevrot, C. Elaboration of nanohybrid materials by photopolymerisation of 3,4-ethylenedioxythiophene on TiO2. Chem. Commun. 2008, 3139–3141. [Google Scholar] [CrossRef] [PubMed]
  36. Weng, Z.; Ni, X. Oxidative polymerization of pyrrole photocatalyzed by TiO2 nanoparticles and interactions in the composites. J. Appl. Polym. Sci. 2008, 110, 109–116. [Google Scholar] [CrossRef]
  37. Janáky, C.; Chanmanee, W.; Rajeshwar, K. Mechanistic aspects of photoelectrochemical polymerization of polypyrrole on a TiO2 nanotube array. Electrochim. Acta 2014, 122, 303–309. [Google Scholar] [CrossRef]
  38. Varga, A.; Endrődi, B.; Hornok, V.; Visy, C.; Janáky, C. Controlled photocatalytic deposition of CdS nanoparticles on poly(3-hexylthiophene) nanofibers: A versatile approach to obtain organic/inorganic hybrid semiconductor assemblies. J. Phys. Chem. C 2015, 119, 28020–28027. [Google Scholar] [CrossRef]
  39. Zhang, W.J.; Feng, J.; MacDiarmid, A.G.; Epstein, A.J. Synthesis of oligomeric anilines. Synth. Met. 1997, 84, 119–120. [Google Scholar] [CrossRef]
  40. Wang, S.X.; Tan, Z.C.; Li, Y.S.; Sun, L.X.; Li, Y. A kinetic analysis of thermal decomposition of polyaniline/ZrO2 composite. J. Therm. Anal. Calorim. 2008, 92, 483–487. [Google Scholar] [CrossRef]
  41. Kim, K.J.; Lee, S.; Lee, J.H.; Roh, M.H.; Lim, K.Y.; Kim, Y.W. Structural and optical characteristics of crystalline silicon carbide nanoparticles synthesized by carbothermal reduction. J. Am. Ceram. Soc. 2009, 92, 424–428. [Google Scholar] [CrossRef]
  42. Kassiba, A.; Makowska-Janusik, M.; Bouclé, J.; Bardeau, J.F.; Bulou, A.; Herlin-Boime, N. Photoluminescence features on the Raman spectra of quasistoichiometric SiC nanoparticles: Experimental and numerical simulations. Phys. Rev. B 2002, 66, 155317:1–155317:7. [Google Scholar] [CrossRef]
  43. Louarn, G.; Lapkowski, M.; Quillard, S.; Pron, A.; Buisson, J.P.; Lefrant, S. Vibrational properties of polyaniline-isotope effects. J. Phys. Chem. 1996, 100, 6998–7006. [Google Scholar] [CrossRef]
  44. Mažeikienė, R.; Tomkutė, V.; Kuodis, Z.; Niaura, G.; Malinauskas, A. Raman spectroelectrochemical study of polyaniline and sulfonated polyaniline in solutions of different pH. Vib. Spectrosc. 2007, 44, 201–208. [Google Scholar] [CrossRef]
  45. Quillard, S.; Berrada, K.; Louam, G.; et al. Polyanilines and substituted polyanilines: A comparative study of the Raman spectra of leucoemeraldine, emeraldine and pernigraniline. In Proceedings of the IEEE International Conference on Science and Technology of Synthetic Metals, Seoul, Korea, 24–29 July 1994; pp. 201–204.
  46. Zeng, X.R.; Ko, T.M. Structures and properties of chemically reduced polyanilines. Polymer 1998, 39, 1187–1195. [Google Scholar] [CrossRef]
  47. Neugebauer, H. In situ vibrational spectroscopy of conducting polymer electrodes. Macromol. Symp. 1995, 94, 61–73. [Google Scholar] [CrossRef]
Materials 09 00201 g001 1024

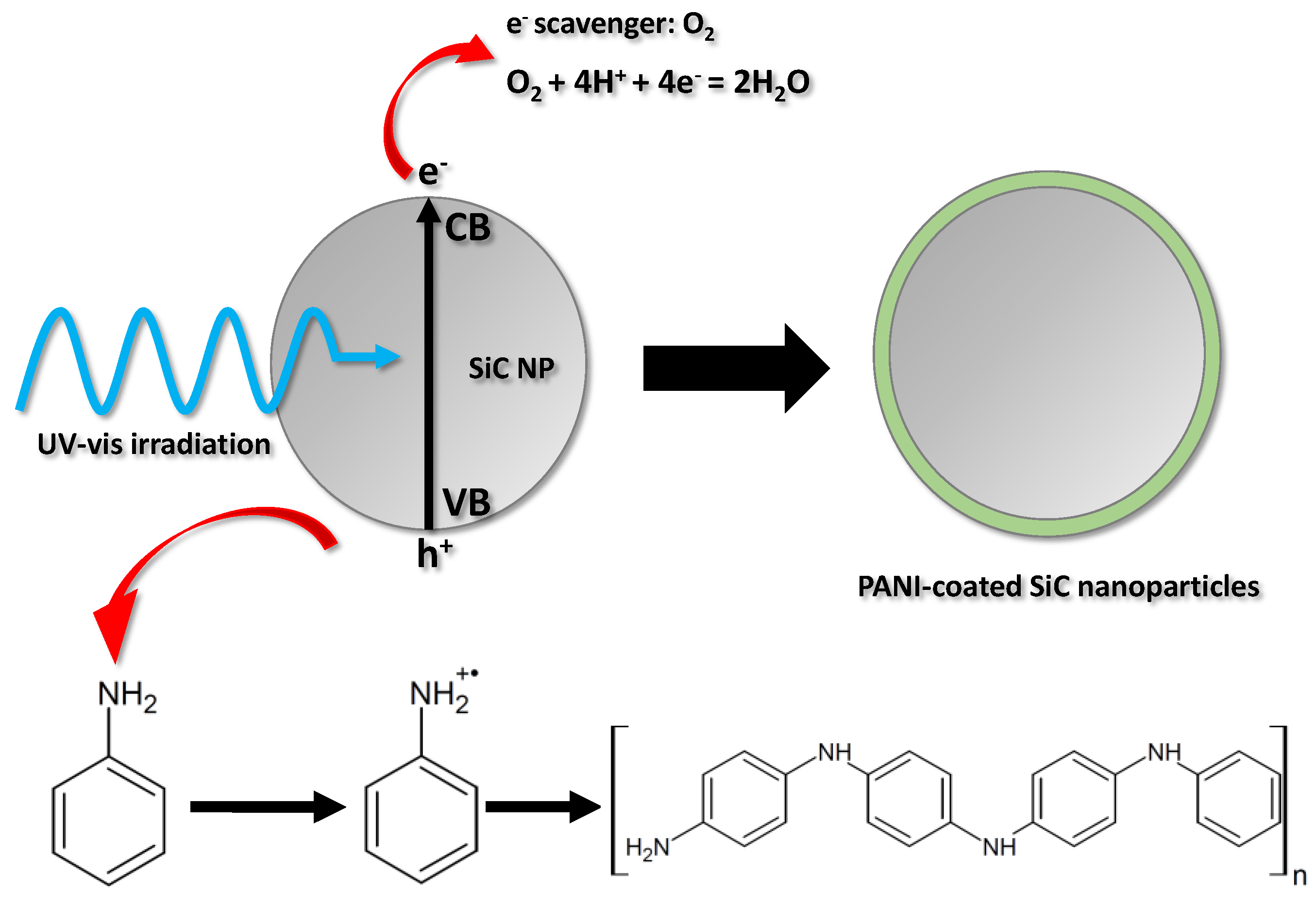

Figure 1. Schematic illustration of the nanocomposite synthesis.
Figure 1. Schematic illustration of the nanocomposite synthesis.
Materials 09 00201 g001
Materials 09 00201 g002 1024

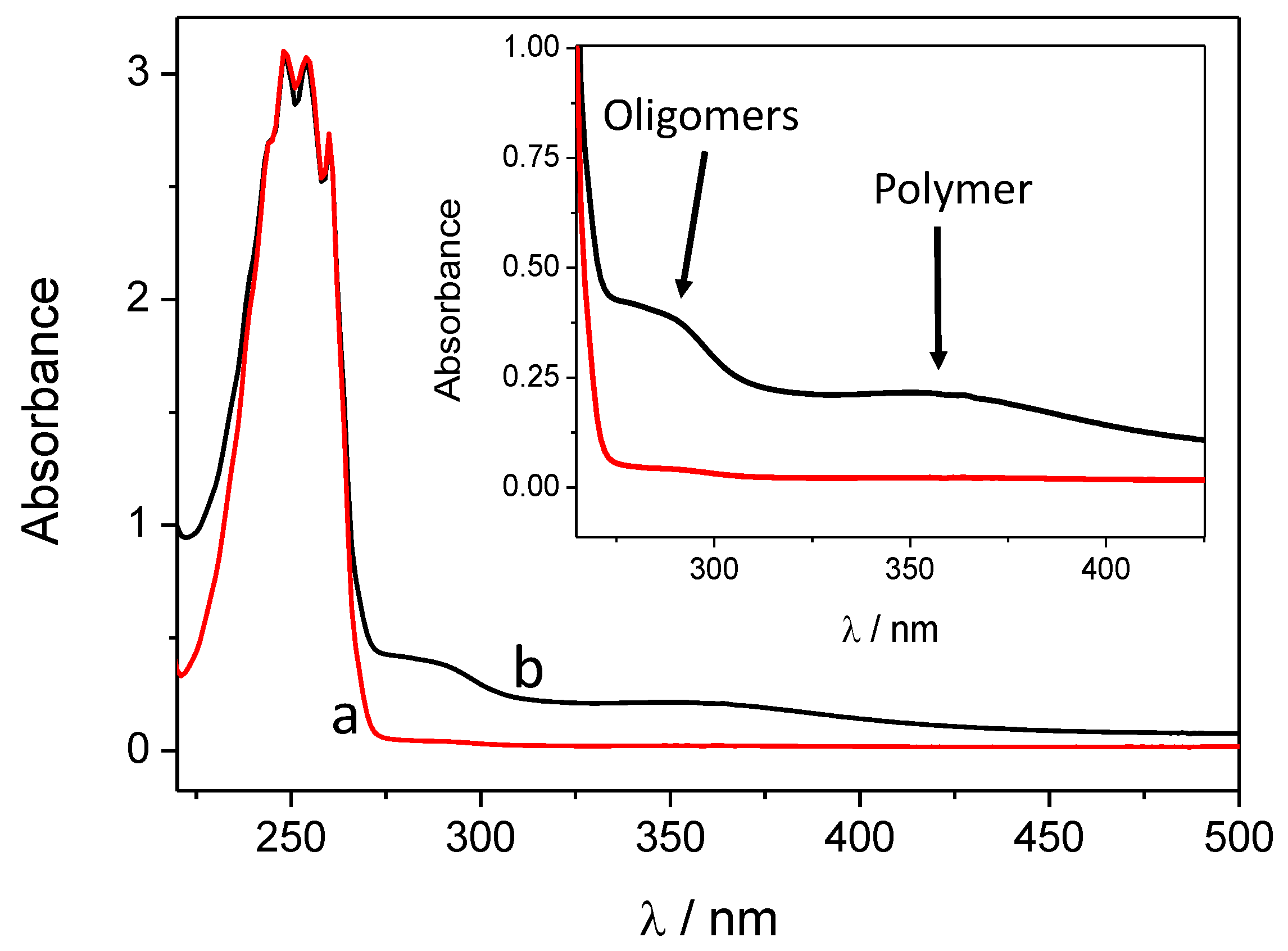

Figure 2. Ultraviolet-visible (UV-vis) spectra of the filtered and centrifuged dispersion after 60 min of illumination: (a) hard ultraviolet (UV)-filtered, (b) hard UV-illuminated.
Figure 2. Ultraviolet-visible (UV-vis) spectra of the filtered and centrifuged dispersion after 60 min of illumination: (a) hard ultraviolet (UV)-filtered, (b) hard UV-illuminated.
Materials 09 00201 g002
Materials 09 00201 g003 1024

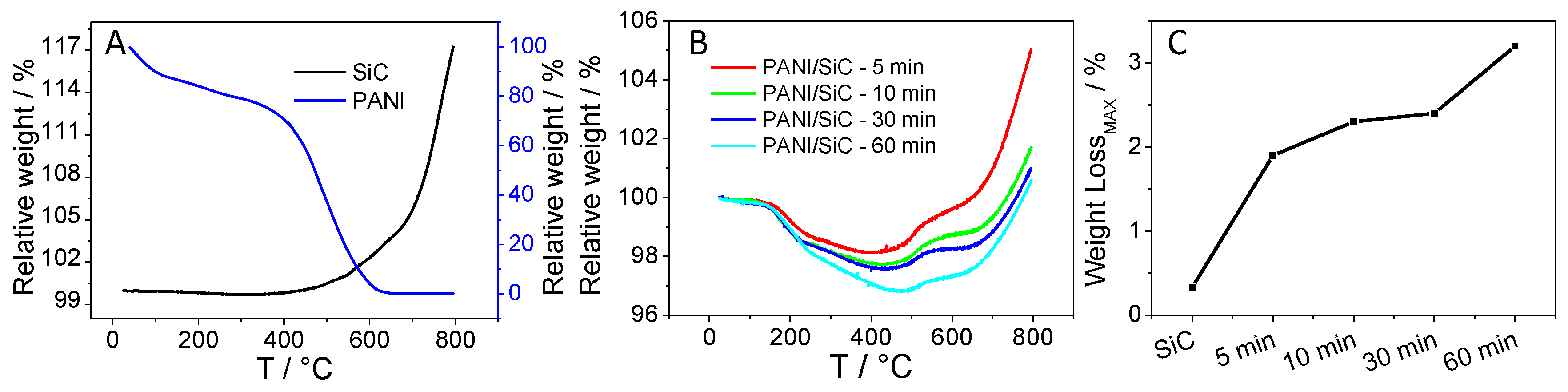

Figure 3. Weight loss curves registered during the thermogravimetric analysis (TGA) for (A) silicon carbide (SiC) and polyaniline (PANI); (B) and the various SiC/PANI hybrids; (C) a comparison of the PANI content of the various SiC/PANI hybrids as derived from TGA.
Figure 3. Weight loss curves registered during the thermogravimetric analysis (TGA) for (A) silicon carbide (SiC) and polyaniline (PANI); (B) and the various SiC/PANI hybrids; (C) a comparison of the PANI content of the various SiC/PANI hybrids as derived from TGA.
Materials 09 00201 g003
Materials 09 00201 g004 1024

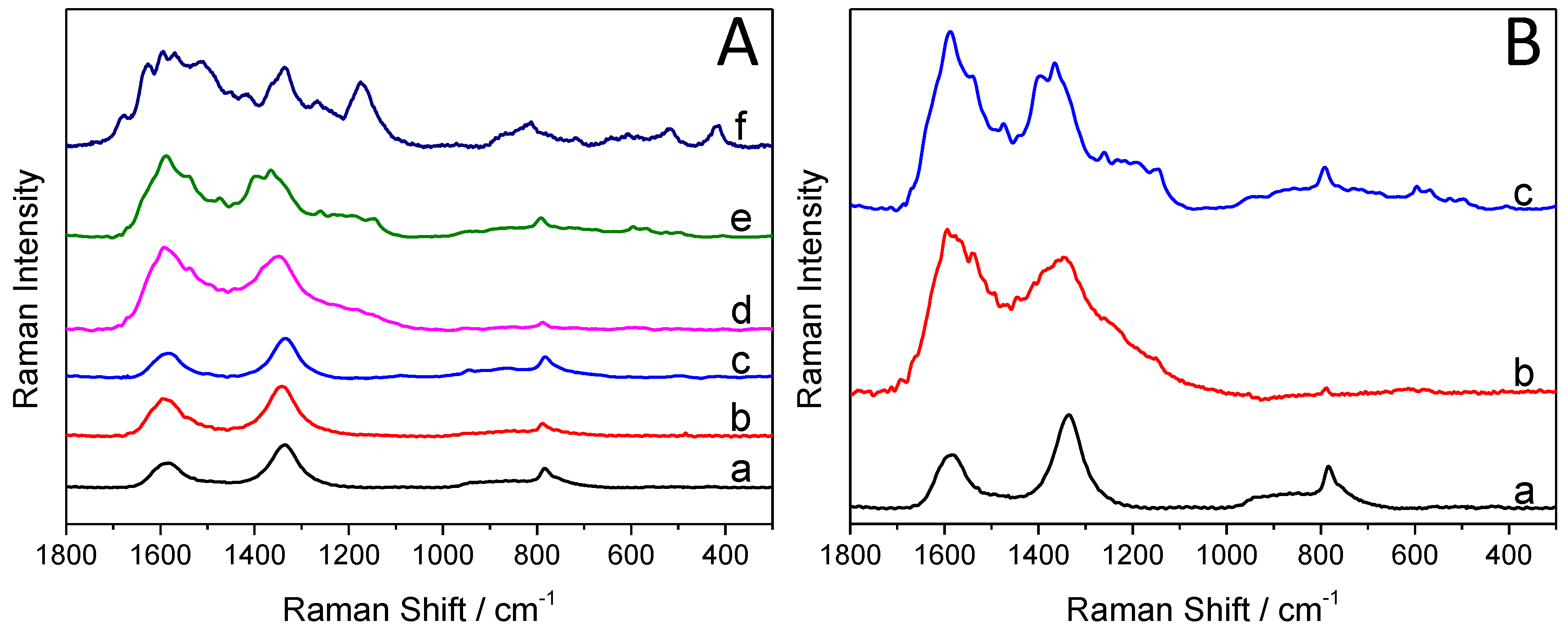

Figure 4. (A) Raman spectra of the pure silicon carbide (SiC) and PANI, and the SiC/PANI nanocomposites (with the UV component filtered below 300 nm): (a) SiC, (b) SiC/PANI, 5 min of illumination, (c) SiC/PANI, 10 min of illumination, (d) SiC/PANI, 30 min of illumination, (e) SiC/PANI, 60 min of illumination, (f) PANI; (B) Raman spectra of the synthesized nanocomposite samples: (a) SiC, (b) SiC/PANI 60 min of illumination, UV-illuminated, (c) SiC/PANI 60 min of illumination, UV-filtered.
Figure 4. (A) Raman spectra of the pure silicon carbide (SiC) and PANI, and the SiC/PANI nanocomposites (with the UV component filtered below 300 nm): (a) SiC, (b) SiC/PANI, 5 min of illumination, (c) SiC/PANI, 10 min of illumination, (d) SiC/PANI, 30 min of illumination, (e) SiC/PANI, 60 min of illumination, (f) PANI; (B) Raman spectra of the synthesized nanocomposite samples: (a) SiC, (b) SiC/PANI 60 min of illumination, UV-illuminated, (c) SiC/PANI 60 min of illumination, UV-filtered.
Materials 09 00201 g004
Materials 09 00201 g005 1024

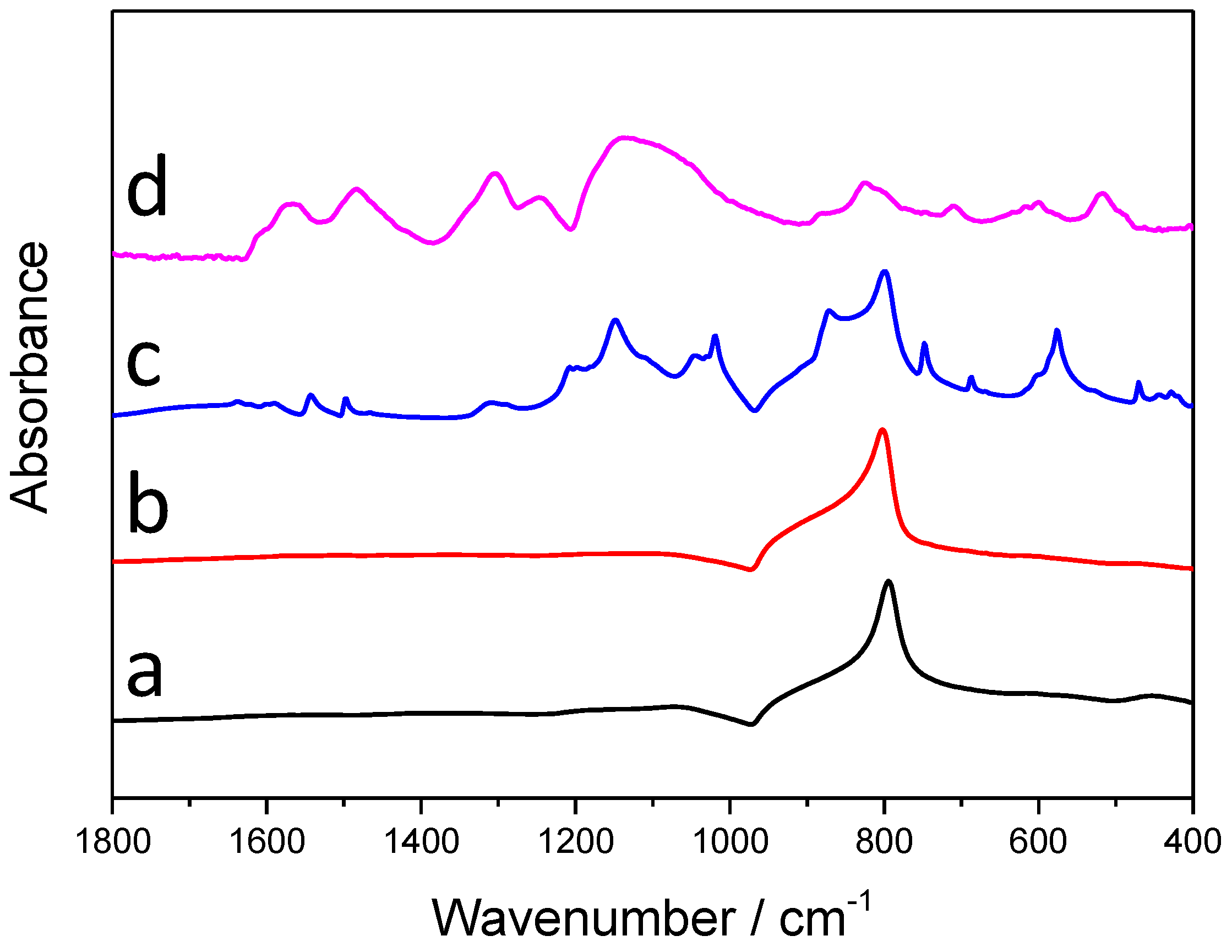

Figure 5. Infrared (IR) spectra of the synthesized nanocomposite samples and their components: (a) SiC; (b) SiC/PANI, 60 min UV-illuminated; (c) SiC/PANI, 60 min UV-filtered; (d) bare PANI.
Figure 5. Infrared (IR) spectra of the synthesized nanocomposite samples and their components: (a) SiC; (b) SiC/PANI, 60 min UV-illuminated; (c) SiC/PANI, 60 min UV-filtered; (d) bare PANI.
Materials 09 00201 g005
Materials 09 00201 g006 1024
Figure 6. Transmission electron microscopy (TEM) images, captured for (A) SiC; (B) SiC/PANI, after 5 min of illumination; (C) SiC/PANI, after 60 min of illumination at 130,000x magnification; HR-TEM images taken for the SiC/PANI nanocomposite synthesized with 60 min of irradiation. The magnifications were (D) 255,000x; and (E) 530,000x, respectively.
Figure 6. Transmission electron microscopy (TEM) images, captured for (A) SiC; (B) SiC/PANI, after 5 min of illumination; (C) SiC/PANI, after 60 min of illumination at 130,000x magnification; HR-TEM images taken for the SiC/PANI nanocomposite synthesized with 60 min of irradiation. The magnifications were (D) 255,000x; and (E) 530,000x, respectively.
Materials 09 00201 g006
Materials 09 00201 g007 1024

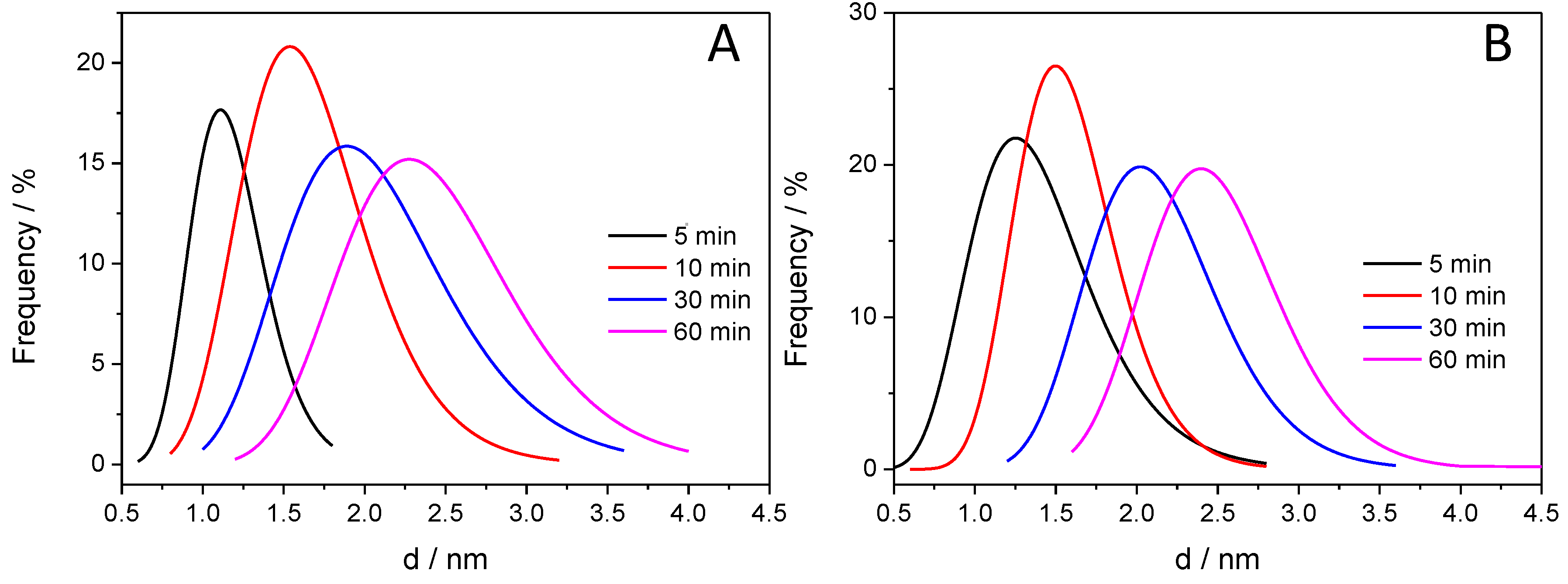

Figure 7. Distribution of the PANI layer thickness for the various SiC/PANI hybrids: (A) UV-irradiated samples; (B) UV-filtered samples.
Figure 7. Distribution of the PANI layer thickness for the various SiC/PANI hybrids: (A) UV-irradiated samples; (B) UV-filtered samples.
Materials 09 00201 g007
Materials 09 00201 g008 1024
Figure 8. Scanning electron microscopy (SEM) images, taken for (A) SiC; (B) SiC/PANI UV-irradiated sample (60 min); (C) SiC/PANI UV-filtered sample (60 min).
Figure 8. Scanning electron microscopy (SEM) images, taken for (A) SiC; (B) SiC/PANI UV-irradiated sample (60 min); (C) SiC/PANI UV-filtered sample (60 min).
Materials 09 00201 g008
Materials 09 00201 g009 1024

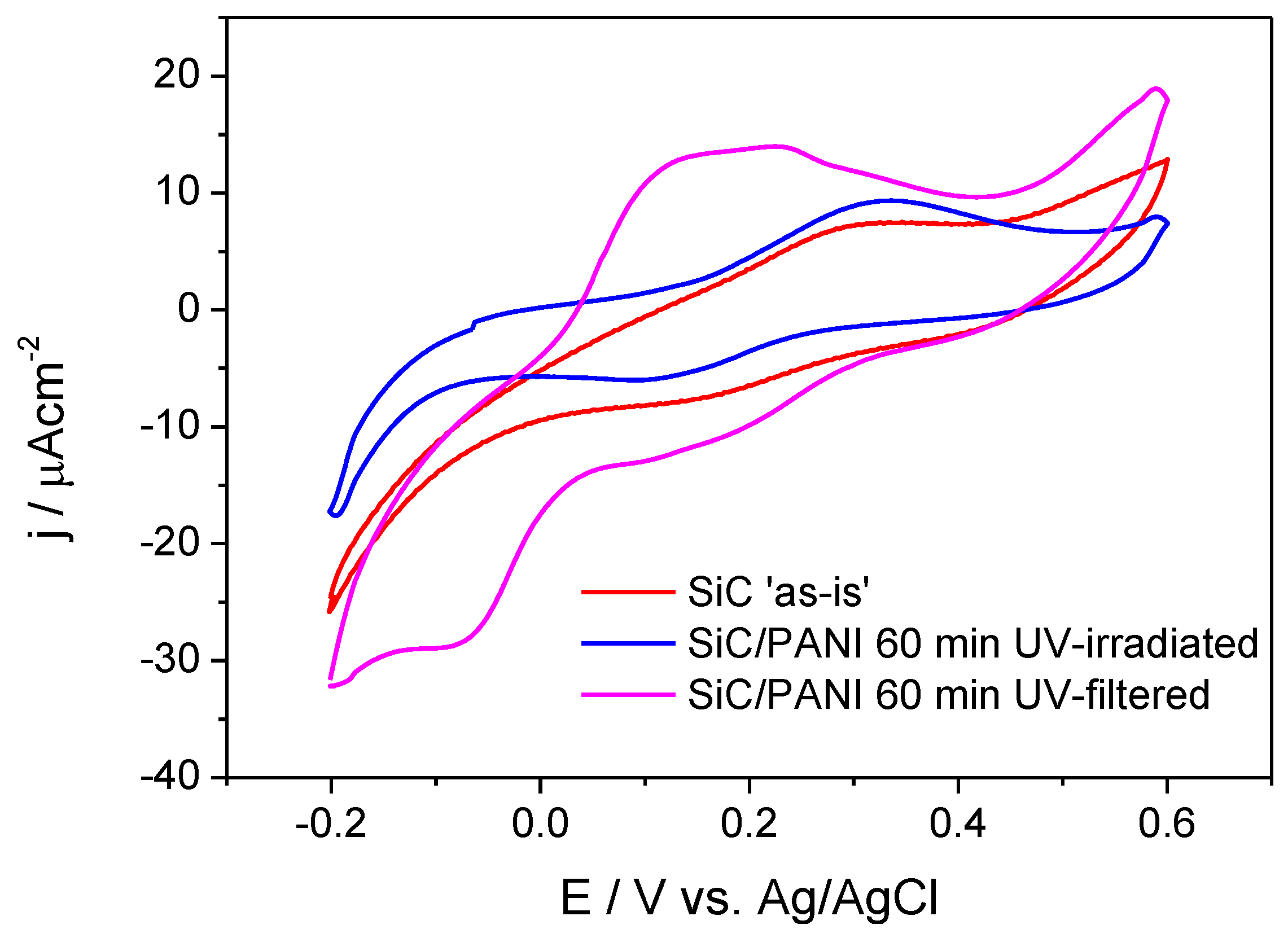

Figure 9. Cyclic voltammograms of the SiC nanoparticles and the synthesized nanocomposites recorded in 0.5 M H2SO4 at a sweep rate of 25 mV/s.
Figure 9. Cyclic voltammograms of the SiC nanoparticles and the synthesized nanocomposites recorded in 0.5 M H2SO4 at a sweep rate of 25 mV/s.
Materials 09 00201 g009
Table
Table 1. Characteristic Raman bands of PANI. The bands appearing on the spectra of the SiC/PANI nanocomposites are marked with grey.
Table 1. Characteristic Raman bands of PANI. The bands appearing on the spectra of the SiC/PANI nanocomposites are marked with grey.
Wavenumber (cm−1)Assignment [43,44,45]
517Amine in-plane deformation
610Ring deformation
720Imine deformation
818Amine deformation (C-N-C bending)
868Ring deformation
1180C-H bending in leucoemeraldine
1418C-C stretching in quinoid-type ring
1595C-C stretching in quinoid-type ring
1625C-C stretching in benzene-type ring
Table
Table 2. Characteristic IR bands of PANI. The bands appearing on the spectra of the nanocomposites are marked with grey.
Table 2. Characteristic IR bands of PANI. The bands appearing on the spectra of the nanocomposites are marked with grey.
Wavenumber (cm−1)Assignment [46,47]
515Aromatic ring deformation
828C-H out-of-plane bending benzenoid-type ring
882C-H out-of-plane bending
1070NH2 rocking, ring deformation
1146C-H in-plane-bending, ring deformation
1246C-N stretching
1304C-N stretching
1485Benzenoid-type ring stretching
1568Quinoid-type ring stretching
1610N-H bending
