Materials 2016, 9(3), 178;

Effects of Ca Content on Formation and Photoluminescence Properties of CaAlSiN3:Eu2+ Phosphor by Combustion Synthesis

Department of Chemical Engineering, National Cheng Kung University, Tainan 70101, Taiwan
Advanced Optoelectronic Technology Center, National Cheng Kung University, Tainan 70101, Taiwan
Author to whom correspondence should be addressed.
Academic Editor: Wen-Hsiang Hsieh
Received: 5 November 2015 / Revised: 28 February 2016 / Accepted: 29 February 2016 / Published: 8 March 2016
(This article belongs to the Special Issue Selected Papers from ICBEI2015)
Full-Text   |   PDF [5627 KB, uploaded 8 March 2016]   |

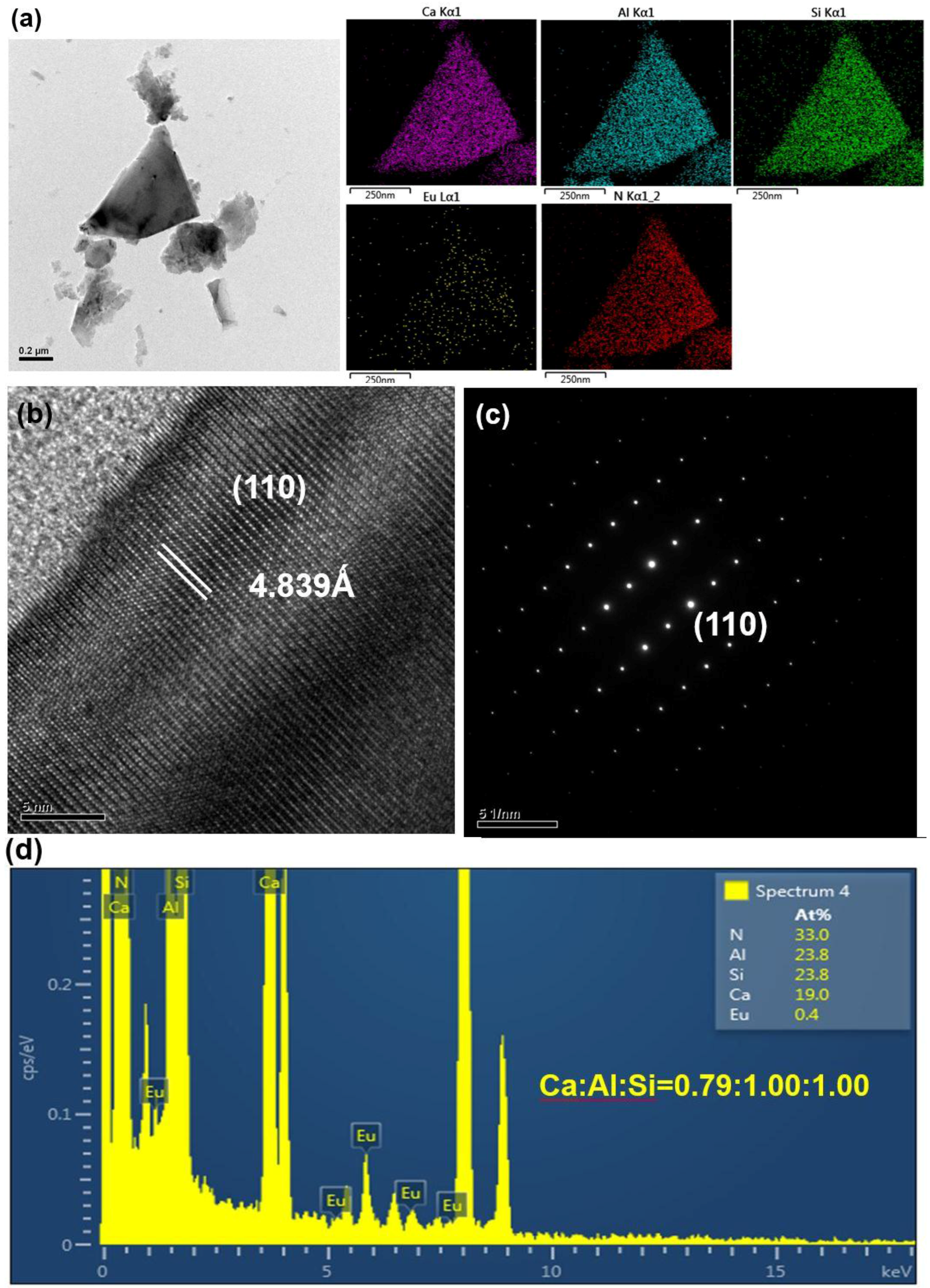

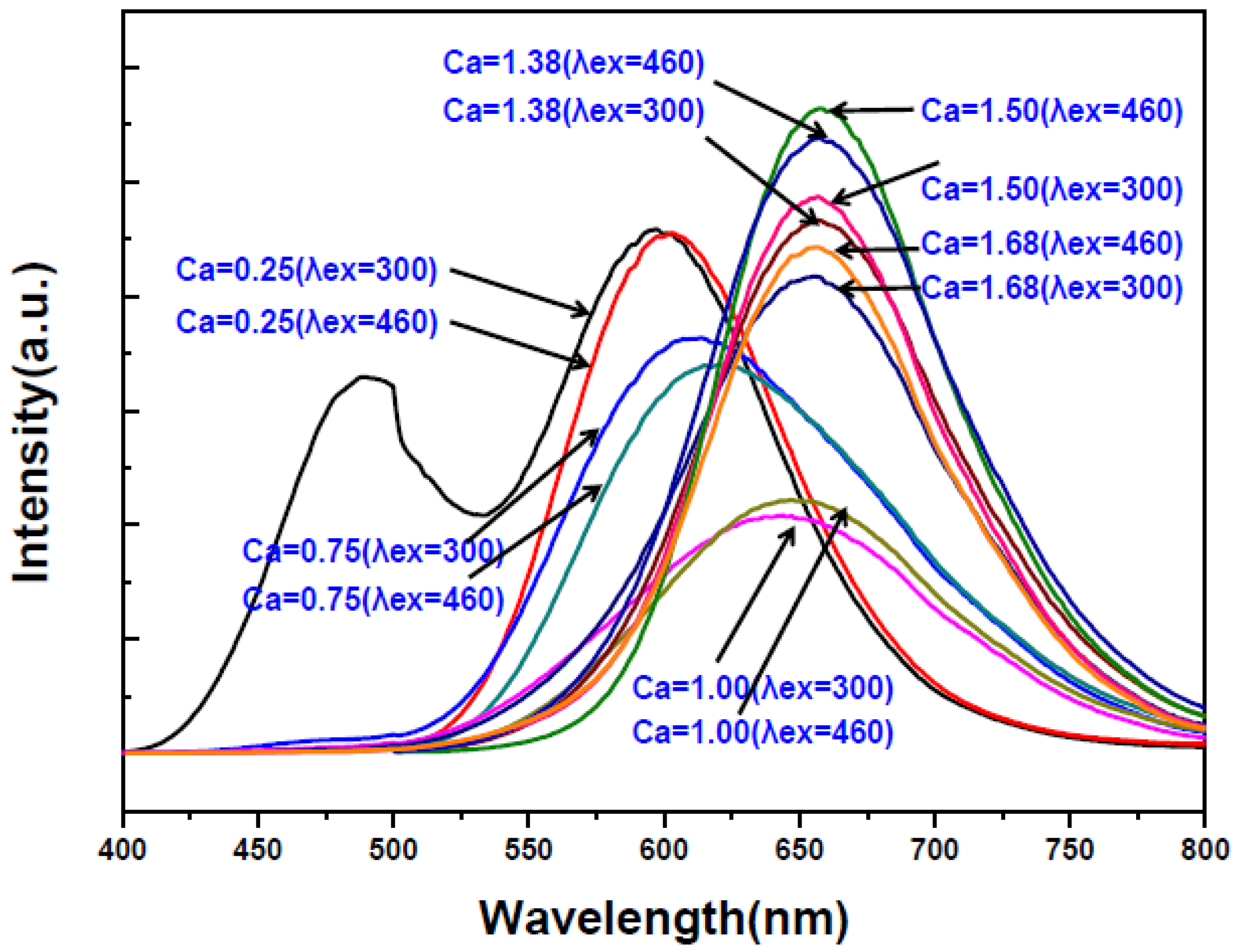

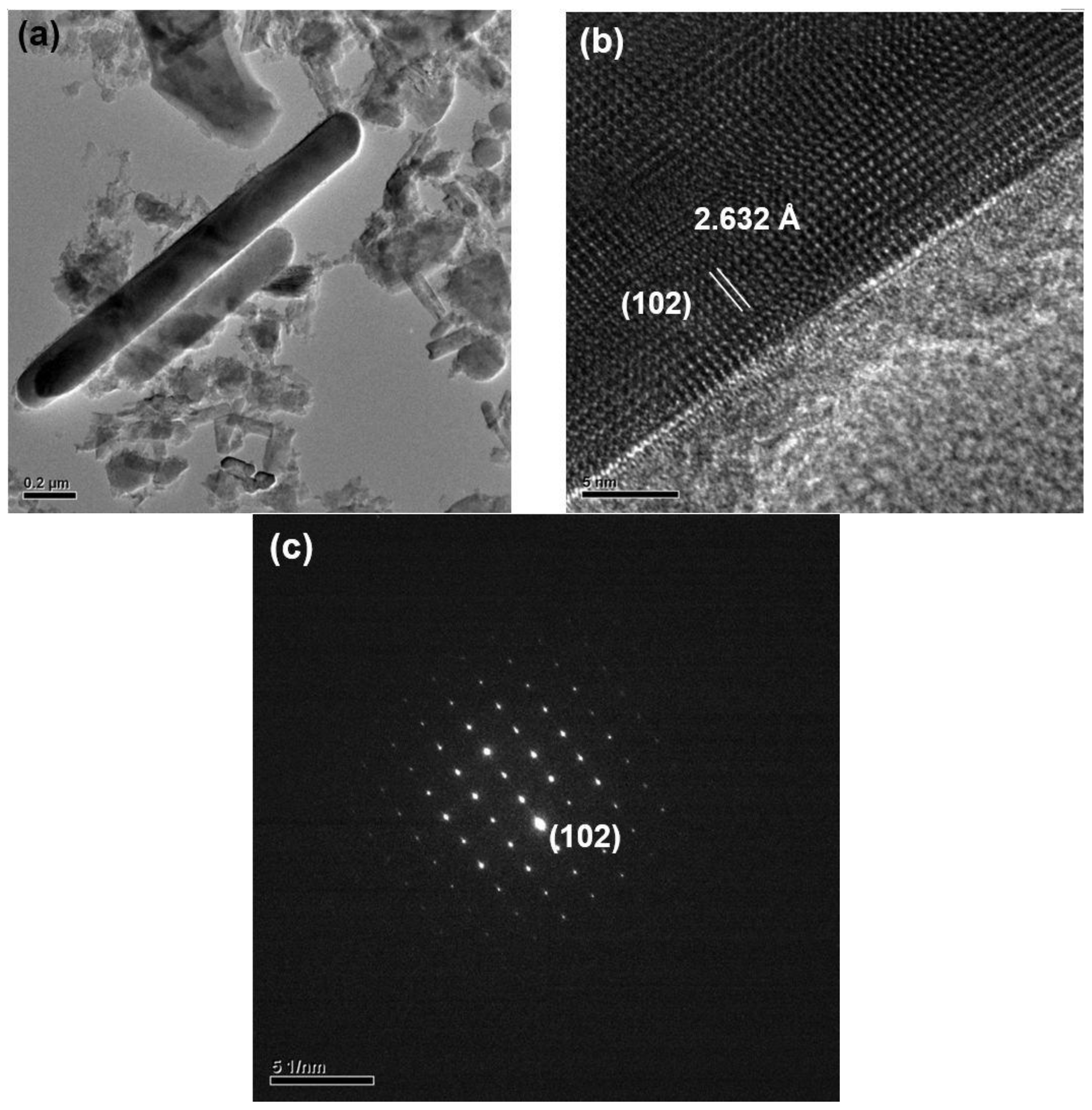

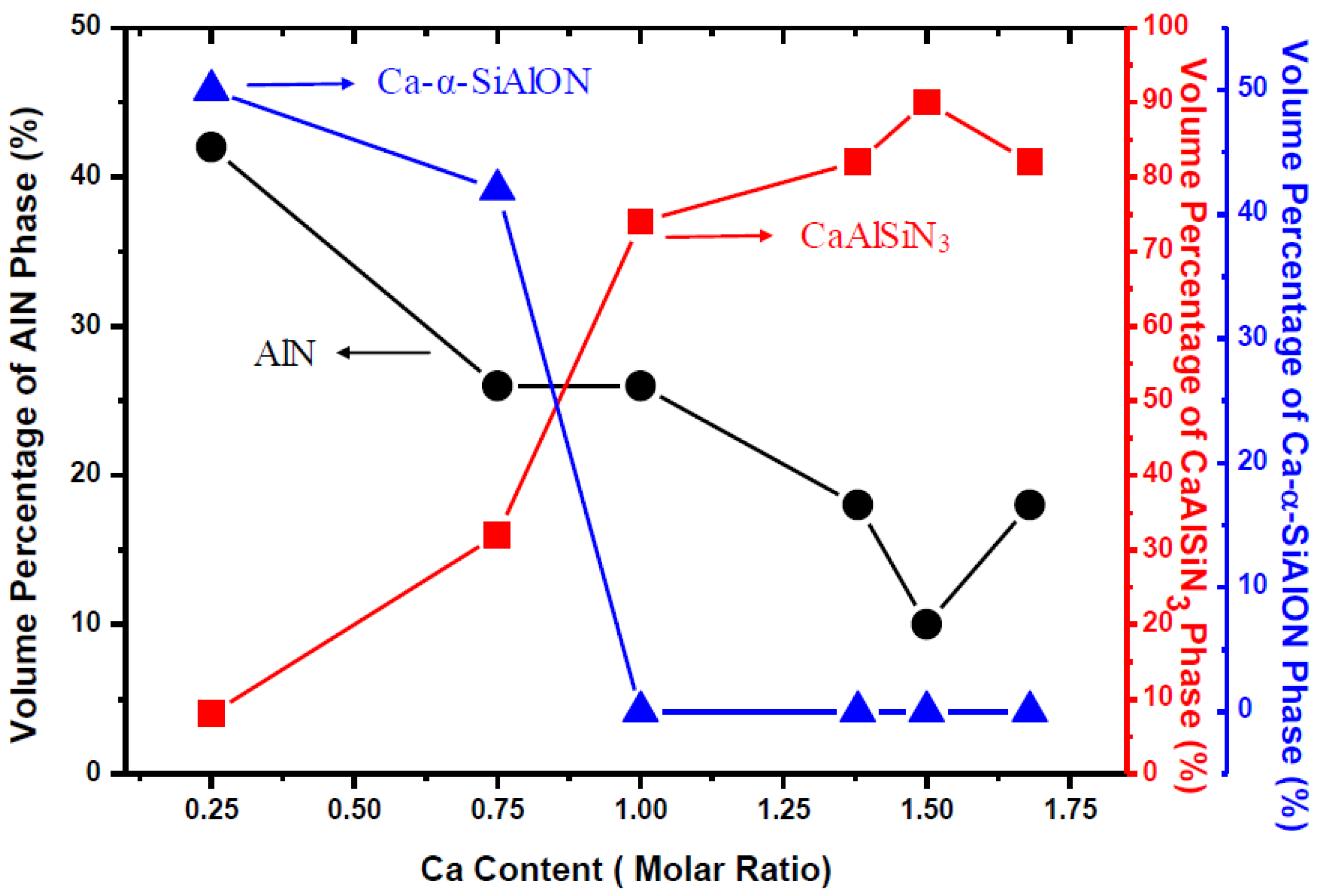

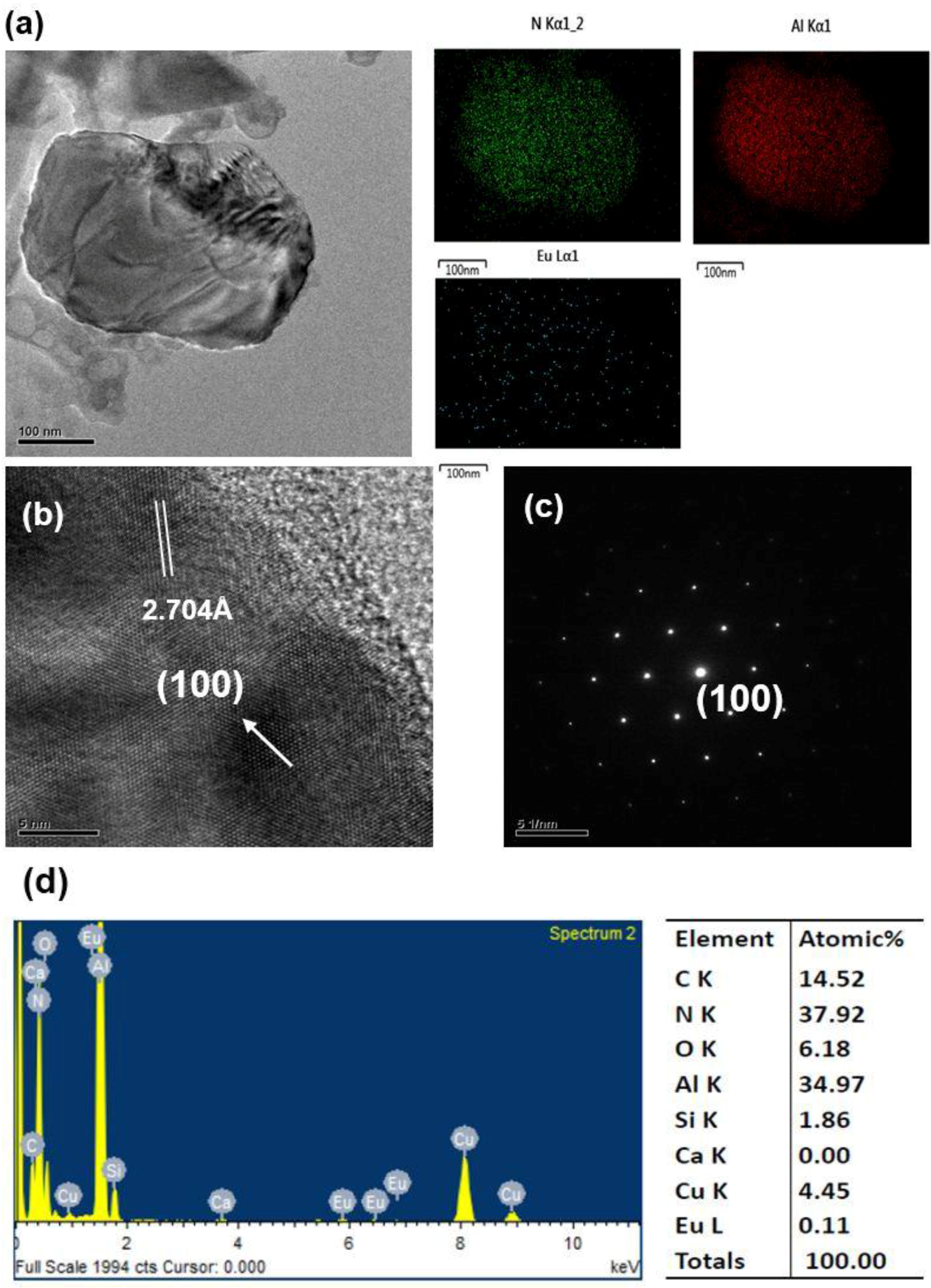

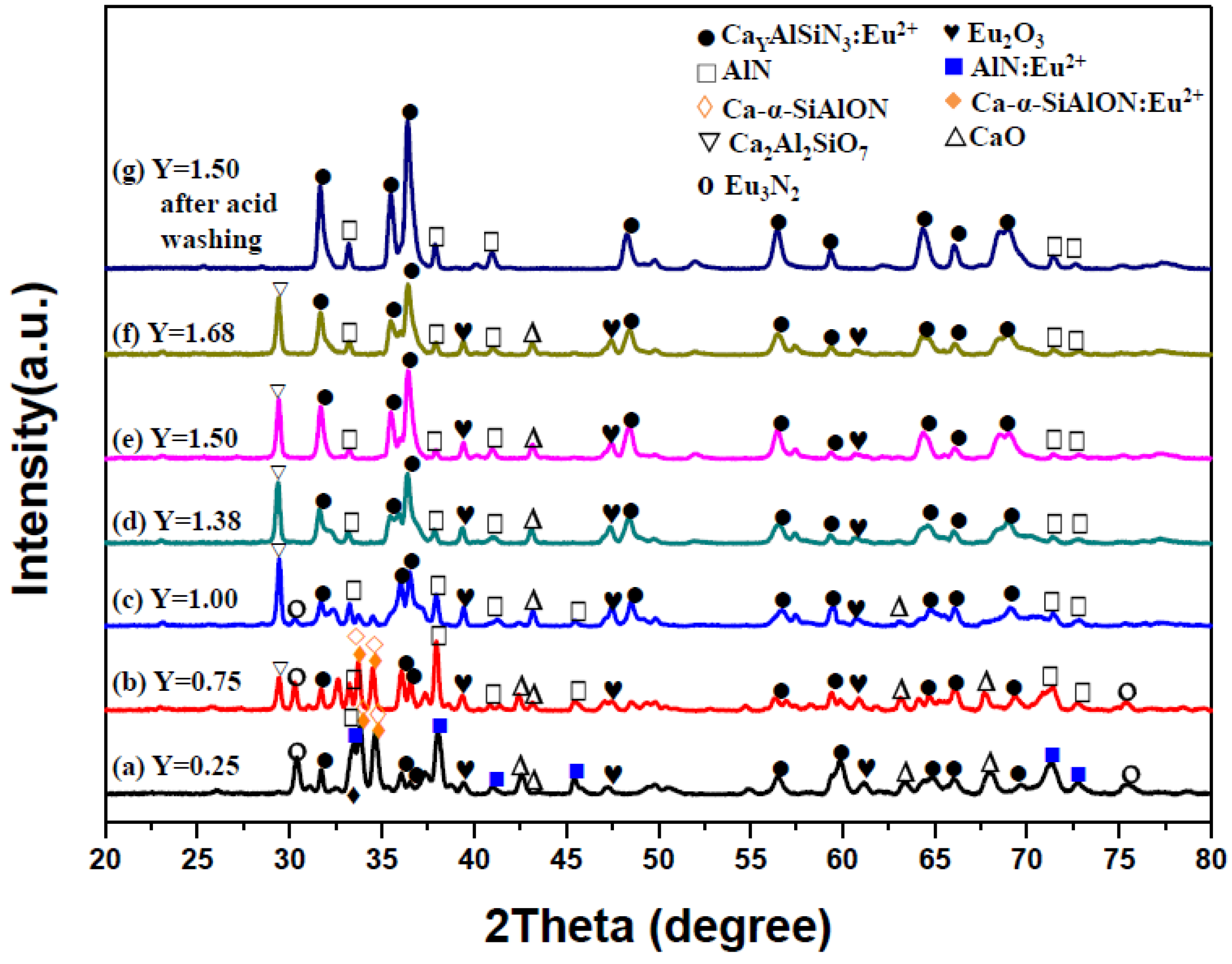

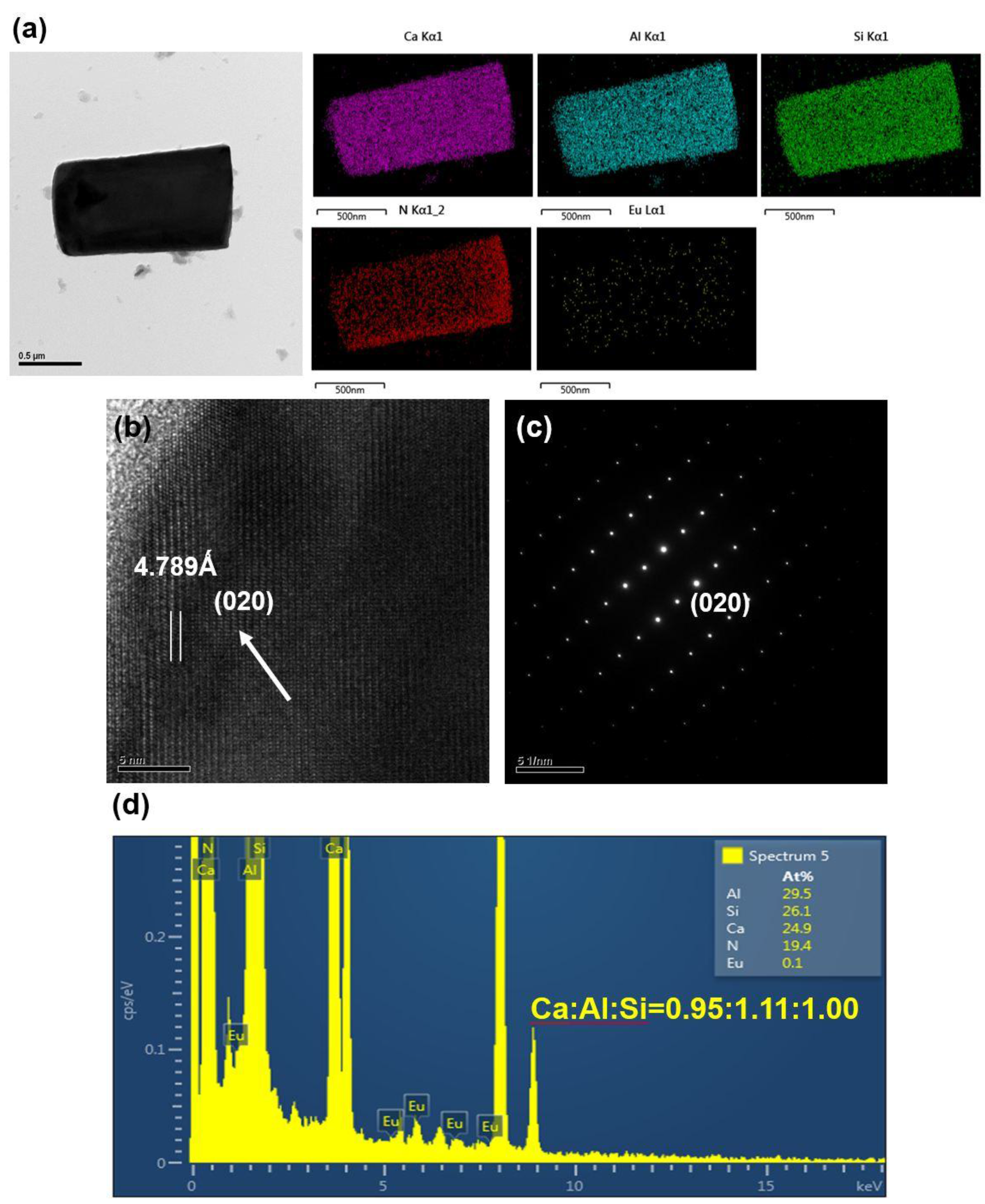

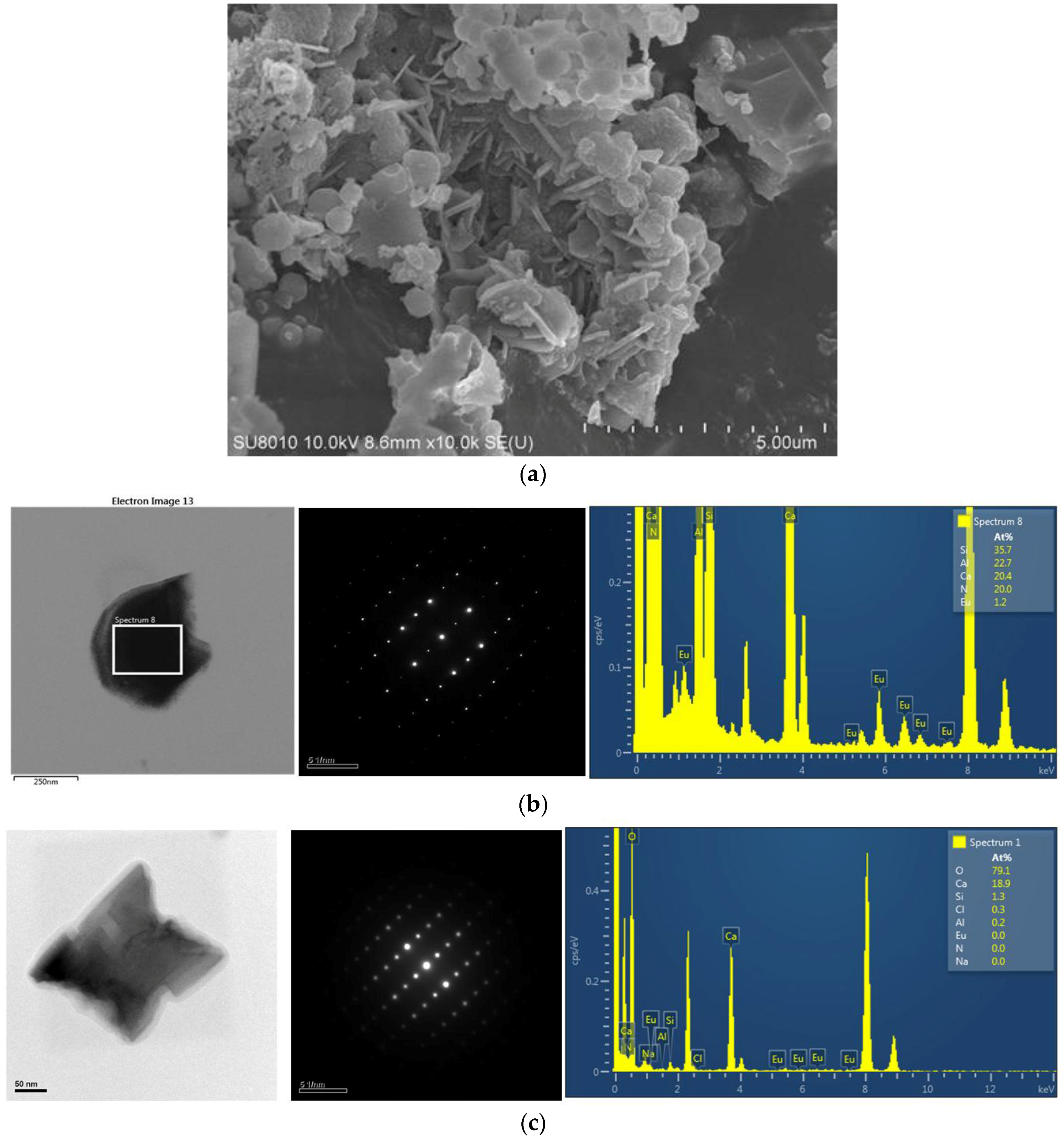

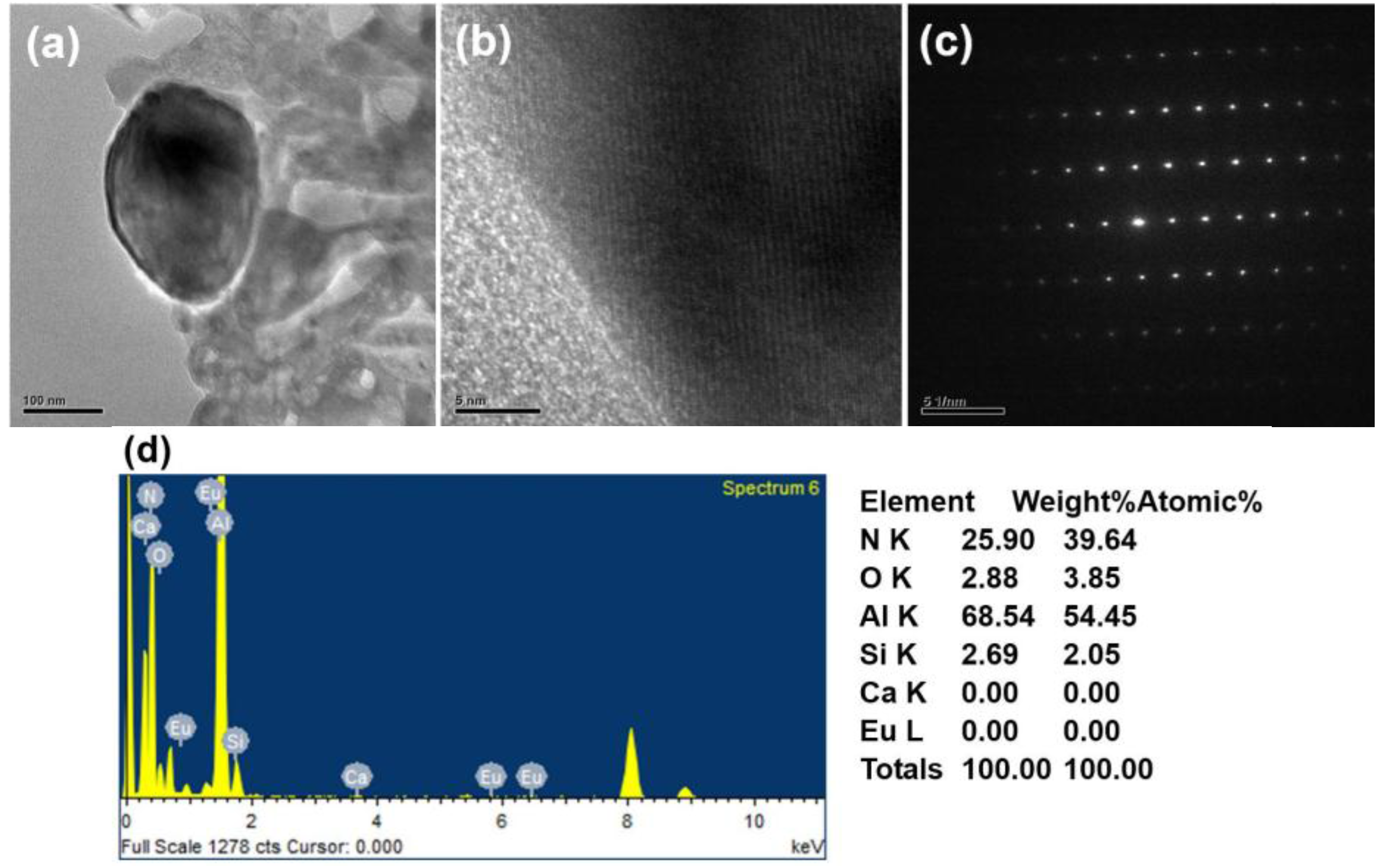

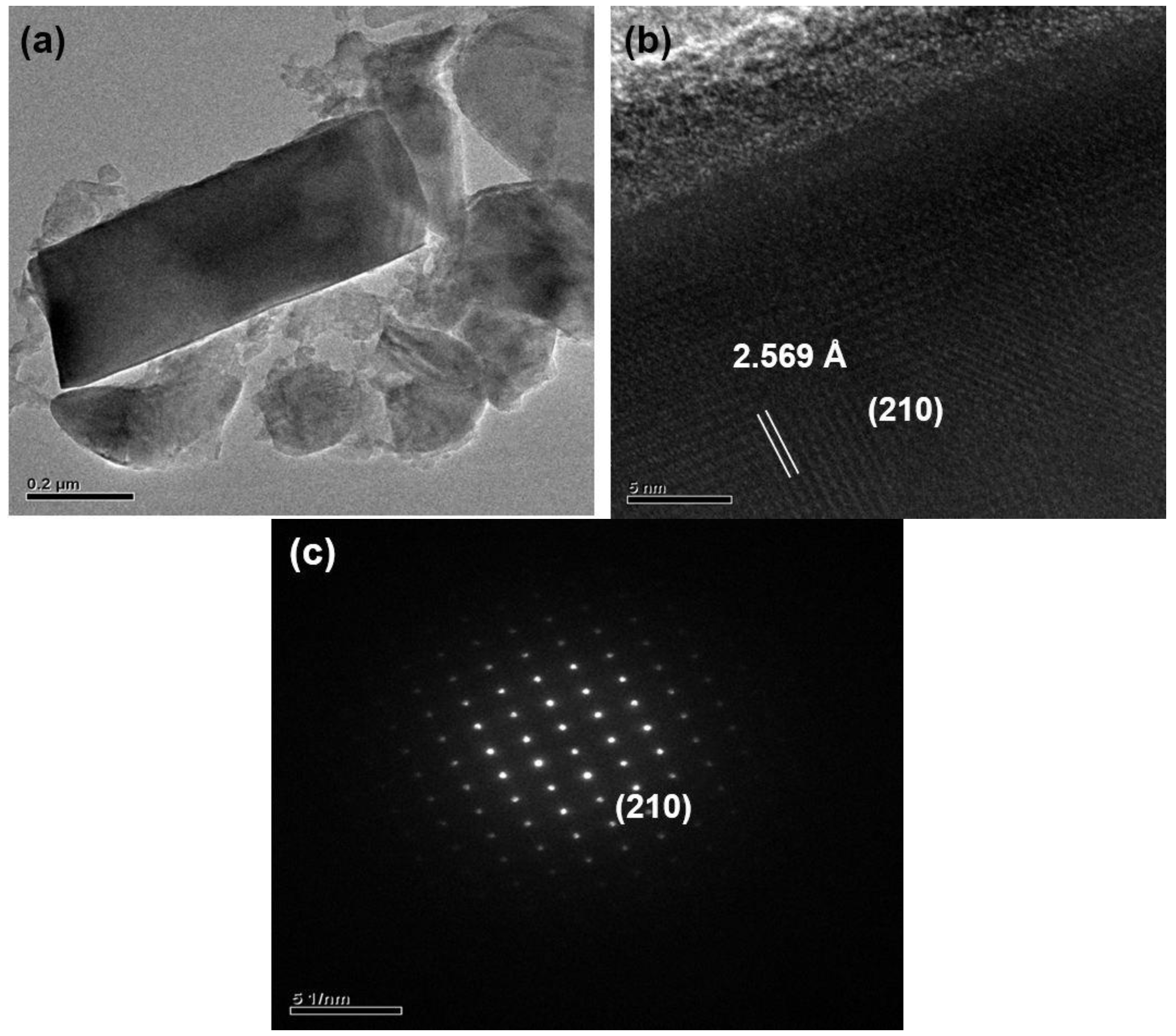

Effects of Ca content (in the reactant mixture) on the formation and the photoluminescence properties of CaAlSiN3:Eu2+ phosphor (CASIN) were investigated by a combustion synthesis method. Ca, Al, Si, Eu2O3, NaN3, NH4Cl and Si3N4 powders were used as the starting materials and they were mixed and pressed into a compact which was then wrapped up with an igniting agent (i.e., Mg + Fe3O4). The compact was ignited by electrical heating under a N2 pressure of ≤1.0 MPa. By keeping the molar ratios of Al and Si (including the Si powder and the Si in Si3N4 powder) both at 1.00 and that of Eu2O3 at 0.02, XRD (X-ray diffraction) coupled with TEM-EDS (transmission electron microscope equipped with an energy-dispersive X-ray spectroscope) and SAED (selected area electron diffraction) measurements show that AlN:Eu2+ and Ca-α-SiAlON:Eu2+ are formed as the major phosphor products when the Ca molar ratio (denoted by Y) is equal to 0.25 and AlN:Eu2+ and Ca-α-SiAlON:Eu2+ could not be detected at Y ≥ 0.75 and ≥1.00, respectively. CASIN (i.e., CaAlSiN3:Eu2+) becomes the only phosphor product as Y is increased to 1.00 and higher. The extent of formation of CASIN increases with increasing Y up to 1.50 and begins to decrease as Y is further increased to 1.68. While the excitation wavelength regions are similar at various Y, the emission wavelength regions vary significantly as Y is increased from 0.25 to 1.00 due to different combinations of phosphor phases formed at different Y. The emission intensity of CASIN was found to vary with Y in a similar trend to its extent of formation. The Ca and Eu contents (expressed as molar ratios) in the synthesized products were found to increase roughly with increasing Y but were both lower than the respective Ca and Eu contents in the reactant mixtures. View Full-Text
Keywords: nitride phosphor; CaAlSiN3:Eu2+; combustion synthesis; white light LED nitride phosphor; CaAlSiN3:Eu2+; combustion synthesis; white light LED

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Chung, S.-L.; Huang, S.-C. Effects of Ca Content on Formation and Photoluminescence Properties of CaAlSiN3:Eu2+ Phosphor by Combustion Synthesis. Materials 2016, 9, 178.
