Next Article in Journal
In Vitro and In Vivo Study of a Novel Porcine Collagen Membrane for Guided Bone Regeneration
Next Article in Special Issue
Microstructure and Tribological Properties of Mo–40Ni–13Si Multiphase Intermetallic Alloy
Previous Article in Journal
Optimizing Injection Molding Parameters of Different Halloysites Type-Reinforced Thermoplastic Polyurethane Nanocomposites via Taguchi Complemented with ANOVA
Previous Article in Special Issue
Surface Texturing-Plasma Nitriding Duplex Treatment for Improving Tribological Performance of AISI 316 Stainless Steel
Article Menu
Issue 11 (November) cover image

Export Article

Open AccessArticle

Friction and Wear Reduction of Eccentric Journal Bearing Made of Sn-Based Babbitt for Ore Cone Crusher

Department of Mechanical Engineering, Sun Moon University, Asan 31460, Korea
Department of Materials Science, Engineering and Energy Systems Research, Ajou University, Suwon 16499, Korea
Department of Mechanical Engineering, Ajou University, Suwon 16499, Korea
Author to whom correspondence should be addressed.
Academic Editor: Daolun Chen
Materials 2016, 9(11), 950;
Received: 30 September 2016 / Revised: 11 November 2016 / Accepted: 15 November 2016 / Published: 22 November 2016
(This article belongs to the Special Issue Tribological Behavior of Materials by Surface Engineering)
PDF [5936 KB, uploaded 22 November 2016]

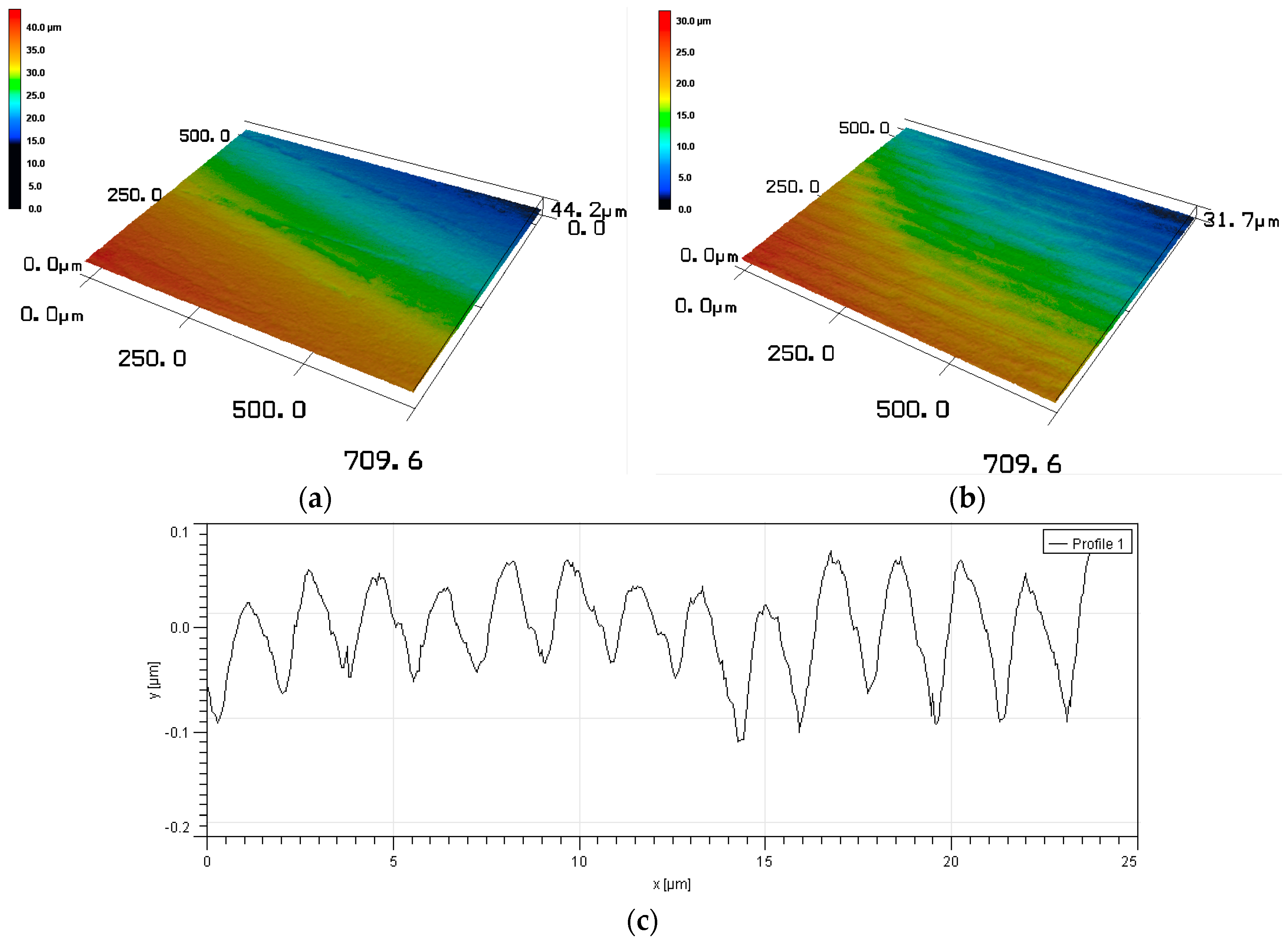

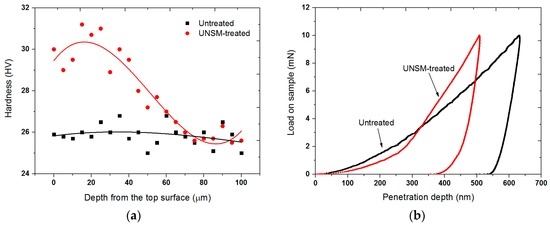

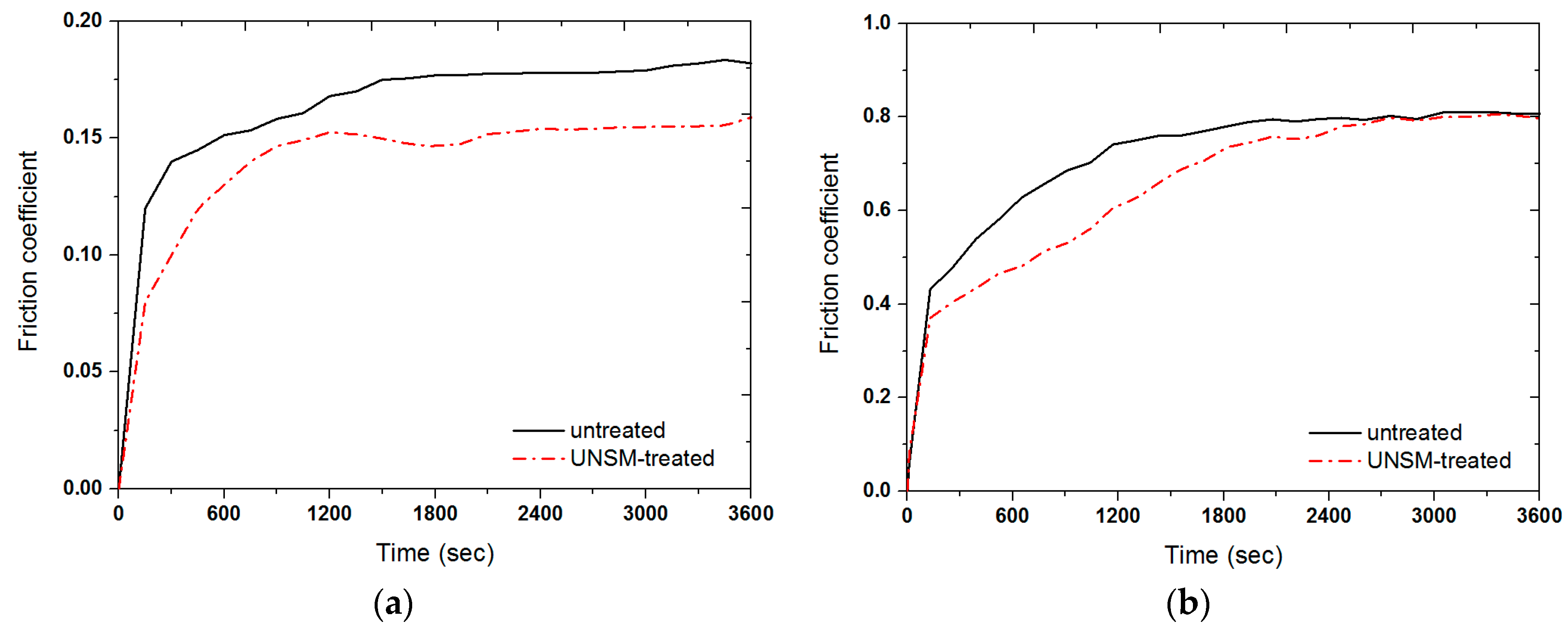

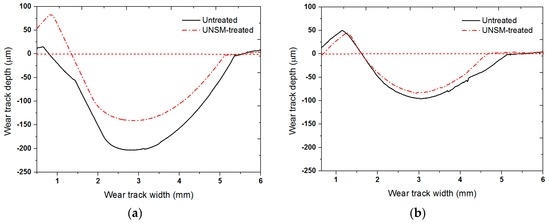

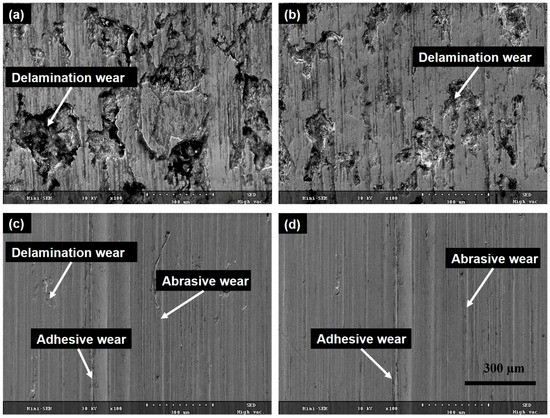

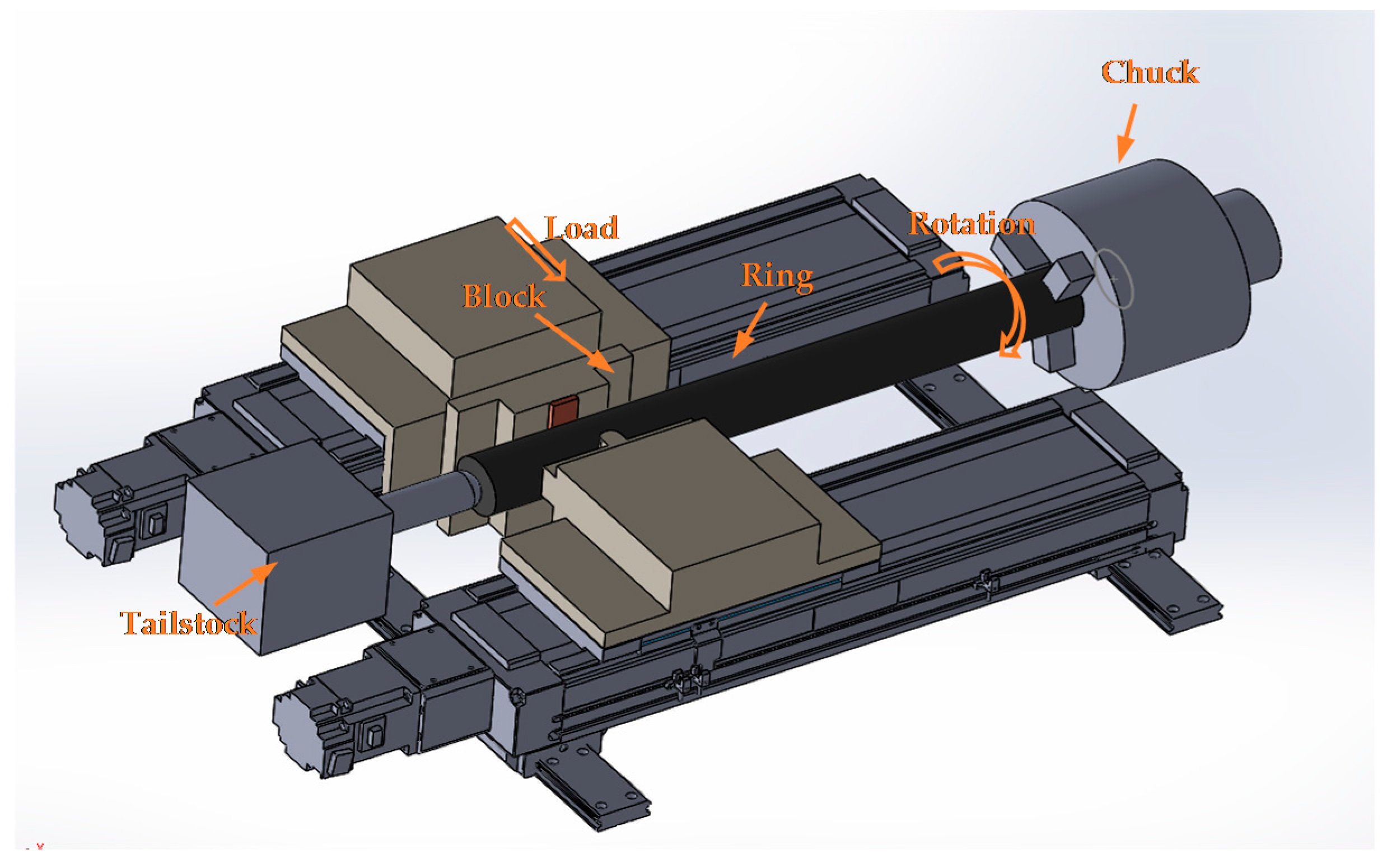

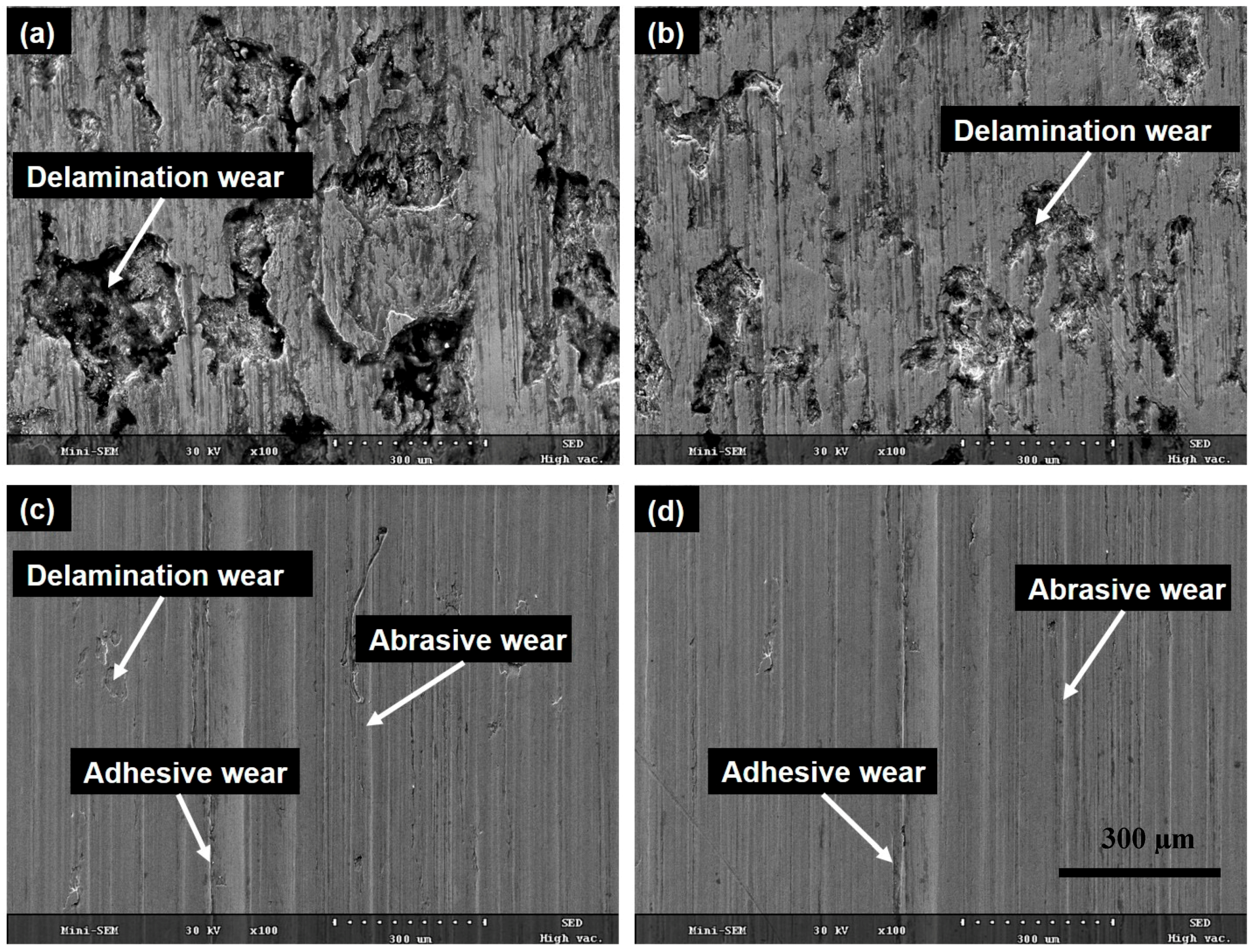

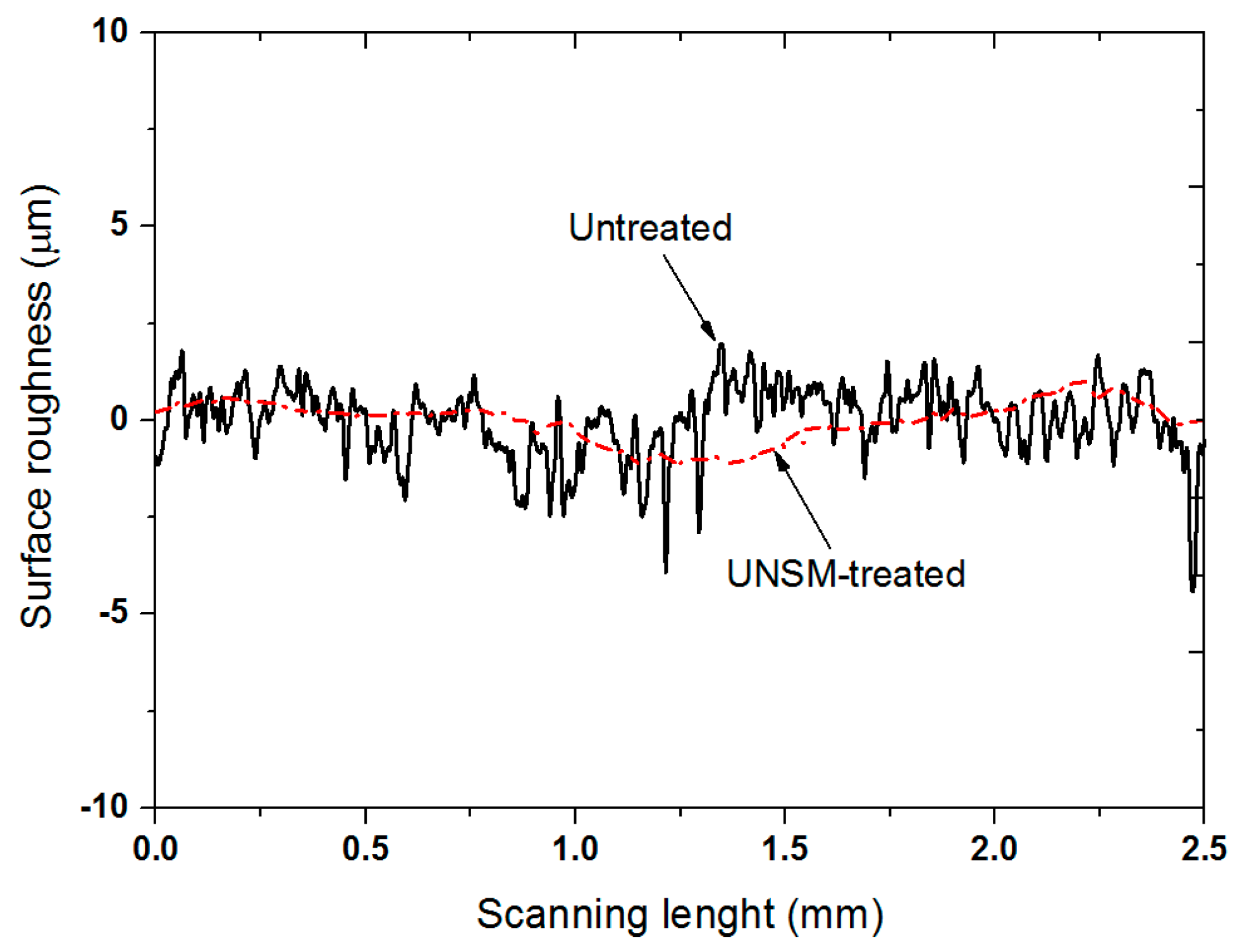

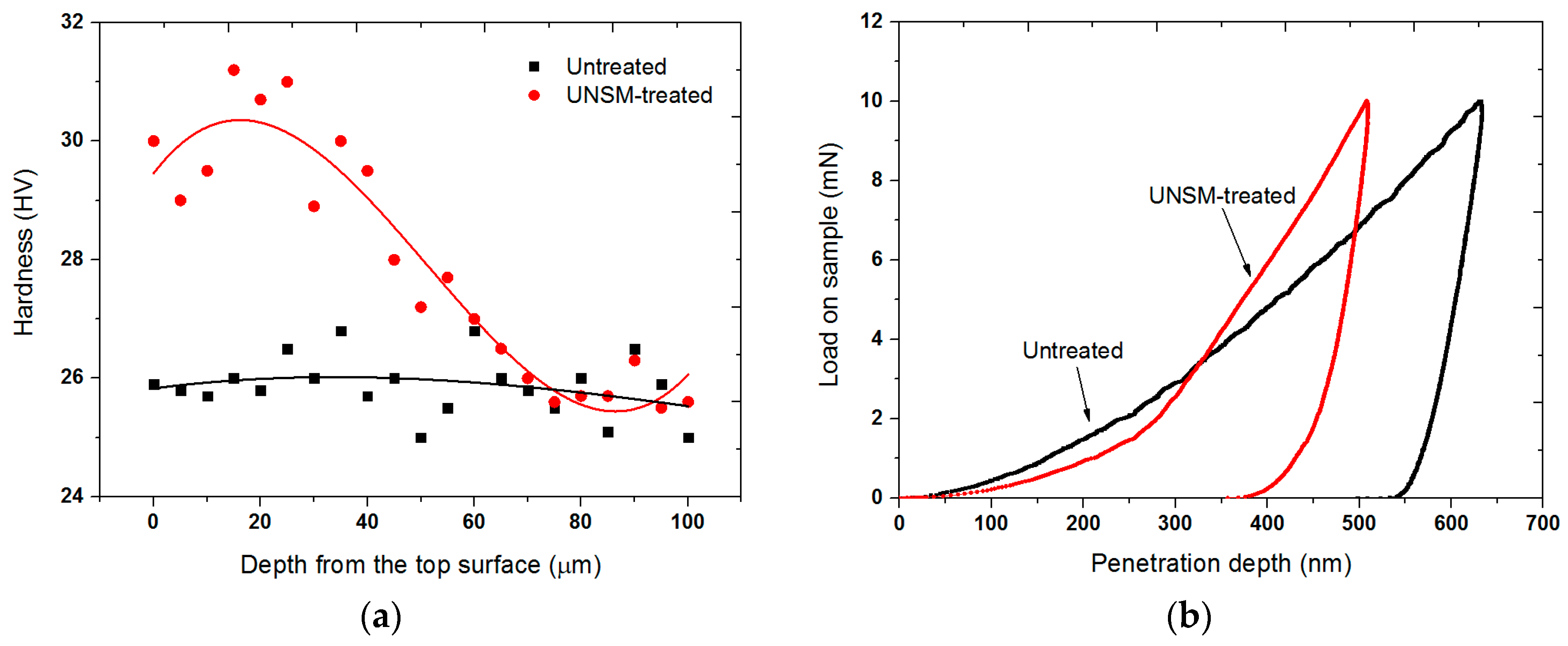

An anti-friction Babbitt alloy-coated bearing made by a casting process is a journal bearing, which is used in an ore cone crusher eccentric. The main purpose of the Babbitt coated eccentric is to provide a low friction to support and guide a rotating shaft. Despite the fact that the Babbitt-coated eccentric offers a low friction coefficient and can be operated without a continuous supply of lubricant, it suffers from mining environments and short service life. In this study, an ultrasonic nanocrystalline surface modification (UNSM) technique was used to further reduce the friction coefficient, to increase the wear resistance, and to extend the service life of the Sn-based Babbitt metal. The friction and wear behavior of the Sn-based Babbitt metal was investigated using a block-on-ring tester under both dry and oil-lubricated conditions. The results of the experiments revealed that the friction and wear behavior of Sn-based Babbitt metal could be improved by the application of the UNSM technique. The friction and wear mechanisms of the specimens were explained and discussed in terms of changes in surface properties—microstructure, surface hardness, surface roughness, etc. View Full-Text
Keywords: Babbitt; friction; wear; ultrasonic nanocrystalline surface modification Babbitt; friction; wear; ultrasonic nanocrystalline surface modification

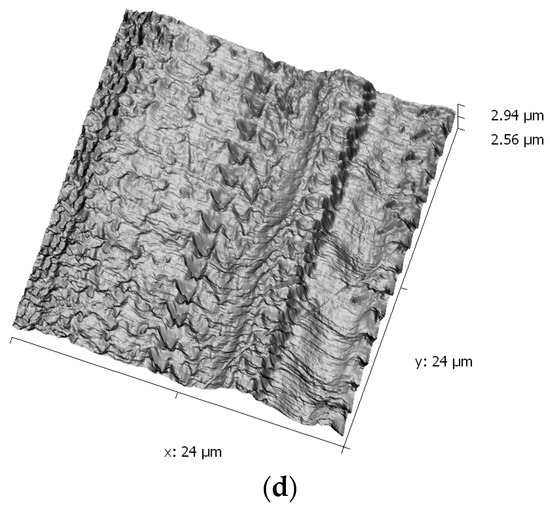

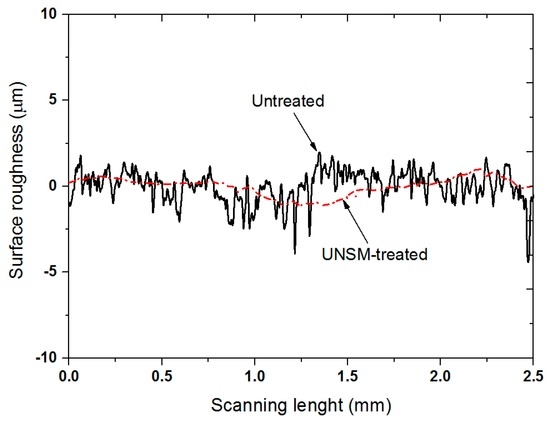

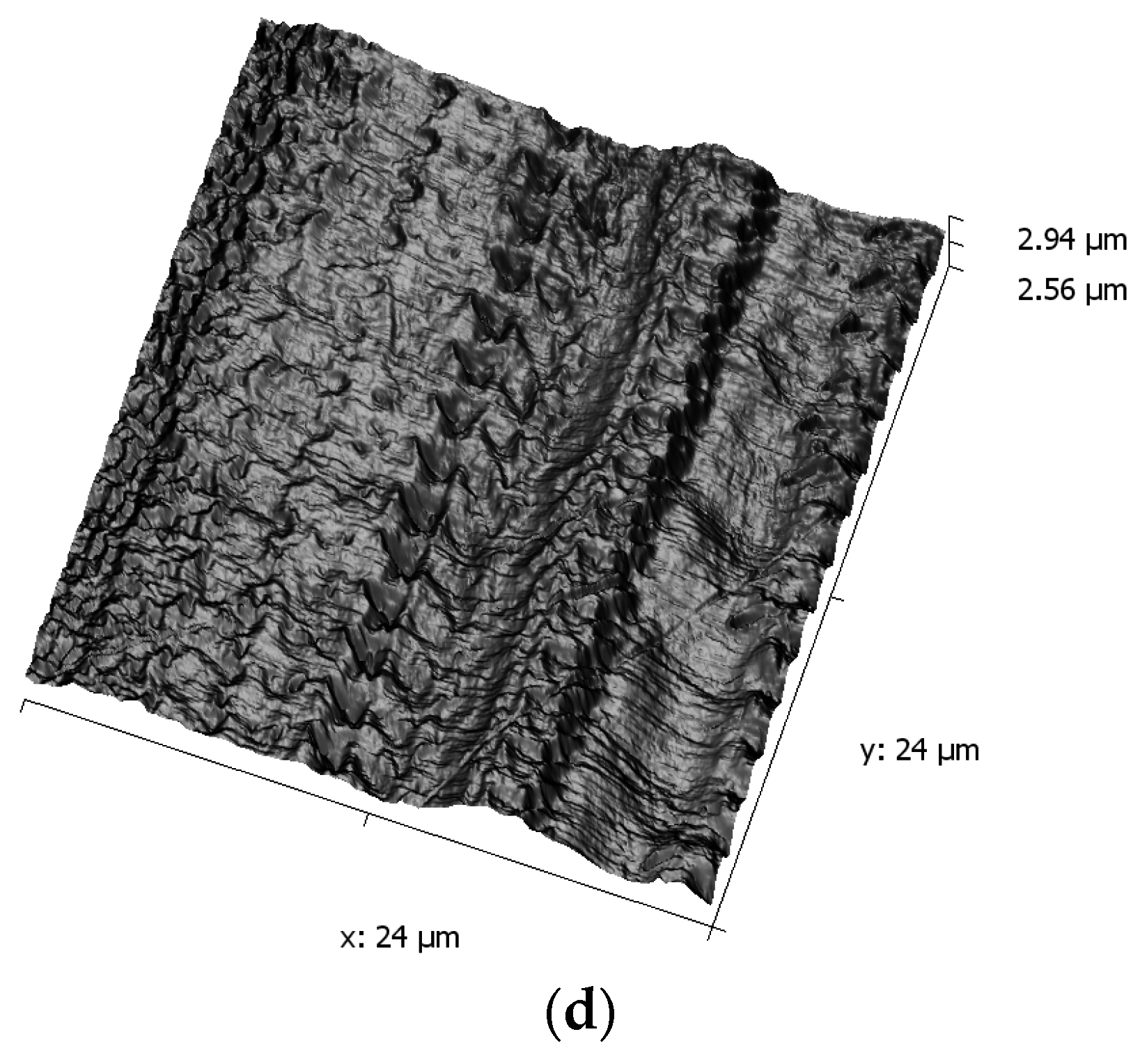

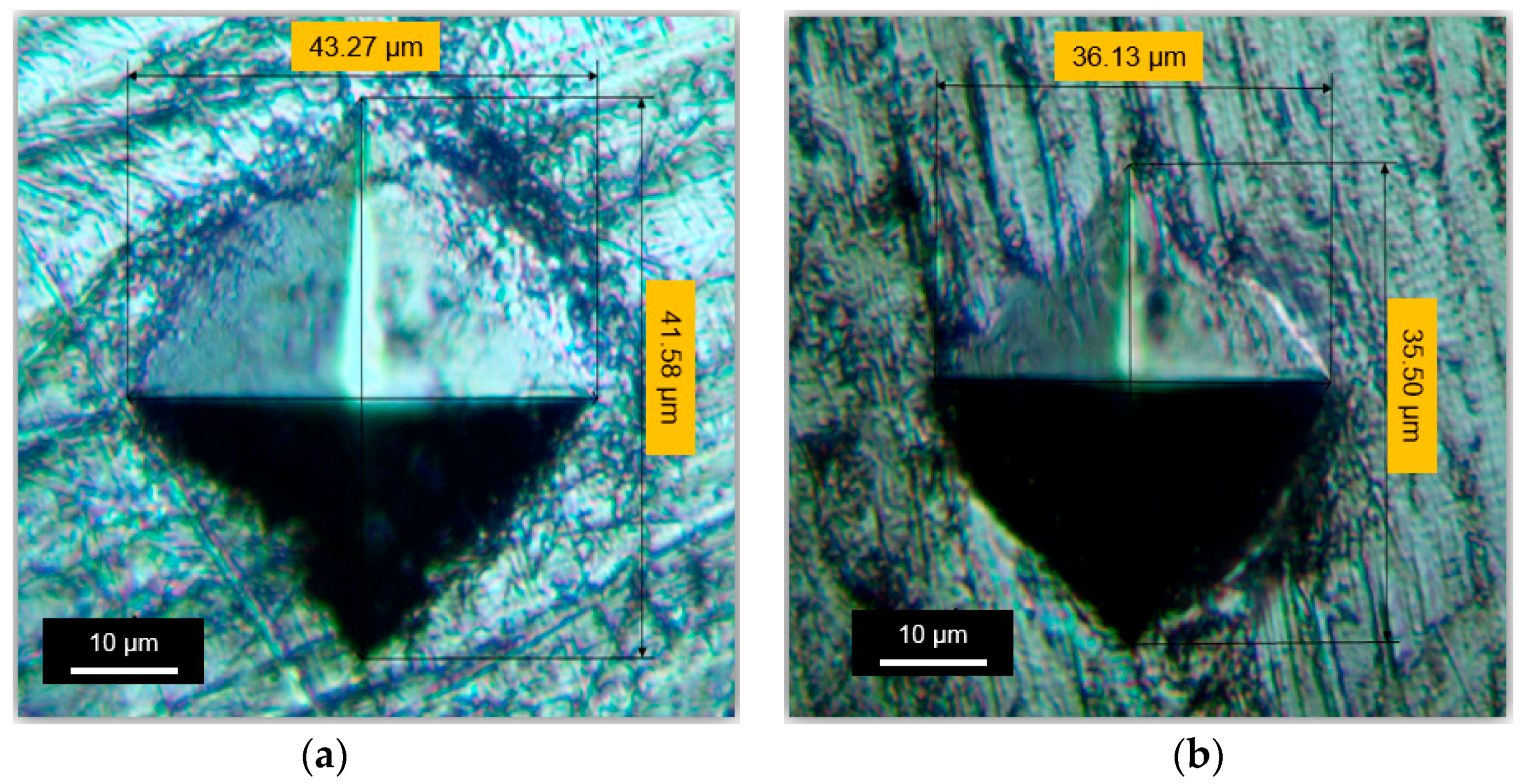

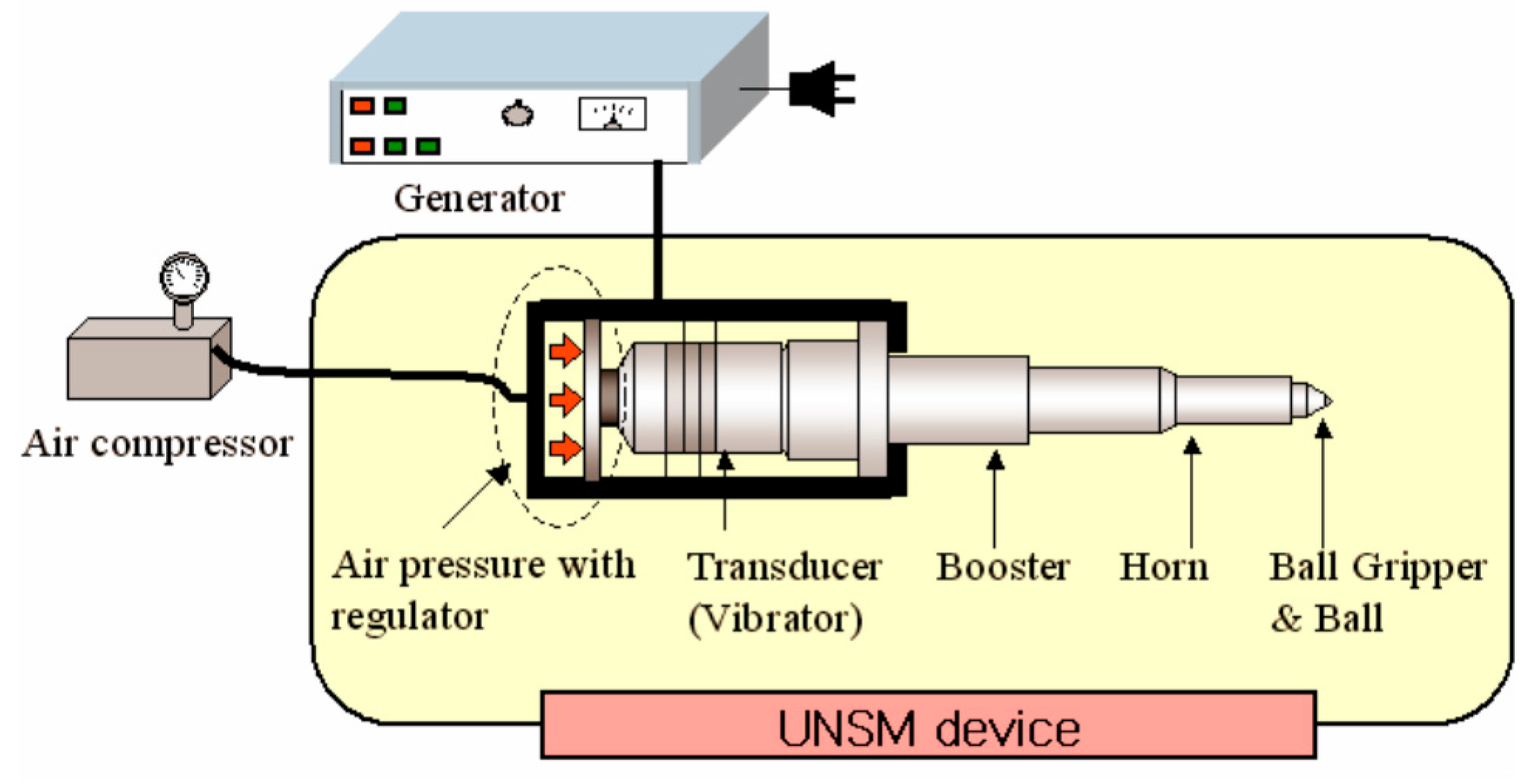

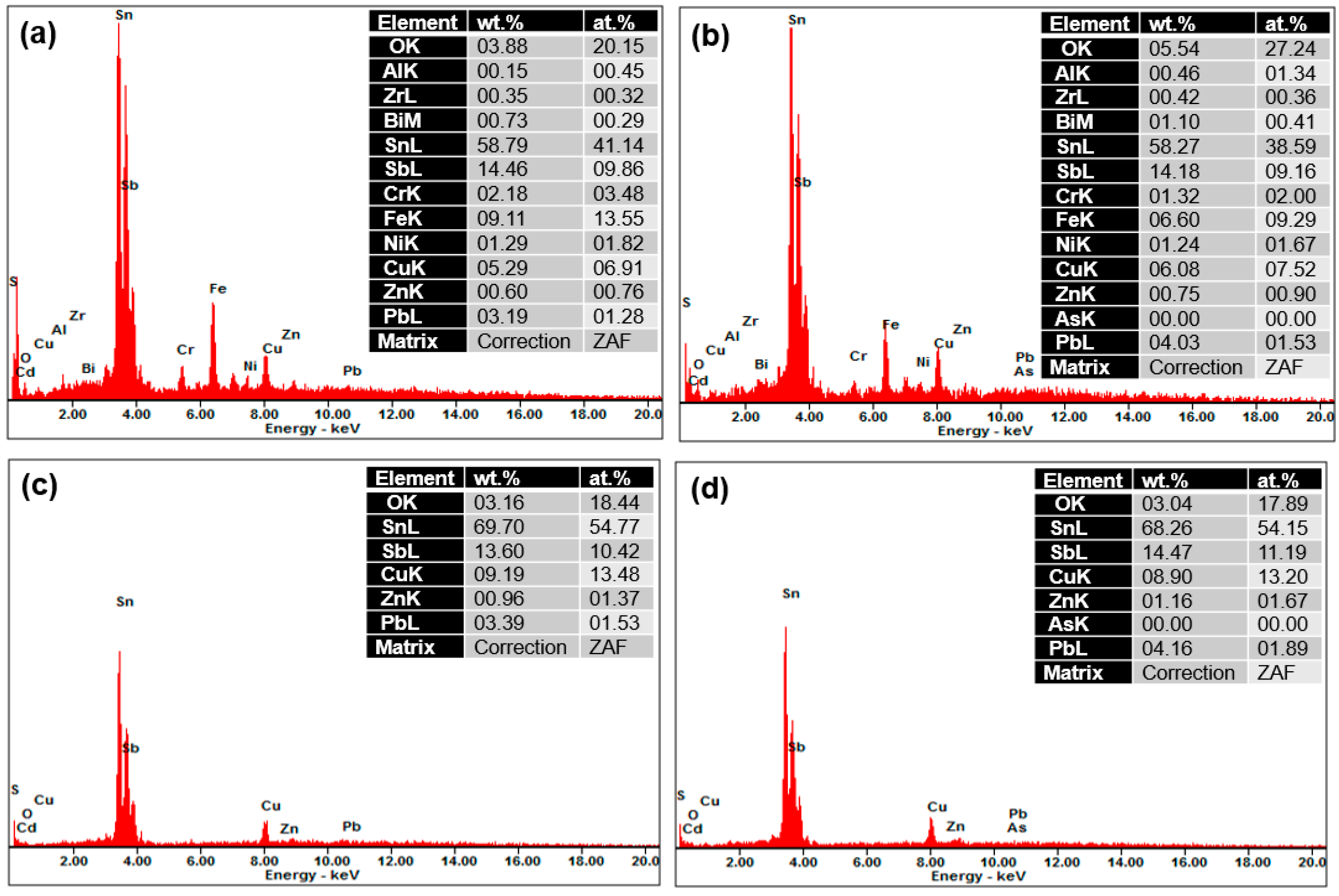

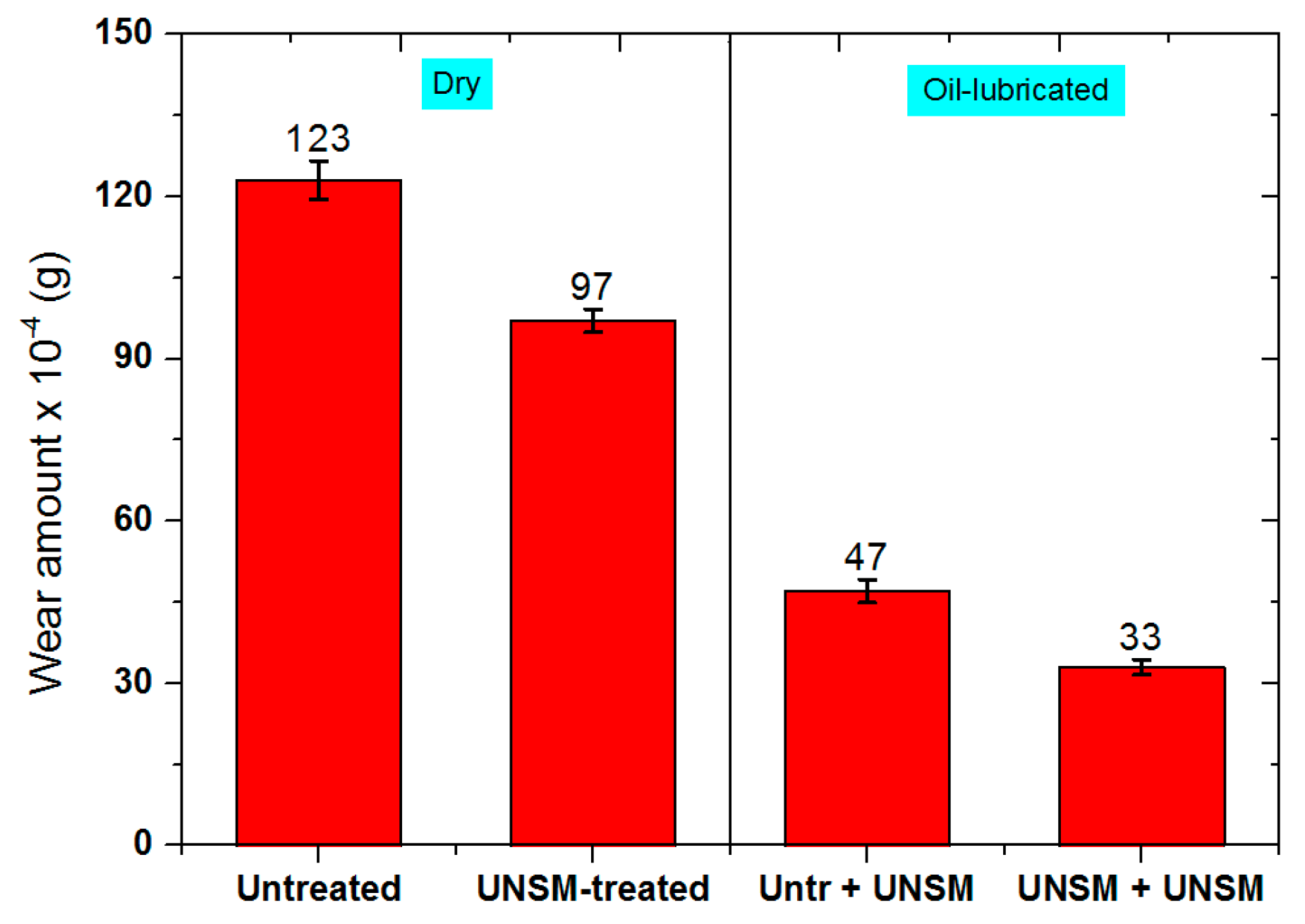

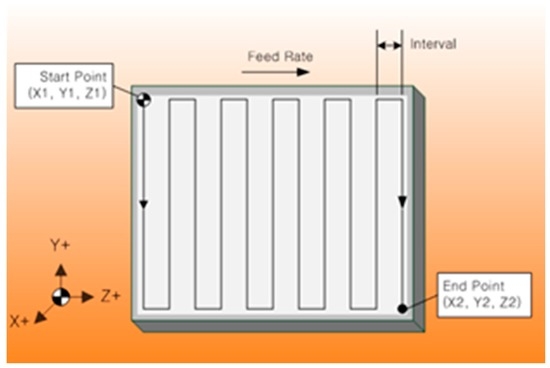

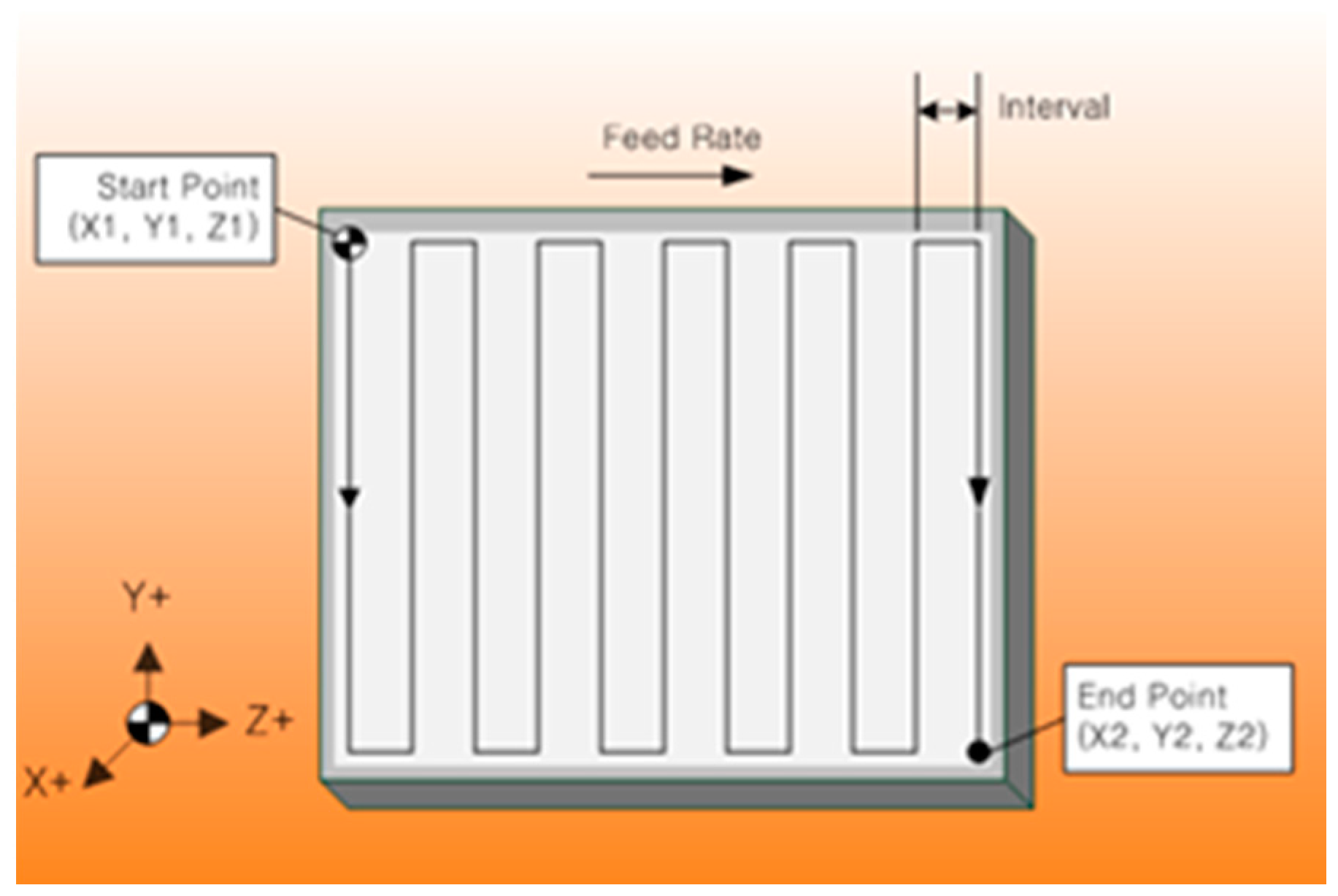

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Amanov, A.; Ahn, B.; Lee, M.G.; Jeon, Y.; Pyun, Y.-S. Friction and Wear Reduction of Eccentric Journal Bearing Made of Sn-Based Babbitt for Ore Cone Crusher. Materials 2016, 9, 950.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
