Materials 2015, 8(11), 7988-7996; https://doi.org/10.3390/ma8115437

Article
TiO2 Nanosols Applied Directly on Textiles Using Different Purification Treatments
Institute of Science and Technology for Ceramics—Italian National Research Council, Via Granarolo 64, Faenza (RA) I-48018, Italy
*
Author to whom correspondence should be addressed.
Academic Editor: Fernão Magalhães
Received: 16 September 2015 / Accepted: 16 November 2015 / Published: 24 November 2015

Abstract

:
Self-cleaning applications using TiO2 coatings on various supporting media have been attracting increasing interest in recent years. This work discusses the issue of self-cleaning textile production on an industrial scale. A method for producing self-cleaning textiles starting from a commercial colloidal nanosuspension (nanosol) of TiO2 is described. Three different treatments were developed for purifying and neutralizing the commercial TiO2 nanosol: washing by ultrafiltration; purifying with an anion exchange resin; and neutralizing in an aqueous solution of ammonium bicarbonate. The different purified TiO2 nanosols were characterized in terms of particle size distribution (using dynamic light scattering), electrical conductivity, and ζ potential (using electrophoretic light scattering). The TiO2-coated textiles’ functional properties were judged on their photodegradation of rhodamine B (RhB), used as a stain model. The photocatalytic performance of the differently treated TiO2-coated textiles was compared, revealing the advantages of purification with an anion exchange resin. The study demonstrated the feasibility of applying commercial TiO2 nanosol directly on textile surfaces, overcoming problems of existing methods that limit the industrial scalability of the process.
Keywords:
nano-TiO2; purification process; anion exchange resin; photocatalytic performance

1. Introduction

Textile finishing involving the application of inorganic colloidal nanosuspensions (nanosols) can give rise to new fabrics in which the properties of inorganic nanoparticles are transferred to the textiles’ surface [1]. Inorganic nanostructured coatings have a good affinity for fabrics and extend the durability of their function by comparison with conventional methods used to impart various properties to textiles. Their tiny particle size (nanoparticles) also makes them transparent to visible light so their presence does not alter the fabric’s color, “hand” and “breathability”. Textile finishes obtained by applying nanosols can be used to transfer several functional properties to a fabric. For example, Shi, et al. [2] prepared a water-repellent (hydrophobic) coating for cotton textiles from fluorinated diblock copolymers. Xu, et al. [3] used reactive magnetron sputtering to deposit nanoscale TiO2 films on the surface of polyester (PET) nonwovens to obtain antistatic materials. Chattopadhyay and Patel [4] reported manufacturing cotton textiles coated with nano-zinc for its antimicrobial properties. Bozzi, et al. [5] demonstrated that red wine and coffee stains were photo-discolored and mineralized on textiles coated with nano-TiO2 for its self-cleaning properties. In fact, nanostructured TiO2 anatase-based coatings have excellent photocatalytic properties, and are widely used in textile stain removal processes under UV irradiation [6,7]. A straightforward and economical way to make textiles with photocatalytic properties deriving from the application of nanosols (a process called “ceramization”, involving a ceramic nanosol such as TiO2) is the dip-pad-dry-cure method [8,9,10,11]. In view of a technological transfer to an industrial-scale production of self-cleaning textiles, the method used to apply a commercial TiO2 nanosol to textiles needs to be simple. Such a method is described in the present work: it focuses on purifying and neutralizing the commercial TiO2 nanosol in order to expand its applicability and improve the photocatalytic performance of the end product. Three different treatments were developed: washing by ultrafiltration, purifying with an anion exchange resin; and neutralizing in an aqueous solution of ammonium bicarbonate. A fundamental aspect to consider is the possibility of changes to physicochemical properties such as pH, surface charge and conductivity as a result of these treatments. This could lead to agglomeration, aggregation or coagulation problems in nanosuspensions, so it is essential to avoid any colloidal destabilization [12,13]. The traditional ultrafiltration method [14,15], already used in our previous works [16,17], was compared here with more innovative approaches involving purification with an anion exchange resin and neutralization after depositing the nano-TiO2 coating. Purified and neutralized samples of TiO2 nanosol were applied directly on the textile using the dip-pad-dry-cure method. The photo-discoloration of rhodamine B (RhB), used as a stain model, was assessed on untreated and treated textiles and the photocatalytic performance of the differently-treated TiO2 coatings on the textile were compared.

2. Experimental

2.1. Materials

TiO2 nanosol (NAMA41, 6 wt %), called TAC, was purchased from Colorobbia (Sovigliana, Vinci (FI), Italy). The commercial nanosol was diluted with deionized water to 3 wt %. A soft furnishing fabric was used in this study with a specific weight of 360 g/m2 and a composition of 62% cotton and 38% polyester. The ammonium bicarbonate (purity ≥99.0%), rhodamine B (dye content ∼95%) target dye, and Dowex® 66 anion exchange resin were purchased from Sigma Aldrich (Milano, Italy).

2.2. Methods

The commercial TiO2 nanosol (TAC) could not be used as purchased because of its very low pH and very high conductivity (Table 1). The purification treatments were absolutely necessary for two main reasons: (1) the textile substrate is damaged if the acidity falls below pH 3.5 due to acid-catalyzed oxidation phenomena occurring at high curing temperatures; and (2) any residual byproducts of synthesis in the commercial TiO2 nanosol could significantly reduce its photocatalytic activity.
The three different treatments applied to the TAC nanosol were:
  • washing by ultrafiltration (TACF);
  • purification with an anion exchange resin (TACR);
  • neutralization of the TAC-coated textile (TACBIC).
They are described in detail below.
Table 1. Physicochemical characteristics of TiO2 nanosol samples.
Table 1. Physicochemical characteristics of TiO2 nanosol samples.
SampleNominal pHpH *D50DLS (nm)Electrical Conductivity (mS/cm)pHi.e.p.
TAC1.52.9361.187.09
TACF4.03.3420.256.92
TACR4.54.2940.056.91
TACBIC5.0 **
* pH measurement of nanosol (0.1 wt % TiO2 concentration); ** pH measurement onto textile surface.

2.2.1. Washing by Ultrafiltration (TACF)

Ultrafiltration was carried out using a solvent-resistant stirred cell (Merck Millipore, Vimodrone (MI), Italy) and a polymer membrane with a pore size of 100 kDalton that enabled the TiO2 nanoparticles to be retained, thereby increasing the pH while the byproducts of synthesis were removed. The vessel was refilled with water several times until the pH was 4.0. The ultrafiltered sample (TACF) was so obtained.

2.2.2. Purification with an Anion Exchange Resin (TACR)

This process involved adding a weak anion exchange resin to the TiO2 nanosol. The resin was able to sequester Cl ions and release OH ions with a consequent increase in pH. Once the required pH value had been reached, the resin was removed by simple separation. The pH obtained in the purified sample (TACR) was 4.5.

2.2.3. Neutralization of the TAC-Coated Textile (TACBIC)

This treatment was performed directly on the TAC-coated textile before curing (TACBIC). The process consisted in applying the commercial TiO2 nanosol (TAC) on the textile using the dip-pad-dry-cure method. Then, an aqueous solution (0.5 M) of ammonium bicarbonate (NH4HCO3) was deposited on the TAC-coated textile using a manual spray-coating technique to neutralize the acidity of the commercial TiO2 nanosol.

2.3. Dip-Pad-Dry-Cure Method

Fabric samples were washed in an ultrasound bath for 30 min (15 min with soap and water, and 15 min with water alone). The fabric samples thus prepared were dipped in the titania nanosol (3 wt %) and left to soak for 3 min, then passed through a two-roller laboratory padder, oven dried at 100 °C, cured for 10 min at 130 °C, and finally washed in water in an ultrasound bath for 15 min to remove any nanoparticles not physicochemically adsorbed onto the surface. This dip-pad-dry-cure method is illustrated in Figure 1.

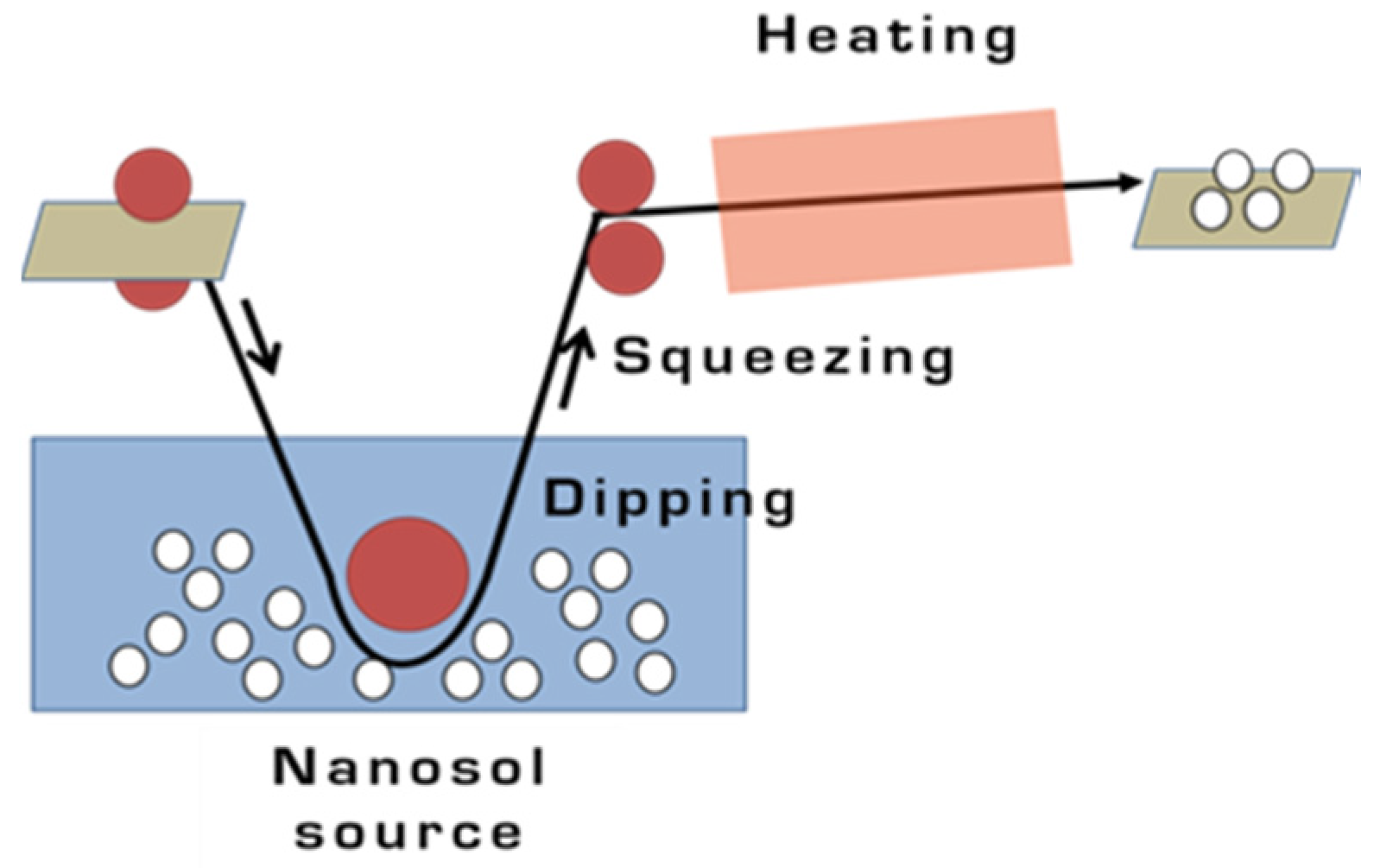

Figure 1. Schematic representation of the dip-pad-dry-cure method.
Figure 1. Schematic representation of the dip-pad-dry-cure method.
Materials 08 05437 g001

2.4. Characterization of TiO2 Nanosols

The phase composition of the commercial TiO2 was ascertained by X-ray diffraction (XRD). The diffraction patterns were obtained directly on the TiO2-based nanosols (TAC, TACF and TACR) using a Bragg-Brentano diffractometer (Bruker D8 Advance, Karlsruhe, Germany) operating in a θ/2θ configuration, with an X-Celeretor detector LynkEye (20°–70°, 2θ range, 0.02 step size, 0.5 s per step). The particle size distribution of the nanosols (0.01 wt %) was measured by dynamic light scattering (DLS) through a Zetasizer Nanoseries (Malvern Instruments, Malvern, UK). This technique provides the hydrodynamic diameter of suspended particles, expressed as D50, which is the value of the particle diameter at 50% of the cumulative distribution. The electrical conductivity of the three nanosols (0.1 wt %) was measured with a conductometer (AMEL 134, AMEL, Milano, Italy). Their ζ potential was examined using electrophoretic light scattering (ELS) (Zetasizer Nanoseries—Malvern Instruments, Malvern, UK). The instrument used has an automatic titrating system for measuring the ζ potential of nanosols as a function of their pH (experimental uncertainty: 1 mV for ζ potential and 0.2 for pH). The measurements were performed on sols at low concentrations (0.1 wt %) to prevent precipitation due to pH changes. The titration was done by adding 0.01 M KOH solution. Three measurements were obtained for each sample and the average ζ potential values were considered.

2.5. Textile Characterization

The presence of the coating and the amount of nano-titania absorbed by the fabrics was established from the weight difference using a burn-out technique: 0.5 g of sample was burnt at 800 °C and the residual titania was expressed as a w/w percentage of the TiO2-coated fabric.

2.6. Photocatalytic Measurements

The pristine fabric sample and titania-coated samples were stained with 0.2 mL droplets of an aqueous solution of rhodamine B (0.07 g/L), chosen as a stain model.
After staining, the samples were irradiated with UV at an intensity of 9 W/cm2 (Osram ULTRA-Vitalux lamp, Munich, Germany). The lamp was switched on 30 min before starting the photocatalytic test to stabilize the power of its emission spectrum. The distance between the sample and the lamp was kept constant at 25 cm. To assess the degree of discoloration, the samples underwent colorimetric measurements before and after UV exposure. All colorimetric measurements were performed with a DRS (Miniscan MSXP4000, Hunter Lab, Reston, VA, USA) in the 400–700 nm range (illuminant D65, observer 10°). Color was expressed using CIELab parameters: brightness (L*: 100 = white 0 = black) and chroma (a*: red +, green −; b*: yellow +, blue −). Photocatalytic performance was judged by assessing the amount of discoloration, expressed in terms of efficiency (%). In particular, the color difference (∆E*) between the samples before and after exposure was calculated as follows:
ΔE* = [(ΔL*)2 + (Δa*)2 + (Δb*)2]1/2
and referred to the pristine sample by subtracting the background color of the fabric. Our color difference (ΔE*%) assessment method is explained in detail in our previous studies [17,18], and correlated with photodegradation efficiency.

3. Results and Discussion

3.1. Characterization of TiO2 Nanosols

Figure 2 shows the XRD diffractograms of the different samples. The results confirmed that pH changes induced by the purification treatments did not affect the crystalline phases. The main phase detected was anatase (JCPDS card n. 21-1272) with a small amount of brookite (JCPDS card n. 29-1360). The broad peaks typical of nano-sized crystallites were detected for all samples.

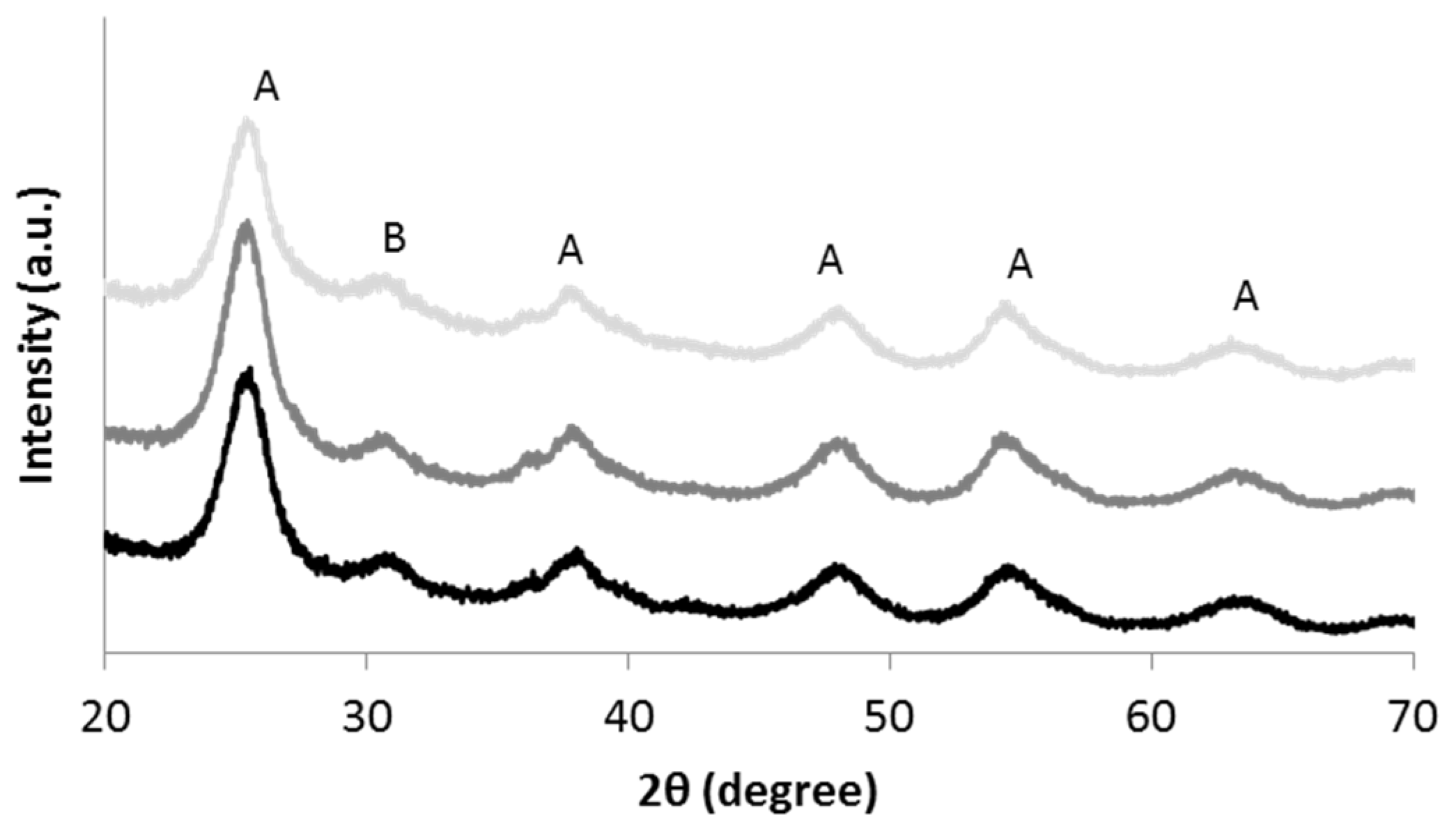

Figure 2. XRD diffractograms of TAC (light gray), TACF (medium gray) and TACR (black); (A = anatase; B = brookite).
Figure 2. XRD diffractograms of TAC (light gray), TACF (medium gray) and TACR (black); (A = anatase; B = brookite).
Materials 08 05437 g002
The three different treatments on the commercial TiO2 nanosol (TAC) enabled an increase in pH and particle size, and a decrease in conductivity (Table 1).
The DLS data showed an increase in particle diameter in the TACF and TACR samples, caused by a greater degree of agglomeration, and an associated increase in pH.
Figure 3 shows the ζ potential vs. the pH for the three different purified TiO2 nanosols, from which we can identify the pHi.e.p. at the crossover point from positive to negative ζ potential values. The three curves were quite similar, but a slight shift in pHi.e.p. towards an acid pH from the TAC sample to the TACR sample was apparent, i.e., the baseline pH increased. These data are in agreement with previous reports [16] and indicate a higher surface acidity due to a higher pH and increased agglomeration, as we can see from the hydrodynamic diameters given in Table 1. On the grounds of our previous works [16,18], an increase in surface acidity was expected to coincide with an increase in surface hydrophilicity. The pH values were consistent with the conductivity data (Table 1). The high conductivity value for the TAC sample was associated with the presence of residual byproducts of synthesis. The successful purification of the commercial TiO2 nanosol (TAC) was demonstrated by the higher pH and lower conductivity of the TACF and TACR samples. There was a good correspondence between the shift in pHi.e.p. towards a more acid pH and the drop in conductivity as a function of pH, as shown in Figure 4. In particular, the TACR sample showed a very low conductivity, demonstrating that purification with an anion exchange resin was more efficient in removing byproducts. The increase in pH achieved with the ultrafiltration process never exceeded 4.0, whereas purification with an anion exchange resin has no maximum limit. At pH > 4.5, however, the TiO2 nanosol underwent colloidal destabilization.

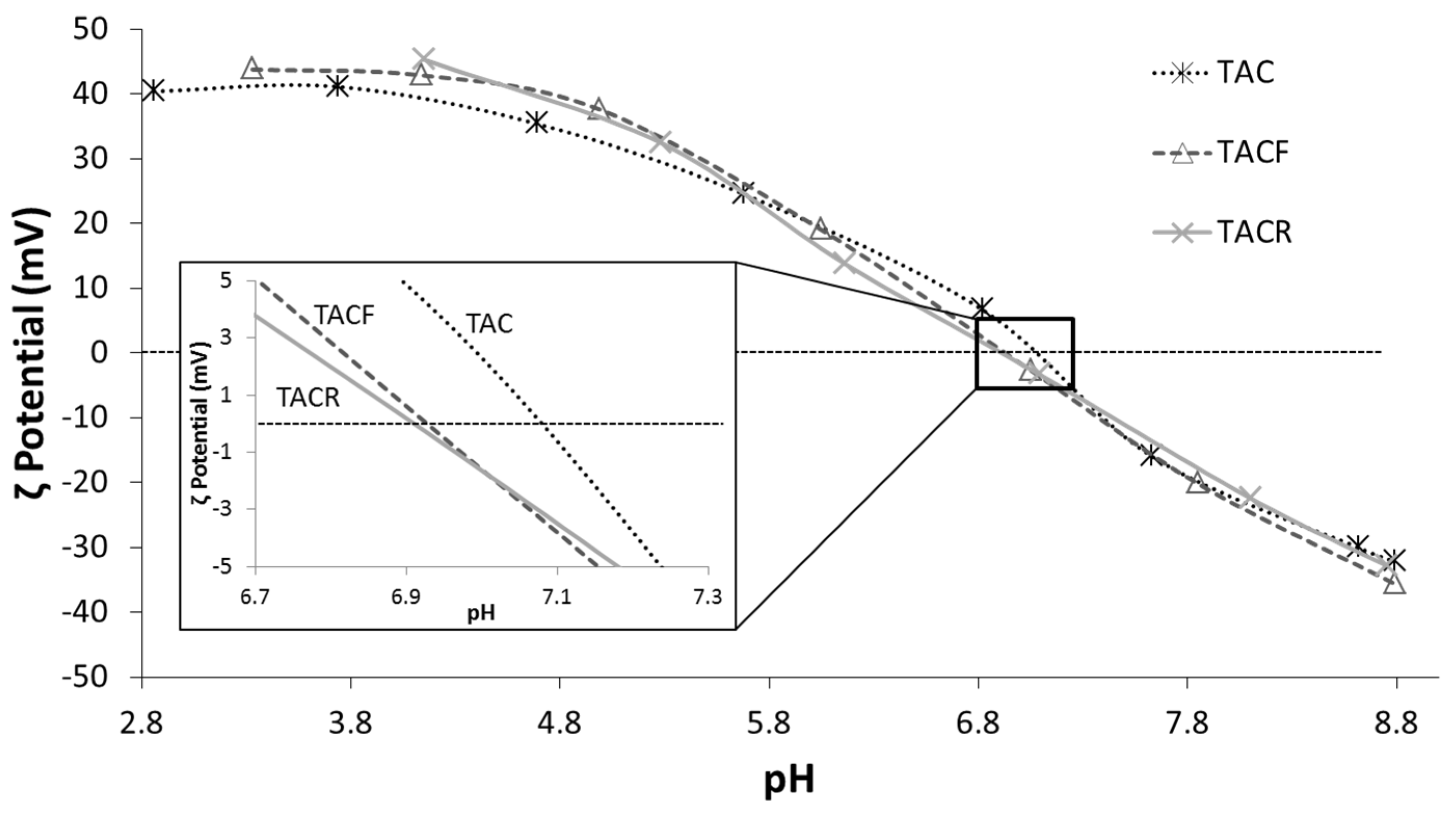

Figure 3. ζ potential vs. pH of TAC, TACF and TACR samples.
Figure 3. ζ potential vs. pH of TAC, TACF and TACR samples.
Materials 08 05437 g003
Figure 4. Influence of pH on pHi.e.p. and electrical conductivity.
Figure 4. Influence of pH on pHi.e.p. and electrical conductivity.
Materials 08 05437 g004
The anion resin exchange efficiently removed byproducts, and Cl anions in particular. The exchange reaction is as follows:
R-NH3OH + Cl → R-NH3Cl + OH
It is easy to regenerate the anion exchange resin by washing it with a highly-concentrated NaOH solution [19,20], so purification processes based on ion resin exchange are economical and easily scalable, as many papers focusing on large-scale ion exchange processes have demonstrated [21,22,23,24,25].

3.2. Characterization of Textiles

A homogeneous coating of nano-TiO2 was obtained, as confirmed by the burn-out test. A white TiO2 powder agglomerate with an appearance perfectly mimicking the texture of the fabric’s fibers was achieved. The amount of TiO2 (about 3 wt %) is consistent with the tested capacity of cotton-polyester fabrics to adsorb an amount of sol equating to their weight. In particular, the residual TiO2 after burn-out was 3.0, 3.4, 3.5 and 3.0 wt % in the TAC, TACF, TACR and TACBIC, respectively.
SEM analysis (Figure 5) showed the changes in surface morphology induced by the presence of TiO2 nanoparticles confirming the formation of a homogeneous nano-TiO2 coating on the fabric’s surface. Unlike the smooth texture of the uncoated fiber (Figure 4a), the fibers in the TACF-coated fabric (Figure 4b) showed a certain surface roughness due to the thin layer of TiO2 adhering to the textile substrate.
Figure 5. SEM micrographs of: (a) an uncoated fabric fiber and (b) a fabric fiber coated with the TACF nanosol.
Figure 5. SEM micrographs of: (a) an uncoated fabric fiber and (b) a fabric fiber coated with the TACF nanosol.
Materials 08 05437 g005

3.3. Photocatalytic Measurements

Photocatalytic activity was assessed in terms of discoloration of a stain caused by an aqueous solution of rhodamine B on the pristine fabric and the samples coated with differently-treated nano-TiO2. The photocatalytic results are expressed in terms of photochemical efficiency values, calculated taking the uncoated fabric’s photocatalytic efficiency for reference (Figure 6). The various treatments induced an improvement in the fabric’s photocatalytic activity with the following trend: TACR >TACF >TACBIC > TAC. The results of the photocatalytic measurements are summarized in Table 2.
Table 2. Photocatalytic results obtained on TiO2-coated fabric samples.
Table 2. Photocatalytic results obtained on TiO2-coated fabric samples.
SamplePhotocatalytic Efficiency (%)Increase in Photocatalytic Efficiency *
TAC68.51.54
TACF84.31.90
TACR92.52.08
TACBIC73.21.65
* vis-à-vis the uncoated fabric sample (photocatalytic efficiency: 44.4%).
As expected, the presence of residual byproducts of synthesis in commercial TiO2 nanosol (TAC) gave rise to a low photocatalytic efficiency. Even after post-neutralization (which increased the pH on the surface of the TiO2-coated fabric), the photocatalytic performance of the TACBIC sample was only slightly better than that of the TAC sample. It was probably the presence of residual byproducts synthesis in the sample that impaired its photocatalytic activity. Better results were obtained with treatments applied directly to the nanosol (the TACF and TACR samples). Despite a strong degree of agglomeration in the TACR sample, the purification treatment with an anion exchange resin produced the best performance. The main contributor to the improvement in photocatalytic performance was therefore the removal of residual byproducts of synthesis, as demonstrated by the treated sample’s low conductivity and high pH, indicative of a high surface acidity and a consequently high hydrophilicity. The photocatalytic results revealed the importance of using a purified nanosol in order to obtain a good end product performance. The neutralization treatment proved less effective in improving photocatalytic performance than the purification treatment (to remove byproducts), as the weak photoreactivity of the TACBIC-coated fabrics demonstrates.

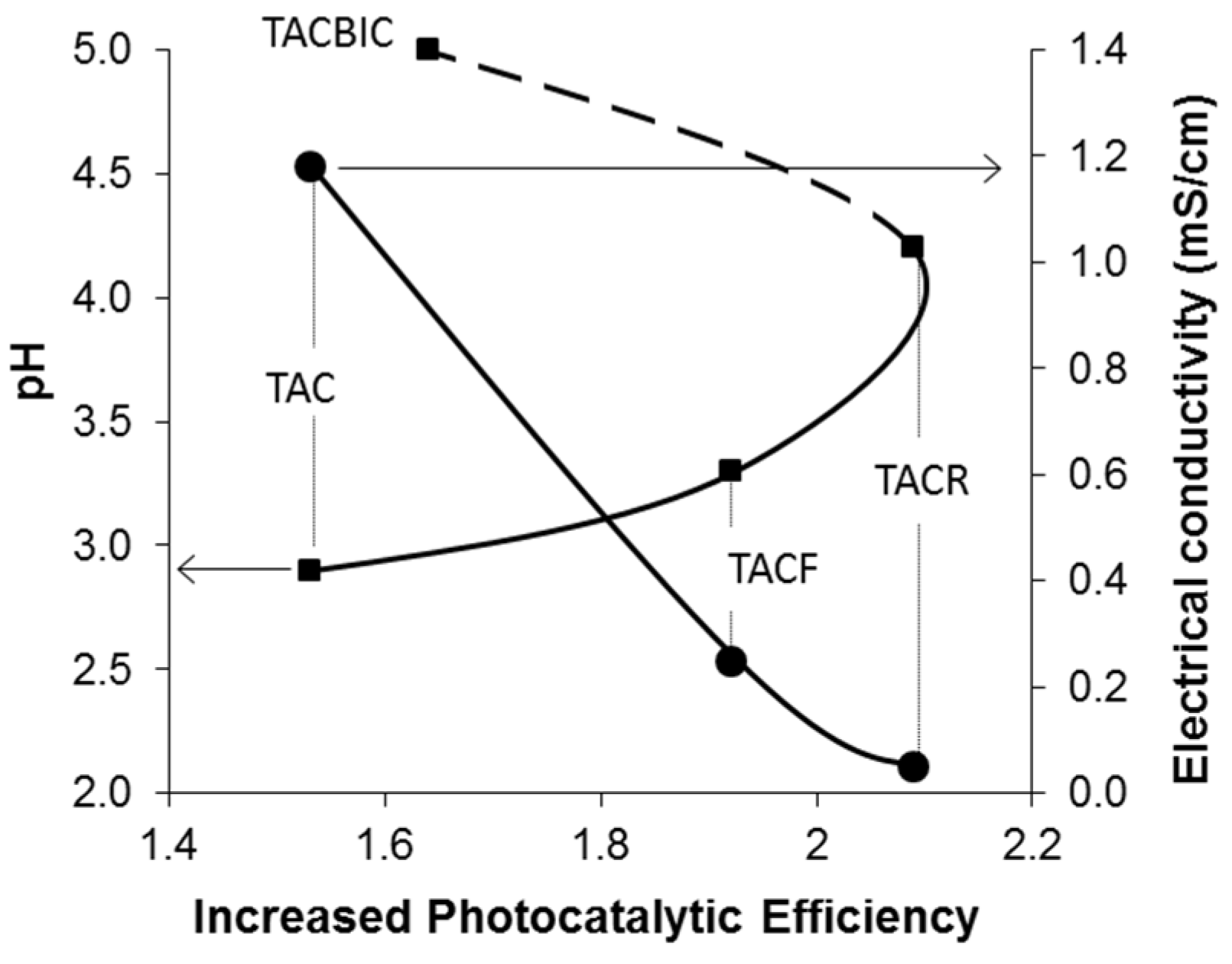

Figure 6. Increase in photocatalytic efficiency as a function of pH (▪) and electrical conductivity (●).
Figure 6. Increase in photocatalytic efficiency as a function of pH (▪) and electrical conductivity (●).
Materials 08 05437 g006

4. Conclusions

The present work describes a method for applying commercial TiO2 nanosol directly on textiles with stabilized characteristics. Three different nanosol purification/neutralization treatments were tested and found fundamental to the success of the self-cleaning textile application.
The physicochemical properties of the differently-treated TiO2 nanosols showed that a low conductivity and a high pH (corresponding to a high surface acidity) enabled fabrics with high hydrophilic properties and a good photocatalytic performance to be obtained.
Based on the evidence emerging from our photocatalytic experiments, purification to remove byproducts was more effective than a neutralization treatment. In fact, a purification process involving the use of an anion exchange resin proved the most effective treatment. The easy scalability of this process, and the opportunity to control the TiO2 nanosols’ physicochemical properties (pH and conductivity) make this method very promising for the industrialization of self-cleaning textile applications.

Acknowledgments

The authors are grateful to Novaresin S.p.A for financial support.

Author Contributions

Anna Luisa Costa, Michele Dondi and Simona Ortelli conceived and designed the experiments; Simona Ortelli performed the experiments and analyzed the data; Simona Ortelli, Anna Luisa Costa and Michele Dondi wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.
