Next Article in Journal
Photostability of 2D Organic-Inorganic Hybrid Perovskites
Previous Article in Journal
UNS S31603 Stainless Steel Tungsten Inert Gas Welds Made with Microparticle and Nanoparticle Oxides
Open AccessArticle

Sintering Behaviour of Waste Olivine and Olivine/Alumina Blends

Department of Chemistry, Physics and Environment, University of Udine (UNIUD), Via del Cotonificio 108, I-33100 Udine, Italy
Author to whom correspondence should be addressed.
Materials 2014, 7(6), 4773-4788;
Received: 23 April 2014 / Revised: 9 June 2014 / Accepted: 10 June 2014 / Published: 20 June 2014

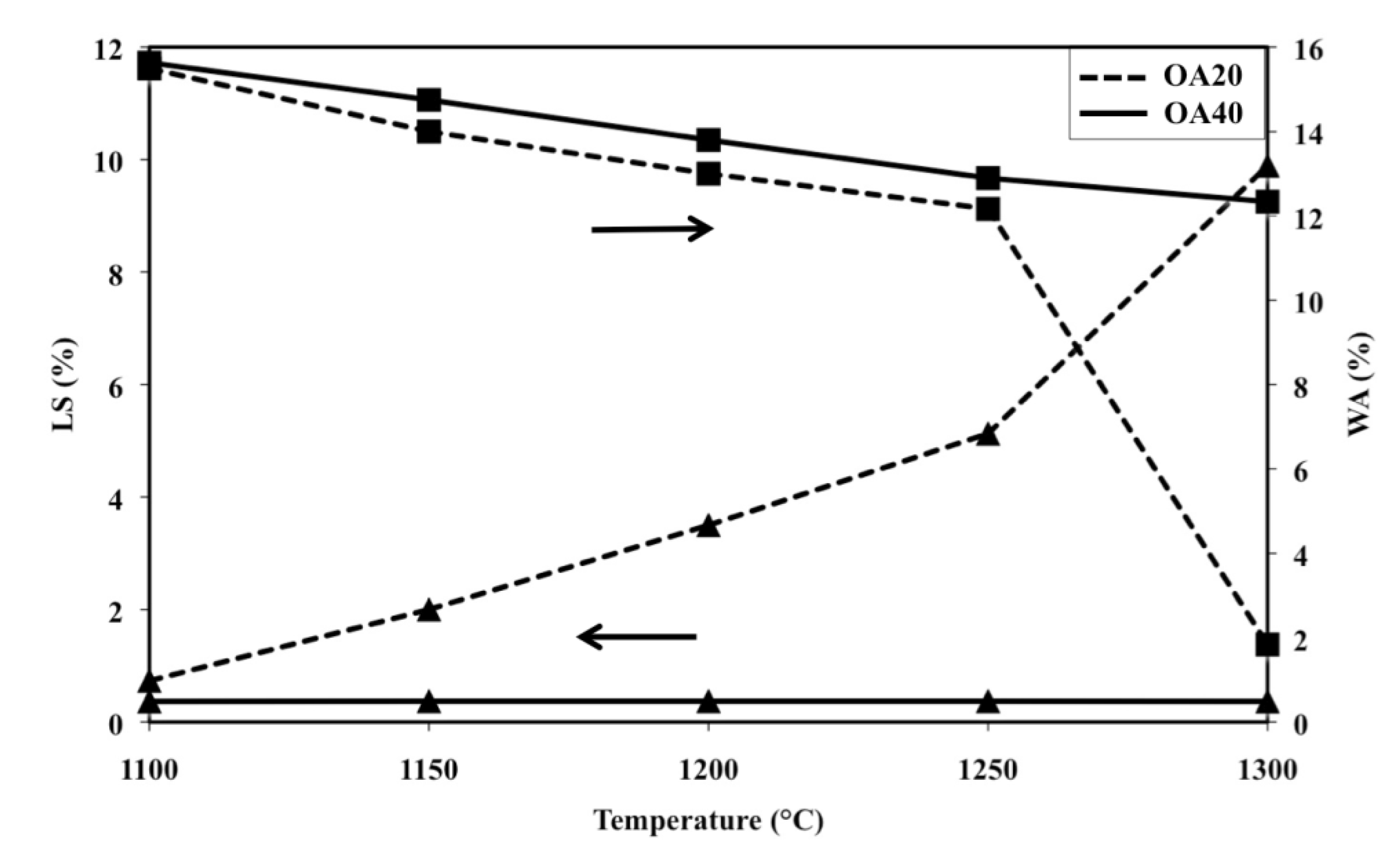

The sintering behaviour of several green compacts made with olivine or olivine/alumina powder blends has been examined. To this goal, powders were attrition milled, uniaxially pressed into specimens and air sintered at temperatures ranging from 1100 to 1300 °C. The resulting samples were characterized by water absorption, shrinkage, phase composition and density. Compositions containing 5%, 10% and 20% Al2O3 have a sintering behaviour similar to that of olivine alone, reaching low residual porosity when fired at 1300 °C. Conversely, the composition containing 40% Al2O3 displays an almost flat shrinkage profile and maintains high residual porosity in the examined temperature range. View Full-Text
Keywords: olivine; alumina; sintering; crystal phases; microstructure olivine; alumina; sintering; crystal phases; microstructure
Show Figures

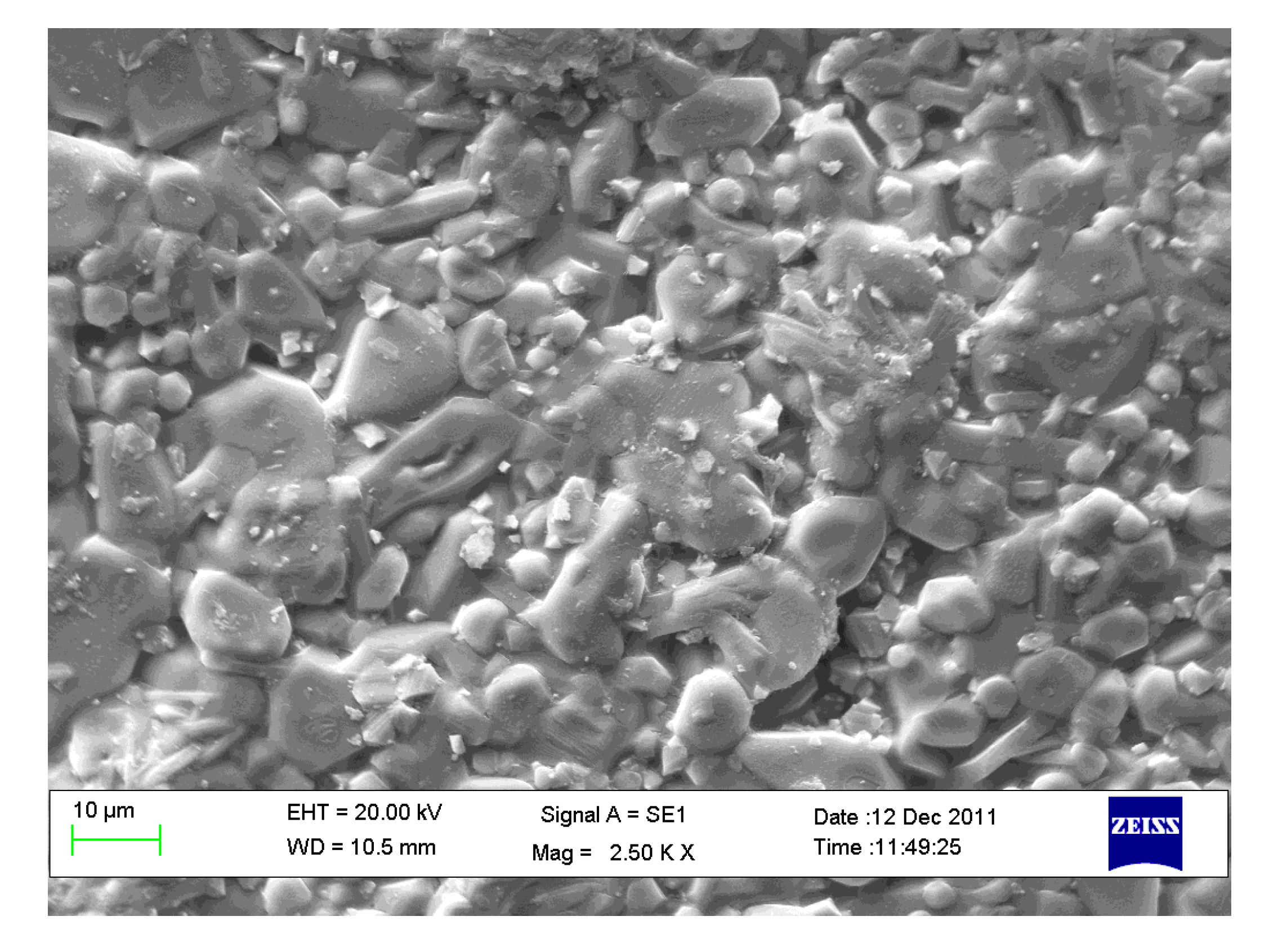

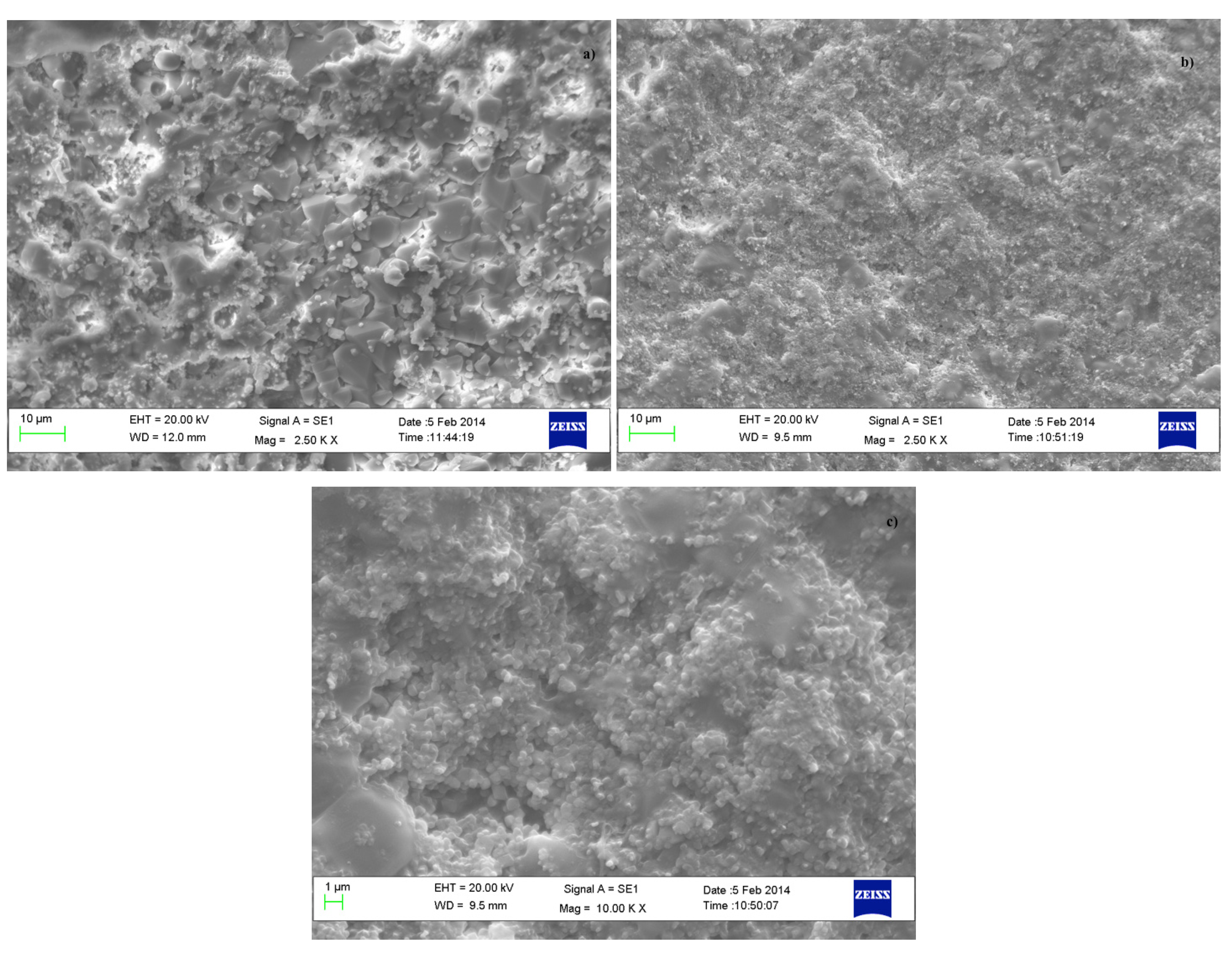

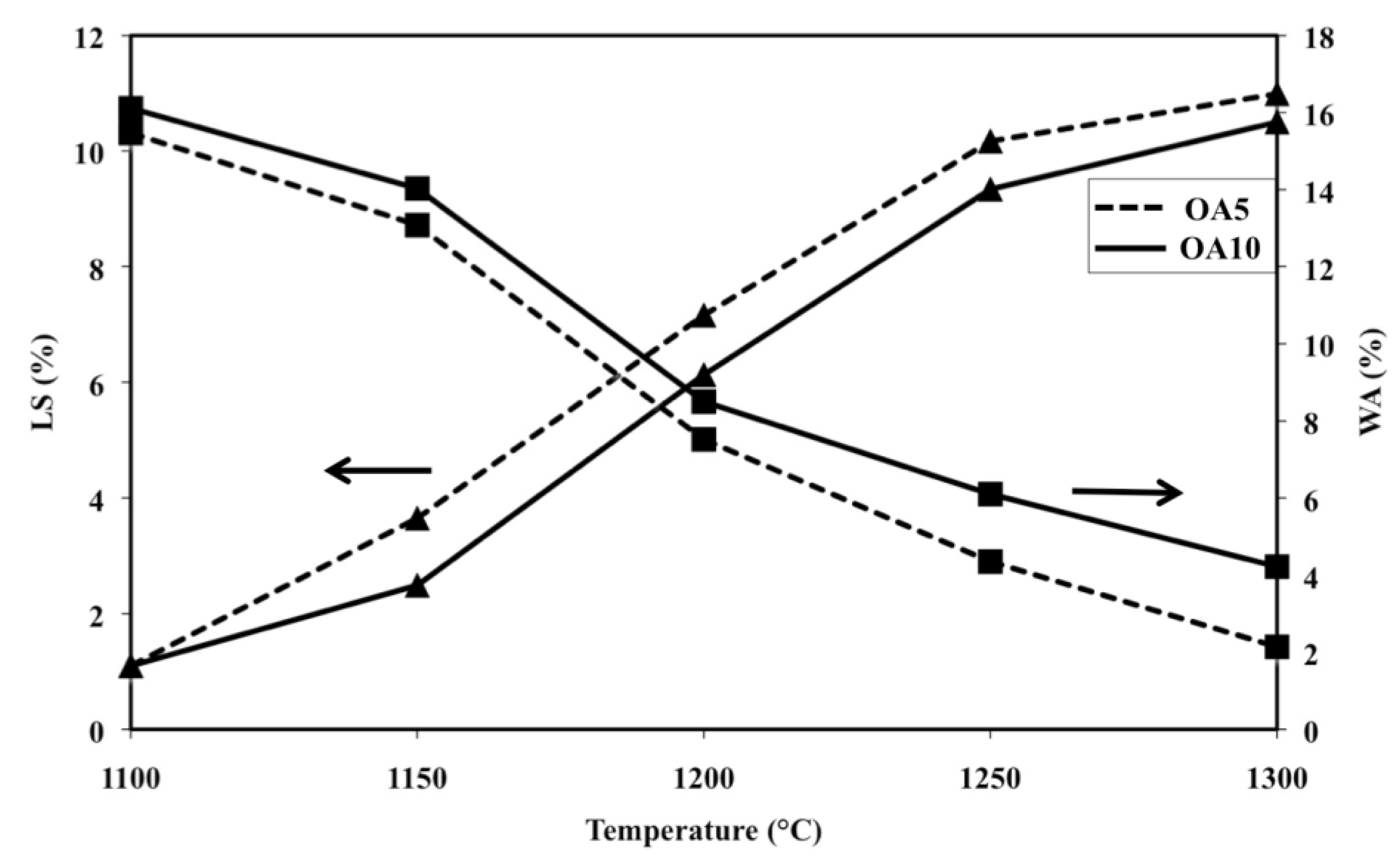

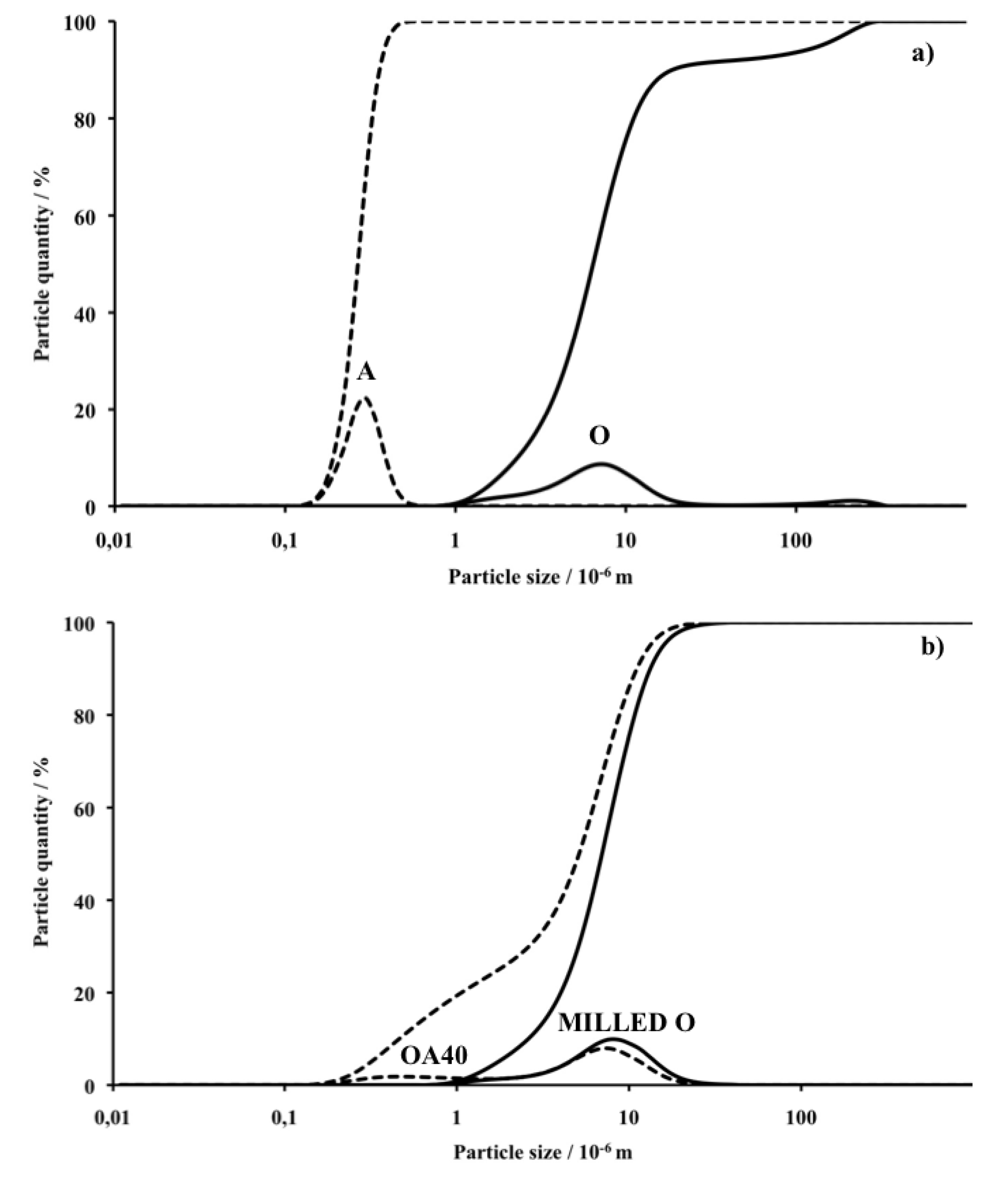

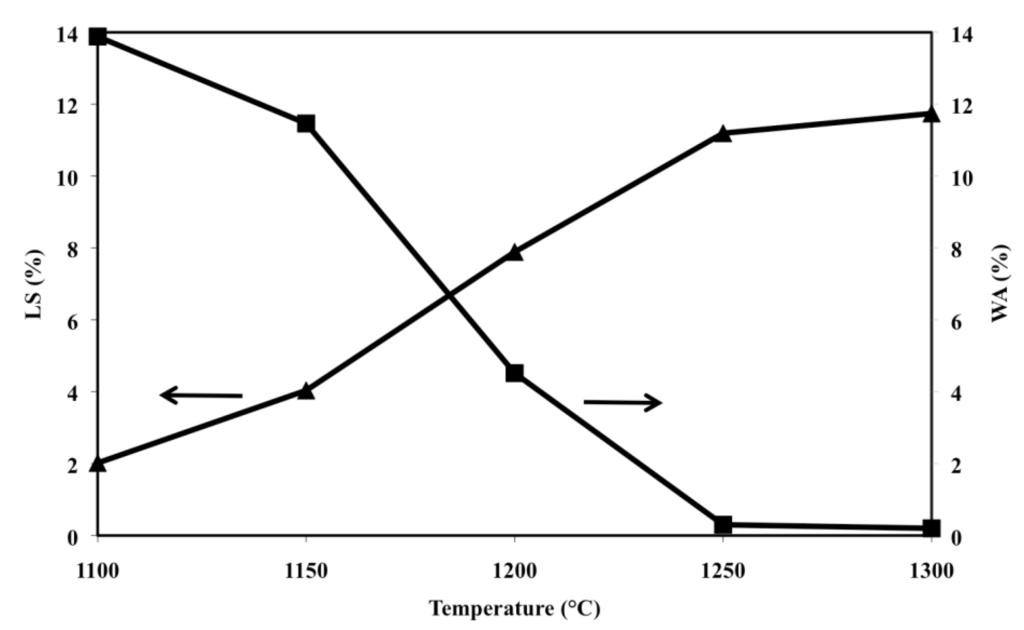

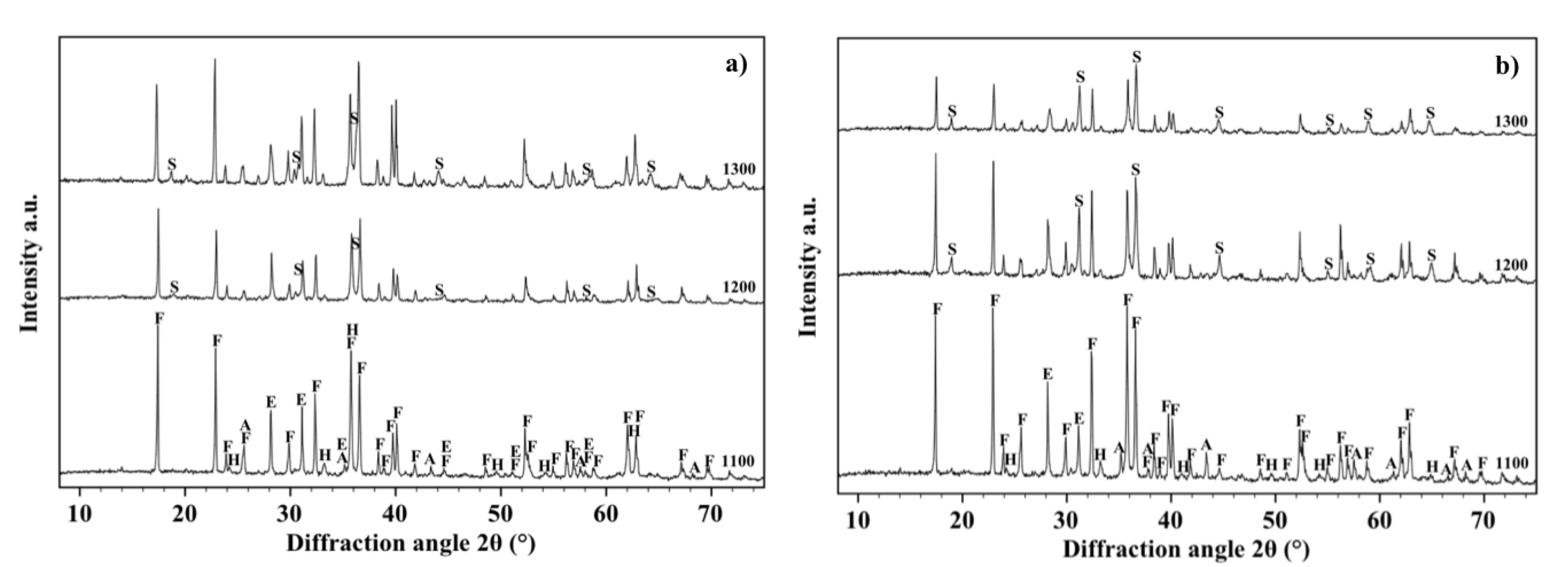

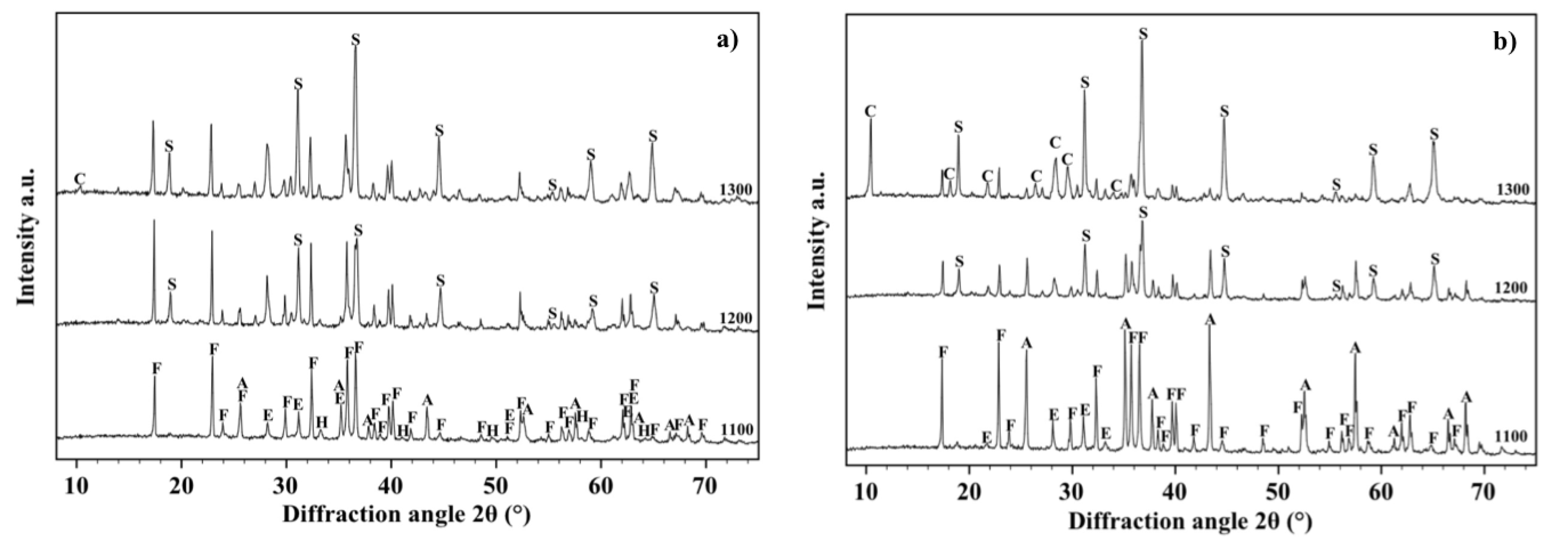

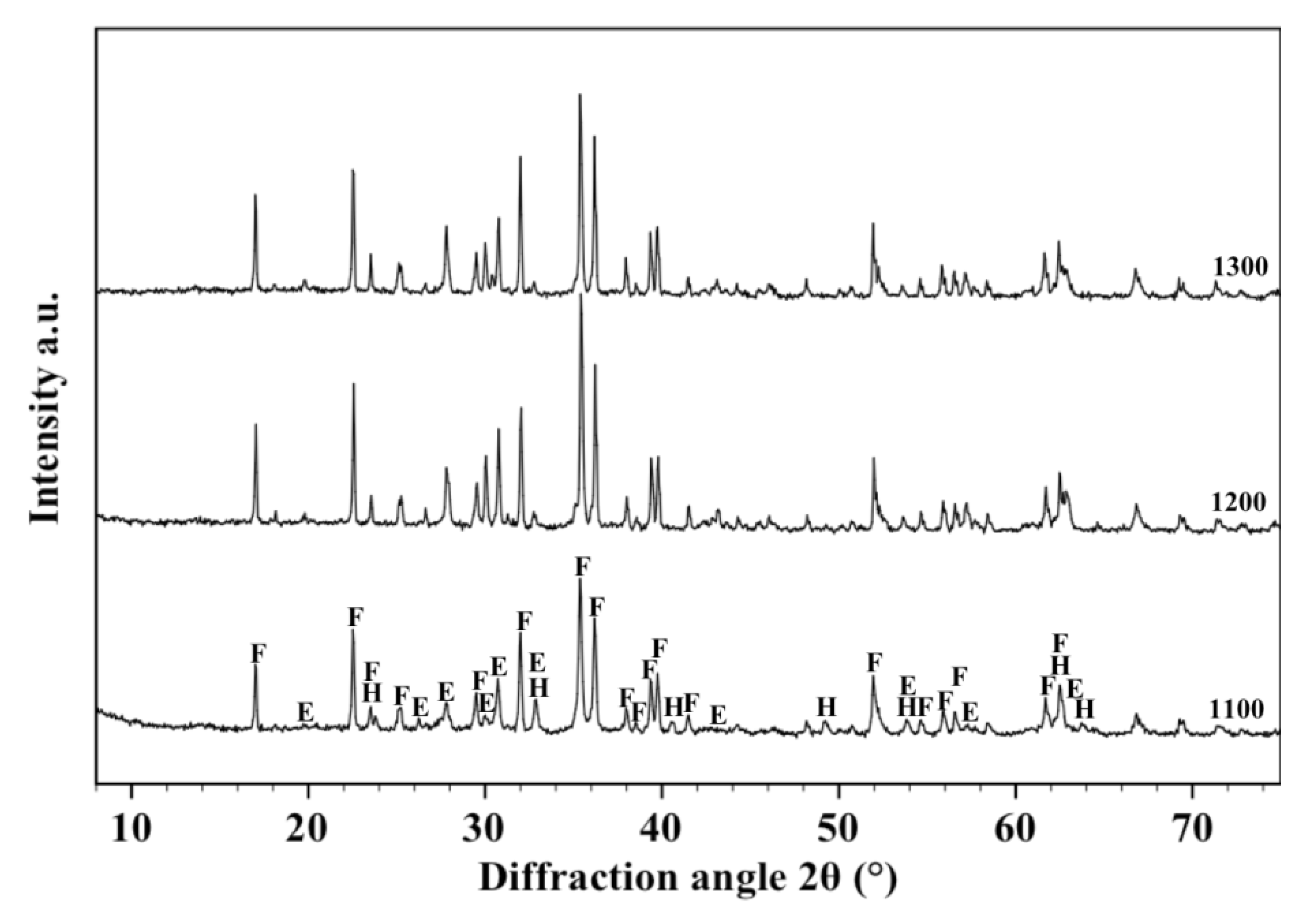

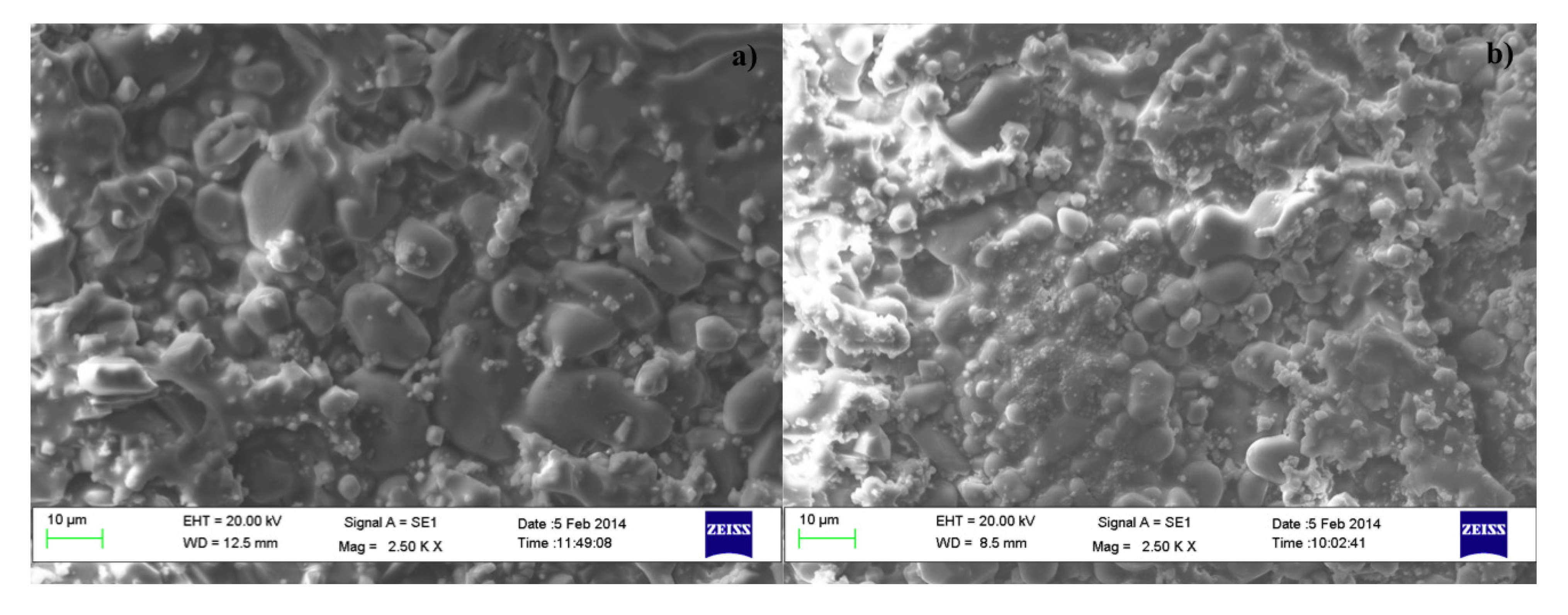

Figure 1

MDPI and ACS Style

Furlani, E.; Aneggi, E.; Maschio, S. Sintering Behaviour of Waste Olivine and Olivine/Alumina Blends. Materials 2014, 7, 4773-4788.

Show more citation formats Show less citations formats

Article Access Map by Country/Region

Only visits after 24 November 2015 are recorded.
Back to TopTop
