Next Article in Journal
Experimental Test of Heat Treatment Effect on Physical Properties of Red Oak (Quercus falcate Michx.) and Southern Pine (Pinus taeda L.)
Next Article in Special Issue
Synthesization, Characterization, and in Vitro Evaluation of Cytotoxicity of Biomaterials Based on Halloysite Nanotubes
Previous Article in Journal
The Upconversion Luminescence of Er3+/Yb3+/Nd3+ Triply-Doped β-NaYF4 Nanocrystals under 808-nm Excitation
Previous Article in Special Issue
Property Relationship in Organosilanes and Nanotubes Filled Polypropylene Hybrid Composites
Open AccessArticle

Electrical Properties of CZO Films Prepared by Ultrasonic Spray Pyrolysis

Department of Electro-Optical Engineering, National Taipei University of Technology, No. 1, Section 3, Chung-Hsiao E. Road, Taipei 106, Taiwan
*
Author to whom correspondence should be addressed.
Materials 2014, 7(11), 7304-7313; https://doi.org/10.3390/ma7117304
Received: 18 August 2014 / Revised: 18 September 2014 / Accepted: 24 October 2014 / Published: 5 November 2014
(This article belongs to the Special Issue Selected Papers from the 1st International e-Conference on Materials)
CuZnO (CZO) films have attracted increasing amounts of attention due to their promising potential applications in semiconductor devices. ZnO shows n-type conductivity, and attempts have been made to dope several elements in ZnO to improve the electrical properties. This study investigated the electrical property transitions of CZO films and determined the copper concentration at which the conductivity of CZO films will change from n-type to p-type. In this study, CZO films were fabricated by ultrasonic spray pyrolysis with copper acetate, zinc acetate, and ammonium acetate precursor solution. The concentrations of Cu ions in the CZO films were controlled by the concentration ratios of copper acetate to zinc acetate in the precursor solutions. In addition, these samples were analyzed by Hall effect measurements, X-ray diffraction, transmittance measurements, and photoluminescence measurements. The results show that the conductivity of the CZO film changes from n-type to p-type when the copper ion concentration in the film is 5%. View Full-Text
Keywords: CZO; XRD; photoluminescence; Raman analysis CZO; XRD; photoluminescence; Raman analysis
Show Figures

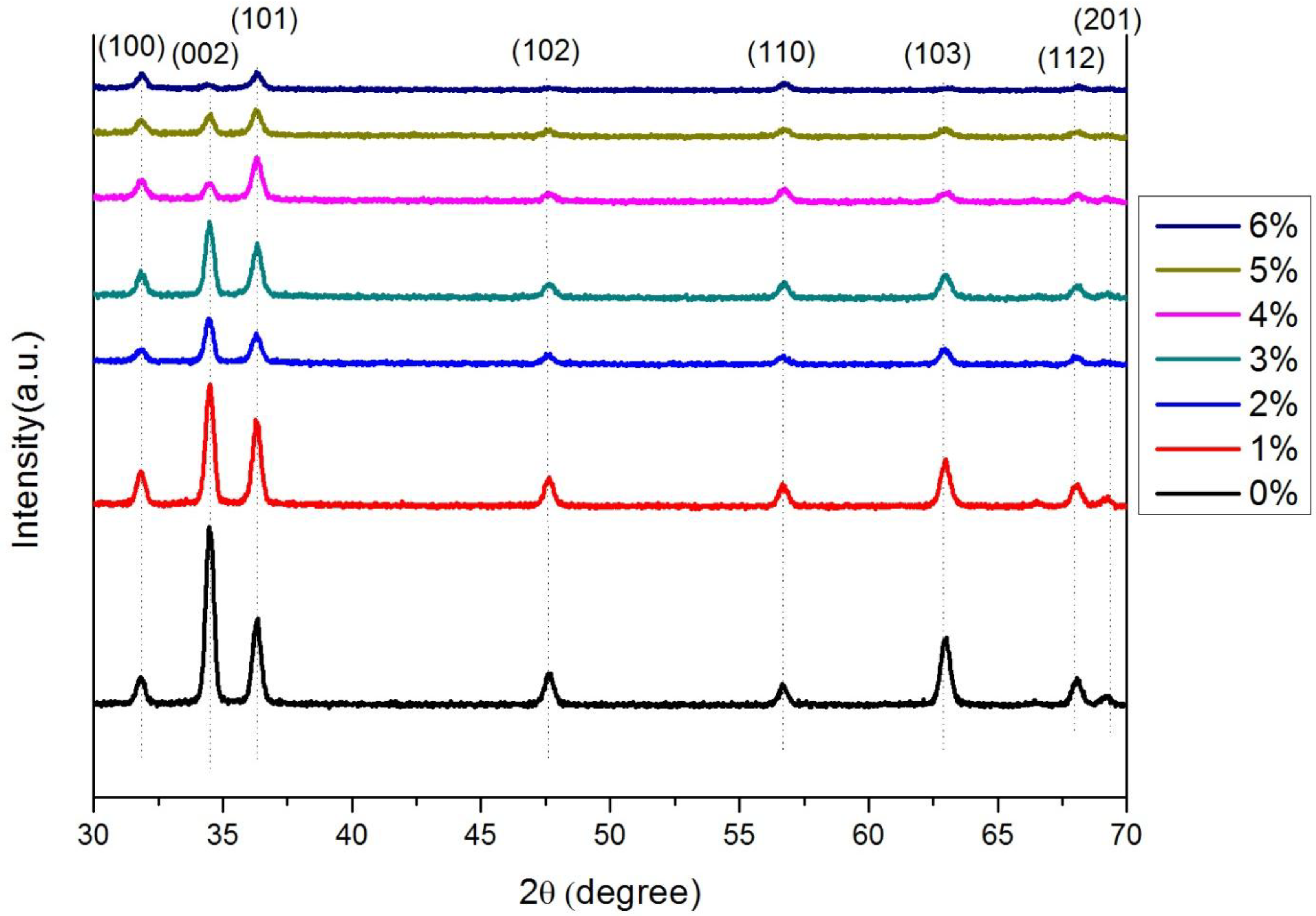

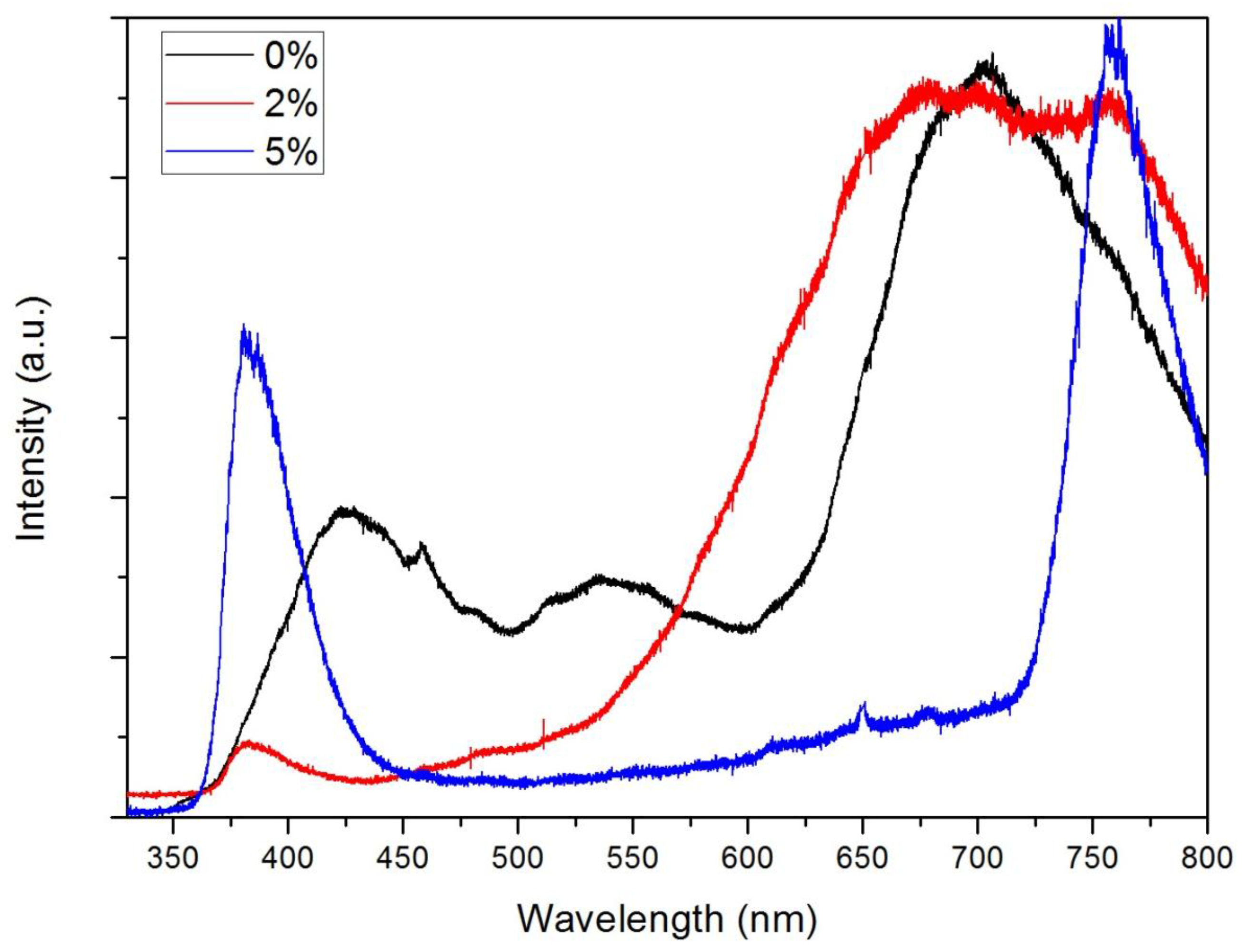

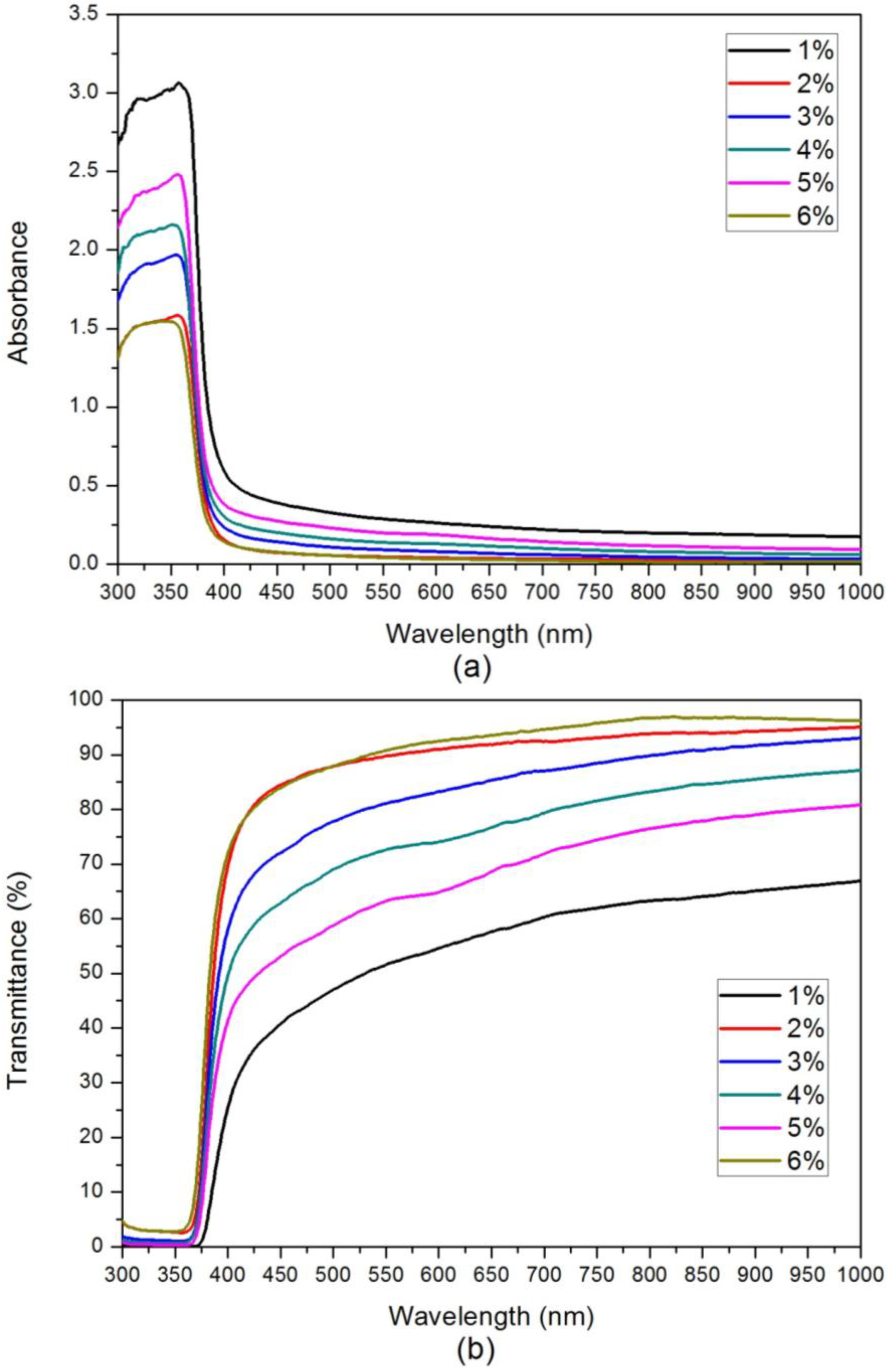

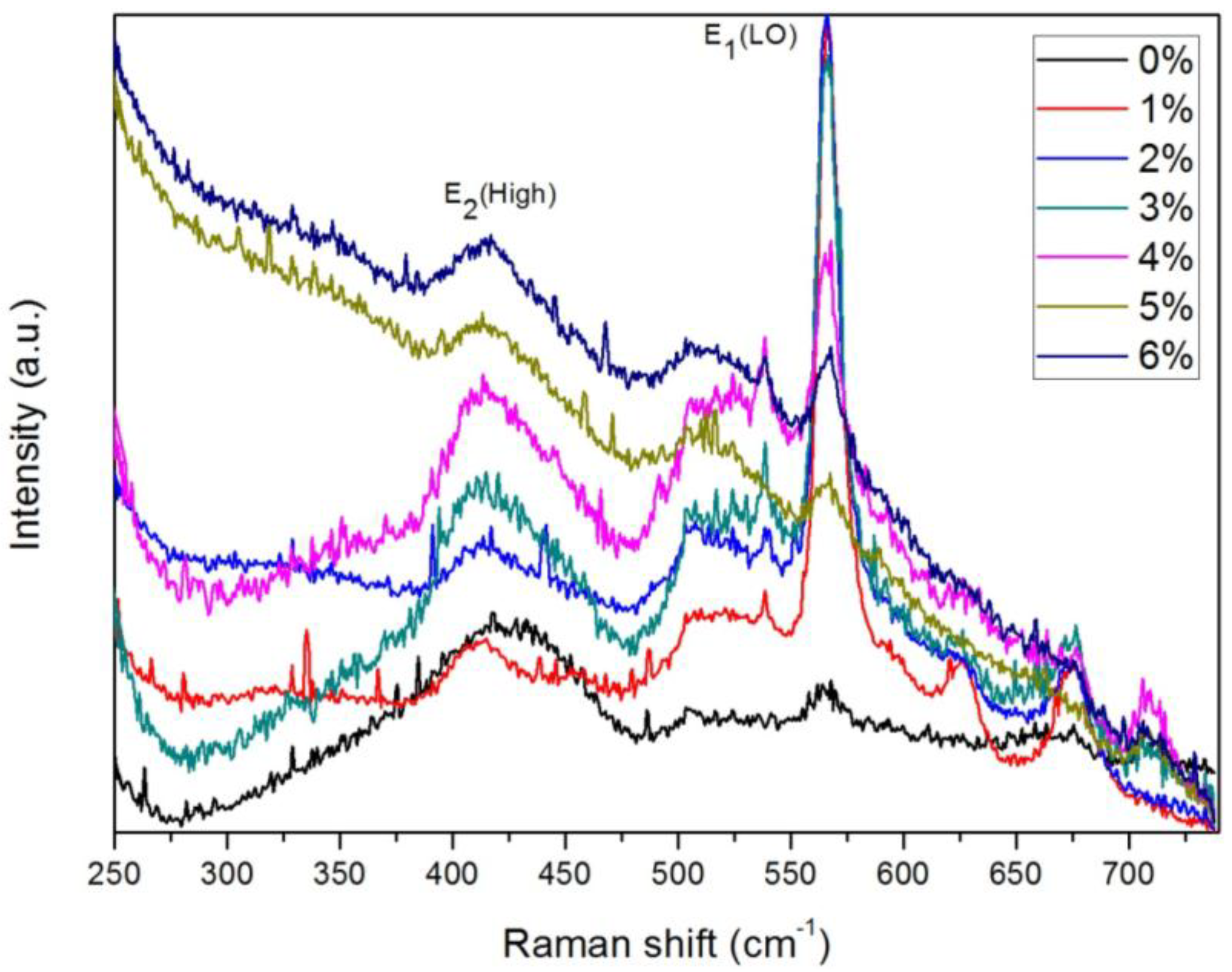

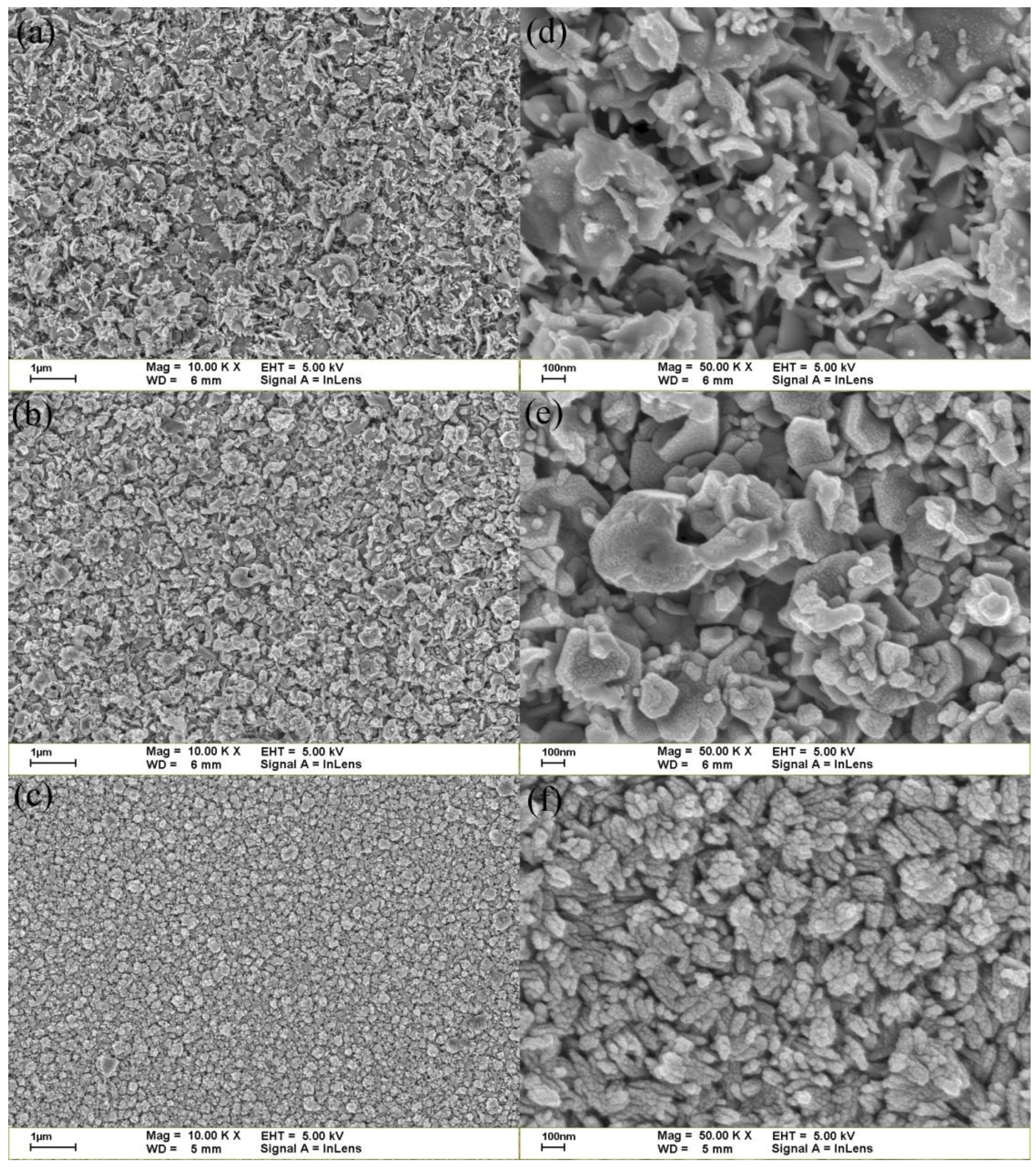

Figure 1

MDPI and ACS Style

Chen, L.-C.; Hsieh, C.-A.; Zhang, X. Electrical Properties of CZO Films Prepared by Ultrasonic Spray Pyrolysis. Materials 2014, 7, 7304-7313.

Show more citation formats Show less citations formats

Article Access Map by Country/Region

1
Only visits after 24 November 2015 are recorded.
Back to TopTop
