Preparation and Optoelectronic Characteristics of ZnO/CuO-Cu2O Complex Inverse Heterostructure with GaP Buffer for Solar Cell Applications
Department of Electro-optical Engineering, National Taipei University of Technology, 1, sec.3, Chung-Hsiao E. Rd., Taipei 106, Taiwan
*
Author to whom correspondence should be addressed.
Materials 2013, 6(10), 4479-4488; https://doi.org/10.3390/ma6104479
Received: 12 August 2013 / Revised: 25 September 2013 / Accepted: 29 September 2013 / Published: 9 October 2013
(This article belongs to the Special Issue Solar Energy Materials 2013)

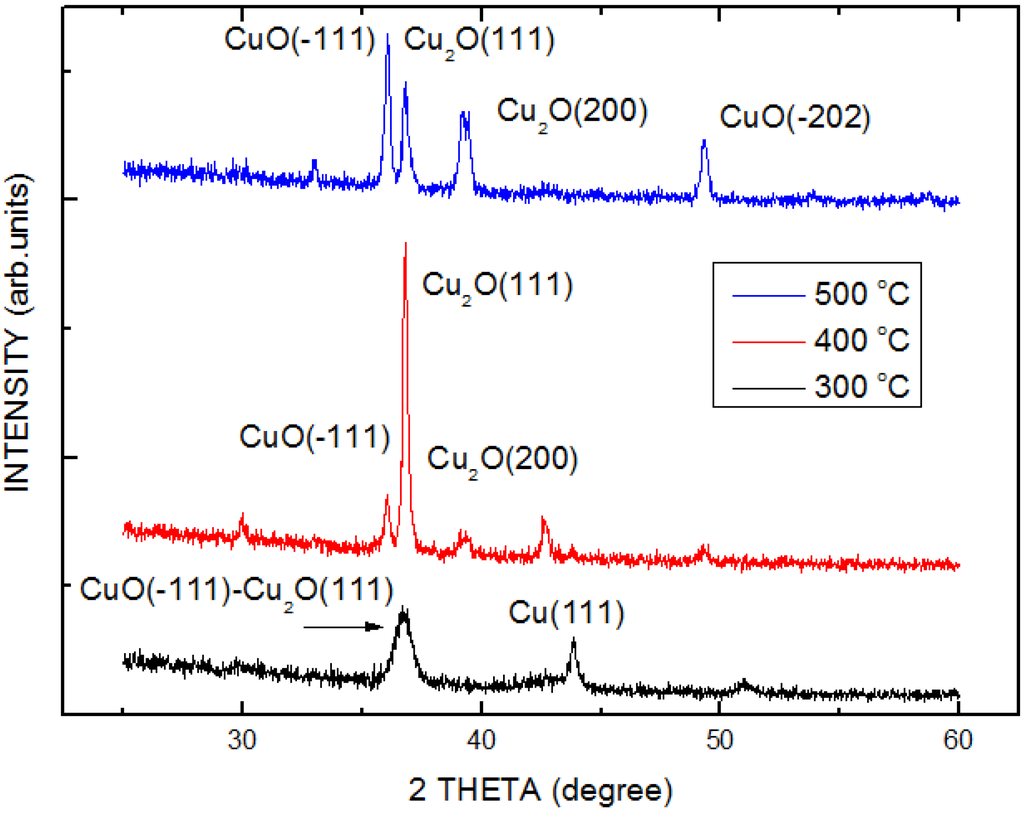

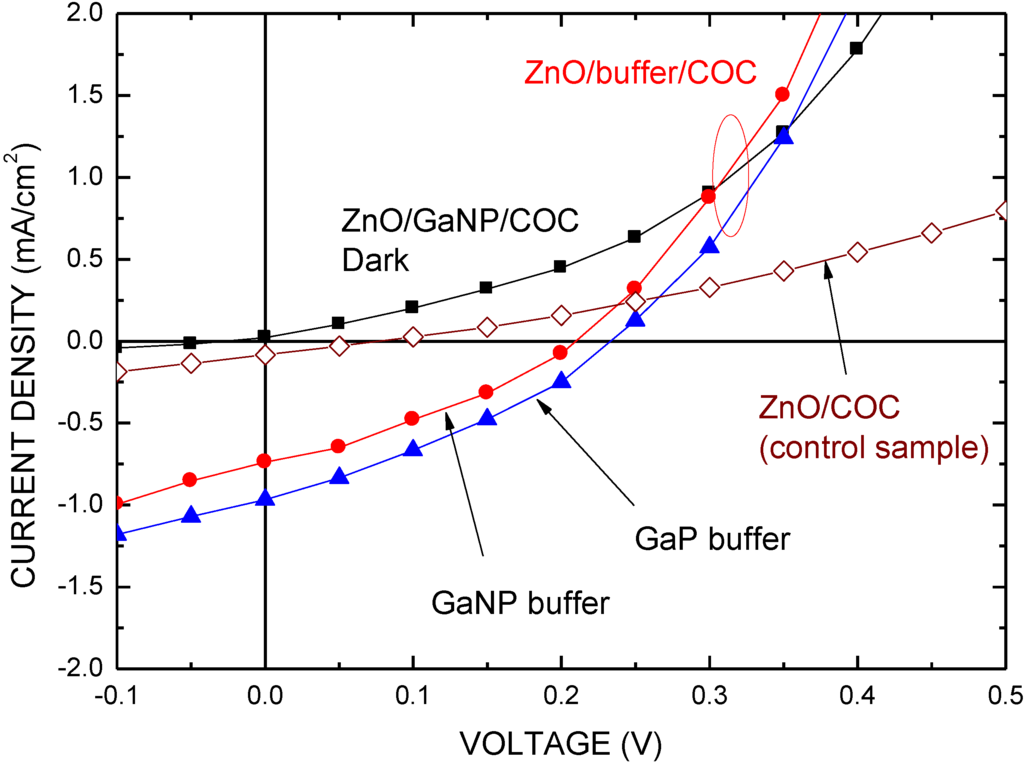

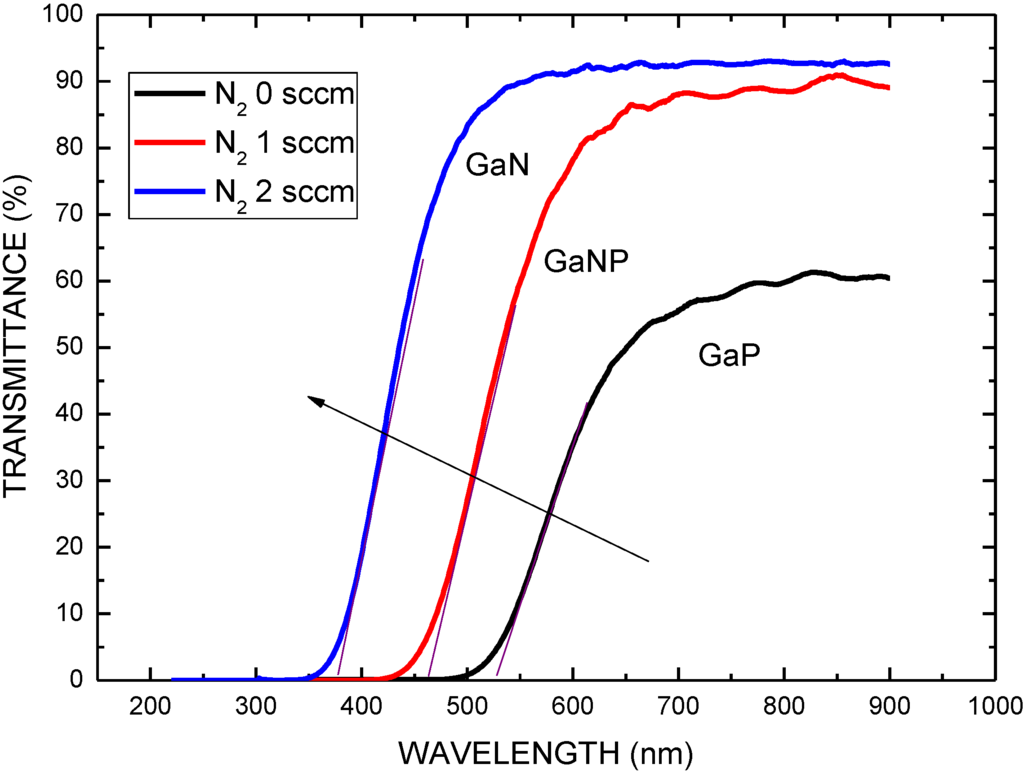

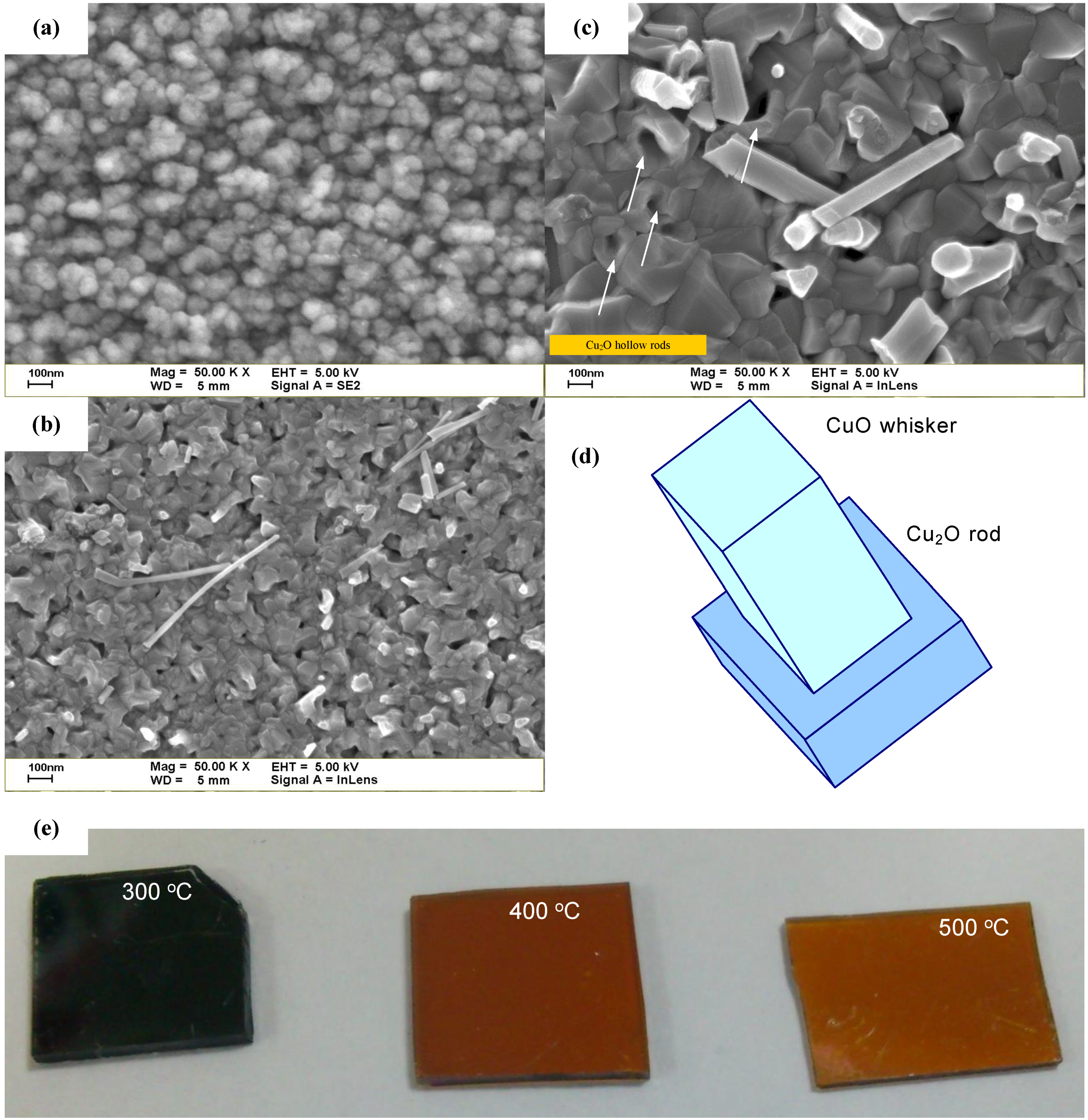

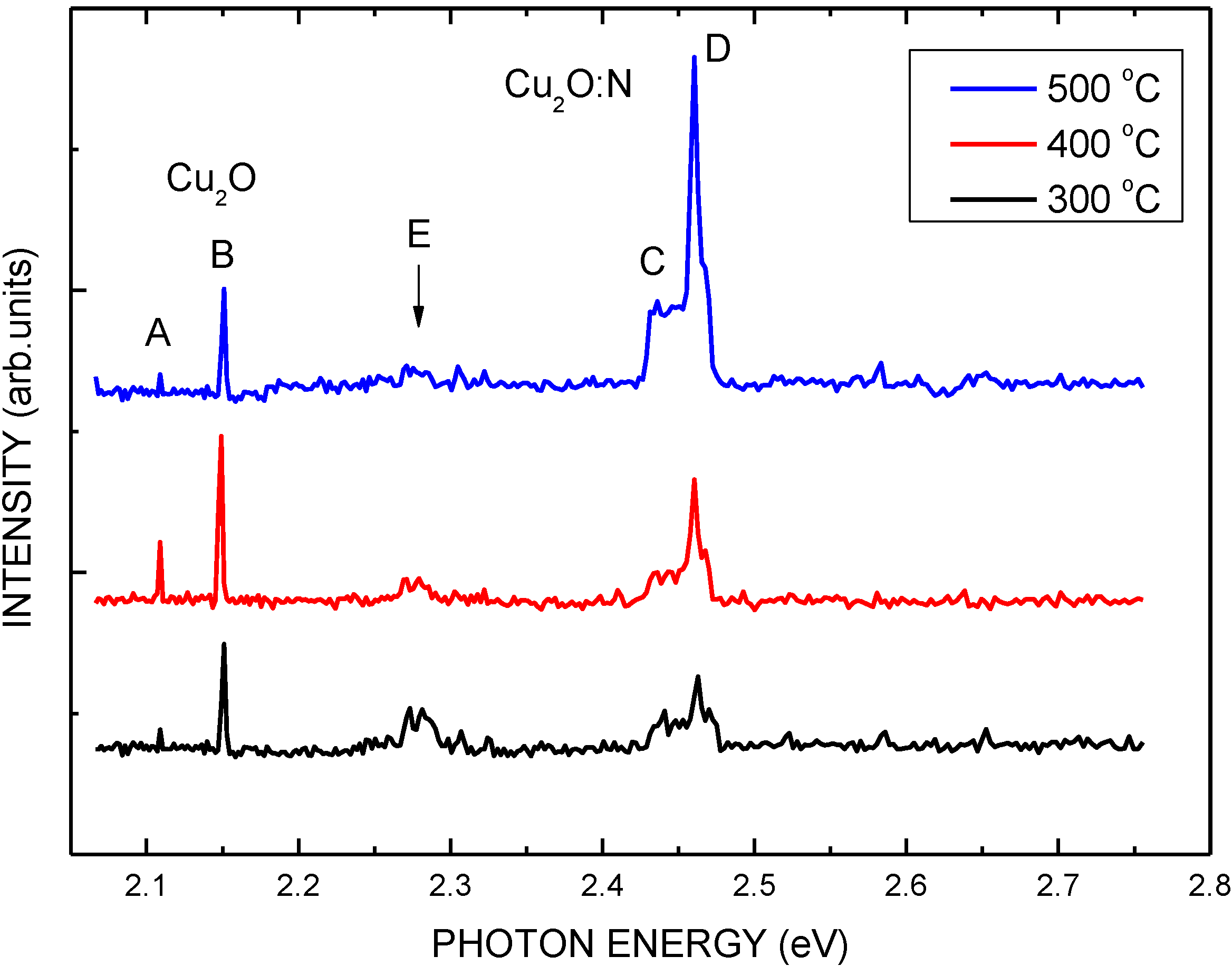

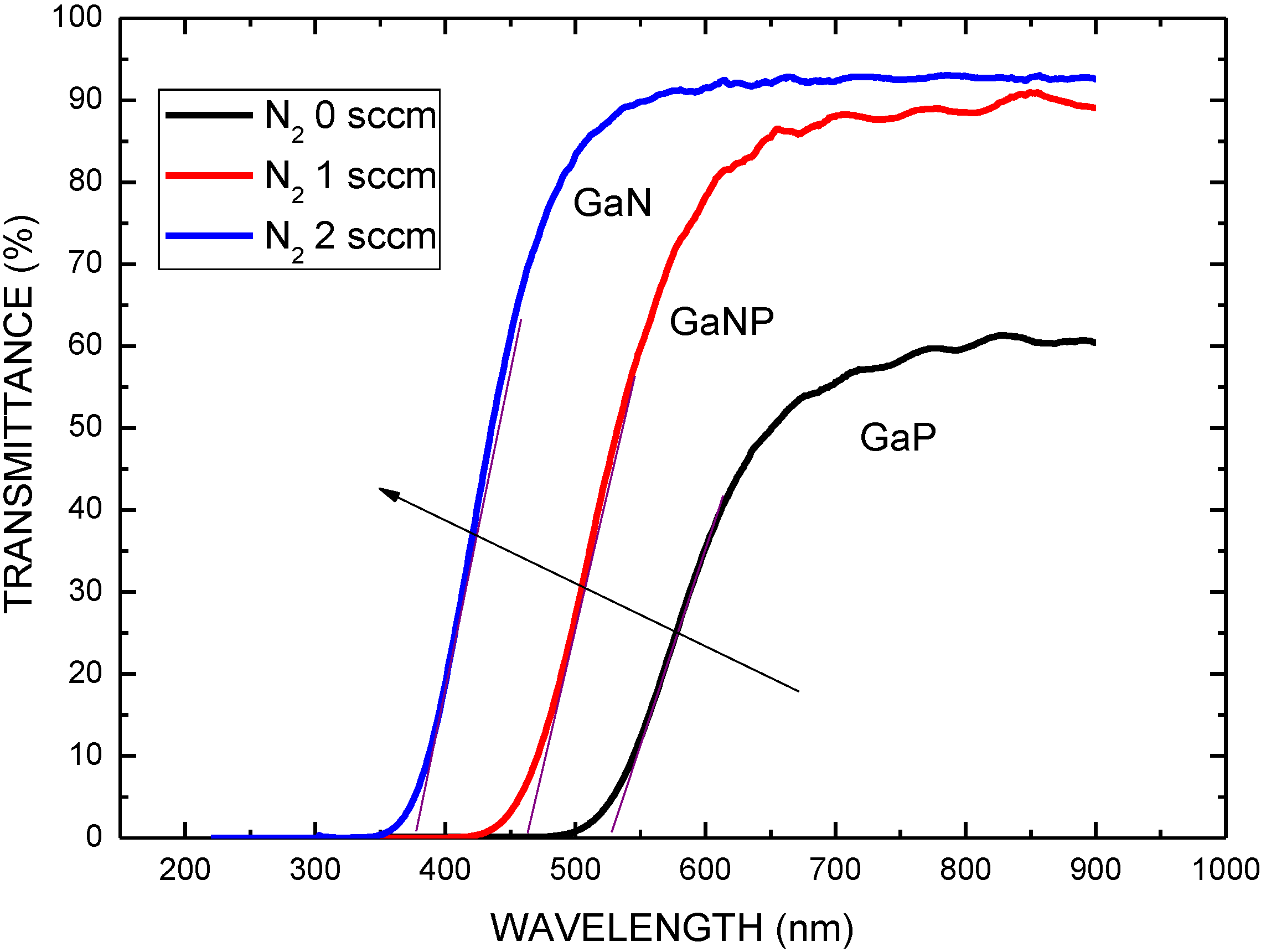

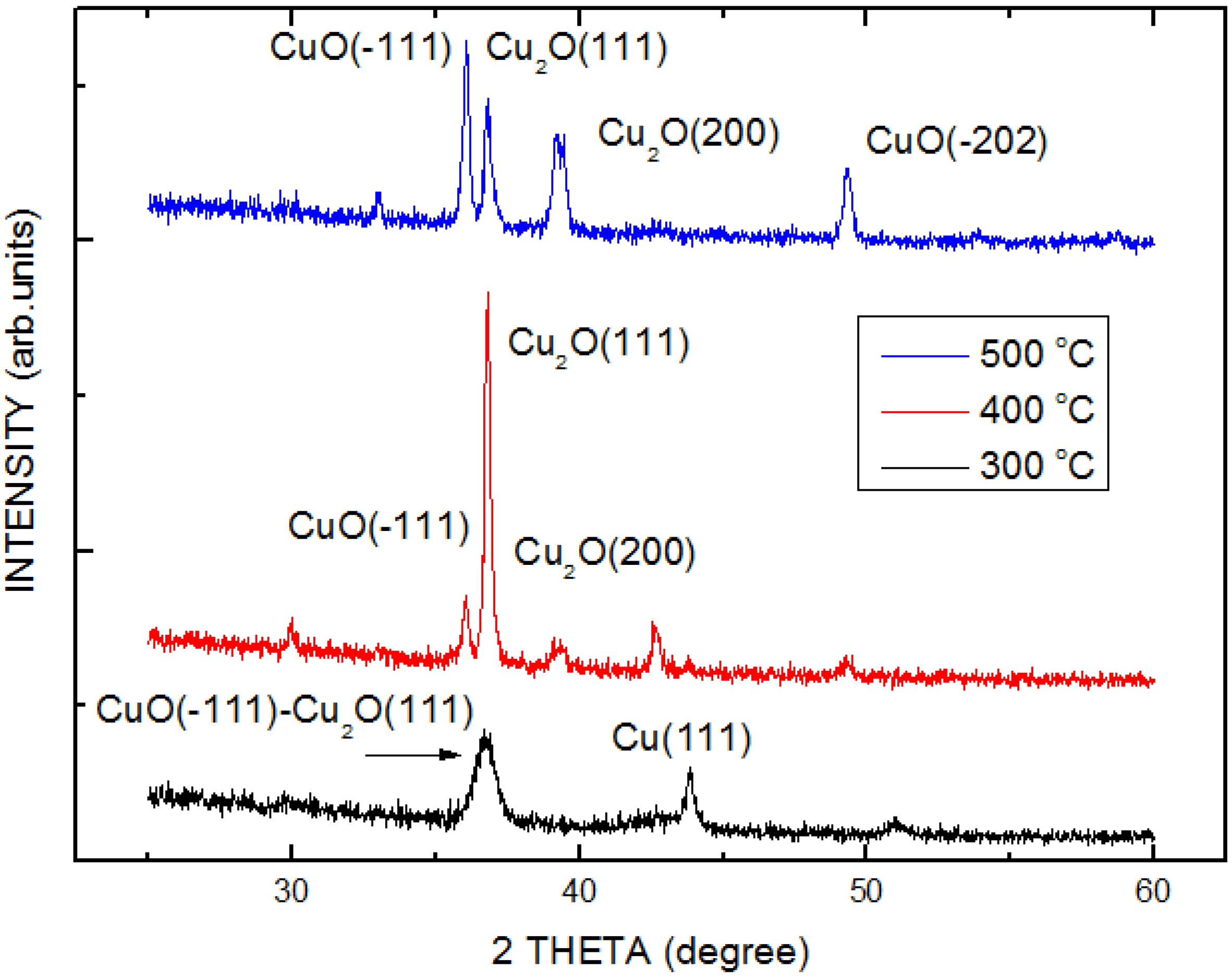

This study reports the optoelectronic characteristics of ZnO/GaP buffer/CuO-Cu2O complex (COC) inverse heterostructure for solar cell applications. The GaP and COC layers were used as buffer and absorber in the cell structure, respectively. An energy gap widening effect and CuO whiskers were observed as the copper (Cu) layer was exerted under heat treatment for oxidation at 500 °C for 10 min, and arose from the center of the Cu2O rods. For preparation of the 30 nm-thick GaP buffer by sputtering from GaP target, as the nitrogen gas flow rate increased from 0 to 2 sccm, the transmittance edge of the spectra demonstrated a blueshift form 2.24 to 3.25 eV. Therefore, the layer can be either GaP, GaNP, or GaN by changing the flow rate of nitrogen gas.
View Full-Text
Keywords:
CuO whiskers; Cu2O; gallium phosphide; energy gap widen effect
▼
Show Figures

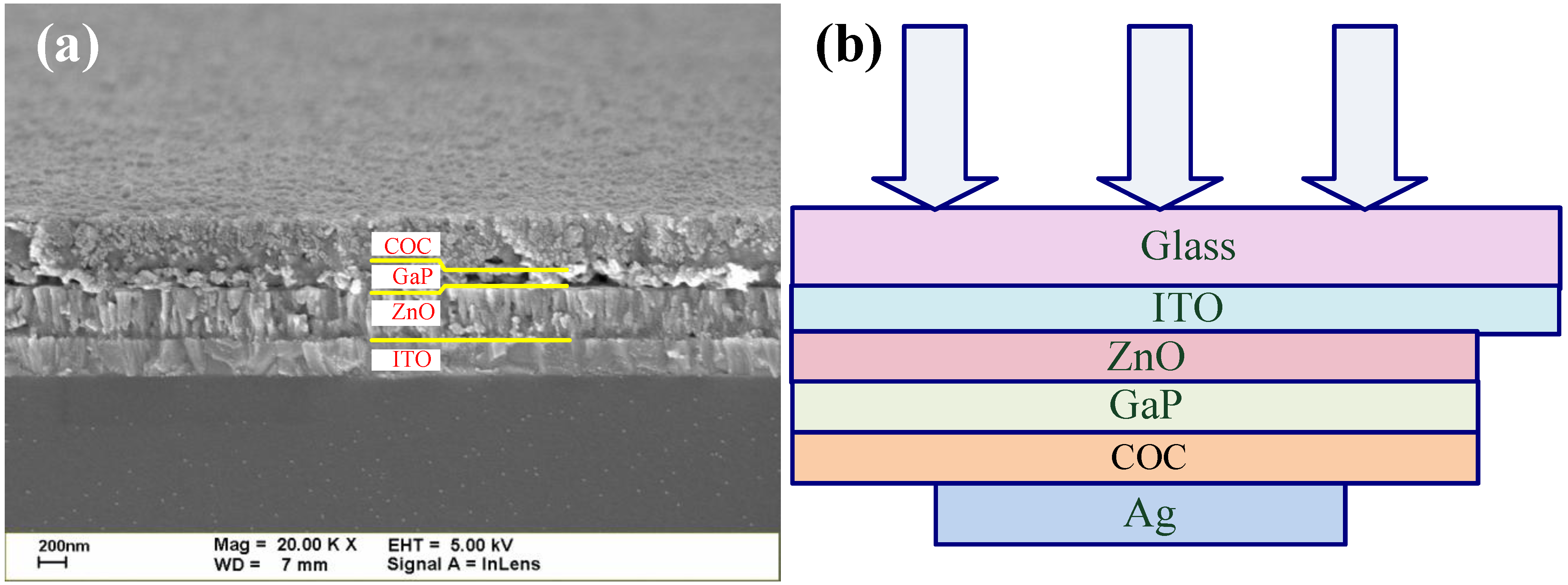

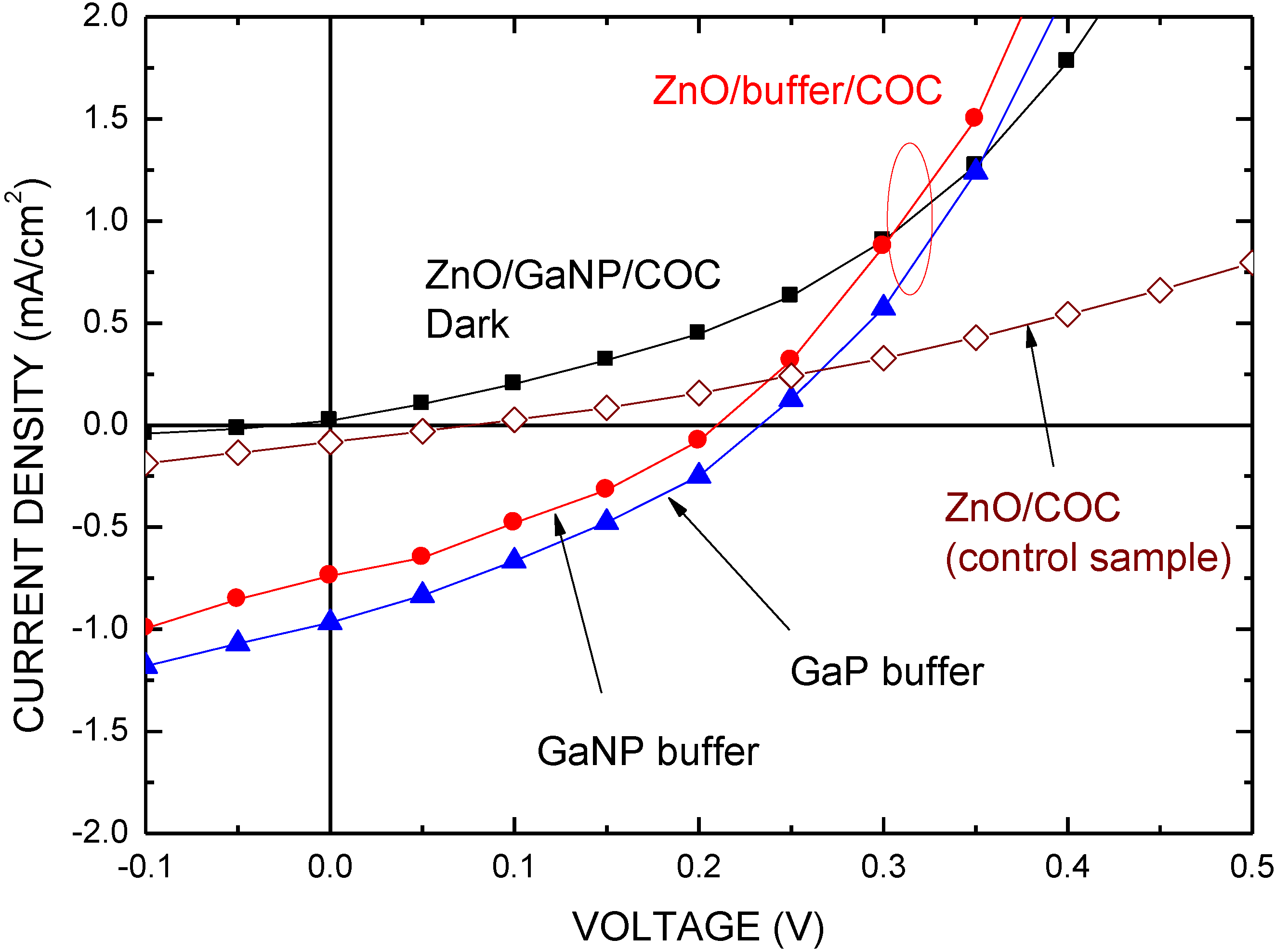

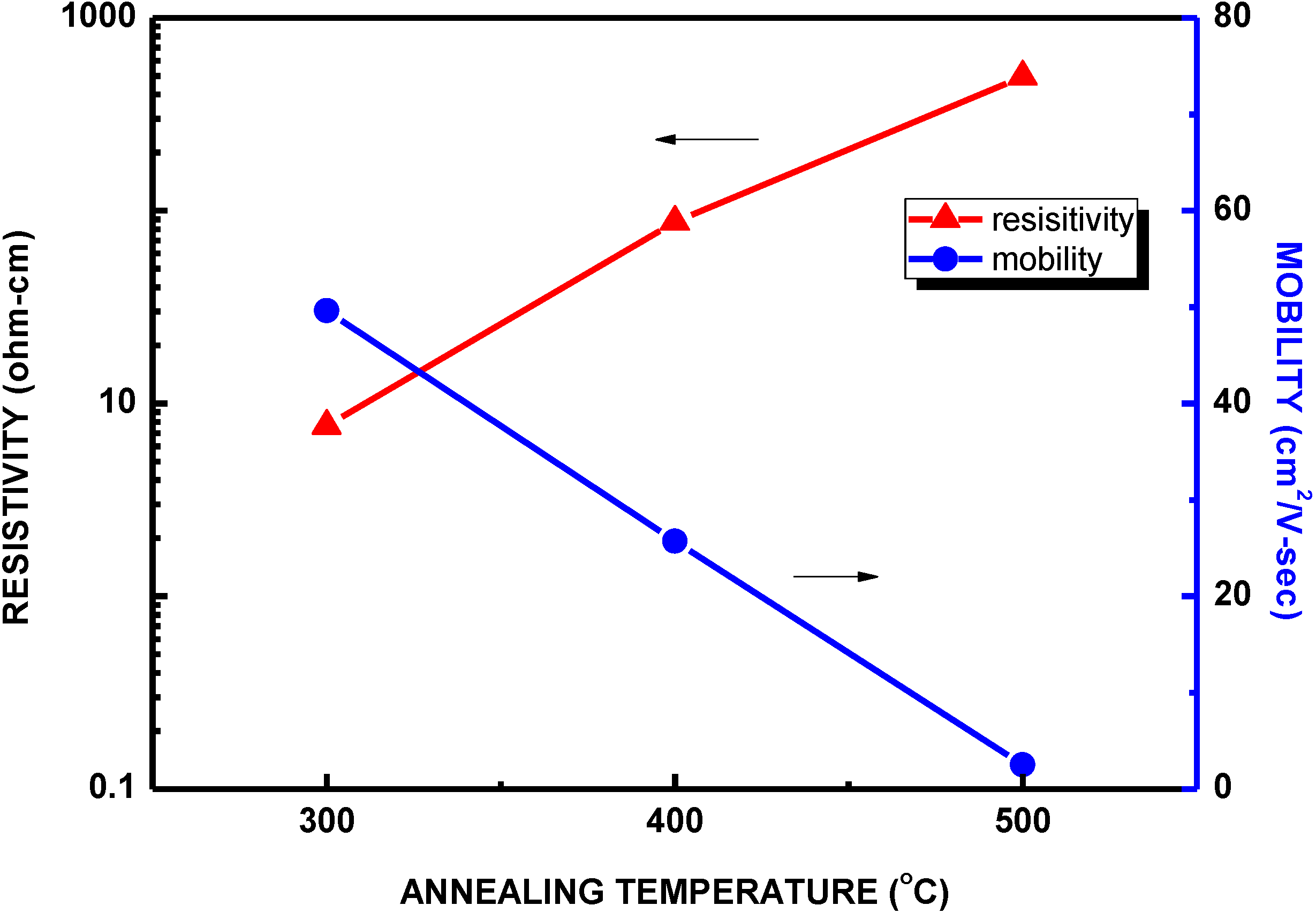

Figure 1
This is an open access article distributed under the Creative Commons Attribution License
MDPI and ACS Style
Hsu, C.-H.; Chen, L.-C.; Lin, Y.-F. Preparation and Optoelectronic Characteristics of ZnO/CuO-Cu2O Complex Inverse Heterostructure with GaP Buffer for Solar Cell Applications. Materials 2013, 6, 4479-4488.
Show more citation formats
