Article

High Dynamic Range CsFAPbI3 Perovskite Photodetectors with 12.7 MHz Bandwidth

by
Abdul Mannan Majeed
1,*,
Sandra Stanionytė
2,
Gediminas Kreiza
1 and
Patrik Ščajev
1,*
1
Institute of Photonics and Nanotechnology, Faculty of Physics, Vilnius University, Sauletekio Ave. 3, LT-10257 Vilnius, Lithuania
2
Center for Physical Sciences and Technology, Sauletekio Ave. 3, LT-10257 Vilnius, Lithuania
*
Authors to whom correspondence should be addressed.
Materials 2026, 19(7), 1315; https://doi.org/10.3390/ma19071315
Submission received: 15 February 2026 / Revised: 23 March 2026 / Accepted: 24 March 2026 / Published: 26 March 2026
(This article belongs to the Special Issue Recent Advancements in Laser Processing and Manufacturing Technologies)
Browse Figures
Versions Notes

Abstract

We develop CsxFA1−xPbI3 perovskite photodetectors with varying Cs content in the x = 0.05–0.25 range to identify the most stable cubic-lattice perovskite composition for visible-light photodetection. The perovskite layers were deposited by the spin-coating technique on a nickel oxide p-type contact and then were covered with C60/Ag electron contact to obtain a vertical pin diode structure. X-ray diffraction (XRD) and scanning electron microscopy (SEM) measurements show that x = 0.1–0.2 provides the most stable lattice and pinhole-free perovskite layers. The photocurrents are linear in an extremely wide 1 nW–10 mW excitation power range, providing photoresponsivity of 0.28 A/W at 532 nm (green light), similar to that of Si photodiodes. The testing of the photodetectors using picosecond pulses provided their rise times and fall times. The x = 0.2 composition provided the shortest rise time values of 27.5 ns, leading to a detector modulation bandwidth of 12.7 MHz. This indicates that this perovskite composition is suitable for replacing silicon photodetectors in cost-efficient light detection systems for imaging and light communication applications such as Li-Fi.

1. Introduction

The term “perovskite” originated from the mineral calcium titanate (CaTiO3), first identified by Gustav Rose in 1839 [1], in the Ural Mountains. The mineral was later named in honor of the mineralogist L.A. Perovski, who made significant contributions to the study of its structure. Over time, the definition of perovskite has broadened to encompass all materials that share the same crystal structure as CaTiO3. Today, perovskite materials are regarded as highly promising for a broad range of optoelectronic applications due to their exceptional properties, including a high absorption coefficient, high defect tolerance, long carrier lifetime, long diffusion length, and high charge-carrier mobility [2,3,4,5,6]. Since the first report in 2009 [7], the efficiency of perovskite-based solar cells has improved dramatically, increasing from an initial 3.8% to values exceeding 25% [8,9,10]. In addition to photovoltaic devices, perovskites are widely used in the production of photodetectors [11,12,13,14,15], X-ray detectors [16], lasers [17,18], light-emitting diodes [19,20], etc.
Photodetectors (PDs) play a vital role in imaging [21], communication [3], and medical diagnostics [22,23] technologies by converting incident light into electrical signals. Based on their spectral responsivity bandwidth, they are typically divided into wideband and narrowband photodetectors. Wideband devices provide uniform spectral responses with high external quantum efficiency (EQE) over a wide wavelength range, while narrowband devices are tailored for selective detection of specific spectral regions, including individual visible colors or defined infrared bands [24]. Organic-inorganic lead-based perovskites are suitable for the construction of efficient photodetectors due to their excellent optoelectronic properties, with a low-cost fabrication process [13,14,25]. On the other hand, despite their high efficiency and fast response, conventional silicon or gallium arsenide-based photodetectors are often restricted by high-cost fabrication processes [26,27].
Cost-effective, solution-processed perovskite photodetectors offer a cost-effective alternative to conventional thick silicon detectors [28]. The estimated areal cost of used Cs0.2Fa0.8PbI3 perovskite material is 6 × 10−6 Eur/m2 [29,30], while Si and GaAs prices are 2.5 × 10−5 Eur/m2 [31] and 1.4 × 10−4 Eur/m2 [32], respectively (typically Si and GaAs ultrafast photodiode thicknesses are 10 μm and 500 nm, respectively; the thickness for silicon is much larger, as it is an indirect-bandgap semiconductor).
The intrinsic properties of halide perovskites open new opportunities for advanced sensing technologies. Their soft lattice structure and low-temperature processability enable direct deposition on a wide variety of substrates, making them particularly suitable for low-light-level detection and Li-Fi communication applications [28,33].
Different research groups have extensively investigated FAPbI3-based photodetectors. The responsivity of FAPbI3 perovskites typically ranges from 0.09 to 0.44 A W−1, with a specific detectivity between 1.8 × 1012 and 4.8 × 1012 Jones, and linear dynamic range (LDR) values reaching up to 207 dB [34,35]. It has been observed that cesium (Cs) concentration strongly influences device performance parameters, including LDR, detectivity, responsivity, and response speed. A photodetector based on FAPbI3 with 10% Cs incorporation exhibited a responsivity of 0.762 A W−1, a specific detectivity of 5 × 1013 Jones, a response time of 59.25/53.85 µs (rise/decay), and an LDR of 92 dB [36]. In contrast, increasing the Cs content to 15% significantly enhanced the responsivity to 5.7 A W−1 and achieved a specific detectivity of 2.7 × 1013 Jones, along with a much faster response time of 45/91 ns. However, this improvement in speed and responsivity was accompanied by a reduction in LDR to 32 dB [37]. Recently, Hamazakil et al. developed low-voltage-driven and enhanced voltage-driven diodes based on CsFAPbI3 by incorporating ionic liquids [38]. Amin et al. used the thermal evaporation technique to fabricate a Cs0.06FA0.94Pb(I0.68Br0.32)3-based photodetector. The fabricated devices exhibited excellent sensitivity to low light, capable of detecting weak light (a few pW cm−2), with a 1.3 µs response time and good operational stability [39]. The triple cation lead-halide perovskite photodetector exhibited a responsivity of 0.52 A/W, a specific detectivity of 8.88 × 1012 Jones, a high on/off ratio of 7.3 × 105, and a rapid rise time of 19 μs [40]. The FA0.7Cs0.3Pb(I0.8Br0.2)3 flexible photodetectors exhibit 2.8 × 1013 Jones specific detectivity, high responsivity 1.1 A·W–1, and a rapid rise time [41].
In this study, we report on mixed CsxFA1−xPbI3 perovskite detectors deposited through a simple spin-coating technique as an alternative to the technology-demanding Si detectors. The measured photo-response at CW excitation for CsFa detectors was compared to the response of a Si photodiode as well as perovskite-based detectors. Previous studies on Cs/FA mixed perovskite photodetectors have reported responsivities of approximately 0.48–0.49 A W−1 with response times in the microsecond range (1.2–2.1 µs) depending on the Cs composition [42]. Reported devices in this study demonstrated a linear dynamic range (LDR) of about 135 dB with detectivity values around 6.1 × 1011 Jones. In comparison, the photodetector developed in this work exhibits a responsivity of 0.28 A W−1 at 532 nm, which is comparable to that of commercial silicon photodiodes. More importantly, the optimized device demonstrates a significantly faster rise time of 27.5 ns, corresponding to a modulation bandwidth of 12.7 MHz, which is considerably faster than the previously reported microsecond-scale response times of Cs/FA mixed perovskite photodetectors. In addition, the device achieves a wide LDR of 129.2 dB and a specific detectivity up to 1.2 × 1012 Jones, indicating competitive sensitivity while offering substantially improved temporal response. These results highlight the potential of the present Cs/FA mixed perovskite photodetectors for high-speed and high-sensitivity photodetection applications. The 20% cesium alloyed detector showed the best spectral response. The temporal response of detectors after pulsed laser excitation was also investigated to reveal the fastest rise time and fall time values in the Cs0.2FA0.8PbI3 photodetector.

2. Materials and Methods

2.1. Essential Precursors

CsI (cesium iodide, 99.99%), PbI2 (lead iodide, 99.99%), and FAI (formamidinium iodide, 98%) were obtained from Lumtec (New Taipei City, Taiwan). DMSO (dimethyl sulfoxide, 99.55%) and DMF (N,N-dimethyl formamide, 99.55%) were obtained from TCI (Tokyo Chemical Industry, Tokyo, Japan).

2.2. Solution Synthesis and Detector Deposition

Different 1.5 M perovskite (CsxFA1−xPbI3) solutions were prepared by varying the Cs concentration in the precursor solution. For this purpose, CsI, PbI2, and FAI were weighted with x:1-x:1 ratio to PbI2 and dissolved in an anhydrous DMF (900 µL) and DMSO (100 µL) mixture overnight in the nitrogen-filled glove box. The solution was filtered with a 0.22 μm filter paper before deposition. Nickel oxide precursor solution was prepared from nickel(II) nitrate hexahydrate (Ni(NO3)2·6H2O) in 2-methoxyethanol and acetylacetone.
Firstly, 1.1 mm thick ITO substrates 15 × 20 mm (Ossila, Solpro Business Park, Windsor Street, Sheffield S4 7WB, UK) were patterned using 355 nm, 100 Hz pulses from an Nd: YAG laser (Coherent Infinity 40–100, Santa Clara, CA, USA) and scanning on computer-controlled xy stages to obtain 0.2–6 mm2 detector area sizes. Then the patterned ITO substrates were cleaned with a conventional RTA process and placed under UV-ozone for 15 min at 120 °C. A one-step deposition method was used to deposit the NiO layer by a spin coater (POLOS Spin150i, Putten, The Netherlands) at 3000 rpm for 40 s (acceleration 800 rpm/s) with subsequent annealing at 300 °C for 1 h. Then they were transferred into a nitrogen-filled glove box (MBRAUN model: MB-20-G/MB-200G-W, Garching, Germany). The perovskite absorber films were deposited at 4000 rpm for 40 s (acceleration 800 rpm/s). Chlorobenzene, used as an antisolvent, was added 10 s before completing the rotations to obtain a smooth, homogeneous perovskite layer. After that, the structure was placed on a hot plate at 100 °C for 30 min to obtain a black perovskite film. The thermal evaporator (Inficon, East Syracuse, NY, USA) was used to deposit 30 nm and 60 nm C60 and Ag electrodes on the perovskite. Reference perovskite layers were prepared on RTA-cleaned glass substrates. At the end, the fabricated detectors (reference samples) were encapsulated with epoxy and glass for further characterization.

2.3. Characterization

The X-ray diffraction (XRD) spectra were obtained by a Rigaku Smart Lab diffractometer (Rigaku, Tokyo, 196-8666 Japan) with 9 kW Cu Kα rotating anode X-ray tube and a scintillation detector SC-70 (Rigaku, Tokyo, Japan). The quality of perovskite layers was characterized by scanning electron microscope (SEM, Hitachi SU8230 microscope, Hitachi High-Tech Corporation, Tokyo, Japan) in scanning and cross-section measurements.
The detector IV curves and current dependences on light intensity were determined using a Keithley 2401 (TEKTRONIX, INC., Beaverton, OR, USA) source measure unit. The intensity of the exciting 532 nm CW laser was varied using calibrated neutral density filters. The energy of the excitation light was measured by a PD300-UV (Jerusalem, Israel) power sensor. Spectral responsivities were measured with the Edinburgh Instruments spectrophotometer (FLS 980, Livingston, UK). The detector capacities C were measured using a capacity meter Mastech MS6013 (Taipei City, Taiwan). The temporal characteristics of the detectors were tested using a 527 nm pulsed Nd: YLF laser (10 ps pulse duration) and fast photocurrent detection using a 6 GHz oscilloscope (Lecroy SDA6000, Heidelberg, Germany) synchronized with the laser pulses by a photodetector (Thorlabs DET08CFC/M, Newton, NJ, USA). The PL decays of the perovskite layers and detectors were obtained using time-resolved photoluminescence (TRPL) at 532 nm excitation with a measurement setup described in a previous report [43].

3. Results and Discussion

Figure 1 shows the XRD patterns of CsxFA1−xPbI3 films with different Cs contents (x), together with the corresponding PDF card data. All samples mainly exhibit the cubic FAPbI3 phase (PDF #00-069-0999, Pm–3m), with eight characteristic diffraction peaks, consistent with previous reports [44]. Weak peaks related to the trigonal Cs4PbI6 phase (PDF #04-020-2684) appear in films with low Cs content, while the orthorhombic CsPbI3 phase (PDF #04-016-2300) is observed in the film with 25% Cs. A stable cubic FAPbI3 phase (PDF #00-069-0999) is observed in films of 10–20% Cs concentration. The transition from cubic FAPbI3 to orthorhombic CsPbI3 phase is indicated by diffraction peaks at 9.94°, 13.06°, 22.66°, 26.46°, and 37.74° in samples containing 25% Cs. A small peak at 12.67°, corresponding to PbI2 (PDF #00-007-0235), becomes most evident for x = 0.1–0.2. The presence of PbI2 suggests effective defect passivation in the perovskite films [45,46]. Additionally, the continuous shift of diffraction peaks toward higher 2θ values with increasing Cs content confirms Cs+ incorporation into the FAPbI3 lattice, resulting in lattice contraction due to the smaller ionic radius of Cs+ compared to FA+ [47].
Therefore, XRD patterns of the perovskites with 10–20% Cs show the most stable lattice structure with the least structural defects. Layers with composition outside the 5–25% range showed non-cubic perovskite mixed phases being not suitable for light harvesting due to larger band gaps [48]. The crystallite quality inspected by SEM (Figure 2a–e) correlates with XRD, showing the best layers with 10–20% Cs content (5% Cs led to a high number of pinholes, which are detrimental for detector operation). The device cross-section is shown in Figure 2f.
The detectors were operated in photovoltaic mode without bias, which is important for low-light detection in energy-saving applications. The IV curves show almost symmetric responses in the dark conditions, while a shift of the minimum is observed under illumination (Figure 3a). The spectral response curves of the photodetectors based on the CsxFA1−xPbI3 perovskites are presented in Figure 3b with a cutoff wavelength close to 834 nm. The detectors’ response is linear in a wide nW–mW excitation range (see Figure 4), proposing their applications in linear wide dynamic range sensing. In the 10–1000 mW range at 532 nm, the average detector’s photo-responsivity was 0.26–0.27 A/W (see Table 1), which is very similar to a standard Si and graphene photodiode [49,50] with 0.261 A/W, as well as comparable with the FAPbI3-based photodetector [34,35]. The responsivity (R) of the photodetectors shows best values for 10–20 samples. The UV edge is limited by the absorption in the glass substrate and nickel oxide. In contrast, the infrared edge is determined by the bandgap of the perovskite, which slightly increases with the Cs amount due to a lattice contraction. The observed non-monotonic shift in the bandgap with composition can be attributed to interactions between the FA cation and the inorganic lattice. Such interactions reduce rotational disorder and enhance structural stability, rather than arising from changes in the electronic band structure [42]. Photoluminescence peaks were observed at 764, 762, 776, 773, and 754 nm for Cs0.05, Cs0.1, Cs0.15, Cs0.2, and Cs0.25, respectively. The peak variation is attributed to changes in crystallinity and phase evolution in the perovskite films [51,52]. The largest blue shift is observed for Cs0.25, which is most plausibly linked to an iodide-rich phase [53] as confirmed from the XRD analysis.
To further quantitatively assess the device performance with the CsxFA1−xPbI3 film, current responsivity (Ri) was calculated using the following equation [40]:
R i =   I λ − I d P λ A
where Iλ is the photocurrent, Id is the dark current (average Id = 0 in photovoltaic detectors), Pλ is the incident power intensity, and A is the area of the device. By using the above equation, responsivity was calculated (see Table 1). The linear dynamic range (LDR) is particularly important for practical photodetection applications, especially in image sensors, since they need to operate over a broad intensity range to extract the detected light power, and the corresponding photocurrent was also calculated by the following expression on a logarithmic scale [39]:
L D R = 20 l o g L m a x L m i n
where Lmax and Lmin are the maximum and minimum limits of the light intensity in the linear photo-response range, respectively. Figure 4 shows the current of photodetectors illuminated by a 532 nm green light at different powers. It can be clearly observed that the photocurrent gradually increases with the light power. Linear slope indicates the trap-mediated nonradiative recombination in the devices, which value can be changed with trap density [54]. The lower limit of the LDR is restricted by the light intensity of the source. We calculated the expected LDR value to be 129.2 dB based on the illumination intensity corresponding to the noise current, which agrees with that of a commercial photodetector (Si or InGaAs) [33,39,55] and larger than the 10% and 15% Cs doped in FAPbI3 perovskite-based photodetectors having 92 dB and 32 dB, respectively [36,37]. Such a large linear response may result from the good carrier transport and reduced trap density in the CsxFA1−xPbI3 polycrystalline films [13]. Recent research provided a higher LDR = 153.61 dB in a 2D perovskite single-crystalline photodetector [56] and LDR = 160 dB in perovskite photodetectors enabled by 3D/2D/3D heterostructures unipolar barrier [57]. However, the bandwidth values were much lower: 250 Hz and 344 kHz, respectively (responsivities were 2.2 A/W and 0.44 A/W, respectively).
Finally, the response speed of perovskite photodetectors was evaluated by measuring the transient photocurrent decays. In this measurement, the device was illuminated by 10 ps laser pulses, and the transient photocurrent signal was recorded after excitation. The bandwidth (BW) is related to detector rise time as BW = 0.35/tr. The rise time tr and fall time tf correspond to the signal change from 10% to 90% and back to 10% [13]. Under 0 V bias, the CsxFA1−xPbI3 photodetectors achieved a rise time between 27–41 ns and a fall time of 700–1200 ns (Figure 5). The Cs0.2 detector showed the shortest rise and fall time, indicating its best perovskite phase purity, which is much better than in the other photodetectors working in the 300–850 nm spectral range with the same material and fast photo-response in the MHz frequency range [36,40,58]. The variation in the rise and fall time is due to the carrier transport properties and trap state densities [13]. The obtained values were averages over 12 devices; the error appears due to the fluctuations of the perovskite layer thickness. The reduction of the photocurrent at continuous illumination is shown in the Figure 5a inset. The Cs0.25 shows much faster degradation vs. Cs0.2 (10 h vs. 80 h), which can be explained by faster decomposition and cubic–orthorhombic phase transition [59,60]. For low-light detection, perovskite devices would exhibit longer lifetimes because degradation is proportional to the absorbed light dose [61].
The devices have a faster response time and shorter recovery time (fall time) mainly due to the following three factors: (1) lower number of defects, thus the smaller probability of electrons to be trapped, so in the vicinity of the interface, electrons do not undergo trapping or de-trapping, which greatly decreases the recovery time [45]; (2) the strong built-in electric field formed by hybrid heterojunctions facilitates the separation of electron–hole pairs and the transfer of charges [62], resulting in a fast photo response [46,63]; (3) material with excellent carrier transport performance [64,65,66] causes carriers to drift to the electrode more quickly [47].
In our study, the rise times of the detectors were determined by the speed of electron and hole separation by the contacts [67]. This is confirmed by measuring PL decay times of pristine perovskite layers on glass and corresponding detector structures (Figure 5b). Pristine perovskite layers show exponential PL decay times of ~80–100 ns, which correspond to a 140–200 ns carrier lifetime (a 2× multiplier appears because PL is proportional to ΔN2 [43], where ΔN is the photo-excited carrier density). In the detectors, the PL decay times become much shorter and reach 6 ns, showing effective charge separation. The corresponding exponential carrier extraction time is twice as large (12 ns, see values in Table 1). Fall times of the PL decays are 2.2 times slower than the exponential decay times [67]. Thus, the calculated carrier extraction fall time of 27.7 ns in the Cs0.2 detector well coincides with the current rise time of the detector. The faster carrier extraction in the 0.2 detector indicates a larger mobility for the latter perovskite composition, as the carrier lifetimes are similar in all samples, indicating a similar defect density. Rise times weakly depend on the detector area, as observed in Figure 6a. That is a consequence of the detector device’s area-independent charge separation processes. Shorter rise times in the smallest detectors may indicate more efficient charge separation (due to a larger built-in electric field) in the small detectors as a presumable consequence of the absence of pinholes, as evidenced by strongly increased shunt resistances (see Figure 6b).
The fall time of the detector response is determined by the detector capacity C (see Figure 6c), discharge through the parallel series + load (Rs + RL), and shunt Rsh resistances (see detector scheme in Figure 6c inset; RL = 50 Ω). The C values correspond to the perovskite dielectric constant ε = 36 ± 3 as obtained using a standard C = εε0A/d formula (ε0 is the static dielectric constant, d = 500 nm is the perovskite thickness); a similar value of 35 was previously reported [68]. The corresponding exponential RC discharge time is τd = C/(1/(Rs + RL) + 1/Rsh). It is related to fall time as tf = 2.2 τd. Using the experimental capacity of the detectors and fall time values (see Figure 6), the series resistances were calculated (Figure 6b). They are linearly decreasing with the device area, while the capacity linearly increases. The shunt resistances were determined using the dark IV curves (see Figure 4 inset), where the slopes correspond to 1/(Rsh + Rs).
The specific detectivity of photovoltaic detectors can be evaluated using the equation for noise equivalent power NEP and dark current Idark:
D * = ( A · B W ) 1 / 2 N E P
N E P = I d a r k R i
Here e is the elementary charge, dark current is determined by the thermal noise Idark = (4kBT·BW/Rsh)1/2 [69]. Shunt resistance (Rsh) is calculated at V = 0 V. The unit of detectivity is 1 Jones = 1 cm·Hz1/2/W. Figure 6d shows the variation of D* vs. A, providing values in 7 × 1011–7 × 1012 Jones range. Shunting pinholes plausibly are determining this variation. The D* values for different composition detectors are provided in Table 1. Recent studies have reported significant improvements in the performance of perovskite-based photodetectors. By varying the Cs content in FA-based perovskites, detectors based on Cs-doped FAPbI3 achieved detectivity values in the range of 107–1011 Jones [70], along with an LDR of between 32 and 135 dB [35,42]. Similarly, FAPbI3 quantum dot/graphene photodetectors demonstrated a detectivity of 1.89 × 1010 Jones under 365 nm light irradiation [70]. In comparison, the α-CsPbI3/ZnO photodetector exhibited superior performance, delivering a photoresponsivity of approximately 8.2 A W−1, an ON/OFF ratio of about 2.4 × 104, and a specific detectivity of approximately 1.4 × 1012 Jones [71]. For n-Si/MAPbBr3 quantum dot-based detectors, an exceptionally high responsivity of 107 A W−1 was achieved due to an ultrahigh gain of 108, resulting in a detectivity of approximately 1012 Jones [72]. Furthermore, Amin et al. reported that Cs0.06FA0.94Pb(I0.68Br0.32)3-based photodetectors achieved a specific detectivity of 7.50 × 1012 Jones with a responsivity of 0.360 A W−1 [39]. Likewise, Zhang et al. fabricated a photodiode with the structure TiO2/FAPbI3/Spiro-OMeTAD/Ag single crystals, which demonstrated a responsivity of 0.95 A W−1 and a specific detectivity of 2.8 × 1012 Jones [34]. In this work (see Table 1), the fabricated photodetectors demonstrate performance comparable to several commercial photodiodes and previously reported perovskite-based devices in terms of responsivity, highlighting its competitive photo-detection capability and good sensitivity for practical applications.

4. Conclusions

CsxFA1−xPbI3 perovskite photodetectors with Cs contents ranging from x = 0.05 to 0.25 were developed and evaluated for visible-light detection. Structural characterization confirmed that compositions with x = 0.1–0.2 form stable cubic lattices and uniform, black, defect-free films. Devices fabricated in a vertical p–i–n architecture exhibit linear photocurrent response over a wide optical power range (1 nW–10 mW), leading to a 129.2 dB linear dynamic range and a photoresponsivity of 0.28 A/W at 532 nm. Temporal response of the detectors after pulsed laser excitation reveals that the Cs0.2FA0.8PbI3 composition provides the fastest response, with a rise time of 27.5 ns, corresponding to a modulation bandwidth of 12.7 MHz. Reduction of the series resistance would further enhance the bandwidth. These results demonstrate that Cs0.2FA0.8PbI3 is a promising perovskite composition for high-speed, cost-effective photodetectors suitable for VIS range imagers and light communication applications.

Author Contributions

A.M.M.: writing—original draft, data curation, formal analysis, conceptualization. S.S.: formal analysis, data curation. G.K.: formal analysis, data curation. P.Š.: writing—original draft, writing—review and editing, data curation, conceptualization, resources, supervision. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Lietuvos Mokslo Taryba, Project No. S-MIP-24-81.

Data Availability Statement

The original contributions presented in this study are included in the article. Further inquiries can be directed to the corresponding authors.

Conflicts of Interest

The authors declare no conflicts of interest.

Abbreviations

The following abbreviations are used in this manuscript:
CaTiO3Calcium titanate
XRDX-ray diffraction
SEMScanning electron microscope
EQEExternal quantum efficiency
CsI Cesium iodide
PbI2Lead iodide
FAI Formamidinium iodide
DMSO Dimethyl sulfoxide
DMF N,N-dimethyl formamide
LDRLinear dynamic range

References

  1. Rose, G. A stand out family. Nat. Mater. 2021, 20, 1303. [Google Scholar] [CrossRef]
  2. Guan, Z.; Zhang, H.; Yang, G. Advances in perovskite lasers. J. Semicond. 2025, 46, 041401. [Google Scholar] [CrossRef]
  3. Zhang, X.; Li, Z.; Hong, E.; Deng, M.; Su, L.; Fang, X. Modulating Quantum Well Width of Ferroelectric Ruddlesden–Popper Perovskites for Flexible Light Communication Device. Adv. Funct. Mater. 2024, 34, 2312293. [Google Scholar] [CrossRef]
  4. Cao, F.; Bian, L.; Li, L. Perovskite solar cells with high-efficiency exceeding 25%: A review. Energy Mater. Devices 2024, 2, 9370018. [Google Scholar] [CrossRef]
  5. Xiao, Z.; Song, Z.; Yan, Y. From Lead Halide Perovskites to Lead-Free Metal Halide Perovskites and Perovskite Derivatives. Adv. Mater. 2019, 31, 1803792. [Google Scholar] [CrossRef]
  6. Majeed, A.M.; Nomeika, K.; Auruskevicius, M.; Stanionyte, S.; Radiunas, E.; Scajev, P. Impact of Zn Alloying to CsZnxPb1−xI3 Charge Carrier Diffusion Coefficient, Diffusion Length, and Recombination Parameters. J. Phys. Chem. C 2025, 129, 1444–1456. [Google Scholar] [CrossRef]
  7. Kojima, A.; Teshima, K.; Shirai, Y.; Miyasaka, T. Organometal Halide Perovskites as Visible-Light Sensitizers for Photovoltaic Cells. J. Am. Chem. Soc. 2009, 131, 6050–6051. [Google Scholar] [CrossRef]
  8. Sun, L.; Li, W.; Zhu, W.; Chen, Z. Single-crystal perovskite detectors: Development and perspectives. J. Mater. Chem. C Mater. 2020, 8, 11664–11674. [Google Scholar] [CrossRef]
  9. Majeed, A.M.; Raišys, S.; Kreiza, G.; Ščajev, P. Optimization of Zn alloying in non-colloidal CsZnxPb1-xI3 solar cells. Sol. Energy Mater. Sol. Cells 2026, 295, 113994. [Google Scholar] [CrossRef]
  10. Pylnev, M.; Nishikubo, R.; Ishiwari, F.; Wakamiya, A.; Saeki, A. Performance Boost by Dark Electro Treatment in MACl-Added FAPbI3 Perovskite Solar Cells. Adv. Opt. Mater. 2024, 12, 2401902. [Google Scholar] [CrossRef]
  11. Tsarev, S.; Proniakova, D.; Liu, X.; Wu, E.; Matt, G.J.; Sakhatskyi, K.; Ferraresi, L.L.A.; Kothandaraman, R.; Fu, F.; Shorubalko, I.; et al. Vertically stacked monolithic perovskite colour photodetectors. Nature 2025, 642, 592–598. [Google Scholar] [CrossRef]
  12. Zhou, Y.; Fei, C.; Uddin, M.A.; Zhao, L.; Ni, Z.; Huang, J. Self-powered perovskite photon-counting detectors. Nature 2023, 616, 712–718. [Google Scholar] [CrossRef] [PubMed]
  13. Park, J.; Kim, S.; Kwak, H.J.; Jeong, S.; Son, J.Y.; Yang, S.; Kim, J.; Woo, S.; Yang, J.; Son, J.; et al. Oxygen-Positional 2D Side-Chain Engineering of n-Type Acceptors for Record >90% Near‐Infrared External Quantum Efficiency in Broadband Perovskite–Organic Photodetectors. Adv. Funct. Mater. 2025, e21677. [Google Scholar] [CrossRef]
  14. Min, L.; Sun, H.; Guo, L.; Wang, M.; Cao, F.; Zhong, J.; Li, L. Frequency-selective perovskite photodetector for anti-interference optical communications. Nat. Commun. 2024, 15, 2066. [Google Scholar] [CrossRef] [PubMed]
  15. Li, Y.; Shi, Z.; Liang, W.; Wang, L.; Li, S.; Zhang, F.; Ma, Z.; Wang, Y.; Tian, Y.; Wu, D.; et al. Highly stable and spectrum-selective ultraviolet photodetectors based on lead-free copper-based perovskites. Mater. Horiz. 2020, 7, 530–540. [Google Scholar] [CrossRef]
  16. Liu, R.; Li, F.; Zeng, F.; Zhao, R.; Zheng, R. Halide perovskite x-ray detectors: Fundamentals, progress, and outlook. Appl. Phys. Rev. 2024, 11, 021327. [Google Scholar] [CrossRef]
  17. Majeed, A.M.; Vaitkevičius, A.; Stanionytė, S.; Miasojedovas, S.; Kreiza, G.; Ščajev, P. Highly Stable Solution-Processed CsZnPbI3 Perovskite Distributed Feedback Lasers. Adv. Opt. Mater. 2025, 13, e01896. [Google Scholar] [CrossRef]
  18. Harwell, J.R.; Whitworth, G.L.; Turnbull, G.A.; Samuel, I.D.W. Green Perovskite Distributed Feedback Lasers. Sci. Rep. 2017, 7, 11727. [Google Scholar] [CrossRef]
  19. Lian, Y.; Wang, Y.; Yuan, Y.; Ren, Z.; Tang, W.; Liu, Z.; Xing, S.; Ju, K.; Yuan, B.; Yang, Y.; et al. Downscaling micro- and nano-perovskite LEDs. Nature 2025, 640, 62–68. [Google Scholar] [CrossRef]
  20. Ke, Y.; Zhu, W.; Ma, C.; Xiong, K.; Liu, W.; Kuang, Z.; Wu, J.; Qian, D.; Li, M.; Wang, S.; et al. High-performance tandem perovskite LEDs through interlayer photon recycling. Nature 2026, 649, 53–58. [Google Scholar] [CrossRef]
  21. Liu, Y.; Albrow-Owen, T.; Cen, G.; Li, W.; Wan, H.; Zhao, C.; Joyce, H.; Chen, X.; Hasan, T.; Ji, Z.; et al. Nature-Inspired Perovskite-Based Spectral Polarimetric Camera. Laser Photon. Rev. 2026, 20, e01405. [Google Scholar] [CrossRef]
  22. Ling, C.; Rong, C.; Men, B.; Wang, J.; Sun, J.; Zhang, T.; Znang, L.; Guo, R.; Zhou, P.; Liu, W. WS2/MHS PdTe2/Si Mixed-Dimensional Heterojunction as Ultra-Broadband Photodetector for Health and Safety Monitoring. Adv. Healthc. Mater. 2025, 14, 2402507. [Google Scholar] [CrossRef] [PubMed]
  23. Fan, J.; Li, W.; Zhou, Q.; Yang, G.; Tang, P.; He, J.; Ma, L.; Zhang, J.; Xiao, J.; Yan, Z.; et al. Metal Halide Perovskites for Direct X-Ray Detection in Medical Imaging: To Higher Performance. Adv. Funct. Mater. 2025, 35, 2401017. [Google Scholar] [CrossRef]
  24. Zhao, J.; Wang, X.; Xu, Y.; Pan, Y.; Li, Y.; Chen, J.; Li, Q.; Zhang, X.; Zhu, Z.; Zhao, Z.; et al. Electrically Modulated Near-Infrared/Visible Light Dual-Mode Perovskite Photodetectors. ACS Appl. Mater. Interfaces 2022, 14, 25824–25833. [Google Scholar] [CrossRef]
  25. Liu, S.; Lv, R.; Zhang, Y.; He, P.; Chan, T.; Han, H.; Wei, Z. Perovskite nanoparticle-based nonlinear optical devices for ultrafast photonics applications. J. Appl. Phys. 2025, 138, 223108. [Google Scholar] [CrossRef]
  26. Zhang, M.; Wang, L.; Meng, L.; Wu, X.G.; Tan, Q.; Chen, Y.; Liang, W.; Jiang, F.; Cai, Y.; Zhong, H. Perovskite Quantum Dots Embedded Composite Films Enhancing UV Response of Silicon Photodetectors for Broadband and Solar-Blind Light Detection. Adv. Opt. Mater. 2018, 6, 1800077. [Google Scholar] [CrossRef]
  27. Rogalski, A.; Hu, W.; Wang, F.; Wang, Y.; Martyniuk, P. Perovskite versus Standard Photodetectors. Materials 2024, 17, 4029. [Google Scholar] [CrossRef]
  28. Perini, C.A.; Ferrari, G.; Correa-Baena, J.P.; Petrozza, A.; Caironi, M. A solution processed metal-oxide:polymer interlayer improves the perovskite photodetector response speed, dark current, and stability. EES Sol. 2025, 1, 600–607. [Google Scholar] [CrossRef]
  29. Global Supplier. Available online: https://www.tcichemicals.com (accessed on 10 March 2026).
  30. GaAs Solar Cell Prices and Datasheet. Available online: https://www.greatcellsolarmaterials.com/ (accessed on 10 March 2026).
  31. Inudstrial Market Analysis. Available online: https://tradingeconomics.com/commodity/silicon (accessed on 10 March 2026).
  32. Gallium Arsenide. Available online: https://www.chemicalbook.com/Price/GALLIUM-ARSENIDE.htm (accessed on 10 March 2026).
  33. Dou, L.; Yang, Y.; You, J.; Hong, Z.; Chang, W.H.; Li, G.; Yang, Y. Solution-processed hybrid perovskite photodetectors with high detectivity. Nat. Commun. 2014, 5, 5404. [Google Scholar] [CrossRef]
  34. Zhang, M.; Zhang, F.; Wang, Y.; Zhu, L.; Hu, Y.; Lou, Z.; Jou, Y.; Teng, F. High-Performance Photodiode-Type Photodetectors Based on Polycrystalline Formamidinium Lead Iodide Perovskite Thin Films. Sci. Rep. 2018, 8, 11157. [Google Scholar] [CrossRef]
  35. Khanikar, P.D.; Shah, S.; Shukla, A.; Cole, C.M.; Guo, Z.; Das, S.; Lo, S.-C.; Matsushima, T.; Namdas, E.B. Unified Approach to Sensitive and Fast Perovskite Photodetectors Featuring an Ultrawide Linear Dynamic Range. Adv. Opt. Mater. 2025, 13, e01967. [Google Scholar] [CrossRef]
  36. Ma, S.; Jang, G.; Kim, S.; Kwon, H.C.; Goh, S.; Ban, H.; Choo, J.H.; Moon, J. Multifunctional Self-Combustion Additives Strategy to Fabricate Highly Responsive Hybrid Perovskite Photodetectors. ACS Appl. Mater. Interfaces 2020, 12, 41674–41686. [Google Scholar] [CrossRef] [PubMed]
  37. Liang, F.X.; Wang, J.Z.; Zhang, Z.X.; Wang, Y.Y.; Gao, Y.; Luo, L.B. Broadband, Ultrafast, Self-Driven Photodetector Based on Cs-Doped FAPbI3 Perovskite Thin Film. Adv. Opt. Mater. 2017, 5, 1700654. [Google Scholar] [CrossRef]
  38. Hamazaki, H.; Matsui, H.; Tanaka, N.; Kobayashi, T.; Yazawa, R.; Shahiduzzaman, M.; Taima, T.; Kaeakawa, M.; Ilyama, K.; Nunzi, J.M.; et al. Enhancing Voltage Tolerance of CsFA Perovskite-Based Rectifying Diodes Through Ionic Liquid Incorporation. Adv. Sustain. Syst. 2025, 9, e00762. [Google Scholar] [CrossRef]
  39. Al Amin, N.R.; Lee, C.C.; Huang, Y.C.; Shih, C.J.; Estrada, R.; Biring, S.; Kuo, M.H.; Li, C.F.; Huang, Y.C.; Liu, S.W. Achieving a Highly Stable Perovskite Photodetector with a Long Lifetime Fabricated via an All-Vacuum Deposition Process. ACS Appl. Mater. Interfaces 2023, 15, 21284–21295. [Google Scholar] [CrossRef]
  40. Adams, G.R.; Eze, V.O.; Shohag, M.A.S.; Simpson, R.; Parker, H.; Okoli, O.I. Fabrication of rapid response self-powered photodetector using solution-processed triple cation lead-halide perovskite. Eng. Res. Express 2020, 2, 015043. [Google Scholar] [CrossRef]
  41. Wang, Y.; Zhang, X.; Wang, D.; Li, X.; Meng, J.; You, J.; Yin, Z.; Wu, J. Compositional Engineering of Mixed-Cation Lead Mixed-Halide Perovskites for High-Performance Photodetectors. ACS Appl. Mater. Interfaces 2019, 11, 28005–28012. [Google Scholar] [CrossRef]
  42. Hong, E.; Nodari, D.; Furlan, F.; Angela, E.; Panidi, J.; McLachlan, M.A.; Gasparini, N. Strain-Induced α-Phase Stabilization for Low Dark Current FAPI-Based Photodetectors. Adv. Opt. Mater. 2024, 12, 2302712. [Google Scholar] [CrossRef]
  43. Ščajev, P.; Miasojedovas, S.; Juršėnas, S. A carrier density dependent diffusion coefficient, recombination rate and diffusion length in MAPbI3 and MAPbBr3 crystals measured under one- and two-photon excitations. J. Mater. Chem. C Mater. 2020, 8, 10290–10301. [Google Scholar] [CrossRef]
  44. Klipfel, N.; Haris, M.P.; Kazim, S.; Sutanto, A.A.; Shibayama, N.; Kanda, H.; Asiri, A.M.; Mamblona, C.; Ahmad, S.; Khaja, M.; et al. Structural and photophysical investigation of single-source evaporation of CsFAPbI3 and FAPbI3 perovskite thin films. J. Mater. Chem. C Mater. 2022, 10, 10075–10082. [Google Scholar] [CrossRef]
  45. Jiang, Q.; Chu, Z.; Wang, P.; Yang, X.; Liu, H.; Wang, Y.; Yin, Z.; Wu, J.; Zhang, X.; You, J. Planar-Structure Perovskite Solar Cells with Efficiency beyond 21%. Adv. Mater. 2017, 2, 1703852. [Google Scholar] [CrossRef]
  46. Park, B.W.; Kedem, N.; Kulbak, M.; Lee, D.Y.; Yang, W.S.; Jeon, N.J.; Seo, J.; Kim, G.; Kim, K.J.; Shin, T.J.; et al. Understanding how excess lead iodide precursor improves halide perovskite solar cell performance. Nat. Commun. 2018, 9, 3301. [Google Scholar] [CrossRef] [PubMed]
  47. Ščajev, P.; Litvinas, D.; Soriūtė, V.; Kreiza, G.; Stanionytė, S.; Juršėnas, S. Crystal Structure Ideality Impact on Bimolecular, Auger, and Diffusion Coefficients in Mixed-Cation CsxMA1−xPbBr3 and CsxFA1−xPbBr3 Perovskites. J. Phys. Chem. C 2019, 123, 23838–23844. [Google Scholar] [CrossRef]
  48. Hu, L.; Guan, X.; Chen, W.; Yao, Y.; Wan, T.; Lin, C.H.; Pham, N.D.; Yan, L.; Geng, X.; Wang, F.; et al. Linking Phase Segregation and Photovoltaic Performance of Mixed-Halide Perovskite Films through Grain Size Engineering. ACS Energy Lett. 2021, 6, 1649–1658. [Google Scholar] [CrossRef]
  49. Dhar, S.; Miller, D.M.; Jokerst, N.M. High responsivity, low dark current, heterogeneously integrated thin film Si photodetectors on rigid and flexible substrates. Opt. Express 2014, 22, 5052. [Google Scholar] [CrossRef]
  50. Bansal, S.; Kumar, S.; Jain, A.; Rohilla, V.; Prakash, K.; Gupta, A.; Ali, T.; Alenezi, A.M.; Islam, M.S.; Soliman, M.S.; et al. Design and TCAD analysis of few-layer graphene/ZnO nanowires heterojunction-based photodetector in UV spectral region. Sci. Rep. 2025, 15, 7762. [Google Scholar] [CrossRef]
  51. Fu, M.; Tamarat, P.; Trebbia, J.B.; Bodnarchuk, M.I.; Kovalenko, M.V.; Even, J.; Lounis, B. Unraveling exciton–phonon coupling in individual FAPbI3 nanocrystals emitting near-infrared single photons. Nat. Commun. 2018, 9, 3318. [Google Scholar] [CrossRef]
  52. Lee, J.W.; Kim, D.H.; Kim, H.S.; Seo, S.W.; Cho, S.M.; Park, N.G. Formamidinium and Cesium Hybridization for Photo- and Moisture-Stable Perovskite Solar Cell. Adv. Energy Mater. 2015, 5, 1501310. [Google Scholar] [CrossRef]
  53. Svanström, S.; Jacobsson, T.J.; Sloboda, T.; Giangrisostomi, E.; Ovsyannikov, R.; Rensmo, H.; Cappel, U.B. Effect of halide ratio and Cs+ addition on the photochemical stability of lead halide perovskites. J. Mater. Chem. A Mater. 2018, 6, 22134–22144. [Google Scholar] [CrossRef]
  54. Liu, F.; Liu, K.; Rafique, S.; Xu, Z.; Niu, W.; Li, X.; Wang, Y.; Deng, L.; Wang, J.; Yue, X.; et al. Highly Efficient and Stable Self-Powered Mixed Tin-Lead Perovskite Photodetector Used in Remote Wearable Health Monitoring Technology. Adv. Sci. 2023, 10, 2205879. [Google Scholar] [CrossRef]
  55. Kim, T.W.; Kim, S.H.; Shim, J.W.; Hwang, D.K. Organic photodiode with dual functions of indoor photovoltaic and high-speed photodetector. Front. Optoelectron. 2022, 15, 18. [Google Scholar] [CrossRef] [PubMed]
  56. Dong, K.; Zhou, H.; Gao, Z.; Xu, M.; Zhang, L.; Zhou, S.; Cui, H.; Wang, S.; Tao, C.; Ke, W.; et al. 2D Perovskite Single-Crystalline Photodetector with Large Linear Dynamic Range for UV Weak-Light Imaging. Adv. Funct. Mater. 2024, 34, 2306941. [Google Scholar] [CrossRef]
  57. Ma, Y.; Zhao, X.; Xu, X.; Wei, W.; Shen, L. Ultralow dark current and high on–off ratio of perovskite photodetectors enabled by 3D/2D/3D heterostructures unipolar barrier. Appl. Phys. Lett. 2023, 123, 231105. [Google Scholar] [CrossRef]
  58. Zeng, L.H.; Chen, Q.M.; Zhang, Z.X.; Wu, D.; Yuan, H.; Li, Y.Y.; Qarony, W.; Lau, S.P.; Luo, L.B.; Tsang, Y.H. Multilayered PdSe2/Perovskite Schottky Junction for Fast, Self-Powered, Polarization-Sensitive, Broadband Photodetectors, and Image Sensor Application. Adv. Sci. 2019, 6, 1901134. [Google Scholar] [CrossRef]
  59. Naqvi, F.H.; Ko, J.-H. Structural Phase Transitions and Thermal Degradation Process of MAPbCl3 Single Crystals Studied by Raman and Brillouin Scattering. Materials 2022, 15, 8151. [Google Scholar] [CrossRef]
  60. Khan, A.A.; Kumar, N.; Jung, U.; Heo, W.; Tan, Z.; Park, J. Performance and stability enhancement of perovskite photodetectors by additive and interface engineering using a dual-functional PPS zwitterion. Nanoscale Horiz. 2023, 8, 1577–1587. [Google Scholar] [CrossRef]
  61. Yue, T. Degradation behavior of perovskite solar cells under high-intensity and multi band illumination conditions. J. Atmos. Sol. Terr. Phys. 2026, 279, 106738. [Google Scholar] [CrossRef]
  62. Dutta, A.; Medda, A.; Bera, R.; Sarkar, K.; Sain, S.; Kumar, P.; Patra, A. Hybrid Nanostructures of 2D CdSe Nanoplatelets for High-Performance Photodetector Using Charge Transfer Process. ACS Appl. Nano Mater. 2020, 3, 4717–4727. [Google Scholar] [CrossRef]
  63. Ščajev, P.; Malinauskas, T.; Seniutinas, G.; Arnold, M.D.; Gentle, A.; Aharonovich, I.; Gervinskas, G.; Michaux, P.; Hartley, J.S.; Mayes, E.L.H.; et al. Light-induced reflectivity transients in black-Si nanoneedles. Sol. Energy Mater. Sol. Cells 2016, 144, 221–227. [Google Scholar] [CrossRef]
  64. Ščajev, P.; Jurkevičius, J.; Mickevičius, J.; Jarašiūnas, K.; Kato, H. Features of free carrier and exciton recombination, diffusion, and photoluminescence in undoped and phosphorus-doped diamond layers. Diam. Relat. Mater. 2015, 57, 9–16. [Google Scholar] [CrossRef]
  65. Ščajev, P.; Gudelis, V.; Jarašiūnas, K.; Kisialiou, I.; Ivakin, E.; Nesladek, M.; Haenen, K. Carrier recombination and diffusivity in microcrystalline CVD-grown and single-crystalline HPHT diamonds. Phys. Status Solidi A 2012, 209, 1744–1749. [Google Scholar] [CrossRef]
  66. Ščajev, P.; Malinauskas, T.; Lubys, L.; Ivakin, E.; Nesladek, M.; Haenen, K.; Jarašiūnas, K. Optical monitoring of nonequilibrium carrier diffusion in single crystalline CVD and HPHT diamonds under high optical excitation. Phys. Status Solidi RRL 2011, 5, 193–195. [Google Scholar] [CrossRef]
  67. Goushcha, A.O.; Tabbert, B. On response time of semiconductor photodiodes. Opt. Eng. 2017, 56, 097101. [Google Scholar] [CrossRef]
  68. Cao, B.; Yang, L.; Jiang, S.; Lin, H.; Wang, N.; Li, X. Flexible quintuple cation perovskite solar cells with high efficiency. J. Mater. Chem. A Mater. 2019, 7, 4960–4970. [Google Scholar] [CrossRef]
  69. Praba, L.; Chung, Y.; Han, D.H.; Jung, J.W. Fullerene-Passivated Methylammonium Lead Iodide Perovskite Absorber for High-Performance Self-Powered Photodetectors with Ultrafast Response and Broadband Detectivity. Molecules 2025, 30, 1166. [Google Scholar] [CrossRef]
  70. Shen, J.H.; Yu, X.Q.; Tu, W.C. Multifunctional and High-Performance FAPBI3 Quantum Dots/Graphene UV Photodetectors by the Modulation of Photoconductivity. Adv. Opt. Mater. 2023, 11, 2300410. [Google Scholar] [CrossRef]
  71. Pal, S.; Ghorai, A.; Mahato, S.; Ray, S.K. Piezo-Phototronic Effect-Induced Self-Powered Broadband Photodetectors using Environmentally Stable α-CsPbI3 Perovskite Nanocrystals. Adv. Opt. Mater. 2023, 11, 2300233. [Google Scholar] [CrossRef]
  72. Liu, C.; Wu, W.; Liang, J.; Zhou, H. High-quality silicon-based perovskite photodetectors with the detectivity exceeding 7.5 × 1013 Jones. Opt. Express 2024, 32, 42793. [Google Scholar] [CrossRef]
Materials 19 01315 g001

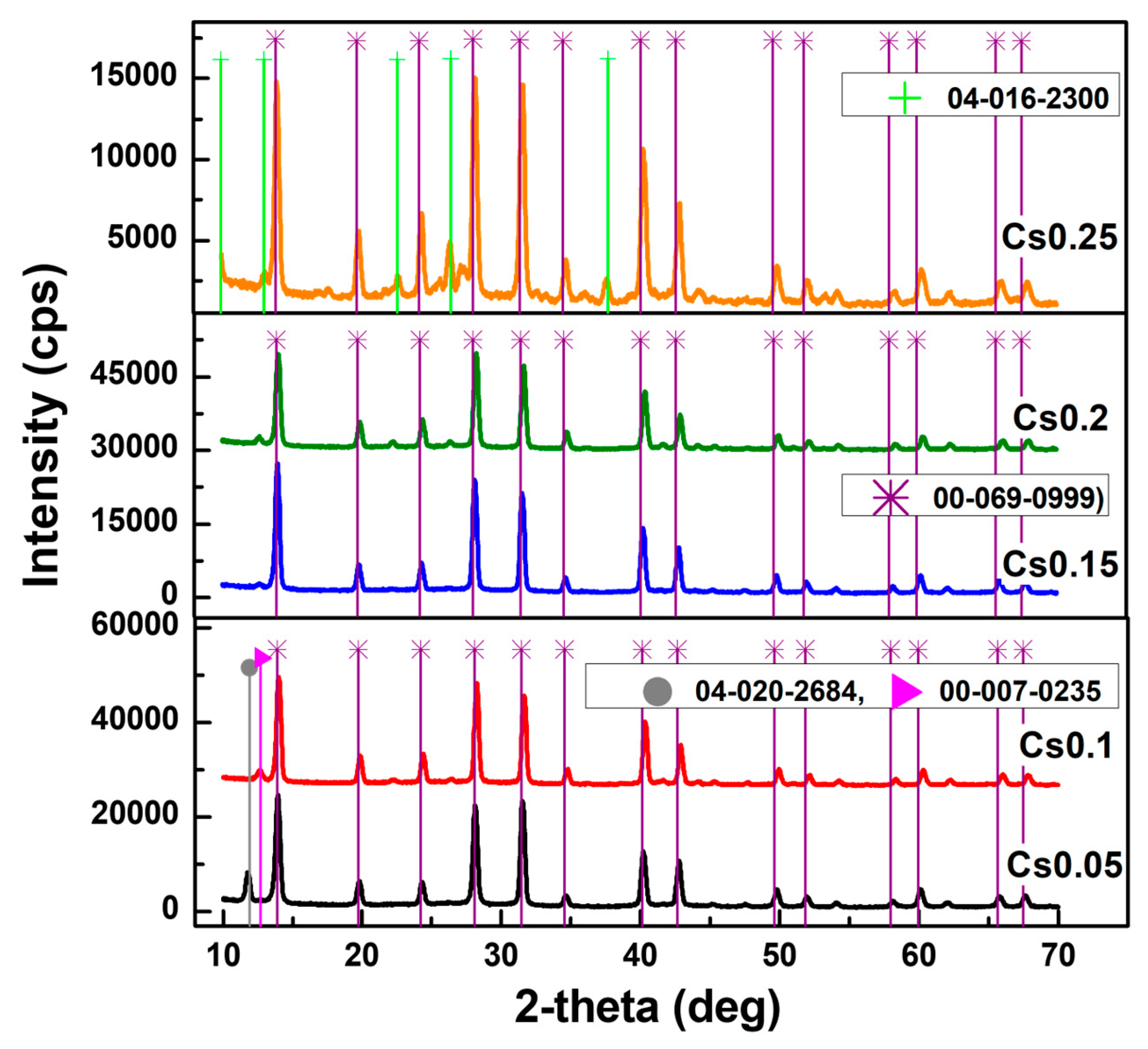

Figure 1. XRD patterns of perovskite layers CsxFA1−xPbI3 (x = 0.05–0.25). Symbols indicate peaks according PDF cards with numbers provided on the plot. Curves are vertically shifted for clarity.
Figure 1. XRD patterns of perovskite layers CsxFA1−xPbI3 (x = 0.05–0.25). Symbols indicate peaks according PDF cards with numbers provided on the plot. Curves are vertically shifted for clarity.
Materials 19 01315 g001
Materials 19 01315 g002
Figure 2. Morphology of perovskite CsxFA1−xPbI3 (x = 0.05–0.25) layers (a–e) and Cs0.2 detector cross-section (f).
Figure 2. Morphology of perovskite CsxFA1−xPbI3 (x = 0.05–0.25) layers (a–e) and Cs0.2 detector cross-section (f).
Materials 19 01315 g002
Materials 19 01315 g003

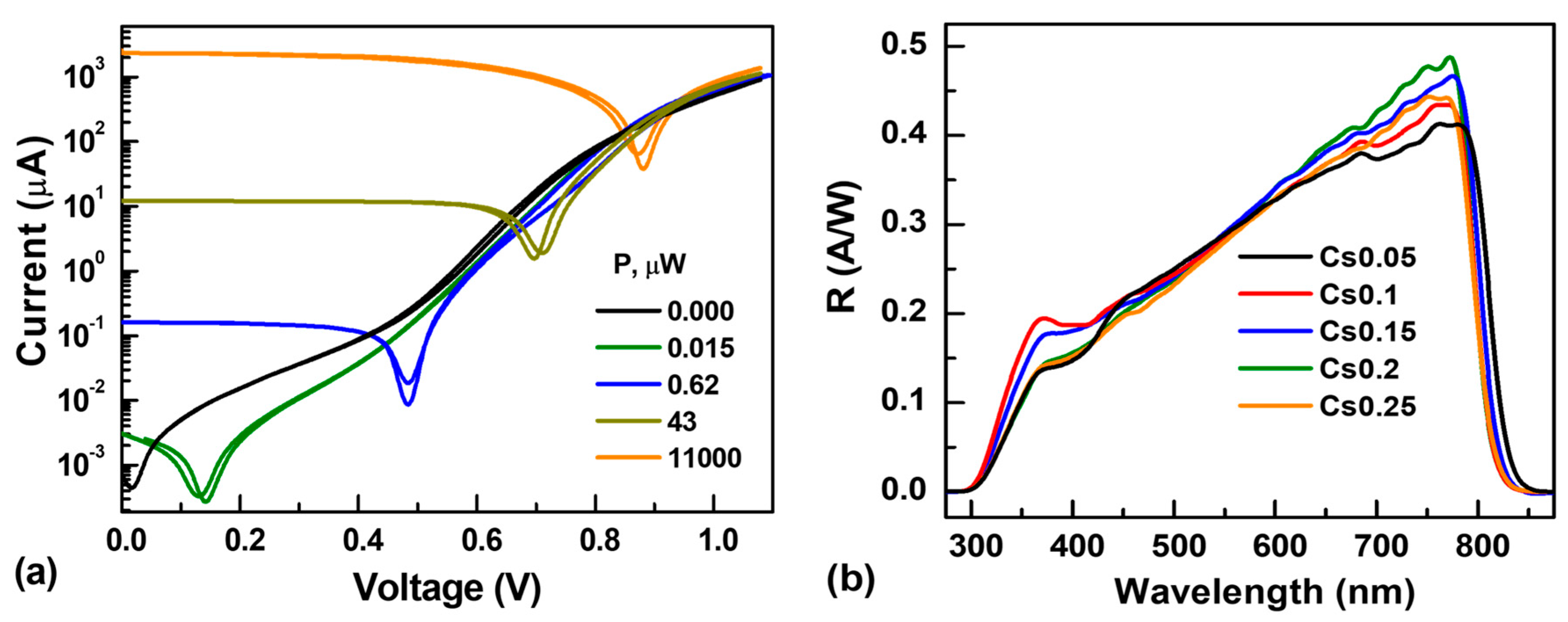

Figure 3. IV curves of Cs0.1 detector under dark and variable-light conditions (a), and spectral responses of the studied detectors (b).
Figure 3. IV curves of Cs0.1 detector under dark and variable-light conditions (a), and spectral responses of the studied detectors (b).
Materials 19 01315 g003
Materials 19 01315 g004

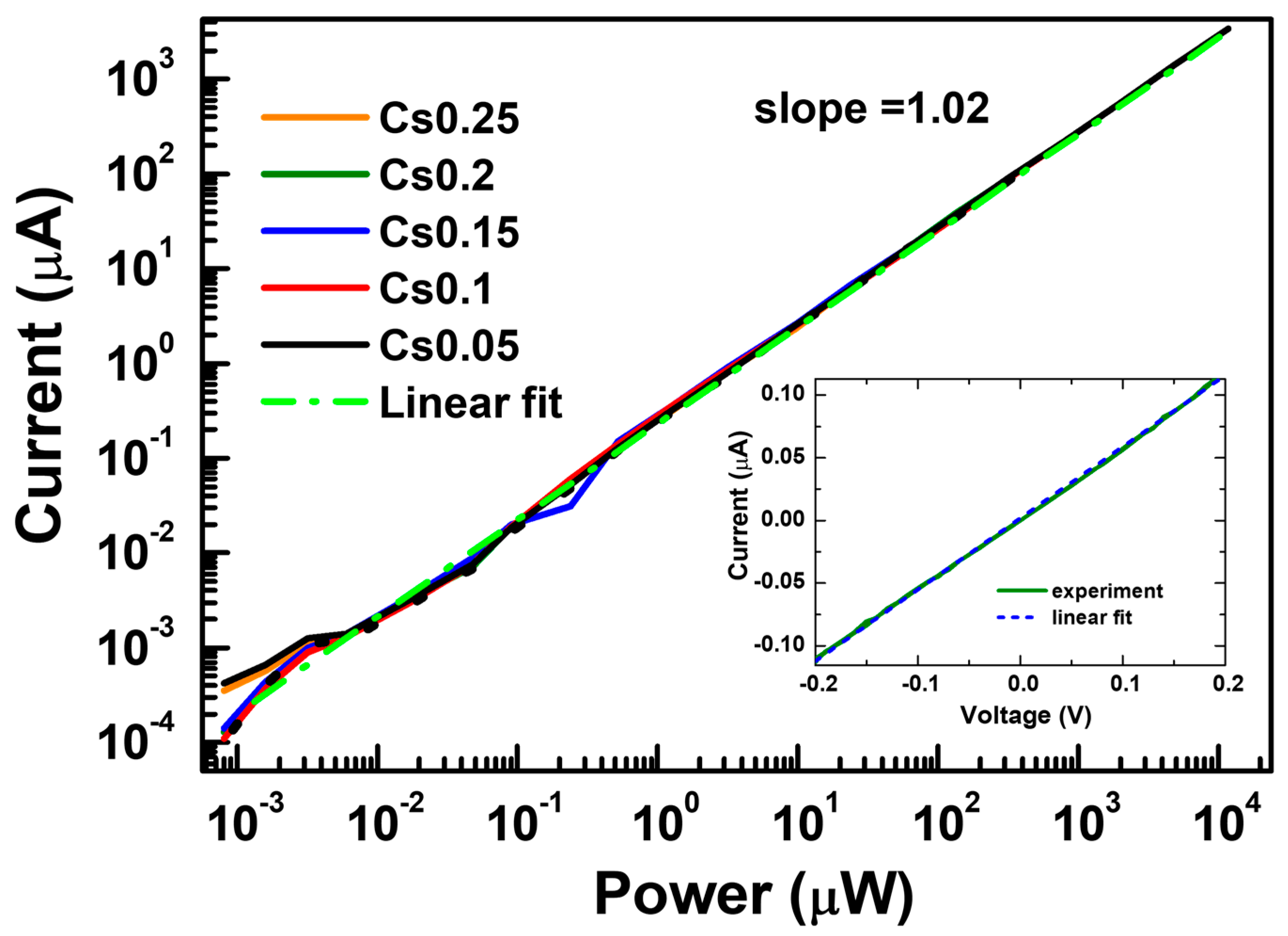

Figure 4. Linearity of the photo response at CW excitation for CsxFA1−xPbI3 detectors. The dashed line shows a linear fit on a log–log plot, while the dotted one indicates a comparable response of a Si photodiode. The inset shows the dark IV curve on a linear scale used for the Cs0.2 detector shunt resistance determination.
Figure 4. Linearity of the photo response at CW excitation for CsxFA1−xPbI3 detectors. The dashed line shows a linear fit on a log–log plot, while the dotted one indicates a comparable response of a Si photodiode. The inset shows the dark IV curve on a linear scale used for the Cs0.2 detector shunt resistance determination.
Materials 19 01315 g004
Materials 19 01315 g005

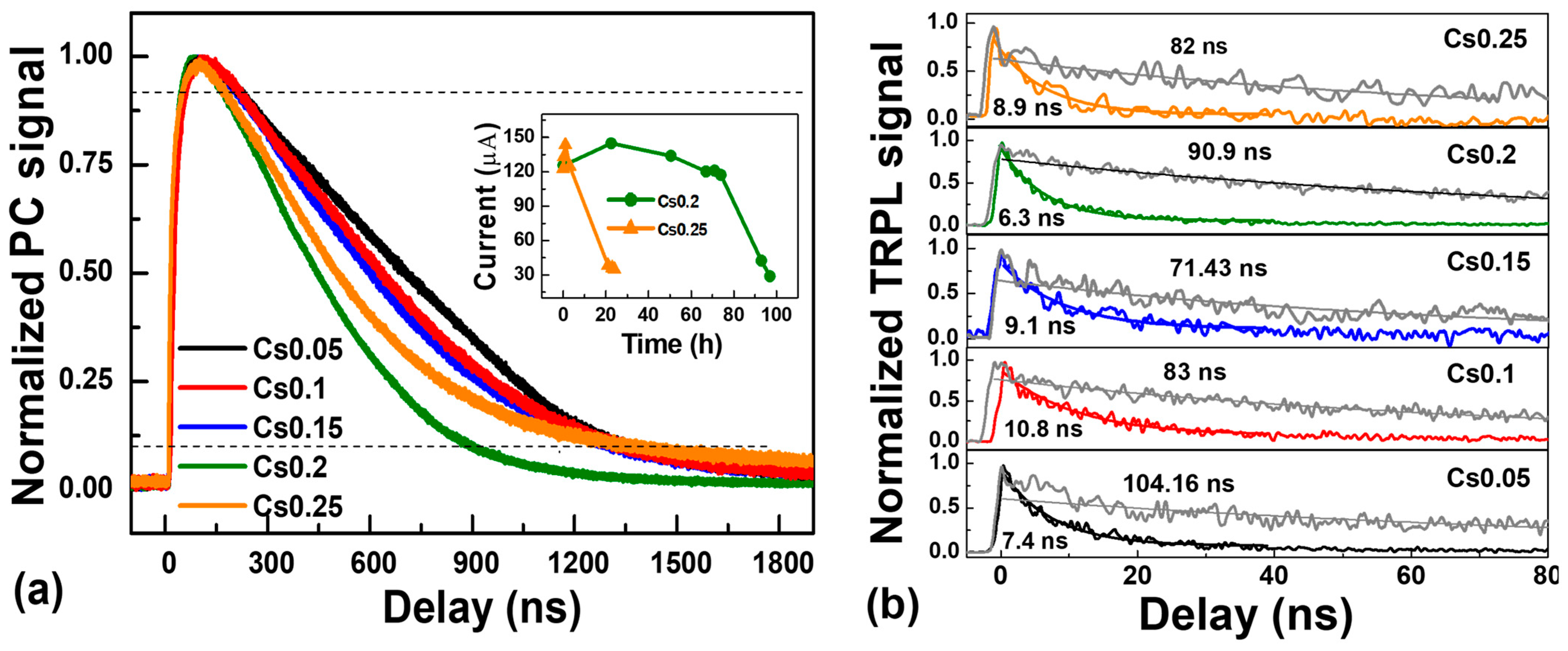

Figure 5. Normalized temporal response of CsxFA1−xPbI3 detectors after pulsed laser excitation. Dashed lines indicate the signal levels at 10% and 90% (a). TRPL decays for perovskite layers (grey curves) and corresponding detectors with indicated corresponding TRPL decay times (b). The inset in (a) shows the degradation of the photo-response at 6 mW/cm2 white LED power.
Figure 5. Normalized temporal response of CsxFA1−xPbI3 detectors after pulsed laser excitation. Dashed lines indicate the signal levels at 10% and 90% (a). TRPL decays for perovskite layers (grey curves) and corresponding detectors with indicated corresponding TRPL decay times (b). The inset in (a) shows the degradation of the photo-response at 6 mW/cm2 white LED power.
Materials 19 01315 g005
Materials 19 01315 g006

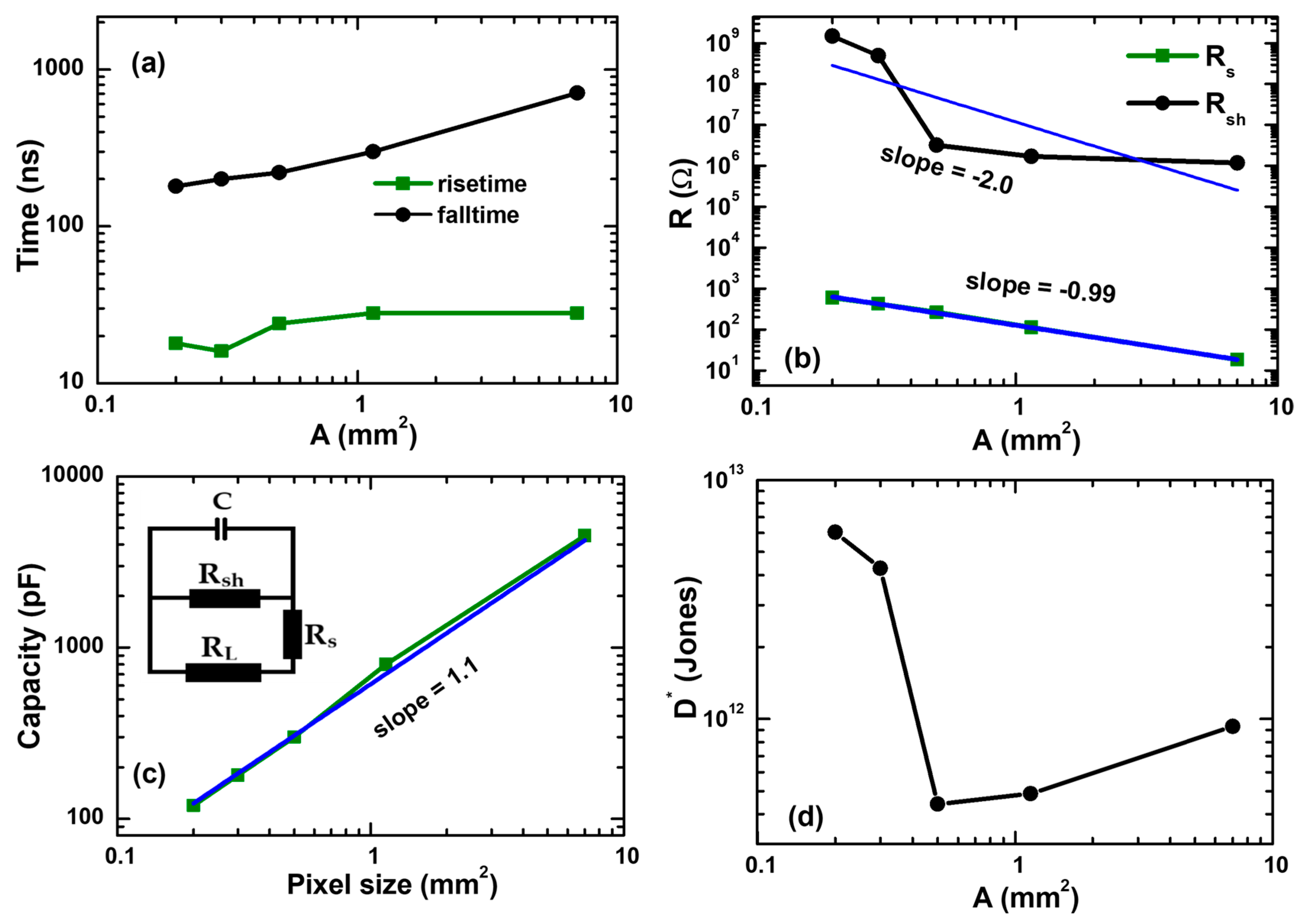

Figure 6. Capacity C (a), series Rs and shunt resistances Rsh (b), rise time and fall time (c), noise current and detectivity (d) dependences on device area A for 20% Cs composition. Inset (c) shows the detector electrical model.
Figure 6. Capacity C (a), series Rs and shunt resistances Rsh (b), rise time and fall time (c), noise current and detectivity (d) dependences on device area A for 20% Cs composition. Inset (c) shows the detector electrical model.
Materials 19 01315 g006
Table 1. Electrical parameters of the detectors.
Table 1. Electrical parameters of the detectors.
DetectorRi @ 532 nm
(A/W)		Peak Wavelength (nm)Rise Time
(ns)		Fall Time
(ns)		Bandwidth (MHz)Ith
(nA)		D*
1012
(Jones)		Layer
τR = 2τPL
(ns)		Detector
τextr = 2τPL
(ns)
Cs0.050.27176435.6 ± 5.41098 ± 1929.8 ± 1.5180.0214.8208
Cs0.10.26376241.7 ± 4.51105 ± 1638.4 ± 0.90.251.4821.6166
Cs0.150.27577634.5 ± 3.51046 ± 10510.1 ± 1.10.311.218.5143
Cs0.20.27277327.5 ± 2.8708 ± 7112.7 ± 1.20.461.012.6182
Cs0.250.26275433.7 ± 4.11166 ± 11210.4 ± 1.30.590.6517.8164
Ith is the thermal noise current (RMS), τPL is the PL decay time, τR is the recombination time, τextr is the carrier extraction time.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Majeed, A.M.; Stanionytė, S.; Kreiza, G.; Ščajev, P. High Dynamic Range CsFAPbI3 Perovskite Photodetectors with 12.7 MHz Bandwidth. Materials 2026, 19, 1315. https://doi.org/10.3390/ma19071315

AMA Style

Majeed AM, Stanionytė S, Kreiza G, Ščajev P. High Dynamic Range CsFAPbI3 Perovskite Photodetectors with 12.7 MHz Bandwidth. Materials. 2026; 19(7):1315. https://doi.org/10.3390/ma19071315

Chicago/Turabian Style

Majeed, Abdul Mannan, Sandra Stanionytė, Gediminas Kreiza, and Patrik Ščajev. 2026. "High Dynamic Range CsFAPbI3 Perovskite Photodetectors with 12.7 MHz Bandwidth" Materials 19, no. 7: 1315. https://doi.org/10.3390/ma19071315

APA Style

Majeed, A. M., Stanionytė, S., Kreiza, G., & Ščajev, P. (2026). High Dynamic Range CsFAPbI3 Perovskite Photodetectors with 12.7 MHz Bandwidth. Materials, 19(7), 1315. https://doi.org/10.3390/ma19071315

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
