Pump-Induced Biphasic Relaxation Model of Xe Spin in Nuclear Magnetic Resonance Gyroscopes

Abstract

The spin relaxation rate of Xe isotopes is a key characteristic of nuclear magnetic resonance gyroscopes (NMRGs). A pump-induced biphasic relaxation (PBR) model is proposed to describe the pump dependence of the transverse relaxation rate of ¹²⁹Xe nuclear spin. The distribution of electron polarization is theoretically analyzed based on the Bloch–Torrey equations and the volume-averaged polarization is evaluated through NMR frequency shift measurements. Experimental results confirm the theoretical quadratic dependence between Γ and $P_{Rb}$ with a high fitting accuracy (R² = 0.9969). The predicted linear (R² > 0.9966) and hyperbolic (R² > 0.9942) regimes of Γ versus pump power are also observed. Validation across different pump power conditions shows agreement between the model and measurements, with an average relative deviation of 0.2169%. The multi-stage process of nuclear spin relaxation is quantified, thereby providing a robust validation for the PBR model.

1. Introduction

Atomic spin gyroscopes are strong candidates for the next generation navigation-grade inertial sensors [1,2]. In atomic spin gyroscopes, the spin of noble atoms is coherently driven and in situ detected by the laser beam [3,4]. According to the transition of atomic energy levels, the carrier angular rate can be detected by the frequency and phase shift in the nuclear spin. Nuclear magnetic resonance gyroscopes (NMRGs) rely on the nuclear spin coherence time of noble gases such as ¹²⁹Xe for inertial sensing [2,5,6]. However, the operational performance of these devices is fundamentally limited by the micro-scale volume of the atomic vapor cell. The cell comprises the core sensing element and contains alkali metal, noble gas, and buffer gas [7].

Over the past decades, researchers have been dedicated to the decomposition of the total relaxation rate according to mechanisms of the Xe interaction. The wall collisions, spin–rotation coupling, magnetic field gradients, and spin exchange with the alkali atoms have been systematically identified and suppressed [8]. Bhaskar et al. pioneered the optical measurement techniques of T₂ with the pulse magnetic field [9]. The free induction decay (FID) method was developed to evaluate T₂ of polarized noble atoms by Hunters et al. [10]. In the study of wall collisions, the method of coating on the inner surface of the vapor cell is of great accessibility, reducing the wall spin relaxation rate [11]. Shi et al. demonstrated the optical absorption spectra relating to the nuclear spin relaxation [12]. Techniques for measuring the transverse relaxation time of Xe atoms under different optical intensities in NMRGs are proposed [13]. The transverse relaxation time (T₂) is an important indicator for evaluating the characterization parameters of vapor cells. Hence, extending T₂ of the noble nuclei has been a persistent research focus.

Pressure-broadening absorption spectroscopy, Faraday optical-rotation detection, and magnetic resonance linewidth analysis are established as the evaluations of NMRGs. In a Rb-Xe atomic ensemble, σ⁺-polarized light propagating perpendicular to the static magnetic field induces selective electron population of energy sublevels [14]. The pump power of the incident laser attenuates progressively with optical depth accompanied by the transfer of photon spin angular momentum to the electronic spin, which subsequently evolves through two primary mechanisms: the diffusion of spin-polarized and the spin-exchange collisions of Rb atoms [15,16]. The polarized Rb electrons generate a substantial effective magnetic field acting on the Xe nuclei, which accelerates nuclear spin relaxation and thereby degrades the signal-to-noise ratio (SNR) [17,18,19]. Furthermore, when introducing the PBR model, it should be clarified that the corresponding experimental regularity had already been observed in our coworkers’ earlier studies [20,21], although a quantitative theoretical description had not yet been established. The main contribution of the present work is therefore to provide a quantitative formulation of the pump-induced relaxation function and to experimentally verify this relationship. In this sense, the PBR model can be regarded as a quantitative extension and validation built upon previously observed experimental behavior.

Performing the classical Bloch–Torrey equations with the COMSOL Multiphysics 6.4 software, we simulated the spatial distribution of electron polarization in different pump intensities. Relaxation rates and magnetic resonance frequency shifts in the nuclear spin are measured via the FID method. A multi-stage behavior in the pumping power dependence of the ¹²⁹Xe transverse spin relaxation rate is observed. Using the volume-averaged polarization as an intermediary variable, a pump-induced biphasic relaxation (PBR) model from linear to hyperbola is quantified.

2. Theoretical Framework of Pump-Induced Biphasic Relaxation (PBR)

2.1. Electron Spin Polarization Dynamics

In Rb-Xe NMR gyroscopes, the alkali-metal electron spin serves as the mediator between optical pumping and noble-gas nuclear polarization. The spatiotemporal evolution of the Rb electron polarization $P_e\left(r,t\right)$ is governed by the Bloch–Torrey equation [22]:

$${\displaystyle \frac{\mathrm{d}{\mathit{P}}_{\mathrm{e}}}{\mathrm{d}t}}={\gamma }_{\mathrm{e}}{\mathit{P}}_e\times \mathbf{B}+D_{\mathrm{e}}{\nabla }^2{\mathit{P}}_e+R_{\mathrm{op}}\left(1-{\mathit{P}}_e\right)-R_{\mathrm{S}D}{\mathit{P}}_e$$

(1)

where γ_e is the electron gyromagnetic ratio, B is the magnetic field, D_e is the diffusion coefficient of Rb atoms, R_op the optical pumping rate, and R_SD the spin-destruction rate [23].

Under steady-state conditions and weak transverse electron magnetization, the longitudinal component satisfies

$$D_{\mathrm{e}}{\nabla }^2{P}_{\mathrm{e}}-(R_{\mathrm{op}}+R_{\mathrm{S}D})P_{\mathrm{e}}+R_{op}=0$$

(2)

where the boundary condition is

$$D_{\mathrm{e}}\nabla P_{\mathrm{e}}=P_{\mathrm{e}}{(R_{\mathrm{op}}{D}_{\mathrm{e}}/2)}^{{\displaystyle \frac{1}{2}}}$$

(3)

Equation (2) describes a diffusion–relaxation balance and determines the spatial polarization distribution inside the vapor cell. Because the pump beam exhibits a Gaussian intensity profile and finite optical depth, $R_{\mathrm{op}}\left(r\right)$ is spatially inhomogeneous. Consequently, the steady-state electron polarization $P_e\left(r\right)$ is nonuniform.

The spin-destruction relaxation rate (R_SD) originates primarily from atomic spin collisions. Its temperature dependence mainly arises from two factors. First, the alkali-metal vapor density increases exponentially with temperature, which significantly enhances the collision frequency. Second, the mean relative velocity of atoms increases with temperature, further increasing the spin-destruction collision rate. As a result, R_SD typically increases with temperature, and this dependence can be approximated as proportional to the product of alkali number density and the thermally averaged collision cross-section.

Neglecting the diffusion in the regime of high buffer gas, the volume-averaged electron polarization reduces to [24]

$$P_{\mathrm{Rb}}={\displaystyle \frac{R_{\mathrm{OP}}}{R_{\mathrm{OP}}+R_{\mathrm{SD}}}}$$

(4)

Since the optical pumping rate scales linearly with pump power $P$, the ensemble-averaged polarization becomes [25]

$$P_{\mathrm{Rb}}={\displaystyle \frac{aP}{aP+R_{\mathrm{SD}}}}$$

(5)

which is a Langmuir-type saturation function. Equation (5) provides the first key element of the PBR model: electron polarization increases linearly at low power and saturates at high power.

2.2. Fermi-Contact Interaction and NMR Frequency Shift

The polarized Rb electrons generate an effective magnetic field acting on Xe nuclei through the Fermi-contact hyperfine interaction. The longitudinal effective field is [26,27]

$$B_{\mathrm{ef}f}={\displaystyle \frac{2}{3}}{k}_0{\mu }_0{g}_S{\mu }_B{n}_{\mathrm{Rb}}⟨S_z⟩$$

(6)

where k₀~493 is the Rb-Xe enhancement factor [28,29], n_Rb is the Rb density, g_s is the electron spin g-factor, µ_B is the Bohr magneton and ⟨S_z⟩ the electron spin expectation value. Since P_Rb = 2 ⟨S_z⟩, the resulting ¹²⁹Xe Larmor frequency shift is

$$\mathrm{\Delta }{\omega }_{\mathrm{Xe}}={\gamma }_{\mathrm{Xe}}{B}_{eff}\propto P_{Rb}$$

(7)

where γ_Xe is the gyromagnetic ratio of ¹²⁹Xe, and the NMR frequency shift of ¹²⁹Xe atoms is proportional to the density of polarized atoms n_Rb. This linear proportionality provides a direct and quantitative method for measuring the ensemble-averaged electron polarization.

2.3. Mechanism of Pump-Induced Nuclear Transverse Relaxation

The total transverse relaxation rate of ¹²⁹Xe can be decomposed as [30]

$$\mathrm{\Gamma }={\mathrm{\Gamma }}_0+{\mathrm{\Gamma }}_{\mathrm{S}E}+{\mathrm{\Gamma }}_{\mathrm{grad}}$$

(8)

where ${\mathrm{\Gamma }}_0$ includes wall, van der Waals and intrinsic magnetic-gradient relaxation, ${\mathrm{\Gamma }}_{SE}$ arises from binary spin-exchange collisions, and ${\mathrm{\Gamma }}_{\mathrm{grad}}$ originates from polarization-induced magnetic field gradients.

(1)

Spin-Exchange Contribution ${\mathrm{\Gamma }}_{\mathrm{S}E}$

When the pump power is varied, the corresponding contribution of spin-exchange ${ \mathrm{\Gamma }}_{\mathrm{S}E}$ is proportional to the total density of polarized Rb atoms in the vapor cell. For the stable Rb density,

$${\mathrm{\Gamma }}_{\mathrm{S}E} \propto n_{Rb}{\overline{P}}_{\mathrm{Rb}}$$

(9)

Detailed theory can be found in Appendix A.

(2)

Effective Field Gradient Contribution ${\mathrm{\Gamma }}_{\mathrm{grad}}$

Optical-induced inhomogeneous polarization distribution drives coherent nuclear spin precession of Xe, which subsequently undergoes dephasing and accelerated transverse relaxation [5,31]. Due to spatially inhomogeneous electron polarization, the effective magnetic field exhibits a gradient,

$$\nabla B_{\mathrm{e}ff} \propto \nabla P_{Rb}$$

(10)

because the alkali contact field is proportional to the local Rb electron polarization [32]. The effective magnetic field can be written as

$$B_{\mathrm{eff}}\left(r\right)=B_0+b_A\hspace{0.17em}{P}_{\mathrm{Rb}}\left(r\right)\hspace{0.17em}\widehat{e}$$

(11)

where b_A is the contact field coefficient and $\widehat{e}$ denotes the direction of the effective field. The RMS gradient of the effective field satisfies

$$\begin{array}{c}{G}_B^{\mathrm{rms}}\equiv { ⟨ {| \mathrm{\nabla }{B}_{\mathrm{eff}}(\mathbf{r}) |}^2 ⟩ }^{1/2}={{| b_A | ⟨ | \mathrm{\nabla }{P}_{\mathrm{R}\mathrm{b}}(\mathbf{r}) |}^2⟩}^{1/2}.\end{array}$$

(12)

Here, ⟨⋯⟩ denotes a volume average over the vapor cell.

To explicitly introduce the mean electron polarization, we define the volume-averaged Rb polarization as

$$\begin{array}{c}{\overline{P}}_{\mathrm{Rb}}\equiv ⟨P_{\mathrm{Rb}}\left(r\right)⟩={\displaystyle \frac{1}{V}}{{\displaystyle \int }}_V{P}_{\mathrm{Rb}}\left(r\right)\hspace{0.17em}dV,\end{array}$$

(13)

where $V$ is the cell volume. To connect the gradient term to the mean Rb polarization, we express the spatial polarization profile in amplitude–shape form:

$$\begin{array}{c}{P}_{\mathrm{Rb}}\left(r\right)={\overline{P}}_{\mathrm{Rb}}\hspace{0.17em}f\left(r\right), ⟨f\left(r\right)⟩=1,\end{array}$$

(14)

where ${\overline{P}}_{\mathrm{Rb}}$ represents the volume-averaged polarization and $f\left(r\right)$ is a dimensionless shape function describing the spatial distribution.

In the motional-narrowing regime, the diffusion-induced transverse relaxation rate can be written in the generic second-order form [27]:

$$\begin{array}{c}{\mathrm{\Gamma }}_{\mathrm{grad}}=C_{\mathrm{geom}}\hspace{0.17em}D\hspace{0.17em}{\gamma }_n^2\hspace{0.17em}⟨\hspace{0.17em}\mathrm{\mid }\nabla B_{\mathrm{eff}}\left(r\right){\mathrm{\mid }}^2\hspace{0.17em}⟩,\end{array}$$

(15)

where $D$ is the noble-gas diffusion coefficient, ${\gamma }_n$ is its gyromagnetic ratio, and $C_{\mathrm{geom}}$ is a dimensionless geometry-dependent factor determined by the cell shape, boundary conditions, and the definition of the gradient. Substituting Equations (11)–(14) into Equation (15), the gradient relaxation rate can be expressed as

$$\begin{array}{c}⟨\mathrm{\mid }\nabla P_{\mathrm{Rb}}\left(r\right){\mathrm{\mid }}^2⟩={\overline{P}}_{\mathrm{Rb}}^{\hspace{0.17em}2}⟨\mathrm{\mid }\nabla f\left(r\right){\mathrm{\mid }}^2⟩.\end{array}$$

(16)

Combining Equations (12), (15), and (16), we can obtain

$${\mathrm{\Gamma }}_{\mathrm{grad}}=C_{\mathrm{geom}}\hspace{0.17em}D\hspace{0.17em}{\gamma }_n^2\hspace{0.17em}{\overline{P}}_{\mathrm{Rb}}^{\hspace{0.17em}2}⟨\mathrm{\mid }\nabla f\left(r\right){\mathrm{\mid }}^2⟩$$

(17)

which explicitly shows that the gradient-induced relaxation rate scales quadratically with the volume-averaged electron polarization.

This formulation makes clear that we do not assume $\nabla P_{\mathrm{Rb}}\propto P_{\mathrm{Rb}}$ pointwise. Instead, we use a scaling relation for the RMS gradient amplitude under a pump power-independent profile shape $f\left(r\right)$. Deviations from strict ${\overline{P}}_{\mathrm{Rb}}^2$ scaling can occur if the shape $f\left(r\right)$ changes with pump power (e.g., due to strong optical depth effects or diffusion-limited pumping). The effective magnetic field gradient arising from optical polarization represents the dominant contribution, as residual gradients along the z-axis are sufficiently weak to be neglected [33].

The transverse nuclear spin relaxation rate of ¹²⁹Xe can be expressed by

$$\mathrm{\Gamma }={\mathrm{\Gamma }}_0+\eta {\overline{P}}_{\mathrm{Rb}}+\epsilon {\overline{P}}_{\mathrm{Rb}}^2.$$

(18)

where η is the linear coefficient and ${\mathrm{\Gamma }}_0$ is the constant part of relaxation that is irrelevant to P_Rb. The electron polarization is

$${\overline{P}}_{\mathrm{Rb}}={\displaystyle \frac{R_{\mathrm{OP}}}{R_{\mathrm{OP}}+R_{\mathrm{SD}}}}$$

(19)

where R_OP is the optical pumping rate of the laser beam. The spin-destruction relaxation rate R_SD originates from Rb–Rb, Rb–buffer-gas (N₂) and Rb–Xe collisions. In rate-constant form, R_SD = ${\mathrm{k}}_{\mathrm{SD}}^{\mathrm{Rb}-\mathrm{Rb}}$·n_Rb + ${\mathrm{k}}_{\mathrm{SD}}^{\mathrm{Rb}-\mathrm{N}2}$·n_N2 + ${\mathrm{k}}_{\mathrm{SD}}^{\mathrm{Rb}-\mathrm{X}e}$·n_Xe. The dominant temperature dependence arises from the exponential increase in Rb vapor density n_Rb governed by the gas pressure. Consequently, R_SD increases with temperature, shifting the transition boundary between linear and hyperbolic regimes in the PBR model [22]. As it stands, Γ can be transformed into

$$\mathrm{\Gamma }={\mathrm{\Gamma }}_0+\eta {\displaystyle \frac{R_{\mathrm{OP}}}{R_{\mathrm{OP}}+R_{\mathrm{SD}}}}+\epsilon {\overline{P}}_{\mathrm{Rb}}^{\hspace{0.17em}2}$$

(20)

Here, R_SD is rendered as a constant when changing the pump power.

Since the optical pumping rate R_OP scales linearly with the pump power P [19],

$$R_{\mathrm{op}}={\displaystyle \frac{\sigma \left(\mathrm{\Delta }\right)P}{\hslash \omega A_{\mathrm{beam}}}}$$

(21)

Here, σ(Δ) is the effective absorption cross-section and ω is the laser frequency, while A_beam is the beam area.

2.3.1. Under the Condition of $R_{\mathrm{OP}}\ll R_{\mathrm{SD}}$

The electron polarization in Equation (9) can be rewritten as

$${\displaystyle \frac{R_{\mathrm{op}}}{R_{\mathrm{op}}+R_{\mathrm{S}D}}}\approx {\displaystyle \frac{R_{\mathrm{op}}}{R_{\mathrm{S}D}}}$$

(22)

Neglecting the second-order component which is negligibly small compared to the others, the relaxation rate exhibits a linear dependence:

$$\mathrm{\Gamma }={\mathrm{\Gamma }}_0+aP$$

(23)

Then, the total transverse relaxation rate Γ linearly responds to the low power at an initial slope:

$$\underset{P\to 0}{\lim }{\displaystyle \frac{\mathrm{d}\mathrm{\Gamma }}{\mathrm{d}P}}=a={\displaystyle \frac{\eta }{R_{\mathrm{SD}}}}{\displaystyle \frac{\sigma \left(\mathrm{\Lambda }\right)}{\hslash \omega A_{\mathrm{beam}}}}$$

(24)

where a is the pump efficiency coefficient characterizing the coupling strength between the optical pumping rate and the induced relaxation. R_SD quantifies electronic relaxation, η denotes the coefficient coupling electron polarization to nuclear relaxation, and the remaining quantities are determined by pump beam quality.

2.3.2. Under the Condition of $R_{\mathrm{op}}\approx R_{\mathrm{SD}}$

With the elevated pump intensities, the pumping rate R_op increases and becomes comparable to R_SD. The transverse relaxation rate Γ exhibits a saturation-type dependence on the pump power P, which can be described by the following Langmuir-type function:

$$\mathrm{\Gamma }={\mathrm{\Gamma }}_0+{\displaystyle \frac{aP}{1+aP}}+{\epsilon \overline{P}}_{\mathrm{Rb}}^{\hspace{0.17em}2}$$

(25)

In the experimental testing range (P ∈ [0.1, 5] mW, P_Rb ∈ [0.05, 0.9] and a ∈ [0.01, 0.5] mW⁻¹); ${\overline{P}}_{\mathrm{Rb}}^{\hspace{0.17em}2}$ is relatively small in magnitude and exhibits weak variation, rendering it negligible compared to other terms. When the product aP remains below unity, the system is in a sub-saturation regime, and the relaxation rate increases monotonically with the pump power. The slope diminishes from the initial value a to a concave-down saturation curve with curvature:

$${\displaystyle \frac{{\mathrm{d}}^2\mathrm{\Gamma }}{\mathrm{d}{P}^2}}=-{\displaystyle \frac{2a^2}{{(1+aP)}^3}}<0$$

(26)

Expanding Equation (16) will yield an intuitive interpretation of the hyperbola relationship:

$$\mathrm{\Gamma }={\mathrm{\Gamma }}_0+aP-{\displaystyle \frac{a^2{P}^2}{1+aP}}$$

(27)

Corresponding Equation (14) as an asymptotic extension, the relaxation rate exhibits a downward deviation from this baseline that becomes increasingly pronounced as P increases.

2.3.3. Under the Condition of $R_{\mathrm{OP}}\gg R_{\mathrm{SD}}$

As the pump power increases (the high-power limit), the transverse relaxation rate asymptotically approaches a constant saturation value. The saturation behavior indicates that beyond a critical pump power ($P\gg 1/a$), further increasing of the optical pumping will no longer significantly enhance the relaxation rate.

Physically, this saturation arises from the finite polarization capacity of the atomic ensemble. Once the electron polarization approaches unity, additional pump power cannot further increase the effective magnetic field gradients as well as the relaxation rate, leading to the observed power-independent ceiling in the high-power limit. The high-power regime is also incorporated into the PBR model as expressed in Equations (18)–(27). The threshold magnitude is related to the dynamic balance between the intrinsic relaxation processes and the atomic multiphysics coupling. Thus, the nuclear spin relaxation rate displays a multi-regime evolution as the pumping rate varies.

3. Materials and Methods

3.1. Experimental Setup

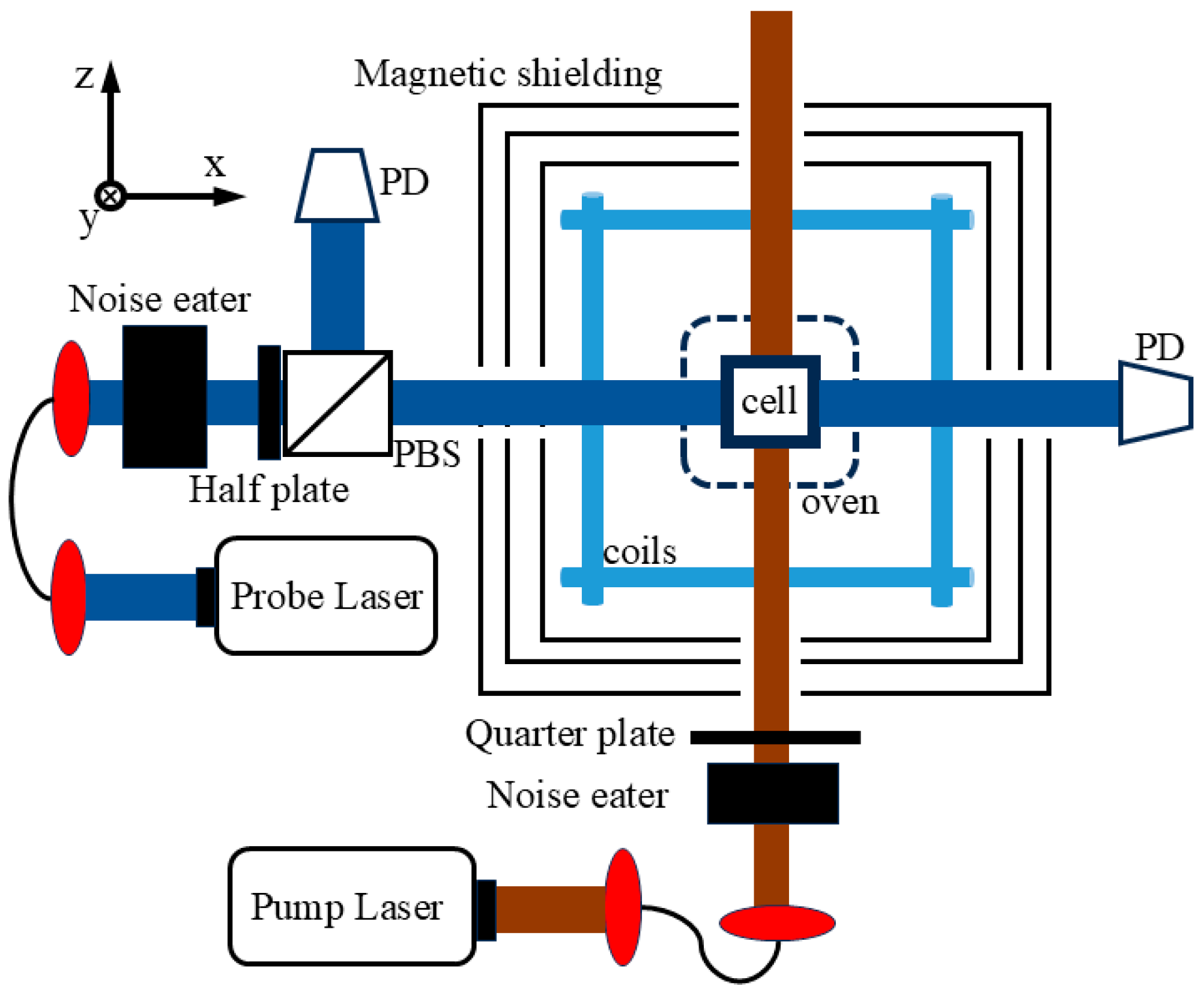

The apparatus of NMRG is shown in Figure 1. A microfabricated glass vapor cell contains enriched-⁸⁷Rb, 2 Torr of ¹²⁹Xe, 8 Torr of ¹³¹Xe, and 280 Torr of N₂ as the buffer gas. At the temperature of 393 K, the vapor cell is encircled by a set of magnetic field coils and a three-layer magnetic shield. Two distributed bragger reflector (DBR) lasers are used as the light source for pumping and probing. The pump laser is tuned to the Rb D₁ line transition with a power of 2 mW, propagating along the longitudinal z-axis. The noise eaters are utilized to adjust and stabilize the pump and probe power, and a quarter-wave plate (QWP) is used to transform the linearly polarized light into the circularly polarized pump light. Considering the vapor cell is of 3 mm inner length, the beam diameter is set to 2.5 mm [30,31]. The probe laser is tuned to the Rb D₂ line with the probe power of 1 mW. A balanced photodetector (Thorlabs PDB210A, Thorlabs Inc., Newton, NJ, USA ) collects the optical signals, and the Faraday rotation detection scheme is employed. Finally, the signal is demodulated by a lock-in amplifier (Zurich Instruments HF2LI, Zurich, Switzerland) to extract the frequency of atomic spin precession.

3.2. Measurement and Data Processing

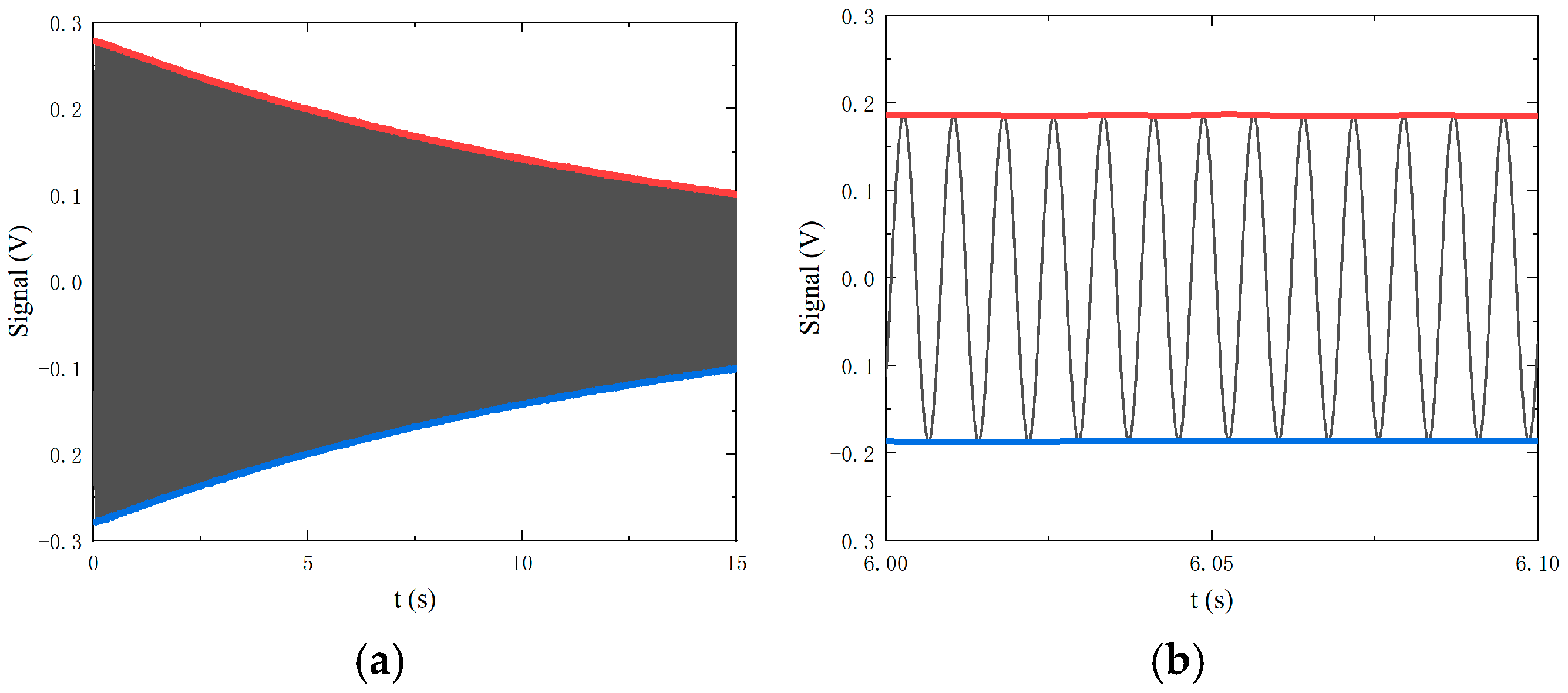

The transverse relaxation time T₂ characterizes nuclear spin coherence; longer T₂ indicates superior operational stability in NMRGs. For ¹²⁹Xe nuclear spins, the parameter is typically measured by the FID method [17,18,19]. The nuclear spin is hyperpolarized through collisions with optically pumped Rb atoms, causing the nuclear spin to precess around the static magnetic field B₀. A transverse π/2 pulse magnetic field is applied, and the magnetization of the nuclear spin is flipped to the transverse plane. Then, the probe laser detects the precession signal of Xe nuclear spin. The FID amplitude is recorded, and the lines are fitted as red and blue curves in Figure 2a. Revealing sinusoidal oscillations at the Larmor frequency with an exponentially decaying envelope, Figure 2b presents a magnified view of the FID signal. The transverse relaxation time T₂ was extracted by fitting the FID amplitude:

$$y\left(t\right)={\mathrm{e}}^{-{\displaystyle \frac{t}{T2}}}+a_1$$

(28)

where the equation is an exponential decay curve, and a₁ is a constant value.

For each optical power and temperature condition, three independent FID measurements are performed, and the reported values correspond to the averaged results.

3.3. Numerical Simulation

Finite element simulations were performed using COMSOL Multiphysics 6.4 to model the three-dimensional spatial distribution of spin polarization. The pump beam irradiance is modeled as a Gaussian distribution. Simulations were conducted with a fixed beam diameter of 2 mm and the pump power ranging from 0.1 mW to 4 mW. All simulation parameters, including diffusion coefficients, absorption cross-sections, and relaxation constants, are explicitly listed in Appendix B to ensure full reproducibility of the numerical model. Diffusion coefficients are treated as effective values under the specified buffer-gas pressure and temperature conditions. Other model parameters follow those reported in our previous work [14].

These parameters are used in simulations to model the interaction of the pump beam and spin polarization with identical geometrical cell parameters to the experiments. Simulations are conducted under approximately fifteen different optical power conditions corresponding to those employed in the experiments to enable direct comparison.

4. Results and Discussion

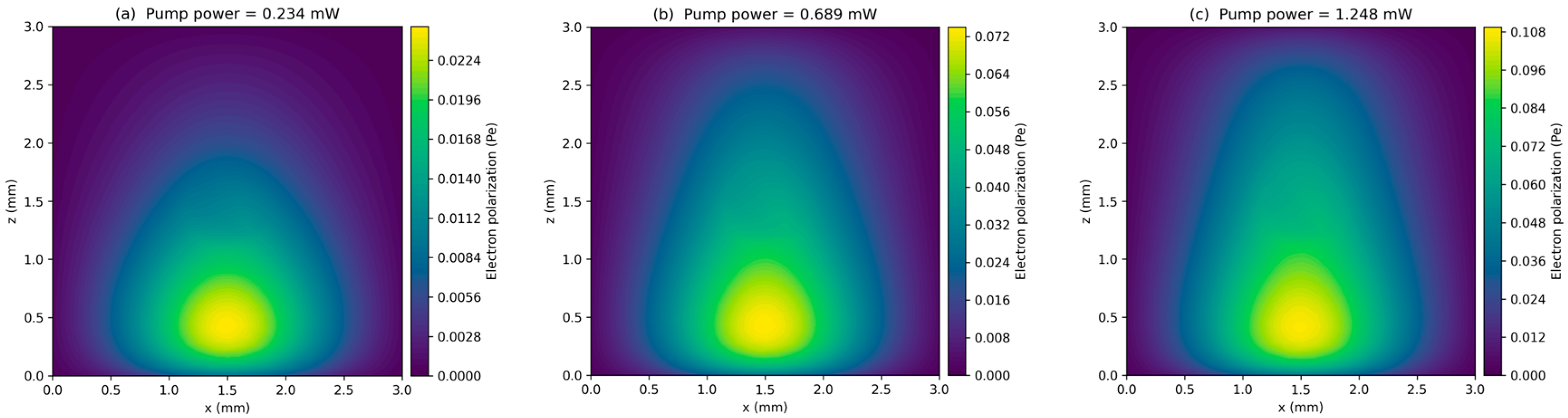

Electron polarization is primarily obtained from COMSOL simulations. For each pump power, a Bloch–Torrey-type formulation including diffusion and pumping/relaxation processes is solved, yielding a steady-state electron polarization field $P\left(r\right)$. The exported COMSOL results provide 3D point clouds $(x,y,z,P)$. Part of the simulations are shown in Figure 3 for visualization. We compute an effective volume-averaged electron polarization using a node-averaged approximation,

$$\overline{P}\left(P\right)\approx {\displaystyle \frac{1}{N}}{\displaystyle \sum }_{i=1}^{N}P(r_i),$$

(29)

with $N=\mathrm{10,082}$ nodes per file.

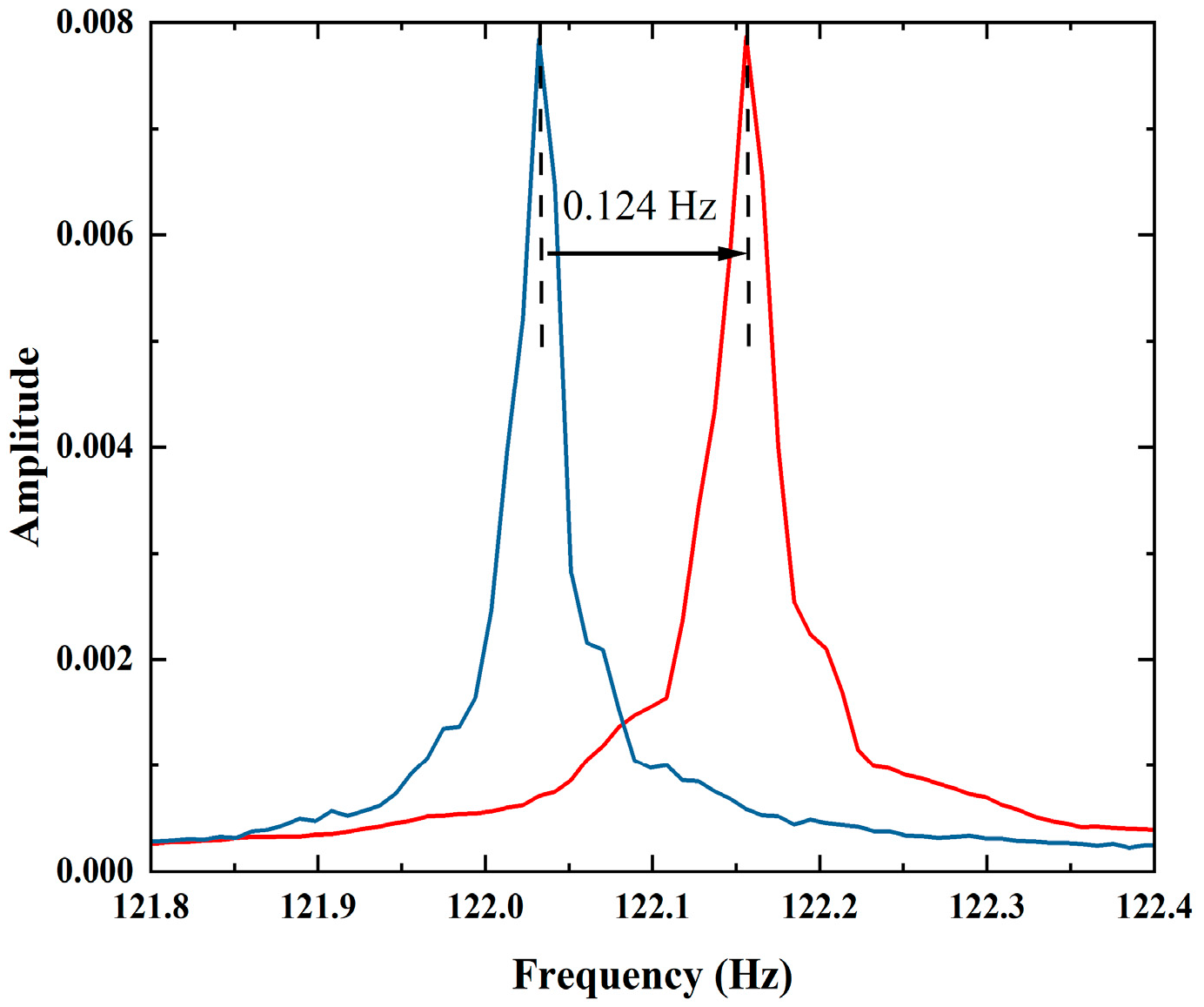

The electron polarization can be measured experimentally via xenon NMR frequency shifts arising from the Fermi-contact interaction, where the xenon frequency shift is proportional to the electron polarization. Using the apparatus illustrated in Figure 1 and performing the Fast Fourier Transform (FFT) method, the amplitude of the FID signal is plotted as a function of frequency. The main peak at the magnetic resonance frequency is measured and compared with that of the opposite electron spin direction. As shown in Figure 4, according to the relation ω = γ∙B, the bias field B is about 10 µT, corresponding to a ¹²⁹Xe Larmor frequency of approximately 122.1 Hz. The measured frequency splitting Δω = 0.124 Hz corresponds to an effective magnetic field variation ΔB ≈ 10.5 nT. This ΔB is then converted into the averaged Rb electron polarization using Equations (6) and (7), resulting in a polarization of 13.60%.

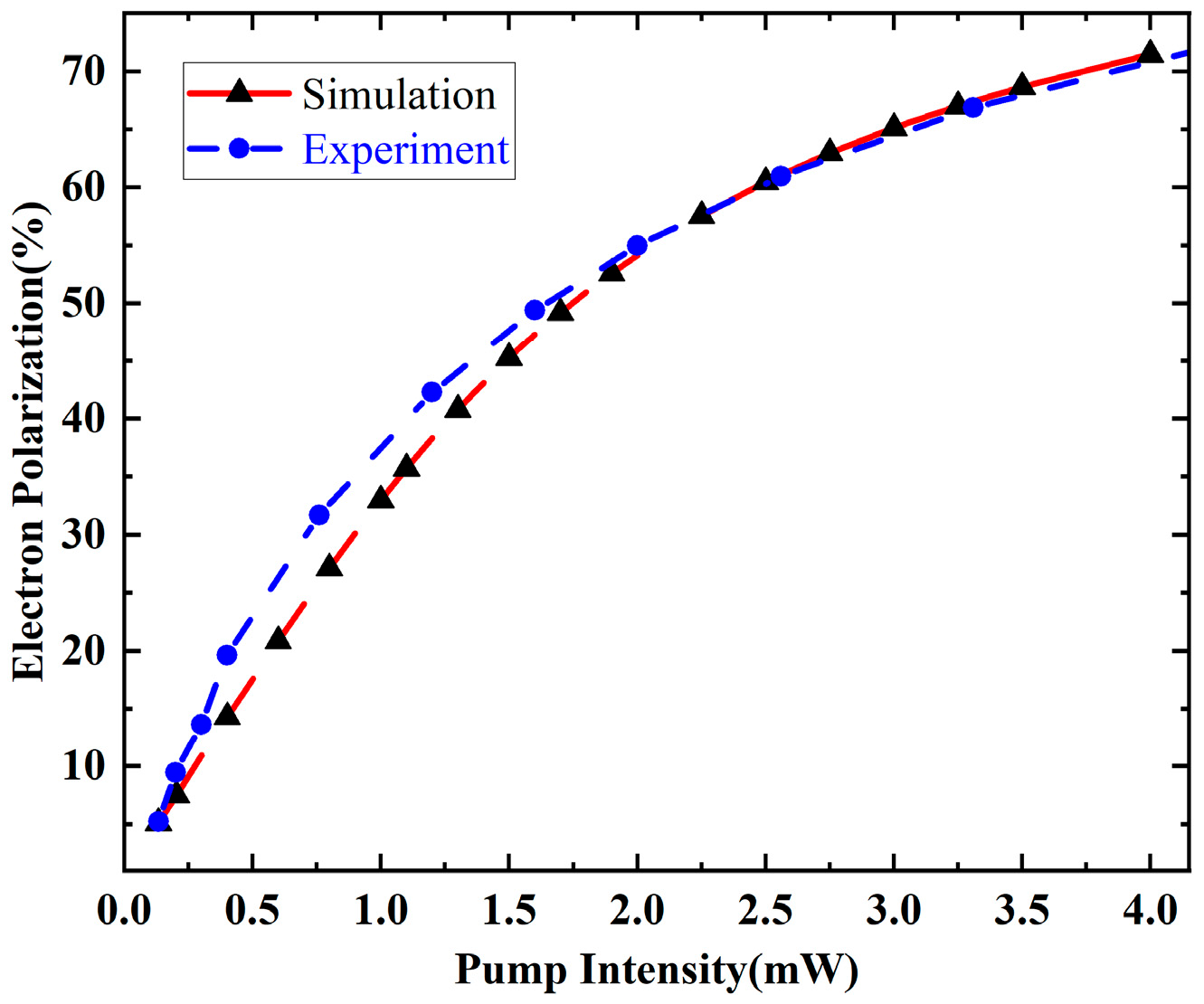

Figure 5 shows the normalized electron spin polarization as a function of the pump power that the dashed lines are drawn as a guide to the eye. It can be seen that the electron polarization rate increases with higher pump intensities while the slope diminishes rapidly towards saturation. The simulated results agree well with the experimental results. Both relations imply a Langmuir-type saturation of the volume-averaged polarization in Equation (5) which is coherent with former research [20].

This hyperbolic saturation provides the microscopic basis for the concave-down $\mathrm{\Gamma }\left(P_{\mathrm{pump}}\right)$ behavior in the intermediate power regime (negative curvature) once $\mathrm{\Gamma }$ is expressed as a function of a saturating polarization. As the optical power increases, the electron spin polarization experiences a spatial redistribution, with the average polarization showing a monotonic increase. The simulation results suggest that the polarization’s homogeneity improves with higher light power, demonstrating the key influence of optical power in the Rb-Xe system. These simulations were compared with the experimental results, showing good agreement and highlighting the optimized parameters for better spin polarization homogeneity in the NMRG system.

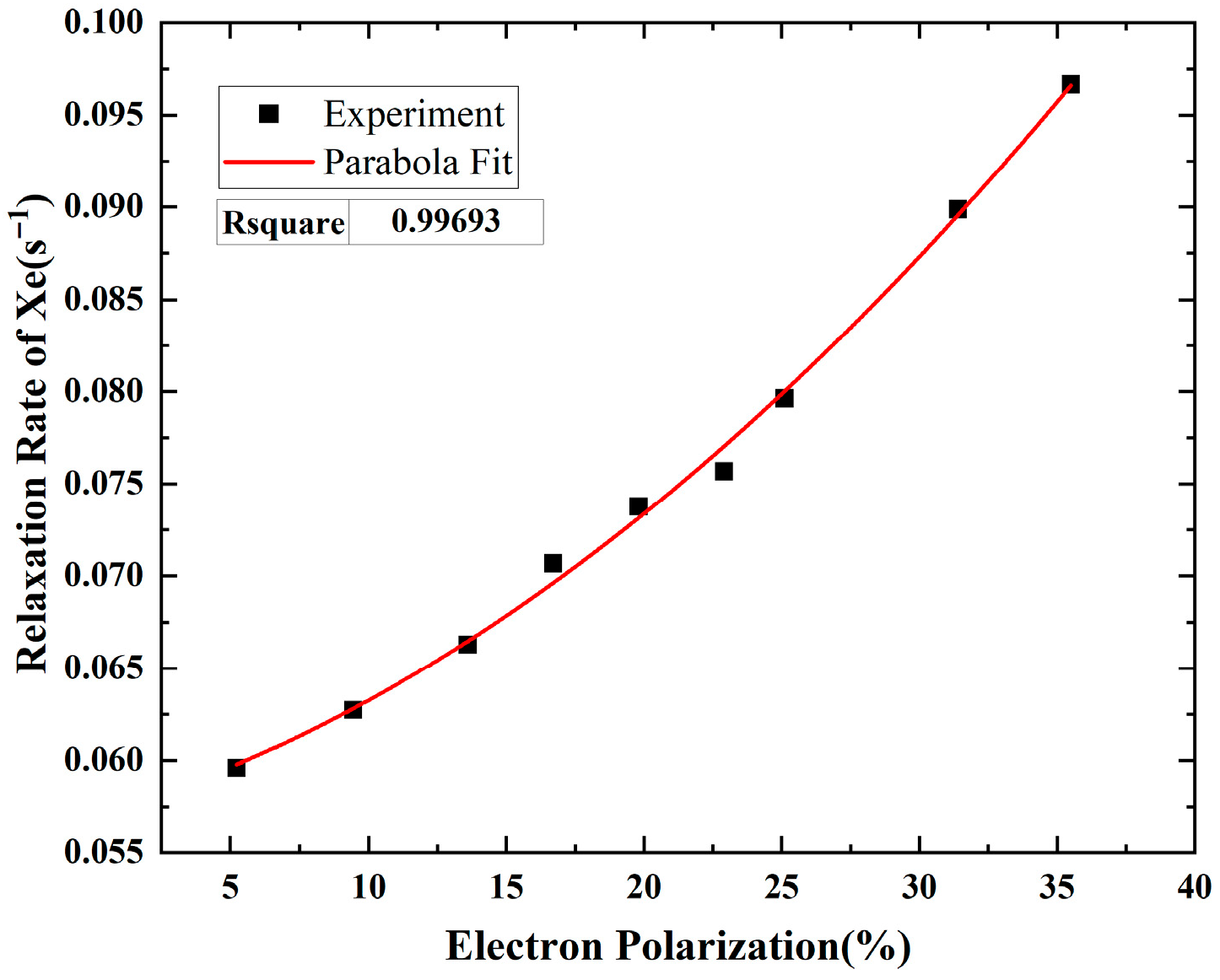

The electron polarization is the crucial factor contributing to the ¹²⁹Xe transverse relaxation rate at various optical pumping intensities. We employ the measured electron polarization magnitude P_Rb as an intermediate variable connecting the relationship of Γ-P. Consequently, experimental investigations of the Γ-P_Rb are carried out in the vapor cell as shown in Figure 6. The quadric relationship is fitted between the measured nuclear relaxation rate and electron polarization. The coefficient of determination (R²) equals 0.9969, which is consistent with the theoretical Equation (9).

In our coworkers’ previous studies, the relationship between the Rb polarization and the Xe relaxation rate was experimentally investigated in vapor cells with different parameter configurations [20,21]. The experimental data reported in those works also support the conclusion obtained in the present study. Specifically, parabolic fitting of the data yields coefficients of determination (R²) exceeding 0.996, indicating a highly consistent quadratic dependence between Rb polarization and the Xe relaxation rate. The detailed experimental parameters and measurement conditions can be referred to in the two studies. The experimental results verify the relationship between the relaxation rate and electron polarization, which is the foundation of the PBR model. Thus, the model can be applied to explain the relaxation rate against the pump intensity.

Further, we fit $\overline{P}\left(P_{\mathrm{pump}}\right)$ from COMSOL point clouds. ${\mathrm{\Gamma }}_{129}$ and $\overline{P}$ are fitted with experimental points corresponding to the same simulation settings of optical intensities. Substituting the polarization–intensity mapping into the quadratic relaxation–polarization model yields the mechanistic, closed-form prediction ${\mathrm{\Gamma }}_{129}\left(P_{\mathrm{pump}}\right)$. The parameters and equations are listed in

Table 1. The fitting and relative deviation of experiments and the PBR theory.

Model	Equation	Parameters	R2	RMSE $\left({\mathbf{s}}^{-1}\right)$
polarization–intensity	$\overline{P}=P_{\mathrm{sat}}{\displaystyle \frac{P_{\mathrm{pump}}}{P_{\mathrm{pump}}+P_{1/2}}}$	$P_{\mathrm{sat}}=0.21348\pm 0.01438 \mathrm{mW}$	0.9932	$1.56\times {10}^{-3}$
		$P_{1/2}=1.82930\pm 0.18041$ mW
relaxation–polarization	${\mathrm{\Gamma }}_{129}={\mathrm{\Gamma }}_0+\eta \hspace{0.17em}\overline{P}+\xi \hspace{0.17em}{\overline{P}}^2$	${\mathrm{\Gamma }}_0=0.05588\pm 0.00137{\mathrm{s}}^{-1}$	0.9926	$6.91\times {10}^{-4}$
		$\eta =0.31353\pm 0.05267{\mathrm{s}}^{-1}$
		$\xi =1.13023\pm 0.47654{\mathrm{s}}^{-1}$
relaxation–intensity	${\mathrm{\Gamma }}_{129}={\mathrm{\Gamma }}_0+a·P_{\mathrm{pump}}+{\displaystyle \frac{a^2·P_{pump}^2}{1+a·P_{\mathrm{pump}}}}$	${\mathrm{\Gamma }}_0=0.6361\pm 0.00168{\mathrm{s}}^{-1}$	0.9942	$5.72\times {10}^{-4}$
		$\mathrm{a}=0.02276\pm 0.023996{(\mathrm{s}·\mathrm{mW})}^{-1}$

(values in parentheses are 1$\sigma$ standard errors) and the fit quality is evaluated by $R^2$ with RMSE (Root Mean Square Error).

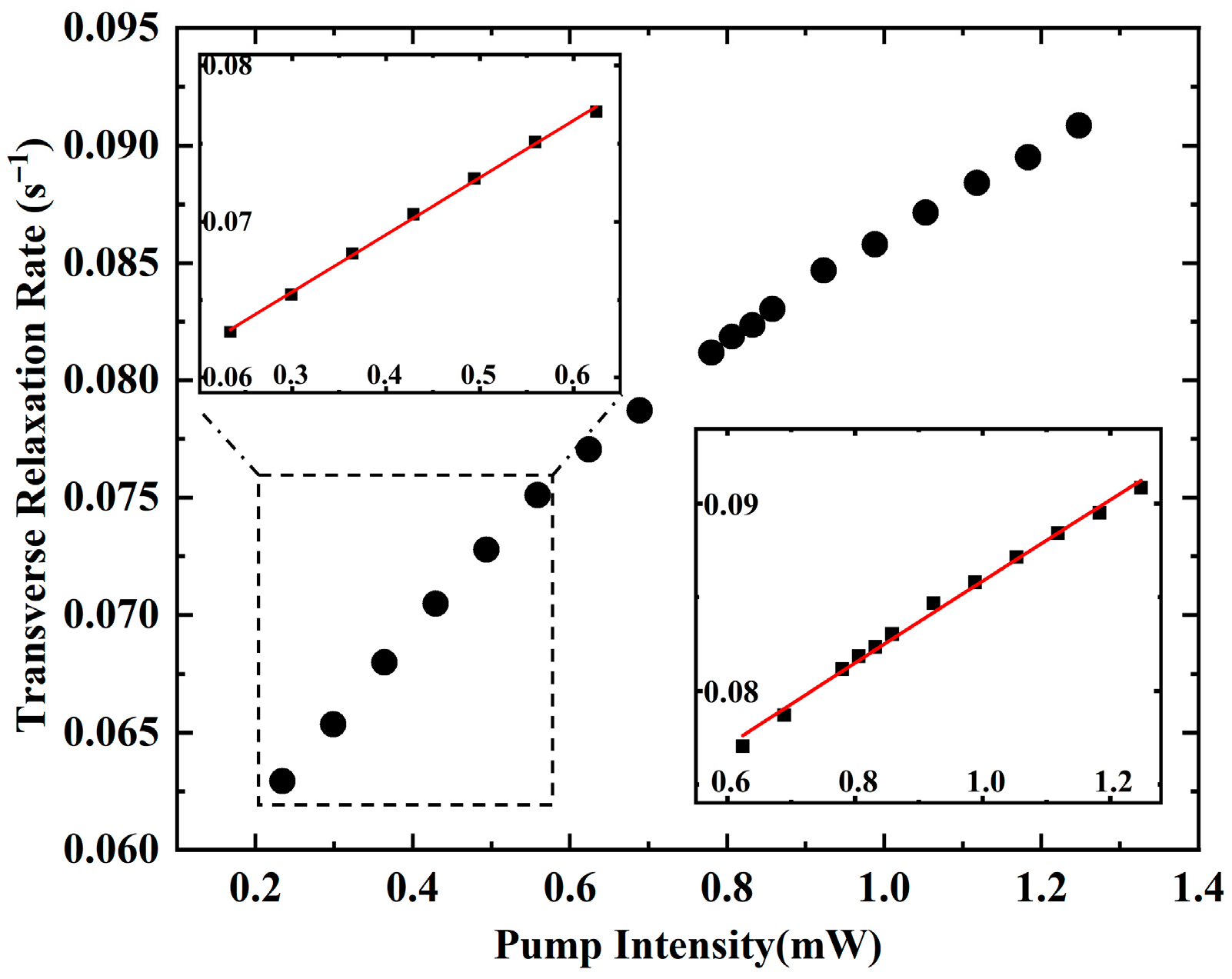

As is shown in Figure 7, we derived the following parameters by fitting the experimental data to the theoretical model:

$$\alpha =0.0552,n=0.3835, \beta =0.0308$$

These fitted parameters accurately describe the relationship between optical intensity $P$ and transverse relaxation rate $\mathrm{\Gamma }$. For each data point, the relative error δ between the measured relaxation rate ${\mathrm{\Gamma }}_{\exp }$ and the theoretical relaxation rate ${\mathrm{\Gamma }}_{\mathrm{theo}}$ is calculated as

$$\mathrm{\delta }={\displaystyle \frac{\mathrm{\mid }{\mathrm{\Gamma }}_{\exp }-{\mathrm{\Gamma }}_{\mathrm{theo}}\mathrm{\mid }}{{\mathrm{\Gamma }}_{\exp }}}\times 100\%$$

(30)

Table 2. The FID results, the PBR theoretical values and the relative error δ.

P (mW)	Γexp (s−1)	Γtheo (s−1)	δ (%)
1.248	0.09085	0.09087	0.1192
1.183	0.08950	0.08981	0.2653
1.118	0.08842	0.08886	0.0617
1.053	0.08714	0.08723	0.0293
0.988	0.0858	0.08585	0.00665
0.923	0.08468	0.08498	0.3430
0.858	0.08304	0.08313	0.1560
0.832	0.08235	0.08251	0.0614
0.806	0.08186	0.08193	0.2240
0.780	0.08116	0.08123	0.1463
0.689	0.07871	0.07875	0.00189
0.624	0.07704	0.07717	0.1515
0.559	0.07511	0.07515	0.1207
0.494	0.07278	0.07298	0.2658
0.429	0.07049	0.07069	0.3746
0.364	0.06799	0.06813	0.4798
0.299	0.06536	0.06549	0.3557
0.234	0.06294	0.06306	0.7407

summarizes the results.

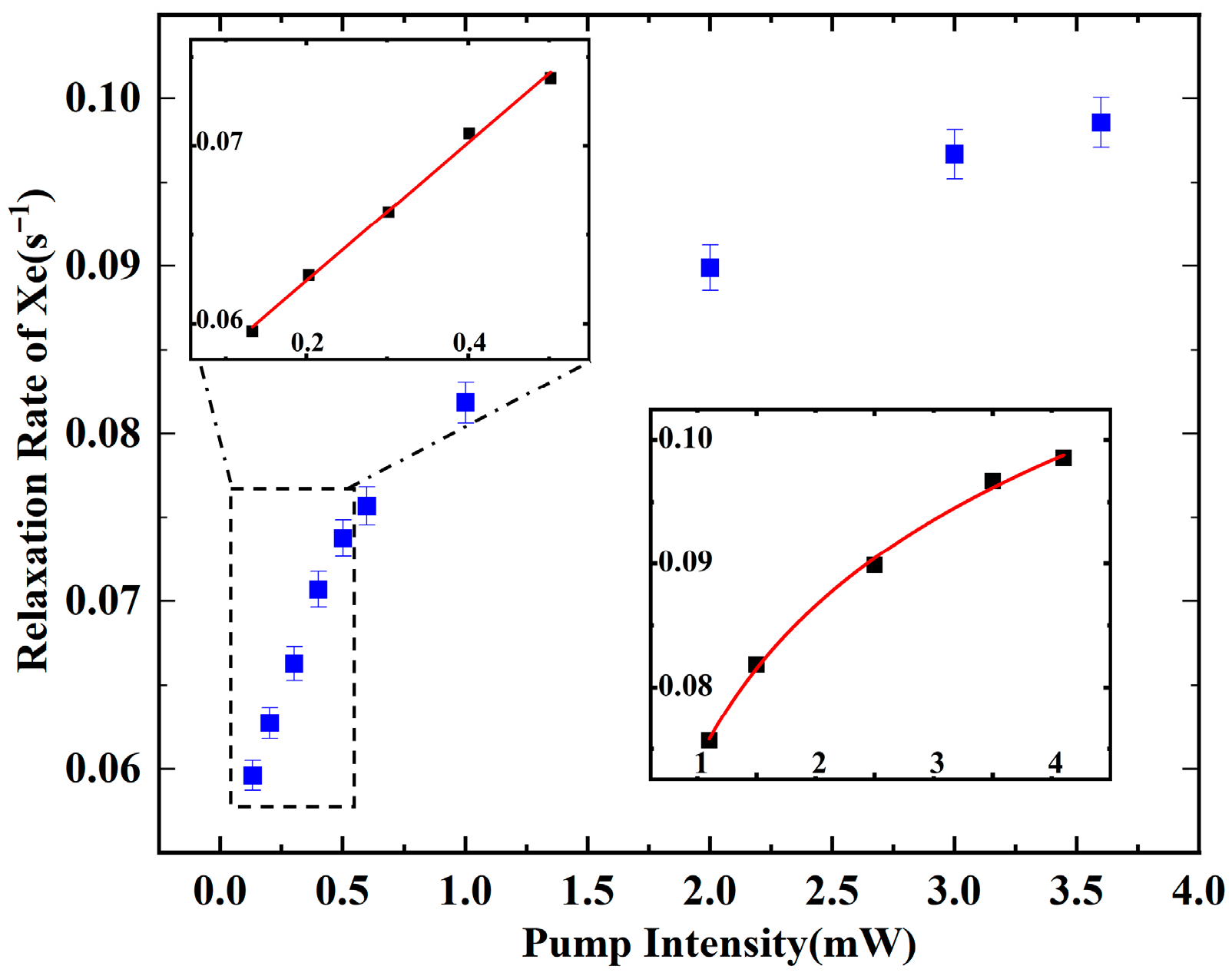

To ensure experimental reproducibility, we validated the PBR model using a wider power range while maintaining identical experimental conditions, as shown in Figure 8. When the optical intensity is over 3.6 mW, the ¹²⁹Xe transverse relaxation rate is enlarged with a minor magnitude. Moreover, when the optical intensity is below 1 mW, the transverse relaxation rate increases linearly with the corresponding pump beam intensity. In summary, the relaxation rate of the ¹²⁹Xe nuclear spin first grows linearly and then gradually increases, approaching saturation with a diminishing slope. Across the different pumping intensities, the transverse relaxation rate evolves from a linear to a hyperbola dependence on the pump intensity. As shown in the inset of Figure 8, the linear regression is performed in the low-intensity regime, and the fitted result (R² = 0.9966) exhibits satisfactory agreement with the PBR model.

We refer to the combined model as the Arrhenius–PBR (APBR) global model as

$$\mathrm{\Gamma }\left(P,T\right)={\mathrm{\Gamma }}_0\left(T\right)+\eta {\displaystyle \frac{P}{P+{\mathrm{P}}_0\left(\mathrm{T}\right)}}+\mathrm{\epsilon }\left(\mathrm{T}\right){\left({\displaystyle \frac{P}{P+{\mathrm{P}}_0\left(\mathrm{T}\right)}}\right)}^2$$

(31)

Here, $P_0\left(T\right)=R_{SD}/\alpha$ represents the transition scale corresponding to $R_{OP}\sim R_{SD}$, i.e., the pump power threshold where the saturation-like behavior emerges. Temperature effects are summarized by an Arrhenius law for $P_0\left(T\right)$,

$$P_0\left(T\right)=P_{0,\infty }{e}^{-{\displaystyle \frac{E_a}{RT}}}$$

(32)

where $R$ is the gas constant and $E_a$ is the apparent activation energy associated with the thermally activated relaxation/transition process captured by $P_0\left(T\right)$.

$$\mathrm{\Gamma }\left(P,T\right)={\mathrm{\Gamma }}_0\left(T\right)+\eta {\displaystyle \frac{P}{P+P_{0,\infty }{e}^{-\frac{E_a}{RT}}}}+\mathrm{\epsilon }\left(\mathrm{T}\right){\left({\displaystyle \frac{P}{P+P_{0,\infty }{e}^{-\frac{E_a}{RT}}}}\right)}^2$$

(33)

Here, Γ₀(T) and ε(T) are temperature-related parameters, while η is shared globally.

Theoretical predictions and experimental observations are found to be in good agreement, indicating that the proposed piecewise fitting scheme aligns with the PBR model, characterized by an evolution from linear to quadratic behavior. Upon further increase in pump intensity, both the electron polarization and the nuclear spin relaxation rate approach their respective saturation values.

5. Conclusions

The PBR model describing the multi-stage pump-induced spin relaxation of ¹²⁹Xe nuclear spin is proposed, with the linear to hyperbolic transition quantified in NMRGs. Performing the classical Bloch–Torrey equations with the COMSOL Multiphysics software, the spatial distribution of electron polarization in different pump intensities is illustrated. The volume-averaged electron polarization P_Rb is utilized as an intermediate variable and the transverse spin relaxation rate Γ of ¹²⁹Xe nuclear spin is measured via the FID method. The results demonstrate that the theoretically predicted quadratic relationship between Γ and P_Rb is experimentally verified, achieving coefficients of determination (R²) of 0.9969. Linear (R² > 0.9966) and subsequent hyperbolic (R² > 0.9942) relationships of Γ and P are verified. The reliability of the PBR model is subsequently validated and the average relative error between experiment and theory is 0.2169%. The multi-stage process of nuclear spin relaxation is quantified, thereby providing a robust validation for the PBR model. This study builds upon previous work by providing quantification and validation. Further investigation will provide theoretical foundations for investigating nuclear spin relaxation mechanisms induced by optical pumping in NMRGs.
