A Cobalt-Free Multi-Principal Elements Alloy with Balanced Mechanical Properties and Exceptional Corrosion Resistance

by
Jinhong Deng
1,
Manyu Hua
1,*,
Yangyang Zheng
2,
Yulong Li
3,*,
Wei Liu
3,
Jingzhong Fang
1,
Yekun Song
1 and
Pengfei Wu
1,*
1
College of Mechanical and Vehicle Engineering, Changsha University of Science and Technology, Changsha 410114, China
2
Beijing Institute of Control Engineering, Beijing 100190, China
3
College of Materials Science and Engineering, Beijing University of Technology, Beijing 100124, China
*
Authors to whom correspondence should be addressed.
Materials 2026, 19(13), 2724; https://doi.org/10.3390/ma19132724 (registering DOI)
Submission received: 18 May 2026 / Revised: 23 June 2026 / Accepted: 23 June 2026 / Published: 25 June 2026
(This article belongs to the Special Issue High-Entropy Materials: Multi-Scale Design and Behavior Under Extreme Conditions)
Browse Figures
Versions Notes

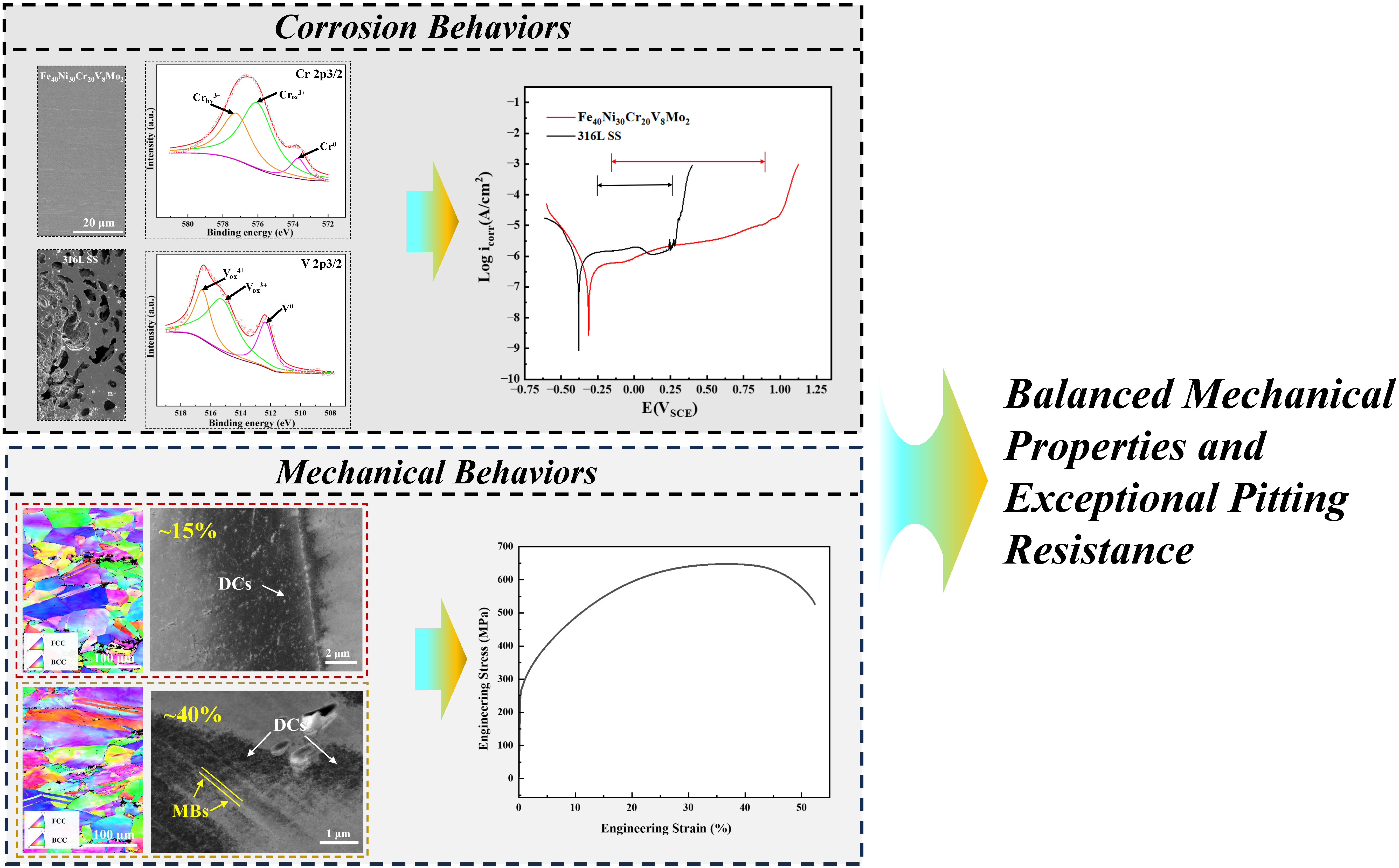

Abstract

This study investigates the mechanical properties and corrosion behavior of a Co-free Fe40Ni30Cr20V8Mo2 (at.%) multi-principal elements alloy (MPEA) designed for potential applications in aggressive environments. The alloy exhibits a balanced combination of strength and ductility, with a yield strength of approximately 258 MPa, an ultimate tensile strength of about 647 MPa, and a fracture elongation of around 52%, of which deformation is primarily governed by dislocation-mediated plasticity. In terms of corrosion performance, the alloy demonstrates excellent resistance in chloride-containing environments. Potentiodynamic polarization tests reveal a wide and stable passive region of approximately 1.28 VSCE and a high pitting potential of about 0.975 VSCE, indicating exceptional stability of the passive film. Electrochemical impedance spectroscopy (EIS) further confirms the high impedance and protective nature of the surface layer. X-ray photoelectron spectroscopy (XPS) analysis reveals that the superior anti-corrosion property is attributed to the formation of a passive film enriched with protective Cr2O3 and V, Mo oxides, which collectively construct an effective barrier against chloride-induced attack by reducing donor density. This work provides valuable insights for the development of alternative alloys to replace Co-containing systems in demanding corrosive applications.

1. Introduction

The rapid advancement of industries such as aerospace, marine engineering, and energy generation imposes increasingly stringent demands on structural materials, particularly for service in extreme environments characterized by high stress, corrosive media, and thermal loads. Traditional alloys, constrained by their traditional compositional design, increasingly fall short of meeting these multifaceted requirements. The emergence of high-entropy alloys (HEAs), also called “multi-principal elements alloys (MPEAs)”, brought a new direction to design high-performance alloys [1]. MPEAs exhibit an unprecedented synergy among their constituent elements. This unique feature facilitates the integrated design of good mechanical properties, wear resistance, oxidation resistance, high thermal stability, and corrosion resistance capabilities, often mutually exclusive in conventional alloys [2,3,4,5,6,7,8,9,10,11,12,13,14,15]. The defining feature of MPEAs is their profound “cocktail effect”, which enables a synergy among constituent elements that transcends simple property averaging. This intrinsic characteristic positions MPEAs as a highly promising platform for next-generation engineering materials.
Among the vast MPEA family, the CoCrFeNi MPEA system have become a quintessential model due to their stable face-centered cubic (FCC) structure, which provides an excellent foundation for combining high toughness with notable corrosion resistance [16,17,18]. The system’s corrosion performance is largely attributed to the formation of a robust, Cr-rich passive film. However, a critical impediment to the sustainable and large-scale application of this promising system is its reliance on Cobalt (Co). Co is associated with significant drawbacks, including documented bio-toxicity, high cost, and complex recyclability, raising environmental and economic concerns. Consequently, the development of high-performance, Co-free alternatives has emerged as a paramount objective within the field [19].
The strategic substitution of Co with carefully selected elements presents a viable pathway to achieve this goal. Extensive research has identified Molybdenum (Mo) as a particularly potent additive for enhancing corrosion resistance in the CoCrFeNi system, Mo enriching within the passive film, preferentially forming stable, high-valent oxides (e.g., MoO2, MoO3) that act as a formidable barrier against corrosive ion ingress [20,21,22]. In Mo-modified CoCrFeNi-based MPEAs, the native oxide film and the passive films formed at potentials such as 0.5 VSCE and 0.8 VSCE are primarily composed of Mo and Cr as core components, with Mo being the key element responsible for the improved corrosion resistance, as Mo can form stable high-valent oxides and promotes the densification of the passive film and reduces defects, effectively blocking the penetration of corrosive media. The enrichment of Mo within the film fundamentally strengthens the passivation capability and corrosion resistance, serving as the core driving factor for the superior corrosion performance of this system [23,24]. Vanadium (V) introduces severe lattice distortion due to its large atomic radius mismatch with elements like Iron (Fe), Chromium (Cr), and Nickel (Ni), leading to potent solid-solution strengthening without readily precipitating brittle intermetallic phases in FCC matrices [25,26,27]. This effect can dramatically increase yield strength and hardness while preserving appreciable ductility and strain-hardening capability [26,28]. Furthermore, V exhibits a synergistic interaction with Mo; it can co-partition in the passive film, contributing to a denser, more protective oxide structure and thereby offering an additional boost to corrosion resistance [29,30]. Therefore, the co-addition of Mo and V is theoretically predicted to create a synergistic effect, simultaneously addressing the critical needs for enhanced corrosion protection and mechanical robustness in a Co-free alloy.
Guided by this rationale, the present study is designed to comprehensively investigate the effects of substituting Co with synergistic additions of Mo and V in a novel Co-free MPEA, with a focused inquiry into the resultant corrosion mechanisms. We evaluate its mechanical properties via tensile testing and elucidate deformation mechanisms using scanning electron microscopy (SEM) coupled with energy-dispersive X-ray spectroscopy (EDS) and electron backscatter diffraction (EBSD). Electrochemical corrosion behavior in 3.5 wt.% NaCl solution is examined by electrochemical impedance spectroscopy (EIS), potentiodynamic polarization and Mott–Schottky analysis. The elemental valence states of passive films are characterized by X-ray photoelectron spectroscopy (XPS), enabling a direct correlation between film characteristics and macroscopic performance. This work aims to provide a comprehensive understanding of how Mo and V co-addition governs the microstructures, mechanical behaviors, and corrosion mechanisms of this Co-free MPEA.

2. Experiments

2.1. Materials Preparation

The Fe40Ni30Cr20V8Mo2 (at.%) high-entropy alloy ingot was fabricated using vacuum arc melting. The Fe40Ni30Cr20V8Mo2 (at.%) alloy ingot was prepared by vacuum arc melting using high-purity elemental metals (Fe: 99.9 wt.%, Ni: 99.9 wt.%, Cr: 99.9 wt.%, V: 99.9 wt.%, Mo: 99.9 wt.%, provided by Beijing Yanbang New Materials Co., Ltd. (Beijing, China). The ingot was remelted four times to ensure compositional homogeneity. The chemical compositions of the MPEA and the reference alloy (316L SS) were determined by Inductively Coupled Plasma-Optical Emission Spectrometry (ICP-OES, SPECTRO BLUE SOP, Kleve, Germany), as displayed in Table 1. The as-cast ingot was subsequently rolled at room temperature into plates with a thickness of 10 mm. Disk-shaped specimens with an area of 1 cm2 and dog-bone-shaped tensile specimens (with a gauge length of 21 mm and a gauge width of 7.5 mm, and a thickness of 1 mm) were cut from the sheets by electrical discharge machining (EDM). The surface oxide layers of all specimens were removed by SiC abrasive paper. Both the disk and dog-bone specimens were then subjected to heat treatment. They were placed in a pre-heated muffle furnace at 1100 °C for 1 min, followed by quenching. Subsequently, the specimens were polished with SiC paper from 180# to 2000# grit. The disc-shaped specimens were embedded in epoxy resin for electrochemical tests, while the dog-bone specimens were prepared for tensile mechanical property testing.

2.2. Tensile Test

Room-temperature uniaxial tensile experiments were performed using an MTS Landmark universal testing system at a fixed strain rate of 1 × 10−3 s−1 (MTS Systems Corporation, Eden Prairie, MN, USA). Three duplicate specimens were tested per processing condition to ensure result reproducibility. Local strain distribution during tensile deformation was characterized by the digital image correlation (DIC) technique.

2.3. Electrochemical Tests

Electrochemical tests, including potentiodynamic polarization, electrochemical impedance spectroscopy (EIS), and Mott–Schottky analysis, were conducted using a standard three-electrode system connected to a CHI electrochemical workstation in a 3.5 wt.% NaCl solution. After the samples reached a stable open circuit potential (OCP), all electrochemical tests were performed. The specimen served as the working electrode, with a Saturated Calomel electrode (SCE) and a platinum sheet acting as the reference and counter electrodes, respectively. All electrochemical tests were performed after the samples reached a stable open circuit potential (OCP). The stable OCP of our alloy was approximately −0.29 VSCE, and that of 316L SS was approximately −0.35 VSCE. Subsequently, EIS measurements were performed by applying a sinusoidal potential perturbation with an amplitude of 10 mV over a frequency range from 10−2 to 105 Hz. The potentiodynamic polarization curve was measured at a scan rate of 1 mV/s, starting from a potential of −0.6 VSCE until the current density reached to10−3 A/cm2. All electrochemical tests were repeated at least three times to ensure the reliability of the data. At a frequency of 1 kHz, Mott–Schottky plots were obtained using an amplitude signal of 10 mV and a step rate of 25 mV in the cathodic direction.

2.4. Microstructural Analysis

For microstructural characterization, specimens cut from tested tensile samples using electrical discharge machining were hot-mounted. The mounted samples were ground with SiC abrasive paper from 400# to 3000# grit and then polished with a colloidal silica suspension. X-ray diffraction (XRD) was employed to identify the initial phase constituents of the MPEA specimens. Measurements were conducted on a D/max 2550 in conjunction with Cu Kα1 (λ = 1.5418 Å) radiation at 40 kV and 30 mA. Diffraction patterns were recorded over a 2θ range of 30–110° with a step size (Δ2θ) of 0.02° and a scanning rate of 5°/min. Using backscatter electron imaging (BSEI) and electron backscatter diffraction (EBSD), microstructural characterization of both undeformed and tensile-tested samples (with varying local strains) was carried out in a TESCAN CLARA microscope (TESCAN ORSAY HOLDING a.s., Brno, Czech Republic), operated at 30 kV and 20 kV, respectively, with a step size of 50 nm for EBSD mapping. Corresponding chemical compositions were analyzed using EDS, an EDAX system at an accelerating voltage of 15 kV.

2.5. Characterization of Passive Films

On a SHIMADZU/Kratos AXIS SUPRA+ spectrometer (Kratos Analytical Ltd., Manchester, UK), X-ray photoelectron spectroscopy (XPS) was employed to characterize the passive films formed on the alloy surfaces.
Disk-shaped specimens were embedded in epoxy resin, ground with SiC abrasive paper (400# to 2000# grit), mechanically polished to a 1 µm finish, and then rinsed with deionized water and anhydrous ethanol. Prior to XPS analysis, stable passive films were established on the sample surface by potentiostatic polarization at 0.1 VSCE for 3600 s. The obtained spectra were processed using XPSpeak software (version: Fitv4.1). Peak fitting was performed using mixed Gaussian–Lorentzian functions after Shirley background subtraction. The binding energy scale was calibrated against the C1s peak at 284.6 eV.

3. Results and Discussion

3.1. Microstructural Analysis Prior to Deformation

Figure 1a shows XRD patterns of the MPEA subjected to annealing. The patterns exhibit five typical FCC peaks, corresponding to the (111), (200), (220), (311), and (222) planes, indicating that the annealed sample predominantly consists of a stable FCC phase. The lattice constant was calculated to be 3.62 Å, which is slightly larger than that of the equiatomic CoCrFeMnNi MPEA (3.56 Å) [31], referring to the lattice strain was enhanced by the addition of V and Mo. Figure 1b,c displays the EBSD IPF image and phase, respectively. Figure 1c is the corresponding EDS elemental mapping of an MPEA sample in Figure 1b. The annealing twins can be easily detected in the IPF map, similar to those observed in the majority of transition MPEAs. However, the phase map (Figure 1b) indicates the presence of a minor BCC phase. The EDS mapping in (c) reveals a relatively uniform distribution of all five constituent elements without significant segregation in the FCC matrix. Analysis suggests the coexistence of the FCC matrix with a small fraction of BCC phase, which may be related to the role of Cr and Mo as a BCC phase stabilizer [29,30]. Due to its low volume fraction, this BCC phase was not detected by XRD. Therefore, the MPEA sample is considered a predominantly single-phase FCC structure.

3.2. Mechanical Behaviors

3.2.1. Tensile Deformation Behaviors

Figure 2 displays the mechanical response of the MPEA. The MPEA exhibits a yield strength (YS) of ~258 MPa, an ultimate tensile strength (UTS) of ~647 MPa, and a fracture elongation of ~52%, as shown in Figure 2a. Figure 2b shows the true stress–strain curve and the corresponding work-hardening rate curve of the MPEA. The work-hardening rate generally decreases with increasing true strain. Three distinct stages can be clearly distinguished: a sharp decline in the work-hardening rate at low true strain (ε < 0.025), followed by a plateau-like region with a moderated decrease from 0.025 to 0.15, the rate of decrease moderates, resulting in a relatively flat profile in the curve, and finally a pronounced drop as the true strain exceeds 0.15.

3.2.2. Deformation Microstructures

Figure 3a–f display the EBSD maps of the MPEA at tensile strains of approximately 15% and 40%, respectively. At ~15%, microstructure is primarily characterized by high-angle grain boundaries and annealing twin boundaries, and grains are almost equiaxed (Figure 3a). Noticeable dislocation accumulation is observed according to Kernel Average Misorientation (KAM) maps (Figure 3b), primarily concentrated at grain boundary regions. In contrast, the IPF map at a strain of ~40% shows that grains are prolonged along the tensile direction (Figure 3d). KAM map shows that grain boundaries and twin boundaries are still the accumulation sites for dislocations, and dislocation density in the grain interior is much higher than that of the 15–strain location (Figure 3e). Throughout the tensile process, no deformation twin structures and martensitic transformation are detected, evidenced by the corresponding phase map (Figure 3c,f), indicating that dislocation activity was the dominant deformation mechanism, which is consistent with XRD results. Notably, what we should focus on is that the KAM value around (Cr, Mo)-rich BCC phase is even higher than that at grain boundaries, indicating that the hard BCC phase led to premature cracking due to stress concentration, deteriorating the elongation.
The BSE images in Figure 4 provide further insight into the post-deformation microstructures. At the relatively low local strain of ~15% (Figure 4a), the grains undergo slight deformation. While abundant dislocations are generated within the grains, significant dislocation pile-ups are evident (Figure 4c). This observation aligns with the EBSD results, indicating that deformation in the MPEA involves dislocation generation within the grains, thereby influencing its mechanical properties. Under a larger local deformation of ~40%, the grains experience severe plastic deformation, as shown in Figure 4d. The dislocation density within the crystals is considerably higher compared to the region with ~15% strain. Furthermore, numerous microbands are formed at this strain level, as seen in Figure 4e,f. Meanwhile, a few of the dislocation cells with a size of ~200 nm are found within the grains. Normally, dislocation cells are beneficial to ductility by consuming the dislocation-free zones [25]. However, the limited number of dislocation cells cannot provide enough zone to generate abundant dislocations to accommodate plastic deformation. Therefore, this is another reason for the ordinary elongation obtained in the MPEA.
Based on the observed deformation microstructures, the strain-hardening behavior of the MPEA can be elucidated as follows. Initially, upon yielding, the work-hardening rate decreases rapidly (Figure 2b), which corresponds to the activation of dislocation slip and multiplication [26,27]. Subsequently, as strain increases, dislocations accumulate and pile up at grain boundaries, and multiple slip systems become active. The formation of dislocation microbands brings a significant increase in dislocation density, which is reflected in the moderated decline in the work-hardening rate. In the final stage, with further straining, the continued increase in dislocation density and the progressive exhaustion of dislocation-free regions accelerate the decrease in the work-hardening rate until necking.

3.3. Corrosion Behaviors

3.3.1. Electrochemical Corrosion Behaviors

The potentiodynamic polarization curves of 316L SS and the Fe40Ni30Cr20V8Mo2 MPEA, measured in a 3.5 wt.% NaCl solution at ambient temperature is presented in Figure 5a. These illustrate the characteristic anodic and cathodic electrochemical responses of both materials. Key quantitative parameters in this plot, including corrosion potential (Ecorr), corrosion current density (icorr), passive current density (ipass), pitting potential (Epit), and passivation range (ΔE), were extracted from these curves and listed in Table 2 for comparison.
As a general principle, superior corrosion resistance is associated with a nobler Ecorr and a lower icorr [28]. Combining the data in Table 2 with the polarization curves in Figure 5, it is evident that the Fe40Ni30Cr20V8Mo2 MPEA possesses a clear advantage over 316L SS. The MPEA exhibits a more noble corrosion potential (Ecorr = −0.306 VSCE) and a lower corrosion current density (icorr = 6.423 × 10−7 A/cm2) compared to 316L SS (Ecorr = −0.379 VSCE, icorr = 5.941 × 10−6 A/cm2). This convincingly demonstrates the superior corrosion resistance of the MPEA. Furthermore, the results in Figure 5 and Table 2 indicate that the MPEA possesses a broader passivation range and maintains passive stability at higher anodic potentials, suggesting that it can maintain good corrosion resistance even in more severe corrosive environments, thereby exhibiting stronger service adaptability.
In the polarization curve of 316L SS (Figure 5a), a rise in current density occurs at a high potential of 0.028 VSCE, which is closely related to the selective dissolution of Cr [32]. Under high potential, the protective Cr3+ in the passive film is oxidized to the more soluble Cr6+. Compared to Cr3+, Cr6+ is prone to dissolution and depletion at higher voltage, leading to the breakdown of the passive film integrity and the abnormal change in current density. Furthermore, severe fluctuations in current density are observed in the potential range of 0.216–0.288 VSCE for 316L SS. Within this potential range, the passive film is in a critically unstable state, undergoing a dynamic imbalance between continuous film formation and localized breakdown. Finally, when the potential reaches the pitting potential (Epit = 0.256 VSCE), the film loses its ability to repassivate, marking the onset of stable pitting corrosion.
In contrast, the pitting potential (~0.975 VSCE) of the Fe40Ni30Cr20V8Mo2 MPEA is significantly higher than that of 316L SS (Epit = 0.256 VSCE), indicative of a stable and dense passive film formed within its passivation range. In addition, unlike 316L SS, the oxidation of Cr3+ to soluble Cr6+ is suppressed in the MPEA, likely due to the synergistic effects of its constituent elements. Accordingly, no significant current density fluctuations are observed in the potential interval of 0.884–1.024 VSCE, confirming the enhanced stability of the passive film. Moreover, compared to some representative MPEAs [33,34,35,36,37,38], as shown in Figure 6, the alloy in this work possesses a relatively positive Ecorr and a lower icorr, thus superior corrosion resistance is obtained in the present MPEA.
Figure 5b–e show the surface morphologies of the two alloys after polarization within the potential range of −0.5 VSCE to 0.5 VSCE. Notably, there are no obvious corrosion pits observed in the surface of the MPEA, as shown in Figure 5b,c. In contrast, Figure 5d,e reveal the distinct pitting traces and corrosion pits of varying sizes on the 316L SS surface. These observations are consistent with the polarization behavior discussed earlier: within this potential window, the passive film of the MPEA remained intact, whereas that of 316L SS underwent localized breakdown. The absence of pitting on the MPEA surface further confirms the superior stability of its passive film and its excellent corrosion resistance, even at elevated potentials. Moreover, as summarized in Table 2, the pitting potential of the MPEA approaches ~1 VSCE, suggesting that the alloy is likely to retain its corrosion resistance under even higher applied potentials or in more concentrated aggressive environments.
Figure 7 displays the EIS results for the Fe40Ni30Cr20V8Mo2 MPEA and 316L SS in a 3.5 wt.% NaCl solution, containing Nyquist plots (Figure 7a) and Bode plots (Figure 7b). The capacitive arc radius in the Nyquist plot provides an overview of the charge transfer resistance, providing a comparative assessment of the corrosion resistance of the two materials. The MPEA exhibits a well-defined capacitive arc with a radius significantly larger than that of 316L SS. A larger capacitive arc radius generally indicates that it is harder for the charge transfer process and, consequently, better corrosion resistance [21,28,39]. These observations suggest that the passive film of MPEA demonstrates higher corrosion resistance, which aligns with the findings derived from the potentiodynamic polarization tests discussed earlier.
Figure 7b presents the Bode plots for the MPEA and 316L SS. The magnitude of impedance (|Z|) shows a nearly linear relationship with frequency, with a slope close to −1, indicating capacitive behavior. The curves for both materials largely overlap. In the Bode phase angle plot, notable differences emerge in the low-frequency region (below 0.1 Hz), where the MPEA maintains a higher phase angle than 316L SS, implying enhanced stability and protectiveness of its passive film. In the mid-to-high-frequency region, both materials exhibit similar phase angle values, with a maximum approaching 80°, indicative of a near-ideal capacitive response and the formation of a compact, insulating passive layer.
An R(Q(R)) equivalent circuit model was employed to fit the EIS spectra, with the resulting fitting parameters summarized in Table 3. The fitted chi-squared values were all below 10−3, indicating good agreement between the selected EEC model and the experimental data. In these models, R1 represents the solution resistance; the values of two systems are equivalent; R2 is defined as the charge transfer resistance at the metal/electrolyte interface. To account for non-ideal behaviors arising from surface roughness, material heterogeneity, or current leakage, constant phase elements (CPEs) are introduced in place of ideal capacitors. CPE is parallel to R2, indicating the double-layer capacitance here. The MPEA exhibits a significantly higher charge transfer resistance (R2 = 2.862 × 105 Ω·cm2) compared to 316L SS (2.006 × 105 Ω·cm2), indicating superior passivation and corrosion resistance of the MPEA. Additionally, the n value of CPE is close to 1, suggesting that this capacitive element behaves nearly like an ideal capacitor, consistent with the formation of a compact and stable passive layer.
As can be seen from Figure 8a, the Mott–Schottky (M-S) curves of both the MPEA and 316L SS exhibit a well-defined linear relationship with a positive slope, indicating that the passive films formed on both materials in 3.5 wt.% NaCl solution presents typical n-type semiconductor characteristics, whose electrical conduction behavior is dominated by donor-type defects (oxygen vacancies and metal interstitial atoms) within the passive films. No distinct negative slope segment is observed within the test potential range, suggesting that the passive films do not show noticeable p-type semiconductor characteristics [40,41,42,43]. From the calculation results shown in Figure 8b, the donor carrier concentration ND of the passive film on the MPEA is significantly lower than that on the 316L SS. The donor carrier concentration is a direct quantitative indicator of the microscopic defect density of the passive film. A lower ND indicates a smaller number of point defects, such as oxygen vacancies in the passive film, corresponding to a denser and more intact passive film. Such a passive film can effectively block the penetration and diffusion of aggressive ions such as Cl−, greatly reduce the risk of dissolution and breakdown of the passive film, and thus improve the protection efficiency and long-term stability of the passive film [41,44]. Meanwhile, the flat band potential EFB of the MPEA is significantly positively shifted compared with that of the 316L SS. For n-type semiconductor passive films, a more positive flat band potential corresponds to higher thermodynamic stability of the passive film and a higher potential threshold for pitting initiation, thus endowing the alloy with better pitting resistance and corrosion resistance in chloride-containing environments, which is consistent with the results of the potentiodynamic polarization curves in Figure 5a above.

3.3.2. Characterization of Passive Films

From the electrochemical test results presented above, it is clear that the passive film plays a critical role in determining the corrosion resistance of the alloy. Therefore, XPS was used to characterize the chemical composition of passive films formed on the surfaces of both the MPEA and 316L SS. Figure 9 shows the Cr 2p3/2, Fe 2p3/2, Ni 2p3/2, Mo 3d, and V 2p3/2 XPS spectra collected from the passive films of these two alloys.
In the potentiodynamic polarization curve (Figure 5), the MPEA exhibited a more stable and wider passivation range compared to 316L SS [45,46]. This difference can be attributed to the lower chemical stability of Fe2+. Fe2+ is prone to dissolution and further oxidation to Fe3+, ultimately precipitating as FeOOH on the substrate surface. This “dissolution-reprecipitation” process compromises the denseness and stability of the passive film [47]. As illustrated in Figure 9a,g, the Fe 2p3/2 peak can be resolved into four components, corresponding to Fe0 (706.9 eV), Fe2+oxide (708.4 eV), Fe3+oxide (710 eV), and Fe3+hydroxide (711.8 eV) [48]. Notably, the relative intensity of Fe2+ in the MPEA’s spectrum (Figure 9a) is lower than that in 316L SS, indicating a higher content of Fe2+ in the passive film of 316L SS, which is in agreement with the proposed mechanism.
In contrast, Cr2O3 possesses high chemical stability within the passive film and is a key protective oxide for enhancing material corrosion resistance [42,49,50]. A higher ratio of Cr2O3 to Cr(OH)3 in the passive film corresponds to superior corrosion performance [51,52]. In the XPS spectra (Figure 9c,i), the Cr 2p3/2 Cr3+hydroxide (577.1 eV) [48]. The MPEA’s passive film shows a higher Cr2O3 to Cr(OH)3 ratio compared to that of 316L SS. This directly correlates with its higher pitting potential (Epit, from Figure 5/Table 2) and charge transfer resistance (R2 from Table 3), as a film richer in Cr2O3 is more effective at blocking the penetration of aggressive chloride ions [53]. The superior corrosion resistance of the MPEA’s passive film is consistent with this finding.
Shown in (Figure 9d,f), the deconvolution results of the high-resolution Mo 3d XPS spectrum demonstrate that Mo element exists in three valence states in the passive film, with their characteristic binding energies as follows: metallic Mo0 (3d5/2: 227.80 eV; 3d3/2: 230.97 eV), tetravalent Mo4+ (3d5/2: 229.17 eV; 3d3/2: 232.32 eV) and hexavalent Mo6+ (3d5/2 232.46 eV; 3d3/2 235.71 eV) [54]. Mo6+, among them, mainly exists in the form of soluble molybdates (MoO42−). These oxygen-containing molybdate species possess excellent self-healing capability and can rapidly migrate to the damaged regions of the passive film. They cannot only directly block the corrosion channels, but also synergistically promote the reformation of the Cr2O3 passive layer, further enhancing the long-term protective performance of the passive film [54,55].
In Figure 9e, the V 2p3/2 peak can be deconvoluted into V0 (512.5 eV), V3+oxide (515.8 eV), and V4+oxide (516.9 eV) [56,57]. The incorporation of V into the passive film contributes to an increased overall oxide content, promoting the formation of a denser and thicker passive layer, which in turn enhances the stability and protectiveness of the film [56]. This beneficial effect is reflected in the electrochemical behavior of the MPEA. Unlike 316L SS, which exhibits a distinct current density drop at high potentials attributed to the oxidation of Cr3+ to soluble Cr6+, no such feature is observed in the polarization curve of the MPEA. This absence is likely associated with the presence of V oxides, which have been reported to suppress Cr segregation and mitigate the destabilization of the passive film [58,59,60,61]. Consequently, the V-containing MPEA maintains a more stable passivation range and a more robust passive film under anodic polarization.
To elucidate the role of Ni in the passive film, the Ni 2p3/2 spectrum of the MPEA in Figure 9b was deconvoluted into three components: Ni0 (851.2 eV), Ni2+oxide (852.1 eV), and Ni2+ hydroxide (857.6 eV) [62]. In contrast, no distinct components were resolved for the Ni 2p3/2 peak of 316L SS in Figure 9h, suggesting a substantially lower Ni content or a different chemical state distribution within its passive layer. Although the oxidation of Ni is thermodynamically less favorable compared to elements such as Cr and Fe, and metallic Ni0 tends to enrich at the alloy/film interface [63], distinct Ni oxide species are nevertheless detectable in the passive film of the MPEA. According to the relative peak intensities, Ni0 and Ni2+ oxide appear to be the predominant forms of Ni present. The incorporation of oxides in the passive film is significant, as Ni oxides enhance the densification and corrosion resistance of the film [30,64]. This aligns well with the higher corrosion resistance of the MPEA indicated by its higher impedance in the EIS Nyquist plot (Figure 7a), further corroborating the superior protectiveness of its passive film. It is worth noting that Cr(OH)3 typically exhibits a loose and porous structure, and its limited ability to inhibit chloride ion penetration restricts the denseness and corrosion resistance of the passive film [65]. The presence of Ni oxides in the MPEA’s passive film may help mitigate this limitation by promoting a more compact and stable passive layer.

4. Conclusions

In this work, the mechanical properties and corrosion behavior of the Fe40Ni30Cr20V8Mo2 MPEA were systematically evaluated. The principal findings are summarized as follows:
(1)
The alloy displays a balanced combination of strength and ductility. Room-temperature tensile tests yield a yield strength of ~258 MPa, an ultimate tensile strength of ~647 MPa, and a fracture elongation of ~52%. Deformation at room temperature of the MPEA is primarily governed by dislocation-mediated plasticity. The alloy demonstrates acceptable, though not exceptional, tensile ductility.
(2)
The alloy exhibits superior corrosion resistance in 3.5 wt.% NaCl solution, characterized by a broad and stable passive region, a high pitting potential (~0.975 VSCE), and a low corrosion current density in the potentiodynamic polarization curve. Electrochemical impedance spectroscopy further confirms the high impedance and protective nature of the surface passive film. XPS analysis reveals that this superior performance arises from a high proportion of stable Cr2O3, together with the synergistic enrichment of V and Mo oxides within the passive film. This oxide architecture effectively impairs localized corrosion initiation, endowing the alloy with outstanding resistance to chloride-induced attack.

Author Contributions

Conceptualization, M.H. and Y.L.; Methodology, J.D. and J.F.; Formal Analysis, J.D. and W.L.; Investigation, J.D., Y.L. and Y.S.; Data Curation, J.D., Y.Z. and Y.S.; Writing—Original Draft Preparation, J.D. and W.L.; Writing—Review and Editing, M.H., Y.L. and P.W.; Supervision, M.H., Y.L. and P.W.; Project Administration, Y.L. and P.W.; Funding Acquisition, P.W. and J.F. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by the National Natural Science Foundation of China (No. 52505146, 52501002) and the Natural Science Foundation of Hunan Province (No. 2025JJ60034). Wu also acknowledges the support from the Free Exploration Project of Changsha University of Science and Technology (Grant No. “QJ2024KFJJ01”).

Data Availability Statement

The original contributions presented in this study are included in the article. Further inquiries can be directed to the corresponding authors.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Yeh, J.-W.; Chen, S.-K.; Lin, S.-J.; Gan, J.-Y.; Chin, T.-S.; Shun, T.-T.; Tsau, C.-H.; Chang, S.-Y. Nanostructured High-Entropy Alloys with Multiple Principal Elements: Novel Alloy Design Concepts and Outcomes. Adv. Eng. Mater. 2004, 6, 299–303. [Google Scholar] [CrossRef]
  2. Wang, Z.; Zhang, S. Research and Application Progress of High-Entropy Alloys. Coatings 2023, 13, 1916. [Google Scholar] [CrossRef]
  3. Yang, Y.-F.; Hu, F.; Xia, T.; Li, R.-H.; Bai, J.-Y.; Zhu, J.-Q.; Xu, J.-Y.; Zhang, G.-F. High entropy alloys: A review of preparation techniques, properties and industry applications. J. Alloys Compd. 2025, 1010, 177691. [Google Scholar] [CrossRef]
  4. Han, L.; Maccari, F.; Souza Filho, I.R.; Peter, N.J.; Wei, Y.; Gault, B.; Gutfleisch, O.; Li, Z.; Raabe, D. A mechanically strong and ductile soft magnet with extremely low coercivity. Nature 2022, 608, 310–316. [Google Scholar] [CrossRef] [PubMed]
  5. Li, Z.; Tasan, C.C.; Pradeep, K.G.; Raabe, D. A TRIP-assisted dual-phase high-entropy alloy: Grain size and phase fraction effects on deformation behavior. Acta Mater. 2017, 131, 323–335. [Google Scholar] [CrossRef]
  6. Wu, P.; Zhang, Y.; Han, L.; Gan, K.; Yan, D.; Wu, W.; He, L.; Fu, Z.; Li, Z. Unexpected sluggish martensitic transformation in a strong and super-ductile high-entropy alloy of ultralow stacking fault energy. Acta Mater. 2023, 261, 119389. [Google Scholar] [CrossRef]
  7. Wang, K.; Wang, Z.; Peng, P.; Wu, X.; Liu, W.; Zhang, H.; Zhang, H.; Li, Z.; Ju, J. Synergistic enhancement of strength and wear resistance in nickel-based superalloy fabricated by oscillating laser directed energy deposition via laser shock peening. J. Mater. Res. Technol. 2026, 41, 4780–4791. [Google Scholar] [CrossRef]
  8. Li, Z.; Pradeep, K.G.; Deng, Y.; Raabe, D.; Tasan, C.C. Metastable high-entropy dual-phase alloys overcome the strength–ductility trade-off. Nature 2016, 534, 227–230. [Google Scholar] [CrossRef] [PubMed]
  9. Ju, J.; Wang, X.; Xiao, B.; Zhu, H.; Tran, N.; Shen, Z.; Zeng, X.; Wang, J.; Sun, B.; Liaw, P.K.; et al. Eliminating intergranular oxidation and microstructural instability in chemically complex intermetallic alloys featuring nano-disorder interfaces. Corros. Sci. 2026, 258, 113422. [Google Scholar] [CrossRef]
  10. Ju, J.; Yu, H.; Kong, H.; Qi, D.; Peng, P.; Shen, Z.; Ding, C.; Ma, S.; Gao, H.; Wang, J.; et al. Unveiling oxidation mechanism and microstructural evolution of L-DED Ni3Al-based intermetallic alloy at 800 °C via multi-scale characterization and thermodynamic calculations. Nano Mater. Sci. 2025; in press. [CrossRef]
  11. Tang, J.; Li, Z.-S.; Liu, X.-B.; Chen, G.-D.; Liu, F.; Wang, S.; Meng, F.-G.; Wang, D.-S.; Wang, K.-M. Tribology and oxidation properties of graphite/CuNiTiCrNb HEA coatings produced by laser cladding. Carbon 2026, 249, 121261. [Google Scholar] [CrossRef]
  12. Li, Y.; Wang, K.; Fu, H.; Guo, X.; Lin, J. Microstructure and wear resistance of in-situ TiC reinforced AlCoCrFeNi-based coatings by laser cladding. Appl. Surf. Sci. 2022, 585, 152703. [Google Scholar] [CrossRef]
  13. Wang, K.; Du, D.; Liu, G.; Pu, Z.; Chang, B.; Ju, J. A study on the additive manufacturing of a high chromium Nickel-based superalloy by extreme high-speed laser metal deposition. Opt. Laser Technol. 2021, 133, 106504. [Google Scholar] [CrossRef]
  14. Wang, K.; Du, D.; Liu, G.; Pu, Z.; Chang, B.; Ju, J. High-temperature oxidation behaviour of high chromium superalloys additively manufactured by conventional or extreme high-speed laser metal deposition. Corros. Sci. 2020, 176, 108922. [Google Scholar] [CrossRef]
  15. Gu, J.; Ju, J.; Wang, R.; Li, J.; Yu, H.; Wang, K. Effects of Laser Scanning Rate and Ti Content on Wear of Novel Fe-Cr-B-Al-Ti Coating Prepared via Laser Cladding. J. Therm. Spray Technol. 2022, 31, 2609–2620. [Google Scholar] [CrossRef]
  16. Muangtong, P.; Rodchanarowan, A.; Chaysuwan, D.; Chanlek, N.; Goodall, R. The corrosion behaviour of CoCrFeNi-x (x = Cu, Al, Sn) high entropy alloy systems in chloride solution. Corros. Sci. 2020, 172, 108740. [Google Scholar] [CrossRef]
  17. Wu, P.; Gan, K.; Yan, D.; Fu, Z.; Li, Z. A non-equiatomic FeNiCoCr high-entropy alloy with excellent anti-corrosion performance and strength-ductility synergy. Corros. Sci. 2021, 183, 109341. [Google Scholar] [CrossRef]
  18. Wu, P.; Gan, K.; Yan, D.; Zhang, Y.; Li, Z. Overcoming strength-ductility dilemma in non-equiatomic FeNiCoCrSi high-entropy alloys: Effect of Si content on deformation behavior. Mater. Sci. Eng. A 2026, 954, 149821. [Google Scholar] [CrossRef]
  19. Dewangan, S.K. Review of Health Hazards in High-Entropy Alloy Processing Under Laboratory Conditions and Risk Assessment Using a Simple Risk Scoring Model. Toxics 2025, 13, 777. [Google Scholar] [CrossRef] [PubMed]
  20. Dai, C.; Zhao, T.; Du, C.; Liu, Z.; Zhang, D. Effect of molybdenum content on the microstructure and corrosion behavior of FeCoCrNiMox high-entropy alloys. J. Mater. Sci. Technol. 2020, 46, 64–73. [Google Scholar] [CrossRef]
  21. Ruan, Y.; Yin, C.; Liu, X.; Zhang, D.; Wu, J.; Zhu, Z. A cobalt-free dual-phase FeCrNiMoSi high-entropy alloy coating with high wear and corrosion resistance compared with FeCoCrNi. J. Alloys Compd. 2025, 1024, 180183. [Google Scholar] [CrossRef]
  22. Wang, J.; Wen, W.; Cheng, J.; Dai, L.; Li, S.; Zhang, X.; Yang, Y.; Li, H.; Hou, X.; Wu, B.; et al. Tribocorrosion behavior of high-entropy alloys FeCrNiCoM (M = Al, Mo) in artificial seawater. Corros. Sci. 2023, 218, 111165. [Google Scholar] [CrossRef]
  23. Wang, Z.; Liu, Z.-X.; Jin, J.; Tang, D.-Z.; Zhang, L. Selective corrosion mechanism of CoCrFeMoNi high-entropy alloy in the transpassive region based on the passive film characterization by ToF-SIMS. Corros. Sci. 2023, 218, 111206. [Google Scholar] [CrossRef]
  24. He, D.; Bi, Z.; Mi, Z.; Song, Y.; Li, F.; Hou, Y.; Wang, K. Corrosion behavior of FexCoCrNiMoy (x = 0.5/1; y = 0/0.1) high-entropy alloys: First-principles and experimental study. Appl. Surf. Sci. 2026, 728, 166089. [Google Scholar] [CrossRef]
  25. Huang, R.; Zhang, L.; Amar, A.; Liaw, P.K.; Wang, T.; Li, T.; Lu, Y. Achieving excellent uniform tensile ductility and strength in dislocation-cell-structured high-entropy alloys. Int. J. Plast. 2024, 181, 104079. [Google Scholar] [CrossRef]
  26. Gutierrez-Urrutia, I.; Raabe, D. Dislocation and twin substructure evolution during strain hardening of an Fe–22wt.% Mn–0.6wt.% C TWIP steel observed by electron channeling contrast imaging. Acta Mater. 2011, 59, 6449–6462. [Google Scholar] [CrossRef]
  27. Wang, B.; He, H.; Naeem, M.; Lan, S.; Harjo, S.; Kawasaki, T.; Nie, Y.; Kui, H.W.; Ungár, T.; Ma, D.; et al. Deformation of CoCrFeNi high entropy alloy at large strain. Scr. Mater. 2018, 155, 54–57. [Google Scholar] [CrossRef]
  28. Song, Z.; Liu, J.; Li, C.; Xia, X.; Geng, X. Microstructure and corrosion performance of laser-clad FeCoCrNiMoCu0.8Six eutectic high-entropy alloy coatings: Role of Si modification. Appl. Surf. Sci. 2026, 719, 165063. [Google Scholar] [CrossRef]
  29. Wang, W.; Li, Z.; Han, M.; Zhang, Y.; Mu, W.; Wang, N.; Zhang, W.; Weng, Z. CALPHAD-guided design of corrosion-resistant cobalt-based high-entropy alloys with strength-ductility synergy achieved through V, Nb, and Ta alloying. Intermetallics 2026, 191, 109158. [Google Scholar] [CrossRef]
  30. Che, C.; Jiang, M.; Li, A.; Kang, K.; Zhang, J.; Huang, D.; Li, G. Effect of Ni content on the corrosion resistance of CoCr0.8FeTi0.4Nix high entropy alloys in 3.5 wt% NaCl solution. J. Alloys Compd. 2025, 1016, 178900. [Google Scholar] [CrossRef]
  31. Zhang, F.; Wu, Y.; Lou, H.; Zeng, Z.; Prakapenka, V.B.; Greenberg, E.; Ren, Y.; Yan, J.; Okasinski, J.S.; Liu, X.; et al. Polymorphism in a high-entropy alloy. Nat. Commun. 2017, 8, 15687. [Google Scholar] [CrossRef] [PubMed]
  32. Choundraj, J.D.; Kelly, R.G.; Monikandan, R.; Singh, P.M.; Kacher, J. Influence of native oxide film on corrosion behavior of additively manufactured stainless steel 316L. Corros. Sci. 2023, 217, 111098. [Google Scholar] [CrossRef]
  33. Zhao, H.-W.; Guo, Y.F.; Duan, C.S.; Zhang, J.-D.; Zhang, L.; Ma, H.Z. Effect of Si content on the wear and corrosion performance of spark plasma sintered Al0.3CoCrFeNi high-entropy alloys. Mater. Today Commun. 2025, 49, 113891. [Google Scholar] [CrossRef]
  34. Babilas, R.; Łoński, W.; Boryło, P.; Kądziołka-Gaweł, M.; Gębara, P.; Radoń, A. The influence of cooling rate, chromium and silicon addition on the structure and properties of AlCoCrFeNiSi high entropy alloys. J. Magn. Magn. Mater. 2020, 502, 166492. [Google Scholar] [CrossRef]
  35. Liu, J.; Liu, H.; Chen, P.; Hao, J. Microstructural characterization and corrosion behaviour of AlCoCrFeNiTix high-entropy alloy coatings fabricated by laser cladding. Surf. Coat. Technol. 2019, 361, 63–74. [Google Scholar] [CrossRef]
  36. Wu, Z.; Li, B.; Chen, M.; Yang, Y.; Zheng, R.; Yuan, L.; Li, Z.; Tan, X.; Xu, H. Tailoring magnetic property and corrosion resistance of FeCoNiCuAl high-entropy alloy with Ce additive. J. Alloys Compd. 2022, 901, 163665. [Google Scholar] [CrossRef]
  37. Weng, X.; Li, W.; Ding, S.; Chen, J.; He, J.; Wang, W. Effect of Sn addition on microstructure evolution, corrosion behavior and wear resistance of CoFeNiSn high-entropy alloys. J. Mater. Res. Technol. 2026, 41, 5839–5852. [Google Scholar] [CrossRef]
  38. Wang, Z.; Fu, J.; Feng, Y.; Wan, Y.; Tian, Q.; Chen, J.; Zhao, M.; Zhang, R.; Hou, B. Corrosion behavior and antifouling performance of CoCrFeNiCux high-entropy alloys in 3.5 wt% NaCl solution. Electrochim. Acta 2026, 553, 148303. [Google Scholar] [CrossRef]
  39. Wang, J.; Zhang, Z.; Dai, H.; Fujiwara, H.; Chen, X.; Ameyama, K. Enhanced corrosion resistance of CoCrFeMnNi high entropy alloy using heterogeneous structure design. Corros. Sci. 2022, 209, 110761. [Google Scholar] [CrossRef]
  40. Song, L.; Hu, W.; Huang, S.; Guo, X. Electrochemical behavior and passive film properties of Ce-added AlCoCrFeNi2.1 eutectic high-entropy alloys in sulfuric acid solution. J. Electroanal. Chem. 2023, 950, 117883. [Google Scholar] [CrossRef]
  41. Bi, D.; Chang, Y.; Luo, H.; Pan, Z.; Zhao, Q.; Cheng, H.; Wang, X.; Qiao, C.; Ni, Z.; Liu, A.; et al. Corrosion behavior and passive film characteristics of AlNbTiZrSix high-entropy alloys in simulated seawater environment. Corros. Sci. 2023, 224, 111530. [Google Scholar] [CrossRef]
  42. He, Z.; Dong, Y.; Tian, Y.; Wang, Y.; Zhao, D.; Yang, X.; Yang, Y.; Zhao, H. Effect of Cr content on the microstructure and corrosion resistance of laser cladded FeCoNiMnAl0.5Crx high entropy alloy coatings. J. Alloys Compd. 2025, 1043, 184249. [Google Scholar] [CrossRef]
  43. Huang, X.; Wang, J.; Wu, Y.; Wang, Y.; Liu, P.; Chen, Z.; Zheng, S. A threshold of Cr dominated structure transition and stability enhancement of passive films in high entropy alloy CrxMnFeCoNi. Corros. Sci. 2025, 250, 112907. [Google Scholar] [CrossRef]
  44. Zheng, J.; Chen, T.; Chen, H. Antibiotic resistome promotion in drinking water during biological activated carbon treatment: Is it influenced by quorum sensing? Sci. Total Environ. 2018, 612, 1–8. [Google Scholar] [CrossRef] [PubMed]
  45. Xia, Y.; Zhou, S.; Liang, Z.; Huang, X.; Zhao, Q.; Huang, H.; Zhao, H.; Zhan, Y.; Wang, C.; Xie, Y. Exploring the influence of alloying elements (Zr, Si, and V) on the corrosion behavior of FeCoNiCr-based high entropy alloys in supercritical water environment. J. Nucl. Mater. 2025, 605, 155605. [Google Scholar] [CrossRef]
  46. Jiao, Y.; Zheng, W.; Guzonas, D.A.; Cook, W.G.; Kish, J.R. Effect of thermal treatment on the corrosion resistance of Type 316L stainless steel exposed in supercritical water. J. Nucl. Mater. 2015, 464, 356–364. [Google Scholar] [CrossRef]
  47. Wang, D.; Lan, A.; Yang, H.; Jin, X.; Qiao, J. Corrosion and passivation behavior of Fe40Mn20Cr20Ni20 high-entropy alloys in artificial seawater: Effect of rare earth Ce. Intermetallics 2025, 176, 108554. [Google Scholar] [CrossRef]
  48. Wei, X.; Zhang, L.; Zhang, F.; Zhang, C.; Jia, Q.; Sun, K.; Duan, D.; Jiang, H.; Li, G. Effect of carbon addition on the microstructure and corrosion resistance of the CoCrFeNi high-entropy alloy. Corros. Sci. 2024, 231, 111965. [Google Scholar] [CrossRef]
  49. Zengin, H.; Greul, A.; Turan, M.E.; Duchoslav, J.; Mardare, A.I.; Hassel, A.W. Corrosion and passivation behaviour of as-cast and heat-treated AlCoCrFeNiX0.5 (X = Mo, Ta) high entropy alloys in 3.5 wt.% NaCl solution. Electrochim. Acta 2025, 523, 146007. [Google Scholar] [CrossRef]
  50. Jiang, Y.Q.; Li, J.; Juan, Y.F.; Lu, Z.J.; Jia, W.L. Evolution in microstructure and corrosion behavior of AlCoCrxFeNi high-entropy alloy coatings fabricated by laser cladding. J. Alloys Compd. 2019, 775, 1–14. [Google Scholar] [CrossRef]
  51. Jin, X.; Yang, W.; Cui, Z.; Man, C.; Ji, Y.; Cui, H. Electrochemical corrosion and passivation behaviour of laser-melted CoCr NixMo30−xNb6 + 2% B4C high-entropy alloy coatings in acidic and chloride environments. Corros. Sci. 2026, 258, 113380. [Google Scholar] [CrossRef]
  52. Song, Z.; Liu, J.; Li, C.; Li, Y.; Xia, X.; Zhang, J. Investigation on microstructure evolution and corrosion behavior of FeCoCrNiMoCuxSi0.2 high entropy alloy coating produced by laser cladding. Surf. Coat. Technol. 2025, 511, 132313. [Google Scholar] [CrossRef]
  53. Khanna R, G.; Krishnan, S.; Singh, M.K.; Rai, D.K.; Samal, S. A detailed investigation regarding the corrosion and electrocatalytic performance of Fe-Co-Ni-Cr-V high entropy alloy. Electrochim. Acta 2023, 460, 142582. [Google Scholar] [CrossRef]
  54. Ge, Y.; Cheng, J.; Ma, L.; Xue, L.; Zhang, B.; Hong, S.; Liang, X.; Zhang, X. Tailoring microstructure and corrosion behavior of CoNiCrFeMoBSi high-entropy alloy coatings via Mo addition. Surf. Coat. Technol. 2024, 489, 131129. [Google Scholar] [CrossRef]
  55. Yuan, J.; Shi, Z.; Dai, L.; Ye, X.; Xu, L.; Gao, J.; Liu, P. Environment dependent Ta-Mo synergy toward eutectic high-entropy alloys with strength and tunable corrosion resistance. Intermetallics 2026, 191, 109180. [Google Scholar] [CrossRef]
  56. Luo, H.; Sohn, S.S.; Lu, W.; Li, L.; Li, X.; Soundararajan, C.K.; Krieger, W.; Li, Z.; Raabe, D. A strong and ductile medium-entropy alloy resists hydrogen embrittlement and corrosion. Nat. Commun. 2020, 11, 3081. [Google Scholar] [CrossRef] [PubMed]
  57. Han, F.; Huang, X.; Li, C.; Zhang, Y.; Li, C.; Wang, C. Galvanic corrosion mechanism regulated by heterogeneous phase in novel V-alloyed CoCrFeNiMn corrosion-resistant high-entropy alloys. Electrochim. Acta 2026, 549, 148006. [Google Scholar] [CrossRef]
  58. Shi, P.; Yu, J.; Yao, B.; Si, J.; Wu, L.; Wu, X.; Wang, Y. Uncovering the origin of unique elemental distribution behaviors of Vanadium in high entropy alloys. Int. J. Refract. Met. Hard Mater. 2024, 122, 106715. [Google Scholar] [CrossRef]
  59. Han, F.; Li, C.; Pai, Z.; Zhang, Y.; Wang, C. Effect of V content on the microstructure and corrosion behavior of (CoCrFeNiMn)100−xVx high entropy alloys. Intermetallics 2026, 189, 109137. [Google Scholar] [CrossRef]
  60. Pan, B.; Xu, X.; Yang, J.; Zhan, H.; Feng, L.; Long, Q.; Yao, Q.; Deng, J.; Cheng, L.; Lu, Z.; et al. Effect of Nb, Ti, and V on wear resistance and electrochemical corrosion resistance of AlCoCrNiM (M = Nb, Ti, V) high-entropy alloys. Mater. Today Commun. 2024, 39, 109314. [Google Scholar] [CrossRef]
  61. Esteves, L.; Christudasjustus, J.; O’Brien, S.P.; Witharamage, C.S.; Darwish, A.A.; Walunj, G.; Stack, P.; Borkar, T.; Akans, R.E.; Gupta, R.K. Effect of V content on corrosion behavior of high-energy ball milled AA5083. Corros. Sci. 2021, 186, 109465. [Google Scholar] [CrossRef]
  62. Yang, Y.; Dong, Y.; Liu, S.; Duan, S.; Li, C.; Zhang, P. A novel AlCo1.2Cr0.8FeNi2.1 eutectic high entropy alloy with excellent corrosion resistance. J. Alloys Compd. 2024, 998, 175006. [Google Scholar] [CrossRef]
  63. Cheng, J.; Ma, Y.; Wang, X.; Cheng, L.; Cao, Z. Excellent corrosion resistance of Fe37Ni37Cr20Al3Ti3 medium entropy alloy induced by sequential passivation strategy. J. Alloys Compd. 2025, 1034, 181437. [Google Scholar] [CrossRef]
  64. Katić, J.; Metikoš–Huković, M.; Peter, R.; Petravić, M. The electronic structure of the α–Ni(OH)2 films: Influence on the production of the high–performance Ni–catalyst surface. J. Power Sources 2015, 282, 421–428. [Google Scholar] [CrossRef]
  65. Wang, Z.; Zhang, G.-H.; Fan, X.-H.; Jin, J.; Zhang, L.; Du, Y.-X. Corrosion behavior and surface characterization of an equiatomic CoCrFeMoNi high-entropy alloy under various pH conditions. J. Alloys Compd. 2022, 900, 163432. [Google Scholar] [CrossRef]
Materials 19 02724 g001

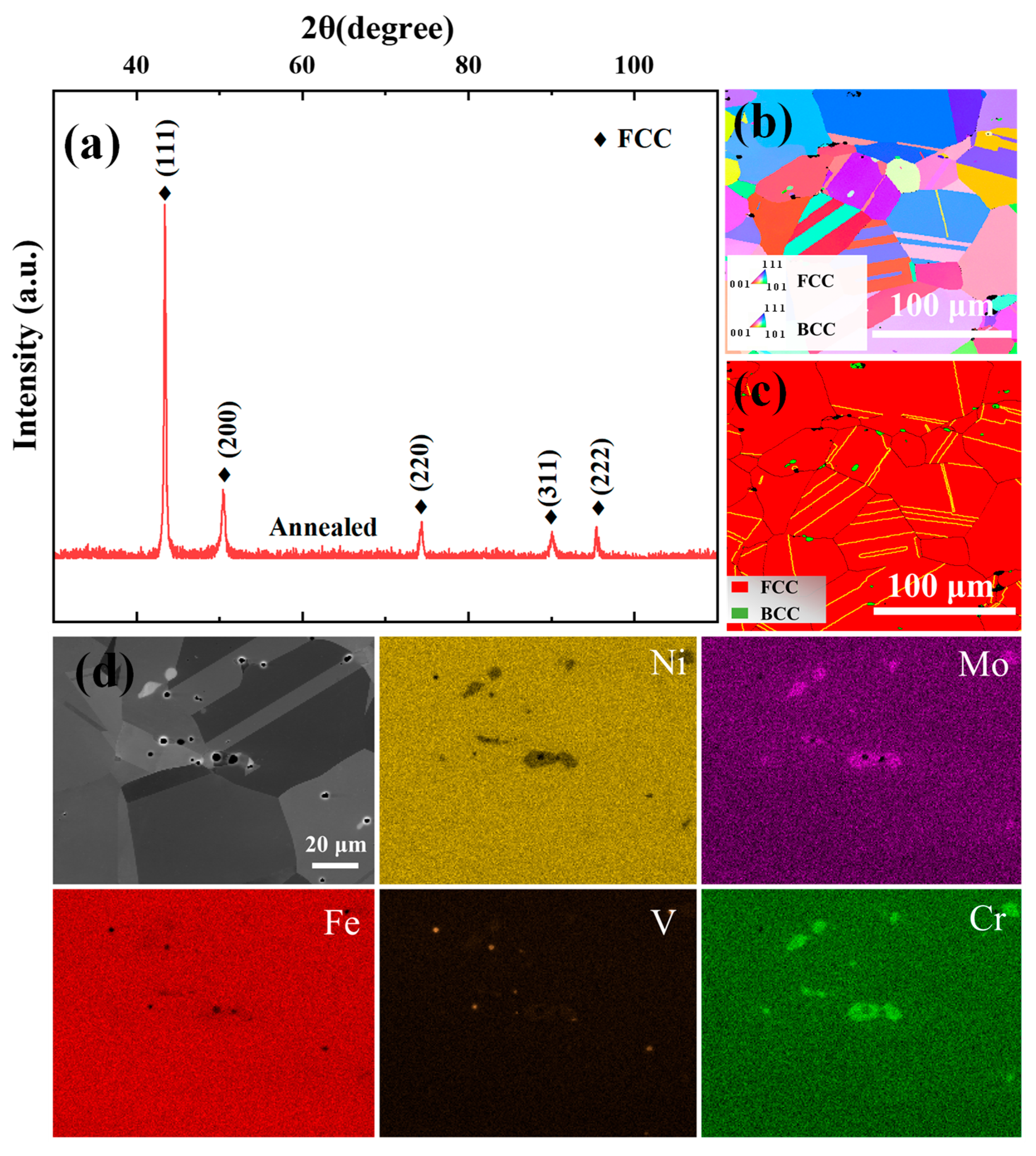

Figure 1. (a) XRD patterns of the annealed MPEA; (b) EBSD inverse pole figure (IPF) map and (c) phase map of the MPEA after heat treatment at 1100 °C; (d) EDS elemental maps obtained from the same sample region indicated by the yellow rectangle in (c).
Figure 1. (a) XRD patterns of the annealed MPEA; (b) EBSD inverse pole figure (IPF) map and (c) phase map of the MPEA after heat treatment at 1100 °C; (d) EDS elemental maps obtained from the same sample region indicated by the yellow rectangle in (c).
Materials 19 02724 g001
Materials 19 02724 g002

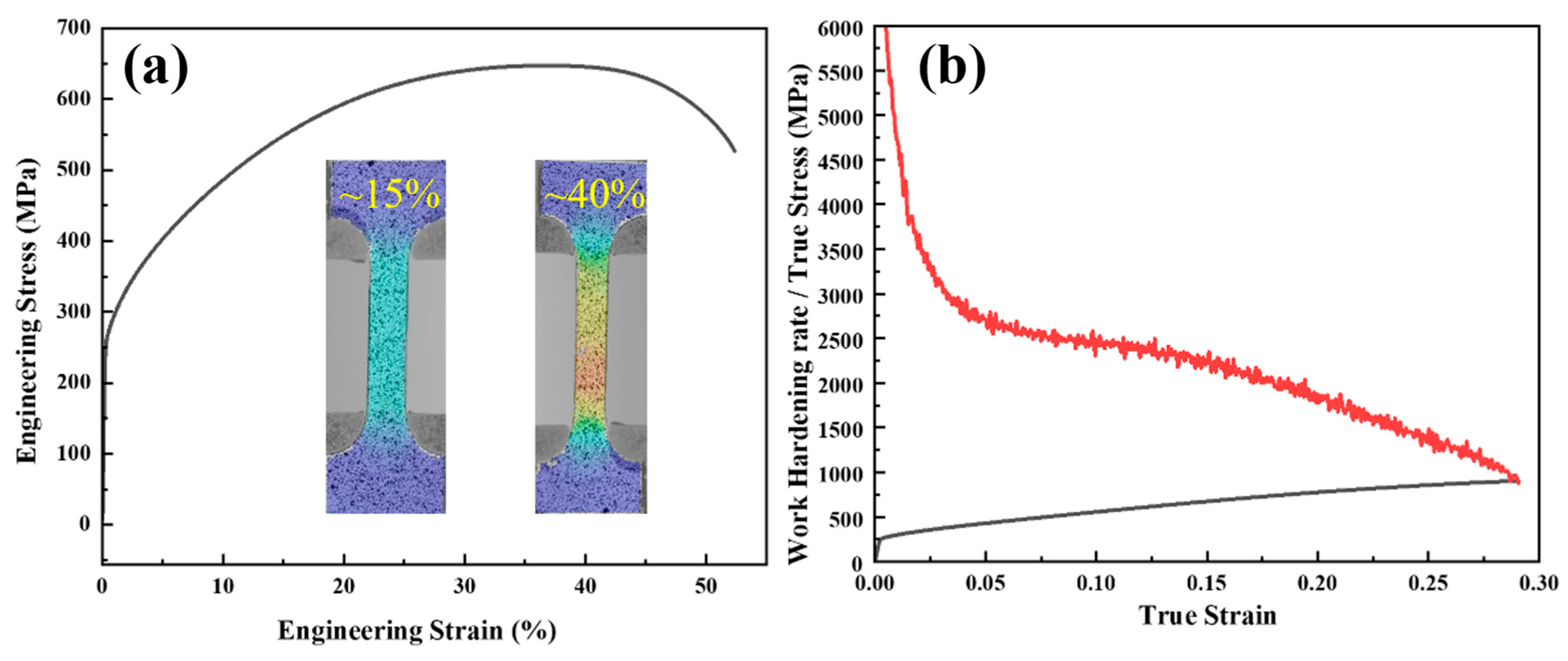

Figure 2. (a) Typical engineering stress–strain curve; (b) True stress–strain curve and the corresponding work-hardening rate curve of Fe40Ni30Cr20V8Mo2 MPEA.
Figure 2. (a) Typical engineering stress–strain curve; (b) True stress–strain curve and the corresponding work-hardening rate curve of Fe40Ni30Cr20V8Mo2 MPEA.
Materials 19 02724 g002
Materials 19 02724 g003

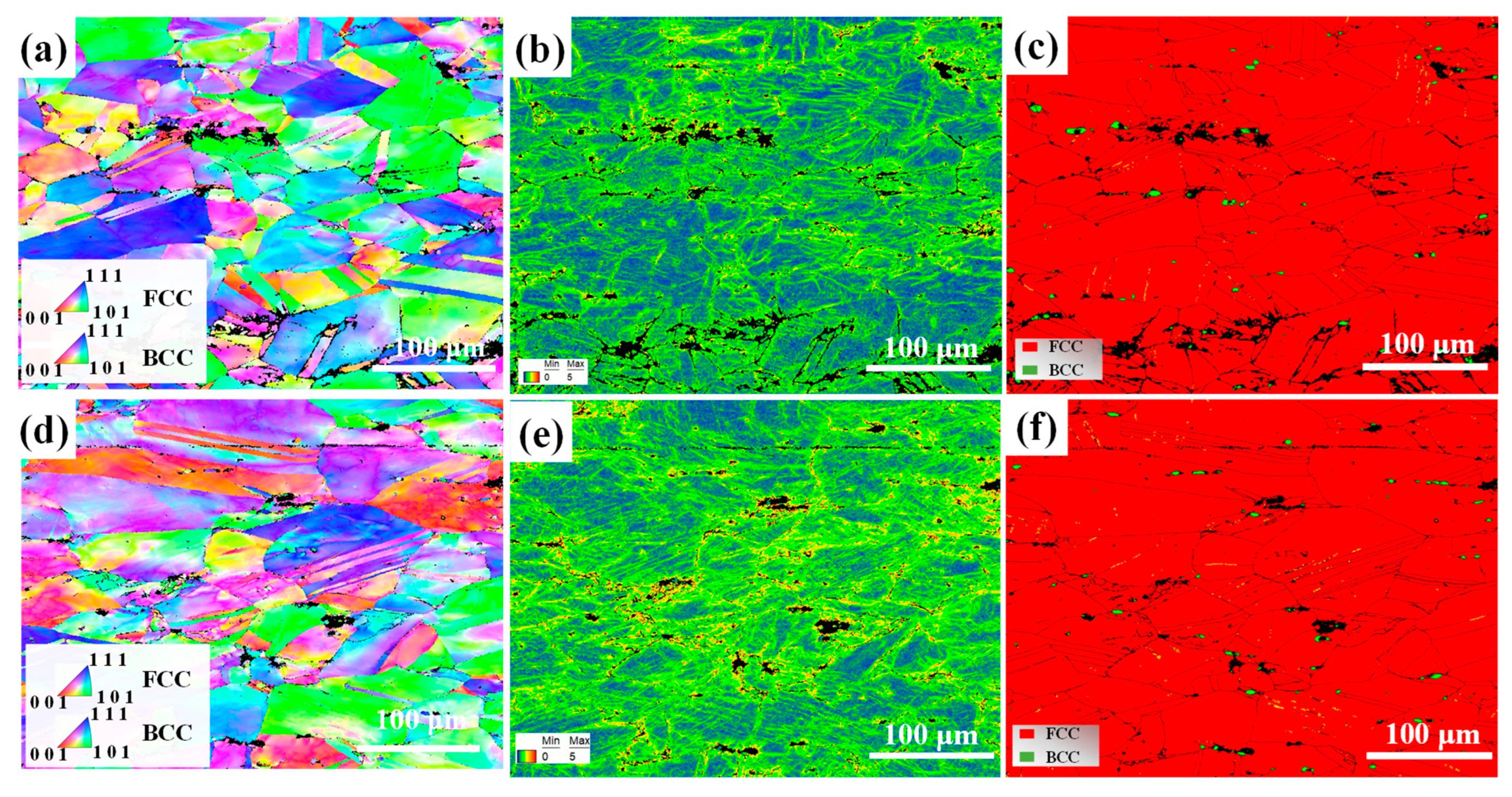

Figure 3. EBSD analysis at different strain levels of the MPEA. (a–c) correspond to the IPF map, KAM map and phase map at a strain of ~15%, respectively; (d–f) correspond to the IPF map, KAM map, and phase map at a strain of ~40%, respectively.
Figure 3. EBSD analysis at different strain levels of the MPEA. (a–c) correspond to the IPF map, KAM map and phase map at a strain of ~15%, respectively; (d–f) correspond to the IPF map, KAM map, and phase map at a strain of ~40%, respectively.
Materials 19 02724 g003
Materials 19 02724 g004

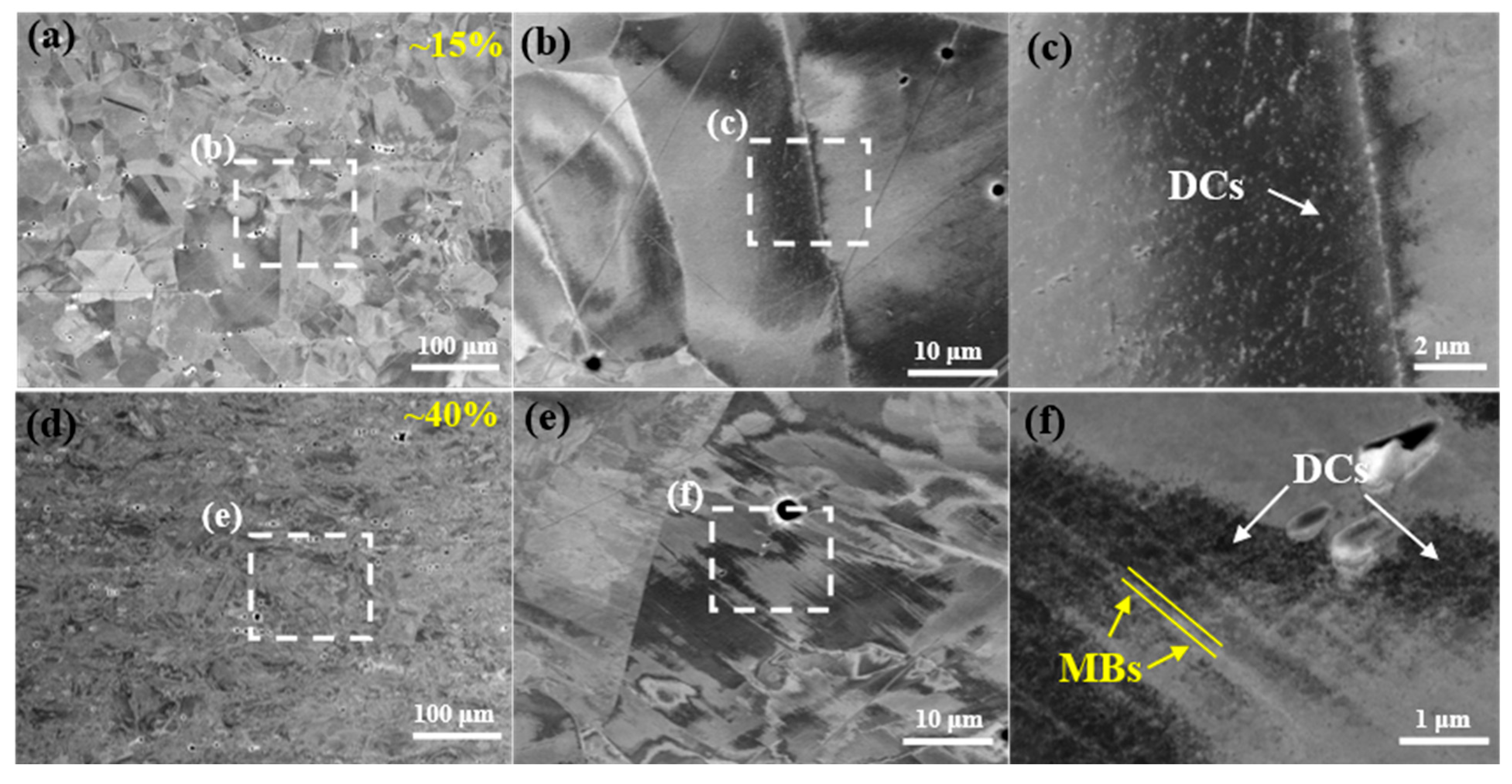

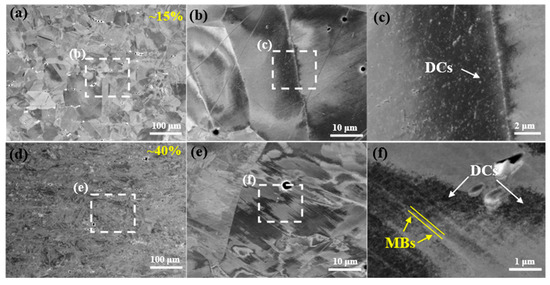

Figure 4. BSE images of sample regions with two representative local strains: (a–c) microstructures at a strain of ~15%; (d–f) microstructures at a strain of ~40%. “DCs” and “MBs” denote dislocation cells and microbands, respectively.
Figure 4. BSE images of sample regions with two representative local strains: (a–c) microstructures at a strain of ~15%; (d–f) microstructures at a strain of ~40%. “DCs” and “MBs” denote dislocation cells and microbands, respectively.
Materials 19 02724 g004
Materials 19 02724 g005

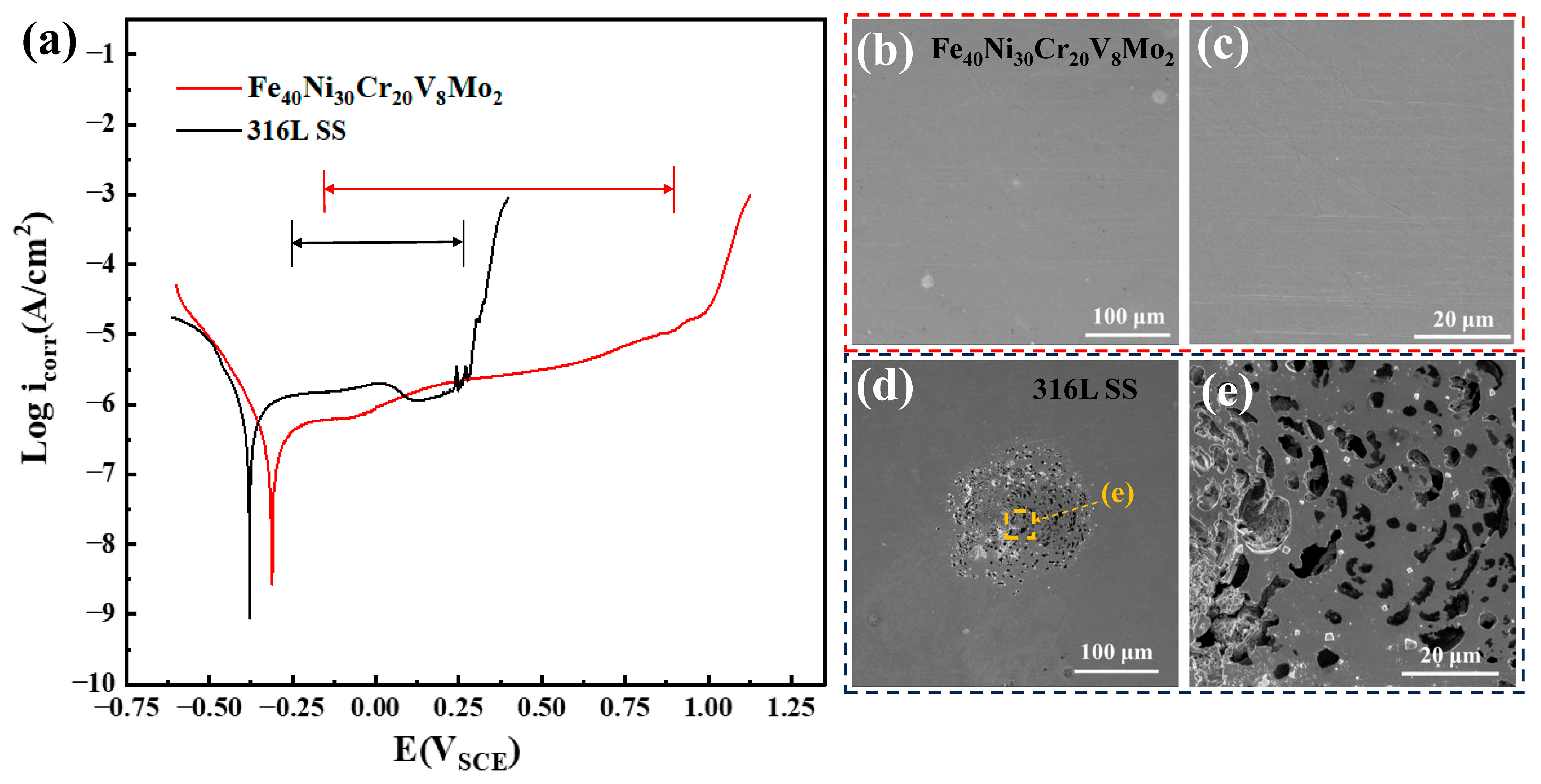

Figure 5. (a) Potentiodynamic polarization curves of the MPEA and 316L SS; (b–e) Corroded surface morphologies of the Fe40Ni30Cr20V8Mo2 MPEA after polarization within the potential range of −0.5 VSCE to 0.5 VSCE.
Figure 5. (a) Potentiodynamic polarization curves of the MPEA and 316L SS; (b–e) Corroded surface morphologies of the Fe40Ni30Cr20V8Mo2 MPEA after polarization within the potential range of −0.5 VSCE to 0.5 VSCE.
Materials 19 02724 g005
Materials 19 02724 g006

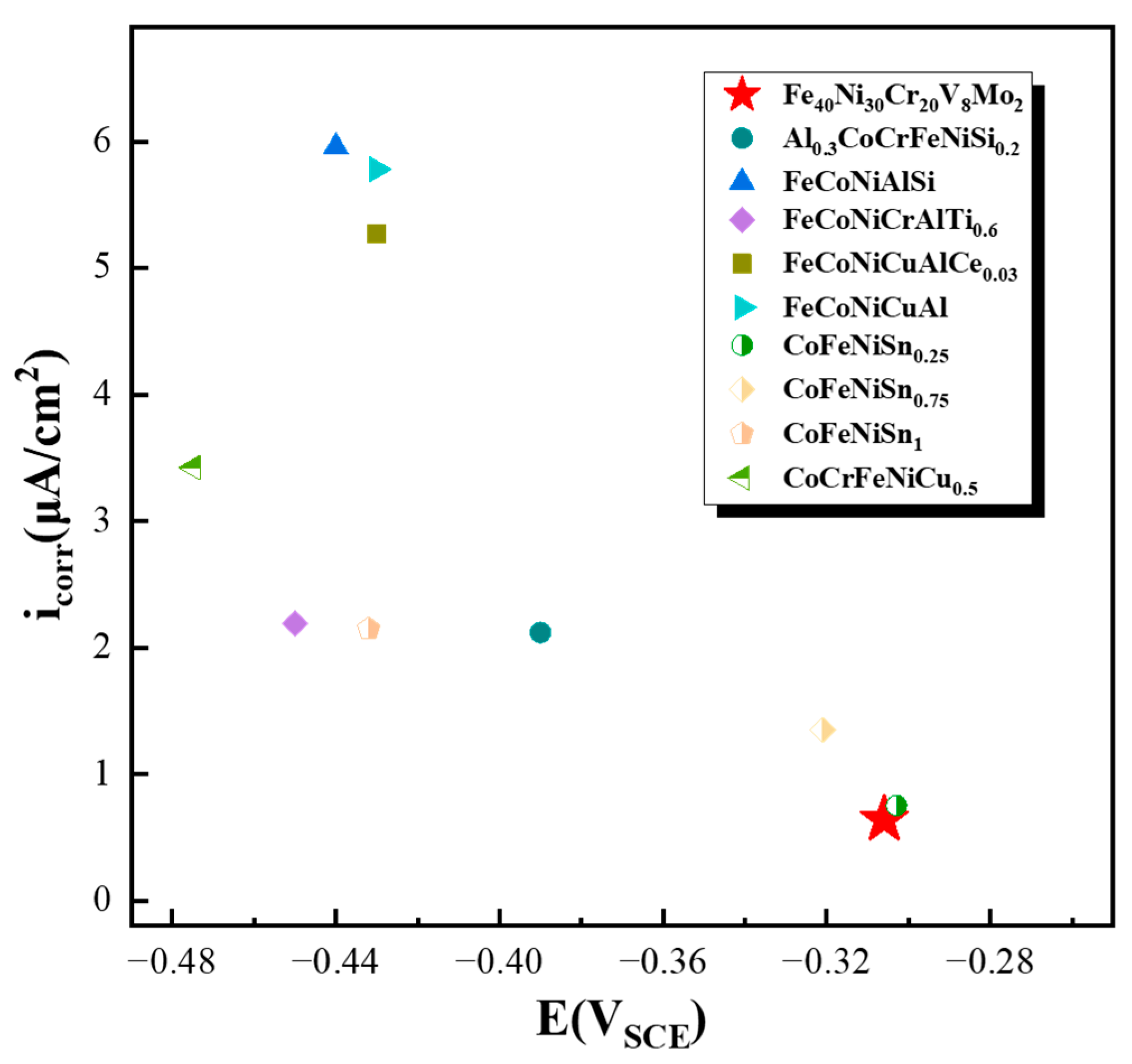

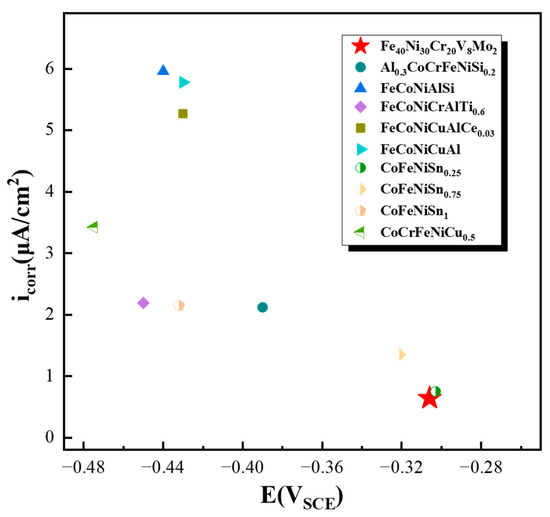

Figure 6. The self-corrosion voltage and currents of the reference and as-prepared MPEAs [33,34,35,36,37,38].
Figure 6. The self-corrosion voltage and currents of the reference and as-prepared MPEAs [33,34,35,36,37,38].
Materials 19 02724 g006
Materials 19 02724 g007

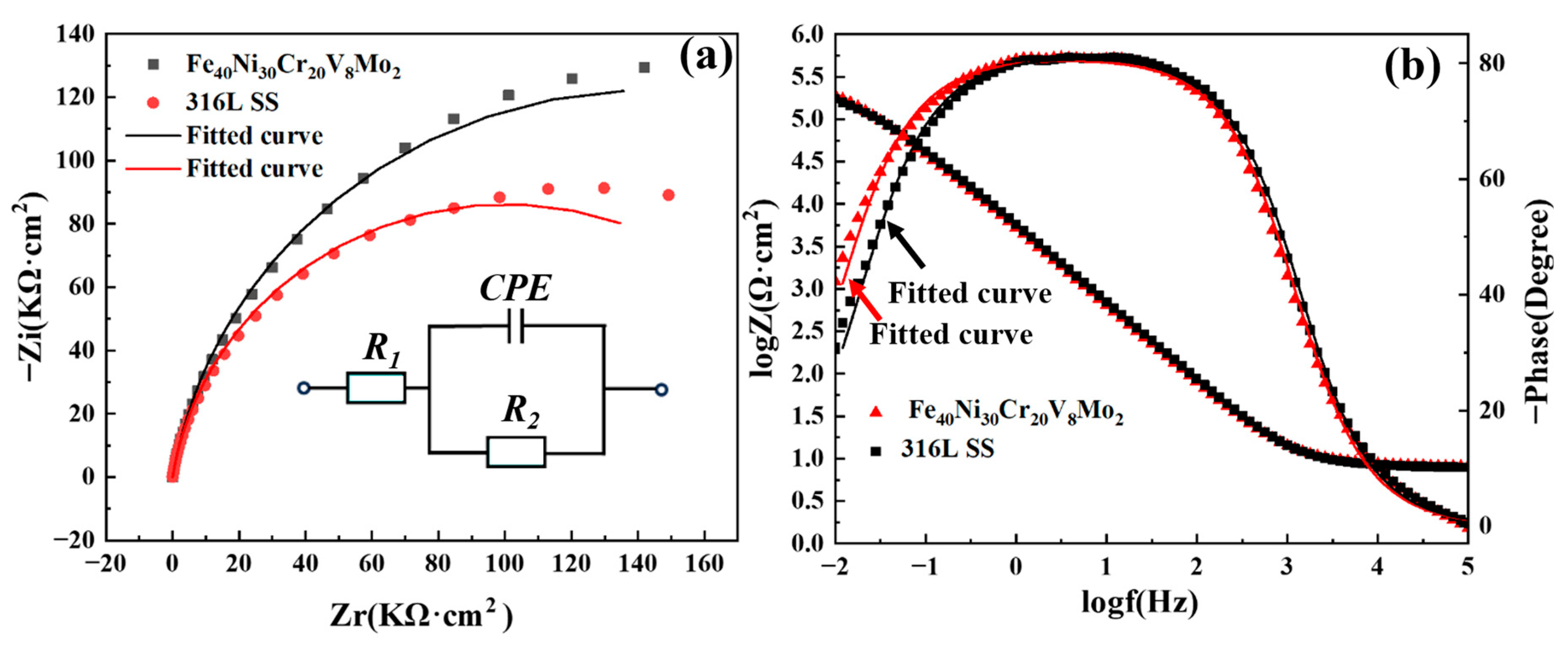

Figure 7. (a) Nyquist plots and (b) Bode plots for the MPEA and 316L SS in a 3.5 wt.% NaCl solution.
Figure 7. (a) Nyquist plots and (b) Bode plots for the MPEA and 316L SS in a 3.5 wt.% NaCl solution.
Materials 19 02724 g007
Materials 19 02724 g008

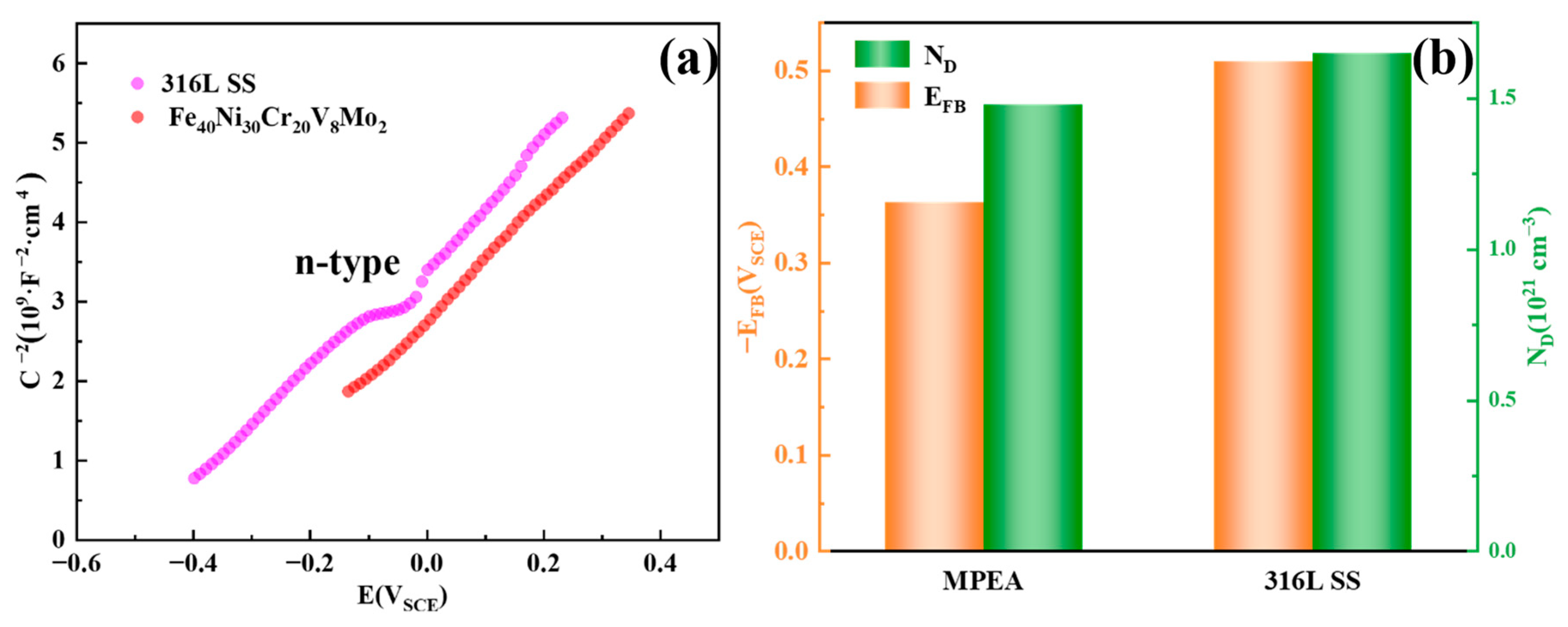

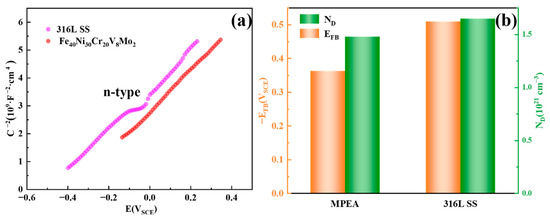

Figure 8. (a) Mott–Schottky plots and (b) calculated ND and EFB values for the MPEA and 316L SS in a 3.5 wt.% NaCl solution.
Figure 8. (a) Mott–Schottky plots and (b) calculated ND and EFB values for the MPEA and 316L SS in a 3.5 wt.% NaCl solution.
Materials 19 02724 g008
Materials 19 02724 g009

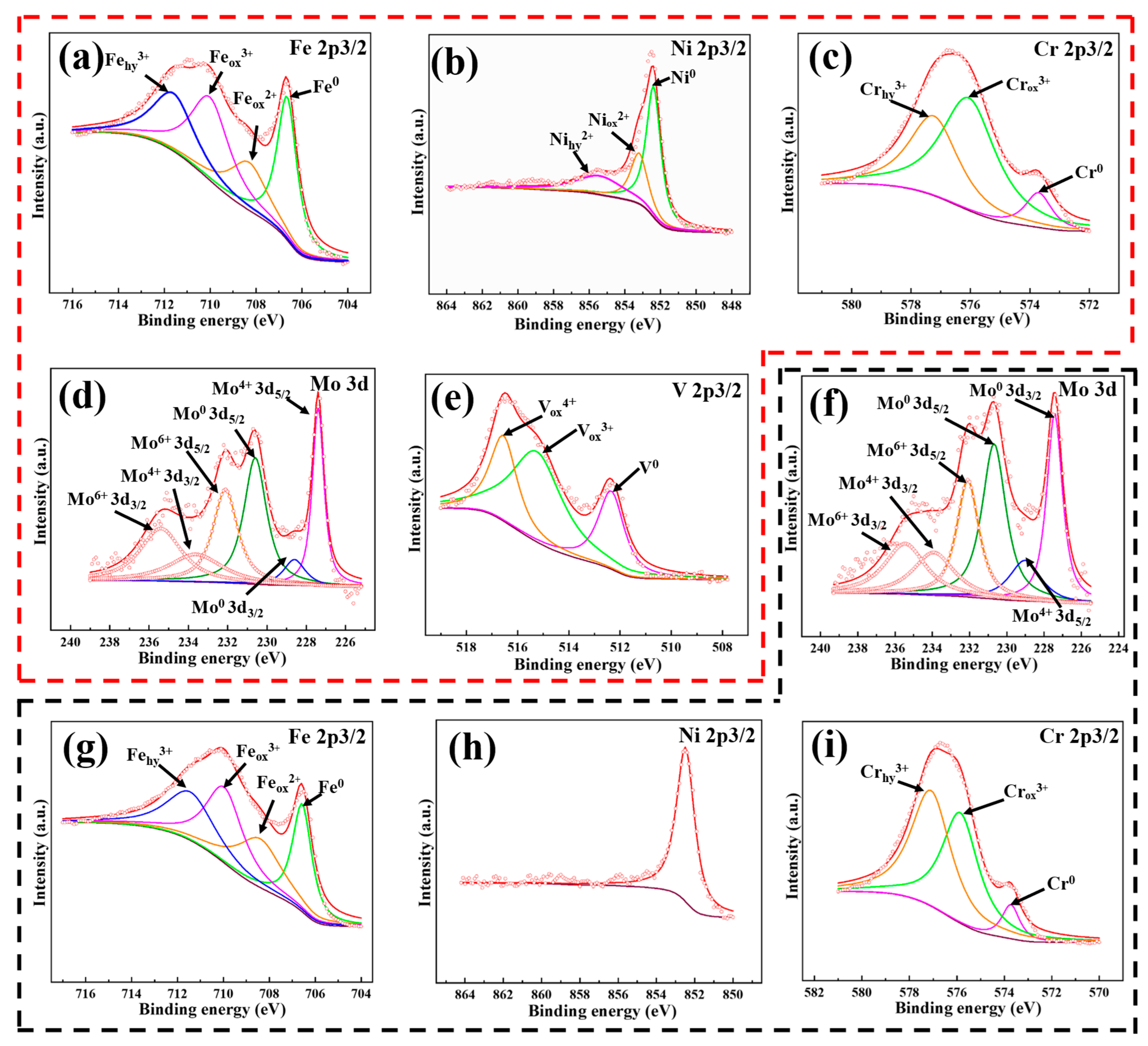

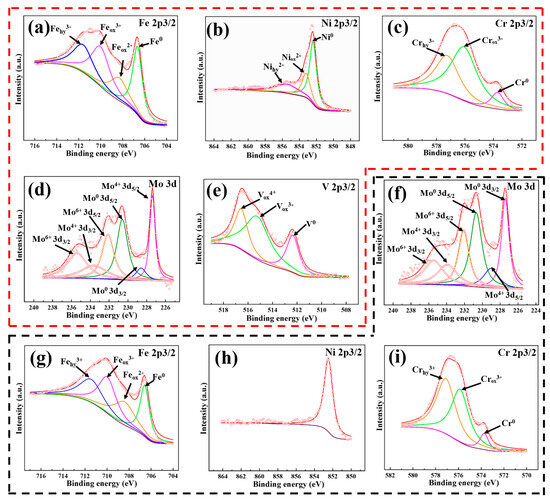

Figure 9. High-resolution XPS spectra after passivation at 0.1 VSCE in 3.5 wt.% NaCl solution: (a–e) for the MPEA; (f–i) for 316L SS.
Figure 9. High-resolution XPS spectra after passivation at 0.1 VSCE in 3.5 wt.% NaCl solution: (a–e) for the MPEA; (f–i) for 316L SS.
Materials 19 02724 g009
Table 1. The chemical compositions of the MPEA and 316L SS.
Table 1. The chemical compositions of the MPEA and 316L SS.
Alloys FeNiCrMoMnSiV
Fe40Ni30Cr20V8Mo2wt.%Bal.31.8118.073.47--6.90
at.%Bal.30.5719.602.04--7.64
316L SSwt.%Bal.9.8117.202.102.00.10-
at.%Bal.9.3318.471.222.030.20-
Table 2. Electrochemical parameters of the two samples derived from Figure 5a.
Table 2. Electrochemical parameters of the two samples derived from Figure 5a.
SamplesEcorr (V)icorr (A/cm2)Epit (V)ΔE (V)
Fe40Ni30Cr20V8Mo2−0.3066.423 × 10−70.9751.281
316L SS−0.3795.941 × 10−60.2560.635
Table 3. Fitting parameters of the EEC model for the EIS data shown in Figure 7.
Table 3. Fitting parameters of the EEC model for the EIS data shown in Figure 7.
AlloysR1 (Ω⋅cm2)R2 (Ω⋅cm2)CPE (Ω−1cm−2 sn)n
Fe40Ni30Cr20V8Mo28.4092.862 × 1053.773 × 10−50.89
316L SS8.1312.006 × 1053.395 × 10−50.90
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Deng, J.; Hua, M.; Zheng, Y.; Li, Y.; Liu, W.; Fang, J.; Song, Y.; Wu, P. A Cobalt-Free Multi-Principal Elements Alloy with Balanced Mechanical Properties and Exceptional Corrosion Resistance. Materials 2026, 19, 2724. https://doi.org/10.3390/ma19132724

AMA Style

Deng J, Hua M, Zheng Y, Li Y, Liu W, Fang J, Song Y, Wu P. A Cobalt-Free Multi-Principal Elements Alloy with Balanced Mechanical Properties and Exceptional Corrosion Resistance. Materials. 2026; 19(13):2724. https://doi.org/10.3390/ma19132724

Chicago/Turabian Style

Deng, Jinhong, Manyu Hua, Yangyang Zheng, Yulong Li, Wei Liu, Jingzhong Fang, Yekun Song, and Pengfei Wu. 2026. "A Cobalt-Free Multi-Principal Elements Alloy with Balanced Mechanical Properties and Exceptional Corrosion Resistance" Materials 19, no. 13: 2724. https://doi.org/10.3390/ma19132724

APA Style

Deng, J., Hua, M., Zheng, Y., Li, Y., Liu, W., Fang, J., Song, Y., & Wu, P. (2026). A Cobalt-Free Multi-Principal Elements Alloy with Balanced Mechanical Properties and Exceptional Corrosion Resistance. Materials, 19(13), 2724. https://doi.org/10.3390/ma19132724

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Article metric data becomes available approximately 24 hours after publication online.
Back to TopTop
