A Bibliometric and Systematic Review of the Use of Recycled Composite Materials with an Emphasis on the Mechanical Performance of Structures
Abstract
1. Introduction
2. Current Scenario from the Study

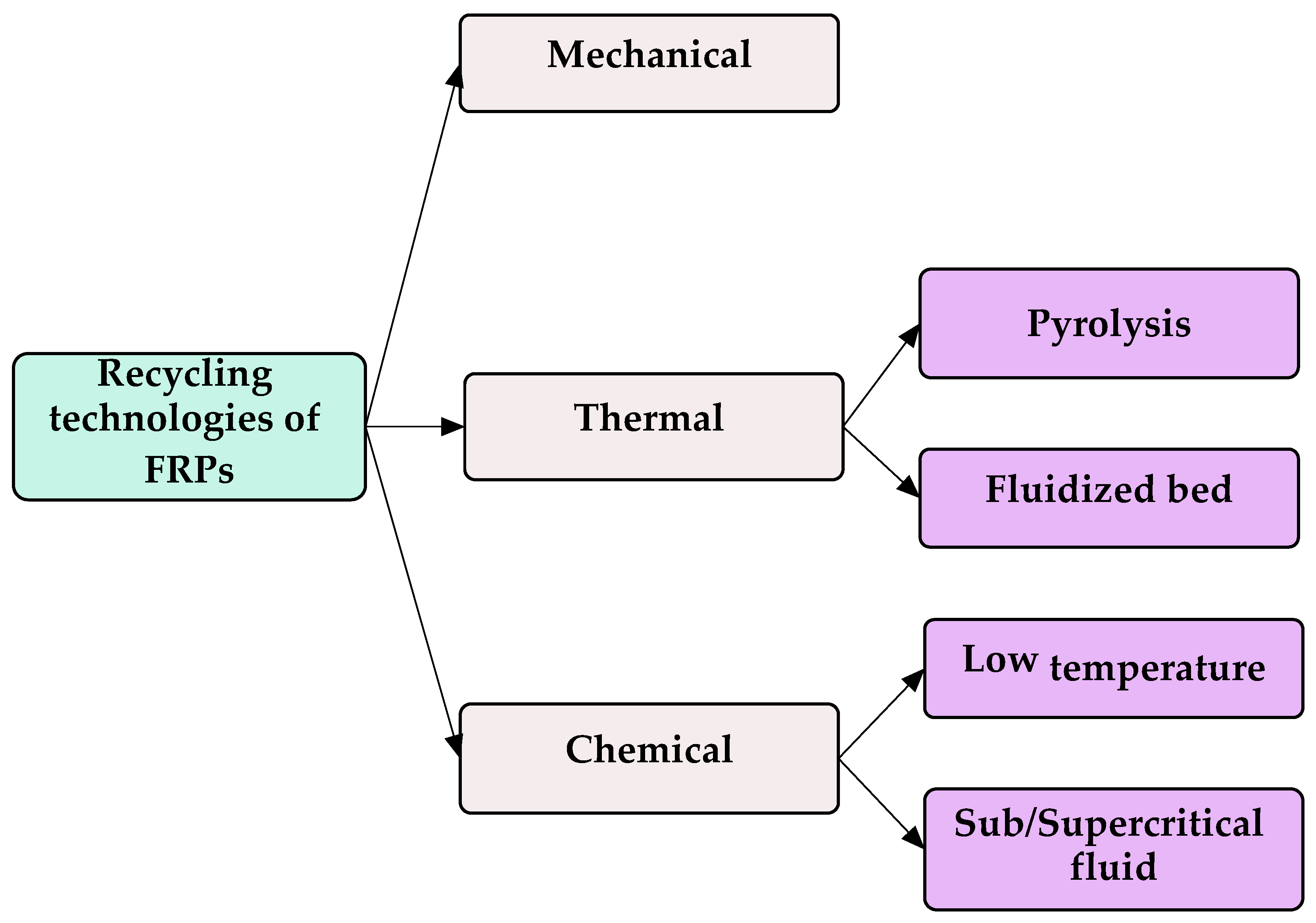

2.1. FRP Recycling Technologies
2.2. Mechanical Behavior of Recycled FRP Materials
2.3. Environmental and Economic Implications
3. Methodology and Approach for Data Collection
4. Results of Bibliometric Analysis

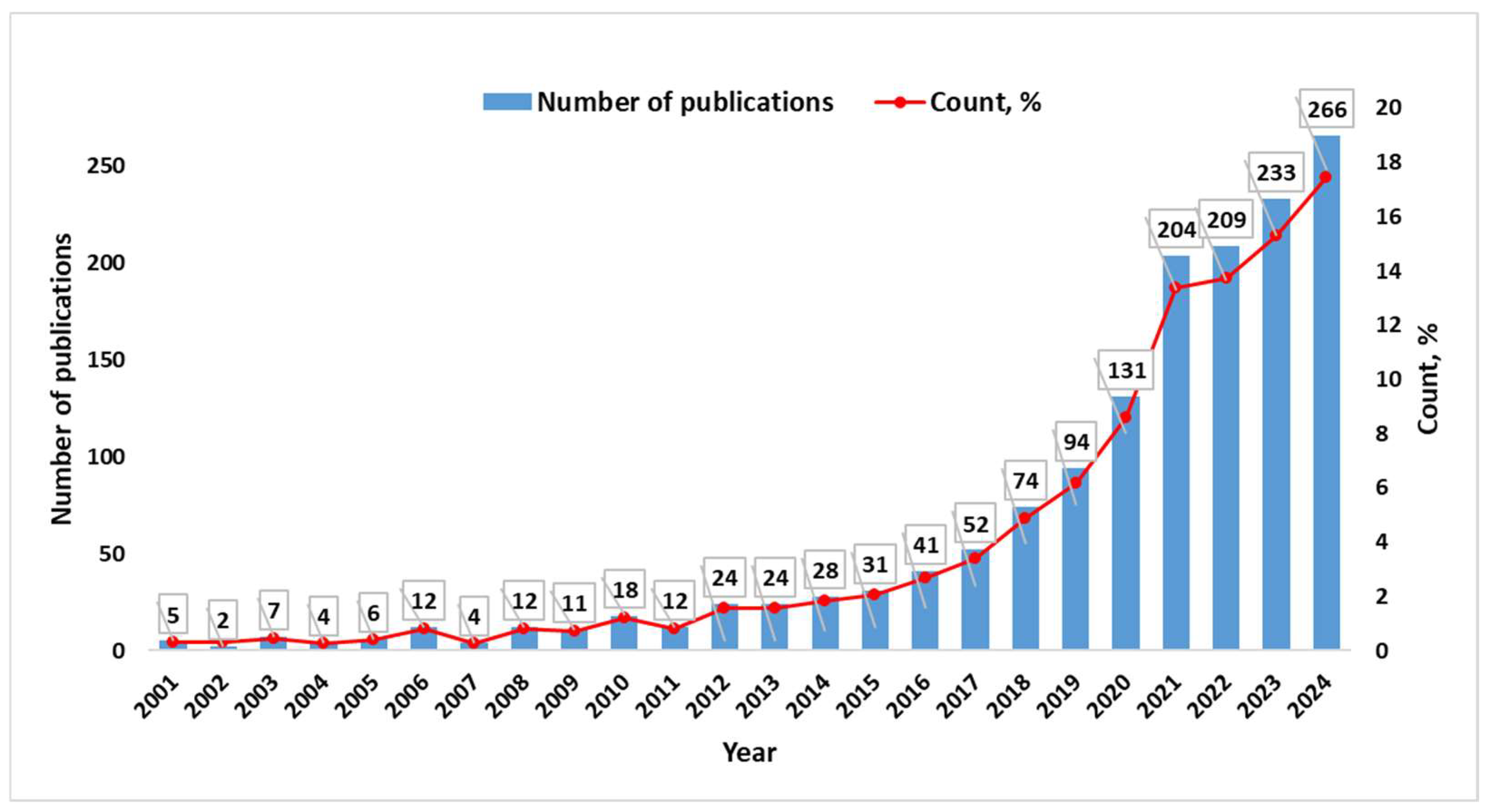

4.1. Analysis of the Number of Publications over Time

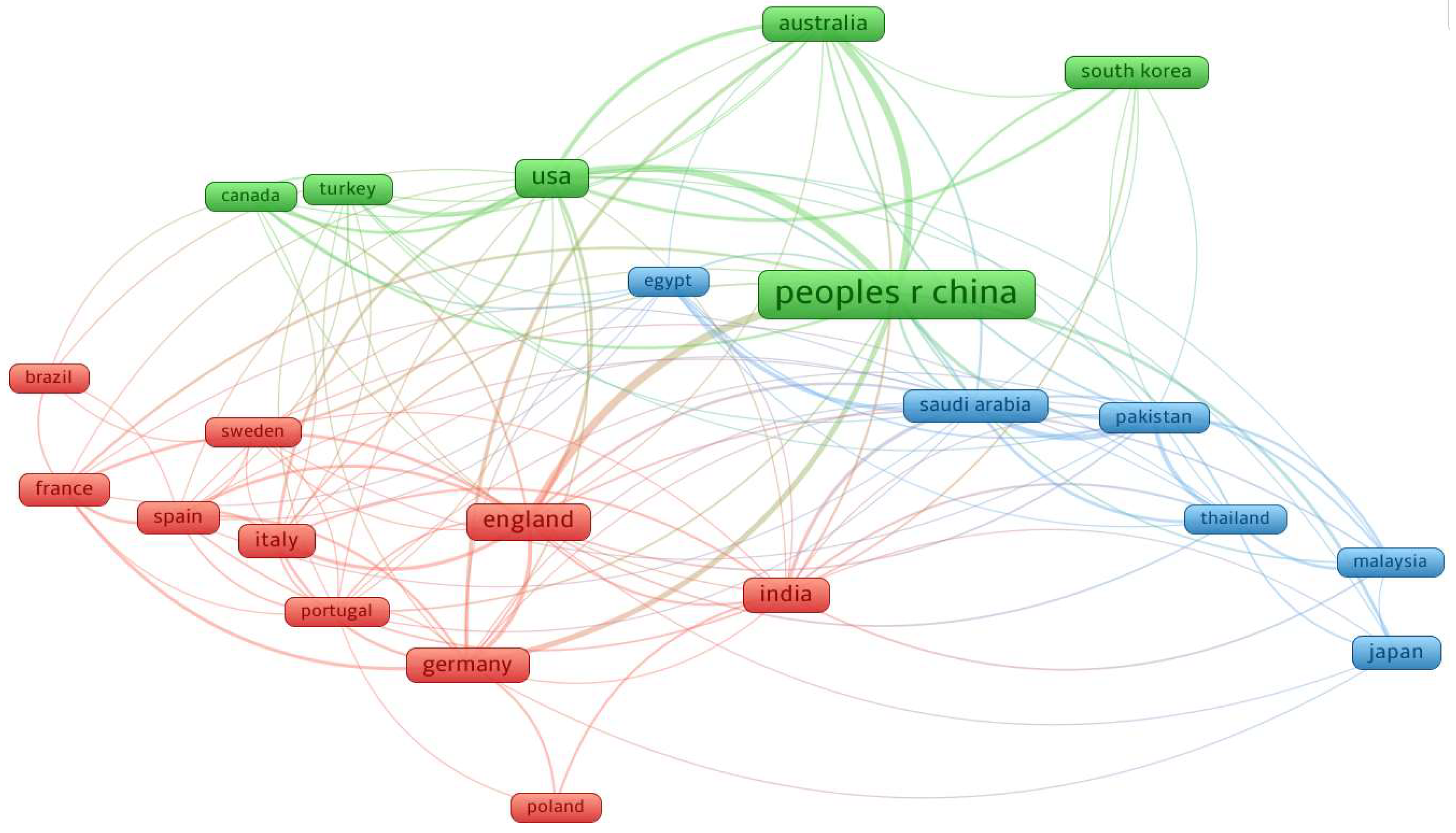

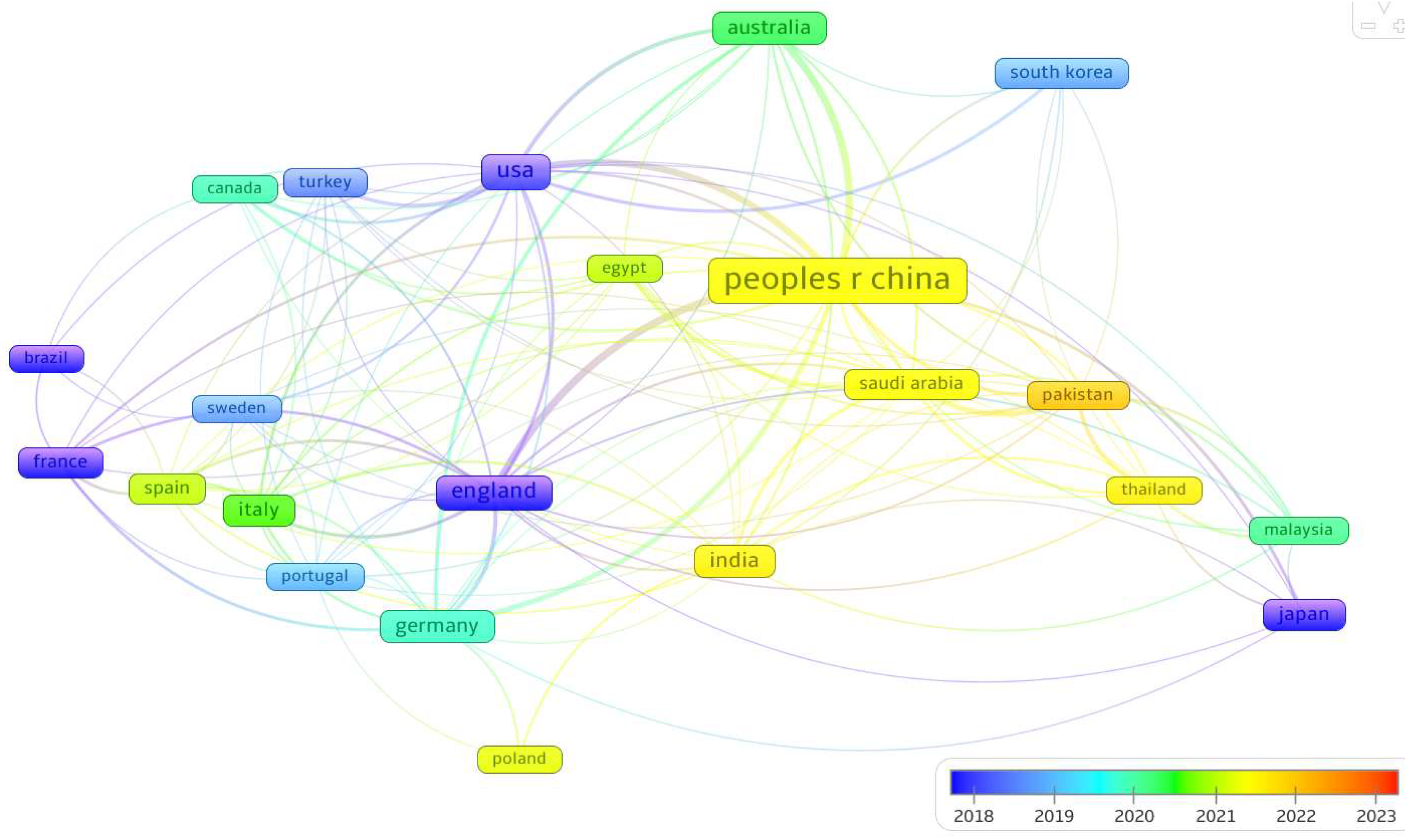

4.2. Publication by Country

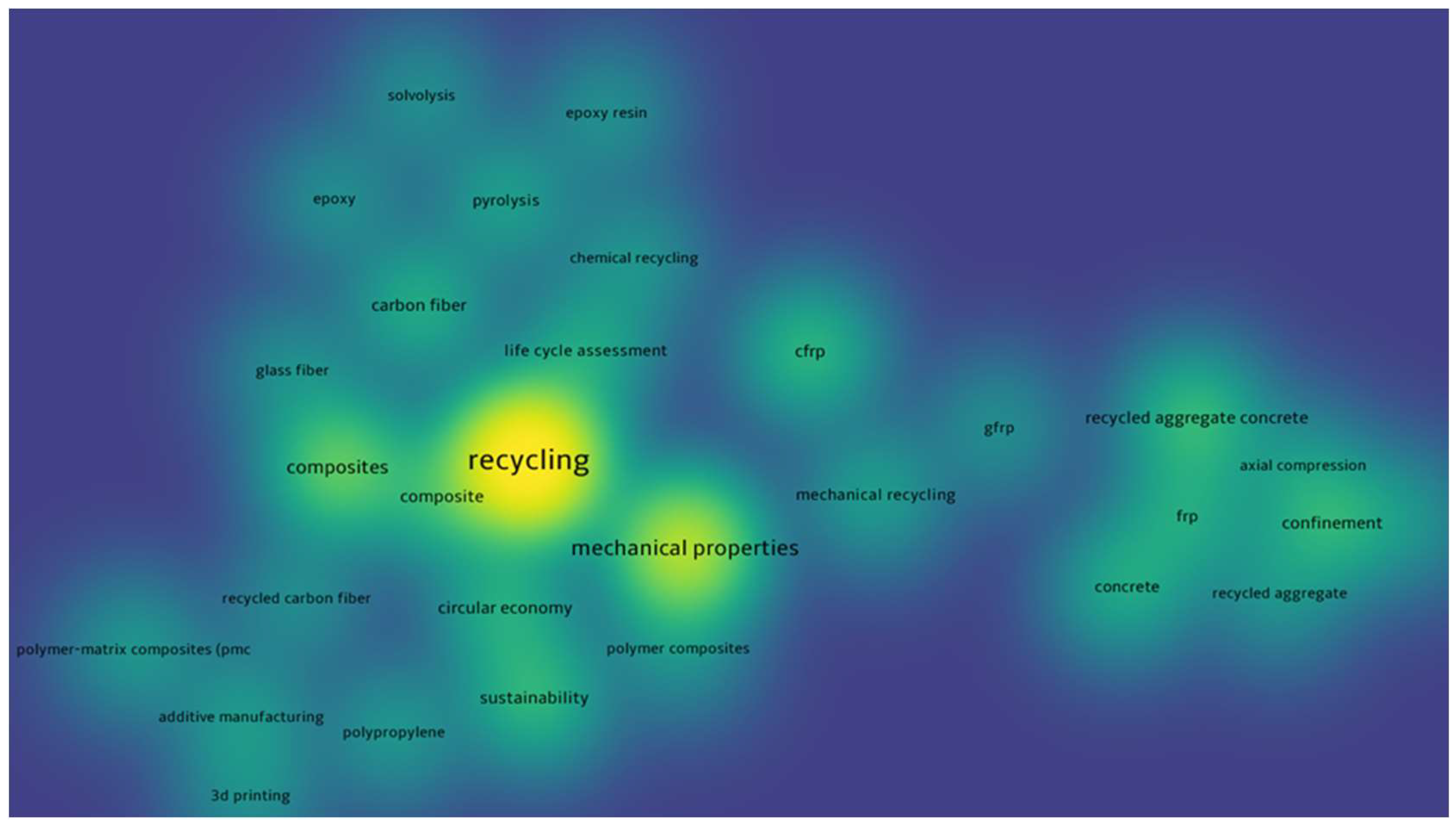

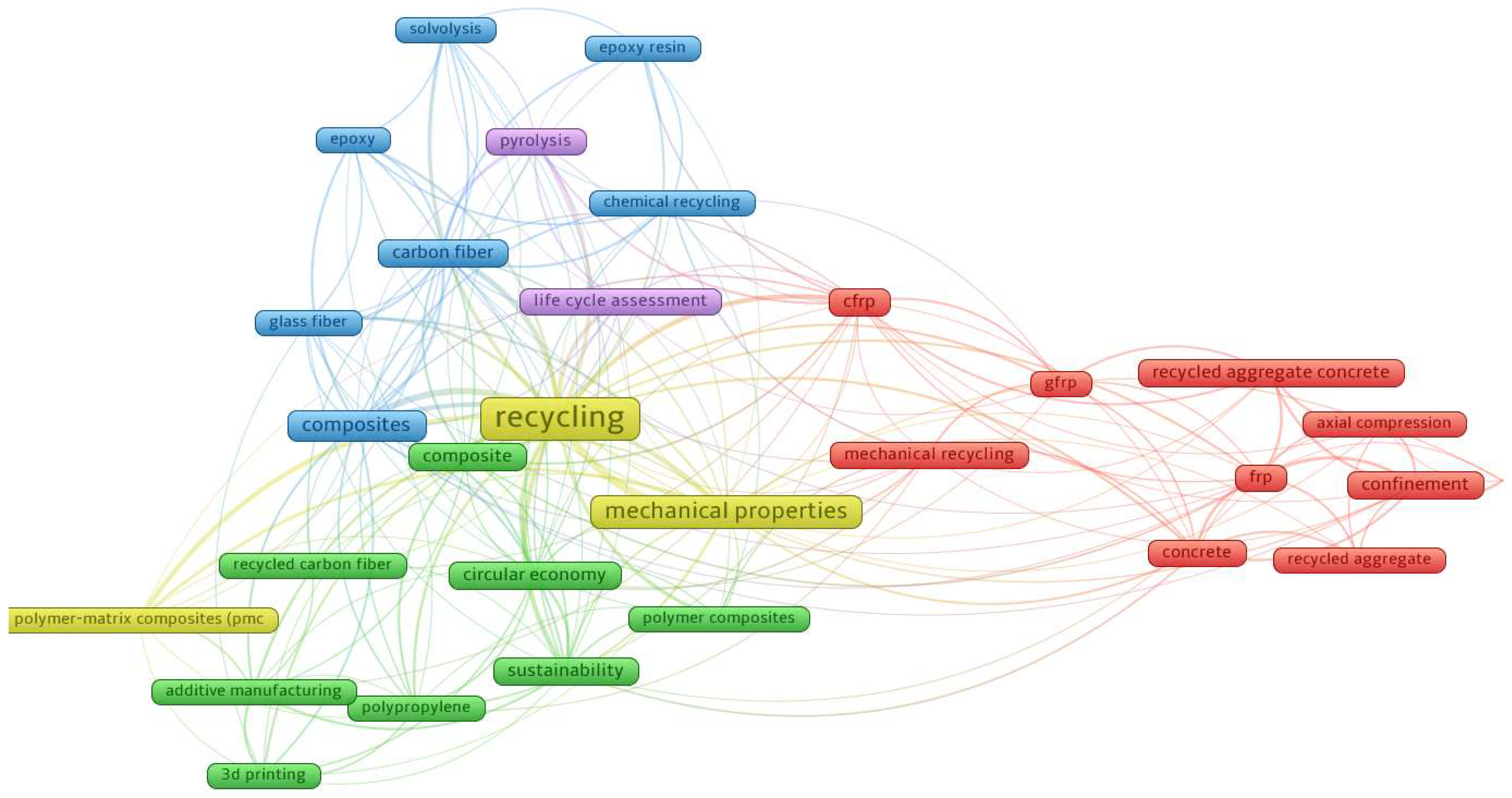

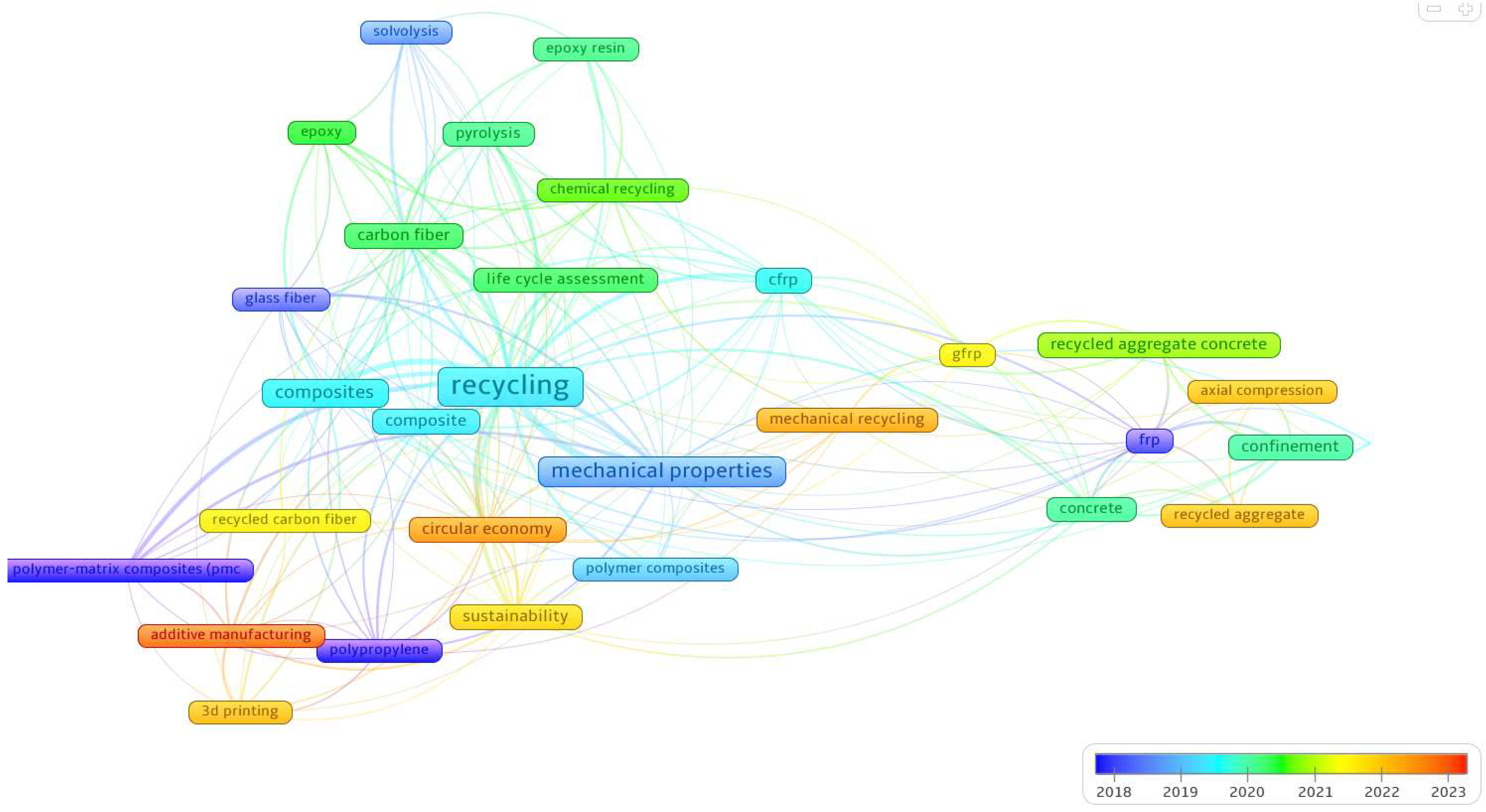

4.3. Keyword Analysis
4.4. Co-Authorship Network
5. Conclusions
Author Contributions
Funding
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Diniță, A.; Ripeanu, R.G.; Ilincă, C.N.; Cursaru, D.; Matei, D.; Naim, R.I.; Tănase, M.; Portoacă, A.I. Advancements in Fiber-Reinforced Polymer Composites: A Comprehensive Analysis. Polymers 2023, 16, 2. [Google Scholar] [CrossRef]
- Crosky, A.; Grant, C.; Kelly, D.; Legrand, X.; Pearce, G. Fibre Placement Processes for Composites Manufacture. In Advances in Composites Manufacturing and Process Design; Elsevier: Amsterdam, The Netherlands, 2015; pp. 79–92. ISBN 978-1-78242-307-2. [Google Scholar]
- Rajak, D.K.; Pagar, D.D.; Kumar, R.; Pruncu, C.I. Recent Progress of Reinforcement Materials: A Comprehensive Overview of Composite Materials. J. Mater. Res. Technol. 2019, 8, 6354–6374. [Google Scholar] [CrossRef]
- Fleischer, J.; Teti, R.; Lanza, G.; Mativenga, P.; Möhring, H.-C.; Caggiano, A. Composite Materials Parts Manufacturing. CIRP Ann. 2018, 67, 603–626. [Google Scholar] [CrossRef]
- Shakir Abbood, I.; Odaa, S.A.; Hasan, K.F.; Jasim, M.A. Properties Evaluation of Fiber Reinforced Polymers and Their Constituent Materials Used in Structures—A Review. Mater. Today Proc. 2021, 43, 1003–1008. [Google Scholar] [CrossRef]
- Yu, K.; Morozov, E.V.; Ashraf, M.A.; Shankar, K. A Review of the Design and Analysis of Reinforced Thermoplastic Pipes for Offshore Applications. J. Reinf. Plast. Compos. 2017, 36, 1514–1530. [Google Scholar] [CrossRef]
- Rajak, D.; Pagar, D.; Menezes, P.; Linul, E. Fiber-Reinforced Polymer Composites: Manufacturing, Properties, and Applications. Polymers 2019, 11, 1667. [Google Scholar] [CrossRef] [PubMed]
- Bhatt, A.T.; Gohil, P.P.; Chaudhary, V. Primary Manufacturing Processes for Fiber Reinforced Composites: History, Development & Future Research Trends. IOP Conf. Ser. Mater. Sci. Eng. 2018, 330, 012107. [Google Scholar] [CrossRef]
- Qureshi, J. A Review of Fibre Reinforced Polymer Structures. Fibers 2022, 10, 27. [Google Scholar] [CrossRef]
- Tao, Y.; Hadigheh, S.A.; Wei, Y. Recycling of Glass Fibre Reinforced Polymer (GFRP) Composite Wastes in Concrete: A Critical Review and Cost Benefit Analysis. Structures 2023, 53, 1540–1556. [Google Scholar] [CrossRef]
- Naqvi, S.R.; Prabhakara, H.M.; Bramer, E.A.; Dierkes, W.; Akkerman, R.; Brem, G. A Critical Review on Recycling of End-of-Life Carbon Fibre/Glass Fibre Reinforced Composites Waste Using Pyrolysis towards a Circular Economy. Resour. Conserv. Recycl. 2018, 136, 118–129. [Google Scholar] [CrossRef]
- Wei, Y.; Hadigheh, S.A. Cost Benefit and Life Cycle Analysis of CFRP and GFRP Waste Treatment Methods. Constr. Build. Mater. 2022, 348, 128654. [Google Scholar] [CrossRef]
- Li, H.; Yang, J.; Yang, D.; Zhang, N.; Nazar, S.; Wang, L. Fiber-Reinforced Polymer Waste in the Construction Industry: A Review. Environ. Chem. Lett. 2024, 22, 2777–2844. [Google Scholar] [CrossRef]
- JEC Observer Overview of the Global Composites Market 2022–2027. Available online: https://www.jeccomposites.com/wp-content/uploads/2023/06/v2_14985_DP-UK_JEC-Observer-ECO.pdf (accessed on 22 January 2025).
- Composites Market Size. Available online: https://www.fortunebusinessinsights.com/composites-market-102295 (accessed on 22 January 2025).
- Transportation Composites Market, Industry Size Growth Forecast, Trends Report, [Latest]. Available online: https://www.marketsandmarkets.com/Market-Reports/transportation-composites-market-175821588.html?utm_source=chatgpt.com (accessed on 22 January 2025).
- Composites Market Size and Share | Industry Report, 2030. Available online: https://www.grandviewresearch.com/industry-analysis/composites-market (accessed on 22 January 2025).
- De Fazio, D.; Boccarusso, L.; Formisano, A.; Viscusi, A.; Durante, M. A Review on the Recycling Technologies of Fibre-Reinforced Plastic (FRP) Materials Used in Industrial Fields. JMSE 2023, 11, 851. [Google Scholar] [CrossRef]
- Zhao, J.; Xu, C.; Sun, L.; Wu, D. Behaviour of FRP-Confined Compound Concrete–Filled Circular Thin Steel Tubes under Axial Compression. Adv. Struct. Eng. 2020, 23, 1772–1784. [Google Scholar] [CrossRef]
- Robert, M.; Benmokrane, B. Combined Effects of Saline Solution and Moist Concrete on Long-Term Durability of GFRP Reinforcing Bars. Constr. Build. Mater. 2013, 38, 274–284. [Google Scholar] [CrossRef]
- Al-Salloum, Y.A.; El-Gamal, S.; Almusallam, T.H.; Alsayed, S.H.; Aqel, M. Effect of Harsh Environmental Conditions on the Tensile Properties of GFRP Bars. Compos. Part B Eng. 2013, 45, 835–844. [Google Scholar] [CrossRef]
- Rifai, M.A.; El-Hassan, H.; El-Maaddawy, T.; Abed, F. Durability of Basalt FRP Reinforcing Bars in Alkaline Solution and Moist Concrete Environments. Constr. Build. Mater. 2020, 243, 118258. [Google Scholar] [CrossRef]
- Li, Y.; Yin, S.; Lu, Y.; Hu, C. Experimental Investigation of the Mechanical Properties of BFRP Bars in Coral Concrete under High Temperature and Humidity. Constr. Build. Mater. 2020, 259, 120591. [Google Scholar] [CrossRef]
- Lu, Z.; Tan, S.; Huang, P.; Lei, Z.; Liu, F.; Xie, J. Durability of Cement Mortar-Covered BFRP Bars in Simulated Seawater Environment. Constr. Build. Mater. 2020, 234, 117803. [Google Scholar] [CrossRef]
- Lu, Z.; Su, L.; Xian, G.; Lu, B.; Xie, J. Durability Study of Concrete-Covered Basalt Fiber-Reinforced Polymer (BFRP) Bars in Marine Environment. Compos. Struct. 2020, 234, 111650. [Google Scholar] [CrossRef]
- Almusallam, T.H.; Al-Salloum, Y.A.; Alsayed, S.H.; El-Gamal, S.; Aqel, M. Tensile Properties Degradation of Glass Fiber-Reinforced Polymer Bars Embedded in Concrete under Severe Laboratory and Field Environmental Conditions. J. Compos. Mater. 2013, 47, 393–407. [Google Scholar] [CrossRef]
- Wang, Y.C.; Wong, P.M.H.; Kodur, V. An Experimental Study of the Mechanical Properties of Fibre Reinforced Polymer (FRP) and Steel Reinforcing Bars at Elevated Temperatures. Compos. Struct. 2007, 80, 131–140. [Google Scholar] [CrossRef]
- El-Hassan, H.; El-Maaddawy, T.; Al-Sallamin, A.; Al-Saidy, A. Durability of Glass Fiber-Reinforced Polymer Bars Conditioned in Moist Seawater-Contaminated Concrete under Sustained Load. Constr. Build. Mater. 2018, 175, 1–13. [Google Scholar] [CrossRef]
- Ashrafi, H.; Bazli, M.; Najafabadi, E.P.; Vatani Oskouei, A. The Effect of Mechanical and Thermal Properties of FRP Bars on Their Tensile Performance under Elevated Temperatures. Constr. Build. Mater. 2017, 157, 1001–1010. [Google Scholar] [CrossRef]
- Robert, M.; Cousin, P.; Benmokrane, B. Durability of GFRP Reinforcing Bars Embedded in Moist Concrete. J. Compos. Constr. 2009, 13, 66–73. [Google Scholar] [CrossRef]
- Jia, D.; Guo, Q.; Mao, J.; Lv, J.; Yang, Z. Durability of Glass Fibre-Reinforced Polymer (GFRP) Bars Embedded in Concrete Under Various Environments. I: Experiments and Analysis. Compos. Struct. 2020, 234, 111687. [Google Scholar] [CrossRef]
- Saeedi, A.; Motavalli, M.; Shahverdi, M. Recent Advancements in the Applications of Fiber-reinforced Polymer Structures in Railway Industry—A Review. Polym. Compos. 2024, 45, 77–97. [Google Scholar] [CrossRef]
- Yazdanbakhsh, A.; Bank, L. A Critical Review of Research on Reuse of Mechanically Recycled FRP Production and End-of-Life Waste for Construction. Polymers 2014, 6, 1810–1826. [Google Scholar] [CrossRef]
- Abdollahnejad, Z.; Mastali, M.; Mastali, M.; Dalvand, A. Comparative Study on the Effects of Recycled Glass–Fiber on Drying Shrinkage Rate and Mechanical Properties of the Self-Compacting Mortar and Fly Ash–Slag Geopolymer Mortar. J. Mater. Civ. Eng. 2017, 29, 04017076. [Google Scholar] [CrossRef]
- Appleyard, D. Lighter and Longer: Advanced Composites in Wind Power. Reinf. Plast. 2015, 59, 143–146. [Google Scholar] [CrossRef]
- Abdo, M.; Toumpanaki, E.; Diambra, A.; Comandini, G.; Bank, L.C. Evaluation of Mechanical Properties of Concrete with Recycled Frp Wind Blade Waste Material. In Proceedings of the 11th International Conference on Fiber-Reinforced Polymer (FRP) Composites in Civil Engineering (CICE), Rio de Janeiro, Brazil, 23–26 July 2023. [Google Scholar] [CrossRef]
- Mao, K.; Liu, Q.; Yu, T.; Zhang, S.; Tan, Z.; Zhang, G.; Shi, F.; Cao, P. Analytical Modeling of Tensile and Flexural Performance of Concrete Reinforced with Recycled FRP-Fiber from Wind Turbine Blades. J. Build. Eng. 2025, 99, 111651. [Google Scholar] [CrossRef]
- Al-Hadhrami, L.M.; Maslehuddin, M.; Ali, M.R. Chemical Resistance and Mechanical Properties of Glass Fiber–Reinforced Plastic Pipes for Oil, Gas, and Power-Plant Applications. J. Compos. Constr. 2016, 20, 04015031. [Google Scholar] [CrossRef]
- Baali, B.; Benmounah, A.; Rokbi, M. Mechanical Characterization and Optimum Design of Wound Glass-Fiber-Reinforced Polymer Pipes Based on the Winding Angle and the Number of Plies. Mech. Compos. Mater. 2020, 56, 673–684. [Google Scholar] [CrossRef]
- Wang, Y.; Lou, M.; Zeng, X.; Dong, W.; Wang, S. Optimizing Winding Angles of Reinforced Thermoplastic Pipes Based on Progressive Failure Criterion. J. Ocean Univ. China 2021, 20, 1067–1078. [Google Scholar] [CrossRef]
- Sebaey, T.A. Design of Oil and Gas Composite Pipes for Energy Production. Energy Procedia 2019, 162, 146–155. [Google Scholar] [CrossRef]
- Rubino, F.; Nisticò, A.; Tucci, F.; Carlone, P. Marine Application of Fiber Reinforced Composites: A Review. JMSE 2020, 8, 26. [Google Scholar] [CrossRef]
- Osa-uwagboe, N.; Silberschmidt, V.V.; Demirci, E. Review on Mechanical Performance of Fibre-Reinforced Plastics in Marine Environments. Appl. Compos. Mater. 2024, 31, 1991–2018. [Google Scholar] [CrossRef]
- Scaffaro, R.; Di Bartolo, A.; Dintcheva, N.T. Matrix and Filler Recycling of Carbon and Glass Fiber-Reinforced Polymer Composites: A Review. Polymers 2021, 13, 3817. [Google Scholar] [CrossRef]
- Elango, I.; Henderson, L.C.; Arumugam, V. Recycled Milled Fibres in Sustainable Composite Materials: A Comprehensive Review and Future Prospects. J. Reinf. Plast. Compos. 2024, 07316844241243128. [Google Scholar] [CrossRef]
- Qureshi, J. A Review of Recycling Methods for Fibre Reinforced Polymer Composites. Sustainability 2022, 14, 16855. [Google Scholar] [CrossRef]
- Stieven Montagna, L.; Ferreira De Melo Morgado, G.; Lemes, A.P.; Roberto Passador, F.; Cerqueira Rezende, M. Recycling of Carbon Fiber-Reinforced Thermoplastic and Thermoset Composites: A Review. J. Thermoplast. Compos. Mater. 2023, 36, 3455–3480. [Google Scholar] [CrossRef]
- Kaboré, M.W.; El Bitouri, Y.; Lharti, H.; Salgues, M.; Frugier, J.; Léger, R.; Perrin, D.; Ienny, P.; Garcia-Diaz, E. Insights into the Effect of Recycled Glass Fiber Reinforced Polymer on the Mechanical Strengths of Cement Mortar. Eng 2024, 5, 2966–2977. [Google Scholar] [CrossRef]
- Patel, K.; Gupta, R.; Garg, M.; Wang, B.; Dave, U. Development of FRC Materials with Recycled Glass Fibers Recovered from Industrial GFRP-Acrylic Waste. Adv. Mater. Sci. Eng. 2019, 2019, 4149708. [Google Scholar] [CrossRef]
- Lamba, N.; Raj, R.; Singh, P. Feasibility of Recycled Carbon Fiber-Reinforced Polymer Fibers in Cementitious Composites: An Experimental Investigation. Arab. J. Sci. Eng. 2024, 49, 13577–13591. [Google Scholar] [CrossRef]
- Lin, J.; Guo, Z.; Hong, B.; Xu, J.; Fan, Z.; Lu, G.; Wang, D.; Oeser, M. Using Recycled Waste Glass Fiber Reinforced Polymer (GFRP) as Filler to Improve the Performance of Asphalt Mastics. J. Clean. Prod. 2022, 336, 130357. [Google Scholar] [CrossRef]
- Maia, B.S.; Tjong, J.; Sain, M. Material Characterization of Recycled and Virgin Carbon Fibers for Transportation Composites Lightweighting. Mater. Today Sustain. 2019, 5, 100011. [Google Scholar] [CrossRef]
- Mabalane, P.N.; Molnar, K.; Molnar, K.; Khoathane, C. Structural Integrity of Hybrid Panel of Recycled and Virgin Carbon Fibre. In Flexible Automation and Intelligent Manufacturing: Manufacturing Innovation and Preparedness for the Changing World Order; Wang, Y.-C., Chan, S.H., Wang, Z.-H., Eds.; Lecture Notes in Mechanical Engineering; Springer Nature: Cham, Switzerland, 2024; pp. 12–19. ISBN 978-3-031-74484-6. [Google Scholar]
- Wilson, P.; Ratner, A.; Stocker, G.; Syred, F.; Kirwan, K.; Coles, S. Interlayer Hybridization of Virgin Carbon, Recycled Carbon and Natural Fiber Laminates. Materials 2020, 13, 4955. [Google Scholar] [CrossRef]
- Marcuello, C.; Chabbert, B.; Berzin, F.; Bercu, N.B.; Molinari, M.; Aguié-Béghin, V. Influence of Surface Chemistry of Fiber and Lignocellulosic Materials on Adhesion Properties with Polybutylene Succinate at Nanoscale. Materials 2023, 16, 2440. [Google Scholar] [CrossRef] [PubMed]
- Janowski, G.; Wójcik, M.; Frącz, W.; Bąk, Ł.; Ryzińska, G. Assessment of the Effect of Multiple Processing of PHBV–Ground Buckwheat Hull Biocomposite on Its Functional and Mechanical Properties. Materials 2024, 17, 6136. [Google Scholar] [CrossRef]
- Friederici, L.; Koch, A.; Martens, P.; Pantzke, J.; Di Bucchianico, S.; Streibel, T.; Rüger, C.P.; Zimmermann, R. Recycling of Fiber Reinforced Composites: Online Mass Spectrometric Tracing, Offline Physicochemical Speciation and Toxicological Evaluation of a Pilot Plant Pyrolytic Conversion. Waste Manag. 2024, 173, 10–21. [Google Scholar] [CrossRef] [PubMed]
- Shehab, E.; Meiirbekov, A.; Amantayeva, A.; Tokbolat, S. Cost Modelling for Recycling Fiber-Reinforced Composites: State-of-the-Art and Future Research. Polymers 2022, 15, 150. [Google Scholar] [CrossRef] [PubMed]
- Butenegro, J.A.; Bahrami, M.; Abenojar, J.; Martínez, M.Á. Recent Progress in Carbon Fiber Reinforced Polymers Recycling: A Review of Recycling Methods and Reuse of Carbon Fibers. Materials 2021, 14, 6401. [Google Scholar] [CrossRef]
- Pickering, S.J. Recycling Technologies for Thermoset Composite Materials—Current Status. Compos. Part A Appl. Sci. Manuf. 2006, 37, 1206–1215. [Google Scholar] [CrossRef]
- Pimenta, S.; Pinho, S.T. Recycling Carbon Fibre Reinforced Polymers for Structural Applications: Technology Review and Market Outlook. Waste Manag. 2011, 31, 378–392. [Google Scholar] [CrossRef] [PubMed]
- Karuppannan Gopalraj, S.; Kärki, T. A Review on the Recycling of Waste Carbon Fibre/Glass Fibre-Reinforced Composites: Fibre Recovery, Properties and Life-Cycle Analysis. SN Appl. Sci. 2020, 2, 433. [Google Scholar] [CrossRef]
- Pietroluongo, M.; Padovano, E.; Frache, A.; Badini, C. Mechanical Recycling of an End-of-Life Automotive Composite Component. Sustain. Mater. Technol. 2020, 23, e00143. [Google Scholar] [CrossRef]
- Pickering, S.J.; Kelly, R.M.; Kennerley, J.R.; Rudd, C.D.; Fenwick, N.J. A Fluidised-Bed Process for the Recovery of Glass Fibres from Scrap Thermoset Composites. Compos. Sci. Technol. 2000, 60, 509–523. [Google Scholar] [CrossRef]
- Gharde, S.; Kandasubramanian, B. Mechanothermal and Chemical Recycling Methodologies for the Fibre Reinforced Plastic (FRP). Environ. Technol. Innov. 2019, 14, 100311. [Google Scholar] [CrossRef]
- Yip, H.L.H.; Pickering, S.J.; Rudd, C.D. Characterisation of Carbon Fibres Recycled from Scrap Composites Using Fluidised Bed Process. Plast. Rubber Compos. 2002, 31, 278–282. [Google Scholar] [CrossRef]
- Turner, T.A.; Pickering, S.J.; Warrior, N.A. Development of Recycled Carbon Fibre Moulding Compounds—Preparation of Waste Composites. Compos. Part B Eng. 2011, 42, 517–525. [Google Scholar] [CrossRef]
- Zhu, J.-H.; Chen, P.; Su, M.; Pei, C.; Xing, F. Recycling of Carbon Fibre Reinforced Plastics by Electrically Driven Heterogeneous Catalytic Degradation of Epoxy Resin. Green Chem. 2019, 21, 1635–1647. [Google Scholar] [CrossRef]
- Morin, C.; Loppinet-Serani, A.; Cansell, F.; Aymonier, C. Near-and Supercritical Solvolysis of Carbon Fibre Reinforced Polymers (CFRPs) for Recycling Carbon Fibers as a Valuable Resource: State of the Art. J. Supercrit. Fluids 2012, 66, 232–240. [Google Scholar] [CrossRef]
- Torres, A. Recycling by Pyrolysis of Thermoset Composites: Characteristics of the Liquid and Gaseous Fuels Obtained. Fuel 2000, 79, 897–902. [Google Scholar] [CrossRef]
- Cunliffe, A.M.; Jones, N.; Williams, P.T. Pyrolysis of Composite Plastic Waste. Environ. Technol. 2003, 24, 653–663. [Google Scholar] [CrossRef]
- Meyer, L.O.; Schulte, K.; Grove-Nielsen, E. CFRP-Recycling Following a Pyrolysis Route: Process Optimization and Potentials. J. Compos. Mater. 2009, 43, 1121–1132. [Google Scholar] [CrossRef]
- Ginder, R.S.; Ozcan, S. Recycling of Commercial E-Glass Reinforced Thermoset Composites via Two Temperature Step Pyrolysis to Improve Recovered Fiber Tensile Strength and Failure Strain. Recycling 2019, 4, 24. [Google Scholar] [CrossRef]
- Meyer Zu Reckendorf, I.; Sahki, A.; Perrin, D.; Lacoste, C.; Bergeret, A.; Ohayon, A.; Morand, K. Chemical Recycling of Vacuum-Infused Thermoplastic Acrylate-Based Composites Reinforced by Basalt Fabrics. Polymers 2022, 14, 1083. [Google Scholar] [CrossRef]
- Xu, P.; Li, J.; Ding, J. Chemical Recycling of Carbon Fibre/Epoxy Composites in a Mixed Solution of Peroxide Hydrogen and N,N-Dimethylformamide. Compos. Sci. Technol. 2013, 82, 54–59. [Google Scholar] [CrossRef]
- Liu, T.; Zhang, M.; Guo, X.; Liu, C.; Liu, T.; Xin, J.; Zhang, J. Mild Chemical Recycling of Aerospace Fiber/Epoxy Composite Wastes and Utilization of the Decomposed Resin. Polym. Degrad. Stab. 2017, 139, 20–27. [Google Scholar] [CrossRef]
- Liu, Y.; Liu, J.; Jiang, Z.; Tang, T. Chemical Recycling of Carbon Fibre Reinforced Epoxy Resin Composites in Subcritical Water: Synergistic Effect of Phenol and KOH on the Decomposition Efficiency. Polym. Degrad. Stab. 2012, 97, 214–220. [Google Scholar] [CrossRef]
- Piñero-Hernanz, R.; García-Serna, J.; Dodds, C.; Hyde, J.; Poliakoff, M.; Cocero, M.J.; Kingman, S.; Pickering, S.; Lester, E. Chemical Recycling of Carbon Fibre Composites Using Alcohols under Subcritical and Supercritical Conditions. J. Supercrit. Fluids 2008, 46, 83–92. [Google Scholar] [CrossRef]
- Durante, M.; Boccarusso, L.; De Fazio, D.; Formisano, A.; Langella, A. Investigation on the Mechanical Recycling of Carbon Fiber-Reinforced Polymers by Peripheral Down-Milling. Polymers 2023, 15, 854. [Google Scholar] [CrossRef] [PubMed]
- Palmer, J.; Savage, L.; Ghita, O.R.; Evans, K.E. Sheet Moulding Compound (SMC) from Carbon Fibre Recyclate. Compos. Part A Appl. Sci. Manuf. 2010, 41, 1232–1237. [Google Scholar] [CrossRef]
- Thomas, C.; Borges, P.H.R.; Panzera, T.H.; Cimentada, A.; Lombillo, I. Epoxy Composites Containing CFRP Powder Wastes. Compos. Part B Eng. 2014, 59, 260–268. [Google Scholar] [CrossRef]
- De Marco, I.; Legarreta, J.A.; Laresgoiti, M.F.; Torres, A.; Cambra, J.F.; Chomón, M.J.; Caballero, B.; Gondra, K. Recycling of the Products Obtained in the Pyrolysis of Fibre-Glass Polyester SMC. J. Chem. Technol. Biotechnol. 1997, 69, 187–192. [Google Scholar] [CrossRef]
- Mazzocchetti, L.; Benelli, T.; D’Angelo, E.; Leonardi, C.; Zattini, G.; Giorgini, L. Validation of Carbon Fibers Recycling by Pyro-Gasification: The Influence of Oxidation Conditions to Obtain Clean Fibers and Promote Fiber/Matrix Adhesion in Epoxy Composites. Compos. Part A Appl. Sci. Manuf. 2018, 112, 504–514. [Google Scholar] [CrossRef]
- Nahil, M.A.; Williams, P.T. Recycling of Carbon Fibre Reinforced Polymeric Waste for the Production of Activated Carbon Fibres. J. Anal. Appl. Pyrolysis 2011, 91, 67–75. [Google Scholar] [CrossRef]
- Yang, J.; Liu, J.; Liu, W.; Wang, J.; Tang, T. Recycling of Carbon Fibre Reinforced Epoxy Resin Composites under Various Oxygen Concentrations in Nitrogen–Oxygen Atmosphere. J. Anal. Appl. Pyrolysis 2015, 112, 253–261. [Google Scholar] [CrossRef]
- Kennerley, J.R.; Kelly, R.M.; Fenwick, N.J.; Pickering, S.J.; Rudd, C.D. The Characterisation and Reuse of Glass Fibres Recycled from Scrap Composites by the Action of a Fluidised Bed Process. Compos. Part A Appl. Sci. Manuf. 1998, 29, 839–845. [Google Scholar] [CrossRef]
- Oliveux, G.; Bailleul, J.-L.; Salle, E.L.G.L. Chemical Recycling of Glass Fibre Reinforced Composites Using Subcritical Water. Compos. Part A Appl. Sci. Manuf. 2012, 43, 1809–1818. [Google Scholar] [CrossRef]
- Kuang, X.; Zhou, Y.; Shi, Q.; Wang, T.; Qi, H.J. Recycling of Epoxy Thermoset and Composites via Good Solvent Assisted and Small Molecules Participated Exchange Reactions. ACS Sustain. Chem. Eng. 2018, 6, 9189–9197. [Google Scholar] [CrossRef]
- Zabihi, O.; Ahmadi, M.; Liu, C.; Mahmoodi, R.; Li, Q.; Ghandehari Ferdowsi, M.R.; Naebe, M. A Sustainable Approach to the Low-Cost Recycling of Waste Glass Fibres Composites towards Circular Economy. Sustainability 2020, 12, 641. [Google Scholar] [CrossRef]
- Zabihi, O.; Ahmadi, M.; Liu, C.; Mahmoodi, R.; Li, Q.; Naebe, M. Development of a Low Cost and Green Microwave Assisted Approach towards the Circular Carbon Fibre Composites. Compos. Part B Eng. 2020, 184, 107750. [Google Scholar] [CrossRef]
- Vo Dong, P.A.; Azzaro-Pantel, C.; Boix, M.; Jacquemin, L.; Domenech, S. Modelling of Environmental Impacts and Economic Benefits of Fibre Reinforced Polymers Composite Recycling Pathways. In Computer Aided Chemical Engineering; Elsevier: Amsterdam, The Netherlands, 2015; Volume 37, pp. 2009–2014. ISBN 978-0-444-63429-0. [Google Scholar]
- Andrady, A.L. Microplastics in the Marine Environment. Mar. Pollut. Bull. 2011, 62, 1596–1605. [Google Scholar] [CrossRef] [PubMed]
- Geyer, R.; Jambeck, J.R.; Law, K.L. Production, Use, and Fate of All Plastics Ever Made. Sci. Adv. 2017, 3, e1700782. [Google Scholar] [CrossRef] [PubMed]
- Chatziparaskeva, G.; Papamichael, I.; Voukkali, I.; Loizia, P.; Sourkouni, G.; Argirusis, C.; Zorpas, A.A. End-of-Life of Composite Materials in the Framework of the Circular Economy. Microplastics 2022, 1, 377–392. [Google Scholar] [CrossRef]
- Grause, G.; Mochizuki, T.; Kameda, T.; Yoshioka, T. Recovery of Glass Fibers from Glass Fiber Reinforced Plastics by Pyrolysis. J. Mater. Cycles Waste Manag. 2013, 15, 122–128. [Google Scholar] [CrossRef]
- Li, X.; Bai, R.; McKechnie, J. Environmental and Financial Performance of Mechanical Recycling of Carbon Fibre Reinforced Polymers and Comparison with Conventional Disposal Routes. J. Clean. Prod. 2016, 127, 451–460. [Google Scholar] [CrossRef]
- Ziemińska-Stolarska, A.; Sobulska, M.; Pietrzak, M.; Zbiciński, I. A Review of End-of-Life Scenarios for Fibre-Reinforced Polymer Materials. Energies 2024, 17, 3713. [Google Scholar] [CrossRef]
- Iravanian, A.; Ravari, S.O. Types of Contamination in Landfills and Effects on The Environment: A Review Study. IOP Conf. Ser. Earth Environ. Sci. 2020, 614, 012083. [Google Scholar] [CrossRef]
- Siddiqua, A.; Hahladakis, J.N.; Al-Attiya, W.A.K.A. An Overview of the Environmental Pollution and Health Effects Associated with Waste Landfilling and Open Dumping. Environ. Sci. Pollut. Res. 2022, 29, 58514–58536. [Google Scholar] [CrossRef]
- Njoku, P.O.; Edokpayi, J.N.; Odiyo, J.O. Health and Environmental Risks of Residents Living Close to a Landfill: A Case Study of Thohoyandou Landfill, Limpopo Province, South Africa. IJERPH 2019, 16, 2125. [Google Scholar] [CrossRef] [PubMed]
- Hagnell, M.K.; Åkermo, M. The Economic and Mechanical Potential of Closed Loop Material Usage and Recycling of Fibre-Reinforced Composite Materials. J. Clean. Prod. 2019, 223, 957–968. [Google Scholar] [CrossRef]
- Shehab, E.; Meiirbekov, A.; Amantayeva, A.; Suleimen, A.; Tokbolat, S.; Sarfraz, S.; Ali, M.H. A Fuzzy Logic-Based Cost Modelling System for Recycling Carbon Fibre Reinforced Composites. Polymers 2021, 13, 4370. [Google Scholar] [CrossRef] [PubMed]
- Shehab, E.; Meiirbekov, A.; Amantayeva, A.; Suleimen, A.; Tokbolat, S.; Sarfraz, S. A Cost Modelling System for Recycling Carbon Fiber-Reinforced Composites. Polymers 2021, 13, 4208. [Google Scholar] [CrossRef]
- Torkelis, A.; Dvarionienė, J.; Denafas, G. The Factors Influencing the Recycling of Plastic and Composite Packaging Waste. Sustainability 2024, 16, 9515. [Google Scholar] [CrossRef]
- Ertz, M.; Addar, W.; Ouerghemmi, C.; Takaffoli, M. Overview of Factors Influencing Consumer Engagement with Plastic Recycling. WIREs Energy Environ. 2023, 12, e493. [Google Scholar] [CrossRef]
- Geng, J.; Huang, Y.; Li, X.; Zhang, Y. Overcoming Barriers to the Adoption of Recycled Construction Materials: A Comprehensive PEST Analysis and Tailored Strategies. Sustainability 2023, 15, 14635. [Google Scholar] [CrossRef]
- ISO 15270:2008; Plastics—Guidelines for the Recovery and Recycling of Plastics Waste. International Organization: Geneva, Switzerland, 2008.
- Regulatory Exclusions and Alternative Standards for the Recycling of Materials, Solid Wastes and Hazardous Wastes|US EPA. Available online: https://www.epa.gov/hw/regulatory-exclusions-and-alternative-standards-recycling-materials-solid-wastes-and-hazardous?utm_source=chatgpt.com (accessed on 22 January 2025).
- ISO 14021:2016; Environmental Labels and Declarations-Self-Declared Environmental Claims (Type II Environmental Labelling). International Organization: Geneva, Switzerland, 2016.
- Shamsuyeva, M.; Endres, H.-J. Plastics in the Context of the Circular Economy and Sustainable Plastics Recycling: Comprehensive Review on Research Development, Standardization and Market. Compos. Part C Open Access 2021, 6, 100168. [Google Scholar] [CrossRef]
- EN 15343:2008; Plastics—Recycled Plastics—Plastics Recycling Traceability and Assessment of Conformity and Recycled Content. Ente Nazionale Italiano di Unificazione (UNI): Luxembourg, 2008.
- EN 15347:2007; Recycled Plastics. Characterization of Plastics Waste. Ente Nazionale Italiano di Unificazione (UNI): Luxembourg, 2007.
- Beccarello, M.; Di Foggia, G. Moving towards a Circular Economy: Economic Impacts of Higher Material Recycling Targets. Mater. Today Proc. 2018, 5, 531–543. [Google Scholar] [CrossRef]
- Deng, P.; Liu, C.; Chen, M.; Si, L. Knowledge Domain and Emerging Trends in Multimorbidity and Frailty Research from 2003 to 2023: A Scientometric Study Using Citespace and VOSviewer. Health Econ. Rev. 2023, 13, 46. [Google Scholar] [CrossRef]
- Van Eck, N.J.; Waltman, L. Citation-Based Clustering of Publications Using CitNetExplorer and VOSviewer. Scientometrics 2017, 111, 1053–1070. [Google Scholar] [CrossRef] [PubMed]
Recycling Technology | Description | Advantages | Disadvantages | Reviewed Sources |
---|---|---|---|---|
Mechanical | Mechanical recycling is a conventional method for recycling thermoset matrix composites, where the material is reduced in size through grinding, cutting, milling, or shredding operations. Initially, the composite is cut into small pieces (50–100 mm) and manually cleared of inserts before being fed into a shredder. These pieces are then ground into smaller particles ranging from 10 mm to 50 μm. The resulting larger particles, which contain fibrous material, are typically used as filler in bulk molding compounds (BMCs), while the finer particles are suitable for sheet molding compounds (SMCs). The process involves key equipment, such as granulators or hammer mills, pulverizers for further crushing, and classifiers (e.g., cyclones or sieves) to separate the coarse fibrous and fine powdered products. Additionally, recycled GFRP aggregates, both coarse and fine, can be used in polyester-based mortar and concrete. |
|
| [18,46,58,59,60,61,62,63] |
Thermal—fluidized bed | This involves burning the resin matrix in a hot, oxygen-rich flow, allowing for clean fiber recovery without char deposits. However, fiber length and strength degradation can occur during this process. The composite waste is first reduced to 25 mm and fed into a fluidized silica sand bed, which is heated to 450–550 °C using a hot air stream. Both the fibers and resin are carried by the stream, with the fibers separated by a cyclone and the resin fully oxidized in an afterburner, recovering energy as heat. |
|
| [18,46,58,61,64,65,66,67,68] |
Thermal—pyrolysis | Pyrolysis is a thermal recycling method that involves the decomposition of organic materials in the absence of oxygen. During this process, composite materials are exposed to high temperatures (450–750 °C), causing the matrix to break down into lower-weight molecules, while the fibers remain unaffected and can be recovered. The decomposition of the matrix produces oil, gases, and solid particles (char and fillers). The gases, primarily consisting of hydrogen, methane, carbon monoxide (CO), carbon dioxide (CO2), and other hydrocarbons, can be used for energy recovery. This process typically occurs in a static pyrolysis reactor under nitrogen. |
|
| [18,46,58,65,69,70,71,72,73] |
Chemical (solvolysis) | The chemical process of recycling composites is known as solvolysis. In this technique, the polymer matrix is degraded through exposure to a solvent. Solvolysis can be classified into two types: (a) solvolysis at lower temperatures and (b) solvolysis in supercritical fluids, depending on the temperature and state of the solvent. Additionally, solvolysis can be further categorized based on the type of solvent used, such as hydrolysis (using water), glycolysis (using glycols), and acid digestion (using acid). |
|
| [18,46,58,61,65,74,75,76,77,78] |
Recycling Method | Effect on Mechanical Properties | Source Paper |
---|---|---|
Mechanical | A decrease of 29% in tensile strength, 23% in Young’s modulus, 28% in flexural strength, and 24% in flexural modulus was demonstrated. | [63] |
The bending modulus of coarse and fine fibers increased by approximately 161% and 80%, respectively, compared to the resin alone. The coarse and fine samples showed reductions in strain at failure of approximately 32% and 45%, respectively. The fine sample exhibited a slight reduction in bending strength of about 14.7%. | [79] | |
A decrease in flexural strength by 9%, an increase in impact strength by 7%, and a decrease in flexural modulus by 3% compared to the standard composite were demonstrated. | [80] | |
The addition of carbon powder wastes (CPW) significantly enhanced the resin’s mechanical properties. With 10 wt.% and 20 wt.% CPW, the flexural strength increased by 14% and 30%, the modulus of elasticity by 10% and 30%, and impact strength by 3% and 28%, respectively. The compressive strength improved by 6% and nearly 20% with 10 wt.% and 20 wt.% CPW, respectively. | [81] | |
Thermal | A decrease of 19% in flexural strength and an increase of 3.6% in flexural modulus were demonstrated. | [82] |
An increase in tensile strength from 140 MPa to 149 MPa (6.4%) and an increase in Young’s modulus from 3.9 GPa to 4.1 GPa (5.1%) were demonstrated. | [83] | |
The best retention of carbon fiber characteristics (93% of virgin tensile strength) was obtained when composite waste was pyrolyzed and oxidized at 500 °C. In comparison, when the composite waste was pyrolyzed at 350 °C and oxidized at 700 °C, it retained only 26% of virgin carbon fiber tensile strength. | [84] | |
When CFRP decomposed at 600 °C, the tensile strength decreased by about 50%, as the oxygen concentration increased from 5% to 20%. At 650 °C, the tensile modulus decreased in air, while the tensile strength stabilized with high oxygen concentrations. At 650 °C and 5% O2, the tensile properties remained stable, with the best retention of tensile strength (about 80%) observed at 650 °C with 5% O2 for 45 min. | [85] | |
The tensile strength of recovered E-glass fibers was reduced by up to 50%. | [64] | |
Flexural and Young’s moduli remained unchanged, but flexural and tensile strength decreased when over 50% of the virgin reinforcement was replaced by fibers recovered at 450 °C. | [86] | |
Chemical | A 350 °C hydrolysis temperature reduced mechanical properties by 60%, while 300 °C caused a 50% reduction. | [87] |
A reduction of 10% in tensile strength was found. | [88] | |
The tensile strength of all recovered fibers was similar to that of the virgin fiber after sizing removal. | [77] | |
The recycled glass fibers (GFs) retained approximately 92.7% tensile strength, 99.0% Young’s modulus, and 96.2% strain-to-failure compared to virgin GFs. | [89] | |
The tensile strength of the recovered CFs was over 95% of that of the virgin fibers. | [75] | |
The CFs retained approximately 92% tensile strength and 94% strain-to-failure, compared to the original CFs. | [90] |
Journal | Journal Impact Factor (2024) | Journal Quartile 2024 | Number of Publications |
---|---|---|---|
Construction and Building Materials | 7.4 | Q1 | 112 |
Polymers | 4.7 | Q1 | 62 |
Composites Part B Engineering | 12.7 | Q1 | 49 |
Journal of Cleaner Production | 9.8 | Q1 | 49 |
Composite Structures | 6.3 | Q1 | 45 |
Polymer Composites | 4.8 | Q1 | 40 |
Materials | 3.1 | Q1 | 39 |
Journal of Building Engineering | 6.7 | Q1 | 31 |
Resources Conservation and Recycling | 11.2 | Q1 | 30 |
Structures | 3.9 | Q1 | 29 |
Composites Part A Applied Science and Manufacturing | 8.1 | Q1 | 26 |
Engineering Structures | 5.6 | Q1 | 26 |
Polymer Degradation and Stability | 6.3 | Q1 | 26 |
Composites Science and Technology | 8.3 | Q1 | 24 |
Journal of Applied Polymer Science | 2.7 | Q2 | 24 |
Journal of Reinforced Plastics and Composites | 2.3 | Q3 | 24 |
Journal of Composites For Construction | 2.9 | Q2 | 23 |
ACS Sustainable Chemistry Engineering | 7.1 | Q1 | 20 |
Journal of Composite Materials | 2.3 | Q3 | 17 |
Sustainability | 3.3 | Q2 | 17 |
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content. |
© 2025 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
Veres, C.; Tănase, M. A Bibliometric and Systematic Review of the Use of Recycled Composite Materials with an Emphasis on the Mechanical Performance of Structures. Materials 2025, 18, 607. https://doi.org/10.3390/ma18030607
Veres C, Tănase M. A Bibliometric and Systematic Review of the Use of Recycled Composite Materials with an Emphasis on the Mechanical Performance of Structures. Materials. 2025; 18(3):607. https://doi.org/10.3390/ma18030607
Chicago/Turabian StyleVeres, Cristina, and Maria Tănase. 2025. "A Bibliometric and Systematic Review of the Use of Recycled Composite Materials with an Emphasis on the Mechanical Performance of Structures" Materials 18, no. 3: 607. https://doi.org/10.3390/ma18030607
APA StyleVeres, C., & Tănase, M. (2025). A Bibliometric and Systematic Review of the Use of Recycled Composite Materials with an Emphasis on the Mechanical Performance of Structures. Materials, 18(3), 607. https://doi.org/10.3390/ma18030607
