Melting Behavior of Direct Reduced Iron Pellets with Different Carbon Content in Molten Steel and Molten Slag

by
Fabian Andres Calderon Hurtado
*,
Joseph Govro
,
Arezoo Emdadi
and
Ronald J. O’Malley
Department of Materials Science and Engineering, Missouri University of Science and Technology, Rolla, MO 65409, USA
*
Author to whom correspondence should be addressed.
Materials 2025, 18(20), 4749; https://doi.org/10.3390/ma18204749
Submission received: 7 March 2025 / Revised: 9 October 2025 / Accepted: 13 October 2025 / Published: 16 October 2025
(This article belongs to the Section Green Materials)

Abstract

This study investigates the melting behavior of direct reduced iron (DRI) pellets in molten slag and steel baths, focusing on how the carbon content influences the melting rate through the stirring effects of gas evolution on heat transfer. A computational model using COMSOL Multiphysics 6.1 is developed to simulate the temperature profile at the pellet’s core and the gas evolution resulting from the reaction between FeO and carbon within the pellet. The model is validated using experimental data from this study as well as literature on the DRI pellet–molten slag system. Results indicate that, despite the increased enthalpy demand associated with the gas-generating reactions, higher carbon content enhances heat transfer within the pellet, leading to an increased melting rate. The computational model accurately predicts gas generation and temperature profiles, aligning well with experimental observations. Overall, the findings demonstrate that increasing the carbon content in DRI pellets accelerates the melting process.

1. Introduction

Due to rising environmental concerns and demands on the steelmaking industry to employ techniques that reduce greenhouse emissions, the industry is looking for different ways to produce low-emission steel [1,2,3,4,5]. The blast furnace–basic oxygen furnace (BF-BOF) route is responsible for approximately 70% of global steel production [6]. The production of one ton of steel via the BF-BOF steelmaking route generates approximately 1.8–2.2 tons of CO2 [7,8]. In contrast, steel production using an electric arc furnace (EAF) emits 102 kg of CO2 per ton of steel [9]. Therefore, there are opportunities in the use of EAFs compared to the BF-BOF route based on CO2 atmospheric emissions. This is aligned with steelmaking environmental goals to mitigate greenhouse emissions [7,8].
EAFs are well-suited for processing direct reduced iron (DRI) pellets or hot briquette iron (HBI) [10,11]. EAFs accounted for 28.6% of the world’s total crude steel production in 2023 (1892 million tons), and DRI production increased from 111.8 million tons in 2019 to 136.5 million tons in 2023 [6]. Although DRI production is a minor share of the total ferreous feed stock for global steel production, due to climate concerns, this technology may gain greater importance in the future, making this case a study of great interest [4,9,12].
Crucial metallic feedstocks for EAFs include steel scrap and virgin iron units, consisting of pig iron, HBI, and/or DRI. Although scrap is a viable material for steelmaking, controlling certain unrefinable impurities, such as copper and nickel, remains challenging due to their accumulation in recycled scrap [13]. This underscores the importance of using DRI in EAFs. Several researchers have conducted studies aimed at improving the efficiency of the DRI process. DRI pellets are produced in a vertical shaft furnace through a series of reactions with C or H2, as shown in Equations (1)–(6) [14].
3 F e 2 O 3 ( s ) + C O ( g ) 2 F e 3 O 4 ( s ) + C O 2 ( g )
F e 3 O 4 ( s ) + C O ( g ) 3 F e O ( s ) + C O 2 ( g )
F e O ( s ) + C O ( g ) F e ( s ) + C O 2 ( g )
3 F e 2 O 3 ( s ) + H 2 ( g ) 2 F e 3 O 4 ( s ) + H 2 O ( g )
F e 3 O 4 ( s ) + H 2 ( g ) 3 F e O ( s ) + H 2 O ( g )
F e O ( s ) + H 2 ( g ) F e ( s ) + H 2 O ( g )
Although hydrogen direct reduced iron (H-DRI) pellets will contribute to the reduction in CO2 emissions in the iron and steel industry, it is still necessary to introduce some carbon into the EAF to create a foaming slag to improve the energy efficiency of the furnace to carburize the steel, control iron yield losses, and promote stirring to enhance the melting and refining processes [9,15,16,17].
Pfeiffer et al. [12] investigated H-DRI melting with hydrogen plasma smelting reduction (HPSR). This research showed that DRI with carbon melts faster than that without carbon. It was observed that the high stirring condition in the system is due to the electromagnetic stirring from the arc and the oxidation of carbon in the system, which reacts with the injected oxygen to produce CO gas. The article concludes that the reaction with carbon induces stirring, enhancing heat transfer and accelerating the melting rate.
In another separate study, Pfeiffer et al. [18] analyzed the melting behavior of DRI with different carbon content and HBI immersed in high- and low-carbon steel melts as well as high- and low-iron oxide slags. It was observed that carbon, whether present in the DRI sample or the melt, accelerated the dissolution process by reacting with residual iron oxide in the pellet or slag.
While Pfeiffer et al. [12] present interesting results focused on the melting behavior of DRI in HPSR, the conditions in this system can differ significantly from those in an EAF. As noted by Pfeiffer et al. [18], there is currently no computational simulation model capable of predicting the melting behavior under varying conditions, which limits a comprehensive understanding of the process.
Sharifi et al. [19] studied the melting dynamics of DRI pellets immersed in molten slag at temperatures varying from 1500 °C to 1600 °C. The research was focused on the effect of the initial carbon content and the preheating temperature of the DRI. The findings indicate that the carburization of DRI involves two stages. One reaction involves FeO within the pellet reacting with carbon, while the other occurs between FeO in the slag and the residual carbon in the pellet. The authors observed that carbon controls the two reaction stages, where high quantities of carbon increase the reaction rate. Ultimately, the preheating of the DRI pellet was found to enhance the decarburization rate during the first stage. Lin et al. [20] analyzed the melting of one and two H-DRI pellets with an 8 mm diameter in an EAF with molten steel using COMSOL Multiphysics. This study found that the H-DRI melting behavior can be divided into three stages: the formation of a solidified steel layer, the complete melting of the solidified steel layer, and the melting of the H-DRI body. They also found that the bonding among the pellets can be reduced by pre-heating the pellets or increasing the space between them.
The work of Sharifi et al. [19] offers a detailed result related to DRI’s experimental work in molten slag, describing how the carbon content affects the melting behavior process. On the other hand, Lin et al. [20] primarily focused on computational simulations of the H-DRI melting process. To the best of our knowledge, a comprehensive study that integrates both experimental work and computational modeling has not yet been fully developed—an area this research aims to address.
Kirschen et al. [21] examined the melting of DRI pellets and steel scrap for 16 industrial EAFs, focusing on the slag chemical composition. This study found that lowering the slag basicity from 2.0 to 1.4–1.7 reduces FeO losses in the slag and decreases the electrical energy required for melting by 8–17 kWh per ton.
Previous studies have analyzed the melting behavior of H-DRI pellets or DRI pellets with varying carbon content in molten slag or steel; however, there is no comparison of the effect of carbon content on the heat transfer and melting behavior of DRI. This paper investigates the impact of carbon on the melting behavior of DRI. Experimental data from DRI pellets immersed in molten slag and steel bath were utilized to validate the developed computational heat transfer model.

2. Heat Transfer and Gas Generation Model

2.1. Heat Transfer Model

To predict the heat transfer and temperature distribution, the conservation equation of energy is employed (Equation (7)), where ρ is the density, C p is the specific heat capacity at constant pressure, T is the temperature, u is the velocity, . q is the conductive heat transfer term, and Q contains other heat sources.
ρ C p T t + ρ C p u . T + . q = Q
In this equation, the conduction heat transfer is defined by Fourier’s law and shown in Equation (8):
q = k T
where q is the conductive heat flux, T corresponds to the temperature gradient, and k is the thermal conductivity. The heat conductive term is coupled with the energy conservation equation. Heat conduction is considered within the pellet domain and the grown shell around the pellet, while heat convection around the pellet is attributed to the movement of the surrounding liquid bath. The heat conduction equation for a two-dimensional axisymmetric geometry in cylindrical coordinates is given in Equation (9). The convective heat transfer was considered according to Equation (10).
q c o n d u c t i o n = k 1 r r r T r + z T z = ρ C p T t   0 < r < R   or   r < R s h e l l ,   where   R   is   the   radius   of   the   pellet
q c o n v e c t i o n = h ( T T s )       r = Rshell
In the previous equations, h is the heat transfer coefficient, T is the temperature in the molten slag or steel bath, and T s is the temperature at the surface of the pellet. We assumed that h is constant for the DRI pellets submerged in a steel bath. For the DRI pellets’ melting behavior in molten slag, h varied with the gas evolution rate according to Equation (11) [22]. As heat convection is related to the movement of the liquid bath around the pellet, which is primarily caused by the gas evolution of CO, it is vital to establish a relationship between the gas evolution rate ( g ), resulting from the reduction of iron oxide with carbon, and the heat convection through the heat transfer coefficient.
h = 8.6 × 10 3 g 1 / 4
The latent heat of fusion determines the heat needed for the solid/liquid phase transformation, while the balance between conductive and convective heat fluxes influences the rate of phase change. COMSOL Multiphysics 6.1 utilizes the concept of apparent heat capacity to account for phase transformations. The apparent heat capacity method describes the phase change of the material by modifying the specific heat capacity ( C p ) and considering the latent heat of fusion. More details can be found in [14].
Two possible scenarios can occur at the interface of the pellet and the steel bath/molten slag:
(1)
If the pellet’s surface temperature is below its melting point, there are no transformations, and the heat transfer is defined by Equation (12):
q c o n v e c t i o n = h T T s
(2)
Once the pellet’s surface reaches its melting point, the heat required for the solid-to-liquid phase transformation is incorporated into Equation (12) in terms of the apparent heat capacity shown in Equation (13):
q c o n d u c t i o n = ρ ( C p T ) t + h T T s
Figure 1 illustrates the domain in which heat conduction and convection are applied.

2.2. Gas Generation Model

In this study, the carbon content and iron oxide were defined within the context of the DRI pellet system. As previously mentioned, gas generation is used to determine the heat transfer coefficient. Specifically, the generation of CO gas from the reduction of FeO by carbon is utilized to analyze heat transfer within the system of DRI pellets immersed in molten slag, as discussed later in this research.
For the gas generation model, the reduction of iron oxide with carbon was investigated using Equation (14). This reaction follows first-order kinetics with respect to FeO, and its rate (r) is given by Equation (15). A simplified rate expression is used in Equation (15), considering only iron oxide, as FeO is the limiting reactant in these cases.
F e O + C = F e + C O
r = k [ F e O ]
where [ F e O ] is the concentration of iron oxide and k is the rate constant defined through the Arrhenius equation shown in Equation (16):
k = A e ( Q R T )
In this equation, A is the pre-exponential factor, Q is the activation energy of the reaction of FeO with C, and R is the gas constant. From the reaction rate, we can estimate the quantity of moles of C O generated per unit time and volume. Therefore, a volume integration of the reaction rate over the pellet will show the moles of C O produced per unit time, and using the gas equation below (Equation (17)), it is possible to determine the CO gas generation. While numerous equations are available in the literature for calculating gas generation, the complexity and computational demands of the simulation model make it more practical to use simplified models that yield results consistent with experimental observations.
P V = n R T
where P is pressure, V is volume, n is moles, R is the gas constant, and T is temperature. This equation can be utilized to calculate the volume of gas generated per unit time.

2.3. Porosity-Dependent Thermophysical Properties

The DRI pellet porosity was estimated according to Archimedes’ method according to ASTM C20 [23]. The measured open porosity was 0.54 ± 0.02 for the DRI pellets with 1.3 wt. % carbon. Our previous study showed that the difference between the open porosity and the total porosity (open + closed porosity) is negligible [14].
Density, ρ , specific heat capacity, C p , and thermal conductivity, k, are corrected using Equations (18)–(20) [13,24,25].
ρ p e l l e t = ρ s ( 1 e )
C p = ( C p , f V f + C p , m V m ) V f + V m
k e f f = k m ( 1 e 1 + n e 2 )
where ρ s is the density of the solid phase, e is the porosity of the pellet, C p , f represents the specific heat capacity of the air inside the pores, V f denotes the volume of the pores, C p , m shows the specific heat capacity of the pellet, V m represents the volume of the pellet, k m is the thermal conductivity of the pellets, and n is a constant equal to 11 for DRI pellets [22].

2.4. Boundary Conditions

The computational domain and mesh detail for simulating a DRI pellet immersed in a molten bath are shown in Figure 2. In all simulations, thermal resistance between the thermocouple and the DRI pellet was accounted for, arising from the high-temperature adhesive used for bonding, which possesses a thermal conductivity of 0.04 [W m−1 K−1] [26]. The crucible walls, with dimensions of 240 mm in diameter and 360 mm in height, were maintained at a constant temperature of 1602 °C. Convective heat transfer between the steel bath/molten slag and the DRI pellet was modeled based on the heat transfer framework in Section 2.1. The initial temperatures were 77.3 °C for the DRI pellet and 1602 °C for the steel bath/molten slag. The computational domains—including the thermocouple, thermal resistance, DRI pellet, and molten bath—were meshed using free triangular elements with linear Lagrangian shape functions. The mesh sizes were specified as follows: 0.03 mm near the melting interface (between the DRI pellet and the steel bath/molten slag), 0.05 mm in the thermocouple and thermal resistance regions, and 3 mm for the remaining domain. A mesh quality study revealed an average mesh element quality of 0.937, utilizing approximately 5,300,000 elements for the DRI in the molten bath simulation. The mesh quality metric, with values above 0.9 indicating high-quality meshing, validated the suitability of the mesh for an accurate simulation [27].

3. Experimental Setup

For the experiments carried out in this study, an alumina crucible with a capacity of 90 kg and a furnace supplied by Inductotherm Corp., Rancocas, NJ, USA, were employed. The dimensions for the crucible are 360 mm in height and 240 mm in diameter. Clevland Cliffs, Corpus Christi, TX, USA provided DRI pellets with 1.3 wt. % carbon. The mass proportion of the DRI samples is shown in Table 1.
A pneumatic frame was used to immerse the DRI samples 18 cm in molten steel, whose chemical composition is detailed in Table 2. For the computational simulation, the thermal properties-thermal conductivity, specific heat capacity, and density were calculated based solely on the iron and carbon weight percentages in the pellets. The experimental design for the DRI pellet submersion time is outlined in Table 3.
It is important to note that some samples fell into the steel bath, rendering their results unrecoverable. To prevent inductive stirring in the steel bath, the furnace was switched off during pellet submersion. The thermal physical properties were determined using JmatPro-v14 through the general steel section and thermo-physical properties and by defining the chemical composition. The information is presented in Figure 3 and Table 1, Table 2, Table 3, Table 4 and Table 5.
Five samples were weighed, and their diameters were measured before the experiments. A milling machine equipped with titanium-coated 1/8-inch drill bits was used to drill the samples to their center. K- and S-type thermocouples were utilized in the experiment. Alumina–silicate cement was used to secure the thermocouple to the sample. To avoid fractures due to thermal shock after immersion, a zircon coating was applied to the alumina tube housing the thermocouple. The configuration is shown in Figure 4.
The samples immersed in molten steel were secured in four identical fixtures, each designed to hold three samples at a depth of 18 cm within the molten bath. The alumina tubes were affixed to the steel fixtures using cement. The molten steel temperature was maintained at 1602 °C and continuously monitored with a temperature probe from Heraeus Electro-Nite, Hartland, WI, USA. The temperature at the center of the samples was recorded using a GL220 midi data logger from Graphtec Corporation, Irvine, CA, USA, while the thermocouples were supplied by Omega, Norwalk, CT, USA. The setup is illustrated in Figure 5 and Figure 6.

4. Results and Discussion

4.1. Temperature Profiles

The simulations assumed a constant heat transfer coefficient to study DRI pellets immersed in a steel bath. Various values of the heat transfer coefficient were tested to determine the one that best aligned with the experimental data. As it is shown in Figure 7, the simulation results for a pellet containing 1.3 wt. % C, with a heat transfer coefficient of 9000 W m−2 K−1, showed the best agreement with the experimental measurement, which matches the results of the shell thickness measurements shown later.

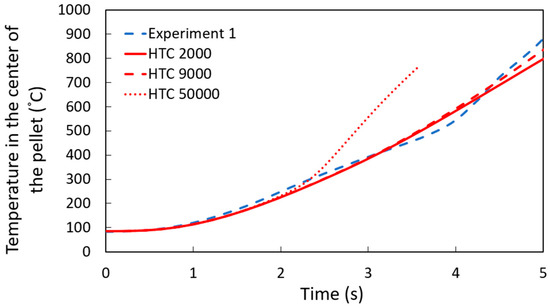

Figure 8 shows the experimental results for the temperature profile at the center of the DRI pellet—a ten-point-five-millimeter-diameter pellet with 1.3 wt. % C—immersed in a steel bath; the red line represents the computational simulation result.
As shown in Figure 8, the computational simulation model accurately captures the temperature profile at the center of the pellet for experiment 1. However, there is some dispersion in the results for experiments 2 through 5. This variation can be explained by differences in the high-temperature adhesive used to attach the thermocouples to the DRI pellets, as the adhesive type varied between experiments. Therefore, the thermal conductivity of the high-temperature adhesive was varied between 0.04 and 0.1 W m−1 K−1 (the reported range of thermal conductivity for these high-temperature adhesives) [26]. Figure 9 corroborates that this variation in thermal conductivity can account for the dispersion observed in experiments 2 to 5.
The temperature profile for H-DRI [14] and DRI with 1.3 wt. % carbon is compared in Figure 10. As expected, DRI pellets with higher carbon content exhibit higher heating rates than those with zero carbon content. This can be explained by the stirring around the pellet caused by the CO gas generation from the reaction between the carbon and the iron oxide. A condensed equation for the process of FeO reduction with carbon is presented in Equation (19).
The DRI pellet with 1.3 wt. % carbon shows significant CO gas generation. This enhances stirring around the pellet, improving heat transfer and accelerating the melting process. In contrast, H-DRI pellets contain no carbon, resulting in no CO gas generation and no enhancement in heat transfer to the pellet.

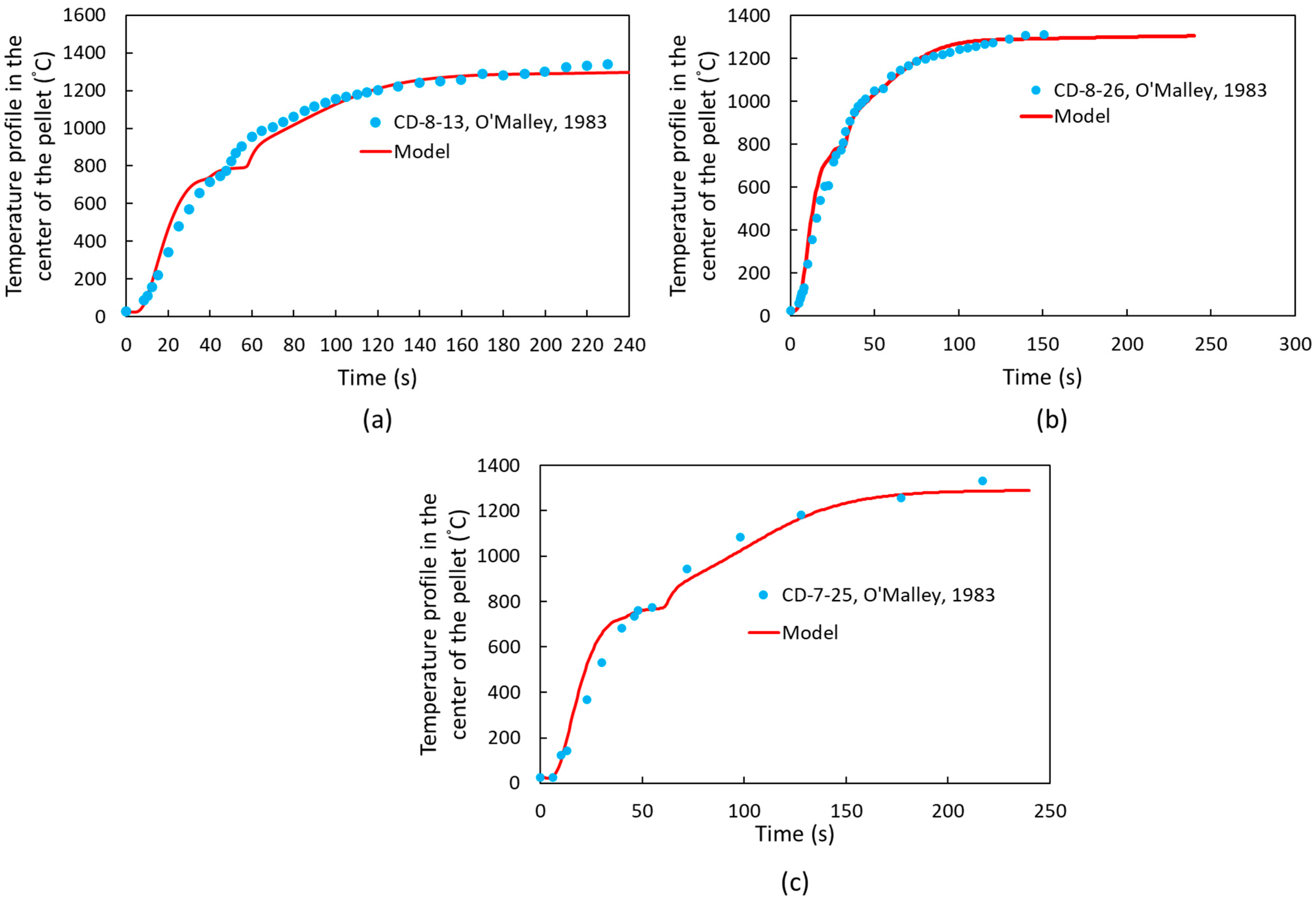

Following model validation, additional cases from the literature, specifically the studies by R. J. O’Malley [22], were examined. The characteristics of the pellets, including variations in pellet diameter, mass, and carbon content, are presented in Table 6, while the thermophysical properties of the slag are detailed in Table 7 [22]. Other thermophysical properties can be found in [22]. The temperature profiles at the center of the pellets are presented in Figure 11. Based on these profiles, the computational simulation model accurately predicts temperature variations in DRI pellets with varying carbon content and geometry.

4.2. Shell Thickness and Gas Generation

Figure 12a shows the shell thickness for the DRI pellets with 1.3 wt. % carbon. For this case, it is observed that a heat transfer coefficient of 9000 W m−2 K−1 in the model provides a better prediction of the melting behavior of the DRI pellet compared to the experimental results. Five samples were used to analyze shell thickness; however, only two were successfully recovered for measurement. An example of the shell thickness measurement is shown in Figure 12b. The experimental results for the pellet’s radius and shell thickness, as presented in Figure 12a, align well with the computational simulation, confirming the model’s ability to accurately predict the melting behavior of a DRI pellet containing 1.3 wt. % carbon. As previously shown, the melting temperatures of the steel bath and the DRI with 1.3 wt. % C differs due to the carbon content (1794 K and 1761 K, respectively). Therefore, as a shell of steel forms around the pellet, the pellet begins to melt before the shell has fully melted. This can be observed in Figure 13: At time 0 s, the DRI pellet is surrounded by the steel bath without any shell thickness (Figure 13a); when the shell starts to melt, the DRI has already begun melting (Figure 13b); and finally, the shell is fully melted in Figure 13c.

4.3. DRI Pellet Gas Generation

For the gas generation studies, we employed the experimental data from [22], as summarized in Table 6. For this case, the activation energy required in the last stages of the reduction of iron oxide is considered to be Q = 83,680   J   mol 1 [22]. Then, the pre-exponential factor was adjusted ( A f = 50 ,     70 ,   and   90   s 1 ) to achieve agreement between the experimental and computational simulation results for the sample CD-8-13, as shown in Figure 14.
According to Figure 14, with a pre-exponential factor of 90   s 1 and the activation energy of 83,680   J   mol 1 , established from the literature [22], the computational simulation results are in close agreement with the experimental results. The calculated gas generation rate is compared with the experimental measurement in Figure 15. At the beginning of the simulation, discrepancies were observed between the experimental results and the computational predictions. This can be attributed to localized variations in carbon content within the pellet, which affect gas generation rates.
From Figure 14 and Figure 15, it can be concluded that the computational simulation model accurately predicts the experimental gas generation results. With this validation, the model was applied to the CD-7-25 sample, as shown in Figure 16. However, some discrepancies were observed between the computational and experimental results, similar to Figure 15. This difference can be attributed to the model’s assumption of a uniform distribution of carbon and iron oxide throughout the pellet, whereas, in reality, localized variations in carbon and FeO concentrations may exist. Such variations can significantly influence the melting behavior of DRI pellets, as discussed in the work of Hesham Ahmed [29].

5. Conclusions

This study successfully investigated the melting behavior of direct-reduced iron (DRI) pellets with varying carbon content in molten steel and slag, utilizing a combination of computational modeling and experimental validation. The developed computational model accurately predicted the temperature profiles, gas evolution, and melting behavior of DRI pellets, demonstrating strong agreement with experimental data.
Key findings indicate that the presence of carbon in DRI pellets significantly enhances heat transfer, accelerates melting, and promotes stirring due to the evolution of CO gas. Higher carbon content corresponded to increased heat transfer and faster melting rates, with computational simulations effectively capturing these trends. Additionally, the model’s ability to predict gas generation was validated using literature data, further supporting its reliability in simulating DRI pellet melting behavior.
These results underscore the significance of carbon content in enhancing DRI melting efficiency, particularly in electric arc furnace (EAF) steelmaking. The findings provide valuable insights for improving process efficiency and energy utilization in steel production. Future work could investigate the impact of non-uniform carbon distribution within DRI pellets and its influence on localized melting behavior, thereby refining the model further.

Author Contributions

Conceptualization, F.A.C.H. and A.E.; methodology, F.A.C.H., J.G. and A.E.; software, F.A.C.H. and A.E.; validation, F.A.C.H. and J.G.; formal analysis, F.A.C.H., J.G., A.E. and R.J.O.; investigation, F.A.C.H. and J.G.; resources, F.A.C.H., J.G., A.E. and R.J.O.; data curation, F.A.C.H. and J.G.; writing—original draft preparation, F.A.C.H.; writing—review and editing, F.A.C.H., J.G., A.E. and R.J.O.; visualization, F.A.C.H., J.G. and A.E.; supervision, A.E. and R.J.O.; project administration, R.J.O.; funding acquisition, R.J.O. All authors have read and agreed to the published version of the manuscript.

Funding

This material is based upon work supported by the U.S. Department of Energy’s Office of Energy Efficiency and Renewable Energy (EERE) under the Hydrogen and Fuel Cell Technologies Office, Award Number DE-EE0009250.

Institutional Review Board Statement

This report was prepared as an account of work sponsored by an agency of the United States Government. Neither the United States Government nor any agency thereof, nor any of their employees, makes any warranty, express or implied, or assumes any legal liability or responsibility for the accuracy, completeness, or usefulness of any information, apparatus, product, or process disclosed, or represents that its use would not infringe privately owned rights. Reference herein to any specific commercial product, process, or service by trade name, trademark, manufacturer, or otherwise does not necessarily constitute or imply its endorsement, recommendation, or favoring by the United States Government or any agency thereof. The views and opinions of the authors expressed herein do not necessarily state or reflect those of the United States Government or any agency thereof.

Data Availability Statement

The original contributions presented in the study are included in the article; further inquiries can be directed to the corresponding author.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Pistorius, P.C. Steelmaking Decarbonization Options with Current Technology. Met. Mater. Trans. B 2022, 53, 1335–1338. [Google Scholar] [CrossRef]
  2. Sun, M.; Pang, K.; Barati, M.; Meng, X. Hydrogen-Based Reduction Technologies in Low-Carbon Sustainable Ironmaking and Steelmaking: A Review. J. Sustain. Met. 2024, 10, 10–25. [Google Scholar] [CrossRef]
  3. DiGiovanni, C.; Echterhof, T. Progress Toward Biocarbon Utilization in Electric Arc Furnace Steelmaking: Current Status and Future Prospects. J. Sustain. Met. 2024, 10, 2047–2067. [Google Scholar] [CrossRef]
  4. Qian, Y.; Li, Y.; Hao, Y.; Yu, T.; Hu, H. Greenhouse gas control in steel manufacturing: Inventory, assurance, and strategic reduction review. Carbon Res. 2024, 3, 1–15. [Google Scholar] [CrossRef]
  5. Sun, J.; Na, H.; Yuan, Y.; Qiu, Z.; Du, T.; Li, Y.; Zhang, L.; Wang, W. A systematic review of decarbonization pathway and modeling conception in iron and steel industry at micro-, meso-, and macro-levels. Environ. Sci. Pollut. Res. 2024, 31, 60749–60777. [Google Scholar] [CrossRef] [PubMed]
  6. World Steel in Figures 2024—Worldsteel.org. Available online: https://worldsteel.org/data/world-steel-in-figures-2024/ (accessed on 18 February 2025).
  7. Ammasi, A.; Karthik, P.M.R.; Vishal, D. Slag-Metal-Refractory Interactions During Dissolution of Hydrogen-Based Directly Reduced Iron (H-DRI) in Liquid Iron Melt. J. Sustain. Met. 2024, 10, 542–556. [Google Scholar] [CrossRef]
  8. Suer, J.; Ahrenhold, F.; Traverso, M. Carbon Footprint and Energy Transformation Analysis of Steel Produced via a Direct Reduction Plant with an Integrated Electric Melting Unit. J. Sustain. Met. 2022, 8, 1532–1545. [Google Scholar] [CrossRef] [PubMed]
  9. Echterhof, T. Review on the Use of Alternative Carbon Sources in EAF Steelmaking. Metals 2021, 11, 222. [Google Scholar] [CrossRef]
  10. Van Ende, M.A. Development of an Electric Arc Furnace Simulation Model Using the Effective Equilibrium Reaction Zone (EERZ) Approach. JOM 2022, 74, 1610–1623. [Google Scholar] [CrossRef]
  11. Cavaliere, P. Hydrogen Direct Reduced Iron. In Hydrogen Assisted Direct Reduction of Iron Oxides; Springer: Berlin/Heidelberg, Germany, 2022; pp. 233–319. [Google Scholar] [CrossRef]
  12. Pfeiffer, A.; Ernst, D.; Zheng, H.; Wimmer, G.; Schenk, J. The Behavior of Direct Reduced Iron in the Electric Arc Furnace Hotspot. Metals 2023, 13, 978. [Google Scholar] [CrossRef]
  13. Pineda-Martínez, E.; Hernández-Bocanegra, C.A.; Conejo, A.N.; Ramirez-Argaez, M.A. Mathematical modeling of the melting of sponge iron in a bath of non-reactive molten slag. ISIJ Int. 2015, 55, 1906–1915. [Google Scholar] [CrossRef]
  14. Calderon Hurtado, F.A.; Govro, J.; Emdadi, A.; O’malley, R.J. The Melting Behavior of Hydrogen Direct Reduced Iron in Molten Steel and Slag: An Integrated Computational and Experimental Study. Metals 2024, 14, 821. [Google Scholar] [CrossRef]
  15. Kim, W.; Sohn, I. Critical challenges facing low carbon steelmaking technology using hydrogen direct reduced iron. Joule 2022, 6, 2228–2232. [Google Scholar] [CrossRef]
  16. Morales, R.D.; Rubén, L.G.; López, F.; Camacho, J.; Romero, J.A. The Slag Foaming Practice in EAF and Its Influence on the Steelmaking Shop Productivity. ISIJ Int. 1995, 35, 1054–1062. [Google Scholar] [CrossRef]
  17. Agnihotri, A.; Singh, P.K.; Singh, D.; Gupta, M. Foamy slag practice to enhance the energy efficiency of electric arc furnace: An industrial scale validation. Mater. Today: Proc. 2021, 46, 1537–1542. [Google Scholar] [CrossRef]
  18. Pfeiffer, A.; Wimmer, G.; Schenk, J. Investigations on the Interaction Behavior between Direct Reduced Iron and Various Melts. Materials 2022, 15, 5691. [Google Scholar] [CrossRef]
  19. Sharifi, E.; Barati, M. The reaction behavior of direct reduced iron (DRI) in steelmaking slags: Effect of DRI carbon and preheating temperature. Met. Mater. Trans. B 2010, 41, 1018–1024. [Google Scholar] [CrossRef]
  20. Lin, X.; Ni, B.; Shangguan, F. Numerical Simulation of the Hydrogen-Based Directly Reduced Iron Melting Process. Processes 2024, 12, 537. [Google Scholar] [CrossRef]
  21. Kirschen, M.; Hay, T.; Echterhof, T. Process Improvements for Direct Reduced Iron Melting in the Electric Arc Furnace with Emphasis on Slag Operation. Processes 2021, 9, 402. [Google Scholar] [CrossRef]
  22. O’Malley, R. The Heating and Melting of Metallic DRI Particles in Steelmaking Slags. Ph.D. Thesis, Massachusetts Institute of Technology, Cambridge, MA, USA, 1983. [Google Scholar]
  23. ASTM C20-00(2022); Standard Test Methods for Apparent Porosity, Water Absorption, Apparent Specific Gravity, and Bulk Density of Burned Refractory Brick and Shapes by Boiling Water 1. ASTM: West Conshohocken, PA, USA, 2022. [CrossRef]
  24. Koh, J.C.Y.; Fortini, A. Prediction of Thermal Conductivity and Electrical Resistivity of Porous Metallic Materials. Int. J. Heat Mass Transf. 1973, 16, 10. [Google Scholar] [CrossRef]
  25. Ashby, M.F. Case Studies: Hybrids. In Materials Selection in Mechanical Design; Butterworth-Heinemann: Oxford, UK, 2011; pp. 341–366. [Google Scholar] [CrossRef]
  26. Young, H.D.; Sears, F.W. University Physics, 8th ed.; Addison Wesley Publishing Company: Boston, MA, USA, 1992; Available online: https://search.worldcat.org/title/24429258 (accessed on 18 April 2024).
  27. COMSOL—Software for Multiphysics Simulation. Available online: https://www.comsol.com/ (accessed on 16 January 2023).
  28. Sente Software—JMatPro®. Available online: https://www.sentesoftware.co.uk/jmatpro (accessed on 12 January 2023).
  29. Ahmed, H.; Kumar, T.S.; Alatalo, J.; Björkman, B. Effect of carbon concentration and carbon bonding type on the melting characteristics of hydrogen-reduced iron ore pellets. J. Mater. Res. Technol. 2022, 21, 1760–1769. [Google Scholar] [CrossRef]

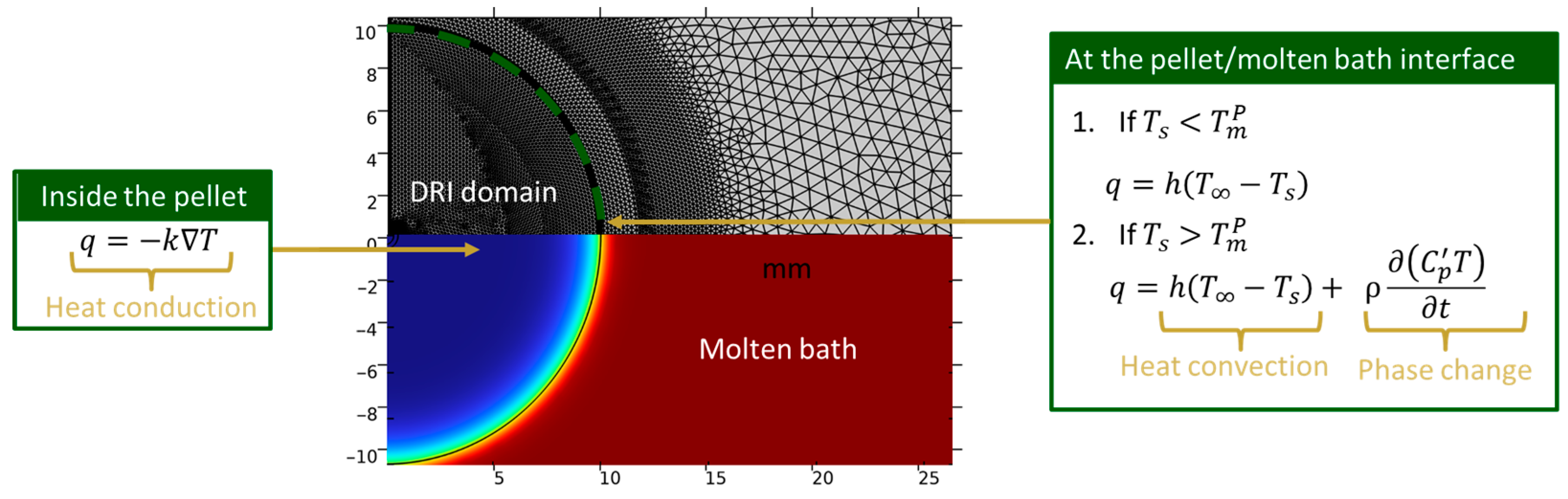

Figure 1. Schematic of the computational domain showing regions where heat conduction and convection are applied. DRI domain (blue color), and molten bath domain (red color).
Figure 1. Schematic of the computational domain showing regions where heat conduction and convection are applied. DRI domain (blue color), and molten bath domain (red color).
Materials 18 04749 g001

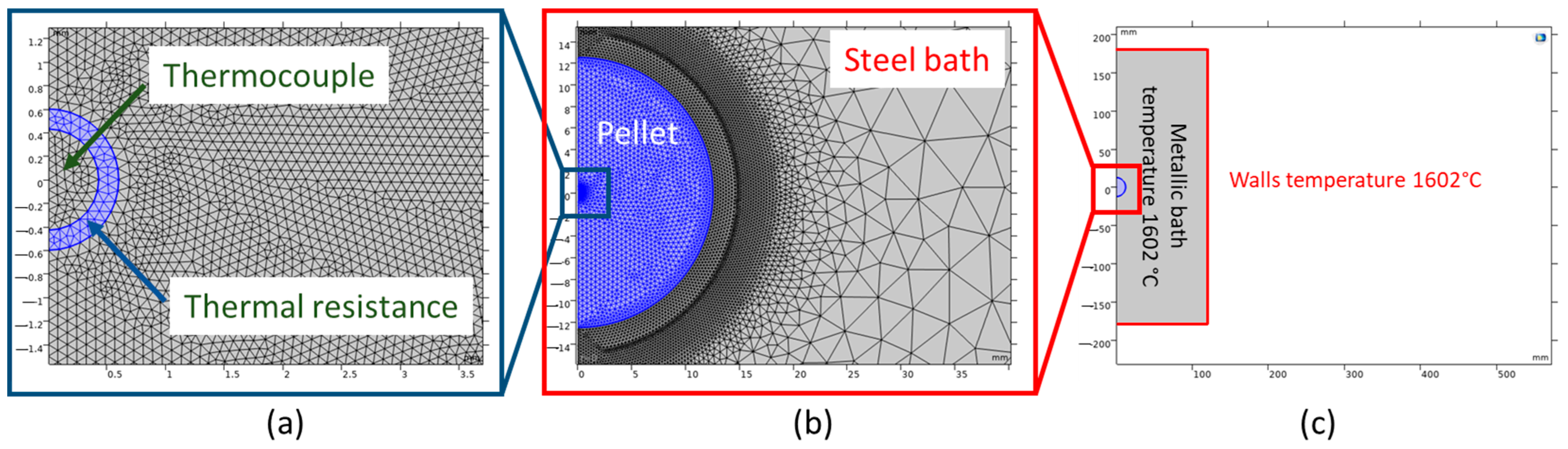

Figure 2. Geometry design of the DRI pellet: (a) Thermal resistance between the thermocouple and pellet, with arrows indicating the thermocouple and thermal resistance. (b) The embedded pellet (blue color) is located in the molten bath, surrounded by a refined meshing structure at the interface. (c) Geometry and initial temperature conditions [14]. Images imported from COMSOL Multiphysics 6.1 software.
Figure 2. Geometry design of the DRI pellet: (a) Thermal resistance between the thermocouple and pellet, with arrows indicating the thermocouple and thermal resistance. (b) The embedded pellet (blue color) is located in the molten bath, surrounded by a refined meshing structure at the interface. (c) Geometry and initial temperature conditions [14]. Images imported from COMSOL Multiphysics 6.1 software.
Materials 18 04749 g002

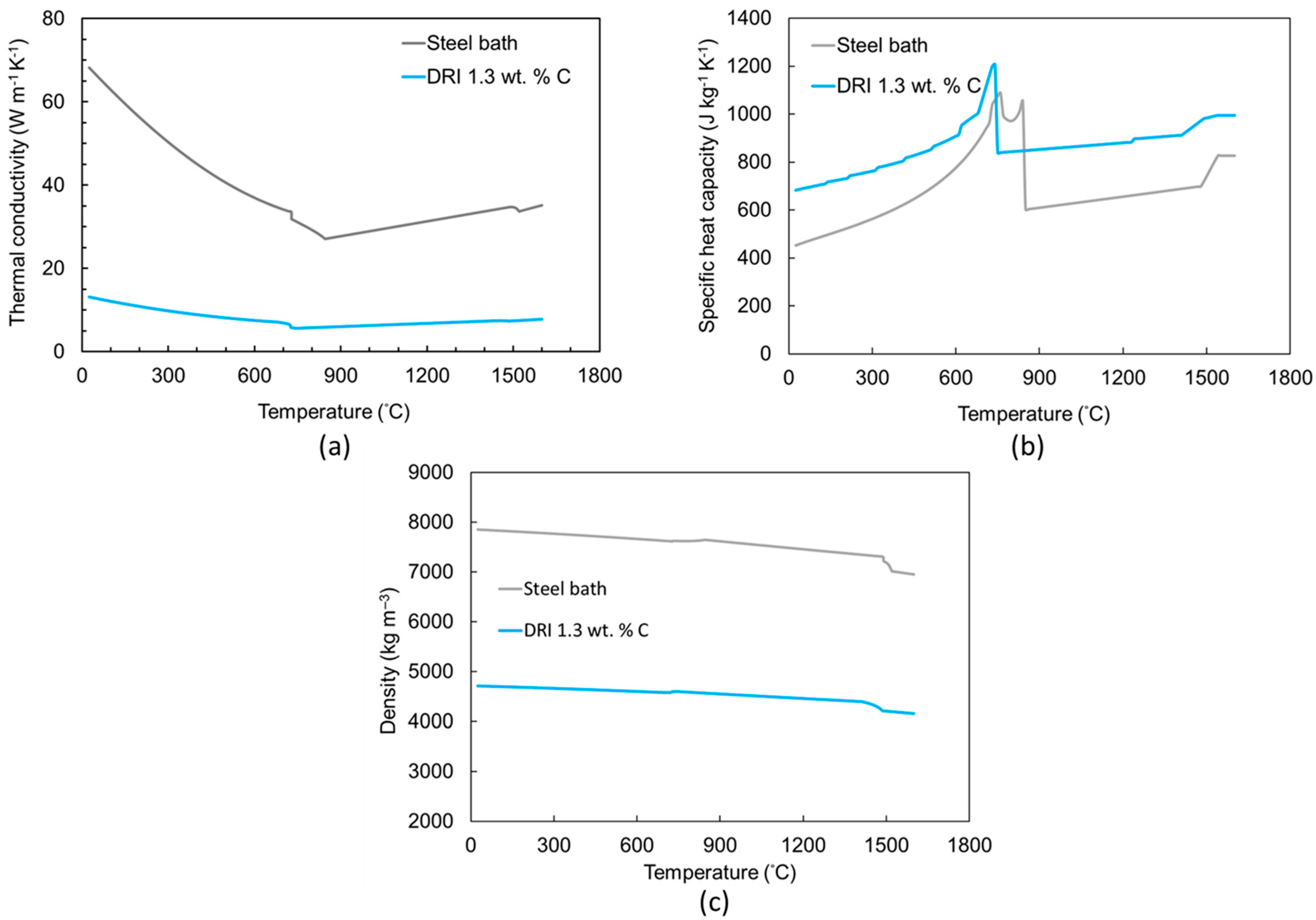

Figure 3. Calculated (a) thermal conductivity, (b) specific heat capacity, and (c) density of the DRI pellets and steel bath at various temperatures using JmatPro v14.
Figure 3. Calculated (a) thermal conductivity, (b) specific heat capacity, and (c) density of the DRI pellets and steel bath at various temperatures using JmatPro v14.
Materials 18 04749 g003

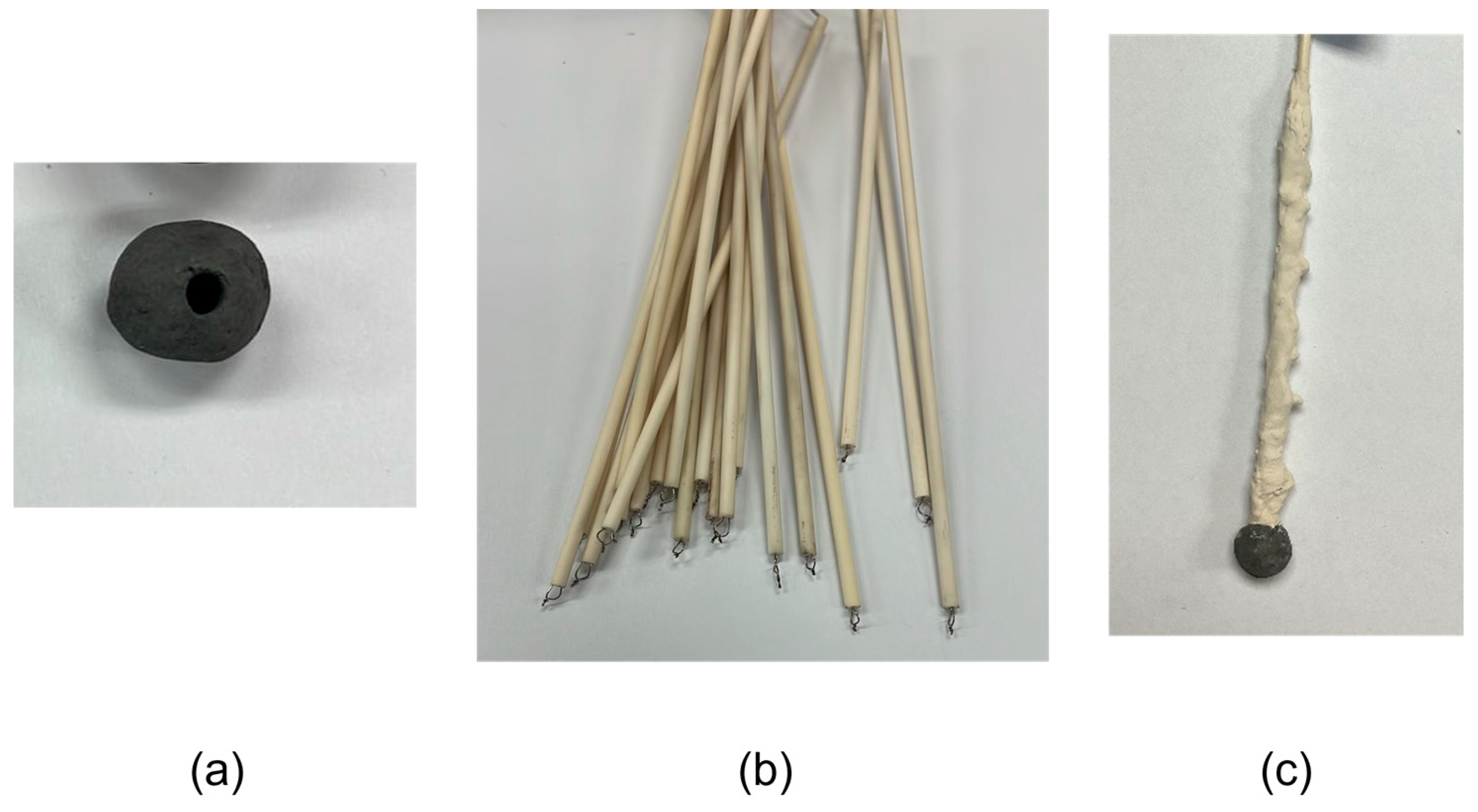

Figure 4. Experimental setup: (a) Drilled DRI pellet, (b) thermocouple and alumina tube, and (c) attached thermocouple to the DRI pellet, coated with zirconia.
Figure 4. Experimental setup: (a) Drilled DRI pellet, (b) thermocouple and alumina tube, and (c) attached thermocouple to the DRI pellet, coated with zirconia.
Materials 18 04749 g004

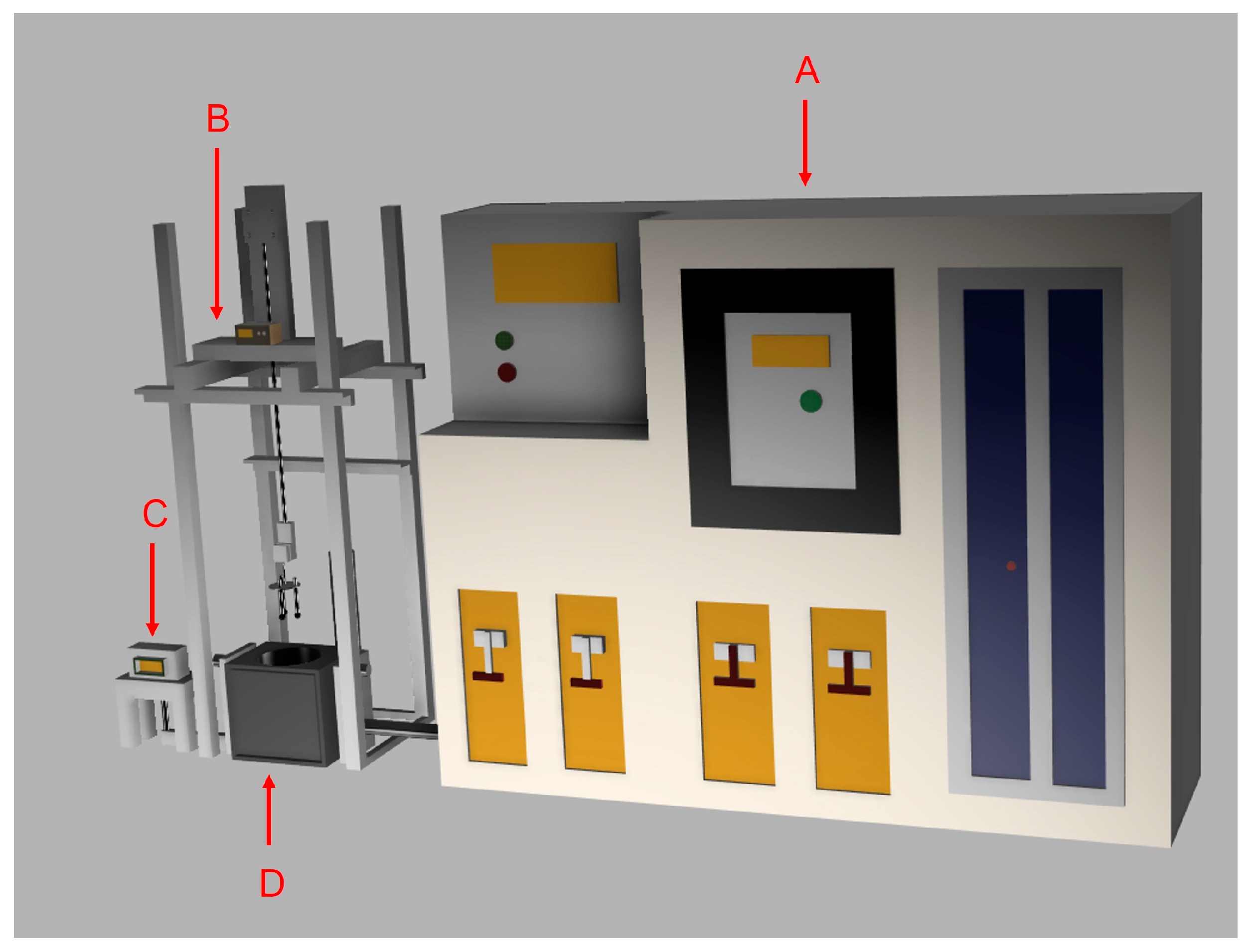

Figure 5. General setup: (A) power generation control device, (B) sample mounting stage, (C) pneumatic control device, and (D) induction furnace.
Figure 5. General setup: (A) power generation control device, (B) sample mounting stage, (C) pneumatic control device, and (D) induction furnace.
Materials 18 04749 g005

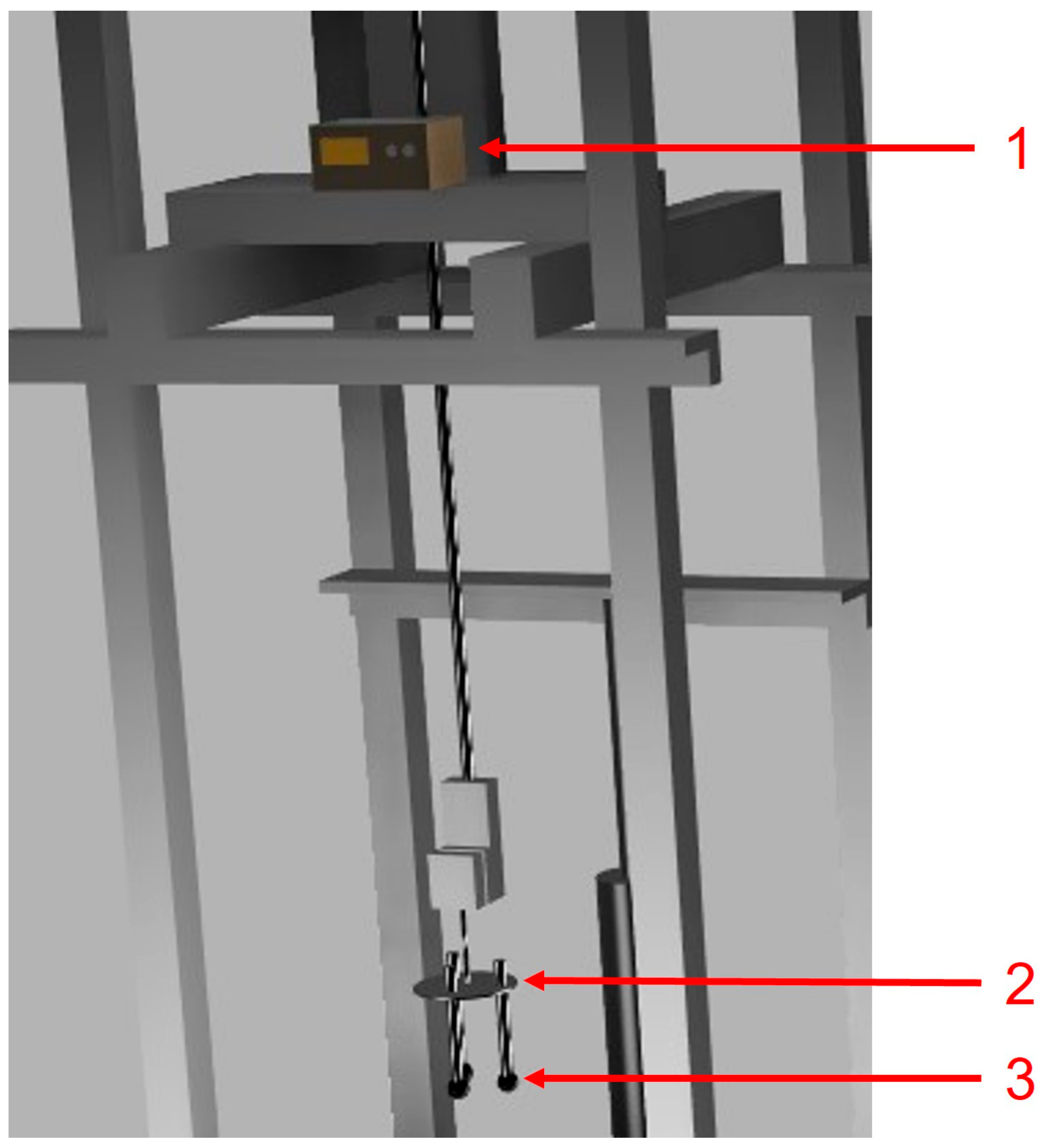

Figure 6. Sample setup: (1) GL220 midi data logger, (2) metallic fixture, and (3) samples of DRI pellets.
Figure 6. Sample setup: (1) GL220 midi data logger, (2) metallic fixture, and (3) samples of DRI pellets.
Materials 18 04749 g006

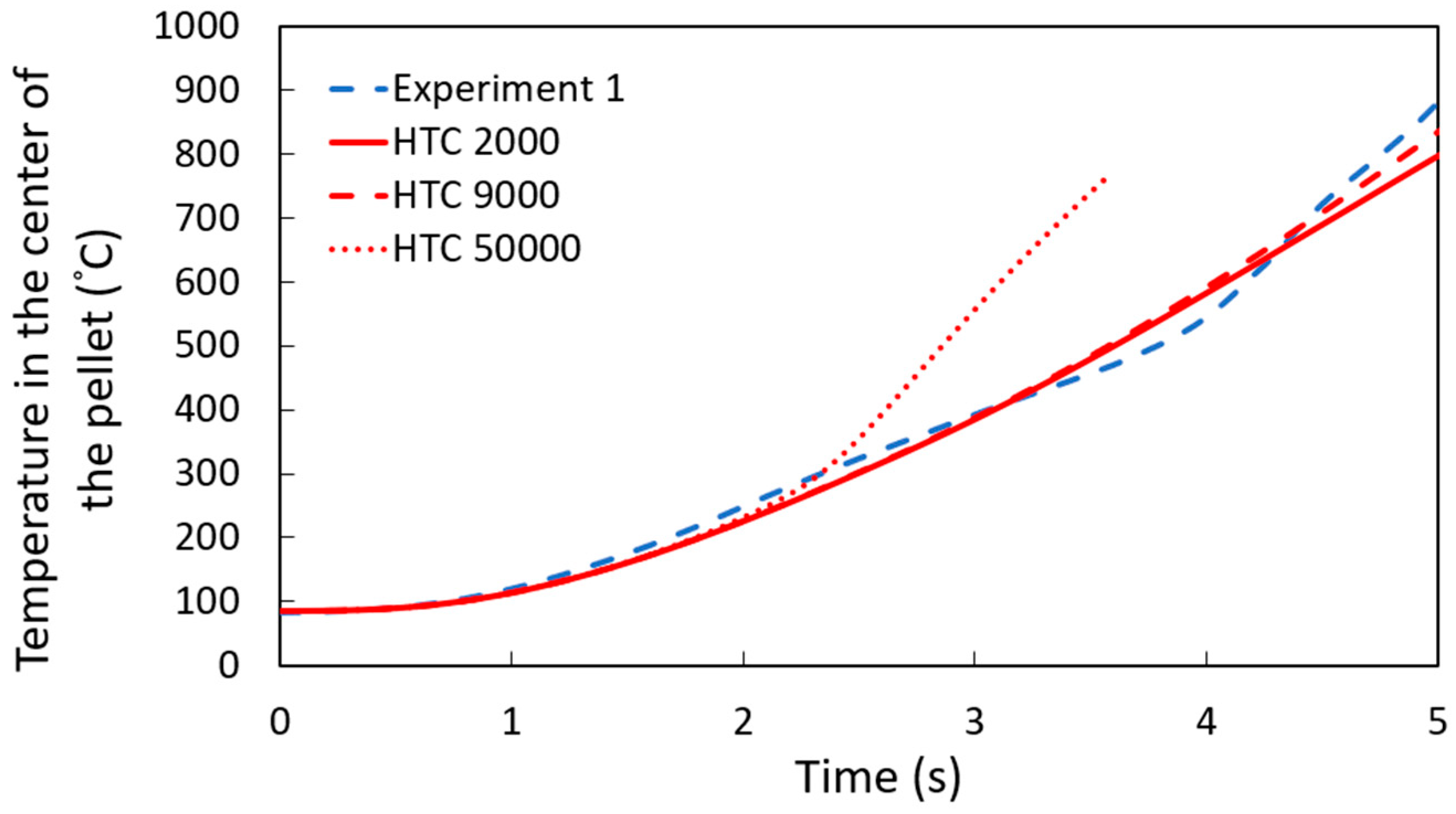

Figure 7. Temperature profile at the center of a 1.3 wt. % C DRI pellet with different heat transfer coefficients W m−2 K−1.
Figure 7. Temperature profile at the center of a 1.3 wt. % C DRI pellet with different heat transfer coefficients W m−2 K−1.
Materials 18 04749 g007

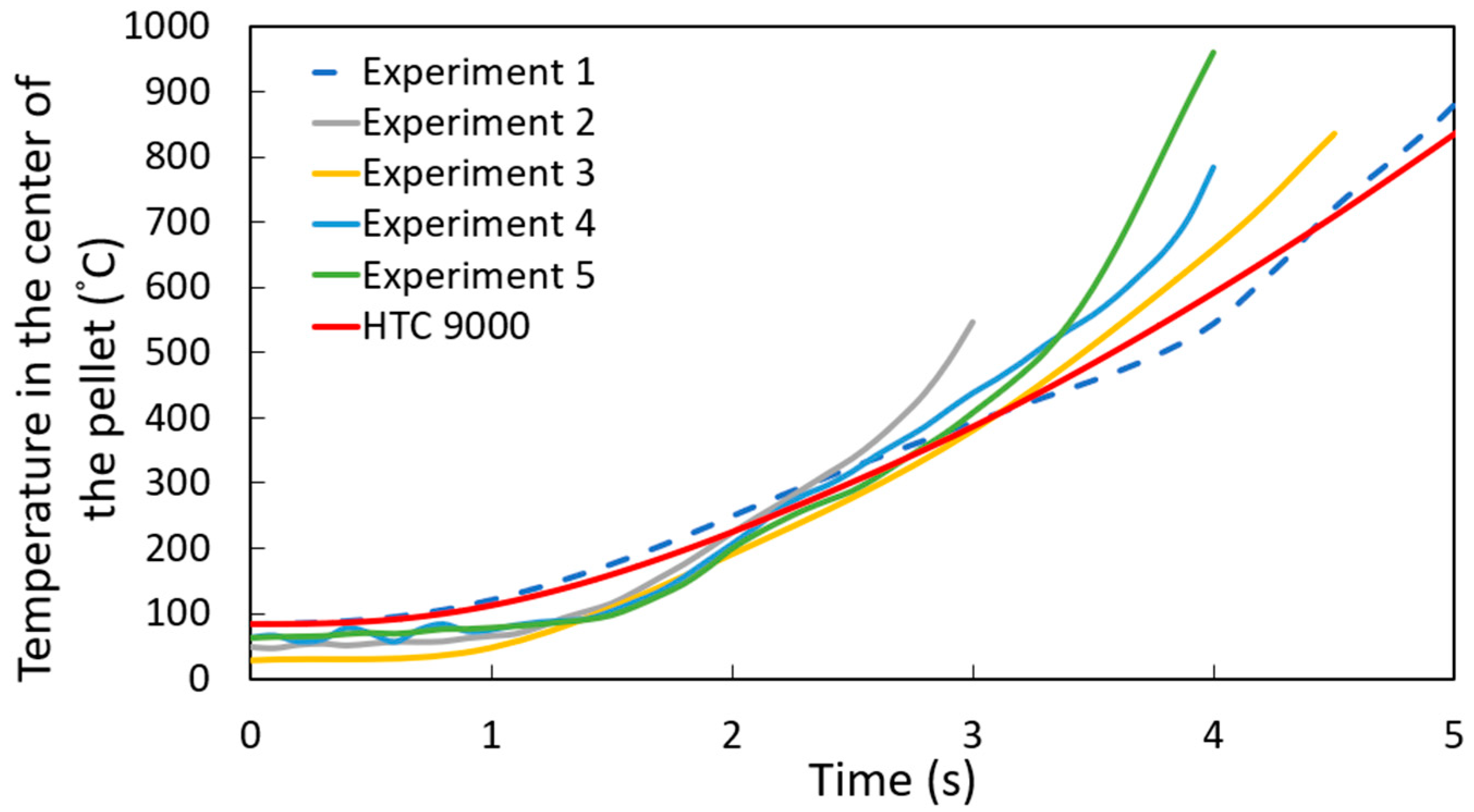

Figure 8. Temperature profile at the center of the DRI 1.3 wt. % C pellet with a heat transfer coefficient of 9000 W m−2 K−1.
Figure 8. Temperature profile at the center of the DRI 1.3 wt. % C pellet with a heat transfer coefficient of 9000 W m−2 K−1.
Materials 18 04749 g008

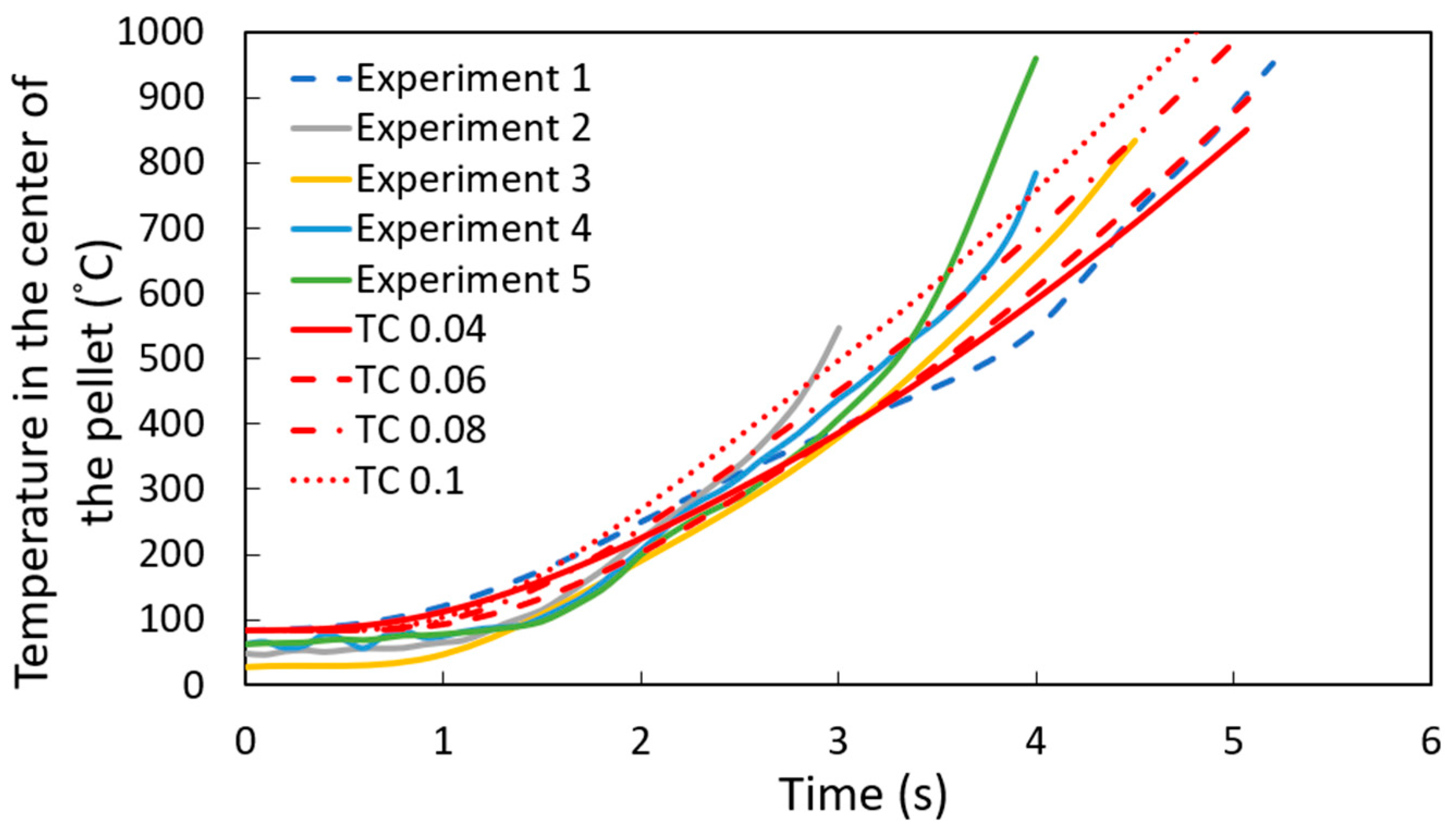

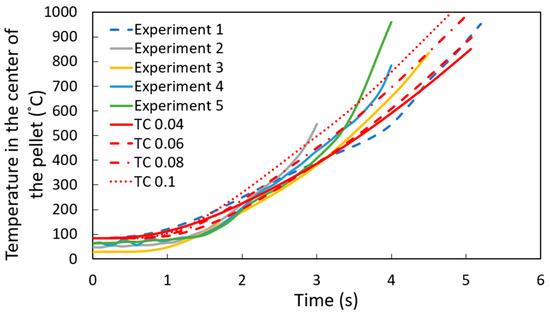

Figure 9. Temperature profile at the center of the DRI 1.3 wt. % C pellet with a heat transfer coefficient of 9000 W m−2 K−1, varying the thermal conductivity (TC) of the cement with units W m−1 K−1.
Figure 9. Temperature profile at the center of the DRI 1.3 wt. % C pellet with a heat transfer coefficient of 9000 W m−2 K−1, varying the thermal conductivity (TC) of the cement with units W m−1 K−1.
Materials 18 04749 g009

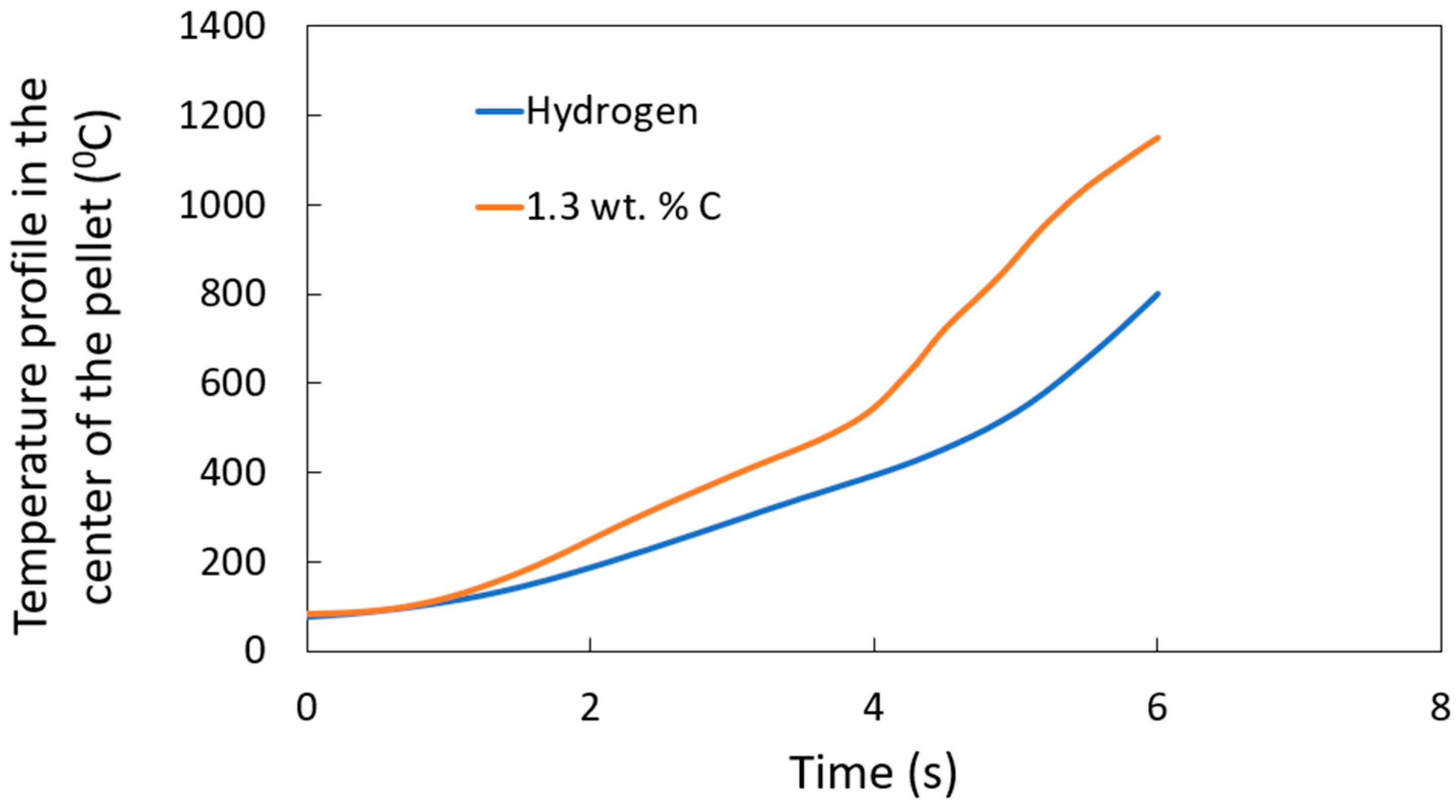

Figure 10. Temperature profile at the center of the sample for different carbon contents: H-DRI (0 wt. % carbon) and DRI (1.3 wt. % carbon).
Figure 10. Temperature profile at the center of the sample for different carbon contents: H-DRI (0 wt. % carbon) and DRI (1.3 wt. % carbon).
Materials 18 04749 g010
Figure 11. Temperature profile at the center of DRI pellets based on heat transfer coefficient dependent on the CO evolution rate (Equation (11)) for (a) Sample CD-8-13 [22], (b) Sample CD-8-26 [22], and (c) Sample CD-7-25 [22].
Figure 11. Temperature profile at the center of DRI pellets based on heat transfer coefficient dependent on the CO evolution rate (Equation (11)) for (a) Sample CD-8-13 [22], (b) Sample CD-8-26 [22], and (c) Sample CD-7-25 [22].
Materials 18 04749 g011

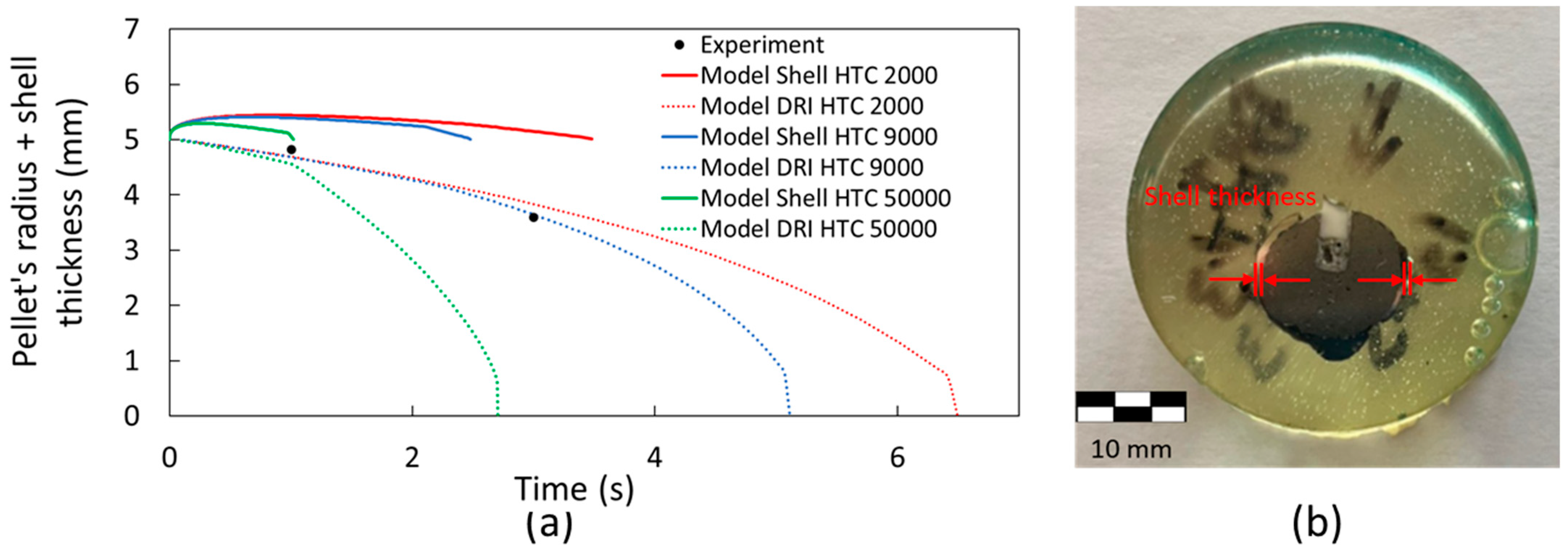

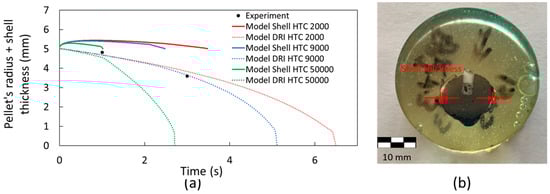

Figure 12. Shell thickness measurements in a steel bath for a DRI pellet with 1.3 wt. % C and a heat transfer coefficient varying between 2000 and 50,000 W m−2 K−1. (a) Shell thickness behavior (continuous line), DRI melting behavior (discontinuous line), and experimental results (black points). (b) Cross-section of a DRI pellet with 1.3 wt. % C mounted on epoxy resin.
Figure 12. Shell thickness measurements in a steel bath for a DRI pellet with 1.3 wt. % C and a heat transfer coefficient varying between 2000 and 50,000 W m−2 K−1. (a) Shell thickness behavior (continuous line), DRI melting behavior (discontinuous line), and experimental results (black points). (b) Cross-section of a DRI pellet with 1.3 wt. % C mounted on epoxy resin.
Materials 18 04749 g012

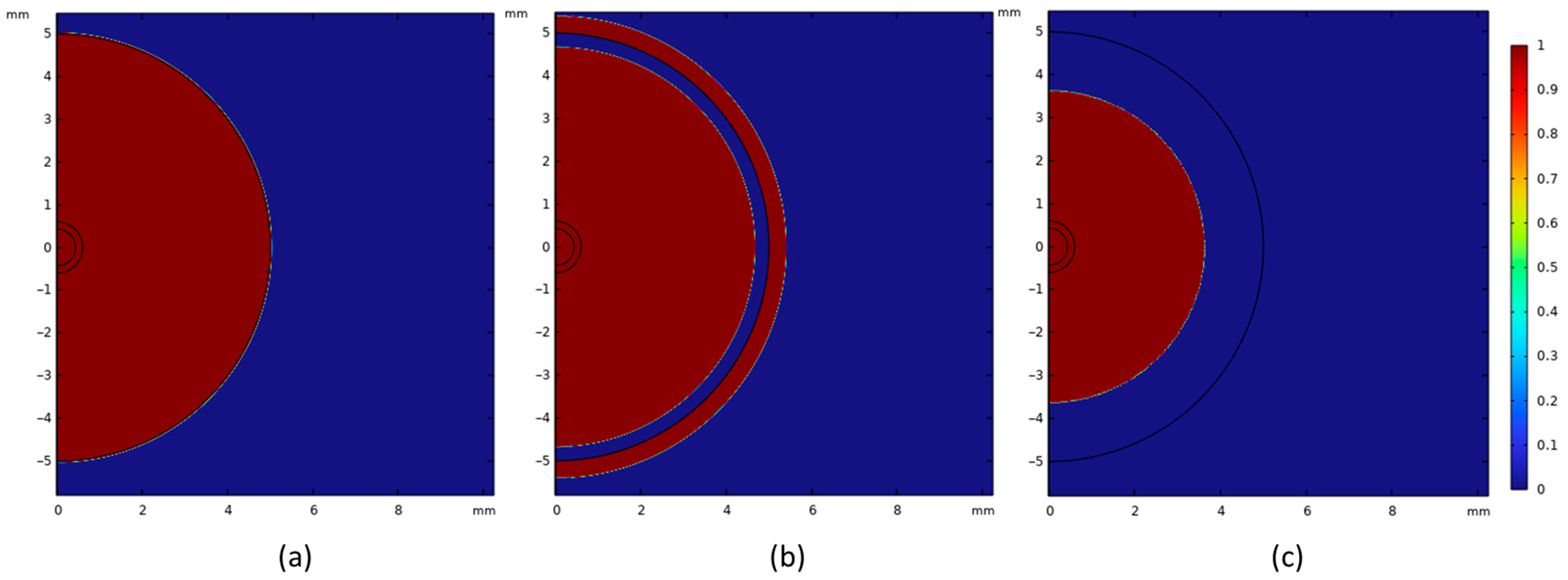

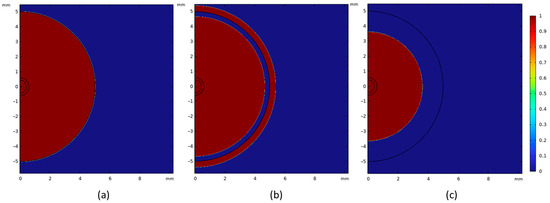

Figure 13. Shell thickness behavior of a DRI pellet with 1.3 wt. % C in a steel bath with a heat transfer coefficient 9000 W m−2 K−1. (a) Time 0 s. (b) Time 1 s. (c) Time 3 s.
Figure 13. Shell thickness behavior of a DRI pellet with 1.3 wt. % C in a steel bath with a heat transfer coefficient 9000 W m−2 K−1. (a) Time 0 s. (b) Time 1 s. (c) Time 3 s.
Materials 18 04749 g013

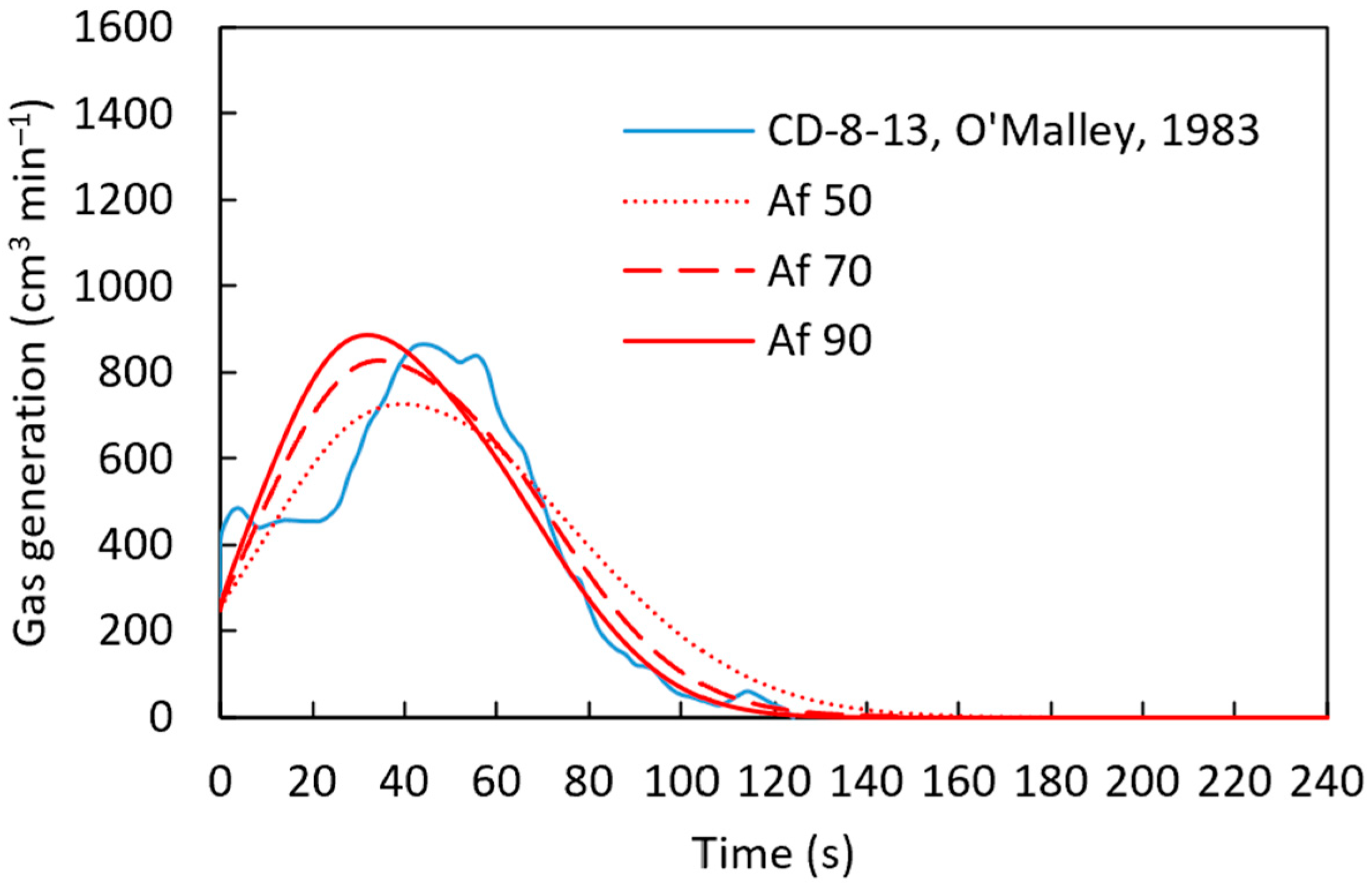

Figure 14. Gas generation for sample CD-8-13 [22] with varying pre-exponential factor and an activation energy of 83,680 J mol−1 using a heat transfer coefficient defined by h = 8.6 × 10 3   g 1 / 4 .
Figure 14. Gas generation for sample CD-8-13 [22] with varying pre-exponential factor and an activation energy of 83,680 J mol−1 using a heat transfer coefficient defined by h = 8.6 × 10 3   g 1 / 4 .
Materials 18 04749 g014

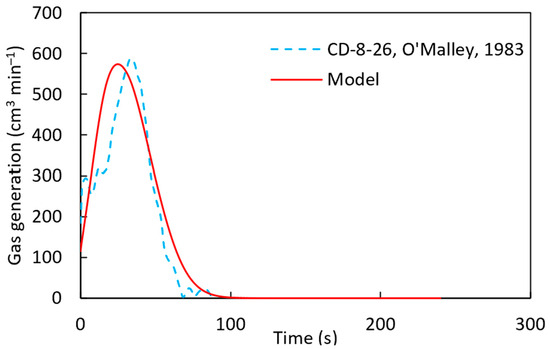

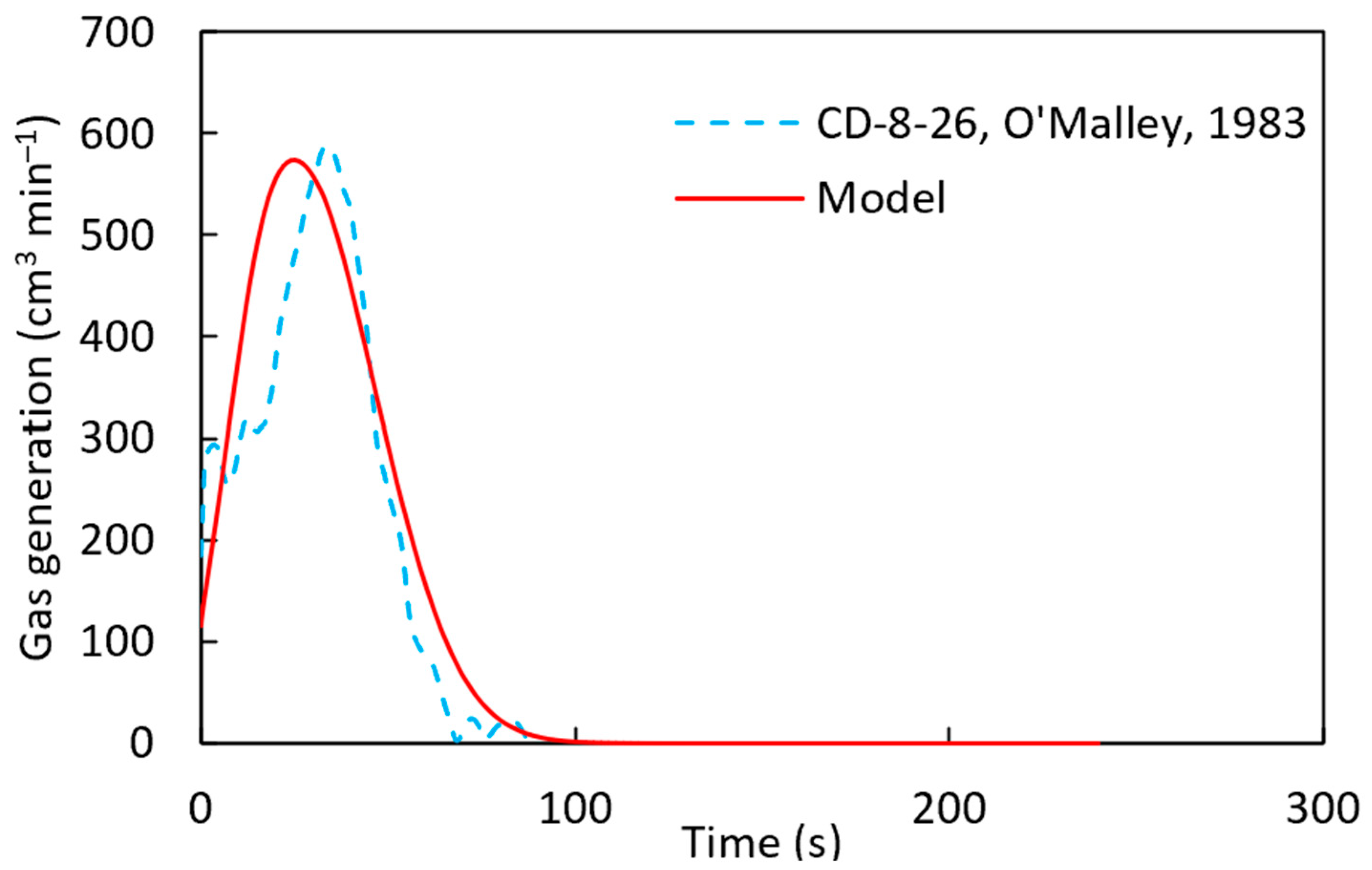

Figure 15. Gas generation for sample CD-8-26 [22] of the DRI pellet with a pre-exponential factor of 90 s−1 and the activation energy of 83,680 J mol−1 using a heat transfer coefficient defined by h = 8.6 × 10 3   g 1 / 4 .
Figure 15. Gas generation for sample CD-8-26 [22] of the DRI pellet with a pre-exponential factor of 90 s−1 and the activation energy of 83,680 J mol−1 using a heat transfer coefficient defined by h = 8.6 × 10 3   g 1 / 4 .
Materials 18 04749 g015

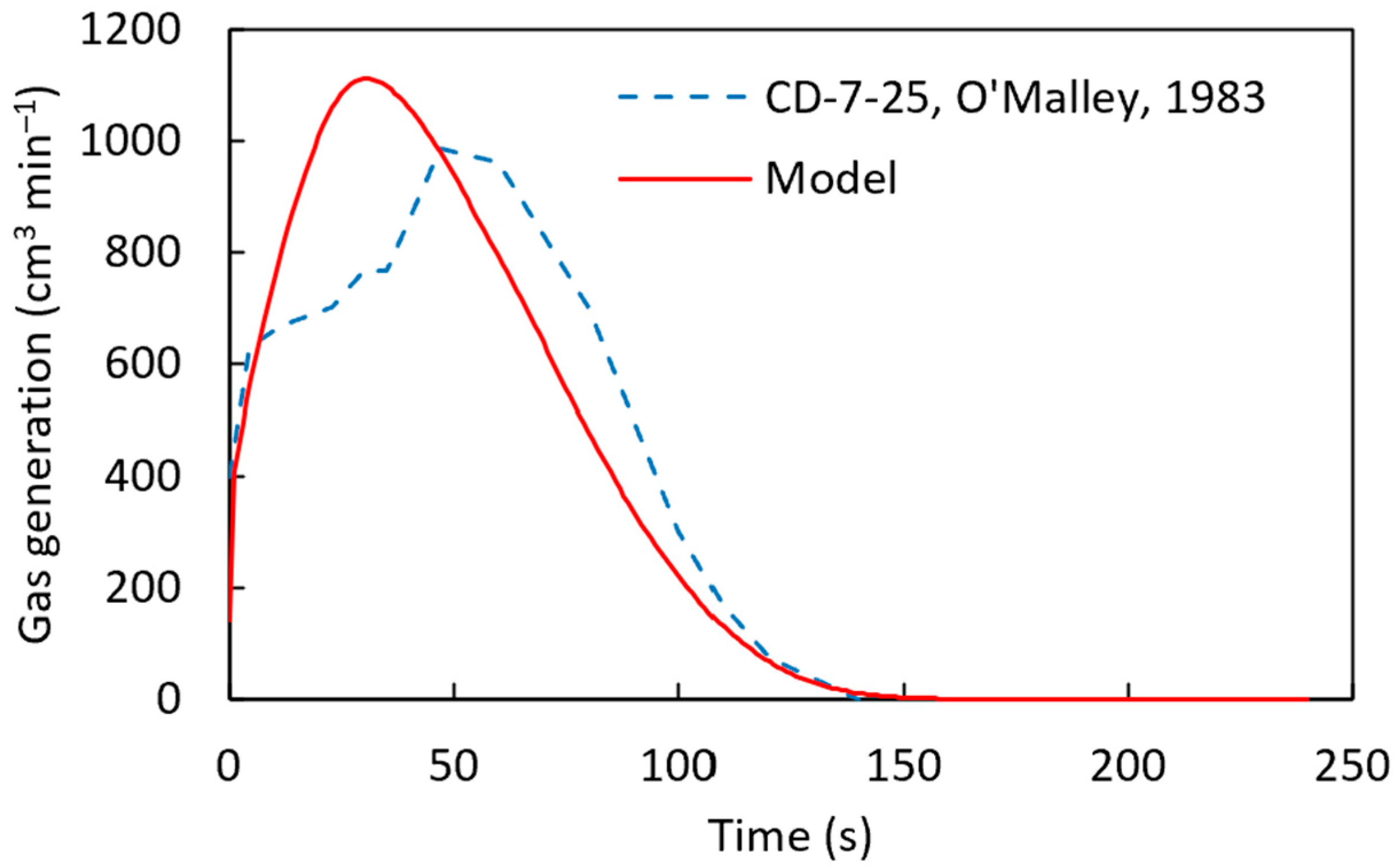

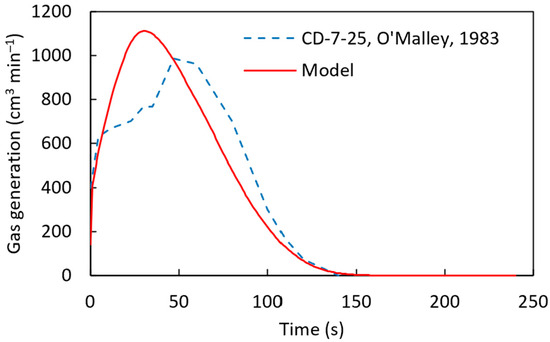

Figure 16. Gas generation for the CD-7-25 [22] sample with a pre-exponential factor of 90 s−1, an activation energy of 83,680 J mol−1 using a heat transfer coefficient defined by h = 8.6 × 10 3   g 1 / 4 .
Figure 16. Gas generation for the CD-7-25 [22] sample with a pre-exponential factor of 90 s−1, an activation energy of 83,680 J mol−1 using a heat transfer coefficient defined by h = 8.6 × 10 3   g 1 / 4 .
Materials 18 04749 g016
Table 1. Chemical composition of the DRI samples.
Table 1. Chemical composition of the DRI samples.
Sample (wt. %)CPSiO2CaOAl2O3MgOFeMetallization (%)
11.30.043.370.900.380.6390.296.6
Table 2. Chemical composition of the steel bath.
Table 2. Chemical composition of the steel bath.
Sample (wt. %)CMnSiFe
Steel bath0.1900.0200.14099.650
Table 3. Experimental design of the immersion time for DRI pellets with different carbon content.
Table 3. Experimental design of the immersion time for DRI pellets with different carbon content.
DRI 1.3 wt. % C
SampleTime (s)
11
22
33
44
57
Table 4. Thermophysical properties of the steel bath.
Table 4. Thermophysical properties of the steel bath.
ParametersSymbolSteel Bath
Bath temperature [K] T 1875 *
Melting temperature [K] T m 1794 [28]
Pellet diameter [m] D 0.0105 *
Latent heat of fusion [kJ kg−1] L f 270 [28]
* Based on experimental measurement.
Table 5. Thermophysical properties of DRI pellets.
Table 5. Thermophysical properties of DRI pellets.
ParametersSymbolDRI 1.3 wt. % C
Initial temperature [K] T 357 *
Melting point [K] T m 1761 [28]
Latent heat of fusion [kJ kg−1] L f 302 [28]
* Based on experimental measurement.
Table 6. Diameter, mass, and chemical composition of DRI pellets.
Table 6. Diameter, mass, and chemical composition of DRI pellets.
Sample [22]Diameter (mm)Mass (g)Chemical Composition (wt. %)
CarbonGangueFeOFe
CD-8-1324.932.01.985.749.3082.98
CD-8-2619.214.8
CD-7-2525.032.02.376.7514.6476.24
Table 7. Thermophysical properties of the DRI pellets.
Table 7. Thermophysical properties of the DRI pellets.
ParametersSamples [22]
CD-8-13CD-8-26CD-7-25Slag
Density [kg m−3]396038802900
Initial temperature [°C]25251400
Melting temperature [°C]150315371316
Thermal conductivity [W m−1 K−1]2.52.51.17 (solid)
1.33 (Liquid)
Latent heat of fusion [kJ kg−1]293247920
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Calderon Hurtado, F.A.; Govro, J.; Emdadi, A.; O’Malley, R.J. Melting Behavior of Direct Reduced Iron Pellets with Different Carbon Content in Molten Steel and Molten Slag. Materials 2025, 18, 4749. https://doi.org/10.3390/ma18204749

AMA Style

Calderon Hurtado FA, Govro J, Emdadi A, O’Malley RJ. Melting Behavior of Direct Reduced Iron Pellets with Different Carbon Content in Molten Steel and Molten Slag. Materials. 2025; 18(20):4749. https://doi.org/10.3390/ma18204749

Chicago/Turabian Style

Calderon Hurtado, Fabian Andres, Joseph Govro, Arezoo Emdadi, and Ronald J. O’Malley. 2025. "Melting Behavior of Direct Reduced Iron Pellets with Different Carbon Content in Molten Steel and Molten Slag" Materials 18, no. 20: 4749. https://doi.org/10.3390/ma18204749

APA Style

Calderon Hurtado, F. A., Govro, J., Emdadi, A., & O’Malley, R. J. (2025). Melting Behavior of Direct Reduced Iron Pellets with Different Carbon Content in Molten Steel and Molten Slag. Materials, 18(20), 4749. https://doi.org/10.3390/ma18204749

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
