The Impact of Selected ESD Parameters on the Properties of Tungsten Layers

by
Piotr Młynarczyk
*,
Damian Bańkowski
and
Wojciech Depczyński
Department of Materials Science and Materials Technology, Faculty of Machatronics and Mechanical Engineering, Kielce University of Technology, al. 1000-lecia P.P. 7, 25-314 Kielce, Poland
*
Author to whom correspondence should be addressed.
Materials 2025, 18(19), 4581; https://doi.org/10.3390/ma18194581
Submission received: 23 August 2025 / Revised: 23 September 2025 / Accepted: 29 September 2025 / Published: 2 October 2025
(This article belongs to the Section Manufacturing Processes and Systems)

Abstract

This article presents studies of surface layers produced by electro-spark deposition (ESD) on cast iron using a W-Ni-Co sintered electrode. To minimize the number of required experiments, a two-factor, five-level Hartley experimental design was chosen. The assessment involved observing the effect of voltage and capacitor capacity during the ESD process (on layer thickness and wear of the sample and counter-sample under technically dry friction conditions). Microscopic and tomographic observations were performed to analyze the thickness and structure of the layers. Image analysis methods were employed to examine the cross-section of the layers. ESD diffusion analyses were performed on the produced layer. Scanning electron microscopy (SEM) and energy dispersive X-ray spectroscopy (EDX) were performed to characterize the microstructure and composition of the coating. In addition, in order to evaluate the performance properties of tungsten coatings, the tribological tests were also conducted on a TRB3 Ball-on-Disc testing device. Hardness tests confirm an increase in the hardness of cast iron with a tungsten layer by over 400 µHV. The tests showed that higher voltages during the ESD process result in thicker layers and reduced wear of the sample with a tungsten layer at the expense of increased wear of the counter-sample (ball).

1. Introduction

Electric discharge deposition is a pulsed-arc microwelding process that uses short-duration, high-current electrical pulses to weld consumable electrode material to a metallic substrate. The schematic of surface layer forming by electro-spark deposition method is presented in Figure 1. It is distinguished from other arc welding processes by the fact that the spark duration is limited to a few microseconds and the spark frequency is 1000 Hz or less. ESD offers particular advantages when coating or repairing materials considered difficult to weld due to heat-affected zone (HAZ) issues. Furthermore, many materials can be processed without undergoing heat treatment before or after ESD.
The electro-spark deposition process utilizes microsecond electrical pulses to induce local melting and rapid solidification, enabling the incremental transfer of electrode material onto the substrate surface [1,2]. Spark erosion has many applications in the restoration and coating of electrically conductive materials. Due to the very low heat input, it is ideal for use in regenerating and coating metals susceptible to the influence of the heat-affected zone (HAZ), such as H13 casting moulds [3]. Spark erosion is a surface treatment technology in which a pulsating micro-arc generated between the electrode and the substrate ionizes the air, creating a high temperature in a small area where alloying occurs. This creates a small heat-affected zone, as well as a composite coating with a high melting point generated by a temporary increase in temperature of several thousand degrees [4,5]. Spark erosion coatings are considered wear- and corrosion-resistant and can be used for elements of ship propellers, casting moulds, fuel supply system components, exhaust system components, gas turbine components, and cannon cradles. For example, critical areas of casting matrix surfaces may be damaged by melting and thermal fatigue [6,7]. In these cases, applying protective or restorative coatings can increase the service life of foundry moulds. Another promising area of application for spark erosion deposition (ESD) is the treatment of titanium alloy surfaces for biomedical applications. These coatings should meet the following requirements: strong bond strength, good wear resistance, excellent anti-corrosion properties, bio-compatibility and high biological activity. However, most of the current technical methods published in the literature cannot perfectly meet these requirements. For example, the synthesis of bioactive ceramic coatings using procedures such as plasma spraying [8], physical vapour deposition [9] and electrodeposition [10], as well as anodic oxidation [11], often results in poor bond strength. Some surface strengthening technologies, such as high-temperature nitriding [12] and sintering of active ceramics [13], can damage the properties of the substrate. Another area of application for this technique is biomedical engineering.
Titanium alloys are currently the most attractive metallic materials for replacing hard tissues in biomedical applications due to their excellent mechanical, biological, and anti-corrosion properties [14]. However, their poor wear and corrosion resistance [15], adverse biological reactions [16,17,18], and other disadvantages limit their safe and reliable wide-scale application in clinical practice. The search for surface modification techniques, such as physical, chemical, and biological treatments, to improve wear resistance and increase biological activity, remains of great interest to scientists [19,20,21].
Widespread access to verified research results on ESD is leading to this technique being used for less demanding materials too. In [22], the ESD technique was used to coat grey iron (GI) with nickel (Ni), AISI 304 stainless steel (304 SS), and Inconel 718 superalloy. The microstructures of the coated ductile iron were examined in terms of microhardness, film thickness, and corrosion resistance. According to a review of the literature, no coating investigations employing the ESD technique on cast iron have been conducted. Previous research on ESD coatings has focused on improving the hardness and wear resistance of metallic materials [23].
As electro-spark coatings are resistant to wear and corrosion, they can be used for components such as the following:
  • Ship propeller components [24];
  • Casting moulds [25];
  • Fuel supply system components;
  • Exhaust system components;
  • Gas turbine component [26];
  • Cannon cradle [27].

2. Materials and Methods

2.1. Planned Experiment

Due to the limited number of experiments that could be carried out, a two-factor five-level Hartley experimental plan was selected.
Statistica 10 64-bit software was used to conduct the planned experiment. A five-level plan was chosen in order to examine the influence of independent variables on the output factors to a greater extent than a three-level plan [28]. The process variability ranges were selected for the following:
-
Voltage—U, took the values 300, 400, 500, 600, 700 V, which correspond to the code values: −2; −1; 0; 1; 2;
-
Capacitor capacity—f, took the values 25, 50, 75, 133 µF, which correspond to the code values: −2, −1, 0, 2 [29].
For standard plans, the core of the plan usually has a resolution of V (or higher). However, this is not necessary, and in cases where the experiments are expensive or where it is not necessary to perform a statistically robust model adequacy test, a plan with a resolution of III can be selected as the core [30]. For this reason, the Small Composition Plans method was chosen as an effective method that minimizes the number of systems tested.
If it is necessary to consider a large number of variables in order to identify those that may be important (i.e., affect the output), an experimental design can be used that allows the largest number of main effects of the input variables to be investigated with the smallest possible number of plan layouts. This involves constructing a design of experiments with a resolution of III with as few layouts as possible. One possible way to construct such a plan is to combine all interactions with ‘new’ main effects. These plans are often called saturated plans, as all information provided by such a plan is used to determine the parameters, and thus no degrees of freedom remain for estimating inaccuracies in the ANOVA analysis [30].
Hartley’s test (also known as the Fmax test or Hartley’s Fmax) is a statistical test used to test the homogeneity of variance [31]. The test is performed before ANOVA to check whether the assumption of equality of variance between two or more groups being compared is met (assuming that the samples analyzed come from a normally distributed population) [32]. The test was developed by German-American statistician Herman Otto Hartley. Table 1 presents the results of the mass loss of the sample and counter-sample after tribology test experiments, and the thickness of the obtained layers depending on the ESD process parameters.
The results of friction pair wear without a coating were as follows: the loss of sample mass after tribological testing was Δmw = 0.0075 g, and the loss of reference sample mass after tribological testing was Δmb = 0.0003 g.

2.2. Materials and Electro-Spark Deposition

The material used in the study was a cast iron. X-ray fluorescence spectrometry (XRF): the GNR Optima TX 200 (GNR, Milan, Italy) was used to analyze the chemical composition of cast iron components. Table 2 provides information on the chemical composition of the cast iron used in the research experiments, and Figure 2 shows an SEM micrograph.
The chemical composition and morphology of the sample allow the material to be identified as grey cast iron on a ferritic matrix, whose metallic matrix consists mainly of ferrite. Test samples were taken from the worn bucket feeder. Rectangular samples measuring 10 × 15 mm, were prepared for metallography investigations, and round samples with a diameter of 40 mm for tribological tests. Next, the layers were applied using the ESD method. All ESD coatings were applied at a frequency of 50 Hz, with a voltage ranging from 300 to 700 V and a capacitance ranging from 25 to 133 μF. The ESD coatings were applied until the surface was uniformly coated, as judged by the operator. The coating is formed using a vibrating electrode attached to an applicator during the ESD process. The ESD coating consists of sparks produced when lightly touched by cast iron. Figure 3 shows the chemical analysis of the electrode used as the coating material.
The chemical analysis results show the chemical composition of the tungsten sinter used as an electrode for applying the wear-resistant layer. The micrograph accompanying the element distribution chart shows tungsten grains in a matrix of nickel, iron, and cobalt. The results are shown in raw (non-normalized) form, so the sum of the masses of the elements deviates from 100%, which is a classic problem in interpreting EDS results. In the case of non-normalized data, “raw” values are given, without forcing the sum to be 100%.

2.3. A Metallographic Study

A metallographic inspection is being carried out on the substrate and the deposition material. Metallographic inspection sections have been cut from cross-sections of samples, with the material undergoing testing embedded in Technovit 5000 (Kulzer GmbH, Hanau, Germany) conductive resin. Subsequent grinding was carried out on a Presi Minitech 263 (Presi, Eybens, France) machine, and the material was then polished. The following SIC papers were used in the study: 230, 400, 600, 1200, and 2500. The final stage of the process involved polishing on a Struers LaboPol-5 (Struers, Copenhagen, Denmark) using 1 µm polycrystalline diamond suspension and SUPRA cloth (Microdiamant, Kempen, Germany). In the present study, the microstructures of the polished surfaces were exposed by means of 2% Nital complete etching. The OEM microscope, the Nikon Eclipse MA 200 (Nikon, Minato-ku, Japan), was utilized with the NIS 4.20-Elements Viewer imaging software version XT 6.8, while the SEM JEOL 7100F microscope (JEOL, Tokyo, Japan) was employed with an EDS (Oxford Instruments, Bucks, UK) probe. These instruments were used to study the microstructures and to acquire a microphotograph in BSE mode. The same optical microscope was employed for the measurement of layer thickness using an optical instrument micrometre. The SEM observations of the obtained layer are presented in Figure 4.
The layer thickness was determined through the calculation of the mean of at least ten readings, obtained through duplicate measurements taken from five distinct locations on the metallographic sample surface. These readings were acquired using an OEM Nikon Eclipse MA 200 microscope. As illustrated in Figure 5, the thickness of the layers obtained using the ESD technique with different parameters is demonstrated.

2.4. Hardness Properties

To measure the hardness of the coatings an Innovatest NEXUS 4000 (Innovatest, Maastricht, The Netherlands) Vickers hardness tester, weighing 100 g, was used. The hardness measurement results for all coated samples were very similar. Figure 6 shows a typical hardness distribution across the applied layer using the EDS technique.

2.5. Tribology Tests

Tribological tests were conducted on a TRB3 Tribometer (Anton Paar, Baden, Switzerland) using a ball-on-disc configuration. The tribometer has a friction force resolution of 0.06 mN [33,34]. This machine allowed for determining the wear resistance and the coefficient of friction of a pair of materials sliding relative to each other at the sliding speed and the applied load. The tests were performed under the following conditions:
  • Load (P) = 10 N;
  • Sliding velocity (V) = 0.1 m/s;
  • Sliding distance (S) = 1000 m;
  • Friction node: a ball of 100Cr6 steel;
  • Lubricant-no;
  • Radius: 12 mm.
After the tribological tests, the surface geometry of the discs and balls was examined using a Leica DCM8 confocal microscope (Leica, Geneva, Switzerland) in interferometric mode. The microscope has an accuracy of <3% relative error (open loop) and <20 nm error (closed loop) at 20× magnification [33,35]. Figure 7 presents the isometric images and primary steel disc and ball profiles after wear tests.

2.6. Tomography Examination

The tomographic examinations were carried out on the NIKON M2 LES System device using computed tomography. The experiment used a microfocus source with a rotating tungsten anode. The rotating target had a maximum the accelerating voltage is set at 225 kV. The VAREX XRD 1611 XP detector (Varex Industrial, Salt Lake City, UT, USA)with a pixel size of 0.1 mm and a resolution of 4048 × 4048 pixels was used for archiving. The Inspect-X Version V6.8 (Nikon Metrology, Brighton, MI, USA) programme was used to process and transform 2D radiographic images into 3D tomographic reconstructions. Cross-section visualization and thickness measurements of the tungsten layer were performed in the VG STUDIO MAX version 2022.4 programme from Volume Graphics software (VG STUDIO MAX version 2022.4) [36].
The technique of testing using ionizing radiation involves archiving X-rays generated by an X-ray tube after passing through the tested object on the surface of a digital detector [36]. X-ray computed tomography creates images by detecting changes in the density of the material. This can reveal things like pores in castings or fragments of other elements inside the tested material [37]. Factors such as the material’s density and the decrease in radiation intensity can be used to predict the decrease in radiation reaching the detector [38].
Figure 8 displays a digitally “cut” fragment of the applied layer; a change in brightness corresponds to a change in the density of the material. Each layer that was received was tested and measured.

3. Discussion and Results

Based on the data obtained from the experimental tests, mathematical models of mass losses of the sample and counter-sample during the tests and the thickness of the formed layer were generated using Statistica software. Mathematical relations between the values of ESD process parameters and the values of layer thickness and component wear in friction nodes were possible thanks to the use of Response Surface Methodology (RSM) using an experimental design. The results were evaluated using analysis of variance (ANOVA). The ANOVA results for the adopted significance level α = 0.07 are presented in Table 3, Table 4, Table 5 and Table 6.
Multiple regression with backward elimination (for the adopted significance level α = 0.07) was used to describe the response function in the form of a second-degree polynomial. The homogeneity of variance was checked for a significance level of α = 0.07. Conclusions were drawn about the significance or insignificance of the influence of a specific term of the regression equation. Terms that were insignificant from the point of view of statistical inference were rejected, and only significant terms were taken into account [39,40,41,42].
The determined equations for the thickness of the layer and mass losses of the sample and counter-sample during tribological testing, as well as the correlation coefficients, determination coefficients, and corrected determination coefficients, are presented in Table 6.
The obtained mass change equations are characterized by a high degree of correlation, R, for mass losses and a high degree of correlation for layer thickness.
An analysis of the influence of individual input factors of the tungsten coating process on the variance of the Δmw, Δmb and t models indicates that the stress during the formation of layers using the ESD method has an impact on mass losses and layer thickness. The remaining terms and their mutual interactions (for the adopted significance level α = 0.07) are insignificant.
Based on the literature [43], the layer thickness obtained using ESD methods depends on the voltage and capacitance of the capacitors, relationship (1)
E p = 1 2 C U
where
C—capacitor capacity,
U—charging voltage.
The equations obtained in Table 6 show that the thickness of layers obtained by ESD methods and their operational properties (i.e., wear of the sample with coating I and the counter-sample) depend, for the assumed significance level α = 0.07, only on the voltage applied during coating application. It should be emphasized that the developed model applies only to coatings made of sintered tungsten on a grey cast iron substrate obtained using the available equipment. Further research will focus on analyzing the properties of coatings obtained from other metals. The authors pave the way for other scientists to conduct research on coatings obtained by ESD methods on other equipment.
The correctness of the developed models was verified by residual analysis. Checking the graphs of the expected value versus the residuals, Figure 9a, Figure 10a and Figure 11a show a linear relationship, which indicates a good model of the function of the processing time and processing frequency. The dependence of the residuals on the predicted values shown in Figure 9b, Figure 10b and Figure 11b indicates the random nature of the residuals. Furthermore, based on Figure 9c, Figure 10c and Figure 11c, it can be concluded that the dependence of residues on the order of tests performed is random. The analyses confirm the adequacy of the developed regression models.
In order to graphically illustrate the dependence of input factors on individual quality indicators (layer thickness) and performance indicators (mass loss of the sample and counter-sample—balls) of the ESD coating process, surface fits were used in the Statistica programme. This allowed us to prepare graphs showing the dependence of individual process indicators on capacitor capacity and voltage in Figure 12, Figure 13 and Figure 14.
In order to assess the effect of tungsten coating on friction conditions, a technically dry sample without coating was also tested. The sample without coating showed a weight loss of 7.5 mg. Based on the graph, it can be concluded that higher voltages result in lower weight losses of the sample during tribological testing. The greatest weight loss of 2.3 mg was observed for a voltage of 400 V and a capacitor capacity of 25 µF. The smallest sample mass loss of 0.9 mg was recorded for a capacitance of 700 V and a voltage of 75 µF. Based on experimental tests, an eightfold reduction in sample mass loss was obtained with a tungsten coating—0.9 mg—compared to analogous tribological tests of a sample without a coating—7.5 mg.
Based on the measurements and the graph of the mass loss of the counter-sample balls during tribological testing as a function of capacitor capacitance and voltage during the ESD tungsten coating process, it can be seen that the untreated sample is characterized by a ball mass loss of 0.3 mg. With a coating obtained at a capacitor capacitance of 25 µF and a voltage of 600 V, the ball weight loss increased 12-fold to 3.8 mg. The graph shows that the use of higher voltages increases the wear of the samples. The capacitance of the capacitors does not affect the ball weight loss at the assumed level of significance.
Based on the graph, the thickness of the layer as a function of voltage and capacitor capacitance during the production of tungsten coatings shows that the layer thickness increases with increasing ESD process voltage. The use of high voltages results in the formation of tungsten layers with greater thicknesses exceeding 200 µm. Experimental studies have shown that for a voltage of 700 V and a capacitor capacitance of 75 µF, a tungsten layer with an average thickness of 298 µm can be obtained. The smallest layer thicknesses of approximately 97 µm were obtained for a voltage of 400 V and a capacitor capacity of 25 µF. Based on the graph and the developed mathematical model, the parameters of the ESD coating process can be selected to obtain the desired layer thickness.

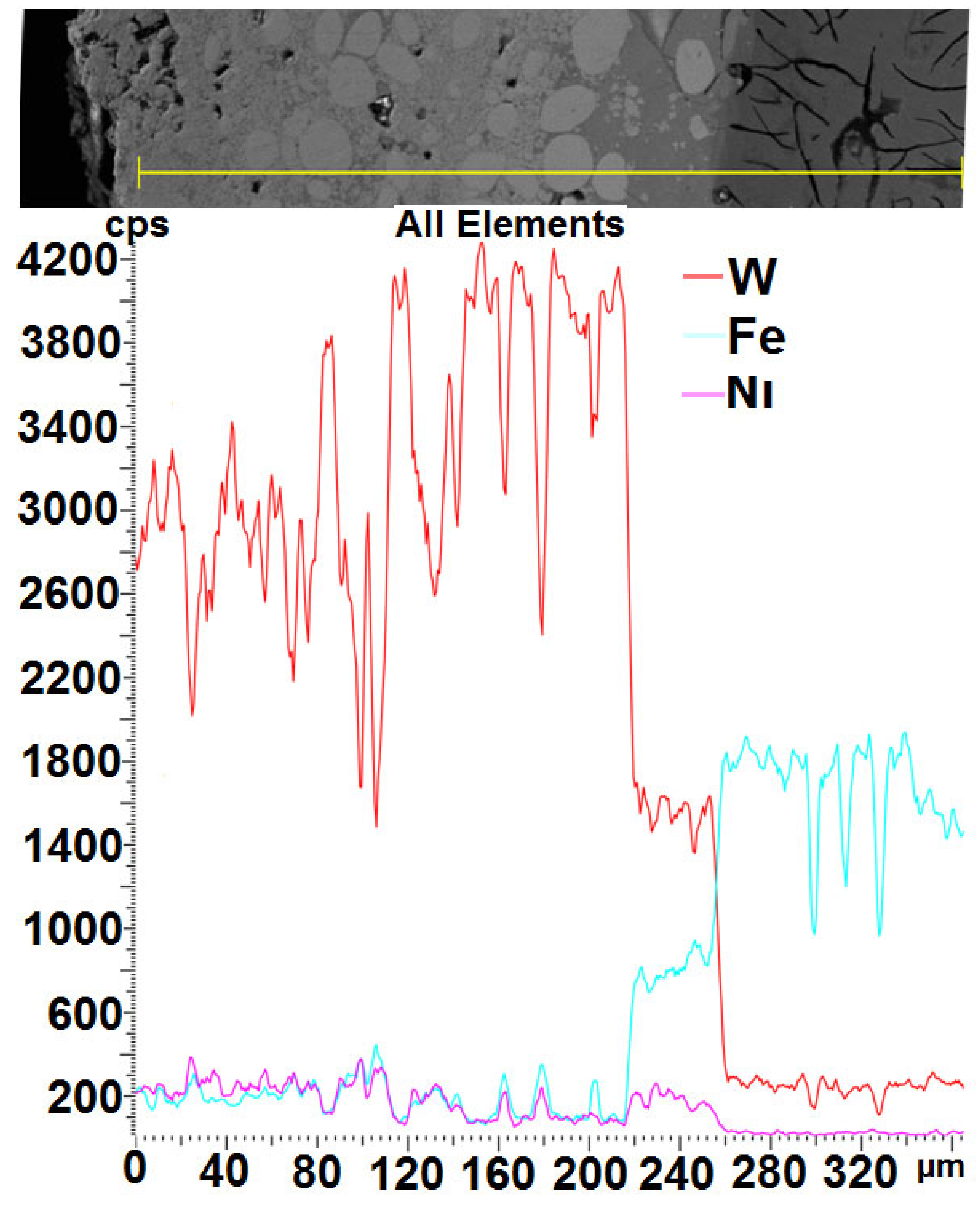

Characteristics of the coating layer: Figure 5 shows the SEM images of the cross-sections of the coating areas created in the ESD process. The ESD method is a type of microwelding process. The difference in the thermal expansion coefficients of the coating material and the base material may result in the top of the coating not being smooth.
W, Ni, and Fe are the main components of the shell. The different layer thicknesses are mainly due to the manual operation mode of the ESD gun used in this study, which has the disadvantage of uneven movement, speed, and pressure force during deposition, resulting in an uneven deposition process [44,45,46,47]. The abundance of Fe and W in the coating increased the hardness and thickness of the coating. Figure 8 shows that Fe, Ni, and W are included. The EDS shows a cross-sectional analysis of the crust. The EDS analysis of the crust is shown in Figure 15. A transient diffusion layer can be observed. W-Ni-Co in the coatings increases the microhardness of the samples. When W material is used together with elements such as Ni and Co, it can be easier to adhere to the substrate sample. Here, Ni and Co elements are used as binding materials. The use of bonding elements makes it difficult for cracks to form and spread within the coating and increases the hardness values of the coatings [48,49,50]. Such a linear distribution of elements allows you to hope for good adhesion of the layer. Diffusion does not occur at all points of the cross-section with the same intensity, which is caused by the pulsating nature of the layer formation process. The coating and the substrate do not completely mix due to the obvious difference in density, but there is some mixing in the bonding zone, as shown in Figure 15. The thickness of the coating was calculated to be 250 μm. In addition, due to the high solubility of nickel and the Fe-based substrate, many authors observed mixing of the coating and substrate during ESD treatment. Revealing the diffusion depth of individual areas of the observed layer is possible thanks to the use of X-ray microtomography.
The Vickers indentations show how the hardness of the layer changes in the zone of diffusion and combination of elements (Figure 6). The indications stabilize with the distance from the base material, showing only the hardness of the material applied with the ESD technique. These hardnesses do not differ from the hardness of the electrode material used for layering. These values vary from about 170–180 µHV for the base material, through the range of 510–530 µHV in the mixing and diffusion zone, to stabilize at slightly above 580–590 µHV in the ESD layer zone.
After the tribological tests, surface geometry was examined. Obtained layers provided the least wear, without a trace or with minimal wear tracks on the disc (Figure 7b), while the sample without the applied layer showed significant wear (Figure 7a). The opposite situation could be observed in the case of the ball, where the ball working with the material without the layer recorded lower wear than the ball working with the obtained layer.
Tomographic examinations confirmed the thickness of the layers obtained using the ESD method, which were measured using an optical microscope. Thanks to tomographic examinations, it is possible to successfully measure the obtained layers, especially when the substrate material and the deposited layer have such different densities. This does not require time-consuming cutting, embedding, polishing, and etching to observe the layer. The accuracy achieved with tomography using a standard reaches up to 6 µm.
In the present study, the electro-spark deposition (ESD) process was carried out manually. Hand-guided electrode manipulation inevitably introduces variations in the electrode travel speed across the substrate surface. Unlike automated systems, where electrode motion is stabilized and controlled, manual deposition depends strongly on the operator’s movement. This variability has several implications. First, “non-uniform coating thickness” is observed: slower electrode movement increases the local interaction time and energy input “microstructural inhomogeneity” may occur due to different degrees of substrate remelting and particle bonding, which in turn affects local hardness and tribological behaviour. Third, “irregular surface topography” may form in areas where excessive material accumulation occurs, resulting in micro-buildups and higher surface roughness. Finally, “process repeatability is limited”; manual ESD inherently produces greater variance in coating characteristics compared to automated deposition systems.
Consequently, manual ESD complicates the interpretation of experimental results. The fluctuating electrode speed obscures the isolated effect of technological parameters such as discharge current, pulse duration, and frequency on coating properties. Therefore, results obtained by the Authors, under manual conditions, are regarded as exploratory and representative of a laboratory-scale process.

4. Conclusions

The applied technique allows for the implementation of a coherent anti-wear layer on the selected substrate.
The material of the W-Ni electrode used allows for the production of a coherent and adhesive surface layer.
A diffusion bond between the layer and the substrate was observed.
The wide range of technical parameters obtained by the ESD device allows the use of a wide range of coating materials.
Initial tribological tests confirmed the assumptions about good anti-wear parameters of the obtained layers.
The application of tungsten coatings (using ESD technology) reduces wear on components in friction nodes. Experimental tests have shown an eightfold reduction in mass loss of samples with tungsten coatings compared to similar tribological tests on uncoated samples.
Experimental studies prove that an increase in voltage during the deposition of ESD tungsten coatings contributes to increased wear of counter-samples in friction joints. The use of appropriate ESD process parameters allows for changes in wear in friction joints and even allows for control of the degree of wear of individual friction joint components.
The developed mathematical model allows the selection of ESD coating process parameters to obtain the desired tungsten layer thickness. By using higher voltages, it is possible to obtain thicker tungsten layers, even up to 300 µm at a voltage of 700 V.
Manual execution of the ESD process introduces uncontrolled variability in electrode movement, which directly affects coating thickness, microstructure, and surface morphology. At the same time, manual deposition offers certain advantages, especially in exploratory and laboratory-scale studies. It allows for greater flexibility and adaptability, enabling the operator to adjust electrode positioning and contact pressure in real time, for example, when coating complex geometries or repairing localized defects. Moreover, manual ESD provides a cost-effective and rapid testing approach, useful for initial trials and proof-of-concept investigations without the need for expensive automation equipment. These features make manual ESD valuable for research and prototyping, despite its inherent variability.
In our opinion, considering the results, the best results were obtained for experiment No. 6 with input parameters of 75 µF and 700 V, which produced the thickest layer of approximately 300 µm and achieved the best abrasion resistance (wear).

Author Contributions

Conceptualization, P.M.; methodology, W.D.; software, D.B. and P.M.; formal analysis, D.B.; investigation, P.M.; data curation, P.M.; writing—original draft preparation, P.M., D.B. and W.D.; writing—review and editing, P.M. and W.D.; visualization, P.M. and D.B.; supervision, W.D. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

The original contributions presented in this study are included in the article. Further inquiries can be directed to the corresponding author.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Gould, J. Application of electro-spark deposition as a joining technology. J. Weld. 2011, 90, 191–197. [Google Scholar]
  2. Ebrahimnia, M.; Ghaini, F.M.; Shahverdi, H.R. Hot cracking in pulsed laser processing of a nickel based superalloy built up by electrospark deposition. Sci. Technol. Weld. Join. 2014, 19, 25–29. [Google Scholar] [CrossRef]
  3. Ebrahimnia, M.; Ghaini, F.M.; Xie, Y.J.; Shahverdi, H. Microstructural characteristics of the built up layer of a precipitation hard-ened nickel based superalloy by electrospark deposition. Surf. Coat. Technol. 2014, 258, 515–523. [Google Scholar] [CrossRef]
  4. Wang, J.; Zhang, M.; Dai, S.; Zhu, L. Research Progress in Electrospark Deposition Coatings on Titanium Alloy Surfaces: A Short Review. Coatings 2023, 13, 1473. [Google Scholar] [CrossRef]
  5. Ebrahimnia, M.; Malek Ghaini, F.; Xie, Y.J.; Shahverdi, H.R. Developing new microstructure through laser melting of electrospark layer of precipitation hardened nickel based superalloy. Sci. Technol. Weld. Join. 2016, 21, 570–577. [Google Scholar] [CrossRef]
  6. Sütőová, A.; Kočiško, R.; Petroušek, P.; Kotus, M.; Petryshynets, I.; Pylypenko, A. Study of PVD-Coated Inserts’ Lifetime in High-Pressure Die Casting Regarding the Requirements for Surface Quality of Castings. Coatings 2024, 14, 1043. [Google Scholar] [CrossRef]
  7. Tang, S.K. The Process Fundamentals and Parameters of Electro-Spark Deposition. Master’s Thesis, University of Waterloo, Waterloo, ON, Canada, 2009. [Google Scholar]
  8. Zheng, X.; Huang, M.; Ding, C. Bond strength of plasma-sprayed hydroxyapatite/Ti composite coatings. Biomaterials 2000, 21, 841–849. [Google Scholar] [CrossRef]
  9. Terebun, P.; Wójcik, M.; Trzaskowska, M.; Kwiatkowski, M.; Zarzeczny, D.; Kazimierczak, P.; Pawłat, J.; Przekora, A. Surface modifications of biomaterial with different cold plasma reactors to improve cell adhesion. Eng. Biomater. 2022, 25, 2–6. [Google Scholar] [CrossRef]
  10. Buranych, V.V.; Pogrebnjak, A.D.; Pogorielov, M.; Diedkova, K.; Aubakirova, D.; Savitskaya, I.; Kupchishin, A.I.; Kulenova, N. Characterization, mechanical and biomedical properties of titanium oxynitride coating. Ceram. Int. 2023, 49, 28167–28174. [Google Scholar] [CrossRef]
  11. Liu, C.; Bi, Q.; Matthews, A. Tribological and electrochemical performance of PVD TiN coatings on the femoral head of Ti–6Al–4V artificial hip joints. Surf. Coat. Technol. 2003, 163–164, 597–604. [Google Scholar] [CrossRef]
  12. Xiao, X.F.; Liu, R.F.; Zheng, Y.Z. Hydoxyapatite/titanium composite coating prepared by hydrothermal–electrochemical tech-nique. Mater. Lett. 2005, 59, 1660–1664. [Google Scholar] [CrossRef]
  13. Seyed, M.N.; Ali, P.; Mojtaba, A.; Fathollah, M. Development and Characterization of 316 L Stainless Steel Coated by Melt-derived and Sol-gel derived 45S5 Bioglass for orthopedic applications. Ceram. Silikáty 2012, 56, 89–93. [Google Scholar]
  14. Liu, W.; Liu, S.; Wang, L. Surface Modification of Biomedical Titanium Alloy: Micromorphology, Microstructure Evolution and Biomedical Applications. Coatings 2019, 9, 249. [Google Scholar] [CrossRef]
  15. Da Silva, L.L.G.; Ueda, M.; Silva, M.M.; Codaro, E.N. Corrosion behavior of Ti-6Al-4V alloy treated by plasma immersion ion implantation process. Surf. Coat. Technol. 2007, 201, 8136–8139. [Google Scholar] [CrossRef]
  16. Zhu, X.; Chen, J.; Scheideler, L.; Reichl, R.; Geis-Gerstorfer, J. Effects of topography and composition of titanium surface oxides on osteoblast responses. Biomaterials 2004, 25, 4087–4103. [Google Scholar] [CrossRef] [PubMed]
  17. Huan, Z.; Maryam, N.; Sarit, B.B. Microwave assisted apatite coating deposition on Ti6Al4V implants. Mater. Sci. Eng. C 2013, 33, 4435–4443. [Google Scholar] [CrossRef]
  18. Anselme, K.; Bigerelle, M. Topography effects of pure titanium substrates on human osteoblast long-term adhesion. Acta Bio-Mater. 2005, 1, 211–222. [Google Scholar] [CrossRef]
  19. Zhecheva, A.; Malinov, S.; Sha, W. Titanium alloys after surface gas nitriding. Surf. Coat. Technol. 2006, 201, 2467–2474. [Google Scholar] [CrossRef]
  20. Brama, M.; Rhodese, N.; Hunt, J.; Ricci, A.; Teghil, R.; Migliaccio, S.; Della Rocca, C.; Leccisotti, S.; Lioi, A.; Scandurra, M.; et al. Effect of titanium carbide coating on the osseointegration response in vitro and in vivo. Biomaterials 2007, 28, 595–608. [Google Scholar] [CrossRef]
  21. Katić, J.; Krivačić, S.; Petrović, Ž.; Mikić, D.; Marciuš, M. Titanium Implant Alloy Modified by Electrochemically Deposited Functional Bioactive Calcium Phosphate Coatings. Coatings 2023, 13, 640. [Google Scholar] [CrossRef]
  22. Kayali, Y.; Yalçin, M.C.; Buyuksagis, A. Effect of electro spark deposition coatings on surface hardness and corrosion resistance of ductile iron. Can. Metall. Q. 2022, 62, 483–496. [Google Scholar] [CrossRef]
  23. Mlynarczyk, P.; Spadlo, S. The analysis of the effects formation iron—Tungsten carbide layer on aluminum alloy by electrical discharge alloying process. In Proceedings of the 25th Anniversary International Conference on Metallurgy and Materials (METAL), Brno, Czech Republic, 25–27 May 2016; pp. 1109–1114. [Google Scholar]
  24. Radek, N.; Pietraszek, J.; Szczotok, A. Technology and application of electro-spark deposited coatings. In Proceedings of the 26th International Conference on Metallurgy and Materials, Brno, Czech Republic, 24–26 May 2017; pp. 1432–1437. [Google Scholar]
  25. Salmaliyan, M.; Malek Ghaeni, F.; Ebrahimnia, M. Effect of electro spark deposition process parameters on WC-Co coating on H13 steel. Surf. Coat. Technol. 2017, 321, 81–89. [Google Scholar] [CrossRef]
  26. Reynold, J.L.; Holdren, R.L.; Brown, L.E. Electro-Spark Deposition. Adv. Mater. Process 2003, 161, 35–37. [Google Scholar]
  27. Champagne, V.; Pepi, M.; Edwards, B. Electrospark Deposition for the Repair of Army Main Battle Tank Components; Army Research Laboratory: Adelphi, MD, USA, 2006. [Google Scholar]
  28. Shi, H.; Liu, D.; Pan, Y.; Zhao, W.; Zhang, X.; Ma, A.; Liu, B.; Hu, Y.; Wang, W. Effect of Shot Peening and Vibration Finishing on the Fatigue Behavior of TC17 Titanium Alloy at Room and High Temperature. Int. J. Fatigue 2021, 151, 106391. [Google Scholar] [CrossRef]
  29. Bańkowski, D.; Kiljan, A.; Hlaváčová, I.M.; Młynarczyk, P. Influence of Selected Factors of Vibratory Work Hardening Machining on the Properties of CuZn30 Brass. Materials 2024, 17, 5913. [Google Scholar] [CrossRef]
  30. Planowanie Doświadczeń (DOE). Available online: https://www.statsoft.pl/textbook/stathome_stat.html?https%3A%2F%2Fwww.statsoft.pl%2Ftextbook%2Fstexdes.html (accessed on 7 August 2025).
  31. Denkowska, S.; Fijorek, K.; Salamaga, M.; Sokołowski, A. Empiryczna ocena mocy testów dla wielu wariancji. Przegląd Stat. 2009, 56, 26–39. [Google Scholar] [CrossRef]
  32. Magiera, R. Modele I Metody Statystyki Matematycznej; Oficyna Wydawnicza GiS: Warsaw, Poland, 2002. [Google Scholar]
  33. Madej, M.; Kowalczyk, J.; Kowalski, M.; Grabowski, P.; Wernik, J. Tribological Properties of Selected Ionic Liquids in Lubricated Friction Nodes. Materials 2025, 18, 18. [Google Scholar] [CrossRef]
  34. Milewski, K.; Piotrowska, K.; Madej, M. Assessment of the properties of diamond-like carbon coatings (DLC) used in the lime industry. Metalurgija 2024, 63, 81–84. [Google Scholar]
  35. Madej, M.; Radon-Kobus, K.; Milewski, K.; Drabik, S.; Piotrowska, K.; Kowalczyk, J. Tribological properties of diamond-like-carbon coating doped with tungsten. Metalurgija 2024, 63, 85–88. [Google Scholar]
  36. Bańkowski, D.; Nowakowski, Ł.; Skrzyniarz, M.; Błasiak, S.; Kurp, P.; Depczyński, W.P.; Młynarczyk, P.S. Evaluating the impact of the tool and additional fruit cutting on changes of pitted cherries using digital volume correlation with computed tomography. Adv. Sci. Technol. Res. J. 2025, 19, 162–175. [Google Scholar] [CrossRef] [PubMed]
  37. Bay, B.K. Methods and applications of digital volume correlation. J. Strain Anal. Eng. Des. 2008, 43, 745–760. [Google Scholar] [CrossRef]
  38. Depczyński, W.P.; Bańkowski, D.; Młynarczyk, P.S. Computed Tomography and Scanning Electron Microscopy Analysis of a Friction Stir Welded Al-Cu Joint. Arch. Foundry Eng. 2023, 23, 65–71. [Google Scholar] [CrossRef]
  39. Konhol, J. Wprowadzenie do Praktycznego Planowania Eksperymentu; StatSoft Polska: Kraków, Poland, 2008; pp. 43–58. [Google Scholar]
  40. Matuszak, J. Analysis of Geometric Surface Structure and Surface Layer Microhardness of Ti6Al4V Titanium Alloy after Vibratory Shot Peening. Materials 2023, 16, 6983. [Google Scholar] [CrossRef]
  41. Radziejewska, J.; Marczak, M.; Maj, P.; Głowacki, D. The Influence of Vibro-Assisted Abrasive Processing on the Surface Roughness and Sub-Surface Microstructure of Inconel 939 Specimen Made by LPBF. Materials 2023, 16, 7429. [Google Scholar] [CrossRef] [PubMed]
  42. Bańkowski, D.; Młynarczyk, P.; Hlaváčová, I.M. Temperature Measurement during Abrasive Water Jet Machining (AWJM). Materials 2022, 15, 7082. [Google Scholar] [CrossRef] [PubMed]
  43. Barile, C.; Casavola, C.; Pappalettera, G.; Renna, G. Advancements in Electrospark Deposition (ESD) Technique: A Short Review. Coatings 2022, 12, 1536. [Google Scholar] [CrossRef]
  44. Chen, J.C. Influence of Ultrasonic Vibration on the Discharge Mechanism and Surface Quality of Electric Spark Deposition. Master’s Thesis, Henan University of Science and Technology, Luoyang, China, 2020. [Google Scholar]
  45. Wang, S.; Tong, J.Z.; Han, H.B. An automatic control device of contact force for electro-spark deposition and deposition test. Trans. China Weld. Inst. 2021, 42, 42–47. [Google Scholar]
  46. Frangini, S.; Masci, A. A study on the effect of a dynamic contact force control for improving electrospark coating properties. Surf. Coat. Technol. 2010, 204, 2613–2623. [Google Scholar] [CrossRef]
  47. Liu, H.; Huang, L.; Wang, D.; Chen, C.; Cui, A.; Dong, S.; Duan, Z. Preparation Process of WC Wear-Resistant Coating on Titanium Alloys Using Electro-Spark Deposition. Arch. Metall. Mater. 2025, 70, 509–514. [Google Scholar] [CrossRef]
  48. Rukanskis, M. Control of metal surface mechanical and tribological characteristics using cost effective electro- spark deposition. Surf. Eng. Appl. Electrochem. 2019, 55, 607–619. [Google Scholar] [CrossRef]
  49. Kayali, Y.; Talaş, Ş. Investigation on Wear Behavior of Steels Coated with WC by ESD Technique. Prot. Met. Phys. Chem. Surf. 2021, 57, 106–112. [Google Scholar] [CrossRef]
  50. Buğday, M.; Karalı, M.; Talaş, Ş. Wear Performance of GGG60 Ductile Iron Rollers Coated with WC-Co by Electro Spark Deposition. Rev. Met. 2023, 59, e249. [Google Scholar] [CrossRef]

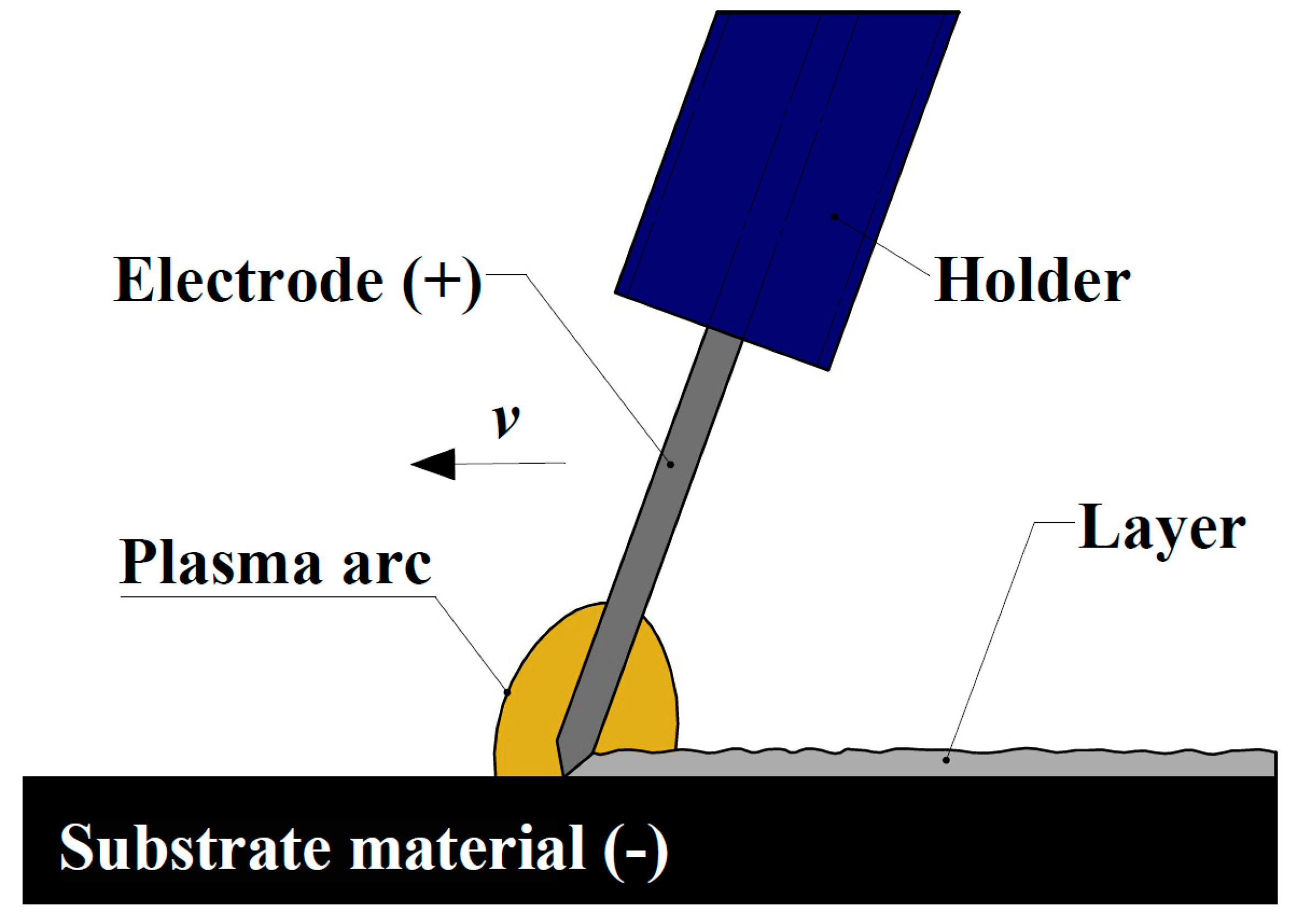

Figure 1. Schematic of surface layer forming by electro-spark deposition method.
Figure 1. Schematic of surface layer forming by electro-spark deposition method.
Materials 18 04581 g001

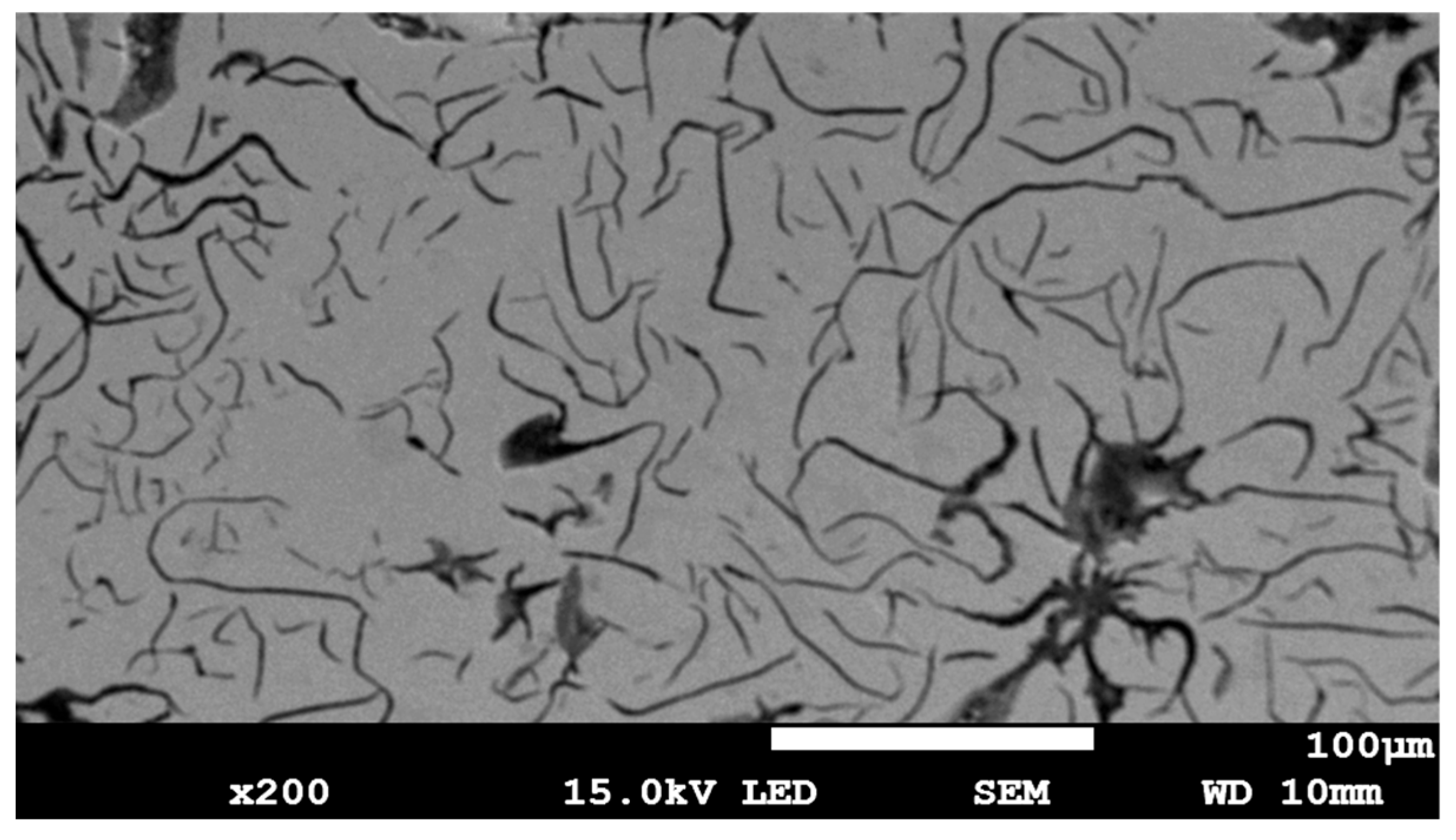

Figure 2. Scanning electron microscope (SEM) micrograph of the cast iron sample used in the experiment.
Figure 2. Scanning electron microscope (SEM) micrograph of the cast iron sample used in the experiment.
Materials 18 04581 g002

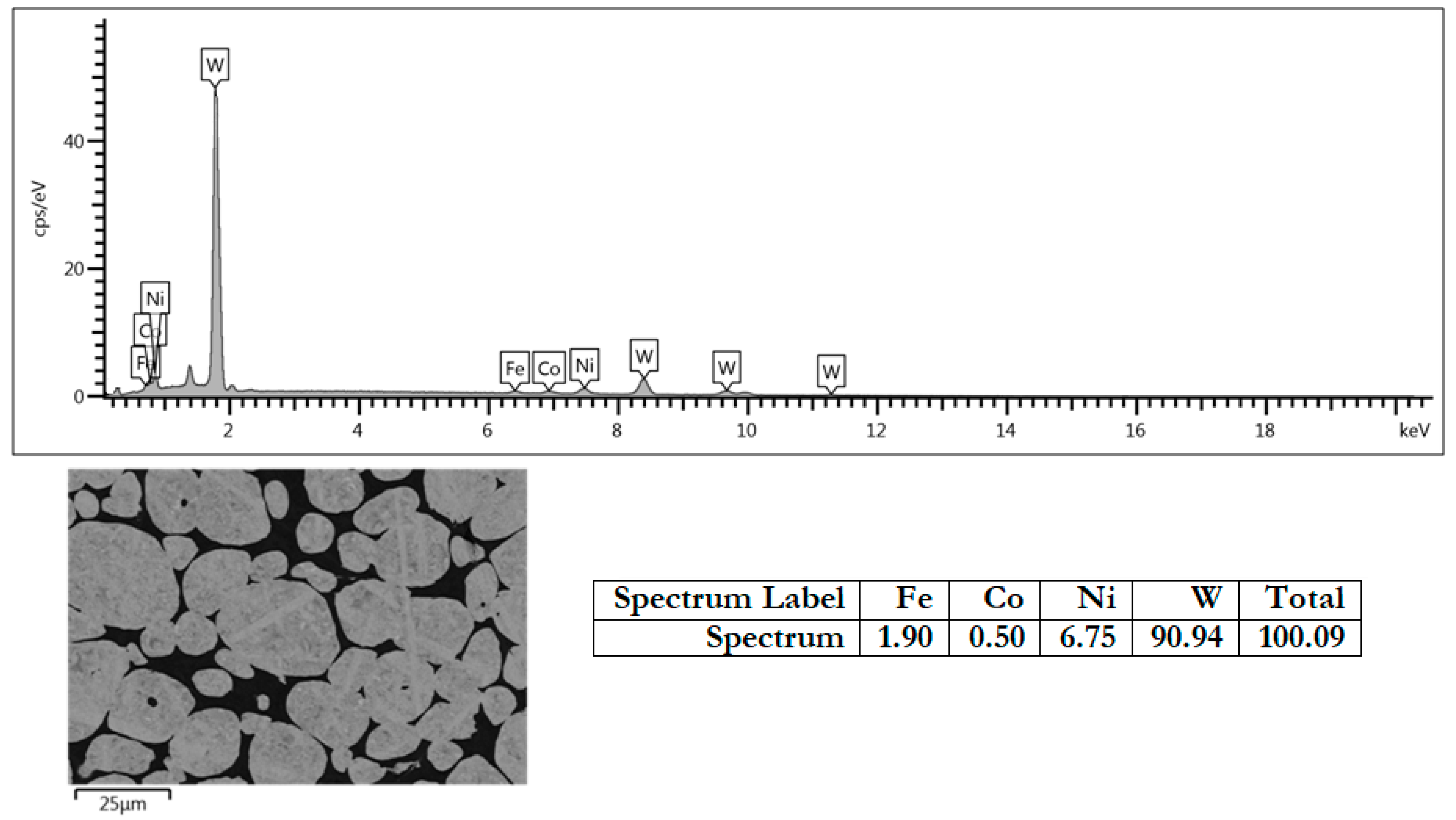

Figure 3. The material of the electrode used to create the layer by the ESD technique. Surface analysis in Weight %.
Figure 3. The material of the electrode used to create the layer by the ESD technique. Surface analysis in Weight %.
Materials 18 04581 g003
Figure 4. SEM micrograph of the produced surface layer 200×, parameters: voltage 700 V, 50 μF.
Figure 4. SEM micrograph of the produced surface layer 200×, parameters: voltage 700 V, 50 μF.
Materials 18 04581 g004

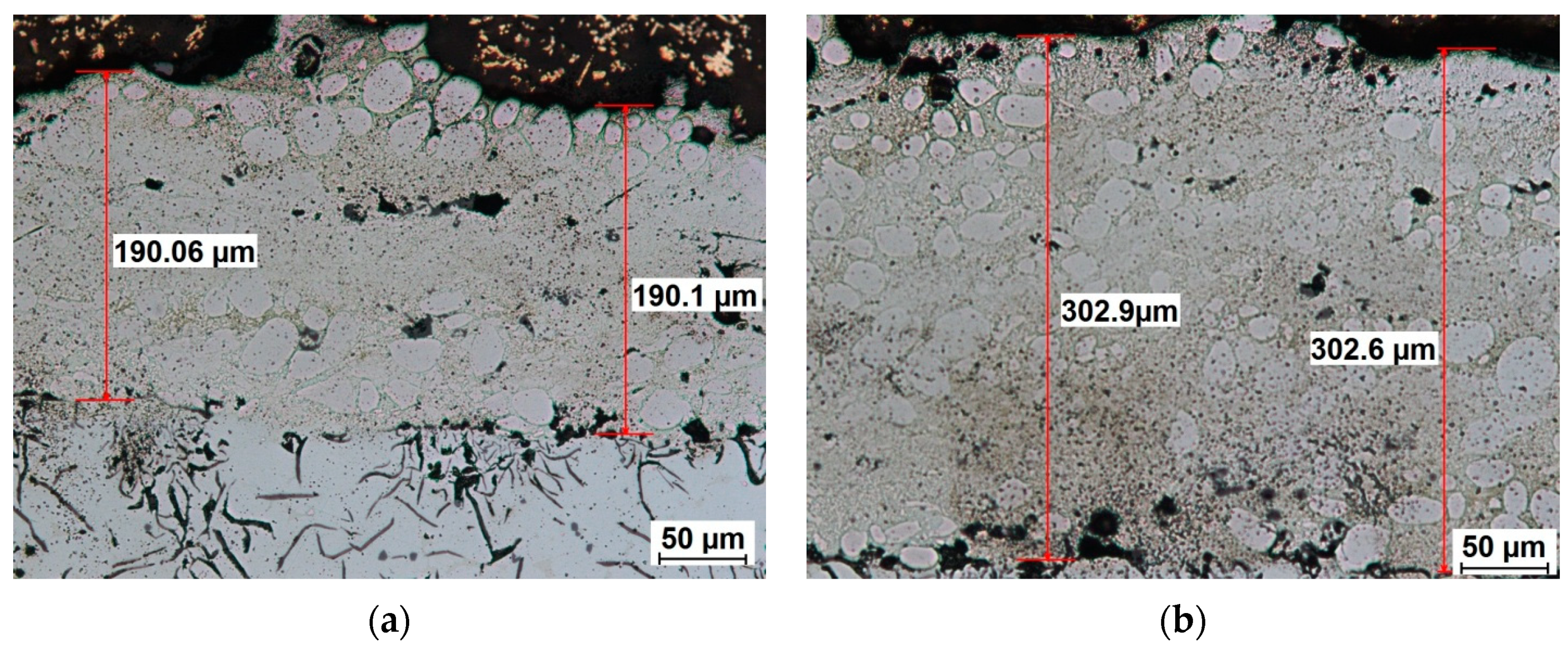

Figure 5. Microphotograph showing thickness of the obtained layer, 200×, parameters: (a) voltage 500 V, 133 μF, and (b) voltage 700 V, 75 μF.
Figure 5. Microphotograph showing thickness of the obtained layer, 200×, parameters: (a) voltage 500 V, 133 μF, and (b) voltage 700 V, 75 μF.
Materials 18 04581 g005

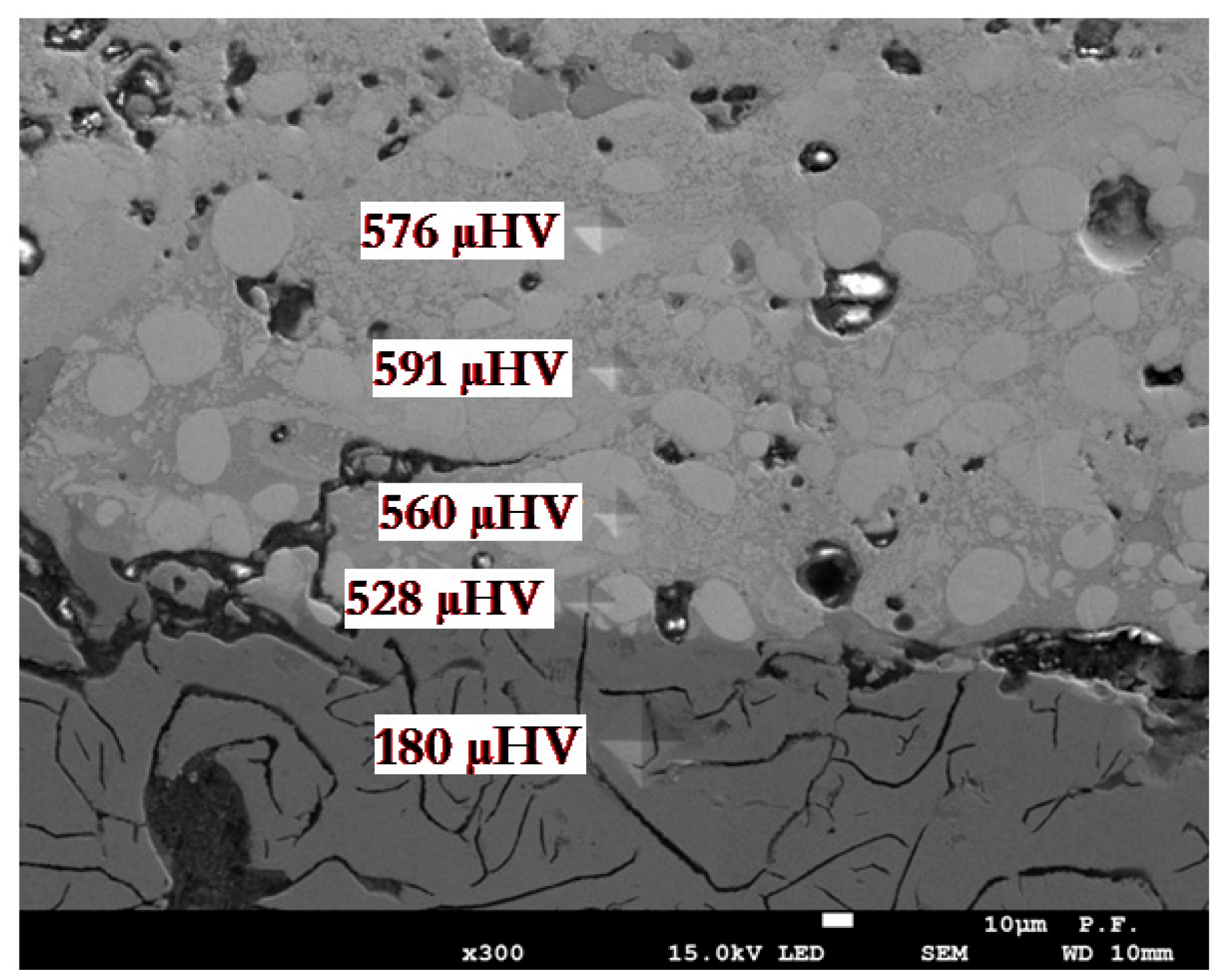

Figure 6. Traces of a Vickers indenter on the cross-section of the layer with marked microhardness values.
Figure 6. Traces of a Vickers indenter on the cross-section of the layer with marked microhardness values.
Materials 18 04581 g006

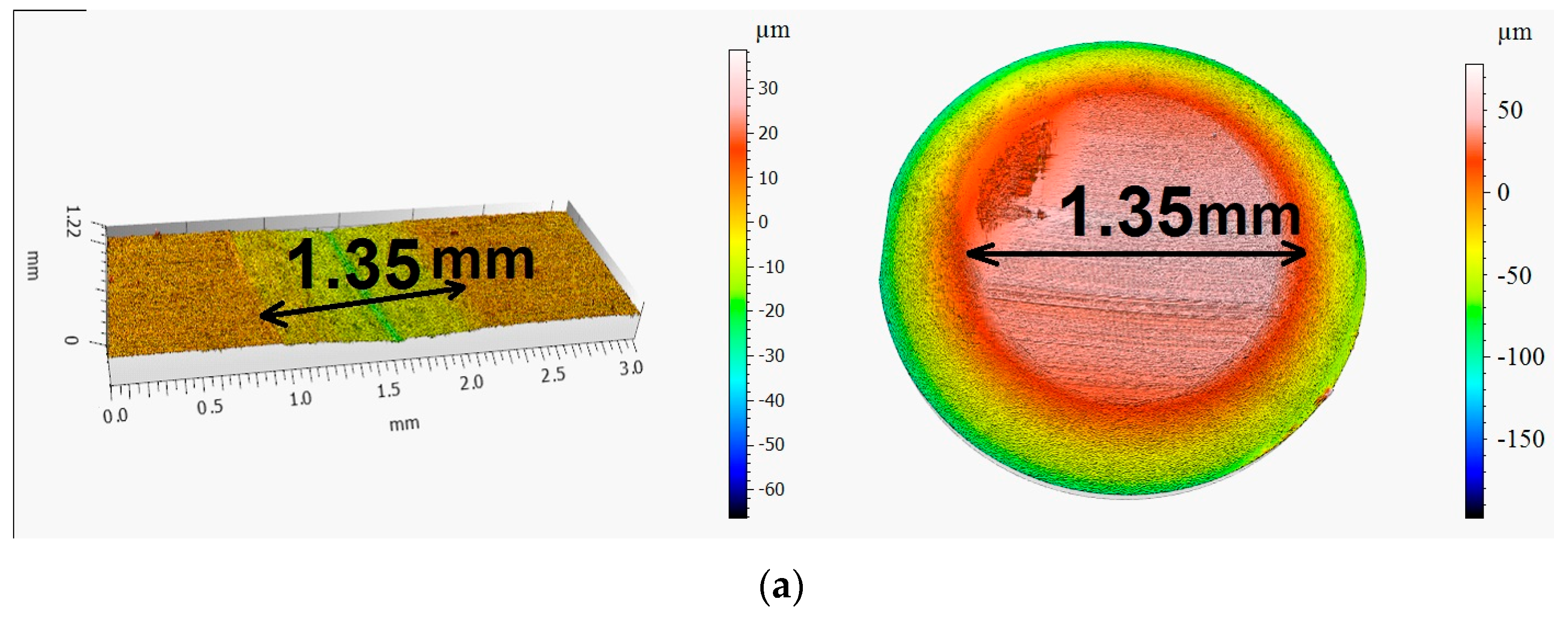

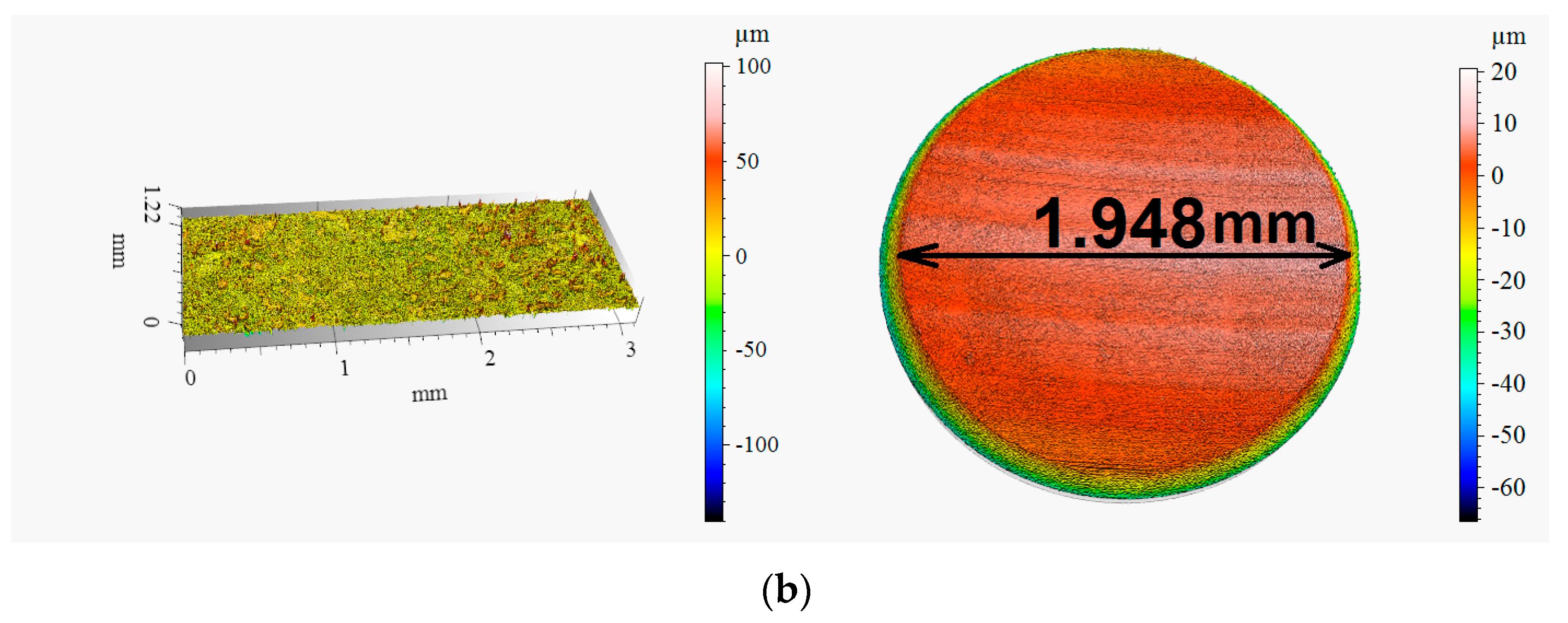

Figure 7. Isometric views of the discs and balls after the tribological tests at an ambient temperature. (a) visible signs of abrasion without the layer, and (b) sample covered with ESD, no signs of abrasion on the sample.
Figure 7. Isometric views of the discs and balls after the tribological tests at an ambient temperature. (a) visible signs of abrasion without the layer, and (b) sample covered with ESD, no signs of abrasion on the sample.
Materials 18 04581 g007aMaterials 18 04581 g007b

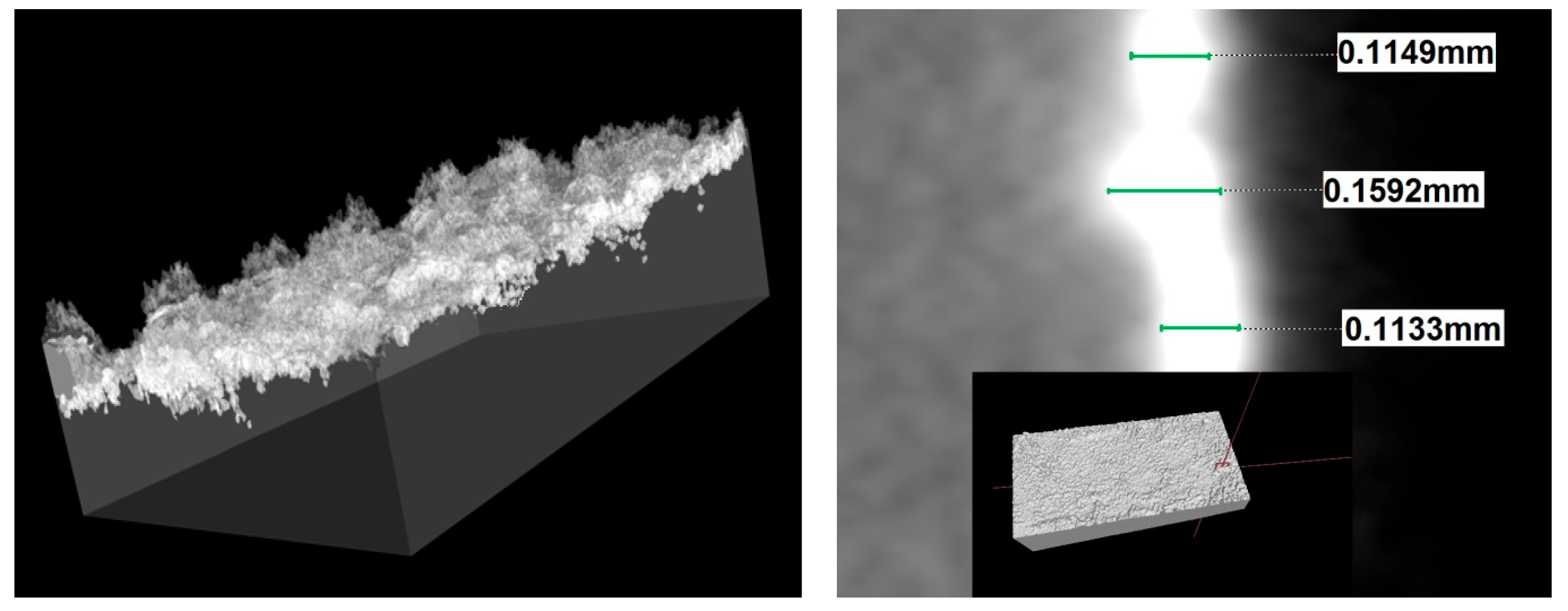

Figure 8. Three-dimensional image reconstruction of the investigated layer obtained by ESD technique.
Figure 8. Three-dimensional image reconstruction of the investigated layer obtained by ESD technique.
Materials 18 04581 g008

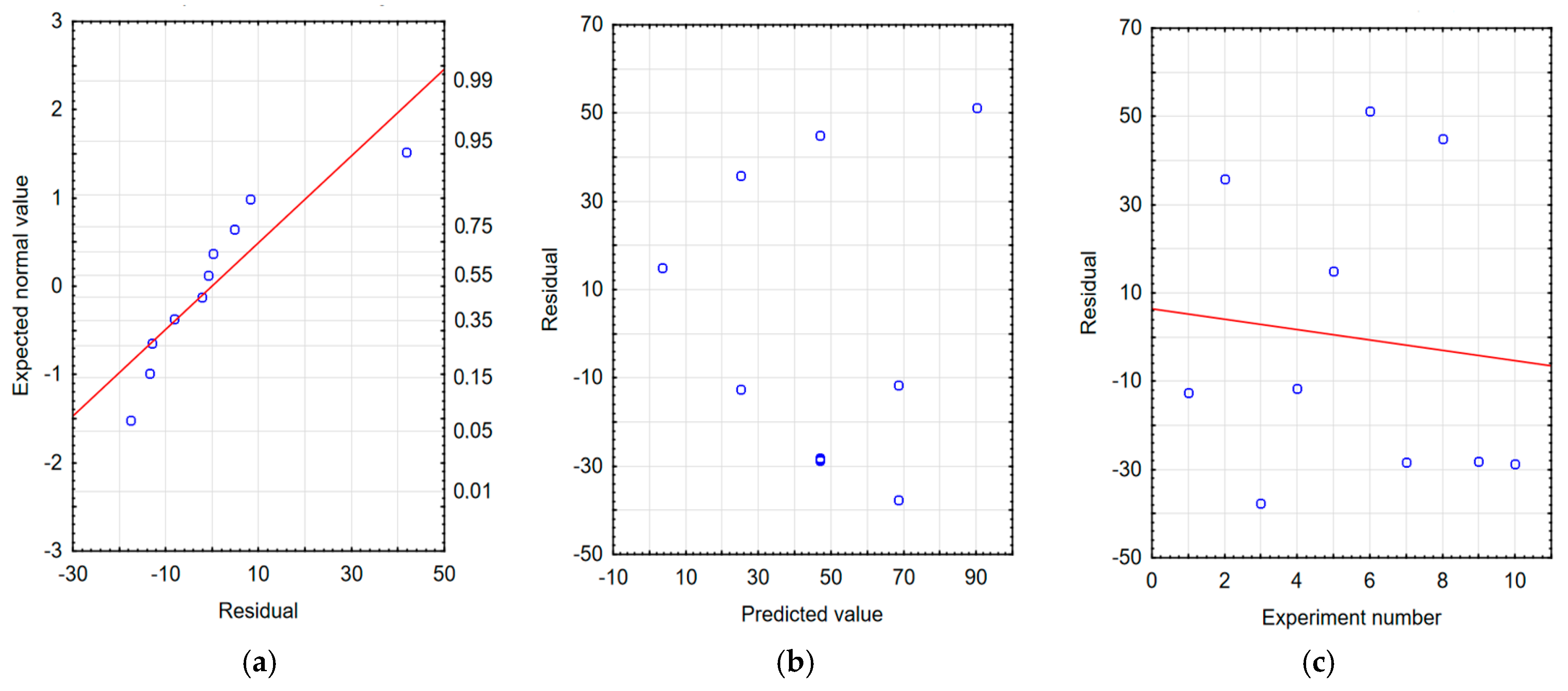

Figure 9. Residual analysis for the model of sample mass change after tribological testing of samples with tungsten coating. (a) Normal residual graph, (b) residuals relative to predicted values, and (c) residuals relative to the order of the experiment performed.
Figure 9. Residual analysis for the model of sample mass change after tribological testing of samples with tungsten coating. (a) Normal residual graph, (b) residuals relative to predicted values, and (c) residuals relative to the order of the experiment performed.
Materials 18 04581 g009
Figure 10. Residual analysis for the counter-sample mass change model: balls after tribological testing of samples with tungsten coating. (a) Normal residual graph, (b) residuals relative to predicted values, and (c) residuals relative to the order of the experiment.
Figure 10. Residual analysis for the counter-sample mass change model: balls after tribological testing of samples with tungsten coating. (a) Normal residual graph, (b) residuals relative to predicted values, and (c) residuals relative to the order of the experiment.
Materials 18 04581 g010
Figure 11. Residual analysis for the sample thickness model with tungsten coating. (a) Normal residual graph, (b) residuals relative to predicted values, and (c) residuals relative to the order of the experiment.
Figure 11. Residual analysis for the sample thickness model with tungsten coating. (a) Normal residual graph, (b) residuals relative to predicted values, and (c) residuals relative to the order of the experiment.
Materials 18 04581 g011

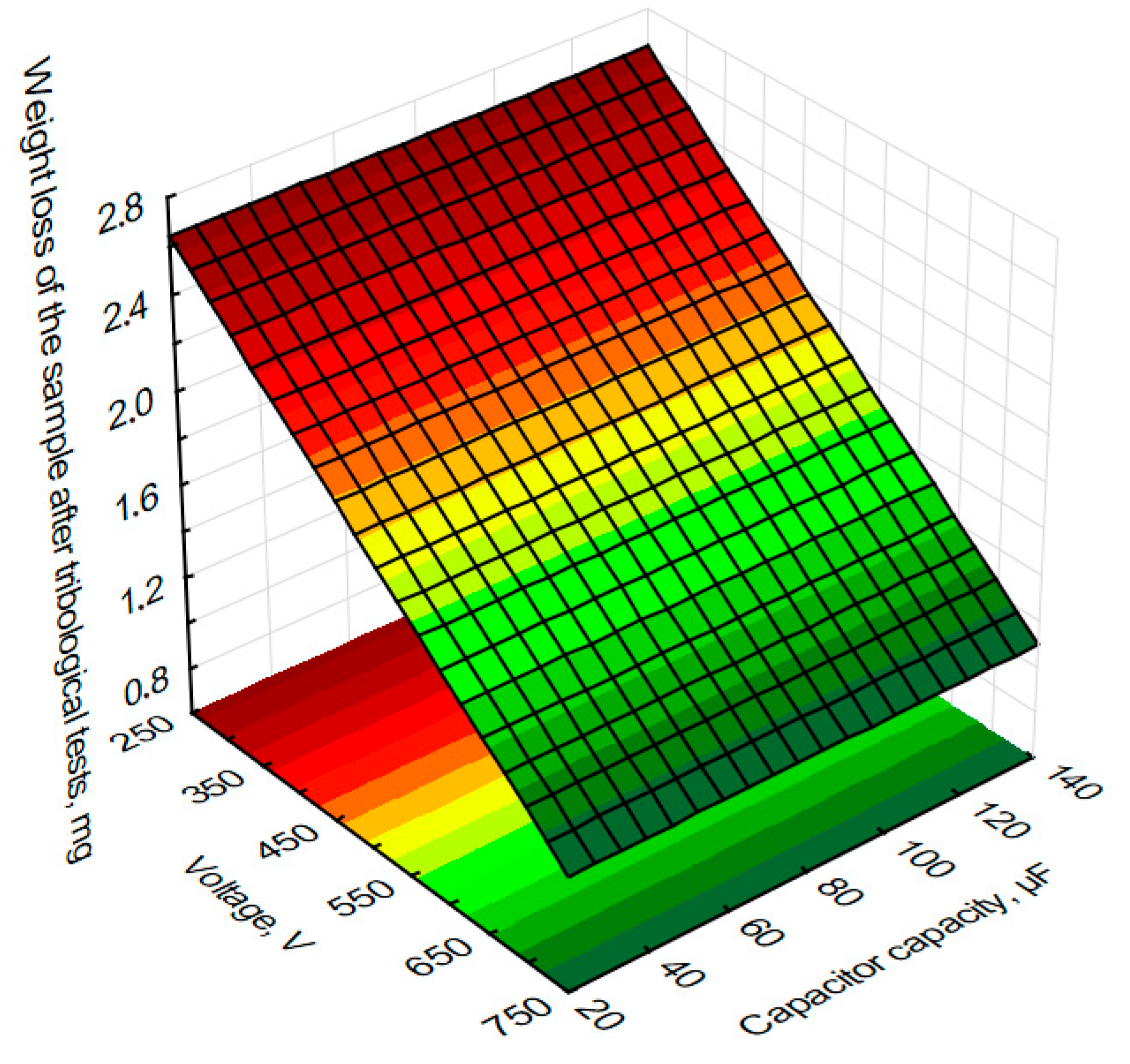

Figure 12. Estimated sample mass loss after tribological testing of voltage and capacitor capacity during the production of tungsten coatings using the ESD method.
Figure 12. Estimated sample mass loss after tribological testing of voltage and capacitor capacity during the production of tungsten coatings using the ESD method.
Materials 18 04581 g012

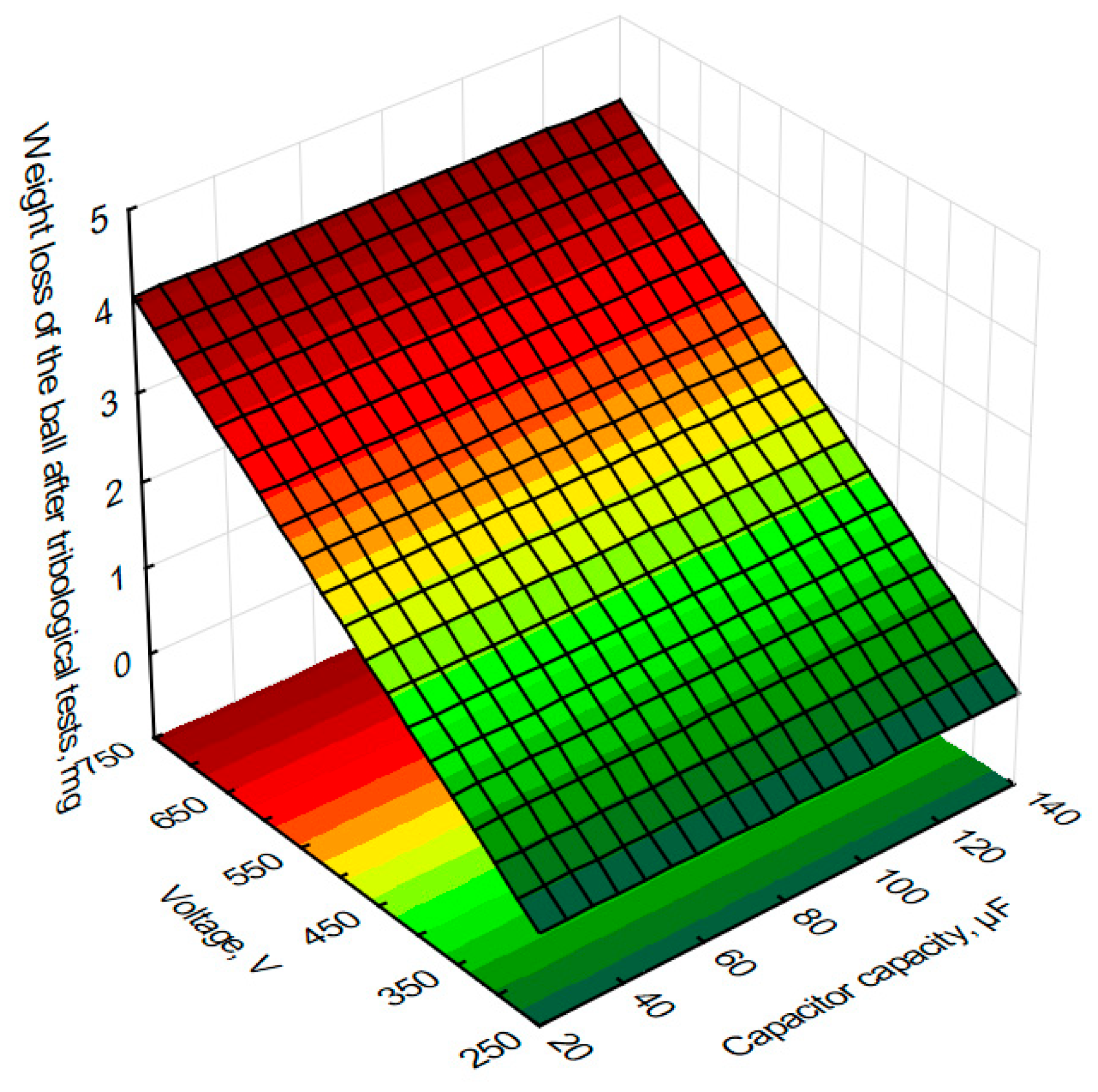

Figure 13. Estimated mass loss of the counter-sample—balls after tribological testing of voltage and capacitor capacity during the production of tungsten coatings.
Figure 13. Estimated mass loss of the counter-sample—balls after tribological testing of voltage and capacitor capacity during the production of tungsten coatings.
Materials 18 04581 g013

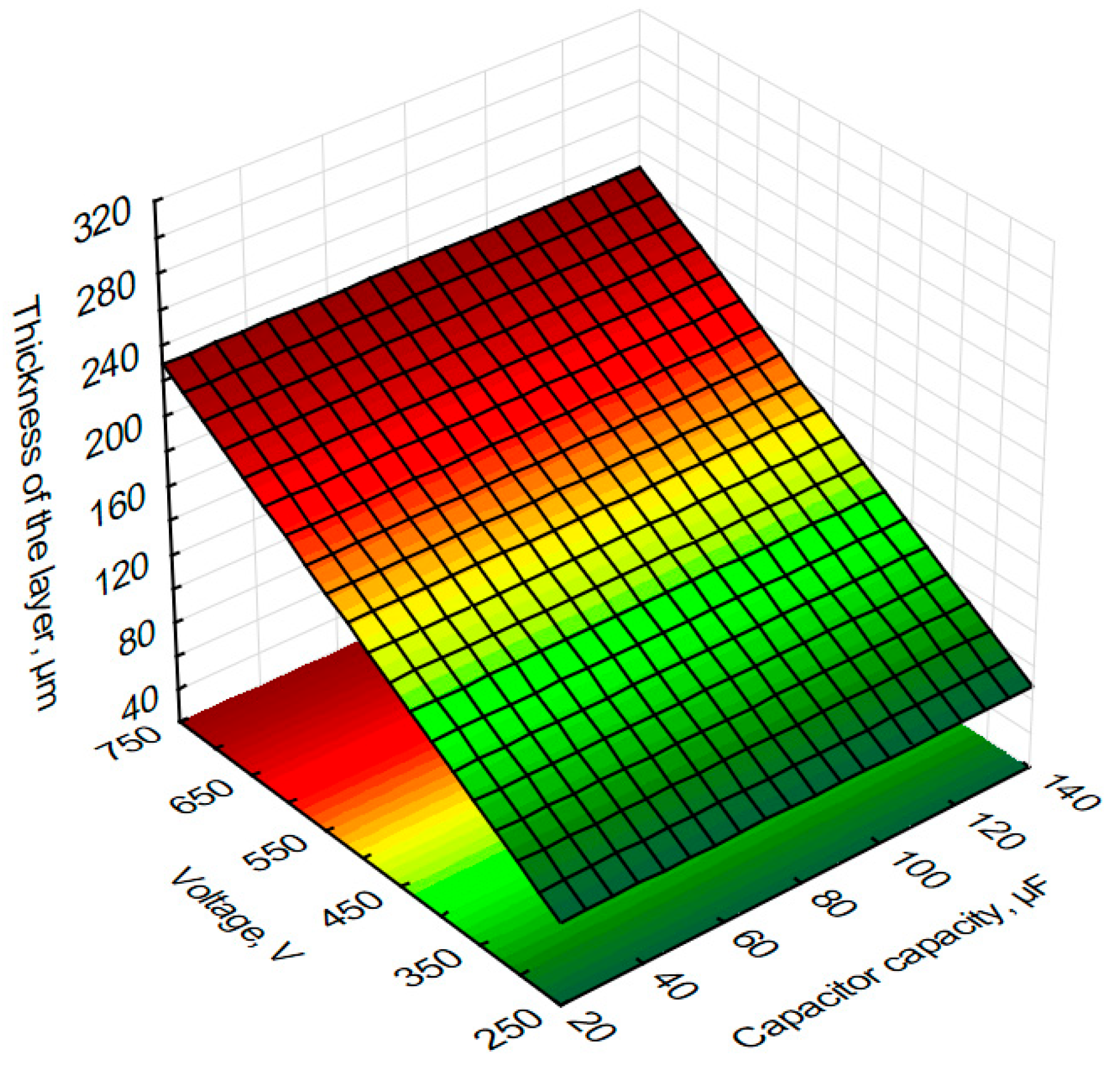

Figure 14. Estimated thickness of the tungsten layer from voltage and capacitance of capacitors during the production of ESD tungsten coatings.
Figure 14. Estimated thickness of the tungsten layer from voltage and capacitance of capacitors during the production of ESD tungsten coatings.
Materials 18 04581 g014
Figure 15. SEM analysis shows distribution of elements in coated layer of the mixing in the bonding zone (area of analysis: 220–260 µm).
Figure 15. SEM analysis shows distribution of elements in coated layer of the mixing in the bonding zone (area of analysis: 220–260 µm).
Materials 18 04581 g015
Table 1. Hartley’s five-level two-factor experiment plan.
Table 1. Hartley’s five-level two-factor experiment plan.
No. ExperimentCapacitor
Capacity—f, µF
Voltage—U, VΔmw, Mass Loss of the Sample After Tribology Test, [g]Δmb, Mass Loss of the Counter-Sample After Tribology Test, [g]t, Average Thickness of the Layer, [µm]
1254000.00230.00197
2504000.00210.0012172
3256000.0020.0016133
4506000.00130.0038150
5753000.00220.0009111
6757000.00090.0041298
7505000.0020.003109
81335000.00160.0019197
9755000.00220.0015110
10755000.00210.0016110
Table 2. Chemical composition of the cast iron sample used in the experiment.
Table 2. Chemical composition of the cast iron sample used in the experiment.
Fe—Cast Iron Composition
C 3.8776Si 3.9735Mn 0.3373P 0.0725S 0.2386Cr 0.0465
Mo < 0.002Ni 0.0172Al < 0.002Cu 0.0367B 0.0089Ti 0.0516
V 0.0136W < 0.01Co 0.0074Ca 0.0037Nb 0.0027Sn < 0.002
Pb < 0.005Zn < 0.002Zr 0.0045Sb < 0.01Ce < 0.005La < 0.005
Mg 0.0012Te 0.0004Se < 0.003Ta < 0.003Fe 91.2984-
Table 3. Results of ANOVA analysis for mass loss of the sample after tribological testing.
Table 3. Results of ANOVA analysis for mass loss of the sample after tribological testing.
Sum of Squares (SS)Number of Degrees of FreedomMean SquareFPInfluence %
Model1.14111.14112.330.008
U1.14111.14112.330.008100
Error0.74080.093
Total SS1.8819R2 = 0.61 R2-Adj = 0.56
Table 4. Results of ANOVA analysis of mass loss of counter-sample balls after tribological testing.
Table 4. Results of ANOVA analysis of mass loss of counter-sample balls after tribological testing.
Sum of Squares (SS)Number of Degrees of FreedomMean SquareFPInfluence %
Model7.6817.6814.080.006
U7.6817.6814.080.006100
Error4.3680.55
Total SS12.049R2 = 0.64 R2-Adj = 0.59
Table 5. Results of ANOVA analysis for the thickness of the manufactured tungsten layer.
Table 5. Results of ANOVA analysis for the thickness of the manufactured tungsten layer.
Sum of Squares (SS)Number of Degrees of FreedomMean SquareFPInfluence %
Model12,545.33112,545.334.660.06
U12,545.33112,545.334.660.06100
Error21,534.7782691.85
Total SS34,080.109R2 = 0.37 R2-Adj = 0.29
Table 6. Regression equations for the indicators of the tungsten layer production process.
Table 6. Regression equations for the indicators of the tungsten layer production process.
The Regression EquationRR2R2-Adj
m w = 3.41 0.00308 × U 0.780.610.56
m b = 1.94 + 0.008 × U 0.800.640.59
t = 25.41 + 0.0896 × U 0.590.350.27
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Młynarczyk, P.; Bańkowski, D.; Depczyński, W. The Impact of Selected ESD Parameters on the Properties of Tungsten Layers. Materials 2025, 18, 4581. https://doi.org/10.3390/ma18194581

AMA Style

Młynarczyk P, Bańkowski D, Depczyński W. The Impact of Selected ESD Parameters on the Properties of Tungsten Layers. Materials. 2025; 18(19):4581. https://doi.org/10.3390/ma18194581

Chicago/Turabian Style

Młynarczyk, Piotr, Damian Bańkowski, and Wojciech Depczyński. 2025. "The Impact of Selected ESD Parameters on the Properties of Tungsten Layers" Materials 18, no. 19: 4581. https://doi.org/10.3390/ma18194581

APA Style

Młynarczyk, P., Bańkowski, D., & Depczyński, W. (2025). The Impact of Selected ESD Parameters on the Properties of Tungsten Layers. Materials, 18(19), 4581. https://doi.org/10.3390/ma18194581

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
