Article

Experimental Study on Mechanical Property of Cemented Backfill in Coal Mine

by
Haigang Yang
1,2,*,
Rui Wang
1,2,
Qiang Zhang
3,
Wencheng Ma
4 and
Yukai Wang
5
1
Key Laboratory of Xinjiang Coal Resources Green Mining, Ministry of Education, Xinjiang Institute of Engineering, Urumqi 830023, China
2
School of Mining Engineering and Geology, Xinjiang Institute of Engineering, Urumqi 830023, China
3
Chief Engineer’s Office, Xinjiang Yihua Mining Co., Ltd., Changji 831100, China
4
Wucaiwan No.1 Open-Pit Coal Mine, Xinjiang Yihua Mining Co., Ltd., Changji 831100, China
5
School of Civil Engineering, North China University of Technology, Beijing 100144, China
*
Author to whom correspondence should be addressed.
Materials 2025, 18(18), 4423; https://doi.org/10.3390/ma18184423
Submission received: 31 July 2025 / Revised: 14 September 2025 / Accepted: 19 September 2025 / Published: 22 September 2025
(This article belongs to the Section Construction and Building Materials)
Browse Figures
Versions Notes

Abstract

In response to the insufficiency of shear strength and severe segregation of cemented backfilling material in coal mines, a shear strength test, static segregation index test, and homogeneity degree test were carried out, taking slurry concentration (SC) as the main control factor. The effect law of SC on shear strength, the static segregation index, and the homogeneity degree was discussed. The relationship between the static segregation index and homogeneity degree and shear strength was analyzed, and the action mechanism of SC on shear strength was revealed. The research results show that for cemented backfill in coal mines, with a suspending agent content of 0 and a curing age of 28 d, when SC increases from 77% to 80%, shear strength increases by 31.43%, the static segregation index of the backfilling slurry decreases by 40.29%, and the homogeneity degree of the backfill increases by 69.23%. The increase in SC can enhance shear strength, reduce the segregation degree of backfilling slurry, and improve the homogeneity of backfill. The reason for the increase in shear strength lies in the fact that SC reduces the segregation degree of the backfilling slurry. The research in this paper has certain guiding significance for the timely support of the surrounding rock in the working face and the effective control of surface settlement.

1. Introduction

The implementation of backfilling mining in coal mines, firstly, can restrict the rupture and spillage of the immediate and main roof above the already-mined coal seams, effectively suppress the development height of the fracture zone, and prevent the occurrence of surface cracking and collapse [1,2]. Secondly, the goaf left behind after the propulsion of the coal mining face is backfilled, which can effectively inhibit the formation of water diversion channels [3,4]. Thirdly, it avoids the spontaneous combustion of the coal left in the goaf and the desorption and emission of a large amount of toxic and harmful gases, reducing the direct emission of greenhouse gases, like gas [5,6]. Finally, backfilling mining in coal mines eliminates gangue hills and fly ash piles and reduces harm to surface water bodies, soil, air, and living spaces [7,8,9,10].
Due to the fact that cemented backfilling slurry in coal mines is prone to segregation, the backfill strength of cemented backfill in coal mines (CBCM) formed by coagulation drops significantly, which seriously affects the effect of backfilling mining [11,12]. When the easily segregated backfilling slurry is placed in the goaf, it is difficult for backfill to reach the expected strength within the prescribed time, which is not conducive to maintaining the stability of the surrounding rock of the stope. If the mining time is sacrificed to increase backfill strength, it will seriously affect the normal propulsion of the mining face. In addition, the long-term strength of CBCM is also limited, making it difficult to keep the surface settlement within a reasonable range and wasting the capital investment in goaf management. In order to normally exert the load-bearing function of CBCM, it is necessary to improve the segregation performance of cemented backfilling slurry in coal mines.
Similarly to compressive strength and flexural strength, shear strength is also one of the important mechanical properties of backfill. The failure forms of geotechnical materials are essentially shear failure and tensile failure. When the backfill coagulating into the goaf is subjected to shear loads, shear failure will occur. The shear performance of backfill has increasingly drawn the attention of experts and scholars [13,14,15].
In view of the phenomenon that cement-based materials are prone to segregation, many experts and scholars have conducted extensive research and achieved many valuable research results. Common influencing factors of segregation behavior include types and contents of binder [16,17], aggregate gradation [18,19], fly ash content [20,21], types and contents of aggregate [22,23], types and contents of admixture [24,25] and slurry concentration (SC) [26,27,28,29,30,31], etc. The change in SC has little impact on the cost of backfilling mining in coal mines and can significantly reduce segregation behavior of backfilling slurry. Peng [26] discussed the variation trend of anti-segregation performance of tailings backfill slurry with SC. With the increase in SC, the anti-segregation performance of tailings backfill slurry enhances. Chen et al. [27] analyzed the coupling effects of inlet velocity, particle mass concentration, and particle size of cemented paste backfill material. Wang and Gan [28] developed a pipeline transport model to analyze the effects of SC, particle size and velocity on particle settlement rate. Wang et al. [29] evaluated the anti-segregation performance of coarse aggregate paste by an orthogonal test. Li [30] studied the effects of the amount of fly ash, the ratio of fine gangue, and mass concentration on the static anti-segregation performance of coal gangue cemented backfill materials by the response surface method. Li et al. [31] constructed the anti-segregation performance model based on yield stress, particle gradation, and SC and verified the rationality of the theoretical model.
As the effect law and action mechanism of SC on the shear strength of CBCM is still unclear, the relevant research of this paper has been carried out. This paper discussed the effect of SC on the shear strength, static segregation index, and homogeneity degree of CBCM and analyzed the relationship between the static segregation index, homogeneity degree, and shear strength. Placing CBCM with sufficient shear strength in the goaf is conducive to maintaining the stability of the surrounding rock of the mining area in the short term. In the long run, the backfill can effectively limit the surface settlement.

2. Materials and Methods

2.1. Raw Materials

The coal gangue was selected from the gangue hill of a coal mine of Kailuan Group (Tangshan, China), Its density is 2.3–2.5 g/cm3. The mineral components are mainly quartz, kaolinite, and white mica. The chemical composition of coal gangue was tested by the PANalytical Axios X-ray fluorescence spectrometer (Malvern Panalytical Company, Shanghai, China), and the test results are shown in Table 1.
The aggregate gradation has a significant impact on the shear strength. To avoid interference with test results from the aggregate gradation, the gradation reduction coefficient of coal gangue was determined to be 0.5. The particle size distribution of coal gangue is shown in Figure 1.
The fly ash was selected from a coal-fired power plant near a coal mine of Kailuan Group. Its density is 1.8 to 2.8 g/cm3, and the specific surface area is 2200 to 4000 cm2/g. The chemical composition test of fly ash was conducted on the PANalytical Axios X-ray fluorescence spectrometer using the pellet method. The test results are shown in Table 1. The particle size of fly ash was tested by the LS-C (II A) laser particle size analyzer (Zhuhai OMEC Instrument Co., Ltd., Zhuhai, Guangdong, China), and the test results are shown in Figure 1. The characteristic parameters of particle size are as follows: d30 is 36.38 μm, d50 is 63.81 μm, and d90 is 165.82 μm. The specific morphology of fly ash is shown in Figure 2.
The cement was selected from ordinary Portland cement sold in the market. Its density is 3.03 g/cm3, the specific surface area is 340 m2/kg, and the initial setting time is 165 min. The chemical composition of cement is shown in Table 1. The particle size test of cement was carried out on the LS-C (II A) laser particle size analyzer. The test results are shown in Figure 1. The characteristic parameters of particle size are as follows: d30 is 12.14 μm, d50 is 20.30 μm, and d90 is 39.08 μm.
The mixing water consisted of clean tap water from the laboratory, whose quality meets the relevant requirements of the JGJ63-2006 concrete water standard [32].
Taking into account the effect of the pre-test results, dissolution rate, market price, and other indicators comprehensively, hydroxypropyl methylcellulose produced by a chemical technology company in Shanghai, China, was selected as the suspending agent for slurry preparation. The viscosity of hydroxypropyl methylcellulose is 200,000, apparent density ranges from 0.25 to 0.70 g/cm3, and its form is a white or white-like fiber or granular powder.

2.2. Test Method

2.2.1. Shear Strength Test

This shear strength test was conducted on the DJS-500 large-scale direct shear test system (Sichuan dexkcyq Instrument Co., Ltd., Chengdu, Sichuan, China). This system is mainly composed of an industrial cold oil machine, an oil source power system, a loading host, a computer, and compression accessories, as shown in Figure 3. The maximum load for vertical and horizontal loading is 500 kN, and the force loading rate in both directions is 0.01 to 20 kN/s. The maximum displacement for vertical and horizontal loading is 100 mm, and the displacement loading rate of the oil cylinder in both directions is 0.1 to 200 mm/min. The measurement range of vertical and horizontal displacement is 0 to 12.5 mm.
Fly ash has a strong hygroscopicity. The seemingly dry fly ash actually stores a large amount of moisture. Direct use in the preparation of backfilling slurry will lead to a significant decrease in SC. Therefore, fly ash needs to be dried before the test. The specific operation is to place the fly ash after screening and impurity removal in a drying oven at 65 °C for 48 h. The preparation of backfilling slurry strictly followed GB/T50080-2016 [33]. The sample size is 100 mm × 100 mm × 100 mm (length × width × height), and normal stress is 0 MPa. The test steps for the shear strength test referred to GB/T23561-2024 [34].
The shear strength (τ) of CBCM was tested with SC (η) as the main control factor and suspending agent content (ω) and curing age (A) as the auxiliary factors. The test scheme is shown in Table 2. Suspending agent content is the proportion of the total mass of the backfilling slurry in Table 2. The curing humidity is above 95%.

2.2.2. Static Segregation Index Test

There are many testing methods for the segregation performance of cement-based materials, including both qualitative and quantitative ones [30]. We mainly use the columnar method to test the segregation performance of cemented backfilling slurry in coal mines. The testing process strictly followed ASTM C1610-14 [35]. The test cylinder is divided into three layers by height. The top and bottom layers are 165 mm high, the middle layer is 330 mm high, and the nominal diameter is 200 mm, as shown in Figure 4. The relevant operation steps are as follows: (1) pour the prepared backfilling slurry into the test cylinder; (2) let the slurry in the cylinder stand for (15 ± 1) minutes; (3) place the top slurry and bottom slurry, respectively, on 4.75 mm square-hole sieves and rinse them; (4) place the coarse gangue on the square-hole screen in a drying oven at 65 °C for 48 h; and (5) weigh the dried coarse gangue.
The static segregation index was calculated by Equation (1). From Equation (1), it can be seen that the smaller the static segregation index, the lower the segregation degree of backfilling slurry, and the more dispersed the various solid particles in the slurry.
S I = m b − m t ( m b + m t ) / 2
where SI is the static segregation index (%); mb is the mass of coarse gangue in the bottom slurry (kg); and mt is the mass of coarse gangue in the top slurry (kg).
The backfilling slurry with a suspending agent content of 0 was selected for the static segregation index test, and SC was 77%, 78%, 79%, and 80%, respectively. The test scheme is shown in Table 3.

2.2.3. Homogeneity Degree Test

This homogeneity degree test was carried out on the YDW-50 microcomputer-controlled electronic pressure testing machine (Jinan Wenteng Testing Instrument Co., Ltd., Jinan, Shandong, China). Three test molds with a size of Φ50 × 100 mm were spliced to obtain one mold with a size of Φ50 × 300 mm, as shown in Figure 5a. The molds were poured with the prepared backfilling slurry, and the samples after curing are shown in Figure 5b.
The sample with a size of Φ50 × 300 mm was divided into three equal parts with a ruler and then cut on the cutting machine according to the division lines. The uniaxial compressive strength tests of the top and bottom backfill were carried out in strict accordance with GB/T50081-2019 [36].
The ratio of the uniaxial compressive strength of the bottom backfill to that of the top backfill was defined as the homogeneity degree, as shown in Equation (2). From Equation (2), it can be seen that the greater the homogeneity degree, the higher the homogeneity of the backfill, and the more dispersed the various solid particles in backfill.
H I = σ b σ t
where HI is the homogeneity degree (%); σb is the uniaxial compressive strength of the bottom backfill (MPa); and σt is the uniaxial compressive strength of the top backfill (MPa).
The backfill with a suspending agent content of 0 and a curing age of 28 d was selected for the homogeneity degree test, and SC was 77%, 78%, 79% and 80%, respectively. The test scheme is shown in Table 4.

3. Results

3.1. Effect of SC on Shear Strength

The change curve of shear strength with SC is shown in Figure 6.
Shear strength under the same suspending agent contents and the same curing ages shows an increasing trend with the increase in SC, as shown in Figure 6. Taking the backfill with a suspending agent content of 0 and a curing age of 28 d as an example, the change law of shear strength is analyzed. When SC increases from 77% to 78%, shear strength rises from 0.2035 MPa to 0.2233 MPa, with an increase of 9.71%. The growth rate of shear strength is close to 10%, which means that SC has a promoting effect on shear strength. When SC increases from 78% to 79%, shear strength rises from 0.2233 MPa to 0.2488 MPa, with an increase of 11.46%. The growth rate of shear strength becomes larger, indicating that SC has a greater promoting effect on shear strength within this range. When SC increases from 79% to 80%, shear strength rises from 0.2488 MPa to 0.2674 MPa, with an increase of 7.48%. Although the growth rate of shear strength slows down within this range, SC still has a promoting effect on shear strength. When SC changes from 77% to 80%, the overall growth rate of shear strength is 31.43%. Under the different suspending agent contents, with the increase in curing age, the change trend of shear strength with SC remains approximately unchanged, indicating that the effect trend of SC on shear strength is not affected by suspending agent content and curing age.

3.2. Effect of SC on Static Segregation Index

The test results of the static segregation index are shown in Figure 7. In Figure 7, “1” represents the top of the backfilling slurry in Figure 4, and “3” in Figure 7 represents the bottom of backfilling slurry in Figure 4.
The mass of coarse gangue in the top slurry is different from that in the bottom slurry, as shown in Figure 7. When SC is 77%, the mass of coarse gangue in the top slurry is 0.58 kg, and that in the bottom slurry is 3.25 kg. When SC is 80%, the mass of coarse gangue in the top slurry is 1.15 kg, and that in the bottom slurry is 2.77 kg. With the increase in SC, the mass of the coarse gangue in the top slurry gradually approaches that in the bottom slurry. The change curve of the static segregation index with SC is shown in Figure 8.
As shown in Figure 8, the static segregation index is 1.39 when SC is 77%. The static segregation index is 0.83 when SC is 80%, with a decrease of 40.29%. There is a power function relationship between SC and the static segregation index (see Figure 8). The static segregation index of the backfilling slurry decreases, indicating that the segregation degree of the backfilling slurry decreases. The increase in SC is achieved by reducing moisture and increasing the number of solid particles, thereby enhancing the consistency of the backfilling slurry. The increase in consistency, on the one hand, will lead to a reduction in the settling space of solid particles, and on the other hand, it will also increase the friction between solid particles, making it difficult for similar substances to aggregate, thereby maintaining the dispersibility of solid particles. In addition, according to the research of Wang et al. [29], an increase in SC will lead to an increase in yield stress, which is directly proportional to viscous resistance. Therefore, an increase in SC will cause solid particles to encounter greater viscous resistance during the descent. This resistance can effectively slow down the settling rate of various solid particles, prevent the aggregation of similar substances, and maintain the dispersion of various solid particles at the initial stage of preparation. Therefore, under the combined effect of consistency and yield stress, SC effectively reduces the segregation degree of the backfilling slurry.
Not only is the mass of coarse gangue changing, but its size is also changing. With the increase in SC, the particle size difference between coarse gangue in the top slurry and that in the bottom slurry decreases, as shown in Figure 7. Large coarse gangue particles gradually appear in the top slurry, further indicating that the difference between the top slurry and the bottom slurry decreases. The backfilling slurry transforms from segregation to non-segregation; that is, the segregation degree of the backfilling slurry decreases.

3.3. Effect of SC on Homogeneity Degree

The test results of the homogeneity degree are shown in Figure 9. In Figure 9, “1” represents the top of backfill, and “3” represents the bottom of backfill.
The uniaxial compressive strength of the top backfill is different from that of the bottom backfill, as shown in Figure 9. When SC is 77%, the uniaxial compressive strength of the top backfill is 3.50 MPa, and that of the bottom backfill is 1.37 MPa. When SC is 80%, the uniaxial compressive strength of the top backfill is 2.71 MPa, and that of the bottom backfill is 1.78 MPa. With the increase in SC, the uniaxial compressive strength of the top backfill gradually approaches that of the bottom backfill. The change curve of the homogeneity degree with SC is shown in Figure 10.
As shown in Figure 10, the homogeneity degree is 39.14% when SC is 77%. The homogeneity degree is 65.68% when SC is 80%, with an increase of 69.23%. There is a quadratic function relationship between SC and the homogeneity degree (see Figure 10). The homogeneity degree of backfill increases, indicating that the homogeneity of backfill improves. SC changes the segregation degree of the backfilling slurry through consistency and yield stress. If the segregation degree of the backfilling slurry is low, the homogeneity of the backfill formed later will be high. Therefore, it can also be considered that SC improves the homogeneity of the backfill through consistency and yield stress.
Not only is the uniaxial compressive strength changing, but the pre-peak elastic modulus and the morphology of the stress–strain curve are also changing. With the increase in SC, the difference in the stress–strain curves between the top backfill and the bottom backfill decreases, as shown in Figure 9. The pre-peak elastic modulus and curve morphology both show great similarity, further indicating that the difference between the top backfill and the bottom backfill decreases; that is, the homogeneity of the backfill improves.

4. Discussion

4.1. Relationship Between Static Segregation Index and Shear Strength

The change curve of the static segregation index with SC is shown as the red curve in Figure 11, and the change curve of 28 d shear strength with SC is shown as the blue curve in Figure 11.
The red curve in Figure 11 shows that the static segregation index of backfilling slurry decreases with the increase in SC. The blue curve in Figure 11 shows that shear strength increases with the increase in SC. The increase in shear strength is mainly due to the fact that SC reduces the segregation degree of the backfilling slurry. As the segregation degree of backfilling slurry decreases, various solid particles inside the backfill are evenly distributed. It is difficult to form a weak structural surface inside the backfill. When the backfill is subjected to external loads, it is not prone to cracking. Higher integrity ensures the continuous transmission of stress within the backfill, thereby demonstrating a higher resistance to external loads. Macroscopically, this is reflected in the increase in shear strength.

4.2. Relationship Between Homogeneity Degree and Shear Strength

The change curve of the homogeneity degree with SC is shown as the red curve in Figure 12, and the change curve of 28 d shear strength with SC is shown as the blue curve in Figure 12.
The red curve in Figure 12 shows that the homogeneity degree of the backfill increases with the increase in SC. The blue curve in Figure 12 shows that shear strength increases with the increase in SC. The increase in shear strength is mainly due to the fact that SC enhances the homogeneity of backfill. For cemented backfilling materials in coal mines, the homogeneity and segregation degree are both used to describe the dispersion characteristics of particles such as coal gangue, fly ash, and unhydrated cement in the backfilling materials. However, homogeneity is mainly used to characterize the dispersion characteristics in the set state, while the segregation degree is mainly used to characterize the dispersion characteristics in the slurry state. The lower the segregation degree of backfilling slurry, the more evenly the particles such as coal gangue, fly ash, and unhydrated cement in the backfilling material are dispersed, and the higher the homogeneity of the backfill formed by coagulation. Therefore, the action mechanism of homogeneity on shear strength is the same as that of the segregation degree on shear strength. Here, the reasons for the change in shear strength with homogeneity will not be elaborated. While the test results of the homogeneity degree are mutually corroborated with those of the static segregation index, the action mechanism of SC on shear strength is further verified.

5. Conclusions

This paper took SC as the main control factor and analyzed the influence law of SC on shear strength of CBCM. The reasons for the variation in shear strength with SC were explained by means of the static segregation index test and homogeneity degree test. The main conclusions obtained are as follows.
  • For CBCM with the same suspending agent content and the same curing age, shear strength increases with the increase in SC. SC has a significant promoting effect on shear strength. The effect trend of SC on shear strength is not affected by suspending agent content and curing age.
  • With the increase in SC, the mass of coarse gangue in the top slurry increases while that in the bottom slurry decreases. The particle size of the coarse gangue in the top slurry gradually approaches that in the bottom slurry. The uniaxial compressive strength of the top backfill drops while that of the bottom backfill rises. The pre-peak elastic modulus and the morphology of the stress–strain curve of the top backfill gradually approach that of the bottom backfill. SC can significantly reduce the segregation degree of the backfilling slurry and improve the homogeneity of the backfill.
  • The reduction in the segregation degree of the backfilling slurry or the increase in the homogeneity of the backfill can improve the shear strength of the backfill. The lower the segregation degree of the backfilling slurry, the less likely the backfill formed after coagulation is to crack, which enables the backfill to exhibit a greater load-bearing capacity.
Adequate shear strength can stabilize the surrounding rock in the short term and limit surface settlement in the long term. Although SC and suspending agent content have changed, cemented backfilling material in coal mines involved in this paper still has good rheological properties [37,38], setting time, and working performance [24], which can meet the requirements of pipeline transportation and timely bearing. Therefore, the above properties are not studied in detail in this paper. Fly ash and cement are important building materials and play an indispensable role in production and daily life. Some types of fly ash and cement have certain radioactivity [39,40]. This issue has not been discussed in this article so far. In subsequent research, we will pay more attention to the radioactivity of fly ash, cement, and even coal gangue.

Author Contributions

Conceptualization, H.Y.; methodology, H.Y.; software, Y.W.; validation, R.W.; formal analysis, H.Y., Q.Z. and W.M.; investigation, H.Y.; data curation, R.W.; writing—original draft preparation, H.Y.; writing—review and editing, W.M.; visualization, Q.Z. and Y.W.; supervision, R.W.; project administration, R.W.; funding acquisition, R.W. All authors have read and agreed to the published version of the manuscript.

Funding

This research is supported by the Doctoral Research Start-up Fund Project of Xinjiang Institute of Engineering (No. 2024XGYBQJ20 and 2023XGYBQJ14), Xinjiang Uygur Autonomous Region Tianchi Elite Talent Innovation Leadership Program (No. 2024XGYTCYC03), the Open Project of Key Laboratory of Xinjiang Coal Resources Green Mining, Ministry of Education (No. KLXGY-KB2409), the National Natural Science Foundation of China (No. 52309131), the National Key Research and Development Plan (No. 2024YFC3013904), the Open Research Fund Program of the State Key Laboratory of Hydroscience and Engineering (No. sklhse-KF-2025-C-01), and the Research Start up Fund Project of North China University of Technology.

Data Availability Statement

The raw data supporting the conclusions of this article will be made available by the authors on request.

Conflicts of Interest

Author Qiang Zhang was employed by the company (Chief Engineer’s Office, Xinjiang Yihua Mining Co., Ltd.); Author Wencheng Ma was employed by the company (Wucaiwan No.1 Open-Pit Coal Mine, Xinjiang Yihua Mining Co., Ltd.). The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Abbreviations

The following abbreviations are used in this manuscript:
CBCMCemented backfill in coal mine
SCSlurry concentration

References

  1. Han, F.; Chen, Y.; Zhou, F.L.; Zhang, L.L.; Cui, F.F.; Liu, C.C. Characteristics of overlying rock migration and law of rock pressure behaviors at filling working faces. Coal Eng. 2024, 56, 124–131. [Google Scholar]
  2. Xu, H. Study on the Laws of Overburden and Surface Movement During Continuous Excavation Continuous Backfilling in Coalmine. Master’s Thesis, Henan Polytechnic University, Jiaozuo, China, 2024. [Google Scholar]
  3. Shi, X.Y. Study on Prevention Mechanism and Application of Water Inrush from the Floor of Fully Mechanized Coal Mining with Paste Filling in Coal Seams with High Confined Water in Short Distance. Ph.D. Thesis, China University of Mining and Technology, Xuzhou, China, 2023. [Google Scholar]
  4. Bai, J.W.; Liu, R.T.; Jiang, Y.J.; Wei, L.Y.; Zhang, H.J.; Li, W. Surrounding rock deformation and confined water upflowing law during strip-filling replacement mining. J. Min. Saf. Eng. 2018, 35, 352–358. [Google Scholar]
  5. Cao, J.W. Research on the Mechanism of the Influence of Key Layer Filling on Gas Emission and Coal Spontaneous Combustion in Mining Sites. Ph.D. Thesis, China University of Mining and Technology, Xuzhou, China, 2024. [Google Scholar]
  6. Zhang, D.; Zhang, S.; Wang, X.; Gong, S.Y.; Zuo, R.F.; Sun, L.; Lu, A.H.; Dong, Y. Study on gas control technology by sublevel filling gob-side entry retaining. J. Min. Saf. Eng. 2022, 39, 1246–1255. [Google Scholar]
  7. Li, Y.F.; Zhong, W.Q.; Zhou, G.W. Synergistic effect and product distribution of co-pyrolysis of coal and waste plastics. J. Southeast Univ. (Nat. Sci. Ed.) 2023, 53, 733–740. [Google Scholar]
  8. Li, Q.C.; Fan, Y.F.; Qi, Y.Z.; Zhang, G.B. Analysis on inhibition of coal nano-metakaolin on alkali-aggregate reaction. J. Southeast Univ. (Nat. Sci. Ed.) 2023, 53, 455–462. [Google Scholar]
  9. Zhang, T.T.; Wang, C.L.; Zhang, Y.X.; Liu, Z.P. Effect of fly ash content on performance of high performance concrete with seawater and sea sand. Bull. Chin. Ceram. Soc. 2022, 41, 1677–1688. [Google Scholar]
  10. Wang, H.W.; Zhang, L.W.; Kong, J.; Wang, Y.; Zhao, K.; Zhou, H.; Zhao, Y. Research on the mechanism of improving the mechanical properties of CO2-fly ash-coal gangue backfill paste and the study of carbon sequestration performance. J. Southeast Univ. (Nat. Sci. Ed.) 2025, 55, 707–715. [Google Scholar]
  11. Yang, B.G. Technology of High-Concentration Cemented Backfill Mining in Coal Mine; Coal Industry Press: Beijing, China, 2015; pp. 1–24. [Google Scholar]
  12. Yang, B.G.; Yang, H.G. Experimental study on the energy evolution characteristics of high-concentration cemented backfill in coal mine. J. Min. Sci. Technol. 2022, 7, 304–312. [Google Scholar]
  13. Zhu, W.C.; Yang, L.J.; Hou, C.; Zhu, Z.J.; Liu, X.G.; Liang, P. Effect of chloride salts on shear behavior of cemented tailings backfill (CTB) mixed with mine water in coastal regions. Int. J. Rock Mech. Min. Sci. 2025, 192, 106157. [Google Scholar] [CrossRef]
  14. Gu, J.Y.; Ni, J.J.; Liu, S.S.; Chen, Y.B. Shear strength of biopolymer amended soil under freeze-thaw cycles: Experimental investigation and DEM modeling. Eng. Geol. 2025, 353, 108108. [Google Scholar] [CrossRef]
  15. Kou, Y.P.; Li, G.B.; Song, Z.P.; Wang, P.T. Experimental study on the evolutive shear fracture behaviour and properties of cemented paste backfill. Constr. Build. Mater. 2024, 423, 135780. [Google Scholar] [CrossRef]
  16. Wu, F. Steel Slag-Slag Binder Mixed Aggregate Filling Slurry Anti-Segregation and Pipeline Transportation Properties Research. Ph.D. Thesis, University of Science and Technology Beijing, Beijing, China, 2023. [Google Scholar]
  17. Lotfy, A.; Hossain, K.A.M.; Lachemi, M. Application of statistical models in proportioning lightweight self-consolidating concrete with expanded clay aggregates. Constr. Build. Mater. 2014, 65, 450–469. [Google Scholar] [CrossRef]
  18. Wen, Z.J.; Gao, Q.; Chen, D.X.; Wang, Y.D. Effect of mixed aggregate gradation on segregation of filling slurry. J. Cent. South Univ. (Sci. Technol.) 2019, 50, 2264–2272. [Google Scholar]
  19. Yan, W.S.; Cui, W.; Qi, L. Effect of aggregate gradation and mortar rheology on static segregation of self-compacting concrete. Constr. Build. Mater. 2020, 259, 119816. [Google Scholar] [CrossRef]
  20. Zhang, P.; Gao, Q.; Wang, Y.T.; Zhang, T.; Wu, F. Influence of fly ash content on segregation resistance of pumped paste filling slurry. Chin. J. Nonferrous Met. 2022, 32, 302–312. [Google Scholar]
  21. Feng, G.R.; Li, Q.D.; Qi, T.Y.; Guo, Y.X.; Ran, H.Y.; Hao, C.L. Assessing static stability of cemented coal gangue backfill with ultrasonic pulse velocity method. J. Min. Saf. Eng. 2020, 37, 1231–1237. [Google Scholar]
  22. Afonso, M.S.; Antonio, J.T.; Victoria, E.G. Adopting an image analysis method to study the influence of segregation on the compressive strength of lightweight aggregate concretes. Constr. Build. Mater. 2022, 323, 126594. [Google Scholar] [CrossRef]
  23. Pan, J.Z.; He, J.M.; Zhu, J.; Gao, X.J. Theoretical and experimental study on the electrical resistivity method for evaluating fresh concrete segregation. J. Build. Eng. 2022, 48, 103943. [Google Scholar] [CrossRef]
  24. Zhang, Q.S.; Qiu, J.P.; Jiang, H.Q.; Kong, X.S.; Guo, Z.B.; Xiang, J.C.; Sun, X.G. Effect of hydroxypropyl methyl cellulose on coarse tailings cemented backfill: Rheology, stability, strength and microstructure. Constr. Build. Mater. 2024, 425, 136042. [Google Scholar] [CrossRef]
  25. Li, L.; Wang, R.; Wu, X.S.; Wang, P.M. Effect of hydroxypropyl methyl cellulose on aluminate cement-gypsum mortar. J. Build. Mater. 2022, 25, 415–423. [Google Scholar]
  26. Peng, X.P. Research on Heterogeneous Features of Tailings Backfill in Metal Mine and Its Mechanism. Ph.D. Thesis, University of Science and Technology Beijing, Beijing, China, 2020. [Google Scholar]
  27. Chen, Q.S.; Zhou, H.L.; Wang, Y.M.; Li, X.S.; Zhang, Q.L.; Feng, Y.; Qi, C.C. Resistance loss in cemented paste backfill pipelines: Effect of inlet velocity, particle mass concentration, and particle size. Materials 2022, 15, 3339. [Google Scholar] [CrossRef] [PubMed]
  28. Wang, C.H.; Gan, D.Q. Study and analysis on the influence degree of particle settlement factors in pipe transportation of backfill slurry. Metals 2021, 11, 1780. [Google Scholar] [CrossRef]
  29. Wang, J.D.; Wu, A.X.; Wang, Y.M.; Wang, H.J.; Peng, N.B. Evaluation model and experimental study for segregation resistance of paste with coarse aggregate. J. China Univ. Min. Technol. 2016, 45, 866–872. [Google Scholar]
  30. Li, Q.D. Static Segregation of Cemented Coal Gangue Backfill. Master’s Thesis, Taiyuan University of Technology, Taiyuan, China, 2019. [Google Scholar]
  31. Li, H.; Wu, A.X.; Wang, H.J.; Peng, N.B.; Wang, H.; Jiao, H.Z. Static and dynamic anti-segregation property characterization of coarse-grained paste backfill slurry. J. Cent. South Univ. (Sci. Technol.) 2016, 47, 3909–3915. [Google Scholar]
  32. JGJ63-2006; Ministry of Housing and Urban-Rural Development of PRC, Concrete Water Standard. China Building Industry Press: Beijing, China, 2006.
  33. GB/T50080-2016; Ministry of Housing and Urban-Rural Development of PRC, Standard Test Method for Mix Performance of Ordinary Concrete. China Building Industry Press: Beijing, China, 2017.
  34. GB/T23561-2024; State Administration for Market Regulation, National Standardization Administration Committee, Method for Determining the Physical and Mechanical Properties of Coal and Rock. Standards Press of China: Beijing, China, 2025.
  35. ASTM C1610-14; Standard Test Method for Static Segregation of Self-Consolidating Concrete Using Column Technique. ASTM: West Conshohocken, PA, USA, 2014.
  36. GB/T50081-2019; Ministry of Housing and Urban-Rural Development of PRC, State Administration for Market Regulation, Standard Test Method for Physical and Mechanical Properties of Concrete. China Building Industry Press: Beijing, China, 2020.
  37. Yang, Z.Q.; Hou, K.P.; Guo, T.T. Research on time-varying behavior of cement grouts of different water-cement ratios. Appl. Mech. Mater. 2011, 71–78, 4398–4401. [Google Scholar] [CrossRef]
  38. Yang, Z.Q.; Hou, K.P.; Guo, T.T. Study on the effects of different water-cement ratios on the flow pattern properties of cement grouts. Appl. Mech. Mater. 2011, 1366, 1264–1267. [Google Scholar] [CrossRef]
  39. Turhan, Ş.; Jamasali, Y.D. Technologically enhanced natural radioactivity level in fly ash produced in lignite-fired thermal power plant and assessment of radiological hazards. Environ. Geochem. Health 2025, 47, 374. [Google Scholar] [CrossRef] [PubMed]
  40. Radic, J.K.; Hansman, J.; Mrdja, D.; Demirhan, K.; Velimirovic, D.; Kuzmanovic, P.; Forkapic, S. Survey of radiological properties of some commonly used building materials: Cement, chamotte and refractory products. J. Radioanal. Nucl. Chem. 2025, 334, 1715–1727. [Google Scholar] [CrossRef]
Materials 18 04423 g001

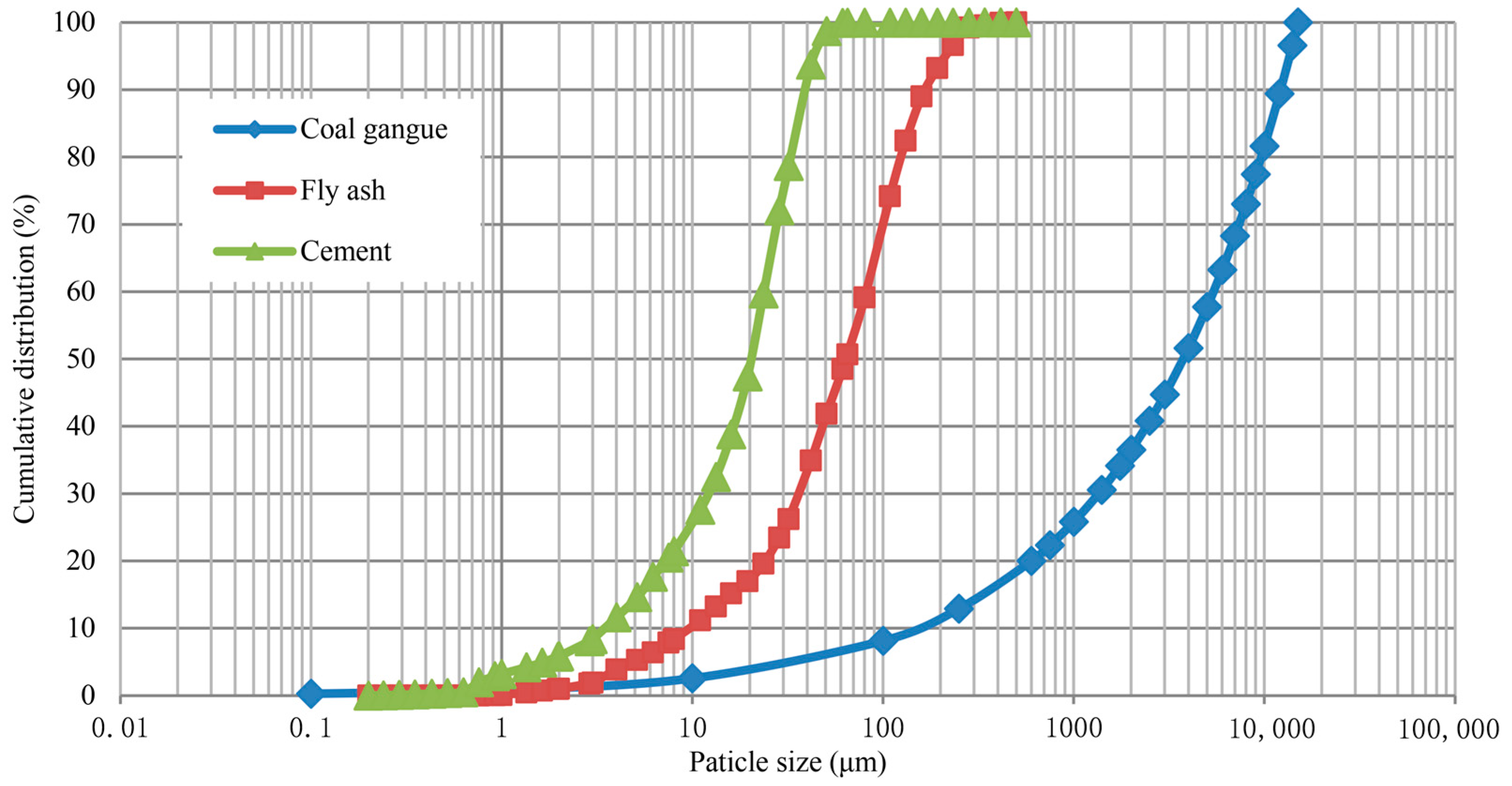

Figure 1. Particle size distribution of raw materials.
Figure 1. Particle size distribution of raw materials.
Materials 18 04423 g001
Materials 18 04423 g002

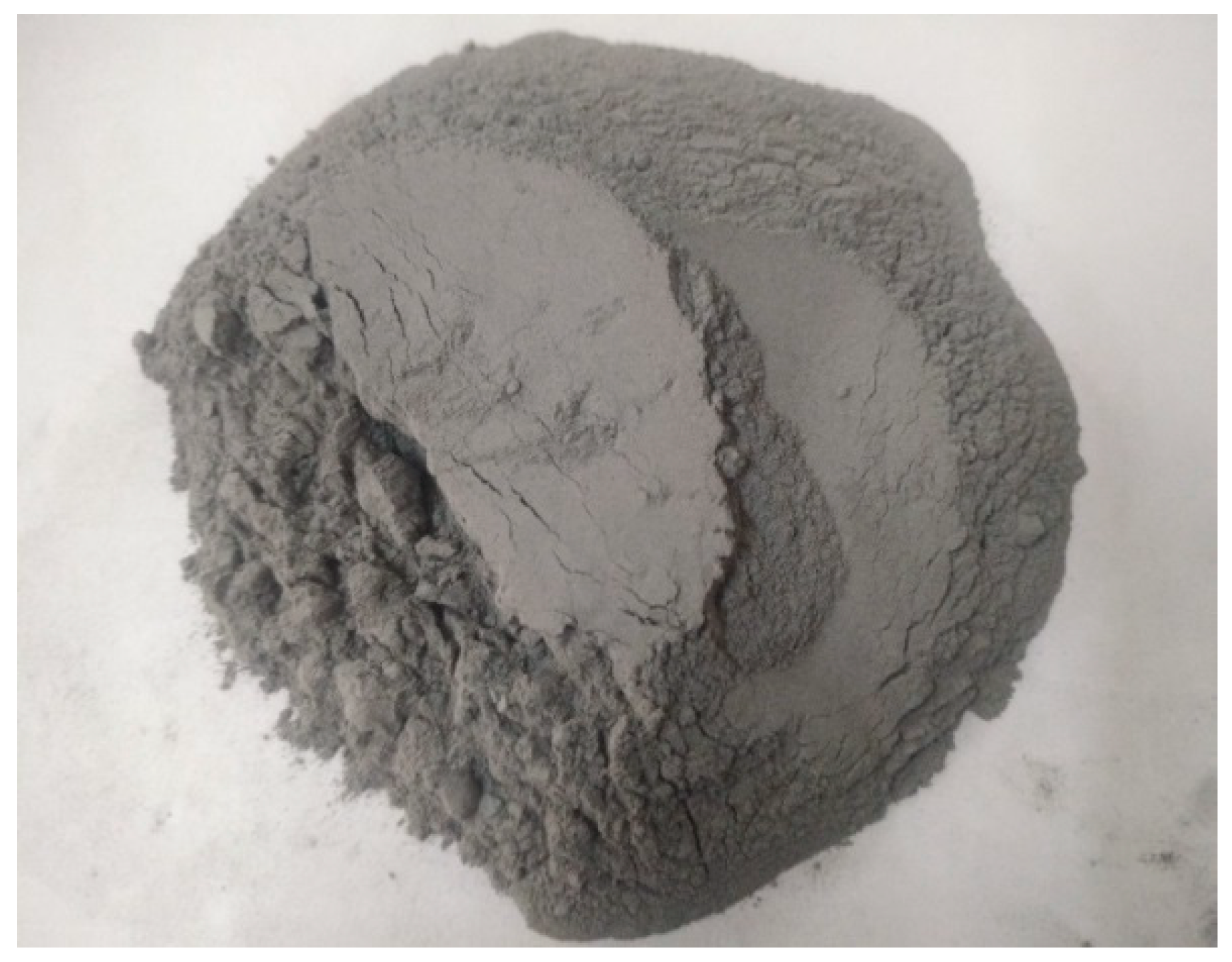

Figure 2. The morphology of fly ash.
Figure 2. The morphology of fly ash.
Materials 18 04423 g002
Materials 18 04423 g003

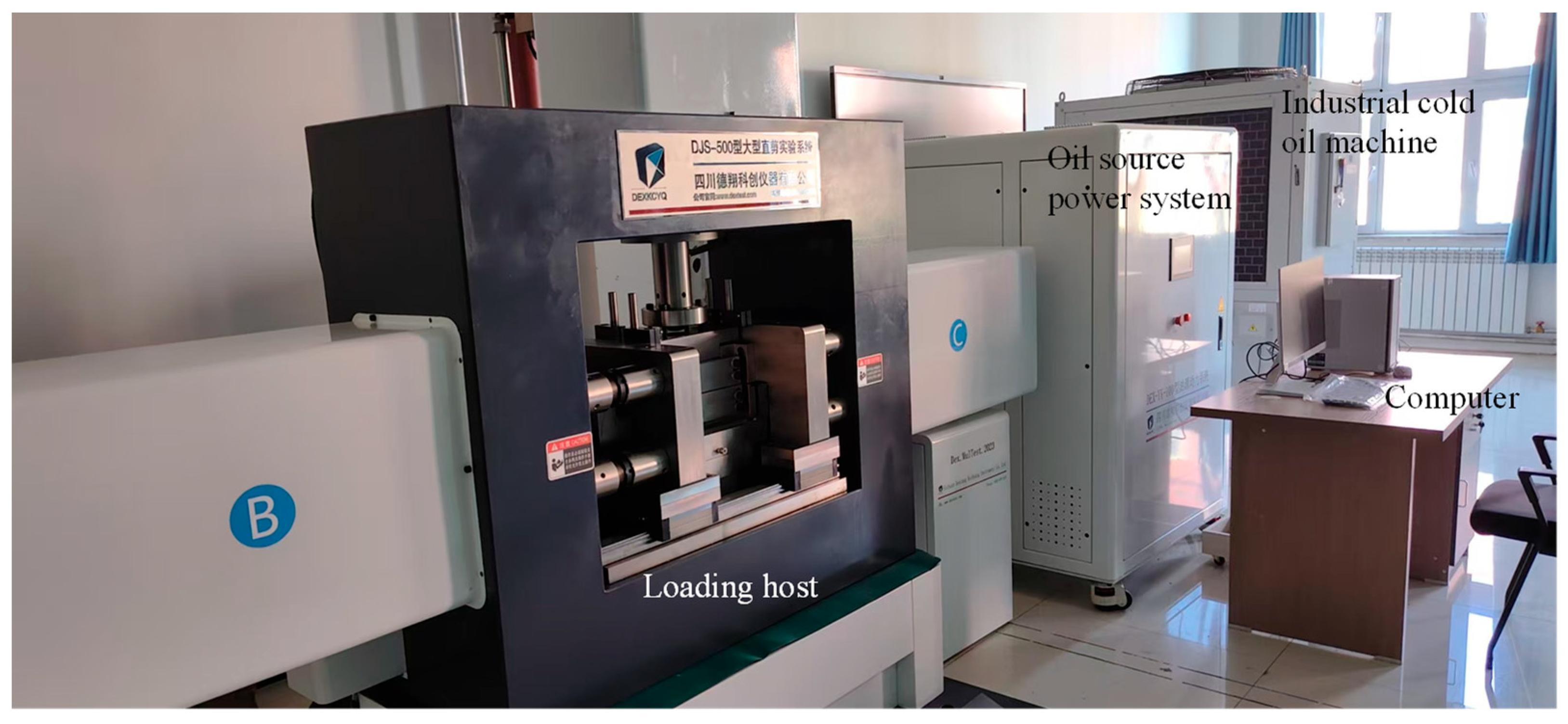

Figure 3. DJS-500 large-scale direct shear test system.
Figure 3. DJS-500 large-scale direct shear test system.
Materials 18 04423 g003
Materials 18 04423 g004

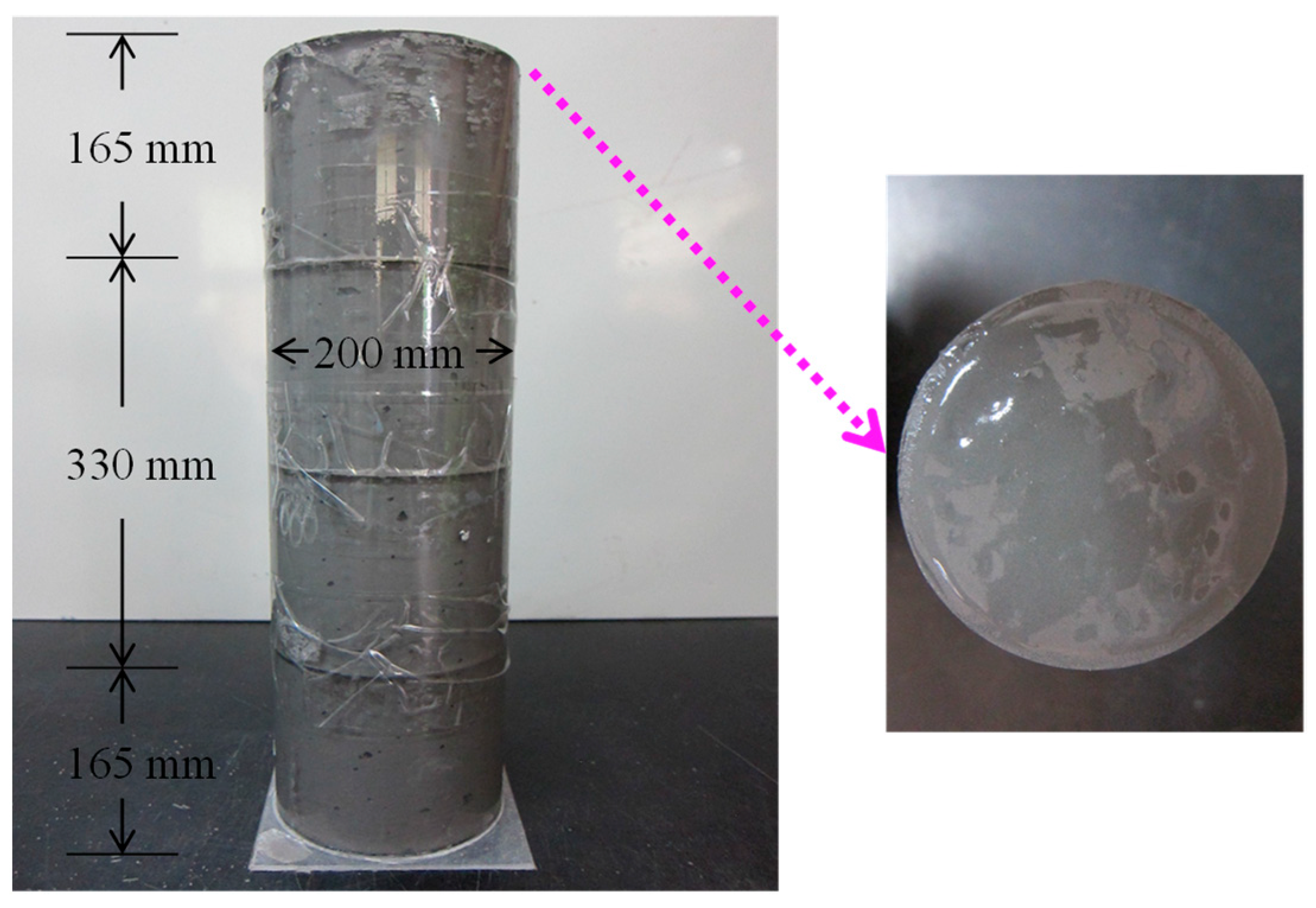

Figure 4. Test mold of static segregation index.
Figure 4. Test mold of static segregation index.
Materials 18 04423 g004
Materials 18 04423 g005

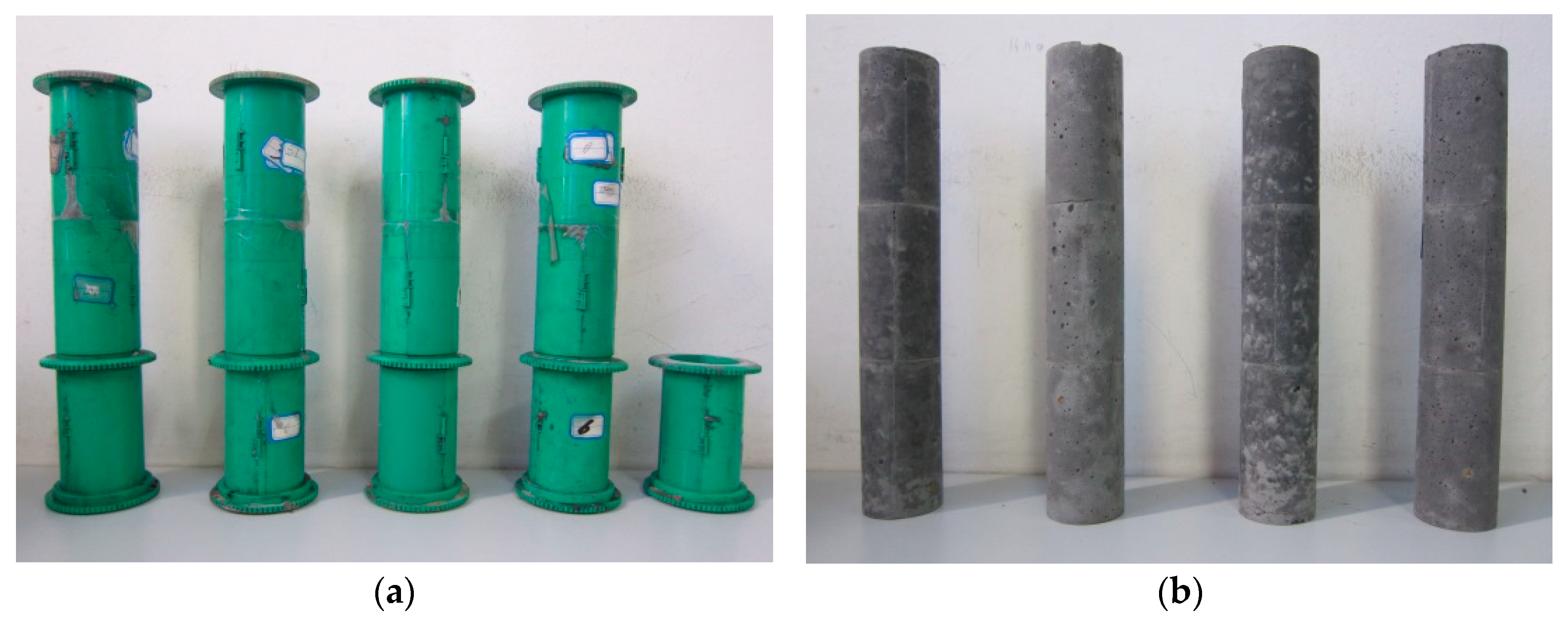

Figure 5. Test mold of homogeneity degree: (a) molds; (b) samples.
Figure 5. Test mold of homogeneity degree: (a) molds; (b) samples.
Materials 18 04423 g005
Materials 18 04423 g006

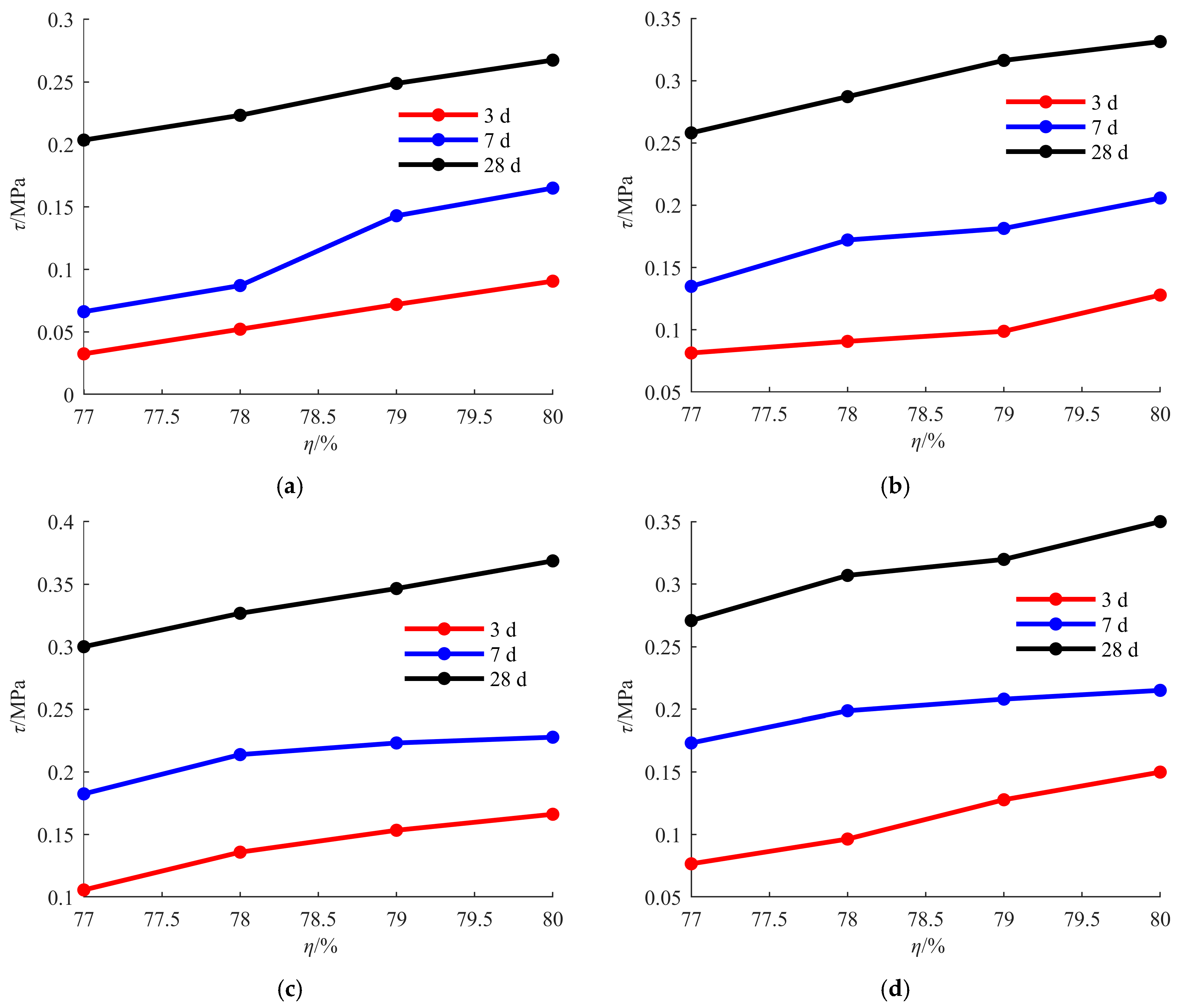

Figure 6. Change curve of shear strength with SC: (a) ω = 0; (b) ω = 0.02%; (c) ω = 0.04%; and (d) ω = 0.06%.
Figure 6. Change curve of shear strength with SC: (a) ω = 0; (b) ω = 0.02%; (c) ω = 0.04%; and (d) ω = 0.06%.
Materials 18 04423 g006
Materials 18 04423 g007
Figure 7. Test results of static segregation index: (a) η = 77%; (b) η = 78%; (c) η = 79%; and (d) η = 80%.
Figure 7. Test results of static segregation index: (a) η = 77%; (b) η = 78%; (c) η = 79%; and (d) η = 80%.
Materials 18 04423 g007
Materials 18 04423 g008

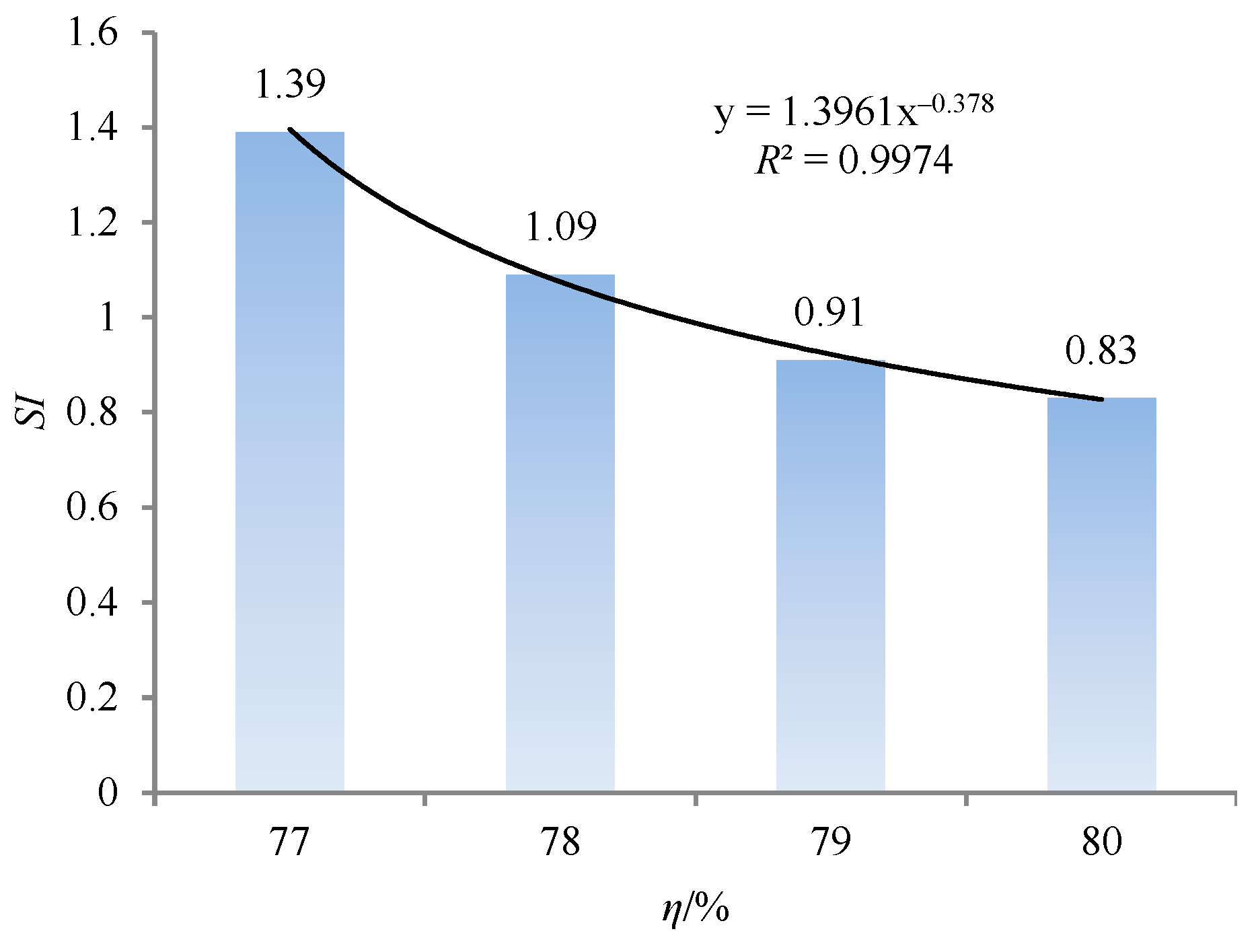

Figure 8. Change curve of static segregation index with SC.
Figure 8. Change curve of static segregation index with SC.
Materials 18 04423 g008
Materials 18 04423 g009

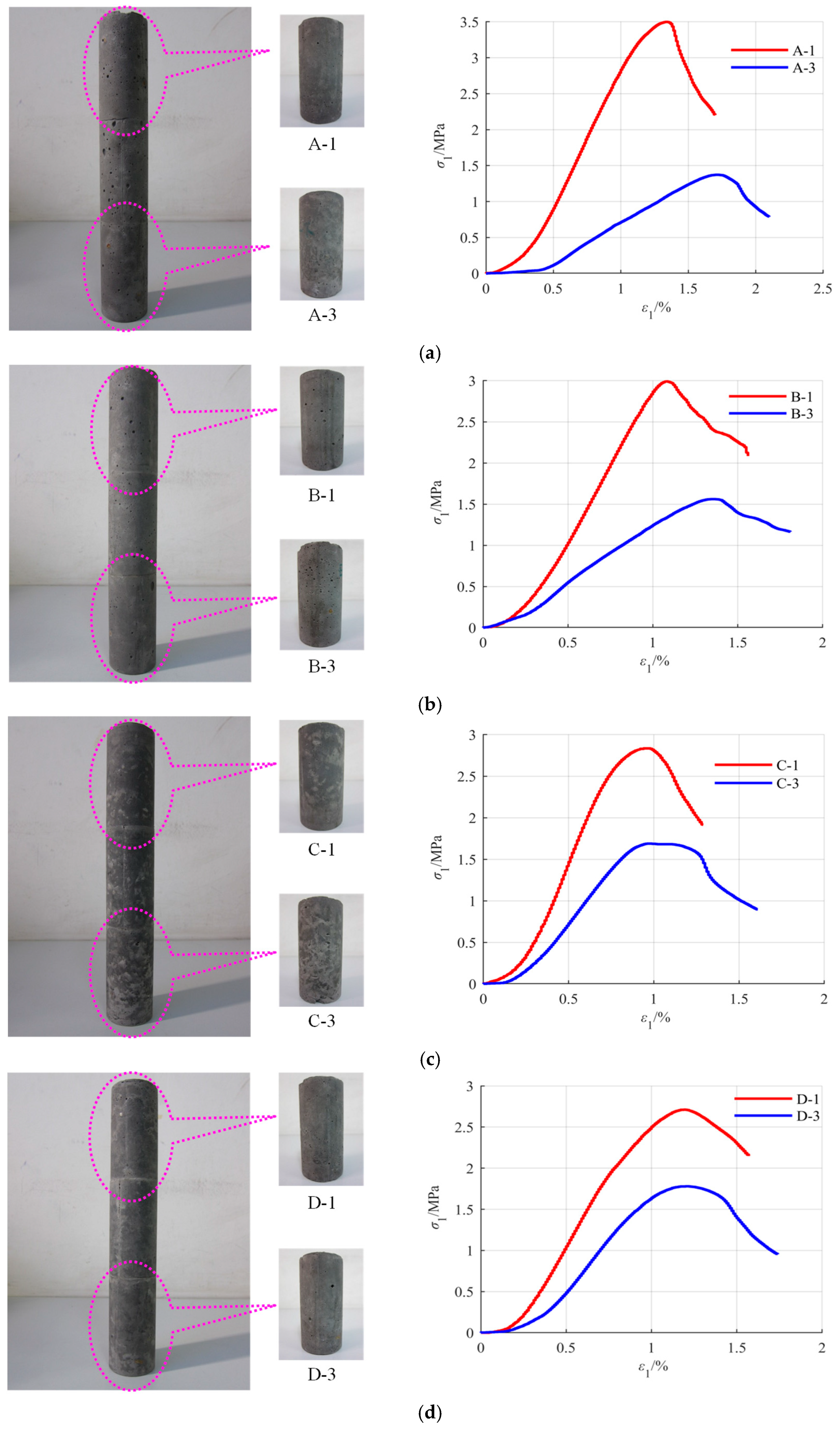

Figure 9. Test results of homogeneity degree: (a) η = 77%; (b) η = 78%; (c) η = 79%; and (d) η = 80%.
Figure 9. Test results of homogeneity degree: (a) η = 77%; (b) η = 78%; (c) η = 79%; and (d) η = 80%.
Materials 18 04423 g009
Materials 18 04423 g010

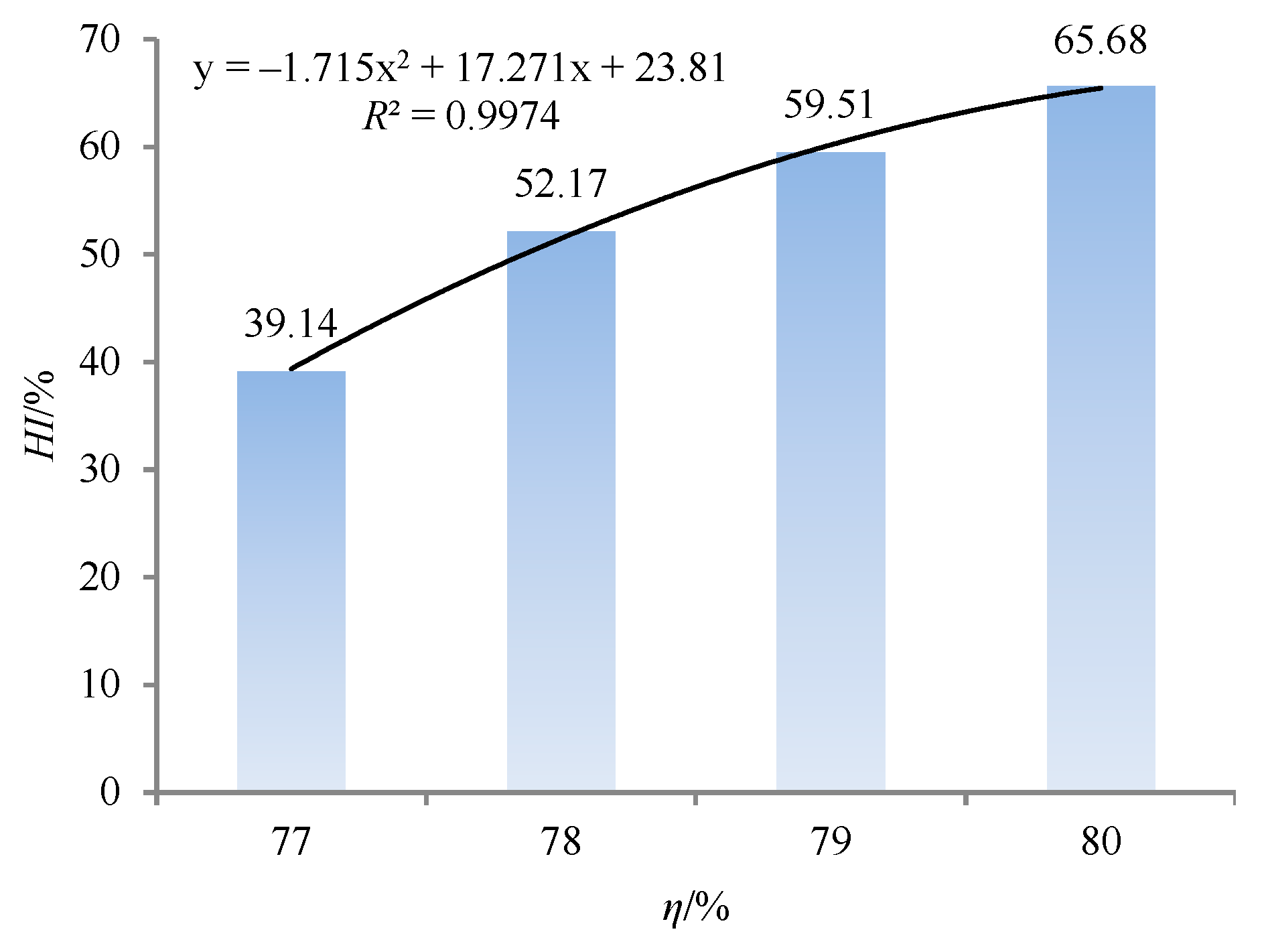

Figure 10. Change curve of homogeneity degree with SC.
Figure 10. Change curve of homogeneity degree with SC.
Materials 18 04423 g010
Materials 18 04423 g011
Figure 11. Relationship between static segregation index and shear strength.
Figure 11. Relationship between static segregation index and shear strength.
Materials 18 04423 g011
Materials 18 04423 g012
Figure 12. Relationship between homogeneity degree and shear strength.
Figure 12. Relationship between homogeneity degree and shear strength.
Materials 18 04423 g012
Table 1. Chemical composition of raw materials.
Table 1. Chemical composition of raw materials.
Raw MaterialsChemical Composition/%
SiO2CaOAl2O3Fe2O3SO3TiO2K2OOther
Coal gangue34.6228.4421.386.494.851.120.632.47
Fly ash54.420.9831.525.360.841.561.393.93
Cement25.1242.3512.113.986.453.950.225.82
Table 2. Test scheme of shear strength.
Table 2. Test scheme of shear strength.
η
(%)		ω
(%)		Material Mix Ratio/%t
(°C)		A
(d)
Coal Gangue:Fly Ash:Cement:Water
770, 0.02, 0.04 and 0.0647:20:10:2320 ± 23, 7 and 28
7848:20:10:22
7949:20:10:21
8050:20:10:20
Table 3. Test scheme of static segregation index.
Table 3. Test scheme of static segregation index.
ω
(%)		η
(%)		Material Mix Ratio/%t
(°C)		A
(min)
Coal Gangue:Fly Ash:Cement:Water
07747:20:10:2320 ± 215
7848:20:10:22
7949:20:10:21
8050:20:10:20
Table 4. Test scheme of homogeneity degree.
Table 4. Test scheme of homogeneity degree.
ω
(%)		η
(%)		Material Mix Ratio/%t
(°C)		A
(d)
Coal Gangue:Fly Ash:Cement:Water
07747:20:10:2320 ± 228
7848:20:10:22
7949:20:10:21
8050:20:10:20
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Yang, H.; Wang, R.; Zhang, Q.; Ma, W.; Wang, Y. Experimental Study on Mechanical Property of Cemented Backfill in Coal Mine. Materials 2025, 18, 4423. https://doi.org/10.3390/ma18184423

AMA Style

Yang H, Wang R, Zhang Q, Ma W, Wang Y. Experimental Study on Mechanical Property of Cemented Backfill in Coal Mine. Materials. 2025; 18(18):4423. https://doi.org/10.3390/ma18184423

Chicago/Turabian Style

Yang, Haigang, Rui Wang, Qiang Zhang, Wencheng Ma, and Yukai Wang. 2025. "Experimental Study on Mechanical Property of Cemented Backfill in Coal Mine" Materials 18, no. 18: 4423. https://doi.org/10.3390/ma18184423

APA Style

Yang, H., Wang, R., Zhang, Q., Ma, W., & Wang, Y. (2025). Experimental Study on Mechanical Property of Cemented Backfill in Coal Mine. Materials, 18(18), 4423. https://doi.org/10.3390/ma18184423

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
