The Effect of the Finishing Deformation Temperature on the Microstructure of CrVNb Micro-Alloyed Steel

by
Gholam Ali Baqeri
1,2,*,
Chris Killmore
2,3,
Lachlan Smillie
4 and
Elena Pereloma
1,2,4,*
1
School of Mechanical, Materials, Mechatronic and Biomedical Engineering, University of Wollongong, Wollongong, NSW 2522, Australia
2
ARC Research Hub for Australian Steel Innovation, University of Wollongong, Wollongong, NSW 2522, Australia
3
BlueScope Steel Limited, Five Islands Rd, Port Kembla, NSW 2505, Australia
4
Electron Microscopy Centre, University of Wollongong, Wollongong, NSW 2522, Australia
*
Authors to whom correspondence should be addressed.
Materials 2025, 18(14), 3234; https://doi.org/10.3390/ma18143234
Submission received: 19 May 2025 / Revised: 19 June 2025 / Accepted: 27 June 2025 / Published: 9 July 2025
(This article belongs to the Special Issue Characterization of Metallic Materials: Solidification, Deformation, Heat Treatment and Other Related Phenomena—Third Edition)
Browse Figures
Versions Notes

Abstract

This study explored the effects of the finishing deformation temperature on the microstructure and properties of CrVNb micro-alloyed steel following thermomechanical processing (TMP). The investigation encompassed the influence of the deformation temperature on the ferrite grain size, precipitate characteristics, hardness and flow stress. The microstructure characterization was performed using optical and electron microscopy techniques. The results show that decreasing the deformation temperature refined the ferrite grains, though a bimodal ferrite grain structure formed when the deformation temperature fell to about 100 °C below the Ar3 temperature. Additionally, lower deformation temperatures increased the number density of strain-induced precipitates (SIPs), whereas the density of finer precipitates (random and interphase precipitates (IPs)) decreased. The highest hardness was observed in a sample deformed at 950–850 °C temperatures. These findings highlight the impact of the finishing deformation temperatures on the microstructural and mechanical properties, providing valuable insights for optimizing steel processing conditions.

1. Introduction

High-strength low-alloy (HSLA) steels are an important class of materials renowned for their mechanical properties and wide industrial applications. These materials are notable for their good strength-to-weight ratio, toughness, formability, weldability and corrosion resistance, making them highly suitable for applications like automotive industry, oil and gas extraction, and construction [1,2,3]. The addition of small amounts of alloying elements, such as Nb, V, Cr, Ti and Mo, enhances the strength of the ferritic (α) matrix through three main mechanisms: grain size refinement, precipitation hardening and solid solution strengthening [4,5,6].
In addition to the chemistry of steel, the microstructure of these steels plays a pivotal role in determining their mechanical strength, toughness and overall performance [2,7,8,9]. There are different parameters used during thermo-mechanical processing that affect the properties of the final product, like the reheating temperature and time [6], cooling rate [10], amount of deformation [11] and its temperature, coiling temperature [12] and coiling time [13]. Amongst these, the deformation temperature stands out as one of the critical parameters.
The restoration mechanisms of austenite (γ) and their temperatures influence the microstructure of steel after TMP. To achieve an optimal combination of strength and toughness, it is important to understand the effect of deformation temperatures during hot rolling on the grain structure of austenite (γ). Tanaka et al. [14] divided the deformation during TMP into three different stages based on the temperature: (1) deformation in the recrystallization region that refines the final ferrite grain size through the recrystallization of austenite, (2) deformation in the non-recrystallization γ region that increases the grain boundaries and deformation bands density, and (3) deformation in the α–γ two-phase region that deforms the ferrite grains formed previously and produces the sub-structure in ferrite grains. However, Fukuda et al. [15,16] only considered deformation in austenite. Based on this category, deformation can be performed in the recrystallization region and/or non-recrystallization region. Deformation in the recrystallization region itself is divided into two types: type A represents the deformation at higher temperatures that does not contribute to the austenite refinement, while type B, which deforms at lower temperatures in the recrystallization region, leads to austenite grain size refinement. Panirgahi [17] classified the TMP based on the deformation temperature under five different regions: deformation in the recrystallized austenite region; in the non-recrystallized region; on the border of recrystallized and non-recrystallized regions; in the austenite–ferrite region; and finally, in the ferrite region.
Finishing deformation boosts the density of lattice defects, like grain boundaries, dislocations, shear bands and deformation bands [17]. It has been reported that these defects are potential ferrite nucleation sites [17,18,19]. Deformation in the non-recrystallization region causes the formation of an austenite pancaked structure, as the recrystallization of austenite cannot happen. Also, based on the theory of kinking suggested by Frank and Stroh [20], deformation bands nucleate on available inhomogeneities and extend if the applied stress reaches a critical value. Panirgahi et al. [17] reported the formation of deformation bands and twins in micro-alloyed steels when the reduction per pass is above 20%. Inagaki [18] believed that the deformation in the non-recrystallization region causes a local deformation in the region near the annealing twins, as well as austenite grain boundaries. Consequently, ferrite nuclei form in these regions during the austenite to ferrite transformation. This process leads to final ferrite grain size refinement.
The reduction in the finishing deformation temperature increases the density of these defects, which raises the stored energy in the material [21]. However, if the amount of this stored energy reaches the critical value, softening mechanisms, like DIFT, will take place, even at temperatures above Ar3 [22,23,24,25].
In this research, we explored the relationship between finishing deformation temperatures during simulated hot strip rolling and the microstructural evolution of recently developed CrVNb micro-alloyed steel. By examining the mechanisms through which temperature alters the microstructure, we aimed to provide insights into optimizing the processing conditions for achieving the desired material properties.

2. Materials and Methods

The composition of the micro-alloyed steel used in this study was 0.11% C, 1.39% Mn, 0.26% Si, 0.03% Al, 0.011% Ni, 0.018% Cu, 0.002% Mo, 0.0129% N, 0.01% P, 0.004% S and a total percentage of microalloying elements (Cr-V-Nb) equal to 0.723 (wt.%). The as-cast steel was homogenized at 1300 °C for 30 h and then forged from 75 to 28 mm in thickness. The next step was the machining of specimens with 11 × 15 × 20 mm3 dimensions for TMP simulations using a Gleeble 3500 Thermal-Mechanical Simulator (Dynamic Systems Inc., Poestenkill, NY, USA).
Figure 1 shows the schematic of the TMP simulation conducted in this study. The samples were reheated at 1250 °C for 180 s to ensure the complete dissolution of precipitates, particularly complex Nb(CN), which has been reported to dissolve at around 1150 °C [6]. The selected holding time also allowed for thermal field homogenization while minimizing the austenite grain growth. Following reheating, the samples underwent four plain strain compression steps above and below the non-recrystallization temperature (Tnr = 950 °C [26]). The thickness of the samples reduced from 11 to 2.2 mm after the deformation. It should be noted that the total strain in the non-recrystallization region in this study was 0.5 higher than that used in Ref. [26], which could influence the effective Tnr.
The first two deformations, which were above Tnr (R1 and R2), represent the roughing rolling stage, and their temperatures were kept constants for all TMP schedules. The third and fourth deformations were performed at different temperatures (F1 and F2) below Tnr to study the effects of the finishing rolling temperatures on the microstructures of the specimens. A total applied strain of 1.5 was introduced during the TMP, which included four deformation passes (R1, R2, F1 and F2). Table 1 describes the finishing deformation temperatures for different schedules, as well as their microstructure characteristics. In this paper, each sample is labeled as “X-Y”, where X and Y represent the finishing deformation temperatures F1 and F2 (in °C), respectively (e.g., the “1000-900 sample” indicates finishing deformations at 1000°C and 900°C. After the last deformation stage, the samples were held at the deformation temperature for 10 s to promote thermal homogenization and reduce the localized microstructural effects that resulted from accumulated deformation below Tnr. Although the temperature was below Tnr, this short isothermal hold allowed for partial recovery, thereby reducing heterogeneities associated with prior deformation. For each condition, a sample was water quenched to room temperature to study the effect of the deformation temperature on the austenite microstructure, while another sample was cooled to 650 °C (at a rate of 30 °C/s) and held for 3600 s, which were the simulated coiling temperature and time, respectively. Then, the samples were slowly cooled down to room temperature (at a rate of 10 °C/s). It should be noted that all deformation steps were performed at the constant strain rate of 5 s−1.
To analyze the microstructure of specimens after the TMP, the samples that experienced air cooling (route B in Figure 1) were etched using 2% nital solution for about 10 s. The quenched samples were etched using 150 mL of distilled water, 4.5 g of picric acid, 1 mL Teepol as a wetting agent and 8 drops of HCl acid at 80 °C for 35 s [27]. Also, the quenched samples were etched again using 2% nital solution to reveal the ferrite formed during the deformation. The microstructure characterization was conducted using a Leica DMRM (Leica Microsystems, Wetzlar, Germany) optical microscope (OM) and FEI Helios NanoLab G3 CX (Thermo Fisher Scientific, Hillsboro, OR, USA) focused ion beam (FIB) field emission scanning electron microscope FEGSEM equipped with an Oxford instruments X-maxN 150 mm2 123 eV SDD energy dispersive X-ray detector (Oxford Instruments, High Wycombe, UK). The FIB was operated at 5 kV and 11 nA in secondary electron (SE) mode.
To prepare the transmission electron microscope (TEM) lamellas using FIB, the Crystal Aligner computer program was used to determine the ideal geometry with the (110) plane normal to the observation direction from the Electron Backscatter Diffraction (EBSD) data [28]. The voltage and current of the initial trenching were 30 kV and 9.3 nA, respectively, while the final cleaning was performed at 30 kV and 2.5 nA. Carbon replicas of the samples were prepared to measure the number density of precipitates using TEM. First, the polished samples were etched for 10 s using 2% nital. A 15 nm thick carbon layer was then deposited on the surface using a Leica EM ACE600 Sputter Coater (Leica Microsystems, Wetzlar, Germany). After 24 h, the coated layers were scribed into 2 × 2 mm2 squares to facilitate the extraction of the carbon replicas. The samples were immersed in a solution that consisted of 2 vol.% HNO3, 5 vol.% ethanol and 93 vol.% distilled water, with slight agitation provided by a pipette during this step. Once the carbon replicas were detached, the solution was replaced with a rinsing solution of 5 vol.% ethanol and 95 vol.% distilled water. The rinsing process was repeated six times, after which the carbon replicas were collected on 400 square mesh copper grids.
A JEOL Cold FEGTEM (field emission gun TEM) JEM-F200 (JEOL Ltd., Tokyo, Japan) was used for the TEM analysis of the phases and precipitates at 200 kV. The high-resolution scanning transmission electron microscopy (STEM) investigation of precipitates was performed using a probe-corrected JEOL-ARM F-200 Cold FEGTEM (JEOL Ltd., Tokyo, Japan) at 200 kV. The energy-dispersive X-ray spectroscopy (EDS) analysis was performed using a JEOL Centurio SDD detector (JEOL Ltd., Tokyo, Japan) with a 100 mm2 detection area.
The quantitative analysis of the ferrite grain size and the area percentage of the secondary constituents was undertaken by ImageJ 1.48v freeware. About 1000 grains were measured for each condition and the average value was reported as the ferrite grain size. Vickers microhardness tests were performed using a MATSUZAWA Via-F microhardness tester machine (MATSUZAWA Co., Ltd., Akita, Japan). The average of 5 hardness measurements was considered as the microhardness for each sample.

3. Results

3.1. OM and Scanning Electron Microscopy (SEM)

The OM micrographs of the quenched samples (experienced route A in Figure 1) are shown in Figure 2. The microstructures consisted of polygonal ferrite and martensite that was formed due to quenching. The ferrite grains mostly nucleated at the prior austenite grain boundaries and formed a necklace shape, which revealed the prior austenite grain structure. Sekine et al. [19] reported that when the etching of the austenite grain structure does not illustrate the microstructure, the austenite grain boundaries may be revealed from the situation of ferrite nuclei on an incompletely quenched sample. In Figure 2d (etched by solution with picric acid), the austenite displays a pancaked structure due to the deformation in the non-recrystallization region before the transformation. The prior austenite grain aspect ratio was measured from quenched samples etched using a solution that contained picric acid (see Section 2), which clearly revealed the austenite grain boundaries. A line–intercept method was applied on these micrographs, where lines were drawn parallel and perpendicular to the rolling direction. The average grain size in each direction was calculated by dividing the total line length by the number of intercepts, and the aspect ratio was obtained as the ratio of grain sizes in the two directions. The aspect ratio increased from 2.4 ± 0.4 to 3.5 ± 0.6, with a decrease in the finishing deformation temperatures from 1000–900 °C to 950–850 °C. However, there were some small polygonal ferrite grains within the austenite pancaked microstructure of samples with the deformation temperatures of 1000–900 and 950–850 °C (Figure 2d). Decreasing the finishing deformation temperatures from 1000–900 to 900–780 °C led to increases in the ferrite grains size and volume in the quenched samples (Figure 2a–c).
Figure 3 represents the OM and SEM micrographs of samples with three different deformation temperatures and coiled at 650 °C for 1 h (route B in Figure 1). The matrix consisted of polygonal ferrite, while pearlite and granular bainite—which were distinguished from each other based on their characteristic morphologies in higher magnification images—formed as secondary constituents. The contrast variation between ferrite grains in the SEM image, with some appearing bright and others dark, was attributed to differences in the crystallographic orientation: grains that have a [001] direction close to the normal to the plane of polish tend to etch less and appear brighter and bulged, while those with other orientations are more readily etched, and thus, appear darker [29].
The details of their microstructure characteristics are given in Table 1. The reduction in the finishing deformation temperatures from 1000–900 to 950–850 °C caused an average ferrite grain size refinement from 2.7 to 2.4 µm; however, further reduction of the deformation temperatures to 900–780 °C slightly increased the average ferrite grain size (2.5 µm) compared with the 950–850 °C deformation temperatures. Also, the lowest finishing deformation temperature led to the formation of a bimodal ferrite grain size, as can be seen from its OM and SEM images (Figure 3e,f). The area percentage of the second constituents for specimens with the deformation temperatures of 1000–900 and 950–850 °C were roughly about 13%, but the sample with the lowest deformation temperature had only 9% secondary constituents. The measurement of the pearlite interlamellar spacing of samples showed a considerable reduction in the pearlite lamellar spacing by decreasing the deformation temperatures to 900–780 °C. This can be attributed to the acceleration of austenite to ferrite and pearlite transformations that resulted from deformation at a lower temperature [30].
The distribution of the ferrite grain size is presented in Figure 4. The decrease of deformation temperatures from 1000–900 °C to 950–850 °C caused a slight increase in the frequency of fine ferrite grains (smaller than 2 µm), while the number of grains larger than 3 µm decreased. The comparison of samples deformed at 950–850 °C and 900–780 °C showed that the lowest deformation temperature led to an increase in the number of fine grains (below 1 µm), as well as coarse grains (larger than 5 µm); however, the number of grains between 1 and 5 µm reduced. It should be noted that Figure 4 presents the number distribution, meaning that even a small change in the number of coarse grains can have a significant impact on the volume fraction of coarse grains.
The sample with the deformation temperatures of 950–850 °C had the highest Vickers hardness (294 HV), while the lowest deformation temperature led to the lowest Vickers hardness (257 HV) amongst these three deformation schedules.

3.2. Flow Stress Investigation

The double-differentiation method was employed to study the softening mechanisms during the finishing deformation of samples. The details of this method have been described elsewhere [31,32,33,34,35]. Figure 5 illustrates the stress–strain curves and the variation in the second derivative of stress versus stress for different deformation temperatures. These curves had two minima, except for the deformation at 780 °C for the sample with the lowest deformation temperatures (900–780 °C), which showed only one. These minimum points show the onset stresses at which a softening mechanism activates. In each curve, the first minima is related to the activation of the deformation-induced ferrite transformation (DIFT), and the second one is where the dynamic recrystallization (DRX) of dynamically transformed ferrite starts to occur [35,36,37]. The deformation at 780 °C only activates the DRX of ferrite, as this temperature is considerably below Ar3 (Ar3 = 875°C [26]), where ferrite is thermodynamically stable. Given the softer nature of ferrite compared with austenite, most of the applied strain is stored in the ferrite, promoting the DRX of ferrite. Table 2 presents the critical strains and stresses for the activation of the DIFT and DRX at different deformation temperatures.

3.3. EDS Analysis of Precipitates

The EDS analysis of samples showed the formation of coarse sulfide and oxide inclusions, coarse iron carbide, medium sized copper sulfide and fine (Nb,V)C precipitates. Figure 6 illustrates a complex inclusion and the EDS map of its constituent elements. Its elongated morphology was due to the deformation of steel, which caused the stretching in the direction normal to the applied load. This complex inclusion consisted of (Cu,Ni)S, while chromium silicate was attached to the sides of the main body.
The coarse M3C precipitates, where M consisted of Fe, Mn and V, were formed mostly at the ferrite grain boundaries; however, some formed within the grains (Figure 7a). The point EDS analysis of these particles demonstrated that the C, Mn and V peaks increased compared with the matrix (Figure 7c). Smaller precipitates, which formed mainly at the sub-grain boundaries, were identified as copper sulfide, as shown by the EDS maps of Cu and S (blue) in Figure 7b and the EDS spectrum in Figure 7d. Although there was no (Nb,V)C detectable in the EDS map because of their small size, the point EDS revealed their existence, as seen from Figure 8. It is well established that the partial substitution of Nb by V within (V,Nb)C precipitates reduces the lattice misfit between the precipitate and ferrite and lowers the overall Gibbs free energy, promoting the formation of such complex precipitates [38].
The number density distribution of precipitates is illustrated in Figure 9. It should be noted that this figure only shows the particles that are observable in SEM and are larger than ~20 nm. The total number of particles increased with decreasing deformation temperature (Table 1). The average size of the precipitates did not change considerably by decreasing the deformation temperatures from 1000–900 to 950–850 °C (about 58 nm). However, it decreased to 38 nm for the sample with the lowest deformation temperature. It can be seen from Figure 9 that the number density of particles smaller than 50 nm increased significantly in the sample with the deformation temperatures of 900–780 °C compared to the other two samples with higher deformation temperatures.

3.4. TEM Characterization

Figure 10a is the bright-field TEM micrograph of the sample deformed at 900–780 °C, showing the formation of medium-sized precipitates along the grain boundaries. The selected area diffraction pattern (SADP) taken from the encircled region in Figure 10a is displayed in Figure 10b, confirming that the grain boundary phase was cementite (M3C). The diffraction pattern corresponded to the orthorhombic crystal structure of cementite.
Figure 11 is the bright-field and dark-field images of samples with the highest and lowest deformation temperatures (1000–900 and 900–780 °C), as well as their related diffraction patterns. Small red circles in the diffraction patterns show the positions of diffraction spots that the dark-field images have been taken from. The precipitates maintained the Baker–Nutting (B-N) orientation relationship (OR) with ferrite, as represented by the following crystallographic relationships (Equation (1)) [39,40,41,42]:
( 001 ) M C   / /   001 α ,     [ 110 ] M C   / /   [ 100 ] α
Although the rows of IPs are clearly distinguishable in the sample with the deformation temperatures of 1000–900 °C, precipitates seemed to form randomly in the sample with the lowest deformation temperature. Decreasing the deformation temperatures from 1000–900 °C to 900–780 °C caused an average fine precipitate size increase from 2.5 ± 0.8 to 4.9 ± 0.5 nm, while their number density reduced from 2546 ± 952 to 576 ± 169 µm−2 (Table 1). The TEM micrographs in Figure 12, which were obtained from carbon replica samples, illustrate the variations in the precipitate size and number density of the IP/random precipitates with decreasing deformation temperature. The high-angle annular dark-field (HAADF) images of the samples with the deformation temperatures of 1000–900 and 900–780 °C in Figure 13 clearly show the larger size of the precipitates in the sample with 900–780 °C deformation temperatures. As the last deformation in this sample was performed about 100 °C below the Ar3 temperature, where a considerable amount of ferrite with precipitates had already formed, the interaction between these precipitates and dislocation movements during the deformation caused the formation of ledges at the precipitate/matrix interface (Figure 13d). Pereloma et al. [43] reported the same phenomena after the deformation of ferritic steel that contained VC IPs. The comparison of the Fast Fourier Transformations (FFTs) of MC (M = V, Cr and Nb) with the FFT of matrix (Figure 13c,d)) revealed diffraction spots of MC with the B-N OR relative to the matrix. The EDS analysis of precipitates illustrates the segregation of V atoms, while Cr atoms slightly accumulated around the V-rich core (Figure 14). However, the EDS did not show the presence of Nb, probably due to the small amount of Nb in the composition.

4. Discussion

The ferrite grains observed in the OM micrographs of the quenched sample deformed at 1000–900 °C (Figure 2a) as a result of the activation of the DIFT mechanism, as the Ar3 temperature for this steel was measured as 875 °C in Ref. [24]. Since the deformation in this experiment was greater than in Ref. [24], the actual Ar3 temperature was likely higher. This increase in Ar3 suggests that the diffusional transformation of austenite to ferrite also could have occurred [44]. In the cases of the other two quenched samples (Figure 2b,c), the formed ferrite could be dynamically transformed ferrite and pro-eutectoid ferrite that formed during the 10 s holding after the deformation and before the quenching, as their last deformation temperatures were below Ar3.
The plots of the second derivative of the stress–strain curves (Figure 5) confirmed the occurrence of the DIFT and DRX during the F2 deformations of the 1000–900 °C and 950–850 °C samples. However, these softening mechanisms arose during the F1 deformation (at 900 °C) of the sample with the lowest deformation temperatures. As the F1 deformation temperatures of the 900–780 °C sample was below Tnr (at 900 °C), the deformation caused an increase in the defect density, and consequently, in the stored energy. Thus, the accumulated strain was enough for the activation of the DIFT and DRX. Gosh et al. [45] showed that the mechanism of nucleation of a DIFT is displacive, while the growth mechanism is diffusional. Therefore, the time of growth influences the DIFT grain size. The DIFT grains in the sample with the deformation temperatures of 900–780 °C started to form during F1 at 900 °C, while in the other two samples, a DIFT was initiated during F2 in two other samples (Figure 5). The 900–780 °C sample experienced cooling from F1 to F2, deformation at F2 and 10 s of isothermal holding after F2. In contrast, the other samples began the DIFT only at F2, meaning the ferrite grains formed closer to the end of the process, and thus, had less time to grow before quenching. Therefore, the earlier initiation of the DIFT in the 900–780 °C sample resulted in more available time for grain growth compared with the other conditions. Also, the deformation at 780 °C led to the formation of more defects in this sample compared with those present in the samples deformed at 1000–900 and 950–850 °C because of more work hardening at lower temperature where the static restoration mechanisms were restricted [46]. A higher density of defects (especially the dislocation density) facilitated the diffusion of alloying elements and accelerated the growth of ferrite grains. This is why the volume fraction and grain size of ferrite were higher in the quenched sample with the deformation temperatures of 900–780 °C than in the 1000–900 and 950–850 °C ones (Figure 2).
The comparison of the critical strain for the activation of the DIFT and DRX (Table 2) shows that the reduction in the finishing deformation temperatures from 1000–900 °C to 950–850 °C led to less strain needed for the activation of the DIFT. Ferrite is thermodynamically unstable at temperatures above Ar3 in an undeformed sample and increasing the temperature in this region increases the Gibbs free energy of ferrite. In other words, the activation of DIFT at higher temperatures demands more strain to overcome the larger thermodynamic barrier of transformation [35,36].
The refinement of the ferrite grain size at the deformation temperature of 950–850 than 1000–900 °C (Figure 3 and Table 1) can be attributed to the higher stored energy from plastic deformation at the lower temperatures (950–850 °C). This increased stored energy enhances the driving force for the austenite-to-ferrite transformation and reduces the activation barrier for ferrite nucleation, thereby promoting the formation of finer grains [39].
The formation of a large amount of DIFT grains during F1 in the sample deformed at 900–780 °C ended with a bimodal ferrite grain size after coiling (Figure 3e,f). The DIFT grains that formed at 900 °C could grow fast because of the facilitation of alloying elements diffusion. However, the new ferrite grains formed during cooling and isothermal holding at 650 °C could not grow at the same pace as the DIFT grains at higher temperatures. It is needless to mention that the DIFT grains also experienced more time to grow.
Another reason for the formation of the bimodal ferrite grain size in the sample with the lowest finishing deformation temperature was that as the last deformation step (at 780 °C) was performed about 100 °C below the Ar3 temperature, both the deformed and undeformed ferrite grains coexisted during the isothermal holding at 650 °C. Undeformed ferrite grains formed either through the DRX of deformed ferrite during F2 (Figure 5) or during the cooling and coiling after this deformation step. These new undeformed ferrite grains that nucleated at the austenite/deformed ferrite interfaces could grow rapidly into the deformed ferrite. This rapid growth of undeformed ferrite into the deformed ones and the recovery of deformed ferrite led to the bimodal ferrite grain size after the isothermal holding. The reason for the growth of undeformed ferrite into the deformed ones was the difference in their stored energies and strain-induced boundary migration (SIBM) [47,48].
The reduction in the finishing deformation temperature also affected the number density and size of the SIPs. Increasing the number density of the SIPs after the deformation at lower temperatures of 950–850 °C compared with 1000–900 °C can be attributed to the higher work hardening and increasing the dislocations density and other defects, which are favorable nucleation sites for SIP [49]. However, their average size did not change considerably with this reduction in the deformation temperature. The considerable number density increment and average size refinement of the SIPs in the sample deformed at 780 °C also related to the formation of a dislocations network due to the deformation at a lower temperature, which promoted the nucleation and facilitated the diffusion of alloying elements through this network to the precipitate’s nuclei [49,50] (Figure 15a and Table 1).
Although SIPs control the austenite grain growth, they also consume the carbide-forming alloying elements that have the potential of forming small-sized precipitates during the austenite-to-ferrite transformation or in ferrite during coiling [51]. Interphase precipitates and random precipitates that form in ferrite are more efficient than SIPs in controlling the dislocation movements and precipitation strengthening. The formation of a higher number density of SIPs in the sample with the deformation temperatures of 900–780 °C left a lower amount of alloying elements dissolved in the austenite. With the reduction in the concentrations of Cr, V and Nb in the austenite, the driving force for the nucleation of precipitates during austenite to ferrite transformation and after transformation reduced, and consequently, the number density of IPs and random precipitates decreased (Figure 15a). On the other hand, in the sample deformed at 900–780 °C, the DIFT grains that had formed during F1 experienced deformation at 780 °C, which resulted in the formation of dislocations and deformation bands in them. These defects promoted the diffusion of alloying elements and caused the growth of precipitates. This was the reason for the larger sizes of random precipitates in the sample with the deformation temperatures of 900–780 °C than those of the IPs in the 1000–900 °C sample.
The comparison of the hardness of samples with different deformation temperatures revealed that the sample deformed at 950–850 °C had the highest hardness, while the lowest deformation temperatures (900–780 °C) showed the least hardness among these three schedules (Figure 15b and Table 1). It can be seen from Figure 15b that the refinement of ferrite grains in the 950–850 °C sample improved the hardness. It should be considered that the deformation at temperatures lower than 1000–900 °C increased the dislocation density, which assisted in improving the mechanical properties.
On the other hand, there were three reasons for the lower hardness of the 900–780 °C sample. First, the lower number density of random precipitates in this sample compared with the other two schedules (Figure 15a). Second, the bimodal ferrite grain size in this sample, which deteriorated the mechanical properties [52,53]. Finally, a lower percentage of secondary constituents in this sample than in the other two samples with higher deformation temperatures (Table 1). The reason for the lower amount of secondary constituents in this sample was the acceleration of the austenite-to-ferrite transformation due to the lower deformation temperatures and larger driving force for the transformation. In other words, the austenite-to-ferrite transformation started earlier and lasted longer than in the samples with higher deformation temperatures.

5. Conclusions

This investigation into the effect of finishing deformation temperatures on the microstructure of Cr-V-Nb micro-alloyed steel led to the following conclusions, which are firmly supported by the experimental results and detailed analyses presented in this study:
  • Reducing the finishing deformation temperatures to 950–850 °C refined the ferrite grains due to increased stored energy and acceleration of ferrite nucleation. At 900–780 °C, bimodal grains formed because the early DIFT grains grew fast at a high temperature, while the later-formed ferrite grew slower, and the strain-induced boundary migration during isothermal holding caused uneven grain growth.
  • The DIFT and DRX softening mechanisms occurred during the last finishing deformation of the 1000–900 °C and 950–850 °C schedules, while they took place during the third deformation stage in the sample with deformation temperatures of 900–780 °C because this stage was performed below Tnr.
  • The finishing deformation schedule of 950–850 °C had a higher number density of SIPs than the 1000–900 °C schedule, while the average sizes were almost equivalent. This was due to the increased work hardening creating more nucleation sites. However, a higher number of SIPs with the smaller average size formed in the sample with the lowest finishing deformation temperatures.
  • The formation of large numbers of SIPs in the sample with the deformation schedule of 900–780 °C left a lower amount of dissolved alloying elements in the austenite, and subsequently, in the ferrite. This caused a reduction in the number density of random precipitates in this sample compared to the samples with higher deformation temperatures.
  • The 950–850 °C finishing deformation schedule resulted in the highest hardness between among the three schedules due to a finer ferrite grain size. The sample with the lowest deformation temperatures exhibited the lowest hardness because of the lower number density of fine precipitates, bimodal ferrite grain size and lower percentage of secondary constituents.

Author Contributions

Conceptualization, E.P. and C.K.; methodology, E.P. and G.A.B.; investigation, G.A.B. and L.S.; data analysis, G.A.B., E.P. and L.S.; writing—original draft preparation, G.A.B.; writing—review and editing, E.P., C.K. and L.S.; project administration, E.P.; funding acquisition, E.P. and C.K. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Australian Research Council (ARC) through the ARC Research Hub for Australian Steel Innovation under the Industrial Transformation Research Hubs scheme (IH200100005). The electron microscopy was conducted using the FEI NanoLab G3 CX, JEOL JEM-ARM 200F (supported by ARC LIEF grants LE160100063 and LE120100104) and JEOL JEM-F200 at the UOW Electron Microscopy Centre.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The datasets presented in this article are not readily available because the data are part of an ongoing study and covered by intellectual property agreement with BlueScope Steel Ltd. Requests to access the datasets should be directed to Mr Gholam Ali Baqeri.

Conflicts of Interest

Author Chris Killmore was employed by the company BlueScope Steel Limited. The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

References

  1. Cochrane, R.C. 6—Phase transformations in microalloyed high strength low alloy (HSLA) steels. In Phase Transformations in Steel; Pereloma, E., Edmonds, D.V., Eds.; Woodhead Publishing: Cambridge, UK, 2012; pp. 153–212. [Google Scholar]
  2. Garcia, C.I. 6—High strength low alloyed (HSLA) steels. In Automotive Steels; Rana, R., Singh, S.B., Eds.; Woodhead Publishing: Cambridge, UK, 2017; pp. 145–167. [Google Scholar]
  3. Guo, A.; Misra, R.; Xu, J.; Guo, B.; Jansto, S. Ultrahigh strength and low yield ratio of niobium-microalloyed 900MPa pipeline steel with nano/ultrafine bainitic lath. Mater. Sci. Eng. A 2010, 527, 3886–3892. [Google Scholar] [CrossRef]
  4. Vervynckt, S.; Verbeken, K.; Lopez, B.; Jonas, J.J. Modern HSLA steels and role of non-recrystallisation temperature. Int. Mater. Rev. 2012, 57, 187–207. [Google Scholar] [CrossRef]
  5. Charleux, M.; Poole, W.J.; Militzer, M.; Deschamps, A. Precipitation behavior and its effect on strengthening of an HSLA-Nb/Ti steel. Met. Mater. Trans. A 2001, 32, 1635–1647. [Google Scholar] [CrossRef]
  6. Kvackaj, T.; Bidulská, J.; Bidulský, R. Overview of HSS Steel Grades Development and Study of Reheating Condition Effects on Austenite Grain Size Changes. Materials 2021, 14, 1988. [Google Scholar] [CrossRef]
  7. Das, S.K.; Chatterjee, S.; Tarafder, S. Effect of microstructures on deformation behaviour of high-strength low-alloy steel. J. Mater. Sci. 2009, 44, 1094–1100. [Google Scholar] [CrossRef]
  8. Shanmugam, S.; Misra, R.; Hartmann, J.; Jansto, S. Microstructure of high strength niobium-containing pipeline steel. Mater. Sci. Eng. A 2006, 441, 215–229. [Google Scholar] [CrossRef]
  9. Zhao, C.; Kingkam, W.; Ning, L.; Zhang, H.; Zhiming, L. Effect of Deformation Temperature on the Microstructure and Mechanical Properties of High-Strength Low-Alloy Steel During Hot Compression. J. Mater. Eng. Perform. 2018, 27, 4129–4139. [Google Scholar] [CrossRef]
  10. Bansal, G.; Rajinikanth, V.; Ghosh, C.; Srivastava, V.; Dutta, M.; Chowdhury, S.G. Effect of cooling rate on the evolution of microstructure and mechanical properties of nonisothermally partitioned steels. Mater. Sci. Eng. A 2020, 788, 139614. [Google Scholar] [CrossRef]
  11. Rodriguez-Galeano, K.F.; Nutter, J.; Azakli, Y.; Slater, C.; Rainforth, W.M. The effect of the increased strain per pass during the hot-rolling and its effect on the tensile properties of V-Mo and Cr-V-Mo microalloyed dual-phase steels. J. Mater. Sci. 2024, 59, 22228–22249. [Google Scholar] [CrossRef]
  12. Mandal, A.; Ghosh, A.; Chakrabarti, D.; Davis, C. Effect of coiling temperature on impact toughness of hot rolled ultra-high-strength multiphase steel strips. Mater. Sci. Eng. A 2021, 824, 141796. [Google Scholar] [CrossRef]
  13. Mukherjee, S.; Timokhina, I.; Zhu, C.; Ringer, S.P.; Hodgson, P.D. Clustering and precipitation processes in a ferritic titanium-molybdenum microalloyed steel. J. Alloys Compd. 2017, 690, 621–632. [Google Scholar] [CrossRef]
  14. Tanaka, T. Controlled rolling of steel plate and strip. Int. Met. Rev. 1981, 26, 185–212. [Google Scholar] [CrossRef]
  15. Fukuda, M.; Hashimoto, T.; Kunishige, K. An Investigation on Controlled Rolling of Low Carbon Killed Steel. Tetsu-to-Hagane 1972, 58, 1832–1847. [Google Scholar] [CrossRef]
  16. Fukuda, M.; Hashimoto, T.; Kunishige, K. Microalloying 75; Korchynsky, M., Ed.; Union Carbide Corporation: New York, NY, USA, 1977; p. 136. [Google Scholar]
  17. Panigrahi, B.K. Processing of low carbon steel plate and hot strip—An overview. Bull. Mater. Sci. 2001, 24, 361–371. [Google Scholar] [CrossRef]
  18. Inagaki, H. Role of annealing twins for grain refinement in controlled rolling of low carbon microalloyed steel. Trans. Iron Steel Inst. Jpn. 1983, 23, 1059–1067. [Google Scholar] [CrossRef]
  19. Sekine, H.; Maruyama, T. Retardation of Recrystallization of Austenite during Hot-rolling in Nb-containing Low-carbon Steels. Trans. Iron Steel Inst. Jpn. 1976, 16, 427–436. [Google Scholar] [CrossRef]
  20. Frank, F.C.; Stroh, A.N. On the Theory of Kinking. Proc. Phys. Soc. Sect. B 1952, 65, 811. [Google Scholar] [CrossRef]
  21. Kim, Y.M.; Lee, H.; Kim, N.J. Transformation behavior and microstructural characteristics of acicular ferrite in linepipe steels. Mater. Sci. Eng. A 2008, 478, 361–370. [Google Scholar] [CrossRef]
  22. Yada, H.; Li, C.M.; Yamagata, H. Dynamic γ→α Transformation during Hot Deformation in Iron-Nickel-Carbon Alloys. ISIJ Int. 2000, 40, 200–206. [Google Scholar] [CrossRef]
  23. Senuma, T. Massive Type Transformation Induced by Hot Deformation in Low Carbon Steels. In Proceedings of the International Conference on Martensitic Transformations (ICOMAT-86), Nara, Japan, 26–30 August 1986; p. 6. [Google Scholar]
  24. Senuma, T. A New Thermomechanical Heat Treatment for Grain Refining in Low Carbon Steels. In Proceedings of the International Conference on Physical Metallurgy of Thermomechanical Processing of Steels and Other Metals, Tokyo, Japan, 6–10 June 1988; p. 8. [Google Scholar]
  25. Ghosh, C.; Basabe, V.V.; Jonas, J.J.; Yue, S.; Xiong, X.Y. Dynamic Transformation Behavior of a Deformed High Carbon Steel at Temperatures Above the Ae3. ISIJ Int. 2013, 53, 900–908. [Google Scholar] [CrossRef]
  26. Singh, N. Microstructure and Mechanical Properties of New Thermo-Mechanically Processed V-Cr (Nb-Mo) Microalloyed Steels. Ph.D. Thesis, School of Mechanical, Materials, Mechatronic and Biomedical Engineering, University of Wollongong, Wollongong, Austarlia, 2020. [Google Scholar]
  27. Rodriguez-Galeano, K.F.; Romano-Acosta, L.F.; Palmiere, E.J.; Rainforth, W.M. A new approach to etching low-carbon microalloyed steels to reveal prior austenite grain boundaries and the dual-phase microstructure. J. Microsc. 2023, 289, 73–79. [Google Scholar] [CrossRef] [PubMed]
  28. Niessen, F. crystalAligner: A computer program to align crystal directions in a scanning electron microscope by global optimization. J. Appl. Crystallogr. 2020, 53, 282–293. [Google Scholar] [CrossRef]
  29. Pereloma, E.V.; Boyd, J.D. On the nature of “raised ferrite” in a low-carbon microalloyed steel. Script. Mater. 1996, 34, 703–706. [Google Scholar] [CrossRef]
  30. Zhao, X.Y.; Zhao, X.M.; Han, H.B.; Dong, C.Y.; Yang, Y. Enhancement of pearlite transformation by Warm Rolling in 1.0C-1.5Cr Steel. Mater. Sci. Tech. 2020, 36, 1431–1439. [Google Scholar] [CrossRef]
  31. Aranas, C., Jr.; Rodrigues, S.F.; Grewal, R.; Jonas, J.J. Ferrite Formation above the Ae3 Temperature during the Torsion Simulation of Strip Rolling. ISIJ Int. 2015, 55, 2426–2434. [Google Scholar] [CrossRef]
  32. Poliak, E.I.; Jonas, J.J. A one-parameter approach to determining the critical conditions for the initiation of dynamic recrystallization. Acta Mater. 1996, 44, 127–136. [Google Scholar] [CrossRef]
  33. Rodrigues, S.F.; Aranas Jr, C.; Wang, T.; Jonas, J.J. Dynamic Transformation of an X70 Steel under Plate Rolling Conditions. ISIJ Int. 2017, 57, 162–169. [Google Scholar] [CrossRef]
  34. Rodrigues, S.F.; Siciliano, F.; Junior, C.A.; Silva, E.S.; Reis, G.S.; Jonas, J.J. High-Temperature deformation behavior of high-Nb microalloyed steel during plate rolling simulation. Tecnol. Em Metal. Mater. E Mineração 2020, 17, 105–111. [Google Scholar] [CrossRef]
  35. Ghosh, C.; Aranas, C., Jr.; Jonas, J.J. Dynamic transformation of deformed austenite at temperatures above the Ae3. Prog. Mater. Sci. 2016, 82, 151–233. [Google Scholar] [CrossRef]
  36. Ghosh, C.; Basabe, V.V.; Jonas, J.J. Determination of the Critical Strains for the Initiation of Dynamic Transformation and Dynamic Recrystallization in Four Steels of Increasing Carbon Contents. Steel Res. Int. 2013, 84, 490–494. [Google Scholar] [CrossRef]
  37. Ghosh, S.; Kömi, J.; Mula, S. Flow stress characteristics and design of innovative 3-steps multiphase control thermomechanical processing to produce ultrafine grained bulk steels. Mater. Des. 2020, 186, 108297. [Google Scholar] [CrossRef]
  38. Li, X.; Li, H.; Deng, X.; Wang, Z. The formation mechanism of complex carbides in Nb-V microalloyed steel. Mater. Let. 2022, 311, 131544. [Google Scholar] [CrossRef]
  39. Baker, R.; Nutting, J. The tempering of a Cr-Mo-VW and a Mo-V steel. Iron Steel Inst. Spec. Rep. 1959, 64, 1–22. [Google Scholar]
  40. Morales, E.V.; Gallego, J.; Kestenbach, H.-J. On coherent carbonitride precipitation in commercial microalloyed steels. Philos. Mag. Lett. 2003, 83, 79–87. [Google Scholar] [CrossRef]
  41. Nöhrer, M.; Zamberger, S.; Primig, S.; Leitner, H. Atom probe study of vanadium interphase precipitates and randomly distributed vanadium precipitates in ferrite. Micron 2013, 54–55, 57–64. [Google Scholar] [CrossRef] [PubMed]
  42. Chen, M.-Y.; Gouné, M.; Verdier, M.; Bréchet, Y.; Yang, J.-R. Interphase precipitation in vanadium-alloyed steels: Strengthening contribution and morphological variability with austenite to ferrite transformation. Acta Mater. 2014, 64, 78–92. [Google Scholar] [CrossRef]
  43. Pereloma, E.; Cortie, D.; Singh, N.; Casillas, G.; Niessen, F. Uncovering the mechanism of dislocation interaction with nanoscale (<4 nm) interphase precipitates in microalloyed ferritic steels. Mater. Res. Lett. 2020, 8, 341–347. [Google Scholar]
  44. Chen, J.; Li, F.; Liu, Z.Y.; Tang, S.; Wang, G.D. Influence of Deformation Temperature on γ-α Phase Transformation in Nb–Ti Microalloyed Steel during Continuous Cooling. ISIJ Int. 2013, 53, 1070–1075. [Google Scholar] [CrossRef]
  45. Ghosh, C.; Basabe, V.V.; Jonas, J.J.; Kim, Y.M.; Jung, I.H.; Yue, S. The dynamic transformation of deformed austenite at temperatures above the Ae3. Acta Mater. 2013, 61, 2348–2362. [Google Scholar] [CrossRef]
  46. Kim, Y.W.; Kim, J.H.; Hong, S.G.; Lee, C.S. Effects of rolling temperature on the microstructure and mechanical properties of Ti–Mo microalloyed hot-rolled high strength steel. Mater. Sci. Eng. A 2014, 605, 244–252. [Google Scholar] [CrossRef]
  47. Hong, S.C.; Lim, S.H.; Lee, K.J.; Shin, D.H. Inhibition of Abnormal Grain Growth during Isothermal Holding after Heavy Deformation in Nb Steel. ISIJ Int. 2002, 42, 1461–1467. [Google Scholar] [CrossRef]
  48. Bodin, A.; Sietsma, J.; van der Zwaag, S. On the nature of the bimodal grain size distribution after intercritical deformation of a carbon–manganese steel. Mater. Charact. 2001, 47, 187–193. [Google Scholar] [CrossRef]
  49. Dutta, B.; Palmiere, E.; Sellars, C. Modelling the kinetics of strain induced precipitation in Nb microalloyed steels. Acta Mater. 2001, 49, 785–794. [Google Scholar] [CrossRef]
  50. Guo, B.; Fan, L.; Wang, Q.; Fu, Z.; Wang, Q.; Zhang, F. Effect of Finish Rolling Temperature on the Microstructure and Tensile Properties of Nb–Ti Microalloyed X90 Pipeline Steel. Metals 2016, 6, 323. [Google Scholar] [CrossRef]
  51. Kostryzhev, A.; Killmore, C.; Pereloma, E. Effect of Processing Parameters on Interphase Precipitation and Mechanical Properties in Novel CrVNb Microalloyed Steel. Metals 2021, 11, 107. [Google Scholar] [CrossRef]
  52. Karmakar, A.; Karani, A.; Patra, S.; Chakrabarti, D. Development of Bimodal Ferrite-Grain Structures in Low-Carbon Steel Using Rapid Intercritical Annealing. Met. Mater. Trans. A 2013, 44, 2041–2052. [Google Scholar] [CrossRef]
  53. Karmakar, A.; Sivaprasad, S.; Kundu, S.; Chakrabarti, D. Tensile Behavior of Ferrite-Carbide and Ferrite-Martensite Steels with Different Ferrite Grain Structures. Met. Mater. Trans. A 2014, 45, 1659–1664. [Google Scholar] [CrossRef]
Materials 18 03234 g001

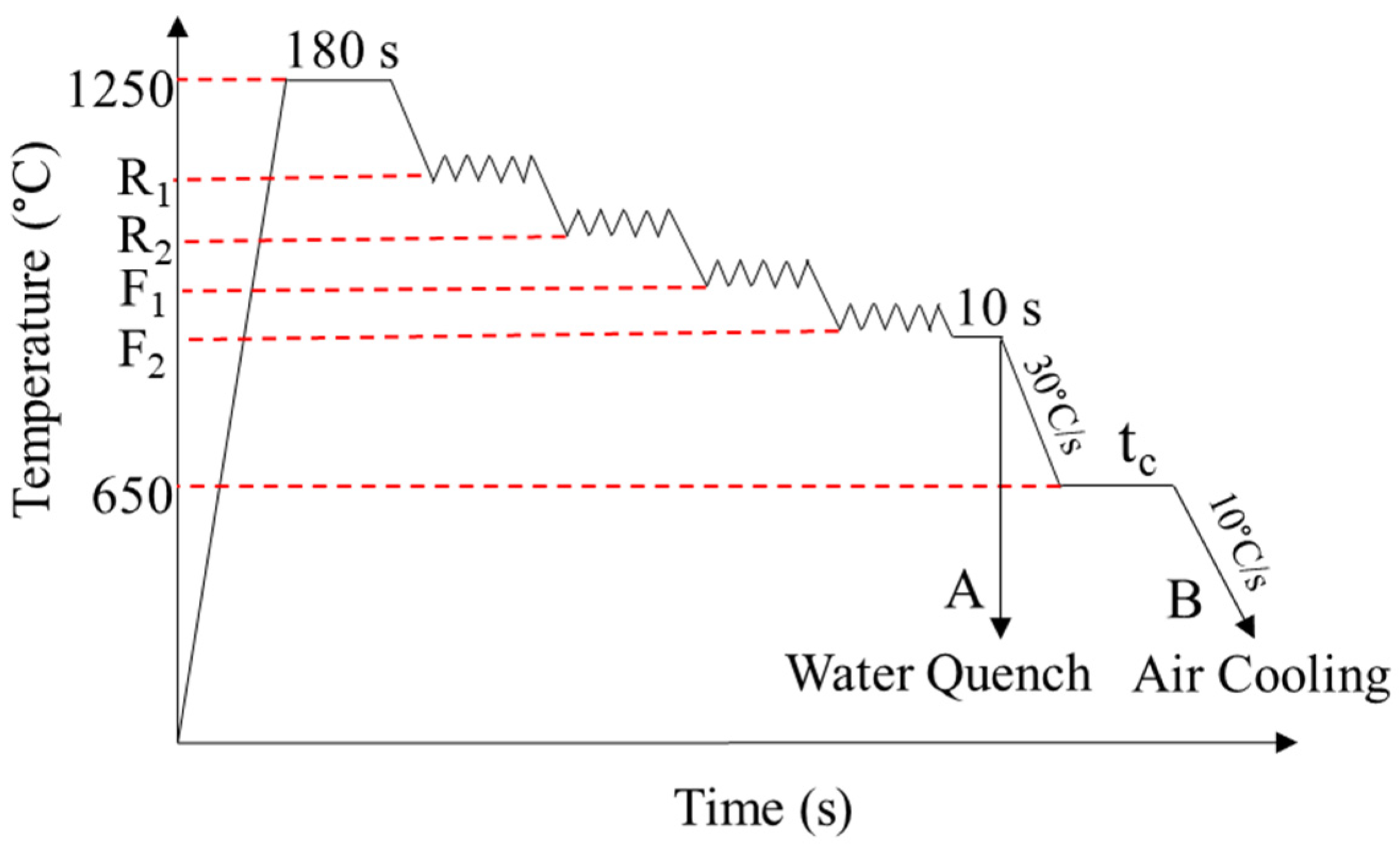

Figure 1. Schematic of TMP schedules of quenched and coiled samples after deformation at different temperatures (R and F represent roughing and finishing deformation temperatures, respectively, and tc is the coiling time).
Figure 1. Schematic of TMP schedules of quenched and coiled samples after deformation at different temperatures (R and F represent roughing and finishing deformation temperatures, respectively, and tc is the coiling time).
Materials 18 03234 g001
Materials 18 03234 g002
Figure 2. OM micrographs of samples after deformation, 10 s holding at the last deformation temperature, and water quenched with finishing deformation temperatures of (a) and (d) 1000–900, (b) 950–850 and (c) 900–780 °C. (a–c) show the samples etched by nital and (d) was etched by picric acid.
Figure 2. OM micrographs of samples after deformation, 10 s holding at the last deformation temperature, and water quenched with finishing deformation temperatures of (a) and (d) 1000–900, (b) 950–850 and (c) 900–780 °C. (a–c) show the samples etched by nital and (d) was etched by picric acid.
Materials 18 03234 g002
Materials 18 03234 g003
Figure 3. OM (a,c,e) and SEM (b,d,f) micrographs of samples with finishing deformation temperatures: (a,b) 1000–900, (c,d) 950–850 and (e,f) 900–780 °C, and after 60 min isothermal holding at 650 °C.
Figure 3. OM (a,c,e) and SEM (b,d,f) micrographs of samples with finishing deformation temperatures: (a,b) 1000–900, (c,d) 950–850 and (e,f) 900–780 °C, and after 60 min isothermal holding at 650 °C.
Materials 18 03234 g003
Materials 18 03234 g004

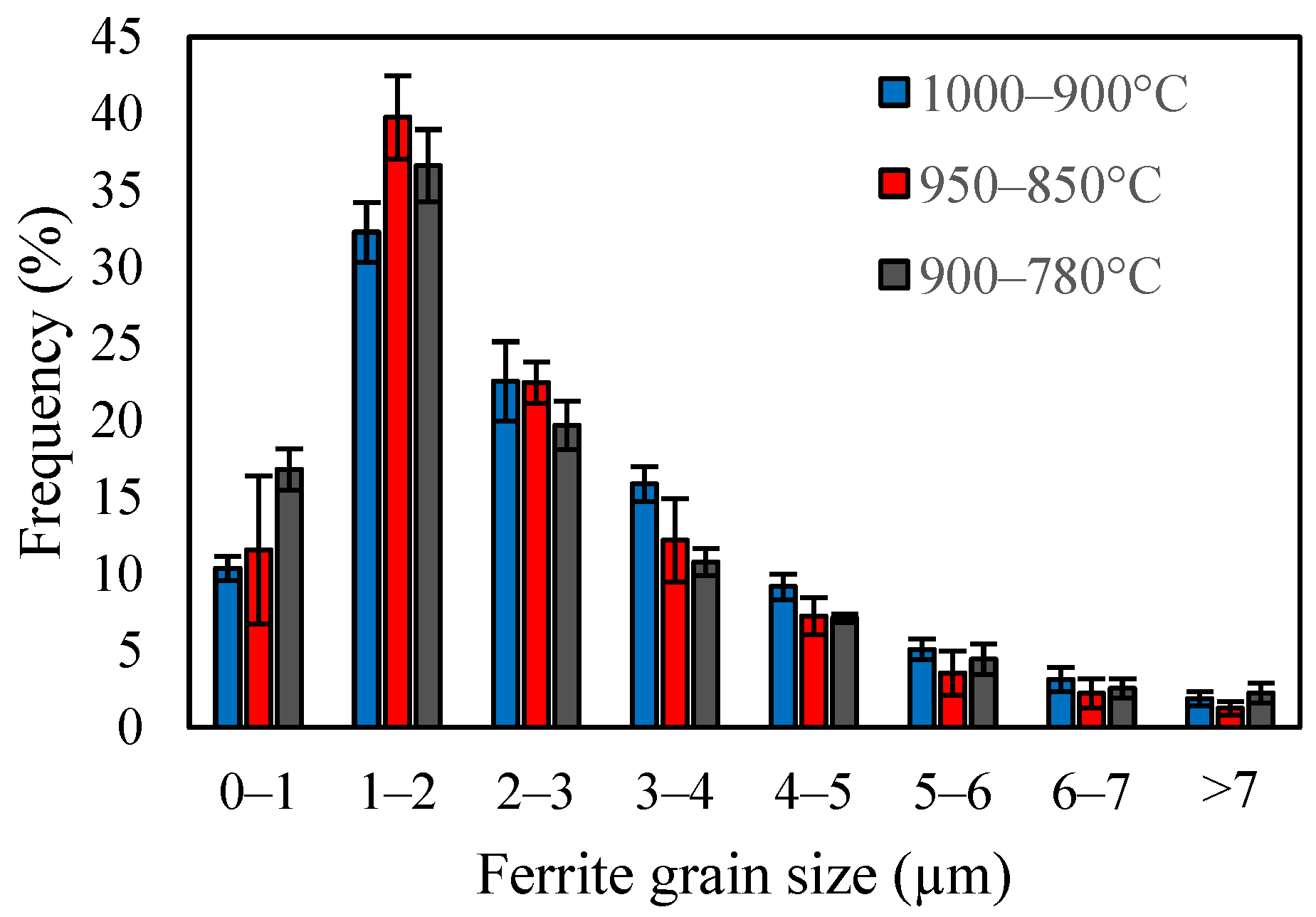

Figure 4. Ferrite grain size number distribution of samples with different finishing deformation temperatures.
Figure 4. Ferrite grain size number distribution of samples with different finishing deformation temperatures.
Materials 18 03234 g004
Materials 18 03234 g005

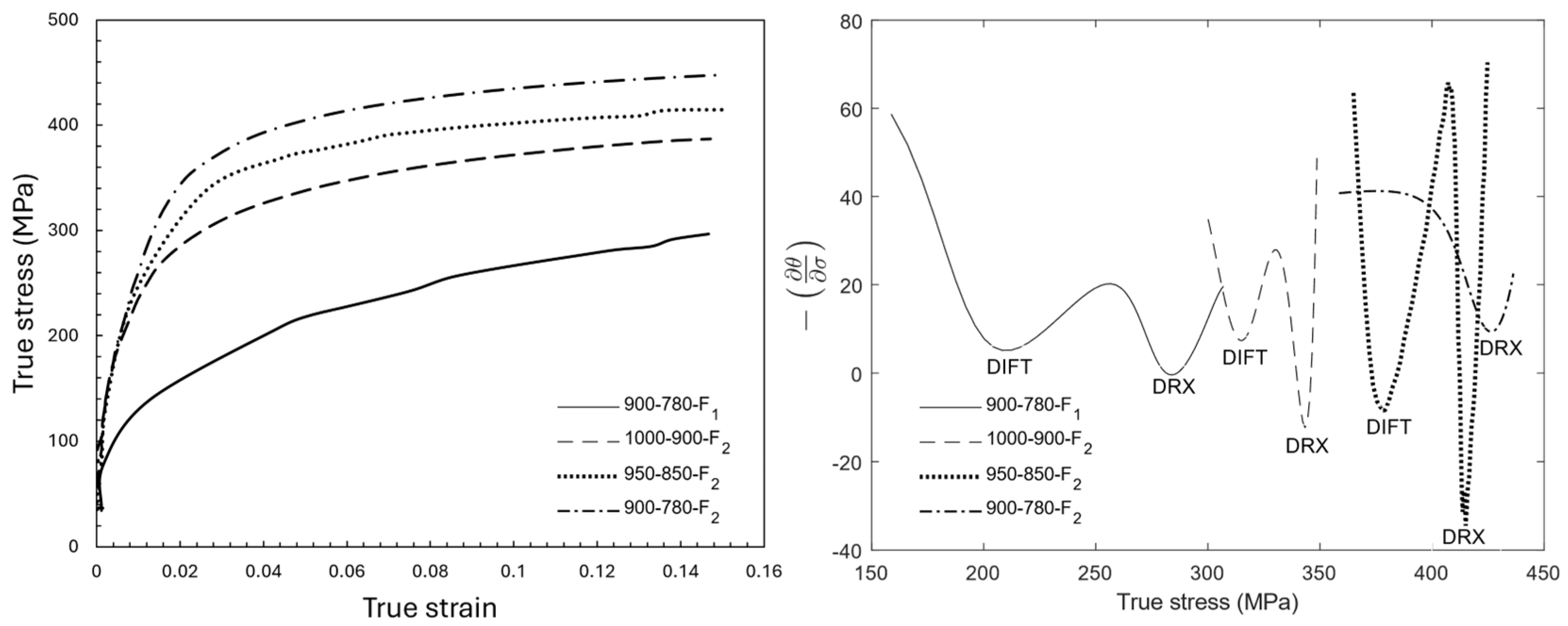

Figure 5. Plots of (left) true stress–strain curves and (right) − ( ∂ θ / ∂ σ ) for the samples with different finishing deformation temperatures. θ = ( ∂ σ / ∂ ϵ ) ϵ ˙ .
Figure 5. Plots of (left) true stress–strain curves and (right) − ( ∂ θ / ∂ σ ) for the samples with different finishing deformation temperatures. θ = ( ∂ σ / ∂ ϵ ) ϵ ˙ .
Materials 18 03234 g005
Materials 18 03234 g006
Figure 6. Backscattered electron (BSE) SEM image and EDS spectrum maps of a coarse inclusion in the sample with the finishing deformation temperatures of 1000–900 °C.
Figure 6. Backscattered electron (BSE) SEM image and EDS spectrum maps of a coarse inclusion in the sample with the finishing deformation temperatures of 1000–900 °C.
Materials 18 03234 g006
Materials 18 03234 g007

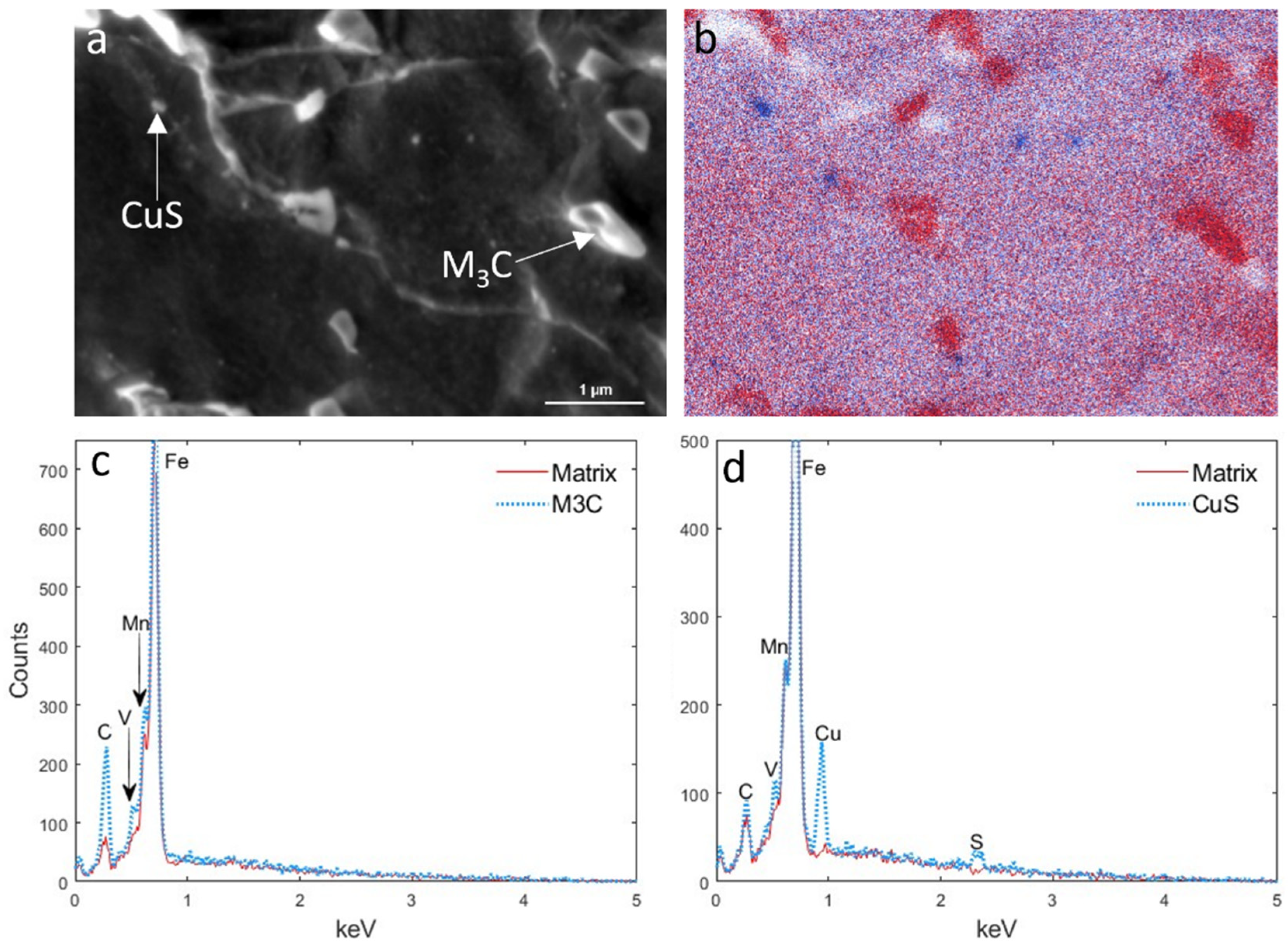

Figure 7. (a) SEM micrograph depicting coarse and medium-sized precipitates, (b) EDS maps of C (red) and Cu and S (blue) in the sample with deformation temperatures of 950–850 °C, and EDS spectra corresponding to the (c) iron carbide and (d) CuS precipitates shown in (a).
Figure 7. (a) SEM micrograph depicting coarse and medium-sized precipitates, (b) EDS maps of C (red) and Cu and S (blue) in the sample with deformation temperatures of 950–850 °C, and EDS spectra corresponding to the (c) iron carbide and (d) CuS precipitates shown in (a).
Materials 18 03234 g007
Materials 18 03234 g008

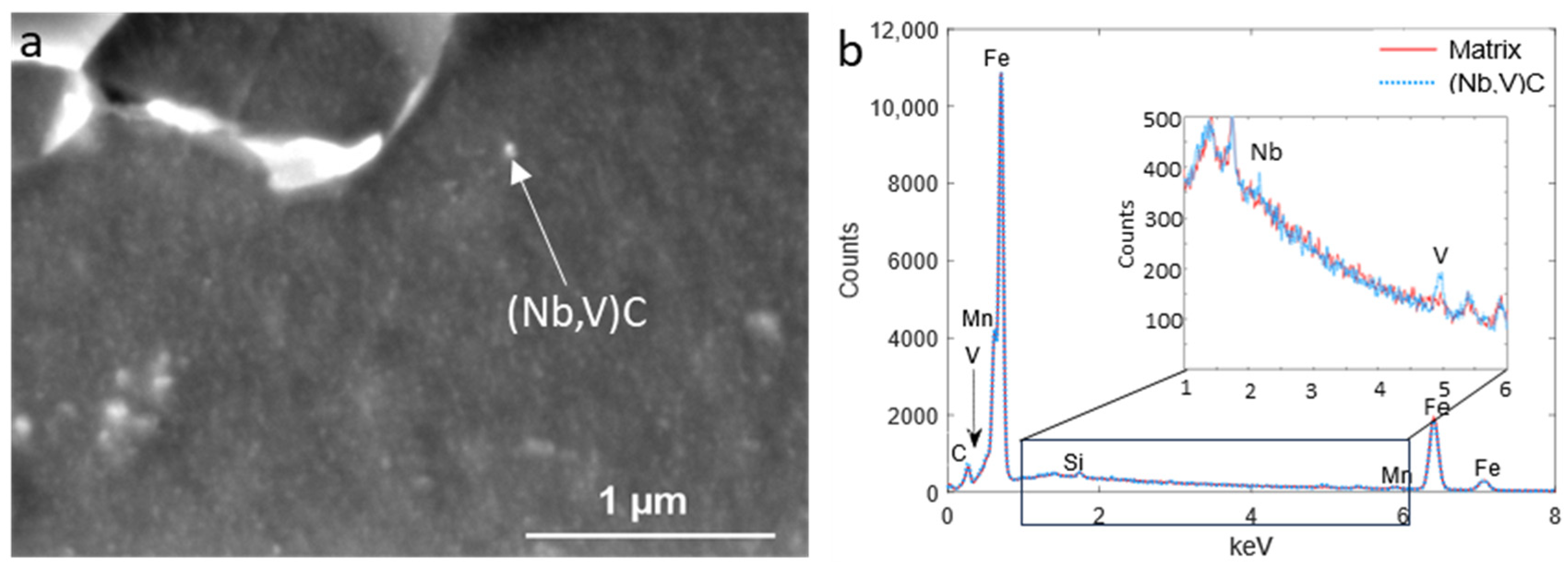

Figure 8. (a) SEM image showing a fine (V,Nb)C precipitate in the sample with finishing deformation temperatures of 950–850 °C and (b) corresponding EDS spectra of the pointed precipitate in (a) (the inset zooms in on the energy range of 1–6 keV, highlighting the Nb and V peaks).
Figure 8. (a) SEM image showing a fine (V,Nb)C precipitate in the sample with finishing deformation temperatures of 950–850 °C and (b) corresponding EDS spectra of the pointed precipitate in (a) (the inset zooms in on the energy range of 1–6 keV, highlighting the Nb and V peaks).
Materials 18 03234 g008
Materials 18 03234 g009

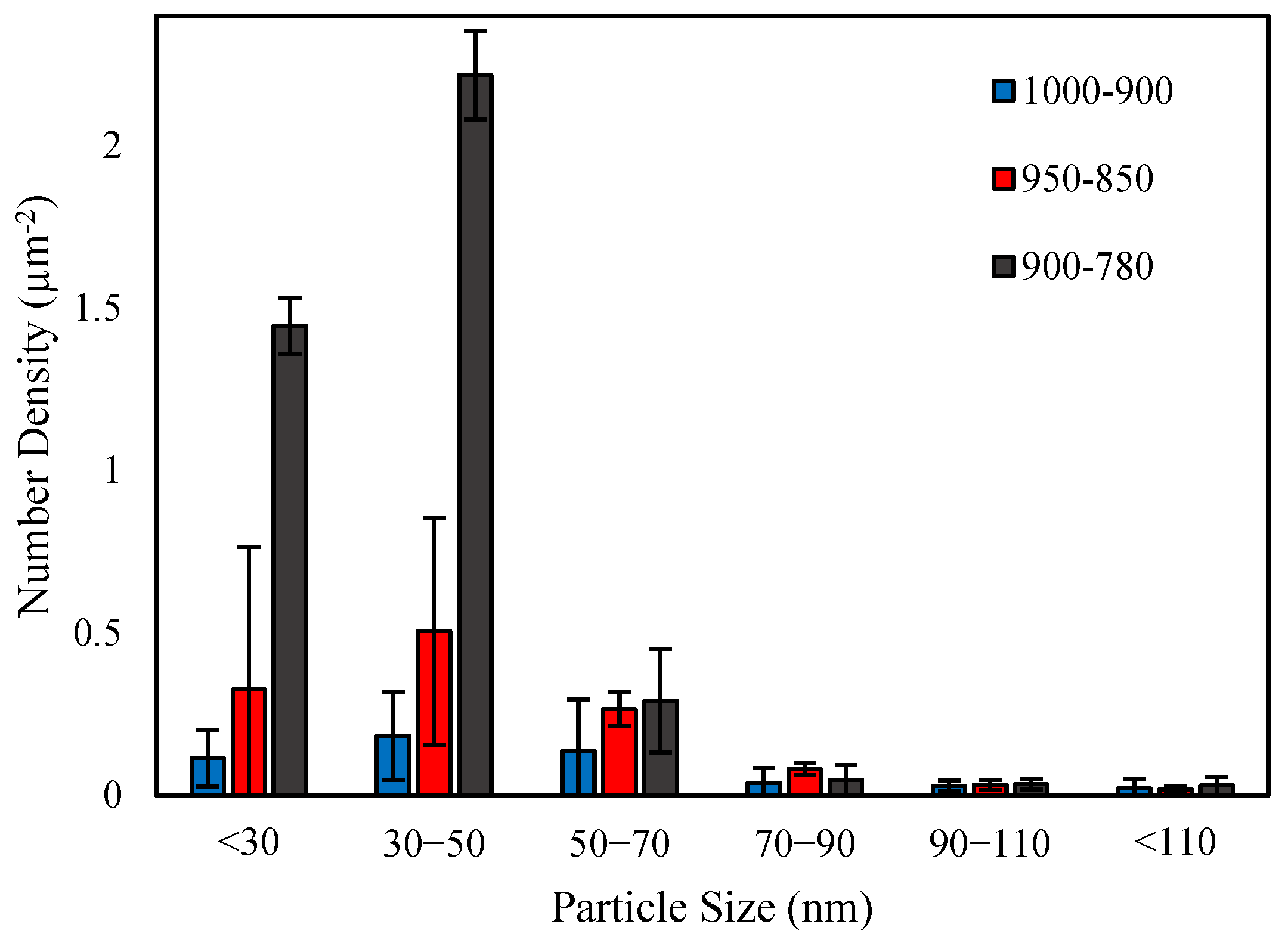

Figure 9. Size distribution of medium-sized precipitates of samples with different finishing deformation temperatures.
Figure 9. Size distribution of medium-sized precipitates of samples with different finishing deformation temperatures.
Materials 18 03234 g009
Materials 18 03234 g010
Figure 10. (a) Bright-field TEM micrograph representing the formation of a M3C particle along the ferrite grain boundary in the sample with the deformation temperatures of 900–780 °C and the (b) SADP from the circle in (a) (zone axis of cementite was 1 ¯ 11 ).
Figure 10. (a) Bright-field TEM micrograph representing the formation of a M3C particle along the ferrite grain boundary in the sample with the deformation temperatures of 900–780 °C and the (b) SADP from the circle in (a) (zone axis of cementite was 1 ¯ 11 ).
Materials 18 03234 g010
Materials 18 03234 g011
Figure 11. (a,c) Bright-field TEM micrographs and their corresponding diffraction patterns, (b,d) dark-field TEM micrographs illustrating the distribution of fine precipitates in steel with finishing deformation temperatures of (a,b) 1000–900 °C and (c,d) 900–780 °C. The zone axis was [011]α and the red circles represent the diffraction spots corresponding to the dark-field images.
Figure 11. (a,c) Bright-field TEM micrographs and their corresponding diffraction patterns, (b,d) dark-field TEM micrographs illustrating the distribution of fine precipitates in steel with finishing deformation temperatures of (a,b) 1000–900 °C and (c,d) 900–780 °C. The zone axis was [011]α and the red circles represent the diffraction spots corresponding to the dark-field images.
Materials 18 03234 g011
Materials 18 03234 g012
Figure 12. TEM micrographs obtained from the carbon replica samples with the deformation temperatures of (a) 1000–900 °C, (b) 950–850 °C and (c) 900–780 °C.
Figure 12. TEM micrographs obtained from the carbon replica samples with the deformation temperatures of (a) 1000–900 °C, (b) 950–850 °C and (c) 900–780 °C.
Materials 18 03234 g012
Materials 18 03234 g013
Figure 13. STEM HAADF micrographs illustrating fine (V,Cr,Nb)C precipitates after deformation, coiling and air cooling. The dashed white rectangles indicate the locations of the precipitates, and the red circles in the insets highlight characteristic diffraction spots corresponding to the (V,Cr,Nb)C phase. (a,c) 1000–900 °C and (b,d) 900–780 °C.
Figure 13. STEM HAADF micrographs illustrating fine (V,Cr,Nb)C precipitates after deformation, coiling and air cooling. The dashed white rectangles indicate the locations of the precipitates, and the red circles in the insets highlight characteristic diffraction spots corresponding to the (V,Cr,Nb)C phase. (a,c) 1000–900 °C and (b,d) 900–780 °C.
Materials 18 03234 g013
Materials 18 03234 g014
Figure 14. (a) STEM HAADF micrograph and EDS elemental maps (V and Cr) of precipitates shown in Figure 12c in the steel with a finishing deformation temperatures of 1000–900 °C; (b) linescan EDS corresponding to the white arrow in (a).
Figure 14. (a) STEM HAADF micrograph and EDS elemental maps (V and Cr) of precipitates shown in Figure 12c in the steel with a finishing deformation temperatures of 1000–900 °C; (b) linescan EDS corresponding to the white arrow in (a).
Materials 18 03234 g014
Materials 18 03234 g015

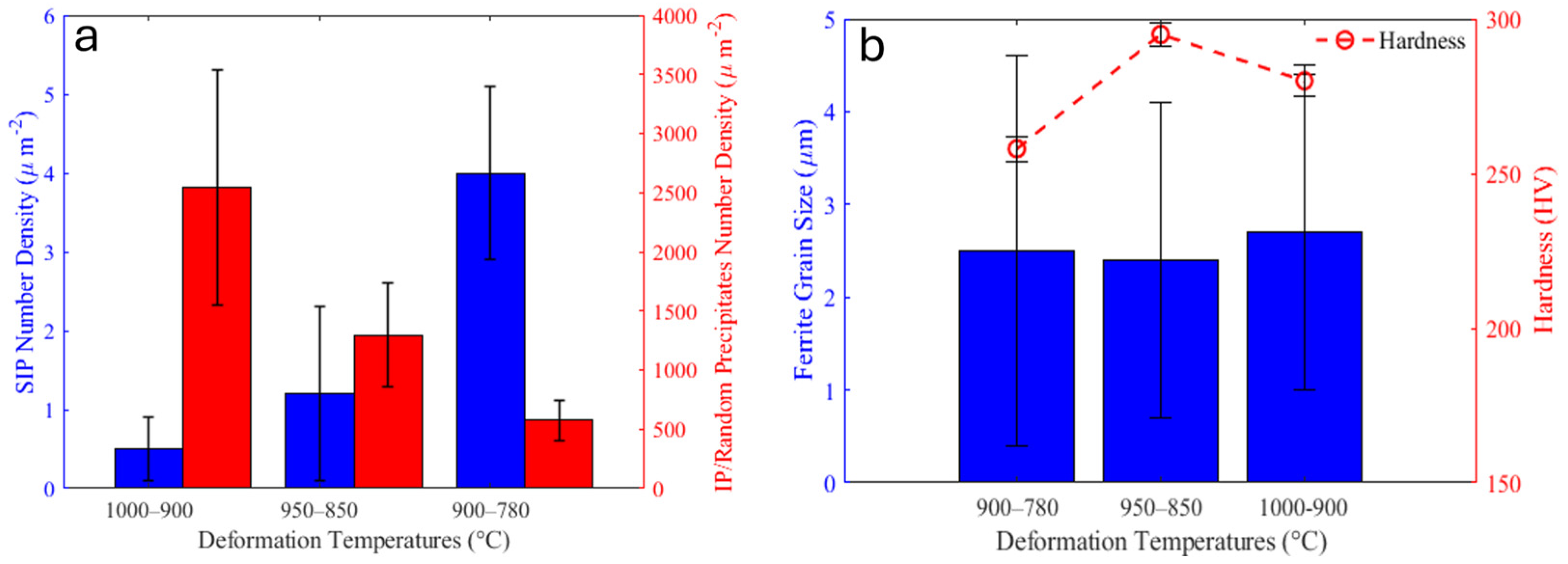

Figure 15. (a) Strain-induced and IPs/random precipitates number densities and (b) average ferrite grain size and hardness of samples with different finishing deformation temperatures (SIP and IP stand for strain-induced precipitate and interphase precipitate, respectively).
Figure 15. (a) Strain-induced and IPs/random precipitates number densities and (b) average ferrite grain size and hardness of samples with different finishing deformation temperatures (SIP and IP stand for strain-induced precipitate and interphase precipitate, respectively).
Materials 18 03234 g015
Table 1. The characteristics of samples with different finishing deformation temperatures.
Table 1. The characteristics of samples with different finishing deformation temperatures.
Finishing Deformation Temperatures (°C) (F1–F2)1000–900950–850900–780
Ferrite average grain size (µm)2.7 ± 1.72.4 ± 1.72.5 ± 2.1
Area percentage of the second constituents (%)12.7 ± 0.413.1 ± 0.69.2 ± 0.4
Pearlite interlamellar spacing (nm)179 ± 31191 ± 29110 ± 11
Pearlite colonies average size (µm)4.3 ± 2.84.1 ± 2.32.4 ± 1.7
Strain-induced precipitates average size (nm)58 ± 3057 ± 2938 ± 15
Strain-induced precipitates number density (µm−2)0.5 ± 0.41.2 ± 1.14.0 ± 1.1
IPs/random precipitates average size (nm)2.5 ± 0.83.9 ± 0.34.9 ± 0.5
IPs/random precipitates number density (µm−2)2546 ± 9521298 ± 444576 ± 169
Hardness (HV)279.9 ± 5.2294.7 ± 3.8257.7 ± 4.1
Table 2. Critical strains ( ε c ) and stresses ( σ c ) for the activation of the DIFT and DRX related to the curves shown in Figure 5.
Table 2. Critical strains ( ε c ) and stresses ( σ c ) for the activation of the DIFT and DRX related to the curves shown in Figure 5.
Deformation StepDIFTDRX
ε c σ c (MPa) ε c σ c (MPa)
1000-900-F20.093150.15343
950-850-F20.053790.11408
900-780-F10.072080.14284
900-780-F2--0.08425
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Baqeri, G.A.; Killmore, C.; Smillie, L.; Pereloma, E. The Effect of the Finishing Deformation Temperature on the Microstructure of CrVNb Micro-Alloyed Steel. Materials 2025, 18, 3234. https://doi.org/10.3390/ma18143234

AMA Style

Baqeri GA, Killmore C, Smillie L, Pereloma E. The Effect of the Finishing Deformation Temperature on the Microstructure of CrVNb Micro-Alloyed Steel. Materials. 2025; 18(14):3234. https://doi.org/10.3390/ma18143234

Chicago/Turabian Style

Baqeri, Gholam Ali, Chris Killmore, Lachlan Smillie, and Elena Pereloma. 2025. "The Effect of the Finishing Deformation Temperature on the Microstructure of CrVNb Micro-Alloyed Steel" Materials 18, no. 14: 3234. https://doi.org/10.3390/ma18143234

APA Style

Baqeri, G. A., Killmore, C., Smillie, L., & Pereloma, E. (2025). The Effect of the Finishing Deformation Temperature on the Microstructure of CrVNb Micro-Alloyed Steel. Materials, 18(14), 3234. https://doi.org/10.3390/ma18143234

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
