Sustainable Concrete Using Ceramic Tile Waste as a Substitute for Brick Aggregate
Abstract
1. Introduction
2. Materials and Methods
2.1. Materials
- Fine aggregate: The sand that served as the fine aggregate in cement was taken from Jiangsu province.
- Coarse aggregate: Brick chips (brick gravel and brick ballast) are a type of coarse aggregate made up of bricks. Typically, 19 mm or 20 mm degraded brick chips are utilized as coarse material for this operation. Brick chips were partially replaced in this work by porcelain floor tiles. Ceramic tile waste (CTW) was gathered in Shanghai and was carefully divided into uniform aggregate sizes. They primarily consisted of a mixture of natural raw materials, including approximately 55–60% silica (SiO2), 25–30% alumina (Al2O3), along with smaller amounts of feldspar and other mineral oxides. This composition is typical for porcelain ceramics and is achieved through a high-temperature firing process (1200–1400 °C), which produces a dense and vitrified material. The high silica and alumina content contributes to the tiles’ low porosity and high mechanical strength, directly influencing the concrete’s overall durability and performance when these waste tiles are used as partial aggregate replacements. Additional components for concrete, like water, additives, aggregate, and cement, were gathered or handled locally. The parameters of the aggregates employed in this study are displayed in Table 1.
Property | Fine Aggregate (Sand) | Coarse Aggregate (Brick Chips) | Ceramic Tile Aggregate |
---|---|---|---|
Fineness Modulus | 3.15 | 6.15 | 6.90 |
Maximum Aggregate Size (mm) | 20 | 20 | |
Unit Weight (kg/m3) | 1700 | 1125 | 1390 |
Voids (%) | 35.10 | 55.02 | 41.10 |
Specific gravity | 2.60 | 1.75 | 2.30 |
Water absorption (%) | 1.00 | 16.0 | 1.20 |
2.2. Tests
3. Results and Discussion
3.1. Workability

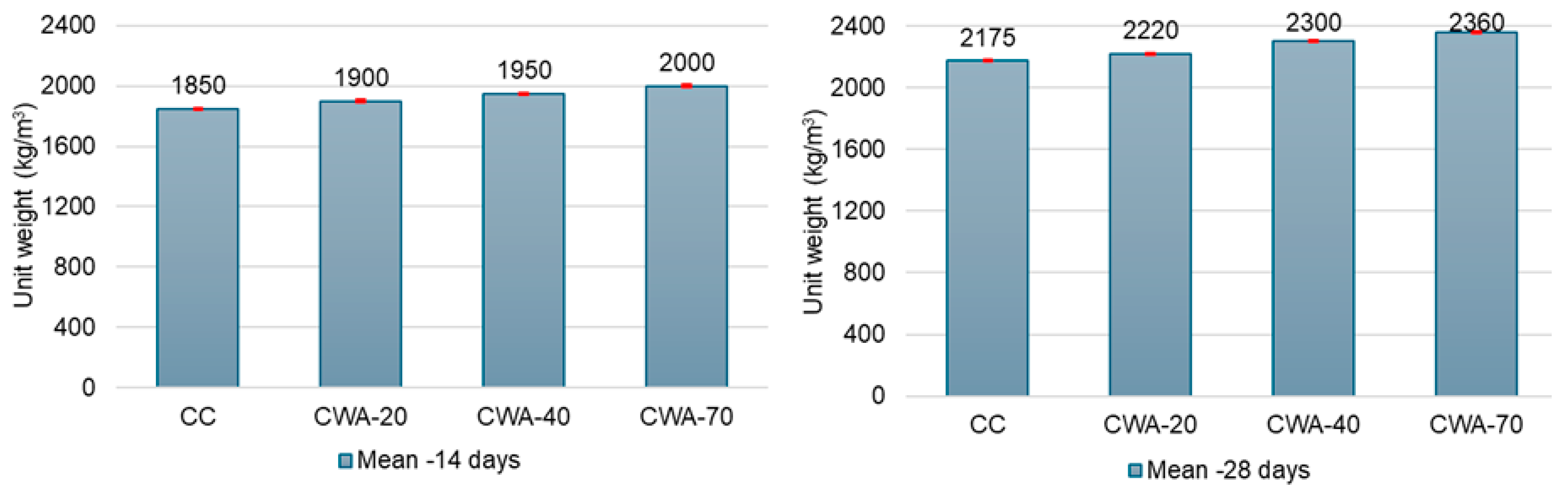

3.2. Unit Weight Test Results

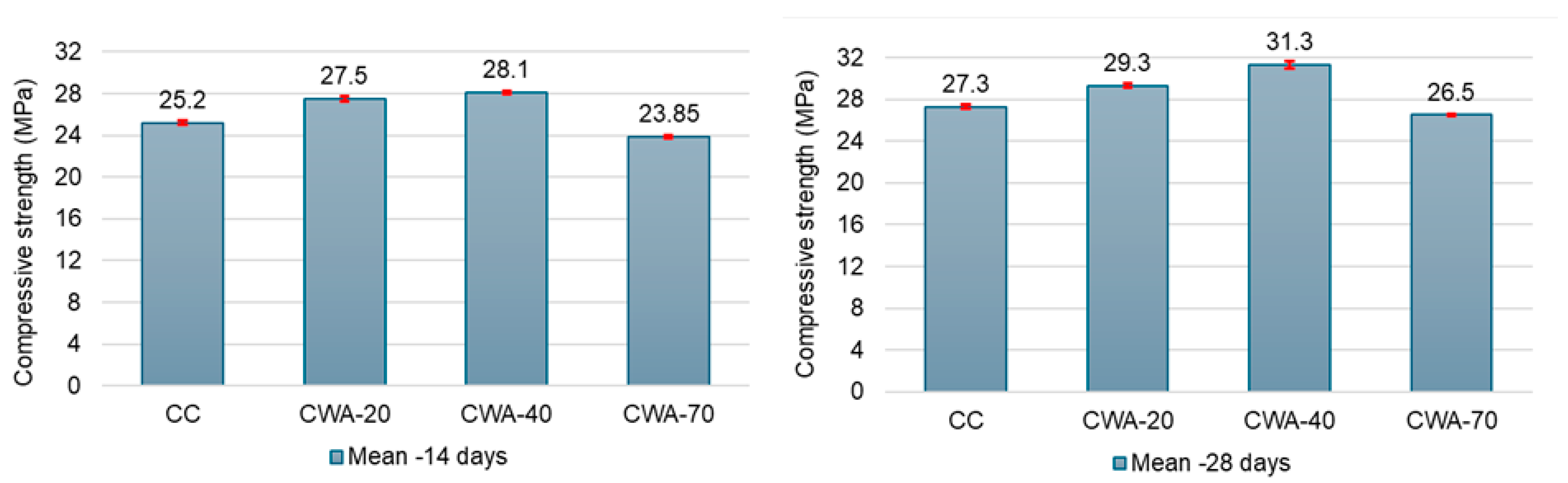

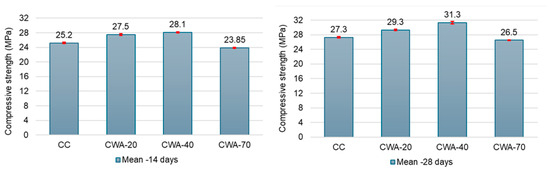

3.3. Compressive Strenght Test Results

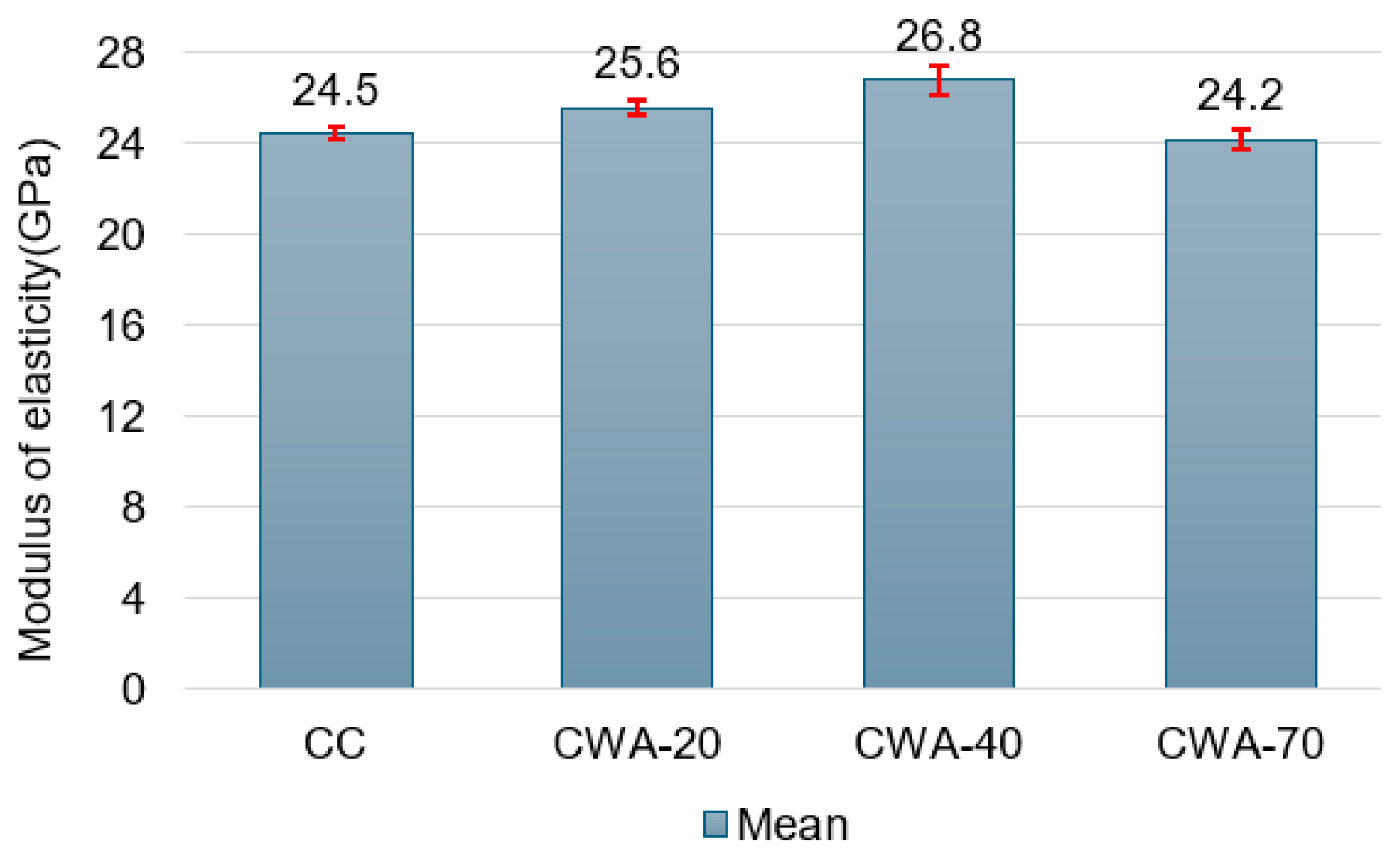

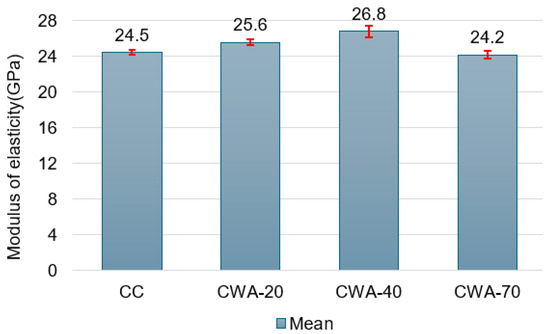

3.4. Modulus of Elasticity Test Results

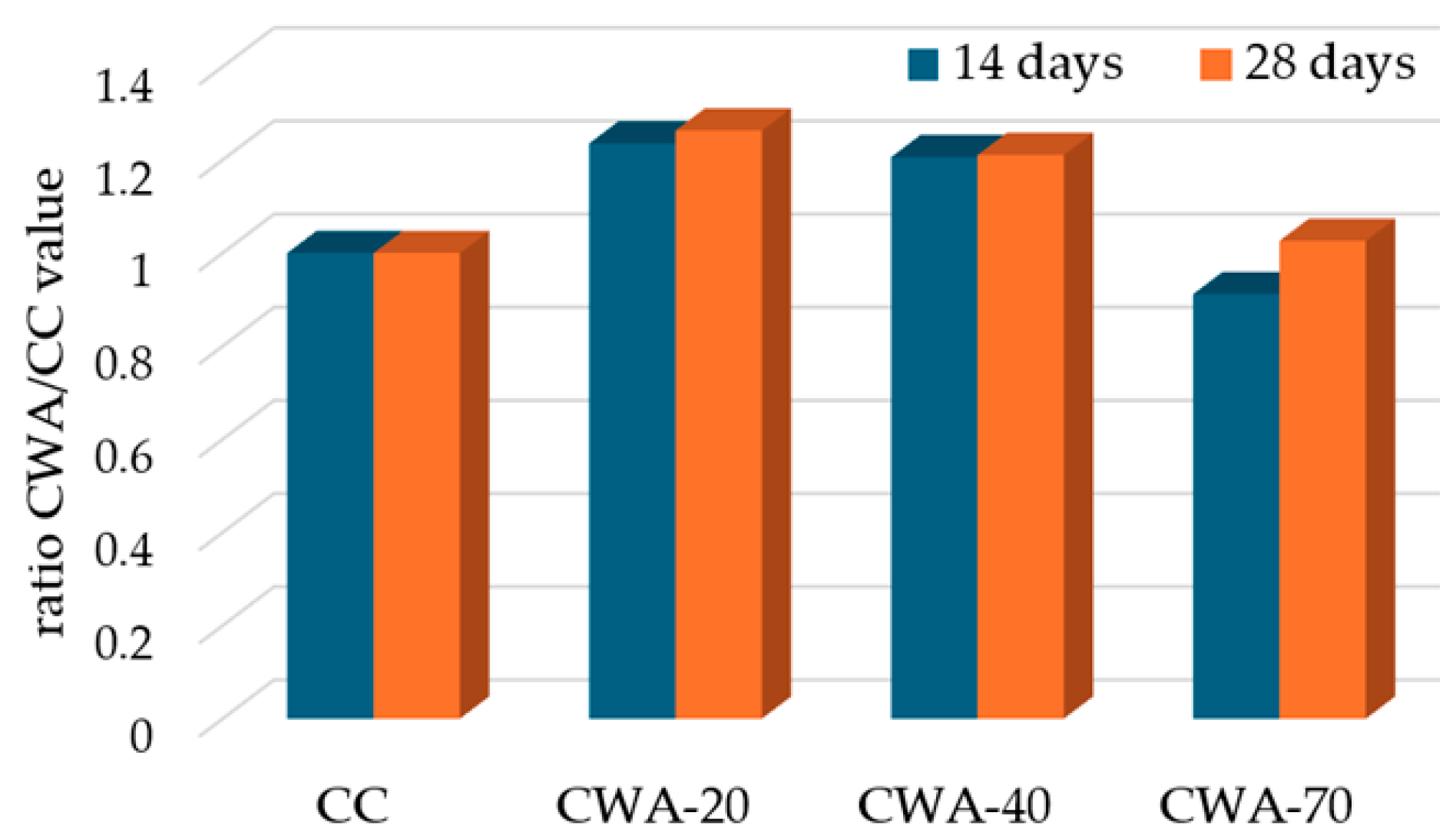

3.5. Split Tensile Strength Test Results

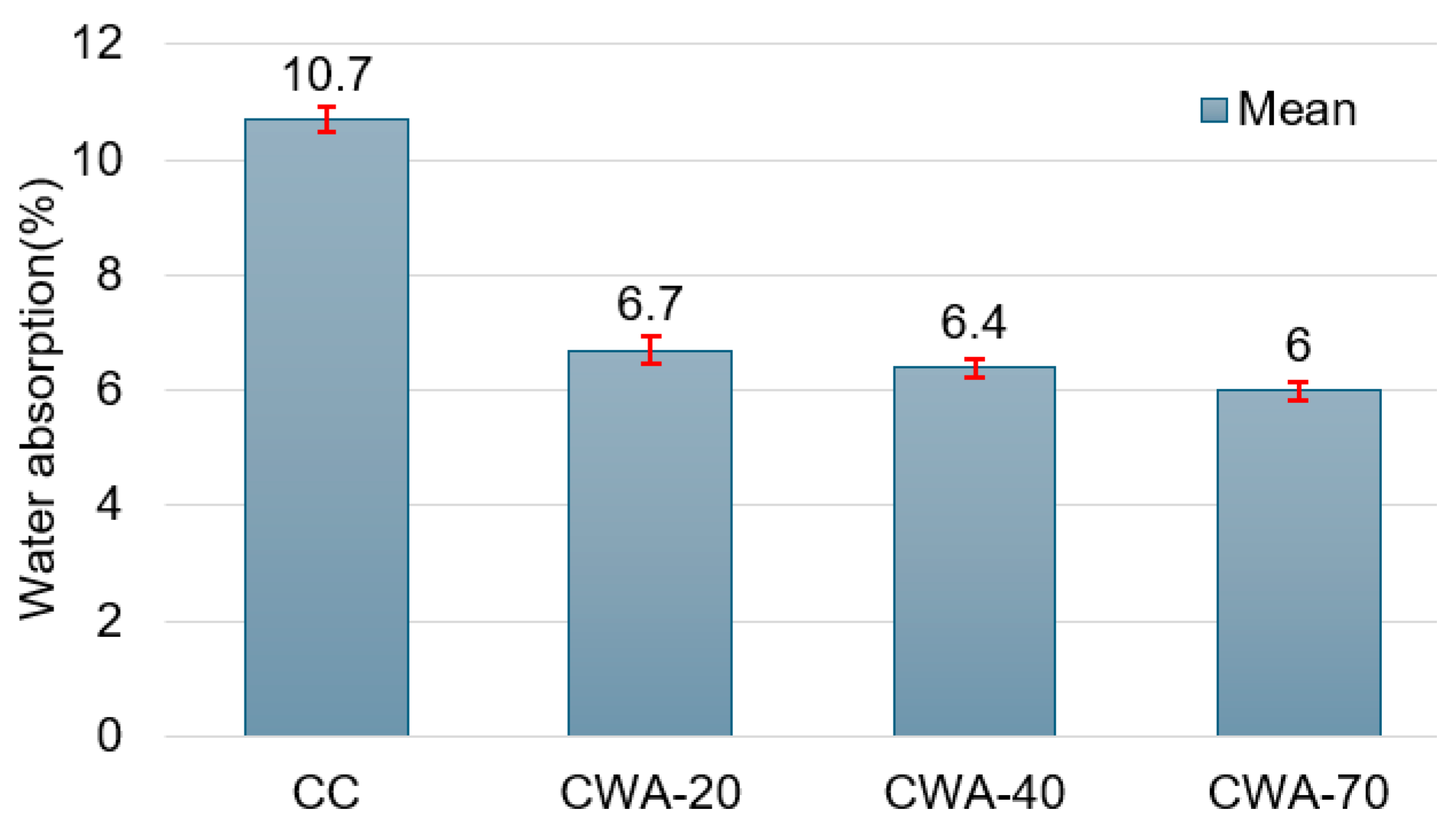

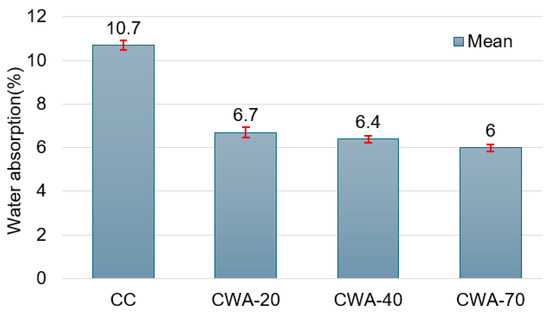

3.6. Water Absorption Test Results
3.7. Statistical Analysis of the Results
4. Conclusions
- The slump values for concrete made with CWA ranged from 80 to 110 mm, indicating that a higher ceramic waste content enhances the workability of the mix. Compared to traditional brick aggregate concrete, CWA concrete demonstrated higher unit weight due to its greater specific gravity and reduced porosity.
- Among the different mixes, CWA-40 achieved optimal compressive strength after 14 days of curing, and a 15.66% improvement over conventional brick aggregate concrete, after 28 days.
- The highest modulus of elasticity was observed at CWA-40 after 28 days, representing an 8.10% increase over traditional concrete, CC.
- The split tensile strength peaked at 4.20 MPa and 4.80 MPa with CWA-20 after 14 and 28 days of curing, respectively.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
Abbreviations
CTW | ceramic tile waste |
CS | sanitary wares |
FTC | floor tile concrete |
HSC | high-strength concrete |
LSC | limestone concrete |
RCA | recycled concrete aggregate |
RHA | rice hush concrete |
UHPC | ultra-high-performance concrete |
WTA | wall tile aggregate |
References
- Aïtcin, P.-C. Cements of yesterday and today: Concrete of tomorrow. Cem. Concr. Res. 2000, 30, 1349–1359. [Google Scholar] [CrossRef]
- Bărbulescu, A. Modeling Greenhouse Gas Emissions from Agriculture. Atmosphere 2025, 16, 295. [Google Scholar] [CrossRef]
- Gagg, C.R. Cement and concrete as an engineering material: An historical appraisal and case study analysis. Eng. Fail. Anal. 2014, 40, 114–140. [Google Scholar] [CrossRef]
- Hosen, K.; Al Maruf, M.A.; Howlader, R.; Chakma, K.; Mia, M.R. Concrete Strength and Aggregate Properties: In-Depth Analysis of Four Sources. Civ. Eng. J. 2024, 10, 1254–1264. [Google Scholar] [CrossRef]
- Gallagher, L.; Peduzzi, P. Sand and Sustainability: Finding New Solutions for Environmental Governance of Global Sand Resources; GRID-Geneva, United Nations Environment Programme: Geneva, Switzerland, 2019; Available online: http://www.unepgrid.ch/ (accessed on 21 May 2025).
- Miller, S.A.; Moore, F.C. Climate and health damages from global concrete production. Nat. Clim. Chang. 2020, 10, 439–443. [Google Scholar] [CrossRef]
- Wijayasundara, M.; Mendis, P.; Crawford, R.H. Integrated assessment of the use of recycled concrete aggregate replacing natural aggregate in structural concrete. J. Clean. Prod. 2018, 174, 591–604. [Google Scholar] [CrossRef]
- Mia, M.R.; Hosen, K.; Chakma, K. Compressive and Tensile Strength Increment of Concrete Using Recycled Aggregates and Rice Husk Ash. Comput. Eng. Phys. Model. 2024, 7, 76–87. [Google Scholar] [CrossRef]
- Braga, A.M.; Silvestre, J.D.; de Brito, J. Compared environmental and economic impact from cradle to gate of concrete with natural and recycled coarse aggregates. J. Clean. Prod. 2017, 162, 529–543. [Google Scholar] [CrossRef]
- Watari, T.; Cao, Z.; Serrenho, A.C.; Cullen, J. Growing role of concrete in sand and climate crises. iScience 2023, 26, 106782. [Google Scholar] [CrossRef]
- De Brito, J.; Silva, R. Current status on the use of recycled aggregates in concrete: Where do we go from here? RILEM Tech. Lett. 2016, 1, 1–5. [Google Scholar] [CrossRef]
- Baraldi, L. World Production and Consumption of Ceramic Tiles. Ceram. World 2021, 41, 26–40. [Google Scholar]
- Roig-Flores, M.; Reig, L.; Albero, V.; Hernández-Figueirido, D.; Melchor-Eixea, A.; Pitarch, Á.M.; Piquer, A. Utilisation of Ceramic Stoneware Tile Waste as Recycled Aggregate in Concrete. Buildings 2023, 13, 1968. [Google Scholar] [CrossRef]
- Soto-Paz, J.; Arroyo, O.; Torres-Guevara, L.E.; Parra-Orobio, B.A.; Casallas-Ojeda, M. The circular economy in the construction and demolition waste management: A comparative analysis in emerging and developed countries. J. Build. Eng. 2023, 78, 107724. [Google Scholar] [CrossRef]
- Fu, S.; Lee, J. Recycling of ceramic tile waste into construction materials: A review. Dev. Built Environ. 2024, 18, 100431. [Google Scholar] [CrossRef]
- Ali, M.S.; Hanim, M.A.A.; Tahir, S.M.; Jaafar, C.; Norkhairunnisa, M.; Matori, K.A. Preparation and characterization of porous alumina ceramics using different pore agents. J. Ceram. Soc. Jpn. 2017, 125, 402–412. [Google Scholar] [CrossRef]
- Magbool, H.M. Utilisation of ceramic waste aggregate and its effect on Eco-friendly concrete: A review. J. Build. Eng. 2022, 47, 103815. [Google Scholar] [CrossRef]
- Li, Q.; Liu, P.; Wang, M.; Xia, H. Effects of elevated temperature on the mechanical properties of concrete with an aggregate of waste porcelain tile. J. Build. Eng. 2023, 64, 105585. [Google Scholar] [CrossRef]
- Penteado, C.S.G.; de Carvalho, E.V.; Lintz, R.C.C. Reusing ceramic tile polishing waste in paving block manufacturing. J. Clean. Prod. 2016, 112, 514–520. [Google Scholar] [CrossRef]
- Hossain, S.S.; Roy, P. Sustainable ceramics derived from solid wastes: A review. J. Asian Ceram. Soc. 2020, 8, 984–1009. [Google Scholar] [CrossRef]
- Poon, C.-S.; Chan, D. The use of recycled aggregate in concrete in Hong Kong. Resour. Conserv. Recycl. 2007, 50, 293–305. [Google Scholar] [CrossRef]
- Tanash, A.O.; Muthusamy, K.; Mokhtar, A.; Budiea, A.; Fauzi, M.A.; Jokhio, G.; Jose, R. A review on the utilization of ceramic tile waste as cement and aggregates replacement in cement based composite and a bibliometric assessment. Clean. Eng. Technol. 2023, 17, 100699. [Google Scholar] [CrossRef]
- Elçi, H. Utilisation of crushed floor and wall tile wastes as aggregate in concrete production. J. Clean. Prod. 2016, 112, 742–752. [Google Scholar] [CrossRef]
- Medeiros, A.G.; Gurgel, M.T.; da Silva, W.G.; de Oliveira, M.P.; Ferreira, R.L.; de Lima, F.J. Evaluation of the mechanical and durability properties of eco-efficient concretes produced with porcelain polishing and scheelite wastes. Constr. Build. Mater. 2021, 296, 123719. [Google Scholar] [CrossRef]
- Koushkbaghi, M.; Kazemi, M.J.; Mosavi, H.; Mohseni, E. Acid resistance and durability properties of steel fiber-reinforced concrete incorporating rice husk ash and recycled aggregate. Constr. Build. Mater. 2019, 202, 266–275. [Google Scholar] [CrossRef]
- Keshavarz, Z.; Mostofinejad, D. Porcelain and red ceramic wastes used as replacements for coarse aggregate in concrete. Constr. Build. Mater. 2019, 195, 218–230. [Google Scholar] [CrossRef]
- Juan-Valdés, A.; Rodríguez-Robles, D.; García-González, J.; Sánchez de Rojas Gómez, M.I.; Guerra-Romero, M.I.; De Belie, N.; Morán-del Pozo, J.M. Mechanical and microstructural properties of recycled concretes mixed with ceramic recycled cement and secondary recycled aggregates. A viable option for future concrete. Constr. Build. Mater. 2021, 270, 121455. [Google Scholar] [CrossRef]
- Mousavi, S.Y.; Tavakkoli, A.; Jahanshahi, M.; Dankoub, A. Performance of High-strength Concrete Made with Recycled Ceramic Aggregates (Research Note). Int. J. Eng. 2020, 33, 1085–1093. [Google Scholar] [CrossRef]
- Paul, S.C.; Faruky, S.A.U.; Babafemi, A.J.; Miah, M.J. Eco-friendly concrete with waste ceramic tile as coarse aggregate: Mechanical strength, durability, and microstructural properties. Asian J. Civ. Eng. 2023, 24, 3363–3373. [Google Scholar] [CrossRef]
- Awoyera, P.O.; Ndambuki, J.M.; Akinmusuru, J.O.; Omole, D.O. Characterization of ceramic waste aggregate concrete. HBRC J. 2018, 14, 282–287. [Google Scholar] [CrossRef]
- GB 50010-2010; Code for Design of Concrete Structures. Ministry of Housing and Urban-Rural Development of the People’s Republic of China: Beijing, China, 2015. Available online: https://www.codeofchina.com/standard/GB50010-2010(2015).html (accessed on 10 April 2025).
- GB 50086; Technical Specification for Geotechnical Anchor Bolt and Shotcrete Support Engineering. Ministry of Housing and Urban-Rural Development of the People’s Republic of China: Beijing, China, 2015. Available online: https://www.chinesestandard.net/PDF/English.aspx/GB50086-2015 (accessed on 10 April 2025).
- GB/T 14684-2022; Sand for Construction. State Administration for Market Regulation, Standardization Administration of China: Beijing, China, 2022. Available online: https://www.chinesestandard.net/PDF.aspx/GBT14684-2022 (accessed on 10 April 2025).
- GB/T 3186-2006; Paints, Varnishes and Raw Materials for Paints and Varnishes. Sampling. China Standards Press: Beijing, China, 2006. Available online: https://www.chinesestandard.net/PDF.aspx/GBT3186-2006 (accessed on 10 April 2025).
- Yeh, I.-C. Modeling slump flow of concrete using second-order regressions and artificial neural networks. Cement Concr. Compos. 2007, 29, 474–480. [Google Scholar] [CrossRef]
- ASTM C143; Slump Test of Hydraulic Cement Concrete. ASTM Compass: West Conshohocken, PA, USA, 2003. Available online: https://www.sicerts.com/aci/concrete-slump-test (accessed on 12 March 2025).
- ASTM C39/C39M-18; Standard Test Method for Compressive Strength of Cylindrical Concrete Specimens. ASTM International: West Conshohocken, PA, USA, 2018; Volume 192.
- ASTM C496-96; Standard Test Method for Splitting Tensile Strength of Cylindrical Concrete Specimens. ASTM International: West Conshohocken, PA, USA, 2017. Available online: https://standards.iteh.ai/catalog/standards/astm/cf33379b-b2e0-413a-9b31-d91e84da3b26/astm-c496-96?srsltid=AfmBOooPUMU4Y1GPqDLW4dAXqyXOMywOpt6SbRWzGswcQDQnqZx9q_Io (accessed on 31 May 2025).
- Muntohar, A. Effect of specimen size on the tensile strength behavior of the plastic waste fiber reinforced soil–lime–rice husk ash mixtures. Civ. Eng. Dim. 2011, 13, 82–89. [Google Scholar] [CrossRef]
- Ambrose, E.E.; Ogirigbo, O.R.; Ekop, I.E.; Attah, I.C. Compressive Strength, Workability, and Durability Performance of Concrete Incorporating Waste Ceramic Tile as Fine Aggregate. Int. J. Pavement Res. Technol. 2024, 1–12. [Google Scholar] [CrossRef]
- Cazacu, C.E.; Dumitriu, C.Ș.; Bărbulescu, A. Concrete CFRP-Reinforced Beam Performances, Tests and Simulations. Sustainability 2024, 16, 2614. [Google Scholar] [CrossRef]
- Dumitriu, C.Ș. Solidworks simulation approach for concrete pillars consolidation with CFRP wraps. Rom. J. Phys. 2024, 69, 908. [Google Scholar]
- Hematibahar, M.; Kharun, M.; Vatin, N.I. Tensile strength prediction method through compressive concrete cube test. Stroit. Unikal’nyh Zdanij I Sooruz. 2024, 2, 1–12. [Google Scholar]
- Zhuang, J.; Chen, J.; Cai, X.; Qiu, H. Experiment research of concrete splitting tensile strength based on age and curing temperature. IOP Conf. Ser. Earth Environ. Sci. 2019, 267, 052056. [Google Scholar] [CrossRef]
- De Brito, J.; Pereira, A.S.; Correia, J.R. Mechanical behaviour of non-structural concrete made with recycled ceramic aggregates. Cem. Concr. Compos. 2005, 27, 429–433. [Google Scholar] [CrossRef]
Mix | Ceramic Tiles Replacement (%) | W/C Ratio | Cement (kg/m3) | Water (kg/m3) | Fine Aggregate (Brick Chips) (kg/m3) | Coarse Aggregate (Brick Chips) (kg/m3) | Ceramic Tiles Aggregate (kg/m3) |
---|---|---|---|---|---|---|---|
CC | 0 | 0.50 | 403 | 200 | 806 | 1612 | 0 |
CWA-20 | 20 | 0.50 | 403 | 200 | 806 | 1289.6 | 322.4 |
CWA-40 | 40 | 0.50 | 403 | 200 | 806 | 475.6 | 644.8 |
CWA-70 | 70 | 0.50 | 403 | 200 | 806 | 1128.4 | 483.6 |
Test | 14 Days | 28 Days |
---|---|---|
Unit Weight | 8.28 | 3.12 |
Compressive Strength | 3.99 | 1.93 |
Modulus of Elasticity | - | 5.76 |
Split Tensile Strength | 1.91 | 1.96 |
Water Absorption | - | 2.58 |
